Sitecom MD-273, MD-272 User Manual

Download
MD-272/MD-273
TV Media Player
Full Manual
Introduction
Photos
• Display slide shows with music
• Zoom, pan, move and rotate photos
Video
• Fast forward, rewind, pause, zoom, and pan
• View subtitles
Music
• Fast forward, rewind, pause, shuffle, and repeat
• Playlist support
Network
• Connect the TV Media Player via cable or wireless to your home network
• Play Media from a NAS or computer directly to your TV
Online
• Connect the TV Media Player via cable or wireless to the internet
• View Media from popular applications such as YouTube and MediaFly
• Use popular online applications such as Facebook
Index
1 Key Features ............................................................................4
2 Package Contents..................................................................... 5
3 Cautions ...................................................................................6
3.1 Usage Cautions.......................................................................................... 6
3.2 Power........................................................................................................ 6
3.3 Radio Interference .................................................................................... 6
3.4 Repair ....................................................................................................... 6
3.5 Disposing of the Player ............................................................................. 6
3.6 Hard Disk Cautions (MD-272 only) ............................................................ 6
3.7 Other......................................................................................................... 7
4 Product Layout......................................................................... 8
4.1.1 Front Panel MD-272................................................................................ 8
4.1.2 Front Panel MD-273................................................................................ 9
4.2.1 Back Panel MD-272 .............................................................................. 10
4.2.2 Back Panel MD-273 .............................................................................. 11
4.3 Remote Control ....................................................................................... 12
5 Getting Started....................................................................... 14
5.1 Installation Requirements ....................................................................... 14
5.2 Installation Procedure............................................................................. 14
6 Navigating the menu ..............................................................18
6.1 Menu Language ....................................................................................... 18
6.2 Output Resolution ................................................................................... 18
6.3 Home Menu ............................................................................................. 20
6.4 Settings Menu ......................................................................................... 22
6.4.1 System ................................................................................................22
6.4.2 Audio ...................................................................................................25

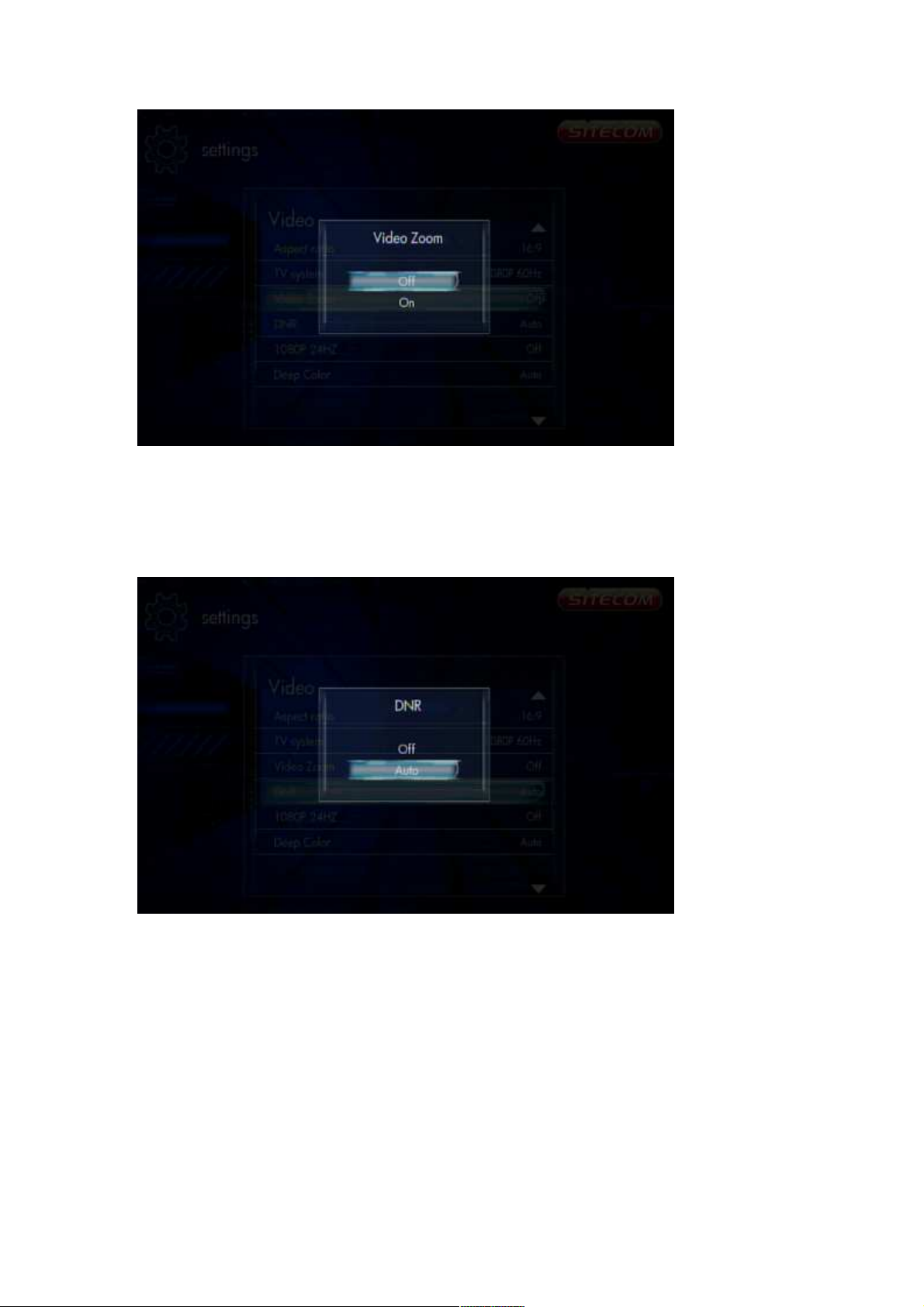

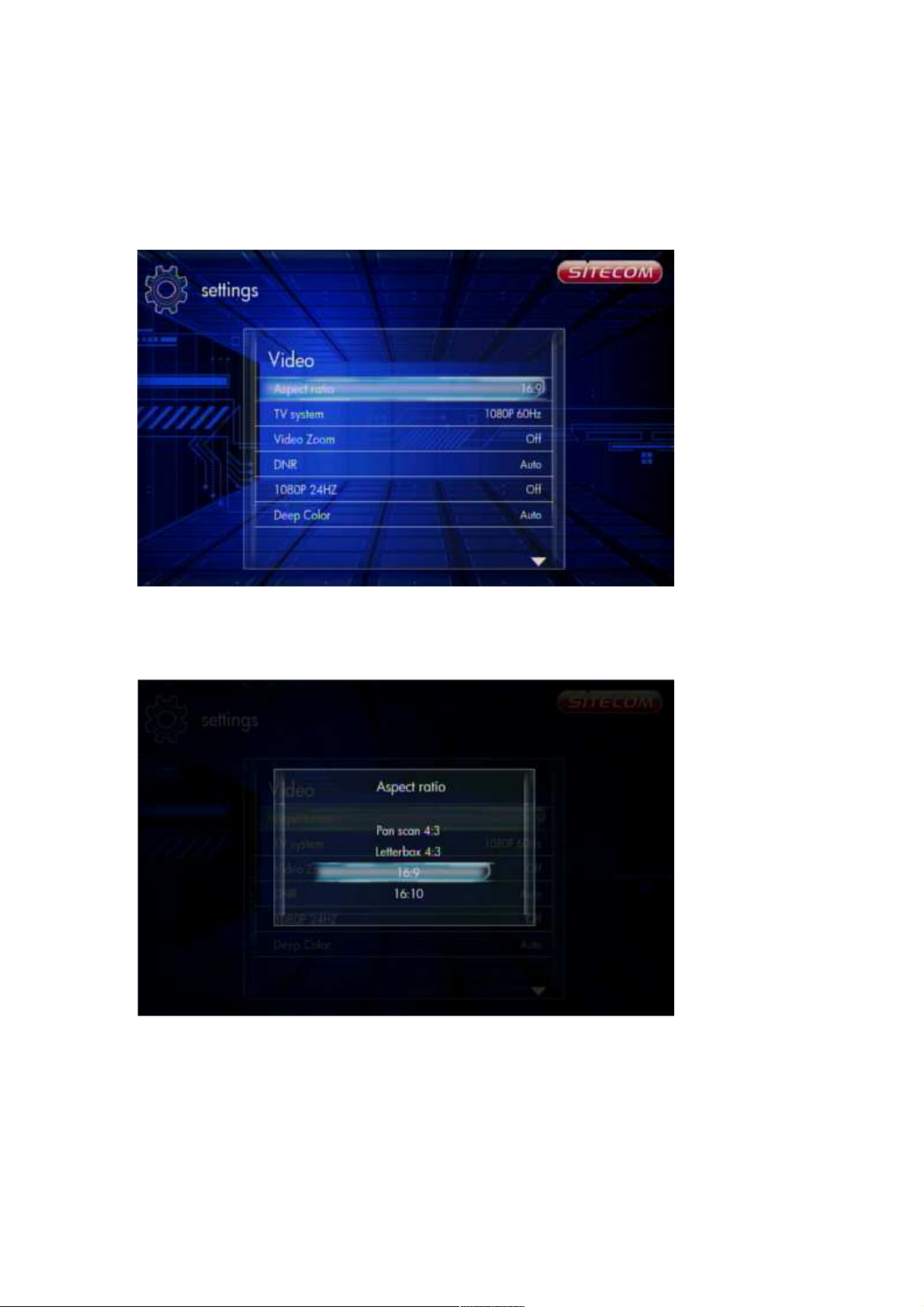

6.4.3 Video ...................................................................................................28
6.4.4 Network ...............................................................................................31
6.4.5 MISC....................................................................................................31
6.5 Music Menu ............................................................................................. 33
6.5.1 Playing Audio ........................................................................................33
6.5.2 Browsing Files .......................................................................................34

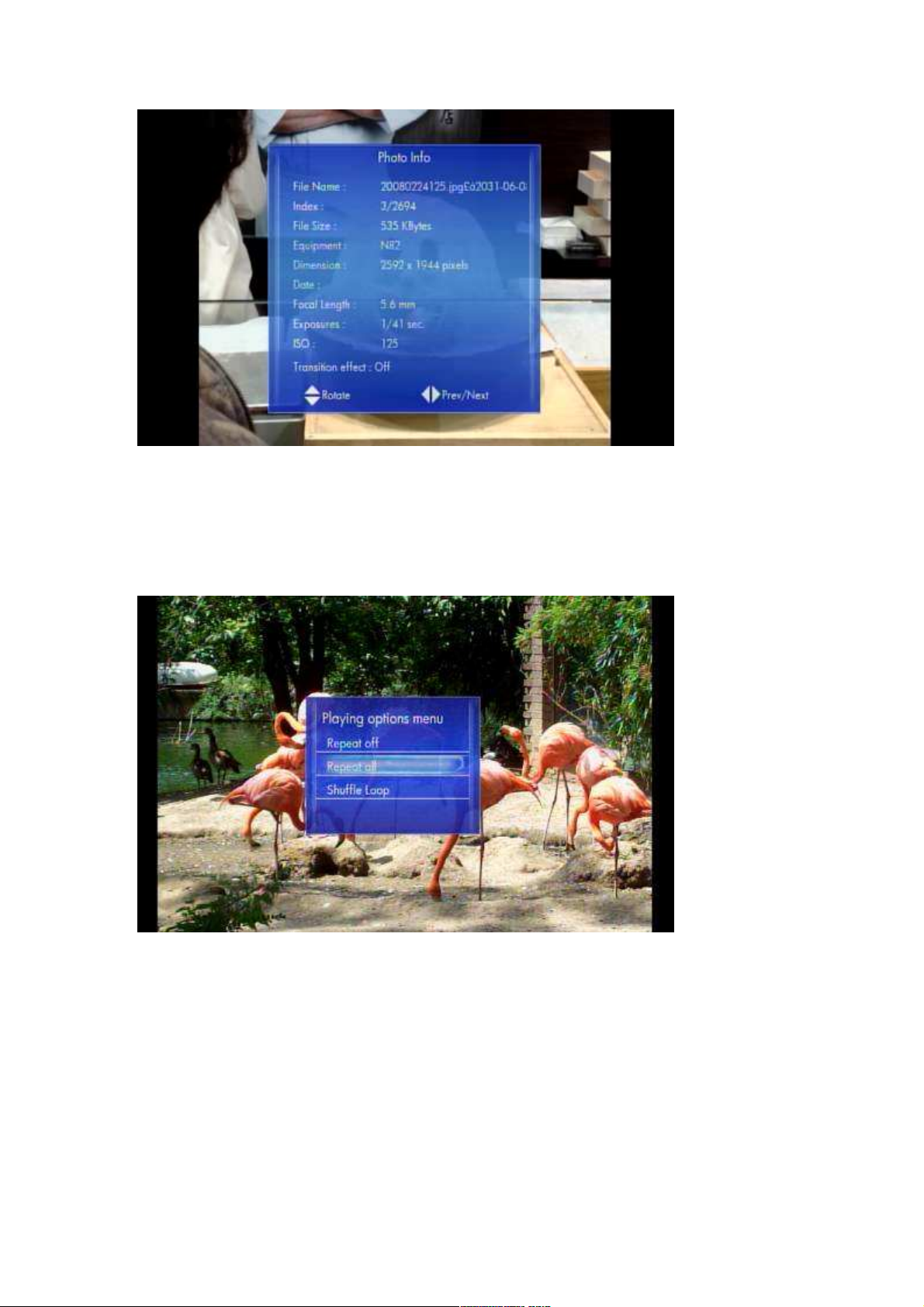

6.6 Photos Menu ........................................................................................... 38
6.6.1 Display & Slide Show .............................................................................38
6.6.2 Browsing Files .......................................................................................39
6.7 Movies ..................................................................................................... 42
6.7.1 Video Player..........................................................................................42
6.7.2 Browsing Files .......................................................................................46
6.7.3 Network playback ..................................................................................48
6.8 Online...................................................................................................... 50
7 Appendix ................................................................................ 56
7.1 Copyrights and Trademarks .................................................................... 56
7.2 Warranty ................................................................................................. 56
7.3 GPL Statement ........................................................................................ 56
Revision 1.0 © Sitecom Europe BV 2011
Note: All the information contained in this manual was correct at the time of publication. However, as our engineers are always updating and improving the product, your device’s software may have a slightly different appearance or modified functionality than presented in this manual.
1 Key Features
The key features of MD-272/273 TV Media Player include:
• HDMI interface for digital audio and high-definition video.
• Composite interface (RCA, yellow/white/red) for analogue AV connection.
• Video output resolution includes 480i (using the composite interface), or 480p, 576p, 720i, 720p, 1080i, and 1080p (available when using the HDMI interface).
• Built-in screensaver.
• Remote Control included.
• Dolby Digital and DTS support.
• Ethernet connection for network connectivity.
Supported file types
Video Audio Photo Playlist Subtitles
Mpeg 1 MP3 (CBR, VBR) GIF PLS SRT (UTF-8)
Mpeg 2 MP2 BMP M3U SMI
Mpeg 4 (ASP) WAV/PCM/LPCM JPEG SUB
Mpeg 4 (AVC HD/H.264) AAC (Mpeg 4) TIF/TIFF ASS
WMV9 AC3 (Dolby) PNG SSA
VC-1 FLAC
MKV WMA
Xvid WMA Pro
DivX Ogg Vorbis
AVI (MPEG4, Xvid, AVC)
VOB/ISO/IFO
DVR-MS
ASF
MOV(MPEG4, H.264)
DAT (VCD/SVCD)
FLV
2 Package Contents
Open the package carefully, and make sure that none of the items listed below are missing. Do not discard the packing materials, in case of return; the unit must be shipped back in its original package.
The contents of the package of the MD-272/273 TV Media Player are:
• TV Media Player
• HDMI Cable
• RCA Cable
• Remote control with batteries
• 12V DC adapter
• Quick Installation Guide
• CD-ROM with additional manuals
• USB cable (MD-272 only)
3 Cautions
This player’s design and manufacturer has your safety in mind. In order to safely and effectively use this player, please read the following before usage.
3.1 Usage Cautions
User should not modify this player. If commercial hard disk is being used, the environmental temperature should be within +5 ~ +35 degrees Celsius.
3.2 Power
The player’s power voltage is DC 12V. When using this player, please connect the supplied AC adapter or AC adapter cable to the player’s power jack. When placing the adapter cable, make sure it can not get damaged or be subject to pressure. To reduce the risk of electric shock, unplug the adapter first before cleaning it. Never connect the adapter to the player in a humid or dusty area. Do not replace the adapter or cable’s wire or connector.
3.3 Radio Interference
- If not properly shielded, almost all electronic devices will get radio interference.
Under some conditions, your player might get interference.
- The design of this player has followed the FCC/CE standard, and has followed the
following rules: (1) This player may not cause harmful interference; (2) This player could accept some interference received including interference that may cause undesired operation.
3.4 Repair
If the player has a problem, you should take it to an appointed repair centre and let the specialists do the repair, never repair the player yourself, you might damage the player or endanger yourself or your data.
3.5 Disposing of the Player
When you dispose of the player, be sure to dispose it appropriately. Some countries may regulate disposal of electrical device, please consult with your local authority.
3.6 Hard Disk Cautions (MD-272 only)
The player uses an internal hard disk for data storage, in normal case, format or repair is not required. You should carefully read the <Frequently Asked Questions> chapter on our website for the latest information before formatting the hard disk.
- Physical impact may create bad sectors on the hard disk, you can use CHKDSK to
fix the problem.
- All data stored on the player may be lost due to physical impact, electrical shock,
power surge, HDD format etc. Please backup your data regularly.
- It is suggested to do a defragmentation after a long period of usage.
- Regularly backup the data in the hard disk so that it can be recovered in the event
of data corruption or loss. Our company takes no responsibility for loss of data
stored on the hard disk.
3.7 Other
When using this player, please do not let the player come into contact with water or other liquid, if water is accidentally spilled on the player, please use a dry cloth to absorb the spillage. Electronic products are vulnerable, when using please avoid shaking or hitting the player, and do not press the buttons too hard.
- Do not let the player come into contact with water or other liquid.
- Do not disassemble the player, repair the player or change the design of the player,
any damage done will not be included in the repair policy.
- Do not press the buttons of the remote too hard.
- Avoid hitting the player with a hard object, avoid shaking the player and stay away
from magnetic fields.
- If during electrostatic discharge or a strong electromagnetic field the product will
malfunction, unplug the power cable. The product will return to normal performance
the next time it is powered on.
Power LED
HDD LED
4 Product Layout
Infrared Port
USB ports
4.1.1 Front Panel MD-272
Item Description
USB Ports
InfraRed Port Point the Remote Control at the InfraRed Receiver.
Hard disk LED
Power LED The LED lights blue when the MD-272 is switched on.
Use thes to connect the Media Player to your PC or to connect external storage to the MD-272.
The LED lights green when the Hard disk inside the MD-272 is active.
USB LED
Power LED
4.1.2 Front Panel MD-273
US
B Port
s InfraRed
Receiver
Item Description
USB Ports Use these to connect the Media Player to your external storage.
InfraRed Receiver
USB LED The LED lights green when external storage is connected.
Power LED The LED lights blue when the MD-273 is switched on.
Point the Remote Control at the InfraRed Receiver.
Component Ports
S/PDIF Port
Power
Port
USB
Port
HDMI Port
Composite
Ports
Ethernet Port
4.2.1 Back Panel MD-272
Item Description
Power Connector Connect the 12V DC Adapter to this port.
USB Port Use this to connect USB external storage
S/PDIF Ports Use these to connect a coaxial or optical cable.
Component Ports Use these to connect a component video cable.
HDMI Port Use this to connect a digital Television.
Ethernet Port Use this to connect to your home network.
Composite Ports Use these to connect a composite audio/video cable.
Composite Ports
Ethernet Port
Power
Port
S/PDIF Port
HDMI
Port
4.2.2 Back Panel MD-273
Item Description
Power Connector Connect the 12V DC Adapter to this port.
Ethernet Port Use this to connect to your home network.
S/PDIF Port Use these to connect a optical audio cable.
Composite Ports Use these to connect a composite audio/video cable.
HDMI Port Use this to connect a digital Television.
4.3 Remote Control
Button Function or Description
Power Turn the TV Media Player on or off.
Home Go to the Homepage.
Menu Arrows Use these to select the file or menu option you want displayed.
Ok Choose the option/action/file that’s currently highlighted.
Return Return to the previous menu page.
Mute Mute the sound.
Options
Playback Buttons
View options for playback of the file type used. Use the navigation buttons and OK button to select an option.
Standard playback functions for Play/Pause, Fast Forward, Fast Reverse and Stop.
Previous/Next Play or view the previous file or next file in the folder.
Search Go to the Search menu.
Repeat Repeat the playing file.
Audio Choose the audio stream while watching video.
Subtitle Choose the subtitle stream while watching video.
Resolution Show the currently used resolution.
Info Show information about the playing file.
Volume Select the volume output.
Zoom Zoom in or out on the photo or video.
5 Getting Started
Before beginning the installation, please read through the installation procedure described in this manual.
5.1 Installation Requirements
To begin using the TV Media Player, you will need:
• A television set (TV) with either a HDMI connection or available AV composite
cable connections for audio and video.
• The TV Media Player connected to the TV.
• A USB hard disk or USB flash memory device with a USB 2.0 cable containing
media files (video, music and digital photos).
5.2 Installation Procedure
The TV Media Player installation procedure is summarized below:
1. Transfer digital video, digital photo and digital music or audio files to the TV Media
Player (MD-272 only).
2. Connect the TV Media Player to a TV.
3. Connect the power to the TV Media Player.
4. Connect the USB hard disk containing stored digital media to the TV Media Player
and power on the hard disk.
5. Connect the Ethernet cable to the Ethernet port (if the device is used on a local
network).
5.2.1 Transfer Media files to the TV Media Player (MD-272 only)
Transfer your favourite content, like your music, videos and photos, from your computer to the MD-272 via the USB connector. You can connect the MD-272 like any other USB storage. You don’t need to put the files in any order, the Portable TV Media Player will sort them out in the right categories for Music, Videos and Photos.
5.2.2 Connecting the TV Media Player
Below is a summary of the audio and video connection options. The pages that follow have illustrations of the various connection types.
Video Connections
To connect video to your TV, there are several options. If your TV or home entertainment system is equipped with a HDMI port, use a HDMI cable for the video and audio connection. Alternatively, the media player video output can be supplied through the composite video connection (A/V port). The MD-272 also features a component connection for higher image quality on TV’s that haven’t got a HDMI connection.
• Composite Video
Plug the supplied RCA cable into the A/V port on the rear panel of the TV Media Player and the opposite end of the cable into the composite video in connector on your TV.
• HDMI Video
Plug the HDMI cable into the HDMI connector on the back panel of the TV Media Player. Plug the opposite end to the matching HDMI connector on your television or audio video system. HDMI provides the best video quality resolution up to 1080p, plus audio support.
• Component Video (MD-272 only)
Plug the component cable into the corresponding ports on the back panel of the TV Media Player. Plug the opposite ends to the corresponding ports on your television or audio video system. Component provides the best video quality resolution up to 1080p, but without audio.
Audio Connections
The TV Media Player supports digital audio over HDMI or S/PDIF. Alternatively a RCA analogue connection for the stereo audio signal can be used.
• Analogue Audio (RCA)
Plug the supplied RCA cable into the A/V port and the red and white connectors into the colour-coded Audio connectors of your stereo receiver. Connect the red plugs to the Right (R) jacks and the white plugs to the Left (L) jacks.
• Digital Audio (S/PDIF)
Plug a coaxial or optical cable into the corresponding port on the back of the TV Mediaplayer. Connect the other end to the corresponding port on your Television set or Audio receiver.
5.2.3 Connect power to the TV Media Player
Connect the supplied 12V DC adapter to a free wall socket. Connect the other end to the designated port on the back of the TV Media Player.
5.2.4 Connect USB to the TV Media Player
The TV Media Player automatically searches the disk for supported media content. If there is a large volume of digital media, it might take several minutes to completely scan the disk, however the files that have already been scanned can be played. Some USB hard drives require a separate power source to use it, so make sure the USB disk is powered on and connected. Often USB hard disks have LED indicators that let you know if it is powered on and if it is connected. Check the user guide of the USB hard disk for more information.
5.2.5 Connect Ethernet to the TV Media Player
The TV Media Player includes an Ethernet port to connect the TV Media Player to a local network in order to use digital media stored on servers connected to the network. Connect a Cat5 or higher certified cable to the designated port on the TV Media Player. Connect the other end of the cable to a hub, switch, modem or router.
6 Navigating the menu
Once the TV Media Player is connected and the (USB) hard disk contains digital media files it automatically begins searching for supported media. The TV Media Player can be used while it is still scanning for content. Turn on the TV and direct it to the input used for the TV Media Player to view the main menu interface. If this is the first time accessing the interface or if the TV Media Player has just been powered on, the initial setup will ask you a couple of questions.
6.1 Menu Language
Initial Setup -> Menu Language
Select from the list of languages.
Use the ‘Up’ and ‘Down’ buttons to select the item, press ‘OK’ to confirm.
6.2 Output Resolution
Initial Setup -> Resolution
Use this setting to select the video display resolution when using the HDMI interface. The default setting is Auto.
Note: Full HD quality can be received when the mode is set to 1080p. Please note that your TV needs to be capable of showing this resolution. 720p and up cannot be selected if the TV is connected via the composite connection.
6.3 Home Menu
Every time you start the system, you will see the Home Menu.
At the Home Menu, use the arrow keys ‘Left’ and ‘Right’ buttons to select each item, to enter the item please press 'OK' button. Each item is described as below.
6.3.1 Setup
To set the system functions such as System, Audio, video, etc.
6.3.2 Music
In the Music menu you can browse through your music files and play them.
6.3.3 Photos
In the Photo menu you can browse through your photos and view them.
6.3.4 Movies
In the Movies menu you can browse through the videos and watch them.
These are all items in the Home Menu. In the next chapters these items will be described in more detail.
6.4 Settings Menu
It is recommended to use the Setup menu before first using the system.
In the Home Menu, use the ‘Left’ and ‘Right’ buttons to select ‘Settings’ and press the ‘OK’ button to enter the menu.
6.4.1 System
Settings -> System
6.4.1.1 Menu Language
Settings -> System -> Menu Language
Press the ‘OK’ button to enter the multi-language list and use the arrow key ‘Up’ and ‘Down’ buttons to select the language. Press the ‘OK’ button to confirm.
6.4.1.2 Text Encoding
Settings -> System -> Text Encoding
You can choose the different encoding types; Unicode (UTF8), Simplified Chinese (GBK), Traditional Chinese (BIG5), Turkish, etc. Press the ‘Up’ and ‘Down’ buttons to select the item and press the ‘OK’ button to confirm.
6.4.1.3 DLNA DMR
Settings -> System -> DLNA DMR
Turn on or off the DLNA DMR function. When it is on, you can select the media files on your DLNA server, and select “Play on device”, the file will be sent to this player and playback automatically. Windows Media Player 12 in Windows 7 supports this function and you can apply it to play the media on this player.
6.4.1.4 Device Name
Settings -> System -> Device Name
When the NAS function is on, the PC can see the player as the device name here. The default name is based on the unique MAC Address of the player and you can change it to your desired name.
6.4.1.5 Screen Saver
Settings -> System -> Screen Saver
Enable or disable the screen saver function. Use the ‘Up’ and ‘Down’ buttons to select "On" or "Off". Press the ‘OK’ button to confirm.
6.4.1.6 Scan storage
Settings -> System -> Scan storage
Set the scan mode of the storage detection.
Auto scan on - system will scan the storage automatically. Auto scan off - system will not scan the storage. Rescan storage – manually scan the storage. Stop scanning storage – do not scan the storage.
Please use the ‘Up’ and ‘Down’ buttons to select and press the ‘OK’ button to confirm.
6.4.1.7 Resume Play
Settings -> System -> Resume Play
The device supports a video resume play function. Use this item to enable or disable the resume play function.
6.4.1.8 Format (MD-272 only)
Use this setting to format the internal storage of the TV Media Player.
Warning: You will lose all content on the storage!
6.4.1.9 Factory Default
Settings -> System -> Restore Default Settings
Use this setting to restore all TV Media Player system preferences and media playback settings to their default factory values. This is done to correct performance problems caused by a failed firmware upgrade or a faulty configuration setting.
6.4.2 Audio
Settings -> Audio
6.4.2.1 Night Mode
Settings -> Audio -> Night Mode
This setting is to switch the “Night Mode”. With this setting you can limit the maximum volume output.
6.4.2.2 HDMI Output
Settings -> Audio -> HDMI Output
This setting is to switch the audio output over the HDMI connection. You can choose between:
LCPM – Linear pulse code modulation two channel LCPM Multi-Channel - Linear pulse code modulation Multi-Channel 5.1, 7.1 RAW – Audio Raw data.
Use the ‘Up’ and ‘Down’ buttons to select an item and press the ‘OK’ button to confirm.
6.4.2.3 SPDIF Output
Settings -> Audio -> SPDIF Output
This setting is to switch the Audio SPDIF output. You can choose between:
LCPM – Linear pulse code modulation two channel RAW – Audio Raw data.
Use the ‘Up’ and ‘Down’ buttons to select an item and press the ‘OK’ button to confirm.
6.4.3 Video
Settings -> Video
6.4.3.1 Aspect Ratio
Settings -> Video -> Aspect Ratio
Use this setting to choose screen ratio. You can choose between:
Pan & Scan 4:3 - 16:9 picture in 4:3 screen mode with and adjusted ratio to meet 4:3.
Letter Box 4:3 - 16:9 picture in 4:3 screen mode with the black bars top and bottom. 16:9 16:10
6.4.3.2 TV System
Settings -> Video -> TV System
Use this setting to choose the resolution and TV system. You can choose between:
NTSC - National Television System Committee PAL - Phase Alternating Line 480P 576P 720P 50Hz 720P 60Hz 1080i 50Hz 1080i 60Hz 1080P 50Hz – Full HD 1080P 60Hz – Full HD
6.4.3.3 Video Zoom
Settings -> Video -> Video Zoom
Use this function to set the video zoom in/out function.
6.4.3.4 Digital Noise Reduction
Settings -> Video -> Digital Noise Reduction
Use this function to enable or disable the digital noise reduction.
6.4.3.5 1080P 24HZ
Settings -> Video -> 1080P 24HZ
If the TV supports 1080P 24HZ, you can turn on this option.
6.4.4 Network
Settings -> Network
6.4.4.1 Wired LAN Setup
Settings -> Network -> Wired LAN Setup
Set “DHCP IP” or “Fixed IP” for the Ethernet LAN IP configuration of this player.
6.4.4.2 Network Attached Storage
Settings -> Network -> NAS
Switch the NAS function on or off.
6.4.4.3 Network Info
Settings -> Network -> Network Info
Display network information like IP Address, MAC Address and etc.
6.4.5 MISC
Settings -> MISC
Various miscellaneous settings.
Version Info - Select this setting to display the current hardware and firmware configuration.
Firmware upgrade – Use this setting to update the new firmware if there is any.
Important: Make sure the TV Media Player’s AC power adapter remains connected during the firmware update. A power disruption during the update process can corrupt the system firmware.
To update the firmware:
1. Go to www.sitecom.com and download the latest firmware update.
2. Unzip the firmware package.
3. Copy firmware file to the root of the TV Media Player via the USB connection.
4. Connect the TV Media Player to the TV system.
5. Select Settings -> MISC -> Firmware upgrade.
6.5 Music Menu
In the Music menu you can browse through your music files and play them.
6.5.1 Playing Audio
Music -> press ‘OK’ or ‘Play’ button
If you want to play the selected music file, press the ‘OK’ button or the ‘Play’ button to start playback. During playback, you can press the following buttons:
‘FFWD’ to fast forward through the song, ‘FREV’ to fast reverse through the song, ‘Next’ to jump to the next song in play list, ‘Previous’ to jump to the previous song in play list, ‘VOL+/-’ to increase or decrease the volume, ‘Stop’ to stop play, ‘Return’ will return to file browser, while still continuing to play.
You can press the ‘Option’ button to select the ‘Repeat Mode’ during playback:
 Repeat Off  Repeat One  Repeat All  Shuffle Loop
6.5.2 Browsing Files
Music -> press ‘Option’ button
Pressing the ‘Option’ button in the Music browser will pop up the Option window which can switch the browsing file mode. You have the following options:
 Thumbnail  List  Preview
Use the arrow ‘Up’ and ‘Down’ buttons to select and press the ‘OK’ button to confirm.
6.5.2.2 Thumbnails
Music -> Press ‘Option’ button -> Thumbnails
If there is at least one image file in the directory then the directory will have a thumbnail which is made from this image file. Otherwise it will have a normal thumbnail made from the default directory picture.
6.5.2.3 List
Music -> Press ‘Option’ button -> List
The Music file browser display files as a ‘List’.
6.5.2.4 Preview
Music -> Press ‘Option’ button -> Preview
Use this option to preview the file information. When you focus on a file, it will show the information in the preview window on the left.
6.5.2.8 Sort by Artist
Music -> Press ‘Option’ button -> Sorted by -> Artists
The files are sorted by Artists.
6.5.2.8 Sort by Alphabet
Music -> Press ‘Option’ button -> Sorted by -> Alphabet
The files are sorted by Alphabet
6.5.2.9 Sort by Genre
Music -> Press ‘Option’ button -> Sorted by -> Genre
The files are classified by Genre.
6.6 Photos Menu
In the Photos menu you can browse through your photos and view them.
6.6.1 Display & Slide Show
Photos -> press ‘OK’ or ‘Play’ button
If you want to display the selected image file or use the slide show in full screen, press the ‘OK’ button or ‘Play’ button to start the operation. During display, you can press the following buttons:
“Next” to jump to the next file in the play list, ‘Previous’ to jump to the previous file in the play list, ‘Zoom’ to zoom in/out 2X, 4X, 8X, 16X ‘Stop’ or ‘Return’ to stop playing.
Press the ‘Info’ button to display information about the image file.
During playback, you can press the ‘Option’ button to change the slide show settings. You can use the following settings:
Repeat off – To Stop Slide Show. Repeat all – To show all files in the play list. Shuffle Loop - Randomly select file in the play list during Slide Show
6.6.2 Browsing Files
Photos -> press ‘Option’ button
Pressing the ‘Option’ button in the Photo browser will pop up the Option window where you can change the following settings:
Start Slideshow Slideshow settings Sorted by Alphabet
Date
My Favorites
Change Layout Add to slideshow
Use the arrow ‘Up’ and ‘Down’ buttons to select and press ‘OK’ button to confirm.
6.6.2.1 Slideshow settings
Photos -> Press ‘Option button -> Slideshow settings
Here you can set the slide transition time from 2 to 30 seconds. You can also set the slide transitions.
6.6.2.2 Sort by Alphabet
Photos -> Press ‘Option’ button -> Sorted by -> Alphabet
The files are sorted by Alphabet
6.6.2.3 Sort by Date
Photos -> Press ‘Option’ button -> Sorted by -> Date
The files are sorted by Date.
6.6.2.4 Sort by Favorites
Photos -> Press ‘Option’ button -> Sorted by -> Favorites
The files are classified by Favorites.
6.6.2.5 Thumbnails
Photos -> Press ‘Option’ button -> Change layout -> Thumbnails
Directory Thumbnail – If there is at least one image file in the directory then the directory will have a thumbnail which is made from this image file. Otherwise it will have a normal thumbnail made from the default directory picture.
File Thumbnail – All the photos have their thumbnail made from themselves.
6.6.2.6 List
Photos -> Press ‘Option’ button -> Change layout -> List
Photos file browser display files by ‘List’.
6.6.2.7 Preview
Photos -> Press ‘Option’ button -> Change layout -> Preview
Use this option to preview the file information. When you focus on a file, it will show the information in the preview window on the left.
6.7 Movies
In the Movies menu you can browse through your videos and watch them.
6.7.1 Video Player
Movies -> press ‘OK’ or ‘Play’ button
If you want to play the selected video file in full screen, press ‘OK’ button or ‘Play’ button to start the operation. During playback, you can press the following buttons:
‘Left’ to skip back 10 sec. ‘Right’ to jump 10 sec forward. ‘FF’ to fast forward 1.5x, 2x, 4x, 8x, 16x, 32x. ‘FR’ to fast rewind 1x, 1.5x, 2x, 4x, 8x, 16x, 32x. “Next” to jump to the next chapter in the video. ‘Previous’ to jump to the previous chapter in the video. ‘Zoom’ to zoom in/out 2X, 3X, 4X, 8X ‘Stop’ or ‘Return’ to stop playing.
Press the ‘Info’ button to display information about the video file.
During playback, you can also press the ‘Option’ button to change playback settings.
6.7.1.1 DVD Menu
Movies -> Playback -> press ‘Option’ button -> DVD Menu
When playing a DVD, this will return you to the DVD main menu.
6.7.1.2 Subtitle
Movies -> Playback -> press ‘Option’ button -> Subtitle
To set the national language subtitles, you have the following options:
Show subtitle Position of subtitles: 0 ~ 640 Font size : 3 ~ 40 Synchronous tuning National language Subtitle colour
Use the arrow keys ‘Left’ and ‘Right’ to select the item, ‘Up’ and ‘Down’ to adjust the value. Press ‘Return’ to resume playing.
6.7.1.3 Audio
Movies -> Playback -> press ‘Option’ button -> Audio
With this setting you can select the different Audio streams.
Use the ‘Up’ and ‘Down’ buttons to select the audio mode and ‘OK’ button to confirm. Press ‘Return’ to resume playback.

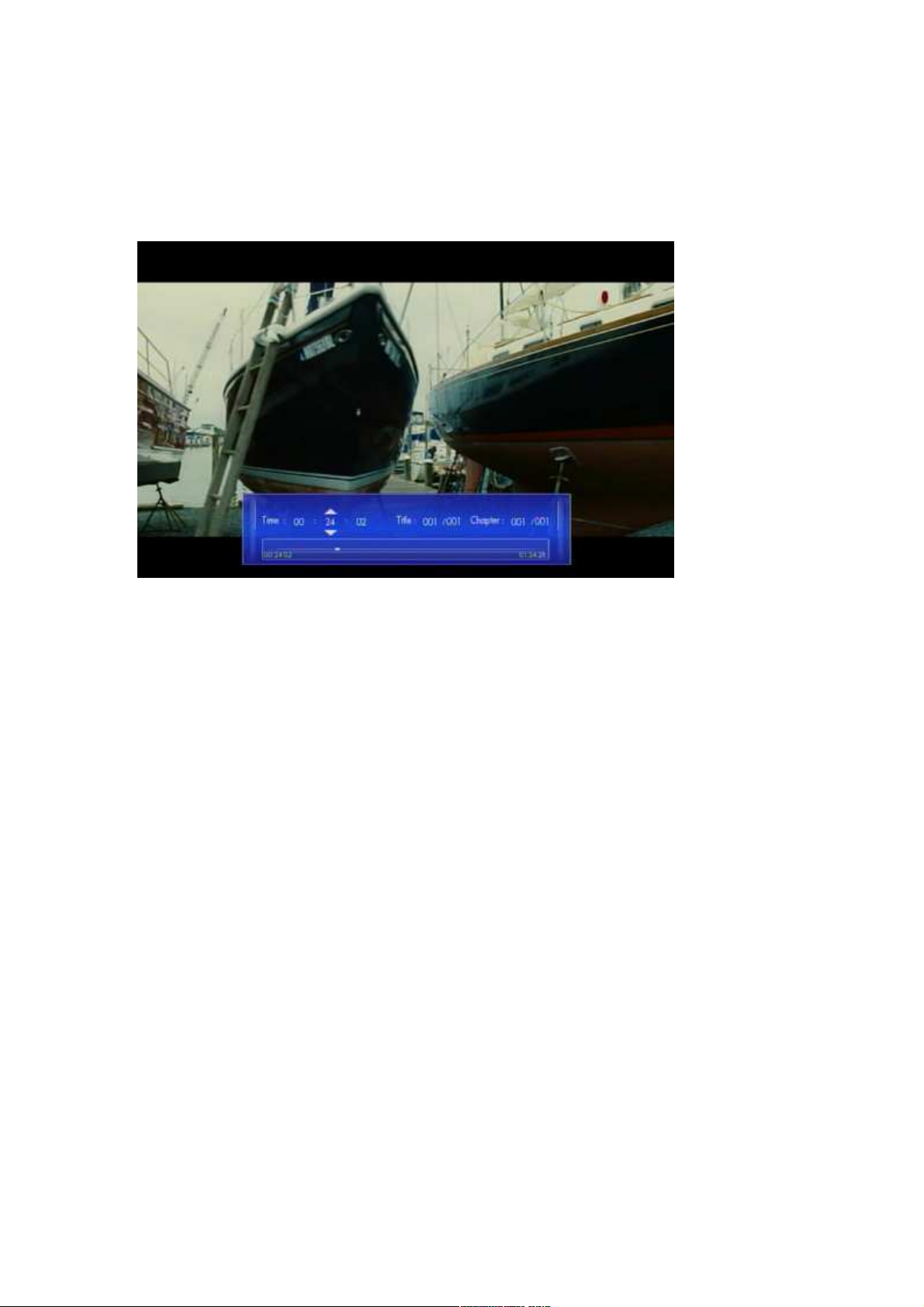

6.7.1.4 Go to
Movies -> Playback -> press ‘Option’ button -> Go to
With this function you can time shift to the location you want.
There are three types of jump mode:
Time : Hour : Min : Sec Title Chapter
Use the arrow keys ‘Left’ and ‘Right’ to select an item and ‘Up’ and ‘Down’ to adjust the value. Press ‘Return’ to resume playback.
6.7.1.5 Video Setting
Movies -> Playback -> press ‘Option’ button -> Video Setting
Brightness – Change the brightness level Contrast – Change the contrast level Saturation – Change the saturation Hue – Change the hue
Use the arrow keys ‘Up’ and ‘Down’ to select an item and ‘Left’ and ‘Right to adjust the value. Press ‘OK’ to resume playback.
6.7.2 Browsing Files
6.7.2.1 Thumbnails
Movies -> Press ‘Option’ button -> Change layout -> Thumbnails
Directory Thumbnail – If there is at least one image file in the directory then the directory will have a thumbnail which is made from this image file. Otherwise it will have a normal thumbnail made from the default directory picture. File Thumbnail – All the photos have their thumbnail made from themselves.
6.7.2.2 List
Movies -> Press ‘Option’ button -> Change layout -> List
Movies file browser display files by ‘List’.
6.7.2.3 Preview
Movies -> Press ‘Option’ button -> Change layout -> Preview
Use this option to preview the file information. When you focus on a file, it will show the information in the preview window on the left.
6.7.2.4 Sort by Alphabet
Movies -> Press ‘Option’ button -> Sorted by -> Alphabet
The files are sorted by Alphabet.
6.7.2.5 Sort by Genre
Movies -> Press ‘Option’ button -> Sorted by -> Genre
The files are classified by Genre.
6.7.2.6 Sort by Favorites
Movies -> Press ‘Option’ button -> Sorted by -> Favorites
The files are sorted by Favorites.
6.7.3 Network playback
Movies -> Device -> Network Music -> Device -> Network Photos -> Device -> Network
Select “Device” in the videos/music/photos of home menu. Select “Network” to browse the network. Select your PC in the network list to enter. Browse the folder and select the file to playback.
UPnP
Once your TV Media Player is connected to your network, and you have made the correct network settings, you can play media files through your network. If you want to share media files on your computer in order to let the media player play these files, you can setup your computer as a UPnP server. We will explain how to setup your computer as a UPnP server in the following steps.
Create a UPnP server
Your computer does not share media by default. You will have to install a UPnP media server on your computer to add this functionality. If you are using Windows XP, Windows Vista or Windows 7, you can use the built-in UPnP media service of Windows Media Player. If you enable this option, your media player can access the music library on your computer. Follow the steps below to enable this option:
1. Click ‘Start’.
2. Click ‘Programs’.
3. Click ‘Windows Media Player ‘.
4. Click ‘Tools’, then click ‘Options’. The following screen will be displayed:
5. Go to the ‘Library’ tab in the left upper corner of the options window.
6. Now click ‘Configure sharing…’
7. Check the “Share my media” checkbox and click OK.
8. A list with detected devices will appear within a few seconds.
9. Click the name of your TV Media Player.
10. Click ‘Allow’.
11. Click ‘Ok’.
12. Click ‘Ok’.
13. All files in the media library of Windows Media Player will be shared with your media player from now on. The media library will be accessible using the remote control and display of the media player.
Note: Steps above are taken with Windows Media Player 11, available for download at http://www.microsoft.com/windows/windowsmedia/player/.
6.8 Online
Select the Online option in the main menu to view the various internet functions of the TV Media Player
6.8.1 YouTube XL
Enter YouTube-XL and you can see the video list in the right panel. Now you can just press the direction key to highlight a video to play, but we suggest to setup language and your location first.
Select “Settings” and then select “Set Language” to select the language for the interface or “Set Geography” to select your location.
Available options:
Videos: select the category like “Spotlight”, “Top Rated”… to sort the videos in the right panel. Select “More…” to choose more categories. Select the video in the right panel to play.
Search: Type in a keyword to find the video file. Sign In: Login to YouTube with your account name and password, and your favourite
video list will display on screen.
Note: You can plug in a USB mouse & keyboard to enter your account information.
Settings: Change settings like language and geography. You can also check the options if you want to apply them:
“Play next video when current video ends.” “Filter videos that may not be suitable for minors”
Click a video to play. You can use the playback controls on the remote control to control the playback. If a USB mouse is plugged in, move the cursor on the video and the on-screen menu will pop up for you to control it.
Available options:
Search bar: select it to input a keyword to search the video. Favorite: Add it to your favorite list. Flag: report it if you feel uncomfortable about this video. Share: E-mail this link to a friend. Info: Display the information of the current video. Related: sort the related video list.
In the video playback screen you can press the “Zoom +” key on the remote control for full screen playback. Press “Zoom -” to return to the video list.
To exit YouTube-XL, press the “Return” key to return to main menu.
6.8.2 Web Kit
Click the icon to see the page below. You can select the links to visit the web sites.
You can plug in your USB mouse and USB keyboard for control and input. To input a text or URL, you need to select the text field, use the remote control to press “OK” to open the virtual keyboard, and then input the text on the USB keyboard.
6.8.3 Mediafly
Select the categories like “My Shows”, “Popular Videos”, “Popular Audios” to see the online video/audio. Select “Search Channels” to input a keyword to search the channel. Select “User Management” to login/add your personal account. If you do not have a Mediafly account, visit the web site www.mediafly.com to get one.
6.8.4 vTuner
Select the category to browse and play. Press the return key to go back to the previous page. Press the stop key to stop the audio playback.
Option Favorites Browse the favorite list and select one to play. In
audio playback, select “Delete from Favorites” to delete it.
“Country” Browse the local list and select one to play. In the
audio playback, select “Add to Favorites” to add to
Favorites. Search Enter a keyword to search the audio. Recently Played Browse the favorite list and select one to play. Location Select your location. Genre Browse the genre to find your audio channels. Podcasts By Location Podcasts By Genre Browse podcast by genre. New Stations Browse the new stations. Most Popular Stations
6.8.5 Flickr
Select “Search Photos” to enter a keyword to search. Select “Previous page” and “Next page” to change the page.
6.8.6 Picasa
Select “Search for Photo” to enter a keyword to search. Select “Login” to login with your ID and display the “Public” photos in this account. Select “Remove ID” to delete the login ID which is added here. When selecting “Search for Photo” or login the album, choose a photo in the list. Press “Prev” “Next” and “Zoom” keys to navigate.
6.8.7 Yahoo! WEATHER
Browse podcast by location.
Browse the most popular stations.
Select “Add Favorite” and browse to a country and select a city. Press the info key to open the menu, and add it to the favourite. You can now access it from the frontpage. Press “OK” key to select a city and see the weather forecast. In the weather forecast, press “OK” key to change the units and the info key to add it to favourites. Press the direction keys to move the map. Press Prev/Next key to zoom out/in the map.
6.8.8 Yahoo! FINANCE
Input your Stock symbol to display data and chart.
Reference link: http://finance.yahoo.com/
Choose “Add Stock to Favorite list” and input the stock symbol and country code like
2485.tw to display. The Stock information will be updated in 30 seconds. To delete one, choose it and press the info key to delete it.
Region Country code USA N/A
Hong Kong .HK Taiwan .TW Shanghai .SS Shenzhen .SZ Canada .TO Australia .AX
To display indexes, input the text in the table.
Indexes Text Nasdaq ^IXIC
S&P 500 ^GSPC Treasury Yield 30 ^TYX Hang Seng Indexes ^HSI Nikkei 225 ^N225 Straits Times Index ^STI Shenzhen B share ^SZSB TSEC weighted ^TWII
7 Appendix
7.1 Copyrights and Trademarks
7.1.1 Copyrights
All rights reserved. No part of this manual may be reproduced, or transmitted in any form or by any means, whether electronically or mechanically, without the express written permission from the copyright holder. Copyrighted materials, such as software, music files, or movies, are protected by local law, and may not be illegally copied or used without permission from the copyright owner.
7.1.2 Trademarks
Microsoft and Windows are registered trademarks of Microsoft Corporation. All other trademarks are property of their respective holders.
7.2 Warranty
What your warranty does not cover:
- Acts of nature, such as fire or static discharge.
- Damage from unauthorized repair, alteration or accident.
- Damage from misuse or neglect.
- A unit that has been modified or incorporated into other products or is used for institutional or other commercial purposes.
- Loss of customer’s software, firmware, information, or memory data.
- Improper handling or installation.
7.3 GPL Statement
This product contains free software which is licensed under the GNU General Public License. To obtain a copy of our open source software, please visit our website and look for the appropriate download section. However, please be noted that we can not provide guarantee with the source code, and there is also no technical support for the source code from us.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
