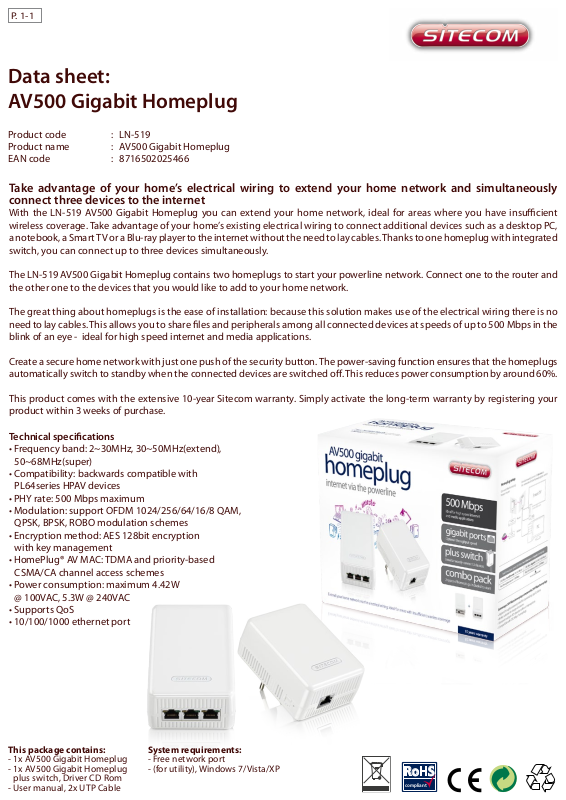

Sitecom LN-519 DATASHEET
P. 1-1
Data sheet:
AV500 Gigabit Homeplug
Product code :
Product name :
EAN code :
LN-519
AV500 Gigabit Homeplug
8716502025466
Take advantage of your home’s electrical wiring to extend your home network and simultaneously
connect three devices to the internet
With the LN-519 AV500 Gigabit Homeplug you can extend your home network, ideal for areas where you have insucient
wireless coverage. Take advantage of your home’s existing electrical wiring to connect additional devices such as a desktop PC,
a notebook, a Smart TV or a Blu-ray player to the internet without the need to lay cables. Thanks to one homeplug with integrated
switch, you can connect up to three devices simultaneously.
The LN-519 AV500 Gigabit Homeplug contains two homeplugs to start your powerline network. Connect one to the router and
the other one to the devices that you would like to add to your home network.
The great thing about homeplugs is the ease of installation: because this solution makes use of the electrical wiring there is no
need to lay cables. This allows you to share les and peripherals among all connected devices at speeds of up to 500 Mbps in the
blink of an eye - ideal for high speed internet and media applications.
Create a secure home network with just one push of the security button. The power-saving function ensures that the homeplugs
automatically switch to standby when the connected devices are switched o. This reduces power consumption by around 60%.
This product comes with the extensive 10-year Sitecom warranty. Simply activate the long-term warranty by registering your
product within 3 weeks of purchase.
Technical specications
• Frequency band: 2~30MHz, 30~50MHz(extend),
50~68MHz(super)
• Compatibility: backwards compatible with
PL64series HPAV devices
• PHY rate: 500 Mbps maximum
• Modulation: support OFDM 1024/256/64/16/8 QAM,
QPSK, BPSK, ROBO modulation schemes
• Encryption method: AES 128bit encryption
with key management
• HomePlug® AV MAC: TDMA and priority-based
CSMA/CA channel access schemes
• Power consumption: maximum 4.42W
@ 100VAC, 5.3W @ 240VAC
• Supports QoS
• 10/100/1000 ethernet port
This package contains:
- 1x AV500 Gigabit Homeplug
- 1x AV500 Gigabit Homeplug
plus switch, Driver CD Rom
- User manual, 2x UTP Cable
System requirements:
- Free network port
- (for utility), Windows 7/Vista/XP
RoHS
compliant
