LN-516
User Manual
Version 1.1
Full manual Sitecom Homeplug
2
Table of Contents
1. Safety instructions ........................................................................................ 4
2. Introduction ................................................................................................. 5
2.1 What exactly is Homeplug? ....................................................................... 5
Cost factor and transmission quality ............................................................ 5
Data security and radiation ......................................................................... 5
2.2 Package Contents .................................................................................... 5
3. Introduction of the hardware ......................................................................... 6
4. Install the hardware...................................................................................... 8
4.1 Install the Master Homeplug ..................................................................... 8
4.2 Install the Slave Homeplug ....................................................................... 9
4.3 Install the software ................................................................................ 11
5. Configure the network with the utility ........................................................... 16
6. Add an extra Homeplug to an existing network .............................................. 19
1. Install the Hardware ................................................................................ 19
2. Add a Slave Homeplug to a secured network .............................................. 20
3. Configure your secured network ................................................................ 22
7. Setting security with the push button method ................................................ 25
7.1 Create a private encrypted network ......................................................... 26
7.2 Add an extra Homeplug .......................................................................... 27
7.3 Remove a device from a network Group ................................................... 27
7.4 Make two public network devices private .................................................. 27
7.5 Standby Mode ....................................................................................... 27
Appendix: Declaration of Conformity ................................................................ 27
Full manual Sitecom Homeplug
3
1. Safety instructions
All safety and operating instructions should be read and understood before using
the device, and should be kept for future reference.
• Never open the Homeplug adapter. There are no user-serviceable parts
inside the Homeplug adapter.
• Do not try to service this product yourself! Contact qualified technicians
each and every time your device needs maintenance. There is a risk of
electric shock!
• Use the Homeplug adapter in a dry location only.
• Do not insert any objects into the openings of the Homeplug adapter.
• To disconnect the Homeplug adapter from the power supply grid, pull the
power plug.
• Do not keep the Homeplug adapter in direct sunlight.
• Slots and openings on the case serve as ventilation. Never block or cover
them.
• Never set up the Homeplug adapter near a heater or radiator.
• The Homeplug adapter should be located only where sufficient ventilation
according to the instructions of the manufacturer can be ensured.
• Disconnect the Homeplug adapter from the power supply grid before
cleaning. Use a moist towel to clean the device. Never use water, paint
thinner, benzene, alcohol or other strong cleaning agents when cleaning
the device, as these could damage the case.
• Never use the Homeplug adapter with a power supply that does not meet
the specifications provided on the rating plate. If you do not know what
type of power supply you have at home, contact your dealer or energy
supplier.
• In the event of damage, disconnect the Homeplug adapter from the power
supply grid and contact customer service. This applies, for example
o If the power cable or plug is damaged
o If liquid has been spilled on the Homeplug adapter or objects have
fallen into the device.
o If the Homeplug adapter has been exposed to rain or water.
o If the Homeplug adapter does not work, even though the operating
instructions have been followed properly.
o If the Homeplug adapter’s case is damaged.
Full manual Sitecom Homeplug
4
2. Introduction
In this chapter, we will provide an overview of the Homeplug technology and
introduce it briefly.
2.1 What exactly is Homeplug?
Homeplug is home and office networking using the electric wiring already
installed in the building.
Cost factor and transmission quality
Homeplug is an economical and easy-to-use networking technology. You don't
need to lay cables and you can connect to the home network at every power
point.
The Homeplug standard modulates and demodulates additional frequencies on
the power lines. Modulation and demodulation is a well-known and proven
method of data transmission, which has been in use in other applications for a
number of years. Now it is used to set up Internet and network accesses in the
home or office. Depending on the damping factor, distances of at least 200
meters can be covered.
With a maximum data rate up to 500 Mbps and symmetrical upload and
download speeds, Homeplug is comparable to traditional Ethernet network
solutions.
Data security and radiation
128-bit AES encryption is used, which guarantees secure data transfer within the
network.
2.2 Package Contents
Open the package carefully, and make sure that none of the items listed below
are missing. Do not discard the packing materials, in case of return; the unit
must be shipped back in its original package.
• The Homeplug device.
• A CD containing manuals and utility.
• A quick installation guide.
• Two CAT 5e Ethernet cables.
Full manual Sitecom Homeplug
5
3. Introduction of the hardware
Power LED
Ethernet Link/Activity
PLC Link/Activity
GROUP button Reset button (on the side of the device)
ON: Power on and ready.
BLINKING:
1. (blink at slower rate) means Standby mode, or
Power LED
PLC Link/Activity
LED
Ethernet
Link/Activity LED
2. During Group pairing procedure, the device joining or being joined into
same logical network will continue to blink for 2 minutes until the procedure is
successful or is canceled). To enter or cancel the Group pairing procedure,
just press the GROUP button 2~3 sec.
OFF: Power off.
ON: Power line Link detected but no power line traffic.
BLINKING:
1. Fast blinking (0.06 s ON/ 0.06 s OFF): Power line data rate higher than
60Mbps.
2. Normal blinking (0.2 s ON/ 0.2 s OFF) Power line data rate between10Mbps to
60Mbps.
3. Slow blinking (1 s ON/ 1 s OFF): Power line data rate slower than 10Mbps.
OFF: Power line Link not detected (either other devices in same network are too
far to communicate or it is alone in its logical network).
ON: Ethernet Link Detected.
BLINKING: Ethernet traffic detected.
OFF: No Ethernet Link detected.
Full manual Sitecom Homeplug
6
RESET Button
GROUP Button
Press the button when the device is powered on (not standby) to restore to
Factory default settings (including PLC network group name).
Every new PLC devices has the factory default network group name of
HomePlugAV. During trouble shooting, power line network communication and
network group assignment.
Press 10 seconds: clear the current network group name and randomly generate a
new network group name.
Press 2 to 3 seconds: this will enter Group pairing mode. In this mode the device
will join into an existing logical network of other device or announce its network
group name for other devices to join. This mode automatically ends after two
minutes or when it is successful, manually stopped. Press this button 2 to 3
seconds will manually stop the Group pairing mode.
Full manual Sitecom Homeplug
7
4. Install the hardware
Note: If you use this manual to add a single Homeplug to an already existing
Homeplug network, please follow the steps as described in chapter 6.

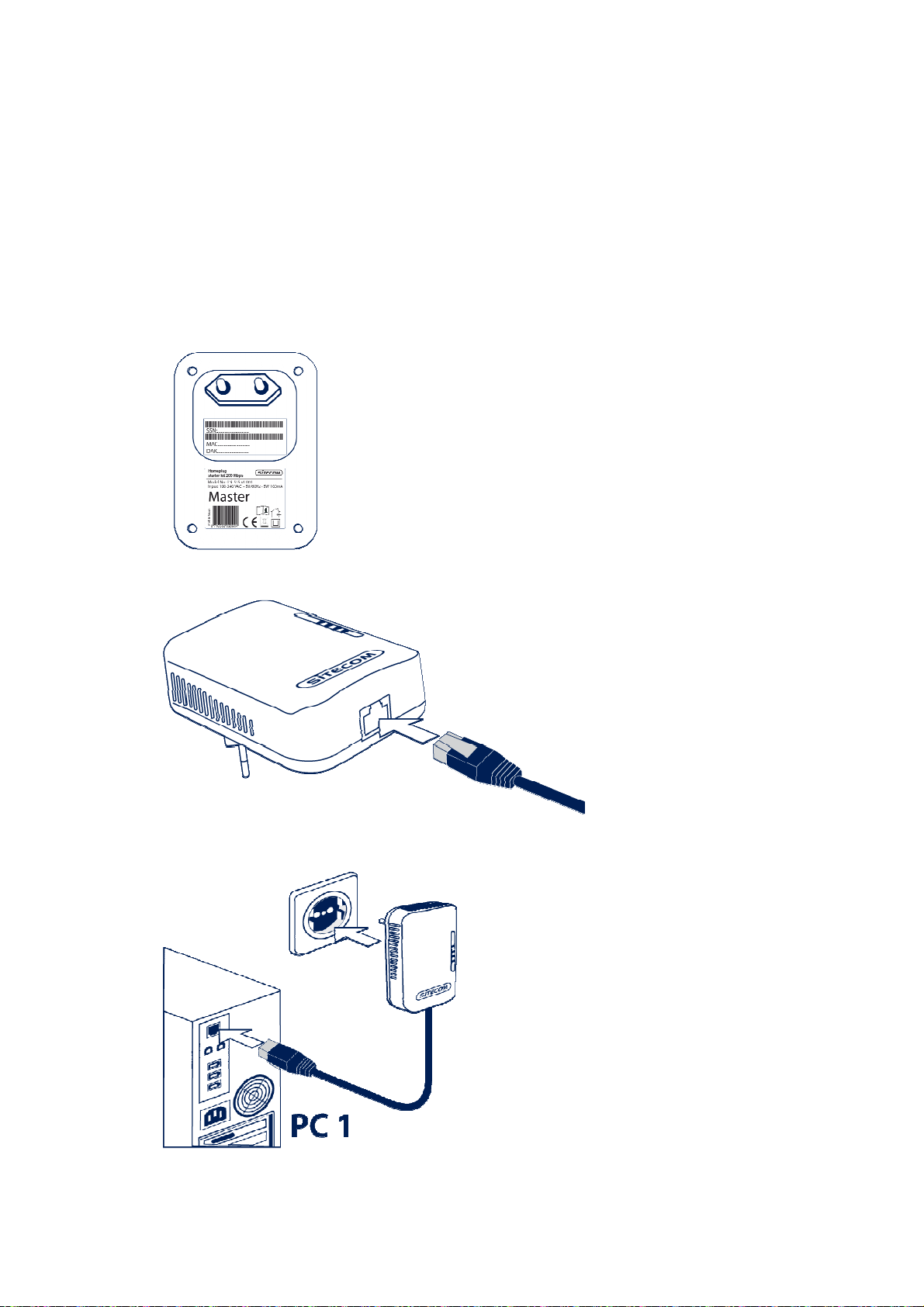

4.1 Install the Master Homeplug
Start with the Homeplug which is labeled as ‘Master’. You’ll see this on the
backside of the Homeplug.
Plug the Ethernet cable in the Ethernet port on the master Homeplug.
Connect the master Homeplug to your computer and plug it into the socket.
Full manual Sitecom Homeplug
8
4.2 Install the Slave Homeplug
Take the Homeplug which is labeled as ‘Slave’. You’ll see this on the backside of
the Homeplug.
Plug the Ethernet cable in the Ethernet port on the slave Homeplug.
Connect the slave Homeplug to your Internet router and plug it into the socket.
Full manual Sitecom Homeplug
9
