P. 1-1
speed
200 Mbps
What’s my ideal homeplug?
500 Mbps
security button
applications*
e-mailing, chatting, browsing
sharing oce documents
high speed internet
downloading & streaming
simultaneous AV
downloading/streaming
sharing large media les (movies/music)
internet gaming

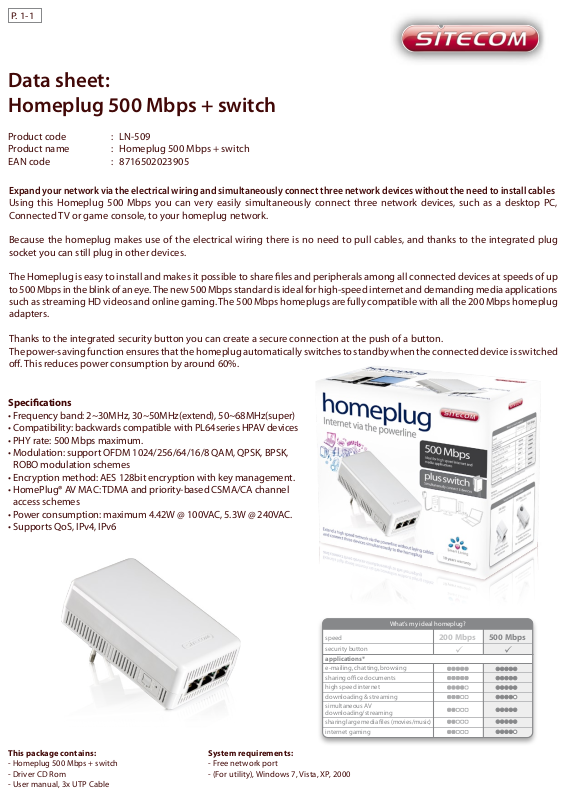

Data sheet:
Homeplug 500 Mbps + switch
Product code :
Product name :
EAN code :
LN-509
Homeplug 500 Mbps + switch
8716502023905
Expand your network via the electrical wiring and simultaneously connect three network devices without the need to install cables
Using this Homeplug 500 Mbps you can very easily simultaneously connect three network devices, such as a desktop PC,
Connected TV or game console, to your homeplug network.
Because the homeplug makes use of the electrical wiring there is no need to pull cables, and thanks to the integrated plug
socket you can still plug in other devices.
The Homeplug is easy to install and makes it possible to share les and peripherals among all connected devices at speeds of up
to 500 Mbps in the blink of an eye. The new 500 Mbps standard is ideal for high-speed internet and demanding media applications
such as streaming HD videos and online gaming. The 500 Mbps homeplugs are fully compatible with all the 200 Mbps homeplug
adapters.
Thanks to the integrated security button you can create a secure connection at the push of a button.
The power-saving function ensures that the homeplug automatically switches to standby when the connected device is switched
o. This reduces power consumption by around 60%.
Specications
• Frequency band: 2~30MHz, 30~50MHz(extend), 50~68MHz(super)
• Compatibility: backwards compatible with PL64series HPAV devices
• PHY rate: 500 Mbps maximum.
• Modulation: support OFDM 1024/256/64/16/8 QAM, QPSK, BPSK,
ROBO modulation schemes
• Encryption method: AES 128bit encryption with key management.
• HomePlug® AV MAC: TDMA and priority-based CSMA/CA channel
access schemes
• Power consumption: maximum 4.42W @ 100VAC, 5.3W @ 240VAC.
• Supports QoS, IPv4, IPv6
This package contains:
- Homeplug 500 Mbps + switch
- Driver CD Rom
- User manual, 3x UTP Cable
System requirements:
- Free network port
- (For utility), Windows 7, Vista, XP, 2000
