Page 1
P. 1-1
speed
200 Mbps
What’s my ideal homeplug?
500 Mbps
security button
applications*
e-mailing, chatting, browsing
sharing oce documents
high speed internet
downloading & streaming
simultaneous AV
downloading/streaming
sharing large media les (movies/music)
internet gaming

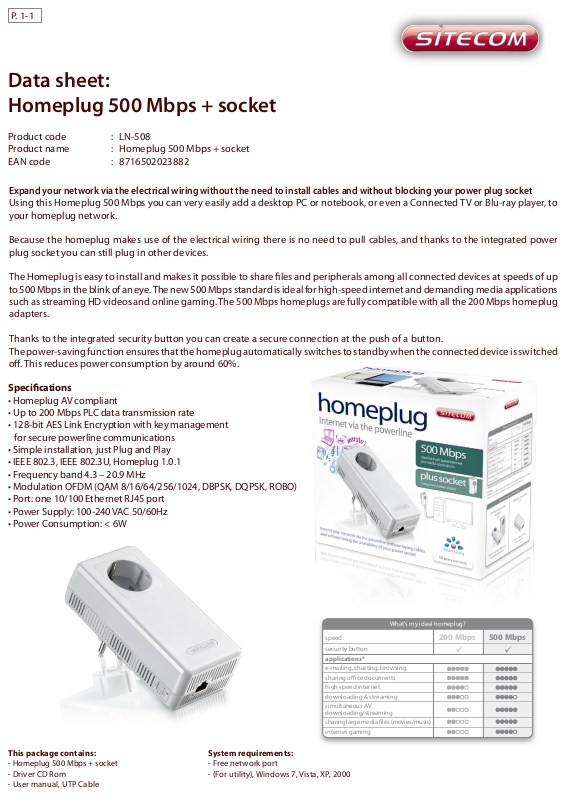

Data sheet:
Homeplug 500 Mbps + socket
Product code :
Product name :
EAN code :
LN-508
Homeplug 500 Mbps + socket
8716502023882
Expand your network via the electrical wiring without the need to install cables and without blocking your power plug socket
Using this Homeplug 500 Mbps you can very easily add a desktop PC or notebook, or even a Connected TV or Blu-ray player, to
your homeplug network.
Because the homeplug makes use of the electrical wiring there is no need to pull cables, and thanks to the integrated power
plug socket you can still plug in other devices.
The Homeplug is easy to install and makes it possible to share les and peripherals among all connected devices at speeds of up
to 500 Mbps in the blink of an eye. The new 500 Mbps standard is ideal for high-speed internet and demanding media applications
such as streaming HD videos and online gaming. The 500 Mbps homeplugs are fully compatible with all the 200 Mbps homeplug
adapters.
Thanks to the integrated security button you can create a secure connection at the push of a button.
The power-saving function ensures that the homeplug automatically switches to standby when the connected device is switched
o. This reduces power consumption by around 60%.
Specications
• Homeplug AV compliant
• Up to 200 Mbps PLC data transmission rate
• 128-bit AES Link Encryption with key management
for secure powerline communications
• Simple installation, just Plug and Play
• IEEE 802.3, IEEE 802.3U, Homeplug 1.0.1
• Frequency band 4.3 – 20.9 MHz
• Modulation OFDM (QAM 8/16/64/256/1024, DBPSK, DQPSK, ROBO)
• Port: one 10/100 Ethernet RJ45 port
• Power Supply: 100-240 VAC 50/60Hz
• Power Consumption: < 6W
This package contains:
- Homeplug 500 Mbps + socket
- Driver CD Rom
- User manual, UTP Cable
System requirements:
- Free network port
- (For utility), Windows 7, Vista, XP, 2000
