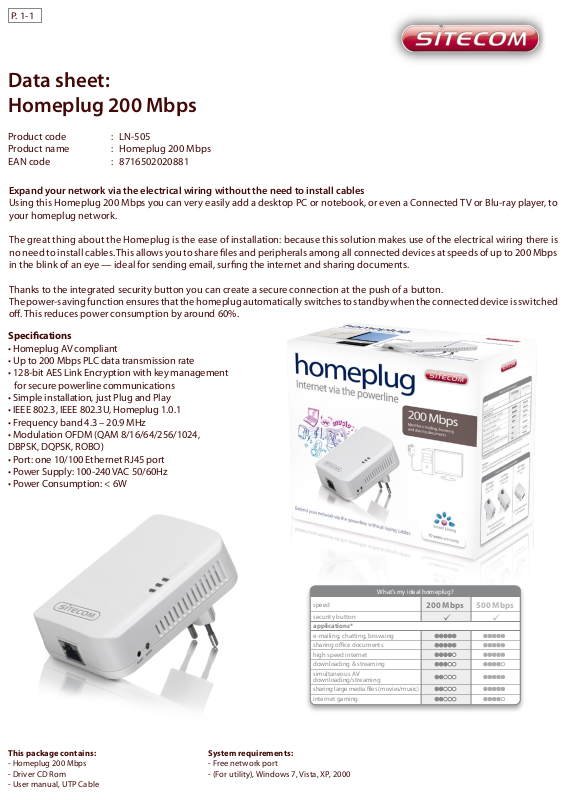

Sitecom LN-505 DATASHEET
P. 1-1
speed
200 Mbps
What’s my ideal homeplug?
500 Mbps
security button
applications*
e-mailing, chatting, browsing
sharing oce documents
high speed internet
downloading & streaming
simultaneous AV
downloading/streaming
sharing large media les (movies/music)
internet gaming
Data sheet:
Homeplug 200 Mbps
Product code :
Product name :
EAN code :
LN-505
Homeplug 200 Mbps
8716502020881
Expand your network via the electrical wiring without the need to install cables
Using this Homeplug 200 Mbps you can very easily add a desktop PC or notebook, or even a Connected TV or Blu-ray player, to
your homeplug network.
The great thing about the Homeplug is the ease of installation: because this solution makes use of the electrical wiring there is
no need to install cables. This allows you to share les and peripherals among all connected devices at speeds of up to 200 Mbps
in the blink of an eye — ideal for sending email, surng the internet and sharing documents.
Thanks to the integrated security button you can create a secure connection at the push of a button.
The power-saving function ensures that the homeplug automatically switches to standby when the connected device is switched
o. This reduces power consumption by around 60%.
Specications
• Homeplug AV compliant
• Up to 200 Mbps PLC data transmission rate
• 128-bit AES Link Encryption with key management
for secure powerline communications
• Simple installation, just Plug and Play
• IEEE 802.3, IEEE 802.3U, Homeplug 1.0.1
• Frequency band 4.3 – 20.9 MHz
• Modulation OFDM (QAM 8/16/64/256/1024,
DBPSK, DQPSK, ROBO)
• Port: one 10/100 Ethernet RJ45 port
• Power Supply: 100-240 VAC 50/60Hz
• Power Consumption: < 6W
This package contains:
- Homeplug 200 Mbps
- Driver CD Rom
- User manual, UTP Cable
System requirements:
- Free network port
- (For utility), Windows 7, Vista, XP, 2000
