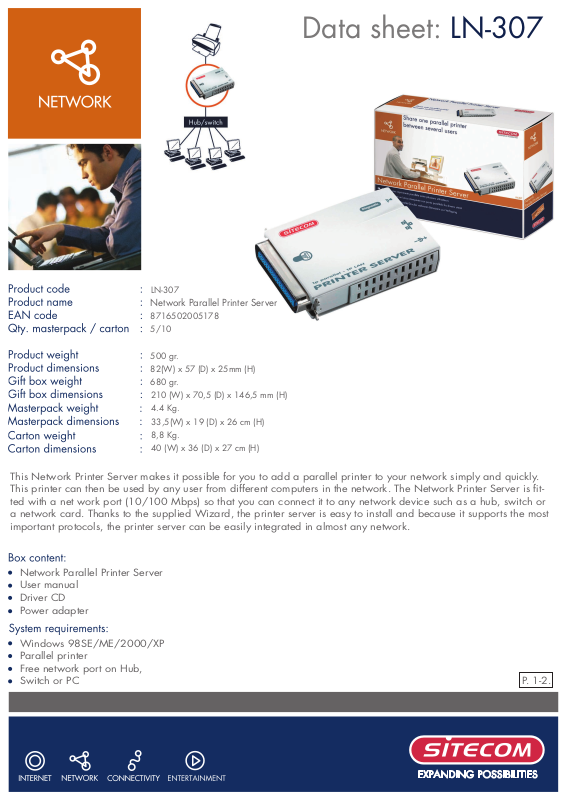

Sitecom LN-307 DATASHEET

LN-307

Network Parallel Printer Server

8716502005178
5/10

Data sheet: LN-307

500 gr.
82(W) x 57 (D) x 25mm (H)
680 gr.
210 (W) x 70,5 (D) x 146,5 mm (H)

4.4 Kg.
33,5(W) x 19 (D) x 26 cm (H)
8,8 Kg.
40 (W) x 36 (D) x 27 cm (H)

This Network Printer Server makes it possible for you to add a parallel printer to your network simply and quickly.
This printer can then be used by any user from different computers in the network. The Network Printer Server is fit
ted with a net work port (10/100 Mbps) so that you can connect it to any network device such as a hub, switch or
a network card. Thanks to the supplied Wizard, the printer server is easy to install and because it supports the most
important protocols, the printer server can be easily integrated in almost any network.

Network Parallel Printer Server
User manual
Driver CD
Power adapter

-

Windows 98SE/ME/2000/XP
Parallel printer
Free network port on Hub,
Switch or PC

P. 1-2.

Data sheet: LN-307

Share one parallel printer between several users
Works under the TCP/IP, IPX/SPX, NetBEUI protocols
BiAdmin programme for confi guration/management
Automatic IP setting
Supports Internet Printing Protocol

Network Interface: 10BaseT/100BaseTx,
Auto-sensing
Printer Connection
IEEE1284 compliant (Nibble/Byte mode support). Type B Centronics
Protocol Support - TCP/IP

- NetBEUI

- AppleTalk, IPX/SPX

NOS Support - Windows 95/98/2000/NT/Me/XP

- Macintosh (OS 9.x and higher)

- UNIX, Netware 3.x/4.x/5.x

Printing methods

PTP (Peer-to-Peer) over TCP/IP or NetBEUI protocol
Windows LPD printing,
SMB printing (via NetBEUI or TCP/IP protocol)
IPP (Internet Printing Protocol),
Macintosh LaserWriter Chooser (EtherTalk)
NetWare NDPS LPR Printing, NetWare 3.1x (Bindery mode), 4.x (Bindery and NDS mode), 5.0 (Bindery, NDS,
and NDPS in legacy mode)

Management Tools

BiAdmin (Windows Application)
Web-based management (HTTP)
PC-based SNMP applications: FTP, Telenet
LED -10BaseT, 100BaseTx,

- Status

- Error
Diagnostic button - Diagnostic Printing & Reset to Factory Default
Power Supply - 9V/500mA
Emission -FCC / CE / VCCI/C-Tick

P. 2-2.
