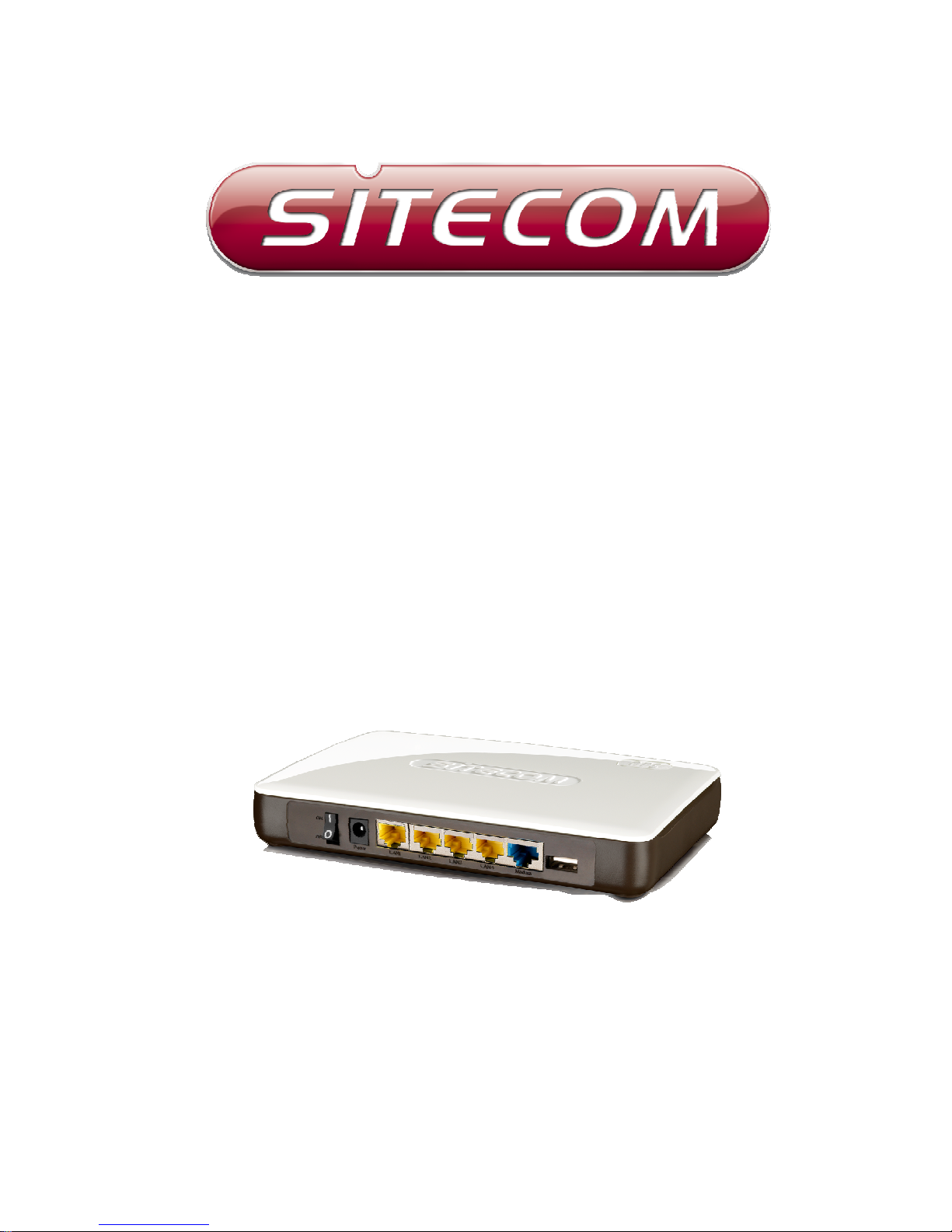

WLR-6000
Wireless Concurrent Dual Band
Gigabit Router 450N
(802.11a/b/g/n)
User Manual
T
ABLE OF CONTENTS
1 KEY FEATURES................................................................................. 4
2 PACKAGE CONTENTS ....................................................................... 5
3 CAUTIONS ....................................................................................... 6
4 PRODUCT LAYOUT ........................................................................... 7
5 NETWORK + SYSTEM REQUIREMENTS ........................................... 10
6 WLR-6000 PLACEMENT.................................................................. 10
7 SETUP LAN, WAN........................................................................... 11
8 PC NETWORK ADAPTER SETUP ...................................................... 12
9 BRING UP THE WLR-6000.............................................................. 16
10 INITIAL SETUP WLR-6000............................................................. 16
11 CONFIGURATION WIZARD ............................................................ 25
12 WIRELESS SETTINGS..................................................................... 27
13 FIREWALL SETTINGS..................................................................... 37
14 ADVANCED SETTINGS.................................................................... 43
15 TOOLBOX SETTINGS ...................................................................... 53
ADDENDUM MULTIFUNCTION PRINTSERVER CONTROL CENTER............ 66
Revision 1.0
© Sitecom Europe BV 2011
Note: All the information contained in this manual was correct at the time of
publication.
However, as our engineers are always updating and improving the product, your
device’s software may have a slightly different appearance or modified
functionality than presented in this manual.
|3
Introduction
Congratulations on your purchase of the WLR-6000 Wireless Concurrent Dual
Band Gigabit Router 450N. The WLR-6000 is compliant with 802.11a and
802.11n and up to 6 times faster than standard 802.11g based routers while
still being compatible with 802.11g & 802.11b devices. The WLR-6000 is not
only a Wireless Access Point, but also doubles as a 4-port full-duplex Gigabit
switch that connects your wired-Ethernet devices together at 10/100/1000
Mbps speeds.
At 300/450 Mbps wireless transmission rate, the Access Point built into the
Router uses advanced MIMO (Multi-Input, Multi-Output) technology to
transmit multiple streams of data in a single wireless channel, giving you
seamless access to multimedia content. The robust RF signal travels farther,
eliminates dead spots and extends the network range. For data protection and
privacy, the WLR-6000 encodes all wireless transmissions with WEP, WPA, or
WPA2 encryption.
With the built-in DHCP Server & powerful SPI firewall, the WLR-6000 protects
your computers against intruders and most known Internet attacks and also
provides safe VPN pass-through. With the incredible speed and QoS function
of 802.11n the WLR-6000 is ideal for media-centric applications like streaming
video, gaming, and VoIP telephony to run multiple media-intense data
streams through the network at the same time, with no degradation in
performance.
With Sitecom Cloud Security, Sitecom goes one step further and ensures that
you can surf the Internet even more safely, not only on your PC, but on all
the devices in your home which you use to access the Internet. It does not
matter whether you surf the Internet on a laptop, a tablet, a mobile telephone
or your television. Thanks to the security that is integrated in the router, all
the Internet devices in your home are protected against the dangers of
Internet criminality.
E |3
1 Key Features
Features Advantages
Incredible Data Rate up to
450Mbps*
Heavy data payloads such as
MPEG video streaming
IEEE 802.11n Compliant and
backwards compatible with
802.11b/g
Fully Interoperable with IEEE
802.11b / IEEE802.11g
compliant devices with legacy
protection
Four 10/100/1000 Mbps gigabit
Switch Ports (Auto-Crossover)
Scalability, extend your network.
Firewall supports Virtual Server
Mapping, DMZ, IP Filter, ICMP
Blocking, SPI
Avoids the attacks of Hackers or
Viruses from Internet
Support 802.1x authenticator,
802.11i (WPA/WPA2, AES), VPN
pass-through
Provide mutual authentication
(Client and dynamic encryption
keys to enhance security
WDS (Wireless Distribution System) Make wireless AP and Bridge
mode simultaneously as a
wireless repeater
Sitecom Cloud Security Protect your home against
cybercrime while browsing.
* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual
throughput may vary. Network conditions and environmental factors lower actual throughput rate.
All specifications are subject to change without notice.
E |3
2 Package Contents
Open the package carefully, and make sure that none of the items listed
below are missing. Do not discard the packing materials, in case of return;
the unit must be shipped back in its original package.
1. The WLR-6000 Router
2. A 110V~240V to 12V 1A Switching Power Adapter
3. A Quick Install Guide
4. A CD (with User Manual)
5. A Warranty card
6. An UTP cable
E |3
3 Cautions
This router’s design and manufacturer has your safety in mind. In order to
safely and effectively use this router, please read the following before usage.
3.1 Usage Cautions
The user should not modify this router. The environmental temperature should
be within +5 ~ +35 degrees Celsius.
3.2 Power
The router’s power voltage is DC 12V 1A.
When using this router, please connect the supplied AC adapter or AC adapter
cable to the router’s power jack. When placing the adapter cable, make sure it
can not get damaged or be subject to pressure. To reduce the risk of electric
shock, unplug the adapter first before cleaning it. Never connect the adapter
to the router in a humid or dusty area. Do not replace the adapter or cable’s
wire or connector.
3.3 Repair
If the router has a problem, you should take it to an appointed repair centre
and let the specialists do the repair. Never repair the router yourself, you
might damage the router or endanger yourself.
3.4 Disposing of the Router
When you dispose of the router, be sure to dispose it appropriately. Some
countries may regulate disposal of an electrical device, please consult with
your local authority.
3.5 Others
When using this router, please do not let it come into contact with water or
other liquids. If water is accidentally spilled on the router, please use a dry
cloth to absorb the spillage. Electronic products are vulnerable, when using
please avoid shaking or hitting the router, and do not press the buttons too
hard.
- Do not let the router come into contact with water or other liquid.
- Do not disassemble the router, repair the router or change the design of the
router, any damage done will not be included in the repair policy.
- Avoid hitting the router with a hard object, avoid shaking the router and
stay away from magnetic fields.
- If during electrostatic discharge or a strong electromagnetic field the
product will malfunction, unplug the power cable. The product will return to
normal performance the next time it is powered on.
E |3
4 Product Layout
Port Description
Power connector Connect the 12V DC adapter to this port
LAN (Yellow) Connect your PC’s or network devices to this port
WAN (Blue) Connect your ADSL/Cable modem to this port
USB Connect your Printer or Storage device to this port
E |3
Backlabel

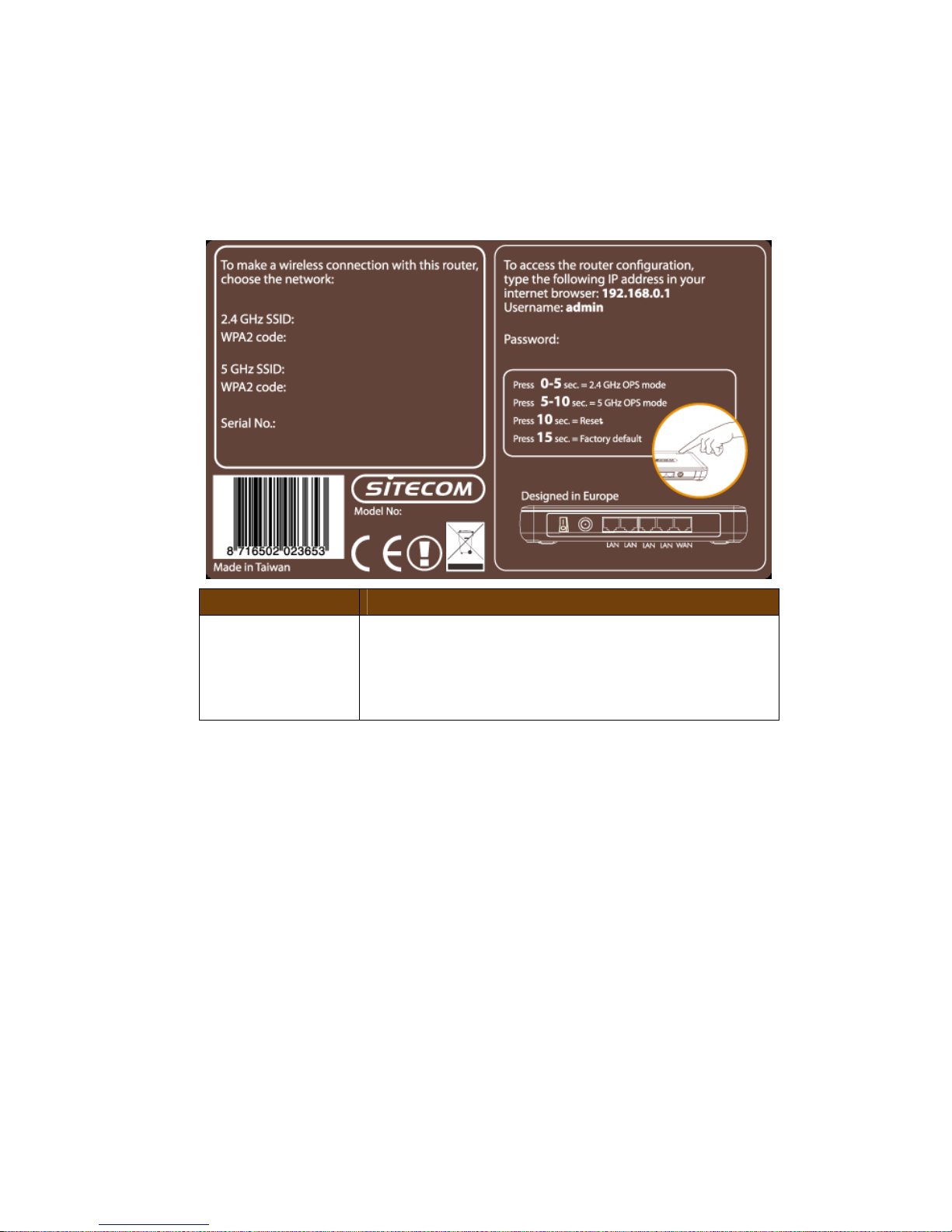

The backlabel describes the IP address, login details, SSID, security code and
WPS button functionality.
Button Description
WPS BUTTON
Press 0-5 seconds for 2.4 GHz WPS mode
Press 5-10 seconds for 5 GHz WPS mode
Press 10 seconds to reset the router
Press 15 Seconds to reset the router to factory defaults.
E |3
LED Definition
From left to right.
Port Description
LAN (Blue) Shows the cable is connected.
LAN (Blue) Shows the cable is connected.
LAN (Blue) Shows the cable is connected.
LAN (Blue) Shows the cable is connected.
WAN (Blue) Shows the cable is connected.
WiFi (White) Shows 5GHz WiFi activity.
WiFi (Blue) Shows 2.4GHz WiFi activity.
Power (Red) Shows the device is turned on.
OPS (White) Shows OPS activity.
E |3
5 Network + System Requirements
To begin using the WLR-6000, make sure you meet the following as minimum
requirements:
• PC/Notebook.
• Operating System – Microsoft Windows XP/2000/VISTA/7
• 1 Free Ethernet port.
• WiFi card/USB dongle (802.11 b/g/n) – optional.
• External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45).
• PC with a Web-Browser (Internet Explorer, Safari, Firefox, Opera)
• Ethernet compatible CAT5e cables.
6 WLR-6000 Placement
You can place the WLR-6000 on a desk or other flat surface, or you can mount
it on a wall. For optimal performance, place your Wireless Broadband Router
in the center of your home (or your office) in a location that is away from any
potential source of interference, such as a metal wall or microwave oven. This
location must be close to a power connection and your ADSL/Cable modem.
E |3

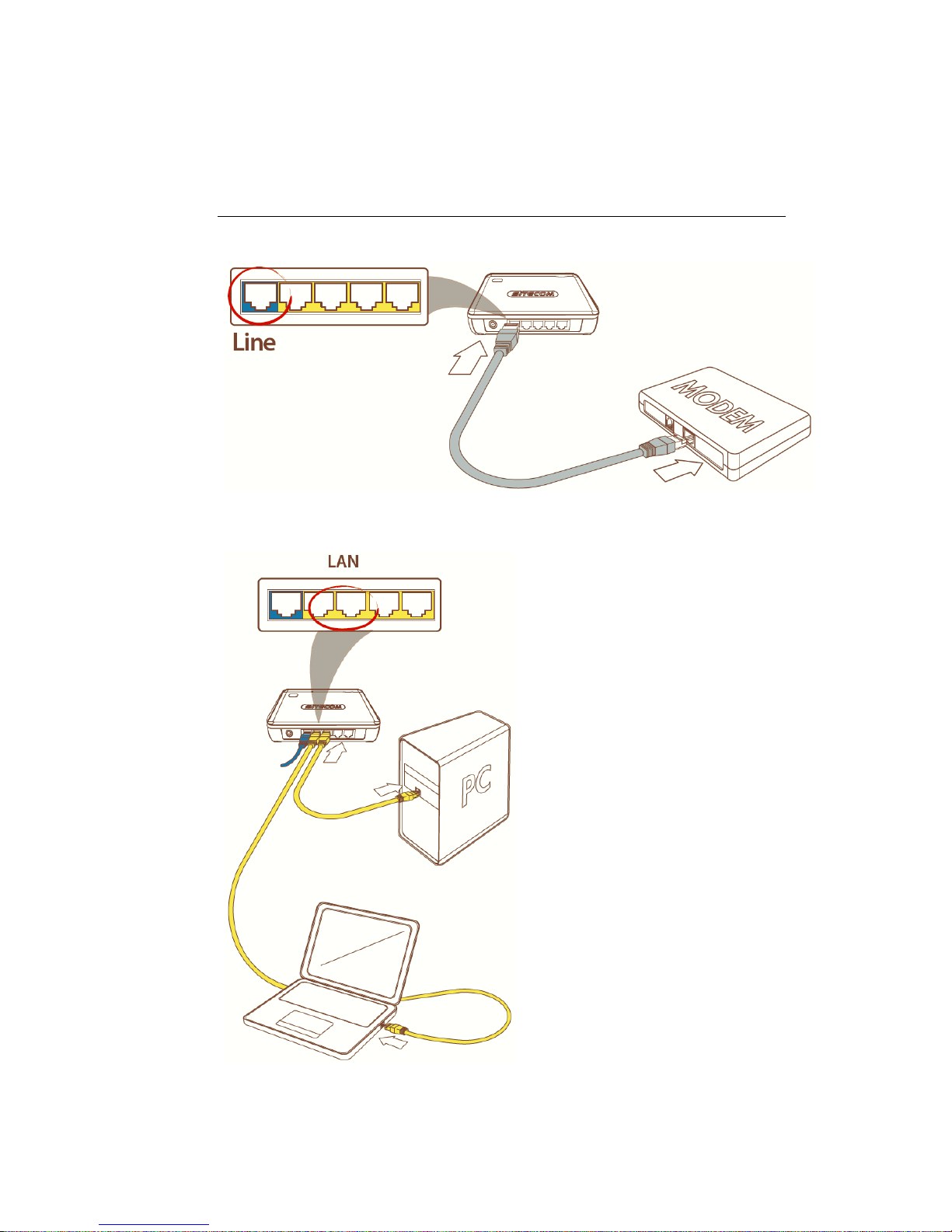

7 Setup LAN, WAN
WAN connection:
LAN connection:
E |3
8 PC Network Adapter setup
Windows XP

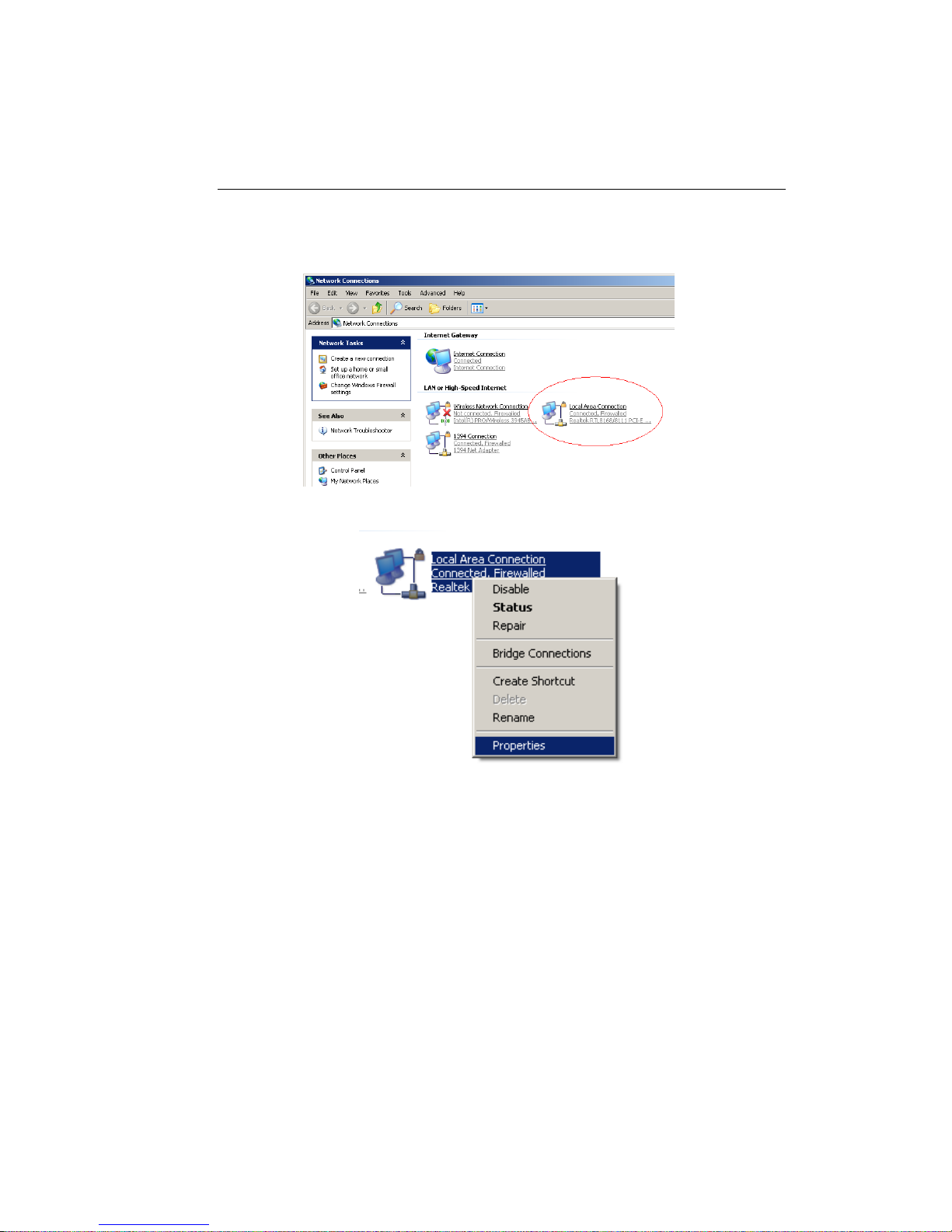

• Enter [Start Menu] select [Control panel] select [Network].
• Select [Local Area Connection]) icon=>select [properties]
E |3

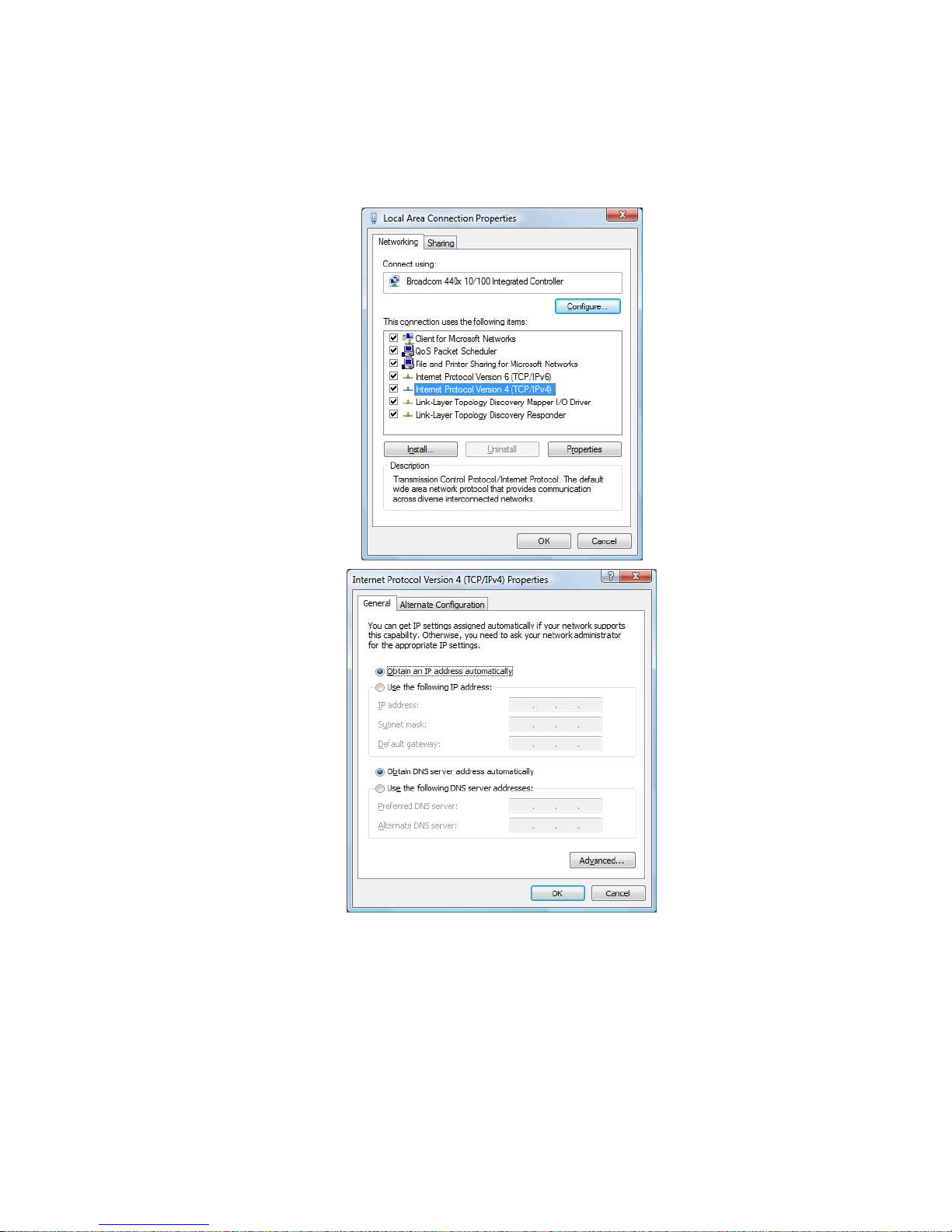

• Select [Internet Protocol (TCP/IP)] =>Click [Properties].
• Select the [General] tab.
The WLR-6000 supports a [DHCP] function, please select both [Obtain an
IP address automatically] and [Obtain DNS server address automatically].
E |3
Windows Vista/Seven

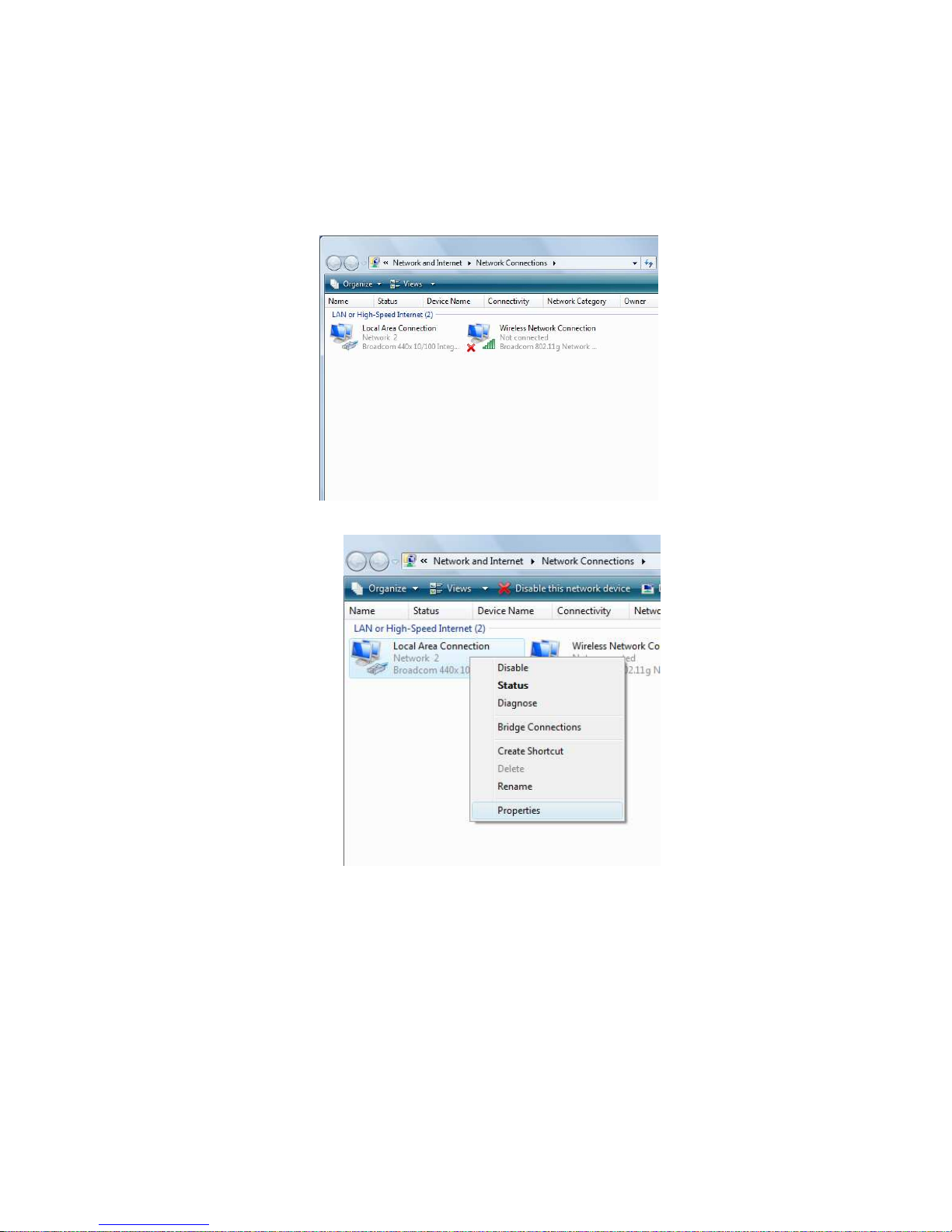

• Enter [Start Menu] select [Control panel] select [View network status
and tasks] -> select [Manage network connections].
• Select [Local Area Connection]) icon=>select [properties]
E |3
• Select [Internet Protocol Version 4 (TCP/IPv4)] =>Click [Properties].
• Select the [General] tab.
The WLR-6000 supports a [DHCP] function, please select both [Obtain an IP
address automatically] and [Obtain DNS server address automatically].
E |3
9 Bring up the WLR-6000
Connect the supplied power-adapter to the power inlet port and connect it to
a wall outlet. Switch the WLR-6000 on by flipping the switch on the back of
the device. The WLR-6000 automatically enters the self-test phase. During
self-test phase, the Power LED will be lit continuously to indicate that this
product is in normal operation.
10 Initial Setup WLR-6000
LOGIN procedure

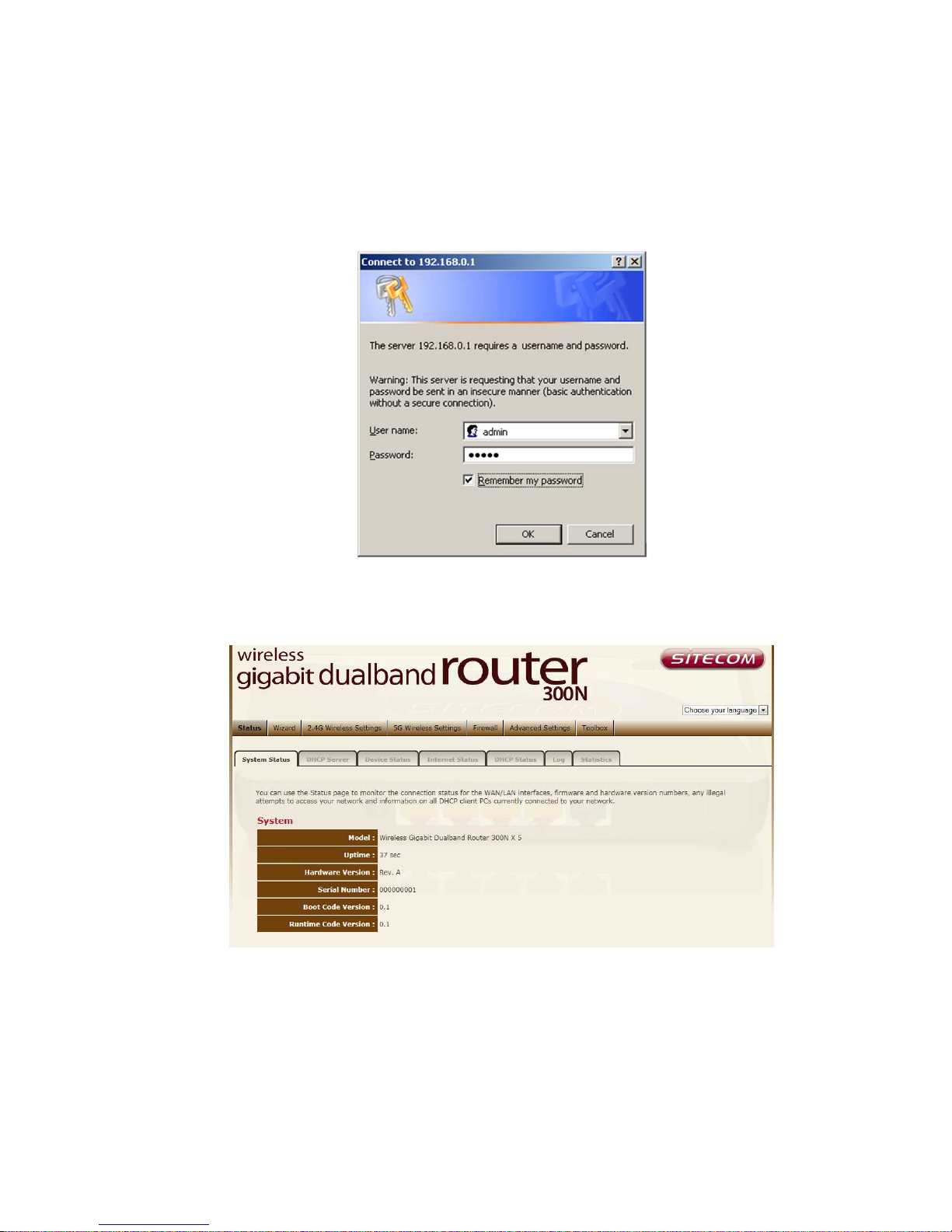

1. OPEN your browser (e.g. Internet Explorer).
2. Type http://192.168.0.1 in the address bar and press [Enter]
E |3
3. Type user name and password. The default username is admin, the
password can be found on the back label on the bottom of your router.
4. Click OK.
5. You will see the home page of the WLR-6000.

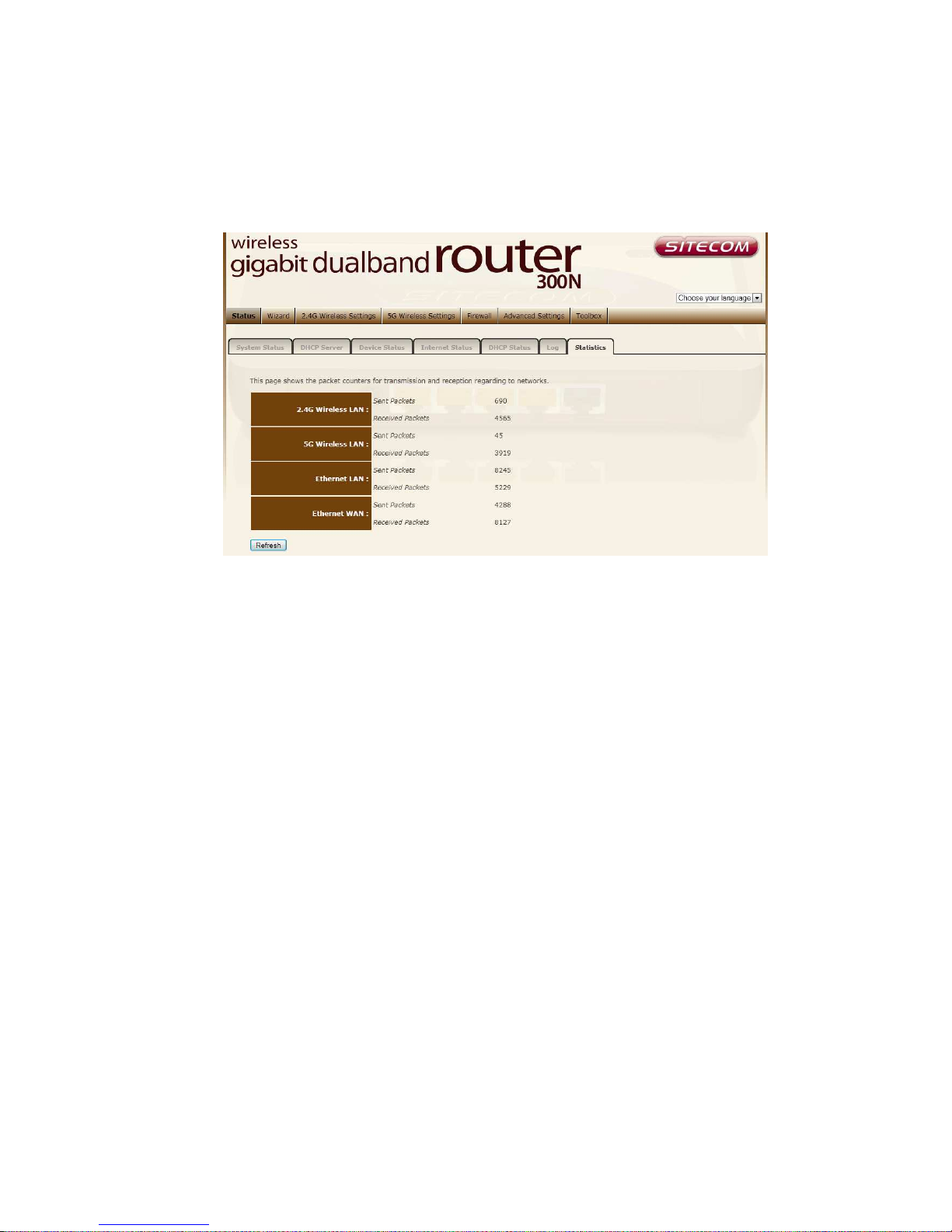

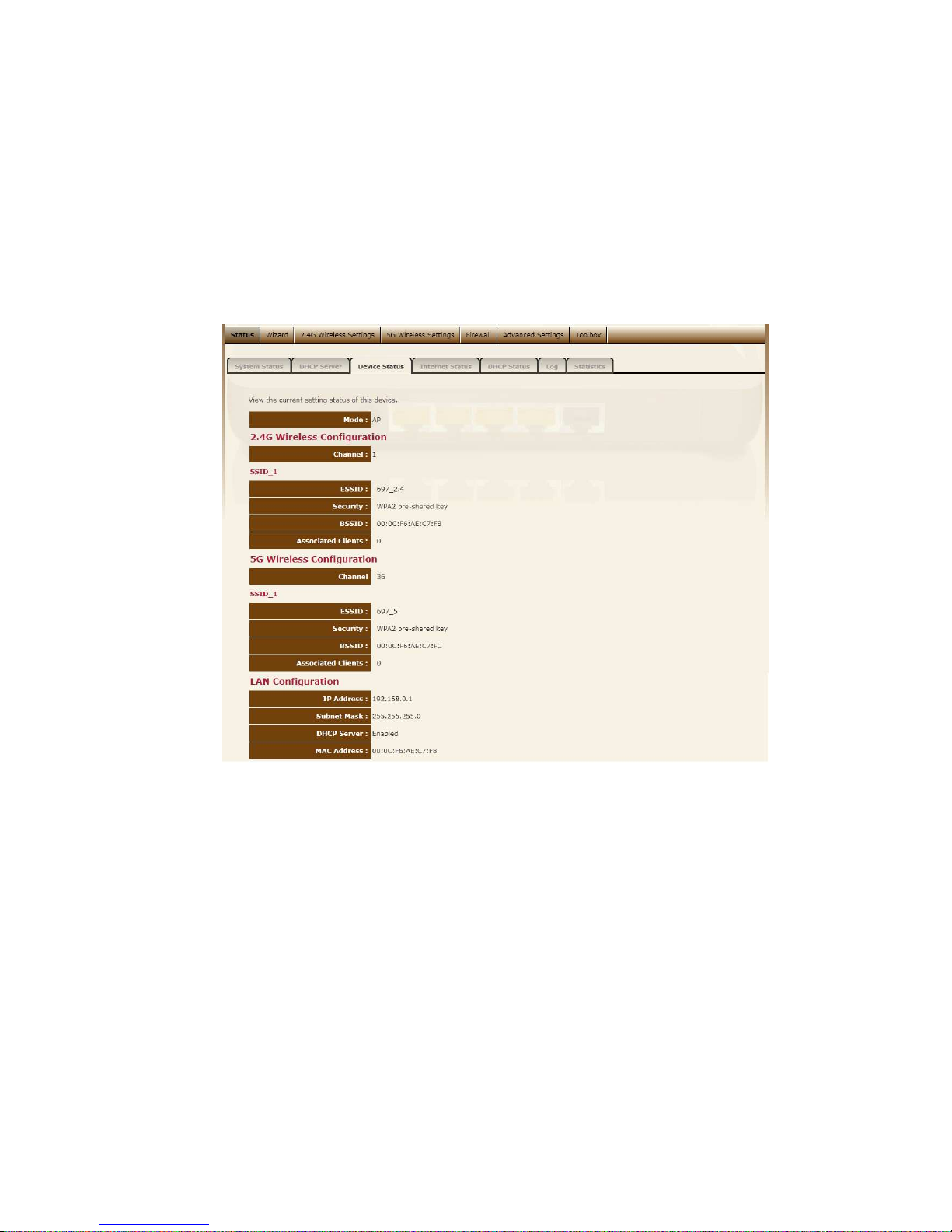

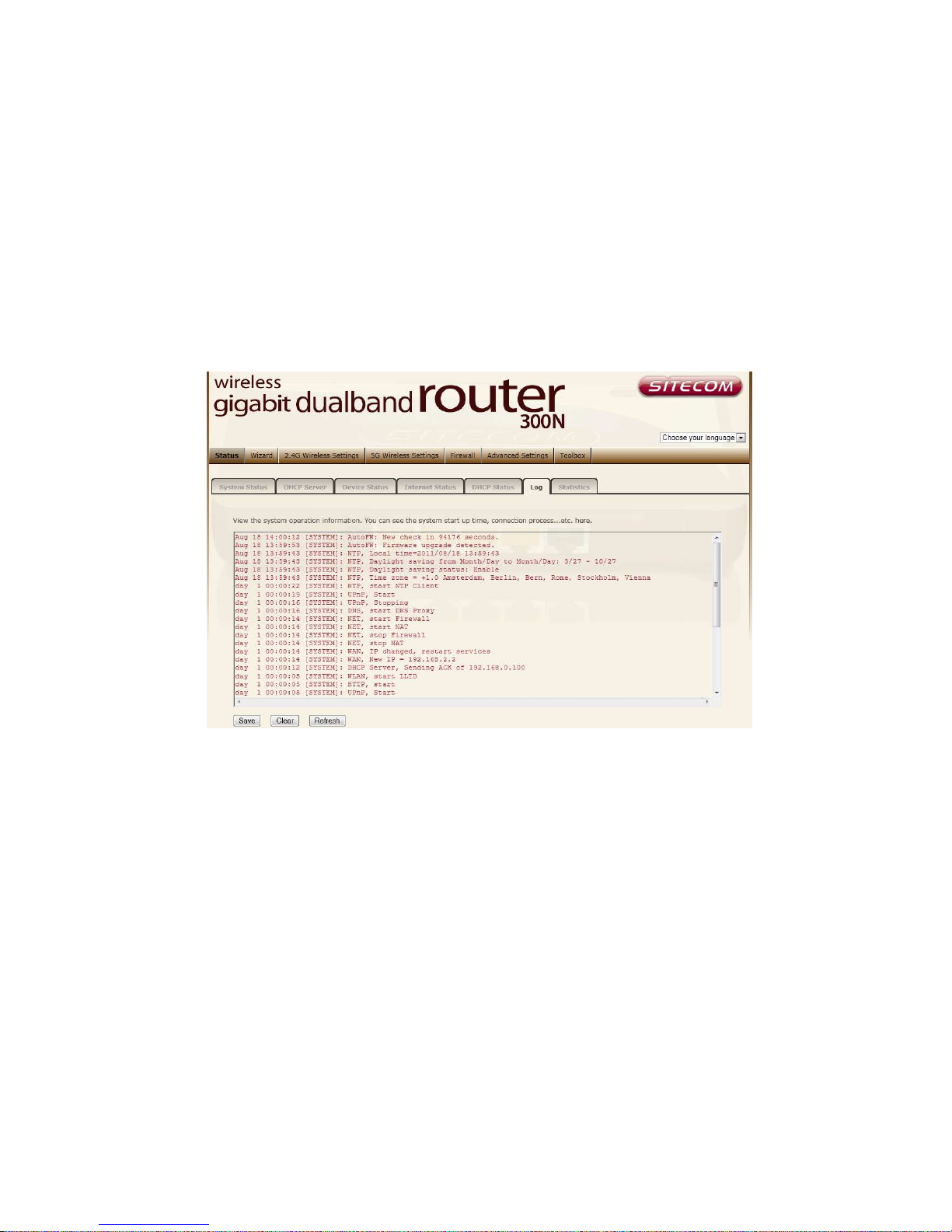

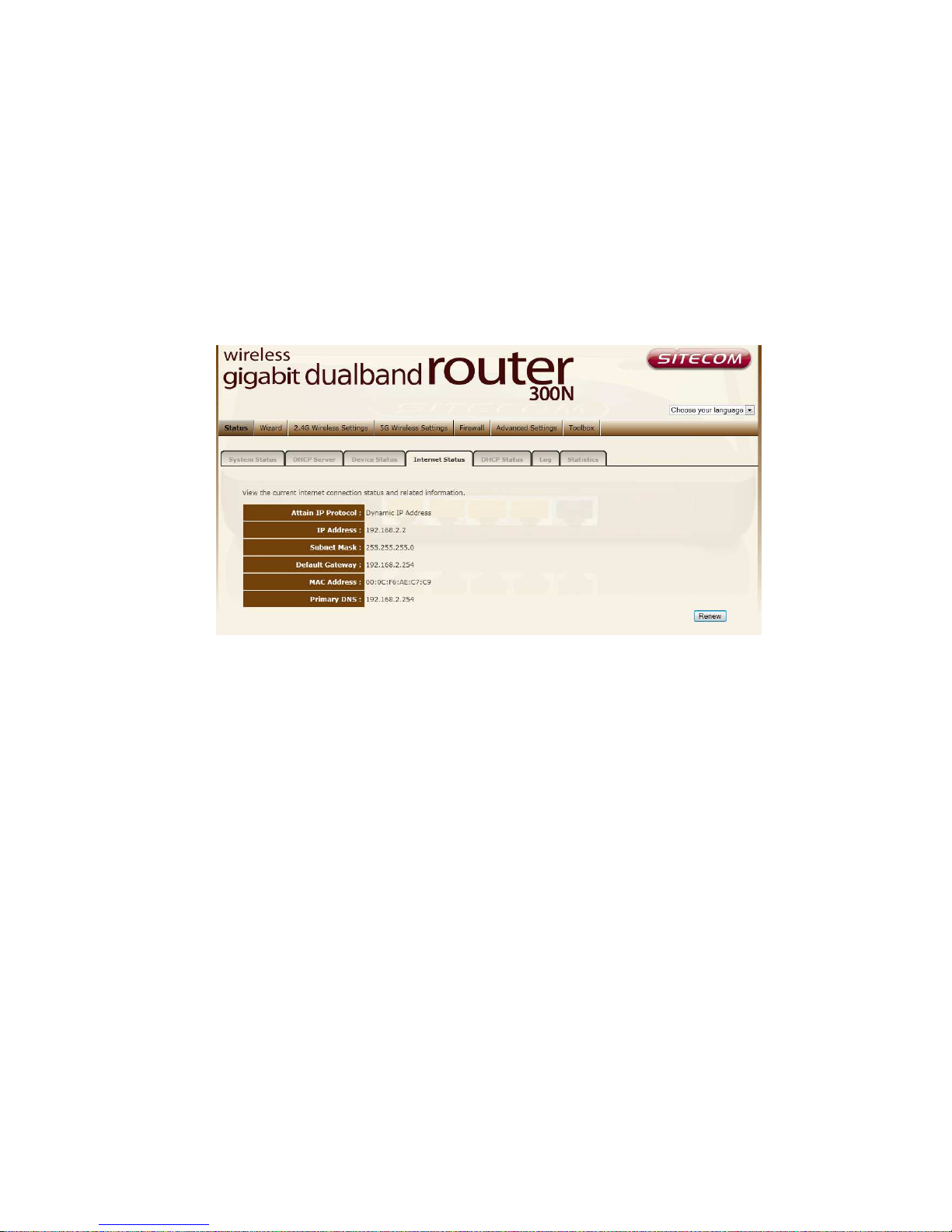

The System status section allows you to monitor the current status of your
router, the UP time, hardware information, serial number as well as firmware
version information is displayed here.
E |3

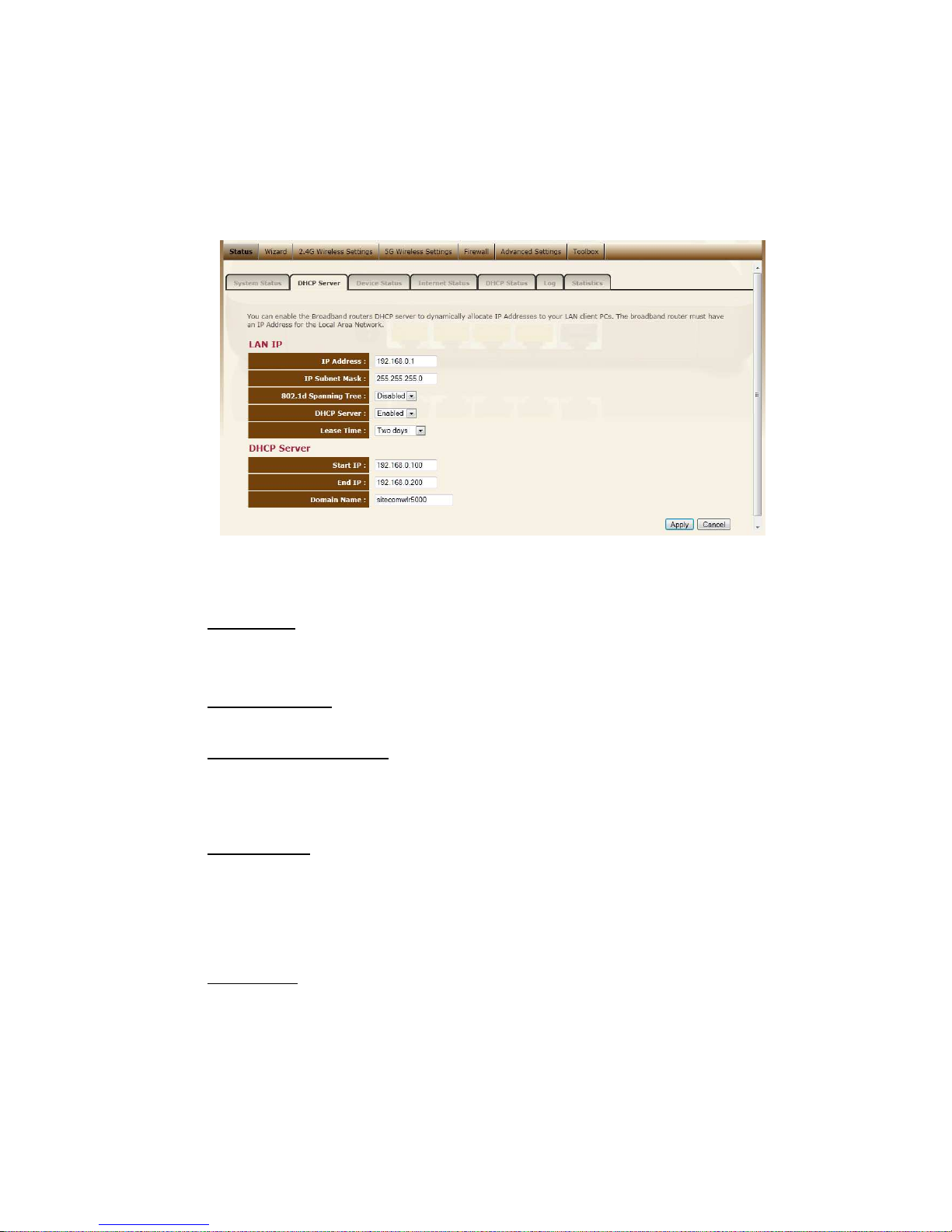

LAN settings
The LAN tab gives you the opportunity to change the IP settings of the WLR-
6000.
Click <Apply> at the bottom of this screen to save any changes.
IP address 192.168.0.1. It is the router’s LAN IP address (Your LAN clients
default gateway IP address).
IP Subnet Mask 255.255.255.0 Specify a Subnet Mask for your LAN segment.
802.1d Spanning Tree is Disabled by default. If the 802.1d Spanning Tree
function is enabled, this router will use the spanning tree protocol to prevent
network loops.
DHCP Server Enabled by default. You can enable or disable the DHCP server.
When DHCP is disabled no ip-addresses are assigned to clients and you have to
use static ip-addresses. When DHCP server is enabled your computers will be
assigned an ip-address automatically until the lease time expires.
Lease Time Forever. In the Lease Time setting you can specify the time period
that the DHCP lends an IP address to your LAN clients. The DHCP will change
your LAN client’s IP address when this time threshold period is reached.
E |3
IP Address Pool You can select a particular IP address range for your DHCP
server to issue IP addresses to your LAN Clients.
Note: default IP range is 192.168.0.100 ~ 192.168.0.200. If you want
your PC(s) to have a static/fixed IP address, then you’ll have to choose
an IP address outside this IP address Pool
Domain Name You can specify a Domain Name for your LAN. Or just keep the
default (sitecomwlr6000).
E |3
Device Status
View the Broadband router’s current configuration settings. Device Status
displays the configuration settings you’ve configured in the Wizard / Basic
Settings / Wireless Settings section.
E |3
Internet Status
This page displays whether the WAN port is connected to a Cable/DSL
connection. It also displays the router’s WAN IP address, Subnet Mask, and ISP
Gateway as well as MAC address, the Primary DNS. Press Renew button to
renew your WAN IP address.
E |3
DHCP Client Status
DHCP This page shows all DHCP clients (LAN PCs) currently connected to your
network. The table shows the assigned IP address, MAC address and expiration
time for each DHCP leased client. Use the Refresh button to update the available
information.
You can check Enable Static DHCP IP. It is possible to add more static DHCP
IPs. They are listed in the table Current Static DHCP Table. IP can be deleted
at will from the table.
Click the Apply button to save the changed configuration.
E |3
WLR-6000 Log
View the operation log of the WLR-6000. This page shows the current system log
of the Broadband router. It displays any event occurred after system start up. At
the bottom of the page, the system log can be saved <Save> to a local file for
further processing or the system log can be cleared <Clear> or it can be
refreshed <Refresh> to get the most updated information. When the system is
powered down, the system log will disappear if not saved to a local file.
E |3
WLR-6000 Statistics
Shows the counters of packets sent and received on WAN, LAN & WLAN.
E |3
11 Configuration Wizard
Click Wizard to configure the router. The Setup wizard will now be displayed;
check that the modem is connected and click Next.
Select your country from the Country list. Select your internet provider. Click
Next.
Depending on the chosen provider, you may need to enter your user name
and password, MAC address or hostname in the following window. After you
have entered the correct information, click Next.
E |3
Click APPLY to complete the configuration.
Loading...
