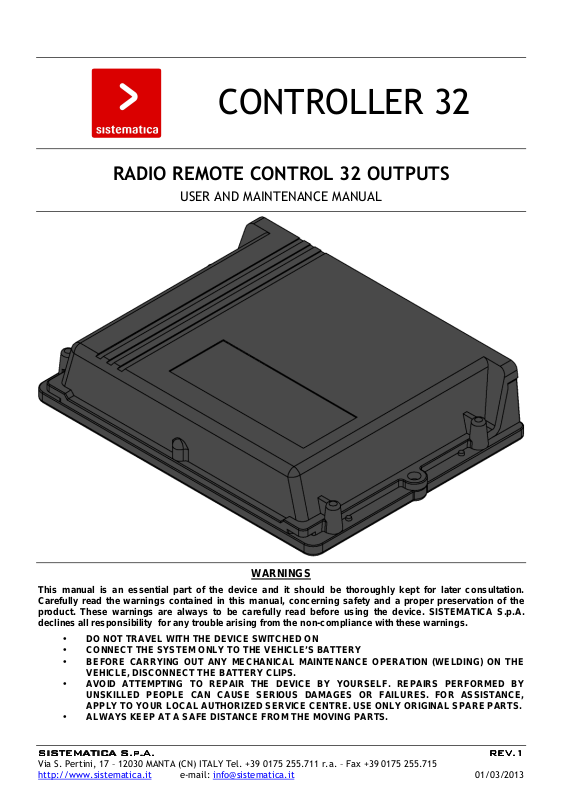

SISTEMATICA S p A CONTROLLER32 User Manual

CONTROLLER 32

RADIO REMOTE CONTROL 32 OUTPUTS

USER AND MAINTENANCE MANUAL

WARNINGS

This manual is an essential part of the device and it should be thoroughly kept for later consultation.
Carefully read the warnings contained in this manual, concerning safety and a proper preservation of the
product. These warnings are always to be carefully read before using the device. SISTEMATICA S.p.A.
declines all responsibility for any trouble arising from the non-compliance with these warnings.

• DO NOT TRAVEL WITH THE DEVICE SWITCHED ON

• CONNECT THE SYSTEM ONLY TO THE VEHICLE’S BATTERY

• BEFORE CARRYING OUT ANY MECHANICAL MAINTENANCE OPERATION (WELDING) ON THE

VEHICLE, DISCONNECT THE BATTERY CLIPS.

• AVOID ATTEMPTING TO REPAIR THE DEVICE BY YOURSELF. REPAIRS PERFORMED BY

UNSKILLED PEOPLE CAN CAUSE SERIOUS DAMAGES OR FAILURES. FOR ASSISTANCE,
APPLY TO YOUR LOCAL AUTHORIZED SERVICE CENTRE. USE ONLY ORIGINAL SPARE PARTS.

• ALWAYS KEEP AT A SAFE DISTANCE FROM THE MOVING PARTS.

SISTEMATICA S.p.A.

SISTEMATICA S.p.A. REV.

SISTEMATICA S.p.A.SISTEMATICA S.p.A.

Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. [phone] r.a. – Fax [phone]

http://www.sistematica.it e-mail: [e-mail] 01/03/2013

REV.1111

REV.REV.

• Manufacturer: SISTEMATICA S.p.A.

• Dimensions: 185x156,5x41

• Outputs number: up to 32

• Proportional outputs number: up to 1

• Digital inputs number: up to 4

• IP protection: IP66

• Operating temperature: -20°C ÷ +70°C

• Power supply voltage: 12/24 V ±10%

• Current consumption (stanby): - 30 mA at 12 V

- 30 mA at 24 V

Coding the system is an operation that is only necessary when the receiver has to be replaced or you want to use it

TECHNICAL FEATURES

• Max current per channel: 5 A

• Max total current: 20 A

• Main connector: FCI-SICMA 56 Header pin

• Communication interface: CAN BUS

•

Can Bus addresses number: 16

• 8 bit microcontroller

• Reverse battery protection

• External antenna

• Category receiver (EN 300-220-1): 2

SYSTEM CODING

with a different SISTEMATICA radio remote control from the one it is coupled with at the time of purchase.
For a correct coding procedure, perform the following steps:

1. Disconnect the power to the receiver;

2. Open the receiver box, by unsrewing the four screws on the

bottom of the box;

3. Locate and press the coding pushbutton on the receiver board
(blue button – fig. 1);

4. Put power into the receiver by keeping the coding pushbutton
pressed for 3-4 sec.; the yellow led on the receiver board flashes
two time per second; so release the coding pushbutton;

5. Press any 3 keys at the same time on the transmitter within 15
seconds since it has been switched on (also more time if it is
necessary; the yellow led stop to blink);

6. At this time, the transmitter is codified with the reveiver; check all
the system function by trying the movements of the system;

7. Close the receiver box by screwing the four screw removed at step

2.

The relay motor resetting is an operation to carry out in order to change its coupling with the other outputs (OUT1,
OUT2, OUT3…) from the original standard system setting.

To change therealy motor output coupling with the output requie, it is necessary to act as follows:

By a standard system setting when any key is pressed on the radio control transmitter the
correspondent output and relay motor output is activated. (see “Instructions for use” in the
radio control transmitter manual).

RELAY MOTOR RESETTING

Figure 1. Coding button

1. Disconnect the power to the receiver;

2. Open the receiver box, by unsrewing the four screws on the bottom of the box;

3. Put power into the receiver;

4. Press simultaneously the coding button on the receiver board (fig. 1) and START key on the transmitter for 3-4

sec., so release the 2 keys;

5. Activate in a row, by the transmitter, the outputs that are to be coupled with the relay motor;

6. Press simultaneously the coding button on the receiver board (fig. 1) and STOP key on the transmitter for 3-4

sec., so release the 2 keys;

7. At this time the new output and relay motor coupling is recorded; check all the system function by trying the
movements of the system;

8. Close the receiver box by screwing the four screw removed at step 2.

In case any error should occur while resetting the system, it is possible to cancel the operation, by taking the power
off the system and repeating the operation.

SISTEMATI

SISTEMATICA S.p.A.

SISTEMATISISTEMATI

CA S.p.A. Pag. 2/4

CA S.p.A.CA S.p.A.

Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. [phone] r.a. – Fax [phone]

http://www.sistematica.it e-mail: [e-mail]

For a proper functioning, locate the receiver type CONTROLLER 20 with the cable output downwards, as shown in
the picture below:

POSITIONING OF THE RECEIVER UNIT, DIMENSION AND DRILLING TEMPLATE

POSITIONING OF THE RECEIVER UNIT

RECEIVER DIMENSION

DRILLING TEMPLATE DIMENSION

The CONTROLLER 32 is provided with an external antenna (STUB) with relative gasket. It must be mounted on the

ANTENNA INSTALLATION

SMA connectoron the back of the controller. For a correct installation procedure, perform the following steps:

1. Place the gasket ont the thread of the SMA connector;

2. Screw the antenna up to the bottom of the thread of the SMA connector .

The system is automatically protected from power
overload and from possible short-circuit on

FUSE REPLACEMENT

PRODUCT IDENTIFYING LABELS

Internal label

corresponding outputs. For further protection is also
provided an internal fuse within the box. For replacing
the damaged fuse, please proceed as follows:

1. Disconnect the power to the receiver;

2. Open the receiver box, by unsrewing the four

screws on the bottom of the box;

3. Locate the damage fuse on the receiver board;

4. Take the damaged fuse out of its holder and insert

the new fuse, (F1= 15 A);

5. Put power into the receiver; to check that the fuse
has been correctly replaced, try one or more
movements of the system;

6. Close the receiver box by screwing the four screw
removed at step 2.

CNTR32: product model

S/N: product serial number

Cod.: product identification number

Removal of the identifying labels
entails lapin of the guarantee
conditions and the responsabilità of
SISTEMATICA S.p.A. with respect to
component bodies

External label

SISTEMATICA S.p.A.

SISTEMATICA S.p.A. Pag. 3/4

SISTEMATICA S.p.A.SISTEMATICA S.p.A.

Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. [phone] r.a. – Fax [phone]

http://www.sistematica.it e-mail: [e-mail]

P

ROBLEM

POSSIBLE CAUSES SOLUTIONS

The system does not respond
to the controls

The GREEN led on the
remote control does not light
up when a key is pressed

The system responds to the
controls in a discontinuous
way

• Attachment A: WIRING

• Attachment B: EXTERNAL ANTENNA

• Attachment C: PROPORTIONAL (PWM) (only if receiver with proportional output)

PROBLEM IDENTIFICATION AND SOLUTION

-Check that the emergency mushroom button on the transmitter (if present)
is in the release position.

Absence of power in the receiver unit

Incorrect connection of the cabling to
the utilities

Incorrect installation of the receiver

Incorrect replacement of the batteries
System not coded -Re-code the system (vedi “CODIFYING THE SYSTEM”)

Blown fuse
Flat batteries

Flat batteries
Batteries almost flat

Using the transmitter beyond its
maximum range
Connection to the battery and to the
utilities made with cables of unsuitable
section or lenght

-Check that the vehicle batterie is correctly connected to the receiver unit

-Check that the fuse inside the receiver unit is inctact, and if it is not, replace
it (see “FUSE REPLACEMENT”)

-Check the cabling to indicators, electro-valves etc.

-The receiver must not be shielded by ferrous masses (see “POSITIONING
OF THE RECEIVER UNIT”)

-Check that the batteries have been inserted correctly; if necessary replace
them (see “REPLACEMENT THE BATTERIES” on the manual of the
transmitter combined)

-Replacement of the fuse on the receiver board (see “FUSE
REPLACEMENT”)

-Replacement of the transmitter batteries (vedi “REPLACEMENT THE
BATTERIES” on the manual of the transmitter combined)

-Keep to a distance

-Chech that the connection to the battery and the utilities are made with
cables of suitable section and lenght

≤ 120m from the receiver

ATTACHMENTS

CE MARK

Declaration of conformity for Sistematica S.p.A. products can be required at: [e-mail]

This product may be subjected to usage restriction. Please contact [e-mail] for any further questions.

These devices complies with Part 15 of the FCC rules.

FCC STATEMENTS

Operation is subject to the following two conditions:
(1) these devices may not cause harmful interference and
(2) these devices must accept any interference received, including interference that may cause undesired operation.

NOTE: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to
these equipment. Such modifications could void the user’s authority to operate the equipments.

SISTEMATICA S.p.A. Grantee Code: O8I

CONTROLLER 32 label example
FCC ID: O8ICONTROLLER32
