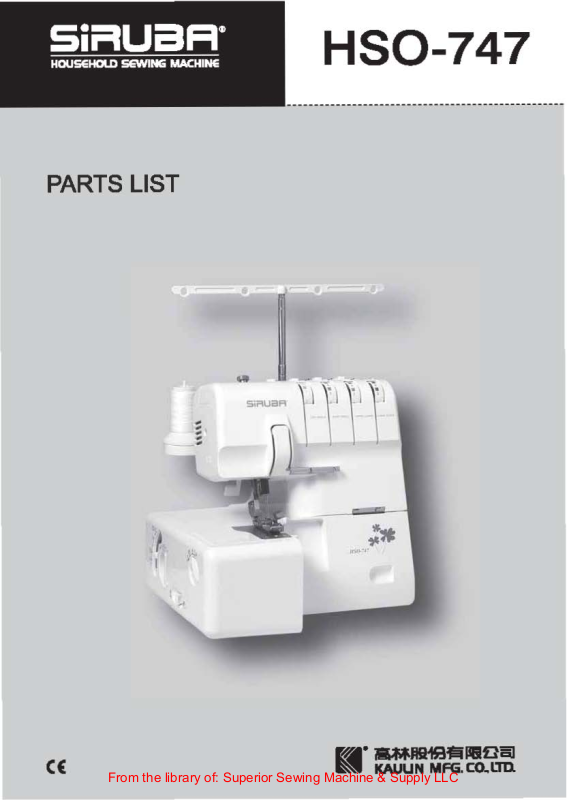

HS0-747
PARTS
LIST
,
,
,
,
,
•
"'
SinUaR
:
. l • I
\
-
~
•
I
.,.,.
I ,
'
n
((
CONTENTS
1. PRINCIPAL PARTS…………………………………………..2
2. NEEDLE BAR, FEED BAR AND PRESSER HOLDER…..4
3. KNIFE AND LOOPER………………………………………..6
4. LAMP, MOTOR AND ACCESSORY………………………..8
1
A
A
A
A
(1) PRINCIPAL PARTS
No. PARTS No. PARTS NAME No. PARTS No. PARTS NAME
1 JR-TD311 Front cover HS0-747
2 JR-TF117 Front cover hook
3 JR-TG116 Screw M3P1.06*8
4 JR-TF118 Front cover hinge plate
5 JR-TC124 Front cover guide shaft
6 JR-TJ103 Front cover spring
7 JR-TH101 Stop ring
8 JR-TG136 Set screw M4*20
9 JR-TD131 Oil pan
10 JR-TD132 Cushion A
11 JR-TG113 Set screw M4*12
12 JR-TF188 Needle thread take-up guide
13 JR-TD120B Cloth plate side cover
14 JR-TD119-1 Cloth plate cover
15 JR-TD310 Panel assembly 750D
16 JR-TD199 Lamp cover 750D
17 JR-TG108 Set screw M4*6
18 JR-TD198 Rear cover assembly 750D
19 JR-TP107 Thread rectifier cushion
20 JR-TJ128 Thread rectifier D1
21 JR-TF108 Thread rectifier
22 JR-TG112 Set screw M4*8
23 JR-TD112 Spool stand base
24 JR-TD113 Spool cushion
25 JR-TC125 Spool stand shaft
26 JR-TD114 Thread guide 4
27 JR-TG115 Set screw M2*6
28 JR-TD197 Belt cover 750D
29 JR-TDA103-1
30 JR-TDA103-2
31 JR-TDA103-3
32 JR-TDA103-4
33 JR-TG109 Set screw M4*8
34 JR-TG117 Screw M3P1.06*10
35 JR-TG111 Set screw M4*18\
36 JR-TD121-1 Arm cover
37 JR-TD122-1 Sub table assembly
Left needle thread tension dial
Right needle thread tension dial
Over looper thread tension dial
Undr looper thread tension dial)
2
i
10~
,{
3
(2) NEEDLE BAR, FEED BAR AND PRESSER HOLDER
No. PARTS No. PARTS NAME No. PARTS No. PARTS NAME
1 JR-TG119 Set screw M5*5 51 JR-TC113 Feed bar lever shaft
2 JR-TC101 Driving shaft assembiy 52 JR-TC127 Collar
3 JR-TH105 Stop ring 53 JR-TE123 Main feed bar
4 JR-TD108-2 Timing pulley 54 JR-TB104 Main feed dog
5 JR-TG114 Set screw M5*14 55 JR-TG104 Set screw M3*5
6 JR-TI112 Washer 56 JR-TE124 Differential feed bar
7 JR-TE110 Needle bar eccentric wheel 57 JR-TG112 Set screw M4*8
8 JR-TE109 Needle bar rod 58 JR-TB122 Differential feed dog
9 JR-TC110 Rod shaft 59 JR-TD125 Differential control lever
10 JR-TH103 Stop ring 60 JR-TC115 Differential link shaft
11 JR-TE108 Needle bar driving lever 61 JR-TH102 Stop ring
12 JR-TG118 Set screw M4*4 62 JR-TI104 Washer
13 JR-TE107 Needle bar connecting link 63 JR-TE129 Differential adjusting link
14 JR-TC111 Needle bar rod shaft B 64 JR-TC114 Horizontal lever shaft
15 JR-TF119 Presser bar guide plate 65 JR-TI106 Washer
16 JR-TF104 Thread take-up 66 JR-TE128 Differential feed adjusting block
17 JR-TG133 Set screw M4*15 67 JR-TC118 Differential adjusting link shaft
18 JR-TG108 Set screw M4*6 68 JR-TE125 Feed eccentric wheel
19 JR-TC109 Needle bar shaft 69 JR-TE126 Vertical feed block
20 JR-TD205 Presser lifter lever 70 JR-TE131 Feed link
21 JR-TG110 Set screw M4*12 71 JR-TC143 Feed link shaft
22 JR-TE150 Collar 72 JR-TE144 Feed bar link
23 JR-TC108 Needle bar connecting stud 73 JR-TC115 Differential link shaft
24 JR-TG120 Set screw M6*6 74 JR-TE133 Feed adjusting block
25 JR-TC107 Needle bar 75 JR-TE132 Feed adjusting lever
26 JR-TE141 Needle clamp 76 JR-TA102 Feed base
27 JR-TG106 Set screw M3*8 77 JR-TD124 Feed dial
28 JR-TF142 Needle bar thread guide 78 JR-TF198 Set plate
29 JR-TG131 Spring pin 2.5*10 79 JR-TF137 Dial plate spring
30 JR-TG124 Set screw M3*3 80 JR-TH101 Stop ring
31 JR-TB103 Needle plate 81 JR-TI103 Washer
32 JR-TF132 Fixed needle gurade 82 JR-TE148 Collar
33 JR-TG102 Set screw M2*3
34 JR-TG122 Set screw SM4.37
35 JR-TF133-1 Stitch finger lever
36 JR-TF134 Stitch presser plate
37 JR-TG101 Set screw M2*3
38 JR-TF133 Stitch tongue
39 JR-TB101 Presser holder assembly
40 JR-TB102 Presser foot assembly
41 JR-TC112 Presser bar
42 JR-TE111 Presser bar guide bracket
43 JR-TG129 Spring pin 4*25
44 JR-TJ111 Presser bar spring
45 JR-TC134 Presser adjusting screw
46 JR-TG121 Set screw SM3.57*8
47 JR-TC145 Presser lifter shaft N
48 JR-TF136 Differential adjusting lever assembly
49 JR-TF138 Differential adjusting link
50 JR-TE127 Feed bar lever
4
(3) KNIFE AND LOOPER
No. PARTS No. PARTS NAME No. PARTS No. PARTS NAME
1 JR-TE134 Upper knife eccentric wheel 51 JR-TF162 Underlooper thread guide assembly
2 JR-TG119 Set screw M5*5 52 JR-TK101 Overlooper
3 JR-TE135 Upper knife link A 53 JR-TE119 Overlooper shaft guide
4 JR-TC121 Upper knife link shaft 54 JR-TC105 Overlooper shaft guide shaft
5 JR-TH102 Stop ring 55 JR-TI105 Washer
6 JR-TE137 Upper knife arm assembly 56 JR-TK102 Underlooper
7 JR-TC120 Connect pin 57 JR-TL101 Underlooper lever
8 JR-TJ106 Connect pin spring 58 JR-TG123 Set screw M5*16
9 JR-TC131 Looper rod stud shaft 59 JR-TI114 Washer
10 JR-TF131 Cancel plate 60 JR-TF141 Movable needle guard
11 JR-TC119 Upper knife fulcrum shaft 61 JR-TG104 Set screw M3*6
12 JR-TG128 Spring pin 2.5*14 62 JR-TE116 Overlooper rod eccentric wheel
13 JR-TH104 Stop ring 63 JR-TEA112 Looper rod assembly
14 JR-TC127 Collar 64 JR-TE117 Overlooper driving lever
15 JR-TG118 Set screw M4*4 65 JR-TE122 Underlooper rod eccentric wheel
16 JR-TE138 Upper knife holder 66 JR-TE121 Underlooper driving lever
17 JR-TF123 Upper blade 67 JR-TF140 Looper thread take-up B
18 JR-TE136 Upper knife arm assembly B 68 JR-TF139 Looper thread take-up A
19 JR-TG109 Set screw 69 JR-TG112 Set screw M4*8
20 JR-TC122 Upper knife arm shaft
21 JR-TE139 Upper blade block
22 JR-TI106 Washer
23 JR-TF129 Lever plate assembly
24 JR-TD126 Blade lever
25 JR-TG116 Screw M3P1.06*8
26 JR-TF130 Lever plate spring
27 JR-TG108 Set screw M4*6
28 JR-TJ110 Lever spring
29 JR-TB107 Lower blade holder
30 JR-TF122 Lower blade
31 JR-TF128 Plate spring
32 JR-TC123 Lower blade guide shaft
33 JR-TF124 Upper knife holder guide
34 JR-TF126 Upper blade holder plate spring
35 JR-TC129 Upper knife holder guide shaft
36 JR-TG105 Set screw M3*6
37 JR-TJ105 Lower blade spring
38 JR-TF127 Dial plate
39 JR-TD129 Blade control dial plate
40 JR-TD128 Blade control dial assembly
41 JR-TG130 Blade control shaft
42 JR-TG117 Screw M3P1.06*10
43 JR-TD127 Stitch width lever
44 JR-TF125 Upper knife presser plate
45 JR-TC106 UL lever shaft
46 JR-TC102 OL lever shaft
47 JR-TE118 Overlooper shaft lever
48 JR-TJ104 Upper knife holder spring
49 JR-TC104 Overlooper shaft
50 JR-TC103 Overlooper lower shaft
6
/
~
26
'
~
~
27
~
~
23
0
-
~
----
28
1
~
25
2
\
~
~
8
f \
7
15
~
/
;;{y
......
~
10 14
52
~
°
~
-
t:!
12
54
() ()
6
15
'
a
7
V
W
e
V
r
r
r
t
y
r
r
h
h
t
x
r
U
(4) LAMP, MOTOR AND ACCESSORY
No. PARTS No. PARTS NAME No. PARTS No. PARTS NAME
1 JR-TF120 Lamp plate
2 JR-TP104 Lampholder assembly 230
3 JR-TG105 Set screw M3*6
4 JR-TP106 Lamp 230V 15
5 JR-TF121 Lamp cover plat
6 JR-TG108 Set screw M4*6
7 JR-TP102 Switch assembly 230
8 JR-TP114 Connecto
9 JR-TG125 Set screw M8*15
10 JR-TI111 Spring washe
11 JR-TI108 Washe
12 JR-TP108 Timing bel
13 JR-TP138 Motor 220V (YM-260-12)
14 JR-TP116 Safty limited switch assembl
15 JR-YC-483-5 Foot controlle
16 JR-TM113 Screw drive
17 JR-TM114 Cleaning brus
18 JR-TM108 Hexagonal (allen) wrenc
19 JR-TM110 Tweezers
20 JR-TM111 Ne
21 JR-TD116 Thread spool cap
22 JR-TM112 Machine Oil
23 JR-TK104 Needle set (#80x2 #90x2)
24 JR-TM109 Accessary bo
25 JR-TM118 Cove
26 JR-TM386 Instruction book
27 JR-TM387 Carton
28 JR-TN103 SF assembly
29 JR-TN104 SF assembly D
8
5
/"
6
/
26
~
/
21
e
/ 24
23
(
~
9
29
The specification
subiect
to
change because
and/or
appearances
of
modification without previous notice.
of
the
equipment described
In
this
parts list are
