Dock & Play Radio + Vehicle Kit

User Guide

If you experience problems with the operation

or performance of your SiriusXM product,

DO NOT RETURN THIS PRODUCT TO YOUR RETAILER.

Call SiriusXM Listener Care at 1-866-746-7961

and speak to one of our service representatives.

Table of Contents

Introduction. . . . . . . . . . . . . . . . . . . .5

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Safety and Care Information . . . . . . . . . . .7

What’s in the Box? . . . . . . . . . . . . . . . . . . .9

OnyX Functions . . . . . . . . . . . . . . . . . . . . . 10

PowerConnect Vehicle Dock . . . . . . . . . . 11

Vehicle Installation . . . . . . . . . . . . . 13

Step 1: Choose a Location for Your

Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Step 2: Install the Dash or Vent Mount . 16 Step 3: Mount the Magnetic Mount

Antenna. . . . . . . . . . . . . . . . . . . . . . . . . 20

Step 4: Route the Magnetic Mount

Antenna Cable . . . . . . . . . . . . . . . . . . . 26

Step 5: Connect the Magnetic Mount Antenna and PowerConnect Power

Adapter . . . . . . . . . . . . . . . . . . . . . . . . . .37

Step 6: Connect the Audio. . . . . . . . . . . 38

Subscribe. . . . . . . . . . . . . . . . . . . . 47

Using Your OnyX . . . . . . . . . . . . . 49

The Main Display . . . . . . . . . . . . . . . . . . . 50

Navigation Basics . . . . . . . . . . . . . . . . . . . 51

Listening to Satellite Radio . . . . . . . . . . 53

FM Presets . . . . . . . . . . . . . . . . . . . . . . . . 57

Special Features . . . . . . . . . . . . . . 59

Color Themes. . . . . . . . . . . . . . . . . . . . . . 60

Trim Rings . . . . . . . . . . . . . . . . . . . . . . . . . 61

Parental Controls . . . . . . . . . . . . . . . . . . 64

Where Else Can You Use Your

OnyX? . . . . . . . . . . . . . . . . . . . . . 69

Configuring Your OnyX . . . . . . . . . 71

Radio ID . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Find Available FM Channels in Your

Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Set and Select an FM Channel. . . . . . . . .76

Jump Settings . . . . . . . . . . . . . . . . . . . . . .79

Set Brightness. . . . . . . . . . . . . . . . . . . . . 80

Set Audio Level . . . . . . . . . . . . . . . . . . . . . 81

Signal Indicator . . . . . . . . . . . . . . . . . . . . 82

Factory Settings . . . . . . . . . . . . . . . . . . . 83

Demo Mode . . . . . . . . . . . . . . . . . . . . . . . 86

Auto Shut Off. . . . . . . . . . . . . . . . . . . . . . 87

Using the Vehicle Dock From the

Universal Xpress Car Kit . . . . . . . . . . . 88

Turn FM Transmitter On/Off. . . . . . . . . . 89

Troubleshooting. . . . . . . . . . . . . . . . 91

Product Specifications . . . . . . . . . .97

Patent Information . . . . . . . . . . . . . . . . . 99

Environmental Information . . . . . . . . . . 99

SiriusXM 90-Day Limited

Warranty . . . . . . . . . . . . . . . . . . .103

Introduction

Features

Thank you for purchasing the XM OnyX with Vehicle Kit!

XM OnyX has these exciting features to enhance your overall experience:

• Hear SiriusXM through your existing vehicle radio with easy, do-it-yourself installation.

• Choose the display color that matches your dash lights, and personalize with the trim rings.

• Browse other channels while listening to the current one.

• View artist name, song title, and channel information on the large color

display.

• Store your favorite channels for one touch access.

• Easily lock and unlock channels with mature content.

• One-Touch Jump™ to traffic and weather for the city of your choice from a

list of 22 of the most congested cities, or to the previous channel to which you were listening.

• Listen in multiple vehicles, at home, in the office or outdoors - all with just one subscription.

• Vehicle Kit included — add accessories for your home, office, or other vehicles.

Please read the entire User Guide before using your OnyX!

Introduction

Safety and Care Information

IMPORTANT! Self installation instructions and tips are provided for your

convenience. It is your responsibility to determine if you have the knowledge, skills, and physical ability required to properly perform an installation. SiriusXM shall have no liability for damage or injury resulting from the installation or use of any SiriusXM or third party products. It is your responsibility to ensure that all products are installed in adherence with local laws and regulations and in such a manner as to allow a vehicle to be operated safely and without distraction. SiriusXM product warranties do not cover the installation, removal or reinstallation of any product.

• Do not expose to extreme temperatures (above 140ûF or below -4ûF, or above 60ûC or below -20ûC).

• Do not expose to moisture. Do not use device near or in water. Do not touch the device with wet hands.

• Do not let any foreign matter spill into device.

• Do not store in dusty areas.

• Do not expose to chemicals such as benzene and thinners. Do not use liquid

or aerosol cleaners. Clean with a soft damp cloth only.

• Do not expose to direct sunlight for a prolonged period of time, and do not expose to fire, flame, or other heat sources.

• Do not try to disassemble and/or repair device yourself.

• Do not drop your device or subject it to severe impact.

• Do not place heavy objects on device.

• Do not subject device to excessive pressure.

• If the LCD screen is damaged, do not touch the liquid crystal fluid.

Warning!

• Opening the case may result in electric shock.

• If the liquid crystal fluid comes in contact with your skin, wipe the skin area

with a cloth and then wash the skin thoroughly with soap and running water. If the liquid crystal fluid comes into contact with your eyes, flush the eyes with clean water for at least 15 minutes and seek medical care. If the liquid crystal fluid is ingested, flush your mouth thoroughly with water. Drink large quantities of water, and induce vomiting. Seek medical care.

• Make sure that you insert the PowerConnect™ Power Adapter all the way into the vehicle’s cigarette lighter or power adapter socket.

• If you are using PowerConnect as your audio connection option, it is advisable not to insert a multi-outlet adapter into the same vehicle cigarette lighter or power adapter socket to simultaneously power other devices. Some multi-outlet adapters can prevent the PowerConnect feature from working properly.

• When using this product, it is always important to keep your eyes on the road and hands on the wheel. Not doing so could result in personal injury, death, and/ or damage to your device, accessories, and/or to your vehicle or other property.

• Vehicle installation, service activation, and Radio configuration functions should not be performed while driving. Park your vehicle in a safe location before beginning installation.

• This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Your device should be placed in your vehicle where it will not interfere with the function of safety features, e.g., deployment of airbags. Failure to correctly place device may result in injury to you or others, if the unit becomes detached during an accident and/or obstructs the deployment of an airbag.

Introduction

What’s in the Box?

3 4 5 6 7 8 9 0

direct

jump

OnyX Radio

PowerConnect Vehicle Dock

Magnetic Mount

Antenna

Antenna & Dash Mount

Alcohol Preparation Pads

PowerConnect Power

Adapter

Aux In Cable

Dash Mount

Trim Rings

Vent Mount

and Extended

Vent Clamps

Trim Ring Removal Tool

Cable

Routing Adapter

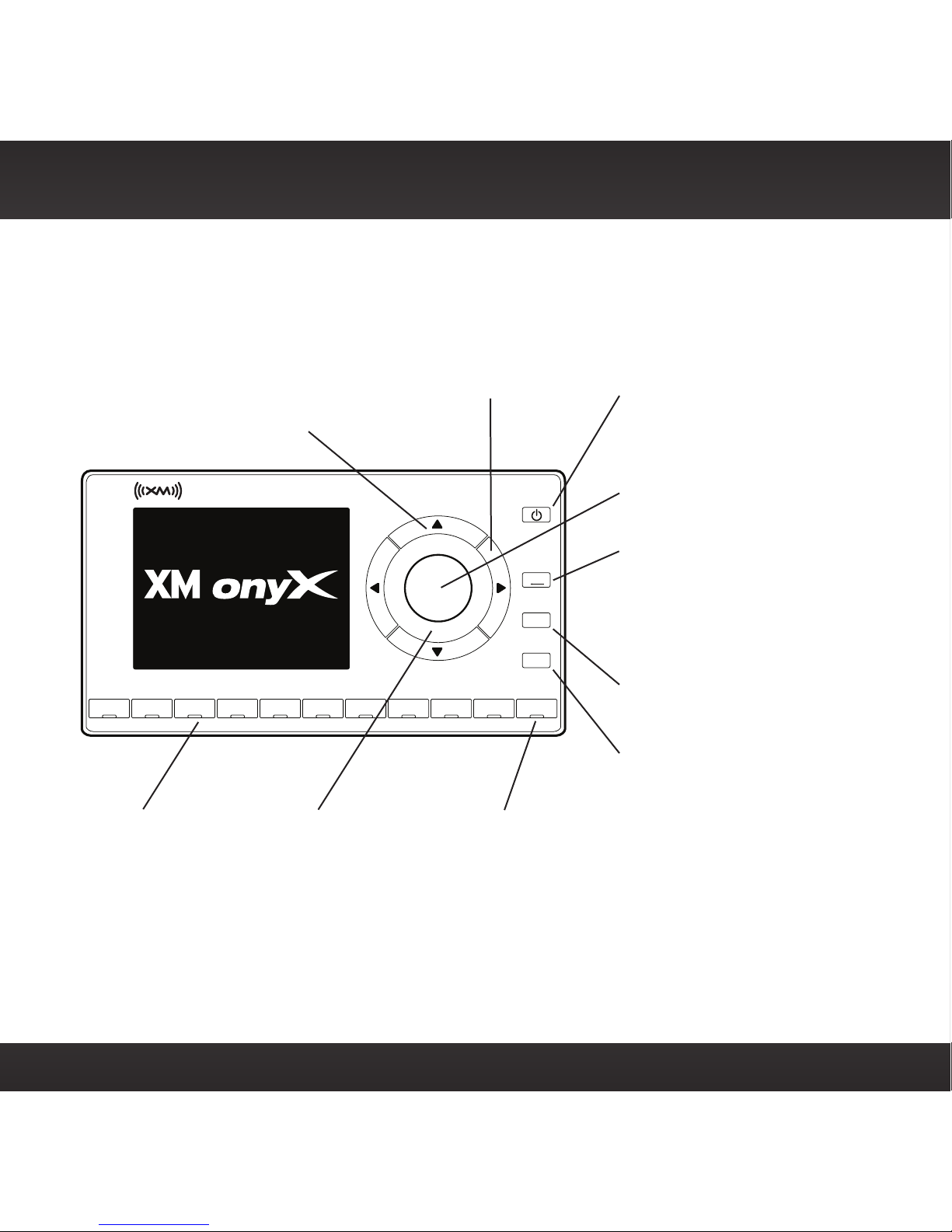

OnyX Functions

3 4 5 6 7 8 9 0

direct

jump

Power Button

Press to turn Radio on and off.

Left and Right Buttons

Press to search for channels by category.

Up and Down Buttons

Press to preview and tune to channels through the channel lineup; also press to scroll through lists and highlight menu items.

Menu Button

Press to access advanced features and configuration options; in configuration options, press and hold to return to main display screen.

Select Button

Press to confirm selection of highlighted items in a menu or list.

FM Button

Press to access and cycle through FM presets.

Jump Button

Press to directly access traffic and weather for the city of your choice; or press it to go back to the previous channel to which you were listening.

Direct Button

Press first before entering the channel number, to directly tune to a channel.

Number Buttons

Press to tune to a stored favorite channel, press and hold to store a favorite channel; also enter a channel number.

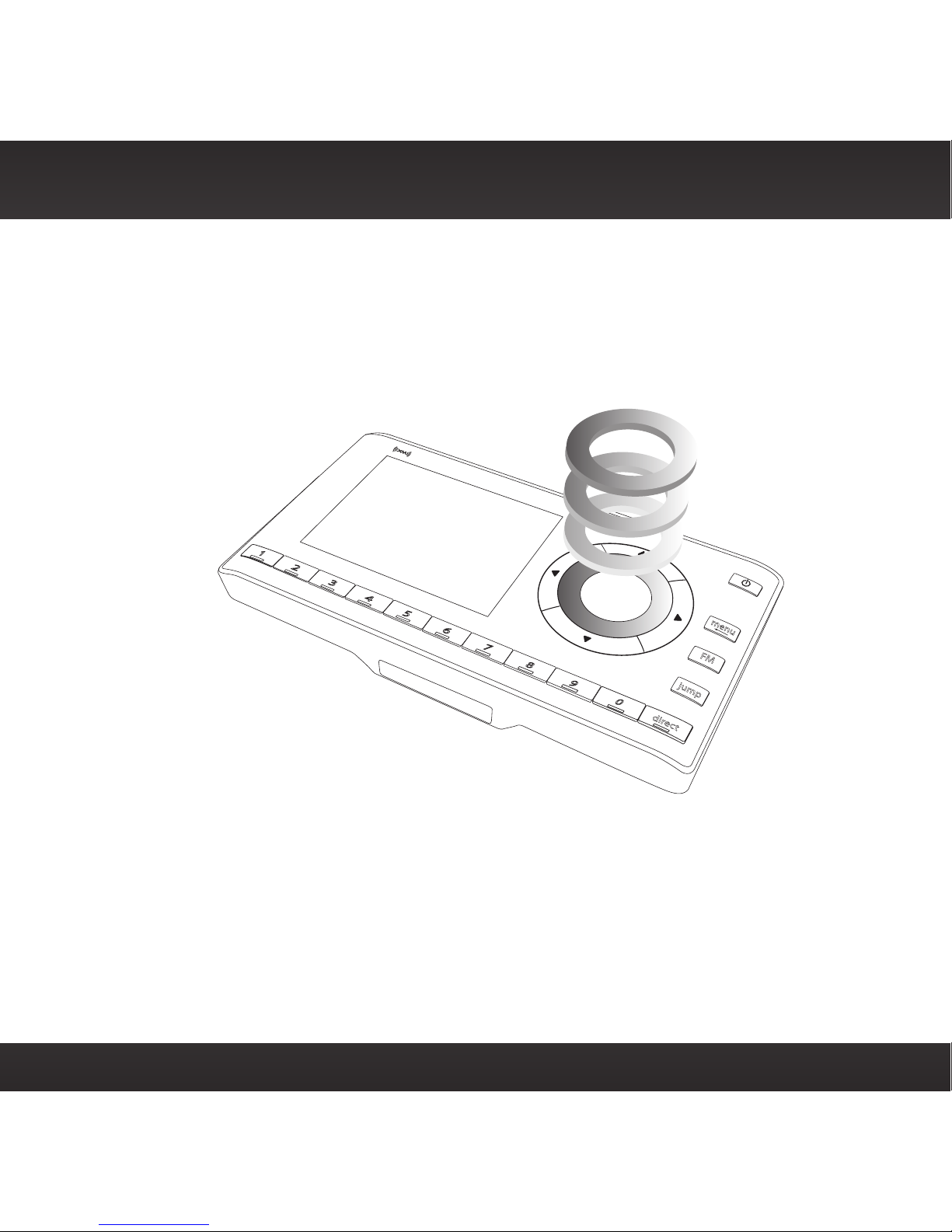

Trim Ring

Changeable decorative Trim Ring.

Introduction

PowerConnect Vehicle Dock

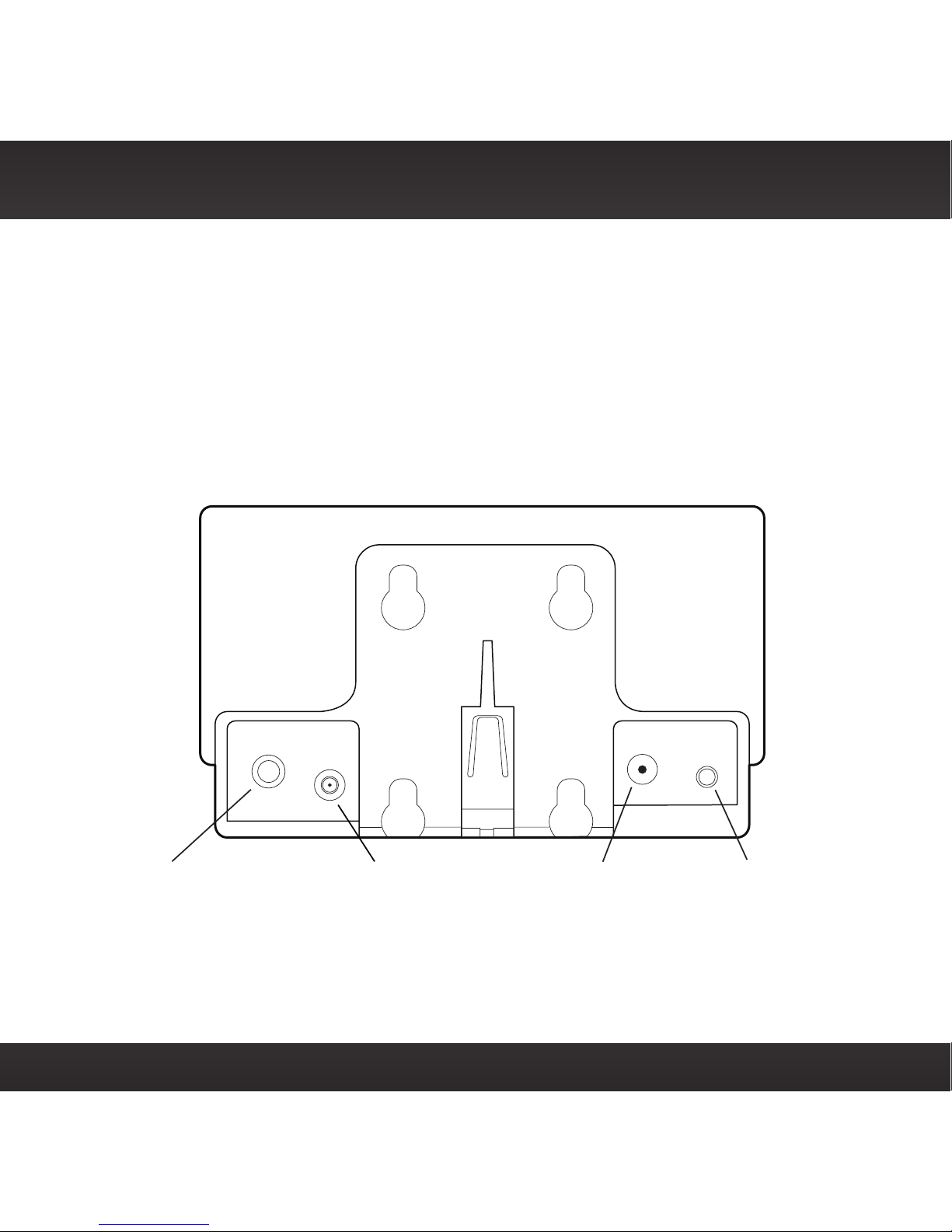

Color-Coded Connections

The color-coded PowerConnect Vehicle Dock makes it simple to connect. Just match the colors on the cable ends to the colors on the dock to see what goes where.

ANT (Silver) Connection for the Magnetic Mount Antenna.

AUDIO (Green) Connection for Aux In Cable or optional Cassette Adapter (sold separately).

Rear View

PWR (Red) Connection for PowerConnect Power Adapter.

FM (Blue) Connection for optional FM Direct Adapter (sold separately).

AUDIO ANT PWR FM

Wire Guide

The PowerConnect Vehicle Dock has a wire guide at the top rear that can help you to organize the cables and wires connected to the dock. If you need to bring a cable or wire from one side of the dock to the other, utilize the wire guide by looping the cable though the wire guide as shown.

Wire Guide

Introduction

Vehicle Installation

WARNING! DO NOT attempt to install OnyX while driving. Park your vehicle in a safe location before beginning installation.

Step 1: Choose a Location for Your Radio

When installing OnyX in your vehicle, choose a location where it will not block your vision, interfere with the controls, or obstruct the air bag. The location should be easily accessible and provide good visibility of the display, and should not be located where it will be in direct sunlight, which will affect the visibility of the display screen.

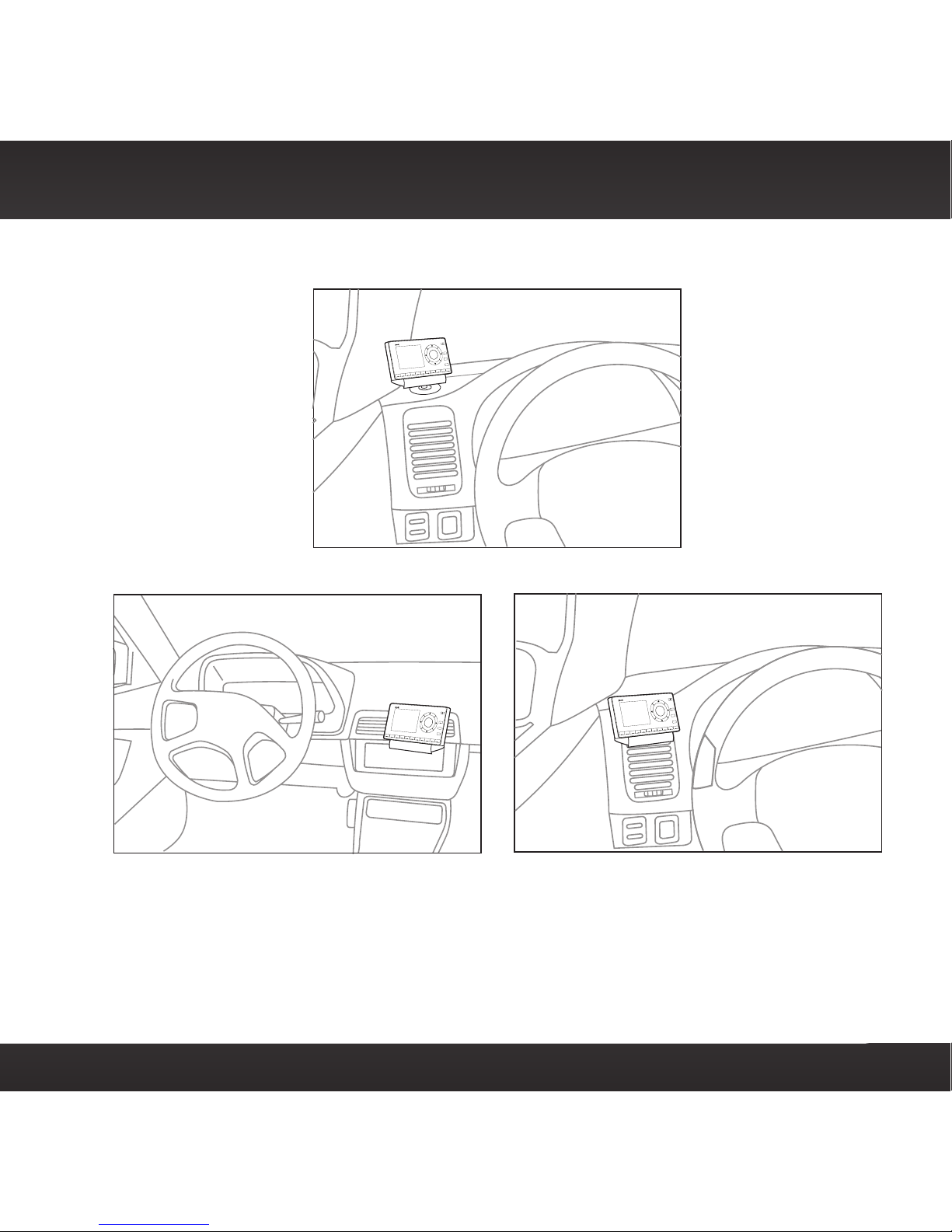

Several examples of OnyX mounted in a vehicle are shown: A is the on dash method using the Dash Mount, and B is the vent clip method using the Vent Mount.

Option 1 Option 2

direct

jump

direc

jump

Vehicle Installation

Option 3

Option 4 Option 5

direc

jump

enu

jump

direct

jump

enu

direct

Step 2: Install the Dash or Vent Mount

Depending on your situation, you can either choose to use the Dash Mount or the Vent Mount.

IMPORTANT! When you install the chosen mount, do not attach the dock to the mount. All cables should be attached to the dock prior to connecting the dock to the mount.

Installing the Dash Mount:

CAUTION! The adhesive used on the Dash Mount may be difficult to remove. Do not install this mount on leather surfaces (contact your vehicle dealer if you are unsure about your dash surface), and make sure the air temperature is at least 60ûF (15ûC) during installation. If it’s not at least 60ûF, turn on the heater in your vehicle to bring the temperature up to 60ûF.

1 Locate a flat surface for the Dash Mount. Make sure there is ample room

for the PowerConnect Vehicle Dock and OnyX Radio when installed.

2 Set the orientation of the Dash Mount before adhering it. Loosen the

knob and adjust the adhesive foot for the location you selected in “Step 1: Choose a Location for Your Radio” on page 14:

•Option 1 & Option 3 should be oriented as I.

•Option 2 should be oriented as II.

I II

Vehicle Installation

3 The dock mounting plate can be tilted in different directions. Adjust as

necessary for your particular vehicle. When the orientation is correct, tighten the knob.

4 Clean the surface with the alcohol

preparation pad and let it dry thoroughly.

5 Peel off the adhesive liner. Position,

press, and hold the Dash Mount in place for 30 seconds.

IMPORTANT! Allow the Dash Mount adhesive to cure (dry) for a minimum of 2-4 hours before using the mount. The best adhesion occurs after 24 hours.

TIP! To remove, carefully lift the adhesive pad with your fingers or a spoon. Warming the pad with a hair dryer for several minutes will help soften the adhesive.

Knob Adhesive Foot Dock Mounting Plate

Installing the Vent Mount:

1 Locate a vent with horizontal

louvers sturdy enough to hold your PowerConnect Vehicle Dock and Radio.

2 If the vent louvers in your vehicle are

recessed, you may need to use the longer vent clamps with the Vent Mount. If so, remove the shorter vent clamps and install the longer ones into the Vent Mount. Be sure to observe the orientation of the vent clamps as shown.

3 Push the Vent Mount onto the vehicle vent as shown (1) until it hooks on

the rear of the vent louver (2).

Slide Short Vent Clamps Out

Remove End Cap

Slide Extended Vent Clamps In Replace End Cap

Extended Vent Clamps

Short Vent

Clamps

Vehicle Installation

4 Rest the foot against the bottom of the vent (2), and adjust the tilt of the

Vent Mount by repositioning the foot to a different adjustment hole (3).

To remove the Vent Mount, push the mount into the vent. Then lift up until disengaged from the rear of the vent louver, and remove the Vent Mount.

PUSH

Dash

Vent

Louver

Foot

Vent

Dash

HOOKED

TILT

ADJUSTMENT

HOLES

1 2 3

Step 3: Mount the Magnetic Mount Antenna

Mount the Magnetic Mount Antenna on the outside of your vehicle, on a horizontal surface that will always face the sky. The antenna contains a strong magnet which will stick to any metal part of your vehicle, but will not damage the vehicle.

To install the Magnetic Mount Antenna:

1 Choose the best location for your antenna considering

your vehicle type. Pay particular attention to any accessories that you may have like luggage racks and how frequently you may use them.

Sedan/Coupe: We recommend mounting the antenna just above either

the front windshield or the back window as shown.

Magnet

Vehicle Installation

SUV: We recommend mounting the antenna at the rear of the roof as

shown.

Convertible: We recommend mounting the antenna at the leading edge

of the trunk as shown.

Pickup Truck: We recommend mounting the antenna just above the front windshield as shown.

IMPORTANT! Consult a professional installer if your vehicle roof or hood is non-metallic (i.e., fiberglass), or you have difficulty finding a location for your antenna.

2 Clean the surface of the selected mounting

location using the alcohol preparation pad and let it dry thoroughly.

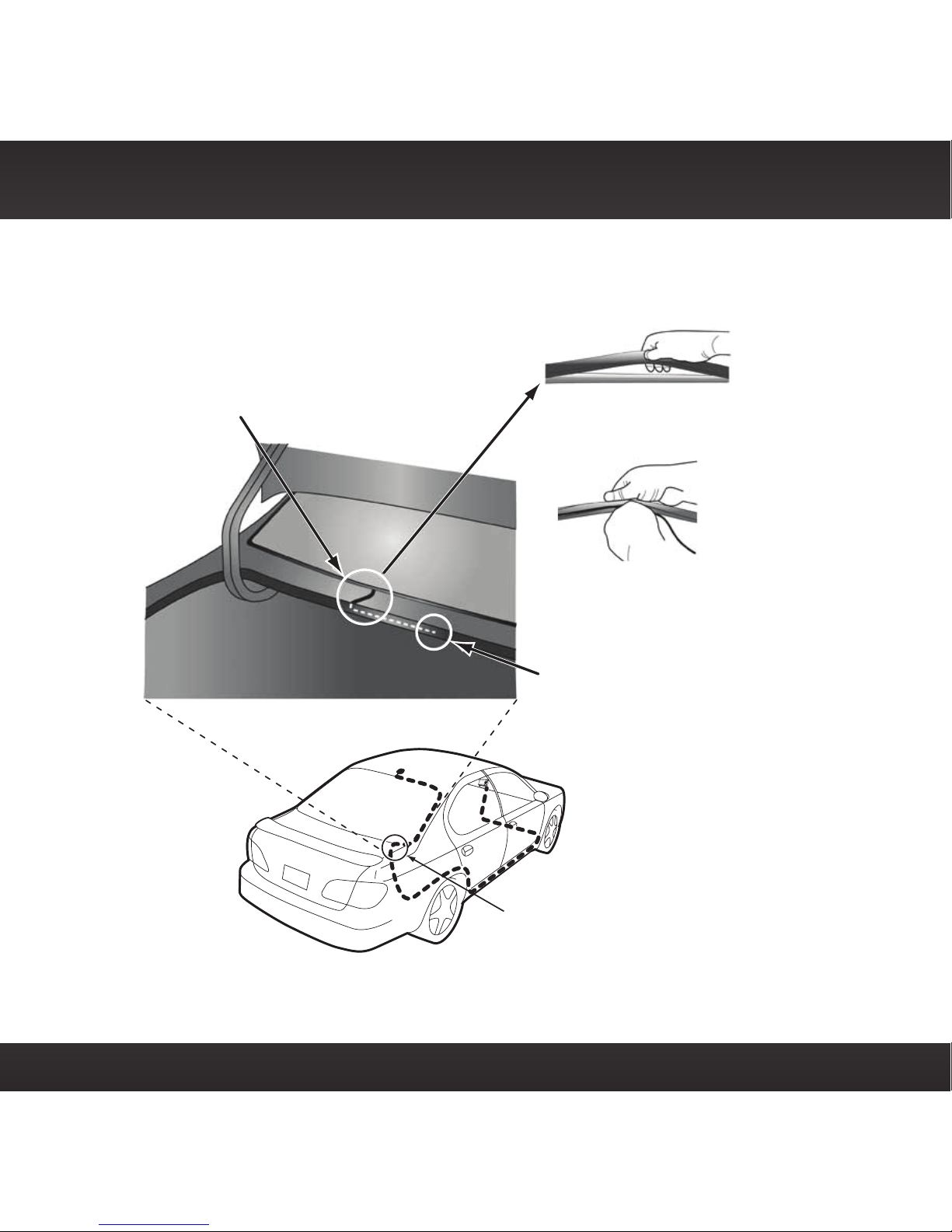

3 If you are installing the antenna at the roof edge, or hood edge, install the

Cable Routing Adapter to direct the antenna cable downward.

Place the antenna wire

into the groove of the

Cable Routing Adapter

Slide the Cable Routing

Adapter down the antenna wire

and press it into the antenna

until it is flush with the bottom

of the antenna

Without Cable

Routing Adapter

Installed

With Cable

Routing Adapter

Installed

Cable Routing

Adapter orientation

Vehicle Installation

TIP! Mount the antenna on the roof (for most vehicles) or trunk (for convertibles) where it has a clear view of the sky in all directions.

4 Place the antenna in the location you selected. Follow the Tips and

Cautions shown on the next several pages.

CAUTION! Don’t mount the antenna inside the vehicle, for example, on the dashboard.

CAUTION! Don’t mount the antenna on any of the vehicle’s front, back or side pillars.

CAUTION! Don’t mount the antenna close to a roof rack. Adjust the rack so it’s further away from the antenna or move the antenna closer to the center of the roof.

Vehicle Installation

CAUTION! Don’t mount the antenna close to another antenna. Mount it at least 3 inches away.

Step 4: Route the Magnetic Mount Antenna Cable

Before you begin routing the antenna cable, read these general instructions for how to route and hide the antenna cable. Then route your antenna cable according to the instructions which follow for your specific type of vehicle.

Feed cable under rubber moulding around window

Tuck the cable under the

moulding around the window

Use a blunt plastic putty knife, a credit card,

a plastic knife, or a similar blunt tool to lift the

rubber window moulding

Vehicle Installation

Route cable out from under rear windshield

moulding and tuck into weatherstripping around trunk opening

Pull weatherstripping from trunk opening

Tuck cable into weatherstripping. Route cable through weatherstripping several inches to avoid sharp bends

Pull cable out of weatherstripping and route through trunk to cabin

Avoid sharp bends by running cable through weatherstripping for several inches

Route cable out of window moulding and into weatherstripping around trunk opening

Bring cable out of weatherstripping and into trunk

Route cable along trunk wall and into cabin through gap or conduit, along existing wiring harness

Route cable along trunk wall and into cabin

Vehicle Installation

Use a blunt plastic putty

knife or similar blunt tool

to lift edge of interior

trim and tuck cable

under trim. Continue

towards front of vehicle

Route cable from trunk under interior trim, into cabin and towards front of vehicle

Route cable under trim or upholstery

Continue routing cable under trim or carpet towards front of vehicle

TIP! Always be careful to include enough slack in your cable to accommodate open doors or trunk lids. Use things typically found around the home, like electrical tape, to secure cables in areas so that hinges do not pinch the cable with the door. Hide any excess cable in the trim.

Continue routing cable under carpet or console to radio location

Coil excess cable under carpet or mat

Bring cable out from trim

Pull carpet or mat back

Bring cable out from trim and route under carpet to dashboard or console

Vehicle Installation

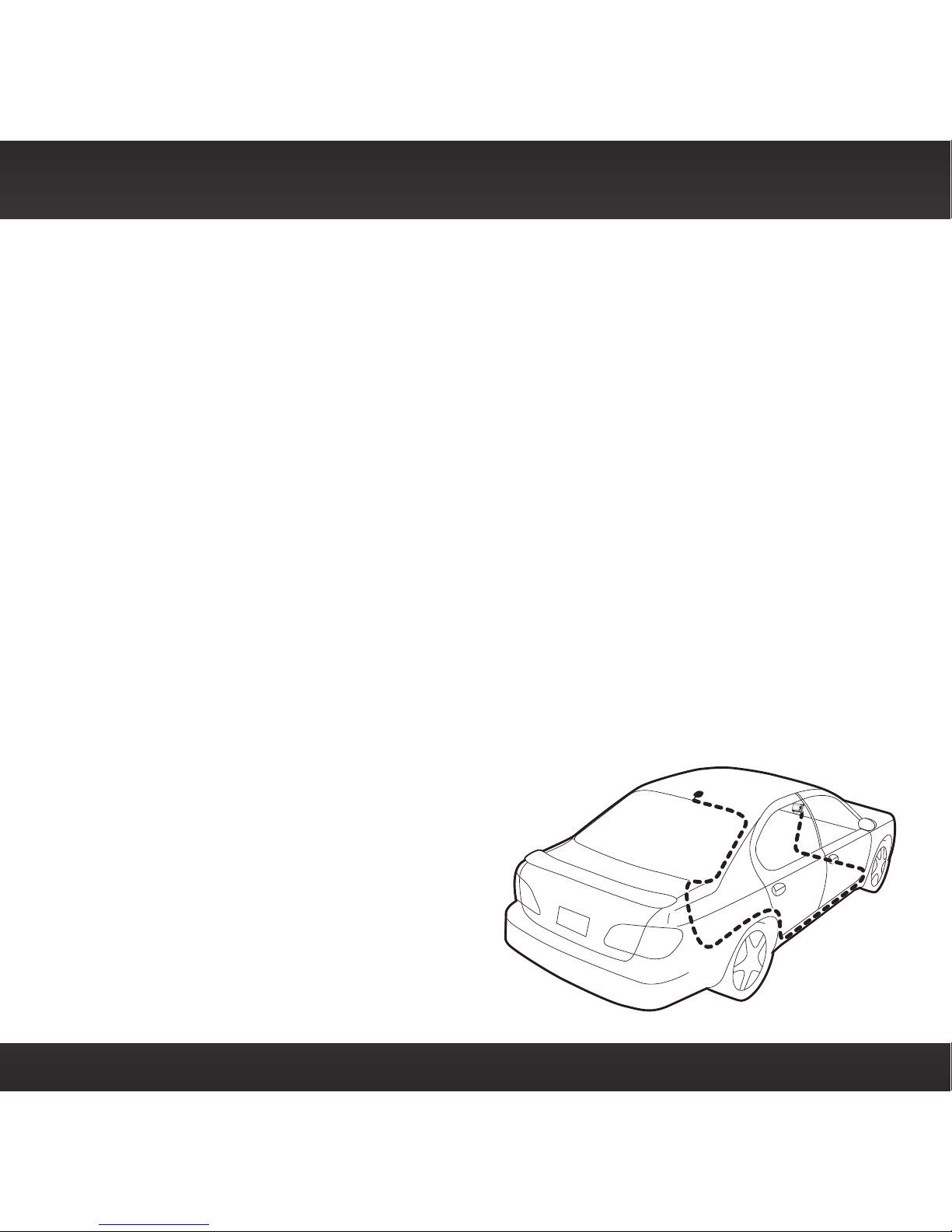

Sedan/Coupe With Antenna Placed at the Rear of the Roof:

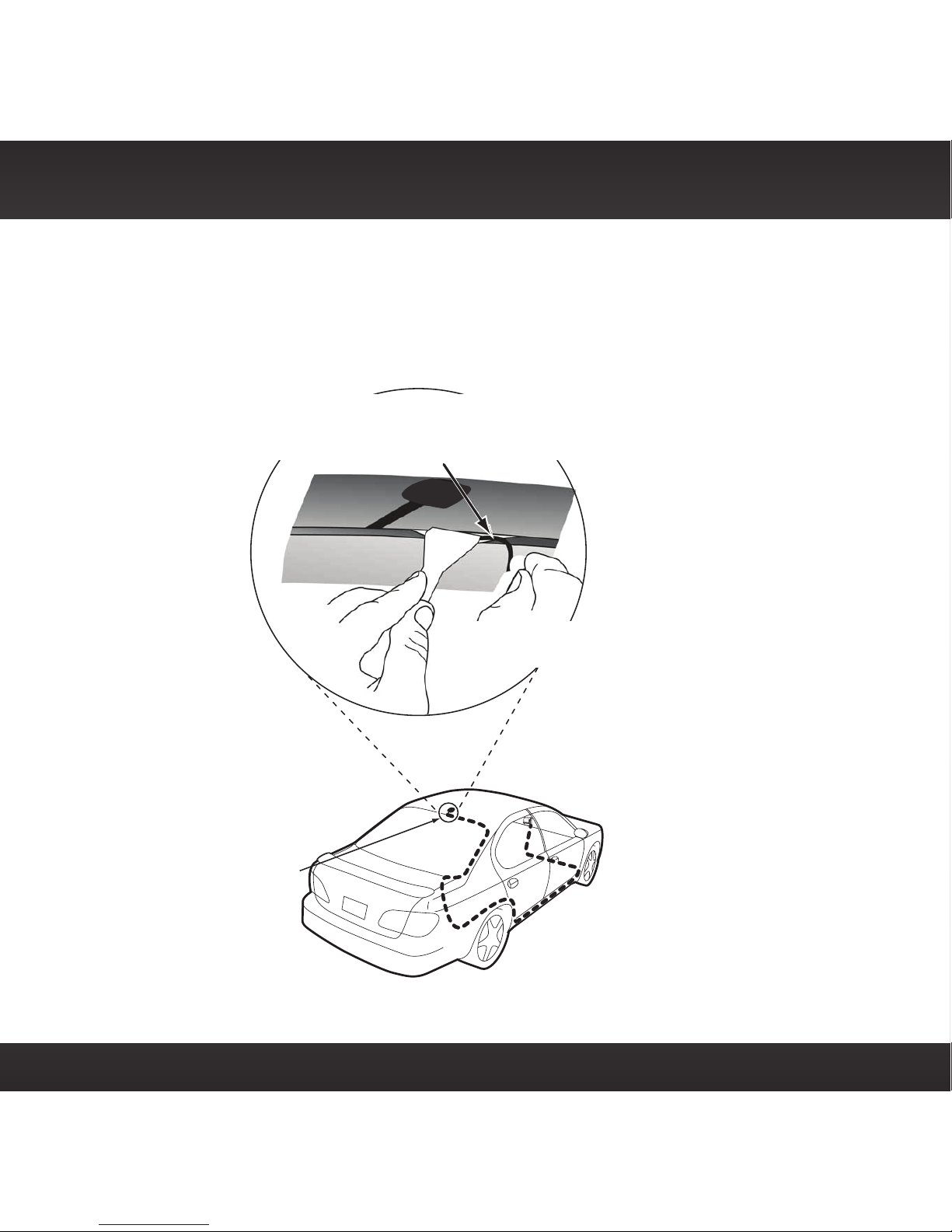

1 Feed the antenna cable from the antenna underneath the rubber molding

around the rear window. Use a blunt plastic putty knife or similar blunt tool to lift the rubber molding around the rear window and tuck the antenna cable underneath the molding. Route the antenna cable around and down the window to the lowest point. If your rear window does not have rubber molding, we recommend consulting a professional installer.

2 Route the antenna cable out of the window molding and into the rubber

weather stripping around the trunk opening. Lift the weather stripping from the opening and tuck the cable inside it, then replace the weather stripping. To avoid sharp bends in the cable, run the cable inside the weather stripping for a few inches, then remove the cable from the weather stripping inside the trunk. Keep the cable away from hinges, gears, etc., that could damage it.

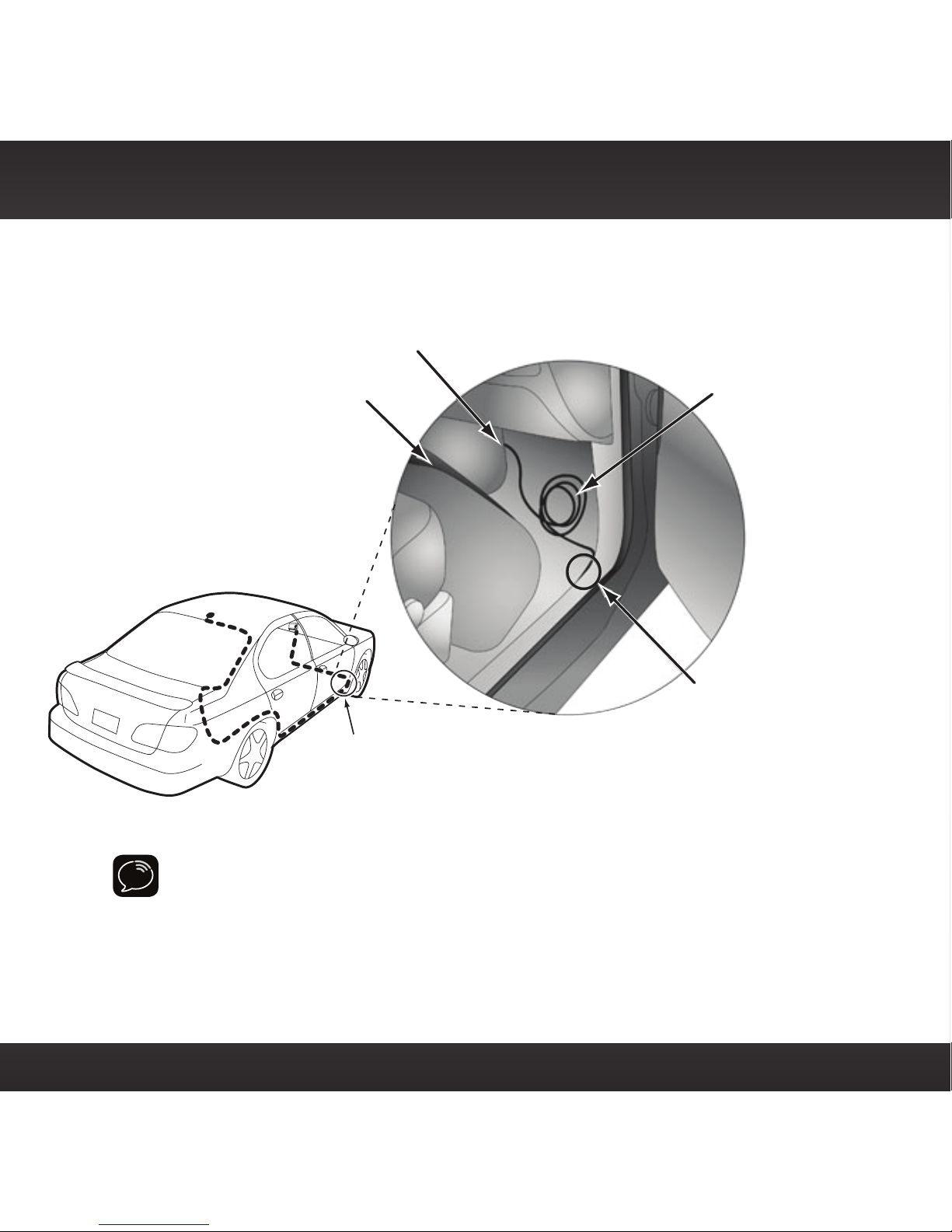

3 Route the cable out from the rubber weather stripping and along the

trunk wall. Continue routing the cable into the vehicle cabin through a conduit or along an existing wiring harness.

4 Route the cable through the main cabin area under the interior trim,

towards the front of the vehicle. Use a blunt plastic putty knife or similar blunt tool to lift the plastic trim just enough to tuck the cable under underneath. Avoid side airbag locations on back pillars and above the doors. Airbag locations are marked with “SRS” logos. Be careful not to crimp or cut the cable.

5 Bring the cable out from the trim near the front of the cabin and route

it under the carpet toward the dashboard or console. Coil any excess cable in a hidden location, such as under the carpet, keeping it away from any vehicle pedals or controls. Secure the excess cable with wire ties (purchased separately).

6 Bring the end of the cable out at the PowerConnect Vehicle Dock location.

Leave yourself enough cable so you can easily connect it to the antenna connector of the dock.

7 Continue with “Step 5: Connect the Magnetic Mount Antenna and

PowerConnect Power Adapter” on page 37.

Sedan/Coupe With Antenna Placed at the Front of the Roof

1 Feed the antenna cable from the antenna underneath the rubber molding

around the windshield. Use a blunt plastic putty knife or similar blunt tool to lift the rubber molding around the windshield and tuck the antenna cable underneath the molding. Route the antenna cable around and down the windshield to the lowest point.

2 At the lowest corner of the windshield, route the cable out of the

windshield molding and into the rubber weather stripping around the door opening. Lift the weather stripping from the opening and tuck the cable inside it, then replace the weather stripping. Run the cable inside of the weather stripping to the bottom of the door opening.

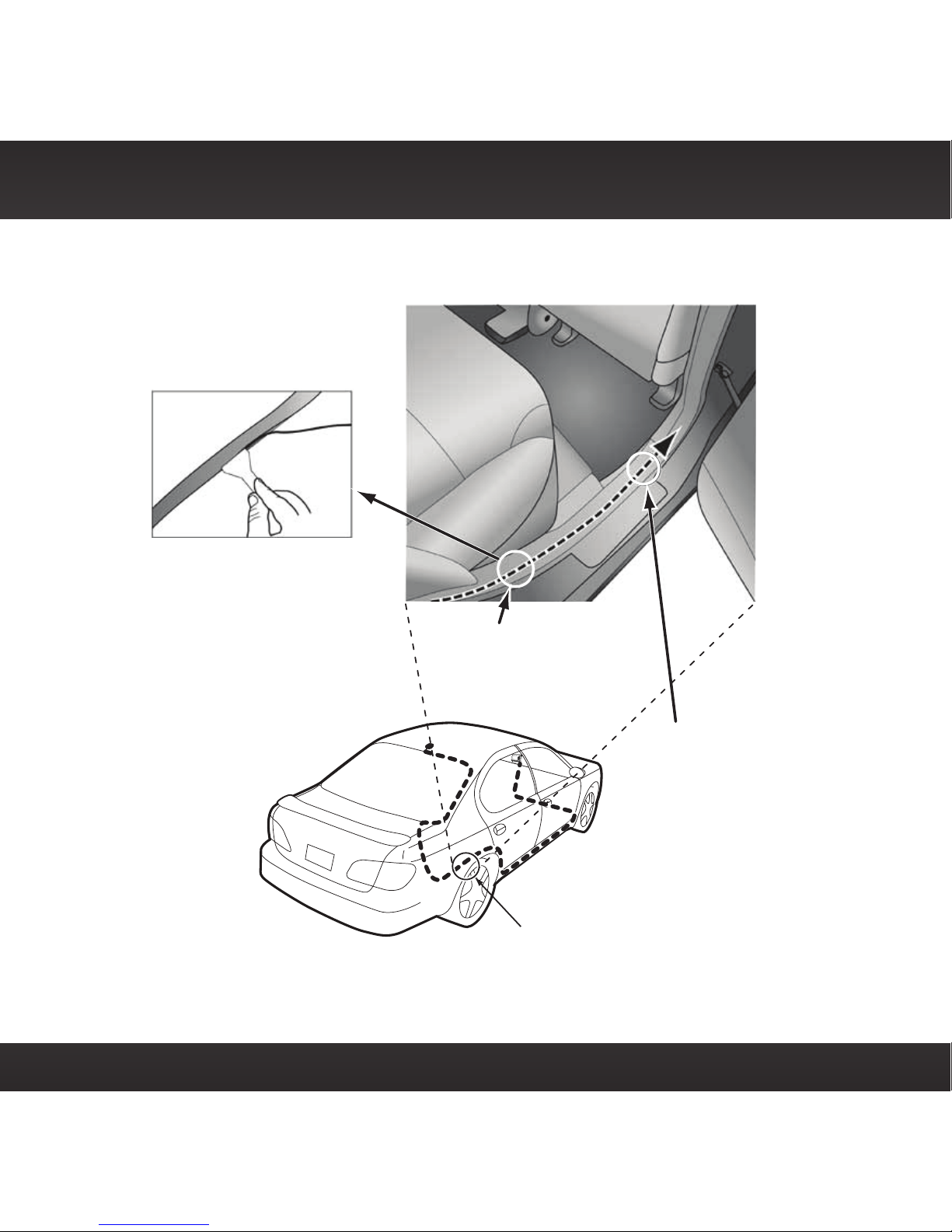

3 Pull the cable out of the

weather stripping at the bottom

Vehicle Installation

of the door opening and route it under the carpet toward the dashboard. Coil any excess cable in a hidden location, such as under the carpet, keeping it away from any vehicle pedals or controls. Secure the excess cable with wire ties.

4 Bring the end of the cable out at the PowerConnect Vehicle Dock location.

Leave yourself enough cable so you can easily connect it to the antenna connector of the dock.

5 Continue with “Step 5: Connect the Magnetic Mount Antenna and

PowerConnect Power Adapter” on page 37.

Sport Utility Vehicle (SUV)

1 Feed the antenna cable underneath the rubber weather stripping of the

rear tailgate window/door and route the cable along the rear hatch. Lift the weather stripping from the opening and tuck the cable inside it, then replace the weather stripping. Pull the cable out from weather stripping and route it into the cabin under the interior trim. Avoid hinges or gears that could crimp or cut the cable.

2 Route the cable through the

SUV’s main cabin area under the interior trim, towards the front of the vehicle. Use a blunt plastic putty knife or similar blunt tool to lift the plastic trim just enough to tuck the cable under underneath. Avoid side airbag locations on back pillars and above the doors. Airbag locations are marked with “SRS”

logos. Be careful not to crimp or cut the cable.

3 Bring the cable out from the trim near the front of the cabin and route

4 Bring the end of the cable out at the PowerConnect Vehicle Dock location.

Leave yourself enough cable so you can easily connect it to the antenna connector of the dock.

5 Continue with “Step 5: Connect the Magnetic Mount Antenna and

PowerConnect Power Adapter” on page 37.

Convertible

1 Bring the antenna cable from the antenna into the trunk at the front edge

of the trunk lid. Keep any bends in the cable loose. Tape or tie the cable along the inside of the trunk lid to the trunk lid hinge strut.

2 Allow enough slack in the cable so the trunk lid can easily open and close

and keep the cable away from hinges, gears, etc., that could crimp or cut it. Route the cable along the trunk wall and into the cabin through a conduit or along an existing wiring harness.

3 Route the cable through the main

cabin area under the interior trim, towards the front of the vehicle. Use a blunt plastic putty knife or similar blunt tool to lift the plastic trim just enough to tuck the cable under

Vehicle Installation

underneath. Avoid side airbag locations on back pillars and above the doors. Airbag locations are marked with “SRS” logos. Be careful not to crimp or cut the cable.

4 Bring the cable out from the trim near the front of the cabin and route

5 Bring the end of the cable out at the PowerConnect Vehicle Dock location.

Leave yourself enough cable so you can easily connect it to the antenna connector of the dock.

6 Continue with “Step 5: Connect the Magnetic Mount Antenna and

PowerConnect Power Adapter” on page 37.

Pickup Truck

1 Use a blunt plastic putty knife or similar blunt tool to lift the rubber

molding around the windshield and tuck the antenna cable underneath it.

2 Continue tucking the cable underneath the

windshield molding around the windshield to the lowest corner.

3 At the lowest corner of the windshield,

route the cable out of the windshield molding and into the rubber weather stripping around the door opening. Lift the weather stripping from the opening and tuck the cable inside it, then replace

the weather stripping. Run the cable inside of the weather stripping to the bottom of the door opening.

4 Pull the cable out of the weather stripping at the bottom of the door

opening and route it under the carpet toward the dashboard. Coil any excess cable in a hidden location, such as under the carpet, keeping it away from any vehicle pedals or controls. Secure the excess cable with wire ties.

5 Bring the end of the cable out at the PowerConnect Vehicle Dock location.

Leave yourself enough cable so you can easily connect it to the antenna connector of the dock.

6 Continue with “Step 5: Connect the Magnetic Mount Antenna and

PowerConnect Power Adapter” on page 37.

Vehicle Installation

Step 5: Connect the Magnetic Mount Antenna and PowerConnect Power Adapter

1 Plug the Magnetic Mount Antenna into the

silver ANT connector on the PowerConnect Vehicle Dock.

2 Insert the PowerConnect Power Adapter into

your vehicle’s cigarette lighter or power adapter socket.

3 Plug the PowerConnect Power Adapter into

the red PWR connector on the dock.

AUDIO ANT PWR FM

Step 6: Connect the Audio

To play XM audio through your vehicle’s stereo or FM radio, decide on one of the following audio connection options:

• Option 1: Best: Use the provided Aux In Cable if your vehicle’s stereo system has an auxiliary input connection or jack. Refer to your vehicle’s owners manual to find the location of the auxiliary input jack, or consult the vehicle dealer.

TIP! The auxiliary input jack may be located on the face plate of the vehicle radio, on the back of the radio, anywhere on the front dash panel, inside the glove compartment, or inside the center console in between the front seats.

• Option 2: Better: Use a Cassette Adapter if your vehicle has a built- in cassette player. Cassette Adapters are sold separately and can be purchased from an electronics retailer, or go to www.siriusxm.com/ accessories.

• Option 3: Good: Use the PowerConnect feature of OnyX. PowerConnect plays the audio through your vehicle’s FM radio.

• Option 4: Best: Use the FM Direct Adapter. If none of the previous three audio connection options will work in your vehicle, then you will need to use the FM Direct Adapter (FMDA) (sold separately). The FMDA needs to be installed by a professional installer and directly connects OnyX to your vehicle’s FM radio. To learn more, check with the retailer where you bought your Radio, or go to www.siriusxm.com/accessories.

Follow the installation instructions in the next several sections for the audio connection option that you have selected.

Vehicle Installation

Option 1: Aux In Cable Installation Instructions

1 Plug one end of the Aux In Cable into the green AUDIO connector on the

dock.

2 Plug the other end into the

auxiliary input jack of your vehicle’s stereo system.

3 Attach the dock to the mount.

4 Insert your OnyX into the dock.

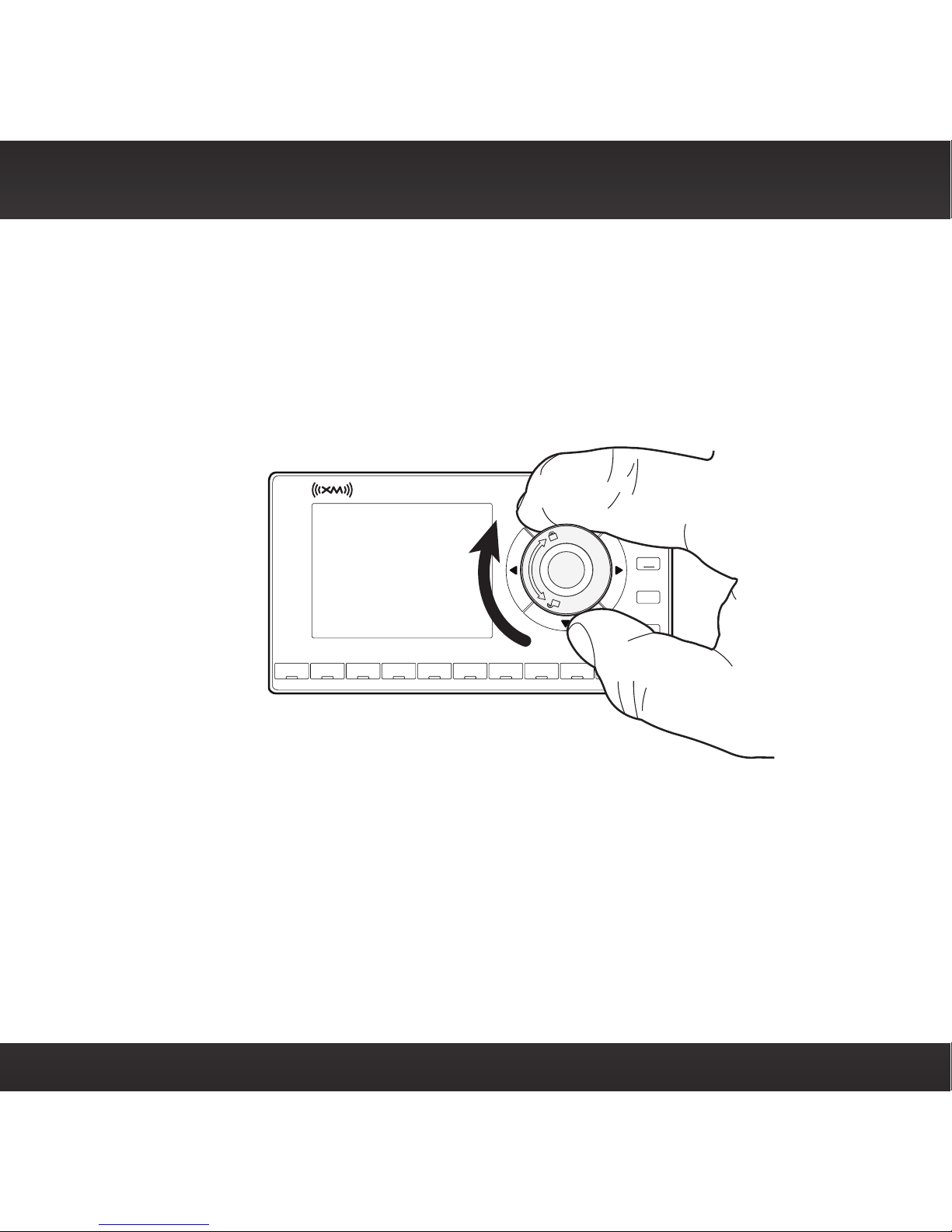

5 Power on your OnyX by

pressing the Power button.

6 Be sure the vehicle is outside

and the antenna has a clear view of the sky. Verify that you are receiving the XM signal. There should at least be one bar on the lower left corner of the main display screen that denotes antenna signal strength. You can also press menu and then press to scroll to and highlight Signal Indicator. Press the Select button. The Satellite and Terrestrial bars show the strength of the signal being received. If the signal reception is good, press and hold menu to return to the main display screen.

AUDIO ANT PWR FM

direct

jump

7 Ensure OnyX is tuned to channel 1,

the XM Preview channel. Upon power up, OnyX should tune to channel 1 by default, when it’s not yet activated. If it’s not on channel 1, refer to “Listening to Satellite Radio” on page 53 to learn about how to tune a channel.

8 Turn on your vehicle’s stereo system.

Set it to play from the auxiliary input source. You should hear XM channel 1 through your vehicle’s stereo system. You are now ready to activate your OnyX.

9 The audio level output of OnyX can be

increased or decreased as necessary to match the audio levels of other sources in your vehicle. Refer to “Set Audio Level” on page 81.

If the signal reception is good, showing at least one bar in the lower left corner of the display, but there is no XM audio, be sure the vehicle’s stereo system is set to the auxiliary input source (step 4). Also be sure that the audio level is set high enough to be heard (step 5). Refer to “Troubleshooting” on page 92 for additional

help.

Signal Indicator

ATELLIT

TERRESTRIA

800-643-2112

siriusxm.com

1 XM Preview

Vehicle Installation

Option 2: Cassette Adapter Installation Instructions

1 Plug the Cassette Adapter into the green AUDIO connector on the dock. 2 Insert the Cassette Adapter into the vehicle’s cassette deck. You may

need to turn on your vehicle’s stereo system in order to do so.

3 Attach the dock to the mount.

4 Insert your OnyX into the dock.

5 Power on your OnyX by

pressing the Power button.

6 Be sure the vehicle is outside

AUDIO ANT PWR FM

direct

jump

hold menu to return to the main display screen.

7 Ensure OnyX is tuned to channel 1,

8 Turn on your vehicle’s stereo system.

Set it to play from the auxiliary input source. You should hear XM channel 1 through your vehicle’s stereo system. You are now ready to activate your OnyX.

9 The audio level output of OnyX can be

increased or decreased as necessary to match the audio levels of other sources in your vehicle. Refer to “Set Audio Level” on page 81.

If the signal reception is good, showing at least one bar in the lower left corner of the display, but there is no XM audio, be sure the vehicle’s stereo system is set to the cassette source (step 4). Also be sure that the audio level is set high enough to

be heard (step 5). Refer to “Troubleshooting” on page 92 for additional help.

Vehicle Installation

Signal Indicator

ATELLIT

TERRESTRIA

800-643-2112

siriusxm.com

1 XM Preview

Option 3: PowerConnect Installation Instructions

1 Attach the dock to the mount.

2 Insert your OnyX into the dock.

3 Power on your OnyX by

pressing the Power button.

4 Be sure the vehicle is outside

5 You’ll first need to find an available FM

channel. An available FM channel is one that’s not being used by an FM radio station in your area. When you tune your FM radio to an available channel, you should only hear static or silence – not talk or music. We recommend one of the following methods to find an available FM channel:

direct

jump

Signal Indicator

ATELLIT

TERRESTRIA

a. Use the SiriusXM FM Channel Finder at www.siriusxm.com/fmchannel.

Go to the website and enter your zip code. The Channel Finder will suggest a list of available FM channels in your area. For convenience, write down or print out the list.

b. Manually tune through your local FM channels on your vehicle’s FM radio.

Locate and create a list of channels that aren’t being used by any FM radio station. Write down the list. Once you have created your list of available FM channels, you will need to find the one that provides the best match for OnyX.

TIP! You’ll need to use the ‘Manual’ tune function on your vehicle’s FM radio to tune through every FM channel one-by-one. Turn on your vehicle’s FM radio. Start at 88.1 and use the ‘Manual’ tune function on your vehicle’s FM radio to tune through each FM channel one-by-one (88.1 followed by 88.3 etc.) to locate channels that aren’t being used by a local FM radio station. Write down each FM channel that has only static or silence on it, until you reach 107.9.

6 Ensure OnyX is tuned to channel 1,

7 Pick the first FM channel on your list

from step 5. Turn on your vehicle’s FM radio (if you have not already done so) and tune it to this FM channel.

NOTE! If you are using the Vehicle Dock from the Universal Xpress Car Kit instead of the PowerConnect Vehicle Dock which came with your OnyX, you will

Vehicle Installation

800-643-2112

siriusxm.com

1 XM Preview

have to disable AUX Detect. Refer to “Using the Vehicle Dock From the Universal Xpress Car Kit” on page 88, and complete the additional instructions before continuing with the next step. The audio connection will be through your vehicle’s FM radio, but it is not PowerConnect.

8 Set your OnyX to transmit on the same

FM channel that you have selected in step 7:

i. Press menu. ii. Press to scroll to and highlight

FM Settings and press the Select button.

iii. FM Channels will be highlighted. If it

is not highlighted, press to scroll to and highlight FM Channels. Press the Select button.

iv. Press to scroll to and highlight

the storage location FM 2 and press the Select button.

v. Tune to the available FM channel

you choose in step 3. Press and to tune in steps of .2, i.e., 99.3 to

3 4 5 6 7 8 9 0

direct

jump

90.1

MATCH FM CHANNELS

Set your vehicle radio to the

above channel to enable audio.

99.3 FM

FM Channels

current

FM 1 FM 2 FM 3 FM 4 FM 5

97.9 _ _ _ _ _ _ _ _ _ _ _ _

99.5. Press and to tune in steps of 1, i.e., 99.3 to 100.3. Press the

Select button to select the FM channel. vi. Start Using is highlighted. Press the Select button. vii. The FM channel you selected will be confirmed on the display screen.

OnyX will tune to the FM channel.

9 You should hear XM channel 1 through your vehicle’s FM radio. If you are

satisfied with the sound quality, the installation is complete. You are now ready to activate your OnyX.

10 If the selected FM channel doesn’t work well for you, work down the list of

FM channels until you find one with which you are satisfied. Each time, you will need to tune your vehicle’s FM radio to the FM channel and then set your OnyX to transmit on the same FM channel (steps 7 & 8).

If the signal reception is good, showing at least one bar in the lower left corner of the display, but there is no XM audio, verify that both OnyX and your vehicle’s FM radio are tuned to the same FM channel (steps 7 & 8). Also ensure the chosen FM channel is a suitable one to use in your area (step 5). Verify that nothing is plugged into the AUDIO connector on the PowerConnect Vehicle Dock. Refer to “Troubleshooting” on page 92 for additional help.

Option 4: FM Direct Adapter (FMDA) Installation

The FMDA needs to be installed by a professional installer. Professional installation can help improve your Radio’s reception and significantly reduce the visibility of wires. To learn more, check with the retailer where you bought your Radio, or go to www.siriusxm.com/accessories.

Vehicle Installation

Subscribe to the XM service by following these steps:

1 Make sure your OnyX is turned on, and receiving the XM signal so that you

can hear the XM audio.

2 Make a note of your XM Radio ID. You can find it by selecting Radio ID in

menu items, by tuning to channel 0, on a label on the bottom of the gift box, and on the label on the back of your OnyX.

NOTE! The XM Radio ID does not use the letters I, O, S, or F.

3 To subscribe:

•Online: Go to www.siriusxm.com and click on “How Do I Activate a Radio?” and then click on the “Activate my radio” button to subscribe.

•By phone: Call 1-800-XM-RADIO (1-800-967-2346)

Activation usually takes 10 to 15 minutes after you have completed the subscription process, but may take up to an hour. We recommend that your Radio remain on until subscribed. Once subscribed, the Radio will receive and you can tune to channels in your subscription plan.

Press or to tune to other channels, and or to browse the different categories of channels. Learn what all the buttons do by turning to “Navigation Basics” on page 51.

Using Your OnyX

The Main Display

When listening to a channel, information about the channel and what is currently playing is displayed.

Tom Petty

I Should Have Known It

28 The Spectrum

Antenna Signal

Strength

Channel Number

Channel Name

Artist Name or Talk Show Host

or Sports Teams/Score

Song/Program Title

or Talk Show Schedule

or Game Time/Game Details

Using Your OnyX

Navigation Basics

Power Button

Pressing the Power button turns OnyX On or Off.

Navigation Buttons

Pressing Left, Right, Up, and Down navigates through various features and functions of OnyX.

• Left or Right button: Displays the channel categories such as Rock, Pop,

Sports, Talk/News, etc. Repeated presses cycle through the categories one at a time. Also, decreases or increases the settings of various menu options such as Brightness, Audio Level, etc.

• Up or Down button (press and release): Immediately tunes to the

next or previous channel in the channel lineup. Also, scrolls through lists and highlights an item in the list.

• Up or Down button (press and hold): Continuously scrolls through

any list. While on the main display screen, continuously scrolls through the channel lineup and briefly displays the information of each channel. When the button is released, Radio tunes to the last channel it had scrolled to in the channel lineup.

Select Button

Pressing the Select button selects a highlighted item in a list and confirms settings.

Menu Button

Pressing menu displays various options to make setup and feature changes. Pressing menu when in menu options returns to the previous menu option screen until menu options is exited. Pressing and holding menu returns to the main display screen in most instances.

FM Button

Pressing FM provides easy tuning of FM presets for optimized PowerConnect performance. Repeatedly pressing FM displays and cycles through the list of preset FM channels one at a time. The Radio automatically tunes to the displayed FM channel. Pressing and holding FM accesses the FM Settings menu. It is not available when Aux In Cable or Cassette Adapter is used for audio connection.

Jump Button

Depending on how it is configured, pressing jump either tunes to the channel broadcasting traffic and weather conditions of a city of your choice, selected from a list of the 22 most congested cities, or tunes to the previous channel that was being played. Pressing it again returns it to the original channel.

Direct Button

Pressing direct prompts for the entry of a channel number using the number buttons. Once the channel number is entered, the Radio directly tunes to the new channel.

Number Buttons

Each number button stores a favorite channel in its button location and provides one touch access to it afterward. Number buttons also directly tune to a channel when the channel number is entered after pressing direct.

jump

direct

1 0

...

Using Your OnyX

Listening to Satellite Radio

Tune to a channel:

1 Press and release and to immediately tune to the next or previous

channel.

2 Press and hold and to quickly scroll through the channels. Release

to tune to the channel that is displayed.

View a category:

Channels are organized into categories to make it easier for you to find the ones that suit your taste.

To view a category press or .

1 Scroll through the category using

and , and find the channel you want.

2 Press the Select button to select the

channel, or press or for the previous or next category.

TIP! To briefly listen to each channel in the category, scroll to and highlight Scan at the end of the category list and press the Select button. Refer to “Scanning Channels in a Category” on page 56 to learn more about Scan.

Rock

Pearl Jam Radio

Pearl Jam/Better Man

Grateful Dead/Truckin’

Jimmy Buffett/Fins

Grateful Dead23

Margaritaville24

Direct Tune

A channel can be tuned directly by entering the channel number using the number buttons.

1 To directly tune to a channel press

direct.

2 Use the number buttons 0-9 to enter

the channel number and wait a moment until the channel is tuned, or press the Select button to immediately tune to the channel.

Jump

Depending upon how you configure the mode, pressing jump will either go to the traffic and weather channel for the city of your choice which you select from a list of the 22 most congested cities, or go to the last channel to which you were listening.

TIP! By default jump is configured to tune to a traffic/weather channel. To select a city for traffic and weather, or to configure jump to tune to the last channel to which you were listening, refer to “Jump Settings” on page 79.

Return to Main Display Screen

Pressing and holding menu in most instances will return you to the main display screen. In some cases, you may need to follow the instructions on the display

screen.

Direct Tune

Enter channel #

6 2 _

Using Your OnyX

Favorite Channels

You can set up to 10 of your favorite channels so you can easily access them. Each favorite channel can be assigned to a number button.

To assign a favorite channel to a number button:

1 Tune to the desired channel.

2 Press and hold a number button between

0-9 that you want to assign to that favorite channel. An advisory with the channel number and name will be displayed on the screen confirming that the channel has been assigned.

To listen to a favorite channel:

1 Press the number button between 0-9 that was assigned to the desired

favorite channel. OnyX will tune to that channel.

TIP! When you are at the main display screen, press to see your list of favorite channels. Scroll to highlight a favorite and press the Select button to listen to that channel.

Favorite Saved

10 The Pulse

saved as

Favorite 1

Scanning Channels in a Category

You can scan a category and listen to each channel for 10 seconds before OnyX automatically tunes to the next channel. If you want to stay tuned to the channel being played and stop the scan, just press the Select button.

To scan a category:

1 Press or until the desired category is displayed.

2 Scroll down to highlight the last item in the category which will be Scan

and the category name.

3 Press the Select button. The scan will begin.

4 Press the Select button to stop the scan, and to continue to listen to the

channel currently being played, or press or to return to the channel you were listening to before you began the scan.

Pop

The Blend

Phil Collins/Take Me Hom

Dionne Warwick/Heartbr

Love 17

Scan Pop>

Scanning

70s on 7

Neil Diamond/Sweet Caro

The Hooters/And We Dan

Ace of Base/The Sign

80s on 8 8

90s on 9 9

Using Your OnyX

FM Presets

FM presets make it easy to quickly access stored FM channels and choose a new FM channel from them.

Use FM presets when you use PowerConnect or the FMDA to listen to your OnyX through your vehicle’s FM radio. (Refer to “Option 3: PowerConnect Installation Instructions” on page 43 for more information.)

To use a different FM preset:

1 Press FM to display the current FM

preset.

2 To display and select the next FM

preset, press FM. The Radio will tune to the displayed FM channel. If the preset is the one you want, press menu or wait for the screen to timeout.

3 Repeatedly pressing FM will cycle

through the FM presets.

4 Set your vehicle’s FM radio to the

same FM channel.

IMPORTANT! You need to ensure that your vehicle’s FM radio is tuned to the same FM channel.

TIP! To configure the list of preset FM channels, you need to find available FM channels in your area. Refer to”Find Available FM Channels in Your Area” on page 73. Next, refer to “Set and Select an FM Channel” on page 76.

Set your vehicle radio to the

above channel to enable audio.

99.3 FM

103.7 FM

Set your vehicle radio to the

above channel to enable audio.

Special Features

Color Themes

You can change the color of the display screen to one of 6 color themes: Blue, Red, Amber, Yellow, Silver, or Teal. You can choose the display color that matches your dash lights, and personalize with the trim rings. The default color theme is blue.

To change the color theme:

1 Press menu.

2 Press to scroll to and highlight

Color Theme. Press the Select button.

3 Press or to highlight the desired

color theme. OnyX will immediately change to the selected color theme.

4 Press the Select button to confirm

the selected color theme.

5 Press and hold menu to return to the

main display screen.

Select Theme

Blu

and Select to confirm

Press arrow keys to choose

Special Features

Trim Rings

Your OnyX has a changeable Trim Ring to style the Radio to your liking. The Trim Ring surrounds the Select button on the Radio. A total of three trim rings are included with your OnyX, including the one that is already installed in the Radio.

To remove and replace the Trim Ring:

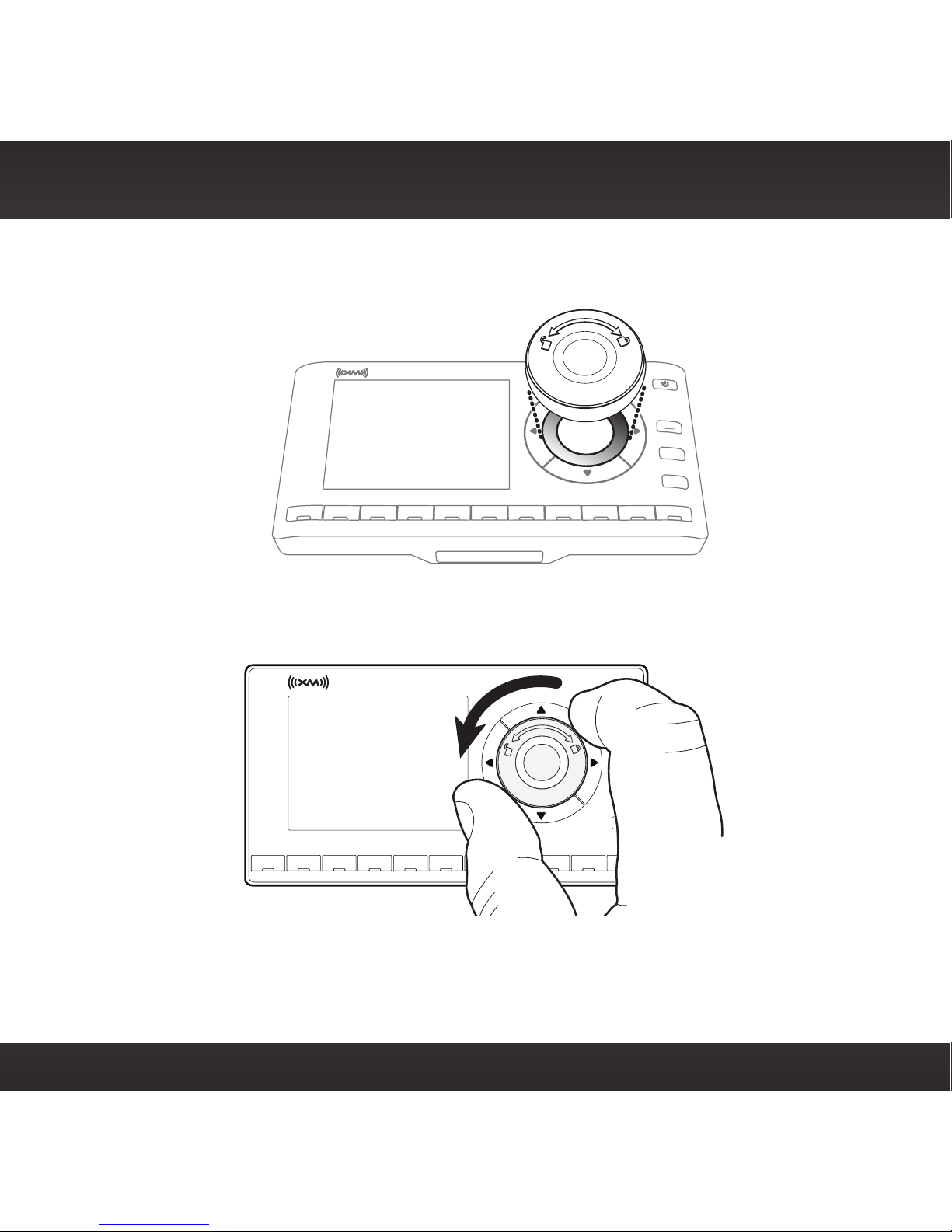

The Trim Ring can be removed by using the Trim Ring Removal Tool. Placing this tool against the Trim Ring, and mildly applying pressure while turning it, will loosen or tighten the Trim Ring depending upon which direction you turn the tool.

1 Place the Trim Ring Removal Tool on the Trim Ring on the Radio. Use care

to align the tool so it’s centered on the Trim Ring.

2 Using mild pressure to keep the tool against the Trim Ring, rotate the tool

counter-clockwise until it will not rotate any further.

3 The Trim Ring is now loose. Turn OnyX over and the Trim Ring should fall

out. If it does not, gently tap the back of the Radio until it does.

Special Features

3 4 5 6 7 8 9 0

direct

jump

4 Turn the Radio face up again and insert the new Trim Ring into the Radio.

5 Align the Trim Ring Removal Tool on the Trim Ring on the Radio. Use care

to align the tool so it’s centered on the Trim Ring.

6 Using mild pressure to keep the tool against the Trim Ring, rotate the tool

clockwise until it will not rotate any further. The new Trim Ring is now installed.

3 4 5 6 7 8 9 0

direct

jump

Parental Controls

OnyX has a parental control feature which allows you to lock access to channels, or lock access to an entire category. A 4-digit code controls access to the locked channel or locked category.

When you browse a category, the number of the locked channel will be shown but not the artist and song/program information. Instead, a lock icon and the word “Locked“ is shown. If you scroll through the channels using and

, the locked channels are skipped and are

neither displayed, nor tuned.

If you attempt to tune to a locked channel, either by using direct tune or through the category list, you’ll be prompted to enter your 4-digit code. When the correct code is entered, you’ll be able to tune to and listen to the channel. All locked channels become unlocked and remain unlocked until you turn OnyX Off, and back On. In the category list, the previously locked channels will show an unlocked icon .

To turn Parental Controls On (or Off):

1 Press menu.

2 Press to scroll to and highlight Parental Controls. Press the Select

button.

•If this is the first time you want to turn on Parental Controls, Parental Controls will be highlighted. Press the Select button. You will be

prompted to select a 4-digit code:

Rock

Pearl Jam Radio

Pearl Jam/Better Man

Jimmy Buffett/Fins

Locked23

Margaritaville24

Special Features

i. For each digit, press one of the 0-9

keys and then press to advance to the next digit. (Press if you need to go back and edit a previous digit.)

ii. When you have selected all 4 digits

of your code press the Select button.

iii. The Code Confirmation screen will

be displayed. For your records, write down the code you have selected. Press the Select button. Continue with step 3.

•If you had previously selected a 4-digit code you will be prompted to enter your code:

i. For each digit, press one of the 0-9

keys and then press to advance to the next digit. (Press if you need to go back and edit a previous digit.)

ii. When you have selected all 4

digits of the code press the Select button.

3 At the “Parental Controls” screen, Parental Controls will be highlighted.

Press the Select button to turn parental control On (or press the Select button to turn parental control Off).

4 Press and hold menu to return to the main display screen.

Code Confirmation

Your Parental Code is:

3287

You will need this code to change

or turn off Parental Controls

Press Select to continue

Enter Parental Code

Press OK to confirm

To lock (or unlock) channels or categories:

1 Press menu.

2 Press to scroll to and highlight Parental Controls. Press the Select

button.

3 You will be prompted to enter the 4-digit code. For each digit, press one

of the 0-9 keys and then press to advance to the next digit. (Press if you need to go back and edit a previous digit.)

4 When you have entered all 4 digits of the code press the Select button.

5 If Parental Controls is shown as Off, press the Select button to turn it

On, otherwise continue with the next step.

6 At the “Parental Controls” screen, Press to scroll to and highlight

Locked Channels. Press the Select button.

7 A list of all the categories and the channels in each category will be

displayed. Press and to scroll to and highlight a channel or category you want to lock. Press the Select button. A lock icon will be displayed to the left of the channel or category you locked. (To unlock a locked channel or category, simply highlight the locked channel or

Locked Channels Locked Categories

Locked Channels

Rock

Locked Channels

Rock Elvis Radio E Street Radio Undergrnd Gara Pearl Jam Radio

Elvis Radio E Street Radio Undergrnd Gara Pearl Jam Radio

Special Features

category and press the Select button. The lock icon will disappear indicating the channel or category is unlocked.)

8 You can continue to lock and unlock as many channels or categories as

you wish. When you are finished, press and hold menu to return to the main display screen.

To change your code:

1 Press menu.

2 Press to scroll to and highlight Parental Controls. Press the Select

button.

3 You will be prompted to enter your existing 4-digit code. For each digit,

press one of the 0-9 keys and then press to advance to the next digit. (Press if you need to go back and edit a previous digit.)

4 When you have entered all 4 digits of the code press the Select button.

5 If Parental Controls are shown as Off, press the Select button to turn it

On, otherwise continue with the next step.

6 At the “Parental Controls” screen, Press to scroll to and highlight

Change My Code. Press the Select button.

7 You will be prompted to enter a new

4-digit code. For each digit, press one of the 0-9 keys and then press to advance to the next digit. (Press if you need to go back and edit a previous digit.)

8 The Code Confirmation screen will be

Code Confirmation

Your Parental Code is:

3287

You will need this code to change

or turn off Parental Controls

Press Select to continue

displayed. For your records, write down the code you have selected. Press the Select button.

9 Press and hold menu to return to the main display screen.

To listen to a locked channel:

There are two ways to tune to a channel which has been locked. The first is to directly tune to the locked channel, and the second is to select the locked channel from a category list.

1 Directly tune to or select the locked channel:

To directly tune to a locked channel:

i. Press direct and enter the channel number using the 0-9 keys.

To select a locked channel from the category list:

i. Press or to view the category list of the locked channel to which

you wish to tune.

ii. Press to scroll to and highlight the locked channel. Press the

Select button.

2 You will be prompted to enter your existing 4-digit code. For each digit,

press one of the 0-9 keys and then press to advance to the next digit. (Press if you need to go back and edit a previous digit.)

3 When you have entered all 4 digits of the code, press the Select button.

If your code is correct the channel will be tuned. All locked channels become unlocked and remain unlocked until you turn OnyX Off, and back On. In the category list, the previously locked channels will show an unlocked icon .

Special Features

Where Else Can You Use Your OnyX?

SiriusXM offers a variety of accessories that allow you to adapt your OnyX to your lifestyle and enhance your listening experience. With these accessories, you can effortlessly take your Satellite Radio listening experience from your vehicle to your home or office or on the go — all with a single subscription.

• In Your Home, Office, etc. – With a Home Kit, you can play your OnyX through your existing stereo system or powered speakers.

• In Your Other Vehicles – With Vehicle Kits, you can enjoy your OnyX in other vehicles.

• In Almost Any Location You Like – With a portable Sound System you have the freedom to listen to your OnyX where and when you want, from your kitchen or den, to the office, to outside on the deck, or at a picnic.

For more information on XM accessories or to purchase an accessory, please visit your local retailer or www.siriusxm.com/accessories.

Where Else Can You Use Your OnyX?

Configuring Your OnyX

Radio ID

Your OnyX has an 8 character alphanumeric ID which uniquely identifies your Radio. This ID is used during the subscription process.

To display the Radio ID:

1 Press menu.

2 Radio ID will be highlighted. If it is not

highlighted, press to scroll to and highlight Radio ID. Press the Select button. The Radio ID will be displayed.

3 Press and hold menu to return to the

main display screen.

Radio ID

Your Radio ID is:

A234B456

Configuring Your OnyX

Find Available FM Channels in Your Area

Before attempting any of the procedures below, you should park your vehicle in a safe location. Do not attempt to set up your FM channels or any OnyX function while driving.

PowerConnect allows you to listen to SiriusXM through your existing vehicle radio. You will first need to find an available FM channel, which is a channel that is not being used by an FM radio station in your area. When you tune your vehicle’s FM radio to an available channel, you should only hear static or silence – not talk or music.

Once you have found an available FM channel, you’ll need to tune OnyX and your vehicle’s radio to the same FM channel to receive XM audio through your vehicle’s radio.

We recommend one of the following methods to find an available FM channel:

1 Use the SiriusXM FM Channel Finder

Use the SiriusXM FM Channel Finder at www.siriusxm.com/fmchannel.

Go to the website and enter your zip code. The Channel Finder will suggest a list of available FM channels in your area. For convenience, write down or print out the list.

Tune OnyX to a favorite XM channel (or to channel 1, if it’s not activated).

Turn on your vehicle’s FM radio. Pick the first FM channel on your Channel Finder list and tune the FM radio to that channel. If you do not hear a local FM station broadcast, then tune OnyX to the same FM channel. (Refer to “Set and Select an FM Channel” on page 76.) You should hear the XM channel through your vehicle’s radio. If you are satisfied with the sound quality, you’re done! If this FM channel doesn’t work well for you, work down the list until you find an FM channel that allows you to hear XM clearly.

2 Manually tune through your local FM channels

Manually tune through your local FM channels on your vehicle’s FM radio.

Turn on your vehicle’s FM radio. Start at 88.1 and use the ‘Manual’ tune function on your vehicle’s FM radio to tune through each FM channel oneby-one (88.1 followed by 88.3 etc.) to locate channels that aren’t being used by a local FM radio station. Write down each FM channel that has only static or silence on it, until you reach 107.9. Once you have created your list of available FM channels, you will need to find the one that provides the best match for OnyX.

Tune OnyX to a favorite XM channel (or to channel 1, if it’s not activated).

Pick the first FM channel on your list and tune the FM radio to that channel. Then tune OnyX to the same FM channel. (Refer to “Set and Select an FM Channel” on page 76.) You should hear the XM channel through your vehicle’s radio. If you are satisfied with the sound quality, you’re done! If this FM channel doesn’t work well for you, work down the list until you find an FM channel that allows you to hear XM clearly.

NOTE! You may find an FM channel with static or silence that does not work with OnyX. It is possible that some type of inaudible interference is present that prevents reception of the XM broadcast. Your only options are to use another FM channel or a different audio connection method.

TIP! If you regularly drive from one location to another, such as your daily commute, you may need to use different FM channels along your route for best performance. If this is the case, we recommend saving the best FM channels as presets on your FM radio and OnyX. Then you simply select and match the best channel for the area you are in.

TIP! It will be much more difficult to find available FM channels in large cities than in most suburban or rural locations. A direct audio connection using the Aux In Cable, Cassette Adapter, or professional installation is your best solution

Configuring Your OnyX

if you drive in or near large metropolitan areas.

NOTE! The SiriusXM FM Channel Finder relies on data from the Federal Communications Commission. The data may not reflect the latest stations in your area. In addition, local geography and weather conditions can impact reception, so your results may be different from the list.

NOTE! The performance of FM radios are different, based on manufacturer and vehicle style. Some may not work well with the type of FM transmitter used by OnyX. This is why we recommend a direct audio connection using the Aux In Cable or Cassette Adapter if they can be used in your vehicle. Professional installation can also resolve almost any performance issue.

Set and Select an FM Channel

OnyX allows you to easily store (i.e., preset) up to 5 different FM channels.

At any time, you can select any one of these 5 FM presets to hear SiriusXM through your existing vehicle radio. Having a choice of 5 FM presets also makes it easy to switch to the appropriate FM channel as you travel from one area to another. Each FM preset is stored in its own storage location. You can easily add or edit the FM preset in any one of the 5 storage locations.

IMPORTANT! OnyX and the vehicle’s FM radio need to be tuned to the same FM channel in order to hear the audio.

TIP! The FM 1 storage location is preset with FM channel 97.9.

To set and select an FM preset:

1 Press menu.

2 Press to scroll to and highlight FM

Settings and press the Select button.

3 FM Channels will be highlighted. If it is

not highlighted, press to scroll to and highlight FM Channels. Press the Select button.

4 Press to scroll to and highlight the storage location (FM 1 to

FM 5) you want to set and press the Select button. You can choose among the following options:

i. If the chosen storage location is empty (denoted by “---“), or if the

storage location contains the FM preset currently being used (denoted by “current”), then the FM channel tuning screen is displayed.

FM Channels

current

FM 1 FM 2 FM 3 FM 4 FM 5

97.9

99.3

103.7 _ _ _ _ _ _

Configuring Your OnyX

ii. If the chosen storage location has an FM preset that is not currently

being used, and you want to edit it, Edit Channel is highlighted. Press the Select button. The FM channel tuning screen is displayed.

iii. If the chosen storage location has an FM preset that is not currently

being used, and you want to start using it, press to highlight Start Using and press the Select button. Skip to step 7.

5 Press and to tune to the desired

FM channel in steps of .2, i.e., 99.3 to

99.5. Press and to tune to the desired channel in steps of 1, i.e., 99.3 to 100.3. Press the Select button to select the FM channel.

6 If you are editing the storage location

that has the “current” FM preset, skip to step 7. Otherwise, Start Using will be highlighted. Press the Select button.

NOTE! You can also set an FM preset without having to start using it right away. Just press menu and exit the screen.

7 The chosen FM channel will be

confirmed on the display screen and OnyX will tune to that FM channel.

8 Set your vehicle’s FM radio to same FM

channel.

IMPORTANT! You’ll first need to find a suitable FM channel that is unused or available in your area.

Set your vehicle radio to the

above channel to enable audio.

99.3 FM

Edit FM Channel 2

99.3 FM

and Select to confirm

Press arrow keys to tune

To quickly select an FM preset:

1 Press FM to display the current FM

preset.

2 To display and select the next FM

preset, press FM. OnyX will tune to the displayed FM channel. If the preset is the one you want, press menu or wait for the screen to timeout.

3 Repeatedly pressing FM will cycle

through the FM presets.

4 Set your vehicle’s FM radio to same

FM channel.

Set your vehicle radio to the

above channel to enable audio.

99.3 FM

103.7 FM

Set your vehicle radio to the

above channel to enable audio.

Configuring Your OnyX

Jump Settings

The jump button can be configured to either jump to the traffic and weather for the city of your choice from a list of 22 of the most congested cities, or to jump back to the last channel to which you were listening. When configuring for traffic/weather, you’ll need to select your city.

To configure jump:

1 Press menu.

2 Press to scroll to and highlight

JUMP Settings and press the Select button.

3 Mode will be highlighted with either

Last Channel or Traffic/Weather. If

you want to change the mode, press the Select button. Otherwise, just leave it as shown. (Repeatedly pressing the Select button toggles between the choices.)

4 If you have selected Last Channel,

press and hold menu to return to the main display screen. If you have selected Traffic/Weather continue with step 5.

5 Press to scroll to and highlight Set

Location and press the Select button.

6 A list of cities will be displayed. Press

JUMP Settings

Mode Set Location

Traffic/Weather

ATL

JUMP Settings

Mode Last Channel

to scroll to and highlight your desired location and press the Select button.

7 The JUMP Settings screen will display

the location you selected. Press and hold menu to return to the main display screen.

Set Brightness

To change the display’s brightness:

1 Press menu.

2 Press to scroll to and highlight

Brightness and press the Select button.

3 Press to decrease or to increase

the brightness of the display.

4 Press the Select button to confirm the

brightness setting.

5 Press and hold menu to return to the

main display screen.

Set Brightness

and Select to confirm

Press arrow keys to adjust

Configuring Your OnyX

Set Location

Atlanta Baltimore Boston Chicago Dallas

Set Audio Level

The audio level of OnyX can be adjusted when an audio connection is made between the dock and the vehicle’s stereo system. Audio level is used to adjust

OnyX’s volume level to match the volume of other audio sources you may use, such as a CD player, other FM stations, or an MP3 player.

Do not use the audio level as a volume control. Use the volume control on your vehicle’s stereo instead.

To adjust the audio level:

1 Press menu.

2 Press to scroll to and highlight

Audio Level and press the Select button.

3 Press to decrease or to increase

the audio level.

4 Press the Select button to confirm the

new audio level.

5 Press and hold menu to return to the

main display screen.

Set Audio Level

and Select to confirm

Press arrow keys to adjust

Signal Indicator

For best reception, your Magnetic Mount Antenna should have an unobstructed view of the XM satellites. In large cities, there are terrestrial transmitters (ground repeaters) to help increase the signal coverage.

Your OnyX can display the received strength of the satellite and terrestrial signals being received.

To display the signal strength:

1 Press menu.

2 Press to scroll to and highlight

Signal Indicator and press the Select button.

3 The Satellite and Terrestrial bars

show the strength of the signal being received.

4 Reposition the antenna if you are

having trouble receiving the signal. Be sure your vehicle is outside with an unobstructed view of the sky.

5 Press and hold menu to return to the

main display screen.

Signal Indicator

ATELLIT

TERRESTRIA

Configuring Your OnyX

Factory Settings

The factory settings menu has two choices, AUX Detect and Restore Defaults.

AUX Detect

AUX Detect allows OnyX to automatically detect a connection made to the AUDIO connector of the PowerConnect Vehicle Dock by an Aux In Cable or Cassette Adapter. AUX Detect is enabled by default.

IMPORTANT! If you are using the PowerConnect Vehicle Dock which came with your OnyX, AUX Detect should remain enabled.

If you are using the older model Vehicle Dock from the Universal Xpress Car Kit, and plan to use PowerConnect or FMDA as the audio connection option, you will need to disable AUX Detect. Please read the additional instructions, “Using the Vehicle Dock From the Universal Xpress Car Kit” on page 88. Once AUX Detect is disabled, you’ll have to turn the FM Transmitter On. Refer to “Turn FM Transmitter On/Off” on page 89.

To disable AUX Detect:

(Do this only when using the older model Vehicle Dock.)

1 Press menu.

2 Press to scroll to and highlight Factory Settings and press the Select

button.

3 AUX Detect should be highlighted and show as enabled. Press the Select

Factory Settings

AUX Detect Restore Defaults

enabled

button to toggle the setting.

4 A warning screen will be displayed.

Press the Select button to confirm that you want to disable AUX Detect.

5 If you want to cancel press menu to

return to Factory Settings. AUX Detect will remain enabled.

6 AUX Detect will show as disabled.

Press and hold menu to return to the main display screen.

To enable AUX Detect

(Do this when the Radio is transferred to the PowerConnect Vehicle Dock from an older model Vehicle Dock.)

1 Press menu.

2 Press to scroll to and highlight Factory Settings and press the Select

button.

3 AUX Detect will be highlighted and show as disabled. Press the Select

button again to toggle the setting to enabled.

4 Press and hold menu to return to the main display screen.

Configuring Your OnyX

Disable only if using vehicle dock

from Universal Xpress Car Kit.

Otherwise, leave it enabled.

Disable AUX Detect?

or menu to cancel

Press Select to confirm

Restore Defaults

You can clear all of your personal settings, such as favorite channels, FM presets, etc., and return the Radio to its original out-of-the-box settings

To reset OnyX to factory defaults:

NOTE! Restoring defaults permanently removes all personal settings.

1 Press menu.

2 Press to scroll to and highlight

Factory Settings and press the Select button.

3 Press to scroll to and highlight

Restore Defaults and press the Select button.

4 A warning screen will be displayed.

If you are certain that you want to reset your OnyX to the default settings, press the Select button to confirm.

5 If you want to cancel, press menu to

return to Factory Settings.

or menu to cancel

Are You Sure?

All settings will be erased.

Press Select to confirm

Demo Mode

Your OnyX has a demo mode that starts playing when, for a prolonged period of time (more than 5 minutes), the Radio either detects it’s not connected to the antenna, or the antenna stops receiving a signal. It disappears when the antenna is connected properly or when the Radio starts receiving a signal. You can also exit demo mode at any time, by pressing and holding the Select button for 10 seconds. If desired, you can also manually put OnyX in demo mode.

The ability for OnyX to enter demo mode is enabled by default. If you don’t want OnyX to ever enter the demo mode, you can disable the demo feature. You can enable it again at another time if desired.

To enable or disable the demo mode:

1 Press menu.

2 Press to scroll to and highlight

Demo Mode and press the Select button.

3 Status will be highlighted. Press

the Select button to toggle the setting between enabled or disabled. (Repeatedly pressing the Select button toggles between the choices.)

4 If you have selected disabled, press

and hold menu to return to the main display screen. If you have selected enabled continue with step 5.

5 Press to scroll to and highlight Enter Demo Mode and press the Select

button. The demo mode will start in 10 seconds.

Demo Mode

Status Enter Demo Mode

enabled

Configuring Your OnyX

6 To exit demo mode at any time, press

and hold the Select button for 10 seconds.

Auto Shut Off

OnyX will automatically shut off after 8 hours of inactivity, i.e., when no buttons have been pressed. This feature prevents the vehicle battery from being discharged if you forget to turn your OnyX off.

When OnyX is about to shut off, the message

Auto Shut Off, Started auto shut off due to inactivity is displayed, followed by Press any button to cancel. If you wish to continue

listening, press any button.

Demo Mode

Entering Demo Mode.

Press & Hold Select

for 10 seconds to exit

Started auto shut off

due to inactivity.

Auto Shut Off

Press any button to cancel

Using the Vehicle Dock From the Universal Xpress Car Kit

If you have chosen to use the Vehicle Dock from the Universal Xpress Car Kit rather than the PowerConnect Vehicle Dock included with your OnyX Radio, you will need to complete some additional installation steps. When you have completed these additional steps, you can continue with the installation of your OnyX.

When you are using the Universal Xpress Vehicle Dock, the screen will initially display “AUX Connected” when you power on your OnyX. Ignore this message. Once you have completed the steps below, it will not be displayed again.

If you are connecting the audio through your vehicle’s FM radio (SureConnect or FMDA):

1 Disable the AUX Detect feature. Refer to “AUX Detect” on page 83, and

disable AUX Detect.

2 Turn the FM Transmitter in OnyX On. Refer to “Turn FM Transmitter On/

Off” on page 89, and turn the FM Transmitter On.

3 Continue with the installation.

If you are connecting the audio using the Aux In Cable or Cassette Adapter:

1 Disable the AUX Detect feature. Refer to “AUX Detect” on page 83, and

disable AUX Detect.

TIP! The FM Transmitter must be Off. To verify that the FM Transmitter is Off, refer to “Turn FM Transmitter On/Off” on page 89.

2 Continue with the installation.

Configuring Your OnyX

Turn FM Transmitter On/Off

Turning the FM Transmitter On applies only if you are using the older model Vehicle Dock from the Universal Xpress Car Kit, and plan to use SureConnect or FMDA as the audio connection option.

You’ll have to turn On the FM Transmitter under the FM

Settings menu. However, before you can access the FM Settings menu, you first need to disable AUX Detect.

Refer to “AUX Detect” on page 83. Once you have disabled AUX Detect, the FM Settings menu will be accessible.

To turn the FM Transmitter On:

1 Press menu.

2 Press to scroll to and highlight FM

Settings and press the Select button.

3 FM Transmitter will be highlighted.

Press the Select button to toggle the setting from Off to On.

4 The FM Channels menu item will now

be accessible, allowing you to tune OnyX and the FM radio in your vehicle to the same FM channel.

TIP! OnyX is programmed with FM channel 97.9 as the default setting.

FM Settings

FM Transmitter

FM Channels

Audio enabled through

auxiliary line. FM turned OFF.

AUX Connected

To turn the FM Transmitter Off:

If you are using the older model Vehicle Dock from the Universal Xpress Car Kit, and plan to use the Aux In Cable or a Cassette Adapter as the audio connection option, you’ll have to turn the FM Transmitter under the FM Settings menu in OnyX Off, if it was previously turned On.

1 Press menu.

2 Press to scroll to and highlight FM

Settings and press the Select button.

3 FM Transmitter will be highlighted.

Press the Select button to toggle the setting from On to Off.

4 A warning message will be displayed

advising you to connect the Aux In Cable. Press the Select button to confirm that you want to turn off the FM Transmitter.

5 Press and hold menu to exit.

FM Settings

FM Transmitter

FM Channels

off

Please connect an AUX cable

or no audio will be available.

Press Select to confirm

Turn OFF FM?

Configuring Your OnyX

Troubleshooting

OnyX has been designed and built to be trouble-free but if you experience a problem, try this:

• Check that all connections are firm and secure.

• Make sure the vehicle power socket is clean and free of corrosion.

• Make sure you have connected OnyX as described in this User Guide.

Verify that the PowerConnect Power Adapter is plugged into the vehicle’s cigarette lighter or power adapter socket, and that the LED on the

PowerConnect Power Adapter is lit (on). If not, your vehicle may need to be running to provide power to the socket.

If you see this on the screen: Try this:

Acquiring Signal •Make sure that the vehicle is outdoors with a clear

view of the sky.

•Make sure the Magnetic Mount Antenna is mounted outside of the vehicle.

•Move the antenna away from any obstructed area. For example, if you are parked in an underground garage, you should receive a signal after leaving the garage.

Check Antenna Connection •Make sure that the antenna cable is firmly and

securely plugged into the PowerConnect Vehicle Dock. Make sure the cable is not bent or broken.

•Turn OnyX Off, then On, to reset this message.

•If the message persists, most likely the Magnetic

Mount Antenna cable has been damaged. Replace the antenna.

Channel Off Air •The channel you’ve selected is not currently

broadcasting. Tune to another channel.

Troubleshooting

If you see this on the screen: Try this:

Loading •Your OnyX is acquiring audio or program

information This message usually goes away in a few seconds.

Updating •Your OnyX is updating with the latest encryption

code. Wait until the update is done.

•You may be trying to tune to a channel that is blocked or unavailable. Tune to another channel.

— •No program information, such as artist name, song

title, or channel exists.

If this happens: Try this:

You do not receive all the channels to which you subscribed

•Ensure that you have subscribed to the service by following the steps in “Subscribe” on page 48.

•Go to https://care.siriusxm.com/retailrefresh_view. action and follow the directions to refresh your

Radio.

•Call 1-800-967-2346 for further assistance.

Audio sounds too soft •Raise the volume of your stereo system or increase

the audio level of your OnyX until the sound quality improves. Refer to “Set Audio Level” on page 81.

No audio when using the Aux In Cable or Cassette Adapter

•Check all cables between your OnyX and your vehicle’s stereo system for a firm and secure connection.

•Ensure you have selected the proper input source on your vehicle’s stereo system.

•Increase the audio level of OnyX. Refer to “Set Audio Level” on page 81.

•If you are using the Vehicle Dock that came with the Universal Xpress Car Kit, ensure that the FM Transmitter in OnyX is turned Off.

If this happens: Try this:

No audio when using the Aux In Cable or Cassette Adapter

•Check all cables between your OnyX and your vehicle’s stereo system for a firm and secure connection.

•Ensure you have selected the proper input source on your vehicle’s stereo system.

•Increase the audio level of OnyX. Refer to “Set Audio Level” on page 81.

•If you are using the Vehicle Dock that came with the Universal Xpress Car Kit, ensure that the FM Transmitter in OnyX is turned Off.

Audio fades or has static when listening

•Check all cables for a firm and secure connection.

•If you are using PowerConnect to listen via your

vehicle’s FM radio, and the problem persists, it most likely is interference from another commercial or broadcast FM station. You will need to find an unused or available FM channel in your area. Refer to “Find Available FM Channels in Your Area” on page 73.

•If you are using PowerConnect, and you cannot solve the audio problem, try connecting the audio using the Aux In Cable or a Cassette Adapter. (Refer to page 39 and page 41.) If you cannot use those solutions, consider using an FM Direct Adapter. (Refer to page 46.)

Troubleshooting

If this happens: Try this:

No audio when using PowerConnect or FMDA

•Check that your OnyX and your vehicle’s FM radio are tuned to the same FM channel.

•For PowerConnect, ensure you are using the PowerConnect Vehicle Dock and PowerConnect

Power Adapter.

•If you are using the Vehicle Dock that came with the Universal Xpress Car Kit, ensure that the FM Transmitter in OnyX is turned On. Refer to “Turn FM Transmitter On/Off” on page 89.

No song title or artist name is displayed

•The information may not be available or updates may be in progress.

Traffic and Weather channels sound different from other channels

•These channels use a different audio technology than other channels so they often sound different from other channels.

The demo is playing •Your Magnetic Mount Antenna is not connected

or you are not receiving the signal. Check that the antenna is connected properly and is not obstructed.

•Press and hold the Select button for 10 seconds to exit Demo Mode.

•You can disable Demo Mode. Refer to “Demo Mode” on page 86.

Product Specifications

System

Power Requirements: 9-16 V DC,500 mA (max) Operating Temperature: -4°F to +140°F (-20°C to +60°C) Audio Output: 1.0 V

rms

(max)

OnyX Radio

Dimensions: 4.5 in (width) x 2.4 in (height) x 0.7 in (depth) 115 mm (width) x 61 mm (height) x 17 mm (depth) Weight: 3.4 oz (95 g)

PowerConnect Vehicle Dock

Dimensions: 4.0 in (width) x 2.3 in (height) x 1.2 in (depth) 102 mm (width) x 59 mm (height) x 31 mm (depth) Weight: 1.6 oz (46 g) Audio Connector: 1/8 in (3.5 mm) female Antenna Connector: SMB male

PowerConnect Power Adapter

Dimensions: 3.7 in (width) x 1.7 in (height) x 1.3 in (depth) 94 mm (width) x 43 mm (height) x 34 mm (depth) Weight: 2.4 oz (69 g) Input / Output: 9-16 V DC / 5 V DC, 1.5 A Cable Length: 4 ft 7 in (1.4 m)

Vehicle Antenna

Type: XM Magnetic Mount Connector: SMB female, right angle Cable Length: 23 ft (7.0 m)

Aux In Cable

Connectors: 1/8 in (3.5 mm) stereo male to 1/8 in (3.5 mm) stereo male Cable Length: 4 ft (1.2 m)

Product Specifications

Patent and Environmental Information

Patent Information

It is prohibited to, and you agree that you will not, copy, decompile, disassemble, reverse engineer, hack, manipulate, or otherwise access and/or make available any technology incorporated in this product. Furthermore, the AMBE™ voice compression software included in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The software is licensed solely for use within this product. The music, talk, news, entertainment, data, and other content on the Services are protected by copyright and other intellectual property laws and all ownership rights remain with the respective content and data service providers. You are prohibited from any export of the content and/or data (or derivative thereof ) except in compliance with applicable export laws, rules and regulations. The user of this or any other software contained in a SiriusXM Radio is explicitly prohibited from attempting to copy, decompile, reverse engineer, hack, manipulate or disassemble the object code, or in any other way convert the object code into human-readable form.

Environmental Information

Follow local guidelines for waste disposal when discarding packaging and electronic appliances.

100

The user is cautioned that changes or modifications not expressly approved by SIRIUS XM Radio Inc. can void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the installation instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna of the affected receiver.

• Increase the separation between the SiriusXM equipment and the affected receiver.

• Connect the SiriusXM equipment into an outlet on a circuit different from that to which

the affected receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING! The FCC and FAA have not certified this Satellite Radio Receiver for use in any aircraft (neither portable nor permanent installation). Therefore, SIRIUS XM Radio Inc. cannot support this type of application or installation.

FCC Statement

Sirius XM RAdio XM Onyx User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
