Congratulations on your purchase!

Thank you for choosing a Sirius product.

Ceiling cassette user manual

INSTALLATION AND USE INSTRUCTIONS

SLT958 EM EAN #9351116001292
SLT958 EM WH EAN #9351116001780
SLT952 EM EAN #9351116001018
SLT968 EM EAN #9351116002053
SLT968 EM WH EAN #9351116002060
SLT960 EM EAN #9351116000936

1

BEFORE YOU INSTALL

TO THE ATTENTION OF THE USER

PRE-INSTALLATION CHECKS

OPENING THE GLASS PANELS

CAUTION

BEFORE YOU INSTALL – please read

3

4

5

7

Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory

such as flexible ducting, Sirius will only warrant the hood and motor. If installation is found to be the

cause of failure or issue then charges will apply for service and parts.

Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to

increase noise levels, increase vibration and reduce airflow.

Sirius Semi-rigid or solid ducting can be used in lieu.

There is a range available to suit any application.

LINE MEASUREMENTS

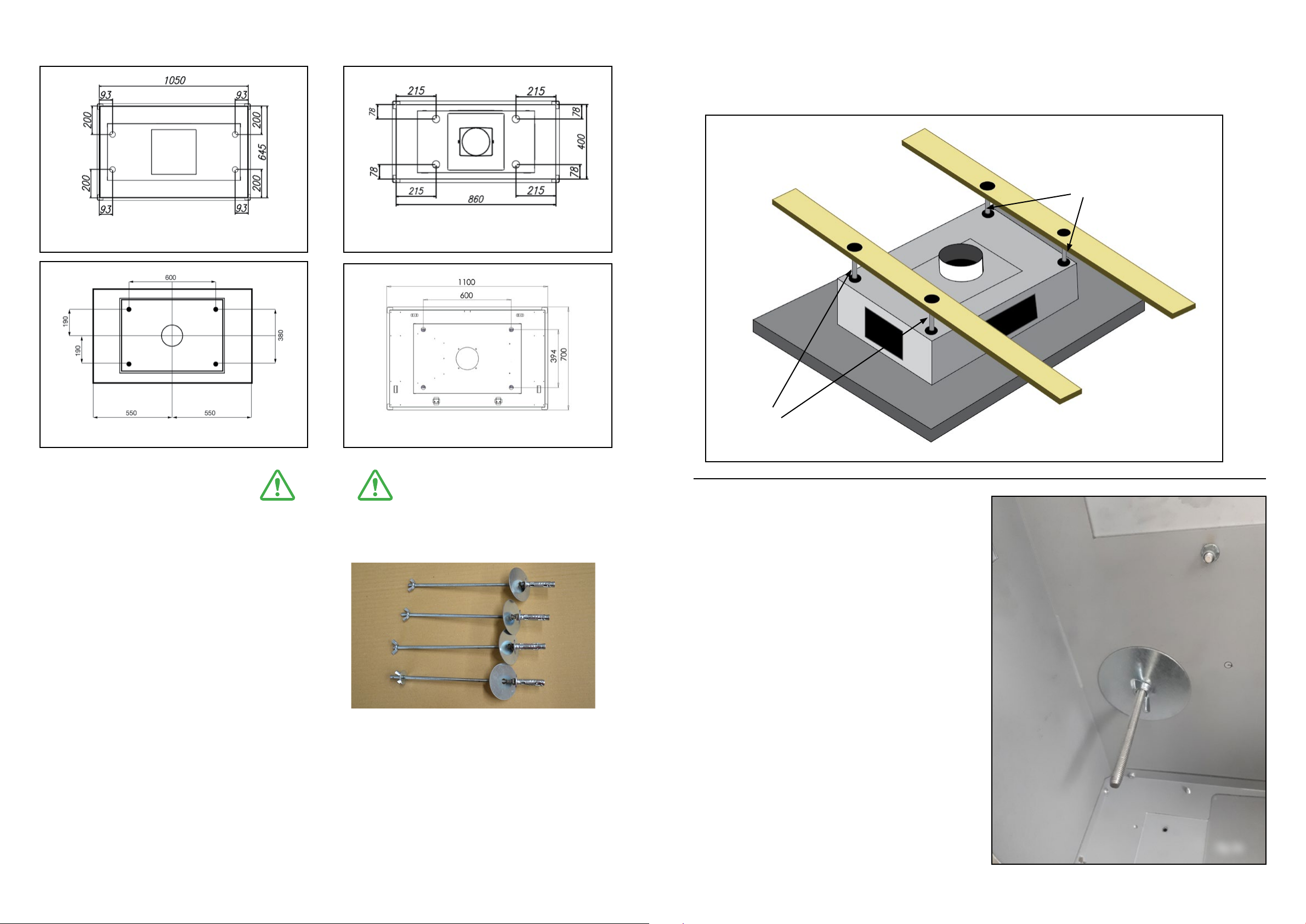

INSTALLING THE TIMBER SUPPORT BEAMS

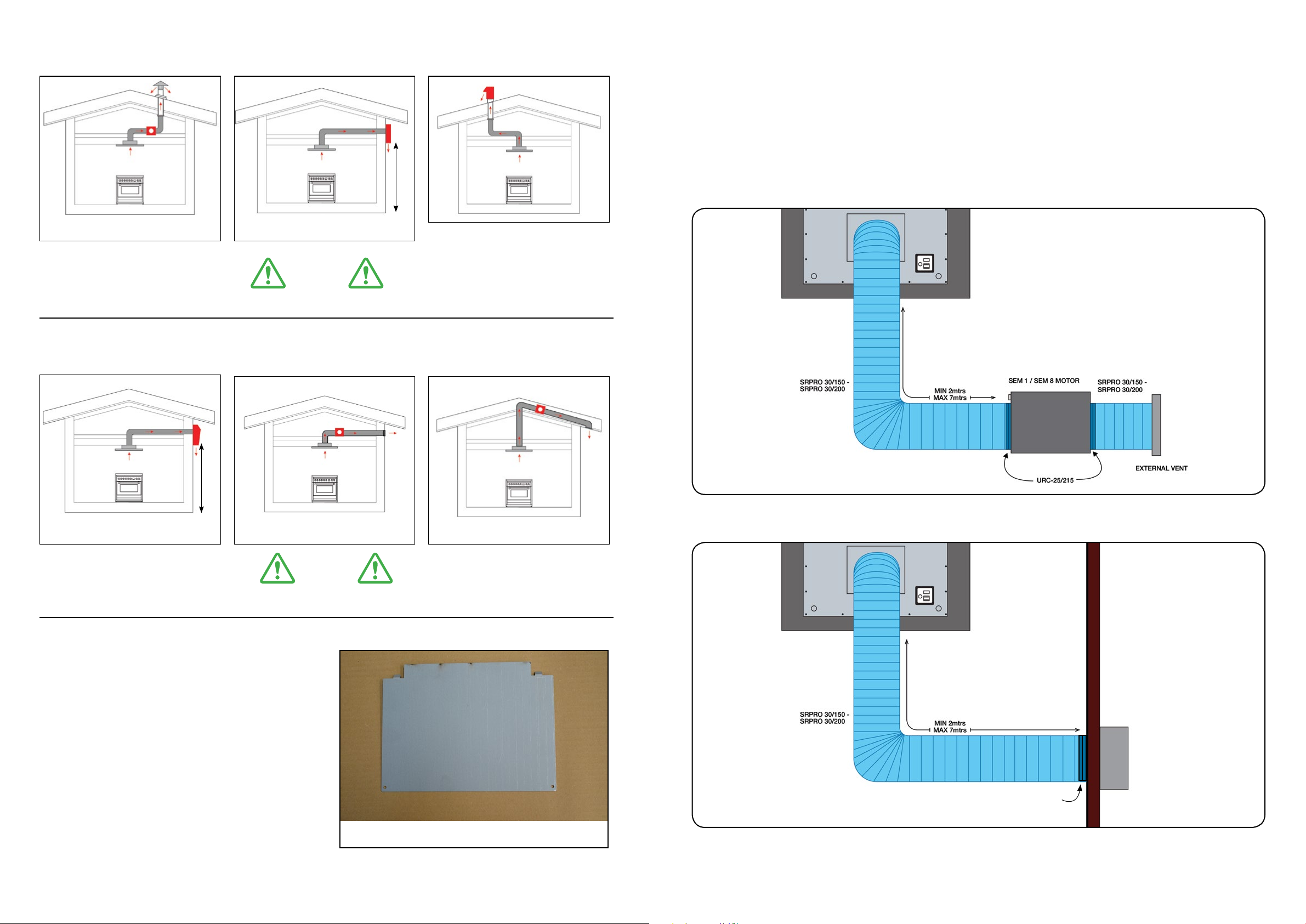

MOTOR AND VENTING OPTIONS

TOP VENT INSTALLATION

SIDE VENT INSTALLATION

SEM 1 & SEM 2

SIDE VENT INSTALLATION

SEM 7 & SEM 8

REMOTE CONTROL

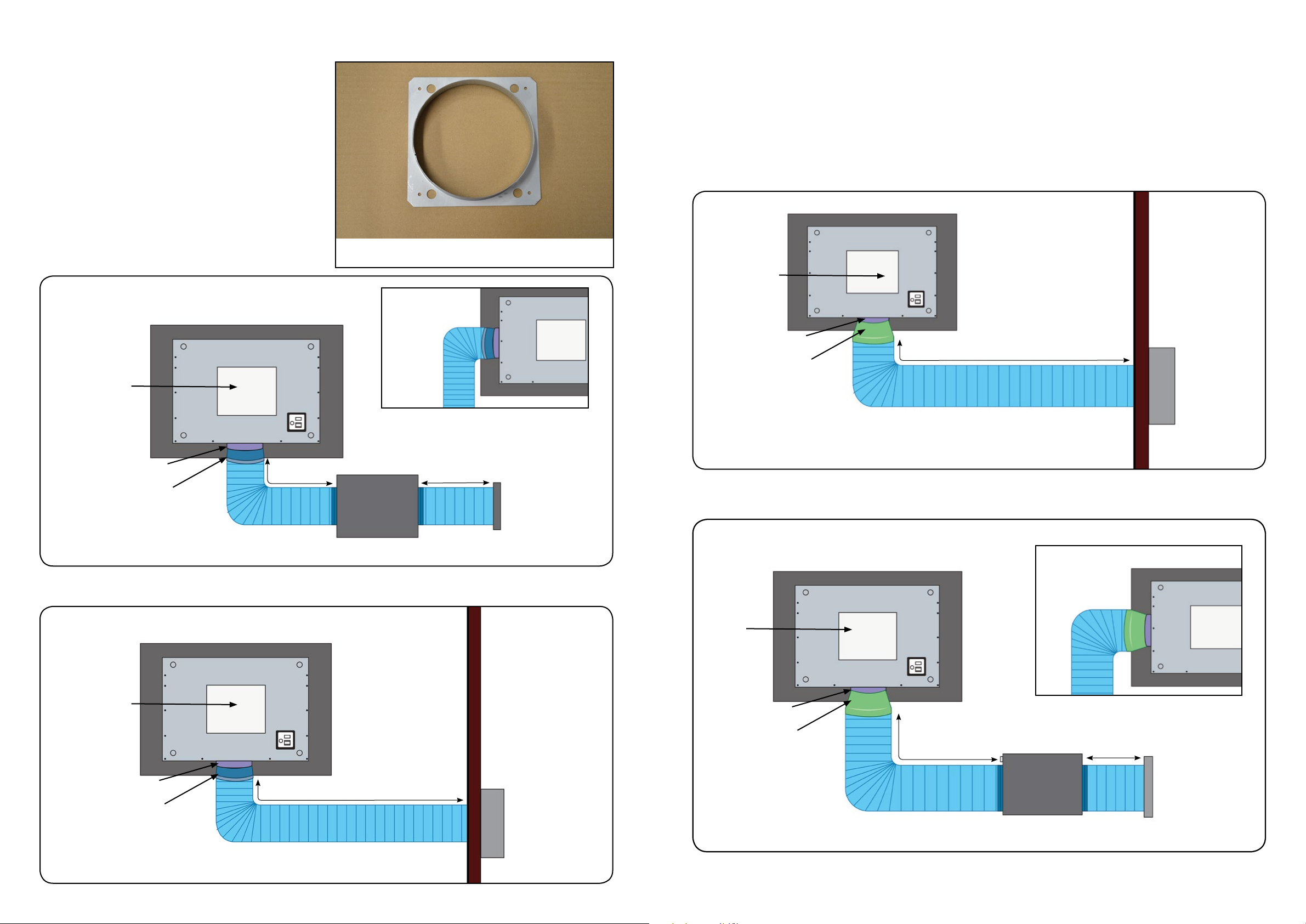

DUCTING FROM MOTOR TO WALL

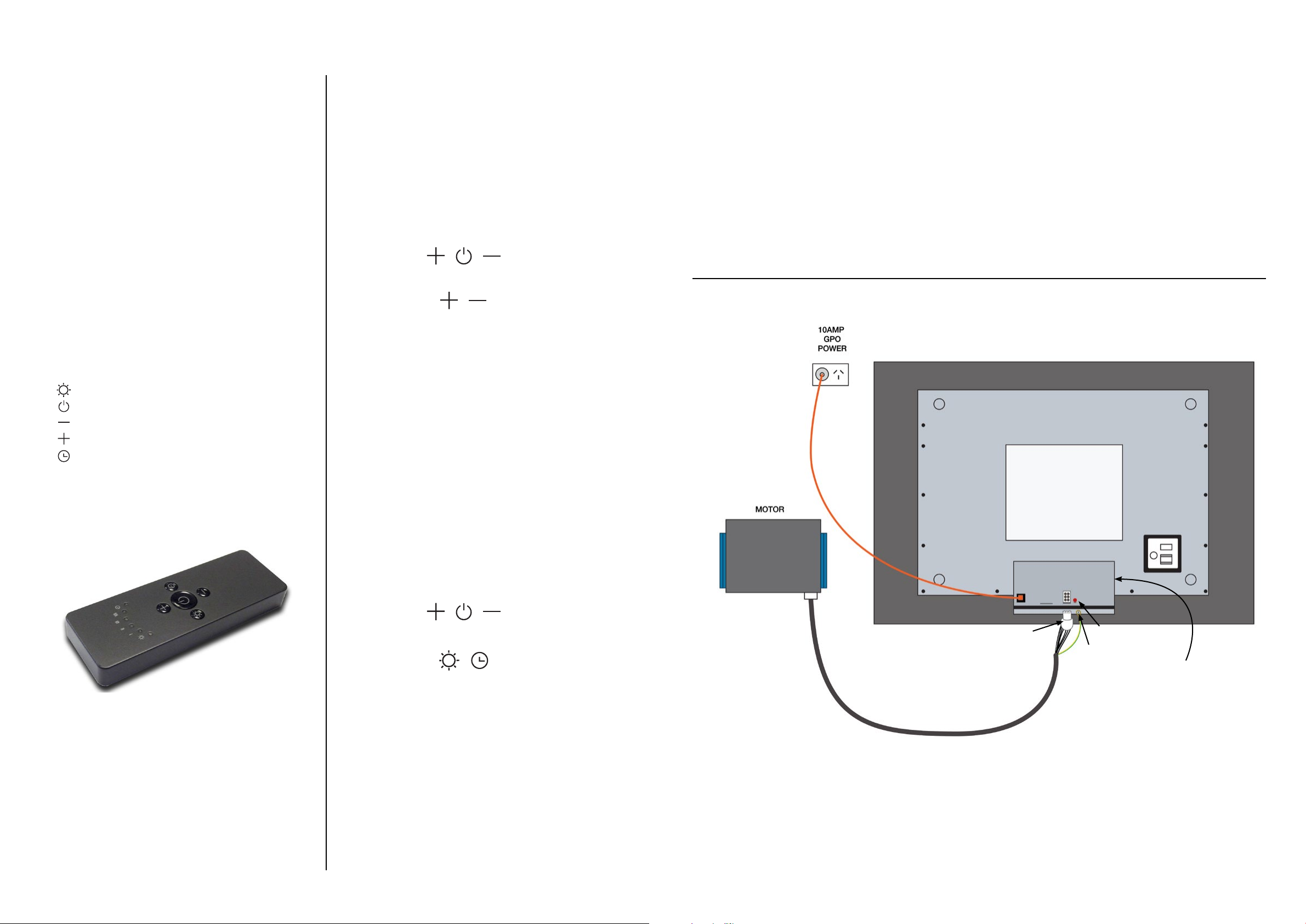

ELECTRICAL CONNECTION

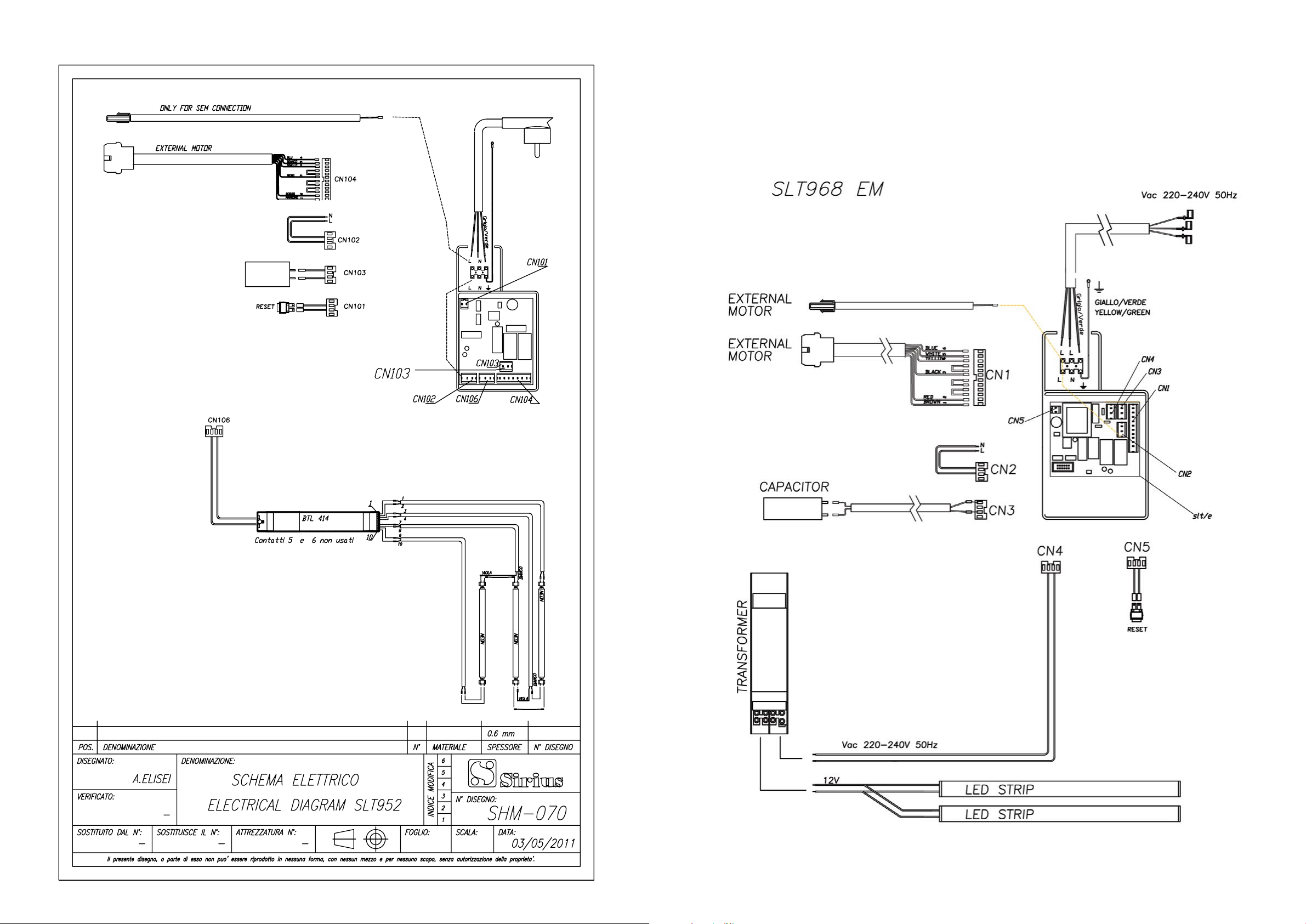

WIRING DIAGRAMS

10

11

12

13

14

15

15

16

8

WARNING

9

The appliance must be installed and

connected to the power supply only by a

qualified technician.

• There shall be adequate ventilation of the room when the range hood is used at the same time as
appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the
room)

• The details concerning the method and frequency of cleaning

• There is a fire risk if cleaning is not carried out in accordance with the instructions;

• Do not flambé under the range hood;

• CAUTION: Accessible parts may become hot when used with cooking appliances.

Ducting available at www.siriusbrand.com

A reduction in the duct diameter from stated ducting size will void warranty.

If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to installation

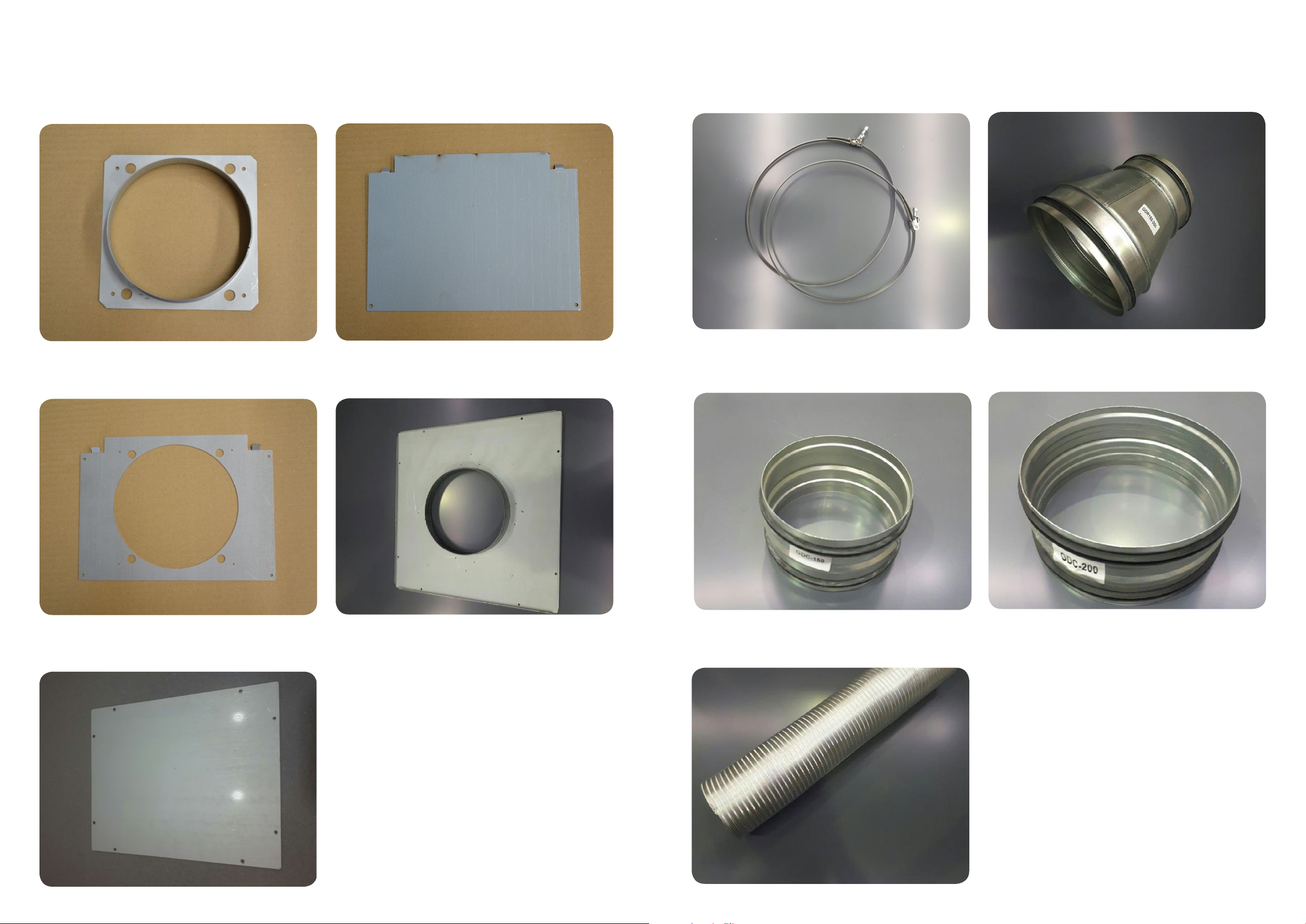

PARTS LIST

WARRANTY

20

22

The symbol on the product or on its packaging indicates that this product
may not be treated as house-hold waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product. This appliance is marked according to the European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).

2 3

TO THE ATTENTION OF THE USER

This rangehood is designed to work with ducted
outside evacuation.

NOTE

Check PARTS LIST on page 20 for all included

parts prior to discarding packaging.

WARNING

Keep these instructions for use with the appliance. If
the appliance should be sold or passed on to others,
make sure that the instructions are passed on with
it. We thank you for taking note of these suggestions
before installing and using the appliance. They have
been written for your personal safety and the safety
of others.

SAFETY INSTRUCTIONS

These hoods have been designed for personal
use in the home. The appliance must be used by
adults. Make sure that the appliance is out of reach
of children and that they do not use it to play with.
Make sure that children do not operate the controls.

• When the appliance is delivered, check the overall

appearance of the packaging. Check PARTS

LIST on page 20 for all included parts prior
to discarding packaging.

Any remarks should be written on the delivery
docket, of which you keep a copy.
Your appliance is designed for normal domestic
use. It is not designed for commercial or industrial
use, or for purposes other than those for which it
was designed.

• Any consequences of or damage from incorrect
installation or incorrect use of the appliance will
not be covered by the manufacturer’s guarantee.

• Do not ever change or try to change the
characteristics of this appliance. This would be
a danger. Repairs must be performed only by an
authorised technician.

• Always disconnect the hood before carrying out
cleaning or maintenance operations.

• Adequately ventilate the room when a rangehood
and other appliances, powered by energy other
than electricity, are used simultaneously, so that
the hood does not suck any combustion fumes.

• It is not allowed to cook food over open flames
(flambé) or operate gas hobs without pots
or pans on them under the hood itself (the
flames sucked into the hood might damage the
appliance).

• Frying under the appliance must be done under
constant supervision as hot oils and fats may
ignite.

• Respect the guidelines for cleaning and
replacement of grease filters. Accumulated

deposits of grease are a fire hazard.

• This appliance must not be used over cook tops
powered by wood or coal or in any case, over
cook tops with power levels that could damage
the appliance.

• Never use steam or high-pressure devices
for cleaning your hood (regulations regarding
electrical safety).

• Never use the rangehood without the grease
filters.

At Sirius, we are constantly seeking to improve
our products. We reserve the right to modify their
technical, functional, or aesthetic characteristics
deriving from their upgrading.

Motors manufactured and approved by Sirius only
are to be used at all times. Failure to comply with this
will result in the forfeit of the manufacturer warranty.

The air collected must not be conveyed into a flue
used for smoke or fumes from appliances powered
by anything other than electricity (central heating
systems, bathroom and toilet exhausts, etc.). As
far as discharging exhaust air is concerned, please
follow the guidelines given by competent authorities.

PRE-INSTALLATION CHECKS

Connect all of the electrical components to the unit and motor to make sure both the unit and the motor are
functioning properly.

(NOTE: The motor plug is fitted with a dummy plug - with the exception of SEM1 motor - to protect
the connection from dust. Ensure the red dummy plug is removed and replaced with the two
pin motor plug from the power transformer box. Failure to do so will result in only two speeds
operating).

Lighting connection

Remove all plugs and proceed with installation if both unit and motor are fully operational.

CAUTION

Installation must comply with the regulations in force regarding the ventilation of enclosed environments.

In particular, discharged air must not be conveyed into a duct used for fumes discharge or discharge from

appliances using gas or other combustible materials. Air cannot be ducted into roof space.
The use of discontinued ducts is not allowed without the approval of a qualified technician.

BEFORE YOU INSTALL

Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory such as
flexible ducting, Sirius will only warrant the hood and motor. If installation or inferior parts are found to be the
cause of failure or issue then charges will apply for service and parts.
Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to increase noise
levels, increase vibration and reduce airflow. Sirius Semi-rigid or solid ducting can be used in lieu. There is a
range available to suit any application.

Available at www.siriusbrand.com

A reduction in the duct diameter from stated ducting size will void warranty.

If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to

installation.

4 5

WARNING

Before proceeding with the installation of the ceiling cassette, please thoroughly inspect the entire unit
(including the motor) for any damages, including all of the electrical connections. If any damage is found,cease
installation and report it immediately to the retail partner that the cassette was purchased from.

NOTE

• Only use Sirius Ducting with a maximum length of 7 metres & minimum of 2 metres from the outlet collar
on the cassette to the motor location.

• Limit the number of elbows in the ducting, since each 90 degree bend reduces the air capacity by 1 lineal
metre (e.g. if there are 2 x 90 degree bends, the maximum duct length should not exceed 5 metres.)

• Avoid abrupt changes of direction where possible, bends of more than 90 degrees should be avoided at all
costs.

• Use of 150mm ducting is applicable for SLT958 models only, 200mm ducting is applicable for SLT952 /
SLT960 / SLT968.

WARNING

OPENING THE GLASS PANELS - SLT960 EM

Step 1a: Accessibilty to the filters is done by pulling

down on the glass panels. These are held on by
magnets.
Swing the glasss panels downwards on either side
to expose the grease filters. (Fig. 1)

OPENING THE COVER PANELS - SLT958 EM,
SLT958 EM WH, SLT968 EM, SLT968 EM

Step 1c: On the side where the speed control light

is visible, pull down in the centre of the panel.
The panel is held on by a strong magnet. Allow the
panel to swing open to expose the grease filters.
(Fig. 3) A chain is fitted for safety purposes.

Reduction of the ducting diametrer will void the manufacturer warranty as it will severely affect the performance
of the motor and may cause damage with prolonged usage.

WARNING

Use ducting approved by standards enforced, see www.siriusbrand.com for details for approved ducting. The
manufacturer will not be deemed responsible for air capacity and noise problems caused by failure to comply
with the above and no warranty on the product will be provided.

DANGER

FAILURE TO INSTALL THE SCREWS OR FIXING DEVICE IN

ACCORDANCE WITH THESE INSTRUCTIONS MAY RESULT IN

ELECTRICAL HAZARDS OR ELECTROCUTION.

NOTE

Fig. 1

OPENING THE LIGHT PANELS - SLT952 EM

Step 1b: Depress the tabs on either side of the two

panels, pull down and allow them to swing open to
expose the grease filters. (Fig. 2)
A chain is fitted for safety purposes.

Depress tabs
on side

Depress tabs
on side

Fig. 2

Panel drops down

Fig. 3

Step 1d: After swinging open the panel/panels on
any of the cassettes, disconnect the lighting by
depressing the tabs on the connection plug and
pulling the cable.
So that no damage is caused during the installation
process, remove the panels by unscrewing the
hinges on the underside of the cassette. This will
also lighten the cassette to make lifting it into place
and installation easier.

Unscrew hinges

Depress tabs
on side of plug

The cassette requires one 10AMP GPO located inside the ceiling cavity

to power both the lighting and the motor.

The ceiling cassette is designed for a ceiling height of up to 2700mm high.

• SLT960 EM ONLY

Installation of the ceiling cassette can either be installed 50mm proud mounted or 260mm proud with the
additional purchase of the stainless steel proud mount kit (SPS-76105980960)

Example shown: SLT960

6 7
