Sirius Satellite Radio STILETTO 100 User Manual 2

Live Portable Satellite Radio

User Guide

TABLE OF CONTENTS. . . ...........................2

WARNING AND SAFETY INFORMATION. . . . . . ................4

FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FCC Interference Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FCC Radiation Exposure Statement . . . . . . . . . . . . . . . . . . . . . . . . . 5

Canadian Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

PACKAGE CONTENTS..............................8

BATTERY LIFE, INSTALLATION, AND CHARGING . . . .............. 10

CONTROLS ................................. 13

Stiletto 100 Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Using the Media Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

GETTING STARTED .............................. 18

Turning the Stiletto 100 On/Off, Sleep, and Lock Modes . . . . . . . . . . . . . . . 18

Navigating Menus and Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Receiving the SIRIUS Satellite Signal . . . . . . . . . . . . . . . . . . . . . . . 21

Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . . . . 22

Connecting the Stiletto 100 to a PC Computer . . . . . . . . . . . . . . . . . . . 24

OPERATION .................................25

Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Internet Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Library ...................................44

Radio Replays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

MY SIRIUS STUDIO SOFTWARE INSTALLATION . . . . . . . . . . . . . . . . . 65

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

OPTIONAL ACCESSORIES. . . ........................67

[ Table of Contents ]

SPECIFICATIONS. . . . . .......................... 69

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

END USER LICENSE AGREEMENT . . . . . . . . . . . . . . . . . . . . . . . 71

COPYRIGHTS & TRADEMARKS ........................ 79

Copyrighted Broadcast Material . . . . . . . . . . . . . . . . . . . . . . . . . 79

Copyrights & Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

INDEX....................................81

[ Table of Contents ]

Warning and Safety Information

FCC Information

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and

This device must accept any interference received, including interference that may cause undesired operation.

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.

—

Increase the separation between the equipment and receiver.

—

Connect the equipment into an outlet on a circuit different from that to which the receiver

—

is connected. Consult the dealer or an experienced radio/TV technician for help.

—

[ Warning and Safety Information ]

FCC Radiation Exposure Statement

This equipment complies with the FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of

1.5 cm between the radiator and your body.

Canadian Compliance

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

General Precautions

SIRIUS disclaims all liability for hearing loss, bodily injury, or property damage as a result of the use or misuse of this product.

Volume and Hearing Safety Precautions

•

When listening to your Stiletto, be aware of your surroundings. The use of earbuds or headphones while riding a bike or operating a vehicle or motorcycle may be prohibited by law, and is not recommended.

•

If you experience ringing in the ears while listening, stop using the Stiletto and consult a medical professional.

•

When using your Stiletto, start the volume low and gradually turn it up to a medium level which you can hear. If the ambient sounds around you are noisy or loud, do not turn the volume up to high level. Find a quieter location instead.

•

Permanent hearing loss can occur if you set the volume too high. Your ears adapt to the loud volume and can be permanently damaged.

•

The use of earbuds or headphones for an extended period of time can cause serious damage to your ears. Wearing them for prolonged periods of time or while sleeping is not recommended.

[ Warning and Safety Information ]

Liquid Crystal Precautions

If the LCD screen on the Stiletto is damaged, do not to touch the liquid crystal fluid. If any of the following situations happen, take the action indicated:

If the liquid crystal fluid comes in contact with your skin, wipe the skin area with a cloth

1. and then wash the skin thoroughly with soap and running water. If the liquid crystal fluid gets into your eye, flush the eye with clean water for at least 15

2. minutes. Seek medical care. If the liquid crystal fluid is ingested, flush your mouth thoroughly with water. Drink large

3. quantities of water and induce vomiting. Seek medical care.

General Safety Precautions

Be sure to observe the following warnings. Failure to follow these safety instructions and warnings may result in a serious accident.

Do not expose the Stiletto to moisture or use it near or in water. Do not handle it with wet

•

hands, or let water or any other liquid spill on or in it. Do not operate the Stiletto in a way that might divert your attention from driving safely. As

•

a driver, you alone are responsible for safely operating your vehicle in accordance with traffic safety laws at all times.

Be sure the unit is installed as described in the installation instructions in this guide. When

•

installing the unit using a Vehicle Kit, Home Kit or Executive Sound System, follow the installation instructions included with those accessories.

To avoid short circuits, do not open the unit, and never put or leave any metallic objects

•

(coins, tools, etc.) inside the unit. If the unit emits smoke or unusual odors, turn the power off immediately, and disconnect

•

the unit from any power source. Do not drop the unit or subject it to strong shocks.

•

If the unit doesn’t seem to be working properly, turn the unit off, remove the battery from

•

the unit, wait 10 seconds, replace the battery and then turn it on again.

My Sirius Studio Software

The My Sirius Studio software CD-ROM included with the Stiletto 100 will allow you to connect your Stiletto 100 to your PC computer running the Windows® XP operating system with Service Pack 2. It is important that this software be used to transfer and manage information

[ Warning and Safety Information ]

on your Stiletto 100 to ensure that the operating system software essential to the operation of the Stiletto 100 is not removed or damaged.

The software also provides for upgrading features and functionality as they become available from SIRIUS. Be sure to periodically connect the Stiletto 100 to your PC computer to load the latest updates. Refer to the user guide included on the software CD-ROM for further information on installing and using the software.

The My Sirius Studio software should be installed before connecting the Stiletto 100 to your PC computer.

Operating Temperature

The Stiletto 100 is designed to operate between -5° to +40° C (23° to 104° F). Avoid leaving the unit in a vehicle or elsewhere where the temperature may fall outside this range. Extreme temperatures or extreme temperature fluctuations can degrade the performance of the LCD display screen, and possibly damage it.

Cleaning and Maintenance

If the Stiletto 100 becomes dirty, turn the power off and wipe it clean with a soft clean cloth. Do not use hard cloths, paint thinner, alcohol, or other volatile solvents to clean. These may cause damage to the unit.

[ Warning and Safety Information ]

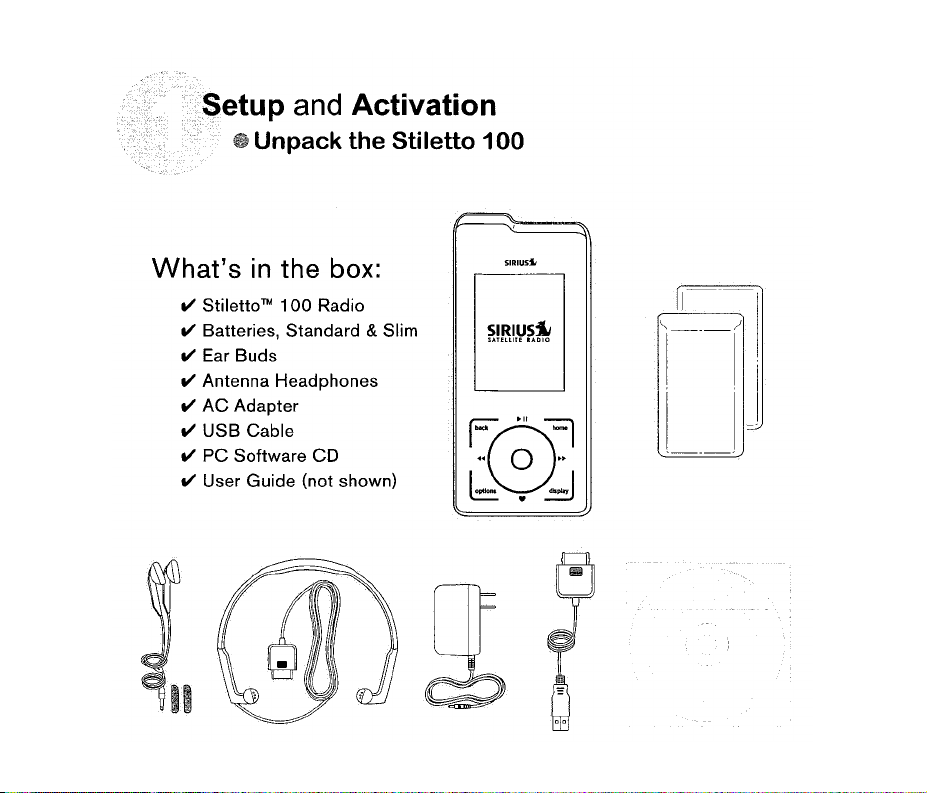

Package Contents

The following items are included with your purchase of the Stiletto 100:

back home

display

options

Stiletto 100Stiletto 100

Two Batteries

(Standard & Slim)

Antenna HeadphonesAntenna Headphones

[ Package Contents ]

MY SIRIUS STUDIO

STILETT0 100

Personal Satellite Radio Receiver

STILETT0 100

Personal Satellite Radio Receiver

SOFTWARE VERSION XXXX

Quick Start Guide

User Guide

Ear Buds

& Pads

USB CableUSB Cable

AC AdapterAC AdapterEar Buds

User Guide, Quick Start Guide,

Inserts, and PC Software CD

ENHANCING THE VERSATILITY OF YOUR STILETTO

Stiletto Vehicle Kit (Model SLV1)

In order to use your Stiletto in a vehicle, you will need the Stiletto Vehicle Kit. The kit includes a compact docking cradle that rapidly charges your Stiletto’s battery, connects to an externally mounted antenna for more reliable reception, and plays audio through your vehicle’s stereo system. Ten (10) dedicated presets and an included remote control make it easy to tune and operate your Stiletto without taking your eyes from the road.

Stiletto Home Kit (Model SLH1)

The Stiletto Home Kit provides everything you need to use the Stiletto in your home or office. The sleek docking cradle provides a convenient way to charge your Stiletto’s battery along with an extra slot for charging a spare battery. The included indoor/outdoor antenna provides improved reception, while audio cables enable you to connect the Stiletto to amplified speakers or a home entertainment system. A remote control is included, along with USB cable and PC computer software for optionally connecting the home dock to your PC computer.

[ Package Contents ]

Battery Life, Installation, and Charging

Two batteries are supplied with your Stiletto 100, a slim battery and a standard battery. The batteries when fully charged will provide a range of listening times depending on the listening mode. The following table provides the approximate listening times:

Listening

Mode

Satellite Radio 4 hours 2 hours

Internet Radio 8 hours 4 hours

Library 20 hours 10 hours

Radio Replays 20 hours 10 hours

As batteries age, the amount of listening time diminishes. Replacement (or spare) batteries are available from your SIRIUS product distributor.

The amount of listening time the battery provides is dependent upon several settings: decreasing the length of time the backlight of the display screen remains on will prolong battery life as well as adjusting the brightness of the display screen to a dimmer setting. Both of these adjustments are made through the Settings menu. Refer to Brightness and Backlight Timer on page 59 for details about these settings.

[ Battery Life, Installation, and Charging ]

Approximate Listening Time

Standard Battery Slim Battery

Stiletto 100 Battery Installation and Removal

To install the battery, refer to Figure 1 and slide the bottom of the battery (1) into the bottom of Stiletto 100 (2) until the battery engages the clips. Then press the left side of the battery down (3) until the release latch (4) locks the battery in place.

To remove the battery from the Stiletto 100, pull the release latch (4). When the battery pops up, grasp the battery and slide it toward the latch until it disengages from the radio.

Figure 1Figure 1

[ Battery Life, Installation, and Charging ]

Battery Charging

The battery in the Stiletto 100 is shipped partially charged but should be fully charged before using. For the fastest charging time the Stiletto 100 should be turned off. When off, a fully discharged slim battery will charge in 2 hours and a standard battery will charge in 4 hours.

To charge the Stiletto, power the unit off and connect the AC Adapter as shown in Figure 2.

display

back home

options

Figure 2Figure 2

Battery Disposal

When disposing of batteries, do so in accordance with the local waste disposal regulations. Batteries should not be disposed of in household waste, but should instead be recycled.

[ Battery Life, Installation, and Charging ]

Controls

Stiletto 100 Reference Guide

Figure 1 identifies the buttons, controls, and connectors of the Stiletto 100.

Power/Lock

Volume

Up/Down

Connector

Headphone

Back

Rewind

Select

Options

Power

Jack

Satellite Radio

Internet Radio

Library

back home

options

Figure 1Figure 1

display

Display Screen

Play/Pause

Home

Fast Forward Media Dial Display

Love

Antenna Headphones Docking Connector

[ Controls ]

The following table describes the functions of the buttons and controls on the Stiletto 100.

Stiletto 100 Button and Control Descriptions

Button Action

Power/Lock

+/–

Volume

Play/Pause

Rewind

Satellite Radio

Mode

Slide Up

Center Unlocks all buttons on the Stiletto 100

Slide Down

Press

Hold

Locks all buttons on the Stiletto 100

Slide down and release: Turns Stiletto 100 On (if Off), or places radio in sleep mode if On

Slide down and hold for 5 seconds: Turns the Stiletto 100 Off

+ Increases the audio volume — Decreases the audio volume

Pauses a broadcast or resumes playing a paused broadcast

If listening, skips to the previous song or show

If in a channel or preset list, moves through categories or preset banks

If listening, rewinds through a broadcast

Internet Radio

Mode

If playing, mutes audio

If muted, resumes playing

If listening and muted, resumes playing

If in a channel or category list, moves through channel categories

Replay/Library

Mode

Pauses or resumes playing the current song or show

Skips to the beginning of the song or show

Rewinds through song or show

[ Controls ]

Button Action

Fast-Forward

Love

Media Dial

Stiletto 100 Button and Control Descriptions Continued

Satellite Radio

Mode

Internet Radio

Mode

If listening, skips in the replay buffer

Press

Hold

to the next song or show

If in a channel or preset list, moves through categories or preset banks

Fast-Forwards through the replay

If listening and muted, resumes playing

If in a channel or category list, moves through channel categories

buffer

Saves the song or show if possible, or adds to favorites

Press

when song/show cannot be saved

While recording, prompts to stop recording

Adds the artist/song to the favorites list

Displays recording setup screen

Hold

While recording, prompts to stop recording

Scroll

If listening, displays channel or category list If in a list, menu, or prompt, scrolls to next or previous item

Replay/Library

Mode

Skips to the next song or show

Fast-Forwards through song or show

[ Controls ]

Stiletto 100 Button and Control Descriptions Continued

Button Action

Satellite Radio

Mode

Internet Radio

Mode

Replay/Library

Mode

Select

back

home

options

display

[ Controls ]

Press Selects highlighted item in list, menu, or prompt

Press

Returns back to the screen displayed just prior to the currently displayed screen

First press returns to the Home screen Additional press returns to the Now Playing screen

Displays available options for the currently displayed screen If no options are available, nothing is displayed

Cycles between 3-channel display mode, 6-channel display

Press

mode, artist name, and song title when in the channel browsing mode

Using the Media Dial

home

The Media Dial of the Stiletto 100 is controlled by placing your finger on the Media Dial and rotating the dial clockwise or counter-clockwise to scroll, highlighting a channel, genre, preset, menu item, or list item. (Figure 4) It may also be pressed at the north, south, east and west locations for selecting Pressing the center button provides the

Play/Pause, Love, Fast-Forward, and Rewind as labeled.

Select function for selecting highlighted items.

Satellite Radio

Internet Radio

Library

Figure 4Figure 4

display

home

[ Controls ]

back

options

Getting Started

Turning the Stiletto 100 On/Off, Sleep, and Lock Modes

To turn the Stiletto 100 on, slide the Power/Lock switch down momentarily and then release it.

When on, to put the Stiletto into sleep mode, slide the tarily and release it. The Stiletto will display Going to Sleep. (Figure 1) Sleep mode allows the Stiletto to start up quickly when powered on. The Stiletto will power itself completely off after 18 hours of sleep.

To turn the Stiletto 100 completely off, hold the until the display goes blank. When completely off, the battery will remain charged for several weeks. When completely off, the Stiletto will take 1–2 minutes to power up. (Figure 2)

The Stiletto 100 may be locked to prevent the accidental pressing of a button by sliding the

Power/Lock switch up to the locked position (Figure 3) The Power/Lock switch must be

placed back into the unlocked (center) position for the other buttons to function.

Power/Lock switch down momen-

Power/Lock switch down for 5 seconds

Going To Sleep

Figure 1Figure 1 Figure 3Figure 3Figure 2Figure 2

[ Getting Started ]

Unlocked

Locked

Navigating Menus and Lists

The menu and list structures in the Stiletto 100 are navigated by using the Media Dial to scroll through a menu or list to highlight your choice, and then pressing the to select the choice. To return to the Home screen at any time, press the (Figure 4)

Tip: Pressing the Home button twice from any menu will return you to the Now Playing

screen.

Satellite Radio

Internet Radio

Library

Figure 4Figure 4

Select button

Home button.

[ Getting Started ]

Let’s say you have saved the song Blue Moon and now you want to listen to it. Use the

Media Dial to highlight a choice and press the Select button to select the choice until you

have navigated to the song. Refer to Figure 5 for an example.

Turn the Media Dial to scroll to Library Press the Select button

Turn the Media Dial to scroll to Titles

Satellite Radio

Internet Radio

Library

Sirius Recordings

Artists

Albums

Titles

Genres

Playlists

Press the Select button

Turn the Media Dial to scroll to Blue Moon Press the Select button

Titles

What’s Left Of Me

It’s Only Rock And Roll

Don’t Look Back

Blue Moon

Stand Up And Be Strong

Fire

Figure 5Figure 5

Recorded from 13

Back

Elvis Presley

Blue Moon

Listen to the song

01:4400:37

Library 4/10

In this user guide, menu or list structures like the previous example are shown as: Home The

will return you to the Home screen. Pressing the

Library Titles Blue Moon Listen.

Back button will move you back to the previous display screen and the Home button

Home button again will return you to the

Now Playing screen.

[ Getting Started ]

Receiving the SIRIUS Satellite Signal

The SIRIUS satellite signal is broadcast from satellites covering almost all of North America. To receive the satellite signal your Stiletto must have a clear view of the sky. Obstructions such as buildings, trees, bridges, and high voltage power lines can interfere with the satellite signal.

The human body will also block satellite signal reception if it is placed between the Stiletto and the sky. It is possible to lose even a strong signal as you move and change position.

The use of the antenna headphones included with your Stiletto will help to significantly eliminate these issues. By placing the antenna above interference from the body, signal reception can be improved. Figure 6 illustrates the satellite signal being received by the Stiletto 100 using the antenna headphones, with no obstacles blocking the antenna headphones from having a clear view of the sky.

You can view the signal strength in your location by first selecting Satellite Radio, and then from the Home screen navigating to Settings least one of the signals should be greater than 50% to reliably activate and use the Stiletto

100.

Device Antenna Aiming. (Figure 7) At

Antenna Aiming

Adjust your antenna position to maximize signal strength.

SATELLITE

TERRESTRIAL

Figure 6Figure 6

Press SELECT when done

Figure 7Figure 7

[ Getting Started ]

Figures 8 and 9 illustrate several unacceptable situations where obstacles are blocking the Stiletto 100 from having a clear view of the sky, preventing reception of the signal from the SIRIUS satellites.

Figure 8Figure 8 Figure 9Figure 9

Subscribing to the SIRIUS Service

Before you can listen to the SIRIUS service, you need to activate your subscription. To subscribe, do the following:

To activate your Stiletto 100, first be sure the battery is fully charged. Attach the

1. antenna headphones and position yourself so that your Stiletto 100 is receiving a good SIRIUS signal, as described in the previous section. Select Satellite Radio

All Channels and tune to channel 184. The SIRIUS channel

[ Getting Started ]

line-up will begin updating. Wait until the channel updates have completed before pressing any buttons. Once the channels have been updated, the display will change to Call 1-888-539-

3. SIRIUS to Subscribe. You should be able to hear audio from channel 184, the SIRIUS Weather and Emergency channel.

Use the

Media Dial to tune to channel 0 to display the Stiletto 100’s unique 12-digit SIRIUS ID Number (SID). (Figure 10) The SID number is also available on the Stiletto 100’s packaging, and may also be accessed by selecting Settings

Device Siri-

us ID. Write the SID number down in the space provided near the end of this user guide.

Have your credit card handy and contact SIRIUS on the Internet at:

5. https://activate.siriusradio.com/ and follow the prompts to activate your subscription. You can also call SIRIUS toll-free at: 1-888-539-SIRIUS (1-888-539-7474). When you have successfully subscribed to the SIRIUS service, and the Stiletto 100 has

6. been updated with your subscription information, an alert will be displayed. To continue, press the

Select button. You are now ready to begin enjoying Sirius Satellite Radio’s digital entertainment, and can tune to other channels!

112233445566

SID

Satellite

Figure 10Figure 10

[ Getting Started ]

Connecting the Stiletto 100 to a PC Computer

Before connecting the Stiletto 100 to your PC computer, install the My Sirius Studio software that came with your Stiletto. Refer to the My Sirius Studio Software Installation section on page 65 for more information.

To connect the Stiletto 100 to a PC computer, connect one end of the USB cable to the Stiletto 100 and the other end to an available USB port on the PC computer, as shown in Figure 11.

display

Library

Internet Radio

Satellite Radio

Your PC computer software will recognize the Stiletto and ask you which application you want to use to manage the content on your device. You may choose My Sirius Studio or any other compatible software including Windows Media® Player and Yahoo! Music Engine.

When you connect to the PC computer, the Stiletto will display a message asking you to turn off Satellite Radio and connect. (Figure 12) You may cancel and continue listening to satellite radio, or stop satellite radio and connect to the PC computer.

back home

options

Figure 11Figure 11

Figure 12Figure 12

[ Getting Started ]

Operation

The Stiletto 100 delivers great audio entertainment in four distinct listening environments:

Satellite Radio. Listen live to satellite broadcasts of all SIRIUS 100% commercial free

• music channels, talk, and sports programing. (Page 26)

Internet Radio. Listen to SIRIUS commercial free music and select talk channels streamed

• over the Internet via a Wi-Fi network connection. (Page 39)

Library. Listen to saved songs and shows, and content you have downloaded from your

•

PC computer to the Stiletto 100. (Page 44) Radio Replays. Listen to content which has been automatically saved from your favorite

• music channels. (Page 52)

Each of these environments are described in detail in the sections following along with:

Recording. Set up scheduled recordings to record SIRIUS broadcasts. (Page 55)

• Settings. Make changes to the global settings of the Stiletto 100 to personalize your

• experience. (Page 59)

[ Operation ]

Satellite Radio

Satellite RadioSatellite Radio

Satellite Radio allows you to receive live SIRIUS broadcasts when you are receiving a signal from the SIRIUS satellite or terrestrial transmitters. You can browse and select the SIRIUS channels, and see information about the songs, artists, sports, news, weather, and traffic being broadcast.

[ Operation ]

NOW PLAYING SCREEN INFORMATION

The Now Playing screen for Satellite Radio provides information such as the currently tuned channel, song or show being played, mode, recording, and other information. Figure 1 identifies the information which may be displayed when in the Satellite Radio mode.

Preset Number

Channel Number

Channel Logo

Song/Show Title & Artist or

Sports Team & Game Score

Replay Buffer Time Information

Battery Condition Indicator

Battery Charging Indicator

Information

Little Richard

Lucille

-05:00

Satellite

Figure 1Figure 1

Scroll Bar

Signal Strength Indicator

Listening Mode or Recording Indicator or Jump Indicator

[ Operation ]

BROWSING AND NAVIGATING CHANNELS

When Satellite Radio is selected (Figure 2), channels may be browsed in several ways:

•

In a list of all channels in numerical order. (Figure 3)

•

In a list of channels which have been saved as presets. (Figure 4)

•

In groupings of channels by genre (also referred to as categories) such as Pop, Rock, Country, etc. (Figure 5)

Use the

Media Dial to highlight your choice, and press the Select button.

As you browse the lists, the channel names will be spoken if this feature is enabled. Channels may be selected for listening from any of the lists by using the highlight a selection and then pressing the

Select button.

Media Dial to scroll and

Satellite Radio

All Channels

Presets

Pop

Rock

Electronic/Dance

Hip-Hop

Figure 2Figure 2

All Channels

Faction

Dead Leaves And The D The White Stripes

The Coffee House

Herbman Hustling Sugar Minott

Margaritaville

Wave On Wave Pat Green

Figure 3Figure 3

Presets (A)

Margaritaville

Everywhere Tim McGraw

Sirius

Disorder

24 Cure

For Love

Bonnie Raitt

(empty)

Press & hold SELECT to save channel 31

Figure 4Figure 4

Pop

Sirius Hits 1

Why Don’t You & I

Santana

StarLite

Back In The High Life Again Steve Winwood

Sirius Love

The Power Of Love Celine Dion

Figure 5Figure 5

The Display button toggles the display screen between a 3 channel list mode and a 6 channel list mode. (Figures 6 & 7)

[ Operation ]

All Channels

Faction

Dead Leaves And The D The White Stripes

The Coffee House

Herbman Hustling Sugar Minott

Margaritaville

Wave On Wave Pat Green

Figure 6Figure 6 Figure 7Figure 7

All Channels

Faction

Coffee House

Margaritaville

Reggae

Area 33

Boombox

CHANNEL PRESETS

Channels which you tune frequently and want to be able to access quickly may be added to a list of presets. Presets are grouped into three banks, A, B, and C which store 10 presets each for a total of 30 presets. Presets are displayed as A1, A2, B1, B2, etc. (Figure 4)

Tuning to a Saved Preset

Saved presets may be selected by browsing the Presets category:

Select Presets from the Satellite Radio screen. (Figure 2)

Use

Rewind and Fast Forward to navigate between the A, B, and C banks of

presets. (Figure 4)

Use the

Media Dial to highlight a preset and press the Select button.

Saving Channels as Presets

To save a channel as a preset:

Tune to the desired channel.

Press the

Highlight Save Channel as Preset and press the

The Presets screen will be displayed. Use between the A, B, and C banks of presets, and use the preset where you want the channel saved. Press and hold the

Options button.

Select button. (Figure 8)

Rewind and Fast Forward to navigate

Media Dial to highlight the

Select button to save

the channel as a preset. If you have chosen a preset which has already been assigned to a channel, the preset will be replaced with the new channel.

[ Operation ]

Removing a Channel Preset

To remove a channel as a preset:

Select Presets from the Satellite Radio screen. (Figure 2)

1. Use

Rewind and Fast Forward to navigate between the A, B, and C, banks of

presets. (Figure 3)

Use the

Media Dial to highlight the preset you want to remove and press the Options button. Highlight Remove this Preset and press the

4. (Figure 9)

Select button to remove the preset.

[ Operation ]

Ride My See-Saw

The Moody Blues

Options

Save channel as a Preset

Hide this channel

Figure 8Figure 8

Presets (A)

‘60s Vibrations

Ride My See-Saw

The Moody Blues

(empty)

Options

Remove this Preset

Figure 9Figure 9

+ 125 hidden pages
