2008 F-250/F-350/F-450

Index of Key Features

Super Duty® Pickups

What’s New / 2 - 4 What’s Important / 5 Model Lineup / 6 - 12 Vocational Segmentation / 13 - 14

Business Motivators Reference

Performance/Handling / 15 - 23

Quality/Reliability/Durability / 24 - 25

Flexibility / 26 - 38

Capability / 39 - 43

4x4 Systems / 20

Manual Shift with Manual Locking Hubs Electronic Shift-on-the-fly

Accessories / 81 - 82 Air Filter Minder / 24 Audio Systems / 28, 44, 45

AM/FM Stereo Audiophile® AM/FM Stereo/6-disc In-dash CD/MP3

Capable Changer Navigation System

Premium AM/FM Stereo/Single-disc CD/MP3 Capable Player Premium AM/FM Stereo/6-disc In-dash CD/MP3 Capable Changer

SIRIUS Satellite Radio

Braking System, Four-wheel Anti-lock / 20 Bumpers / 32

Cargo Area / 30, 31 Commercial Account Programs / 14 Configurations / 54 Cruise Control, Steering-wheel-mounted / 33 Diesel Particulate Filter (DPF) / 18 Dual Rear Wheels / 20 Emissions / 18 Engine Hour Meter / 24 Engines / 15, 16, 17, 18

5.4L 3V SOHC Triton® V-8

6.8L 3V SOHC Triton V-10

6.4L Power Stroke® V-8 Turbo Diesel

Exhaust Gas Recirculation / 18 Exterior Styling / 31 F-450 Super Duty “Four-wheel-down”/Neutral Towing / 43

Frame, Ladder-type / 24 Fuel / 18

Ultra Low Sulfur Diesel

Fuel Tank, Single Midship / 25 FX4 Key Features / 35 GCWR, Maximum / 39 GVWRs, Range of / 39 Hydroformed Steel Front Structure / 24 Instrument Clusters / 52, 53 Interior / 26 Lariat Key Features / 36 Maintenance, Diesel / 18 Mirrors / 42

Black Fold-away Manual Mirrors Black Fold-away Power Mirrors Manual Telescoping Trailer Tow Mirrors

PowerScopeTM Trailer Tow Mirrors

Navigation System / 28, 45 Packages/Groups

4x4 Off-Road Package / 23 10,000-lb. GVWR Package (F-350 SRW) / 23

Advanced Security Group / 29

July 2007

/ 41

Audio/Navigation/Entertainment / 44 - 45 Wheels / 46 - 50 Interior Trim / 51 Instrument Clusters / 52 - 53 Dimensions and Specifications / 54 - 80 Accessories / 81 - 82

Packages/Groups cont’d

Camper Package / 23 Chrome Package / 36 Driver’s Memory Package / 29

Ford Harley-DavidsonTM Ford F-Series Super Duty / 38 Heavy Service Suspension Package / 23 Heavy Service Suspension Package (pickup box delete) / 23 King Ranch Package / 37 King Ranch with Chrome Package / 37 Power Equipment Group / 32 Snowplow Prep Package / 23 Stabilizer Package / 23 TowBoss Package (F-350 DRW) / 42

Trailer Tow Packages / 42 XL Décor Group / 32 XLT Sport Package / 34

Payload Capacity / 39 Power Moonroof / 27 Power Sliding Rear Window / 27 Power Takeoff Provision (PTO) / 19 Powertrain Combinations / 15 Quietness / 24, 25 Radiator, Diesel / 18 Rapid-Heat Supplemental Cab Heater / 29 Rear-seat DVD Entertainment System / 28, 45 Reverse Camera System / 29 Reverse Vehicle Aid Sensor / 29 Seating / 27, 51

Front Seats, Rear Seats

SIRIUS Satellite Radio / 45 Spark Plugs, Platinum-tipped / 25 Stationary Elevated Idle Control (SEIC) / 19 Stowable Bed Extender / 30 Suspensions / 22, 23 Tailgate Assist Tailgate Step / 31 Tie-down Hooks / 31 Tire Pressure Monitoring System / 21 Tow Hooks, Front / 25 TowCommand Integrated Trailer Brake Controller / 43 TowCommand System / 43 Towing Capacity / 40 Traction Control / 20 Transmission Fluid Temperature Gauge / 24 Transmissions / 19

6-speed Manual Overdrive TorqShift® 5-speed Automatic Overdrive

Turbo Boost Gauge / 24 Upfitter Switches / 26 Uptime-Critical Parts Program / 14 Wheels / 46, 47, 48, 49, 50

XL Key Features / 32 XLT Key Features / 33

/ 31

F-250/F-350/F-450

SD Pickups

WHAT’S NEW

This page is about:

Model/Series Availability Exterior Changes Interior Changes Functional Changes

F-250/F-350/F-450

2008 F-250/F-350/F-450 Super Duty® Pickups

What’s New

Overview

• Super Duty® Pickups are all about getting the job done

(1)

• New F-450 model adds even more class-leading

• New 6.4L Power Stroke

V-8 turbo diesel is more powerful, with less emissions

capability

Model/Series Availability

• FX4 is now a distinct trim level available on F-250/F-350 SuperCab and Crew Cabs, 4x4 only

Exterior Changes

• Bold grille signifies Super Duty’s tough truck capability

• Large grille with prominent nostrils is attached to and defines the power dome hood

• “Super Duty” name is debossed into the grille’s top edge

• Larger stacked headlamps and integrated turn signals provide added illumination

• Tall front bumper includes an integrated step pad

• Functional fender vents help to identify the engine as well as provide added airflow

• Hydroformed front substructure creates a very rigid, strong foundation for mounting the cooling system and front fenders

• Pickup box tailgate includes Tailgate Assist prominent Ford Blue Oval is located in the center and the “Super Duty” name is debossed into the lower edge

• Available Tailgate Step makes accessing the cargo box easier and safer

• Available stowable bed extender makes the cargo box even more useful

• Large rear bumper houses the trailer electrical connector,

SD Pickups

part of the standard trailer tow hitch receiver

• Lariat models now include 18-inch premium forged, polished

F-250/F-350/F-450

aluminum wheels (F-250/F-350 SRW)

System, a

Interior Changes

• All-new modular instrument panel design featuring a two-tone appearance, distinctive gauges and round air registers

• All CD players/changers are now MP3 capable

• Dual-zone Electronic Automatic Temperature Control (EATC) is now standard on Lariat

• HD vinyl seats standard on XL Crew Cab models

• XL bucket seats now include floor console with cup holders and storage bin

• Captain’s Chairs are available only with automatic transmission

• Regular Cab front center seating position and SuperCab and Crew Cab rear center seating positions now include 3-point lap and shoulder belts

• SuperCab and Crew Cab models with air conditioning and automatic transmission now include rear seat air ducts

• Auxiliary audio input jack standard on XLT, FX4 and Lariat models, also included with available single-disc radio on XL models

• Auxiliary power points have been added to the front floor console, available with Captain’s Chairs

• Electrochromic rearview mirror standard on Lariat now includes an integrated compass

Functional Changes

• New 6.4L Power Stroke® V-8 turbo diesel engine delivers up to 350 horsepower and 650 lb.-ft. of torque

• New 6.4L Power Stroke V-8 turbo diesel engine includes 135-amp heavy-duty alternator

• Tire Pressure Monitoring System (TPMS) standard on all F-250/F-350 SRW models

• Traction control optional on all models

• Midship fuel tank standard with 6.75-foot box is

30.5 gallons

• Wide-track front suspension available on F-350 DRW Crew Cab models with 8-foot box

• 12.5K “Built Ford Tough standard on F-250/F-350 SRW models

• 15K “Built Ford Tough” Trailer Hitch Receiver now standard on F-350 DRW models with 6.4L V-8 diesel or 6.8L V-10 gasoline engine

• 16K “Built Ford Tough” Trailer Hitch Receiver now standard on F-450 models

” Trailer Hitch Receiver now

(1) Class is full-size pickup trucks over 8500 lbs. GVWR. NOTE: See the latest Dealer Ordering Guide for feature availability.

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

What’s New cont’d

WHAT’S NEW

This page is about:

Options Added

• Ford Harley-Davidson™ F-Series Super Duty® available on F-250 and F-350 SRW Lariat Crew Cabs includes:

Exterior

– Monochromatic Black Clearcoat or Two-Tone Black

Clearcoat with Vintage Copper Metallic Clearcoat – Body-color front and rear bumpers – Body-color billet-style grille and grille surround – Unique Ford Harley-Davidson – Unique Ford Harley-Davidson – Unique engine decal – Chrome front tow hooks – Unique windshield with Harley-Davidson

dot pattern and Alliance logo – Body-color door handles – PowerScope

trailer tow mirrors with body-color skullcaps – Body-color wheellip moldings, front and rear – Power sliding rear window – Unique Ford Harley-Davidson

badges on front fender and tailgate

– Rubber bed mat with Harley-Davidson

Bar & Shield logo – Chrome bed tie-downs – Chrome illuminated tubular step bars with unique

Harley-Davidson

Bar & Shield logo – Unique chrome exhaust tip – Unique 20-inch forged polished aluminum wheels with

chrome lug nuts and Harley-Davidson on center caps and wheel lock kit

– LT275/65Rx20E all-terrain BSW tires

headlamps

vanity license plate

Bar & Shield

F-Series Super Duty

Bar & Shield

Interior

– Unique black leather seating surfaces Quad Captain’s

Chairs with embossed Harley-Davidson

Bar & Shield

logo, front and rear center console in unique leather

– Memory heated power adjustable driver seat and heated

power adjustable passenger seat

– Unique black leather-wrapped steering wheel with

redundant radio and climate controls – Unique memory power adjustable performance pedals – Unique ebony door trim inserts with black leather-

wrapped armrest and dusted copper leather-wrapped pull

handle with chrome accent – Unique Harley-Davidson

Bar & Shield logo center

finish panel – Ebony carpet – Unique black carpet floor mats with Ford Harley-

Davidson – SecuriLock

script

passive anti-theft ignition system

– Laser engraved serialization plate attached to leather front

console lid – Unique key set with Ford Harley-DavidsonTM logo on

key ends – Unique Owner’s Guide with leather-wrapped

Ford Harley-Davidson

F-Series Super Duty logo

embossed portfolio

F-250/F-350/F-450

SD Pickups

NOTE: See the latest Dealer Ordering Guide for feature availability.

July 2007

WHAT’S NEW

This page is about:

Options Added cont’d Options Revised Key Competitors

2008 F-250/F-350/F-450 Super Duty® Pickups

What’s New cont’d

Options Added cont’d

• Chrome Package available on XLT, FX4 and Lariat SuperCab and Crew Cab. Includes: chrome billet-style grille (XLT and Lariat), chrome tow hooks, exhaust tip, mirror caps, pickup box tie-down hooks and 5-inch chrome tubular step bars

• King Ranch with Chrome Package includes all of the features of the King Ranch Package plus: chrome tow hooks, exhaust tip, mirror caps, pickup box tie-down hooks and 5-inch chrome tubular step bars

• Reverse Camera System available on XLT, FX4 and Lariat

• Rapid-Heat Supplemental Cab Heater available only with

6.4L Power Stroke

• SecuriLock FX4 and Lariat, available on XL and XLT

• Audiophile and Lariat

• Navigation system with in-dash screen and DVD-ROM is available on FX4 and Lariat (includes all the features of the Audiophile audio system)

• SIRIUS Satellite Radio available on all SuperCab and Crew Cab models

• 4x4 Off-Road Package available on XL, XLT and Lariat

• Driver’s Memory Package available on FX4 and Lariat, included on King Ranch

• Rear-seat DVD Entertainment System available on XLT, FX4 and Lariat

• 5-inch chrome tubular cab steps available on SuperCab and Crew Cab XLT, FX4 and Lariat

• Universal garage door opener available on Lariat

V-8 turbo diesel engine

passive anti-theft ignition system is standard on

6-disc CD/MP3 changer available on XLT, FX4

Options Revised

• PowerScope mirrors with power, heated glass and integrated clearance lights/turn signals are available on XLT (SuperCab and Crew Cab only; requires Advanced Security Group), FX4 and Lariat (standard on F-450)

• 20-inch premium forged polished aluminum wheels are now available on XLT Sport, FX4 and Lariat

• Lower accent two-tone paint available on XLT, FX4 and Lariat (NA on F-350 FX4 DRW)

• XLT Sport Package includes 5-inch chrome tubular cab steps

• Power seats option includes power passenger seat on SuperCab and Crew Cab

• Heated seats option available with leather Captain’s Chairs on XLT Sport, FX4 and Lariat

• Premium electronic AM/FM stereo/6-disc in-dash CD/MP3 changer with 4 speakers includes leather steering wheel with audio controls on XLT and FX4

• Extra Heavy Duty alternator option rating has been increased to 200 amps

• Dual Alternators option rating has been increased to 320 amps

power-telescoping, power-folding trailer tow

SD Pickups

F-250/F-350/F-450

Key Competitors

• Chevrolet Silverado 2500HD and 3500HD were all-new for 2007 and claim to

offer unprecedented levels of performance, capability and refinement

• Dodge Ram Heavy Duty 2500 and 3500 claim to offer “big rig” power,

styling and capability with uncompromising attitude

NOTE: See the latest Dealer Ordering Guide for feature availability.

July 2007

2008 F-250/F-350/F-450

WHAT’S IMPORTANT

Super Duty® Pickups

What’s Important

Product Highlights

HERE ARE THE MOST IMPORTANT 2008 F-250/F-350/F-450 FEATURES TO MENTION TO YOUR CUSTOMERS:

This page is about:

Product Highlights

Key Features

Large, responsive braking

Outstanding

maximum payload

and towing

capacities

(pgs. 39, 40, 42)

TowCommand System

with TowCommand

Integrated Trailer

Brake Controller

(pg. 43)

system (pg. 20)

Key Features

Performance/Handling

• Engines: – 5.4L 3V SOHC Triton – 6.8L 3V SOHC Triton V-10 –

6.4L Power Stroke® V-8 turbo diesel engine

• Transmissions: – 6-speed manual overdrive

TorqShift® 5-speed automatic overdrive transmission with

–

Tow/Haul available with both gasoline and diesel engines

• Large, responsive braking system — with Anti-lock Braking System (ABS)

• Twin-coil monobeam front axle/suspension on 4x4 models

• Twin-coil wide-track monobeam front suspension on all F-450 models

• New rear leaf-spring suspension with 8-inch-longer springs on all models

• Patented engine-torque traction control system

• 17-inch and 18-inch wheels; 20-inch wheels on select models

• Limited-slip rear axle (standard 4.30 ratio on F-450, optional on F-250/F-350)

• Dual rear wheels (standard on F-450, optional on F-350)

• Manual and electronic shift-on-the-fly 4x4 systems

• 4x4 Off-Road Package

• Power takeoff (PTO) provision

Quality/Reliability/Durability

• Transmission fluid temperature gauge with automatic transmission

• Turbo boost gauge in instrument cluster on diesel-equipped models

• Engine hour meter in instrument cluster on all models

• Diesel air filter minder restriction warning light

(1) Class is full-size pickup trucks over 8500 lbs. GVWR. (2) Quiet Steel is a registered trademark of MSC. NOTE: See the latest Dealer Ordering Guide for feature availability.

July 2007

V-8

four-wheel disc brakes

TorqShift® 5-speed automatic

overdrive transmission with

Tow/Haul available with both

gasoline and diesel engines

(pg. 19)

F-450 model increases

F-Series’ class-leading

payload and towing

capacity

(pg. 41)

All-new 6.4L Power

Stroke

• Fully boxed front frame rails

• Crossmembers are riveted, welded, or both for added strength

• Patented, hydroformed front body structure

• Class-exclusive vibration and harshness (NVH)

• Exhaust system tuned for refined sound features extremely robust hangers and vibration isolators

(1)

Quiet Steel

®(2)

dash panel for low interior noise,

V-8 turbo

diesel engine

(pgs. 17, 18, 39)

(1)

Flexibility

• Tailgate AssistTM feature standard

• Tailgate Step feature optional

• Stowable bed extender

• All-new interior

• Ford Harley-Davidson

• XLT Sport Package

• King Ranch Package

• Advanced Security Group with driver’s-door keypad

• 60/40 FlexFold design and steel loadfloor

• Tire Pressure Monitoring System (TPMS) (F-250/F-350 SRW)

F-Series Super Duty

Crew Cab split bench rear seat with fold-flat

Capability

• Outstanding payload capacity — maximum 6120 lbs. (F-450)

• 24,500-lb. maximum 5th-wheel towing capacity (F-450) TowCommand System with TowCommand Integrated Trailer

• Brake Controller

• Trailer Towing Package

• TowBoss Package (F-350 DRW models)

• PowerScope mirrors

power-telescoping, power-folding trailer tow

F-250/F-350/F-450

SD Pickups

MODEL LINEUP

This page is about:

Standard Equipment — F-250/F-350

2008 F-250/F-350/F-450 Super Duty® Pickups

Model Lineup

Standard Equipment — F-250/F-350

Performance/Handling

• Alternator – 115-amp heavy duty (gasoline) – 135-amp heavy duty (diesel)

• Battery – 650 CCA, 72-AH (gasoline) – 750 CCA, 78-AH (diesel)

• Brakes — Four-wheel Anti-lock Braking System (ABS) front/rear disc

– with vacuum boost (gasoline and all

SRW systems)

– with hydroboost (diesel and all

DRW models)

• Engine — 5.4L 3-valve SOHC EFI Triton modular V-8 gas

• Fuel tank – 30.5-gallon (6.75-foot box) – 38.0-gallon (8.0-foot box)

• Shock absorbers — heavy-duty gas

• Springs — rear auxiliary (F-350)

• Stabilizer bar — front

• Stationary Elevated Idle Control (SEIC)

• Steering — power

• Steering damper

• Tire Pressure Monitoring System (TPMS) (SRW)

• Transfer case — manual 4x4, hubs

• Transmission — 6-speed manual O/D

Quality/Reliability/Durability

• Jack — 2-ton mechanical (F-250/F-350 SRW), 4-ton hydraulic (F-350 DRW)

• Moldings — tailgate and box rail

Capability

SD Pickups

• Tow hooks — (2) front

F-250/F-350/F-450

• Trailer hitch receiver — 12.5K “Built Ford

” (F-250/F-350 SRW, F-350 DRW with

Tough

5.4L, includes 2-inch trailer hitch), 15K “Built Ford Tough” (F-350 DRW with 6.8L and

6.4L, includes 2.5-inch hitch and 2-inch hitch adapter)

• Trailer Tow Package — 7-wire harness with relays and 7-pin and 4-pin connectors

Flexibility

• Airbags – Driver and passenger side – Passenger side deactivation switch (Regular

Cab and SuperCab only)

• Cab steps — molded black (F-250/F-350

Lariat)

• Child safety seat tethers (Regular Cab, front passenger and all rear seating positions)

• Coat hooks — LH/RH color-coordinated

• Dash top tray

• Dome lamp — LH/RH door-activated IP switch-operated with delay

• Doors – Two (Regular Cab only) – Four (SuperCab/Crew Cab only)

• Door trim — color-coordinated, molded with armrest/grab handle and reflector

• Glass — solar-tinted

• Handles – Grab handles — driver and front passenger – Roof ride handles — front passenger (also

over rear doors with Crew Cab)

• Headliner — color-coordinated cloth

• Hood release — inside

• Horn — dual electric

• Instrument panel — color-coordinated with glove compartment, 4 air registers with positive shutoff, ashtray and cigar lighter, storage bin and trash bag hook

• Instrumentation — tachometer, speedometer, turbo boost (diesel only), air filter minder (diesel only), voltmeter (manual transmission only), oil pressure, coolant temperature, transmission temperature gauge (automatic transmission only), fuel gauge, indicator lights and message center with odometer, trip odometer, engine hour meter and warning messages

• License plate brackets — front and rear

• Lights — pickup box and cargo area. Roof marker/clearance lights (F-350 DRW)

• Map lights — dual (front and rear with Crew Cab)

• Pickup box — partitionable and stackable

• Power point, auxiliary

• Safety belts – Belt-Minder

light on instrument cluster if belts not buckled

– Color-coordinated with height adjustment

(front outboard seating positions only)

• Scuff plates — color-coordinated

• Spare tire, wheel, lock and frame-mounted carrier

• Stop light — high-mounted

• Tailgate — removable with key lock, black handle and Tailgate Assist

• Tie-down hooks — pickup box (four with

6.75-foot box, six with 8-foot box)

• Windshield wipers — interval control

• Wheels — 17-inch Argent painted steel with painted hub covers/center ornaments (F-250/F-350 SRW), 17-inch Argent painted steel (F-350 DRW)

, chime and flashing warning

NOTE: The above information is an excerpt from page 4 of the 7/1/07 F-250 Pickup Dealer Ordering Guide,

page 4 of the 7/1/07 F-350 Pickup Dealer Ordering Guide and page 4 of the 7/1/07 F-450 Pickup Dealer Ordering Guide. For the latest Dealer Ordering Guide go to fmcdealer.com

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Model Lineup

Standard Equipment — F-450

MODEL LINEUP

This page is about:

Standard Equipment — F-450

Performance/Handling

• Alternator — 135-amp

• Axle – Front, wide-track monobeam with

coil-spring suspension

– Rear, 4.30 limited-slip

• Battery — 750 CCA, 78 AH, dual

• Brakes — Power, four-wheel disc/four-wheel anti-lock (hydroboost)

• Emissions — 50-state

• Engine — 6.4L OHV Power Stroke turbo diesel

• Fuel tank — 38-gallon midship

• Shock absorbers — heavy-duty gas

• Springs — rear auxiliary

• Stabilizer bar — front and rear

• Stationary Elevated Idle Control (SEIC)

• Steering — power

• Steering damper

• Transmission — 6-speed manual overdrive with PTO access

Quality/Reliability/Durability

• Jack — 6-ton hydraulic

Capability

• Tow Command Integrated Trailer Brake Controller (TBC) (verified to be compatible with electric-actuated drum brakes only)

• Tow hooks (2)

• Trailer hitch receiver — 16K “Built Ford

” (includes 2.5-inch hitch and

Tough 2-inch adaptor)

V-8

• Trailer Tow Package (26,000 GCWR) — 7-wire harness with relays and 7-pin and 4-pin connectors

Flexibility

• Airbags — driver and passenger side

• BeltMinder light on instrument cluster if belts not fastened

• Cab steps — molded black

• Child safety seat tethers (all rear seating positions)

• Coat hooks

• Dash top tray

• Dome lamp — with dual front and rear map lights, LH/RH door-activated, instrument panel switch operated with delay

• Doors — four

• Door trim — color-coordinated, molded with armrest/grab handle and reflector

• Glass — solar-tinted

• Grab handles — driver and front passenger

• Handles — door and tailgate, black

• Headliner — color-coordinated cloth

• Hood release — inside

• Horn — dual electric

• Instrument panel — color-coordinated with glove box, 4 air registers with positive shutoff, ashtray and cigarette lighter, storage bin and trash bag hook

, chime and flashing warning

• Instrumentation — tachometer, speedometer, turbo boost, air filter minder, voltmeter (manual transmission only), oil pressure, coolant temperature, transmission temperature gauge (automatic transmission only), fuel gauge, indicator lights and message center with odometer, trip odometer, engine hour meter and warning messages

• License plate brackets — front and rear

• Lights — pickup box and cargo area, roof marker/clearance

• Moldings — tailgate and box rail, black

• Pickup box — partitionable and stackable

• Power point — auxiliary

• Roof ride handles — front and rear passenger

• Safety belts — color-coordinated with height adjustment (front outboard seating positions only)

• Scuff plates — color-coordinated

• Spare tire, wheel, lock and frame-mounted carrier

• Stop light — high-mounted

• Tailgate — removable with key lock, black handle and Tailgate Assist

• Tie-down hooks — (6) pickup box

• Windshield wipers — interval control

• Wheels — 19.5-inch forged polished aluminum with bright hub covers and center ornaments

F-250/F-350/F-450

SD Pickups

NOTE: The above information is an excerpt from page 4 of the 7/1/07 F-450 Pickup Dealer Ordering Guide.

For the latest Dealer Ordering Guide go to fmcdealer.com

July 2007

MODEL LINEUP

2008 F-250/F-350/F-450

This page is about:

Major Product Summary

Super Duty® Pickups

Model Lineup

Major Product Summary

The information below highlights key model features to share with customers.

Performance/Handling

• Brakes — Four-wheel Anti-lock Braking System (ABS)

• Engine — 5.4L 3-valve SOHC EFI Triton modular V-8 gas (F-250/F-350), 6.8L 3-valve SOHC Triton modular V-10 gas (F-350 DRW Crew Cab and FX4 SuperCab),

6.4L Power Stroke

• Fuel tank – 30.5-gallon (6.75-foot box) – 38.0-gallon (8.0-foot box)

• Rear axle — non-limited-slip (F-250/F-350).

4.30 limited-slip (F-450)

• Stationary Elevated Idle Control (SEIC)

• Springs — rear auxiliary (F-350)

• Stabilizer bar(s) – front only (SRW) – front and rear (DRW)

• Tire Pressure Monitoring System (TPMS) (SRW)

• Transmission — 6-speed manual overdrive

Flexibility

• Airbag — driver and passenger

• Airbag deactivation switch — passenger side (not included on Crew Cab)

• Audio — AM/FM stereo/digital clock and 2 speakers

• Belt-Minder

• Bumpers — front and rear, black painted

• Cab steps — molded black (F-450)

• Door trim — armrest/grab handle and reflector

• Fender moldings — front, black (F-450)

V-8 turbo diesel (F-450)

• Fender vents — front

• Floor covering — black, full-length vinyl

• Glass — solar-tinted

• Grille — black painted

• Handles — door and tailgate, black

• Headlamps — halogen sealed beam

• Instrumentation — tachometer, speedometer, turbo boost (diesel only), voltmeter (manual only), oil pressure, coolant temperature, fuel gauge, transmission temperature gauge (automatic only), indicator lights and message center with odometer, trip odometer, engine hour meter and warning messages

• Lights — rear fender and roof marker/ clearance lights (DRW)

• Mirror — rearview 11.5-inch day/night

• Mirrors — black, manual, fold-away (F-250/F-350). Manually telescoping trailer tow mirrors with manual glass and 2-way fold (F-450)

• Power point — auxiliary

• Safety belts — color-coordinated with height adjustment D-ring

• Scuff plates — color-coordinated

• Seats — front, HD vinyl, full bench with recline

• Spare tire, wheel, lock and carrier

• Steering wheel — black vinyl

• Sun visors — color-coordinated, single driver with pocket, single passenger with mirror insert

• Tailgate — removable, with key lock and Tailgate Assist

• Wheels – 17-inch Argent painted steel with

painted hub covers/center ornaments

(F-250/F-350 SRW) – 17-inch Argent painted steel (F-350 DRW) – 19.5-inch forged polished aluminum with

bright hub covers/center ornaments (F-450)

• Window — rear, fixed

• Windshield wipers — interval control

Capability

• Tow hooks — front (2)

• TowCommand Integrated Trailer Brake Controller (TBC) (F-450. TBC verified to be compatible with electric-actuated drum brakes only)

• Trailer Hitch: — 12.5K “Built Ford Tough

receiver (incl. 2-inch trailer hitch) (F-250/ F-350 SRW)

— 12.5K “Built Ford Tough” trailer hitch

receiver (incl. 2-inch trailer hitch) (F-350 DRW w/5.4L)

— 15K “Built Ford Tough” trailer hitch

receiver (incl. 2-inch trailer hitch and 2inch hitch adaptor) (F-350 DRW with 6.8L or 6.4L engine only)

— 16K “Built Ford Tough” trailer hitch

receiver (incl. 2.5-inch trailer hitch and 2-inch hitch adaptor) (F-450)

• Trailer Tow Package — 7-wire harness with relays and 7- and 4-pin connectors — 26,000 GCWR (F-450)

Quality/Reliability/Durability

• Jack — 2-ton mechanical (F-250/F-350 SRW), 4-ton hydraulic (F-350 DRW), 6-ton hydraulic (F-450)

” trailer hitch

SD Pickups

XLT —

All XL content, plus:

F-250/F-350/F-450

Flexibility

• Air conditioning — manual

• Air conditioning vents — black with chrome ring

• Audio — Premium electronic AM/FM stereo with digital clock, single CD/MP3 player and 4 speakers

• Auxiliary audio input jack

• Bumper — front and rear, chrome

• Cruise control — steering-wheel-mounted

• Door trim — soft armrest/grab handle, molded upper appliqué, upper and lower map pockets and reflector

• Fender moldings — front, body-color (F-450)

NOTE: The above information is an excerpt from page 3 of the 7/1/07 F-250 Pickup Dealer Ordering Guide, and page 3

of the 7/1/07 F-350 Pickup Dealer Ordering Guide and page 3 of the 7/1/07 F-450 Pickup Dealer Ordering Guide. For the latest Dealer Ordering Guide go to fmcdealer.com

• Floor covering — color-coordinated full carpet

• Floor mats — color-coordinated carpet

• Grille — chrome surround with medium platinum insert

• Headlamps — dual-beam jewel effect

• Light — underhood service light

• Mirrors – Black, manual fold-away, power glass

(F-250/F-350)

– Manually telescoping trailer tow with

power heated glass, integrated clearance lamps and turn signals, 2-way fold (F-450)

• Power equipment — driver window, door locks and windows with backlit switches and accessory delay

• Seats — front, high-series cloth 40/20/40 split bench with center armrest, cup holder and storage

• Steering wheel — black vinyl with tilt

• Wheels – 17-inch chrome-clad steel with bright hub

covers/center ornaments (F-250)

– 18-inch chrome-clad steel with bright hub

covers/center ornaments (F-350 SRW)

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Model Lineup

Major Product Summary cont’d

The information below highlights key model features to share with customers.

FX4 —

All XLT content, plus (F-250/F-350 only):

Performance/Handling

• Drivetrain — 4x4 only

• Rear axle — limited-slip

• Shocks — Rancho branded

Flexibility

• Advanced Security Group — autolock, autolamp, Remote Keyless Entry System and wired keypad

• Air conditioning vents — silver metallic with chrome ring

• Bumpers — front and rear, Dark Shadow Grey

• Door trim — soft armrest/grab handle, unique metallic patterned appliqué, upper and lower map pockets and reflector

• Floor covering — black full carpet

• Floor mats — all-weather floor mats

• Fog lamps

• Grille — body-color billet-style surround with medium platinum insert

• Handles — door, body-color

• Instrument panel — unique metallic patterned appliqué

• Overhead console (F-350)

• SecuriLock

• Steering wheel — black leather-wrapped

• Sun visors — color-coordinated cloth, single

passive anti-theft ignition system

with tilt

driver with covered mirror, single passenger with covered mirror

MODEL LINEUP

This page is about:

Major Product Summary cont’d

• Wheellip moldings — Dark Shadow Grey (F-250 and F-350 SRW)

• Wheels – 17-inch forged polished aluminum with

bright hub covers/center ornaments (F-350 DRW)

– 18-inch premium chrome-clad steel with

bright hub covers/center ornaments (F-250, F-350 SRW)

Capability

• Skid plates — transfer case and fuel tank

• Transfer case — manual

Lariat —

Flexibility

• Advanced Security Group — autolock, autolamp, Remote Keyless Entry System and wired keypad

• Air conditioning — Dual-zone Electronic Automatic Temperature Control (EATC)

• Air conditioning vents — silver metallic with chrome ring (F-450)

• Cab steps — black, molded

• Door trim — soft armrest/grab handle, “deep chestnut” woodgrain upper appliqué, upper and lower map pockets and reflector

• Fog lamps

• Glass — privacy tinted (F-450)

• Handles — door, black

• Instrument panel — simulated woodgrain insert

All XLT content, plus:

• Instrumentation — metallic-faced instrument cluster with enhanced message center and trip computer with compass, distance-toempty, average fuel economy, autolamp configuration and status, system check and language selection

• Mirror — rearview, electrochromic self-dimming with compass

• Mirrors – PowerScope telescoping, power folding with power/ heated glass, integrated clearance lights and turn signals) (F-450)

• Seats — power driver

– Power passenger (SuperCab and

Crew Cab)

• Seats — front, premium leather seating surfaces, 40/20/40 split bench with center armrest, cup holder and storage

Trailer Tow (power

• SecuriLock

• Steering wheel — color-coordinated

• Sun visors — color-coordinated cloth,

• Wheels

• Window — rear, manual sliding

passive anti-theft ignition system

leather-wrapped with redundant audio and climate controls

single driver with map strap and covered lighted mirror, single passenger with covered lighted mirror

– 17-inch forged polished aluminum with

bright hub covers/center ornaments (F-350 DRW)

– 18-inch premium forged polished aluminum

with bright hub covers/center ornaments (F-250, F-350 SRW)

F-250/F-350/F-450

SD Pickups

NOTE: The above information is an excerpt from page 3 of the 7/1/07 F-250 Pickup Dealer Ordering Guide and page 3 of the

7/1/07 F-350 Pickup Dealer Ordering Guide and page 3 of the 7/1/07 F-450 Pickup Dealer Ordering Guide. For the latest Dealer Ordering Guide go to fmcdealer.com

July 2007

MODEL LINEUP

This page is about:

Optional Equipment

Performance/Handling

225/70R19.5G BSW Traction (F-450 4x4 only) OO—O

5.4L 3-Valve SOHC EFI Triton

6.8L 3-Valve SOHC EFI Triton V-10/6-Spd. Man. O/D (standard F-350 DRW Crew Cab) O O S/O O

6.8L 3-Valve SOHC EFI Triton V-10/TorqShift 5-Spd. Auto. O/D O O O O

6.4L OHV Power Stroke

6.4L OHV Power Stroke Diesel V-8/TorqShift 5-Spd. Auto. O/D O O O O LT265/70Rx17E BSW A/S (5) (F-250) OS—— LT265/70Rx17E BSW A/T (5) (F-350 SRW) O——— LT245/75Rx17E BSW A/T (5) – (F-250)/(7) (F-350 DRW) O O — O LT265/70Rx17E OWL A/S (4) – (spare tire – A/S BSW) (F-250) — O — — LT265/70Rx17E BSW A/T (5) – (F-250) O O — — LT265/70Rx17E OWL A/T (4) – (spare tire – A/T BSW) (F-250) — O — — LT275/65Rx18E BSW A/S (5), 4x2 – (includes 64G 18" wheels) (F-250) — O — S LT275/65Rx18E BSW A/S (5), 4x2 – (F-350 SRW) S/O S — S LT275/70Rx18E BSW A/S (5), 4x4 – (includes 645 18" wheels) (F-250) — O — S LT275/70Rx18E BSW A/S (5), 4x4 – (F-350 SRW) OS—S LT275/70Rx18E BSW A/T (5), 4x4 – (includes 645 18" wheels XLT) (F-250/F-350 SRW) O O — O LT275/70Rx18E OWL A/T (4), 4x4 – (spare tire – A/T BSW) (includes 645 wheels XLT) (F-250/F-350 SRW) — O S O LT275/70Rx18E OWL A/T (4), 4x4 – (Spare is BSW A/T) (F-350 SRW) — O S O LT275/65Rx20E BSW A/T – (spare is LT275/70Rx18E BSW A/T) – (4x4 only) (F-250) (F-350 SRW only) — — — O LT275/65Rx20E OWL A/T – (spare is LT275/70Rx18E BSW A/T) – (SRW 4x4 only or Camper Package)

(F-250/F-350 SRW) (XLT requires XLT Sport Package) — O LT245/75Rx17E OWL A/T (4) (F-350 DRW) —OSO Electronic-Shift-on-the-Fly — 4x4 (auto-manual locking hubs & rotary control I/P) O O O O

Quality/Reliability/Durability

Dual Alternators (req. Power Stroke diesel engine; total of 320 amps) O O O O Extra Heavy Duty Alternator (200 amps; req. Power Stroke diesel engine; NA w/63T Dual Alternators or 86M Snowplow Pkg.) O O O O Spare Tire, Wheel & Jack (req. 66D Pickup Box Delete) (F-250/F-350 only) O O O —

Flexibility

17" Forged Polished Aluminum Wheel (4) (F-350 DRW) — O S S 18" Forged Polished Aluminum Wheel (4) (F-250/F-350 SRW) — O O O

SD Pickups

18" Argent Painted Steel Wheel (4) (F-350 SRW) S/O — — — 20" Premium Forged Polished Aluminum Wheel (F-250/F-350 SRW 4x4) — O

F-250/F-350/F-450

Adjustable Gas/Brake Pedals (req. auto. transmission) — O O O Advanced Security Group — O S S Air Conditioning – Manual O S S — Audio: Premium Electronic AM/FM Stereo/Single CD/MP3 Player, inc. Auxiliary Audio Input Jack O S S S Premium Electronic AM/FM Stereo/In-Dash 6-Disc CD/MP3 Changer, inc. Auxiliary Audio Input Jack — O O O Satellite Radio O Audiophile Navigation System (includes Audiophile AM/FM Stereo) ——O O Bodyside Molding (NA w/66D Pickup Box Delete) (SRW only) — O O O

(1) SuperCab only. (2) Crew Cab only. S = Standard O = Optional — = Not available

AM/FM Stereo/6-Disc In-Dash CD/MP3 Player/Clock, inc. Auxiliary Audio Input Jack — O O O

V-8/ TorqShift® 5-Spd. Auto. O/D O O O O

Diesel V-8/6-Spd. Man. O/D (Standard F-450) S/O S/O S/O S/O

2008 F-250/F-350/F-450 Super Duty® Pickups

Model Lineup

Optional Equipment

XL XLT FX4 Lariat

(1,2)

NOTE: The above information is an excerpt from pages 8–10 of the 7/1/07 F-250 Pickup Dealer Ordering Guide, pages 9–13 of the 7/1/07

F-350 Pickup Dealer Ordering Guide and pages 7–8 of the 7/1/07 F-450 Pickup Dealer Ordering Guide. For the latest Dealer Ordering Guide go to fmcdealer.com

July 2007

2008 F-250/F-350/F-450

MODEL LINEUP

This page is about:

Super Duty® Pickups

Optional Equipment cont’d

Model Lineup

Optional Equipment cont’d

XL XLT FX4 Lariat

Flexibility

Cab Steps — Molded Black O O O S Cab Steps — Chrome Tubular 4-inch — O Cab Steps — Chrome Tubular 5-inch —O Carpet Delete (NA w/16S All-Weather Floor Mats) S O — — Chrome Package —O Cruise Control (req. Tilt Steering Wheel) Daytime Running Lamps (Fleet only) F F F F Driver’s Memory Package ——O Engine Block Heater (Std. in AK, CO, IA, ME, MN, MT, ND, SD, WI, WY) O O O O Floor Mats, All-Weather (NA w/166 Carpet Delete) — O S O Fog Lamps — O S S Ford Harley-Davidson Heated Seats (XLT requires XLT Sport Package) — O O O King Ranch Package — — — O King Ranch with Chrome Package ———O Lower Accent Two-Tone Paint (incl. wheellip moldings on Lariat) — O O O Manual Telescoping Trailer Tow Mirrors w/Manual Glass (NA w/90L Power Equipment Group) O — — — Manual Telescoping Trailer Tow Mirrors w/Power Heated Glass & Int. Clearance Lamps/Turn Signals

(included with 90L Power Equipment Group on XL) O O — — Pickup Box Delete (8' box only, NA w/6.8L engine) O O — — Power Driver & Passenger Seat (power passenger seat incl. w/SuperCabs and Crew Cabs only) — O O S Power Equipment Group O S S S Power Slide Moonroof (XLT req. 60F Advanced Security Group) — O PowerScopeTM Power-Telescoping, Power-Folding Trailer Tow Mirrors w/Power Heated Glass & Int. Clearance Lamps/

Turn Signals — O O O Privacy Glass (req. 433 Rear Sliding Window or 435 Power Rear Sliding Window) — O O S Radio Delete O — — — Rapid-Heat Supplemental Cab Heater (req. 6.4L diesel engine, automatic transmission, 67D Extra Heavy Duty Alternator or

67A Dual Alternators and air conditioning) OOOO Rear-seat DVD Entertainment System —O Reverse Camera System —OO O Reverse Vehicle Aid Sensor (NA w/66D Pickup Box Delete) O O O O Roof Clearance Lights (standard on DRW) O O O O

SecuriLock Skid Plates, Transfer Case and Fuel Tank FFSF Sliding Rear Window – Manual O O O S Sliding Rear Window – Power Spare Tire Delete (Fleet Only, also deletes jack) Stowable Bed Extender (F-250/F-350 SRW only) Tailgate Step (incl. Tailgate AssistTM, step and handle) Tilt Steering Wheel (req. Cruise control, exc. XL Fleet) Traction Control Universal Garage Door Opener Upfitter Switches (4) — Located on I/P XL Decor Group XLT Sport Package

(1) Regular Cab only. (2) SuperCab only. (3) Crew Cab only. S = Standard O = Optional F = Fleet Only Option — = Not available

F-Series Super Duty

Passive Anti-theft Ignition System OOS S

OSSS

———O

— — — O

F — — — OOOO OOOO OSSS OOOO ———O O O O O O — — — — O

(1)

(2,3)

(3)

(2,3)

—— OO

(2,3)

——

(3)

(2,3)

(3)

F-250/F-350/F-450

SD Pickups

NOTE: The above information is an excerpt from pages 8–10 of the 7/1/07 F-250 Pickup Dealer Ordering Guide, pages 9–13 of the 7/1/07

F-350 Pickup Dealer Ordering Guide and pages 7–8 of the 7/1/07 F-450 Pickup Dealer Ordering Guide. For the latest Dealer Ordering Guide go to fmcdealer.com

July 2007

MODEL LINEUP

2008 F-250/F-350/F-450

This page is about:

Optional Equipment cont’d

Super Duty® Pickups

Model Lineup

Optional Equipment cont’d

XL XLT FX4 Lariat

Capability

10,000 GVWR Package (F-350 SRW only) OOOO

Camper Package O O O O

4x4 Off-Road Package (4x4 only) O O — O

Heavy Service Package for Pickup Box Delete (req. 66D Pickup Box Delete) (F-250 only) O O — —

Heavy Service Suspension Package O O O O

High Capacity Trailer Tow Package (F-450) OO—O

Monobeam Wide-track Front Suspension with Extended Axle (req. 4x4, 172-inch WB, 6.4L eng.) O

Snowplow Prep Package (4x4 only) O O O O

Stabilizer Package O O O O

TowBoss Package (F-350 DRW only) O O O O

TowCommand System O O O O

TowCommand Integrated Trailer Brake Controller (verified to be compatible w/electric actuated drum brakes only; deletes Trailer Brake Wiring Kit included w/Std. Trailer Tow Pkg. on pickups; deletes Trailer Tow Pkg. w/66D Pickup Box Delete) O O O

Transmission Power Takeoff Provision (avail. w/Power Stroke transmission, PTO obstructed by catalyst placement on 5.4L & 6.8L engines) S/O S/O S/O

S = Standard O = Optional — = Not available

diesel engine w/automatic transmission; std. w/manual

(3)

S/O

(3)

SD Pickups

F-250/F-350/F-450

NOTE: The above information is an excerpt from pages 8–10 of the 7/1/07 F-250 Pickup Dealer Ordering Guide, pages 9–13 of the 7/1/07

F-350 Pickup Dealer Ordering Guide and pages 7–8 of the 7/1/07 F-450 Pickup Dealer Ordering Guide. For the latest Dealer Ordering Guide go to fmcdealer.com

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

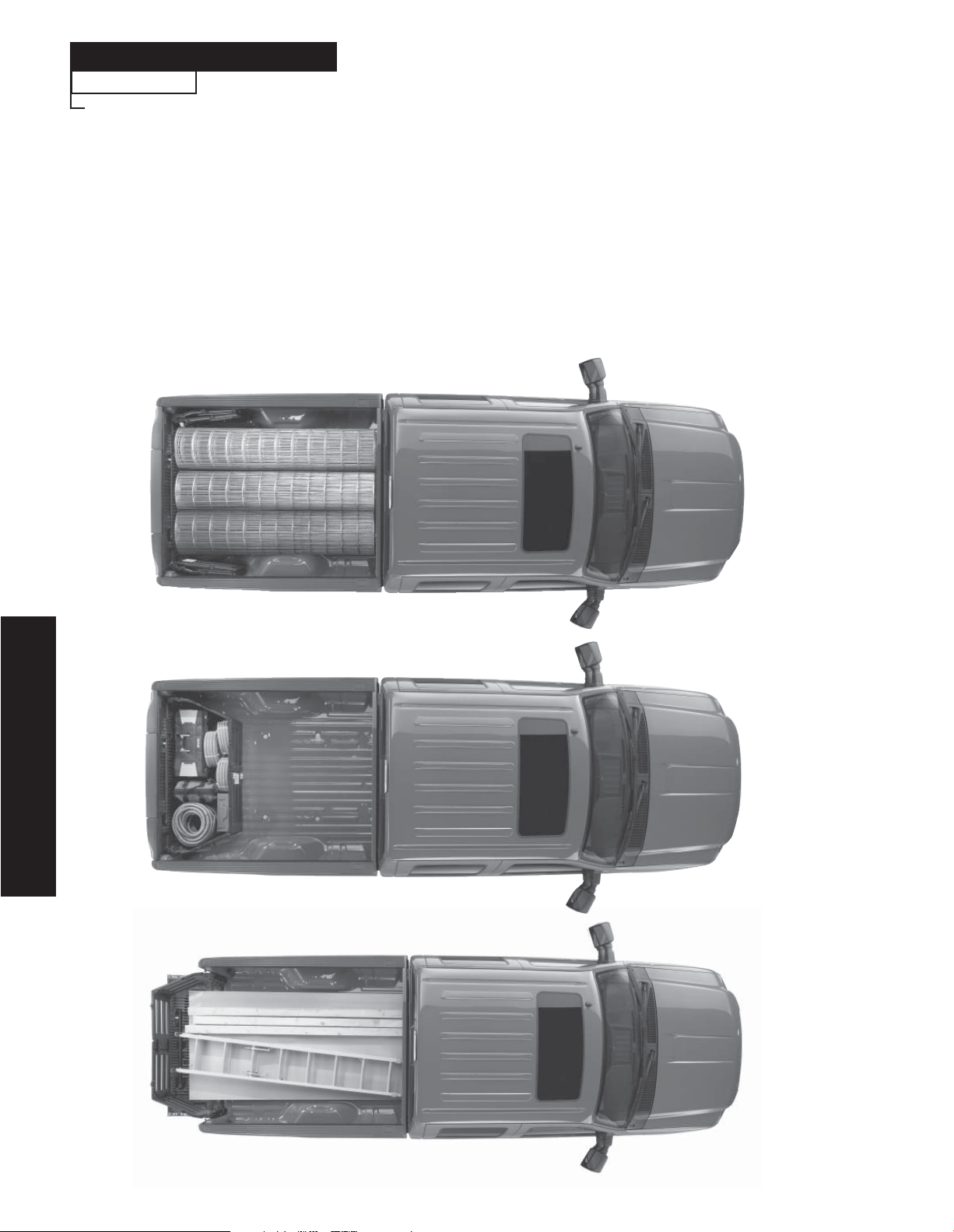

Vocational Segmentation

VOCATIONAL SEGMENTATION

This page is about:

Retail Owner/Operator

Contractor/Tradesman

Stake/Platform

Service/Utility

F-250/F-350/

F-450

Super Duty

Pickups

Personal

Commercial

Box Delete

Retail

Owner/Operator

Contractor/

Tradesman

Stake/Platform

Service/Utility

F-250/F-350/F-450

SD Pickups

July 2007

VOCATIONAL SEGMENTATION

This page is about:

The Super Duty® Customer Commercial Small Business Heavy-duty Recreational Vocational Application Specifics

Recreational/Vocational Segmentation

2008 F-250/F-350/F-450 Super Duty® Pickups

Vocational Segmentation

The Super Duty® Customer

Commercial

Small Business

SD Pickups

F-250/F-350/F-450

Heavy-duty Recreational

These buyers need trucks that are able to do a specific job. Their reasons for buying may be just as specific, for example:

• A functional and dependable

• Low operating cost

• High power and torque

Commercial customers are expected to make up about 20 percent of the Super Duty market. Super Duty Pickups offer these buyers a variety of weight classes, heavy-duty suspensions, powerful powertrains and a number of heavy-duty options.

This category includes singlevehicle owners/operators or those with fewer than five vehicles. Many of these buyers are “mixed use” operators, meaning that they use their vehicles for both business and personal purposes. Smallbusiness customers are expected to account for about 30 percent of the Super Duty market. Because their work trucks may also double as family vehicles, these buyers may be especially interested in comfort and convenience features.

These customers want a truck with enhanced towing capabilities for a large travel trailer, multi-horse trailer or heavy boat. They’re also looking for trucks that can be used as campers. These buyers are expected to make up about 50 percent of the Super Duty market. Because of their special requirements for towing, off-road use or extra passengers, these buyers may be especially interested in four-wheel drive, dual-rear-wheel models or the 4-door SuperCab or Crew Cab.

vehicle with low acquisition cost

requirements

Vocational Application Specifics

Commercial Account Programs

For commercial customers, buying an F-250/F-350/F-450 Super Duty Pickup is a big investment. Ford’s limited warranty and optional service plans will help them be sure they are making a smart one.

• Commercial customers choosing an F-Series Super Duty Pickup get thousands of qualified service technicians available well beyond the standard 9-to-5 business day

• Ford Motor Company Business Preferred Network (BPN) is a cohesive and comprehensive approach to the small to midsized commercial/fleet sales, parts and service, and financial services business

– BPN combines existing commercial/fleet business activities

such as Quality Fleet Care, QualityCare Maintenance (QCM), Around the Wheel (AtW), Commercial Service Plus, etc.

– BPN was created to help your dealership identify and adapt to

the demands of the local commercial/fleet market

– BPN focuses on the development of long-term relationships

with local commercial/fleet businesses operating between 5 and 50 vehicles

• Through the Uptime-Critical Parts Program, Ford Customer Service Division provides 24/7/365 service to commercial truck customers with emergency “vehicle-down” parts delivery the next business day. The Uptime-Critical Parts Program Center stocks such essential parts for vehicle operation:

– Uptime-Critical Parts Program can ONLY be used to support

critical commercial truck needs outside of “normal” FCSD orderprocessing business hours as follows:

•

Monday through Sunday — from the customer’s facing

depot’s local emergency cutoff time until midnight ET. The only exception to this is heavyweight parts (150+ lbs.) where the order cutoff time will be 11 p.m. ET, and delivery is second day by 4:30 p.m. local time. This is to allow extra handling time required for such parts. Orders placed on Friday, Saturday or Sunday will be delivered Tuesday

– Vehicle Down orders will ONLY be taken beyond normal

Ford Customer Service Division (FCSD) emergency orderprocessing hours. Customers will still be required to submit their normal daily and emergency requirements through the normal

FCSD channels – All critical powertrain parts, including engines and transmissions – Electrical and chassis parts, including axles, springs and wheels

• The program supports the following Ford commercial vehicles: – F-250/F-350/F-450 Super Duty Pickups – F-350/F-450/F-550 Super Duty Chassis Cabs – F-650/F-750 Super Duty Chassis Cabs – LCF – E-Series commercial vehicles

• Orders may be placed by calling the Customer Service Commercial Truck Center at 800-782-5050

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Performance/Handling

Overview

F-250/F-350/F-450

• Customers want performance for commercial, small business and heavy-duty recreational use

• New, more powerful 6.4L Power Stroke

• 6.8L Triton

V-10 is the segment’s most powerful gasoline engine

V-8 turbo diesel engine

Powertrain Combinations

PERFORMANCE/HANDLING

This page is about:

Powertrain Combinations

Powertrain (Engine/Transmission)

5.4L 3V SOHC Triton V-8

6-Speed Manual Overdrive 5-Speed TorqShift

6.8L 3V SOHC Triton V-10

6-Speed Manual Overdrive 5-Speed TorqShift Automatic Overdrive

6.4L Power Stroke

6-Speed Manual Overdrive 5-Speed TorqShift Automatic Overdrive

(1) 325 horsepower @ 3000 rpm/600 lb.-ft. torque @ 2000 rpm on F-450 models with 4.88 axle ratio or manual transmission.

Automatic Overdrive

V-8 Turbo Diesel

Horsepower

(SAE net @ rpm)

300 @ 5000 365 @ 3750

362 @ 4750 457 @ 3250

350 @ 3000

(1)

Torque

(lb.-ft. @ rpm)

650 @ 2000

(1)

F-250/F-350/F-450

SD Pickups

LEARNING PATH

To learn more about: You will find more info here:

Truck — Essential Knowledge for Spec’ing Trucks (FORDSTAR Course #3100)

Presenting Performance

July 2007

For a current schedule of FORDSTAR courses, log on to: www.fmcdealer.com/mytraining. Click on “Training Catalog and Schedules.”

PERFORMANCE/HANDLING

This page is about:

5.4L 3V SOHC Triton® V-8

6.8L 3V SOHC Triton V-10 Common Gasoline Engine Technology

2008 F-250/F-350/F-450 Super Duty® Pickups

Performance/Handling

Gasoline Engines

5.4L 3V SOHC Triton® V-8

• Good low-end torque with over 85 percent of the engine’s peak torque available from as low as 1500 rpm

• Includes a combination of technologies to provide the added horsepower and torque so important to Super Duty® buyers who haul or tow:

– Variable Camshaft Timing optimizes the timing of the

intake and exhaust valves during the combustion cycle. This lets the engine deliver performance tailored to the load applied, with increased power for brisk acceleration or times of high demand

– Charge Motion Control Valves are specially shaped metal

flaps at the intake port that speed up the airflow and create a tumble effect in the combustion chamber, for excellent low-speed combustion

6.8L 3V SOHC Triton V-10

• The segment’s most powerful gasoline engine with 362 horsepower and 457 lb.-ft. of torque

• Short/Long Intake Runner design features long runners for lower engine rpm operation to speed up airflow and provide maximum torque, and short runners for higher engine rpm to provide unrestricted high-velocity air intake for efficient cylinder filling and maximum power

SD Pickups

F-250/F-350/F-450

5.4L 3-valve SOHC Triton V-8

Common Gasoline Engine Technology

• 3-valves-per-cylinder design features two intake valves and

one exhaust valve allowing the engine “breathe” almost as well as high-performance 4-valve designs but without the additional weight and complexity

6.8L 3-valve SOHC Triton V-10

• Electronic Throttle Control is also known as “drive-by-wire.” Translates accelerator motions and other inputs into control of engine power. The accelerator pedal controls the throttle by means of a computer-controlled stepping motor in lieu of a conventional linkage from pedal to throttle. It works by integrating throttle movements with the vehicle’s electronically controlled functions such as cruise control or idle speed. It enhances control, driveability and performance

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Performance/Handling

Diesel Engine

6.4L Power Stroke® V-8 Turbo Diesel

• 350 horsepower @ 3000 rpm 325 horsepower @ 3000 rpm (F-450 with 6-speed manual transmission or 4.88 rear axle)

• 650 lb.-ft. of torque @ 2000 600 lb.-ft. of torque @ 2000 (F-450 with 6-speed manual transmission or 4.88 rear axle)

• Cast iron block and heads provide a durable foundation

• Larger exhaust valves than 6.0L – Improve engine breathing – Optimize fuel economy and performance

• Improved emissions – Reduced particulate output – Emits 85 percent less pollutants than previous model year

diesel engine

• Improved engine control module (ECM) – Fuel and engine controls integrated into the same cast

aluminum housing – Allows engine technologies to operate properly – Durability tests doubled to ensure robustness and long life

• High-pressure common-rail (HPCR) fuel system pressurizes the

fuel system to 28,000 psi and injects the fuel into the cylinders through piezo-actuated injectors

• Piezo-actuated injectors are capable of delivering up

to five injections per combustion cycle and include the following benefits:

– Instant response for optimized acceleration, improved

cold start at –20 degrees F, and better emissions control – Quiet operation throughout the entire rpm range (similar

to gasoline-engine noise levels) – Injectors and fuel pump placed inside valve cover for

quieter ride

• Dual Sequential Turbo helps improve response throughout the

engine’s power band and includes the following benefits: – Better low-speed performance, improved acceleration and

power at altitude – First turbo in the series features an Electronic Variable

Response Turbocharger (EVRT

fixed low-pressure turbo comes on at higher rpm and at

optimum speed – EVRT comes on at low rpm to provide extra boost

at takeoff – EVRT changes the position of the turbine blades based on

engine demand – As rpm increase, the larger fixed low-pressure turbo kicks

in to boost power through the middle of the torque curve – Fixed low-pressure turbo takes over at optimum speed

). The second, larger,

A CLOSER LOOK: Dual Sequential Turbo

Low-pressure turbo

PERFORMANCE/HANDLING

This page is about:

6.4L Power Stroke® V-8 Turbo Diesel

EVRT

F-250/F-350/F-450

SD Pickups

July 2007

PERFORMANCE/HANDLING

2008 F-250/F-350/F-450

This page is about:

Diesel Engine Cooling System Diesel Engine Emissions Diesel Engine Maintenance

Super Duty® Pickups

Performance/Handling

Diesel Engine Cooling System

Radiator

• Diesel radiator is significantly larger (19 percent more frontal area)

• Larger water pump nearly doubles flow rate from 75 to 125 gallons per hour

• Allows Super Duty

engine to endure extremes of hard use

Diesel Engine Emissions

The new 6.4L Power Stroke® V-8 turbo diesel incorporates engine and emissions-control technologies that help reduce particulate emissions to a level equivalent with gasoline engines. A combination of elements work together to allow Super Duty engine emissions requirements.

to achieve new government-mandated diesel

Diesel Particulate Filter (DPF)

• Located after the diesel oxidation catalyst (DOC)

• Similar to a small incinerator that burns off particulates in the exhaust gas after they have left the combustion chamber

• “Scrubs” the black smoke in the exhaust gases

• Periodically cleans itself through a process known as regeneration or “burnoff”

– Passive regeneration burns off soot naturally when exhaust

temperatures are high enough

– Active regeneration (forced burnoff)

occurs as needed, dependent on operational use

• Exhaust temperature at the tailpipe is the same as current diesels

SD Pickups

DOC

F-250/F-350/F-450

Diesel Engine Maintenance

DPF

Ultra Low Sulfur Diesel (ULSD) Fuel

• ULSD fuel MUST be used in 6.4L to allow the emissions control system, including the DPF to operate properly

• ULSD fuel may be used in pre-2007 diesel engines

• Sulfur level reduced by 97 percent compared to conventional diesel (from maximum of 500 parts per million [ppm] to 15 ppm)

Oil Requirement

• Oil that meets the new American Petroleum Institute (API) service category CJ-4 is required for the 6.4L diesel engine to operate properly

• CJ-4 service standard oil must be used to keep the engine warranty in effect

• CJ-4 oil may be used in pre-2007 engines

Exhaust Gas Recirculation (EGR)

• Dual 440mm EGR coolers have an air oxidation catalyst that scrubs exhaust gases from the air

• The catalyst protects the coolers from fouling and the EGR valve from deposits

• EGR valve is self-cleaning

• Engine control module monitors the EGR valve, checking for buildup that can prevent the valve from seating properly

• If buildup is detected, the ECM takes steps to clean the valve seat

Be sure your customers are aware of the new maintenance requirements and service intervals of the new 6.4L Power Stroke V-8 turbo diesel.

Maintenance

• Ultra Low Sulfur Diesel (ULSD) fuel must be used in the 6.4L to allow the emissions control system, including the Diesel Particulate Filter (DPF) to operate properly

• CJ-4 service standard oil must be used when the engine oil is serviced

• Fuel-water separator should be drained monthly to avoid possible water in the fuel injectors

• Engine block heater should be used at temperatures below –10 degrees F (–23 degrees C) to ensure proper engine lubrication on start-up

• Recommend using biodiesel that is no higher than 5 percent (B5) to ensure optimum fuel economy. Follow the special

operating conditions maintenance schedule if using biodiesel

• Refer customers to the Diesel Engine Maintenance DVD in the Owner’s Guide package

• For the California Heavy-duty Diesel Engine Idle Requirement, guidance from California and compliance with this requirement is still being finalized. Dealers will be informed of the updates to this requirement once it has been completed

Service Intervals

• 10,000-mile normal and 5000-mile special operating conditions oil-change intervals — new oil specification CJ-4 required for 6.4L to operate properly

• 20,000-mile normal and 10,000-mile special operating conditions fuel-filter change intervals — both fuel filters must be replaced according to maintenance intervals

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Performance/Handling

Transmissions

PERFORMANCE/HANDLING

This page is about:

6-speed Manual Overdrive

TorqShift® 5-speed Automatic Overdrive with Tow/Haul

Transmission Power Takeoff (PTO) Provision

Stationary Elevated Idle Control (SEIC)

6-speed Manual Overdrive

• Standard with all Super Duty® Pickup engines

• First five gears provide optimum close-ratio performance

• Overdrive 6th gear reduces engine rpm at highway speeds, adding to vehicle fuel economy and quiet operation

• Features a standard transmission cooler

• Standard power takeoff (PTO) port provided on the left-hand side of transmission case

– PTO obstructed by catalyst

placement on 5.4L and

6.8L engines

TorqShift® 5-speed Automatic Overdrive with Tow/Haul

• Optional on all Super Duty Pickups with gasoline or diesel engines

• Torque converter design maximizes low-speed torque output

• All-new more robust gear sets and a three-plate two-stage torque converter help reduce turbine noise when the converter is locked

• Large fluid pump provides superior lubrication and cooling

• Pure electronic shift controls work with the Electronic Throttle Control of the engine to optimize shifts and vehicle performance and responsiveness

• When hauling a heavy load or trailer, the Tow/Haul mode reduces gear hunting, improves power delivery and even uses engine braking to help control vehicle speed when descending hills

• Transmission can be equipped with power takeoff port — must specify order code 62R (PTO obstructed by catalyst placement on 5.4L and 6.8L engines)

Auxiliary Power Features

F-250/F-350/F-450

SD Pickups

Transmission Power Takeoff (PTO) Provision

• A power takeoff (PTO) provision is an added benefit for customers with specific power needs

• Allows upfitters to supply power to hydraulically driven accessories such as dump bodies, sprayers, pumps, generators, etc.

• Option code 62R must be ordered to get a PTO gear and port with the TorqShift 5-speed automatic transmission

• 6-speed manual overdrive transmission has a PTO gear and port standard

• The optional upfitter switches may be used as PTO control switch(es)

NOTES: Power takeoff (PTO) obstructed by catalyst placement on

5.4L- and 6.8L-equipped vehicles.

PTO Provision Availability 6.8L/6.4L Engines

Transmission Left Side Right Side

6-speed Manual (M6OD-HD) S NA 5-speed Automatic (TorqShift) O (with 62R) NA

NOTE: Some modification may be required to install the PTO unit on 6.8L vehicles.

Stationary Elevated Idle Control (SEIC)

• Acts as the “throttle kicker,” when increased engine speed is needed

• Consists of strategy embedded in the powertrain control module (PCM) and a set of blunt-cut wires to command it

• Selling dealer will need to obtain a PTO controller or switch from the aftermarket

NOTE: Option 66S, “Upfitter Switches,” one of which may be used as a PTO switch.

• Engine speeds – 910 to 2400 rpm (5.4L and 6.8L gasoline engines) – 1200 to 2400 rpm (6.4L diesel engine)

• Automatically locks the torque converter – Gives power to the PTO gear for the TorqShift automatic

transmission when the operator turns on the PTO switch

• Instructions to upfitters for completing the SEIC/PTO circuitry: 2008 Model Year Light Truck Body Builders Layout Book at fleet.ford.com/truckbbas

• Model and engine restrictions: latest Dealer Ordering Guide

July 2007

PERFORMANCE/HANDLING

This page is about:

4x4 Systems Performance

2008 F-250/F-350/F-450 Super Duty® Pickups

Performance/Handling

4x4 Systems

Manual Shift with Manual Locking Hubs

• Simple, reliable design that is highly regarded by serious off-roaders

• To engage the front axle, the operator must stop, exit the vehicle and rotate both hublock selector knobs to the LOCK position, then the desired drive range is selected on the transfer case

• Floor-mounted transfer case shift lever is used to move between available drive settings: 2H (2WD), 4H (4x4 High), N (Neutral) and 4L (4x4 Low)

• When the hublocks are returned to the FREE position, the drive axle components do not rotate while driving, which reduces wear and frictional drag

Super Duty® 4x4 Manual

Shift Lever

Super Duty

Manual-locking

Front Hub

Electronic Shift-on-the-fly System

• Easy-to-use rotary control switch mounted in the instrument panel used to select drive settings, eliminating the need to stop and back up to unlock the front hubs

• Electric motor actually shifts the transfer case into selected drive setting

• Front hublock selectors are marked with AUTO and LOCK. Manual override capability lets the driver manually LOCK hubs if preferred, but the Pulse Vacuum Hublock (PVH) design engages the front hubs, providing virtually silent operation

• PVH system optimizes fuel economy because all front driveline components are disconnected at the wheels when the system is in 2WD operation

NOTE: Both of these 4x4 systems are “part-time” systems designed to provide enhanced traction on reduced traction surfaces only. Operating on normal or high-traction surfaces can result in transfer case damage, increased tire wear and decreased fuel economy.

Super Duty

Rotary Switch

Super Duty

Automatic-locking

Front Hub with

Manual Override

Dual Rear Wheels (DRW)

• Either 4x2 or 4x4 drive system

SD Pickups

• Increase rear traction

• Improve towing stability

F-250/F-350/F-450

• Provide increased rear axle weight ratings

Performance Specifics

Traction Control

• Optional on 4x2 and 4x4 models

• Helps improve traction or limits wheel spin on slippery or loose driving surfaces

• Reduces engine power through fuel cutoff or ignition spark control

• Uses engine torque to manage wheel spin, a more precise method than brakecontrolled traction systems

• Computes wheel spin from the differential and reduces torque to match the best traction to the wheels for that terrain

• System may be disabled when it’s not needed

Large, Responsive Braking System

• Excellent stopping distance and predictable brake performance

• Large calipers and rotors

• Vented front and rear rotors

• Four-wheel disc Anti-lock Braking System (ABS) with excellent low-speed resolution

• Brake pad material has long life for quiet brake operation and confident pedal feel when lightly loaded and at full GVW

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Performance/Handling

Tire Pressure Monitoring System (TPMS)

• TPMS uses a tire pressure sensor mounted to a metal band and banded in the wheel’s drop well

• Sensors use radio frequency transmitters to send tire pressure information to the vehicle’s onboard computer

• The computer illuminates a warning light and sounds an audible tone when tire pressure is significantly low

• System is completely hidden from sight and uses a standard rubber valve stem

• Can be used on steel or aluminum wheels

• Replacing the tire can be easily done without removing the sensor

• TPMS provides a more accurate tire pressure reading because it measures actual tire pressure as opposed to wheel speed like the Low Tire Warning System

• Senses temperature-based pressure loss where all four wheels are affected

• Resetting the system is easy. Once tire pressure has been restored to its recommended level, TPMS-equipped vehicles simply need to be driven over 20 mph for at least 2 minutes to be reset

• Standard on SRW units built on or after 7/30/07

PERFORMANCE/HANDLING

This page is about:

Tire Pressure Monitoring System (TPMS)

Low Tire Warning Light

Solid Warning Light

Flashing Warning Light

ENGINEERING INSIGHT: TPMS Warning Light

ENGINEERING INSIGHT: TPMS WARNING LIGHT

Customer Action Required

Check tire pressure to ensure proper inflation. Ford recommends a digital or dial-type tire pressure gauge for increased accuracy.

• After inflating cold tires to manufacturer’s recommended pressure as shown on the tire label, the vehicle must be driven for at least 2 minutes at over 20 mph to turn the light off and reset the system

• If the light remains on even after these steps have been taken, have the system inspected by the dealership Service Department

NOTE: If the outside overnight temperature is significantly lower than the daytime temperature, tire pressure may decrease 1 psi for every 10 degrees F in temperature change. This may cause the TPMS warning to illuminate. If all tires appear to be inflated, customers should manually check the pressure and inflate all the tires to the recommended cold pressure.

• Driving on the spare tire may activate the TPMS warning light, causing it to flash for 75 seconds followed by a solid light. Repair the damaged road wheel and remount it on the vehicle. Reset the TPMS by driving at over 20 mph for at least 2 minutes

• If the tires are inflated to the manufacturer’s recommended pressure and the spare tire is not in use, have the system inspected by the Service Department

• See the vehicle Owner‘s Guide for more information

F-250/F-350/F-450

SD Pickups

July 2007

PERFORMANCE/HANDLING

This page is about:

Suspensions

2008 F-250/F-350/F-450 Super Duty® Pickups

Performance/Handling

Suspensions

F-250/F-350 Front Suspensions

• Proven Twin I-Beam with coil springs front suspension

design is used on all F-250/F-350 4x2 Super Duty – Twin I-Beam design combines the strength of a solid

I-Beam suspension with the flexibility and comfort of a fully independent suspension

– Coil springs provide a smoother ride than leaf springs

without sacrificing load-carrying capacity – Front bushings stiffer than previously – Front stabilizer bars redesigned with new links for improved

ride and handling – Front Gross Axle Weight Rating (GAWR) increased to

5250 lbs.

• Robust twin-coil monobeam front axle/suspension design is

used on all F-250/F-350 4x4 pickup models – Twin-coil monobeam front suspension combined with the

steering system design provides tight turning diameters and

reduced parking effort. Loaded or unloaded cornering and

maneuverability are more precise – Gives a smoother ride than a leaf-spring design

• 6000-lb. maximum front GAWR (F-250/F-350)

F-450 Front Suspension

• Wide-frame twin-coil monobeam front suspension from

F-450 Chassis Cab is standard on all F-450 Pickups and available on F-350 DRW Crew Cab with 8.0-foot box (67W)

– Twin-coil monobeam front suspension combined with the

steering system design provides tight turning diameters and

SD Pickups

F-250/F-350/F-450

reduced parking effort. Loaded or unloaded cornering and

maneuverability are more precise – Gives a smoother ride than a leaf-spring design

• Large 35mm front stabilizer bar

• Large, square axle tubes are designed to deliver improved towing performance and capability

• 7000-lb. maximum front GAWR

pickups

Leaf-spring Rear Suspension

• Provides the same high levels of capability with increased refinement

• Leaf springs are 8 inches longer than previously and attach farther forward on the frame

• Stiffer bushings and redesigned rear linkage

• Staggered rear shock absorbers help contribute to better ride and confident handling, loaded or unloaded

• Contributes to confident feel of the vehicle

• Reduces power hop and brake hop

• Keeps the rear end lower to accommodate towing taller gooseneck and fifth-wheel trailers

• Helps reduce front and rear body lean when cornering

Longer leaf springs

Stabilizer

bar

Staggered shocks

Leaf-spring Rear Suspension

Radius arms

Monobeam axle

Twin-coil Monobeam Front Suspension

Coil springs

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Performance/Handling

Available Suspension Packages

PERFORMANCE/HANDLING

This page is about:

Available Suspension Packages

4x4 Off-Road Package (17X)

Designed for vehicles that will be used in off-road, rough terrain situations. Includes:

• Transfer case and fuel tank skid plates

• Unique “4x4 Off-Road” box decal

• Requires 4x4, all-terrain tires and limited-slip rear axle

10,000-lb. GVWR Package (F-350 SRW) (68D)

Available on F-350 SRW and includes:

• 10,000-lb. Gross Vehicle Weight Rating

• Not available on Regular Cab 137-inch wheelbase 4x2 with 5.4L and 17-inch wheels or SuperCab 142-inch wheelbase 4x2 with 5.4L and 17-inch wheels

Camper Package (F-250/F-350) (471)

Designed and engineered for pickup trucks utilizing a slide-in camper in the cargo box. Includes:

• Heavy service front springs — 2 up with 4x2/1 up with 4x4 (1 up or 2 up spring upgrade over the spring computerselected as standard; not applicable if maximum spring rating is computer-selected as standard equipment)

• Rear stabilizer bar (SRW)

• Auxiliary rear springs (F-250)

• Slide-in camper certification

• Not available with 20-inch wheels and tires, Pickup Box Delete (66D), Heavy Service Suspension Package (67H) or Stabilizer Package (63B)

Heavy Service Suspension Package (67H)

Recommended only for vehicles permanently utilizing aftermarket equipment such as heavy-duty winches, brush guards or other equipment which will load the front axle to the specified Gross Axle Weight Rating (GAWR).

Includes:

• Steering damper (F-350)

• Heavy service front springs — 1 up (1 up spring upgrade over the spring computer-selected as standard; not applicable if maximum spring rating is computer-selected as standard equipment)

• Not available with Camper Package (F-250/F-350) (471), Snowplow Prep Package (473) or Heavy Service Package for Pickup Box Delete (F-250) (63R)

Heavy Service Suspension Package for Pickup Box Delete (F-250) (63R)

Available on F-250 Single Rear Wheel (SRW) Pickup Box Delete models only and includes:

• Heavy service front springs — 1 up (1 up spring upgrade over the spring computer-selected as standard; not applicable if maximum spring rating is computer-selected as standard equipment)

• Rear stabilizer bar

• Auxiliary rear springs

• Not available with 20-inch wheels and tires, Stabilizer Package (63B), Snowplow Prep Package (473) or Heavy Service Suspension Package (67H)

Monobeam Wide-track Front Suspension (67W)

• Available on F-350 DRW Crew Cabs with 8.0-foot box only

• Provides reduced turning diameter for improved maneuverability

Snowplow Prep Package (473)

4x4 only and designed for vehicles that will be equipped with a front snowplow. Includes:

• Preselected springs/GAWR (rating varies by model/engine; see weight ratings chart for more information)

• 200-amp alternator (requires 6.4L engine)

• Unique fan clutch with higher disengagement speed (6.4L Power Stroke

• Not available with 20-inch wheels and tires or Heavy Service Suspension Package (67H)

V-8)

Stabilizer Package (63B)

Designed for all SRW models that will frequently be heavily loaded and towing. Includes:

• Heavy service front springs — 1 up (1 up spring upgrade over the spring computer-selected as standard; not applicable if maximum spring rating is computer-selected as standard equipment)

• Rear stabilizer bar

• Not available with Heavy Service Suspension Package (67H) or Camper Package (471)

F-250/F-350/F-450

SD Pickups

July 2007

QUALITY/RELIABILITY/DURABILITY

This page is about:

Quietness Transmission Fluid Temperature Gauge Turbo Boost Gauge Engine Hour Meter Air Filter Minder Patented Hydroformed Steel Front Structure

F-250/F-350/F-450

• Customers want a truck that can handle tough conditions, day in and day out

• F-Series Super Duty

• Tests are based on how customers really use their trucks

• Super Duty sets new standards of refinement and quietness

2008 F-250/F-350/F-450 Super Duty® Pickups

Quality/Reliability/Durability

Overview

Pickups must pass durability tests

Key Features

Quietness inside and out, because of improvements working together to reduce wind, road and powertrain noise. This is the quietest Super Duty ever.

SD Pickups

Ladder-type Frame that includes fully boxed front frame rails with unique front frame horn design lowers the frame by 7 inches. Robust outer frame rails are connected to crossmembers that are riveted, welded or both,

F-250/F-350/F-450

for added strength and long-term durability. Lowering the frame rails provides several benefits:

• Eliminates the need for a BlockerBeam

• Enables a better fit for the Snowplow Package

• Allows for a larger radiator for improved cooling

Transmission Fluid Temperature Gauge monitors the automatic transmission for optimum operation levels and reliability, and alerts the driver when the vehicle needs service (standard with automatic transmissions).

Turbo Boost Gauge lets the driver know the turbo boost from the diesel engine is within the proper levels.

Engine Hour Meter in the message center indicates the number of hours the engine has been in operation. This is an especially useful feature for proper vehicle maintenance.

Air Filter Minder warning light on instrument panel indicates when the diesel air filter needs to be replaced for reliability and ease of maintenance (Power Stroke

Patented Hydroformed Steel Front Structure

creates a strong foundation for engine compartment components, eases assembly and delivers a more dimensionally accurate truck. Provides the benefits of reduced noise and vibration as well as improved fit and finish.

-equipped vehicles).

ENGINEERING INSIGHT: Powertrain Testing

The team that developed the new 6.4L Power Stroke® V-8 turbo diesel gathered real-world data from working Super Duty commercial customers. They used this data to develop durability tests that were more representative of real-life work cycles. The tests used the most extreme and abusive conditions and ran to five times the life cycle of the hardestworking truck. As a result, more than 500 design improvements were made to improve diesel performance and durability.

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Quality/Reliability/Durability

Quietness

QUALITY/RELIABILITY/DURABILITY

This page is about:

Quietness

Features and Benefits

A number of improvements work together to make this the quietest Super Duty road and powertrain noise.

• Quieter diesel engine is a result of fine tuning to reduce

diesel clatter and ensure quiet, smooth operation at high and low speeds

• Class-exclusive

laminated steel sheet works with extra sound padding in the dash and floor to provide a foundation for the quiet cabin

• Sound-damping back panel improves occupants’ ability to

carry on a conversation

ever, inside and out, by reducing wind,

(1)

Quiet Steel

®(2)

dash panel — composite

Spotlight on Features

Feature Benefit

“Closed-eye”-type Front Tow Hooks

Single Midship Fuel Tank

Platinum-tipped Spark Plugs

Useful for pulling other vehicles out of the mud or snow; attached to the frame for strength

30.5-gallon capacity on short-wheelbase models; 38-gallon capacity on long-wheelbase models; excellent cruising range

Triton

engines; added convenience; reduced service requirements; lower

maintenance costs

• Expandable “gull wings” inside the fenders just in front of

the doors, work with the Quiet Steel unwanted road and wind noise

• Thick side glass helps minimize wind noise

• Redesigned climate control system reduces number and size

of openings in the bulkhead, improving interior quietness

• Improved instrument panel seal helps reduce

powertrain noise

• Redesigned exhaust system is tuned for refinement with

a pleasing, tough truck sound

(2)

dash panel to reduce

F-250/F-350/F-450

SD Pickups

(1) Class is full-size pickup trucks over 8500 lbs. GVWR. (2) Quiet Steel is a registered trademark of MSC.

July 2007

FLEXIBILITY

This page is about:

Interior Highlights

2008 F-250/F-350/F-450 Super Duty® Pickups

Flexibility

Overview

F-250/F-350/F-450

Super Duty’s interior is designed to appeal to the customer who is looking for tough and robust without compromising comfort. The rugged, modular styling is inspired by the high-end tools that customers use every day.

• Customers choose Super Duty® Pickups because of their flexibility

• Super Duty adapts to recreation or any line of work

• Hardworking innovations exceed customer expectations

Interior Highlights

Available upfitter switches are located in instrument panel for aftermarket applications.

Prominent center stack

houses all switches in one easy-to-access area.

360-degree front door pulls are easy to grab,

even when wearing

SD Pickups

gloves.

F-250/F-350/F-450

Gauges are more organized, easier to read and feature chrome trim.

Dual-zone Electronic Automatic Temperature Control (EATC)

allows for different temperature settings for the driver and front passenger. (Lariat only)

All-new modular instrument panel has a two-tone appearance.

Round air vents are notched, gear-like chrome surrounds.

Chrome accents highlight the door bezels and console cover.

Available center console is designed to hold file folders and is large enough to stow a variety of laptop computers.

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Flexibility

Seating

FLEXIBILITY

This page is about:

Front Seat Features

Rear Seat Features

Heated Seats

Adjustable Accelerator and Brake Pedals

Power Sliding Rear Window

Power Moonroof

Front Seat Features

• Outboard manual lumbar support adjustment on FX4 and Lariat has a wide range of adjustment (XLT driver’s side only)

• Recline feature on all XL front full bench seats

• XL bucket seats include integrated armrests

• Split bench seat available on all XL models with forward-fold-down center seatback with two cup holders and storage compartment and outboard forward-fold (Regular Cab only) with outboard recline on all

Rear Seat Features

• Driver and right front passenger grab handles and front passenger-side ride handle (also over rear doors with Crew Cab)

• 6-way power driver’s seat and SuperCab and Crew Cab passenger’s seat have fingertip seat adjustment with controls on the outboard side of the seat pedestal

• Available heated front seats add luxury and comfort in cold weather (requires leather seating surfaces)

• Fold-up rear bench seat on SuperCab

• 60/40 FlexFold on Crew Cab XLT, FX4 and Lariat models have fold-flat feature that provides a flat, steel loadfloor when the seat cushion is folded up or a flat loadfloor when the seatback is folded down. Includes grocery hooks, dual integrated cup holders and tray, and two outboard head restraints

• Rear outboard passenger roof ride handles on Crew Cab

• Map pockets with “closed containers only” cup holders on SuperCab front doors

rear bench seats

Interior Comfort

Heated Seats (90H)

• Provides quick, enhanced comfort to both the seatback and cushion during cold weather

• Optional on XLT, FX4 and Lariat

• Requires leather-trimmed seating surfaces, power seats and power trailer tow mirrors (XLT requires XLT Sport Package)

F-250/F-350/F-450

SD Pickups

Adjustable Accelerator and Brake Pedals (62M)

• Automatic-transmission-equipped only

• Help to maximize driver comfort by allowing forward and rearward adjustment of the accelerator and brake pedals

Power Sliding Rear Window

• Provides enhanced interior ventilation at the push of a button

July 2007

Power Moonroof

• Gives customers an open-air driving experience

FLEXIBILITY

This page is about:

Audio Systems SIRIUS Satellite Radio Rear-seat DVD Entertainment System Navigation System

2008 F-250/F-350/F-450 Super Duty® Pickups

Flexibility

Entertainment and Navigation Systems

Audio Systems

• AM/FM stereo

• AM/FM stereo with single-disc CD

• AM/FM stereo with 6-disc in-dash CD/MP3 capability

• Audiophile capability with subwoofer

• See pages 44 and 45 for more information

• Available on XLT, FX4 and Lariat Crew Cabs

• In center of the headliner

• 8-inch LCD screen folds down from headliner

• Two sets of wireless headphones so front passengers can talk or listen to music

• Remote control provides easy adjustment from any seat

• Universal jacks for video gaming systems or a camcorder

• Helps keep kids entertained while traveling

AM/FM stereo with 6-disc in-dash CD/MP3

Rear-seat DVD Entertainment System

SIRIUS Satellite Radio

• Available on all SuperCab and Crew Cab systems except base AM/FM stereo

• Over 130 channels

• Commercial-free music

• Digital sound quality

• Seamless coverage anywhere in the contiguous U.S.

• 6-month complimentary subscription

Navigation System

• Available on FX4 and Lariat

• 6.5-inch touch-screen display

• Fast route calculations, zooming, scrolling and route previews

• Audible guidance feature that announces upcoming maneuver with specific street names

• Single DVD for U.S. and Canada

SD Pickups

F-250/F-350/F-450

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Flexibility

Spotlight on Features

PERFORMANCE/HANDLING

Rapid-Heat Supplemental Cab Heater

FLEXIBILITY

This page is about:

Advanced Security Group

Driver’s Memory Package

Reverse Camera System

Reverse Vehicle Aid Sensor

Advanced Security Group (60F)

• Standard on FX4 and Lariat, optional on XLT

• Includes: – Autolamp – Autolock/unlock (not available with manual transmission) – Driver’s-door keypad – Illuminated entry – Remote Keyless Entry System with two key fobs and

panic alarm

Driver’s Memory Package (60M)

• Included on available King Ranch Package, available on FX4 and Lariat (SuperCab and Crew Cab only)

• Requires automatic transmission, PowerScope tow mirrors, power adjustable gas/brake pedals and leather-trimmed power seats

• Includes: – Memory power driver’s seat – Memory power adjustable pedals – Memory trailer tow mirrors

trailer

Rapid-Heat Supplemental Cab Heater (41A)

• Available on all models

• Requires 6.4L diesel engine, automatic transmission, extra-heavy-duty alternator or dual alternators, and air conditioning

• Designed to help the vehicle’s standard heating system heat the cabin more quickly in cold weather

• Supplemental electric heater located in the vehicle’s HVAC case

• Fully integrated with the vehicle’s heating and ventilation system

• Monitors engine coolant temperature and provides additional in-cab heating if coolant is below a certain temperature

Reverse Camera System (76V)

• Available on XLT, FX4 and Lariat models, includes: – Camera lens mounted in tailgate handle bezel – Video display contained in the interior self-dimming

rearview mirror

– Provides added driver convenience when backing the

vehicle, especially useful when connecting to trailers

Reverse Vehicle Aid Sensor (76R)

• Helps audibly alert drivers to certain objects close to the rear of the vehicle as the driver backs the vehicle up slowly

• As the vehicle nears an object, a warning tone sounds and increases in frequency as the vehicle gets closer

• Makes getting in and out of tight parking spaces easier and more convenient

F-250/F-350/F-450

SD Pickups

July 2007

FLEXIBILITY

This page is about:

Available Stowable Bed Extender

2008 F-250/F-350/F-450 Super Duty® Pickups

Flexibility

Cargo Area

Available Stowable Bed Extender (SRW only)

• Folds onto the open tailgate and extends the usable length of the pickup box

• Folds into the cargo bed to form a small, enclosed section that keeps cargo from sliding around

• Separates into two pieces that fold and snap securely to the sides of the bed

• Allows functionality of the bed when the extender is not in use

Bed extender stowed

SD Pickups

F-250/F-350/F-450

Bed extender enclosure

Bed extender in use

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Flexibility

Cargo Area cont’d

Available Tailgate Step (85G)

• Provides an integrated step that folds down from the open tailgate to allow an easier step up into the truck bed

• Includes step and handle

• Fully integrated into the tailgate and virtually invisible when not in use

• High-strength steel construction

Tailgate Assist

• Uses an internal torsion bar to reduce the effort required to open and close the tailgate

Locking Tailgate

• Helps reduce the chance of theft

FLEXIBILITY

This page is about:

Available Tailgate Step

Tailgate Assist

Locking Tailgate

Tie-down Hooks

Available Power Sliding Rear Window

Exterior Styling

Tie-down Hooks

• In each corner of the pickup box on 6.75-foot box, two additional tie-downs in the center of 8-foot box

• Help keep cargo securely in place

Available Power Sliding Rear Window

• Provides enhanced interior ventilation at the push of a button

Available Power Moonroof

• Gives customers an open-air driving experience

Exterior Styling

New exterior styling features are a visual cue to Super Duty’s increased capability. Highlights include:

All-new Front-end Design

• Larger, bolder grille is attached to hood and features Super Duty name across the leading edge

• Larger, stacked headlamps with low beams positioned 4 inches lower than previous model

• Functional front fender vents – Red on diesel-equipped models – Black on gasoline-equipped

models

• New front bumper with integrated step pad

Presentation Tip: Tailgate Step

Show customers how easy it is to open the Tailgate Step:

1. Flip down the tailgate

2. Pull the yellow latch lever to the Unlock position to release the grab handle

3. Raise the handle upright until you feel it latch and see the latch lever in the Lock position

4. Rotate the center molding to unlatch the Tailgate Step

5. Flip open the panel to widen the step

NOTE: Be sure to tell customers that the Tailgate Step is

rated for no more than 350 lbs. (includes a person plus load carried)

Revised Rear End

• New tailgate design features Ford oval moved to center of tailgate and Super Duty name on lower edge

• New taillamps

• Larger rear bumper – Standard 7-pin and 4-pin trailer connector attached

F-250/F-350/F-450

SD Pickups

July 2007

FLEXIBILITY

This page is about:

XL Key Features

2008 F-250/F-350/F-450 Super Duty® Pickups

Flexibility

XL Key Features

Exterior

• Black painted front and rear bumpers

• Front fender vents

• Solar-tinted glass

• Black painted grille

• Black door and tailgate handles

• Halogen sealed-beam headlamps

• Black manual fold-away mirrors

• 17-inch argent painted steel wheels with painted hub covers/center ornaments (F-250/F-350 SRW)

• 17-inch argent painted steel wheels (F-350 DRW)

• 19.5-inch forged polished aluminum wheels with bright hub covers/center ornaments (F-450)

• Rear fixed window

XL Décor Group (17F)

Available on XL models and includes:

• Bright hub covers and center ornaments (SRW only)

• Chrome front and rear steel bumpers

• Dual-beam jewel-effect headlamps

• Underhood light

Interior

• AM/FM stereo/digital clock and 2 speakers

• Black instrument cluster with black gauges and white graphics, one-button message center with odometer, trip odometer, engine hour meter and warning messages

• Door trim with armrest, grab handle and reflector

• Black, full-length vinyl floor covering

• Color-coordinated scuff plates

• Black vinyl steering wheel

• Color-coordinated sun visors: single driver with pocket, single passenger with mirror insert

• Interval-control windshield wipers

• Heavy-duty vinyl full bench front seat with recline

• Vinyl fold-up rear bench seat (SuperCab)

• Vinyl forward-fold rear bench seat (Crew Cab)

Power Equipment Group (90L)

• Standard on XLT, FX4 and Lariat; available on XL

• Requires air conditioning

• Includes: – One-touch-down driver’s window – Power fold-away black mirrors – Power front side windows – Power locks – Power rear side windows (Crew Cab)

SD Pickups

F-250/F-350/F-450

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Flexibility

XLT Key Features

FLEXIBILITY

This page is about:

XLT Key Features

Exterior

• Chrome front and rear bumper

• Chrome grille surround with medium platinum insert

• Dual-beam jewel-effect headlamps

• Black manual fold-away power glass mirrors

• 17-inch chrome steel wheels with bright hub covers/center ornaments (F-250)

• 17-inch argent painted steel wheels (F-350 DRW)

• 18-inch chrome steel wheels with bright hub covers/center ornaments (F-350 SRW)

• 19.5-inch forged polished aluminum wheels with bright hub covers/center ornaments (F-450)

Interior

• Manual air conditioning

• Black air vents with chrome rings

• Auxiliary audio input jack

• Premium electronic AM/FM stereo/single-disc CD/MP3 capable player and 4 speakers

• Steering-wheel-mounted cruise control

• Door trim with soft armrest, grab handle, molded upper appliqué, upper and lower map pockets and reflector

• Color-coordinated full carpet floor covering

• Color-coordinated carpet floor mats

• Power windows and door locks with backlit switches and accessory delay

• High-series cloth 40/20/40 split bench front seat with center armrest, cup holder and storage, driver and passenger manual lumbar

• Cloth fold-up rear bench seat (SuperCab)

• FlexFold grocery hooks, dual integrated cup holders and tray, and two outboard head restraints (Crew Cab)

• Black vinyl tilt steering wheel

60/40 rear bench seat with fold-flat feature, steel loadfloor,

F-250/F-350/F-450

SD Pickups

July 2007

FLEXIBILITY

This page is about:

XLT Sport Package Key Features

2008 F-250/F-350/F-450 Super Duty® Pickups

Flexibility

XLT Sport Package Key Features

Requirements

• XLT SuperCab and Crew Cab only (SuperCab DRW requires 8-ft. box)

• TorqShift

• Advanced Security Group

• LT265/70R17E OWL all-season tires without 4x4 Off-Road Package (F-250)

• LT265/70R17E OWL all-terrain tires with 4x4 Off-Road Package (F-250)

• LT275/65R18E BSW all-season tires on 4x2 SRW (F-350)

• LT275/70R18E OWL all-terrain tires on 4x4 SRW (F-350)

• LT245/75R17E OWL all-terrain tires on DRW (F-350)

• 17-inch forged polished aluminum wheels on DRW

Exterior

• Unique body-color grille with medium platinum insert, front and rear bumpers, and door handles

• Manually telescoping trailer tow mirrors with power heated glass and integrated clearance lights and turn signals

• Privacy glass

• Bodyside moldings (SRW)

• Sliding rear window

• Fog lamps

• 5-inch chrome tubular step bars and chrome exhaust tip

• Chrome exhaust tip

automatic transmission

Interior

• Unique 40/20/40 two-tone cloth seats (Medium Stone)

• Ebony carpet

• Black all-weather throw-in floor mats (front and rear)

• Black leather-wrapped steering wheel

• Unique XLT Sport upper appliqué on door trim panels

Available Options

• Heated seats

• Reverse Vehicle Aid Sensor

• Unique two-tone Captain’s Chairs

• Unique Medium Stone leather-trimmed Captain’s Chairs (requires power seats)

• 20-inch premium polished forged aluminum wheels with bright hub covers and center ornaments

• LT275/65R20E OWL all-terrain tires, 4x4

• PowerScope

trailer tow mirrors

SD Pickups

F-250/F-350/F-450

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Flexibility

FX4 Key Features

FLEXIBILITY

This page is about:

FX4 Key Features

The FX4 Super Duty® includes the following distinctive features:

Functional

• Limited-slip rear axle

• Rancho branded shock absorbers

• Transfer case and fuel tank skid plates

Exterior

• Dark Shadow Grey front and rear bumpers

• Fog lamps

• Body-color billet-style grille surround with medium platinum insert

• Body-color door handles

• Dark Shadow Grey wheellip moldings

• 17-inch forged polished aluminum wheels with bright hub covers/center ornaments (F-350 DRW)

• 18-inch premium chrome steel wheels with bright hub covers/center ornaments (F-250/F-350 SRW)

Interior

• Silver metallic air vents with chrome rings

• Door trim with soft armrest, grab handle, unique metallic patterned appliqué, upper and lower map pockets and reflector

• Black full carpet floor covering

• All-weather floor mats

• Instrument panel with unique metallic patterned appliqué

• Black leather-wrapped tilt steering wheel

• Color-coordinated cloth sun visors: single driver with covered mirror, single passenger with covered mirror

• Advanced Security Group

• SecuriLock

passive anti-theft ignition system

F-250/F-350/F-450

SD Pickups

July 2007

FPO

FLEXIBILITY

This page is about:

Lariat Key Features

2008 F-250/F-350/F-450 Super Duty® Pickups

Flexibility

Lariat Key Features

The top-of-the-line Lariat Super Duty® includes the following features:

Exterior

• Chrome front and rear bumpers

• Black molded cab steps

• Tinted privacy glass

• Chrome grille surround with medium platinum insert

• Black door handles

• 17-inch forged polished aluminum wheels with bright hub covers/center ornaments (F-350 DRW)

• 18-inch premium forged polished aluminum wheels with bright hub covers/center ornaments (F-250/F-350 SRW)

• 19.5-inch forged polished aluminum wheels with bright hub covers/center ornaments (F-450)

• Manual sliding rear window

SD Pickups

Interior

• Dual-zone Electronic Automatic Temperature Control (EATC)

• Door trim with soft armrest, grab handle, “deep chestnut” woodgrain upper appliqué, upper and lower map pockets, and reflector

• Color-coordinated full carpet floor covering

• Simulated woodgrain insert instrument panel

• Metallic-faced instrument cluster with enhanced message center

• Electrochromic self-dimming rearview mirror

• Premium leather seating surfaces 40/20/40 split bench front seat with center armrest, cup holder and storage

• Color-coordinated leather-wrapped steering wheel with redundant audio and climate controls

• Color-coordinated cloth sun visors: single driver with map strap and covered lighted mirror, single passenger with covered lighted mirror

• Advanced Security Group

• SecuriLock

Chrome Package (17C)

• Chrome Package available on XLT, FX4 and Lariat SuperCab and Crew Cab. Includes:

– Chrome exhaust tip – Chrome pickup bed tie-down hooks – Chrome tow hooks – 5-inch chrome tubular step bars – Unique chrome mirror caps – Chrome billet-style grille (XLT and Lariat only)

passive anti-theft ignition system

F-250/F-350/F-450

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Flexibility

King Ranch Package

FLEXIBILITY

This page is about:

King Ranch Package

King Ranch with Chrome Package

Availability

• Lariat Crew Cab (DRW requires 8-ft. box)

• Requires: – TorqShift

automatic transmission

Exterior

• Lower accent two-tone paint

• Body-color exterior door handles

• Accent-color wheellip moldings (front and rear SRW only)

• Unique accent-color box top/tailgate moldings

• Unique chrome grille with accent-color insert

• Accent-color front and rear bumpers

• Accent-color molded cab steps

• Unique King Ranch fender badges

• PowerScope mirrors with power heated glass and integrated clearance lights and turn signals with body-color mirror caps

• Driver’s Memory Package — includes memory trailer tow mirrors, power driver’s seat and power adjustable pedals

• Power sliding rear window

• 18-inch painted aluminum wheels with unique center cap with King Ranch logo (SRW)

• 17-inch forged aluminum wheels with unique center cap with King Ranch logo (DRW)

• 19.5-inch forged polished aluminum wheels with unique center cap (F-450)

power-telescoping, power-folding trailer tow

Available Options

• 20-inch premium painted forged aluminum wheels with King Ranch center cap (SRW 4x4 only)

• LT275/65R20E OWL all-terrain tires (SRW 4x4 only)

• LT275/65R20E BSW all-terrain tires (SRW 4x4 only)

• Tailgate Step with accent color moldings

• FlexFold leather seating surfaces

60/40 rear bench seat with unique Chaparral-

King Ranch with Chrome Package (17R)

• Includes all of the King Ranch Package features plus the following:

– Chrome exhaust tip – Chrome pickup bed tie-down hooks – Chrome tow hooks – 5-inch chrome tubular step bars – Unique chrome mirror caps

F-250/F-350/F-450

SD Pickups

Interior

• Unique front and rear floor mats with King Ranch logo

• Heated driver and front passenger seats

• Front and rear floor consoles with Chaparral-leather-covered lid and armrests

• Unique King Ranch leather-wrapped steering wheel with redundant audio and climate controls

• Unique Chaparral-leather-trimmed quad Captain’s Chairs, front and rear

July 2007

FLEXIBILITY

This page is about:

Ford Harley-DavidsonTM F-Series Super Duty

2008 F-250/F-350/F-450

Super Duty® Pickups

Flexibility

Ford Harley-DavidsonTM F-Series Super Duty

Availability

• Ford Harley-Davidson F-Series Super Duty® available on F-250 and F-350 SRW Lariat Crew Cabs

Exterior

• Monochromatic Black Clearcoat or Two-Tone Black Clearcoat with Vintage Copper Metallic Clearcoat

• Body-color front and rear bumpers

• Body-color billet-style grille and grille surround

• Unique Ford Harley-Davidson

• Unique engine decal

• Chrome front tow hooks

• Unique windshield with Harley-Davidson pattern and Alliance logo

• Body-color door handles

• PowerScope™ trailer tow mirrors with body-color skullcaps

• Body-color wheellip moldings, front and rear

• Power sliding rear window

• Unique Ford Harley-Davidson on front fender and tailgate

• Rubber bed mat with Harley-Davidson

• Chrome bed tie-downs

• Chrome illuminated tubular step bars with unique Harley-Davidson

• Unique chrome exhaust tip

• Unique 20-inch forged polished aluminum wheels with

SD Pickups

chrome lug nuts and Harley-Davidson

F-250/F-350/F-450

on center caps and wheel lock kit

• LT275/65Rx20E all-terrain BSW tires

Bar & Shield logo

headlamps

vanity license plate

Bar & Shield dot

F-Series Super Duty® badges

Bar & Shield logo

Interior

• Unique black leather seating surfaces Quad Captain’s Chairs with embossed Harley-Davidson front and rear center console in unique leather

• Memory heated power adjustable driver seat and heated power adjustable passenger seat

• Unique black leather-wrapped steering wheel with redundant radio and climate controls

• Unique memory power adjustable performance pedals

• Unique ebony door trim inserts with black leather-wrapped armrest and dusted copper leather-wrapped pull handle with chrome accent

• Unique Harley-Davidson finish panel

• Ebony carpet

• Unique black carpet floor mats with Ford Harley-Davidson

• SecuriLock

• Laser engraved serialization plate attached to leather front console lid

• Unique key set with Ford Harley-Davidson key ends

• Unique Owner’s Guide with leather-wrapped Ford HarleyDavidsonTM F-Series Super Duty® logo embossed portfolio

script

passive anti-theft ignition system

Bar & Shield logo center

Bar & Shield logo,

logo on

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Capability

Overview

F-250/F-350/F-450

Payload and Gross Vehicle Weight Rating (GVWR)

• Super Duty® is able to handle tough commercial or recreational use

• New F-450 pickup with best-in-class

• Variable Gross Vehicle Weight Rating (GVWR) strategy

(1)

payload

CAPABILITY

This page is about:

Payload Capacity

Gross Vehicle Weight Rating

Maximum Payload/GCWR

Payload

• Variable GVWR strategy enables F-Series Super Duty pickups to have impressive payload capacity

• Heavier 6.4L Power Stroke engines have similar, if not higher, maximum payloads than the lighter-weight 5.4L Triton 3V V-8

• Maximum payload is best-in-class (available on F-450 DRW 4x2 equipped with the 6.4L V-8 diesel engine)

• F-350 DRW has a maximum payload of 5720 lbs.

Drive Maximum Payload

4x2 6120 lbs. 33,000 lbs. 4x4 5720 lbs. 33,000 lbs.

V-8 and 6.8L Triton® 3V V-10

(1)

6120 lbs.

GVWR

• Variable GVWR strategy lets customers build their trucks specifically for their intended use

• The Super Duty’s strong frame design and best-in-class braking system help keep the high payload capacity on trucks with higher base curb weight

• GVWRs range from 8800 lbs. to a best-in-class 14,500 lbs. (F-450)

• F-350 DRW has a maximum GVWR of 13,000 lbs.

(2)

Maximum GCWR

(1)

(2)

F-250/F-350/F-450

SD Pickups

(1) Class is full-size pickup trucks over 8500 lbs. GVWR. (2) Properly equipped.

NOTE: Please refer to the weight ratings in the Specifications section for additional model-specific ratings and information.

July 2007

CAPABILITY

This page is about:

Towing Capacity Maximum Trailer Towing

2008 F-250/F-350/F-450 Super Duty® Pickups

Capability

Towing Capacity

• Maximum conventional towing capacity is 12,500 lbs. for Single Rear Wheel (SRW) models with either the 6.4L Power Stroke V-10 engines

• Maximum conventional towing capacity is best-in-class F-450 Dual Rear Wheel (DRW) models with the 6.4L Power Stroke engine

• 15K and 16K hitch receivers come with a 2.5-inch to 2.0-inch adapter. Maximum tow capacity is decreased to 12,500 lbs. for those using a 2-inch drawbar

• Ford is the first Original Equipment Manufacturer (OEM) to have a 2.5-inch hitch receiver for improved towing security with trailers over 12,500 lbs.

• 5th-wheel towing up to 24,500 lbs. (F-450 DRW)

• Best-in-class Weight Rating (GCWR) (F-450 DRW)

Conventional

• 4x2, 4x4 12,500 lbs. SRW, 16,000 lbs. DRW

5th-wheel

• 4x2 16,800 lbs. SRW, 24,500 lbs. DRW

• 4x4 16,300 lbs. SRW, 24,000 lbs. DRW

(2)

33,000-lb. maximum Gross Combined

V-8 or the 6.8L Triton®

(2)

16,000 lbs. for

Maximum Trailer Towing

(1)

(3)

SD Pickups

F-250/F-350/F-450

(1) For additional towing information, refer to the 2008 RV & Trailer Towing Guide that will be shipped with your 2008 Source Books, or the vehicle

Owner’s Guide. (2) Class is full-size pickup trucks over 8500 lbs. GVWR. (3) Properly equipped.

NOTE: Please refer to the weight ratings in the Specifications section for additional model-specific ratings and information.

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Capability

F-450 Super Duty

The new F-450 Super Duty® Pickup is the only production Class 4 pickup on the market. It gives you unprecedented capability to offer your customers who tow horse trailers or large recreational campers, or who need the added capability for commercial applications.

Available in 4x2 and 4x4 Crew Cab configurations, F-450 includes the following standard equipment:

• 6.4L Power Stroke 6-speed manual transmission (TorqShift is optional)

• Standard 4.30 limited-slip rear axle; optional 4.88 limited-slip rear axle (included with High Capacity Trailer Tow Package

• Wide pickup frame with 56-inch CA (Cab-to-Axle)

• New rear leaf-spring suspension and radius arm front suspension from F-450 Super Duty Chassis Cab

• Large 35mm front stabilizer bar

• Best-in-class of 14,500 lbs.

• Best-in-class properly equipped

V-8 turbo diesel with standard

(1)

)

(2)

Gross Vehicle Weight Rating (GVWR)

(2)

maximum payload of 6120 lbs. when

5-speed automatic

• Best-in-class (GCWR) of 33,000 lbs.

• Best-in-class (5th-wheel), 16,000 lbs. (conventional) when properly equipped

• 135-amp alternator

• 38-gallon midship fuel tank

• 16K “Built Ford Tough

• High Capacity Trailer Tow Package

• TowCommand Integrated Trailer Brake Controller

• Manual telescoping trailer tow mirrors with manual glass and 2-way manual fold feature (XL)

• TowCommand System standard on models equipped with TorqShift

• F-450 is speed limited to 81 mph – Due to 19.5-inch tires used, tires and vehicle are speed

rated at 81 mph for safety reasons

– F-250/F-350 Super Duty Pickups are also speed limited,

but at a higher mph due to different size tires used

CAPABILITY

This page is about:

F-450 Super Duty

(2)

maximum Gross Combined Weight Rating

(2)

maximum towing capacity of 24,500 lbs.

” trailer hitch receiver

automatic transmission

F-250/F-350/F-450

2008 F-450 DRW Lariat Crew Cab

SD Pickups

(1) Check latest Dealer Ordering Guide for feature/product availability. (2) Class is full-size pickup trucks over 8500 lbs. GVWR.

July 2007

CAPABILITY

This page is about:

Trailer Tow Packages TowBoss Package Mirrors

2008 F-250/F-350/F-450 Super Duty® Pickups

Capability

Outstanding Towing Features

Trailer Tow Packages

• 12.5K “Built Ford Tough®” Trailer Hitch Receiver with

2-inch hitch (includes 7-wire harness with both 7-pin and 4-pin connectors) — standard on F-250 and F-350 SRW, and F-350 DRW with 5.4L engine

• 15K “Built Ford Tough” Trailer Hitch Receiver with 2.5-inch

hitch and 2-inch hitch adapter (includes 7-wire harness with both 7-pin and 4-pin connectors) — standard on F-350 DRW with 6.8L or 6.4L engine

• 16K “Built Ford Tough” Trailer Hitch Receiver with 2.5-inch

hitch and 2-inch hitch adapter (includes 7-wire harness with both 7-pin and 4-pin connectors) — standard on F-450

Mirrors

Black Fold-away Manual Mirrors

• XL (F-250/F-350) Black Fold-away Power Mirrors

• XLT, FX4 and Lariat

(F-250/F-350)

Manual Telescoping Trailer Tow Mirrors with Two-way Fold Feature

provide excellent rearward visibility and include power, heated glass and integrated turn signals and clearance

SD Pickups

F-250/F-350/F-450

lights. Mirrors are available on XL (requires Power Equipment Group and air conditioning) and XLT (F-250/F-350).

PowerScope

are power-telescoping, power-folding mirrors that include power heated glass, integrated clearance lights/ turn signals and are optional on XLT (SuperCab and Crew Cab only, requires Advanced Security Group), FX4 and Lariat. (F-250/F-350); standard on Lariat F-450.)

Trailer Tow Mirrors

TowBoss Package (53B)

Provides a 5th-wheel towing rating of up to 18,700 lbs. on F-350 DRW 4x2 models and a rating of up to 18,200 lbs. on F-350 DRW 4x4 models.

• Requires: – F-350 DRW model – 6.4L Power Stroke – TorqShift – TowCommand System

• Includes: – 4.30:1 limited-slip rear axle – 26,000 lbs. GCWR

Mirrors fold in for driving through narrow spaces.

automatic transmission

V-8 engine

Application Tip: Trailer Tow Package

Roughly 90 percent of your Super Duty® customers use their trucks for towing, and the Trailer Tow Package is a great selling point. Be sure that your customers understand the towing capabilities of their vehicle and warn them against overloading. Explain that dual-rear-wheel (DRW) vehicles are designed for greater towing stability, not necessarily for increased capacity. DRW models are especially useful for customers who want to tow a 5th-wheel trailer.

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Capability

Outstanding Towing Features cont’d

CAPABILITY

This page is about:

TowCommand System

TowCommand Integrated Trailer Brake Controller

“Four-Wheel-Down”/Neutral Towing

TowCommand System

• Roughly 90 percent of Super Duty® customers tow with their trucks

• Available TowCommand System uses the impressive braking system standard on all Super Duty Pickup models and the Tow/Haul function of the TorqShift

• Driver-selectable Tow/Haul function is able to reduce gear search on steep uphill grades or in hilly terrain and provides added vehicle speed control while descending grades

• TowCommand System helps give drivers confidence, control and safety when towing

The system includes:

• TowCommand Integrated Trailer Brake Controller

• Manual telescoping trailer tow mirrors with manual glass (XL)

• Manual telescoping trailer tow mirrors with power heated glass and integrated clearance lights/turn signals (XLT)

• PowerScope mirrors with power heated glass and integrated clearance lights/turn signals (FX4 and Lariat)

• Requires TorqShift 5-speed automatic overdrive transmission

NOTE: The Ford TowCommand Integrated Trailer Brake Controller has only been verified to be compatible with trailers having electrically actuated drum brakes (one to four axles) and not hydraulic surge or electric-over-hydraulic types.

power-telescoping, power-folding trailer tow

transmission

TowCommand Integrated Trailer Brake Controller

• The fully Integrated Trailer Brake Controller has better performance at lower cost than any aftermarket controller

• Factory-installed and warranted by Ford Motor Company

• Assures smooth and effective trailer braking by powering the trailer’s electric brakes with a proportional output based on the towing vehicle’s brake pressure

• Fully integrated into the instrument panel and the truck’s onboard computer

• The first controller to be able to adapt its output based on the status of the Anti-lock Braking System (ABS). When the ABS module senses the towing vehicle’s brakes are in low traction conditions, the controller’s trailer braking strategy changes to compensate for traction conditions, reducing the risk of trailer brake lockup

• Provides instant visual/audible warning in case of accidental trailer disconnect

• Display dims with the rest of interior lighting

• Includes the following user controls/indicators: – +/- (GAIN adjustment) buttons – Trailer connection indicator – GAIN setting display – OUTPUT bar graph – Manual control lever

F-250/F-350/F-450

SD Pickups

July 2007

“Four-Wheel-Down”/Neutral Towing

• Some customers may want to know if it is possible to tow their Super Duty ground. There are various terms for this capability, the most common of which is neutral towing, also known as “four-wheel-down” or “flat” towing

• The only Super Duty Pickups that can be neutral towed are those equipped with a manual 4x4 transfer case

• For specific towing methods or restrictions, be sure to consult the Super Duty Pickup Owner’s Guide

Pickup with all four wheels on the

AUDIO/NAVIGATION/ENTERTAINMENT

This page is about:

AM/FM Stereo Premium AM/FM Stereo/Single-disc

CD/MP3 Capable Player Premium AM/FM Stereo/6-disc In-dash

CD/MP3 Capable Changer

2008 F-250/F-350/F-450 Super Duty® Pickups

Audio/Navigation/Entertainment

All Super Duty Audio Systems Include

• Station memory presets — 12 FM, 6 AM

• Bass/Treble control

• Balance control

• Seek/Scan features

• Tone control

• Electronic tuning

• Digital clock

AM/FM Stereo

VOL - PUSH

CLK

AM FM

SEEK

123

AUDIO

• 20 watts per channel – Internal amplifier delivers enough power for

high-fidelity sound

• 2 speakers

Premium AM/FM Stereo/Single-disc CD/MP3 Capable Player

SHUFFLE

MUTE

AUX

TEXT

VOL - PUSH

REW

AM FM

FF REPEAT

SEEK

SCAN

SEEK

COMPRESS

34 5

SD Pickups

F-250/F-350/F-450

In addition to the AM/FM stereo, includes:

• 4 premium speakers

• MP3 capability

• SIRIUS Satellite Radio capability

• Auto presets

• Auxiliary audio input jack

• Fade control

• Single-disc CD player

• Speed Compensated Volume (SCV) compensates for changing ambient noise levels by adjusting the volume of the radio according to the vehicle’s speed signal. Allows 7 volume adjustment levels. Adjustable through the menu

• RDS (Radio Data System) function when selected,

allows the following: – Only for FM radio stations supporting RDS capability

– Radio station call letters appear on radio display – Type of music format appears on radio display – Search for type of music format – Traffic information broadcasts

• Compression allows the audio dynamic range to be

compressed so quieter music is boosted and louder music is lowered to compensate for ambient noise level when enabled during CD mode

• Repeat will play the selected track continuously until

Repeat is deactivated when enabled during CD mode

• Shuffle plays CD/MP3 tracks in random order

• Folder button allows access to the MP3 folder

• Dual play capability

• Premium Plus Equalized Radio (optimized sound quality for the vehicle line)

Premium AM/FM Stereo/6-disc In-dash CD/MP3 Capable Changer

LOAD

VOL - PUSH

AM FM

SEEK

SCAN

SEEK

REW FF REPEAT

234 5

COMPRESS

In addition to the AM/FM stereo single-disc CD/MP3 system, includes:

• SIRIUS Satellite Radio capability

• 80 watts

• 4 premium speakers

• Integral 6-disc CD changer with “elevator” CD loading

• Folder/track mode allows the audio system to play and seek through disc tracks with or without folder option (available with MP3 discs only)

• Automatic disc storage

• Partitioned audio

For More Audio Information

• Audio availability: See the latest Dealer Ordering Guide

• Operating information: See the vehicle Owner’s Guide

SHUFFLE

MUTE

AUX

TEXT

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Audio/Navigation/Entertainment

AUDIO/NAVIGATION/ENTERTAINMENT

This page is about:

Audiophile® AM/FM Stereo/6-disc In-dash

CD/MP3 Capable Changer

SIRIUS Satellite Radio

Rear-seat DVD Entertainment System

Navigation System

Auxiliary Audio Input Jack

Audiophile® AM/FM Stereo/6-disc In-dash CD/MP3 Capable Changer

In addition to the premium AM/FM stereo 6-disc in-dash CD/MP3 system, includes:

• SIRIUS Satellite Radio capability

• 80-watt, 4-channel amplifier

• Audiophile 2-way speaker system optimally places a

midrange and tweeter in each front door

• 7 speakers plus a subwoofer with 90-watt external amplifier

• Audiophile Equalized Radio is optimized for each cab style.

Driver or all-seat EQ selectable

• Digital Signal Processing (DSP) ambience

• Dedicated clock and frequency display

SIRIUS Satellite Radio

• SIRIUS Satellite Radio available on all models (SuperCab and Crew Cab only)

• Includes 6 months of SIRIUS service

• Order Code 39S must be specified. This will equip the vehicle with the necessary vehicle-to-radio interface and antenna

• Unit is preactivated from the factory

• SIRIUS Satellite Radio can be accessed using existing radio head controls:

– Aux button — press and release to enter satellite

radio mode

– Seek/Scan — use these buttons to change channels

• Key benefits of SIRIUS Satellite Radio include: – Over 130 channels of the best commercial-free music,

talk, news and information (65 music channels) – 100 percent commercial-free music – Seamless coverage anywhere in the contiguous U.S.

• More information on the service is available online at

www.sirius.com or toll-free at (888) 539-SIRIUS (7474)

Rear-seat DVD Entertainment System

• DVD player

• Large 8-inch flip-down LCD screen

• Two wireless headphones

• Wireless remote control

• Audio/video input jacks allow use of other equipment

• Plays MP3, CD-R, CD-R/W, DVD-R, and DVD-R/W formats

• Rear-seat audio controls

• Available on XLT, FX4 and Lariat (Crew Cab only)

NOTE: Any other equipment requires the use of a power adapter. The DVD player provides the audio/video jacks, but not the power source.

Navigation System

Includes or replaces features of the Audiophile® 6-disc indash CD/MP3 system plus:

• SIRIUS Satellite Radio capability

• Crisp, color LCD display

• Large 6.5-inch touch screen operates navigation and audio functions

• One DVD with map data for the U.S. and Canada

• DVD inserts into system Electronic Control Unit (behind the touch screen)

• Destination selection search methods include: – Street address – Point of Interest (POI) – Freeway entrance/exit search – Previous destination

• Turn-by-turn voice directions include street name pronunciations

• Supports North American English, Canadian French and North American Spanish

• Help menu for basic operation, driving restrictions and navigation DVD

• Automatic Rerouting recalculates a new route if a turn is missed

• Emergency Button provides nearest emergency facility to choose as a destination (hospital or police)

• Valet Lockout Mode disables operation of the Navigation System

• Address Book saves the most frequently used destinations for quick and easy routing

• Available on FX4 and Lariat only

Auxiliary Audio Input Jack

• Standard with all CD/MP3 capable audio systems

• Located in the instrument panel center stack below the power point

• Vehicle audio system will not control the functions of the MP3 player

MP3 Capability

• Reads song title and artist from ID3 tags

• Supports up to 253 titles per disc

For More Audio Information

• Audio availability: See the latest Dealer Ordering Guide

• Operating information: See the vehicle Owner’s Guide

F-250/F-350/F-450

SD Pickups

July 2007

WHEELS

This page is about:

17" Argent Painted Steel 17" Chrome-Clad Steel 18" Forged Polished Aluminum 18" Premium Chrome-Clad Steel 18" Premium Forged Polished Aluminum

2008 F-250/F-350/F-450 Super Duty® Pickups

Wheels

F-250 SRW Pickup

Wheel

17" Argent Painted Steel Wheel (17" x 7.5")

17" Chrome-Clad Steel Wheel with Bright Center Ornament

(17" x 7.5")

18" Forged Polished Aluminum Wheel with Bright Center Ornament

18" Premium Chrome-Clad Steel Wheel with Bright Center Ornament

Ordering

Code XL XLT FX4 Lariat

64A Standard — — —

64C — Standard — —

645 — Optional — —

64R — — Standard —

18" Premium Forged Polished Aluminum Wheel with

SD Pickups

Bright Center Ornament (18" x 8")

F-250/F-350/F-450

— = Not available NOTE: See the latest Dealer Ordering Guide for wheel availability.

644 — — — Standard

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Wheels

F-250 SRW Pickup cont’d

WHEELS

This page is about:

18" Painted Aluminum

20" Premium Polished Forged Aluminum

20" Painted Polished Forged Aluminum

20" Polished Forged Aluminum

Wheel

18" Painted Aluminum Wheel with King Ranch Logo Center Cap (18" x 8")

20" Premium Polished Forged Aluminum Wheel with Bright Center Ornament

20" Painted Polished Forged Aluminum Wheel with King Ranch Center Cap (20" x 8")

20" Polished Forged Aluminum Wheel with Harley-Davidson Shield logo Center Cap (20" x 8")

Bar and

Ordering

Code XL XLT FX4 Lariat

— — — — Included

with King

Package

642 — Optional

only with XLT Sport

Package

643 — — — Optional

— — — — Optional

Optional Optional

only with

King Ranch

Package

Ranch

(1)

SD Pickups

F-250/F-350/F-450

— = Not available (1) Requires Ford Harley-Davidson NOTE: See the latest Dealer Ordering Guide for wheel availability.

July 2007

F-Series Super Duty®.

WHEELS

This page is about:

17" Argent Painted Steel 18" Argent Painted Steel 18" Chrome-Clad Steel 18" Forged Polished Aluminum 18" Premium Chrome-Clad Steel 18" Premium Forged Polished Aluminum

2008 F-250/F-350/F-450 Super Duty® Pickups

Wheels

F-350 SRW Pickup

Wheel

17" Argent Painted Steel Wheel (17" x 7.5")

18" Argent Painted Steel Wheel (17" x 7.5")

18" Chrome-Clad Steel Wheel with Bright Center Ornament

(17" x 7.5")

18" Forged Polished Aluminum Wheel with Bright Center Ornament (18" x 8")

Ordering

Code XL XLT FX4 Lariat

64A Standard — — —

64F

64E — Standard — —

645 — Optional — —

(1)

Standard Optional

(1)

———

18" Premium Chrome-Clad Steel Wheel with Bright Center

SD Pickups

Ornament (18" x 8")

F-250/F-350/F-450

18" Premium Forged Polished Aluminum Wheel with Bright Center Ornament

(18" x 8")

— = Not available (1) Standard on Regular Cab 4x2 gasoline and SuperCab 142-inch wheelbase 4x2 gasoline. NOTE: See the latest Dealer Ordering Guide for wheel availability.

64R — — Standard —

644 — — — Standard

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Wheels

F-350 SRW Pickup cont’d

WHEELS

This page is about:

18" Painted Aluminum

20" Polished Forged Aluminum

20" Premium Painted Forged Aluminum

Wheel

18" Painted Aluminum Wheel with King Ranch Logo Center Cap (18" x 8")

20" Polished Forged Aluminum Wheel (20" x 8")

20" Premium Painted Forged Aluminum Wheel with King Ranch Center Cap (20" x 8")

20" Premium Painted Forged Aluminum Wheel with HARLEY-DAVIDSON Bar & Shield logo Center Cap (20" x 8")

Ordering

Code XL XLT FX4 Lariat

— — — — Included

with King

Package

642 — Optional

only with XLT Sport

Package

643 — — — Optional

— — — — Optional

Optional Optional

only with

King Ranch

Package

Ranch

(1)

SD Pickups

F-250/F-350/F-450

— = Not available (1) Requires Ford Harley-DavidsonTM F-Series Super Duty®. NOTE: See the latest Dealer Ordering Guide for wheel availability.

July 2007

WHEELS

This page is about:

17" Argent Painted Steel 17" Forged Polished Aluminum 17" Forged Aluminum

19.5" Forged Polished Aluminum

2008 F-250/F-350/F-450 Super Duty® Pickups

Wheels

F-350 DRW Pickup

Wheel

17" Argent Painted Steel Wheel (17" x 6.5")

17" Forged Polished Aluminum Wheel with Bright Center Ornament (17" x 6.5") (Rear wheel shown)

17" Forged Aluminum Wheel with King Ranch Logo Center Cap (17" x 6.5") (Rear wheel shown)

— = Not available

Ordering

Code XL XLT FX4 Lariat

64K Standard Standard — —

64J — Optional Standard Standard

— — — — Included

with King

Ranch

Package

Wheel

SD Pickups

19.5" Forged Polished Aluminum Wheel with Bright Center

F-250/F-350/F-450

Ornament

19.5" Forged Polished Aluminum Wheel with King Ranch Logo Center Cap (Rear wheel shown)

— = Not available NOTE: See the latest Dealer Ordering Guide for wheel availability.

F-450 DRW Pickup

Ordering

Code XL XLT FX4 Lariat

64D Standard Standard — Standard

— — — — Included

with King

Ranch

Package

July 2007

2008 F-250/F-350/F-450

INTERIOR TRIM

This page is about:

Super Duty® Pickups

Interior Trim

Interior and Seat Color

Interior Trim Type and Color Selector

NOTE: First character denotes type, second character denote color

HD Vinyl Full Bench with Recline VC VS HD Vinyl Full Bench with Recline and Integrated Armrest AC AS HD Cloth Full Bench with Recline HD Cloth Full Bench with Recline and Integrated Armrest HD Vinyl Bucket JC JS HD Cloth Bucket Vinyl 40/20/40 Split Bench TC TS Cloth 40/20/40 Split Bench (Includes manual lumbar;

Crew Cab incl. FlexFold

XLT

Cloth Luxury Captain’s Chairs with Console 2C 2S Cloth 40/20/40 Split Bench 3C 3S

XLT Sport Package (17B)

Cloth 40/20/40 Two-Tone Split Bench — WS Cloth Two-Tone Captain’s Chairs with Console — XS Leather Seating Surfaces Luxury Captain’s Chairs with Floor Console

FX4

Cloth 40/20/40 Two-Tone Split Bench LS LA Cloth Two-Tone Captain’s Chairs with Floor Console MS MA Leather Seating Surfaces Luxury Captain’s Chairs with Floor Console

Lariat

Leather Seating Surfaces Luxury Captain’s Chairs with Floor Console Leather Seating Surfaces 40/20/40 Split Bench

King Ranch (17K)

Quad Captain’s Chairs Unique King Ranch Chaparral Leather Seating Surfaces with Console

Front Captain’s Chairs with FlexFold 60/40 Rear Bench with Unique King Ranch Chaparral Leather Seating Surfaces

NOTE: See the 2008 Color and Upholstery Book or the Specifications section of eSourceBook (esourcebook.dealerconnection.com) for illustrations of the available

seating choices. (1) Vinyl rear bench on SuperCab. (2) Premium vinyl rear bench. (3) FX4 leather seats are Charcoal Black. (4) Unique King Ranch Leather is Chaparral Brown.

(1)

60/40 rear bench)

(2)

Camel/Tan

(F-450)

CC CS

1C 1S

GC GS

3C 3S

(2)

(2) (1)PS(3) (1)PA(3)

(2)

—YS

4C 4S 8C 8S

(2)RC(4)

(2)SC(4)

Medium

Stone

XLT Sport Package (17B)

King Ranch (17K)

XLT

FX4

Lariat

Black

F-250/F-350/F-450

SD Pickups

July 2007

INSTRUMENT CLUSTERS

This page is about:

Instrument Cluster (Manual Transmission) Diesel Instrument Cluster (Manual Transmission)

Instrument Cluster (Manual Transmission)

2008 F-250/F-350/F-450 Super Duty® Pickups

Instrument Clusters

1. Tachometer

2. SecuriLock ignition system active indicator

3. Engine oil pressure gauge

4. Turn signal indicators

5. Engine coolant temperature gauge

6. Fasten safety belt warning light

7. Voltmeter

8. Fuel gauge

9. Charging system warning light

10. Speedometer

11. Cruise control indicator light

SD Pickups

F-250/F-350/F-450

passive anti-theft

Diesel Instrument Cluster (Manual Transmission)

12. Odometer/trip odometer select/

(1)

13. Tow/Haul indicator light

14. Check engine warning light

15. Low tire pressure warning light

16. Blank

17. High beam indicator

18. Anti-lock Braking System

19. Message center/odometer/

20. Airbag service light

reset button

service light

trip odometer

(1)

21. Brake system warning light/

22. Low engine oil pressure

(1)

23. 4x4 LOW indicator light

24. 4x4 HIGH indicator light

Diesel engine only

25. Turbocharger boost gauge

26. Water in fuel warning light

27. Wait to start indicator light

parking brake indicator light

warning light

(1) If equipped.

ULTRA LOW SULFUR DIESEL FUEL ONLY

July 2007

2008 F-250/F-350/F-450

Super Duty® Pickups

Instrument Clusters

Instrument Cluster (Automatic Transmission)

INSTRUMENT CLUSTERS

This page is about:

Instrument Cluster (Automatic Transmission)

Diesel Instrument Cluster (Automatic Transmission)

1. Tachometer

2. SecuriLock ignition system active indicator

3. Engine oil pressure gauge

4. Turn signal indicators

5. Engine coolant temperature gauge

6. Fasten safety belt warning light

7. Transmission fluid temperature gauge

8. Fuel gauge

9. Charging system warning light

10. Speedometer

passive anti-theft

(1)

Diesel Instrument Cluster (Automatic Transmission)

11. Cruise control indicator light

12. Odometer/trip odometer select/ reset button

13. Tow/Haul indicator light

14. Check engine warning light

15. Low tire pressure warning light

16. Transmission gearshift indicator

17. High beam indicator

18. Anti-lock Braking System service light

19. Message center/odometer/ trip odometer

(1)

20. Airbag service light

21. Brake system warning light/ parking brake indicator light

22. Low engine oil pressure warning light

23. 4x4 LOW indicator light

24. 4x4 HIGH indicator light

Diesel engine only

25. Turbocharger boost gauge

26. Water in fuel warning light

27. Wait to start indicator light

F-250/F-350/F-450

SD Pickups

(1) If equipped.

July 2007

ULTRA LOW SULFUR DIESEL FUEL ONLY

CONFIGURATIONS

This page is about:

Regular Cab SuperCab SWB SuperCab LWB Crew Cab SWB Crew Cab LWB Super Duty

Pickup Lineup

2008 F-250/F-350/F-450 Super Duty® Pickups

Configurations

Regular Cab: 137.0" WB 4x2/137.0" WB 4x4

SuperCab LWB: 158.0" WB 4x2/158.0" WB 4x4

2008 F-250/F-350/F-450 Super Duty® Pickup Lineup

SD Pickups

Back of Box Single Dual Wheelbase Cab to Axle Length Box Rear Rear

F-250/F-350/F-450

Wheelbase Cab to Axle Length Box Chassis Rear Rear

Model Drive (in.) (CA) (in.) (ft.) Delete Wheel Wheel

Model Drive (in.) (CA) (in.) (ft.) Delete Cab Wheel Wheel

SuperCab SWB: 141.8" WB 4x2/141.8" WB 4x4

Crew Cab SWB: 156.2" WB 4x2/156.2" WB 4x4

Crew Cab LWB: 172.4" WB 4x2/172.4" WB 4x4

Back of Box Single Dual

F-250

Regular Cab 4x2 4x4 137.0 56.3 8 X X — SuperCab 4x2 4x4 141.8 40.0 6 SuperCab 4x2 4x4 158.0 56.2 8 X X — Crew Cab 4x2 4x4 156.2 40.0 6 Crew Cab 4x2 4x4 172.4 56.3 8 X X —

F-350

Regular Cab 4x2 4x4 137.0 56.3 8 X X X SuperCab 4x2 4x4 141.8 40.0 6 SuperCab 4x2 4x4 158.0 56.2 8 X X X Crew Cab 4x2 4x4 156.2 40.0 6 Crew Cab 4x2 4x4 172.4 56.3 8 X X X

F-450

Crew Cab 4x2 4x4 172.4 56.3 8 — — X

X = Available — = Not available

/4 — X —

/4 — X X

July 2007

2008 F-250/F-350/F-450

Super Duty

Pickups

Dimensions

F-250/F-350/F-450 SD PICKUPS

F/G

H I

Body Dimensions REGULAR CAB PICKUP

Super Duty Series F-250 F-350 Drive Wheelbase (in.) Single/Dual Rear Wheel Code

A Front Overhang Length 37.6 37.6 37.6 37.6 B Rear Overhang Length 52.4 52.4 52.4 52.4 C Front Bumper To Back Of Cab Length 118.9 118.9 118.9 118.9 D Overall Length 227.0 227.0 227.0 227.0 E Vehicle Width (Max.) 79.9 79.9 79.9/79.9 F Front Track Width 68.3 68.3 68.3 68.3 G Rear Track Width 67.2 67.2 67.2/— 67.2/— H Tire Center Width (DRW) — — —/74.7 —/74.7 I Tire Outside Width (DRW) — — —/93.7 —/94.7 J Open Tailgate To Ground Height (Empty) K Cab Height (Empty) L Rear Axle Clearance Height 8.0 7.9 8.0/7.5 7.9/7.5 M Approach Angle (Loaded) (Degrees) 21.0 30.3 21.1/20.9 29.6/30.2 N Ramp Breakover Angle (Loaded) (Degrees) 13.7 18.1 14.3/13.8 20.2/18.8 O Departure Angle (Loaded) (Degrees) 16.4 17.3 16.6/17.0 20.3/17.9

(1) 95.5” at rear fenders. (2) The height data shown represents dimensions of a nominal vehicle with no options. Actual height may vary due to production tolerances.

Description Inches Inches Inches Inches

(2)

4x2 4x4 4x2 4x4

137.0 137.0 137.0 137.0 SRW SRW SRW/DRW SRW/DRW

(1)

79.9/79.9

33.9 34.4 34.0/34.4 37.2/35.0

75.9 79.2 76.0/76.1 80.2/79.4

(1)

F-250/F-350/F-450

SD Pickups

FUEL TANK CAPACITY

Wheelbase (in.) Availability Location Capacity (gallons)

137.0 Standard Midship 38.0

July 2007

F-250/F-350/F-450 SD PICKUPS

2008 F-250/F-350/F-450

Super Duty

Dimensions cont’d

Pickups

Body Dimensions (cont’d) SUPERCAB PICKUP

Super Duty Series F-250 F-350 Drive Wheelbase (in.) Single/Dual Rear Wheel Code

Description Inches Inches Inches Inches Inches Inches Inches Inches A Front Overhang Length 37.6 37.6 37.6 37.6 37.6 37.6 37.6 37.6 B Rear Overhang Length 52.4 52.4 52.4 52.4 52.4 52.4 52.4 52.4 C Front Bumper To Back Of Cab Length 139.9 139.9 139.9 139.9 139.9 139.9 139.9 139.9 D Overall Length 231.8 248.0 231.8 248.0 231.8 248.0 231.8 248.0 E Vehicle Width (Max.) 79.9 79.9 79.9 79.9 79.9 79.9/79.9 F Front Track Width 68.3 68.3 68.3 68.3 68.3 68.3 68.3 68.3 G Rear Track Width 67.2 67.2 67.2 67.2 67.2 67.2/— 67.2 67.2/— H Tire Center Width (DRW) — — — — — —/74.7 — —/74.7 I Tire Outside Width (DRW) — — — — — —/93.7 — —/94.7 J Open Tailgate To Ground Height (Empty)

SD Pickups

K Cab Height (Empty) L Rear Axle Clearance Height 8.0 8.0 7.9 7.9 8.0 8.0/7.5 7.9 7.9/7.5

F-250/F-350/F-450

M Approach Angle (Loaded) (Degrees) 21.1 21.2 30.3 30.3 21.1 21.3/21.0 29.7 29.7/30.2 N Ramp Breakover Angle (Loaded) (Degrees) 13.1 11.6 17.7 15.9 13.6 12.0/13.2 19.3 17.0/15.5 O Departure Angle (Loaded) (Degrees) 16.4 16.2 17.3 17.3 16.5 16.3/16.8 20.2 20.2/17.9

(1) 95.5” at rear fenders. (2) The height data shown represents dimensions of a nominal vehicle with no options. Actual height may vary due to production tolerances.

(2)

4x2 4x4 4x2 4x4

141.8 158.0 141.8 158.0 141.8 158.0 141.8 158.0 SRW SRW SRW SRW SRW SRW/DRW SRW SRW/DRW

(2)

33.9 33.9 34.5 34.5 34.1 34.0/34.4 37.3 37.2/35.1

76.4 76.2 79.4 79.4 76.5 76.3/76.5 80.6 80.4/79.6

F/G

H I

(1)

79.9 79.9/79.9

(1)

FUEL TANK CAPACITY

Wheelbase (in.) Availability Location Capacity (gallons)

141.8 Standard Midship 30.5

158.0 Standard Midship 38.0

July 2007

2008 F-250/F-350/F-450

Super Duty

Dimensions cont’d

Pickups

F-250/F-350/F-450 SD PICKUPS

F/G

H I

Body Dimensions (cont’d) CREW CAB PICKUP

Super Duty Series F-250 F-350 F-450 Drive Wheelbase (in.) Single/Dual Rear Wheel

Code

Description Inches Inches Inches Inches Inches Inches Inches Inches Inches Inches A Front Overhang Length 37.6 37.6 37.6 37.6 37.6 37.6 37.6 37.6 37.6 37.6 B Rear Overhang Length 52.4 52.4 52.4 52.4 52.4 52.4 52.4 52.4 52.4 52.4 C Front Bumper To Back Of Cab

Length D Overall Length 246.2 262.4 246.2 262.4 246.2 262.4 246.2 262.4 262.4 262.4 E Vehicle Width (Max.) 79.9 79.9 79.9 79.9 79.9/

F Front Track Width 68.3 68.3 68.3 68.3 68.3 68.3 68.3 68.3 74.8 74.8 G Rear Track Width 67.2 67.2 67.2 67.2 67.2/— 67.2/— 67.2/— 67.2/— 75.8 75.8 H Tire Center Width (DRW) —————/74.7 —/74.7 —/74.7 —/74.7 74.7 74.7 I Tire Outside Width (DRW) ———— —/93.7 —/93.7 —/94.7 —/94.7 93.7 94.7 J Open Tailgate To Ground Height

K Cab Height (Empty)

L Rear Axle Clearance Height 8.0 8.0 7.9 7.9 8.0/7.5 8.0/7.5 7.9/7.5 7.9/7.5 7.8 7.8 M Approach Angle (Loaded)

N Ramp Breakover Angle (Loaded)

O Departure Angle (Loaded)

(1) 95.5” at rear fenders. (2) The height data shown represents dimensions of a nominal vehicle with no options. Actual height may vary due to production tolerances.

(Empty)

(Degrees)

(2)

4x2 4x4 4x2 4x4 4x2 4x4

156.2 172.4 156.2 172.4 156.2 172.4 156.2 172.4 172.4 172.4 SRW SRW SRW SRW SRW/

154.3 154.3 154.3 154.3 154.3 154.3 154.3 154.3 154.3 154.3

33.8 33.7 34.5 34.5 31.0/

77.2 76.7 79.9 79.9 77.0/

22.4 21.2 30.3 30.3 21.2/

11.8 10.9 15.9 14.4 12.1 11.0 17.2/

16.3 16.2 17.4 17.4 16.4/

DRW

79.9

34.9

77.1

21.0

16.8

SRW/ DRW

79.9/

(1)

79.9

33.9/

34.3

76.8/

77.0

21.3/

21.1

16.3/

16.7

SRW/ DRW

79.9/

(1)

79.9

37.3/

35.1

81.0/

79.8

29.7/

30.2

15.9

20.2/

18.0

SRW/ DRW

79.9/

(1)

79.9

37.2/

35.1

80.9/

79.8

29.8/

30.2

15.6/

14.4

20.2/

17.9

DRW DRW

79.9/

(1)

79.9

35.1 35.1

79.8 79.8

29.2 29.2

15.2 15.2

17.9 17.9

79.9/

(1)

79.9

F-250/F-350/F-450

SD Pickups

(1)

FUEL TANK CAPACITY

Wheelbase (in.) Availability Location Capacity (gallons)

156.2 Standard Midship 30.5

172.4 Standard Midship 38.0

July 2007

F-250/F-350/F-450 SD PICKUPS

2008 F-250/F-350/F-450

Super Duty

Dimensions cont’d

Pickups

Body Dimensions (cont’d) CAB DIMENSIONS

Cab Style Regular Cab SuperCab Crew Cab

Interior Volumes (cu. ft.): Passenger (Front) 66.8 66.8 66.9 Passenger (Rear) — 48.1 68.2 Total Passenger 66.8 114.9 135.0 Cargo (Rear Of Front Seat) 10.2 40.7 60.3

Code Description

A Head Room—Front/Rear 41.4/— 41.4/38.4 41.4/41.4 B Leg Room—Front/Rear 41.0/— 41.0/31.8 41.0/41.8 C Shoulder Room—Front/Rear 68.0/— 68.0/68.1 68.0/68.0 D Hip Room—Front/Rear 67.6/— 67.6/67.3 67.6/67.3

Inches Inches Inches

SD Pickups

F-250/F-350/F-450

July 2007

2008 F-250/F-350/F-450

Super Duty

Dimensions cont’d

A/B

Pickups

F-250/F-350/F-450 SD PICKUPS

F/G

Pickup Box Dimensions STYLESIDE PICKUP BOX

Nominal Box Size (ft.) Rear Wheels

Wheelbase (in.) 141.8, 156.2 137, 158, 172.4 Cargo Volume (cu. ft.) 64.4 77.4

Code

A Cargo Length @ Floor 81.8 98.0 B Cargo Length @ Top 80.1 96.3 C Inside Height 20.1 20.1 D Width Between Wheelhouses 50.9 50.9 E Maximum Width @ Floor 69.3 69.3 F Rear Opening Width @ Floor 60.6 60.6 G Rear Opening Width @ Top 63.6 63.6

Description Inches Inches

6.75 8 SRW/DRW SRW/DRW

F-250/F-350/F-450

SD Pickups

July 2007

F-250/F-350/F-450 SD PICKUPS

2008 F-250/F-350/F-450

Super Duty

Weight Ratings

Pickups

F-250 Styleside Pickup/Pickup Box Delete GAWR (Front Computer-Selected Except with Snowplow)/Base Curb Weight

Cab Style/ Drive/WB (in.)

Regular Cab 4x2 - 137

Regular Cab 4x4 - 137

SuperCab 4x2 - 141.8

SuperCab 4x2 - 158

SuperCab 4x4 - 141.8

SuperCab 4x4 - 158

Crew Cab 4x2 - 156.2

Crew Cab 4x2 - 172.4

Crew Cab 4x4 - 156.2

Crew Cab 4x4 - 172.4

SD Pickups

(1) Pickup box delete available with Regular Cab 137″ WB, SuperCab 158″ WB and Crew Cab 172.4″ WB models with 5.4L or 6.4L engines

F-250/F-350/F-450

only. Base Curb Weights shown above are for completed pickup truck models with standard equipment and the engine/transmission combination indicated. To adjust the “Base Curb Weight” to reflect Pickup Box Delete add 54 lbs. to the “Front” weight and subtract 550 lbs. from the “Total” weight (adjust the “Rear” weight by subtracting “Front” from “Total”). This provides the weight effect of deleting the pickup

box, rear step bumper and standard spare tire, wheel and carrier. Please also refer to footnote 3. (2) Load rating represents maximum allowable weight of people, cargo and body equipment and is reduced by optional equipment weight. (3) OPT/ARC Weight is the maximum allowable weight for regular production options (OPT) and aftermarket equipment (Accessory Reserve

Capacity) for completed pickup truck models with standard equipment and the powertrain combination indicated. To adjust the OPT/ARC

weights to reflect Pickup Box Delete add 550 lbs. Please also refer to footnote 1. (4) Gross Axle Weight Rating is determined by the rated capacity of the minimum component of the axle system (axle, computer-selected springs,

wheels, tires) of a specific vehicle. Front and rear GAWRs will, in all cases, sum to a number equal to or greater than the GVWR for the

particular vehicle. Maximum loaded vehicle (including passengers, equipment and payload) cannot exceed the GVW rating or GAWR (front

or rear). NOTE: Refer to page 65 for Standard Powertrain/Chassis Equipment Specifications. Refer to pages 79–80 for optional equipment weights.

NOTE: The standard front spring/GAWR on Pickup models is computer-selected based on the total front weight of options ordered. Front spring/ GAWR upgrades are in increments of 150 lbs. on 4x2 models with spring ratings from 3650 lbs. to 4850 lbs. and in increments of 400 lbs. on 4x4 models with spring ratings from 4000 lbs. to 6000 lbs. Certain option packages include the following front spring/GAWR upgrades: Heavy Service Suspension Package, Heavy Service Package For Pickup Box Delete and Stabilizer Package - Front springs/GAWR will be selected 1 upgrade higher than standard computer selection; Camper Package - Front springs/GAWR will be selected 2 upgrades higher than standard computer selection on 4x2 models and 1 upgrade higher than standard computer selection on 4x4 models; Snowplow Package - Front springs/ GAWR is assigned or specifically selected as shown in the chart above. Front spring/GAWR upgrade is not included if the maximum front spring has been computer-selected as a consequence of options ordered.

Engine/ Transmission

5.4L/Manual 8800

6.8L/Manual 9000 3130 1095 3650-4250 — 5892 3345 2465 5810

6.4L/Manual 9400 2700 1086 4100-4700 — 6100 4045 2580 6625

5.4L/Manual 9000 2800 1212 4000-5600 5200

6.8L/Manual 9200 2860 1161 4400-5600 5200 5892 3739 2531 6270

6.4L/Manual 9600 2440 1142 4800-6000 6000

5.4L/Manual 9000 3010 1134 3650-4400 — 6100 3292 2633 5925

6.8L/Manual 9200 3070 1110 3800-4400 — 6100 3431 2629 6060

6.4L/Manual 9600 2650 1099 4250-4850 —

5.4L/Manual 9200 3080 1190 3950-4550 — 6100 3400 2650 6050

6.8L/Manual 9400 3150 1153 4100-4700 — 6100 3537 2648 6185

6.4L/Manual 9800 2730 1113 4550-4850 —

5.4L/Manual

6.8L/Manual 9400 2810 1148 4400-5600 5200 6100 3836 2684 6520

6.4L/Manual 9800 2390 1150 4800-6000 6000

5.4L/Manual 9400 2820 1245 4400-5600 5600

6.8L/Manual 9600 2880 1180 4400-5600 5600

6.4L/Manual 10,000 2460 1167 5200-6000 6000

5.4L/Manual 9200 3030 1327 3800-4550 —

6.8L/Manual 9400 3100 1296 3950-4700 — 6100 3530 2705 6235

6.4L/Manual 9800 2670 1277 4400-4850 — 6100 4253 2797 7050

5.4L/Manual 9400 3110 1377 4100-4700 — 6100 3506 2719 6225

6.8L/Manual 9600 3170 1332 4250-4850 — 6100 3640 2720 6360

6.4L/Manual 10,000 2750 1312 4700-4850 — 6100 4344 2831 7175

5.4L/Manual 9400 2770 1378 4400-5600 5600 6100 3808 2752 6560

6.8L/Manual 9600 2830 1324 4400-5600 5600 6100 3941 2754 6695

6.4L/Manual 10,000 2410 1332 4800-6000 6000 6100 4659 2851 7510

5.4L/Manual 9600 2840 1434 4800-5600 5600 6100 3924 2761 6685

6.8L/Manual 9800 2910 1375 4800-5600 5600 6100 4050 2770 6820

6.4L/Manual 10,000 2280 1364 5200-6000 6000 6100 4756 2879 7635

(1)

— GVWR/Payload/ARC/Spring &

Max. GVWR (lbs.)

9200 2750 1200 4400-5600 5200 6100 3699 2686 6385

Max. Payload

(2)

(lbs.)

3060

ARC Weight (lbs.)

1141 3650-4100 — 5892

OPT/

Spring/GAWR (lbs.)

Front Range

(3)

Min.-Max.

(4)

Front Snowplow Rear Front Rear Total

5892

6100

6100 6100 6100 6100 6100

Base Curb Weight (lbs.)

3201

3604 2531 6135

4439 2646 7085

4146 2729 6875

4242 2758 7000

4540 2795 7335 3815 2695 6510 3958 2687 6645 4645 2815 7460 3397 2703 6100

2474 5675

July 2007

2008 F-250/F-350/F-450

Super Duty

Weight Ratings cont’d

Pickups

F-250/F-350/F-450 SD PICKUPS

F-350 SRW Styleside Pickup/Pickup Box Delete

(1)

with 17" Tires/Wheels — GVWR/Payload/ARC/Spring & GAWR (Front Computer-Selected Except with Snowplow)/Base Curb Weight

Cab Style/ Drive/ WB (in.)

Regular Cab 4x2 - 137

Regular Cab 4x4 - 137

SuperCab 4x2 -

141.8 SuperCab

4x2 - 158

SuperCab 4x4 -

141.8

SuperCab 4x4 - 158

Crew Cab 4x2 -

156.2

Crew Cab 4x2 -

172.4

Crew Cab 4x4 -

156.2

Crew Cab 4x4 -

172.4

(1) Pickup box delete available with Regular Cab 137" WB, SuperCab 158" WB and Crew Cab 172.4" WB models with 5.4L or 6.4L engines

(2) Load rating represents maximum allowable weight of people, cargo and body equipment and is reduced by optional equipment weight. (3) OPT/ARC Weight is the maximum allowable weight for regular production options (OPT) and aftermarket equipment (Accessory Reserve

(4) Gross Axle Weight Rating is determined by the rated capacity of the minimum component of the axle system (axle, computer-selected springs,

NOTE: Refer to page 66 for Standard Powertrain/Chassis Equipment Specifications. Refer to pages 79–80 for optional equipment weights. NOTE: The standard front spring/GAWR on Pickup models is computer-selected based on the total front weight of options ordered. Front spring/

GAWR upgrades are in increments of 150 lbs. on 4x2 models with spring ratings from 3650 lbs. to 4850 lbs. and in increments of 400 lbs. on 4x4 models with spring ratings from 4000 lbs. to 6000 lbs. Certain option packages include the following front spring/GAWR upgrades: Heavy Service Suspension Package, Heavy Service Package For Pickup Box Delete and Stabilizer Package - Front springs/GAWR will be selected 1 upgrade higher than standard computer selection; Camper Package - Front springs/GAWR will be selected 2 upgrades higher than standard computer selection on 4x2 models and 1 upgrade higher than standard computer selection on 4x4 models; Snowplow Package - Front springs/ GAWR is assigned or specifically selected as shown in the chart above. Front spring/GAWR upgrade is not included if the maximum front spring has been computer-selected as a consequence of options ordered.

Engine/ Transmission

6.4L/Manual 10,200/10,000 3470/3270 444 4100-4700 — 7000/6390 4045 2613 6658

5.4L/Manual 10,100/10,000 3870/3770 1154 4000-5600 5200 7000/6262 3604 2564 6168

6.8L/Manual 10,200/10,000 3830/3630 513 4400-5600 5200 7000/6262 3739 2564 6303

6.4L/Manual 10,600/10,000 3410/2810 494 4800-6000 6000 7000/6262 4439 2679 7118

6.4L/Manual 10,400/10,000 3420/3020 456 4250-4850 — 7000/6262 4146 2762 6908

5.4L/Manual 10,100/10,000 3950/3850 1145 3950-4550 — 7000/6262 3400 2683 6083

6.8L/Manual 10,200/10,000 3910/3710 508 4100-4700 — 7000/6262 3537 2681 6218

6.4L/Manual 10,600/10,000 3490/2890 469 4550-4850 — 7000/6262 4242 2791 7033

5.4L/Manual 10,200/10,000 3710/3510 539 4000-5600 5200 7000/6262 3699 2714 6418

6.8L/Manual 10,400/10,000 3780/3380 499 4400-5600 5200 7000/6262 3836 2717 6553

6.4L/Manual 10,800/10,000 3350/2750 500 4800-6000 6000 7000/6262 4540 2828 7368

5.4L/Manual 10,400/10,000 3790/3390 597 4400-5600 5600 7000/6262 3815 2728 6543

6.8L/Manual 10,600/10,000 3850/3250 529 4800-5600 5600 7000/6262 3958 2720 6678

6.4L/Manual 11,000/10,000 3430/2430 517 5200-6000 6000 7000/6262 4645 2848 7493

5.4L/Manual 10,100/10,000 3900/3800 1282 3800-4550 — 7000/6262 3397 2736 6133

6.8L/Manual 10,200/10,000 3860/3660 651 3950-4700 — 7000/6262 3530 2738 6268

6.4L/Manual 10,600/10,000 3440/2840 632 4400-4850 — 7000/6262 4253 2830 7083

5.4L/Manual 10,200/10,000 3870/3670 730 4100-4850 — 7000/6262 3506 2752 6258

6.8L/Manual 10,400/10,000 3940/3540 685 4250-4850 — 7000/6262 3640 2753 6393

6.4L/Manual 10,800/10,000 3510/2010 666 4700-4850 — 7000/6262 4344 2864 7208

5.4L/Manual 10,400/10,000 3740/3340 738 4400-5600 5600 7000/6262 3808 2785 6593

6.8L/Manual 10,600/10,000 3800/3200 673 4400-5600 5600 7000/6262 3941 2787 6728

6.4L/Manual 11,000/10,000 3380/2380 681 4800-6000 6000 7000/6262 4659 2884 7543

5.4L/Manual 10,600/10,000 3810/3210 791 4800-5600 5600 7000/6262 3924 2794 6718

6.8L/Manual 10,800/10,000 3870/3070 723 4800-5600 5600 7000/6262 4050 2803 6853

6.4L/Manual 11,200/10,000 3450/2250 712 5200-6000 6000 7000/6262 4756 2912 7668

Capacity) for completed pickup truck models with standard equipment and the powertrain combination indicated. To adjust the OPT/ARC weights to reflect Pickup Box Delete add 550 lbs. Please also refer to footnote 1.

wheels, tires) of a specific vehicle. Front and rear GAWRs will, in all cases, sum to a number equal to or greater than the GVWR for the particular vehicle. Maximum loaded vehicle (including passengers, equipment and payload) cannot exceed the GVW rating or GAWR (front or rear).

Maximum GVWR (lbs.) Std./Opt.

Maximum Payload

(2)

(lbs.) Std./Opt.

OPT/ ARC Weight (lbs.)

Spring/GAWR (lbs.) Front

Range

(3)

Min.-Max.

Front Snowplow Rear Front Rear Total

(4)

Base Curb Weight (lbs.)

F-250/F-350/F-450

SD Pickups

July 2007

F-250/F-350/F-450 SD PICKUPS

2008 F-250/F-350/F-450

Super Duty

Weight Ratings cont’d

Pickups

F-350 SRW Styleside Pickup/Pickup Box Delete GVWR/Payload/ARC/Spring & GAWR (Front Computer-Selected Except with Snowplow)/Base Curb Weight

Cab Style/ Drive/WB (in.)

Regular Cab 4x2 - 137

Regular Cab 4x4 - 137

SuperCab 4x2 -

141.8

SuperCab 4x2 - 158

SuperCab 4x4 -

141.8

SuperCab 4x4 - 158

Crew Cab 4x2 -

156.2

Crew Cab 4x2 -

172.4

Crew Cab 4x4 -

156.2

Crew Cab 4x4 -

172.4

SD Pickups

(1) Pickup box delete available with Regular Cab 137″ WB, SuperCab 158″ WB and Crew Cab 172.4″ WB models with 5.4L or 6.4L engines

F-250/F-350/F-450

Capacity) for completed pickup truck models with standard equipment and the powertrain combination indicated. To adjust the OPT/ARC

wheels, tires) of a specific vehicle. Front and rear GAWRs will, in all cases, sum to a number equal to or greater than the GVWR for the

particular vehicle. Maximum loaded vehicle (including passengers, equipment and payload) cannot exceed the GVW rating or GAWR (front

or rear). (5) 7000/6390 rear spring/GAWR with optional 10,000 lb. GVWR. (6) 7000/6900 rear spring/GAWR with optional LT275/65R20E tires.

Engine/ Transmission

5.4L/Manual 10,100/10,000 4220/4120 454 3650-4250 — 7000/6300 3230 2583 5813

6.8L/Manual 10,100/10,000 4090/3990 408 3800-4400 — 7000/6300 3386 2562 5948

6.4L/Manual 10,700/10,000 3860/3270 399 4250-4850 — 7000/6693 4062 2701 6763

5.4L/Manual 10,500/10,000 4160/3770 520 4000-5600 5200 7000 3635 2638 6273

6.8L/Manual 10,700/10,000 4220/3630 479 4400-5600 5200 7000 3794 2614 6408

6.4L/Manual 11,100/10,000 3800/2810 460 4800-6000 6000 7000 4459 2764 7223

5.4L/Manual 10,100/10,000 3970/3870 447 3650-4400 — 7000/6300 3329 2734 6063

6.8L/Manual 10,300/10,000 4040/3740 423 3800-4400 — 7000/6300 3468 2730 6198

6.4L/Manual 10,800/10,000 3710/3020 412 4250-4850 — 7000/6693 4160 2853 7013

5.4L/Manual 10,400/10,000 4150/3850 503 3950-4700 — 7000/6693 3425 2763 6188

6.8L/Manual 10,600/10,000 4210/3710 466 4100-4700 — 7000/6693 3562 2761 6323

6.4L/Manual 11,000/10,000 3790/2890 426 4550-4850 — 7000/6693 4261 2877 7138

5.4L/Manual 10,600/10,000 4010/3510 506 4400-5600 5200 7000 3731 2792 6523

6.8L/Manual 10,800/10,000 4070/3380 466 4400-5600 5200 7000 3885 2773 6658

6.4L/Manual 11,200/10,000 3650/2550 468 4800-6000 6000 7000 4550 2923 7473

5.4L/Manual 10,800/10,000 4080/3390 599 4400-5600 5600 7000 3839 2809 6648

6.8L/Manual 11,000/10,000 4140/3250 498 4800-5600 5600 7000 4000 2783 6783

6.4L/Manual 11,400/10,000 3720/2430 485 5200-6000 6000 7000 4666 2932 7598

5.4L/Manual 10,400/10,000 4090/3800 640 3800-4550 — 7000/6693 3427 2811 6238

6.8L/Manual 10,600/10,000 4160/3660 609 3950-4700 — 7000/6693 3569 2804 6373

6.4L/Manual 11,000/10,000 3740/2840 590 4400-4850 — 7000/6693 4260 2928 7188

5.4L/Manual 10,600/10,000 4170/3670 690 4100-4850 — 7000/6693 3534 2829 6363

6.8L/Manual 10,800/10,000 4230/3540 645 4250-4850 — 7000/6693 3680 2818 6498

6.4L/Manual 11,200/10,000 3810/2710 625 4700-4850 — 7000/6693 4357 2956 7313

5.4L/Manual 10,800/10,000 4030/3340 707 4400-5600 5600 7000 3842 2856 6698

6.8L/Manual 11,000/10,000 4090/3200 642 4400-5600 5600 7000

6.4L/Manual 11,400/10,000 3670/2380 650 4800-6000 6000 7000 4660 2988 7648

5.4L/Manual 11,000/10,000 4100/3210 761 4800-6000 5600 7000 3945 2878 6823

6.8L/Manual 11,200/10,000 4170/3070 693 4800-6000 5600 7000 4097 2861 6958

6.4L/Manual 11,500/10,000 3640/2250 682 5200-6000 6000 7000

Maximum GVWR (lbs.) Std./Opt.

Maximum Payload

(2)

(lbs.) Std./Opt.

OPT/ ARC Weight

(3)

(lbs.)

(1)

with 18”/20” Tires/Wheels-

Spring/GAWR (lbs.) Front

Range Min.-Max.

Front Snowplow Rear

(4)

(5)

(6)

Base Curb Weight (lbs.)

Front Rear Total

3994 2839 6833

4765 3008 7773

July 2007

2008 F-250/F-350/F-450

Super Duty

Weight Ratings cont’d

Pickups

F-250/F-350/F-450 SD PICKUPS

F-350 DRW Styleside Pickup/Pickup Box Delete

(1)

— GVWR/Payload/ARC/Spring

& GAWR (Front Computer-Selected)/Base Curb Weight

Cab Style/ Drive/ WB (in.)

Regular Cab 4x2 - 137

Regular Cab 4x4 - 137

SuperCab 4x2 - 158

SuperCab 4x4 - 158

Crew Cab 4x2 -

156.2 Crew Cab

4x2 -

172.4 Crew Cab

4x4 -

156.2 Crew Cab

4x4 -

172.4 (1) Pickup box delete available with Regular Cab 137″ WB, SuperCab 158″ WB and Crew Cab 172.4″ WB models with 5.4L or 6.4L engines

only. Base Curb Weights shown above are for completed pickup truck models with standard equipment and the engine/transmission combination indicated. To adjust the “Base Curb Weight” to reflect Pickup Box Delete add 55 lbs. to the “Front” weight and subtract 591 lbs. from the “Total” weight (adjust the “Rear” weight by subtracting “Front” from “Total”). This provides the weight effect of deleting the pickup

Capacity) for completed pickup truck models with standard equipment and the engine/transmission combination indicated. To adjust the OPT/

ARC weights to reflect Pickup Box Delete add 591 lbs. Please also refer to footnote 1. (4) Gross Axle Weight Rating is determined by the rated capacity of the minimum component of the axle system (axle, computer-selected springs,

wheels, tires) of a specific vehicle. Front and rear GAWRs will, in all cases, sum to a number equal to or greater than the GVWR for the

particular vehicle. Maximum loaded vehicle (including passengers, equipment and payload) cannot exceed the GVW rating or GAWR (front

or rear). NOTE: Refer to page 67 for Standard Powertrain/Chassis Equipment Specifications. Refer to pages 79–80 for optional equipment weights.

NOTE: The standard front spring/GAWR on Pickup models is computer-selected based on the total front weight of options ordered. Front spring/ GAWR upgrades are in increments of 150 lbs. on 4x2 models with spring ratings from 3800 lbs. to 4850 lbs. and in increments of 400 lbs. on 4x4 models with spring ratings from 4400 lbs. to 6000 lbs. Certain option packages include the following front spring/GAWR upgrades: Heavy Service Suspension Package - Front springs/GAWR will be selected 1 upgrade higher than standard computer selection; Camper Package - Front springs/GAWR will be selected 2 upgrades higher than standard computer selection on 4x2 models and 1 upgrade higher than standard computer selection on 4x4 models; Snowplow Package - Front springs/GAWR is assigned or specifically selected as shown in the chart above. Front spring/GAWR upgrade is not included if the maximum front spring has been computer-selected as a consequence of options ordered.

Engine/ Transmission

5.4L/Manual 11,800 5610 326 3800-4250 — 9000 3251 2874 6125

6.8L/Manual 12,000 5670 280 3800-4400 — 9000 3395 2865 6260

6.4L/Manual 12,400 5250 271 4250-4850 — 9000 4095 2980 7075

5.4L/Manual 12,000 5340 387 4400-5600 5200 9000 3654 2931 6585

6.8L/Manual 12,200 5410 346 4400-5600 5600 9000 3789 2931 6720

6.4L/Manual 12,600 4980 327 4800-6000 6000 9000 4489 3046 7535

5.4L/Manual 12,200 5630 400 4100-4700 — 9000 3450 3050 6500

6.8L/Manual 12,400 5690 399 4100-4850 — 9000 3587 3048 6635

6.4L/Manual 12,800 5270 323 4700-4850 — 9000 4292 3158 7450

5.4L/Manual 12,400 5370 490 4800-5600 5600 9000 3865 3095 6960

6.8L/Manual 12,600 5430 389 4800-6000 5600 9000 4008 3087 7095

6.4L/Manual 13,000 5010 377 5200-6000 6000 9000 4695 3215 7910

6.8L/Manual 12,400 5640 481 3950-4700 — 9000 3580 3105 6685

6.4L/Manual 12,800 5220 462 4400-4850 — 9000 4303 3197 7500

6.8L/Manual 12,600 5720 516 4250-4850 — 9000 3590 3220 6810

6.4L/Manual 13,000 5290 497 4700-4850 — 9000 4394 3231 7625

6.8L/Manual 12,600 5380 417 4400-5600 5600 9000 3991 3154 7145

6.4L/Manual 13,000 4960 731 4800-6000 6000 9000 3709 4251 7960

6.8L/Manual 12,600 5250 534 4800-6000 5600 9000 4100 3170 7270

6.4L/Manual 13,000 4830 451 5200-6000 6000 9000 4806 3279 8085

Maximum GVWR (lbs.)

Maximum Payload

(2)

(lbs.)

OPT/ ARC Weight (lbs.)

Spring/GAWR (lbs.)

Front Range

(3)

Min.-Max.

(4)

Front Snowplow Rear Front Rear Total

Base Curb Weight (lbs.)

F-250/F-350/F-450

SD Pickups

July 2007

F-250/F-350/F-450 SD PICKUPS

2008 F-250/F-350/F-450

Super Duty

Pickups

Weight Ratings cont’d

F-450 DRW Styleside Pickup — GVWR/Payload/ARC/Spring & GAWR (Front Computer-Selected Except With Snowplow)/Base Curb Weight

Spring/

Cab Style/ Drive/WB (in.)

Crew Cab 4x2 - 172.4

Crew Cab 4x4 - 172.4

(1) Load rating represents maximum allowable weight of people, cargo and body equipment and is reduced by optional equipment weight. (2) OPT/ARC Weight is the maximum allowable weight for regular production options (OPT) and aftermarket equipment (Accessory Reserve

Capacity) for completed pickup truck models with standard equipment and the powertrain combination indicated.

(3) Gross Axle Weight Rating is determined by the rated capacity of the minimum component of the axle system (axle, computer-selected springs,

NOTE: Refer to page 68 for Standard Powertrain/Chassis Equipment Specifications. Refer to pages 79–80 for optional equipment weights. NOTE: The standard front spring/GAWR on Pickup models is computer-selected based on the total front weight of options ordered. Front spring/

GAWR upgrades are in increments of 150 lbs. on 4x2 models with spring ratings from 3800 lbs. to 4850 lbs. and in increments of 400 lbs. on 4x4 models with spring ratings from 4400 lbs. to 6000 lbs. Certain option packages include the following front spring/GAWR upgrades: Heavy Service Suspension Package - Front springs/GAWR will be selected 1 upgrade higher than standard computer selection; Camper Package - Front springs/GAWR will be selected 2 upgrades higher than standard computer selection on 4x2 models and 1 upgrade higher than standard computer selection on 4x4 models; Snowplow Package - Front springs/GAWR is assigned or specifically selected as shown in the chart above. Front spring/GAWR upgrade is not included if the maximum front spring has been computer-selected as a consequence of options ordered.

Engine/ Transmission

6.4L/Manual 14,500 6120 1312 4700-4850 — 9500 4723 3567 8290

6.4L/Manual 14,500 5720 1364 5200-6000 6000 9500 5056 3631 8687

Maximum GVWR (lbs.)

Maximum Payload

(1)

(lbs.)

OPT/ ARC Weight (lbs.)

GAWR (lbs.) Front

Range

(2)

Min.-Max.

(3)

Front Snowplow Rear Front Rear Total

Base Curb Weight (lbs.)

SD Pickups

F-250/F-350/F-450

July 2007

2008 F-250/F-350/F-450

Super Duty

Standard Powertrain/Chassis

Equipment Specifications

Pickups

F-250/F-350/F-450 SD PICKUPS

F-250 Styleside Pickup/Pickup Box Delete

DRIVE: 4x2 4x4 POWERTRAIN: Refer To The Ordering Guide For 50 States Usage

AXLES:

BRAKES:

ELECTRICAL:

FUEL TANK: — Capacity 30.5 Gal. (109 L) With 141.8″ WB SuperCab/156.2″ WB Crew Cab;

JACK: — Capacity 2 Ton STEERING: — Type Power, Ford XR-50 (Includes Steering Damper)

SUSPENSION:

TIRES: — Type Steel-Belted Radial, All-Season, BSW

WHEELS: — Type and Size Five, 8-Hole Disc, 17″ x 7.5″J Steel

(1) Available with Regular Cab, 158″ WB SuperCab and 172.4″ WB Crew Cab with 5.4L or 6.4L engines only. Pickup Box Delete Option

(2) In addition to the content shown above, 6.4L V-8 Diesel includes fuel-line filter, heater and water separator, integral engine oil cooler, vacuum

NOTE: Refer to page 60 for Standard and Optional Weight Rating Specifications (GVWR/Payload/Spring & GAWR/Base Curb Weight).

(2)

Engine Transmission — Type Heavy-Duty Manual

Clutch Diameter 11.9″ (13” With 6.4L V-8 Diesel) Transfer Case — Type — Part-Time, 2-Speed

Front Axle — Type Twin I-Beam IFS, Ford Monobeam, Dana 60

Rear Axle — Type—Full-Floating Visteon

Front/Rear Disc — Type Dual-Piston Pin-Slider Calipers, Bolt-on Adapters, Wrap-around Tie Bars

Power Assist Unit — Type Vacuum Boost (Hydro Boost With 6.4L V-8 Diesel)

Anti-Lock System 4-Wheel (3-Channel) Parking Brake (Rear Brakes) 8.1″ Drum-In-Hat (Foot-Operated, Hand Release)

Alternator — Rating 115 Amperes, 1725 Watt Battery — Type Maintenance-Free

Harnesses — Type Trailer 7/4-Wire Harness And Connector/Trailer Brake Wiring/Feed Kit (In-cab, No

Frame — Type Ladder Type, 36,000 psi Steel

Springs, Front — Type Coil, Computer Selected

Springs, Rear — Type Leaf, Two-Stage Variable Rate Main

Shock Absorbers — Gas-Type 1.38″ Stabilizer Bar Front

allows aftermarket installation of a second unit body. For details refer to the Ford Body Builders Layout Book.

pump, tachometer and turbo boost gauge and “Wait To Start,” “Water-In-Fuel,” “Fuel Filter” and “Air Filter” indicator lights.

— Type 5.4L (330 CID) 3V SEFI V-8

— Speeds 6-Speed Overdrive

— Low/High Gear Ratio — 2.72:1/1.00:1

— Capacity (Rating @ Ground) 5250 lbs. 6000 lbs. — Hubs Type — Manual Locking

— Capacity (Rating @ Ground) 6200 lbs.

— Rotor Diameter—Front/Rear 13.66″/13.39″

— Effective Diameter 9.84″ (1.56” Power Piston With 6.4L V-8 Diesel)

— Rating 72 Amp-hr., 650 CCA (Dual 78 Amp-hr., 750 CCA With 6.4L V-8 Diesel)

— Ratio 17.0:1

— Section Modulus (cu. in.) 6.7

— Rating @ Ground (min.) Refer to page 60 for usage and ratings

— Size Five, LT245/75Rx17E — Spare Tire Carrier Rear Underframe, Crank Down Type (Includes Lock)

(1)

Controller)

38.0 Gal. (143 L) With Regular Cab/158″ WB SuperCab/172.4″ WB Crew Cab

F-250/F-350/F-450

SD Pickups

July 2007

F-250/F-350/F-450 SD PICKUPS

2008 F-250/F-350/F-450

Super Duty

Standard Powertrain/Chassis Equipment Specifications cont’d

Pickups

F-350 SRW Styleside Pickup/Pickup Box Delete

DRIVE: 4x2 4x4 POWERTRAIN: Refer To The Ordering Guide For 50 States Usage

AXLES:

BRAKES:

ELECTRICAL:

FUEL TANK: — Capacity 30.5 Gal. (109 L) With 141.8″ WB SuperCab/156.2″ WB Crew Cab;

JACK: — Capacity 2 Ton STEERING: — Type Power, Ford XR-50 (Includes Steering Damper)

SUSPENSION:

SD Pickups

F-250/F-350/F-450

TIRES: — Type Steel-Belted Radial, All-Season, BSW

WHEELS: — Type and Size Five, 8-Hole Disc, 17″ x 7.5″J Steel

(1) Available with Regular Cab, 158″ WB SuperCab and 172.4″ WB Crew Cab with 5.4L or 6.4L engines only. Pickup Box Delete Option

(2) In addition to the content shown above, 6.4L V-8 Diesel includes fuel-line filter, heater and water separator, integral engine oil cooler, vacuum

NOTE: Refer to pages 61–62 for Standard and Optional Weight Rating Specifications (GVWR/Payload/Spring & GAWR/Base Curb Weight).

(2)

Engine Transmission — Type Heavy-Duty Manual

Clutch Diameter 11.9″ (13” With 6.4L V-8 Diesel) Transfer Case — Type — Part-Time, 2-Speed

Front Axle — Type Twin I-Beam IFS, Ford Monobeam, Dana 60

Rear Axle — Type—Full-Floating Visteon

Front/Rear Disc — Type Dual-Piston Pin-Slider Calipers, Bolt-on Adapters, Wrap-around Tie Bars

Power Assist Unit — Type Vacuum Boost (Hydro Boost With 6.4L V-8 Diesel)

Anti-Lock System 4-Wheel (3-Channel) Parking Brake (Rear Brakes) 8.1″ Drum-In-Hat (Foot-Operated, Hand Release)

Alternator — Rating 115 Amperes, 1725 Watt Battery — Type Maintenance-Free

Harnesses — Type Trailer 7/4-Wire Harness And Connector/Trailer Brake Wiring/Feed Kit (In-cab,

Frame — Type Ladder Type, 36,000 psi Steel

Springs, Front — Type Coil, Computer Selected

Springs, Rear — Type Leaf, Two-Stage Variable Rate Main and Single-Stage, Constant Rate Auxiliary

Shock Absorbers — Gas-Type 1.38″ Stabilizer Bar Front

allows aftermarket installation of a second unit body. For details refer to the Ford Body Builders Layout Book.

pump, tachometer and turbo boost gauge and Wait To Start,” “Water-In-Fuel,” “Fuel Filter” and “Air Filter” indicator lights.

— Type 5.4L (330 CID) 3V SEFI V-8

— Speeds 6-Speed Overdrive

— Low/High Gear Ratio — 2.72:1/1.00:1

— Capacity (Rating @ Ground) 5250 lbs. 6000 lbs. — Hubs Type — Manual Locking

— Capacity (Rating @ Ground) 7280 lbs.

— Rotor Diameter—Front/Rear 13.66″/13.39″

— Effective Diameter 9.84″ (1.56” Power Piston With 6.4L V-8 Diesel)

— Rating 72 Amp-hr., 650 CCA (Dual 78 Amp-hr., 750 CCA With 6.4L V-8 Diesel)

— Ratio 17.0:1

— Section Modulus (cu. in.) 6.7

— Rating @ Ground (min.) Refer to pages 61–62 for usage and ratings

— Size Five, LT265/70Rx17E — Spare Tire Carrier Rear Underframe, Crank Down Type (Includes Lock)

(1)

No Controller)

38.0 Gal. (143 L) With Regular Cab/158″ WB SuperCab/172.4″ WB Crew Cab

July 2007

2008 F-250/F-350/F-450

Super Duty

Standard Powertrain/Chassis

Equipment Specifications cont’d

Pickups

F-250/F-350/F-450 SD PICKUPS

F-350 DRW Styleside Pickup/Pickup Box Delete

DRIVE: 4x2 4x4 POWERTRAIN: Refer To The Ordering Guide For 50 States Usage

AXLES:

BRAKES:

ELECTRICAL:

FUEL TANK: — Capacity 30.5 Gal. (109 L) With 156.2″ WB Crew Cab;

JACK: — Capacity 4 Ton STEERING: — Type Power, Ford XR-50 (Includes Steering Damper)

SUSPENSION:

TIRES: — Type Steel-Belted Radial, All-Season, BSW

WHEELS: — Type and Size Seven, 8-Hole Disc, 17″ x 6.5″J Steel

(1) Available with Regular Cab, 158″ WB SuperCab and 172.4″ WB Crew Cab with 5.4L or 6.4L engines only. Pickup Box Delete Option

(2) In addition to the content shown above, 6.4L V-8 Diesel includes fuel-line filter, heater and water separator, integral engine oil cooler, vacuum

Refer to page 63 for Standard and Optional Weight Rating Specifications (GVWR/Payload/Spring & GAWR/Base Curb Weight).

(2)

Engine Transmission — Type Heavy-Duty Manual

Clutch Diameter 11.9″ (13” With 6.4L V-8 Diesel) Transfer Case — Type — Part-Time, 2-Speed

Front Axle — Type Twin I-Beam IFS, Ford Monobeam, Dana 60

Rear Axle — Type—Full-Floating Visteon

Front/Rear Disc — Type Dual-Piston Pin-Slider Calipers, Bolt-on Adapters, Wrap-around Tie Bars

Power Assist Unit — Type Hydro Boost

Anti-Lock System 4-Wheel (3-Channel) Parking Brake (Rear Brakes) 8.1″ Drum-In-Hat (Foot-Operated, Hand Release)

Alternator — Rating 115 Amperes, 1725 Watt Battery — Type Maintenance-Free

Harnesses — Type Trailer 7/4-Wire Harness And Connector/Trailer Brake Wiring/Feed Kit (In-cab,

Frame — Type Ladder Type, 36,000 psi Steel

Springs, Front — Type Coil, Computer Selected

Springs, Rear — Type Leaf, Two-Stage Variable Rate Main and Single-Stage, Constant Rate Auxiliary

Shock Absorbers — Gas-Type 1.38″ Stabilizer Bar Front and Rear

allows aftermarket installation of a second unit body. For details refer to the Ford Body Builders Layout Book.

pump, tachometer and turbo boost gauge and Wait To Start,” “Water-In-Fuel,” “Fuel Filter” and “Air Filter” indicator lights.

— Type 5.4L (330 CID) 3V SEFI V-8/6.8L (415 CID) 3V SEFI V-10 With Crew Cab

— Speeds 6-Speed Overdrive

— Low/High Gear Ratio — 2.72:1/1.00:1

— Capacity (Rating @ Ground) 5250 lbs. 6000 lbs. — Hubs Type — Manual Locking

— Capacity (Rating @ Ground) 9000 lbs.

— Rotor Diameter—Front/Rear 13.66″/13.39″

— Effective Diameter 1.56” Power Piston

— Rating 72 Amp-hr., 650 CCA (Dual 78 Amp-hr., 750 CCA With 6.4L V-8 Diesel)

No Controller)

38.0 Gal. (143 L) With Regular Cab/SuperCab/172.4″ WB Crew Cab

— Ratio 17.0:1, 18.01 with Wide Track Front Suspension

— Section Modulus (cu. in.) 6.7

— Rating @ Ground (min.) Refer to page 63 for usage and ratings

— Size Seven, LT245/75Rx17E — Spare Tire Carrier Rear Underframe, Crank Down Type (Includes Lock)

(1)

F-250/F-350/F-450

SD Pickups

July 2007

F-250/F-350/F-450 SD PICKUPS

F-450 DRW Styleside Pickup

DRIVE: 4x2 4x4 POWERTRAIN: Refer To The Ordering Guide For 50 States Usage

AXLES:

BRAKES:

ELECTRICAL:

FUEL TANK: — Capacity 38.0 Gal. (143 L) JACK: — Capacity 6 Ton STEERING: — Type Power, Ford XR-50 (Includes Steering Damper)

SUSPENSION:

SD Pickups

F-250/F-350/F-450

TIRES: — Type Steel-Belted Radial, All-Season, BSW

WHEELS: — Type and Size Seven, 10-Hole Disc, 19.5″ x 6″J Steel

(1) In addition to the content shown above, 6.4L V-8 Diesel includes fuel-line filter, heater and water separator, integral engine oil cooler, vacuum

NOTE: Refer to page 64 for Standard and Optional Weight Rating Specifications (GVWR/Payload/Spring & GAWR/Base Curb Weight).

(1)

Engine Transmission — Type Heavy-Duty Manual

Clutch Diameter 13” Transfer Case — Type — Part-Time, 2-Speed

Front Axle — Type Twin I-Beam IFS, Ford Monobeam, Dana 60

Rear Axle — Type—Full-Floating Visteon

Front/Rear Disc — Type Dual-Piston Pin-Slider Calipers, Bolt-on Adapters, Wrap-around Tie Bars

Power Assist Unit — Type Hydro Boost

Anti-Lock System 4-Wheel (3-Channel) Parking Brake (Rear Brakes) 8.1″ Drum-In-Hat (Foot-Operated, Hand Release)

Alternator — Rating 135 Amperes, 2025 Watt Battery — Type Maintenance-Free

Harnesses — Type Trailer 7/4-Wire Harness And Connector/Trailer Brake Wiring/Feed Kit (In-cab,

Frame — Type Ladder Type, 36,000 psi Steel

Springs, Front — Type Coil, Computer Selected

Springs, Rear — Type Leaf, Two-Stage Variable Rate Main and Single-Stage, Constant Rate Auxiliary

Shock Absorbers — Gas-Type 1.38″ Stabilizer Bar Front and Rear

pump, tachometer and turbo boost gauge and Wait To Start,” “Water-In-Fuel,” “Fuel Filter” and “Air Filter” indicator lights.

— Type 6.4L (390.5 CID) OHV V-8

— Speeds 6-Speed Overdrive

— Low/High Gear Ratio — 2.72:1/1.00:1

— Capacity (Rating @ Ground) 7000 lbs. — Hubs Type — Manual Locking

— Capacity (Rating @ Ground) 11000 lbs.

— Rotor Diameter—Front/Rear 14.53/15.35″

— Effective Diameter 1.56” Power Piston

— Rating Dual 78 Amp-hr., 750 CCA

— Ratio 17.0:1

— Section Modulus (cu. in.) 6.7

— Rating @ Ground (min.) Refer to page 64 for usage and ratings

— Size Seven, 225/70Rx19.5F — Spare Tire Carrier Rear Underframe, Crank Down Type (Includes Lock)

2008 F-250/F-350/F-450

Super Duty

Standard Powertrain/Chassis Equipment Specifications cont’d

No Controller)

Pickups

July 2007

2008 F-250/F-350/F-450

F-250/F-350/F-450 SD PICKUPS

Super Duty

Pickups

Technical Specifications

Axles

FRONT AXLE SPECIFICATIONS — 4x2

Super Duty Series/Model F-250/F-350 F-450

Make Ford Dana Max. Rating @ Ground (lbs.) 4850 7000 Axle — Type Twin-I-Beam w/Ball Joint Spindle Monobeam

— Material Nodular Cast Iron Forged Steel — Spring Centers (in.) 45.73 46.45

Radius Arms — No. 2 —

— Material Stamped, High-Strength Low-Alloy Steel — Ball Joint Lubed-For-Life Ball Joints Zirked Spindle — Material Nodular Cast Iron Body w/Forged Steel Stem Wheel Bearings — Type Tapered Roller

FRONT AXLE SPECIFICATIONS — 4x4

Super Duty Series/Model F-250-350 F-450

Make Dana 60 Dana Super 60 Dana Super 60 Axle Ratio 3.73/4.10 4.30 4.30/4.88 Max. Rating @ Ground (lbs.) 6000 7000 Type Monobeam, Live Spindle Drive Hotchkiss Housing — Type Unitized

— Cover Attachment Bolted Wheel Bearings — Type Tapered Roller Gears — Type Hypoid Ring Gear — Pitch Diameter (in.) 9.75 10.0 10.0 Pinion — Mounting Above Center Differential — Type 2-Pinion

— Bearings Tapered Roller Axle Shaft — Minimum Diameter (in.) 1.356

— Diameter over Splines (in.) 1.47

— No. of Splines (Hub End) 35

F-250/F-350/F-450

SD Pickups

July 2007

F-250/F-350/F-450 SD PICKUPS

2008 F-250/F-350/F-450

Super Duty

Pickups

Technical Specifications cont’d

Axles (cont’d)

REAR AXLE SPECIFICATIONS

Model F-250 F-350 SRW

Make (Standard and Limited Slip) Visteon Visteon Dana 80 Dana Max. Rating @ Ground (lbs.) 6200 7280 9000 11,000 Type Full-Floating Driveline Attachment Circular Flange Housing — Type Cast Center

— Cover Attachment Bolted Section Synthetic Lubricant Capacity (pt.) 7.0 8.25 Spring Centers (in.) 45.0

Wheel Bearings — Type Tapered Roller Gears — Type Hypoid

Ring Gear — Pitch Dia. (in.) 10.50 11.25 Pinion — Mounting Overhung Differential — Type Axle Shaft — Spline Minor Dia. (in.) 1.36 1.50

(1) 2-pinion with 5.4L (330 CID) SEFI V-8. 3-pinion with 6.8L (415 CID) SEFI V-10 and 6.4L (390.5 CID) V-8 Turbo Diesel engine.

Tube Dia. (in.) 3.50 4.00

—

— Material Alloy Steel

(1)

— Spline Major Dia. (in.) 1.50 1.57

— No. of Splines (Hub End) 35 37

F-350 DRW Pickup

2-Pinion

F-450 DRW Pickup

Brakes

HYDRAULIC BRAKE EQUIPMENT SPECIFICATIONS — FRONT/REAR DISC

Super Duty

Type

Series/Model

Front

F-250-F-350 4850/6000 13.66 9.06 Outboard 8.73/2.17/0.58 Dual/2.36 34.92 306.4

Disc

SD Pickups

F-250/F-350/F-450

F-450 7000 14.53 9.37 Outboard 13.9/1.81/0.47 Dual/2.36 55.6 337.2

Rear

F-250-F-350 SRW 6200/7280 13.39 9.06 Outboard 9.54/1.92/0.47 Dual/1.89 38.16 272.01

Disc

F-350 DRW 9000/9750 13.39 9.06 Outboard 9.54/1.92/0.47 Dual/2.13 38.16 272.01

F-450 11,000 15.35 10.62 Outboard 13.9/1.81/0.47 Dual/2.36 55.6 361.9

BRAKE MASTER CYLINDER SPECIFICATIONS

Type Model/Series Bore Dia. (in.)

Dual System, Dash-Mounted F-250-350 SRW (Gas Engines) 1.3125

BRAKES BOOSTER SPECIFICATIONS

Make/Type Super Duty Series/Model

Dash Mounted F-250-350 SRW (Gas Engines) Vacuum Boost 9.84” Diameter Dual

F-250-350 SRW (Diesel)/F-350 DRW/F-450 Hydro Boost 1.56” Diameter Power Piston

Axle Usage (lbs.)

F-250-350 SRW (Diesel)/F-350 DRW/F-450 1.5

Rotor Dia. (in.)

Brake Lining Segment

Inboard 8.73/2.17/0.58

Inboard 13.9/1.81/0.47

Inboard 9.54/1.92/0.47

Inboard 13.9/1.81/0.47

Area (sq. in.)/ Width (in.)/ Thickness (in.)

Booster Type Effective Dia. (in.)

Caliper Piston No.Dia. (in.)

Gross Lining Area Per Axle (sq. in.)

Total Swept Area Per Axle (sq. in.)OD ID

Diaphragm Type

July 2007

2008 F-250/F-350/F-450

F-250/F-350/F-450 SD PICKUPS

Super Duty

Pickups

Technical Specifications cont’d

Cooling Systems

COOLING SYSTEM SPECIFICATIONS

Radiator

Fins Per Inch

Cooling System Capacity qts. (liters)

(1)

(29)

In-Tank Trans CoolerHeight Width

Standard Plastic

Core Size (in.)

Engine Cooling

5.4L (330) 3V SEFI V-8

6.8L (415) 3V SEFI V-10

6.4L (360) V-8 Turbo Diesel

(1) Add 2.0 (1.9) for Fuel Cooling System. (2) Vistronic fan clutch with stator. Snowplow Package includes unique Vistronic fan clutch with higher disengagement speed.

Standard All 837 27.5 30.43 1.02 1 12.1 26.4 (25) Standard Plastic 10 19.37

Standard All 837 27.5 30.43 1.02 1 12.1 27.5 (26) Standard Plastic 8 20.0

Standard All 1022 27.6 37.03 2.68 2 16.5 30.5

Trans. Usage

Frontal Area (sq. in.)

Thickness Type

Rows of Tubes

Fan Specifications

No. of Blades

(2)

9 26.00

Blade Dia. (in.)

AUXILIARY AUTOMATIC TRANSMISSION OIL COOLER APPLICATIONS

Model Engine Transmission Cooler—No. of Channels

All 5.4L (330) 3V SEFI V-8 5-speed Automatic Overdrive 20

6.4L (363) V-8 Turbo Diesel 5-speed Automatic Overdrive 20

6.8L (415) 3V SEFI V-10 5-speed Automatic Overdrive 11

Fuel System

FUEL SYSTEM DATA

Electronic Fuel Injection Gas Engines Sequential Multiport Fuel Injection

6.4L V-8 Turbo Diesel High Pressure Common Rail Fuel System Fuel Pump Gasoline Engines Single Electric-In-Tank High Pressure (One Per Tank) Fuel Filter Gasoline Engines In-Line Large Capacity (One)

6.4L V-8 Turbo Diesel Full-Flow, Disposable Filter/In-Line Water Separator Air Cleaner All Engines Dry Element, Replaceable

F-250/F-350/F-450

SD Pickups

July 2007

F-250/F-350/F-450 SD PICKUPS

2008 F-250/F-350/F-450

Super Duty

Pickups

Technical Specifications cont’d

Steering

STEERING SPECIFICATIONS

Cab Style/ Drive

Regular Cab 4x2 Pickup 137.0 SRW 17:1 20.35:1 47.7 49.6

Regular Cab 4x4 Pickup 137.0 SRW 17:1 19.77:1 46.1 48.0

SuperCab 4x2 Pickup 141.8 SRW 17:1 20.35:1 49.1 51.1

SuperCab 4x4 Pickup 141.8 SRW 17:1 19.77:1 47.5 49.4

Crew Cab 4x2 F-250/F-350 Pickup 156.2 SRW 17:1 20.35:1 53.5 55.5

Crew Cab 4x4 F-250/F-350 Pickup 156.2 SRW 17:1 19.77:1 51.8 53.7

(1) Power steering fluid cooler is standard.

Series/ Body Style

F-450 Pickup 172.4 DRW 18:1 20.38:1 47.5 TBD

F-350 WT 172.4 DRW 18:1 19.77:1 50.4 52.5 F-450 Pickup 172.4 DRW 18:1 20.38:1 47.5 TBD

Wheelbase (in.)

137.0 DRW 17:1 20.35:1 47.7 49.6

137.0 DRW 17:1 19.77:1 46.1 48.0

158.0 SRW 17:1 20.35:1 54.1 56.0

158.0 DRW 17:1 20.35:1 54.1 56.0

158.0 SRW 17:1 19.77:1 52.3 54.2

158.0 DRW 17:1 19.77:1 52.3 54.2

156.2 DRW 17:1 20.35:1 53.6 55.5

172.4 SRW 17:1 20.35:1 58.5 60.4

172.4 DRW 17:1 20.35:1 58.5 60.4

156.2 DRW 17:1 19.77:1 51.8 53.7

172.4 SRW 17:1 19.77:1 56.5 58.4

172.4 DRW 17:1 19.77:1 56.6 58.4

Power Steering

Gear Ratio Overall Ratio Curb-to-Curb Wall-to-Wall

(1)

Turning Diameter (ft.)

Suspensions

FRAME SPECIFICATIONS

Cab Style

Regular Cab F-250/F-350 Pickup/Box Delete 137.0 5 6.87 x 2.36 x .264 6.7 36,000

SD Pickups

SuperCab F-250/F-350 Pickup 141.8 6 6.87 x 2.36 x .264 6.7 36,000

F-250/F-350/F-450

Crew Cab F-250/F-350 Pickup 156.2 7 6.87 x 2.36 x .264 6.7 36,000

(1) Measured to inside of metal. (2) Cross-sectional modulus calculated at back of cab, to inside of metal.

Super Duty Series/Model

F-250/F-350 Pickup/Box Delete 158.0 6 6.87 x 2.36 x .264 6.7 36,000

F-250/F-350/F-450 Pickup/Box Delete

SHOCK ABSORBER SPECIFICATIONS

Super Duty Model

Pickup All Std. 2 1.38 Gas-Pressurized 2 1.38 Gas-Pressurized Pickup All Opt. (1) Included with FX4 Trim. Unique Rancho branded shock absorbers with white housing and red bellows.

Wheelbase (in.) Usage

Maximum Side Rail

Wheelbase (in.)

172.4 7 6.87 x 2.36 x .264 6.7 36,000

Front Rear No.

Used

(1)

2 1.38 Gas-Pressurized 2 1.38 Gas-Pressurized

Piston Dia. (in.) Type

No. of Crossmembers

Section (Height x Width x Thickness)

(1)

(in.)

No. Used

Section Modulus (cu. in.)

Piston Dia. (in.) Type

(2)

Yield Strength (psi)

July 2007

2008 F-250/F-350/F-450

F-250/F-350/F-450 SD PICKUPS

Super Duty

Pickups

Technical Specifications cont’d

Suspensions (cont’d)

SPRING SPECIFICATIONS — FRONT COIL

Super Duty Series/Model

F-250-350 4x2 3650 12.0 4.0 .795 355

F-250-350 4x4 4000 14.7 4.1 .673 349

F-450 4x2 4800 14.7 4.1 .719 410

F-450 4x4 5200 14.7 4.1 .728 430

SPRING SPECIFICATIONS — REAR LEAF

Super Duty Series/Model

F-250 Pickup F-350 SRW Pickup 7000 6 4.55 66.3 3.00 349/654/1174 3133 F-350 DRW Pickup 9000 6 4.42 66.3 3.00 448/930/1800 4289 F-450 9500 4 4.54 66.3 3.00 542/1107/1506 4323

F-250 Pickup 6100 5 2.98 66.3 3.00 348/685 2695 (1) Pickup and Box Delete models include two-stage, variable rate springs.

(2) Lists first stage/second stage/third stage as applicable. (3) Auxiliary rear spring available and included with Camper Package and Heavy Service Package for Pickup Box Delete only.

Combined Rating @ Ground (lbs.)

3800 12.0 4.0 .807 375 3950 12.0 4.0 .807 375 4100 12.0 4.0 .807 395 4250 12.0 4.0 .807 395 4400 12.0 4.0 .827 415 4550 12.0 4.0 .827 415 4700 12.0 4.0 .827 430 4850 12.0 4.0 .827 430

4400 14.7 4.1 .691 383 4800 14.7 4.1 .719 410 5200 14.7 4.1 .728 430 5600 14.7 4.1 .758 469 6000 14.7 4.1 .771 499

5200 14.7 4.1 .728 430 5600 14.7 4.1 .758 469 6000 14.7 4.1 .771 499

5600 14.7 4.1 .758 469 6000 14.7 4.1 .771 499

Combined Rating @ Ground (lbs.)

(3)

6100 6 4.55 66.3 3.00 349/654/1174 3133

Main Leaf & Auxiliary Spring (Including Spacer)

Height of Spring @ Design Load (in.)

No. of Leaves

Total Thickness @ Pad (in.)

Main Leaf Only

Inside Dia. (in.)

OverallL ength (in.)

Wire Dia. (in.)

Width (in.)

Deflection Rate @ Ground (lbs. per in. ea.)

Deflection Rate (lbs. per in./ Spring)

(1) (2)

Rating Each @ Pad (lbs. per Spring)

F-250/F-350/F-450

SD Pickups

July 2007

F-250/F-350/F-450 SD PICKUPS

2008 F-250/F-350/F-450

Super Duty

Pickups

Technical Specifications cont’d

Tires and Wheels

TIRE SPECIFICATIONS

Tread

Size

LT245/75Rx17 A/S-BSW Continental 7.5/6.5 LT245/75Rx17 A/T-BSW & OWL BF Goodrich 7.5/6.5 LT265/70Rx17 LT265/70Rx17 LT275/65Rx18 LT275/70Rx18 LT275/70Rx18 LT275/65Rx20 225/70Rx19.5 A/S-BSW Continental 6.0 8.90 14/G 110 3970/3750 225/70Rx19.5 Traction-BSW Continental 6.0 8.90 14/G 110 3970/3750 225/70Rx19.5 Steer-BSW Michelin 6.0 8.90 14/G 110 3970/3750 (1) Tire and rim maximum width.

(2) Single rear wheel/Dual rear wheel:Rim Width and Load Rating. (3) Single rear wheel only. (4) Single front/Dual rear.

Sidewall

(3)

A/S-BSW & OWL Pirelli 7.5 10.71 10/E 80 3195 14.64 662

(3)

A/T-BSW & OWL BF Goodrich 7.5 10.71 10/E 80 3195 14.72 660

(3)

A/S-BSW Continental 8.0 10.98 10/E 80 3415 14.82 652

(3)

A/S-BSW Continental 8.0 10.98 10/E 80 3640 15.40 627

(3)

A/T-BSW & OWL Continental 8.0 10.98 10/E 80 3640 15.54 629

(3)

A/T-BSW & OWL Goodyear 8.0 10.98 10/E 80 3750 15.93 605

Type &

Tire Manufacturer

Rim Width (in.)

Section Width (in.)

(2)

9.76 10/E 80 3195/2910

(2)

9.76 10/E 80 3195/2910

(1)

Ply/ Load Rating

Inflation Press. (psi)

Max.

Load Limits @ Max. Inflation Press. (lbs.)

Static Loaded Radius (in.)

(2)

14.64 664

(2)

14.78 663

(4)

14.96 647

(4)

15.00 645

(4)

15.2 646

Revolutions Per Mile @ 45 mph

WHEEL SPECIFICATIONS

Wheel Type Wheel Size

Argent Painted Steel (F-250-F-350 SRW) 17″ x 7.5″ J 40 (1.57) 8 170 (6.7) 3195 Chrome-clad Steel (SRW) (F-250-F-350 SRW) 17″ x 7.5″ J 40 (1.57) 8 170 (6.7) 3195 Forged Polished Aluminum (SRW) (F-250-F-350 SRW) 17″ x 7.5″ J 40 (1.57) 8 170 (6.7) 3195 Premium Forged Aluminum (SRW) (F-250-F-350 SRW) 17″ x 7.5″ J 40 (1.57) 8 170 (6.7) 3195 Argent Painted Steel (F-250-F-350 SRW) 18″ x 8.0″ J 40 (1.57) 8 170 (6.7) 3525 Chrome-clad Steel (F-250-F-350 SRW) 18″ x 8.0″ J 40 (1.57) 8 170 (6.7) 3525 Premium Chrome-clad Steel (F-250-F-350 SRW) 18″ x 8.0″ S 40 (1.57) 8 170 (6.7) 3525 Forged Polished Aluminum (F-250-F-350 SRW) 18″ x 8.0″ J 40 (1.57) 8 170 (6.7) 3525 Premium Forged Polished Aluminum (F-250-F-350 SRW) 18″ x 8.0″ J 40 (1.57) 8 170 (6.7) 3525 King Ranch Painted Aluminum (F-250-F-350 SRW) 18″ x 8.0″ J 40 (1.57) 8 170 (6.7) 3525

SD Pickups

Polished Forged Aluminum (F-250-F-350 SRW 4x4) 20″ x 8.0″ J 40 (1.57) 8 170 (6.7) 3525

F-250/F-350/F-450

Argent Painted Steel (F-350 DRW) 17″ x 6.5″ J 142 (5.55) 8 200 (7.87) 3195 Harley-Davidson King Ranch Painted Aluminum (F-250-F-350 SRW 4x4) 20″ x 8.0″ J 40 (1.57) 8 170 (6.7) 3525 Forged Polished Aluminum (F-350 DRW) 17″ x 6.5″ J 142 (5.55) 8 200 (7.87) 3195 Steel (DRW) (F-450) 19.5″ x 6.0″RW 136 (5.35) 10 225 (8.85) 3750 Forged Polished Aluminum (DRW) (F-450) 19.5″ x 6.0″RW 127 (5.00) 10 225 (8.85) 3750

Transfer Case

TRANSFER CASE SPECIFICATIONS

Make and Model New Venture 271 New Venture 273

Application Manual Mechanical Shift Electric Shift (Rotary Control) Super Duty Series/Model F-250/F-350/F-450 Type 2-Speed Planetary Gears Lubricant Capacity (pt.) 4.0 Gear Ratio — High 1.00:1 Gear Ratio — Low 2.72:1 Case Material Aluminum

Nominal Inset mm (in.)

20″ x 8.0″ J 40 (1.57) 8 170 (6.7) 3525

No. of Studs

Bolt Circle mm (in.)

Capacity Load (lbs. @ ground)

Max. Wheel

July 2007

2008 F-250/F-350/F-450

F-250/F-350/F-450 SD PICKUPS

Super Duty

Pickups

Technical Specifications cont’d

Transmission

MANUAL TRANSMISSION SPECIFICATIONS

Make/Type 6-Speed Manual Overdrive Heavy-Duty — ZF

Engine All Ratios (to 1):

Low 5.79 1st 3.30 2nd 2.10 3rd 1.30 4th 1.00 5th .72 Reverse 5.23 Lubricant Capacity (liters) 6.0 Synchronizers All Gears Gears: Material Carburized Steel Type

Bearings: Input Shaft Tapered Roller Mainshaft

Countershaft

Mainshaft Gear Needle Rollers Reverse Idler Gear Needle Rollers Power Take-Off Data: Opening SAE 6-Bolt, LH Side Standard Gear ratio 1.696 (Constant Ratio) RPM @ 1000 engine RPM 630.66 (Countershaft RPM @ 1000 Engine RPM) Number of teeth 39 Pitch diameter (in.) 5.22 (132.652 mm) Module (in.) 2.75 Normal pressure angle 20° Helix angle 36° 3’ RH

Helical Low,1st, 2nd, 3rd, 4th, 5th & Reverse

—

Front Tapered Roller

—

Center Tapered Roller

—

— Rear Ball Bearing

Front Tapered Roller

—

— Center Tapered Roller

Rear Roller

—

F-250/F-350/F-450

SD Pickups

July 2007

F-250/F-350/F-450 SD PICKUPS

2008 F-250/F-350/F-450

Super Duty

Pickups

Technical Specifications cont’d

Transmission (cont’d)

AUTOMATIC TRANSMISSION SPECIFICATIONS

Make/Type Ford TorqShift® 5-Speed Automatic Overdrive

Ratios (to 1): 1st 3.11 2nd 2.22 3rd 1.55 4th 1.00 5th 0.71 Reverse 2.88 Converter Torque Ratio @ WOT Stall 2.2 (5.4L), 1.86 (6.8L, 6.4L) Fluid Capacity (qts.) 18.2 (5.4L), 19.0 (6.8L, 6.4L) Gear Set Spur Oil Cooler Oil To Air And In-tank Oil Filter Remote, Cartridge Type And Internal Converter Size & Type 12″ PCM Controlled Clutch Apply Power Take-Off Data: Opening SAE 6-Bolt, LH Side Optional Gear ratio 3.11 (1st) Pitch line diameter velocity @ 1000 engine rpm (ft./min.) 2226 RPM @ 1000 engine RPM 1000 Number of teeth 121 Pitch diameter (in.) 8.50 (215.985 mm) Normal pressure angle 17.989° Helix angle Spur

CLUTCH SPECIFICATIONS

Engine

Actuation Hydraulic Clutch Control Disc — Type Segmented (With Spring Damper F-450) Lining Material Woven Non-Asbestos Outside Diameter (approx. in.) 11.9 11.9 13.0 Inside Diameter (in.) 8.3 6.8 8.2 Facing Area (sq. in.) 114.2 149.8 159.9

SD Pickups

Facing Thickness (in.) .069 .069 .098

F-250/F-350/F-450

Pressure Plate Self-Adjust Total Plate Pressure (lb.) 2878 2878 3260

5.4L (330) SEFI V-8

6.8L (415) SEFI V-10

6.4L (390.5) V-8 Turbo Diesel

July 2007

2008 F-250/F-350/F-450

F-250/F-350/F-450 SD PICKUPS

Super Duty

Pickups

Special Applications

Pickup Box Delete/Removal

NOTE: Refer to the 2008 BODY BUILDERS LAYOUT BOOK. Also refer to the Weight Ratings Charts in this section.

Trailer Towing/Camper Information

NOTE: Refer to the 2008 RV AND TRAILER TOWING GUIDE.

Power Take-off

NOTE: Refer to the 2008 BODY BUILDERS LAYOUT BOOK. Also refer to the Transmission Specification Charts in this section.

Snowplow Installation/Minimum Required And Recommended Equipment

The Super Duty F-Series vehicles tabled below are available for snowplow usage.

Minimum Required Equipment

• Snowplow Package, includes:

— Front Spring/GAWR Upgrade (Refer to the Weight Ratings charts on pages 60–62 for specific spring/GAWR

selection for each model) — Unique fan clutch with higher disengagement speed (6.4L V-8 Diesel) — 200 Amp., 3000 Watt Alternator (6.4L V-8 Diesel)

• Plow and attaching hardware weight limits are as tabled below.

Recommended Equipment (Not Required)

• All-Terrain Tires and Roof Clearance Lights (Optional with SRW Pickup models)

Standard Equipment

• Front and rear stabilizer bar (Rear standard on Chassis Cab and DRW Pickup models)

• Roof Clearance Lights (Standard on Chassis Cab and DRW Pickup models)

• Steering Damper

• Engine oil cooler, auxiliary automatic transmission oil cooler and maximum capacity engine coolant radiator are standard

• All available axle ratios are acceptable

• Available with manual and automatic transmission. When snowplowing, operate automatic transmission with shift lever in overdrive position.

Vehicles Available For Snowplow Applications:

F-250-450 4x4 Pickup/Box Delete Models (With Driver And One Passenger)

F-250/F-350/F-450

SD Pickups

Cab Style Wheelbase Engine F-250 4x4

Regular Cab 137.0″ 5.4L V-8 100/750 100/750 100/750 —

6.8L V-10 100/750 100/750 125/900 —

6.4L V-8 Diesel 100/750 100/750 100/750 —

SuperCab 141.8″ 5.4L V-8 100/750 100/750 — —

6.8L V-10 100/750 100/750 — —

6.4L V-8 Diesel 100/750 100/750 — —

SuperCab 158.0″ 5.4L V-8 100/750 100/750 125/900 —

6.8L V-10 100/750 100/750 100/750 —

6.4L V-8 Diesel 100/650 100/650 100/650 —

Crew Cab 156.2″ 5.4L V-8 100/750 100/750 125/900 —

6.8L V-10 100/750 100/750 100/750 —

6.4L V-8 Diesel 100/650 100/650 100/650 —

Crew Cab 172.4″ 5.4L V-8 100/750 100/750 100/750 —

6.8L V-10 100/750 100/750 125/900 —

6.4L V-8 Diesel 100/550 100/550 100/550 100/750

LEGEND:100/750 = Maximum 100 lbs. of permanently attached hardware/Maximum 750 lbs. of removable plow blade and hardware. The plow and hardware weight limits shown are based upon a vehicle with maximum buildable Ford option content and 150 lbs. each for the driver and one front seat passenger.

July 2007

F-350 SRW 4x4

F-350 DRW 4x4

F-450 4x4

F-250/F-350/F-450 SD PICKUPS

2008 F-250/F-350/F-450

Super Duty

Pickups

Special Applications cont’d

SPECIAL APPLICATIONS

Snowplow Installation/Minimum Required And Recommended Equipment

Completed Vehicle Weight

The weight of the completed vehicle with equipment installed (and second unit body, if applicable) must not exceed the Front GAWR, Rear GAWR, or GVWR established by Ford, with consideration for the driver and one front seat passenger. If sufﬁcient weight is added such that the completed vehicle with a driver and more than one passenger would exceed Front GAWR, Rear GAWR, or GVWR, it is the responsibility of the equipment installer to notify the customer of the appropriate use restrictions. (i.e.: That the user should limit occupancy of the vehicle to the driver and one passenger while the equipment is installed.) The addition of ballast weight, placed rearward of the rear axle, may be required to prevent front end overloading or exceeding Front GAWR. If required, the ballast weight must be securely attached to the vehicle. For Ford completed vehicles of 10,000 lbs. GVWR or less, the weight of permanently attached equipment must not exceed the Total Accessory Reserve Capacity (T.A.R.C.) as speciﬁed on the Safety Compliance Certiﬁcation Label. Permanently attached equipment includes the snowplow frame-mounting hardware, and does not include the removable snowplow blade assembly. Exceeding T.A.R.C. will require recertiﬁcation.

Front End Wheel Alignment and Headlight Aim

Front end wheel alignment (toe) and headlight aim may require readjustment after installation of equipment, and is the responsibility of the equipment installer. Failure to reset front wheel alignment may cause premature uneven tire wear. If required, reset to chassis manufacturer’s speciﬁcations found in the Ford Shop Manual.

Electrical Connections

Installation of any inductive load devices (i.e., electric motors, electric clutches for clutch pumps, etc.) MUST NOT be connected to OEM wiring or fuse panels. Power for such devices should be taken directly from the battery or starter motor relay power terminal. Control of these devices should be achieved via relays. No direct current path should exist between OEM wiring and the installed load that is not ﬁltered by the battery. These recommendations are intended to reduce or eliminate any induced reverse voltage into the OEM circuitry.

Warranty

The Normal Ford New Vehicle Limited Warranty applies to vehicles with snowplows installed in accordance with these guidelines. Consult your Ford dealer or the Owner’s Guide for any further questions.

SD Pickups

F-250/F-350/F-450

July 2007

2008 F-250/F-350/F-450

Super Duty

Actual Regular Production Option

Pickups

Content Weight

F-250/F-350/F-450 SD PICKUPS

(Front/ Total)

Option Weight

TIRES & WHEELS:

LT245/75R17E All-Terrain (F-250) (18/46) LT245/75R17E All-Terrain (F-350 DRW) (18/64) LT265/70R17E All-Terrain (F-350) (25/63) LT275/65R18E All-Season (F-350) (29/72) LT275/70R18E All-Season (F-350) (31/77) LT275/70R18E All-Terrain (F-250) (39/97) LT275/70R18E All-Terrain (F-350 SRW) (10/25) 225/70Rx19.5G Traction or Max Traction

(F-450-550) LT275/65R20E All-Terrain (F-250-350 SRW) (28/56) Wheels, 17″ Forged Polished Aluminum

(F-350 DRW) Wheels, 18″ Argent Painted (F-350 SRW) (13/33) Wheels, 18″ Forged Polished Aluminum

(F-350 SRW) Wheels, 18″ Premium Forged Polished Aluminum

(F-250) Wheels, 19.5″ Forged Polished Aluminum

(F-450-550) Wheels, 20″ Forged Polished Aluminum

(F-250-350 SRW) 18″ Spare Tire & Wheel (F-350 Chassis Cab) (19/105) Spare Tire & Wheel (F-250-350 Pickup

Box Delete) Spare Tire & Wheel (F-450-550) (21/110)

PACKAGES:

Advanced Security Lock Group (2/2) Ambulance Prep Package (Requires 6.4L Diesel) (65/67) Camper Package (SRW Pickup) Convenience Package (3/4) Heavy Service Suspension Package (0/0) King Ranch Package (57/93) Harley Davidson (Crew Cab) (2/62) Lariat Trim (SuperCab) (19/34) Lariat Trim (Crew Cab) (19/39) Power Equipment Group (15/21) Skid Plate Package (Pickup) (34/61) Snowplow Prep Package (0/0) Stabilizer Package (2/28) Trailer Tow Prep Package (XL, XLT Chassis Cab) (0/2) XL Decor Group (-3/-4) XLT Sport Package XLT Trim — Regular Cab (12/21) XLT Trim — SuperCab (14/26) XLT Trim — Crew Cab (18/29) FX4 Trim — Regular Cab (12/21) FX4 Trim — SuperCab (14/26) Sub-Total: (Front/Total) _____/____

(1) Add (0/33) on F-250 Pickup only for weight of

auxiliary rear spring.

(2) Add weight of XLT trim.

(2)(3)

(1)

(lbs.)

(5/12)

(-32/-64)

(-34/-68)

(-36/-72)

(-52/-104)

(-2/-4)

(-20/97)

(2/28)

(34/54)

(Front/ Total)

Option Weight

PACKAGES (Cont’d):

FX4 Trim — Crew Cab (18/29)

OPTIONS:

Adjustable Pedals (4/7) Air Conditioning (44/41) Airbag Delete (Chassis Cab) (-10/-11) Alternators, Dual (21/21) Axle, Limited Slip Rear (0/5) Bed Extender (-2/25) Cab Steps, Platform-Type — Regular Cab (17/30) Cab Steps, Platform-Type — SuperCab (24/43) Cab Steps, Platform-Type — Crew Cab (28/47) Cab Steps, 4” Tubular-Type (21/35) Cab Steps, 5” Tubular-Type (26/44) Carpet Delete (3/3) Cruise Control/Tilt Wheel (3/4) Electricshift Transfer Case (F-250/F-350/F-450) (3/3) Floor Mats, All Weather — Regular Cab (3/5) Floor Mats, All Weather — SuperCab (3/6) Floor Mats, All Weather — Crew Cab (6/10) Fog Lamps (2/2) Fuel Tank, 19 Gal. Midship In Lieu Of Standard

Tank (Gas Engines) (Chassis Cab) Fuel Tank, 19 Gal. Midship In Lieu Of Standard

Tank (Diesel Engine) (Chassis Cab) Fuel Tank, 19 Gal. Midship In Addition To

Standard Tank (Diesel Engine) (Chassis Cab) Heater, Engine Block (1/1) Heater, Supplemental Cab (13/24) Lights, Roof Clearance (1/1) Lights, Daytime Running (2/2) Mirrors, Power Aero (1/1) Mirrors, Manual Trailer Tow (9/11) Mirrors, Power Trailer Tow (9/12) Moldings, Bodyside (2/3) Moonroof, Power Slide (30/51) Paint, Two-Tone (1/3) Power Driver Seat (3/4) Power Passenger Seat (3/4) Radio Delete (-4/-5) Radio — AM/FM Stereo/Single CD (4/6) Radio — AM/FM Stereo/Cassette/Single CD (5/7) Radio — AM/FM Stereo/6-Disc CD (9/17) Radio — Navigation (14/25) Radio — Satellite (2/3) Rear-seat DVD Entertainment System (4/7) Receiver, Trailer Hitch (12,500 Lbs.) (-11/49) Sub-Total: (Front/Total) _____/____

(lbs.)

(72/-181)

(69/-195)

(44/195)

F-250/F-350/F-450

SD Pickups

July 2007

F-250/F-350/F-450 SD PICKUPS

2008 F-250/F-350/F-450 Super Duty

Actual Regular Production Option Content Weight cont’d

(Front/

Option Weight

OPTIONS cont’d:

Receiver, Trailer Hitch (15,000 Lbs.) (-13/56) Remote Keyless Entry (1/1) Reverse Vehicle Sensor System (0/1) Seat, SuperCab Rear Bench Delete (-21/-62) Seat, Crew Cab Loadfloor Rear (33/75) Seat, 40/20/40 Bench (XL) (28/53) Seats, Bucket (XL) (10/15) Seats, Captain's Chairs

(Regular Cab/SuperCab) Seats, Captain's Chairs (Crew Cab) (34/71) Seats, Heated (3/4) Skid Plate, Transfer Case (Chassis Cab) (16/18) Tailgate Step (-10/40) Window, Manual Sliding Rear (3/4) Window, Power Sliding Rear (4/7) Sub-Total: (Front/Total) _____/_____ Plus Sub-Total: (From 1st Column) Line A) Total Actual Option Content Weight:

(Front/Total) Sub-Total: (Front/Total)

Maximum Payload Rating Weight Less Total Actual Regular Production Option Content Weight (from Line A above) = Net Payload

(1) spring. (2) Add weight of XLT trim. (3)

Total) (lbs.)

(10/21)

_____/_____

Pickups

SD Pickups

F-250/F-350/F-450

July 2007
