Sirius Satellite Radio EQ-SIRCBL, EQ-SIRRCV, EQ-SIRANT User Manual

Satellite Music for Your Business
Business Equipment Package
Owner's Manual and Installation Instructions
4091 AMTC Center Drive Clearwater, Florida 33764.6976
)
&
727.531.3105 727.531.3965
sales@amtc.com www.amtc.com
Limited Warranty
Applied Media Technologies Corporation ("AMTC") warrants this product against defective material and workmanship for a period of one year from the date of purchase. Except as specified below, this warranty covers parts and labor. The following are not covered by this warranty:
1. Damage, deterioration, malfunction or failure to meet performance specifications resulting from: a) Accident, acts of nature, misuse, abuse, neglect or unauthorized product modification. b) Improper installation, removal or maintenence, or failure to follow the instructions contained in the manual. c) Repair or attempted repair by anyone other than AMTC. d) Any shipment of this product (claims must be presented to the carrier). e) Any cause other than a product defect.
2. Cleaning, initial setup, check-ups with no defects found, or charges incurred for installation, removal or reinstallation of the product.
3. Any product on which the serial number has been defaced, modified or removed.
4. Accessories, including but not limited to, cables, mounting shelves or stands, detachable power cords, and timer units.
5. Any product purchased outside the U.S.A., its possessions or territories.
6. Compatibility of this product with any particular interface.
This warranty may be enforced only by the original purchaser. In the event this product needs service, contact AMTC at 1.800.741. AMTC (2682). We will advise you of proper procedure. Please do not return the product to AMTC without prior authorization. Whenever warranty service is required, you may be required to present original proof of purchase.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to the length of this warranty. Liability for any defect is limited to repair or replacement of this product at the option of AMTC. AMTC shall not be liable for damage to other products caused by defects in this product, damages based on inconvenience or loss of use of this product, or any other damages, whether incidental, consequential or otherwise.
Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This warranty is enforceable only inside the U.S.A., its possessions and territories.
FCC Warning:
This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in this user guide. The user could lose authority to operate the equipment if an unautho­rized change or modification is made.
This equipment has been tested and found to comply with Part 15 of the FCC rules. These rules are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications if it is not installed and used in accordance with these instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the unit on and off, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult AMTC for further technical assistance.
2
Check Package Contents:
Receiver (Model EQ-SIRRCV) - Box includes:
Commercial antenna (Model EQ-SIRANT) 100 ft. low-loss commercial coaxial antenna cable (Model EQ-SIRCBL)
Placement and Mounting of the Antenna
You will need the following to complete the installation:
• electric drill
• 3/8” drill bit suitable for the construction material used in the exterior walls of your building (e.g.; masonry, metal, wood, etc.)
• (4) 3/16” fasteners suitable for the construction material used in the exterior walls of your building
• driver bit for selected fasteners
• caulk
1. Determine antenna mounting location. The best location for your antenna is on the roof of your building. If this is inconvenient, acceptable reception may often be achieved by mounting the antenna on an exterior sidewall. Due to the unique paths of the SIRIUS satellites, the proper sidewall will depend on where you are located. Please reference the following chart to identify the optimum antenna placement:
Area 1: Place the antenna at an EAST-FACING sidewall. Area 2: Sidewall mounting not recommended. Antenna should be mounted on roof away from any obstructions. Area 3: Place the antenna at a WEST-FACING sidewall. Area 4: Place the antenna at a NORTH or EAST-FACING sidewall. Area 5: Place the antenna at a NORTH-FACING sidewall. Area 6: Place the antenna at a WEST or NORTH-FACING sidewall.
Receiver Mounting Bracket (2 pieces) 120VAC to 12VDC 1.2A wall adapter 6-ft.stereo audio cable with 3.5mm stereo plug and dual RCA plugs 25cm dual RCA female to single RCA male (stereo to mono) adapter cable RCA female to 1/4" male mono adapter Earbuds
Remember that SIRIUS Satellite Radio is a LINE OF SIGHT technology. There must be a clear view from the antenna to the satellite, with no blockage by surrounding buildings, dense trees, etc.
As an alternative to mounting the antenna to a flat surface using fasteners, the antenna is designed to easily mount to an existing 1 3/4” diameter antenna mast. Pole clamps are provided for this purpose.
NOTE: Do not permanently attach your antenna immediately. Because the SIRIUS satellites orbit over the United States, it is possible that an antenna placement that achieves good signal strength at one time of day will not maintain good signal strength at other times of the day. Monitor signal strength for at least one full day before making your antenna placement permanent.
2. Uncoil the 100 ft. low-loss coaxial antenna cable and attach to the connector on the underside of the antenna using the THREADED plug.
IMPORTANT!: When “pulling” the cable, DO NOT GRAB/PULL BY THE CONNECTORS! Pull /grab the cable itself. Failure to heed this warning could result in the connectors pulling off the cable!
3. Drill a hole 3/8” in diameter in the building exterior to allow the antenna cable to be routed into the building. Once the excess cable is pulled inside the building, caulk around the cable to create a water-tight seal.
3
4. Plug the NON-THREADED connector on the antenna cable into the receptacle labeled ANTENNA on the upper right end of the receiver. If you must increase the distance between the antenna and the receiver, we stock 50-foot amplified extension cables (AMTC P/N EQ-SIR50X) for $39.95 (+ $5.00 S/H). Up to two of these may be daisy-chained together for a total extension of 100 feet. IMPORTANT!: To unplug
the antenna cable, grab the CONNECTOR and pull firmly. DO NOT PULL BY THE CABLE! Failure to heed this warning could cause the connector to become detached from the cable.
Positioning the Receiver and Connecting to Your Amplifier
The receiver should typically be positioned as close as possible to the amplifier into which it will be connected. The provided audio cable is 6 feet long. If you prefer to position your receiver further than 6 ft. from your amplifier, we stock inexpensive 25-foot audio extension cables, as well as couplers to "daisy-chain" the extension cables. Our labs have tested daisy-chaining four extension cables, for a length of 100 feet, with no noticeable loss of signal. Call AMTC at 800-741-AMTC(2682) for further information or to order.
Connect the 3.5mm stereo plug on the provided audio cable to the receptacle labeled “AUDIO OUT” on the lower right end of the receiver.
3.5mm stereo plug
If your amplifier is stereo: Connect the dual RCA plugs of the provided audio cable into the L and R auxiliary inputs of your amplifier. Do NOT connect to the PHONO input.
dual RCA plugs
If your amplifier is mono: Connect the dual RCA plugs of the provided cable into the dual jacks of the provided 25cm dual RCA female to single RCA male (stereo to
mono) adapter cable:
25cm dual RCA female to single RCA male (stereo to mono) adapter cable
Connect the single RCA plug into the RCA input jack of your amplifier. If your amplifier has a 1/4” input jack, use the provided RCA female to 1/4" male mono adapter:
RCA female to 1/4" male mono adapter
Connecting Power
A 12VDC 1.2A power adapter is provided with the receiver. The adapter should be plugged into the jack labeled “DC12V” on the upper left end of the receiver, and into 110-120 VAC wall power. Avoid using a circuit also powering any heavy equipment or appliances, particularly air conditioners or refrigeration equipment. We highly recommend that you use a quality surge protection device to protect your receiver.
4
Receiver Controls and Features
1. Button: Turns receiver on and off.
2. Channel Switch (CHAN) & Select Button: Navigates through channels & display screens and makes selections of items highlighted on the display. Pressing up increases or moves up in the menus. Pressing down decreases or moves down in the menus. Pressing in duplicates the function of the Select button.

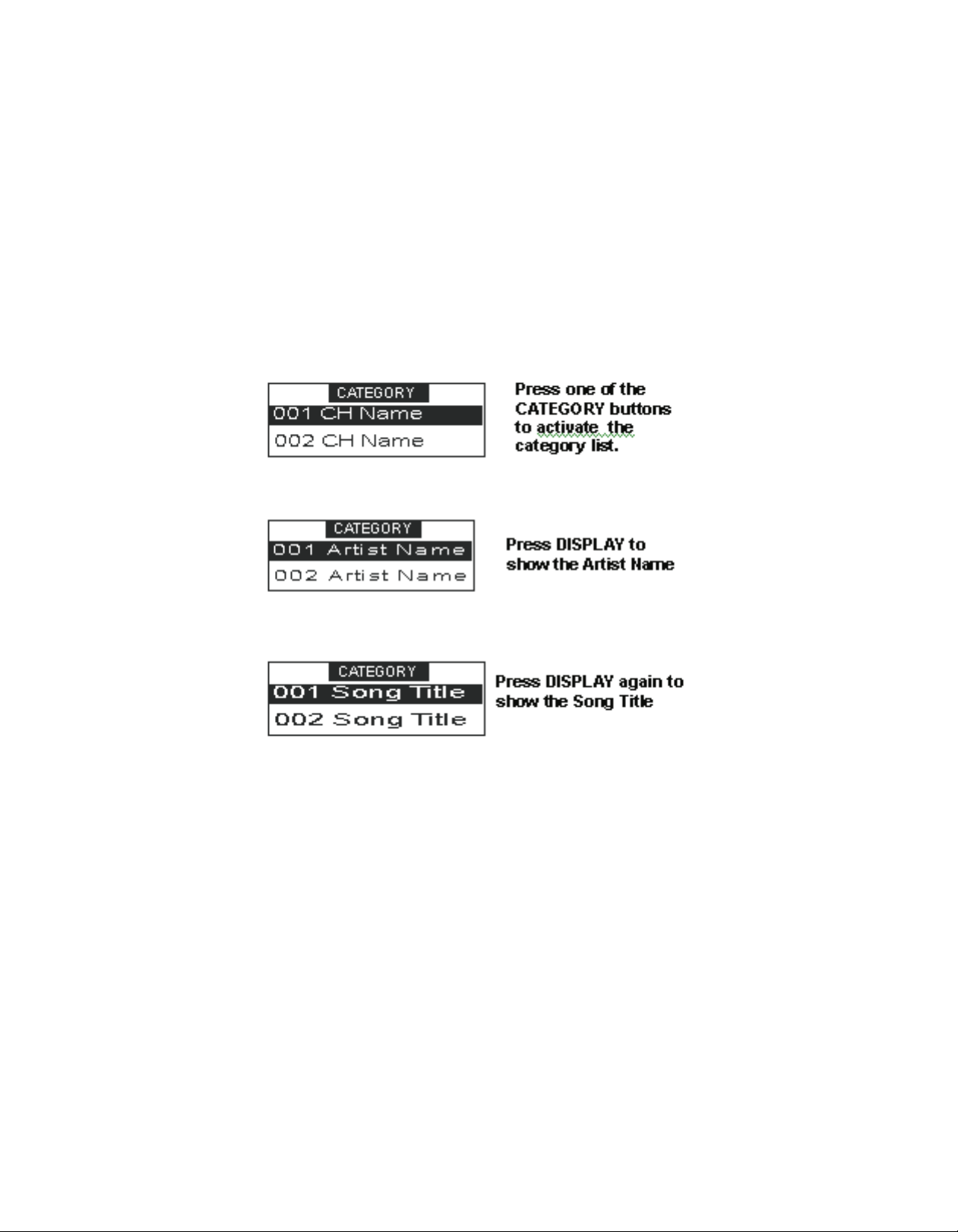

3. < > Buttons: Navigates through Category List Screen which displays SIRIUS Channel Categories.

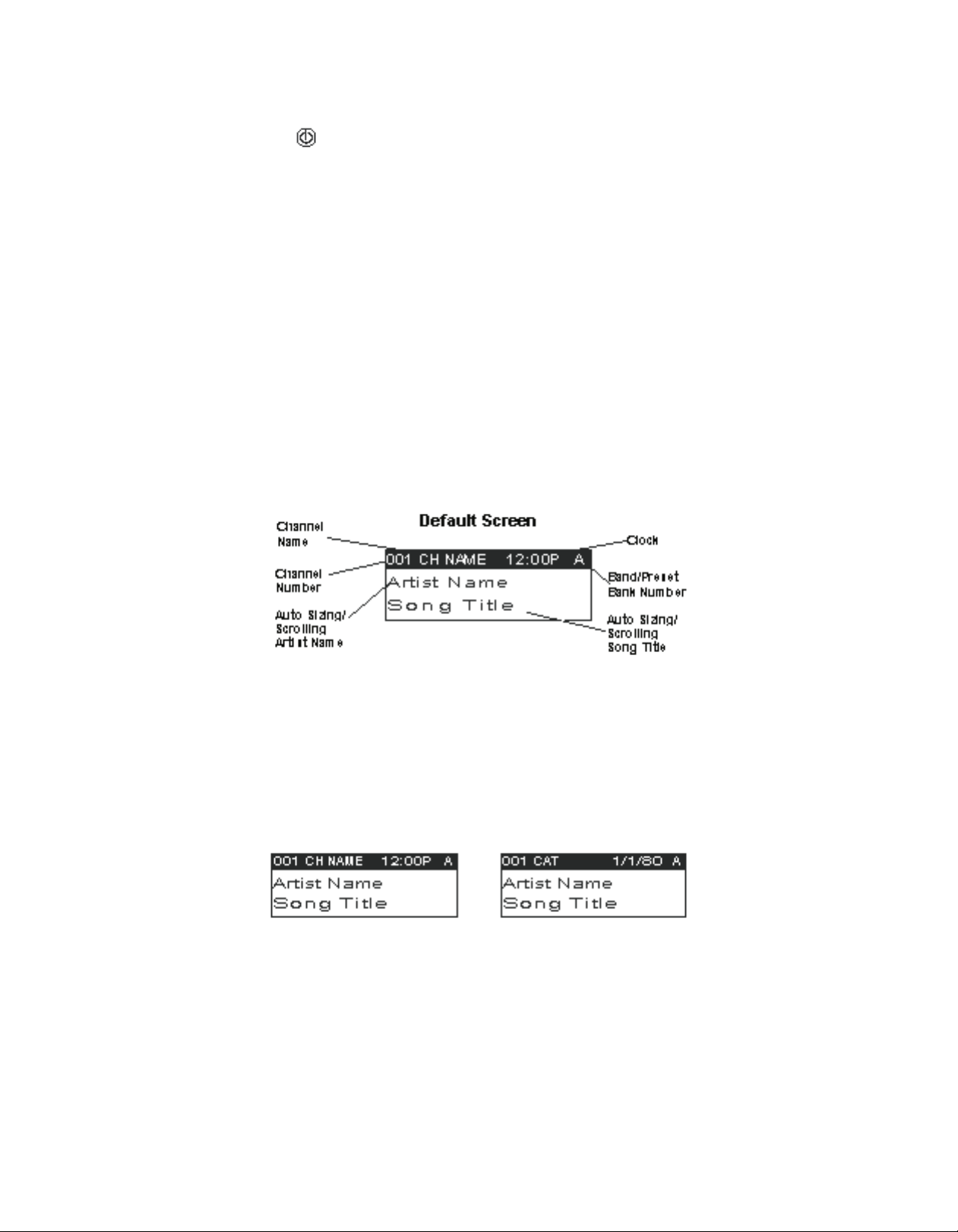

4. Display Button: Toggles display between category/channel name and time/date.
5. Menu Button: Used to access menu options to make setup and feature changes.
6. Select Button: Selects an option on the screen.
7. Preset Number Buttons (0-6): Sets and selects preset channels.

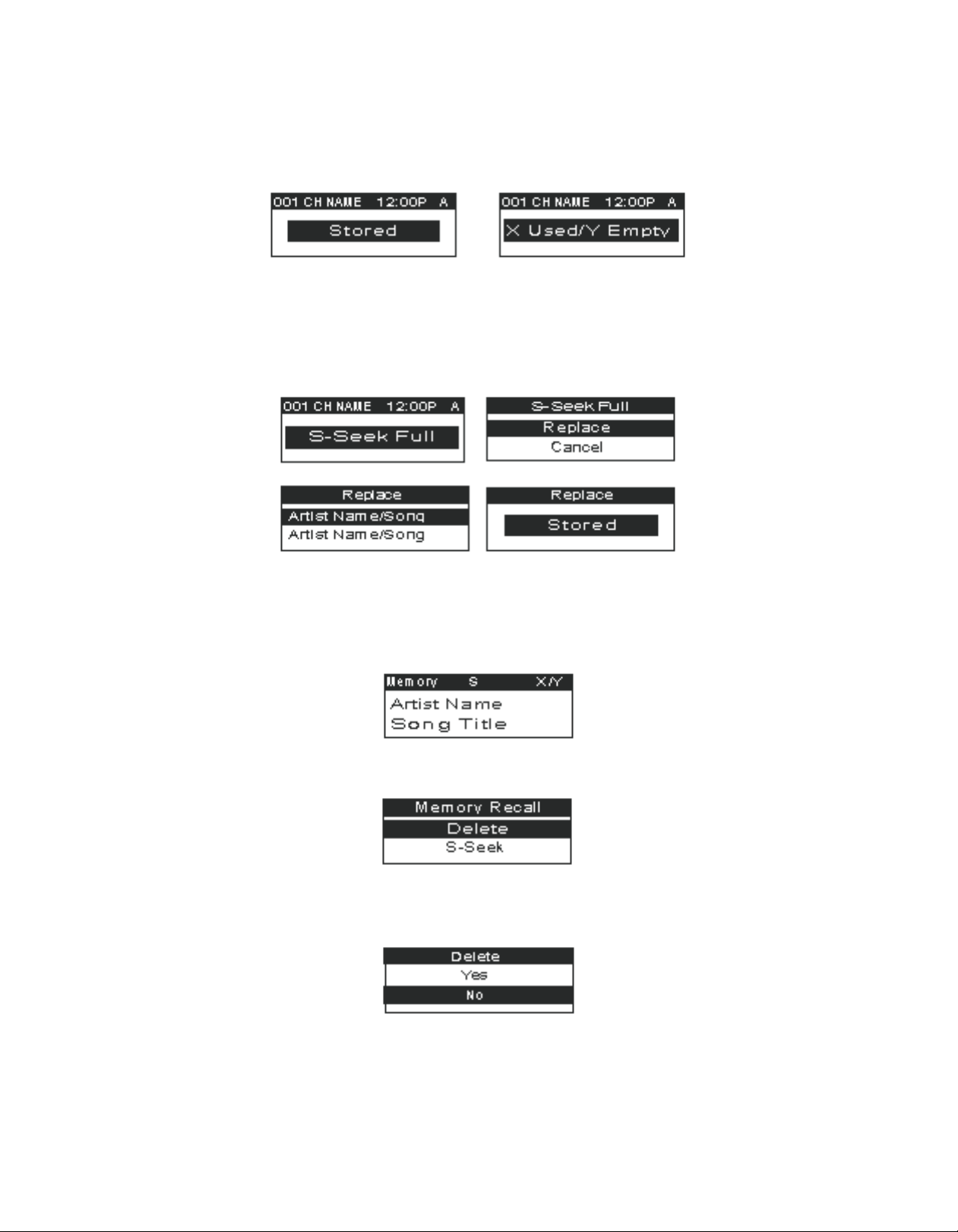

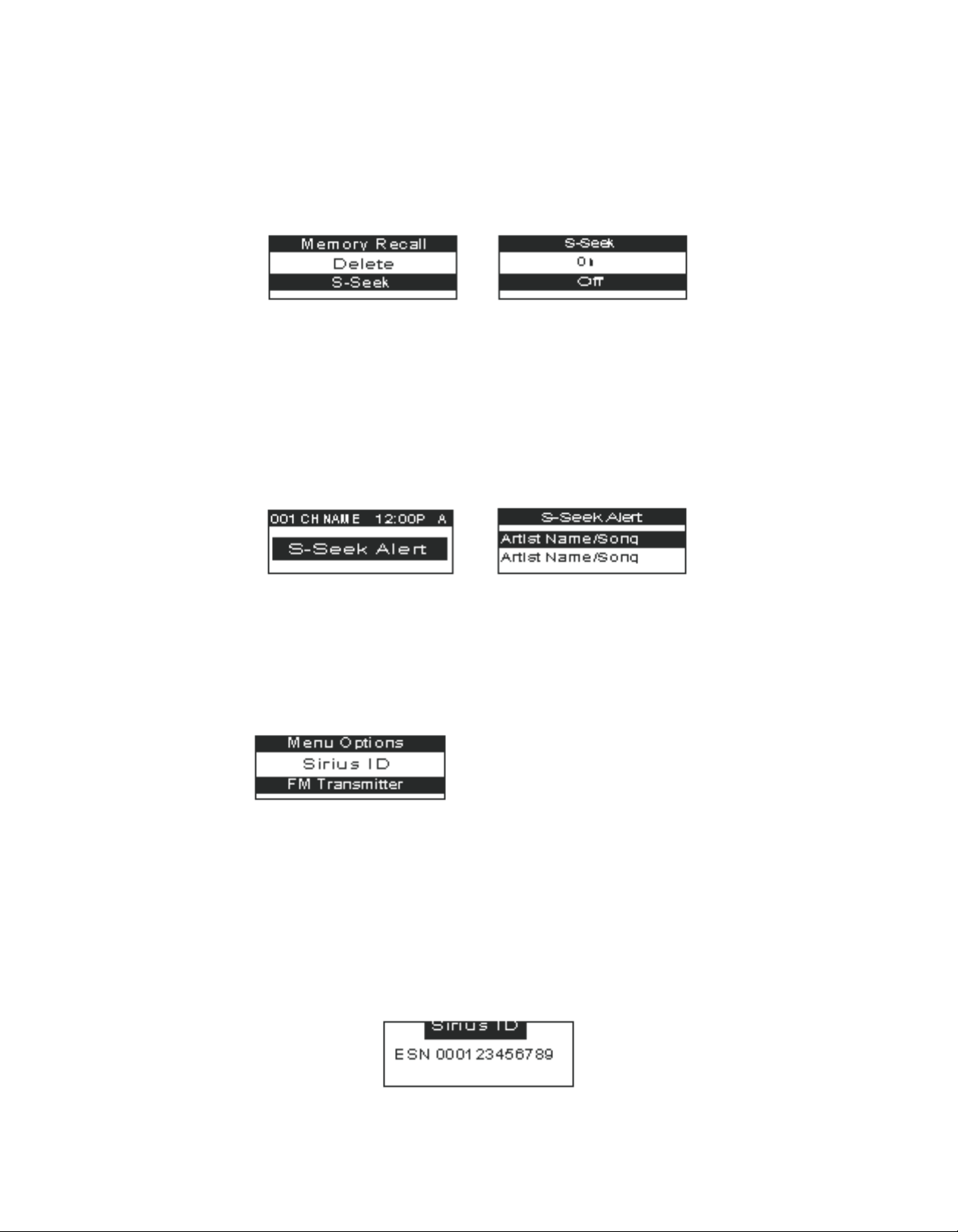

8. Memory (MEMO) Button (S-Seek Function): Saves and recalls artist names and song titles. You can store up to 20 artist/song title combinations.

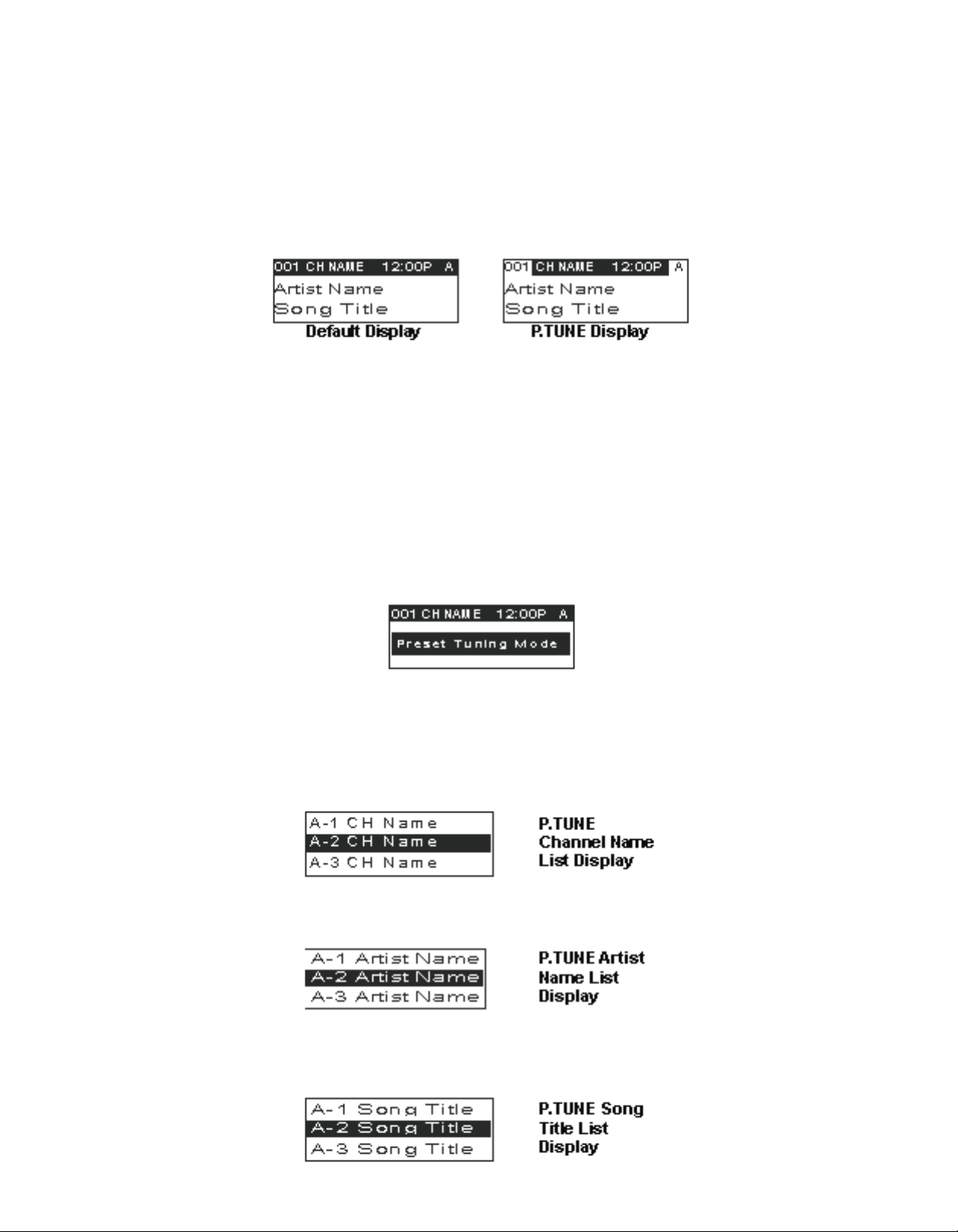

9. Band Button (P.Tune): Pressing and releasing switches between the five preset banks (A... E), which hold six presets each. Pressing and holding enables “Preset Tune Mode”, which allows for viewing and listening of stored presets with the Channel Switch.
10. Remote Control Receiver: Receives signals from wireless remote control (sold separately).
11. DC 12V: Input jack for cigarette lighter adapter or 12V DC power supply.
12. FM OUT: FM Output for use with wired FM switch box accessory (sold separately).
13. ANTENNA: Input jack for SIRIUS antenna.
14. VOL: Volume control for audio out jack.
15. AUDIO OUT: Audio line output or headphone jack.
5
