STREAMER BOOM BOX
SIR-STRPKI User Guide
FCC Regulations
This unit complies with the interference limits relative to a Class B digital device, applicable under Part
15 of the FCC Rules regarding installation in a residential environment. If the unit is not installed in
accordance with these instructions, it could cause harmful interference to audio or television reception. If
this condition persists after corrective action, consult your dealer or experienced installation facility
Cautions and Warnings
1. Within the home, do not install the Streamer Boom Box in a position that obstructs viewing of
any home entertainment component, such as Television, or stereo system indicators and
displays
2. Do not install or use the SIR-STRPKI in locations exposed to direct sunlight, or in areas
subject to extreme temperatures; do not operate the unit in moist areas, in rain, or in areas
adjacent to water such as pools, hot tubs, etc.
3. When outdoors, position the SIR-STRPKI and antenna where there are no obvious satellite
signal obstructions such as high terrain, trees, overhangs, etc.
4. When installed indoors, unplug the AC Power Adapter from the wall outlet when the SIR STRPKI is not to be used for an extended period of time. If batteries are installed, set the
Power On/Off-VOL control to t he Off position to prevent unintentional battery discharge, or
remove the batteries
5. To avoid possible damage to the Streamer Boom Box caused by battery leakage, it is
recommended that the batteries be removed when the Boom Box is not being used for an
extended period of time.
6. Do not install or place the SIR-STRPKI on an inclined or unstable surface.
7. By adhering to these warnings and safety considerations, serious accidents and/or personal
2
injury can be avoided.
Streamer User Guide
User/Install Manual
DC Power Adapter
Boom Box
PHONES
SAS
AUX
AUX
Antenna
VOL
OFF
Installation/Wiring Precautions
1. If using the adapter, make sure the adapter cable
is not connected to an AC wall outlet until all inter connections have been made and verified. The
adapter power cable should be connected last.
2. Incorrect installation may cause damage to the
system.
3. During antenna placement/installation, refer to the
Antenna Aiming procedure outlined in the Shuttle
User Guides.
Setting Up and Installing Your Kit
NOTE: The SIRIUS® signal can be received and
processed virtually anywhere as long as there
are no obvious satellite signal obstructions
such as high terrain, trees, overhangs, etc.
However, signal reception depends mainly on
where you are, geographically, and where
this place is with respect to the orbital paths
of the Sirius satellites. In placing the antenna,
therefore, these factors must be taken into
account.
Streamer User Guide
3
Boom Box SIR-KH1 Controls
The Brix Sirius® Boom Box SIR-STRPKI provides
two contro buttons, a Power On/Off -Volume
control, and a pushbutton to toggle between
Satellite Radio or an auxiliary audio input signal.
A power-on LED is also
located on the front panel
1. PHONES: Jack: Accepts a stereo headphone
jack to provide private listening capability for
the Boom Box.
2. MODE Selector Pushbutton: Pushbutton
toggles between Satellite Radio and a
external audio input signal (MP3, CD, etc.)
present at the AUX input jacks
3. AUX Jack: Accepts an audio input signal
from an external audio device. When
using the AUX audio
6
input, turn the Streamer
Off to preserve batttery
power. Adjust the
VOL
SAS
AUX
AUX
PHONES
OFF
volume level of the
2
4
3
external audio device
1
5
to obtain an audio output from the SIR-KH1.
The volume control on the external audio
device should be set to mid-range.
4
4. Power On/Low Battery LED: The LED
lights green when the Power On/Off SwitchVOL control s rotated clockwise (CW) to the On
Position. In addition, the LED will light red to
alert the user that the batteries are nearly dis
charged. This condition may cause degraded
performance of the SIR-STRPKI.
5. Power On/Off Switch-VOL Control:
Applies power to the Boom Box when rotated
clockwise (CW) from the Off position. When in
On position, increase or decrease the volume of
the audio output signal from the SIR-STRPKI.
To increase the volumen level rotate the
control CW. To decrease the volume level,
rotate the controlcounterclockwise (CCW)
6. Release Installation: Press this button to
release and remove the Streamer from the SIRSTRPKI cradle
Streamer User Guide

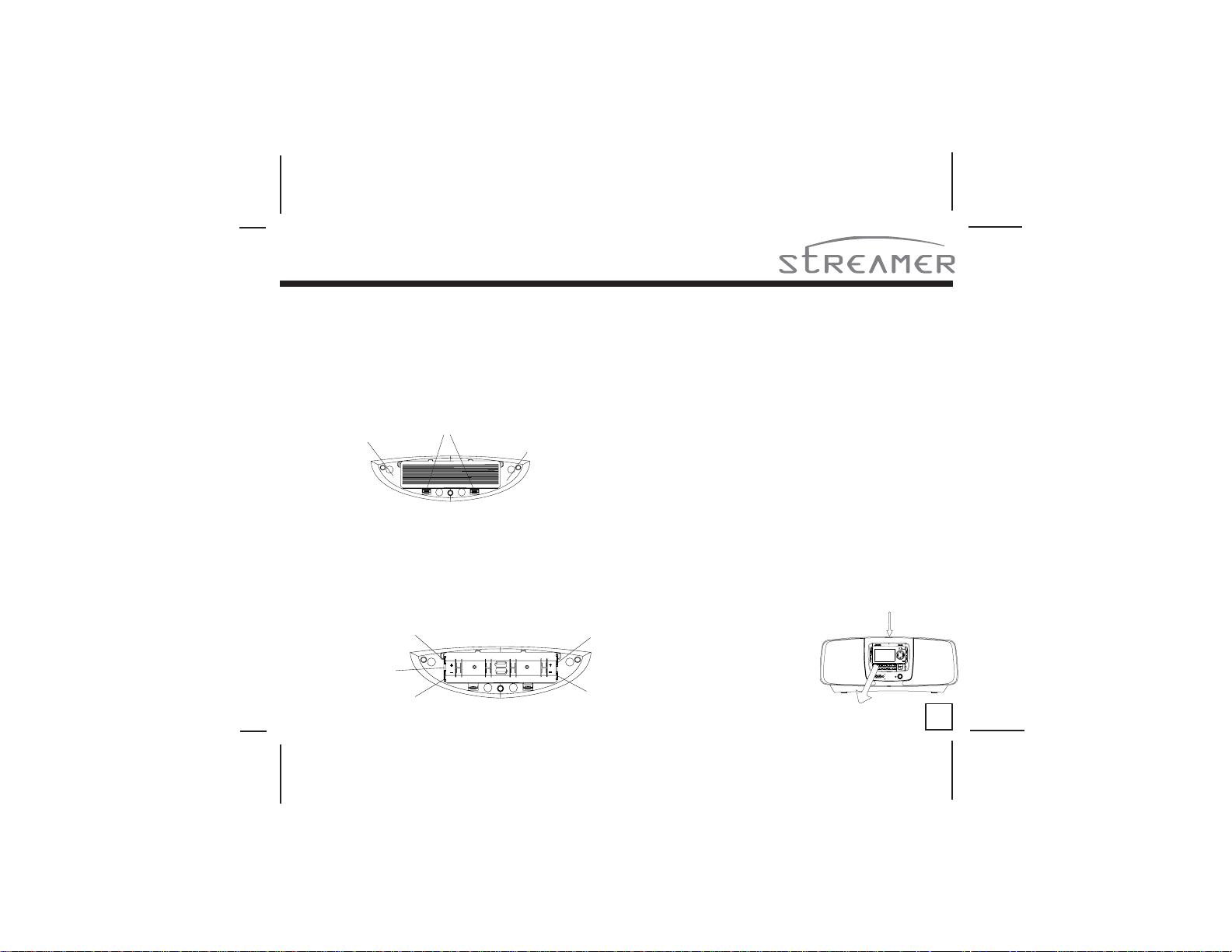

1. Battery Installation
Your Boom Box Can operate independently of AC
power by installing 8 D-Cell batteries as follows:
NOTE: The batteries are bypassed automatically
whenever the supplied AC Adapter is
plugged into the DC 12V jack on the back
panel.
BATTERY
COMPARTMENT
COVER
1. Turn the Boom Box upside down to access
the battery compartment
2. Push the battery cover latches forward and
flip up the battery compartment cover to
the open position
3. Insert eight (8) D-Cell batteries observing
battery polarity as shown; then close the cover
Battery
COMPARTMENT
(COVER REMOVED)
BATTERY COMPARTMENT
COVER LATCHES
OPEN
POSTIVE
1.5V Size D
1.5V Size D
NEGATIVE
BOTTOM OF
BOOM BOX
NEGATIVE
POSTIVE
Streamer User Guide
2. Cabling Interconnections
You can begin to enjoy Sirius® Satellite Radio
as soon as the Streamer and Boom Box Kit
installation are complete. Set up your Brix
SIR-STRPKI by following the interconnect
diagram.
3. Installing the Streamer in the SIR-STRPKI
Place the Streamer in the cradle so that the
Streamer guides are lined up with the SIR STRPKI cradle. Then push the Streamer
forward to engage the connectors. The
Streamer will snap into place. Apply power to
the SIR-STRPKI by rotating the VOL
control
clockwise from the off position; the LED
indicator lights green. If the Streamer does not
turn on at the same time, press the red Power
On/Off button in the upper left corner of the
Streamer front panel.
4. Removing the Streamer From the SIR-STRPKI
Press and hold the eject button on
top of the Boom Box;
the Streamer will partially
eject forward. Using your
thumb and forefinger, grasp
VOL
SAS
AUX
AUX
PHONES
OFF
the Streamer on the sides
and pull up to disengage,
5
Interconnect Diagram
SAT.(MAIN)
RF CONNECTOR
SAS
AUX
AUX
PHONES
16-PIN SYSTEM
CONNECTOR
VOL
OFF
5. Installing/Positioning the Antenna
For best reception, the supplied antenna should
be placed near a window if in the house or, if
outdoors, in an open area and as high as
possible; some repositioning may be required
to achieve optimum results. The following
guidelines are recommended:
a. In a major city, where Sirius®
repeaters
are present, you can usually
ground
place the antenna away from a window
and still achieve the desired results.
You can also place the antenna outside
b.
(on the
roof structure), provided it is
clear of any overhead obstructions.
Because of the orbiting characteristics
of the Sirius Satellites, the strength of
the received signal may change over
6
Streamer User Guide
time. In most cases however, the signal should be
available continuously. If you experience a loss of
signal or audio, reposition the antenna inside the
home or outside as necessary.
6. Antenna Placement Considerations
The antenna should be placed on a relatively flat
surface whenever possible. When outdoors, the
antenna may be left in its mount atop the Boom
Box provided no overhead obstructions are present.
To mount the antenna:
a. Plug the antenna into the ANT connector on the
back of the SIR-STRPKI.
b. Leave the antenna in place on the Boom Box,
or remove the antenna from its mount, uncoil
the antenna lead, and place it at the preferred
location inside or outside the home. If no audio
is heard, move the antenna to different positions
on the surface until an audio output is heard. This
is the desired antenna position and, if indoors,
should be marked.
c. After determining the optimum position, turn
off SIR-STRPKI and Streamer power. Disconnect
the power adapter from the wall outlet receptacle
(if indoors) and disconnect the antenna cable.
d. Plan the routing of the antenna cable to the SIR STRPKI ANT input when indoors. Make sure you
avoid any obstructions that could crimp, kink or twist
the cable; use protective grommets wherever rough
openings are encountered. If the antenna is mounted
outside, route the cable from the antenna position to the
interior of the home, working the cable through the
basement, under a window sill, etc.; make
adjustments and take up slack whenever necessary.
e. If outdoors, either leave the antenna in place atop
the SIR-STRPKI, or remove the antenna and find a
location free from overhead obstructions such as
tree branches, or the roof of a tent or other
temporary shelter.
f. Plug the antenna cable into the ANT connector on
the back of the SIR-STRPKI.
g. If not using battery power as the primary power
source, plug the female end of the DC adapter
cable into the DC 12V receptacle on the rear of the
SIR-STRPKI.
h. Plug the other end of the DC adapter cable into a
110-volt receptacle. Apply power to the Boom Box
and Shuttle.
i. You are now ready to enjoy Sinus programming
outdoors or within your home.
Streamer User Guide
7
Specifications
Nominal Output Power per Channel
Total Harmonic Distortion (THD)
Frequency Response
Signal-to-Noise Ratio
Speaker Impedance
Headphone Output Impedance
Headphone Output Level
Headphone Connector Type
Auxiliary Input Impedance
Auxiliary Input Level
Auxiliary Connector Type
Equalizer Frequency
Overall SIR-STRPKI Dimensions
Overall AC Adapter Dimensions
SIR-STRPKI Weight
5.0 Watts Rms
0.3% at 1 Watt
30Hz to 20kHz
>65dB Maximum
8 Ohms Nominal
32 Ohms
500 mV (Maximum)
3.5 mm Stereo Jack
6K-Ohms Nominal
2.0 Volt s (Maximum)
3.5 mm Stereo Jack
-6dB Nominal at 2.5kHz
19"Wx6.9"Dx7.8"H
484.9mmW x 175.68mmD x 198.36mmH
4.7" Hx 2.5"Dx3.15"W
120mmH x 63.5mmD x 80mmW
5.88 Lbs. (2670 Grams)
8
Streamer User Guide
Maintenance
Periodic Inspection
The SIR-STRPKI Boom Box should be inspected periodically for external damage. At least once every 30
days of use, perform the following checks:
Cleaning the SIR-STRPKI Boom Box
When cleaning the Boom Box, make sure the AC Adapter is unplugged from the power source. Do not
use liquid cleaners or aerosol cleaners. Use a lint-free cloth lightly dampened with water for cleaning
the exterior of the Boom Box only.
1. Inspect the 16-pin Streamer connector for loose, bent or broken pins, misalignment, etc.; make
sure the SAT connector is intact and exhibits no apparent damage.
2. Check the VOL control for freedom of motion without binding of any kind.
3. Check that the Mode Selector pushbutton operates correctly in that it toggles between the
Satellite Radio output and the AUX input.
4. Make sure the antenna connector at the rear of the unit is free from damage of any kind and
that the antenna lead plug mates correctly and securely.
5. Make sure the DC 12V connector at the rear of the unit is also free from damage of any kind
and that the AC Adapter plug mates correctly and securely.
6. Check the antenna for any physical damage; make sure the antenna lead is secure and not
nicked or frayed.
7. Inspect the overall Boom Box case and speaker grilles for damage such as nicks, scratches
punctures, etc.
Streamer User Guide
9
FAULT
System does not turn on
SIR-STRPKI does not operate
using batteries
Intermittent Operation
PROBABLE CAUSE
Streamer power is set to off
Batteries not installed or installed
incorrectly
As long as the AC power connector is
attached to the rear panel of the SIRSTRPKI,Battery operation is disabled
Low battery level
Turn Streamer power on using the
Streamer Power on/off button
Install batteries observing
observing correct polarity
Remove power connector from
rear panel of SIR-STRPKI
Replace batteries
ANTENNA ERROR MESSAGE
ACQUIRING SIGNAL message
No sound from SIR-STRPKI
Speakers
10
Satellite antenne not connected to
SIR-STRPKI rear Panel
Streamer not firmly seated in cradle
Check for obstacles over or around
antenna
Headphones installed
Mode Selector pushbutton is in
incorrect position
Connect satellite antenna to
SIR-STRPKI rear panel
Press the Streamer lower left and right
sides to ensure that the connectors
are firmly mated
Change location to eliminate nearby
obstacles (bridges, etc.)
Remove headphones
Press button for desired audio signal
(Satellite Radio (MODE) or AUX input)
Streamer User Guide
12 MONTH LIMITED WARRANTY
The Brix Group (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under
normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such
defect(s) will be repaired or replaced with new or reconditioned product (at the Company’s option) without charge for part s and rep air
labor. To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty coverage
(e.g. dated bill of sale), specification of defect(s), transportation prepaid, to an approved warranty station or the Company at the address
shown below.
This Warranty does not extend to the elimination of externally generated static or noise, to correction of antenna problems, to costs
incurred for installation, removal or reinstallation of the product, or to damage to tapes, compact discs, speakers, accessories, or vehicle
electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged through
alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/bar
code label(s). THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE
PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. AN Y IMPLIED WARRANTIES, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY . ANY ACTION FOR
BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT
WITHIN A PERIOD OF 48 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR
ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
WHATSOEVER. No person or representative is authorized to assume for the Comp any any liability other than expressed herein in
connection with the sale of this product. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damage so the above limitations or exclusions may not apply to you. This W arranty gives you
specific legal rights and you may also have other rights which vary from state to state.
U.S.A. : Brix Lab A Division of Brix Group, Inc. 541 Division St. Campbell, CA 95008 866-787-1810 www.brixcom.com
Streamer User Guidel
11
Loading...
