Sirius TTR1 User Manual

User Guide

Table of Contents

Introduction. . . . . . . . . . . . . . . . . . . .5

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Safety and Care Information . . . . . . . . . . .7

What’s in the Box? . . . . . . . . . . . . . . . . . . .9

SIRIUS TTR1 Radio Functions . . . . . . . . . 10

Remote Control . . . . . . . . . . . . . . . . . . . . . 12

Display Screen. . . . . . . . . . . . . . . . . . . . . . 13

Installation . . . . . . . . . . . . . . . . . . . 15

Introduction . . . . . . . . . . . . . . . . . . . . . . . . 16

Step 1: Connect to a Network . . . . . . . . . 17

Step 2: Enter Your SIRIUS Account

Information . . . . . . . . . . . . . . . . . . . . . . 23

Using Your SIRIUS TTR1 Radio . . 25

Navigation Basics . . . . . . . . . . . . . . . . . . 26

Direct Tune. . . . . . . . . . . . . . . . . . . . . . . . 30

Favorite Channels . . . . . . . . . . . . . . . . . . . 31

Alarm Clock . . . . . . . . . . . . . . . . . . . . . . . 32

Snooze . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . 35

Parental Control . . . . . . . . . . . . . . . . . . . 36

Equalization (EQ) . . . . . . . . . . . . . . . . . . . 42

Configuring Your SIRIUS TTR1

Radio . . . . . . . . . . . . . . . . . . . . . . 45

SIRIUS setup . . . . . . . . . . . . . . . . . . . . . . 46

System Setup. . . . . . . . . . . . . . . . . . . . . . 50

Appendix: Manual Network

Configuration . . . . . . . . . . . . . . . 65

Troubleshooting. . . . . . . . . . . . . . . .75

Product Specifications . . . . . . . . . . 81

Patent Information . . . . . . . . . . . . . . . . . 83

Environmental Information . . . . . . . . . . 83

Introduction

Features

Congratulations, on your purchase of the SIRIUS TTR1 Radio!

Your new SIRIUS TTR1 Radio comes with everything you need to enjoy SIRIUS Internet

Use this manual to familiarize yourself with all of your SIRIUS TTR1 Radio features and capabilities. For the latest information about your SIRIUS TTR1 Radio and other SIRIUS products and accessories, visit http://www.sirius.com.

Please read the entire User Guide before using your SIRIUS TTR1 Radio!

Radio in your home.

Safety and Care Information

IMPORTANT! Always read and understand all the instructions to avoid injury to yourself and/or damage to your device. SIRIUS XM Radio Inc. disclaims all responsibility for damage from data loss due to breakdown, repair, or other causes.

• Do not expose to extreme temperatures (above 140ûF or below -4ûF, or above 60ûC or below -20ûC).

• Do not expose to moisture. Do not use device near or in water.

• Do not let any foreign matter spill into device.

• Do not store in dusty areas.

• Do not expose to chemicals such as benzene and thinners. Do not use

liquid or aerosol cleaners. Clean with a soft damp cloth only.

• Do not expose to direct sunlight for a prolonged period of time, and do not expose to fire, flame, or other heat sources.

• Do not try to disassemble and/or repair device yourself.

• Do not drop your device or subject it to severe impact.

• Do not place heavy objects on device.

• Do not subject device to excessive pressure.

• If the screen is damaged, do not touch the liquid crystal fluid.

WARNING!

• Opening the case may result in electric shock.

• Make sure that you insert the plug all the way into the outlet.

• Do not touch the device with wet hands.

Introduction

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

What’s in the Box?

TUNE VOL

1 2 3 5 6 7 8 9 0 BACK MENU

SIRIUS TTR1 Radio

MUTEBACK OK

2 3 41

6 7 85

ALARM1ALARM

Remote Control

ALARM 1 ALARM 24

Introduction

SIRIUS TTR1 Radio Functions

Power Button (page 26)

Turn radio On and Off.

1 2 3 5 6 7 8 9 0 BACK MENU

0-9 Number Buttons

(page 26) Set and select channel presets or directly enter channel numbers.

TUNE Knob (Multifunction) (page 26) Turning the knob at the default display screen displays the category tune screen; pressing the knob at the default display screen displays the direct tune screen; turning the knob in a menu or user input screen scrolls through menus and choices; pressing the knob in a menu or user input screen selects a highlighted item; pressing and holding displays the Parental control menu.

BACK Button (page 27) Press to return to the previous display screen.

TUNE VOL

ALARM 1 ALARM 24

VOL (Volume) Knob (page 26) Increases or decreases volume; also mutes the audio.

ALARM 1 / ALARM 2 Buttons

(page 27) Turns the alarm clocks On or Off; pressing and holding displays the alarm settings.

MENU Button (page 27) Press to access or exit category and channel tuning, advanced features, and configuration options.

Snooze/Sleep Timer Button (page 27) Mutes the alarm, or sets the sleep timer, for 5, 10, 15, 30, 45, or 60 minutes.

Rear Compartment

Wired Ethernet Connector

Line Out Connector

Wireless Antenna

Headphone Connector

Aux In Connector

Introduction

Remote Control

Power Button

Turn radio On and Off.

OK Button

Press to select channel list and menu items.

BACK Button

Press to return back to the previous display screen.

MENU Button

Press to access or exit advanced features and configuration options.

0-9 Number Buttons

Set and select channel presets or directly enter channel numbers.

2 3 41

6 7 85

MUTEBACK OK

ALARM1ALARM

Arrow Buttons

Press to scroll through lists; also highlight menu options.

+/— Buttons

Press to increase or decrease the audio volume.

MUTE

Press to silence the audio.

ALARM 1 / ALARM 2

Press to turn the respective alarm clock On or Off; pressing and holding displays the alarm settings.

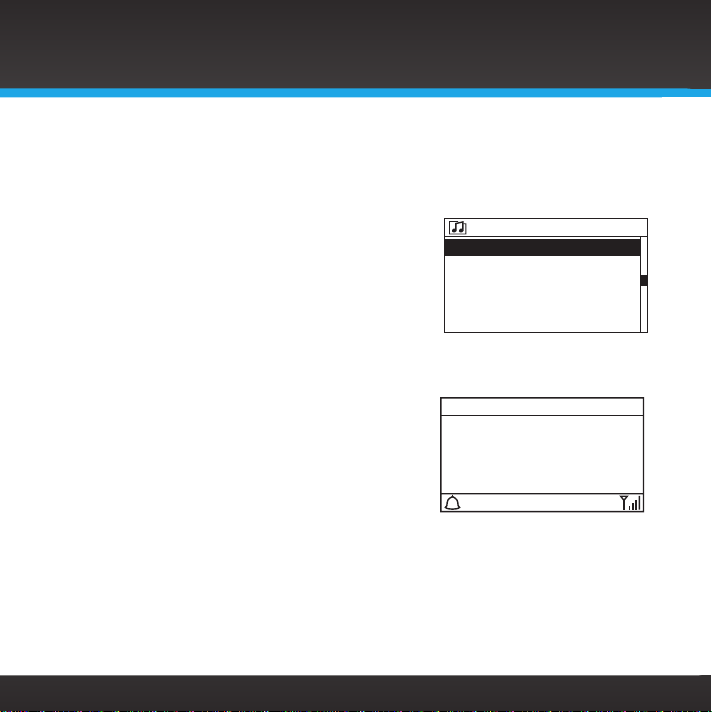

Display Screen

Network Connection

When using the SIRIUS TTR1 Radio, information about songs and artists, and radio functions are displayed.

Category or Channel

Menu Options Screen

Main Display Screen

Alarm 1/2 On Indicator

List Screen

Channel Name

Song Title or

Talk Show Schedule

SIRIUS 017

Jam_ON

Phish First Tube

1 2

Alarm

Snooze

Countdown

Audio is

Muted

5:23PM

P 1

Preset

Number

(Favorites)

Current Time

Channel Number Artist Name or

Talk Show Host

Type (wireless) Signal Strength

(wireless)

Type (wired)

Installation

Introduction

The SIRIUS TTR1 Radio allows you to listen to all of the channels on your Premium SIRIUS Internet Radio subscription package using either a wireless Internet connection (Wi-Fi), or using a wired Ethernet connection.

You must be subscribed to the Premium SIRIUS Internet Radio service to use the SIRIUS TTR1 Radio. Go to www.sirius.com/siriusinternetradio or call 888-539-7474 to subscribe and get your user name and password. You can add this service to your SIRIUS subscription, or subscribe only to the Premium SIRIUS Internet Radio service.

To verify that you are subscribed to service, go to www.sirius.com, click on the LISTEN ONLINE link, and then click the LAUNCH PLAYER link. Enter your username and password. Select a channel to listen to and then click on the PREMIUM link. If you can listen in the Premium mode, then you are subscribed to the Premium SIRIUS Internet Radio service. Close the browser window to exit the player before continuing.

The SIRIUS TTR1 Radio supports a wireless Internet connection through any standard 802.11b/g access point. This includes wireless networks which are WEP/ WPA/WPA2 protected and require a password, and wireless networks where the network name (SSID) is hidden. Once you have connected to a wireless network, the radio will remember your network settings so you will not have to enter the information again, unless you perform a reset of the radio to the factory defaults.

Step 1: Connect to a Network

The Network Wizard feature is the easiest way to connect to a wireless network. It searches for available wireless networks and displays a list of wireless networks found for you to select. However, if your wireless network name (SSID) is hidden, or if your network is DHCP disabled, you’ll have to manually enter the network settings rather than using the Network Wizard.

Decide whether you will be using a wireless network connection, or a wired network connection, and whether you can use the Network Wizard or if you’ll need to manually configure your network settings. Complete the instructions in the appropriate section:

Connect to a WIRELESS network using the NETWORK WIZARD (page 17) Connect to a WIRED network using the NETWORK WIZARD (page 21)

Connect to a WIRELESS network using MANUAL settings (page 66) Connect to a WIRED network using MANUAL settings (page 71)

Installation

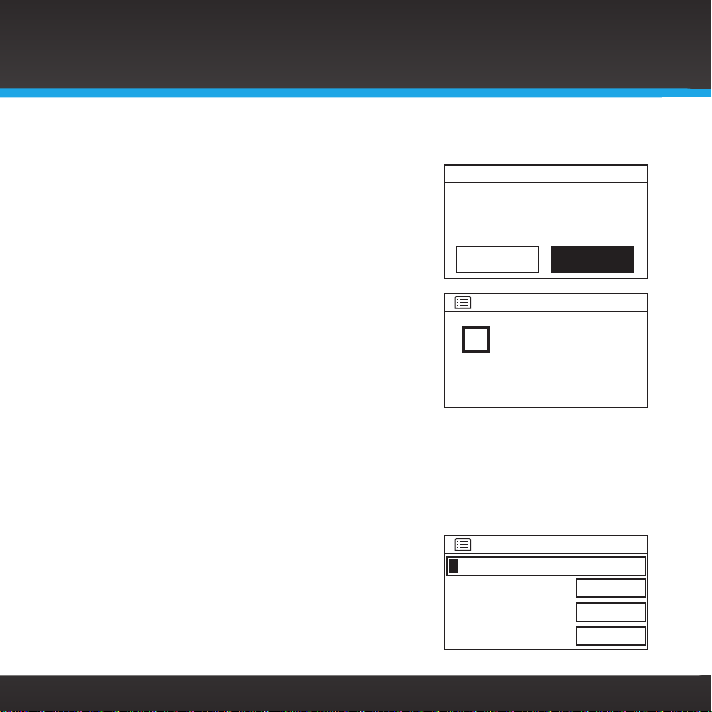

To connect to a wireless network using the Network Wizard

If the wireless network is secured, you’ll need to enter the key (password) for the wireless network during the connection procedure. If you don’t know the password, contact your network administrator of the person who setup the wireless network.

a. If you have just turned your SIRIUS TTR1 Radio on for the first time, the

SSID screen will already be displayed. Skip ahead to step e.

b. Press MENU and turn the TUNE knob to highlight System Setup. Press

the TUNE Knob.

c. Turn the TUNE knob to highlight Network. Press the TUNE Knob. d. Press the TUNE Knob to select Network Wizard. e. The radio will scan for wireless networks

and return with a list of wireless networks which were found. (A sample screen is shown here. Your actual wireless network name will appear in the list, if found.) Turn the TUNE knob to highlight your wireless network and press the TUNE knob. If you don’t know the network name, contact your network administrator of the person who set up the wireless network.

f. If you choose an unsecured network, and

the radio is able to connect to the wireless network, the Connected screen will be

SSID

Your_Network_Name

Other_Network_Name [Rescan] [Wired] [Manual config]

Connected



displayed and the radio will connect to the wireless network. Skip to step h.

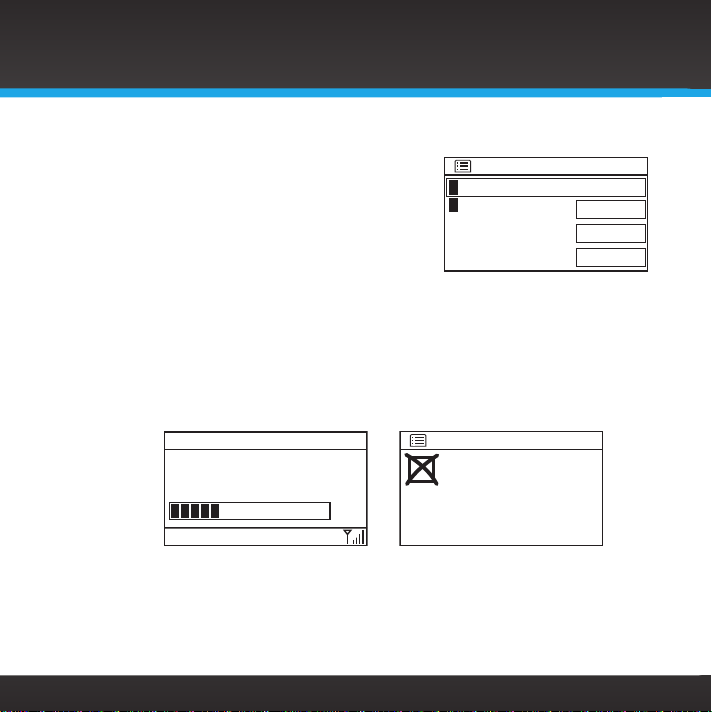

If you choose a network that is

secured, you will be prompted to enter the key (password). If you don’t know the password, contact your network administrator of the person who setup the wireless

Key:

0123456789., ab

cdefghijklmnopq rstuvwxyzABCDEF GHIJKLMNOPQRSTU

BKSP

CANCEL

network. Remember that the key is case sensitive. Turn the TUNE knob to scroll through the list of characters and highlight each character. Press the TUNE knob to select the highlighted character and move to the next character. If you make a mistake, turn the TUNE

knob to highlight BKSP and press the TUNE knob to erase the character.

g. When the key has been entered, turn

Incorrect

key

the TUNE knob to scroll to highlight OK and press the TUNE knob. If you

have entered the correct key, and the radio is able to connect to your wireless network, the Connected screen will be displayed. If you have entered the wrong key, the Incorrect key screen is displayed, and you will be prompted to enter the key again.

h. If you are installing your SIRIUS TTR1 Radio for the first time,

continue with “Step 2: Enter Your SIRIUS Account Information” on page 23.

Installation

3:14PM

If you have previously entered your SIRIUS user name and key into the

radio, and had tuned to a channel, the screen will show Connecting. When successfully connected, the Buffering... screen will be displayed as the channel information is streamed to the radio. When complete, you are returned to the main display screen and you should hear the audio playing. Otherwise, the Category Tune screen is displayed.

SIRIUS

SIRIUS Hits 1

Connecting.

3:13PM

SIRIUS 001

SIRIUS Hits 1

Buffering...

To connect to a wired network using the Network Wizard:

At the rear of the radio, remove the compartment cover and connect an Ethernet cable to the Ethernet connector on the inside left of the compartment. Refer to “Wired Ethernet Connector” on page 11 for the location of the Ethernet connector. Replace the compartment cover.

b. Connect the other end of the Ethernet cable to your home’s wired

network.

c. If you have turned your SIRIUS TTR1 Radio on for the first time, the

SSID screen will already be displayed. Skip ahead to step g.

d. Press MENU and turn the TUNE knob to highlight System Setup.

Press the TUNE Knob.

e. Turn the TUNE knob to highlight

Network. Press the TUNE Knob.

f. Press the TUNE Knob to select

Network Wizard.

g. The radio will scan for networks. When

the scan is complete, turn the TUNE knob to highlight [Wired] and press the TUNE knob.

h. If the radio is able to connect to your

network, the Connected screen will be displayed. If Waiting for Ethernet

SSID

Some_Network_Name Other_Network_Name [Rescan]

[Wired]

[Manual config]

Connected



Installation

3:13PM

is displayed, check the Ethernet cable connections.

i. If you are installing your SIRIUS TTR1

Radio for the first time, continue with “Step 2: Enter Your SIRIUS Account Information” on page 23.

If you have previously entered your SIRIUS user name and key into the

SIRIUS

SIRIUS Hits 1

Connecting.

SIRIUS 001

SIRIUS Hits 1

Buffering...

Network settings

Waiting for Ethernet

3:14PM

Step 2: Enter Your SIRIUS Account Information

The SIRIUS TTR1 Radio needs your account user name and password to connect to SIRIUS Internet Radio service. If are not yet subscribed to the SIRIUS Internet Radio service, go to www.sirius.com/siriusinternetradio or call 888-539-7474 to subscribe, and get your user name and password.

To enter your account information:

a. Turn on the radio by pressing the Power button.

b. Press MENU and turn the TUNE knob

to highlight SIRIUS Setup. Press the TUNE knob.

c. Turn the TUNE knob to highlight User

name. Press the TUNE knob.

d. Turn the TUNE knob to scroll through

the list of characters and highlight each character for your user name. Press the TUNE knob to select the highlighted character and move to the next character. If you make a mistake, turn the TUNE knob to highlight BKSP and press the TUNE knob to erase the character.

e. When you have entered your user name, turn the TUNE knob to

SIRIUS

Category Tune

SIRIUS Setup

EQ Parental control System Setup

User name

0123456789 abcd

efghijklmnopqrs tuvwxyzABCDEFGH IJKLMNOPQRSTUVW

BKSP

CANCEL

Installation

3:13PM

scroll to highlight OK and press the TUNE knob.

f. You will then be prompted to enter your password. Enter your

password in the same way as you entered your user name and then select OK. Note that the password is case sensitive.

g. The radio will attempt to connect to

the SIRIUS Internet Radio service. If the user name and password you entered is incorrect, the Login failed screen will be displayed. You’ll have to re-enter the correct user name and password.

If you have previously connected to a network, and had tuned to

a channel, the screen will show Connecting. When successfully connected, the Buffering... screen will be displayed as the channel information is streamed to the radio. When complete, you are returned to the main display screen and you should hear the audio playing. Otherwise, the Category Tune screen is displayed.

SIRIUS

Go to SIRIUS setup

SIRIUS

SIRIUS Hits 1

Connecting.

SIRIUS 001

3:14PM

SIRIUS Hits 1

Buffering...

Using Your SIRIUS TTR1 Radio

TUNE

VOL

...

Navigation Basics

Power Button

The Power button turns the SIRIUS TTR1 Radio On or Off.

Tune Knob

The TUNE knob is multifunction— you can turn it clockwise or counterclockwise, and press it.

• Turn: Turning the TUNE knob when at the main display screen displays the Category tune screen. When in menus or user input screens, turning the TUNE knob scrolls up or down through menus and user choices.

• Press and Release: Pressing the TUNE knob at the default display screen displays the Direct tune screen. When in menus or user input screens, pressing the TUNE knob selects a highlighted item.

• Press and Hold: pressing and holding the TUNE knob displays the Parental control menu options.

VOL Knob

Turning the VOL knob clockwise or counter-clockwise increases or decreases the volume of the audio. When turned counter-clockwise it will mute the audio when zero is reached.

Number Buttons 0-9

The number buttons are used to store favorite channels in a button location so you can tune a channel just by pressing the button. They can also be used to enter the channel number when at the Direct tune screen.

1 0

BACK Button

BACK

The BACK button returns back to the previously displayed screen.

MENU Button

Pressing the MENU button from the main display screen accesses the advanced features and configuration options menu, where you can browse the channel categories and channels, and change the radio settings. Pressing it when in the configuration options menu returns the radio to the main display screen.

ALARM 1 / ALARM 2 Buttons

ALARM 1 ALARM 2

Pressing the ALARM button turns the respective alarm clock function On or Off. Pressing and holding the ALARM button displays the respective alarm setup screen where you can configure the options for each alarm.

Snooze / Sleep Button

When the alarm clock is sounding, pressing the Snooze/Sleep button will silence the alarm for 5 minutes. Each additional immediate press of the Snooze/ Sleep button increases the snooze time for 10, 15, 30, 45 or 60 minutes. While snoozing, the snooze countdown time is displayed on the display screen.

While the radio is playing, pressing the Snooze/Sleep button enters the sleep mode. The first press displays Sleep OFF, and each immediate additional press sets the sleep time for 5, 10, 15, 30, 45 or 60 minutes.

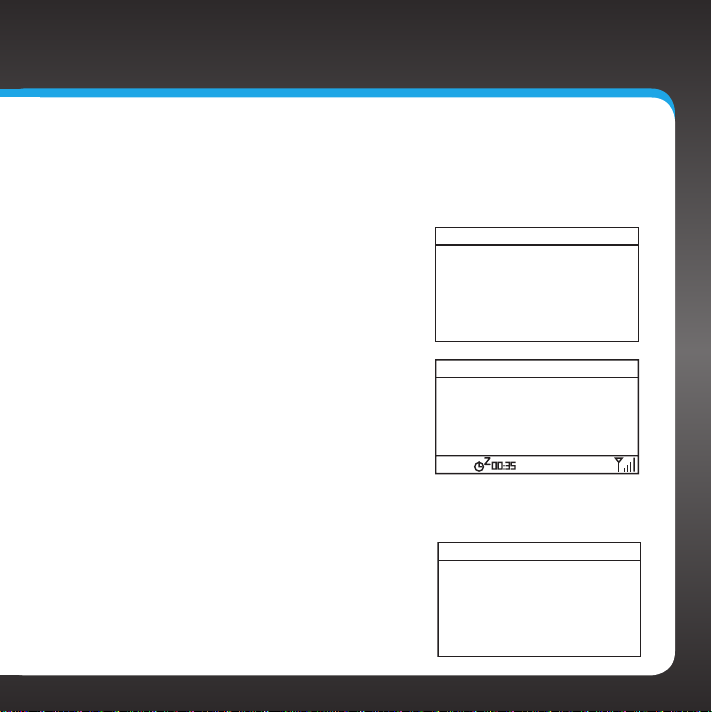

While in snooze or sleep mode, the countdown time is displayed on the display screen. You can also check and change the remaining snooze/sleep time by pressing the Snooze/Sleep button. To increase the sleep or snooze time, repeatedly press the Snooze/Sleep button until the desired sleep/snooze time is displayed.

+ 61 hidden pages
