Installation, Use & Maintenance
Instruction Manual
SL 80 FRESCO 900
SL 80 FRESCO 1200
2
GB
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about recycling of this
product, please contact your local city oce, your household waste disposal service or
the shop where you purchased the product. This appliance is marked according to the
European directive 2002/96/EC on waste electrical and electronic equipment (WEEE).
3
CONTENTS
Warnings
Installation
Working
Maintenance
Wiring diagram
4GB5
WARNINGS
* The appliance is not intended for use by
young children or inrm persons without
supervision. Young children should be supervised to ensure they do not play with
the appliance.
* The air sucked can’t be conveyed through or into a duct used to let out fumes
from appliances fed by energy other than
electric power (eg. centralized heating, radiators, water-heaters, etc.).
* To evacuate the air outlet, please comply
with the pertaining rules given by competent authorities.
* Provide the room with an adequate aeration
when a cooker hood and appliances fed by
energy other than electric power (gas-, oil-,
or coal- stoves, etc.) are used simultaneously.
The cooker hood, when evacuating the sucked
air, could generate a negative pressure in the
room- which can’t exceed the limit of 0.04
mbar, in order to avoid the suck of exhausts
deriving from the heat-source. Therefore the
room should be provided with air-intakes to
allow a costant ow of fresh air.
* Before carrying out any cleaning or maintaining operations, the appliance needs to
be removed from the electric grid. If the appliance is not provided with a non-separable
exible cable and plug, or with another device ensuring omnipolar disconnections from
the grid, with an opening distance between
the contacts of at least 3 mm, then such disconnecting devices must be supplied within
the xed installation.
If the xed appliance is endowed with a
supply cord and a plug, the appliance has
to be put in a place where the plug can be
reached easily.
* The use of materials which can burst into
ames should be avoided in close proximity of the appliance. When frying, please pay particular attention to re risk due
to oil grease. Being highly inammable,
fried oil is especially dangerous. Do not
use uncovered electric grills. In order to
avoid possible re risk, all instructions
for grase-lter cleaning and for removing
eventual grease deposits should be strictly
followed.
Do not ambé under the range hood.
CAUTION: Accessible parts may become
hot when used with cooking appliances.
If the rating lable in the cooker-hood
shows the symbol , the appliance is
built in class II° and it does not need any
earth connection.
If the rating lable in the cooker-hood does
not show the symbol , the appliance is
built in class I° and it needs the earth connection.
* When performing the electrical connections
on the appliance, please make sure that the
current-tap is provided with earth connection
and that voltage values correspond to those
indicated on the label placed inside the appliance itself.
INSTALLATION
Before installing the appliance, make sure that
none of the parts is damaged in any way.
In case of damaged parts, contact your retailer and do not proceed with installation.
Read all of the following instructions with
care before installing the appliance.
- Use an air outlet pipe of the shortest possible length.
- Limit the number of pipe bends.
- Use a material approved by standards and
regulations.
- Avoid any sudden changes in pipe section
(recommended constant diameter: 150 mm
or equal surface area).
* Before installing the appliance, in order not
to damage the appliance itself, the metal grase lter should be removed. Such lter can be
removed by pushing the special lter handle
toward the back side of the cooker hood and
turning it downwards so to unfasten it from
its slot (Fig. 1).
Wall stirrup-xing.

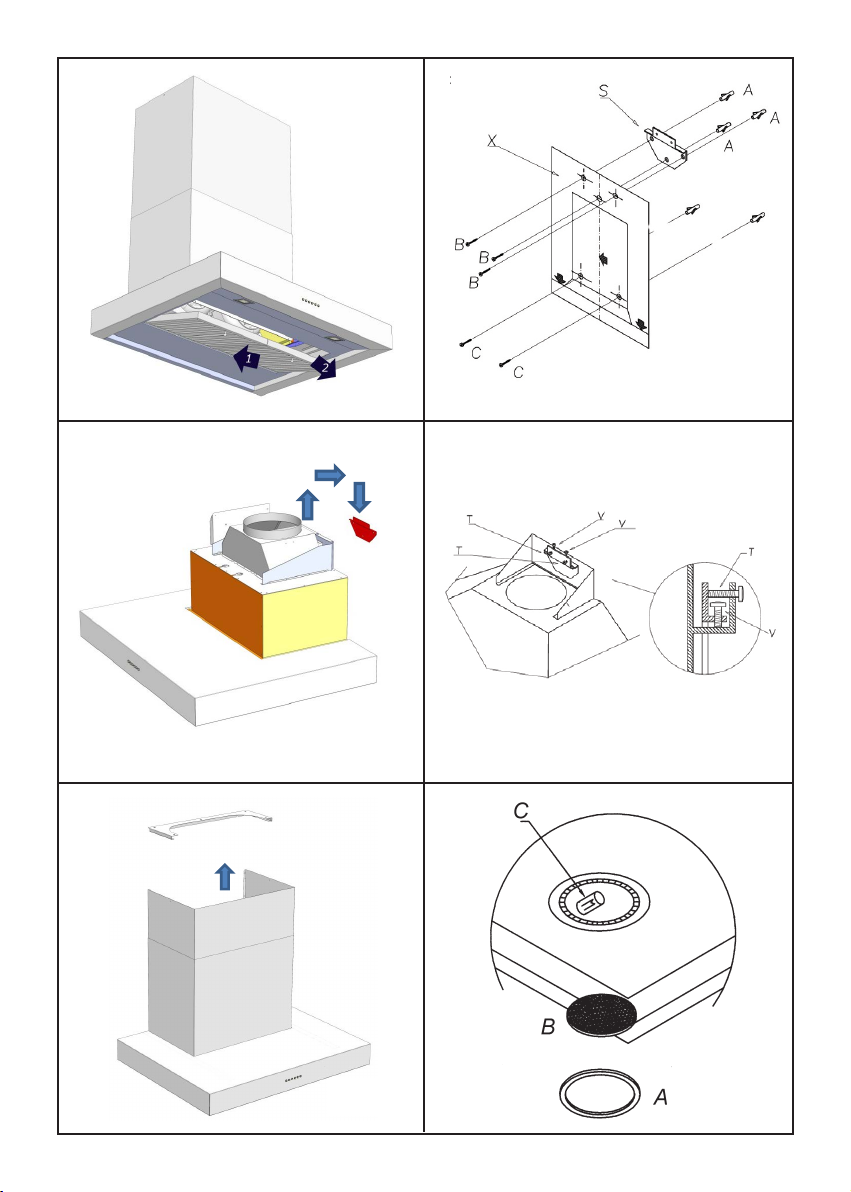

* By using the special drilling jig (Fig. 2 X),
perforate the wall according to the pattern
indicated by the jig itself, and pay attention in
order not to damage water pipes and electric
wires. Perforation should be performed with
a Ø 8 mm wall-drill. Then insert into the
proper plastic reinforcements (Fig.2 A). The
hood-bearing stirrup (Fig. 2 S) can be applied
by using the screws provided with the equipment (Fig.2 B). Now hook the cooker hood
onto its bearing (Fig.3) and then adjust horizontally and vertically the position of the appliance by acting on the special metric screws
(Fig. 4 V,T).
Fix the upper chimney both in the right and in
the left side through the two screws supplied.
Warning: Failure to install the screws or xing
device in accordance with these instructions
may result in electrical hazards.
Fixing the ornamental chimney
* Before xing the chimney, place the electric
feeding equipment into the ornamental pipe
and provide it with a hole for the air outlet if
the appliance is used in its sucking version.
Fix the supporting bracket of the chimney to
the wall or to to ceiling (g. 5), install both
chimneys in their suitable place above the
hood, then lift the upper chimney (the internal one) until it reaches the supporting bracket, previously installed.
6
WORKING
MAINTENANCE
An accurate maintenance guarantees good
functioning and long-lasting performance.
* Particular care is due to the grease filter
panel. It can be removed by pushing its
special handle toward the back-side of the
cooker hood and turning the filter downwards
so to unfasten it from its slot (Fig.1).
To insert the filter just perform the opposite
operation.
After 30 hours working the push button
control panel will signal the saturation of the
grease filter by lighting all the buttons.
The grease filter needs cleaning by regular
hand-washing or in dishwashers every two
months at least or depending on its use.
* To clean the appliance itself tepid water and
neutral detergent are recommended, while
abrasive products should be avoided. For
steel appliances specialized detergents are
recommended (please follow the instructions
indicated o the product itself to obtain the
desired results).
* If the supply cord is damaged, it must be
replaced by the manufacturer or its sevice
agent or a similarly qualified person in order
to avoid a hazard.
To replace the bulbs in the square lights,
press the light frame where it says
“PUSH”(Fig. 6 and Fig. 7), then replace the
bulb and press the frame back into place.
A: Light switch on/o
B: Motor switch on/o (1st rate level)
C: 2nd rate level switch
D: 3rd rate level switch
E: 4th rate level switch
F: 10-minute timer.
MAINTENANCE
An accurate maintenance guarantees good
functioning and long-lasting performance.
* Particular care is due to the grease lter panel. It can be removed by pushing its special
handle toward the back-side of the cooker
hood and turning the lter downwards so to
unfasten it from its slot (Fig.1).
To insert the lter just perform the opposite
operation.
After 30 hours working the push button control panel will signal the saturation of the
grease lter by lighting all the buttons.
The grease lter needs cleaning by regular
hand-washing or in dishwashers every two
months at least or depending on its use.
* To clean the appliance itself tepid water and
neutral detergent are recommended, while abrasive products should be avoided. For
steel appliances specialized detergents are
recommended (please follow the instructions
indicated o the product itself to obtain the
desired results).
* If the supply cord is damaged, it must be
replaced by the manufacturer or its sevice
agent or a similarly qualied person in order
to avoid a hazard.
There is a re risk if cleaning is not carried
out in accordance with the instructions.
To replece the LED lamps, remove rst the
glass-blocking ring (Fig. 6A), by levering with
a screw-driver and thus removing the opaque
glass (Fig. 6B)- when performing this operation hold the opaque glass carefully.
Remove the lamp (Fig. 6C) without touching it
with uncovered hands.
Replace it with another lamp of the same
kind. After the replacement, reinsert the
glass-blocking ring and fasten it.
7
WIRING DIAGRAM
8
Fig. 2
Fig. 2
Fig. 2
1
2
3
4
5
6
9
10
11
00000000000 - GM 09/13
