Sirius SL80FRESCO900, SL80BBQ1200B, SL80BBQ1200M User Manual

Congratulations on your purchase!

Thank you for choosing a Sirius product.

SL80 ALFRESCO RANGEHOOD

ONBOARD INSTALLATION INSTRUCTIONS

SL80FRESCO900 EAN# 9351116000950
SL80BBQ1200M EAN# 9351116001032
SL80BBQ1200B EAN# 9351116002732

www.siriusbrand.com

1

2

BEFORE YOU INSTALL

4

INSTALLING THE RANGEHOOD

OPERATION

MAINTENANCE

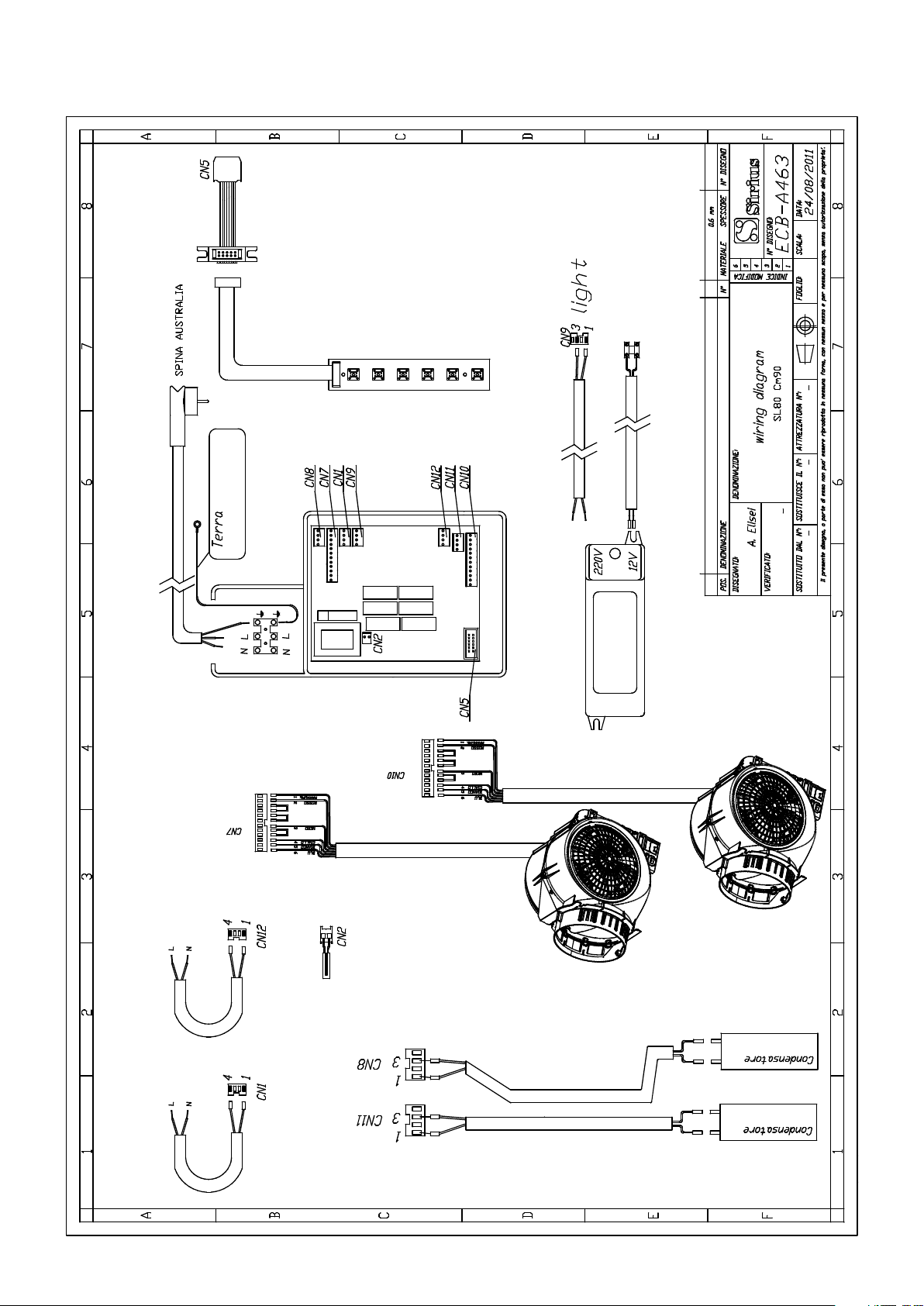

SL80 WIRING DIAGRAM

BRACKET TEMPLATE

WARRANTY

6

8

8

9

10

11

3

BEFORE YOU INSTALL - DUCTING INFORMATION

Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory
such as flexible ducting, Sirius will only warrant the rangehood and motor. If installation is found to be
the cause of failure or issue then charges will apply for service and parts.

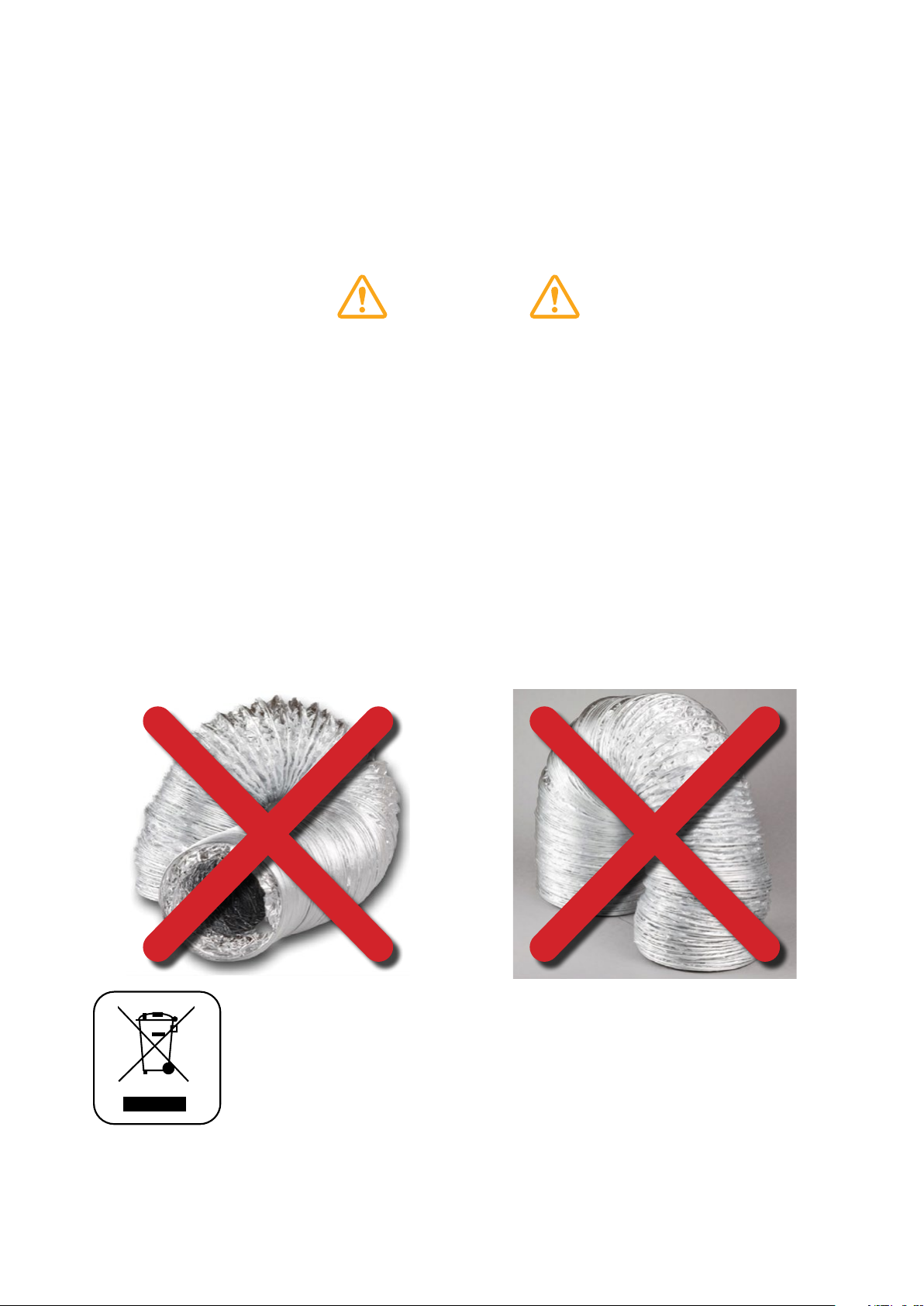

Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to
increase noise levels, increase vibration and reduce airflow. Sirius Semi-rigid or solid ducting can be

used in lieu. There is a range available to suit any application.

WARNING

The appliance must be installed and

connected to the power supply only by a

qualified technician.

• There should be adequate ventilation of the room when the rangehood is used at the same time as
appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the
room)

• The details concerning the method and frequency of cleaning

• There is a fire risk if cleaning is not carried out in accordance with the instructions;

• Do not flambé under the range hood;

• CAUTION: Accessible parts may become hot when used with cooking appliances.

Ducting available at www.siriusbrand.com

6 Year Warranty when Sirius Ducting is used. Full replacement warranty on parts and labour.

See website for terms & conditions.

A reduction in the duct diameter from stated ducting size will void warranty.

If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to installation

The symbol on the product or on its packaging indicates that this product
may not be treated as house-hold waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product. This appliance is marked according to the European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).

4

WARNING

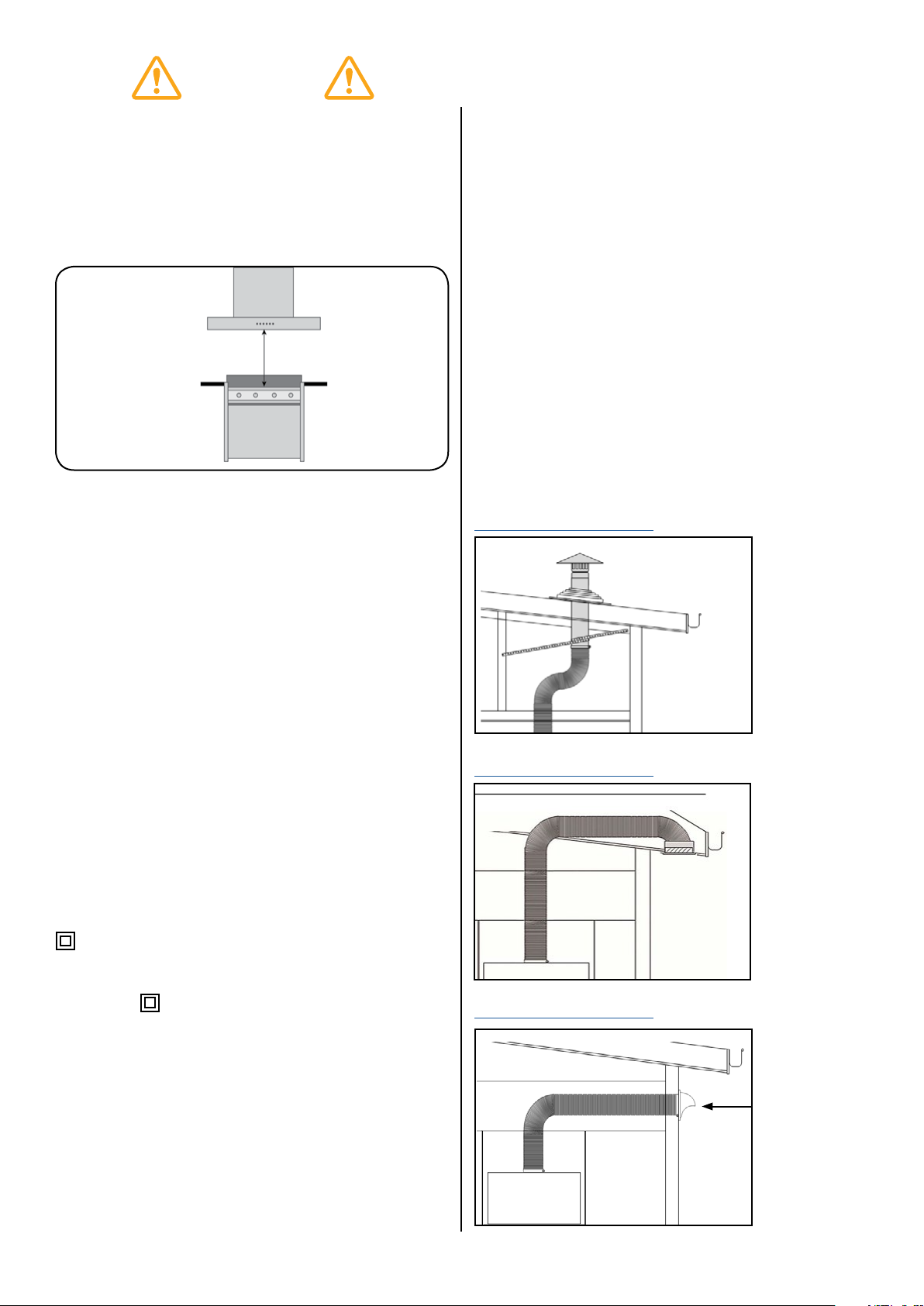

Min. 1200mm - Max. 1600mm distance for

barbecues.
If the rangehood is positioned above the max height
recommended, warranty may be compromised
as performance of the rangehood will be affected.
Measurement is taken from the top of the grills to the
underside of the hood. (Fig.1)

Min. 1200 - Max. 1600

flexible cable and plug, or with another device
ensuring omnipolar disconnections from the grid,
with an opening distance between the contacts of at
least 3mm, then such disconnecting devices must be
supplied within the fixed installation.
If the fixed appliance is endowed with a supply cord
and a plug, the appliance has to be put in a place
where the plug can be reached easily.

The use of materials which can burst into flames
should be avoided in close proximity of the appliance.
When frying, please pay particular attention to fire
risk due to oil grease. Being highly flammable, fried
oil is especially dangerous. Do not use uncovered
electric grills. In order to avoid possible fire risk, all
instructions for grease-filter cleaning and for removing
eventual grease deposits should be strictly followed.

FRONT VIEW

(Fig. 1)

• The air being drawn can’t be conveyed through
or into a duct used to let out fumes from
appliances fed by energy other than electric
power (eg. centralized heating, radiators, water
heaters, etc.).

• Attention: remove any possible PVC film from the
stainless steel, including the filters.

• To externally vent, please comply with the
pertaining rules given by competent authorities.

• Provide the room with an adequate ventilation
when a rangehood and appliances fed by energy
other than electric power (gas, oil, or coal stoves,
etc.) are used simultaneously. The rangehood,
when evacuating the air, could generate a
negative pressure in the room which can’t exceed
the limit of 0.04 mbar, in order to avoid the
suck of exhausts deriving from the heat source.
Therefore the room should be provided with air
intakes to allow a constant flow of fresh air.

When ducting rangehood, options are as follows:

Roof vent - EASYROOF 200T/M

*Kit includes roof flashing

Download installation guide

(Fig. 2a)

Eave vent - EASYEAVE 200

Download installation guide

If the rating label in the rangehood shows the symbol
, the appliance is built in class II° and it does not
need any earth connection.
If the rating label in the rangehood does not show
the symbol , the appliance is built in class I° and it
needs the earth connection.

When performing the electrical connections on the
appliance, please make sure that the current-tap
is provided with earth connection and that voltage
values correspond to those indicated on the label
placed inside the appliance itself.

Before carrying out any cleaning or maintaining
operations, the appliance needs to be switched off.
If the appliance is not provided with a non-separable

(Fig. 2b)

Wall vent - EASYWALL 200

Download installation guide

Dome
featured on
200mm kit
only

(Fig. 2c)

5

WARNING: Failure to install the screws or fixing
device in accordance with these instructions
may result in electrical hazards.

SL80 FRESCO RANGEHOOD
INSTALLATION - ONBOARD MOTOR

WARNING

1. The rangehood is quite heavy, so two people
will be needed for installation.

CAUTION

NOTE

Before installing the appliance, make sure that
none of the parts are damaged in any way. In
case of damaged parts, contact your retailer
and do not proceed with installation. Read all
of the following instructions with care before
installing the appliance.

• Use ducting within the min/max specifications

• Limit the number of ducting bends.

• Do not make any changes in ducting diameter:
Must be Ø 200 mm or equal surface area).

Before installing the appliance - in order not to

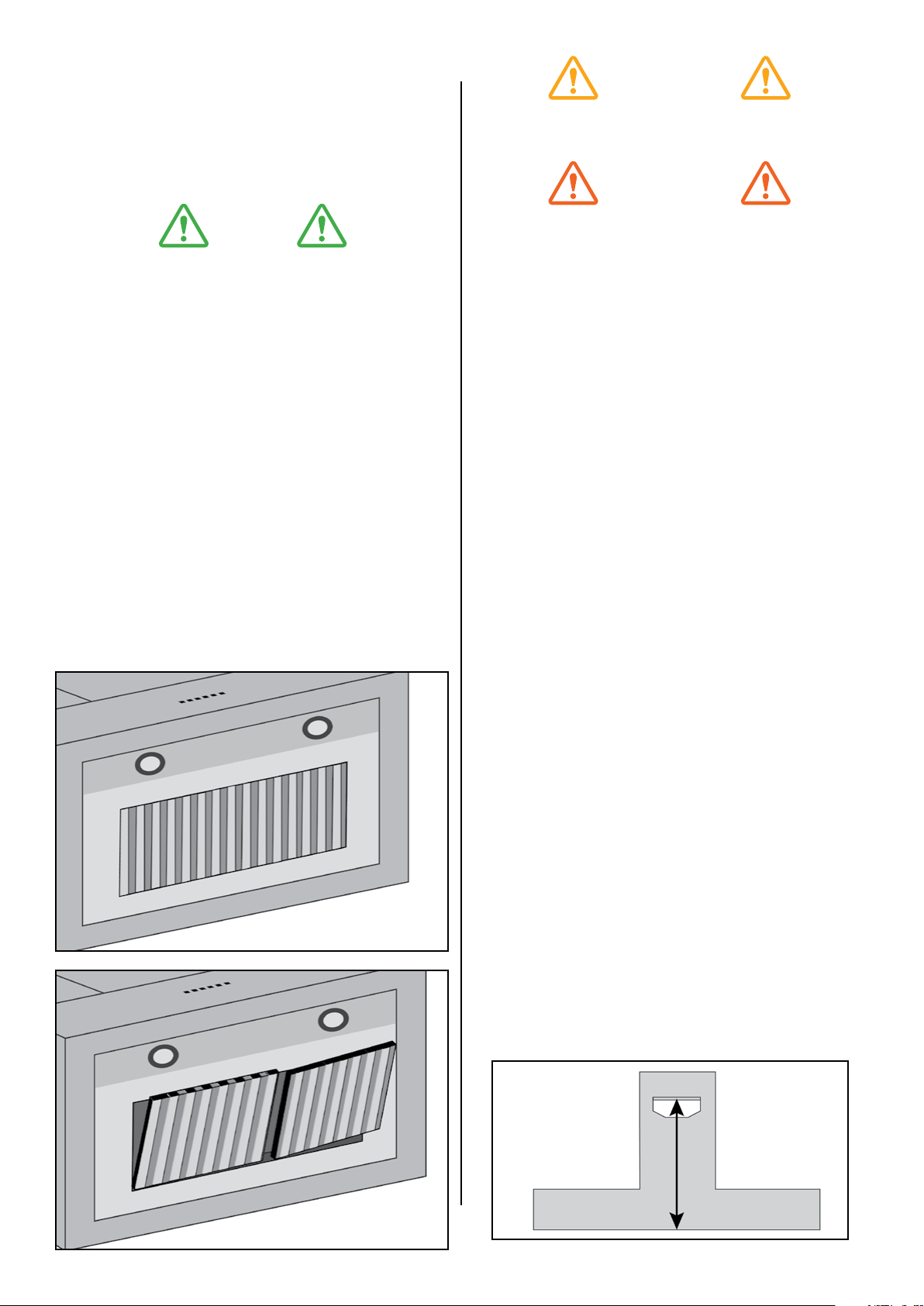

damage the appliance itself - the metal grease filter
should be removed. These filters could be removed
by pushing the handles towards the back side of the
rangehood and pulling it downwards to unfasten it
from its slot. (Fig.3).

2. Before connecting any ducting to the motor,
make sure the non-return valves - which are on

the air outlet of the motor - can swing open.

To install the appliance please follow these
instructions:

• The appliance must be installed by qualified
technicians, or where possible use a Sirius
recommended installer. See siriusbrand.com. In
order to avoid damage to the electronic parts
of the appliance, please do not use additional
screws.

1. Prepare the power supply - 240 volts.

2. Prepare a 210mm hole for the exhaust.

• Maximum length of ducting should not exceed 7
metres.

• Do not use screws to fix the ducting to the
rangehoods as they will prevent the movement of
non-return valves.

• Limit the number of elbows in the ducting, since
each elbow reduces the duct efficiency by 1
metre. (i.e. if you use two 90° elbows, the length
of ducting must not exceed 5 metres.)

• Avoid abrupt direction changes.

• Use 200mm constant diameter ducting for the
whole length for this twin motor rangehood.

• The use of Sirius ducting will increase the
warranty of the unit to 6 years.

(Fig. 3a)

(Fig. 3b)

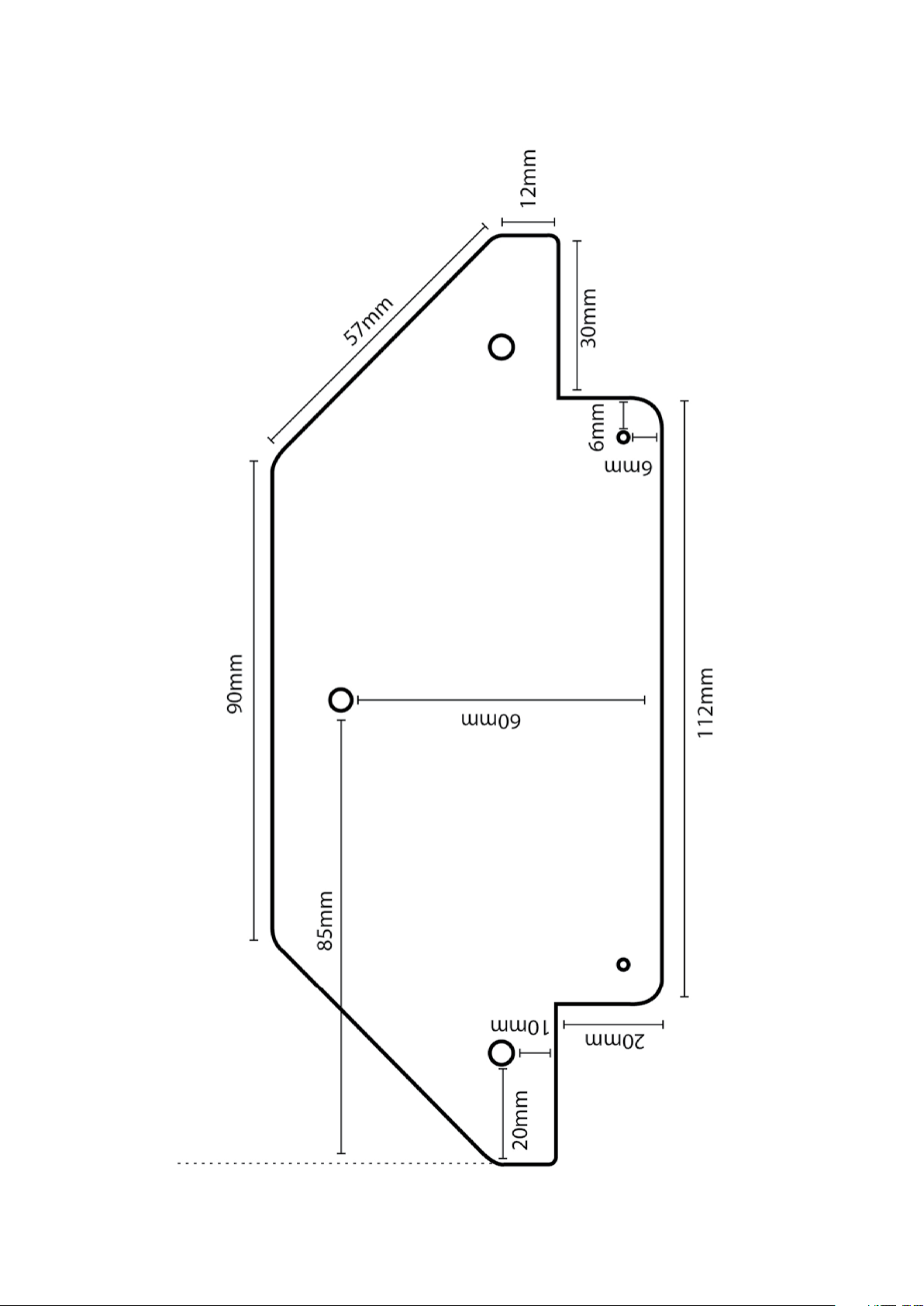

3. Using the supplied bracket template (pg. 8), mark

the location of the holes that need to be drilled
in the wall, being careful to make sure that the
wall behind is clear of electrical wiring, plumbing,
pipes etc. Note: Be sure to set the height of the
rangehood between the minimum and maximum
height requirements as per diagram Fig. 1( Pg. 3).
This can be done by measuring from the lowest
point of the rangehood to the horizontal support
bar. (Fig. 4)

(Fig. 4)

6

NOTE: Model measurements will vary.

Please check specific model specs.

4. Using an 8mm drill bit, pre-drill the holes that
will hold the bracket to the wall. (Using bracket
template)

5. Insert the supplied plastic dowels to the
pre-drilled holes and fix bracket to the wall with
the supplied screws. (Note: Please use a spirit
level to make sure the bracket is perfectly level.)

6. Once the bracket is secure, using two people,
lift the hood and drop the horizontal support bar
onto the fixed bracket (Fig. 5).

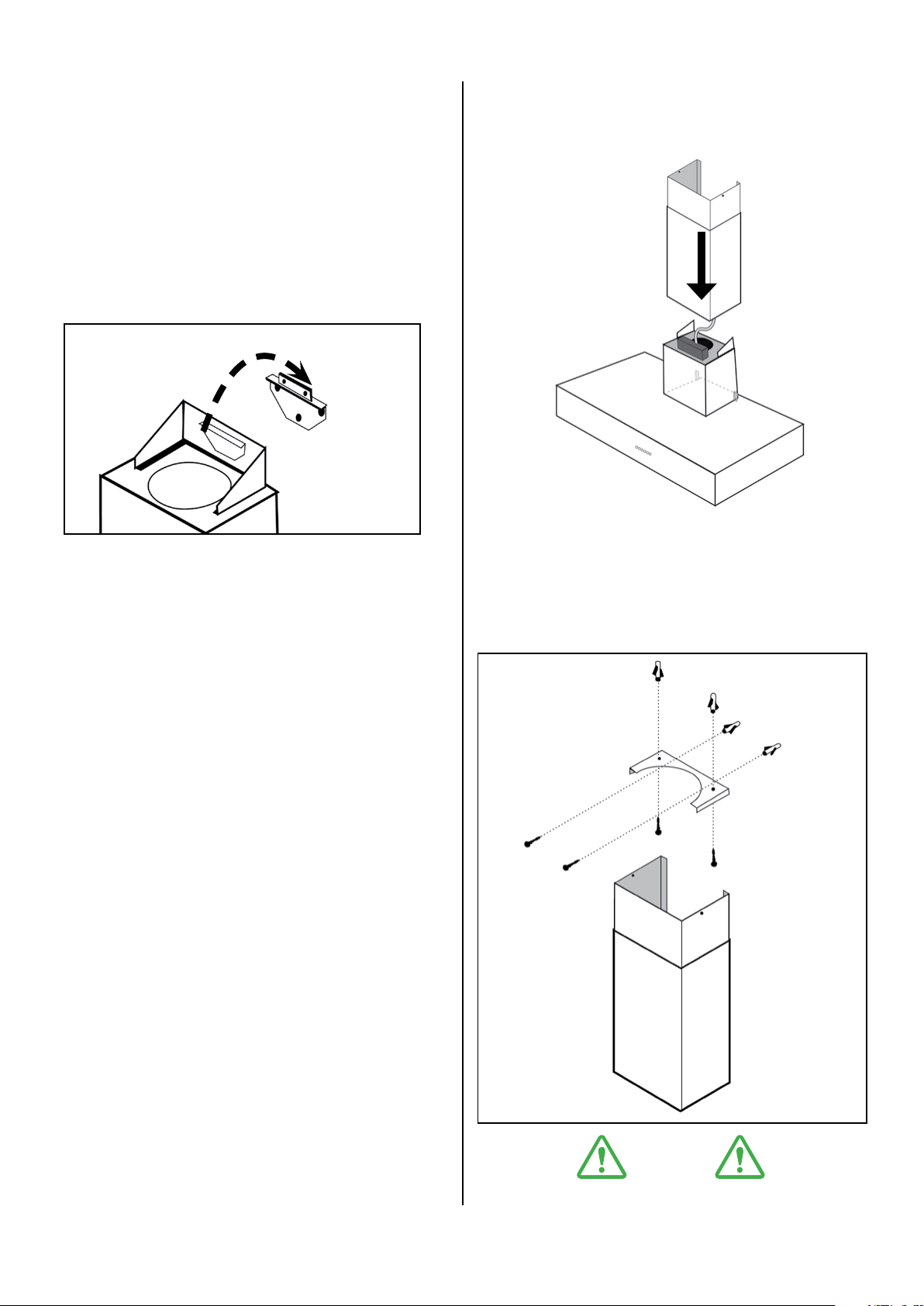

8. Insert the upper flue cover into the lower flue
cover and mount into the channel on the top of
the rangehood. There are two spring loaded clips
that need to be on the inside of the lower flue
cover to secure in place. (Fig 6.)

(Fig. 5)

(Note: There are additional holes on the inside of
the hood to secure the rangehood flush to the wall
and completely stable. (Hole locations will vary per
model.)

7. Connect your Sirius ducting

(see www.siriusbrand.com for approved
ducting) to the outlet collar on the rangehood and
secure in place with a ring clamp if you are using
semi rigid ducting. If you are using solid/rigid
ducting, an external duct connector is required.
(Note: do not fix the ducting in place with screws
as they will prevent the movement of the non­return valves). (See Fig. 2 for ducting options).
Complete all of the duct work to the atmosphere
before fixing the flue covers in place to ensure the
ducting has not come free.

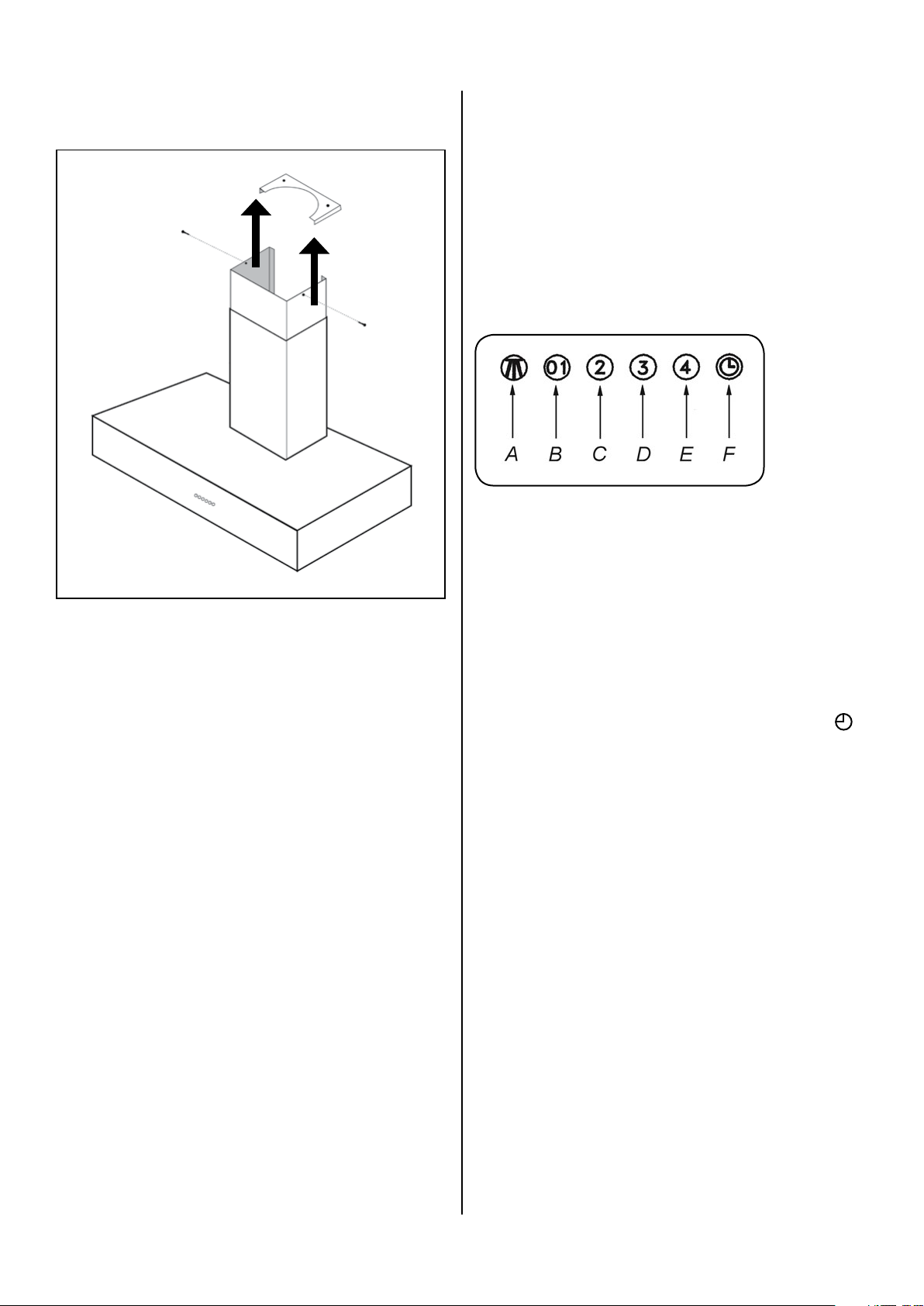

(Fig. 6)

9. Telescope the upper flue cover to the ceiling and
mark with a pencil the outer line of the cover, this
will give you the exact location of where the top
fixing bracket needs to be fitter to the ceiling.

10. Fix the top fixing bracket into place using the
supplied 30mm screws (Fig.7).

30mm

NOTE

Please do not fix shroud permanently.

Must be removable for servicing purposes.

7

(Fig. 7)

11. Telescope the upper flue cover over the bracket

and secure in place with the very small 10mm
supplied screws. (Fig 8.)

10mm

(Fig. 8)

OPERATION

Manual control buttons:

SL80FRESCO900
SL80BBQ1200M
SL80BBQ1200B

A: Light switch on/off
B: Motor switch on speed 1/off - (low/simmer)
C: Motor switch on speed 2 - (general cooking)
D: Motor switch on speed 3 - (high power)
E: Motor switch on speed 4 - (booster)
F: 10 minute shut-off timer

MAINTENANCE

• Accurate maintenance guarantees good

functioning and long-lasting performance.

• Particular care is due to the grease filters.

They can be removed by pushing its handle
toward the back side of the rangehood and
pulling the filter downwards so to unfasten it from
its slot (Fig.3).
To insert the filter just perform the opposite
operation.

• After 30 hours of operation, the push button

control panel will flash, signaling the filters are due
for cleaning. Press the timer button to reset.
The grease filter needs cleaning by regular
handwashing or in dishwashers every two
months at least, depending on its use.

• Filters may require cleaning sooner if

frequent heavy cooking is done.

• To clean the appliance itself, water and detergent

are recommended, while abrasive products
should be avoided. For steel appliances
specialized detergents are recommended (please
follow the instructions indicated on the product
itself to obtain the desired results).

8

SL80 WIRING DIAGRAM

9

BRACKET TEMPLATE

10

WARRANTY INFORMATION

Dear Customer,

Thank you for choosing this Sirius Rangehood.

We are sure that it will provide you with many years of excellent service. At Arisit Pty Limited we are dedicated to ensuring
that our customers receive the best possible after-sales care.

The Sirius ‘Protection Plan’ has been devised to give you added peace of mind. Should you encounter any problems with your
appliance, our nationwide team of specially trained technicians will deal with your call swiftly and efficiently.

PRIORITY SERVICE, ACCESSORIES & SPARE PARTS

AUSTRALIA

ARISIT PTY LIMITED
40-50 Mark Anthony Drive, Dandenong South,
VIC 3175, Australia
Phone: [phone]
Email: [e-mail]

NEW ZEALAND
ARISIT PTY LIMITED
1A Howe Street, Newton,
Auckland 1145, New Zealand
Phone: [phone]
Email: [e-mail]

Warranty

By registering your ownership NOW, you qualify for
Sirius’s Total Peace of Mind Protection Plan.

Australian & New Zealand 3 / 6 Year Protection Plan*

This guarantees your appliance for a full 3 years parts and labour & 10 years for the off-board motors (covering
manufacturing defects only) from the date of purchase, subject to the Terms and Conditions overleaf.

*3 Year warranty is extended to a 6 year period only when Sirius ducting is installed.

Year Warranty

when Sirius ducting is used*

www.siriusbrand.com

11

Your Warranty

Register now to qualify.

Terms & Conditions

These Terms and Conditions apply only to
Sirius products distributed in Australia and
New Zealand by Arisit Pty Limited.

1. This warranty applies for a period of 3
years on all products.
a) Warranty is extended to a 6 year
period when Sirius ducting is
installed.
b) All off-board motors are covered
under warranty for a 10 year period
for manufacturing defects only.

2. Warranty applies for parts and labour in
Australia and New Zealand, commencing
from date of purchase.

3. This warranty applies only to the original
purchaser/hire purchaser of this appliance
and cannot be assigned or transferred.
Failure to produce documentary proof
of the date of original acquisition by the
original purchaser will result in a charge
being levied for work done, labour and
parts supplied.

4. This warranty does not apply to:
a) Consumable items such as filters,
fuses, and light bulbs.
b) Damage to body work, paint work,
glass, and plastic items (such as, but
not limited to windows, covers,
baskets, trays, worktops, door
handles, control and kick panels.)
c) Corrosion & rust damage.

A fee may be charged following warranty
claims where no fault is found with the
appliance.

5. This warranty will not apply where:
a) The fault is caused by accident,
misuse, an infestation of insect
and or vermin, fire, flood or the use
of products not approved by Arisit
Pty Limited.
b) There has been a failure to comply
with the manufacturer’s operating
and installation instructions.
c) Service, modification or repair has
been carried out by anybody
other than an approved Arisit Service
Technician.
d) The appliance has been used/
installed anywhere other than a
private dwelling, or where it has been
used other than for domestic use.
e) The appliance is subject to a rental
agreement.

6. Any defective part that has been replaced
becomes the property of Arisit Pty.
Limited.

7. This warranty applies only to Sirius
appliances purchased and installed in
Australia and New Zealand.

8. Loss of use of the appliance or
consequential loss of any nature is not
covered.

9. A charge may be levied at the discretion
of Arisit Pty Limited if the call is deemed
unnecessary or if the cause of failure is
traced to external sourced such as, but
not limited to: blown fused, power failure,
faulty installation, customer misuse or
negligence, etc

10. Where the appliance, the subject of
a warranty claim or repair, is used
or installed more than TWENTY (20)
kilometres from the nearest Arisit Service
Division or Authorised Service Agent, the
cost of delivery to the nearest Service

Division or travel costs for a technician or
Authorised Service Agent shall be for the
account of the Purchaser. Where a built-in
appliance is located or installed outside
the Arisit Authorised Service Agent’s
normal service area, additional travel and
labour costs shall be the account of the
Purchaser.

11. Service is offered during normal business
hours only, also appliances to have a clear
access in a serviceable area

12. Arisit Pty Limited shall not under any
circumstances be responsible in terms of
this warranty for the replacement or repair
of any part of the equipment which may
have been damaged in transit, during and
after installation or imperfections after
installation.

13. Losses caused by act of God, failure to
obtain spare parts, strikes or lockouts are
not covered.

14. External off board motors must be
installed a minimum of 2 metres and
maximum of 7 metres away from the
rangehood. This is for optimum sound
and performance.

15. All motors must be accessible for
servicing purposes and if installed above
2 metres from ground height additional
cost will be incurred due to OH&S
standards for service agents. Prior to
install please check minimum & maximum
installation details on the Sirius website,
FAQ under support tab.

We reserve the right to amend any of the
above without prior notice.

16. This warranty does not affect your
statutory rights.

To register for your warranty, please visit:

www.arisitwarranties.com.au/Customer-Registration.aspx

or scan the QR code.

ARISIT PTY LIMITED (Australia)

ABN 23 091 515 294

40-50 Mark Anthony Drive
Dandenong South VIC 3175

P: Sales & Service: 1300 762 219
F: Sales & Service: [phone]
E: [e-mail]

ARISIT PTY LIMITED (New Zealand)

1A Howe Street Newton, Auckland 1145
PO Box 68-140 Newton, Auckland 1145

P: [phone] - Fax: [phone]
E: [e-mail]

www.siriusbrand.com

Year
Warranty

when Sirius ducting is used.

Full replacement warranty on parts and labour. Check website for T&Cs.

www.arisit.com

10 year warranty on SEM motors.

12

Sirius Hoods and ducting products are only available
from our select group of Sirius Professional Stockists

nationwide. For the latest list of Sirius Stockists

near you, please refer to www.siriusbrand.com

All efforts have been made to ensure that the

information provided in this brochure is correct at

the time of printing. Due to continuous product
improvement and ongoing development, Sirius

reserves the right to make changes to the
products and technical data without prior notice.
Some products appearing in this brochure may

be for illustrative purposes only. Diagrams are

indicative measures only. Prior to commencing

cabinetry cutouts the operating/installation

instructions accompanying the product must

be referred to at www.siriusbrand.com
