SIR-PMK1
Professional Motorcycle Install Kit
Installation Guide
Desktop Docking Station
Table of Contents
FCC Notice 4
Warning and Safety information 5
Congratulations 6
Package contents 7
Important pre-installation notes 8
Choosing an apppropriate mounting location 9
Mounting bracket 10
Wiring and wire connections 12
Connecting the SIRIUS radio to the motorcycle
sound system 14
Final connections and testing 16

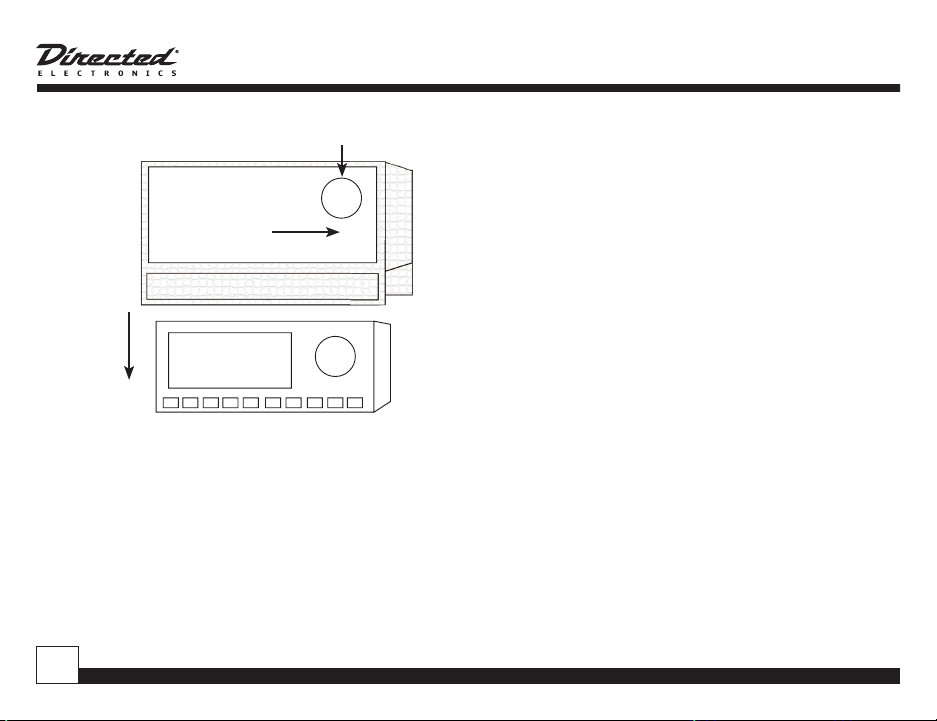

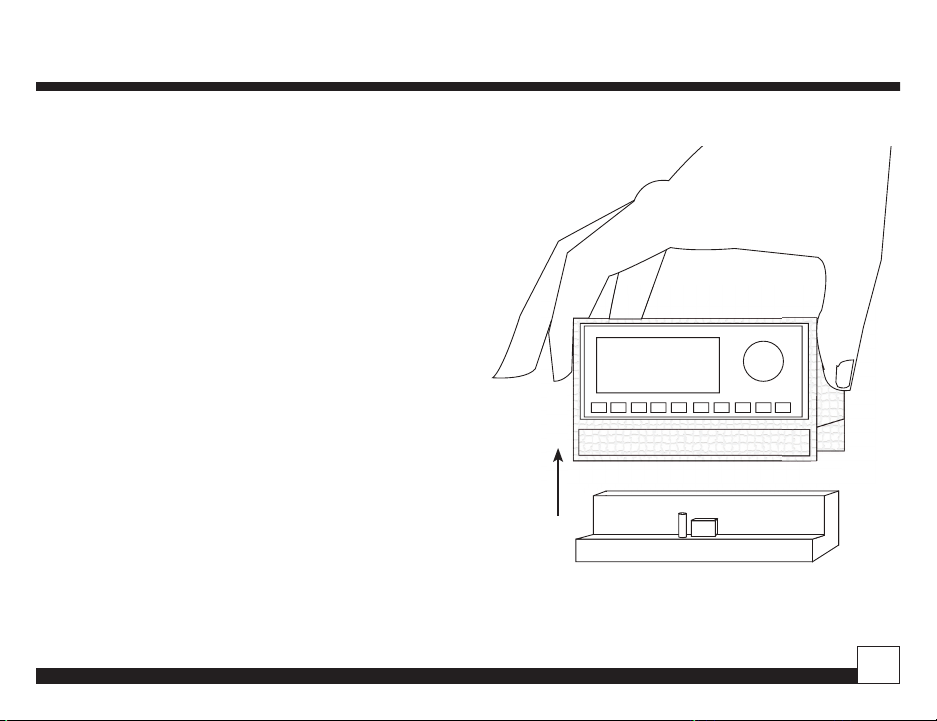

Using the moisture guard 17
Warranty 19
Professional Motorcycle Install Kit
© Directed Electronics, all rights reserved.
3
FCC NOTICE:
This device complies with Part 15 of FCC rules. Operation is subject to the following conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation. Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate this device.
Directed Electronics is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the User’s authority to operate the equipment.
4
© Directed Electronics, all rights reserved.
Desktop Docking Station
Professional Motorcycle Install Kit
Warning and Safety Information
Safety Precautions
Be sure to observe the following warning. Failure to follow these safety instructions and warnings may result in a serious
accident and/or personal injury.
• Installation must be performed according to this installation guide. Directed Electronics is not responsible for issues
arising from installations not performed according to the procedures in this guide.
• Do not install the dual voltage adapter where it will be exposed to high levels of humidity, moisture, or dust.
• To avoid short circuits or damage, do not open the adapter.
• If the adapter emits smoke or unusual odors, disconnect power immediately.
• Do not drop the unit modules or subject them to strong shocks.
• The installation and use suggestions contained in this manual are subject to any restrictions or limitations that may
be imposed by applicable law. The purchaser should check applicable law for any restrictions or limitations before
installing and/or operating this unit.
© Directed Electronics, all rights reserved.
5
Congratulations
Congratulations on the Purchase of your new SIR-PMK1 Professional Motorcycle Install Kit!
The SIR-PMK1 is compatible with all SIRIUS Branded Plug and Play or portable radios. It may also be compatible with other
Sirius radios, consult your authorized Sirius dealer for specific compatibility questions
For the latest information about this and other SIRIUS products and accessories, visit http://www.directedsirius.com.
6
© Directed Electronics, all rights reserved.
Desktop Docking Station
Professional Motorcycle Install Kit
Dual Voltage Power Supply Cables
2 pin 5v
3 pin 12v
Dual Voltage
Power Adapter
FM D irect Audi o Relay
Dual Voltage Power Supply Cables
2 pin 5v
3 pin 12v

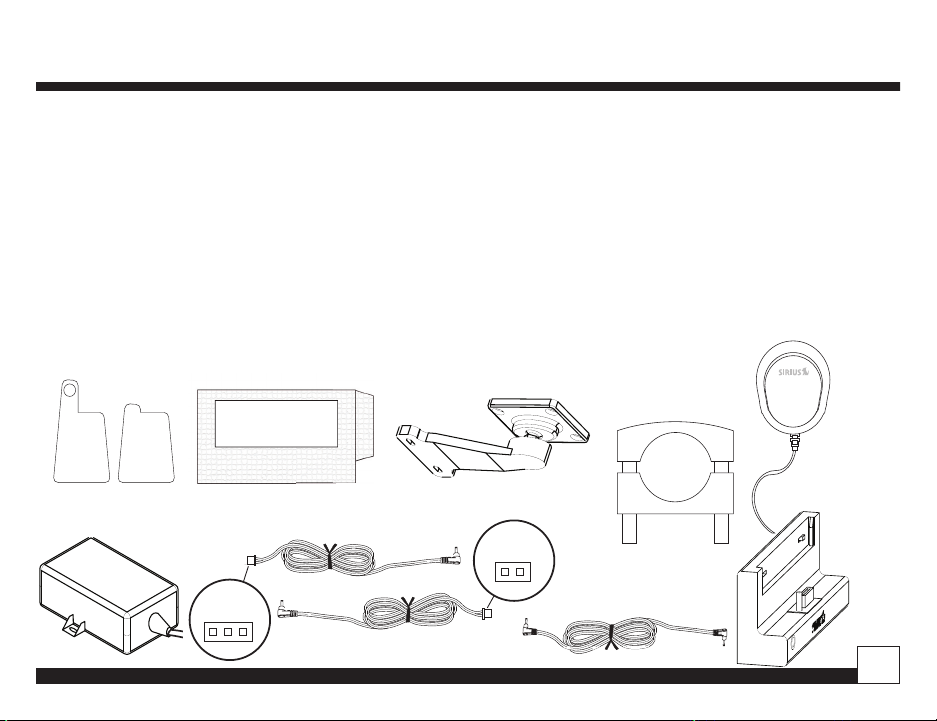

Package Contents
1 Sirius Universal Cradle
1 Dual voltage power supply, 5/12 volts
(with ground wire and ring terminal connected)
1 ATC fuse holder with 2 Amp fuse
1 Cradle Mounting Bracket with Swivel
2 Moisture Guards (sized to fit SP3/4, ST3/4 and Stratus)
1 Antenna
1 3.5mm stereo audio cable
1 5V harness with 2-pin connector
1 12V harness with 3-pin connector
1 Handle Bar Clamp
Brackets
© Directed Electronics, all rights reserved.
Moisture Guard
Swivel base
1 90 degree metal Antenna Bracket
1 Straight metal Antenna Bracket
6 6 inch zip/wire ties
1 Hardware kit:
6 Ring Washers
2, ¾ inch Spacers
2, SHCS (Stainless, Hexhead, Cap Screws) M6X1.00x35
2, SHCS (Stainless, Hexhead, Cap Screws) ¼-20x1.50
2 SHCS (Stainless, Hexhead, Cap Screws) ¼-20x1.75
1 Sirius Magnet Mount Antenna with 6” cable and SMB
connector
Handle bar clamp
Audio Cable
Antenna
Cradle
7
IMPORTANT PRE-INSTALLATION NOTES
Directed Electronics recommends that you have this product professionally installed.
Read this entire installation manual as well as the owner's
guide provide with your Sirius radio before proceeding with
the installation.
If the installation notes in this manual are not followed,
it may result in personal injury or damage to the various
components of the Sirius radio, damage to the motorcycle’s
audio system, damage to the motorcycle’s electrical system, or damage to the motorcycle’s mechanical system.
Familiarize yourself with any existing audio system on the
motorcycle by consulting the owner’s manuals for these
systems before making any wire or cable connections to
those systems.
The Dual Voltage Power Adapter is designed for 12 volt DC
negative ground motorcycle electrical systems only.
When faced with a blown fuse, always determine the cause
and correct the problem before replacing the fuse and be
sure to use a replacement fuse of the same type, rating and
amperage.
Do not cut any of the wires and cables included with the
Professional Motorcycle Install Kit or the Sirius radio being
8
installed. Any excess cable or wire length should be neatly
bundled or coiled, and secured in
Do not route wires or cables across sharp edges, or
through holes which could result in the wire or cable becoming damaged, chafed, cut, or shorted. If routing across
sharp edges is unavoidable, use the provided Expandable
sleeve to protect the wires. Use rubber grommets when
routing through holes. Make sure to route all wires away
from any moving parts that may damage them.
Avoid pinching, squashing, kinking, or crimping any of the
wires used in this install or any of the motorcycle’s existing
wires/cables during the installation.
Refer to the owner's guide for your Sirius radio to determine the voltage required in order to select correct plug to
be used for the output of the Dual Voltage Power Adapter.
The plugs provided with thise installation kit are designed
to only fit Sirius-branded radios that operate on either 5V
or 12V DC. They are keyed and sized to prevent inadvertent
connection to radios of incorrect voltage rating. Do not
force the coaxial output connector into the cradle of your
Sirius radio. If the connector does not appear to fit, stop
and make sure you have selected the correct output harness to match your radio's voltage rating.
© Directed Electronics, all rights reserved.
Desktop Docking Station
Professional Motorcycle Install Kit
SIRIUS RADIO VOLTAGE GUIDE.
MODEL P/N VOLTAGE
Sportster SPR1, SPR1A 12V
Sportster replay SPR2 12V
Starmate ST1 12V
Starmate replay ST2 12V
Sirius One SV1 12V
Stiletto 10/100 SL10PK1, SL100PK1 5V
S50 S50TK1 5V
Sportster 3/4 SP3, SP4 5V
Starmate 3/4 ST3, ST4 5V
Stratus SV3TK1 5V
InV SV2TK1 5V
© Directed Electronics, all rights reserved.
CHOOSING AN APPROPRIATE MOUNTING LOCATION.
It is very important to choose a mounting location that does
not interfere with the operator’s view of the road, gauges,
rearview mirrors or steering of the motorcycle. The most
common and intended location is somewhere on the Motorcycle’s handle bars. Some Motorcycles utilize clutch and
brake handle mounting clamps that are compatible with
the threads on the supplied Stainless Hexhead Cap Screws.
In some cases the factory screws can be used to attach the
Cradle Mounting Bracket and Metal Antenna Bracket. In
other cases you may find that the factory screws are too
short and will have to select the appropriate length Stainless Hexhead Cap Screws to replace the factory screws to
accommodate the added thickness of the Swivel Base and
Metal Antenna Bracket combination.
9

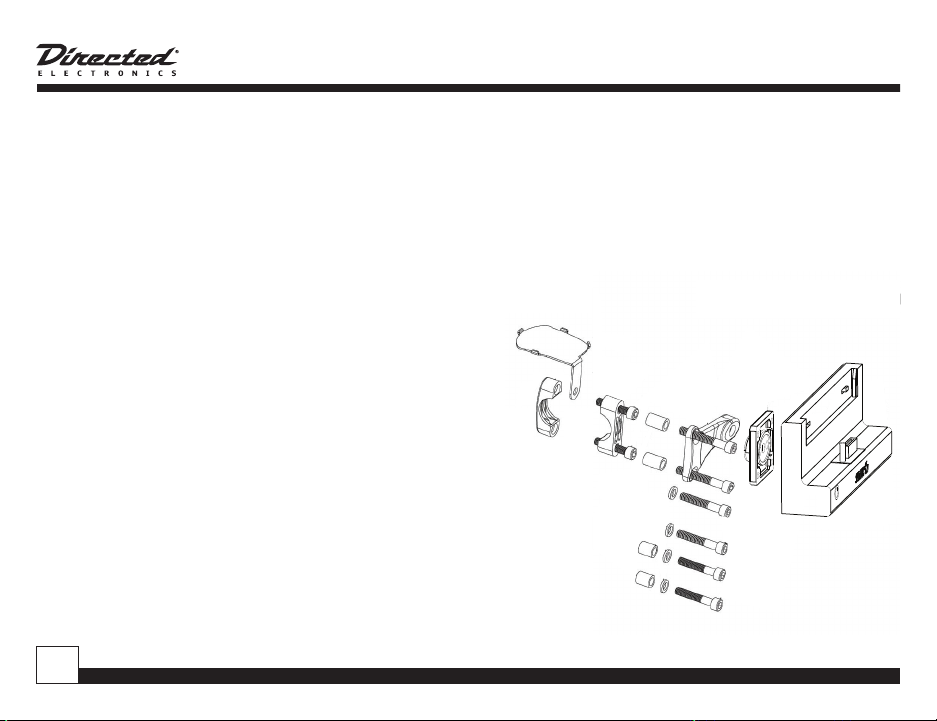

MOUNTING BRACKET.
On Motorcycles that do not have a matching bolt pattern
for the clutch and brake handle clamps, you will have to
use the included Handle Bar Clamp to attach the Cradle
Mounting Bracket and Metal Antenna Bracket assembly.
When attaching the Cradle Mounting Bracket directly to
the clutch or brake clamps be sure to re-tighten the clutch
or brake handle clamp so that the handles are oriented
the way they were originally and tight enough that they do
not move. (See sample pictures/illustrations of mounting
options and orientations of Cradle Mounting Bracket and
Metal Antenna Bracket).
On some motorcycles you may use the straight antenna
bracket bolted to a different part of the motorcycle.
At this point the Sirius Universal Cradle can be attached
with the supplied screws. In some cases it may be necessary to attach the Sirius Universal Cradle to the Cradle
Mounting Bracket while the clamp is loose to accommodate access to the screws with a screw driver. Once the
Sirius Universal Cradle is attached, plug in the Sirius Plug
and Play Tuner to assure that its location is appropriate
and does not interfere with the proper operation of the
Motorcycle.
At this point the Sirius Magnet Mount Antenna can be fitted
to the Metal Antenna Bracket. The Antenna plug can also
be plugged into the cradle at this time.
10
© Directed Electronics, all rights reserved.
Desktop Docking Station
Professional Motorcycle Install Kit

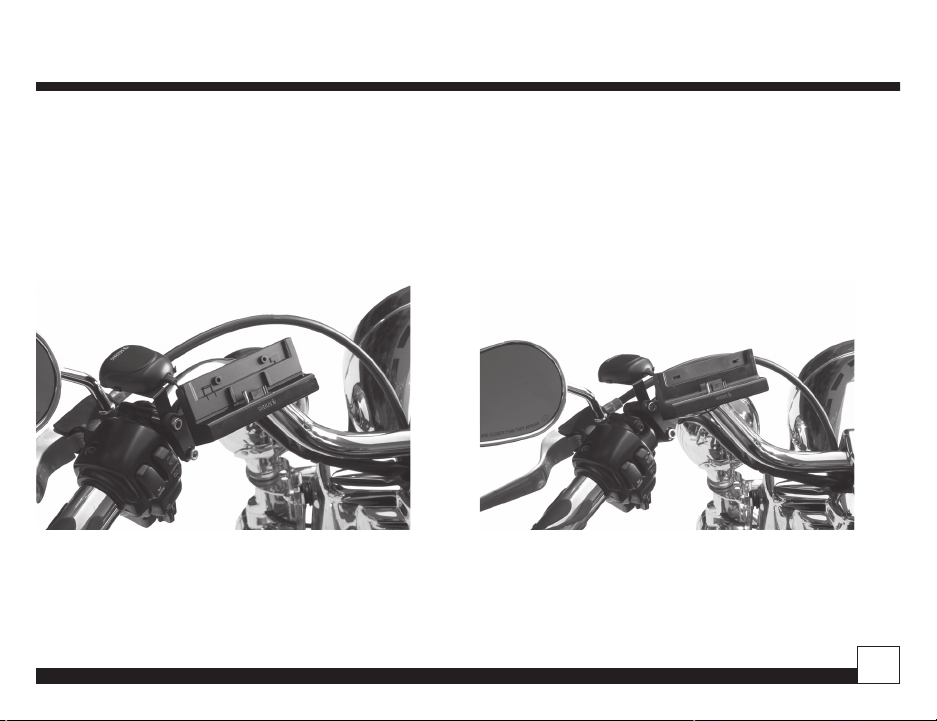

Example 1
Bracket (shown here with cradle and antenna also
attached) mounted to Clutch handle clamp
© Directed Electronics, all rights reserved.
Example 2
Bracket (shown here with cradle and antenna also
attached) mounted to handle bar using handle bar
clamp.
11
WIRING AND WIRE CONNECTIONS.
Refer to your Sirius Plug and Play Tuner guide to determine whether the Tuner is a 12 volt or 5 volt unit. This will
dictate which Coaxial Power cable you will need to use with
the Dual Voltage Power Supply. The three pin plug is for 12
volt units and the two pin plug is for 5 volt units. The plugs
are not interchangeable making it virtually impossible to
use the wrong one.
After determining the correct harness and plug you should
decide on a mounting location for the Power Supply. It is
important that the Power Supply not be exposed to the elements, especially rain! Mounting it securely under the seat
is usually a good choice.
Once an appropriate mounting location has been chosen
you can begin to wire the Power Supply to the Motorcycle’s
electrical system. The black ground wire should be connected first. It is recommended that it be attached securely
to the battery’s negative terminal. If the ground wire is too
short to reach the battery it will be necessary to cut the
ring terminal off, sufficiently extend the wire and crimp on
a new ring terminal. If, for some reason the battery is not
an option, a factory ground can be used but the battery is
always your best bet. It is not recommended to ever drill a
hole in the frame of the motorcycle.
12
Next, you should attach the supplied fuse holder to a
switched, positive 12 volt source. An accessory circuit is
preferred and can be identified as a wire that shows positive 12 volts when the ignition is on and drops to 0 volts
when the starter is cranking and then returns to positive
12 volts once the motorcycle is running. If an accessory circuit is not available or convenient then an ignition
source can be used. It will test the same as an accessory
circuit but the voltage will stay at positive 12 volts while the
starter is cranking.
The other end of the fuse holder can be attached to the red
lead of the Power Supply using the supplied butt connector. Make sure that the fuse is out of the fuse holder while
making this connection and during the remainder of the
installation. Wait until the installation is complete before
installing the fuse.
It is not recommended to use a constant source of voltage.
Doing so will run the risk of draining the battery by accidentally leaving the Sirius tuner on while the motorcycle is
not running. This could dramatically shorten the battery’s
life and cause it to not take a full charge anymore.
© Directed Electronics, all rights reserved.
Desktop Docking Station

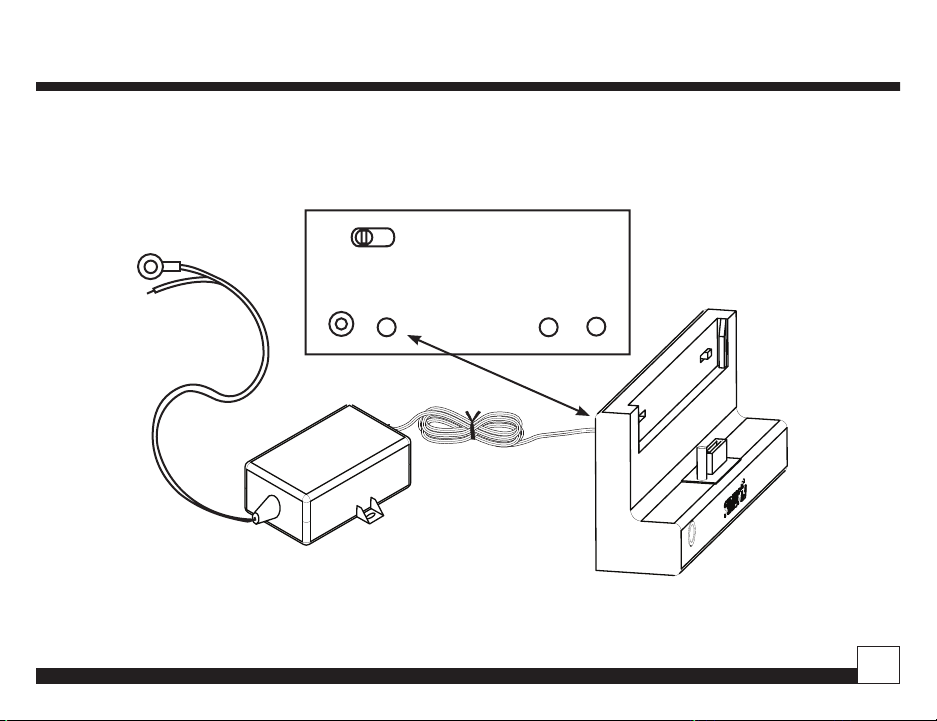

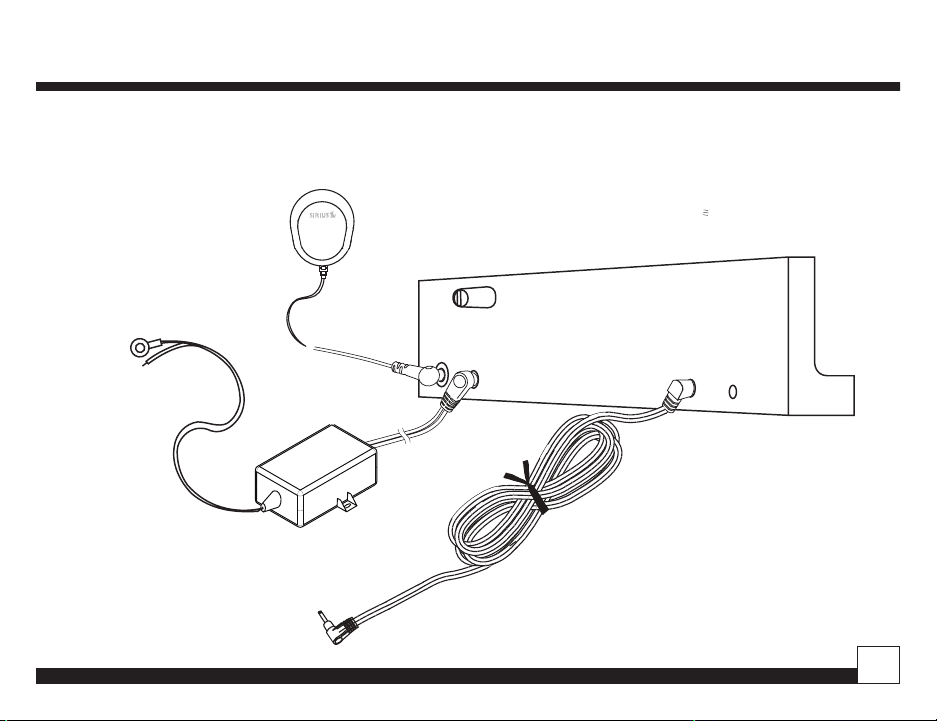

DC5V
ANT
FM
AUDIO
-
+
To Power Source
Professional Motorcycle Install Kit
Cradle Rear view
© Directed Electronics, all rights reserved.
13
CONNECTING THE SIRIUS RADIO TO THE MOTORCYCLE’S SOUND SYSTEM.
There are three different ways to connect the Sirius Tuner
to a Motorcycle’s Sound System. The method of connection
will depend on the brand of Motorcycle and the particular
sound system installed on it.
Many Motorcycle Sound Systems do not have an auxiliary input. Therefore it is necessary in these cases to FM
modulate the Sirius audio to the Sound System. One option
is to use the wireless FM modulator built into the Sirius
Tuner by following the instructions for the wireless modulator contained in the tuner’s operation guide.
In some cases the wireless signal will not be strong enough
to overcome interference from local FM stations. In this
case it is recommended to use the optional FM Direct Audio
relay (Part #: FMDA25). this relay will install between the
motorcycle's radio and the FM antenna. Refer to FMDA25
install guide for details.
Some Motorcycle radios have an auxiliary input in the form
of a 3.5mm stereo input jack. These auxiliary inputs can be
connected to the Sirius Tuner Cradle by using the supplied
3.5mm stereo cord. One end plugged into the radio auxiliary input and the other into the line out of the Sirius Tuner
Cradle. Listening to the Sirius Tuner would then be accomplished by simply selecting the radio’s auxiliary input.
You may also be able to connect your Sirius radio directly
to a helmet earphone system. The output voltage of Sirius
radios can drive some high efficiency earbuds without an
external amplifier.
14
© Directed Electronics, all rights reserved.
Desktop Docking Station
Wiring Diagram:
To Power Source
Power Supply
Professional Motorcycle Install Kit
Antenna
CRADLE REAR VIEW
To Motorcycle Audio
system
Auxiliary Input
Jacks L/R
© Directed Electronics, all rights reserved.
15
FINAL CONNECTIONS AND TESTING.
Before preceding double check all connections and mounting points assuring that they are all secure and tight.
At this point install the fuse into the fuse holder and seat
the Sirius radio into the cradle. Turn the Motorcycle’s ignition on and turn the Sirius radio on. If the Tuner has never
been activated before be sure to let it update the channels as described in the radio’s operation manual. Once
the channels have updated follow the operation guide’s
instructions to select the desired FM frequency you wish to
use if you are using one of the FM Modulating techniques
described previously and verify that it is working with no
distortion or interference. If you are using an available
auxiliary input to the radio simply select the auxiliary
source on the radio and verify that it is playing the Sirius
Weather Channel (184). You can now contact Sirius to have
your radio activated and start enjoying all of the channels
Sirius has to offer.
At this point you can make final adjustments to the Swivel
or Cradle Mounting Bracket if necessary and replace any
parts of the Motorcycle that may have been removed to accommodate the installation such as the seat.
Make sure to use one of the supplied Moisture Guards
whenever the Motorcycle is being operated in inclement
weather to protect the Sirius radio. You should always
remove the radio and store it in a safe dry location when
not in use. The Sirius Universal Cradle is not designed for
exposure to moisture and should always be kept covered
with the moisture Guard or removed when not in use.
16
© Directed Electronics, all rights reserved.
Desktop Docking Station
Professional Motorcycle Install Kit
Using the Moisture Guard
Since the moisture guard is an extremely snug fit please
follow these instructions to avoid difficulty when removing
the moisture guard from your Sirius radio.
1 Unfasten the moisture guard's velcro flaps from
beneath cradle (make sure all flaps are exposed to
prevent them from inadvertently getting caught during
removal).
2 In this step remove the Sirius radio along with
moisture guard from cradle first before attempting to
remove moisture guard from radio. Using thumb and
fingers grasp the moisture guard and radio firmly on
both sides (do not grasp front and back as damage to
the display may result). Pull system vertically from
cradle until clear (Fig A).
3 Now with your Sirius radio detached from cradle the
moisture guard can be removed from the radio (Fig B).
Caution: On some radios (SP4 model, used in this exam-
ple) there is a button control that protrudes through
an opening in the front of the moisture guard. When
removing guard from this radio, slide finger under
moisture guard and lift until this area of the moisture
guard clears this control. Once cleared and free from
contraint, slowly work radio out of guard.
© Directed Electronics, all rights reserved.
Fig A
17
Fig B
opening
lift guard here
Copyrights & Trademarks
2006 SIRIUS Satellite Radio Inc. All Rights Reserved
“SIRIUS”, the SIRIUS dog logo, channel names and logos are trademarks of
SIRIUS Satellite Radio Inc. All Rights Reserved
18
© Directed Electronics, all rights reserved.
Desktop Docking Station
Professional Motorcycle Install Kit
Limited One Year Consumer Warranty
Directed Electronics (herein “DIRECTED”) promises to the original purchaser, to replace this product should it prove to be
defective in workmanship or material under normal use, for a period of one-year from the date of purchase from the dealer
as indicated by the date code marking of the product. During this one-year period, there will be no charge for this replacement PROVIDED the unit is returned to DIRECTED, shipping pre-paid. This warranty is non-transferable and does not apply
to any unit that has been modified or used in a manner contrary to its intended purpose, and does not cover damage to
the unit caused by installation or removal of the unit. This warranty is void if the product has been damaged by accident or
unreasonable use, neglect, improper service or other causes not arising out of defects in materials or construction. ALL
WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, AND WARRANTY OF NONINFRINGEMENT OF INTELLECTUAL PROPERTY
ARE EXPRESSLY EXCLUDED TO THE MAXIMUM EXTENT ALLOWED BY LAW, AND DIRECTED NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO ASSUME FOR IT ANY LIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT. DIRECTED
HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEALERS OR
INSTALLERS. IN NO EVENT WILL DIRECTED BE LIABLE FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES
(INCLUDING LOSS OF PROFITS) AND IN NO EVENT, SHALL DIRECTED’S LIABILITY EXCEED THE PURCHASE PRICE PAID
BY PURCHASER FOR THE PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you. Some states do not allow limitations on how long an
implied warranty lasts, so the above limitation may not apply to you. Unit must be returned to DIRECTED, postage prepaid,
with bill of sale or other dated proof of purchase bearing the following information: consumer’s name, telephone number,
and address, authorized dealer’s name and address, and product description. Note: This warranty does not cover labor costs
for the removal and reinstallation of the unit. IN ORDER FOR THIS WARRANTY TO BE VALID, YOUR UNIT MUST BE SHIPPED
WITH PROOF OF PURCHASE FROM AN AUTHORIZED DIRECTED DEALER. BY PURCHASING THIS PRODUCT, THE CONSUMER AGREES AND CONSENTS THAT ALL DISPUTES BETWEEN THE CONSUMER AND DIRECTED SHALL BE RESOLVED
IN ACCORDANCE WITH CALIFORNIA LAWS IN SAN DIEGO COUNTY, CALIFORNIA.
© Directed Electronics, all rights reserved.
19
© 2006 Directed Electronics, all rights reserved
NSIRPMK1 09-06
Loading...
