Sipura Technology SPA-1001 User Manual

Sipura SPA-1001

Simplified Users Guide

Version 1.1a

A Step by Step Introduction

Written by Jason

from

JMG Technology

http://www.jmgtechnology.com.au

Section 1 – Getting Started

When you receive your SPA-1001 it should contains the following items:

1. SPA-1001

2. Power supply

3. Phone cable

4. Network cable

5. Quickstart guide

Setting up the hardware:

Step 1: Connect the power cable to your SPA-1001
Step 2: Connect the network cable from your SPA-1001 to your DHCP enabled modem/router
Step 3: Connect an analogue phone to the “Phone” port in the SPA-1001.
Step 4: Turn the power on
Step 5: Pick up the phone and dial **** (You should hear a voice saying Sipura Configuration Menu)
Step 6: Dial 110# (Write down the IP address that is returned) (See Appendix E for all phone menu options)

At this stage, you can choose whether to upgrade the firmware. The latest version of the

SPA-1001 firmware at the time of writing this document is

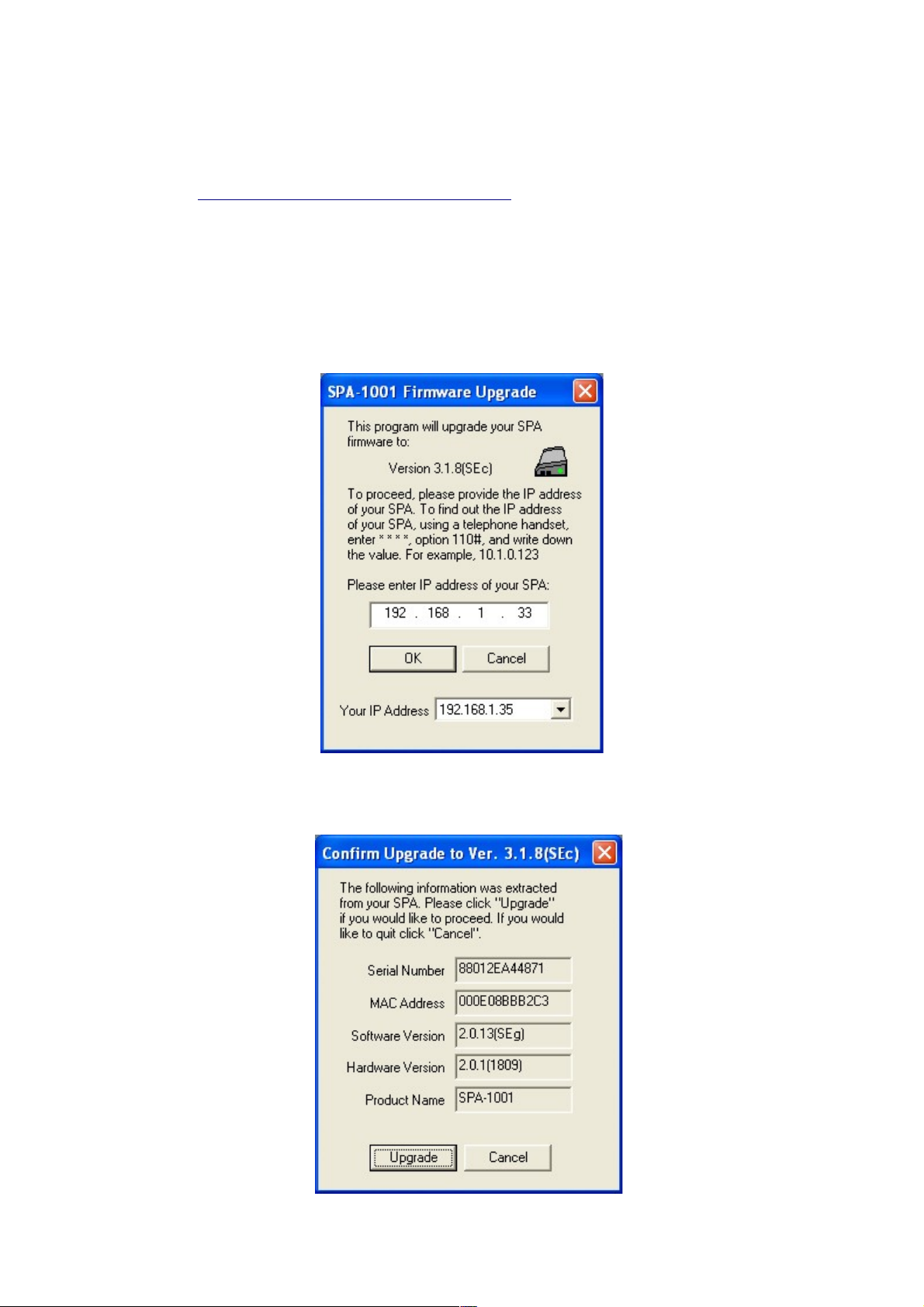

To upgrade the firmware see Appendix C.

Section 2 – Configuring the SPA-1001 via the Web Interface

Once you have the IP address of your SPA-1001 you can access the web interface by

opening a web browser and typing the following in the Address :

http:// <IP Address of SPA-1001>

For example: http://192.168.1.10

You should now see the Sipura SPA-1001 Phone Adapter Configuration screen. Now you

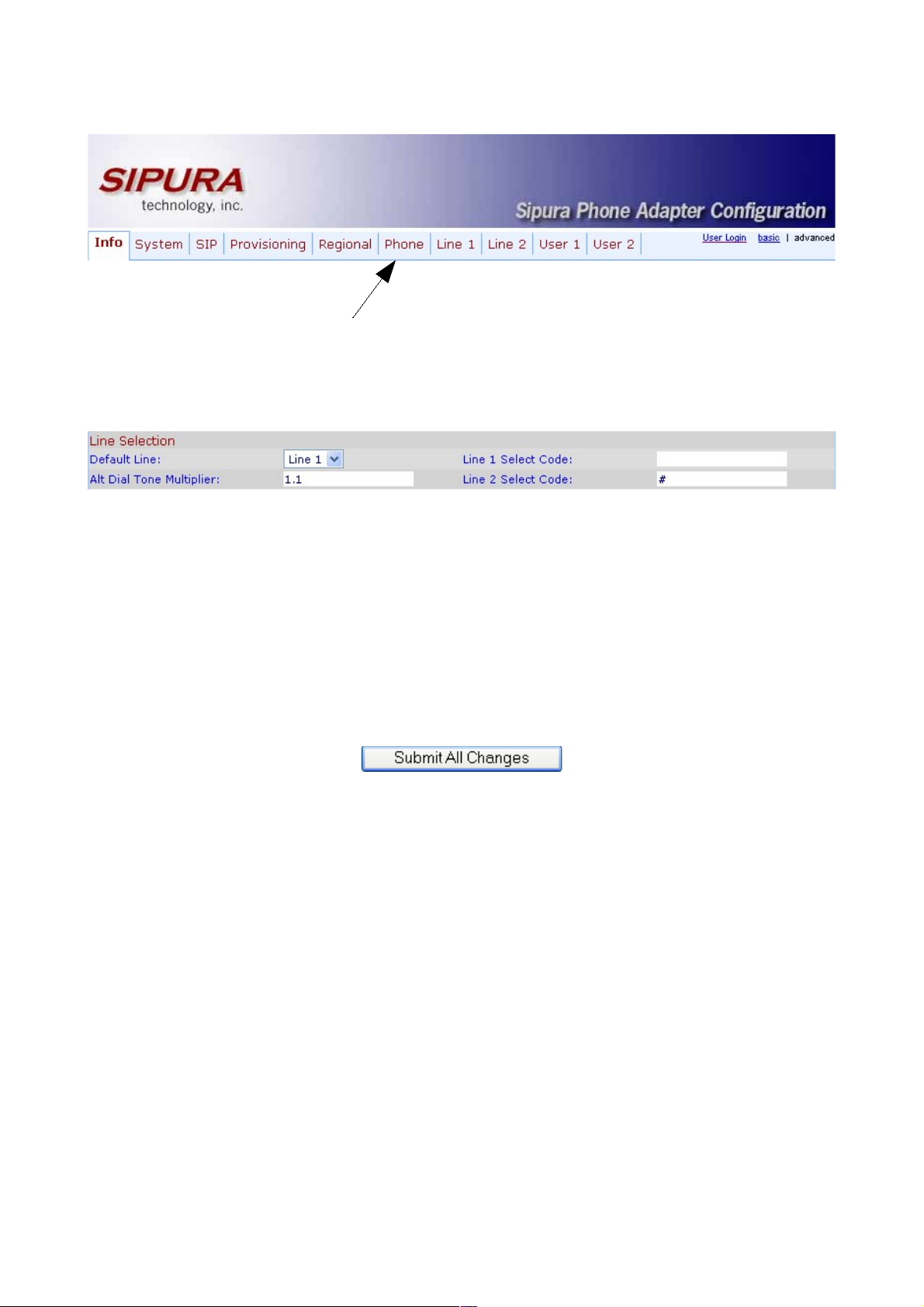

will need to log into the unit as Administrator and change the view to advanced. See images below.

Click on “Admin Login”

Click on “advanced”

Note: You can also go directly to the admin/advanced section by typing

http://192.168.1.10/admin/advanced

Section 3 – Regional Settings

Click on the “Regional” tab.

The following changes are optional, however they will make your SPA-3000 sound more

Australian. Under the Call Progress Tones and Distinctive Ring Patterns headings change:

Dial tone: 400@-19,425@-19,450@-19;10(*/0/1+2+3)
Busy Tone: 425@-19;10(.375/.375/1)
Reorder Tone: 425@-19, 425@-29;60(.375/.375/1,.375/.375/2)
Ring Back Tone: 400@-19,425@-19,450@-19;*(.4/.2/1+2+3,.4/2/1+2+3)
MWI Dial Tone: 400@-19,425@-19,450@-19;2(.1/.1/1+2);10(*/0/1+2)

Ring1 Cadence: 60(.4/.2,.4/2)

The following changes are required under the Miscellaneous heading :

FXS Port Impedance: 220+820||115nF

If you would like to configure the Time and Daylight savings, see Appendix D. This is

completely optional.
