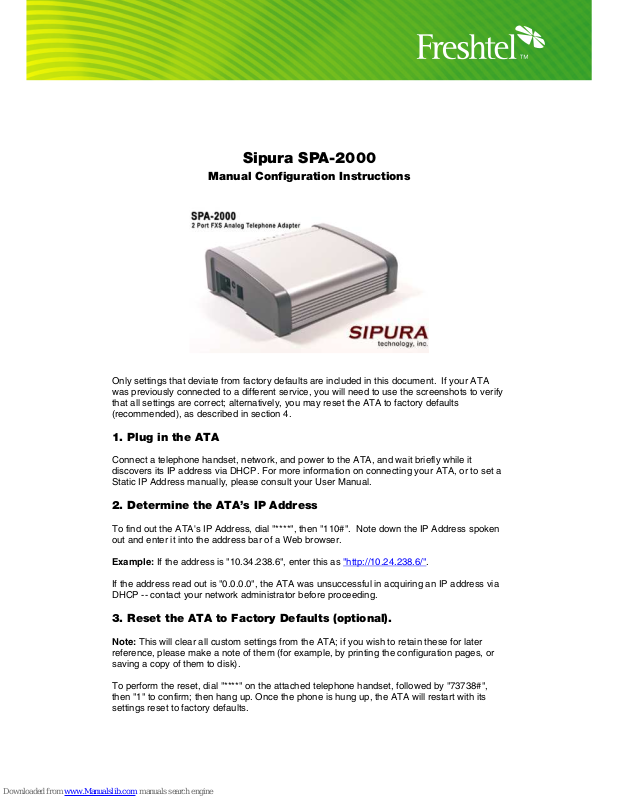

Sipura Technology Sipura SPA-2000, SPA-2000 Manual Configuration Instructions

Sipura SPA-2000
Manual Configuration Instructions
Only settings that deviate from factory defaults are included in this document. If your ATA was previously connected to a different service, you will need to use the screenshots to verify that all settings are correct; alternatively, you may reset the ATA to factory defaults (recommended), as described in section 4.
1. Plug in the ATA
Connect a telephone handset, network, and power to the ATA, and wait briefly while it discovers its IP address via DHCP. For more information on connecting your ATA, or to set a Static IP Address manually, please consult your User Manual.
2. Determine the ATA’s IP Address
To find out the ATA's IP Address, dial "****", then "110#". Note down the IP Address spoken out and enter it into the address bar of a Web browser.
Example: If the address is "10.34.238.6", enter this as "http://10.24.238.6/".
If the address read out is "0.0.0.0", the ATA was unsuccessful in acquiring an IP address via DHCP -- contact your network administrator before proceeding.
3. Reset the ATA to Factory Defaults (optional).
Note: This will clear all custom settings from the ATA; if you wish to retain these for later reference, please make a note of them (for example, by printing the configuration pages, or saving a copy of them to disk).
To perform the reset, dial "****" on the attached telephone handset, followed by "73738#", then "1" to confirm; then hang up. Once the phone is hung up, the ATA will restart with its settings reset to factory defaults.
4. Configure the ATA via its web interface
Bring up the ATA's Web configuration page, as described in section 2 of this document. Click on "Admin Login", then "advanced". Clicking on each of the System, SIP, Regional, Line 1 and (optionally) Line 2 tabs in turn, make the following changes; click on the "Submit All Changes" button when done with each page:
System System Configuration Admin Passwd: <choose a secure password for administration> User Password: <may be the same as the Admin Passwd>
Optional Network Configuration
Primary NTP Server: pool.ntp.org Secondary NTP Server: time.nist.gov
SIP NAT Support Parameters
Handle VIA received: yes Handle VIA rport: yes Insert VIA received: yes
Insert VIA rport: yes STUN Enable: yes STUN Server: stun.freshtel.net
Regional (Australia only)
Call Progress Tones Dial Tone: 400@-19,425@-19;30(*/0/1+2) Busy Tone: 425@-10;10(.4/.4/1) Reorder Tone: 425@-10;10(.2/.2/1) Ring Back Tone: 400@-19,425@-19,450@-19;*(.4/.2/1+2+3,.4/.2/1+2+3,0/2/0)
Distinctive Ring Patterns Ring 1 Cadence: 60(1.5/3.4) Ring 3 Cadence:
60(1.5/3.4,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/.2 ,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2)
(Note: the above must appear all as one line in the ATA config. You should copy
and paste this line rather then trying to type it in.)
Distinctive Call Waiting Tone Patterns
CWT8 Cadence: 30(.2/.2,.2/4.4)
Control Timer Values (sec) Hook Flash Timer Min: 0.07 Hook Flash Timer Max: 0.13
Regional (all countries) Miscellaneous Time Zone: GMT+10:00 <or as appropriate> FXS Port Impedance:
600 <North America> 270+750||150nF <most of Europe> 220+820||120nF <Australia, New Zealand> 220+820||115nF <Austria, Bulgaria, Germany, Slovakia, South Africa> 370+620||310nF <UK, India>
Line 1 (and 2, if using a different Firefly number on the second line)
NAT Mapping Enable: yes NAT Keep Alive Enable: yes NAT Keep Alive Msg:
Proxy and Registration Proxy: sip.freshtel.net Make Call Without Reg: yes Ans Call Without Reg: yes
Subscriber Information Display Name: <your full name> User ID: <your Firefly number> Password: <your Firefly password>
Audio Configuration Preferred Codec: G729a
NOTE: It is vital that the dial plans are entered correctly – as there is not enough space on a
page to show them as one line, you should copy and paste one of the below dial plans to ensure it is correct. Missing a space or getting a character wrong will stop them from working.
Dial Plan (Australia only -- user has no local dialing prefix set)
(*123|*xxxxxxxx|<000:61000> S0|<112:61112> S0|<106:61106> S0|61000 S0|61112 S0|61106 S0|0[2378][2­6]xxxxxxx|0[4569]xxxxxxxx|611300xxxxxx|611800xxxxxx|6113xxxx|6118xxxx|[1-9]x.)
Dial Plan (Australia only -- user has local dialing prefix set)
(*123|*xxxxxxxx|000 S0|112 S0|106 S0|001[0-9]x.|0[4569]xxxxxxxx|0[2378][2-9]xxxxxxx|[2­9]xxxxxxx|1300xxxxxx|1800xxxxxx|13xxxx|18xxxx|1[4-79]x.)
Dial Plan (UK only -- user has no local dialing prefix set)
(*123|*xxxxxxxx|<999:44999> S0|<112:44999> S0|44999 S0|44112 S0|4418000 S0|4418001999 S0|440800112999 S0|0[2-9]xxxxxxxx|[1-9]x.)
Dial Plan (UK only -- user has local dialing prefix set)
(*123|*xxxxxxxx|999 S0|112 S0|18000 S0|18001999 S0|0800112999 S0|[2-9]xxxxxxx|[2­9]xxxxxx|[2-9]xxxxx|[2-9]xxxx|0[1237]xxxxxxxxx|01xxxxxxxx|0[045689]x.|1x.)
Dial Plan (US and Canada) <no change>
Once these changes are made and the "Submit All Changes" button is clicked, your ATA will reboot, and you should be ready to place and receive calls with Freshtel.
Dialling:
To dial a Firefly number or voicemail, prefix the number with a star, e.g. *80001234, *123.
If you have configured a local dialling prefix for your account via the
Freshtel website
, you can dial local, national, mobile, and international PSTN numbers exactly as you would from a land line phone in your area; e.g. 08007654321 (US), 9557745 (US – local), 0061399156415 (UK – international), 99156415 (Australia – local).
If you have not configured a local dialling prefix, numbers are dialled in full (including country code but without any international dial prefix), e.g. 61399156415, 18007654321. Land lines and mobiles in Australia can be dialled with an initial 0, e.g. 0399156415.
