www.sipeed.com
Datesheet
Development board
features:
· Anlogic Technologies EG4S20
is the core unit
· 20K logic unit (LUT4/LUT5
hybrid architecture)
· About 130KB SRAM
· Built-in 32bit bit width
64MBit SDRAM
· FPGA configuration Flash,
8Mbit
User Flash, nor/nand
optional
· Onboard FPGA JTAG
download debugger
Sipeed

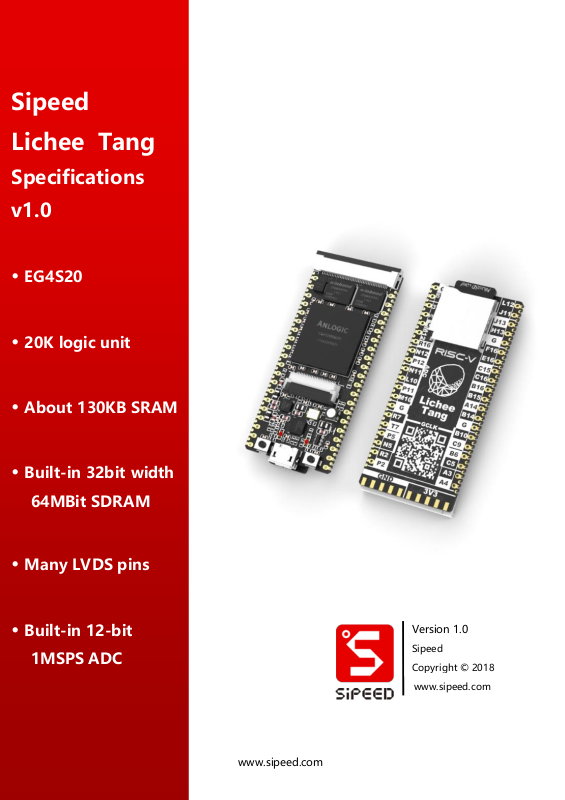

Lichee Tang
Specifications
v1.0
· EG4S20
· 20K logic unit
· About 130KB SRAM
· Built-in 32bit width
64MBit SDRAM
· Many LVDS pins
· Built-in 12-bit
1MSPS ADC
V
Version 1.0
S
Sipeed
C
Copyright © 2018
www.sipeed.com
Sipeed Technology 2 / 4
Sipeed Lichee Tang Specifications v1.0
Functional Overview
Core unit
Anlogic Technologies EG4S20
Logical unit
20K (LUT4/LUT5 hybrid architecture)
SRAM
About 130KB
SDRAM
Built-in 32bit bit width 64MBit
Flash
FPGA configuration Flash, 8Mbit
User Flash, nor/nand optional
interface
FPC40P socket, can be connected to RGB
LCD, VGA adapter board
FPC24P socket, can be connected to DVP
camera, high speed ADC module
Resistive touch screen controller for I2C
interface, used with RGB LCD
Pin and lead
The adjacent pins LVDS are drawn in the
same length, leading out 8 GCLKs, and all 8
ADCs are taken out.
Double row pin spacing 900mil, compatible
with breadboard development
Half hole leads to an extra 40 IO, and the
whole board leads to 130+ IO
Electrical characteristics
Micro USB 5V power supply; 2.54mm pin
3.3V~5V power supply; 1.27mm stamp hole
power supply
3-channel DCDC power supply chip, stable
and efficient power supply, independent
adjustment of Bank0 IO level
Download and debug
Onboard FPGA JTAG Download Debugger
RV debugger can debug hummingbird core
Software function
Integrate, download, debug features with TD IDE
IDE has a rich IP core
Support hummingbird risc-v soft core
https://github.com/Lichee-Pi/Tang_E203_Mini
Sipeed Technology 3 / 4
Sipeed Lichee Tang Specifications v1.0
Lichee Tang development board pin diagram
Lichee Tang Development Board Resource Map
Sipeed Technology 4 / 4
Sipeed Lichee Tang Specifications v1.0
Communicate communities and resources
Github
https://github.com/Lichee-Pi
BBS
http://bbs.lichee.pro/t/lichee
Wiki
tang.lichee.pro
E-mail
support@sipeed.com
Size and weight
Development board size
25.4x56.0mm
Development board weight
6.2±0.1g
Precautions
RV debugging
When using the RV debugger, if you need to
use USB power, try to use a shorter USB cable.
Micro-USB
The USB interface can be used for power
supply, and the interface is fragile. Please pay
attention to the use.
Download and debug
On-board FPGA JTAG download debugger,
debugging hummingbird core requires other
debuggers, such as RV, JLink
Operating temperature
-20~85℃
Power consumption and current
No-load current is about 50mA
Target application scenario:
• High-speed communication interface interconnection
• Learning, debugging, research of soft cores such as RISC-V
• Machine vision processing
• Parallel computing acceleration
