1
Please read and fully understand the instructions in this manual
before operation. Keep this manual safe for future reference.
07907
Sip Vacuum Cleaner 1400/20 Wet & Dry
Page 2
2
19
Declaration of Conformity
We
SIP (Industrial Products) Ltd
Gelders Hall Road
Shepshed
Loughborough
Leicestershire
LE12 9NH
England
As the manufacturer's authorised representative within the EC
declare that the
Sip Vacuum Cleaner 1400/20 Wet & Dry - SIP Part No. 07907
Conforms to the requirements of the following directive(s), as indicated.
2006/95/EC Low Voltage Directive
2014/30/EU EMC Directive
2011/65/EU RoHS
Signed: …………………………………...
Mr P. Ippaso - Managing Director - SIP (Industrial Products) Ltd
Date: 29/11/2015.
DECLARATION OF CONFORMITY
And the relevant standard(s), including:
EN 60335-2-2:2010+A11:2012+A1:2013
EN 60335-1:2012+A11:2014
EN 62233:2008
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:1997+A1:2001+A2:2008
EN 61000-3-2:2014
EN 61000-3-3:2013
Page 3
18
NOTES
3
CONTENTS
Page No. Description
4. Safety Symbols Used Throughout This Manual
4. Safety Instructions
7. Guarantee
8. Electrical Connection
9. Technical Specifications
9. Contents & Accessories
10. Getting to Know Your Vacuum Cleaner
11. Assembly Instructions
11. Operating Instructions
14. Maintenance
15. Exploded Diagram
16. Parts List
19. Declaration of Conformity
Page 4
4
SAFETY SYMBOLS USED THROUGHOUT THIS MANUAL
SAFETY INSTRUCTIONS
IMPORTANT: Please read the following instructions carefully, failure to do
so could lead to serious personal injury and / or damage to the vacuum cleaner.
Danger / Caution: Indicates risk of personal injury and/or the possibility of
damage.
Note: Supplementary information.
Warning: Risk of electrical injury or damage!
When using the vacuum cleaner, basic safety precautions should always be followed
to reduce the risk of fire, electric shock and personal injury.
Read all these instructions before operating the tool and save this user manual for future reference.
SIP recommends that this vacuum cleaner should not be modified or used for any
application other than that for which it was designed. It is designed to vacuum carpets, floors etc. and the collection of water, If you are unsure of its relative applications
do not hesitate to contact us and we will be more than happy to advise you.
KNOW YOUR VACUUM CLEANER: Read and understand the owner's manual and labels
affixed to the vacuum cleaner. Learn its applications and limitations, as well as the
potential hazards specific to this vacuum cleaner.
KEEP WORK AREA CLEAN AND WELL LIT: Cluttered work benches and dark areas invite
accidents; Floors must not be slippery due to oil, water or sawdust etc.
DO NOT USE THE VACUUM CLEANER IN DANGEROUS ENVIRONMENTS: Do not expose
the vacuum cleaner to rain. Provide adequate space surrounding the work area. Do
not use in environments with a potentially explosive atmosphere.
KEEP CHILDREN AND UNTRAINED PERSONNEL AWAY FROM THE WORK AREA: All visitors
should be kept at a safe distance from the work area.
STORE TOOLS SAFELY WHEN THEY ARE NOT IN USE: All tools should be stored in a dry,
locked cupboard wherever possible and out of the reach of children.
PROTECT YOURSELF FROM ELECTRIC SHOCK: When working with power tools, avoid
17
NOTES
Page 5
16

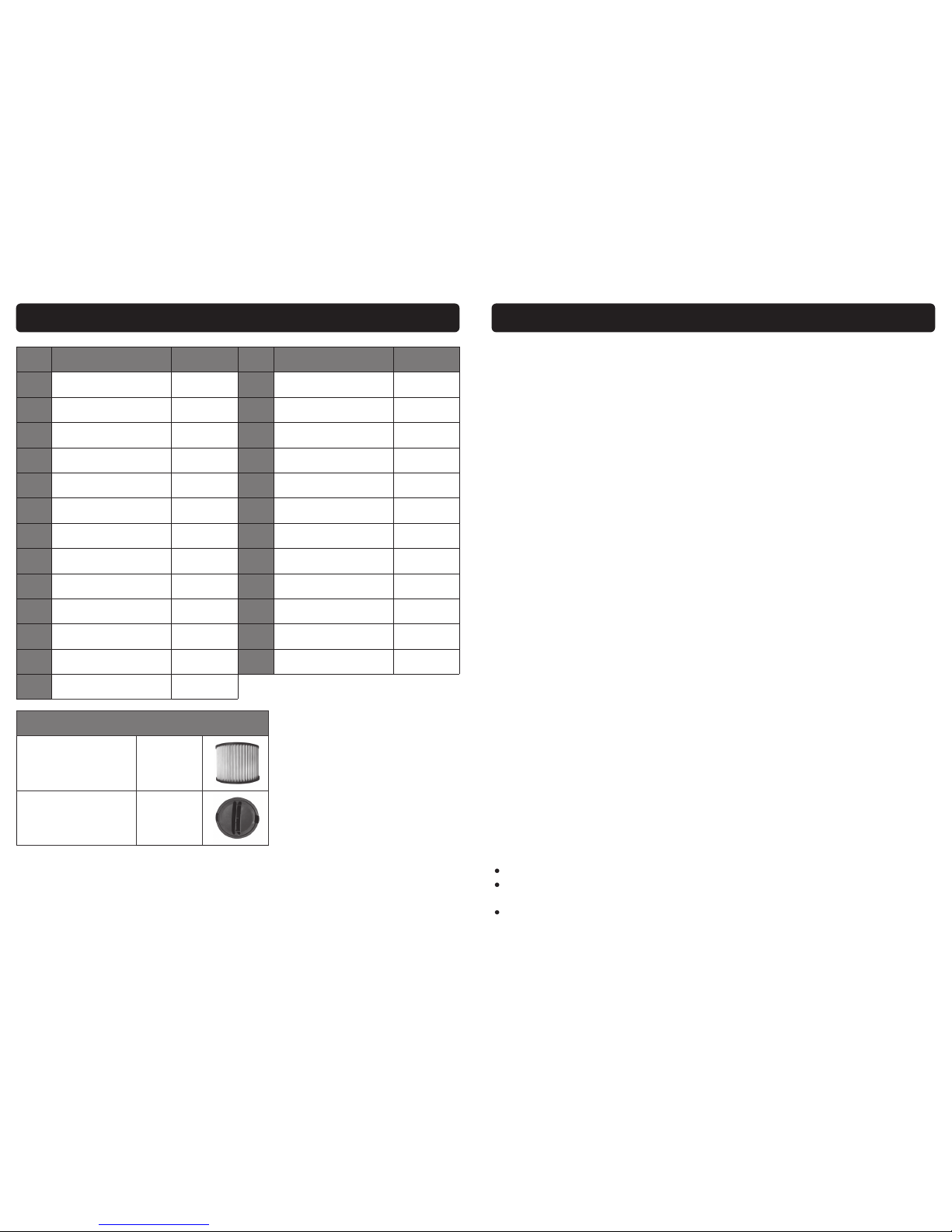

Ref. No. Description SIP Part No. Ref. No. Description SIP Part No.
1. Handle PW08-00460 14. Castor PW08- 00476
2. Motor top cover PW08-00461 15. Attachment holder PW 08-00474
3. Switch PW08-00462 16. Collection bag PW08-00477
4. Motor base cover PW08-00463 17. Mains lead clamp PW08-00479
5. Motor upper seal ring PW08-00464 18. Mains lead PW08-00480
6. Motor PW08-00465 19. Capa citor PW08-00481
7. Motor lower seal ring PW08-00466 20. Extension tube PW08-00 482
8. Air inlet PW08-00467 21. Foam filter PW 08-00483
9. Float stop PW08-00468 22. Crevice tool PW08-00484
10. Filter basket PW08-00469 23. Hose 1.5 metre PW08-00485
11. Clamp PW0 8-00470 24. Brush PW08-00487
12. Hose connector PW08-00471 N/A. Motor brush (p air) PW08-00491
13. Container PW08-00472
PARTS LIST
Optional Extras
Cartridge filter PW08- 00489
Filter lock PW08- 00490
5
contact with any earthed items (e.g. pipes, radiators, hobs and refrigerators, etc.). It is
advisable wherever possible to use an RCD (residual current device) at the mains
socket.
STAY ALERT: Always watch what you are doing and use common sense. Do not operate a machine when you are tired or under the influence of alcohol or drugs.
DISCONNECT THE VACUUM CLEANER FROM THE MAINS SUPPLY: When not in use, before servicing, empting the water container and when changing accessories such as
bags etc.
AVOID UNINTENTIONAL STARTING: Make sure the switch is in the OFF position before
connecting the vacuum cleaner to the mains supply.
NEVER LEAVE THE VACUUM CLEANER RUNNING / CONNECTED WHILST UNATTENDED:
Turn off the vacuum cleaner and disconnect it from the mains supply between jobs.
Do not leave the vacuum cleaner until it comes to a complete stop.
DO NOT ABUSE THE MAINS LEAD: Never attempt to move the vacuum cleaner by the
mains lead or pull it to remove the plug from the mains socket. Keep the mains lead
away from heat, oil and sharp edges. If the mains lead is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order
to avoid unwanted hazards.
CHECK FOR DAMAGED PARTS: Before every use of the vacuum cleaner, any part that
is damaged should be carefully checked to determine that it will operate correctly
and perform its intended function. Check for alignment of moving parts, free running
of moving parts, breakage of parts, and any other conditions that may affect its operation. A guard or other part that is damaged should be correctly repaired or replaced
by an authorised service centre unless otherwise indicated in this instruction manual.
Have defective switches replaced by an authorised service agent. Do not use the tool
if the switch does not turn it on and off.
USE ONLY RECOMMENDED ACCESSORIES: Consult this user manual for recommended
accessories. Follow the instructions that accompany the accessories. The use of improper accessories may cause hazards and will invalidate any warranty you may
have.
DO NOT OVERREACH: Keep proper footing and balance at all times.
USE THE RIGHT MACHINE: Do not use the vacuum cleaner or the attachment to do a
job for which it was not designed.
DO NOT OVERLOAD THE VACUUM CLEANER: It will do the job better and more safely at
the rate which it was designed.
DO NOT EXPOSE THE VACUUM CLEANER TO RAIN: Water entering the motor housing
will greatly increase the risk of electric shock.
SAFETY INSTRUCTIONS….cont
Stop operation immediately if you notice anything abnormal.
Be alert at all times, especially during repetitive, monotonous operations. Don't be
lulled into a false sense of security.
Do not modify the vacuum cleaner to do tasks other than those intended.
Page 6
6
SAFETY INSTRUCTIONS….cont
Never collect hot objects such as dust or ashes etc.
Never operate the vacuum cleaner without the hose attached securely and correctly fitted.
If the vacuum cleaner is used in a place of work all rules and laws etc. relating to the
use of portable electrical appliances should be followed.
The motor housing contains a high speed fan that can amputate fingers, grab loose
clothing and neckties, propel dust and chips of wood at high velocities. DO NOT
OPERATE WITHOUT ALL COVERS / GUARDS AND PARTS IN PLACE.
Do not attempt to clean the vacuum cleaner, or empty the container when the
power is ON. Turn the vacuum cleaner OFF and disconnect the mains lead from the
power supply and allow the internal fan to come to a complete stop prior to any
adjustment, cleaning or maintenance.
Static shocks are common in dry areas or when the relative humidity of the air is too
low, The use of a humidifier in the work place will help raise the relative humidity, and
may reduce static shocks.
DO NOT use the vacuum cleaner near flammable or combustible liquids, gases,
petrol, or any other types of fuels or liquid.
Be aware what is likely to get sucked into the vacuum cleaner, avoid vacuuming
metal objects such as nails etc. Internal damage could occur if this rule is not followed.
Always use the vacuum cleaner on a stable, level surface.
DO NOT use the vacuum cleaner without the collection bag and foam filter fitted.
Always ensure the mains supply matches what is written on the specification plate of
the vacuum cleaner (or in this manual).
Periodically remove the hose to check that the inlet to the vacuum cleaner is not
getting restricted.
When the collection bag is full it must be replaced, this is a non serviceable part.
This vacuum cleaner is only for use with water and not chemicals or other substances that could damage the internal seals etc.
This vacuum cleaner will not recirculate the water, it is not designed to clean carpets
or similar, wet vacuuming can only be used to collect water which has been spilt
etc.
Never use this vacuum cleaner to collect water where aquatic life is present such as
in domestic, or commercial ponds, fish tanks, or similar.
Understand the operating environment; Before each use the operator should assess,
understand and where possible reduce the specific risks and dangers associated with
the operating environment. Bystanders should also be made aware of any risks associated with the operating environment.
15

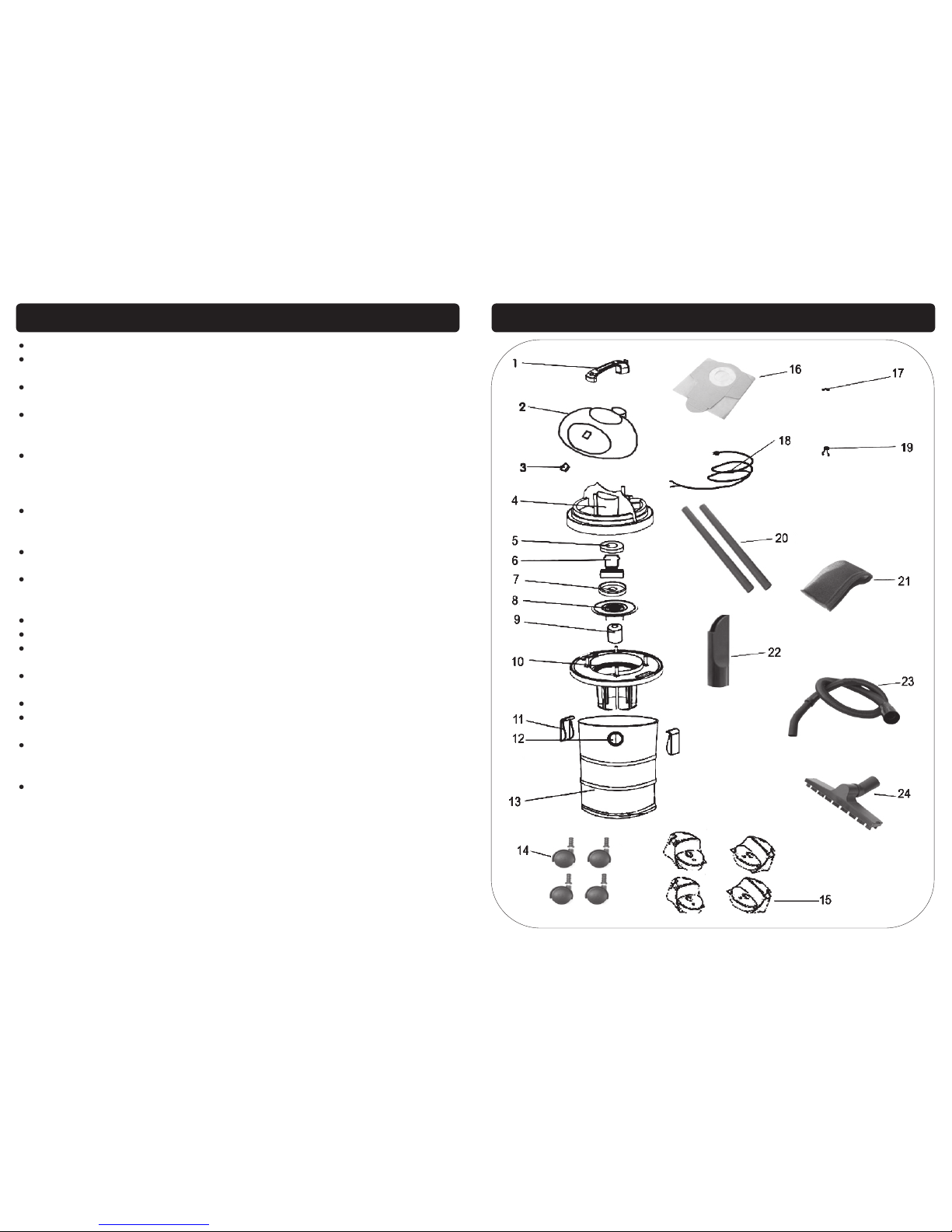

EXPLODED DIAGRAM
Page 7
14
MAINTENANCE
The vacuum cleaner needs very little maintenance; A common sense approach
should give you years of good service.
Clean or replace the foam filter on a regular basis.
Empty and clean the container regularly.
Ensure that the hose, crevice tool and brush are kept clear from debris on a regular
basis.
Always use the foam filter and collection bag so it keeps the motor free from contamination.
The collection bag is non cleanable, once full it must be replaced.
The motor housing has no user serviceable parts.
If your foam filter or collection bag becomes damaged they must be replaced.
7
SAFETY INSTRUCTIONS….cont
Caution: The warnings and cautions mentioned in this user manual can not
cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be applied.
The SIP vacuum cleaner is covered by a 12 month parts and labour warranty covering
failure due to manufacturers defects. This does not cover failure due to misuse or operating the vacuum cleaner outside the scope of this manual - any claims deemed
to be outside the scope of the warranty may be subject to charges Including, but not
limited to parts, labour and carriage costs.
Consumable items such as the foam filter and collection bag are not covered by the
warranty.
In the unlikely event of warranty claims, contact your distributor as soon as possible.
Note: Proof of purchase will be required before any warranty can be honoured.
GUARANTEE
These vacuum cleaners are double insulated; This means the operator is
separated from the tool's electrical system by two complete sets of electrical insulation. This extra layer of insulation is intended to protect the user
from electrical shock due to a break in the wiring insulation. All exposed
metal parts are isolated from the internal metal motor components with
protecting insulation. Double insulated tools do not need to be grounded
(earthed). Servicing of a tool with double insulation requires extreme care
and knowledge of the system and should be performed only by a suitably
qualified person.
Page 8

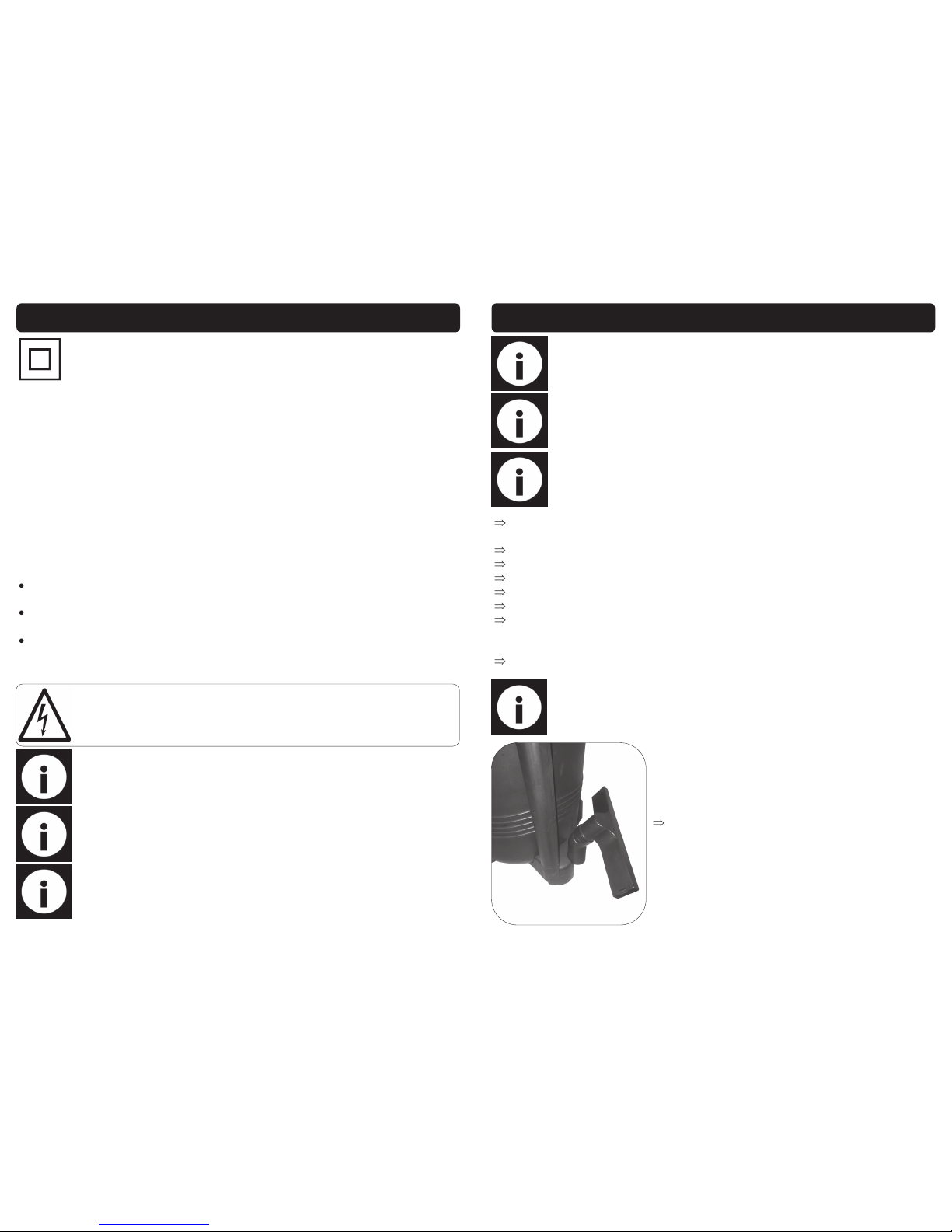

8
Note: Always make sure the mains supply is of the correct voltage and the
correct fuse protection is used. In the event of replacing the fuse always
replace the fuse with the same value as the original.
Warning: Never connect live or neutral wires to the earth terminal of the
plug. Only fit an approved plug with the correct rated fuse. If in doubt
consult a qualified electrician.
Note: If an extension lead is required in order to reach the mains supply;
ensure that this too is rated for the correct voltage and fuse rating.
Note: The cross section of the extension lead should be checked so that it
is of sufficient size so as to reduce the chances of voltage drops.
ELECTRICAL CONNECTION
These vacuum cleaners are double insulated. This means the operator is
separated from the tool's electrical system by two complete sets of electrical
insulation.
These vacuum cleaners are fitted with a standard UK type 230v ~ plug. Before using
the tool inspect the cable and plug to ensure that neither are damaged. If any damage is visible have the tool inspected / repaired by a suitably qualified person. If it is
necessary to replace the plug a heavy duty impact resistant plug would be preferable.
The wires for the plug are coloured in the following way:
Blue Neutral
Brown Live
As the colours of the wires may not correspond with the markings in your plug, proceed as follows:
The wire which is coloured blue, must be connected to the terminal marked with N
or coloured black.
The wire which is coloured brown, must be connected to the terminal, which is
marked L or coloured red.
Always secure the wires in the plug terminal carefully and tightly. Secure the cable
in the cord grip carefully.
13
OPERATING INSTRUCTIONS….cont
Note: The foam filter must be fitted and the collection bag must be removed
before using it for wet vacuuming. Failure to adhere to this could damage the
motor and void any warranty you may have.
Note: Due to the float stop, the vacuum cleaner will never collect the full
container capacity, water collection (approx.) 12 litres.
Undo the 2 clamps on each side of the container, lift the motor housing off and
remove the collection bag.
Refit the motor housing and secure both clamps.
Connect the hose to the hose connector.

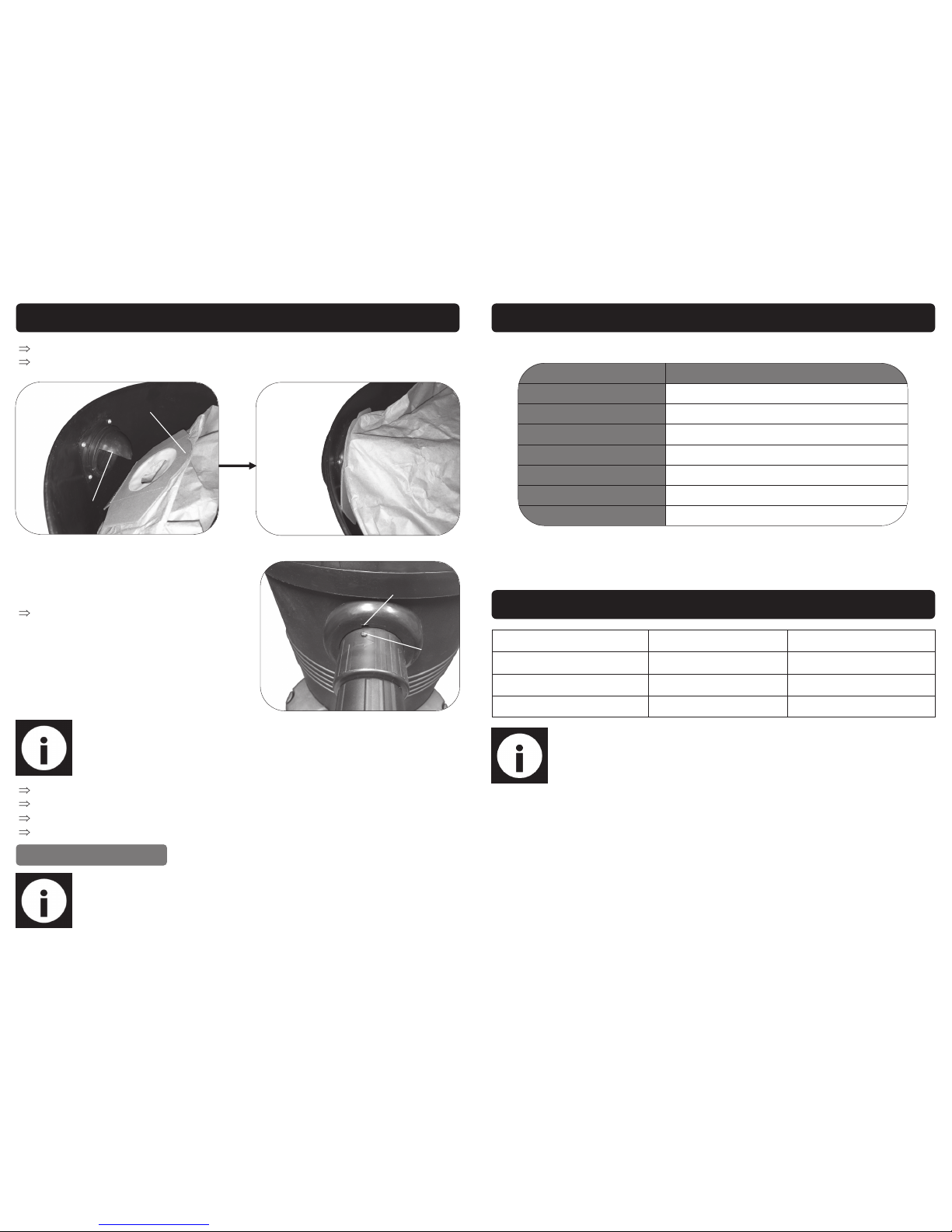

Connect the extension pipes to the hose (if required).
Connect either the brush or crevice tool to the extension pipe (if required).
Press the (I) button to start the vacuum cleaner.
Once the container is at capacity it will stop collecting the water and the motor
sound will change, press the (0) button to stop the vacuum cleaner and disconnect from the mains supply.
Undo the two clips and drain the water out of the container.
Note: Do not allow the vacuum to run for long after the float has stopped suction.
Note: If you have purchased and fitted the cartridge filter and filter lock
(optional extras), they must be removed and the foam filter re-fitted.
When not in use, store the extension pipes, brush
and crevice tool on to the attachment holders (see
left).
Page 9
12
OPERATING INSTRUCTIONS….cont
Tab
Cut Out
Collection Bag
Hose Connector
Connect the extension pipes to the hose (if required).
Connect either the brush or crevice tool to the extension pipe (if required).
Press the (I) button to start the vacuum cleaner.
Press the (0) button to stop the vacuum cleaner.
Line up the tab on the hose with the cut
out on the hose connector, push the hose
into the hose connector and turn clockwise to lock into position.
Push the collection bag over the back of the hose connector (see below).
Refit the motor housing and secure both clamps.
Note: Do not overtighten the hose to avoid turning it past the locked position.
Note: When wet vacuuming; the machine can only collect water, it will not
recirculate the water to clean carpets or similar. It is only for use with water and
not chemicals or other substances that could damage the internal seals etc.
WET VACUUMING
9
Note: If any of the above are missing or damaged, contact your distributor
immediately.
CONTENTS & ACCESSORIES
Vacuum Cleaner 1.5mtr Hose Extension Pipe (x2)
Castor (x4) Attachment Holder (x4) Attachment Holder Screw (x4)
Collection Bag Brush Crevice Tool
Foam Filter
TECHNICAL SPECIFICATIONS

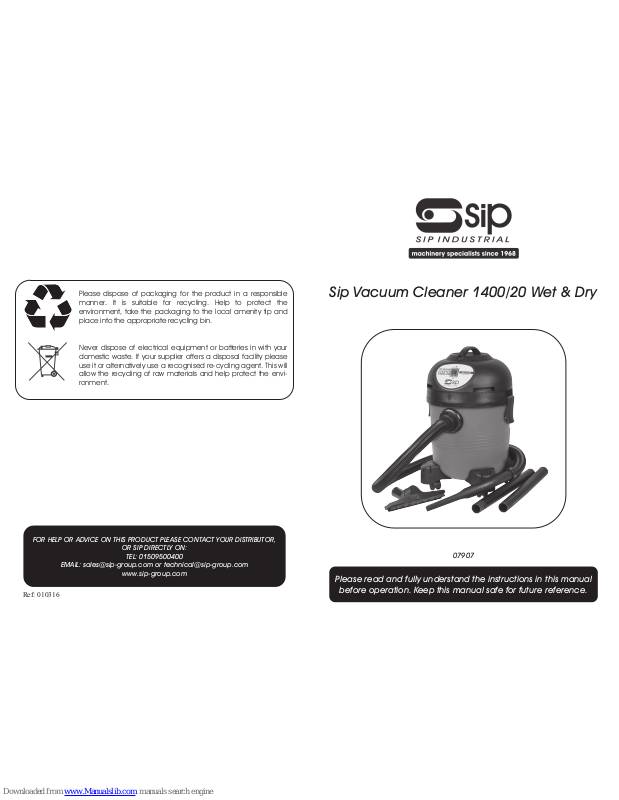

SIP Code 07907
Description Sip Vacuum Cleaner 1400/20 Wet & Dry
Input Voltage 230V ~ 50hz
Power 1400 W
Airflow 58 l/s
Hose Length 1.5 Metres
Container Capacity 20 Litres
Water Capacity (Approx.) 12 Litres
Page 10
10

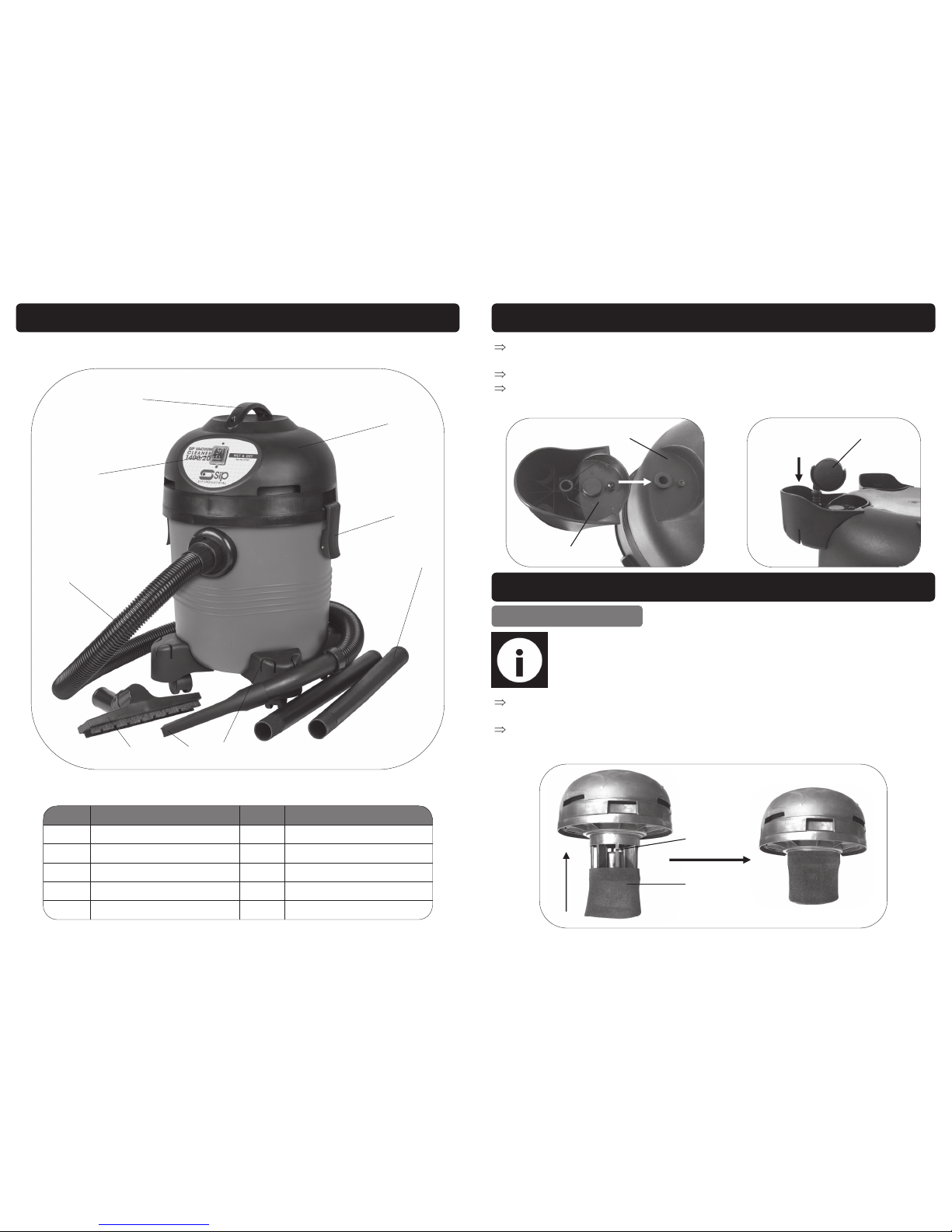

GETTING TO KNOW YOUR VACUUM CLEANER
Ref. No. Description Ref. No. Description
1. Hose 6. Extension Pipe
2. On/Off Switch 7. Attachment Holder
3. Carry Handle 8. Crevice Tool
4. Motor Housing 9. Brush
5. Clamp
9
8
4
5
6
1
3
7
2
11
ASSEMBLY INSTRUCTIONS
Fit the attachment holder on to the base of the container (below left), and secure
with a screw.
Repeat the process for the other three attachment holders.
Push the four castors into the attachment holders (below right), be careful not to
apply too much pressure.
Attachment Holder
Base
Castor
OPERATING INSTRUCTIONS
Note: The foam filter and collection bag must be fitted at all times. Failure
to adhere to this could damage the motor and will void any warranty you
may have.
DRY VACUUMING
Undo the 2 clamps on each side of the container and lift the motor housing from
the container.
Fit the foam filter over the filter basket (Note: a cartridge filter and filter lock can be
fitted as optional extras see spare parts pg16).
Foam Filter
Filter Basket
Loading...
