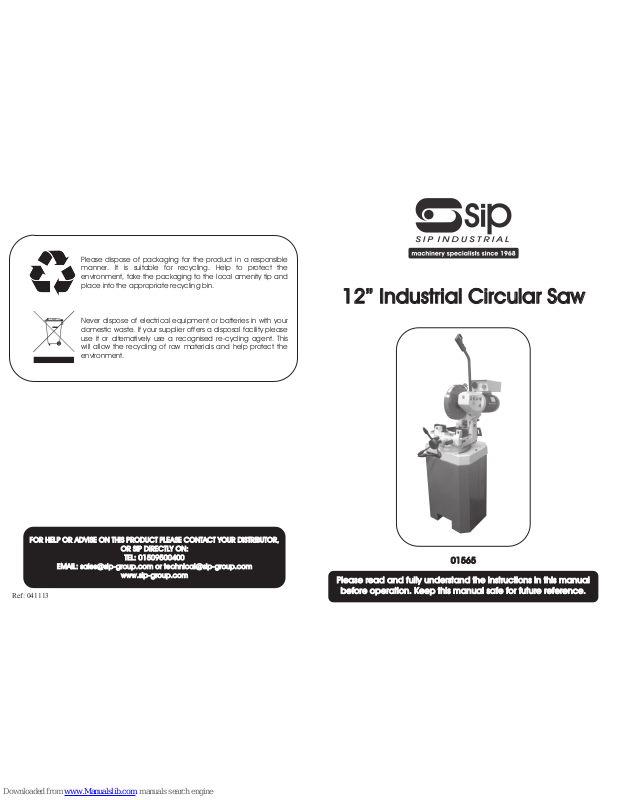

SIP 01565 Instructions Manual

Download

Page 1

FOR HELP OR ADVISE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR,

OR SIP DIRECTLY ON:

TEL: 01509500400

EMAIL: [email protected] or [email protected]

www.sip-group.com

Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the environment, take the packaging to the local amenity tip and place into the appropriate recycling bin.

Never dispose of electrical equipment or batteries in with your domestic waste. If your supplier offers a disposal facility please use it or alternatively use a recognised re-cycling agent. This will allow the recycling of raw materials and help protect the environment.

Ref: 041113

12” Industrial Circular Saw

Please read and fully understand the instructions in this manual

before operation. Keep this manual safe for future reference.

01565

Page 2

Declaration of Conformity

SIP (Industrial Products) Ltd

Gelders Hall Road

Shepshed

Loughborough

Leicestershire

LE12 9NH

England

As the manufacturer's authorised representative within the EC

declare that the

12” Industrial Circular Saw 3PH - SIP Part. No. 01565

Conforms to the requirements of the following directive(s), as indicated.

2006/95/EC Low Voltage Directive 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 2002/95/EC RoHS Directive

And the relevant harmonised standard(s), including:

EN 55014-1:2006+A1+A2 EN 55014-2:1997+A1+A2

EN 61000-3-2:2006+A1+A2

EN 61000-3-3:2008

Signed: …………………………………...

Mr P. Ippaso - Managing Director - SIP (Industrial Products) Ltd Date: 30/08/2013.

DECLARATION OF CONFORMITY

Page 3

NOTES

CONTENTS

Page No. Description

4. Safety Symbols Used Throughout This Manual

4. Safety Instructions

9. Electrical Connection

10. Guarantee

11. Technical Specifications

12. Blade Selection

12. Contents & Accessories

13. Getting to Know Your Circular saw

14. Assembly Instructions

18. Operating Instructions

22. Maintenance Instructions

26. Troubleshooting

27. Wiring Diagram

28. Exploded Drawing

31. Parts List

34. Notes

35. Declaration of Conformity

Page 4

SAFETY SYMBOLS USED THROUGHOUT THIS MANUAL

Danger / Caution: Indicates risk of personal injury and/or the possibility of damage.

Warning: Risk of electrical injury or damage!

SAFETY INSTRUCTIONS

IMPORTANT: Please read the following instructions carefully, failure to do

so could lead to serious personal injury and / or damage to the circular saw.

When using the circular saw, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Read all these instructions before operating the circular saw and save this user manual for future reference. The circular saw should not be modified or used for any application other than that for which it was designed.

It was designed for metal cutting work in engineering workshops, garages, metal fabricators, etc.

If you are unsure of its relative applications do not hesitate to contact us and we will be more than happy to advise you.

KNOW YOUR CIRCULAR SAW: Read and understand the owner's manual and labels affixed to the circular saw. Learn its applications and limitations, as well as the potential hazards specific to it. KEEP WORK AREA CLEAN AND WELL LIT: Cluttered work benches and dark areas invite accidents. Floors must not be slippery due to oil, water or sawdust etc. DO NOT USE THE CIRCULAR SAW IN DANGEROUS ENVIRONMENTS: Do not use the circular saw in damp or wet locations, or expose it to rain. Provide adequate space sur-

Note: Supplementary information.

PARTS LIST….cont

Ref. No. Description SIP Part No. Ref. No. Description SIP Part No.

645. Washer WK03-00210 674. Bolt M5x12 WK04-00093

646. Nut WK03-00211 675. Spring washer WK03-00218

647. Pinion WK03-00212 676. Emergency stop button WK03-00089

648. Lock nut WK03-00213 677. Switch WK03-00219

655. Motor WK03-00214 678. Earth connector WK03-00220

657. Motor bolt WK03-00215 682 Label WK03-00221

658. Stop ring WK03-00216 N/A Inline filter WK03-00095

670. Electrical box WK03-00090 N/A QF1, 2, 3 Breaker WK04-00149

671. Electrical box cover WK03-00091 N/A Contactor CN6 WK04-00150

672. Electrical box cover gasket WK03-00092 N/A Relay WK04-00152

673. Screw M4x10 WK03-00217 N/A Transformer WK04-00153

Page 5

PARTS LIST….cont

Ref. No. Description SIP Part No. Ref. No. Description SIP Part No.

402. Bolt WK03-00149 441. Blade shaft WK03-00180

403. Bolt WK03-00150 442. Blade flange WK03-00181

404. Nut WK03-00151 443. Blade bolt WK03-00182

405. Oil sight glass WK03-00152 450. Stopper WK03-00183

406. Needle bearing WK03-00153 451. Ring WK03-00184

407. Circlip WK03-00154 471. Gasket WK03-00185

409. Stopper WK03-00155 473 . Screw WK03-00186

410. Bearing WK03-00156 501. Fixed blade guard WK03-00187

416. Key for worm shaft WK03-00157 502. Large movable blade guard WK03-00188

418. Ring WK03-00158 503. Small moveable blade guard WK03-00189

419. Dowel pin WK03-00159 504. Ring WK03-00190

421. Drain bolt WK03-00160 505. Guard rod WK03-00191

422. Oil seal WK03-00161 506. Washer WK03-00192

423. Nut WK03-00162 507. Coolant tap WK03-00193

424. Gear WK03-00163 508. Pivot pin WK03-00194

425. Spacer ring WK03-00164 510. Bush WK03-00195

426. Cap head bolt WK03-00165 511. Circlip WK03-00196

427. Stop ring WK03-00166 512. Guard rod WK03-00197

428. Lock ring WK03-00167 513. Bracket WK03-00198

429. Bearing WK03-00168 514. Washer WK03-00199

430. Ring WK03-00169 515. Cap head bolt WK03-00200

431. Bearing WK03-00170 518. Lever rod WK03-00201

432. Worm shaft WK03-00171 519. Bolt WK03-00202

433. Head WK03-00172 521. Ring WK03-00203

434. Worm wheel WK03-00173 522. Coupling rod WK03-00204

435. Bush WK03-00174 525. Coolant hose WK03-00205

436. Circlip WK03-00175 612. Head handle WK03-00206

437. O-ring WK03-00176 614. Micro switch c/w handle WK03-00037

438. Cap head bolt WK03-00177 615. Head handle nut WK03-00207

439. Bearing block WK03-00178 631 . Motor shaft key WK03-00208

440. Key for blade shaft WK03-00179 644. Head handle screw WK03-00209

SAFETY INSTRUCTIONS….cont

rounding the work area. Do not use in environments with a potentially explosive atmosphere. KEEP CHILDREN AND UNTRAINED PERSONNEL AWAY FROM THE WORK AREA: All visitors should be kept at a safe distance from the work area. STORE THE CIRCULAR SAW SAFELY WHEN NOT IN USE: the circular saw should be stored in a dry location and disconnected from the mains supply, and out of the reach of children. WEAR THE CORRECT CLOTHING: Do not wear loose clothing, neckties, rings, bracelets, or other jewellery, which may get caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair. Roll long sleeves up above the elbow. USE SAFETY CLOTHING / EQUIPMENT: Wear CE approved safety goggles at all times, normal spectacles only have impact resistant lenses, they are NOT safety glasses. A face or dust mask should be worn if the operation is dusty and ear protectors (plugs or muffs) should be worn, particularly during extended periods of operation. PROTECT YOURSELF FROM ELECTRIC SHOCK: When working with the circular saw, avoid contact with any earthed items (e.g. pipes, radiators, hobs and refrigerators, etc.). It is advisable wherever possible to use an RCD (residual current device) at the mains socket. STAY ALERT: Always watch what you are doing and use common sense. Do not operate the circular saw when you are tired or under the influence of alcohol or drugs. DISCONNECT THE CIRCULAR SAW FROM THE MAINS SUPPLY: When not in use, before servicing and when changing accessories such as circular saw blade, etc. AVOID UNINTENTIONAL STARTING: Make sure the switch is in the OFF position before connecting the circular saw to the mains supply. NEVER LEAVE THE CIRCULAR SAW RUNNING / CONNECTED WHILST UNATTENDED: Turn the circular saw off and disconnect it from the mains supply between jobs. Do not leave the circular saw until it comes to a complete stop. DO NOT ABUSE THE MAINS LEAD: Never attempt to move the circular saw by the mains lead or pull it to remove the plug from the mains socket. Keep the mains lead away from heat, oil and sharp edges. If the mains lead is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid unwanted hazards. CHECK FOR DAMAGED PARTS: Before every use of the circular saw, a guard or other part that is damaged should be carefully checked to determine that it will operate correctly and perform its intended function. Check for alignment of moving parts, free running of moving parts, breakage of parts, and any other conditions that may affect its operation. A guard or other part that is damaged should be correctly repaired or replaced by an authorised service centre unless otherwise indicated in this instruction manual. Have defective switches replaced by an authorized service agent. Do not use the circular saw if the switch does not turn the saw on and off.

KEEP ALL GUARDS IN PLACE: And in full working order. MAINTAIN THE CIRCULAR SAW WITH CARE: Keep blades sharp and clean for the best

Page 6

SAFETY INSTRUCTIONS….cont

and safest performance. Follow instructions for lubricating and changing accessories. All extension cables must be checked at regular intervals and replaced if damaged. Always keep the vice hand-wheel grip/s on the circular saw clean, dry and free of oil and grease. USE ONLY RECOMMENDED ACCESSORIES: Consult this user manual, your distributor or SIP directly for recommended accessories. Follow the instructions that accompany the accessories. The use of improper accessories may cause hazards and will invalidate any warranty you may have. REMOVE ADJUSTING KEYS AND WRENCHES: Form a habit of checking to see that keys and adjusting wrenches are removed from the circular saw before every use. SECURE THE WORK-PIECE: Always use the vice to hold the work-piece. This frees up both hands to operate the circular saw.

DO NOT OVERREACH: Keep proper footing and balance at all times. USE THE RIGHT TOOL: Do not use the circular saw to do a job for which it was not de-

signed. DO NOT FORCE THE CIRCULAR SAW: It will do the job better and more safely at the rate which it was designed. DO NOT OPERATE THE CIRCULAR SAW IN EXPLOSIVE ATMOSPHERES: Do not use the circular saw in the presence of flammable liquids, gases, dust or other combustible sources. Circular sawing operations may create sparks which can ignite the dust or fumes. DO NOT EXPOSE THE CIRCULAR SAW TO RAIN OR USE IT IN WET CONDITIONS: Water entering circular saw will greatly increase the risk of electric shock. HAVE YOUR CIRCULAR SAW REPAIRED BY A QUALIFIED PERSON: The tool is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user. DO NOT dismantle, tamper with or use the circular saw without all guards fitted as this may be dangerous and will invalidate the warranty.

Keep hands out of the path of the circular saw blade, never reach around circular saw blade. Make sure the circular saw blade is clear of the work-piece before the handle trigger is pressed in. Stop operation immediately if you notice anything abnormal. Wait for the circular saw blade to stop completely and remove the plug from mains supply before servicing or adjusting the circular saw or changing the blade. Be alert at all times, especially during repetitive, monotonous operations. Don't be lulled into a false sense of security. Circular saw blades can be extremely unforgiving.

PARTS LIST

Ref. No. Description SIP Part No. Ref. No. Description SIP Part No.

102. Cover WK03-00100 305. Bolt WK03-00120

103. Pump support WK03-00101 306. Rubber cover WK03-00121

104. Bolt M6x12 WK04-00038 307. Pipe clamp WK03-00122

105. Spring washer M6 WK03-00102 308. Nut WK03-00123

106. Bolt M10x100 WK03-00103 320. Pin WK03-00124

107. Bolt M6x12 WK04-00038 321. Mitre handle knob WK03-00125

108. Spring washer M6 WK03-00102 322. Mitre handle WK03-00126

109. Electrical label WK03-00104 323. Shaft WK03-00127

110. General label WK03-00105 324. Nut WK03-00128

111. Coolant pump WK04-00313 325. Tensioning nut WK03-00129

112. Coolant tank filter WK03-00106 326. Nut WK03-00130

113. Bolt M6x12 WK04-00038 327. Bolt WK03-00131

114. Coolant tank WK04-00020 328. Pressure plate WK03-00132

201. Angle scale WK03-00107 337. Front vice jaw left WK03-00133

202. Rivet WK03-00108 N/A Rear vice jaw right WK03-00133

203. Spring WK03-00109 338. Front vice jaw right WK03-00134

204. Washer M10 WK04-00046 N/A. Rear vice jaw left WK03-00134

205. Bolt M10x100 WK03-00103 339. Front vice jaw holder WK03-00135

206. Nut M10 WK04-00052 340. Cap head bolt WK03-00136

207. Base mesh filter WK03-00110 341. Vice handle WK03-00137

208. Spring fixed plate WK03-00111 342. Vice handle knob WK03-00138

209. Spring fixed plate WK03-00112 343. Plastic cover WK03-00139

210. Washer WK03-00113 344. Handle boss WK03-00140

220. Base WK03-00114 345. Guide shaft WK03-00141

221. Swivel base WK03-00115 346. Vice base WK03-00142

222. Grease nipple WK03-00116 347. Cap head bolt WK03-00143

223. Swivel base shaft WK03-00117 349. Rear vice jaw holder WK03-00144

302. Nut M10 WK04-00052 350. Support block WK03-00145

303. Ring WK03-00118 351. Cap head bolt WK03-00146

304. Plate WK03-00119 353. Vice shaft WK03-00147

305. Bolt WK03-00120 401. Ring WK03-00148

Page 7

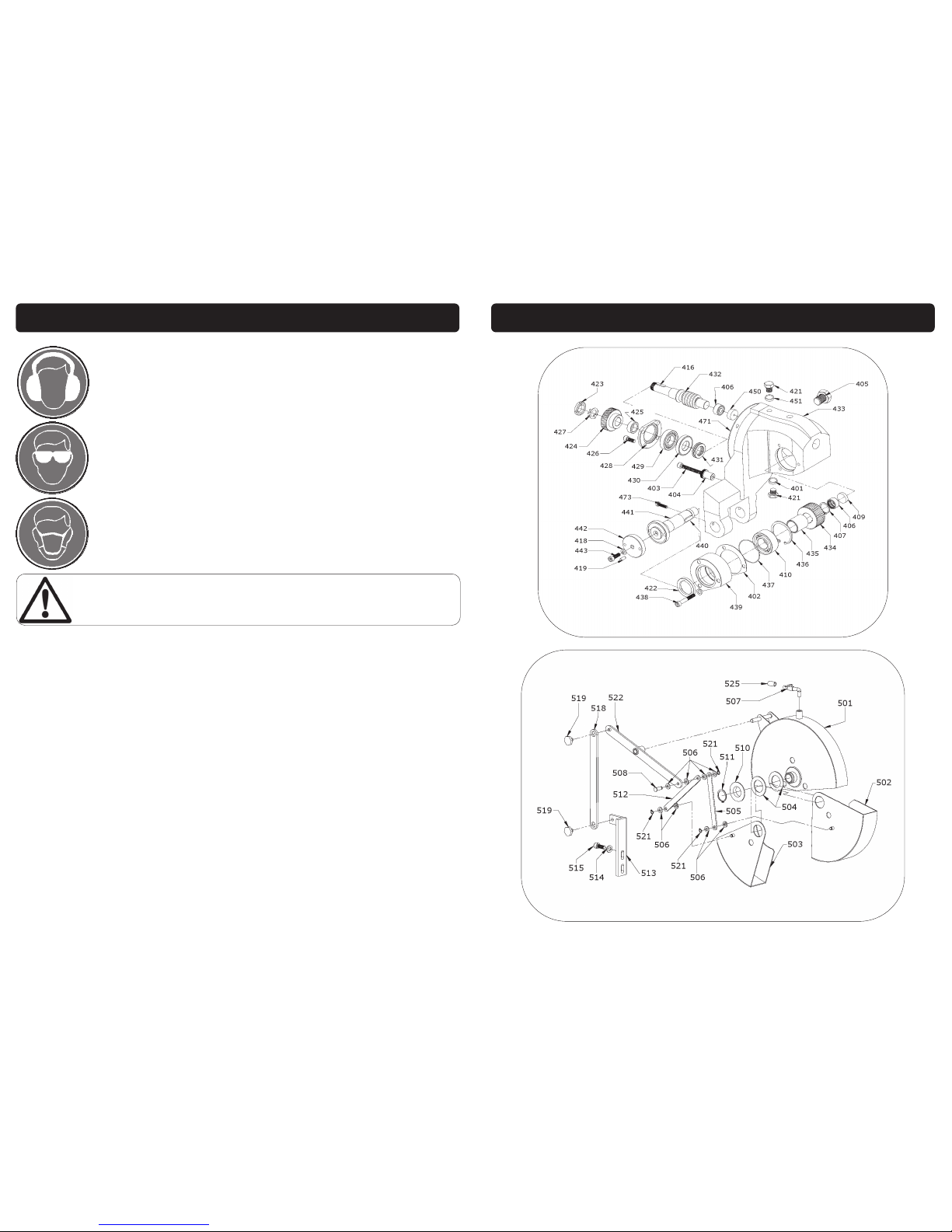

EXPLODED DRAWING….cont

SAFETY INSTRUCTIONS….cont

Use of improper accessories may cause damage to the circular saw and surrounding area as well as increasing the risk of injury. Do not modify the circular saw to do tasks other than those intended. When sawing always use the vice to hold the material; To avoid injury, the workpiece should never be held with the bare hands. Secure the stand to the circular saw before using the circular saw. If the work is heavy or large and likely to cause the circular saw to tip over, use additional supports as appropriate under and around the material. Remove all tools from the machine base after adjustment is made. Appropriate personal protective equipment MUST be worn and MUST be designed to protect against all hazards created. Severe permanent injury can result from using inappropriate or insufficient protective equipment - Eyes in particular are at risk. Do not overload the blade. Allow the blade to operate at its optimum speed for maximum efficiency. Always ensure that the accessories such as blades are rated / designed for use with this circular saw as well as the required application, and are correctly and securely fastened before connecting the circular saw to the mains supply. The work must be clamped firmly whilst sawing, If its loose it could result in personal injury or damage to the blade/machine. Using the correct tpi blade for cutting the material will make your job easier, and the blade last longer, using the wrong tpi blade will make a rough cut and will decrease the life of the blade.

Keep hands away from the blade.

Never use this circular saw with the blade guard or electrical box cover removed. Round bar and tubing can have a tendency to roll whilst being cut and can cause the blade to slip, DO NOT cut such items without clamping the material with the vice. Never have the blade touching the material before you press the handle trigger, this is dangerous and will make the blade bounce or even shatter, any damage will not be covered by warranty. Do not start the circular saw until the material is secure and the blade has been lowered to just above the material. Never use damaged or deformed circular saw blades, this is extremely dangerous and if the blade shatters pieces will fly out, and could injury you or any one in the vicinity.

If the circular saw is used in a place of work all rules and laws etc. relating to the use of portable electrical appliances should be followed.

Page 8

When using the circular saw for certain operations, particularly during extended periods; ensure the operator as well as those in the area wear ear protection.

When using the circular saw always ensure the operator as well as those in the area wear eye protection.

Some materials have the potential to be highly toxic; always wear a face mask when operating circular saw.

CAUTION: The warnings and cautions mentioned in this user manual can not cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be applied.

SAFETY INSTRUCTIONS….cont

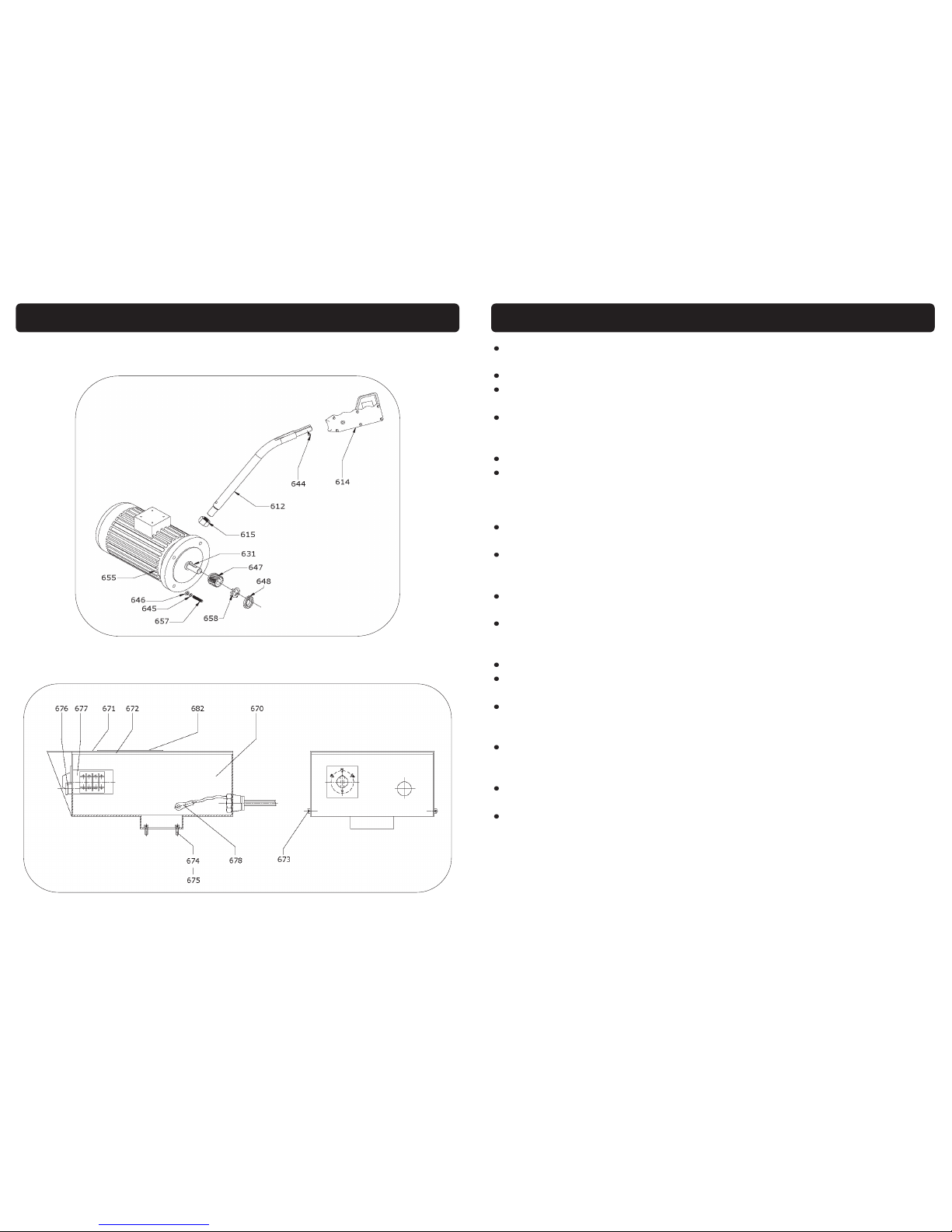

EXPLODED DRAWING….cont

Page 9

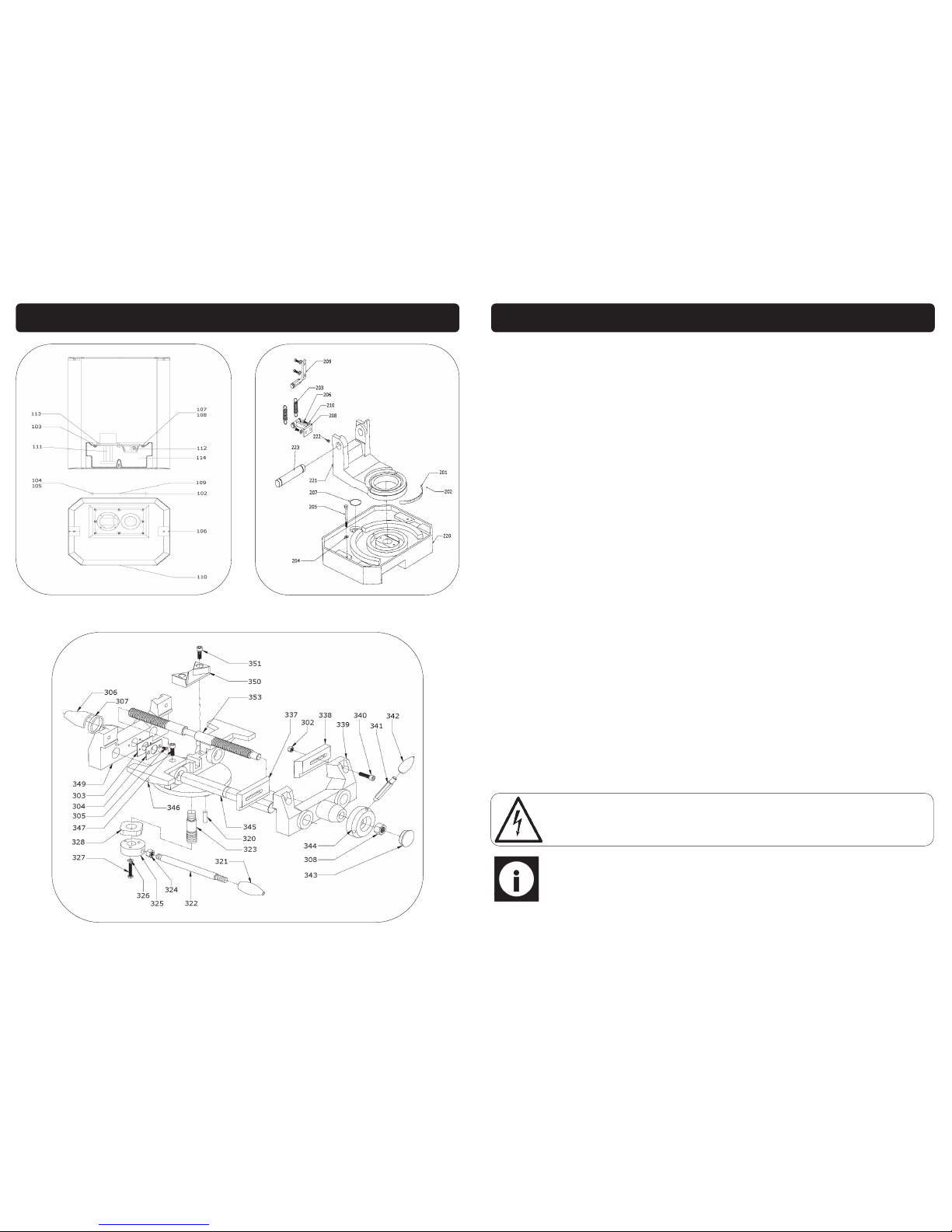

EXPLODED DRAWING

ELECTRICAL CONNECTION

WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:

You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety devices; A residual current circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend that a residual current device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a supply which is not protected by an RCCB. If in any doubt consult a qualified electrician.

Connecting to the power supply:

This SIP circular saw requires 400v 50hz supply. Before using the circular saw, inspect the mains lead and plug (where applicable) to ensure that neither are damaged. If any damage is visible have the circular saw inspected / repaired by a suitably qualified person. If it is necessary to replace the plug a heavy duty impact resistant plug would be preferable.

The wires for the plug are coloured in the following way:

Yellow / green Earth Black Phase Black Phase Black Phase

Always secure the wires in the plug terminal carefully and tightly. Secure the cable in the cord grip carefully.

Warning: Never connect live or neutral wires to the earth terminal of the plug. Only fit an approved plug with the correct rated fuse. If in doubt consult a qualified electrician.

Note: Always make sure the mains supply is of the correct voltage and the correct fuse protection is used. In the event of replacing the fuse always replace the fuse with the same value as the original.

Page 10

This SIP circular saw is covered by a 12 month parts and labour warranty covering failure due to manufacturers defects. This does not cover failure due to misuse or operating the circular saw outside the scope of this manual - any claims deemed to be outside the scope of the warranty may be subject to charges Including, but not limited to parts, labour and carriage costs.

This guarantee does not cover consumables such as oil & blades etc.

In the unlikely event of warranty claims, contact your distributor as soon as possible.

Note: Proof of purchase will be required before any warranty can be honoured.

GUARANTEE

ELECTRICAL CONNECTION….cont

Note: If an extension lead is necessary in order to reach the mains supply; The cross section should be checked so that it is of sufficient size so as to reduce the chances of voltage drops. Always fully unwind the lead during use.

Ref. Description Ref. Description

TA Emergency stop TC Transformer

SB1 Trigger switch QF1,2,3 Breaker

FR Overload relay SA1 Speed selector switch

KM1 Contactor EL1 Earth lead

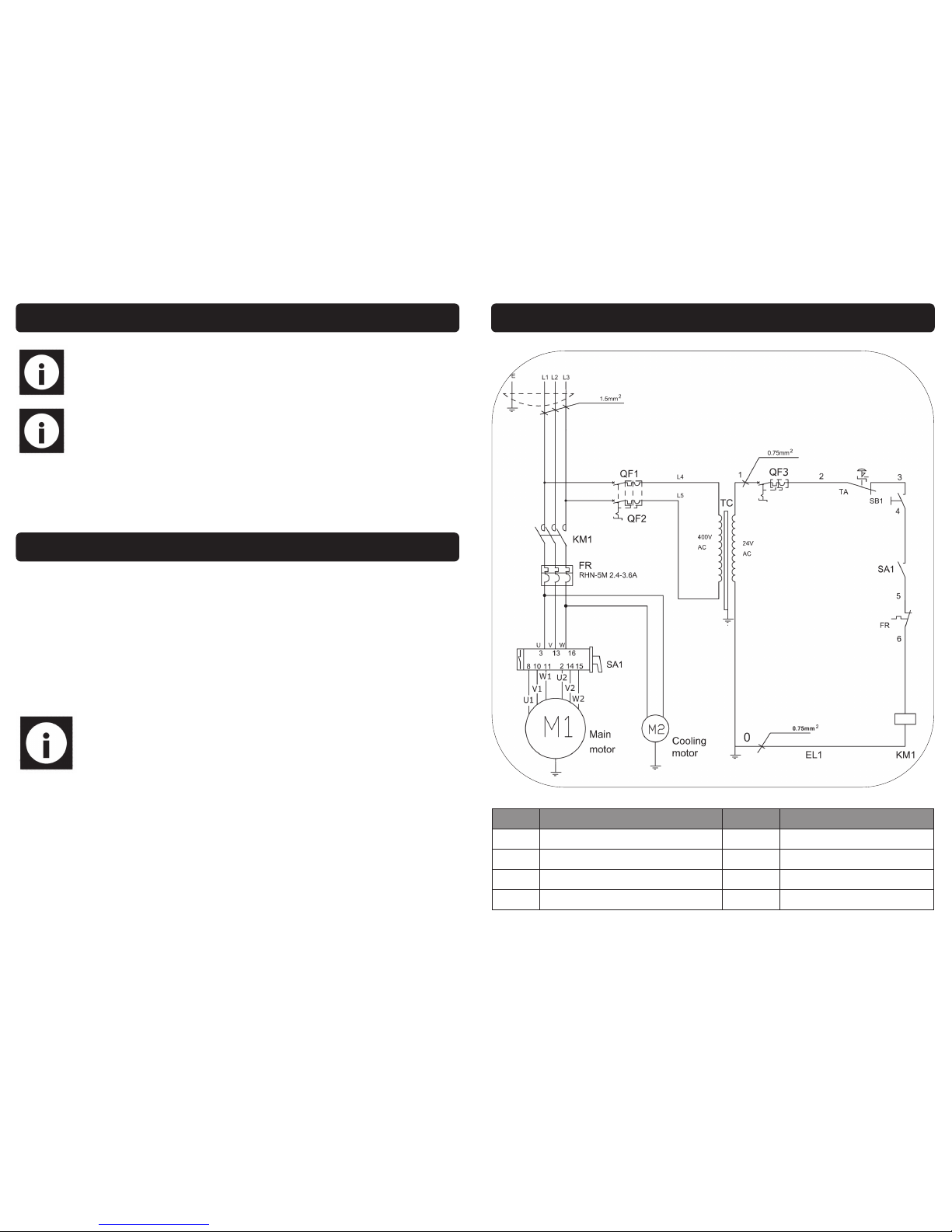

WIRING DIAGRAM

Page 11

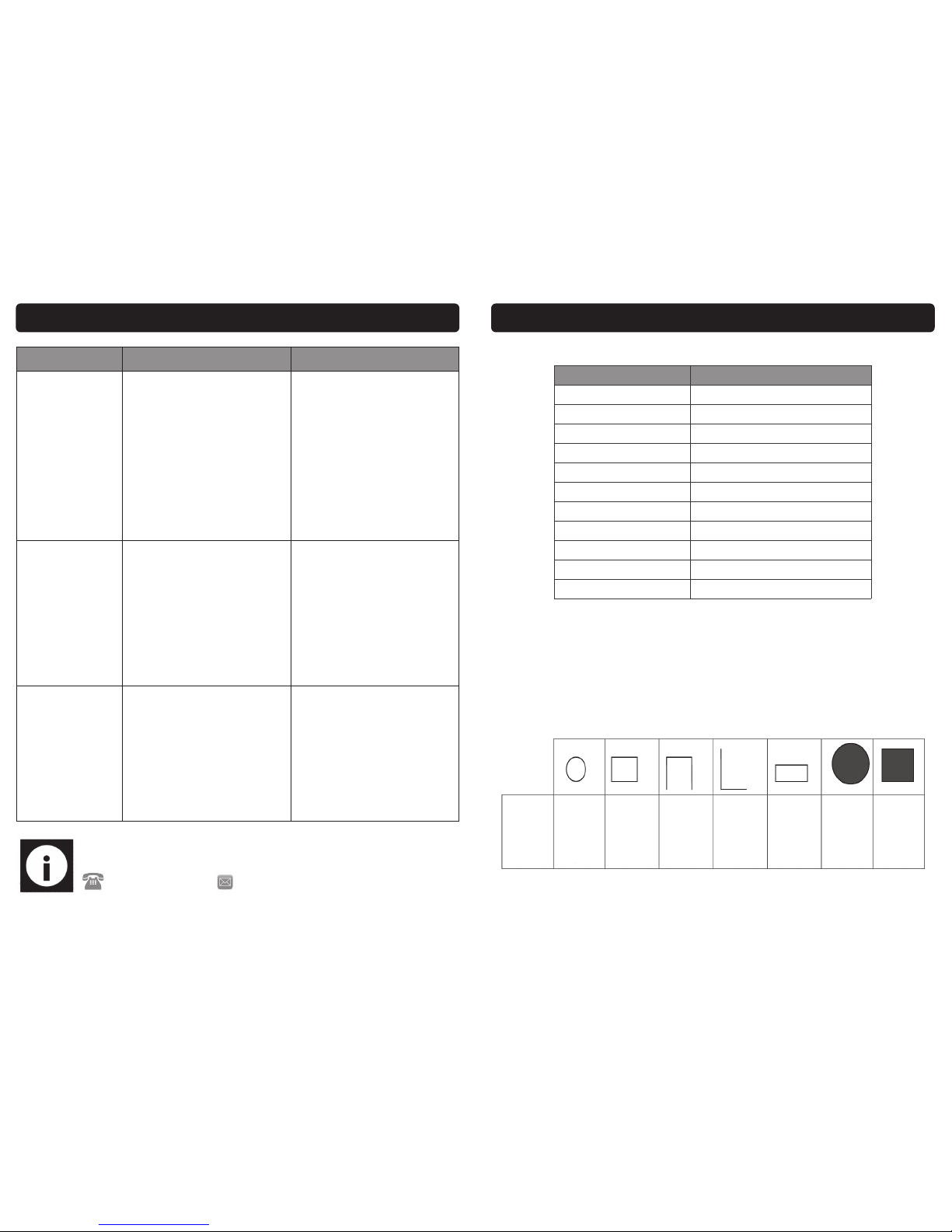

TROUBLESHOOTING

Symptom Possible problem Solution

Excessive bouncing or blade breaking.

1. Speed too high.

2. Teeth blunt on blade.

3. Wrong coolant.

4. Blade turns in the wrong direction.

5. Worm and worm wheel defective.

1. Change speed on speed se lector switch.

2. Replace blade.

3. Use correct coolant.

4. Wired incorrectly, change phase 1 & 2 around.

5. Replace or contact distributor for repair.

Motor doesn't turn.

1. Motor wired incorrectly.

2. Speed selector switch is in the ‘OFF’ position.

3. Breaker popped out.

4. Emergency stop button activated.

1. Check wiring at mains board or plug.

2. Select the correct speed and turn ‘ON’.

3. Reset breaker in electrical box or mains board.

4. Reset emergency stop button.

Coolant system not working.

1. Coolant tap in the ‘CLOSED’ position.

2. Coolant pump faulty.

3. Coolant tank empty.

4. Coolant pipe obstructed.

5. Coolant filter blocked.

1. Put to the ‘OPEN’ position.

2. Replace coolant pump.

3. Fill coolant tank.

4. Check and clear/replace pipe if necessary.

5. Clean/replace coolant filter.

Note: If none of the above solutions work then contact your local distributor for

repair, or contact SIP technical for more advise.

01509 500400

[email protected]

TECHNICAL SPECIFICATION

For the sawing capacity of different shaped material and mitre angles, refer to the below diagram.

Name 12” Industrial Circular Saw

Part number 01565

Circular 45˚ 90mm

Circular 90˚ 100mm

Rectangle 45˚ 100 x 90mm

Rectangle 90˚ 140 x 90mm

Blade size 315mm

Maximum vice width 145mm

Blade speed 18 & 36 rpm

Motor 1HP (0.75kw) - 1.7HP (1.3kw)

Net weight 185kg

Gross weight 207kg

100

90˚

60˚

45˚

100x100

90x90

140x90

100x90

50x50

40x40

100x100

90x90

100x100

90x90

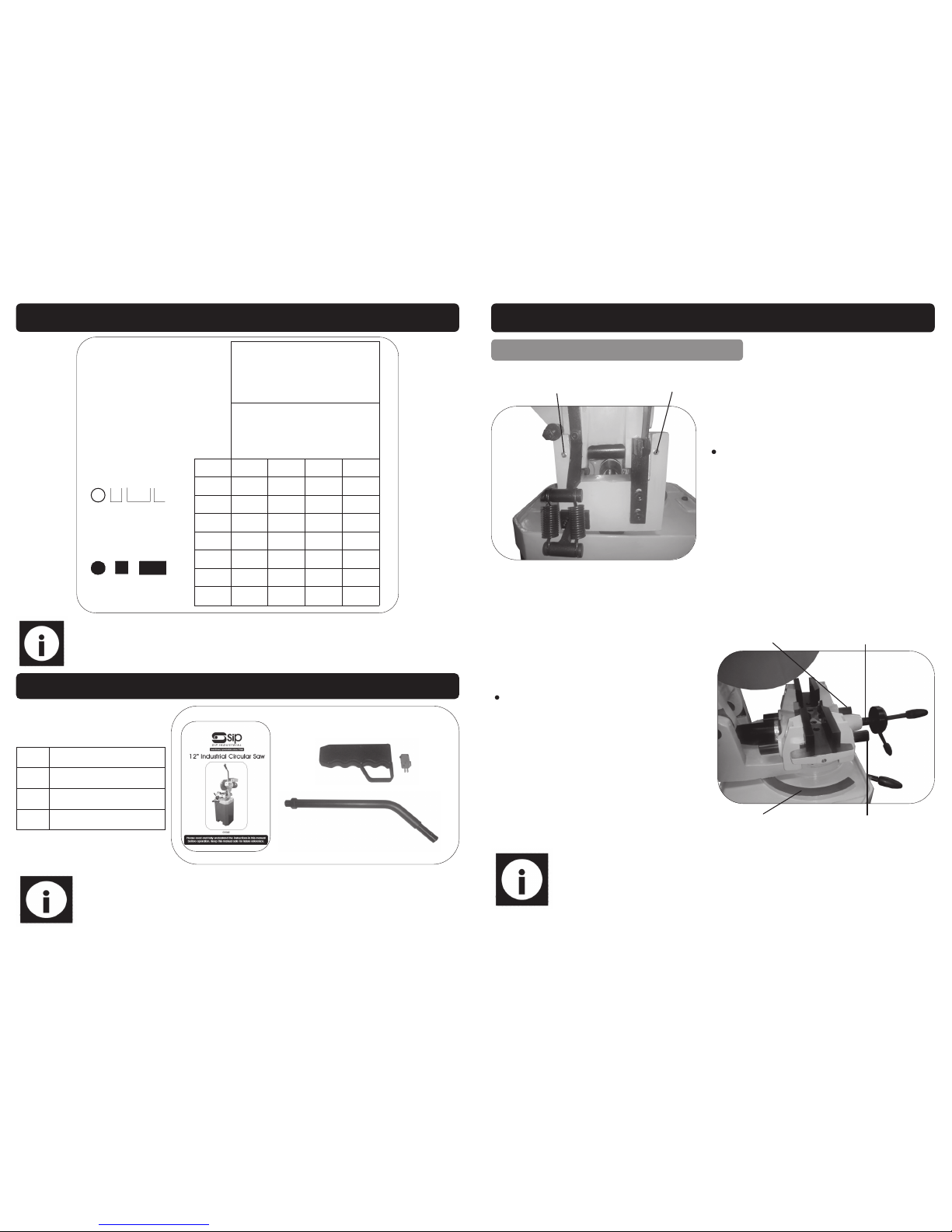

Page 12

Solid Bar Size

10mm

15mm

20mm

25mm

35mm

Hollow Section Wall thickness

Tooth

Pitch

1mm 2mm 3mm 4mm

3 x

4 x

5 x

6 x

8 x

10 x

12 x

15 x

Hollow section

Solid bar

{ {

CONTENTS & ACCESSORIES

Note: If any of the above are missing or damaged, contact your distributor immediately.

BLADE SECTION

Note: The above table is a reference to what size blade should be used on different thickness materials.

A Manual

B Handle

C Handle micro switch

D Handle lever

MAINTENANCE….cont

LUBRICATING THE CIRCULAR SAW

The pivots of the saw head must be greased at least every three months, on the rear of the machine. There are two grease nipples (A), apply grease to these points.

The vice shaft, guide shafts and machine base guide must be oiled regularly, this will make the vice move more smoothly and easier to adjust.

Vice shaft

Guide shaft

Machine base guide

Note: Before oiling the shafts and guides, make sure they are cleared of

any debris or swarf.

Page 13

CHANGING THE INLINE FILTER

Note: Its best to change the filter at least once a year, or sooner if used more often in a working environment. SIP replacement filter code WK03-00095

Remove

Inline filter

The filter is located at the rear of the machine between the coolant pump and coolant tap. Pull the two coolant pipes off either side of the filter. Push the two coolant pipes back onto the new filter.

CLEANING THE MACHINE

Note: Never run the machine without the machine base filter fitted, without it fitted

swarf will get into the coolant system and clog the coolant pump, this will stop the coolant circulating and cooling the blade, if a coolant pump is found with swarf inside of it then this will void any warranty you may have.

Over the course of the day the machine will get clogged with swarf and could possibly stop the coolant from running back into the coolant tray. Its best to get into a routine at the end of each working day, or more if its used more frequently to clean any swarf from the machine base casting, filter and vice jaws. Use a soft brush (paint brush or similar) to remove the swarf from the machine at the end of each working day, NEVER use compressed air to remove the swarf.

Machine base filter

Note: Never use compressed air to blow away the swarf, this is dangerous and

could lead to eye damage if safety glasses are not worn, always use a soft brush (paint brush or similar) to remove the swarf at the end of each working day.

MAINTENANCE….cont

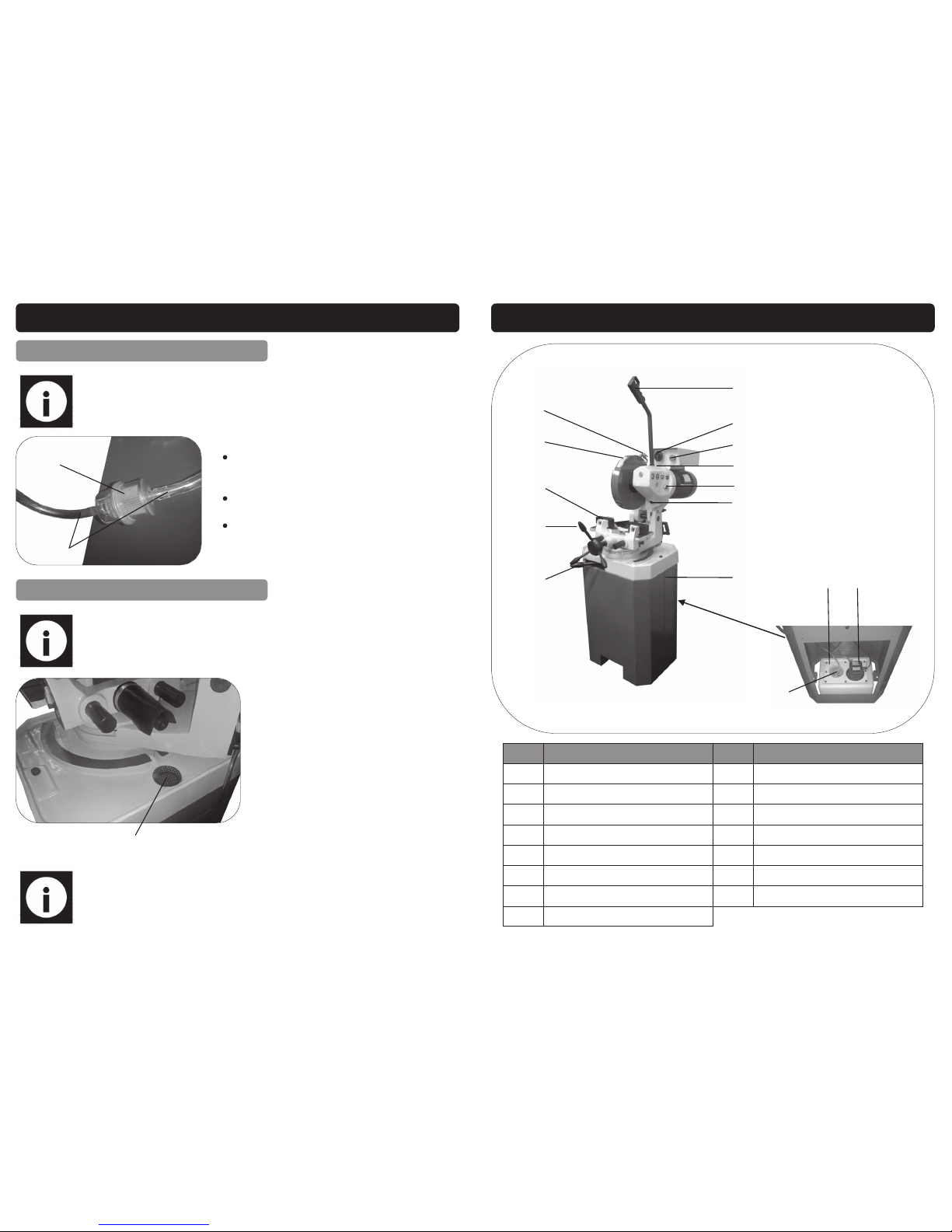

GETTING TO KNOW YOUR CIRCULAR SAW

8 9

Ref. Description Ref. Description

1. Handle 9. Coolant pump

2. Speed selector switch 10. Coolant tank filter

3. Emergency stop button 11. Bench lever

4. Oil fill bolt 12. Vice hand-wheel

5. Oil sight glass 13. Vice

6. Oil drain bolt 14. Blade guard

7. Stand 15. Coolant tap

8. Coolant tank

Page 14

Note: If any items are missing or damaged, DO NOT use the machine

and contact your distributor immediately.

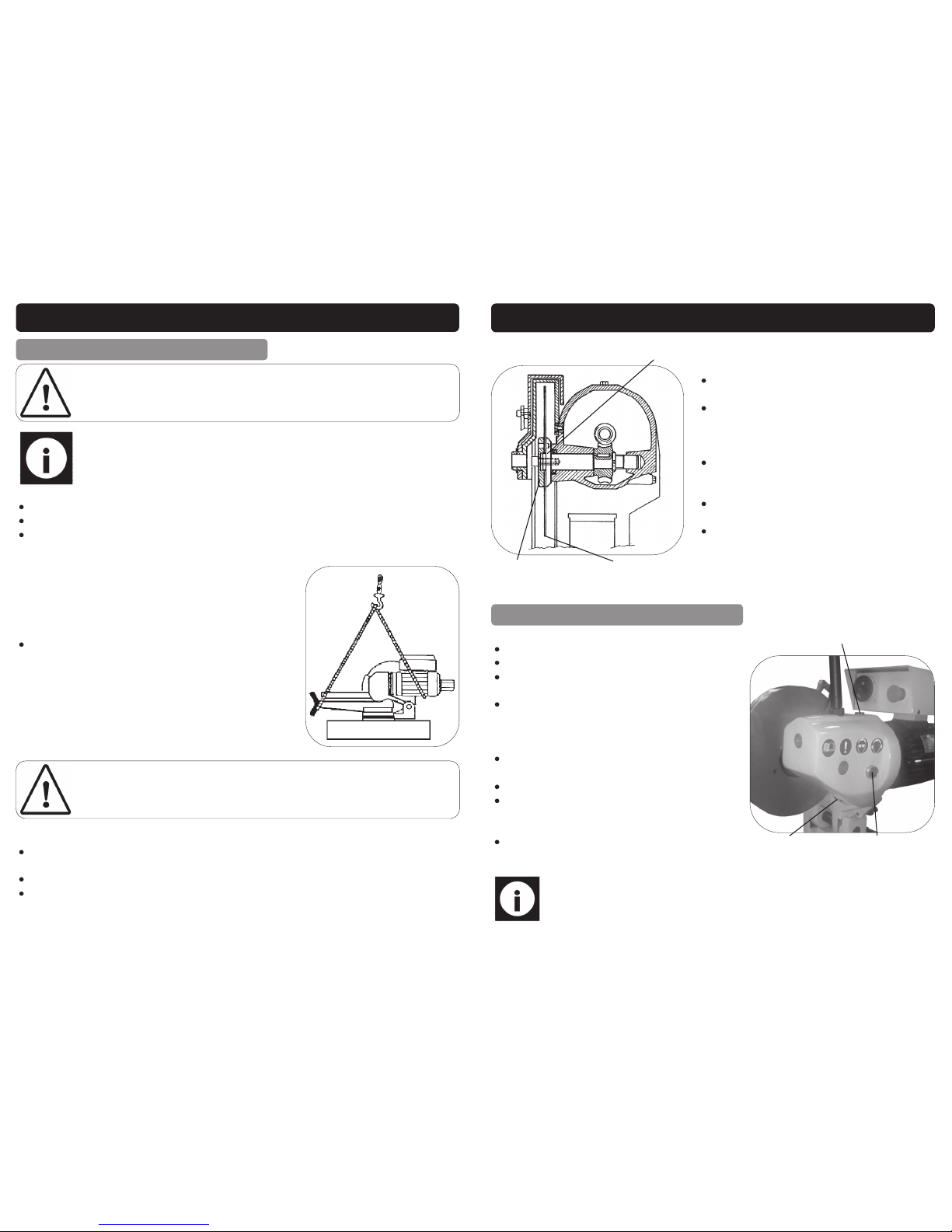

Danger / Caution: This is a minimum of a 2 man operation to remove this circular saw from its packaging as its extremely heavy, failing to do this can have serious consequences and could lead to personal injury and/or the possibility of damage.

Place the stand into the location where the circular saw is to be used. Bolt the stand to the floor (bolts not supplied). Remove the circular saw from its packaging.

FITTING THE CIRCULAR SAW TO THE STAND

Using proper lifting equipment and lifting straps, raise the circular saw up so that it is slightly higher than the stand.

Danger / Caution: Always using proper lifting equipment to move the circular saw onto the stand, NEVER attempt to lift the circular saw without lifting equipment as this is extremely dangerous.

Slowly move the saw over stand then slowly lower the saw onto the stand, ensuring the four holes match up on the stand and saw. Secure the circular saw to the stand using the four hex bolts supplied. Remove the straps from the circular saw.

ASSEMBLY INSTRUCTIONS

MAINTENANCE….cont

CHANGING THE GEAR BOX OIL

Turn the machine to the `OFF` position. Raise the head upwards. Place a container on the base of the circular saw and inline with the oil drain bolt. Remove the oil drain bolt to let the oil flow into the container, you may need to pull the head slightly forward to get rid of the remaining oil. Once all the oil is out refit the oil drain bolt. Remove the oil fill bolt. Pour oil into the oil fill hole with EP90 gear oil until it reaches around the red dot on the oil sight glass. Refit the oil drain bolt.

Note: Contact your local authority on how / where to dispose of the waste oil.

Oil drain bolt

Oil sight glass

Oil fill bolt

Place the new blade over the blade shaft lip. Fit the blade flange over the blade, turn the blade until the two pins on the blade flange slot into the two blade holes. Now turn the blade again until the two pins on the blade flange slot into the two blade shaft holes. Refit the blade bolt by turning it anticlockwise to tighten it up. Slide both guards (C) back down and refit the arm (B) with bolt (A).

Blade

Blade shaft

Blade flange

Page 15

MAINTENANCE

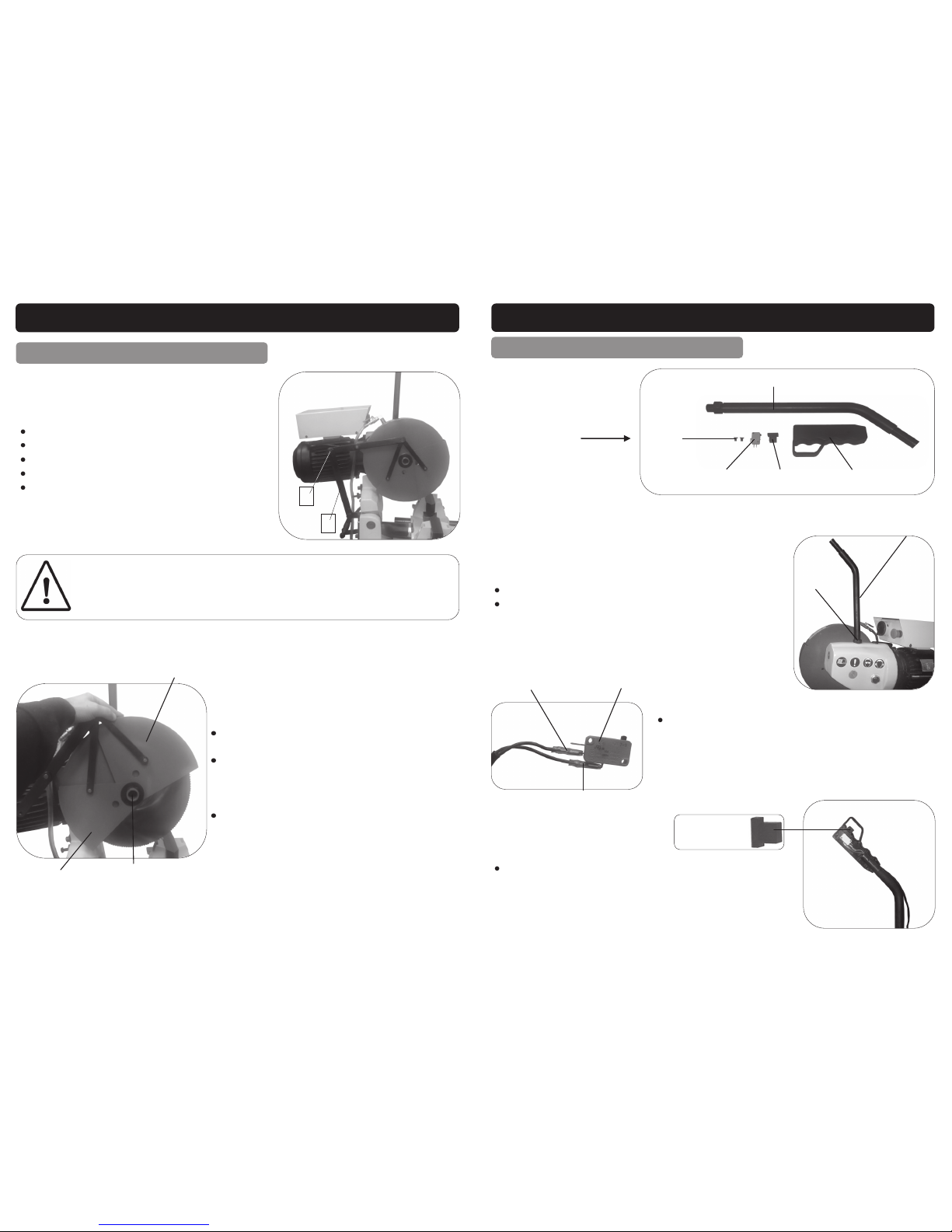

CHANGING THE BLADE

Turn the circular saw to the `OFF` position. Isolate the saw from the mains spply. Raise the head upwards. Remove hex. bolt (A). Slide arm (B) out of the way.

Caution: The blade bolt is a left handed thread, meaning to undo it you must turn the bolt clockwise, failing to do this will strip the threads on the blade shaft and will void your warranty.

Slide both movable guards (C) out of the way. Remove the blade bolt (D) by turning it clockwise to undo it, a soft mallet may be required just to loosen the bolt as it will be tight, but do not hit it too hard. Once the blade bolt is out, remove the blade flange then the blade.

ASSEMBLY INSTRUCTIONS….cont

Handle trigger

FITTING THE HANDLE LEVER

Remove the transit bung from the head. Screw the handle lever into the head and tighten the nut, so the handle lever can`t move.

Handle Lever

Nut

Screw one half of the plastic handle onto the head lever using the handle screw, push the micro switch into the handle making sure it pushes into both pins, then fit the handle trigger onto the handle.

Handle lever

Handle screws

Micro switch

Handle trigger

Handle

Items needed

Locate the micro switch wire on the back of the electrical box and connect the two wires onto the micro switch; one wire to the C (common) connection and the other to the NO (normally open) connection.

Common

Normally open Micro switch

Page 16

ASSEMBLY INSTRUCTIONS….cont

Handle screw

Push the other half of the handle onto the

handle that’s already fixed to the head lever,

use the remaining handle screw to secure. Tighten the remaining six screws on the plastic handle. Cable tie the micro switch wire onto the head lever.

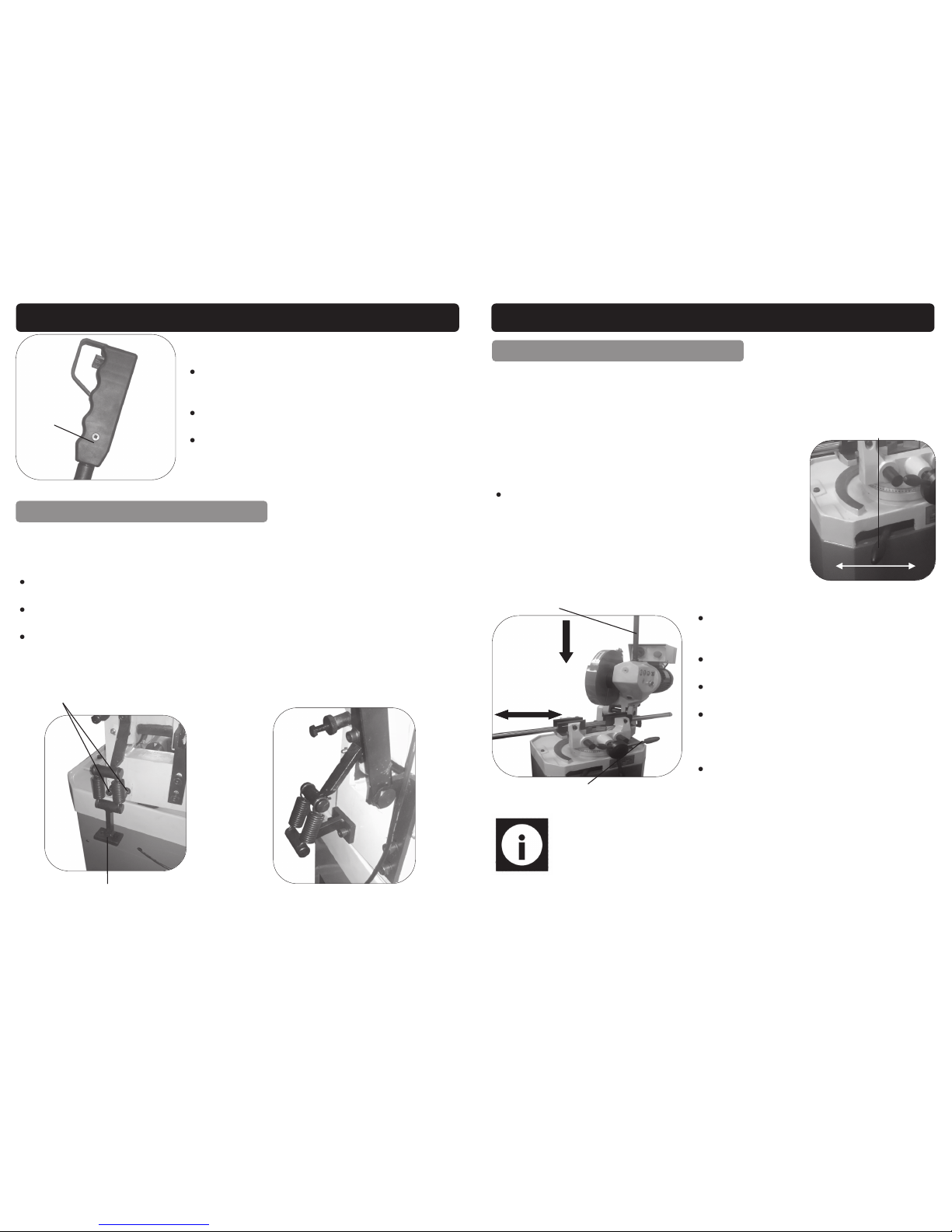

FITTING THE RETURN SPRING

The return spring will need to be fitted prior to operating the circular saw, to fit it do the following.

Remove the 2 cap head bolts and washers from the circular saw (pic below left). Put a cap head bolt through the return spring bracket hole and screw into the base of the machine. Screw the other cap head bolt into the opposite side.

Return spring

bracket

Cap head bolts

Fitted return spring

OPERATING INSTRUCTIONS….cont

SETTING UP FOR AN ANGLED CUT

The vice is fixed and the angle can only be set by rotating the head, up to 45˚right or 45˚ left, to adjust to a specific angle the do the following.

Tighten Loosen

Bench lever

Loosen the bench lever by moving it to the right.

Pull the head lever down and move the head left or right, depending on what angled cut is to be made. Use the scale on the swivel base to set your desired angle. Once the angle is set correctly, retighten the bench lever. Place the material between the vice jaws, then turn the vice hand-wheel clockwise to tighten the vice jaws against material so it can’t move. The material is now ready to be cut.

Note: Never attempt cut an angle beyond 45˚, this could possibly lead to damage to the machine, or personal injury to you or others in the area.

Move the head

Vice hand-wheel

Head lever

Page 17

OPERATING INSTRUCTIONS….cont

Vice hand-wheel

Move the vice hand-wheel so you have enough clearance to fit your material. Place your material between the vice jaws. Re-tighten the vice hand-wheel so the material can’t move.

Speed selector switch

Select the speed required on the speed selector switch.

Danger / Caution: Never have the blade touching the material before you press the trigger, this is dangerous and will make the blade bounce or even shatter the blade, any damage will not be covered by warranty.

5mm Gap

Lower the head about 5mm above the material, but do not make contact with the material. Press the trigger on the head lever to start the machine and coolant pump. Once the material is cut, release the trigger to stop the machine and coolant pump and raise the head up. Remove the material by undoing the vice hand-wheel. Repeat these steps if more material is to be cut.

Warning: Disconnect from the mains supply before wiring the coolant pump,

this is potentially dangerous and could lead to personal injury.

ASSEMBLY INSTRUCTIONS….cont

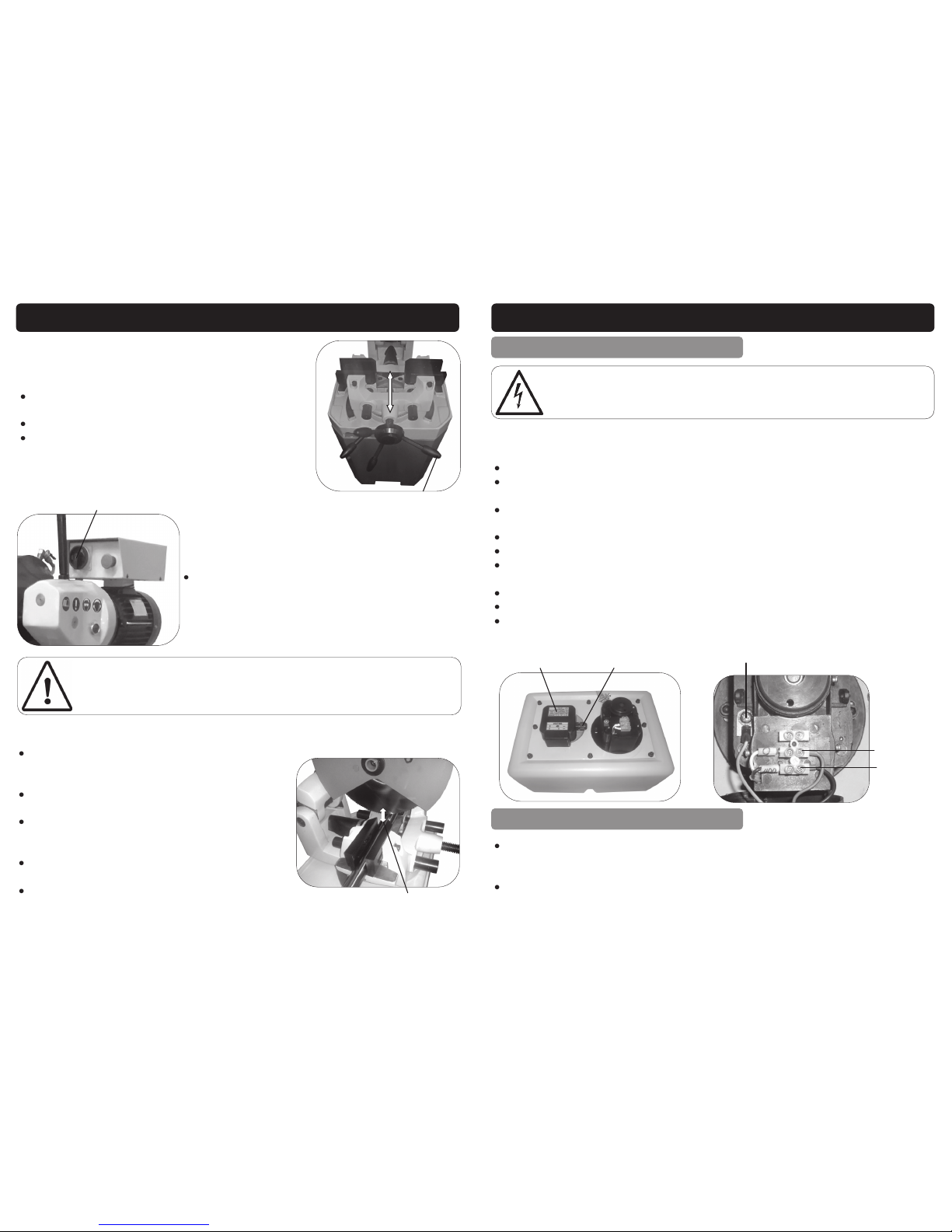

WIRING THE COOLANT PUMP

To wire the coolant pump do the following.

Ensure the mains lead is disconnected from the mains supply. Push the coolant pump wire through the pre-drilled hole on the back of the stand. Remove the 2 screws holding the coolant pump terminal cover in place, and remove the terminal cover. Loosen the cable gland nut. Push the coolant pump wire through the cable gland. Connect the brown and black wire to the terminal block (see right picture below). Connect the earth wire to the earth terminal screw (see right picture below) Re-tighten the cable gland nut. Refit the terminal cover using the 2 screws.

Brown wire

Black wire

Cable Gland nut

Terminal

Box cover

CONNECTING THE COOLANT PIPES

The coolant pipe on the coolant tank filter should be connected to the nipple inside the stand (this is located underneath the machine base filter, see pg24), secure using the supplied pipe clip. Push the coolant pump pipe through the hole on the left hand side of the stand, pull it through and connect to the coolant tap on the blade guard, secure using the supplied pipe clip.

Earth Wire

Page 18

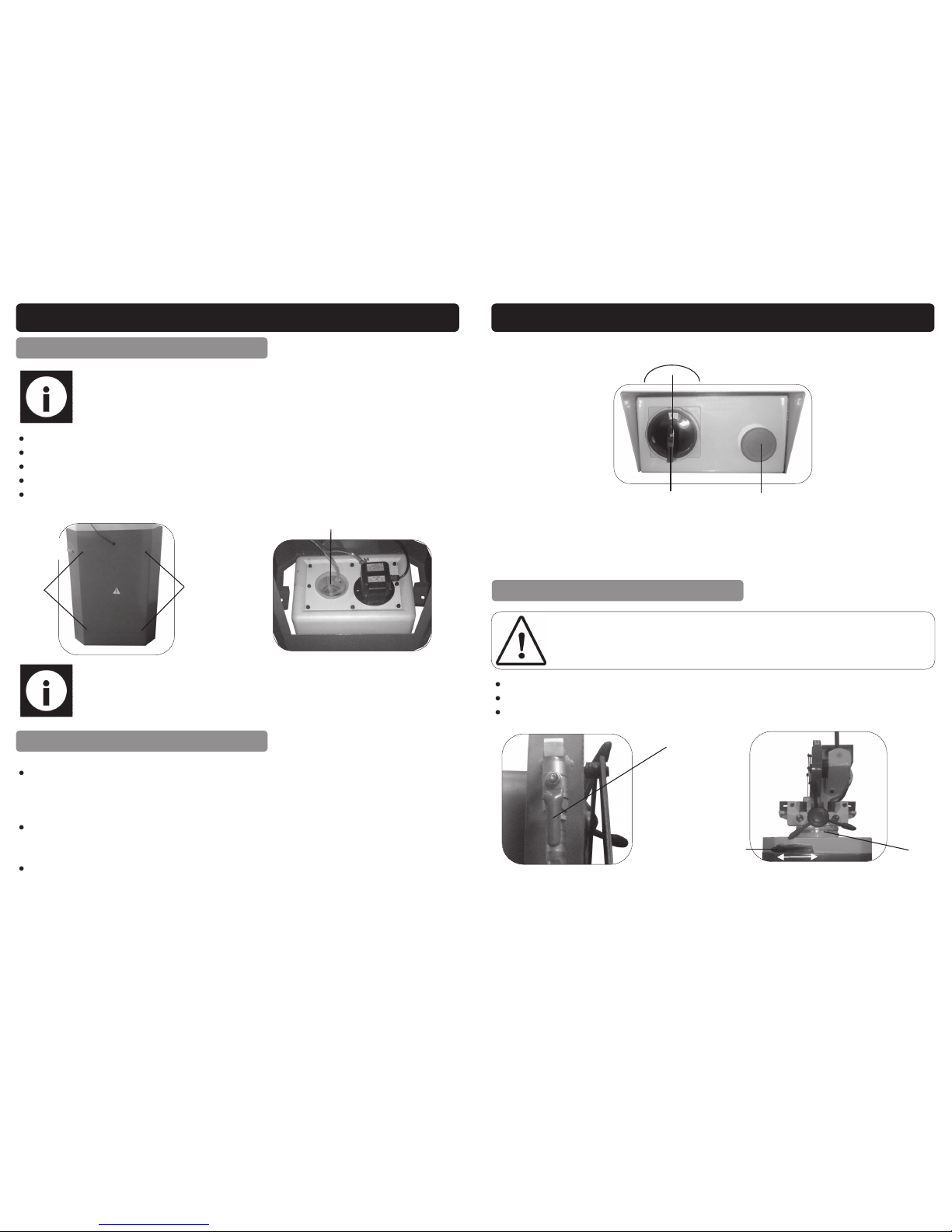

OPERATING INSTRUCTIONS

Remove the four hex bolts (A) and remove the cover. Slide the coolant tank out. Fill the coolant tank through the coolant tank filter. Slide the tank back in. Refit the four hex bolts.

Note: Before any cuts are made it is best to get into a routine of turning the coolant tap to the open position, this will prolong the life of the blade.

FILLING THE COOLANT TANK

Coolant tank filter

Note: Never run the coolant pump without the coolant tank filter fitted,

swarf will get into the cooling system and void any warranty you may have.

To start the circular saw, turn the speed selector switch left for position

‘1’ (18rpm) or to the right for position ‘2’ (36rpm) depending on the speed re-

quired, (the blade will not turn until the handle trigger is pressed in).

To stop the circular saw, turn the speed selector switch back to the centre ‘0’

position, or push the emergency stop button.

The emergency stop button, when pressed in will cut the power to the motor, to reset the emergency stop button twist it clockwise and it will pop back out.

STARTING THE CIRCULAR SAW

OPERATING INSTRUCTIONS….cont

Emergency stop button

Speed selector switch

CUTTING AT 90˚ DEGREE

Turn the coolant tap to the ‘Open’ position. Loosen the bench lever, and turn the head to 90˚ on the scale. Re-tighten the bench lever, so the head can`t move as you’re cutting.

Danger / Caution: Never force the blade down whilst cutting, this will damage the teeth on the blade and or shatter the blade, always let the blade do the cutting.

Open’ position

Set to 90˚

Bench lever

Tighten

Loosen
