Sintrones DSS-1300 User Manual

Download

Page 1

Small PC with 2nd Generation Intel® Core i7/i5/i3 Processors

User’s Guide

DSS-1300

DSS-1300 User’s Manual

Page 2

Contact Info:

Visit our site at:

liability arising out of the application or use of the information or products described herein. This user’s

guide may contain or reference information and products protected by copyrights or patents and does

guide in other publications. Customers may alter this user’s guide and publish it only after they remove

warranted by evolution in user needs or progress in engineering or manufacturing technology.

Changes which affect the operation of the unit will be documented in the next revision of this user’s

guide.

Revision Date Edited by Changes

1.0 2011/10/05 Zack Initial Release

not convey any license under the patent rights of Sintron, nor the rights of others.

user’s guide contains information proprietary to Sintron. Customers may reprint and use this user’s

DSSP-1300 User’s Manual

SINTRONES Technology Corp.

www.sintrones.com

Tel: +886 2 82280101 Fax: +886 2 82280100

14F.-3, No.736, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.)

The information in this user’s guide is provided for reference only. SINTRONES does not assume any

SINTRONES is a registered trademark of Sintron. All trademarks, registered trademarks, and trade

the SINTRONES name, cover, and logo.

SINTRONES reserves the right to make changes without notice in product or component design as

Page 3

Content

Content ....................................................................................................................... 3

Figures ....................................................................................................................... 4

Tables ......................................................................................................................... 5

Safety Instructions ...................................................................................................... 6

Before You Begin ............................................................................... 6

When Working Inside a Computer

..................................................... 7

Preventing Electrostatic Discharge .................................................... 7

Instructions for Lithium Battery ........................................................... 8

Voltage Ratings .................................................................................. 8

Preface ....................................................................................................................... 9

How to Use This Guide

...................................................................... 9

Unpacking .......................................................................................... 9

Regulatory Compliance Statements ................................................... 9

Warranty Policy ................................................................................ 10

Maintaining Your Computer .............................................................. 11

Chapter 1 Introduction ........................................................................................... 14

Overview .......................................................................................... 14

System tour ...................................................................................... 16

Mechanical Dimensions ................................................................... 19

Chapter 2 Getting Started

...................................................................................... 21

Setting up your PC ........................................................................... 21

Mounting your PC to a Monitor ......................................................... 24

Changing Memory and mini-PCIe .................................................... 26

Chapter 3 AMI BIOS Setup

.................................................................................... 29

Overview .......................................................................................... 29

Main Menu ....................................................................................... 30

Advanced Menu ............................................................................... 31

Boot Menu ........................................................................................ 43

Security Menu

.................................................................................. 44

Save & Exit Menu

............................................................................. 45

Chapter 4 Driver Installation .................................................................................. 47

Connecting VESA Mount on DSS-1300 ......................................... 24

DSS-1300 User’s Manual

Page 4

Figures

Figure 1 Front Panel ................................................................................................. 16

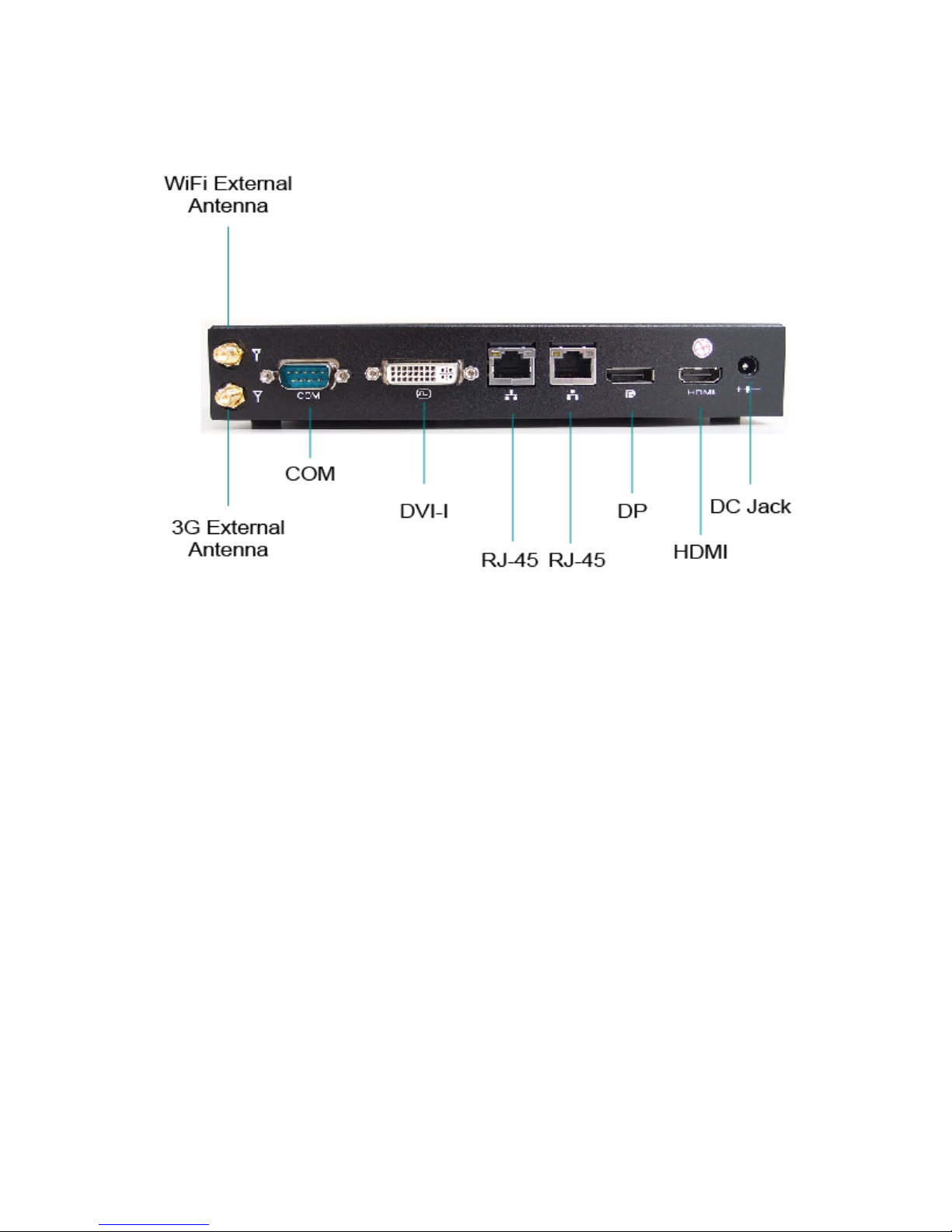

Figure 2 Rear Panel ................................................................................................. 18

Figure 3 Mechanical Figures .................................................................................... 20

Figure 4 Connecting the DVI cable .......................................................................... 21

Figure 5 Connecting USB Mouse & Keyboard ......................................................... 22

Figure 6 Network Cable with RJ45 Connector ......................................................... 22

Figure 7 Turing on the System

................................................................................. 23

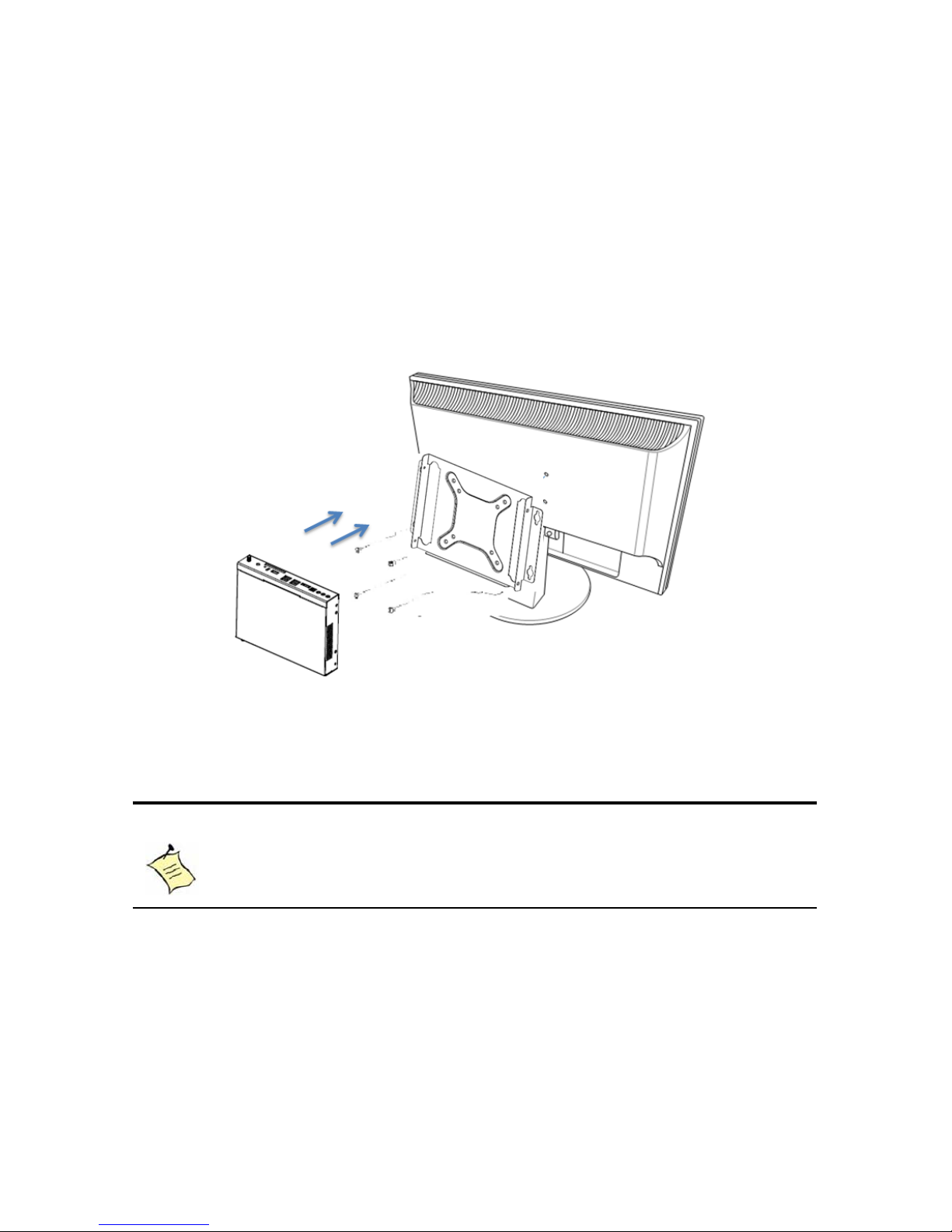

Figure 8 VESA Mount Assembly .............................................................................. 24

Figure 10 VESA Mounting ........................................................................................ 25

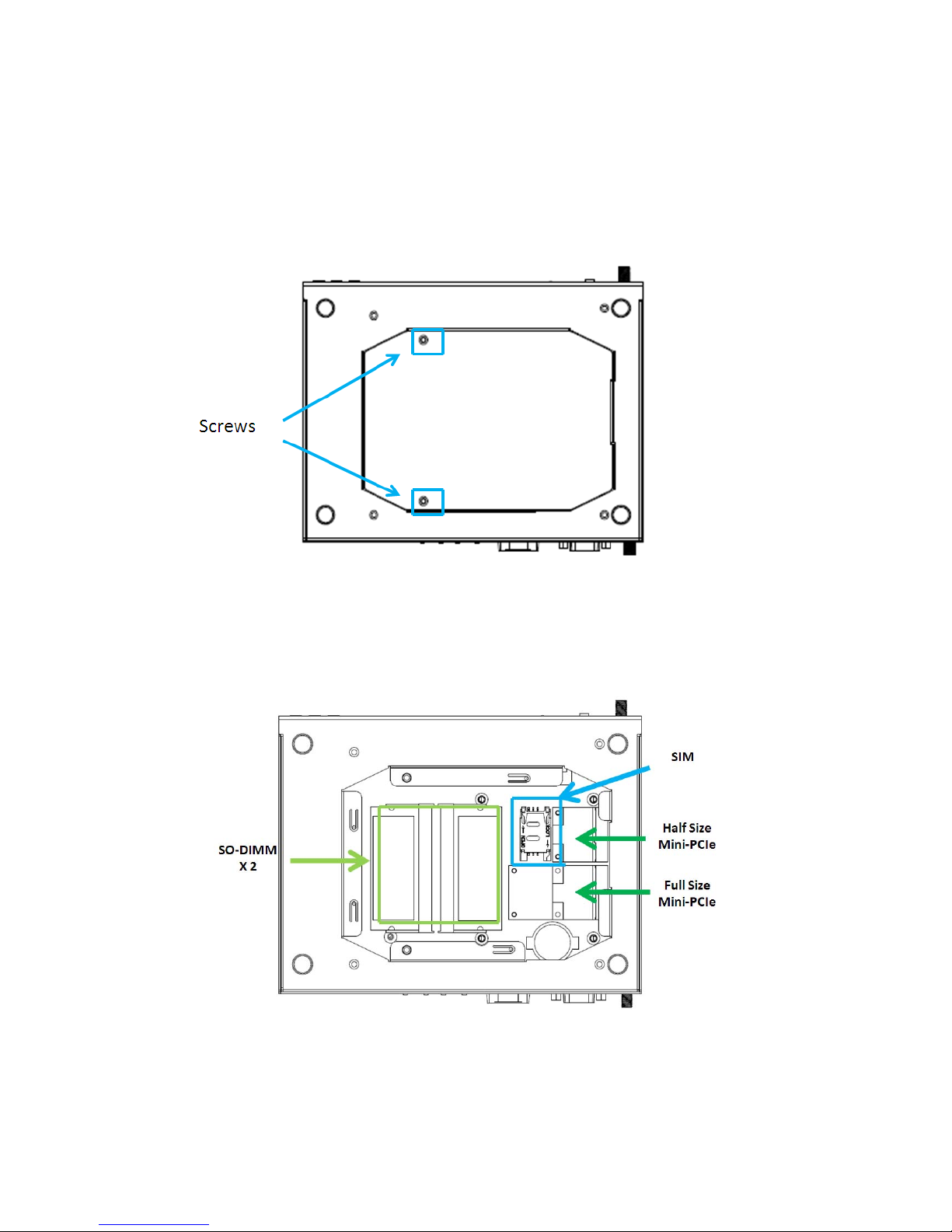

Figure 11 Opening the Cover on the Bottom ............................................................ 26

Figure 12 Bottom View of Main Board

...................................................................... 26

Figure 13 SO-DIMM Installation (1) .......................................................................... 27

Figure 14 SO-DIMM Installation (2) .......................................................................... 27

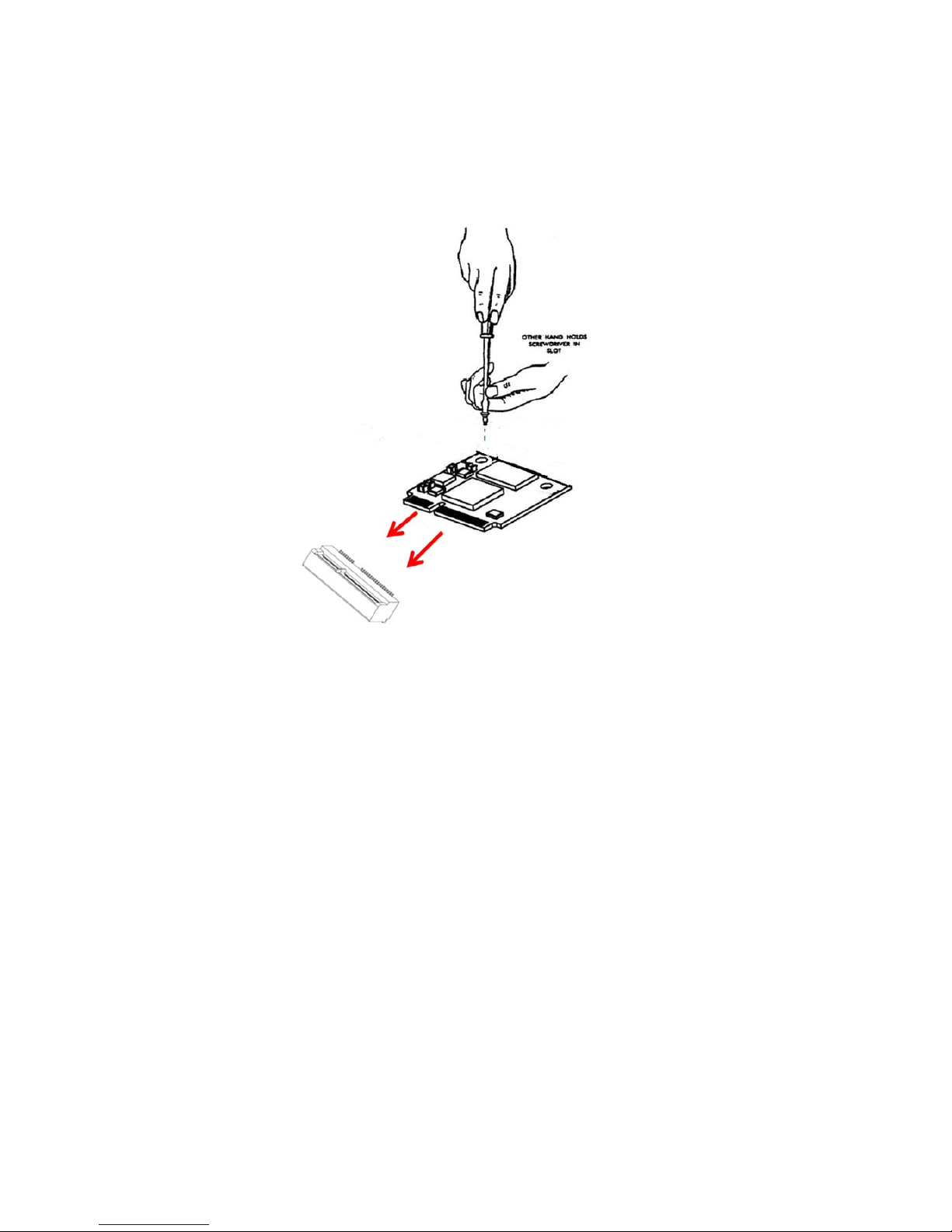

Figure 15 mini-PCIe Installation ............................................................................... 28

Figure 9 VESA Mount on DDS-1300 ...................................................................... 24

DSS-1300 User’s Manual

Page 5

Tables

Table 2 BIOS Main Menu ......................................................................................... 30

Table 3 BIOS Advanced Menu ................................................................................. 31

Table 4 BIOS Advanced Menu – Display Configuration............................................ 32

Table 5 BIOS Advanced Menu – Super I/O Configuration ........................................ 33

Table 6 BIOS Advanced Menu –Super IO Configuration – Serial Port 1 Conf. ......... 33

Table 7 BIOS Advanced Menu –

Power Management Configuration ....................... 35

Table 8 BIOS Advanced Menu – CPU Advanced Configuration ............................... 36

Table 9 BIOS Advanced Menu – Trusted Platform ................................................... 37

Table 10 BIOS Advanced Menu – SATA Configuration ............................................. 38

Table 11 BIOS Advanced Menu – Intel TXT (LT) Configuration ................................ 39

Table 12 BIOS Advanced Menu –

AMT Configuration .............................................. 39

Table 13 BIOS Advanced Menu – USB Configuration .............................................. 41

Table 14 BIOS Advanced Menu – H/W Monitor ........................................................ 42

Table 15 BIOS Boot Menu ........................................................................................ 43

Table 16 BIOS Security Menu .................................................................................. 44

Table 17 BIOS Save & Exit Menu ............................................................................. 45

Table 1 DSS-1300 Product Specifications ............................................................. 16

DSS-1300 User’s Manual

Page 6

Safety Instructions

 Before Y ou Begin

Before handling the product, read the instructions and safety guidelines on the

following pages to prevent damage to the product and to ensure your own personal

safety. Refer to the “Advisories” section in the Preface for advisory conventions used

in this user’s guide, including the distinction between Warnings, Cautions, Important

Notes, and Notes.

 Always use caution when handling/operating a computer. Only qualified,

experienced, authorized electronics service personnel should access the

interior of a computer. The power supplies produce high voltages and

energy hazards, which can cause bodily harm.

 Use extreme caution when installing or removing components. Refer to the

installation instructions in this user’s guide for precautions and procedures.

If you have any questions, please contact with your dealer for Post-Sales

Technical Support.

 Access can only be gained by service persons or by users who have

been instructed about the reasons for the restrictions applied to the

location and about any precautions that shall be taken; and access is

through the use of a tool or lock and key, or other means of security,

and is controlled by authority responsible for the location.

WARNING

High voltages are present inside the chassis when the unit’s power cord is

plugged into an electrical outlet. Turn off system power, turn off the power

supply, and then disconnect the power cord from its source before

removing the chassis cover. Turning off the system power switch does not

remove power to components.

DSS-1300 User’s Manual

Page 7

 When Working Inside a Computer

Before taking covers off a computer, perform the following steps:

1. Turn off the computer and any peripherals.

2. Disconnect the computer and peripherals from their power sources or

subsystems to prevent electric shock or system board damage. This does not

apply when hot swapping parts.

3. Follow the guidelines provided in “Preventing Electrostatic Discharge” on the

following page.

4. Disconnect any telephone or telecommunications lines from the computer.

In addition, take note of these safety guidelines when appropriate:

 To help avoid possible damage to system boards, wait five seconds after

turning off the computer before removing a component, removing a system

board, or disconnecting a peripheral device from the computer.

 When you disconnect a cable, pull on its connector or on its strain-relief loop,

not on the cable itself. Some cables have a connector with locking tabs. If you

are disconnecting this type of cable, press in on the locking tabs before

disconnecting the cable. As you pull connectors apart, keep them evenly

aligned to avoid bending any connector pins. Also, before connecting a cable,

make sure both connectors are correctly oriented and aligned.

CAUTION

Do not attempt to service the system yourself except as explained in this user’s guide.

Follow installation and troubleshooting instructions closely.

 Preventing Electrostatic Discharge

Static electricity can harm system boards. Perform service at an ESD workstation

and follow proper ESD procedure to reduce the risk of damage to components. We

strongly encourage you to follow proper ESD procedure, which can include wrist

straps and smocks, when servicing equipment.

You can also take the following steps to prevent damage from electrostatic

discharge (ESD):

 When unpacking a static-sensitive component from its shipping carton, do not

remove the component’s antistatic packing material until you are ready to install

DSS-1300 User’s Manual

Page 8

the component in a computer. Just before unwrapping the antistatic packaging,

be sure you are at an ESD workstation or grounded. This will discharge any

static electricity that may have built up in your body.

 When transporting a sensitive component, first place it in an antistatic container

or packaging.

 Handle all sensitive components at an ESD workstation. If possible, use

antistatic floor pads and workbench pads.

 Handle components and boards with care. Don’t touch the components or

contacts on a board. Hold a board by its edges or by its metal mounting bracket.

 Do not handle or store system boards near strong electrostatic, electromagnetic,

magnetic, or radioactive fields.

 Instructions for Lithium Battery

WARNING

Danger of explosion when battery is replaced with incorrect type. Only replace

with the same or equivalent type recommended by the manufacturer.

Do not dispose of lithium batteries in domestic waste. Dispose of the battery

according to the local regulations dealing with the disposal of these special

materials (e.g. to the collecting points for disposal of batteries)

 Voltage Ratings

 Input: 100-240 VAC, 50-60 Hz

 Output: 75W, +19Vdc, 3.95A

The external power adaptor of the DSS-1300 has the following voltage ratings:

DSS-1300 User’s Manual

Page 9

Preface

 How to Use This Guide

This guide is designed to be used as step-by-step instructions for installation, and as

a reference for operation, troubleshooting, and upgrades.

NOTE

Driver downloads and additional information are available under Downloads on

 Unpacking

When unpacking, follow these steps:

1. After opening the box, save it and the packing material for possible future

shipment.

2. Remove all items from the box. If any items listed on the purchase order

are missing, notify your customer service immediately.

3. Inspect the product for damage. If there is damage, notify your customer

service immediately. Refer to “Warranty Policy” for the return procedure.

 Regulatory Compliance Statement s

This section provides the FCC compliance statement for Class A devices.

FCC Compliance Statement:

This equipment has been tested and found to comply with limits for a Class A digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide

reason able protection against harmful interference in residential installations. This

equipment generates, uses, and can radiate radiofrequency energy, and if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

interference to radio or television equipment reception, which can be determined by

DSS-1300 User’s Manual

our website: www.sintrones.com

Page 10

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by your dealer could void the

user's authority to operate the equipment.

NOTE

The assembler of a personal computer system may be required to test the system

and/or make necessary modifications if a system is found to cause harmful

interference or to be noncompliant with the appropriate standards for its intended use.

 Warranty Policy

Limited Warranty

Please consult your distributor for warranty verification.

The limited warranty is void if the product has been subjected to alteration, neglect,

misuse, or abuse; if any repairs have been attempted by anyone other than your

manufacturer or its authorized agent; or if the failure is caused by accident, acts of

God, or other causes beyond the control of your dealer or the manufacturer. Neglect,

misuse, and abuse shall include any installation, operation, or maintenance of the

product other than in accordance with the user’s guide.

No agent, dealer, distributor, service company, or other party is authorized to change,

modify, or extend the terms of this Limited Warranty in any manner whatsoever. Your

manufacturer reserves the right to make changes or improvements in any product

without incurring any obligation to similarly alter products previously purchased.

Return Procedure

For any Limited Warranty return, please contact with your dealer.

All product(s) returned to your dealer for service or credit must be accompanied by a

Return Material Authorization (RMA) Number. Freight on all returned items must be

prepaid by the customer who is responsible for any loss or damage caused by

DSS-1300 User’s Manual

Page 11

common carrier in transit. Returns for Warranty must include a Failure Report for

each unit, by serial number(s), as well as a copy of the original invoice showing the

date of purchase.

To reduce risk of damage, returns of product must be in a shipping container. If the

original container has been lost or damaged, new shipping containers may be

obtained from your dealer’s Customer Service at a nominal cost.

We own all parts removed from repaired products. We use new and reconditioned

parts made by various manufacturers in performing warranty repairs and building

replacement products. If your dealer repairs or replaces a product, its warranty term

is not extended.

Shipments not in compliance with this Limited Warranty Return Policy will not be

accepted by us.

Limitation of Liability

In no event shall your dealer be liable for any defect in hardware, software, loss, or

inadequacy of data of any kind, or for any direct, indirect, incidental, or

consequential damages in connection with or arising out of the performance or use

of any product furnished hereunder. Our liability shall in no event exceed the

purchase price of the product purchased hereunder. The foregoing limitation of

liability shall be equally applicable to any service provided by us or its authorized

agent.

 Maintaining Your Computer

Environmental Factors

 Temperature

The ambient temperature within an enclosure may be greater than room

ambient temperature. Installation in an enclosure should be such that the

amount of air flow required for safe operation is not compromised.

Consideration should be given to the maximum rated ambient temperature.

Overheating can cause a variety of problems, including premature aging and

failure of chips or mechanical failure of devices.

If the system has been exposed to abnormally cold temperatures, allow a

two-hour warm-up period to bring it up to normal operating temperature before

turning it on. Failure to do so may cause damage to internal components,

particularly the hard disk drive.

DSS-1300 User’s Manual

Page 12

 Humidity

High-humidity can cause moisture to enter and accumulate in the system. This

moisture can cause corrosion of internal components and degrade such

properties as electrical resistance and thermal conductivity. Extreme moisture

buildup inside the system can result in electrical shorts, which can cause

serious damage to the system.

Buildings in which climate is controlled usually maintain an acceptable level of

humidity for system equipment. However, if a system is located in an unusually

humid location, a dehumidifier can be used to maintain the humidity within an

acceptable range. Refer to the “Specifications” section of this user’s guide for

the operating and storage humidity specifications.

 Altitude

Operating a system at a high altitude (low pressure) reduces the efficiency of

the cooling fans to cool the system. This can cause electrical problems related

to arcing and corona effects. This condition can also cause sealed components

with internal pressure, such as electrolytic capacitors, to fail or perform at

reduced efficiency.

Power Protection

The greatest threats to a system’s supply of power are power loss, power spikes,

and power surges caused by electrical storms, which interrupt system operation

and/or damage system components. To protect your system, always properly

ground power cables and one of the following devices.

 Surge Protector

Surge protectors are available in a variety of types and usually provide a level

of protection proportional with the cost of the device. Surge protectors prevent

voltage spikes from entering a system through the AC power cord. Surge

protectors, however, do not offer protection against brownouts, which occur

when the voltage drops more than 20 percent below the normal AC line voltage

level.

 Line Conditioner

Line conditioners go beyond the overvoltage protection of surge protectors.

Line conditioners keep a system’s AC power source voltage at a fairly constant

level and, therefore, can handle brownouts. Because of this added protection,

line conditioners cost more than surge protectors. However, line conditioners

DSS-1300 User’s Manual

Page 13

cannot protect against a complete loss of power.

 Uninterruptible Power Supply

Uninterruptible power supply (UPS) systems offer the most complete protection

against variations on power because they use battery power to keep the server

running when AC power is lost. The battery is charged by the AC power while it

is available, so when AC power is lost, the battery can provide power to the

system for a limited amount of time, depending on the UPS system.

UPS systems range in price from a few hundred dollars to several thousand

dollars, with the more expensive unit s allowing you to run larger systems for a

longer period of time when AC power is lost. UPS systems that provide only 5

minutes of battery power let you conduct an orderly shutdown of the system,

but are not intended to provide continued operation. Surge protectors should be

used with all UPS systems, and the UPS system should be Underwriters

Laboratories (UL) safety approved.

DSS-1300 User’s Manual

Page 14

Chapter 1

Introduction

 Overview

everyday computing needs and turn your living room into home theater with ease.

Featuring the 2nd Generation Intel® Core i7/i5/i3 Processors with Intel® QM67

chipset, it provides the powerful computing and graphic performance with the optimal

energy efficiency.

Checklist

 Power Adapter

 Power Cord

 Driver CD

 Quick installation Guide

 VESA Mounting Kit

Features

 2nd Generation Intel® Core i7/i5/i3 Processors with Intel® QM67 chipset

 2x DDR3 1066/1333 SO-DIMM, up to 8GB

 1x DVI-I, 1x HDMI, 1x DP, 2x GbE and 5.1 channel audio output

 SATA HDD, 1x eSATA & USB Combo Connector, 1x CF

 1x USB 3.0 and 4x USB 2.0, 1x COM

 TPM 1.2 and iAMT 7.0 supported

 2x mini-PCIE for expansion

DSS-1300 is a surprisingly affordable, space-saving system that will capably serve

 DSS-1300

DSS-1300 User’s Manual

Page 15

Chapter 1

 Product Specifications

Dimensions

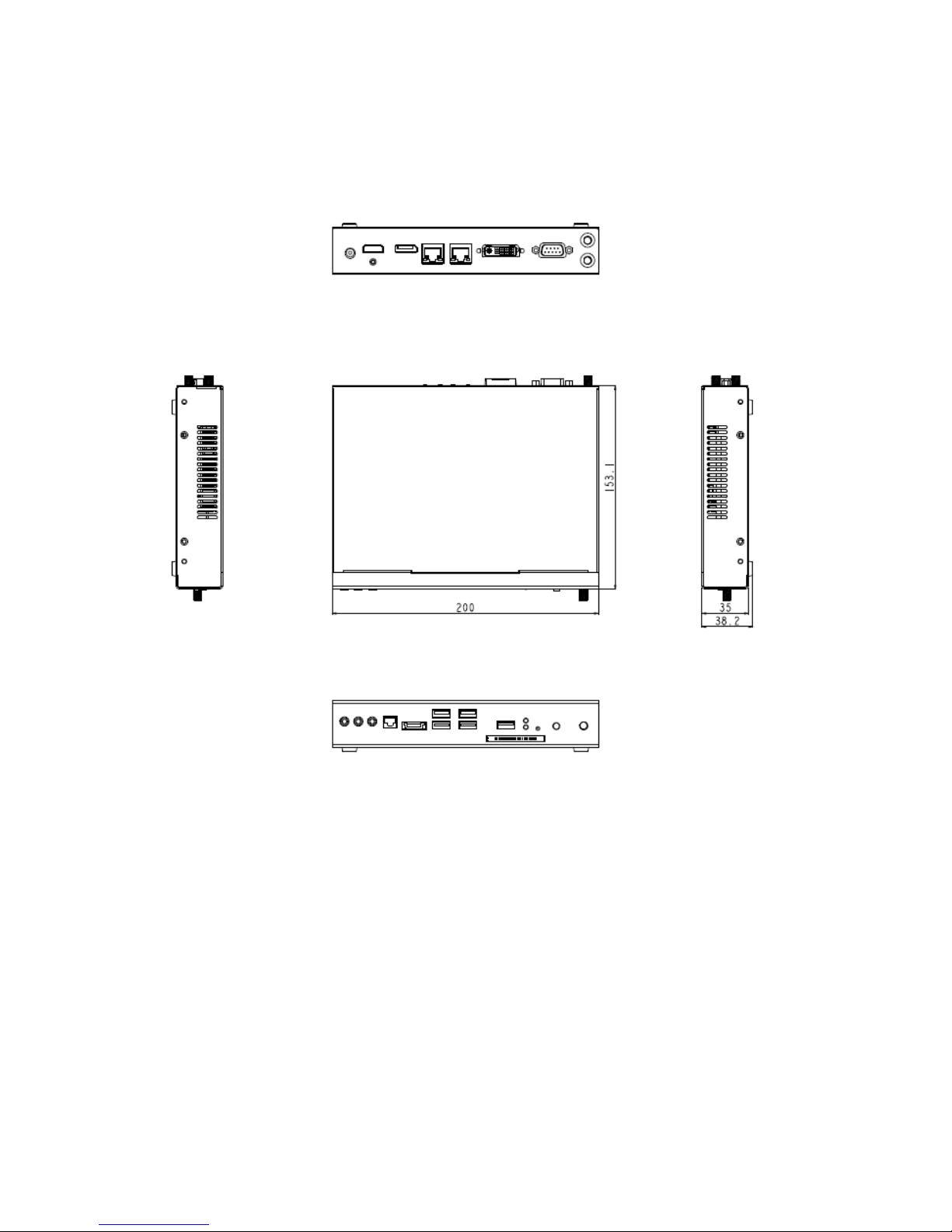

200 x 35 x 153.1 mm (WxHxD)

Weight

1.1 Kg (Net)/2.5 Kg (Gross)

CPU/ Chipset

Intel® Huron River Platform

2nd Generation Intel® Core™ i3/i5/i7 Processors

Intel® QM67

RAM

2x DDR3 1066/1333 SO-DIMM up to 8GB

Storage

1 x 2.5” SATA HDD or SSD

Front IO

3x 3.5mm Phone Jack, support 5.1 channel audio output

1x S/PDIF Output

1x eSATA and USB 2.0 combo connector

4x USB 2.0

1x USB 3.0

1x CF Slot

1x Power LED

1x Storage status LED

1x WiFi status LED

Rear IO

1x DC JACK for DC19V single power input

1x DVI-I for DVI-D or VGA output

1x HDMI

1x DP

2x RJ-45 GbE port

1x COM Port support RS-232/422/485 (Offer +5V selection)

1x Wifi external antenna

1x 3G external antenna

Expansion Slot

2 x mini PCIe slot (One full size and one half size)

(Optional for 3G/WiFi/Bluetooth module)

1x SIM card slot (for 3G appliance) support user accessible

Cooling

System Fan with Smart Fan Control

Power Unit

Input: 100-240 VAC

Output: 75 Watt, +19VDC, 3.95A

Temperature / Humidity

Operating: 0°C to 45°C, 0%-90%, non-condensing

Storage: -20°C to 80°C, 0%-90%, non-condensing

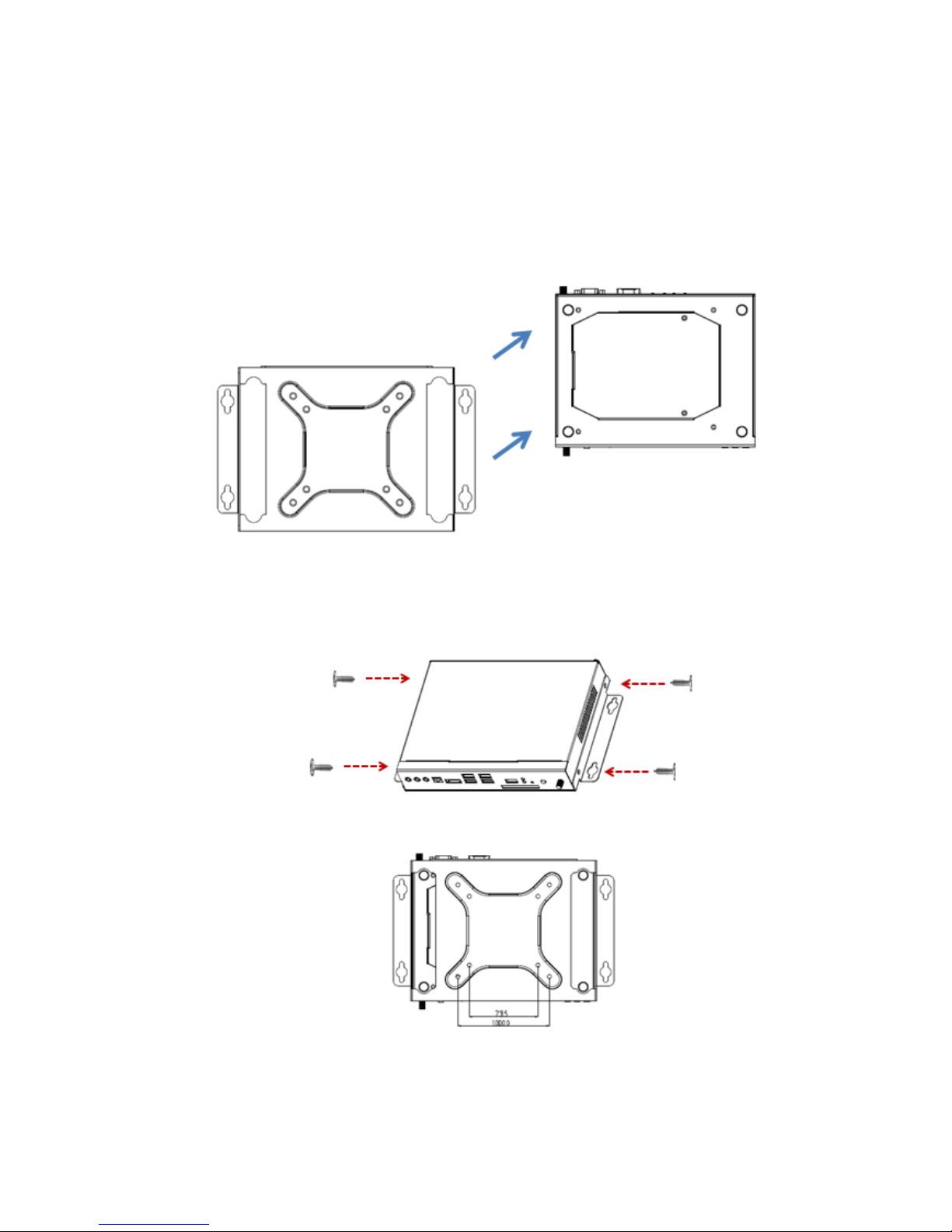

Mounting

VESA-mount

Certifications

CE, FCC Class A

Table 1 DSS-1300 product specifications

DSS-1300 User’s Manual

Page 16

Chapter 1

 System tour

Refer to the figures below to identify the components of the system.

 Front Panel

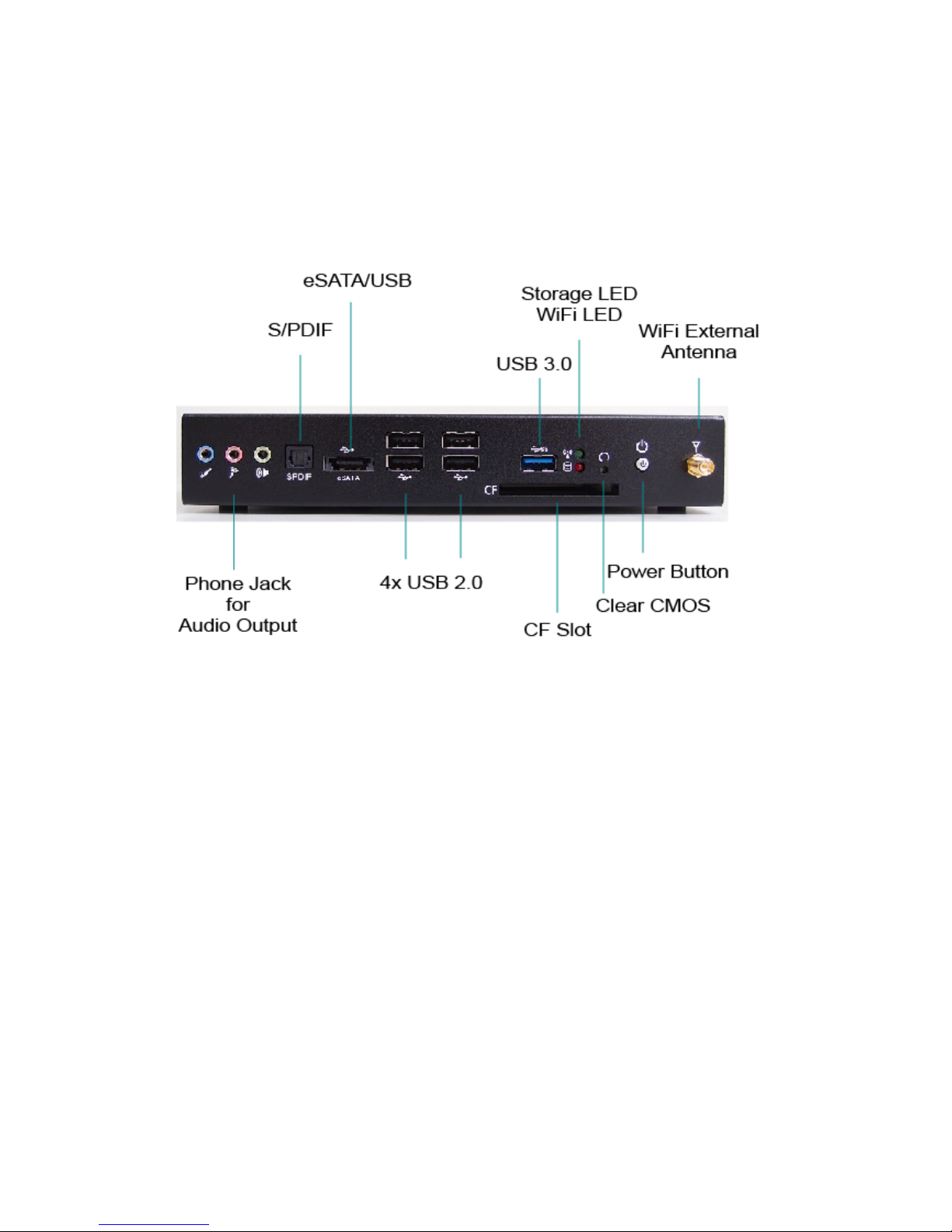

Figure 1 Front Panel

Power Button

The power push button allows powering ON and OFF the system.

Clear CMOS Button

To clear the CMOS, use the tip of a pen to press the button briefly (for less than

three seconds).

Power LED (Green)

The power LED will light when the PC is power-on.

Storage LED (Red)

The hard disk/card reader LED blinks when data is being written into or read

from the HDD/Card Reader.

DSS-1300 User’s Manual

Page 17

Chapter 1

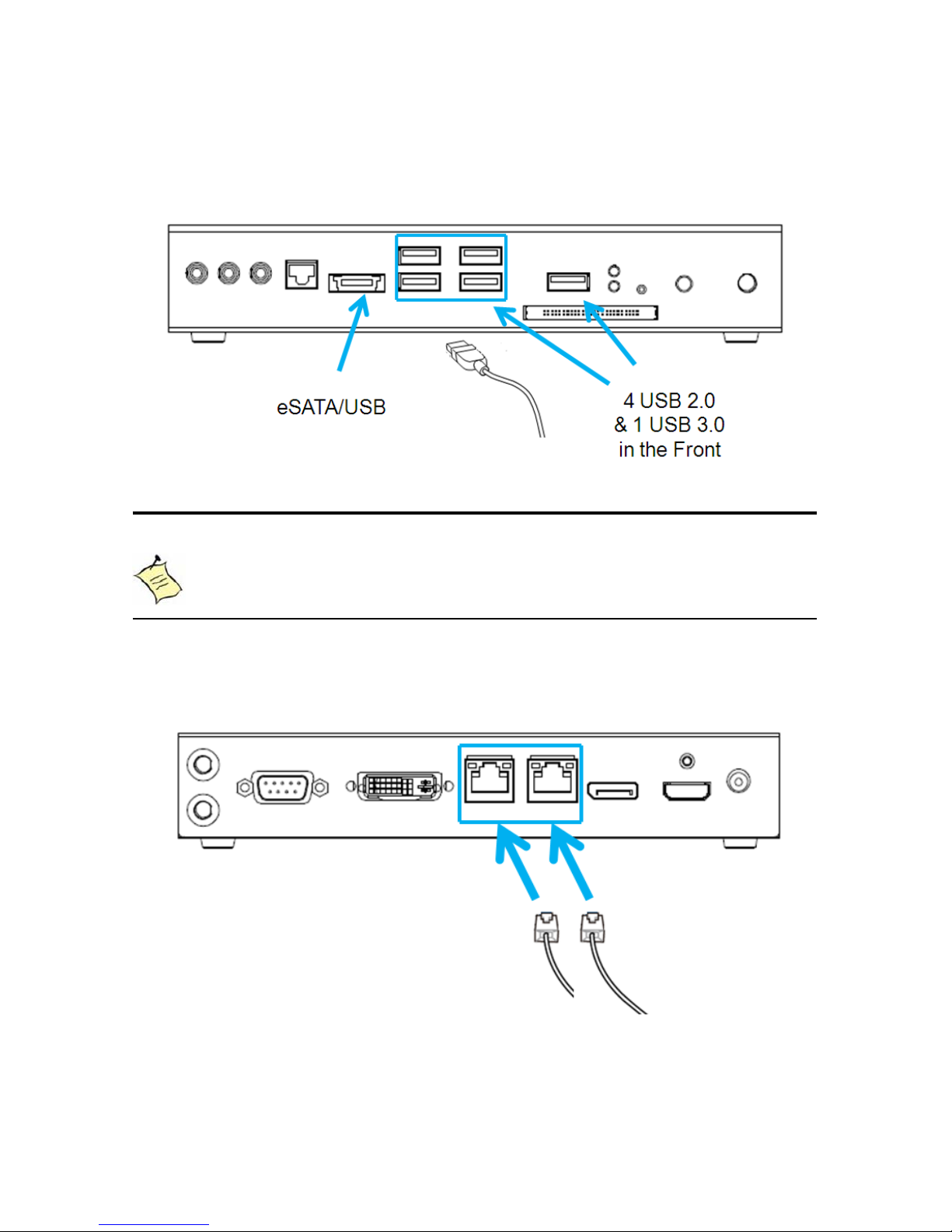

USB

The USB (Universal Serial Bus) port is compatible with USB devices such as

keyboards, mouse devices, cameras, and hard disk drives. USB allows many

devices to run simultaneously on a single computer, with some peripheral

acting as additional plug-in sites or hubs.

S/PDIF

S/PDIF output for carrying digital audio signals out to the device.

eSATA/USB (combo)

This provides eSATA and USB connectivity as a combo connector.

WiFi External Antenna

Spared hole on the casing for connecting WiFi external antenna

CF Slot

CompactFlash Card Slot

Phone Jack Audio Out

The stereo headphone jack is used to connect the system’s audio out signal to

amplified speakers or headphones.

MIC-IN

The microphone jack is designed to connect the microphone used for video

conferencing, voice narrations, or simple audio recordings.

Line-IN

The Line-in jack is designed to take input from a higher-powered sound source.

CAUTION

This connector do not support hot-swapping. Users should not connect or

disconnect their eSATA/USB (combo) & CF devices from PC when the

system is Working.

DSS-1300 User’s Manual

Page 18

Chapter 1

Rear Panel

Figure 2 Rear Panel

DC Jack

The supplied power adapter converts AC power to DC for use with this jack.

Power supplied through this jack supplies power to the PC. To prevent damage

to the PC, always use the supplied power adapter.

HDMI

HDMI connector for display output

Display Port

Ethernet

The eight-pin RJ-45 LAN port supports a standard Ethernet cable for

connection to a local network.

DSS-1300 User’s Manual

Page 19

Chapter 1

DVI-I

DVI-I connector for DVI-D or VGA output

COM

D-Sub 9 pin connector for RS-232 connection

3G External Antenna

Spared hole on the casing for connecting 3G external antenna

WiFi External Antenna

Spared hole on the casing for connecting WiFi external antenna

DSS-1300 User’s Manual

Page 20

Chapter 1

Mechanical Figures

Dimension: 200 x 35 x 153.1 mm (W x H x D)

Figure 3 Mechanical Figures

DSS-1300 User’s Manual

Page 21

Chapter 2

Getting Started

 Setting up your PC

 Connect the monitor, mouse and keyboard

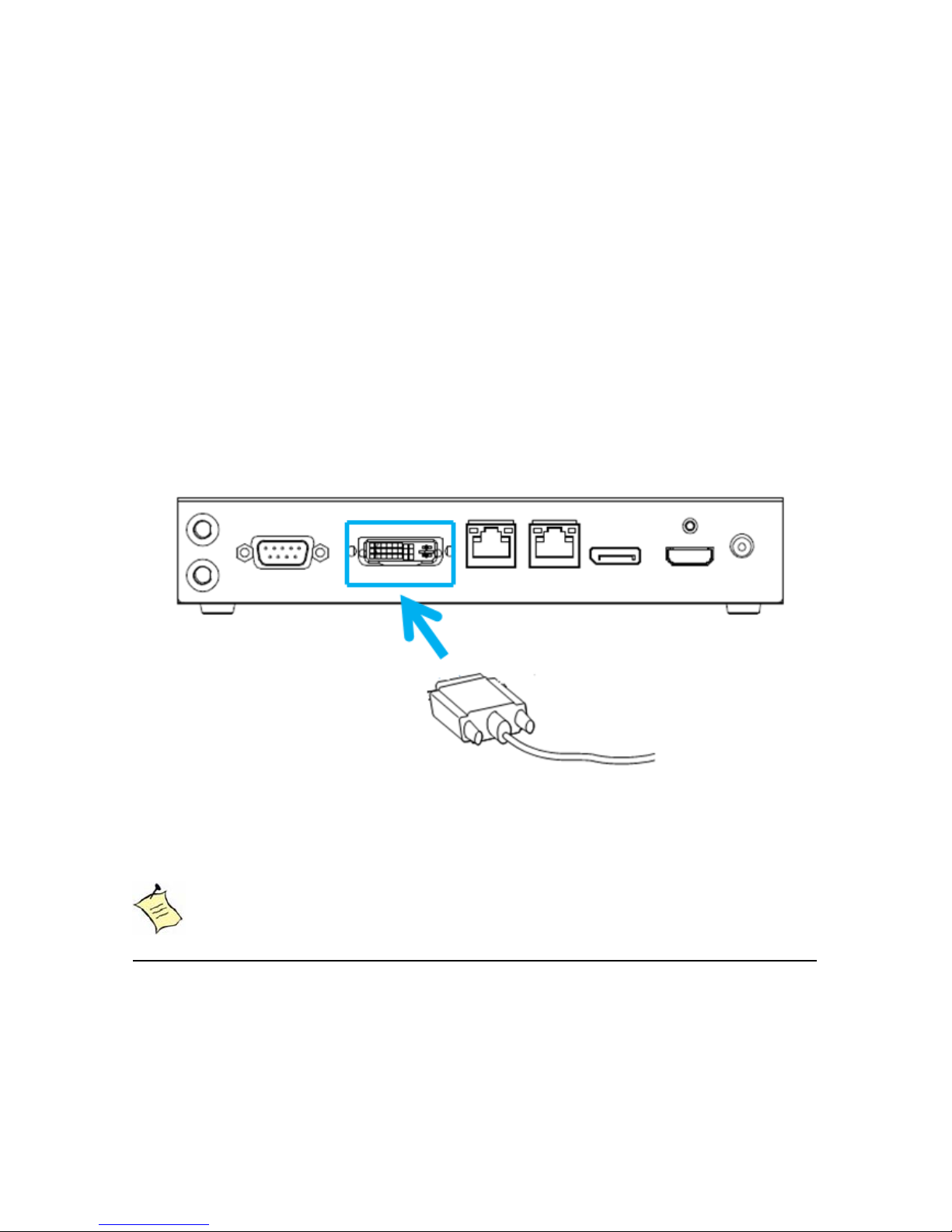

Connecting the monitor

Connect the DVI cable from your display to the DVI port.

Figure 4 Connect the DVI cable

NOTE

When the system reboots without connecting the DVI, there might be no

image on screen when you insert the DVI cable. Please

pressing <Ctrl>+<Alt>+<F4> simultaneously to show the image on screen.

DSS-1300 User’s Manual

Page 22

Chapter 2

Connecting USB mouse & keyboard

USB keyboard or mouse with your computer.

Figure 5 Connecting USB mouse & keyboard

NOTE

Using a third-party USB mouse or keyboard may require software drivers.

Check the manufacturer’s website for the latest software drivers.

 Connecting to a network device

Connect one end of a network cable to the LAN port on the system rear panel and

the other end to a hub or switch.

Figure 6 Network cable with RJ45 connector

Your DSS-1300 does not come with a keyboard and mouse, but you can use any

DSS-1300 User’s Manual

Page 23

Chapter 2

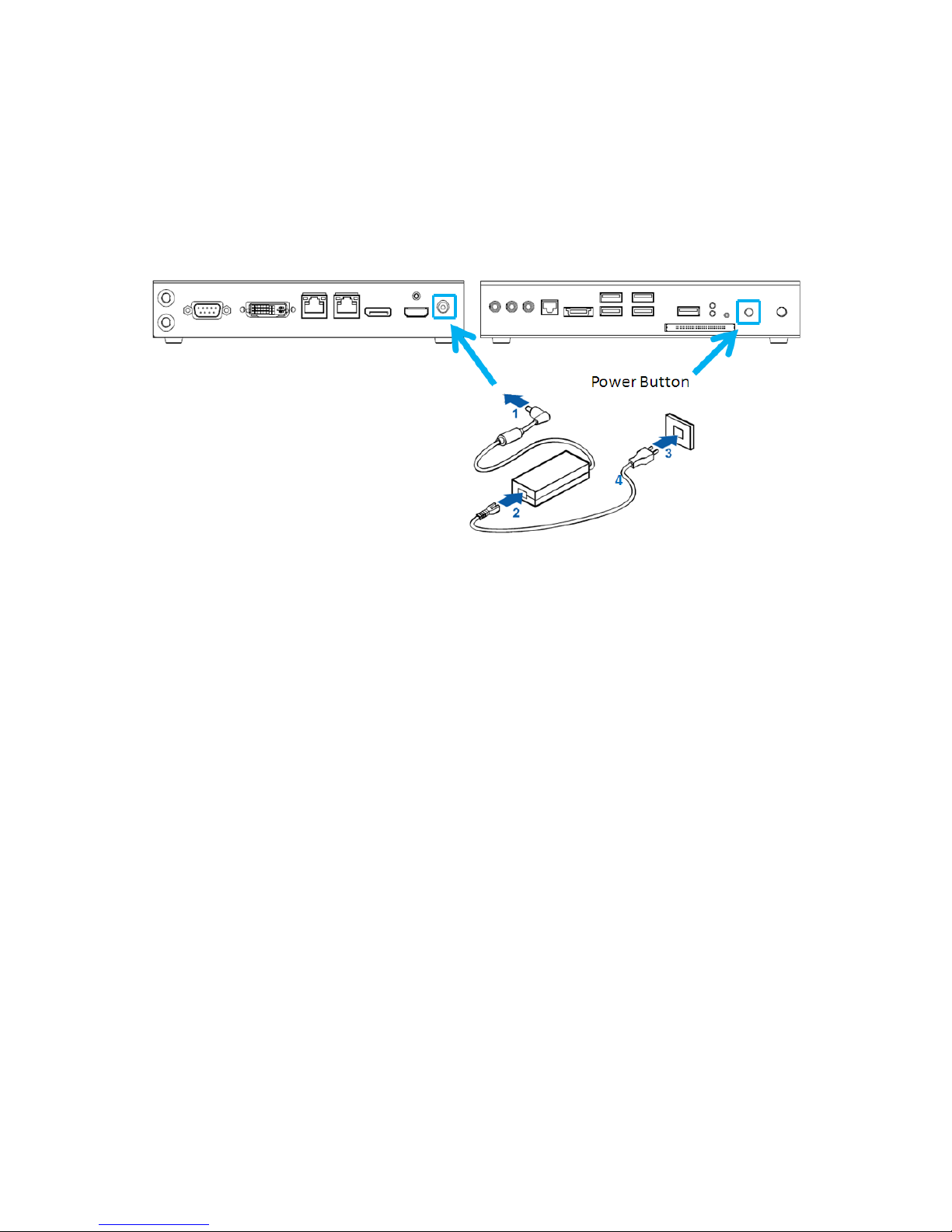

 Turning on the system

2. Connect the power cable to the power adapter

3. Connect the power cable to a power outlet

4. Press the power switch on the front panel to turn on the system

Figure 7 Turing on the system

1. Connect the power adapter cable to the DC jack (DC IN) of the DSS-1300

DSS-1300 User’s Manual

Page 24

Chapter 2

1. Take out the VESA mounting kit form your package and facing it onto the

figures shown below.

Figure 8 VESA Mount Assembly

2. Following figures are the complete status when you done.

 Connecting VESA Mount on DSS-1300

bottom of DSS-1300; then tightening the screws on your DSS-1300 as

Figure 9 VESA Mount on DSS-1300

DSS-1300 User’s Manual

Page 25

Chapter 2

 Mounting your PC to a monitor

1. Firstly, mount your VESA kit on the backside of the monitor with four

screws in the package.

tightening the screws from the holes on both sides of the VESA bracket -

make sure the computer is fitting well on the bracket.

Figure 10 VESA mounting

NOTE

To fasten the metal shelf, your monitor must comply with VESA75 or

VESA100 standard.

Remarks: VESA mounting kit could be used as wall mounting kit as well.

2. Secondly, place the DSS-1300 on the VESA mounting kit and then

DSS-1300 User’s Manual

Page 26

Chapter 2

 Changing Memory and mini-PCIe

as shown below;

Figure 11 Opening the Cover on the Bottom

Then you may able to change the DDR SO-DIMM and/or mini-PCIe modules.

Figure 12 Bottom view of Main Board

Remarks: Please use Full Size Mini-PCIe slot for expansion if you are using 3G

module.

Firstly, Opening the cover by loosening the two screws on the bottom of DSS-1300

DSS-1300 User’s Manual

Page 27

Chapter 2

Changing Memory

Carefully follow the steps below in order to install the SO-DIMMs:

1. To avoid generating static electricity and damaging the SO-DIMM, ground

yourself by touching a grounded metal surface or use a ground strap before you

touch the SO-DIMM.

2. Do not touch the connectors of the SO-DIMM. Dirt or other residue may cause a

malfunction.

3. Hold the SO-DIMM with its notch aligned with the memory socket of the board

and insert it at a 30-degree angle into the socket.

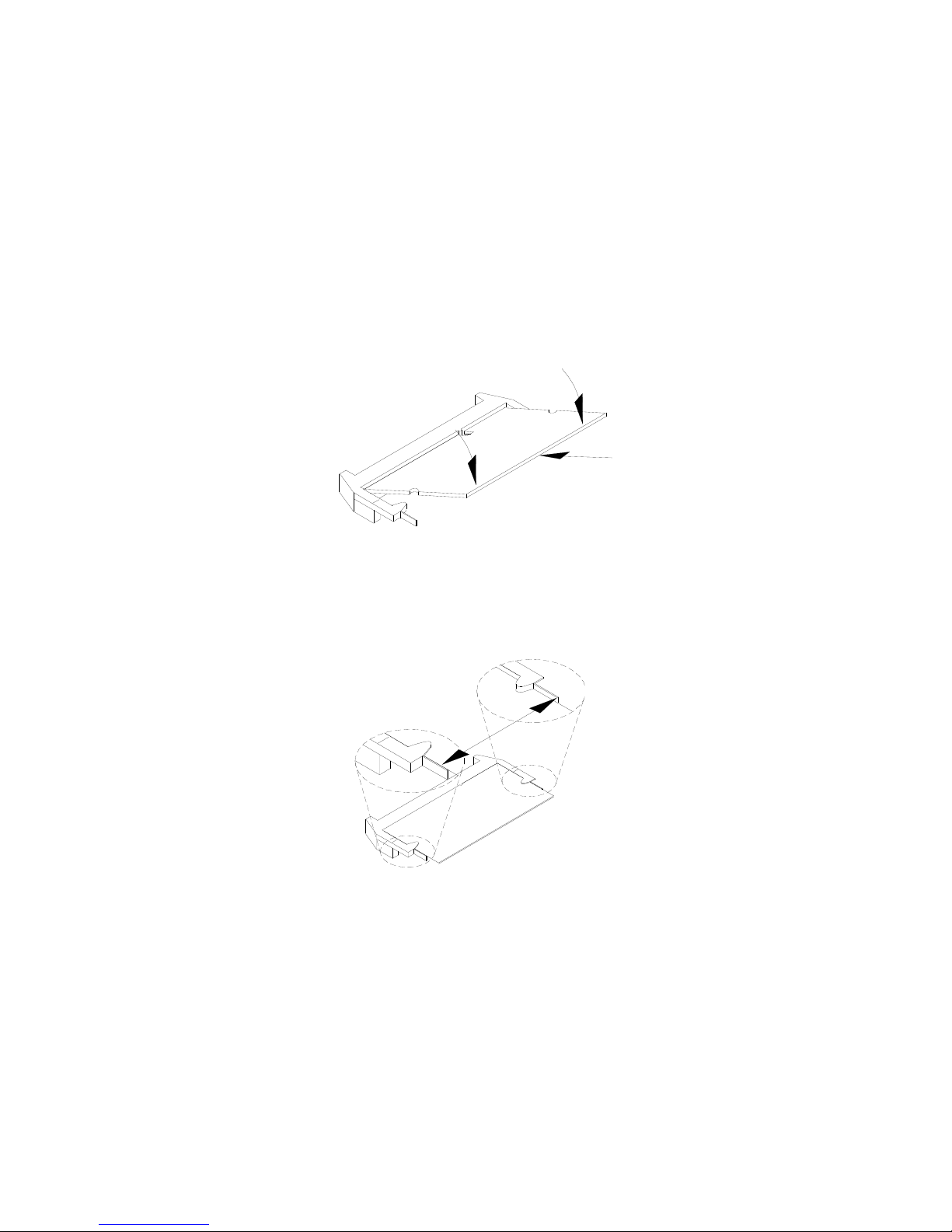

Figure 13 SO-DIMM Installation (1)

Align the SO-DIMM Memory Module with the onboard socket

4. Fully insert the module into the socket until a “click” is heard.

5. Press down on the SO-DIMM so that the tabs of the socket lock on both sides

of the module

Figure 14 SO-DIMM Installation (2)

Press down on the SO-DIMM Memory Module to lock it in place

Removing a SO-DIMM:

To remove the SO-DIMM, use your fingers or a small screwdriver to carefully push

away the tabs that secure either side of the SO-DIMM. Lift it out of the socket.

Make sure you store the SO-DIMM in an anti-static bag. The socket must be populated with memory modules of the same size and manufacturer.

DSS-1300 User’s Manual

Page 28

Changing mini-PCIe

(1) Placeyourmini‐PCIemoduletowardthemini‐PCIesocket.

Figure 15 mini-PCIe Installation

(2) Tighteningthescrewontheholeofthemini‐PCIemoduleasshownabove.

DSS-1300 User’s Manual

Page 29

Chapter 3

AMI BIOS Setup

 Overview

This chapter provides a description of the AMI BIOS. The BIOS setup menus and

available selections may vary from those of your product. For specific information on

the BIOS for your product, please contact with your dealer.

NOTE: The BIOS menus and selections for your product may vary from

those in this chapter. For the BIOS manual specific to your product, please

contact with us.

AMI's ROM BIOS provides a built-in Setup program, which allows the user to modify

the basic system configuration and hardware parameters. The modified data will

be stored in a battery-backed CMOS, so that data will be retained even when the

power is turned off. In general, the information saved in the CMOS RAM will not

need to be changed unless there is a configuration change in the system, such as a

hard drive replacement or when a device is added.

It is possible for the CMOS battery to fail, which will cause data loss in the CMOS

only. If this happens you will need to reconfigure your BIOS settings.

DSS-1300 User’s Manual

Page 30

Main Menu

The BIOS Setup is accessed by pressing the DEL key after the Power-On Self-Test

(POST) memory test begins and before the operating system boot begins. Once you

enter the BIOS Setup Utility, the Main Menu will appear on the screen. The Main

Menu provides System Overview information and allows you to set the System Time

and Date. Use the “<” and “>” cursor keys to navigate between menu screens.

Table 2 BIOS Main Menu

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

BIOS Information Version 1.00 Build Date 09/16/2011

CPU Information

Intel® Core ™ i7-2630QM CPU @ 2.00GHz

Microcode Revision 28

Processor Cores 4

Memory Information

Total Size 1024 MB (DDR3)

Frequency 1067 MHz

System date [Wed 09/22/2011]

System time [14:11:16]

Set the Date. Use Tab to switch between Data elements.

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

DSS-1300 User’s Manual

Page 31

 Advanced Menu

Table 3 Advanced Menu

BIOS SETUP UTILITY

Main Advanced Boot Security Server Mgmt Save & Exit

Onboard LAN1 Boot [Disabled]

Onboard LAN2 Boot [Disabled]

>Display Configuration >Super IO Configuration >Power Management Configuration >CPU Advanced Configuration >Trusted Computing

>SATA Configuration

>Intel TXT(LT) Configuration >AMT Configuration >USB Configuration >H/W Monitor

Enable or Disable Onboard LAN1.

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

Onboard LAN Controller

Options: Disabled, Enabled

Onboard LAN Boot

Options: Disabled, Enabled

Audio Controller

Options: Disabled, Enabled, Auto

Onboard LAN1 Controller [Enabled]

Onboard LAN2 Controller [Enabled]

Audio Controller [Enabled]

DSS-1300 User’s Manual

Page 32

Table 4 Advanced Menu – Display Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Server Mgmt Save & Exit

Display Configuration

Primary Display [IGFX] Internal Graphics [Enabled]

Aperture Size [256 MB] DVMT Pre-Allocated [64M] DVMT Total Gfx Mem [256 M]

IGFX – Boot Type [VBIOS Default] IGFX – 2

Boot Type [Disabled]

Select the Aperture Size

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

Aperture Size

Options: 128MB, 256MB, 512MB

DVMT Pre-Allocated

Options: 0M, 32M, 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M,

352M, 384M, 416M, 448M, 480M, 512M

DVMT Total Gfx Mem

Options: 128M, 256M, MAX

IGFX – Boot Type

Options: VBIOS Default, CRT, DVI, HDMI, DP

IGFX – 2nd Boot Type

Options: Disabled, CRT, DVI, HDMI, DP

DSS-1300 User’s Manual

Page 33

Table 5 Advanced Menu – Super IO Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Super IO Configuration

>Serial Port 1 Configuration

Set Parameters of Serial Port 1 (COM1)

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

Table 6 Advanced Menu – Super IO Configuration – Serial Port 1 Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Serial Port 1 Configuration

Serial Port [Enabled] Device Settings IO=3F8h; IRQ=4;

Change Settings [Auto]

Serial Port 1 Type [RS232] COM1 Pin9 Definition [RI]

Enable or Disable Serial Port (COM)

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

DSS-1300 User’s Manual

Page 34

Serial Port

Options: Disabled, Enabled

Change Settings

Options:

Auto

IO=3F8h; IRQ=4;

IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;

IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;

IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;

IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;

Serial Port 1 Type

Options: RS232, RS422, RS485

COM1 Pin9 Definition

Options: RI, +5V

DSS-1300 User’s Manual

Page 35

Table 7 Advanced Menu – Power Management Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Server Mgmt Save & Exit

Power Management Configuration

ACPI Sleep State [S3 (Suspend to…) Restore AC Power Loss [Power Off]

Resume By PCIE Device [Disabled] Resume By RTC Alarm [Enabled] EUP Power Saving Mode >Watchdog Timer Configuration

Select the highest ACPI sleep state the system will enter, when the SUSPEND button is pressed.

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

ACPI Sleep State

Options: Suspend Disabled, S1 (CPU Stop Clock), S3 (Suspend to RAM)

Restore AC Power Loss

Options: Power Off, Power On, Last State

Resume By PCIE Device

Options: Disabled, Enabled

Resume By RTC Alarm

Options: Disabled, Enabled

EUP Power Saving Mode

Options: Disabled, Enabled

Watchdog Timer Configuration

Options: Suspend Disabled, S1 (CPU Stop Clock), S3 (Suspend to RAM)

DSS-1300 User’s Manual

Page 36

Table 8 Advanced Menu – CPU Advanced Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

CPU Advanced Configuration

EIST [Enabled] Turbo Mode [Enabled] Intel ® Virtualization Tech [Disabled]

Intel ® Hyper Treading Tech [Enabled] Active Processor Cores [All] Limit CPUID Maximum [Disabled] Execute Disable Bit [Enabled]

Enable/Disable Intel ® Speed Step

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

EIST

Options: Disabled, Enabled

Turbo Mode

Options: Disabled, Enabled

Intel ® Virtualization Tech

Options: Disabled, Enabled

Intel ® Hyper Threading Tech

Options: Disabled, Enabled

Active Processor Cores

Options: All, 1, 2, 3

Limit CPUID Maximum

Options: Disabled, Enabled

Execute Disable Bit

Options: Disabled, Enabled

DSS-1300 User’s Manual

Page 37

Table 9 Advanced Menu – Trusted Computing

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

TPM Configuration

TPM SUPPORT [Disable]

Current TPM Status Information TPM SUPPORT OFF

Enable or Disable TPM support. O.S. will not show TPM. O.S. will not show TPM. Reset of platform is required.

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

TPM

Options: Disabled, Enabled

DSS-1300 User’s Manual

Page 38

Table 10 Advanced Menu – SATA Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

SATA Controller(s) [Enabled]

SATA Mode Selection [IDE]

Serial ATA Port 1 Empty Software Preserve Unknown Serial ATA Port 2 Empty Software Preserve Unknown

Enable or Disable SATA Device.

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

SATA Controller(s)

Options: Disabled, Enabled

SATA Mode Selection

Options: IDE, AHCI

Remarks:

SATA port 1 is Internal SATA

SATA port 2 is eSATA

DSS-1300 User’s Manual

Page 39

Table 11 Advanced Menu – Intel TXT (LT) Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Intel Trusted Execution technology Configuration

Intel TXT support only can be enabled / disabled if SMX enabled.

And must enables the VT support prior to TXT.

Secure Mode Extensions (SMX) [Enabled] Intel TXT (LT) Support [Disabled]

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

Table 12 Advanced Menu – AMT Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Intel AMT [Enabled]

Intel AMT Setup Prompt [Enabled] BIOS Hotkey Pressed [Disabled] MEBx Selection Screen [Disabled] Verbose MEBx Output [Enabled] Hide Un-Configure ME Confirmation [Disabled] MEBx Debug Message Output [Disabled] Un-Configure ME [Disabled] Intel AMT Password Write Enabled [Enabled] AMT Wait Timer 0 ASF [Enabled] Activate Remote Assistance Process [Disabled] USB Configure [Enabled] PET Progress [Enabled] Intel AMT SPI Protected [Disabled] AMT CIRA Timeout 0 Watchdog [Disabled] OS Timer 0 BIOS Timer 0

Enable/Disable Intel ® Active Management Technology BIOS Extension.

Note: iAMT H/W is always enabled.

This option just controls the BIOS extension execution.

If enabled, this requires additional firmware in the SPI device

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

DSS-1300 User’s Manual

Page 40

Intel AMT

Options: Disabled, Enabled

Intel AMT Setup Prompt

Options: Disabled, Enabled

BIOS Hotkey Pressed

Options: Disabled, Enabled

MEBx Selection Screen

Options: Disabled, Enabled

Verbose MEBx Output

Options: Disabled, Enabled

Hide Un-Configure ME Confirmation

Options: Disabled, Enabled

MEBx Debug Message Output

Options: Disabled, Enabled

Un-Configure ME

Options: Disabled, Enabled

Intel AMT Password Write Enabled

Options: Disabled, Enabled

AMT Wait Timer

Options: 0 only

ASF

Options: Disabled, Enabled

Activate Remote Assistance Process

Options: Disabled, Enabled

USB Configure

Options: Disabled, Enabled

PET Progress

Options: Disabled, Enabled

Intel AMT SPI Protected

Options: Disabled, Enabled

Watchdog

Options: Disabled, Enabled

DSS-1300 User’s Manual

Page 41

Table 13 Advanced Menu – USB Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

USB Configuration

USB Devices: 2 Hubs

Legacy USB Support [Enabled] USB 3.0 Support [Enabled] XHCI hand-off [Enabled]

EHCI Hand-off [Disabled]

USB hardware delays and time-out: USB transfer time-out [20 sec] Device reset time-out [20 sec] Device power-up delay [Auto]

Enables Legacy USB support.

AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

Legacy USB Support

Options: Disabled, Enabled, Auto

USB 3.0 Support

Options: Disabled, Enabled

XHCI hand-off

Options: Disabled, Enabled

EHCI hand-off

Options: Disabled, Enabled

USB Transfer Time-Out

Options: 1, 5, 10, 20 sec.

Device Transfer Time-Out

Options: 10, 20, 30, 40 sec.

Device Power-Up Delay

Options: Auto, Manual

DSS-1300 User’s Manual

Page 42

Table 14 Advanced Menu – H/W Monitor

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

PC Health Status

CPU Warning Temperature [Disabled]

System Shutdown Temperature [Disabled] CPU Smart FAN [Disabled] CPU Manual PWM 255

CPU Temperature : +57 C Top Side System Temperature : +31 C Bottom Side System Temperature : +32 C

CPU Fan Speed : 4702 RPM

+3.3V : +3.328 V +VCORE : +1.016 V +VGFX : +0.440 V +1.05V : +1.056 V +1.5V : +1.564 V +5VDUAL : +5.160 V +VIN : +10.792 V

+3.3VSB : +3.360 V

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

CPU Warning Temperature

Options: Disabled, 80 C, 85 C, 90 C, 95 C

System Shutdown Temperature

Options: Disabled, 55 C, 60 C, 65 C, 70 C

CPU Smart Fan

Options: Disabled, Enabled

DSS-1300 User’s Manual

Page 43

 Boot Menu

Table 15 Boot Menu

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Boot Configuration

Full Screen LOGO Display [Disabled] Setup Prompt Timeout 1 Bootup NumLock State [On]

Boot Option Priorities

Enables or Disables Quiet Boot option

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

Full Screen LOGO Display

Options: Disabled, Enabled

Bootup Numlock State

Options: On, Off

DSS-1300 User’s Manual

Page 44

 Security Menu

Table 16 Security Menu

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup

If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights

Administrator Password

User Password

Set Setup Administrator

Password

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

DSS-1300 User’s Manual

Page 45

 Save & Exit Menu

Table 17 Save & Exit Menu

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Save Changes and Exit

Discard Changes and Reset

Save Changes and Reset

Discard Changes and Reset

Save Options

Save Changes

Discard Changes

Restore Defaults

Save as User Defaults

Restore User Defaults

Boot Override

Exit system setup after saving the changes.

Æ Å Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4 Save & Exit

ESC Exit

Save Changes and Exit

Exit system setup after saving the changes. Once you are finished making your

selections, choose this option from the Exit menu to ensure the values you selected

are saved to the CMOS RAM. The CMOS RAM is sustained by an onboard backup

battery and stays on even when the PC is turned off. When you select this option, a

confirmation window appears. Select [Yes] to save changes and exit.

Discard Changes and Exit

Exit system setup without saving any changes. Select this option only if you do not

want to save the changes that you made to the Setup program. If you made changes

to fields other than system date, system time, and password, the BIOS asks for a

confirmation before exiting.

Discard Changes

Discards changes done so far to any of the setup values. This option allows you to

discard the selections you made and restore the previously saved values. After

selecting this option, a confirmation appears. Select [Yes] to discard any changes and

DSS-1300 User’s Manual

Page 46

load the previously saved values.

Load Optimal Defaults

Load Optimal Default values for all the setup values. This option allows you to load

optimal default values for each of the parameters on the Setup menus, which will

provide the best performance settings for your system. The F9 key can be used for

this operation.

Load Failsafe Defaults

Load Optimal Default values for all the setup values. This option allows you to load

failsafe default values for each of the parameters on the Setup menus, which will

provide the most stable performance settings. The F8 key can be used for this

operation.

DSS-1300 User’s Manual

Page 47

Chapter 4

Driver Installation

need to install an operating system and the necessary drivers to operate it. After you

have finished assembling your system and connected the appropriate power source,

power it up using the power supply and install the desired operating system.

If your DSS-1300 does not come with an operating system pre-installed, you will

DSS-1300 User’s Manual

For other operating systems, please contact with your nearest SINTRONES Sales.
