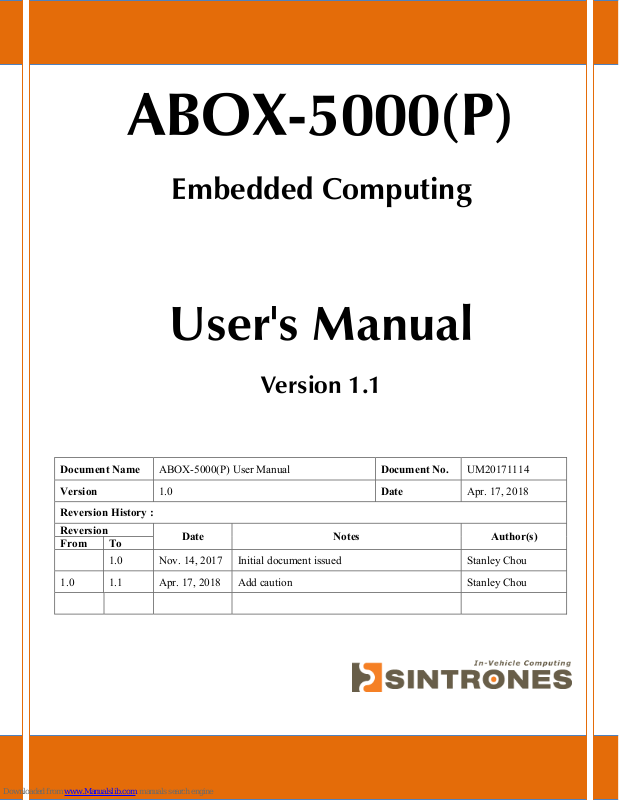

ABOX-5000(P)
ABOX-5000(P) User Manual
Document No.
UM20171114
1.0
Date
Apr. 17, 2018
Reversion History : Reversion
Date
Notes
Author(s)
From
To
1.0
Nov. 14, 2017
Initial document issued
Stanley Chou
1.0
1.1
Apr. 17, 2018
Add caution
Stanley Chou
Embedded Computing
User's Manual
Version 1.1
!
Page 2
!"#$%&#'!()$*+,-./.01)2.345)
67*3)89-:9/)
2.413;0,<
)
©2009 by SINTRONES® Technology Corp. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means such as electronic, mechanical, magnetic, optical, chemical, photocopy, manual, or otherwise, without prior written permission from SINTRONES® Technology Corp.
Other brands and product names used herein are for identification purposes only and may be trademarks of their respective owners.
=;7+/9;>*3
)
SINTRONES® Technology Corp. shall not be liable for any incidental or consequential damages resulting from the performance or use of this product.
SINTRONES® Technology Corp. makes no representation or warranty regarding the content of this manual. Information in this manual had been carefully checked for accuracy; however, no guarantee is given as to the correctness of the contents. For continuing product improvement, SINTRONES® Technology Corp. reserves the right to revise the manual or make changes to the specifications of this product at any time without notice and obligation to any person or entity regarding such change. The information contained in this manual is provided for general use by customers.
This device complies to Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must withstand any background interference including those that may cause undesired operation.
User’s Manual Page i
Page 3
!9?*<1)"-?.3>9<;.-
!
Read the following precautions before setting up a SINTRONES Product.
'/*+<3;+9/)79?*<1!
n To prevent electrical shock hazard, disconnect the power cable from the electrical
outlet before relocating the system.
n When adding or removing devices to or from the system, ensure that the power
cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
n Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
n Seek professional assistance before using an adapter or extension cord. These
devices could interrupt the grounding circuit.
n Make sure that your power supply is set to the correct voltage in your area. If you
are not sure about the voltage of the electrical outlet you are using, contact your local power company.
n If the power supply is broken, do not try to fix it by yourself. Contact a qualified
service technician or your retailer.
&4*39<;.-)79?*<1!
n Before installing the motherboard and adding devices on it, carefully read all the
manuals that came with the package.
n Before using the product, make sure all cables are correctly connected and the
power cables are not damaged. If you detect any damage, contact your dealer immediately.
n To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
n Avoid dust, humidity, and temperature extremes. Do not place the product in any
area where it may become wet.
n Place the product on a stable surface.
n If you encounter technical problems with the product, contact a qualified service
technician or your retailer.
User’s Manual Page ii
Page 4
2@6$"&#
!
Incorrectly replacing the battery may damage this computer. Replace only with the same or its equivalent as recommended by SINTRONES® Technology Corp. Dispose used battery according to the manufacturer's instructions.
$*+,-;+9/)!:44.3<)
Please do not hesitate to call or e-mail our customer service when you still cannot fix the problems.
Tel : +886-2-82280101
Fax : +886-2-82280100
E-mail : [email protected]
Website : www.sintrones.com
User’s Manual Page iii
Page 5
1.0 Introduction
)
$@AB')&C)2&#$'#$!!
!"#
$%&'()*+&,(% .......................................................................................................................... 1-1
D5D 8.E*/)!4*+;?;+9<;.- ......................................................................................................... 1-1
1.2 @A&FGHIII)"//:7<39<;.-)J8AK)!17<*>L .......................................................................... 1-3
1.3 Architecture ....................................................................................................................... 1-6
1.4 M.N*3)2.-7:>4<;.- ........................................................................................................ 1-7
-"# $%&.'%/012(%%.+&('134.+,5,+/&,(% ........................................................................................ 2-1
O5D A9<<*31)2.--*+<.3)JA@$DL .............................................................................................. 2-1
O5O 2&8)M.3<)2.--*+<.3)J2&8DPOL ..................................................................................... 2-2
O5Q 2&8)M.3<)2.--*+<.3)J2&8QPRL ..................................................................................... 2-3
O5R ="P=&)2.--*+<.3)J="&DL ................................................................................................ 2-4
Page #
O5H 826)=.N-)2.--*+<.3)J826S2#DL ................................................................................. 2-5
O5T M&U'%)A:<<.-)!N;<+,)J!UDL ......................................................................................... 2-6
O5V !@$@)M.N*3)2.--*+<.3)J!MU%DWOL ............................................................................. 2-7
O5X !@$@)2.--*+<.3)J!@$@)DWOL.......................................................................................... 2-8
O5Y !@$@)=&8)2.--*+<.3)J!@$@=&8DL ............................................................................. 2-9
O5DI 8;-;)M2"G')2.--*+<.3)J8"#"2@%=DL .............................................................................2-10
O5DD 8;-;)M2"G')2.--*+<.3)J8"#"2@%=OL .............................................................................2-12
O5DO 8;-;)M2"G')2.--*+<.3)J8"#"2@%=QL .............................................................................2-14
O5DQ 8;-;)M2"G')2.--*+<.3)J8"#"2@%=RL .............................................................................2-16
O5DR 85O)')Z'[)2.--*+<.3)J"='D)&M$5L ................................................................................2-18
O5DH M!')M.N*3)A.93E)2.--*+<.3)JM!'DL ............................................................................2-20
O5DT C97<)'\49-7;]/*)!/.<)J^QL ................................................................................................2-22
6"# 78&.'%/012(%%.+&('134.+,5,+/&,(% ........................................................................................ 3-1
Q5D M.N*3)"-4:<)2.--*+<.3)JM&U'%DL ............................................................................... 3-1
Q5O %*>.<*)A:<<.-)2.--*+<.3)JA$#OL ................................................................................ 3-2
Q5Q _`@)2.--*+<.3)J_`@DL ................................................................................................... 3-3
Q5R =;74/91)M.3<)2.--*+<.3)J=MDWOL .................................................................................. 3-4
Q5H @6="&)2.--*+<.3)J@6="&DL ........................................................................................... 3-5
Q5T 6!A)Q5I)2.--*+<.3)J6!ADWOL ......................................................................................... 3-6
Q5V B@#)2.--*+<.3)JB@#DOWB@#QRL ................................................................................... 3-7
User’s Manual
Page 6
1.0 Introduction
Q5X !"8)2@%=)2.--*+<.3)J!"8DW!"8OL ............................................................................... 3-8
Q5Y B'=)M&%$)2.--*+<.3)JB'=DL ......................................................................................... 3-9
Q5DI B'=)M&%$)2.--*+<.3)JB'=OL ........................................................................................3-10
9"# 3:;&.<1$%;&/00/&,(%............................................................................................................... 4-1
R5D !17<*>)"-<3.E:+<;.-........................................................................................................ 4-1
R5O &4*-;-0)2,977;7 ............................................................................................................... 4-2
R5Q "-7<9//;-0)8*>.31 ........................................................................................................... 4-4
R5R "-7<9//;-0)8"#")M2"*)'\49-7;.-)293E)JM2"*)DK)Q`PB$'L .............................................. 4-6
R5H "-7<9//;-0)8"#")M2"*)'\49-7;.-)293E)JM2"*)OL ............................................................. 4-8
R5T "-7<9//;-0)8"#")M2"*)'\49-7;.-)293E)JM2"*)QL ............................................................4-10
R5V "-7<9//;-0)8"#")M2"*)'\49-7;.-)293E)JM2"*)RL ............................................................4-12
R5X "-7<9//;-0)"-<*3-9/)@-<*--9)29]/* ................................................................................4-14
R5Y "-7<9//;-0)!"8)293E .........................................................................................................4-18
R5DI "-7<9//;-0)C'!GRB)8.E:/* ...............................................................................................4-20
R5DD "-7<9//;-0)C'!GD)8.E:/* .................................................................................................4-24
R5DO "-7<9//;-0)A9<<*31)8.E:/* ..............................................................................................4-31
R5DQ "-7<9//;-0)M&')8.E:/* ....................................................................................................4-36
R5DR "-7<9//;-0)2M6)8.E:/* ....................................................................................................4-39
="# 3:;&.<1>.;(*'+. ................................................................................................................... 5-1
H5D "0-;<;.-)M.N*3)89-90*>*-<)a:;+b)`:;E*.................................................................... 5-1
H5O `M"&)W)=*/91)$;>*)!*<<;-0 ............................................................................................. 5-3
5.2.1 GPIO!and!Ignition!Control!Register ............................................................................................ 5-3
5.2.2 WDT!Setting ................................................................................................................................ 5-6
?"# @$A3 ....................................................................................................................................... 6-1
T5D '-<*3)$,*)A"&! ................................................................................................................. 6-1
T5O 89;- ................................................................................................................................... 6-3
T5Q @Ec9-+*E .......................................................................................................................... 6-4
T5R 2,;47*< .............................................................................................................................. 6-7
T5H A..< ................................................................................................................................... 6-9
B"# C/+D,%E1F,;& ........................................................................................................................... 7-1
V5D M9+b;-0)B;7< ...................................................................................................................... 7-1
User’s Manual
Page 7
1.0 Introduction
D5I)
"#$%&=62$"&#)
User’s Manual
Page 8

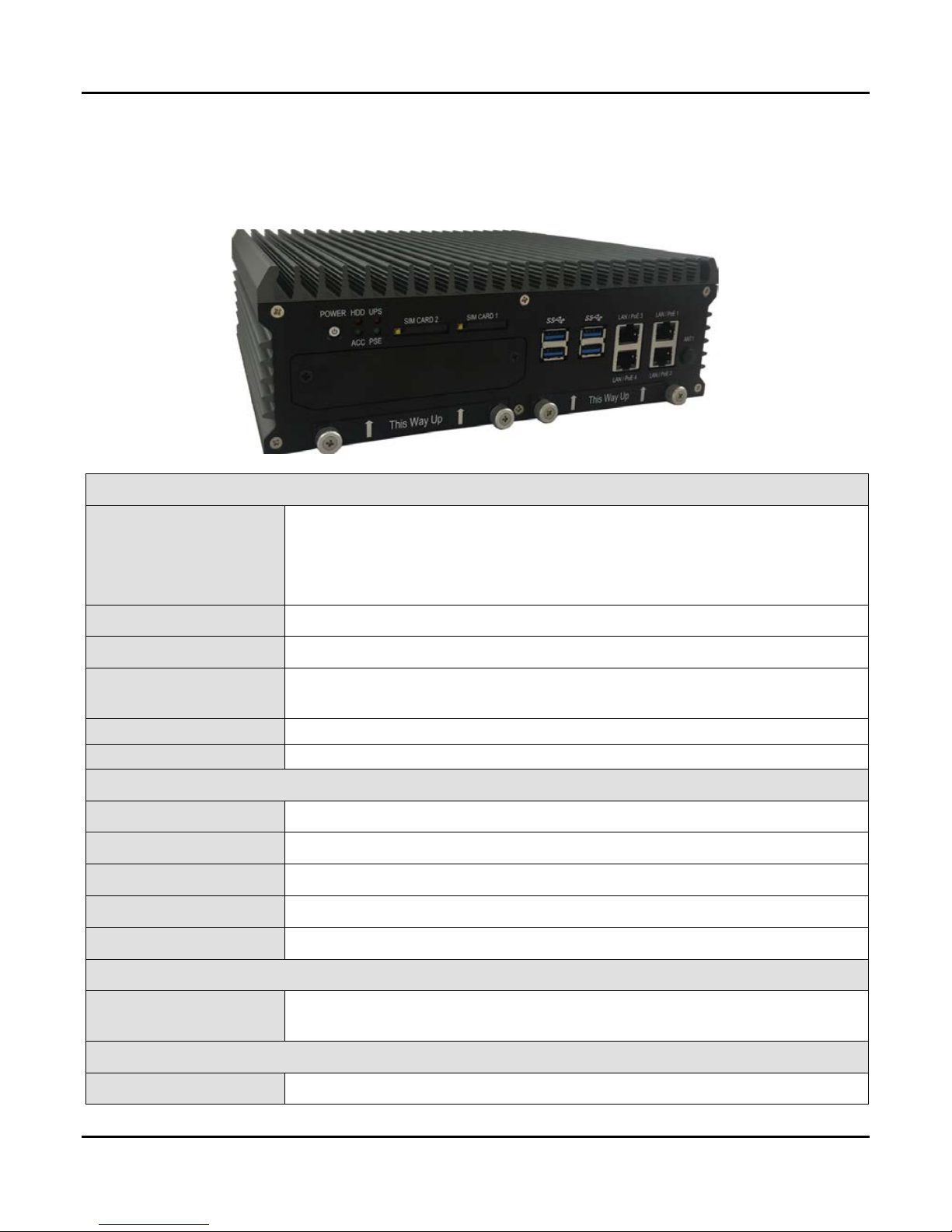

System
CPU
Intel Gen6 Core i7-6700TE (8M Cache 2.4GHz up to 3.4GHz) Intel Gen6 Core i5-6500TE (6M Cache 2.3GHz up to 3.3GHz) Intel Gen6 Core i3-6100TE (4M Cache 2.7GHz) Intel Pentium Processor G4400TE (3M Cache, 2.40 GHz)
Memory
2 x DDR4 2133 MHz SO-DIMM up to 32GB
Chipset
Intel® Q170 Platform Controller Hub
LAN Chipset
3 x Intel i210-AT and 1 x i219LM (support iAMT) Gb/s Ethernet Controllers Onboard Support PXE and WOL
Audio
1 x Line-out and 1 x Mic-in (Line-in Optional)
Watchdog
1 ~ 255 Level Reset
Power Requirement
Power Input
9V-36V DC Power input
Power Protection
Automatics Recovery Short Circuit Protection
Power Management
Vehicle Power Ignition for Variety Vehicle
Power Off Control
Power off Delay Time Setting by BIOS and Software
Battery
Internal Battery Kit for 10 Mins Operating (Optional)
Storage
Type
2 x 2.5” Drive Bay for SATA Type HDD / SSD, Support RAID 0, 1 1 x SATA DOM
Qualification
Certifications
CE, FCC Class A
D5I "#$%&=62$"&#)
D5D) 8.E*/)!4*+;?;+9<;.-)
1.0 Introduction
User’s Manual Page 1-1
Page 9
Graphics
Graphics
Intel® HD Graphics 530 DirectX Video Acceleration (DXVA) for Accelerating Video Processing - Full AVC/VC1/MPEG2 HW Decode Supports DirectX 11/10.1/10/9 and OpenGL 4.0
Resolution
Max Resolution (HDMI1.4) : 4096x2304@24Hz Max Resolution (DP) : 4096x2304@60Hz
I/O
Serial Port
4 x RS 232/422/485 w/1.5KVrms isolation (Auto Direction Control)
USB Port
4 x USB 3.0 Ports
LAN
4 x RJ45 Ports for GbE (Optional for 4 x POE 15.4W per port)
Video Port
2 x Display Port and 1 x VGA Port (Triple Independent Display)
DIO Port
8 x GPI and 4 x GPO Connector w/1.5KVrms isolation
Audio
1 x Line-out and 1 x Mic-in (Line-in Optional)
Expansion Bus
3 Full and 1 Half Mini-PCIe Slot (2 x SIM Card Sockets for 3G/LTE)
FES Expansion
PCI-E, USB, SMBus, GPIO and SATA (Customized for Customer without NRE charge)
Environment
Operating Temp.
-40ºC ~ 70ºC (Default CPU 35Watt)
Storage Temp.
-40ºC ~ 80ºC
Relative Humidity
0% RH – 95% RH
Vibration (random)
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis with SSD
Vibration Operating
MIL-STD-810G, Method 514.6, Procedure I, Category 4
Shock
Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD
Mechanical
Construction
Aluminum Alloy
Mounting
Wall-mount, VESA-mount, Din Rail Mounting Kit
Weight
3860g (Barebone)
Dimensions
240(L) x 226(W) x 79(H) mm
1.0 Introduction
User’s Manual Page 1-2
Page 10
1.2 @A&FGHIII)"//:7<39<;.-)J8AK)!17<*>L)
Main Board
1.0 Introduction
User’s Manual Page 1-3
Page 11

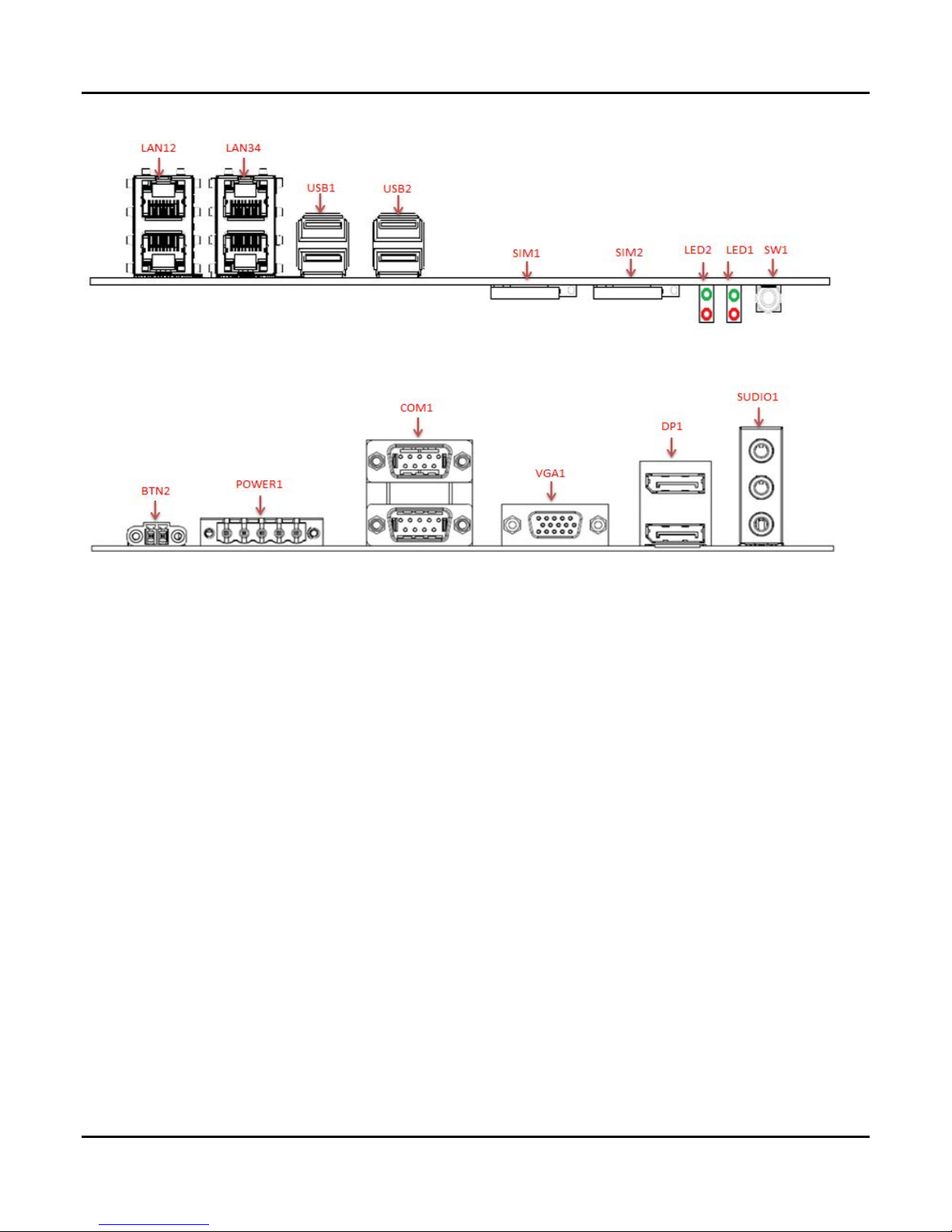

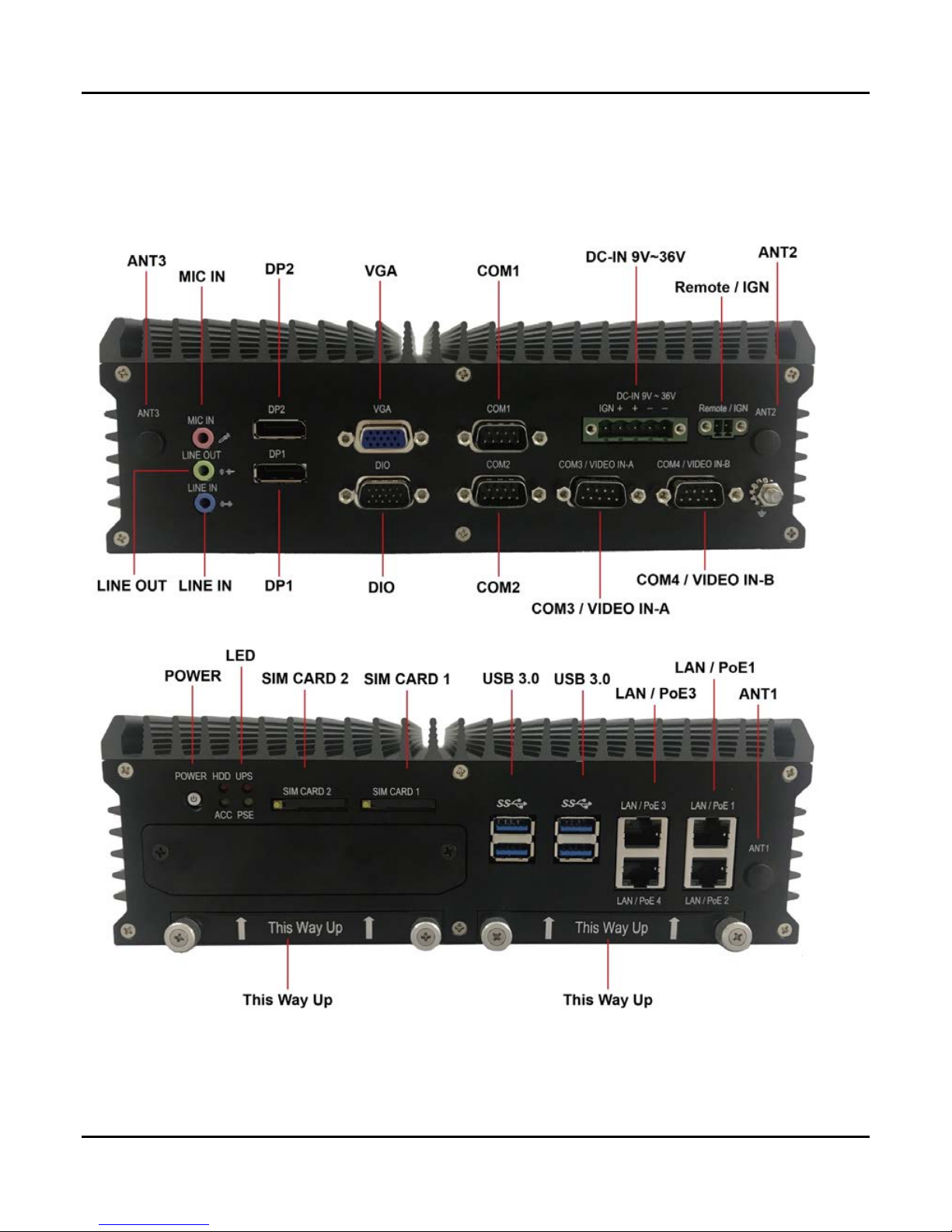

Front I/O
Rear I/O
1.0 Introduction
User’s Manual Page 1-4
Page 12

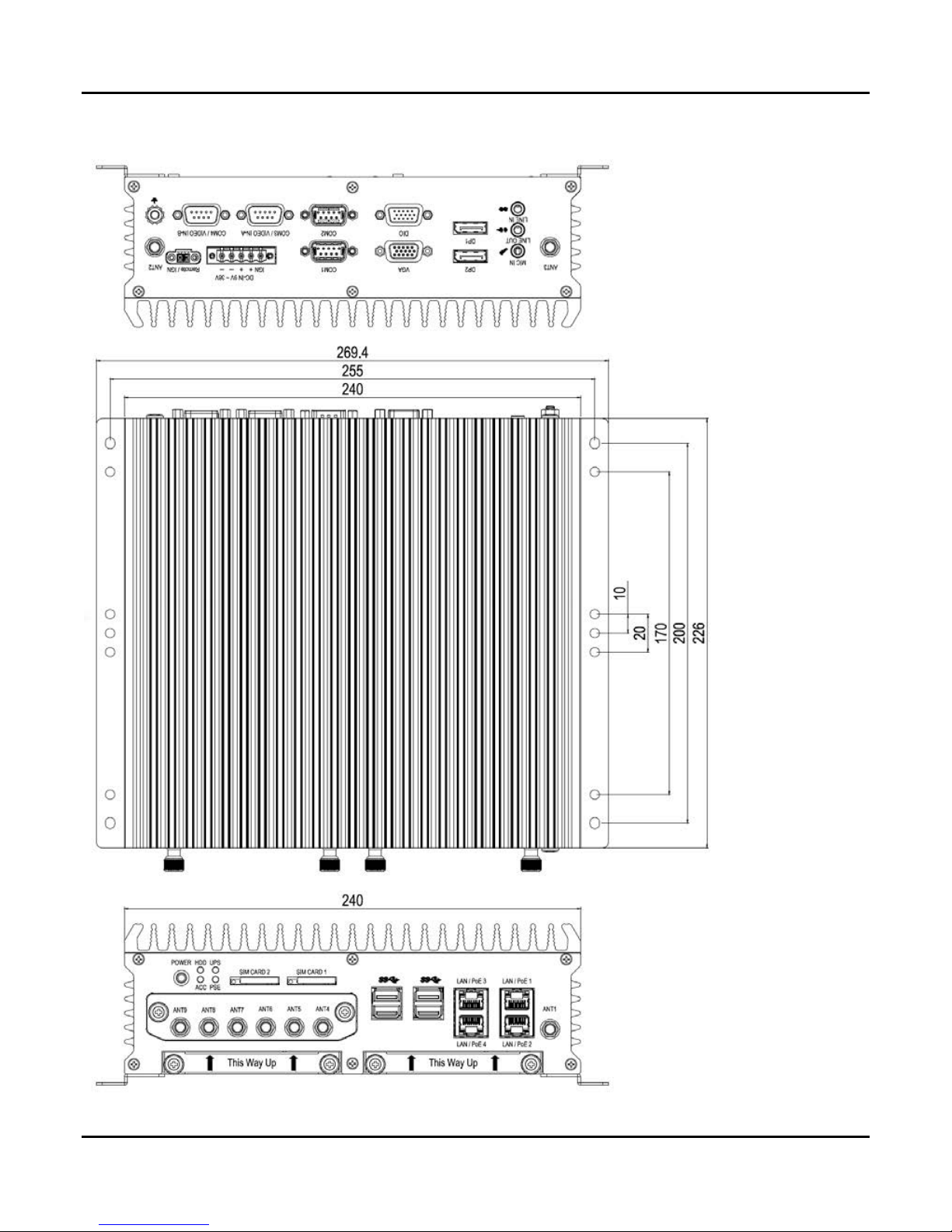

System
1.0 Introduction
User’s Manual Page 1-5
Page 13

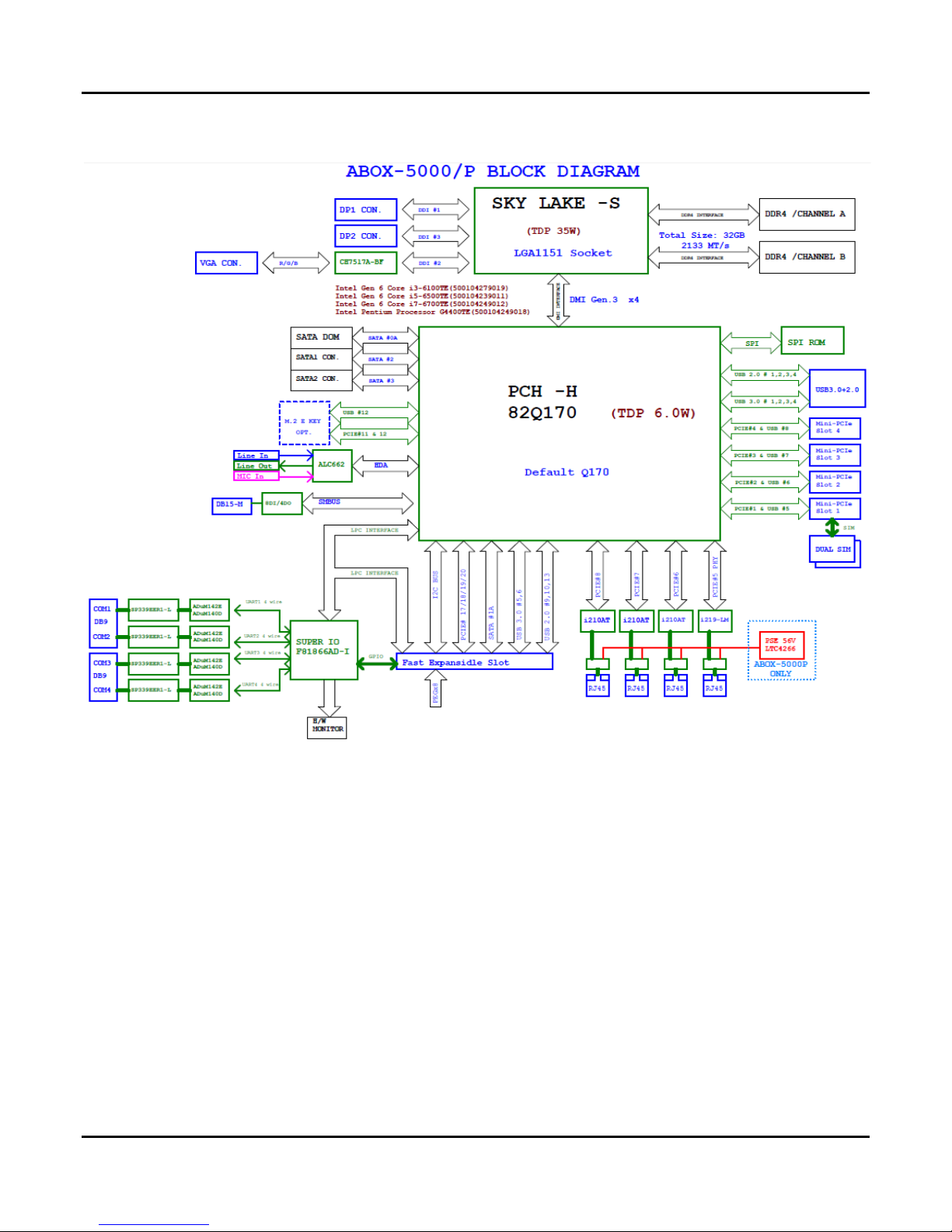

1.3 Architecture
1.0 Introduction
User’s Manual Page 1-6
Page 14
TEST Tool : AIDA64 Full Load
CPU
CPU / FPU
CPU / FPU
CPU / FPU / Cache
CPU / FPU / Cache
/ Memory
CPU / FPU / Cache
/ Memory / GPU
Intel Gen 6 Core
i7-6700TE
12V @ 3.06A
12V @ 3.3A
12V @ 3.46A
12V @ 3.62A
12V @ 3.62A
Intel Gen 6 Core
i3-6100TE
12V @ 2.03A
12V @ 2.53A
12V @ 2.62A
12V @ 2.79A
12V @ 3.13A
Intel Pentium
G4400TE
12V @ 1.53A
12V @ 1.70A
12V @ 1.75A
12V @ 1.79A
12V @ 2.30A
TEST Tool : BurnIn Test V8.1 Pro
CPU
CPU / Memory / 2D / Audio
Intel Gen 6 Core i7-6700TE
12V @ 3.73A
Intel Gen 6 Core i3-6100TE
12V @ 2.23A
Intel Pentium G4400TE
12V @ 1.63A
1.4 M.N*3)2.-7:>4<;.-)
1.0 Introduction
User’s Manual Page 1-7
Page 15
2.0 Internal Connector Specification
O5I)
) "#$'%#@B)2&##'2$&%)
!M'2"C"2@$"&#)
User’s Manual
Page 16
Connector size
1 X 2 = 2 Pin
Connector type
JST-1.25mm-M-180 Connector location
BAT1
Connector pin definition
Pin
Signal
Pin
Signal
1
+3VDC
2
GND
Connector map

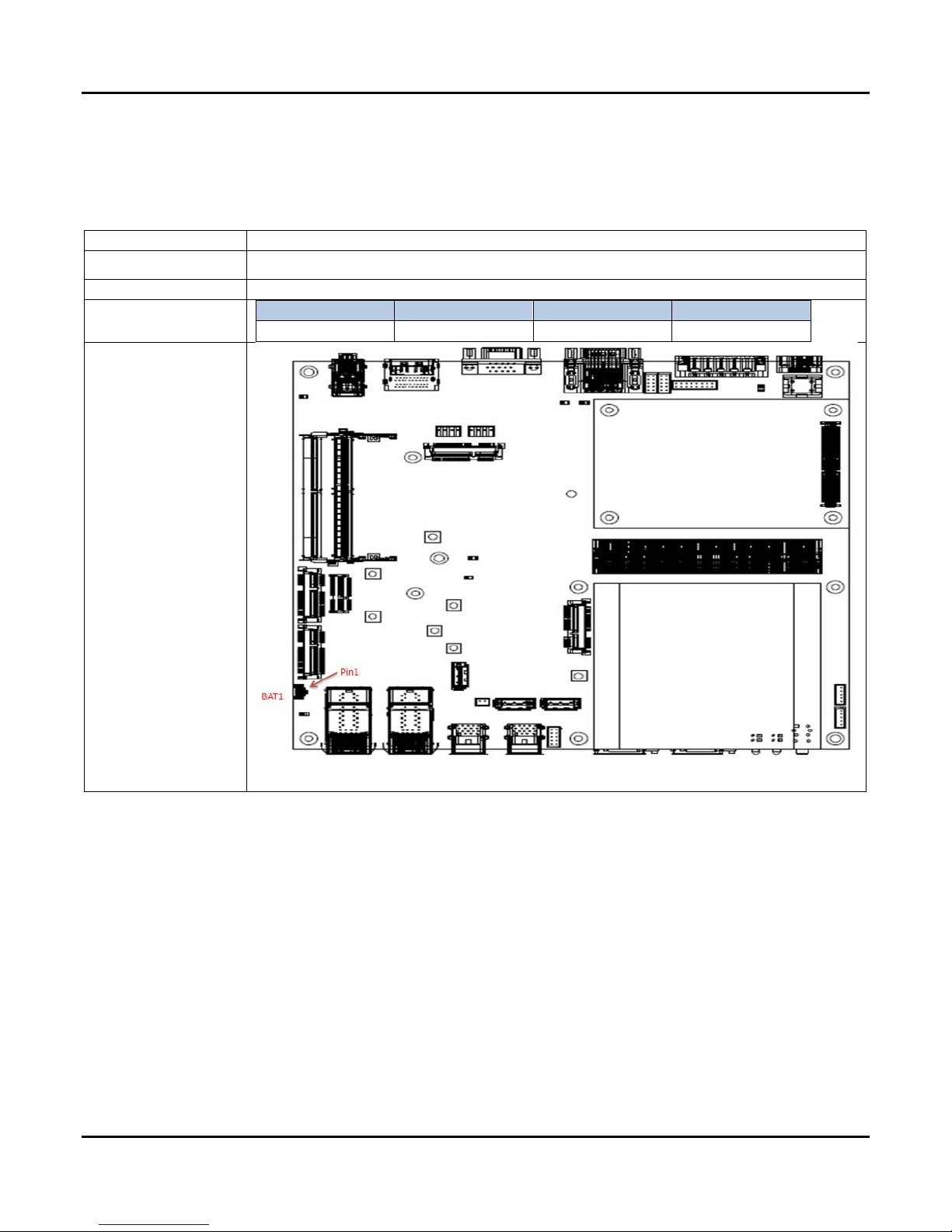

O5I "#$'%#@B)2&##'2$&%)!M'2"C"2@$"&#)
O5D) A9<<*31)2.--*+<.3)JA@$DL)
2.0 Internal Connector Specification
User’s Manual Page 2-1
Page 17
Connector size
2 X 5 = 10 Pin
Connector type

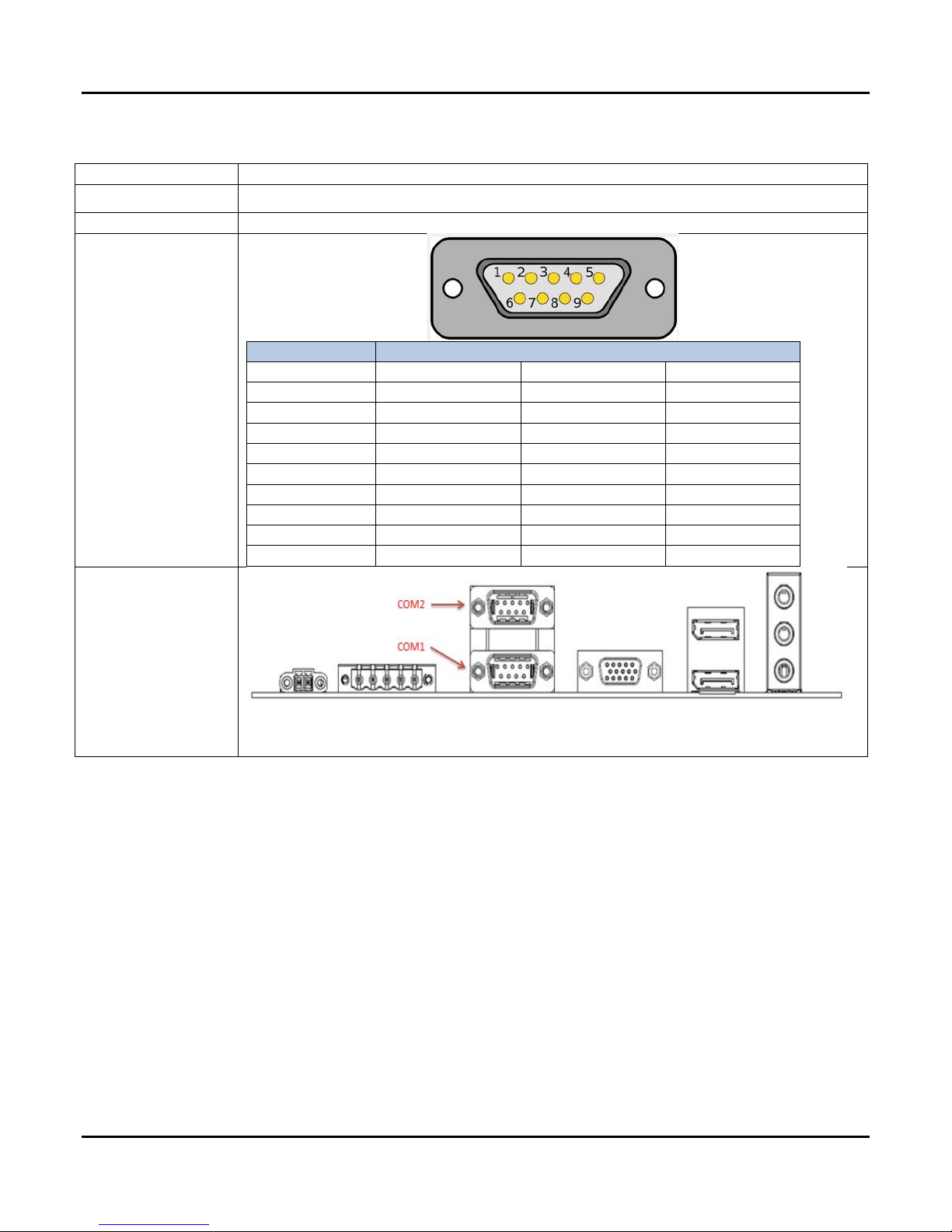

Dual DB9 Connector Connector location
COM1/COM2 4Wire
DB9 pin definition
Pin
Signal
RS232
RS422
RS485
1
DCD
TXD-
TXD-/RXD-
2
RXD
TXD+
TXD+/RXD+
3
TXD
RXD+
NC
4
DTR
RXD-
NC
5
GND
GND
GND
6
N/C
N/C
N/C
7
N/C
N/C
N/C
8
N/C
N/C
N/C
9
N/C
N/C
N/C
Connector map
O5O) 2&8)M.3<)2.--*+<.3)J2&8DPOL)
2.0 Internal Connector Specification
User’s Manual Page 2-2
Page 18

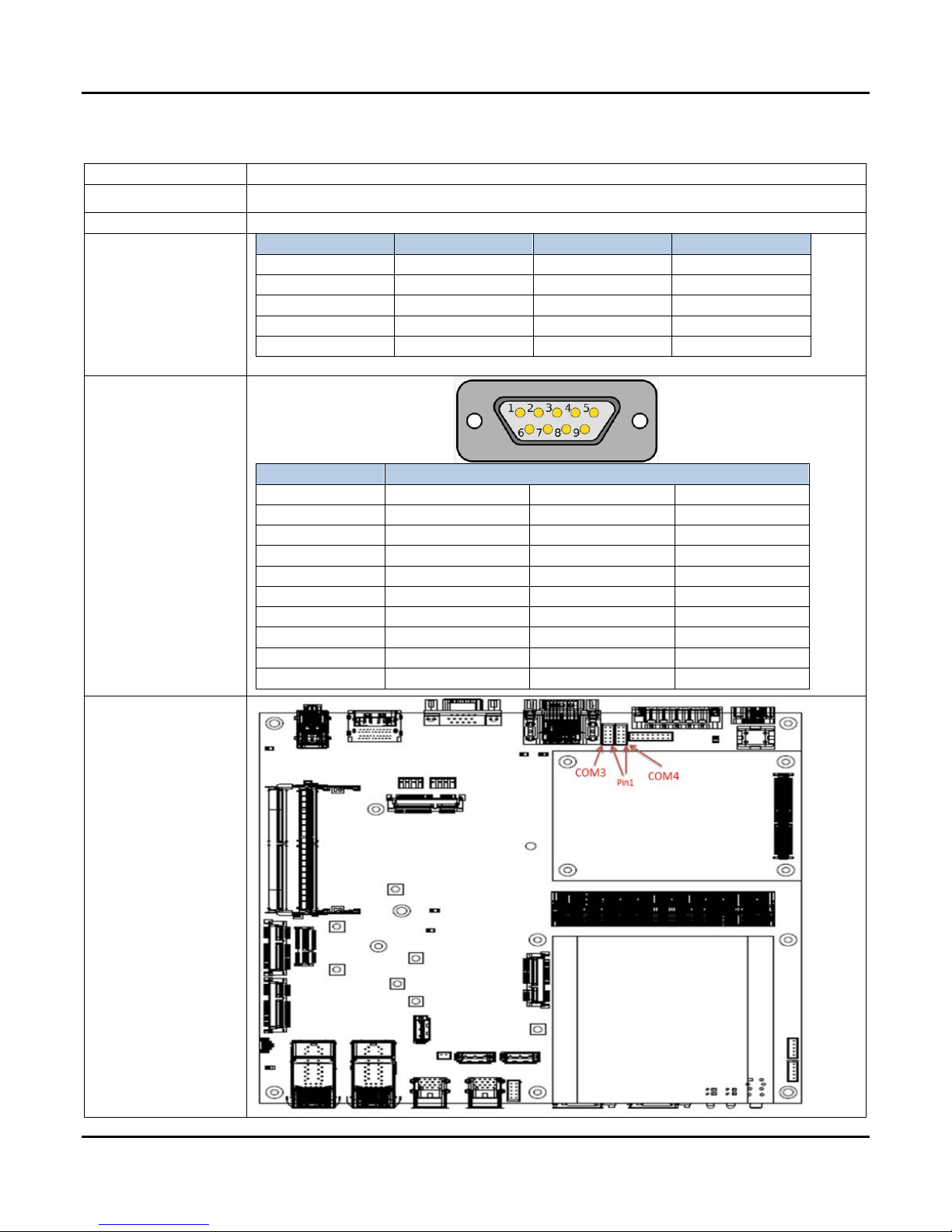

Connector size
2 X 5 = 10 Pin
Connector type
JST-2.0mm-M-180
Connector location
COM3/4
Connector pin definition
Pin
Signal
Pin
Signal
1
DCD
2
RXD
3
TXD
4
DTR
5
GND
6
N/C
7
N/C
8
N/C
9
N/C
10
GND
DB9 pin definition
Pin
Signal
RS232
RS422
RS485
1
COM2_DCD
TXD-
TXD-/RXD-
2
COM2_RXD
TXD+
TXD+/RXD+
3
COM2_TXD
RXD+
NC
4
COM2_DTR
RXD-
NC
5
GND
GND
GND
6
N/C
N/C
N/C
7
N/C
N/C
N/C
8
N/C
N/C
N/C
9
N/C
N/C
N/C
Connector map
O5Q) 2&8)M.3<)2.--*+<.3)J2&8QPRL)
2.0 Internal Connector Specification
User’s Manual Page 2-3
Page 19
Connector size
2 X 8 = 16 Pin
Connector type
JST-2.0mm-M-180
Connector location

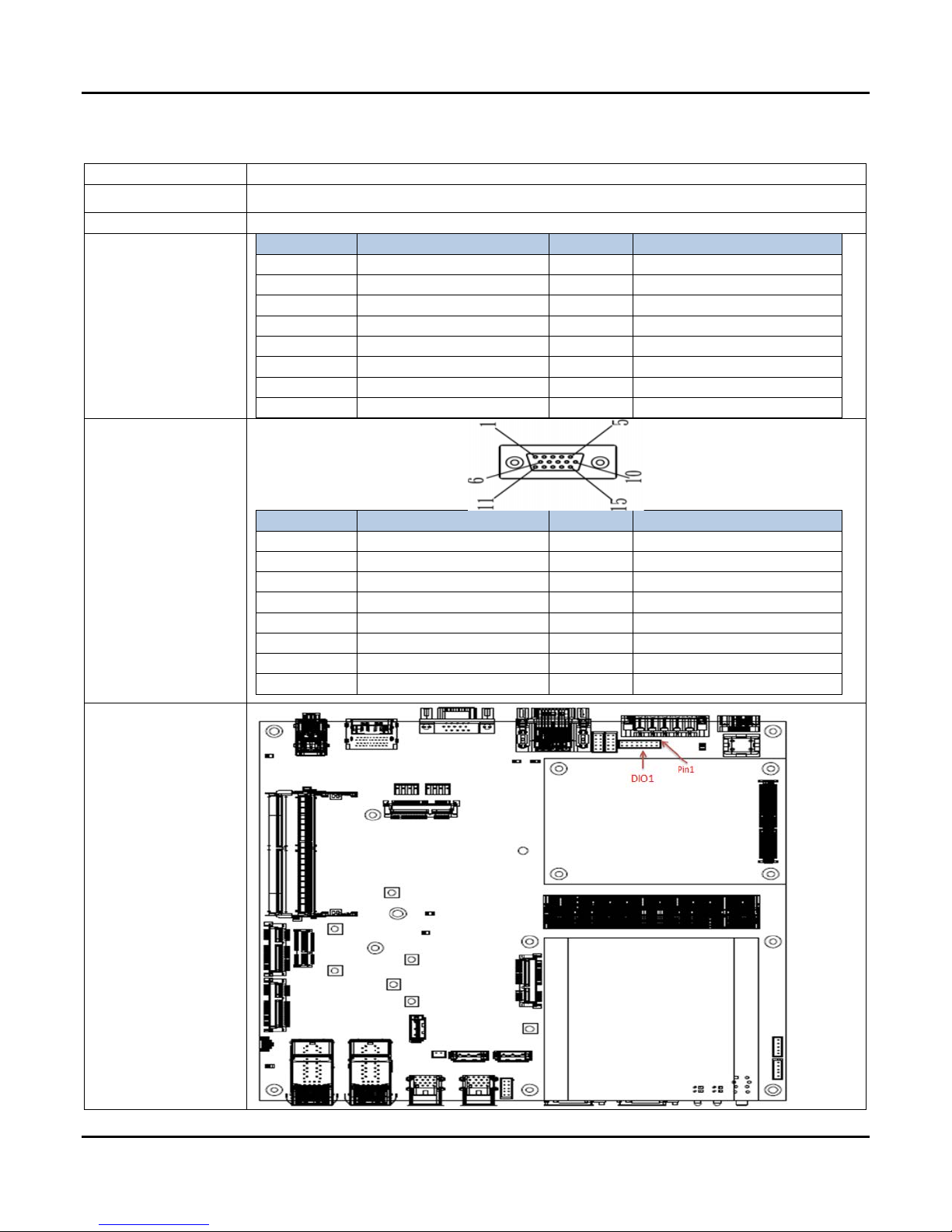

DIO1
Connector pin definition
Pin
Signal
Pin
Signal
1
DO_1 (5V@100mA)
2
DO_2 (5V@100mA)
3
DO_3 (5V@100mA)
4
DO_4 (5V@100mA)
5
GND
6
GND
7
DI_1 (9~36V)
8
DI_2 (9~36V)
9
DI_3 (9~36V)
10
DI_4 (9~36V)
11
DI_5 (9~36V)
12
DI_6 (9~36V)
13
DI_7 (9~36V)
14
DI_8 (9~36V)
15
GND
16
CASE_GND
DB15MALE pin definition
Pin
Signal
Pin
Signal
1
DO_1
2
DO_2
3
DO_3
4
DO_4
5
GND
6
GND
7
DI_1
8
DI_2
9
DI_3
10
DI_4
11
DI_5
12
DI_6
13
DI_7
14
DI_8
15
GND
Connector map
O5R) ="P=&)2.--*+<.3)J="&DL)
2.0 Internal Connector Specification
User’s Manual Page 2-4
Page 20
Connector size
1 X 4 = 4 Pin
Connector type
JST-2.0mm-M-180
Connector location

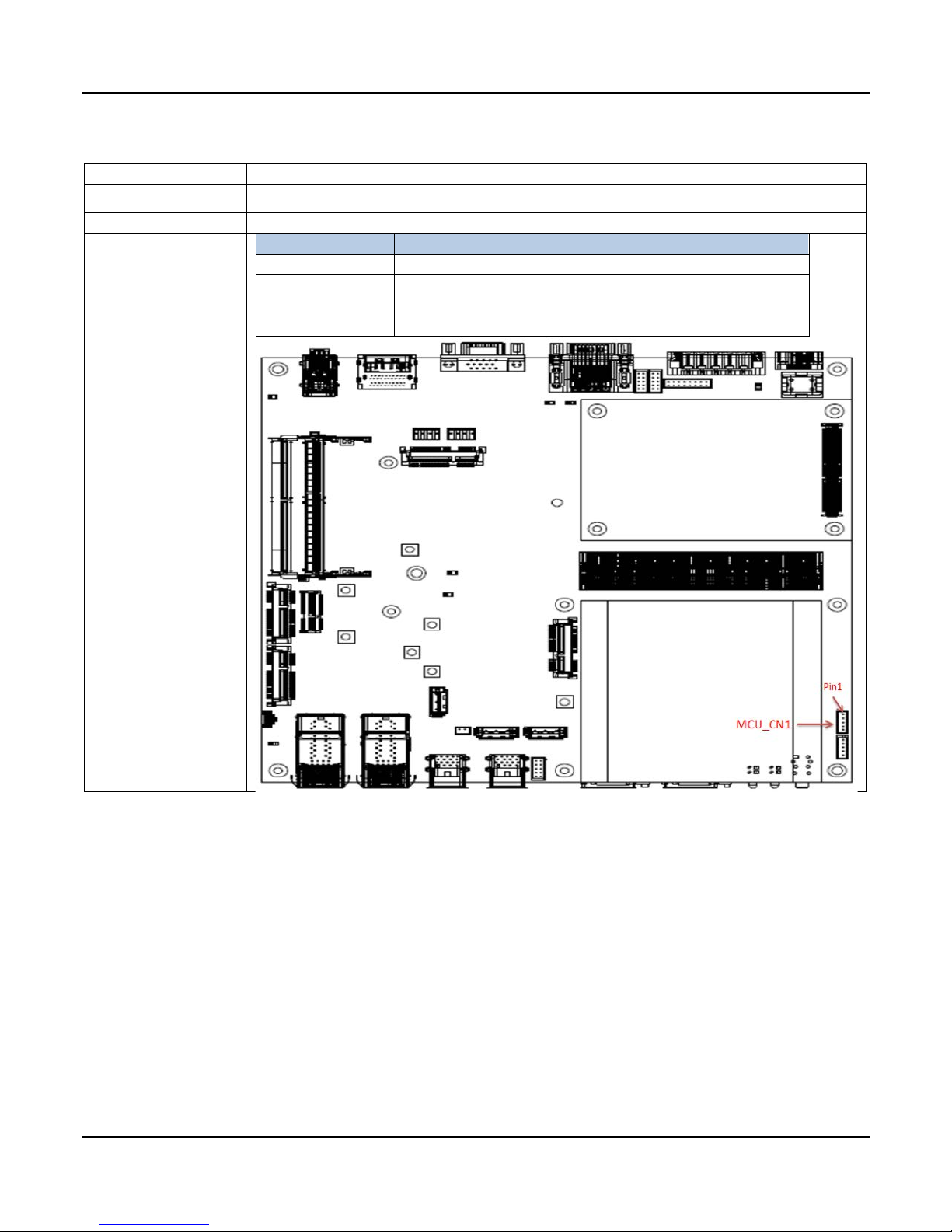

MCU_CN1
Connector pin definition
Pin
Signal
1
MCU_PROGRAM
2
RXD
3
GND
4
TXD
Connector map
O5H) 826)=.N-)2.--*+<.3)J826S2#DL)
2.0 Internal Connector Specification
User’s Manual Page 2-5
Page 21
Connector size
8 PIN
Connector type
DIP-Switch
Connector location

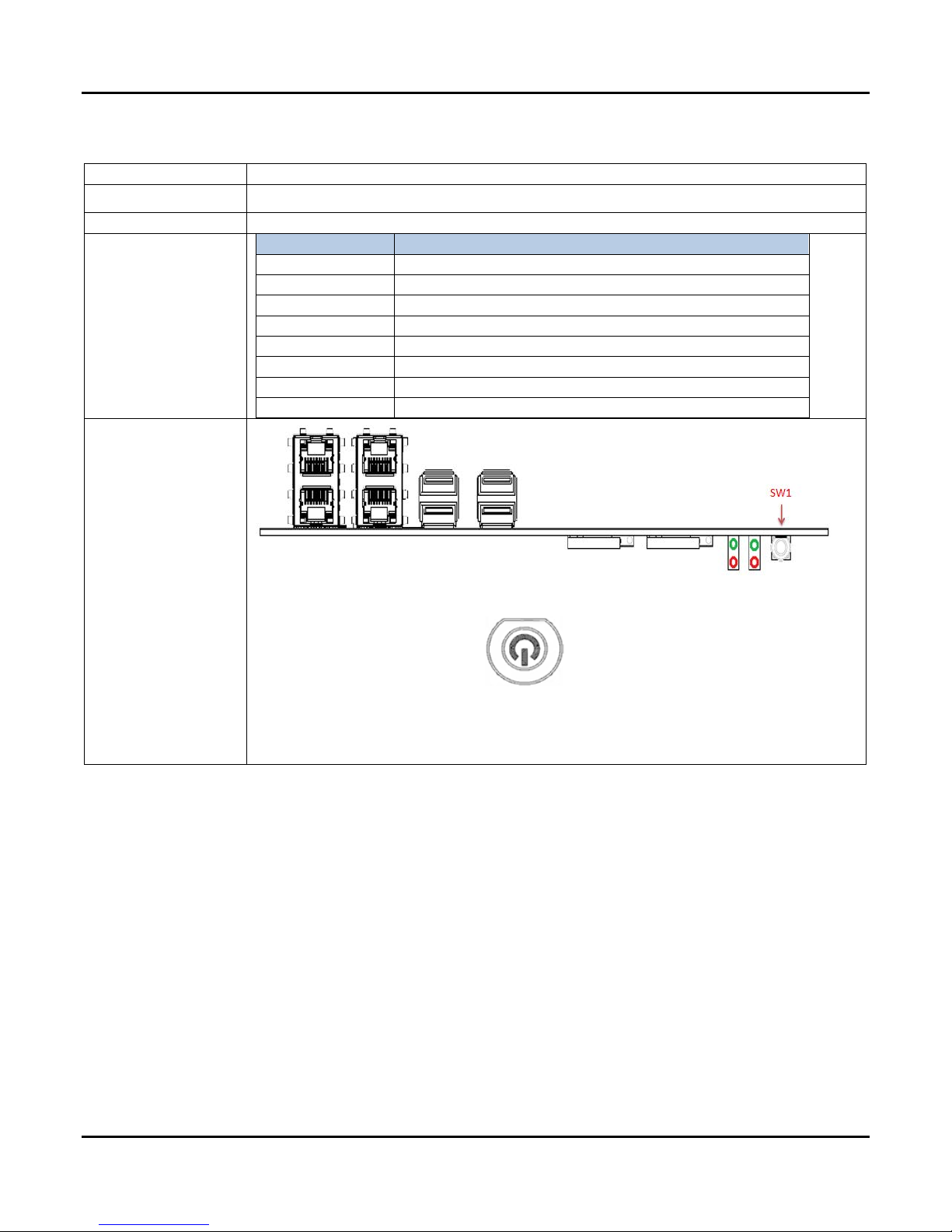

SW1
Connector pin definition
Pin
Signal
1
GND
2
PWRBTN#
3
PWRBTN#
4
GND
C1
PWRLED_P (RED LED)
A1
PWRLED_N (GREEN LED)
MH1
N/C
MH2
N/C
Connector map
SW1
O5T) M&U'%)A:<<.-)!N;<+,) J!UDL )
2.0 Internal Connector Specification
User’s Manual Page 2-6
Page 22
Connector size
1 X 4 = 4 Pin
Connector type
WAFER 2.54mm-M-180
Connector location
SPWR1 & 2
Connector pin definition
Pin
Signal
1
+5V
2
GND
3
GND
4
+12V

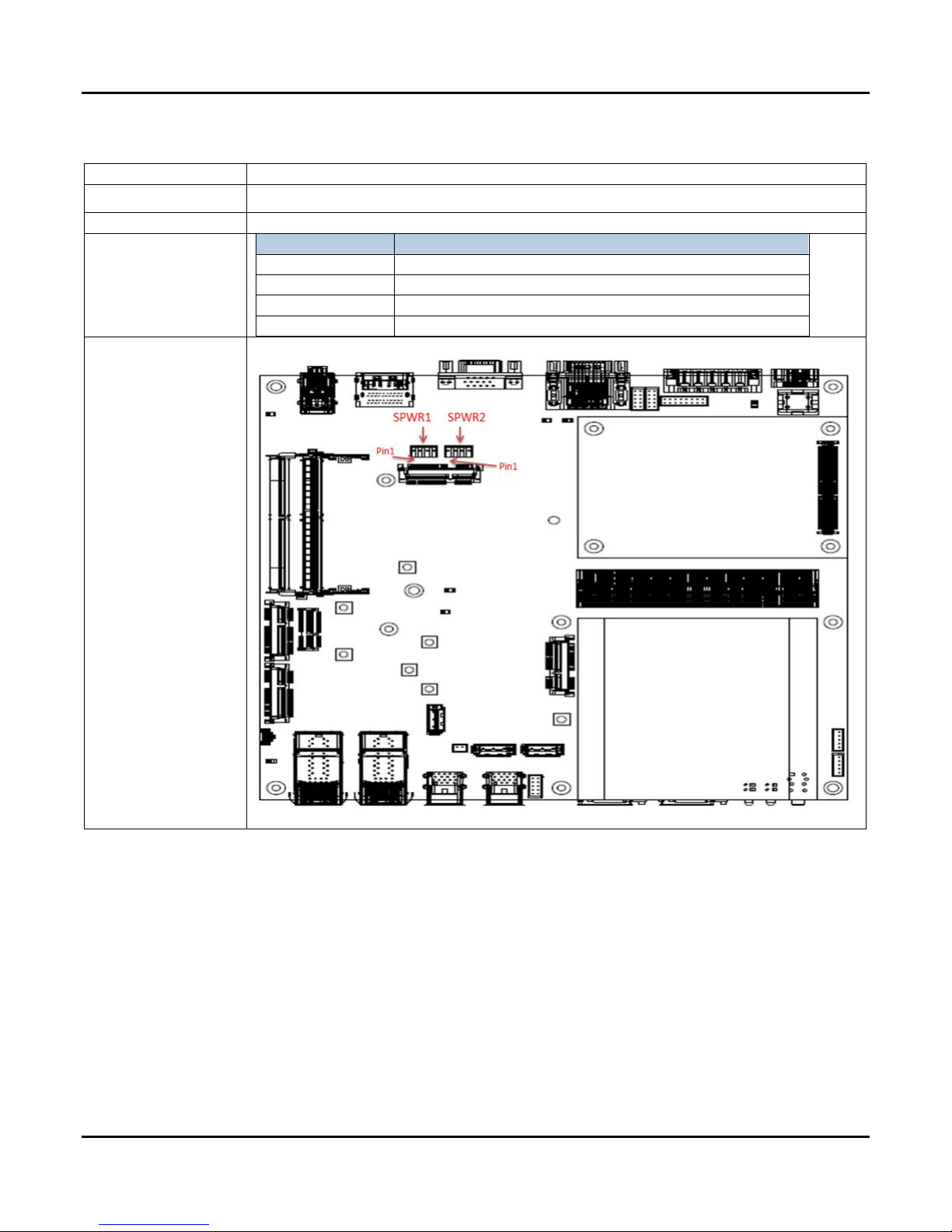

Connector map
O5V) !@$@)M.N*3)2.--*+<.3)J!MU%DWOL)
2.0 Internal Connector Specification
User’s Manual Page 2-7
Page 23

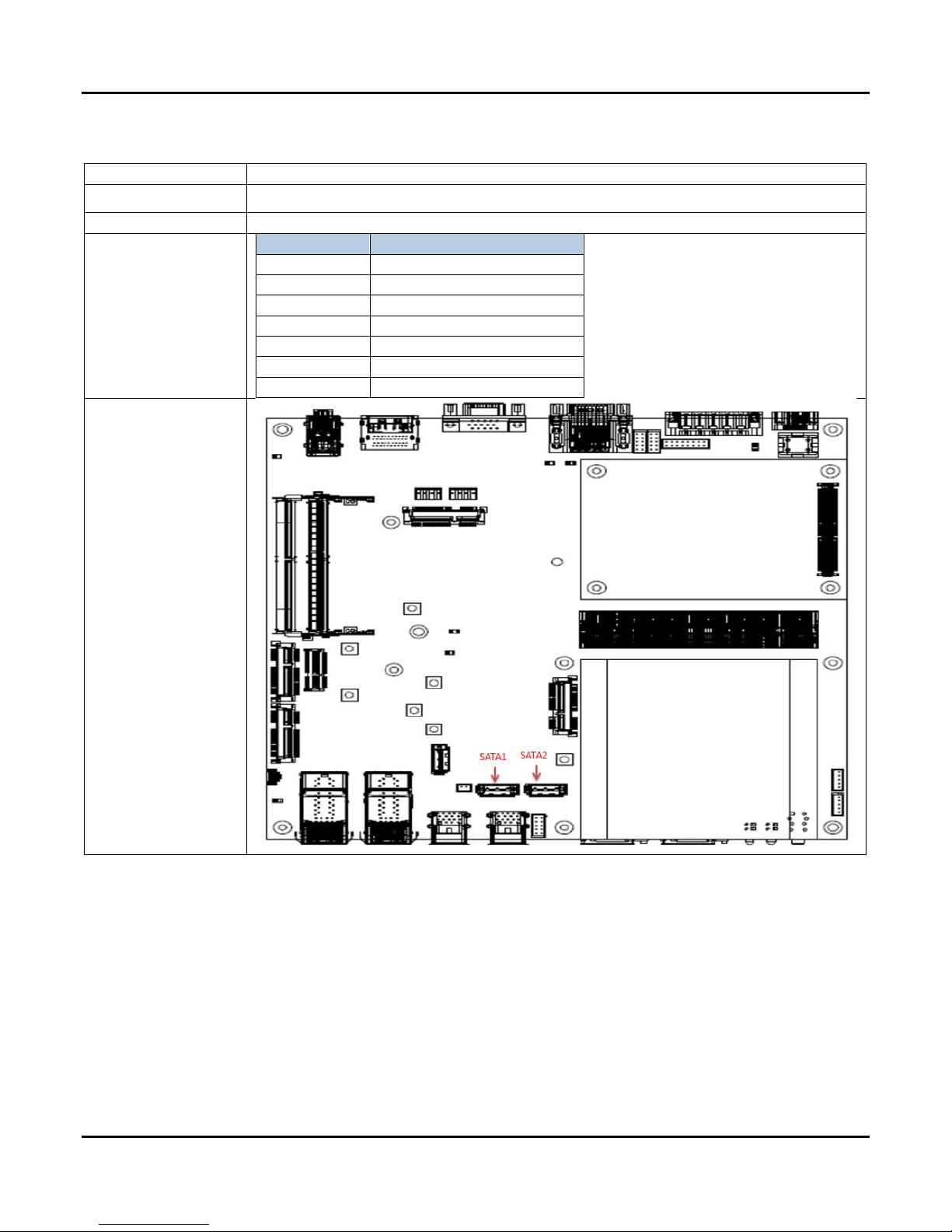

Connector size
1 X 7 = 7 Pin
Connector type
SATA 1.27mm-M-180D
Connector location
SATA1&2
Connector pin definition
Pin
Signal
1
GND
2
SATA_TXP
3
SATA_TXN
4
GND
5
SATA_RXN
6
SATA_RXP
7
GND
Connector map
O5X) !@$@)2.--*+<.3)J!@$@)DWOL)
2.0 Internal Connector Specification
User’s Manual Page 2-8
Page 24
Connector size
1 X 7 = 7 Pin
Connector type
SATA 1.27mm-M-180D
Connector location

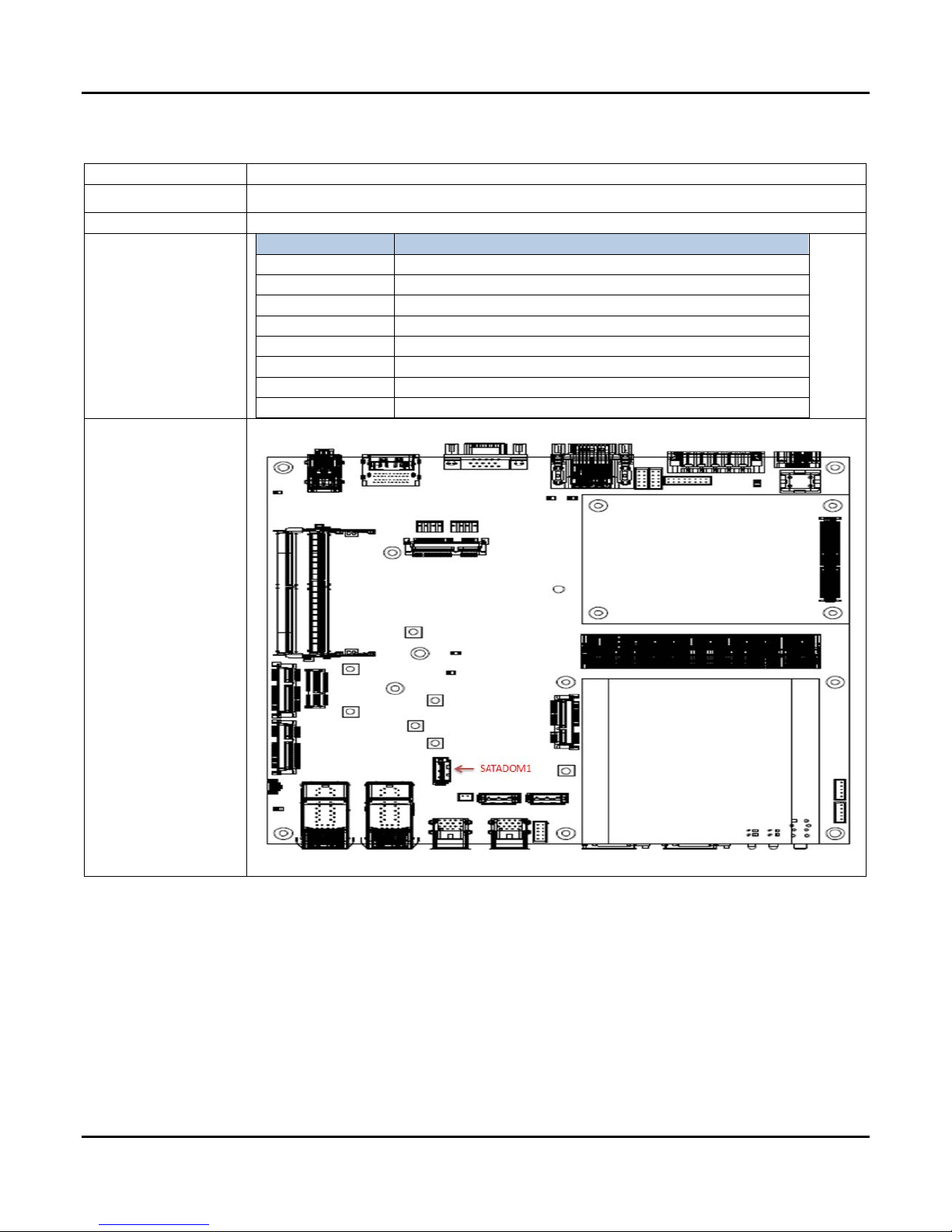

SATADOM1
Connector pin definition
Pin
Signal
1
GND
2
SATA_TXP
3
SATA_TXN
4
GND
5
SATA_RXN
6
SATA_RXP
7
GND
Connector map
O5Y) !@$@)=&8)2.--*+<.3)J!@$@=&8DL)
2.0 Internal Connector Specification
User’s Manual Page 2-9
Page 25
Connector size
2 X 26 = 52 Pin
Connector type
MINI PCI-E CON 9.2mmH
Connector location

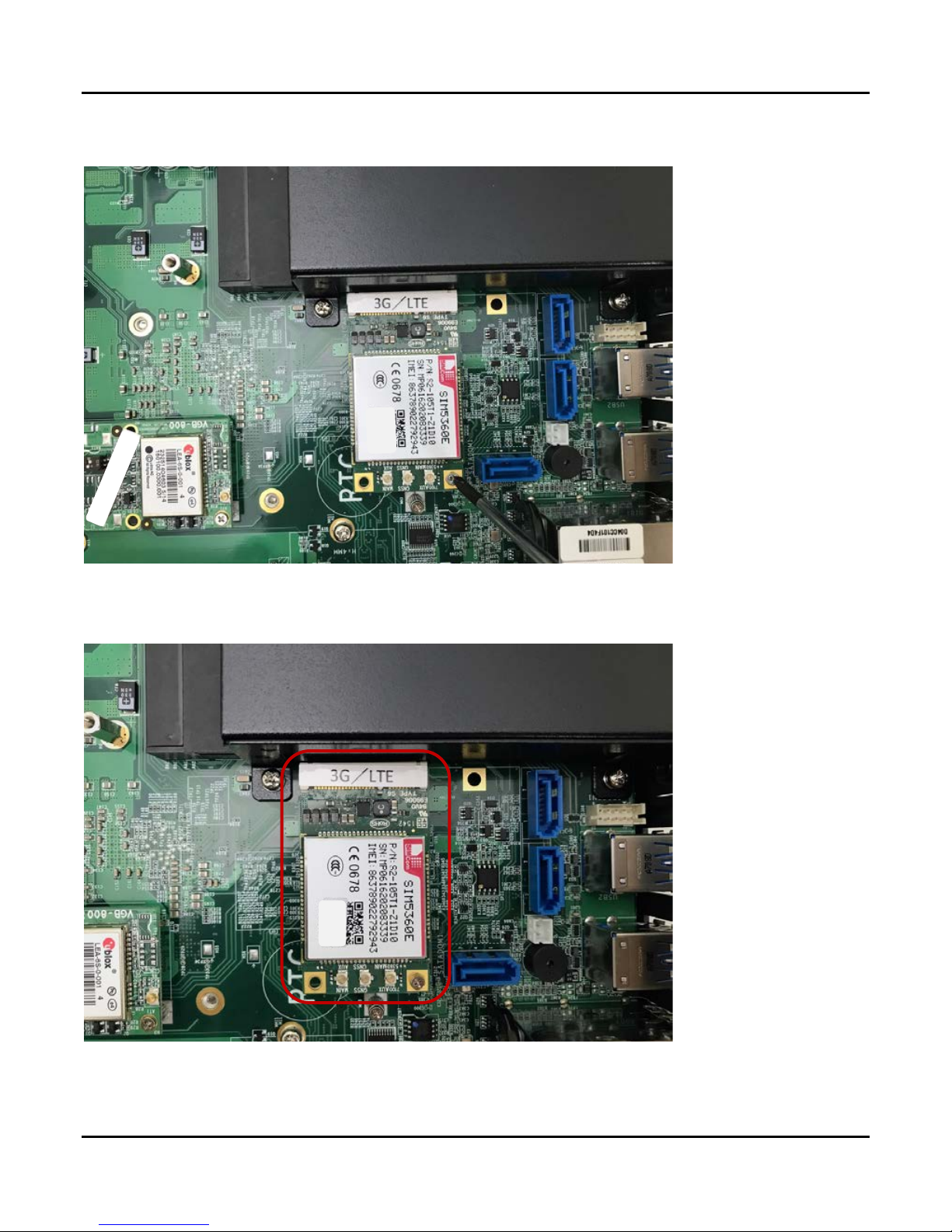

MINICARD1 (3G/LTE)
Connector pin definition
Pin
Signal
Pin
Signal
1
PCIE_WAKE#
2
3VSB
3
NC 4 GND
5
NC 6 NC
7
NC 8 UIM_PWR
9
GND
10
UIM_DATA
11
NC
12
UIM_CLK
13
NC
14
UIM_RST
15
GND
16
NC
17
NC
18
GND
19
NC
20
W_DISABLE#
21
GND
22
PERST#
23
NC
24
3VSB
25
NC
26
GND
27
GND
28
NC
29
GND
30
NC
31
NC
32
NC
33
NC
34
GND
35
GND
36
USB_D-
37
GND
38
USB_D+
39
3VSB
40
GND
41
3VSB
42
LED_WWAN#
43
GND
44
NC
45
NC
46
NC
47
NC
48
NC
49
NC
50
GND
51
NC
52
3VSB
O5DI) 8;-;)M2"G')2.--*+<.3)J8"#"2@%=DL)
2.0 Internal Connector Specification
User’s Manual Page 2-10
Page 26
Connector map
2.0 Internal Connector Specification
User’s Manual Page 2-11
Page 27
Connector size
2 X 26 = 52 Pin
Connector type
MINI PCI-E CON 9.2mmH
Connector location
MINICARD2 (Mini PCI-E spec. V1.2)
Connector pin definition
Pin
Signal
Pin
Signal
1
PCIE_WAKE#
2
3VSB
3
NC 4 GND
5
NC 6 +1.5V
7
CLKREQ#
8
NC
9
GND
10
NC
11
CLK_N
12
NC
13
CLK_P
14
NC
15
GND
16
NC
17
NC
18
GND
19
NC
20
W_DISABLE#
21
GND
22
PERST#
23
PERn0
24
3VSB
25
PERp0
26
GND
27
GND
28
+1.5V
29
GND
30
SMBCLK
31
PETn0
32
SMBDATA
33
PETp0
34
GND
35
GND
36
USB_D-
37
GND
38
USB_D+
39
3VSB
40
GND
41
3VSB
42
NC
43
GND
44
NC
45
NC
46
NC
47
NC
48
+1.5V
49
NC
50
GND
51
NC
52
3VSB
O5DD) 8;-;)M2"G')2.--*+<.3)J8"#"2@%=OL)
2.0 Internal Connector Specification
User’s Manual Page 2-12
Page 28

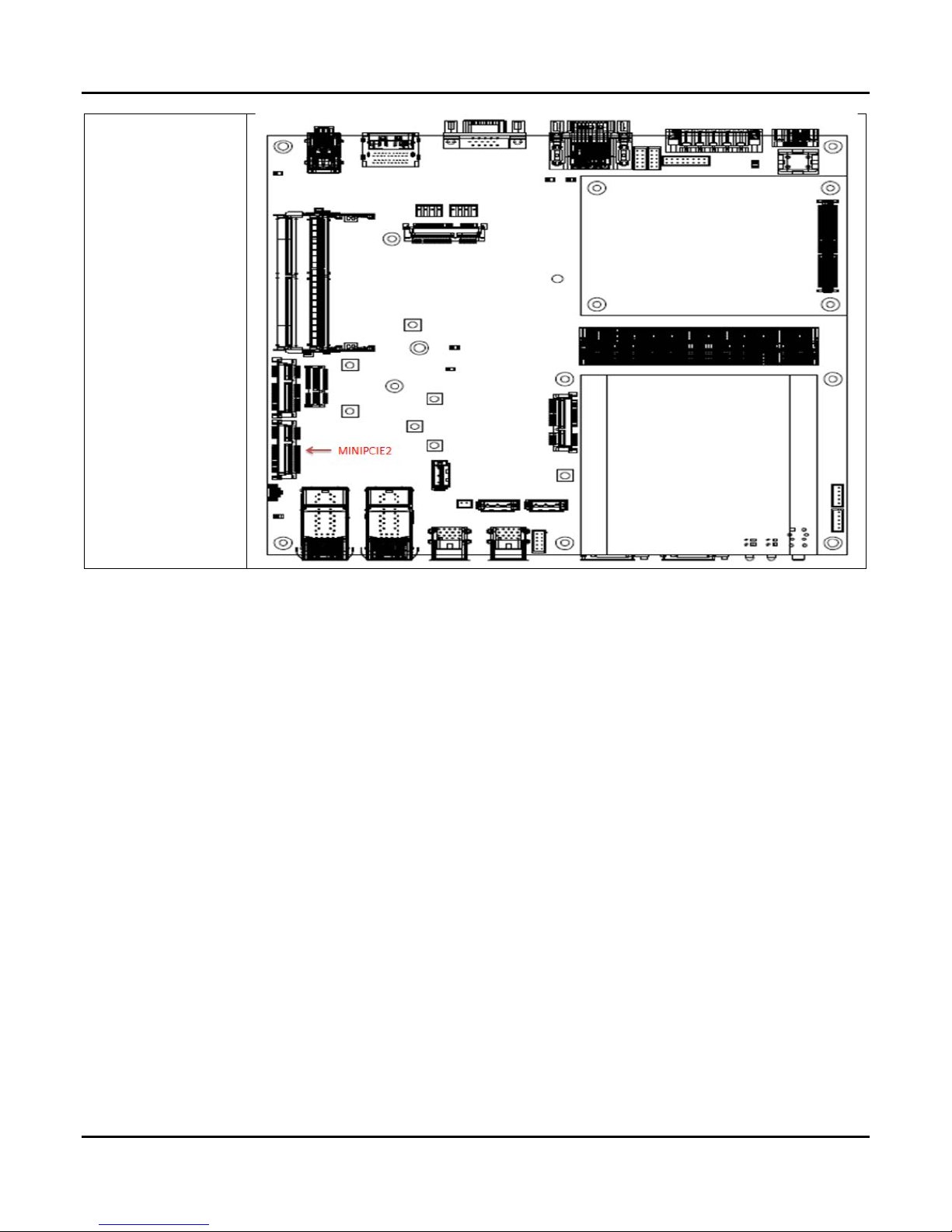

Connector map
2.0 Internal Connector Specification
User’s Manual Page 2-13
Page 29
Connector size
2 X 26 = 52 Pin
Connector type
MINI PCI-E CON 9.2mmH
Connector location
MINICARD3
Connector pin definition
Pin
Signal
Pin
Signal
1
PCIE_WAKE#
2
3VSB
3
NC 4 GND
5
NC 6 +1.5V
7
CLKREQ#
8
NC
9
GND
10
NC
11
CLK_N
12
NC
13
CLK_P
14
NC
15
GND
16
NC
17
NC
18
GND
19
NC
20
W_DISABLE#
21
GND
22
PERST#
23
PERn0
24
3VSB
25
PERp0
26
GND
27
GND
28
+1.5V
29
GND
30
SMBCLK
31
PETn0
32
SMBDATA
33
PETp0
34
GND
35
GND
36
USB_D-
37
GND
38
USB_D+
39
3VSB
40
GND
41
3VSB
42
NC
43
GND
44
NC
45
NC
46
NC
47
NC
48
+1.5V
49
NC
50
GND
51
NC
52
3VSB
O5DO) 8;-;)M2"G')2.--*+<.3)J8"#"2@%=QL)
2.0 Internal Connector Specification
User’s Manual Page 2-14
Page 30
Connector map
2.0 Internal Connector Specification
User’s Manual Page 2-15
Page 31
Connector size
2 X 26 = 52 Pin
Connector type
MINI PCI-E CON 9.2mmH (Half Size)
Connector location
MINICARD4 (Mini PCI-E spec. V1.2)
Connector pin definition
Pin
Signal
Pin
Signal
1
PCIE_WAKE#
2
3VSB
3
NC 4 GND
5
NC 6 +1.5V
7
CLKREQ#
8
NC
9
GND
10
NC
11
CLK_N
12
NC
13
CLK_P
14
NC
15
GND
16
NC
17
NC
18
GND
19
NC
20
W_DISABLE#
21
GND
22
PERST#
23
PERn0
24
3VSB
25
PERp0
26
GND
27
GND
28
+1.5V
29
GND
30
SMBCLK
31
PETn0
32
SMBDATA
33
PETp0
34
GND
35
GND
36
USB_D-
37
GND
38
USB_D+
39
3VSB
40
GND
41
3VSB
42
NC
43
GND
44
NC
45
NC
46
NC
47
NC
48
+1.5V
49
NC
50
GND
51
NC
52
3VSB
O5DQ) 8;-;)M2"G')2.--*+<.3)J8"#"2@%=RL)
2.0 Internal Connector Specification
User’s Manual Page 2-16
Page 32

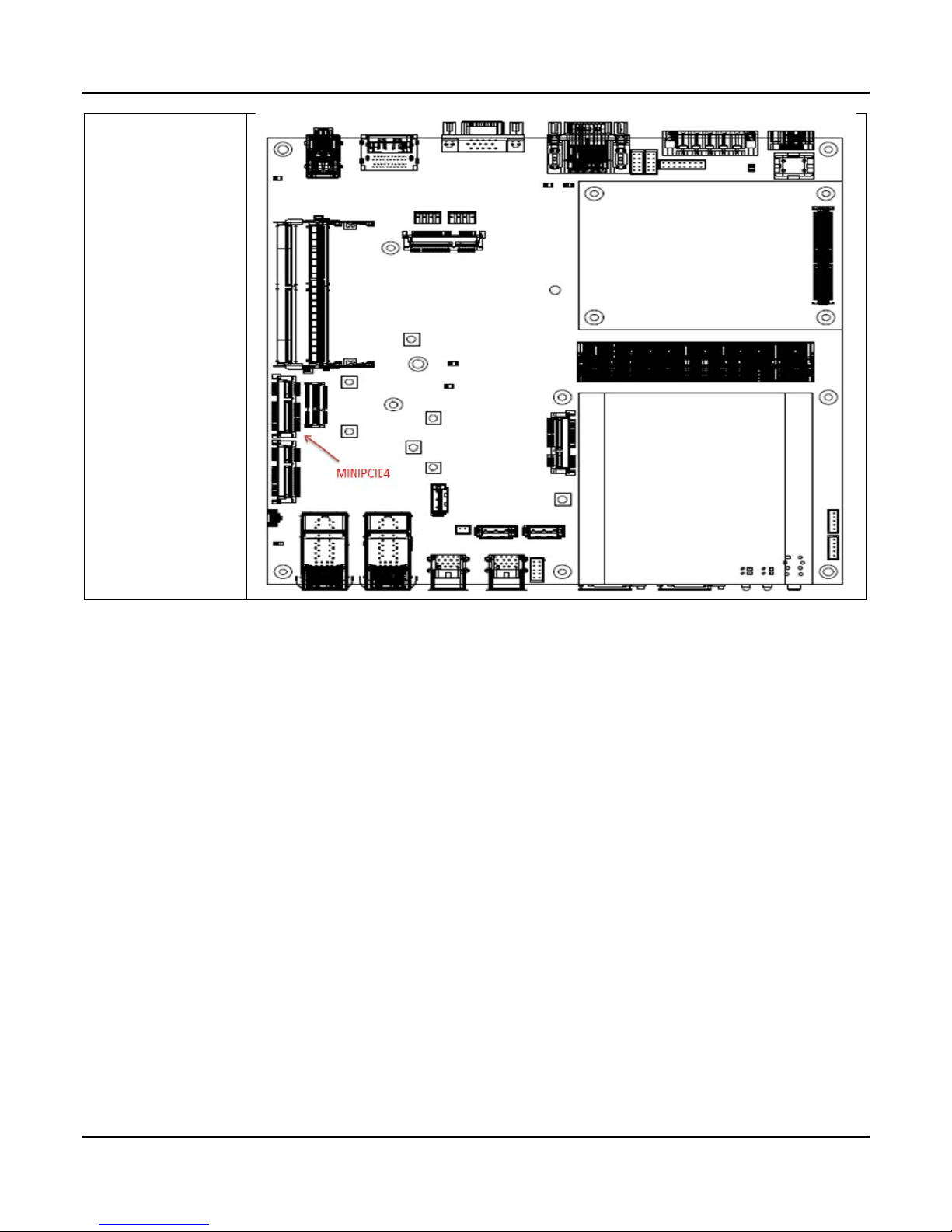

Connector map
2.0 Internal Connector Specification
User’s Manual Page 2-17
Page 33
Connector size
75 Pin
Connector type
M.2 E KEY H:8.5mm
Connector location

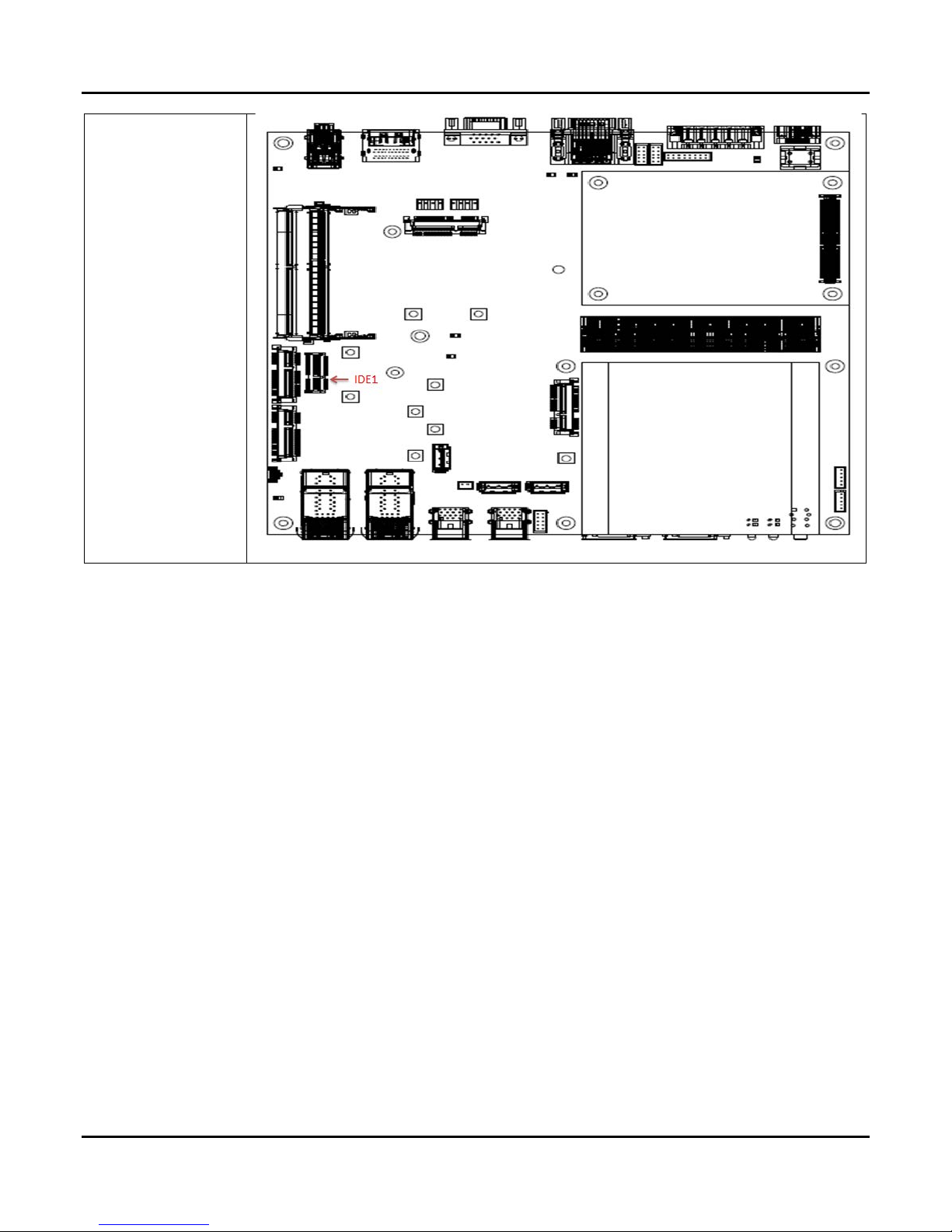

IDE1
Connector pin definition
Pin
Signal
Pin
Signal
1
GND
2
3.3VSB
3
USB_D+
4
3.3VSB
5
USB_D-
6
NC
7
GND
8
NC
9
NC
10
NC
11
NC
12
NC
13
NC
14
NC
15
NC
16
NC
17
NC
18
NC
19
NC
20
NC
21
NC
22
NC
23
NC
24
Module Key
25
Module Key
26
Module Key
27
Module Key
28
Module Key
29
Module Key
30
Module Key
31
Module Key
32
NC
33
GND
34
NC
35
PERp0
36
NC
Ji337
PERn0
38
NC
39
GND
40
NC
41
PETp0
42
NC
43
PETn0
44
NC
45
GND
46
NC
47
PEFCLKp0
48
NC
49
PEFCLKn0
50
NC
51
GND
52
PERST0#
53
CLKREQ0#
54
W_DISABLE2#
55
PEWAKE0#
56
W_DISABLE1#
57
GND
58
NC
59
PERp1
60
NC
61
PERn1
62
NC
63
GND
64
NC
65
PETp1
66
PERST1#
67
PETn1
68
CLKREQ1#
69
GND
70
PEWAKE1#
71
PEFCLKp1
72
3.3VSB
73
PEFCLKn1
74
3.3VSB
75
GND
O5DR) 85O)')Z'[)2.--*+<.3)J"='D)&M$5L)
2.0 Internal Connector Specification
User’s Manual Page 2-18
Page 34
Connector map
2.0 Internal Connector Specification
User’s Manual Page 2-19
Page 35
Connector size
2x34=68 Pin
Connector type
Female 9.05mm pitch=1.27mm
Connector location

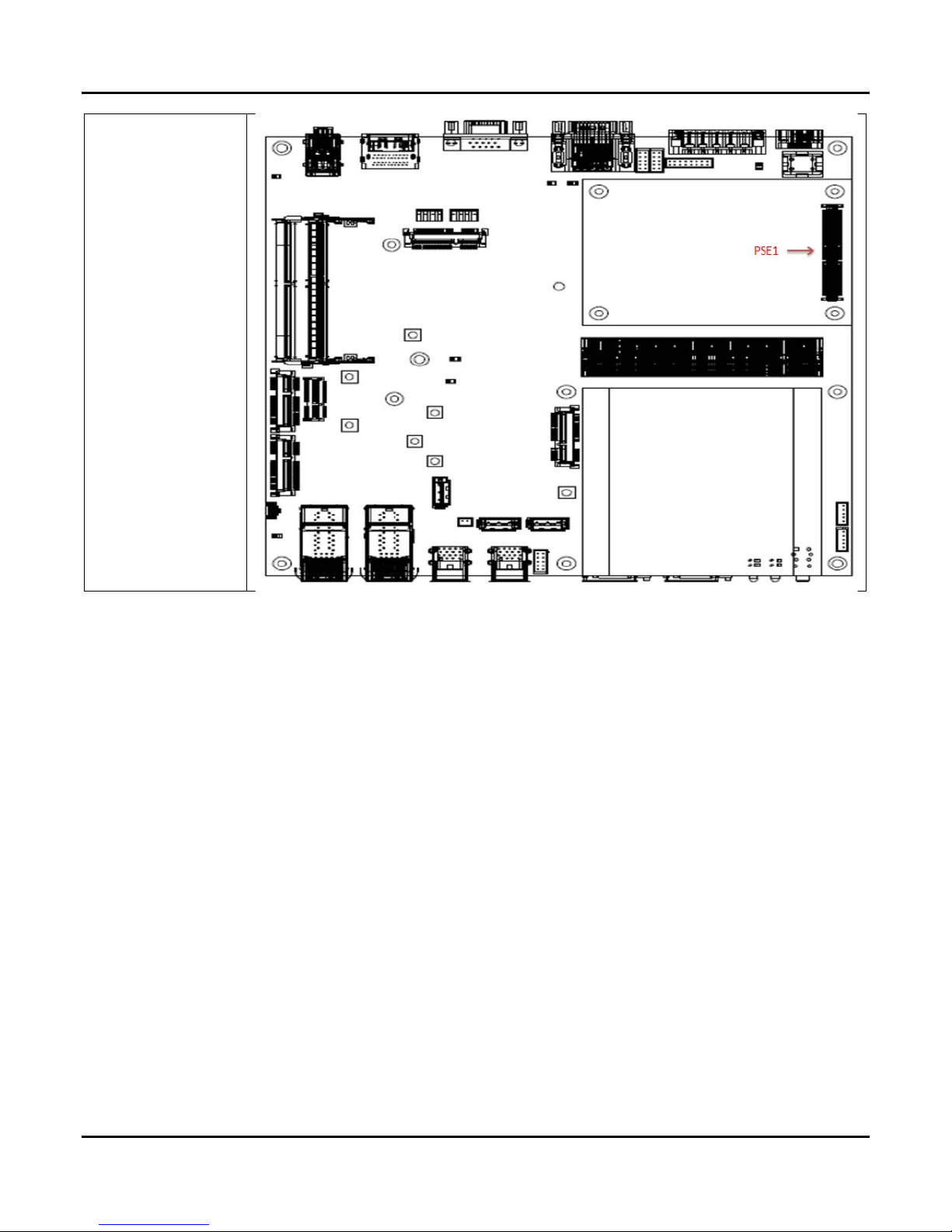

PSE1
Connector pin definition
Pin
Signal
Pin
Signal
A1
+3.3V
B1
9~36V_VIN
A2
+3.3V
B2
9~36V_VIN
A3
+5V
B3
9~36V_VIN
A4
GND
B4
9~36V_VIN
A5
GND
B5
9~36V_VIN
A6
GND
B6
9~36V_VIN
A7
SMB_CLK
B7
9~36V_VIN
A8
SMB_DATA
B8
9~36V_VIN
A9
NC
B9
9~36V_VIN
A10
PSE_AGND
B10
9~36V_VIN
A11
PDE_INT#
B11
9~36V_VIN
A12
PSE_AGND
B12
9~36V_VIN
A13
PDE_OUT1
B13
NC
A14
PSE_AGND
B14
9~36V_GND
A15
PSE_OUT2
B15
9~36V_GND
A16
PSE_AGND
B16
9~36V_GND
A17
PDE_OUT3
B17
9~36V_GND
A18
PSE_AGND
B18
9~36V_GND
A19
PSE_OUT4
B19
9~36V_GND
A20
PSE_AGND
B20
9~36V_GND
A21
PSE_OUT5
B21
9~36V_GND
A22
PSE_AGND
B22
9~36V_GND
A23
PSE_OUT6
B23
9~36V_GND
A24
PSE_AGND
B24
9~36V_GND
A25
PSE_OUT7
B25
9~36V_GND
A26
PSE_AGND
B26
NC
A27
PSE_OUT8
B27
PSE_GND
A28
NC
B28
PSE_GND
A29
PSE_56V
B29
PSE_GND
A30
PSE_56V
B30
PSE_GND
A31
PSE_56V
B31
PSE_GND
A32
PSE_56V
B32
PSE_GND
A33
PSE_56V
B33
PSE_GND
A34
PSE_56V
B34
PSE_GND
O5DH) M!')M.N*3)A.93E)2.--*+<.3)JM!'DL)
2.0 Internal Connector Specification
User’s Manual Page 2-20
Page 36

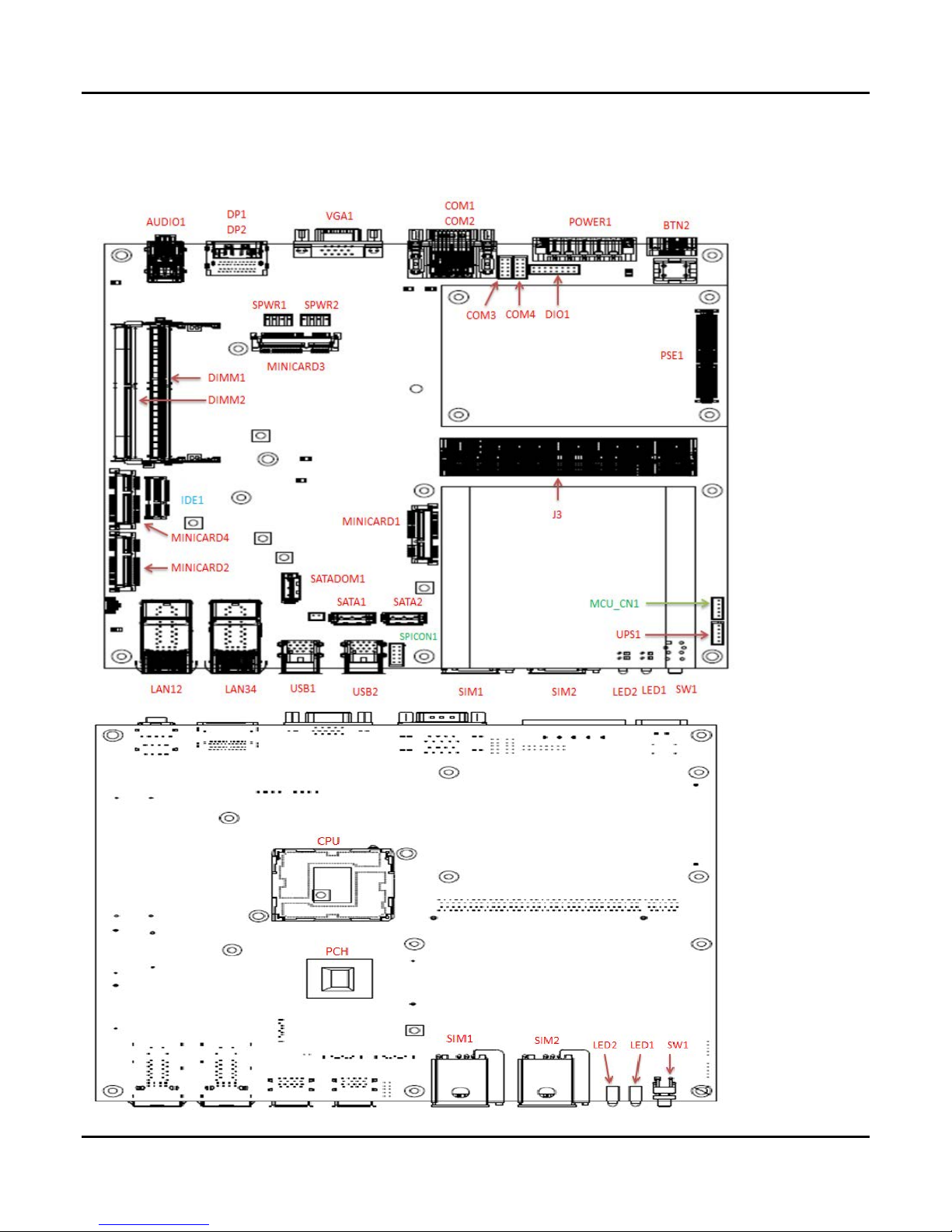

Connector map
2.0 Internal Connector Specification
User’s Manual Page 2-21
Page 37
Connector size
2x82=164 Pin
Connector type
PCI-E x16 Slot Female 90D H-11.4mm pitch=2.0mm
Connector location

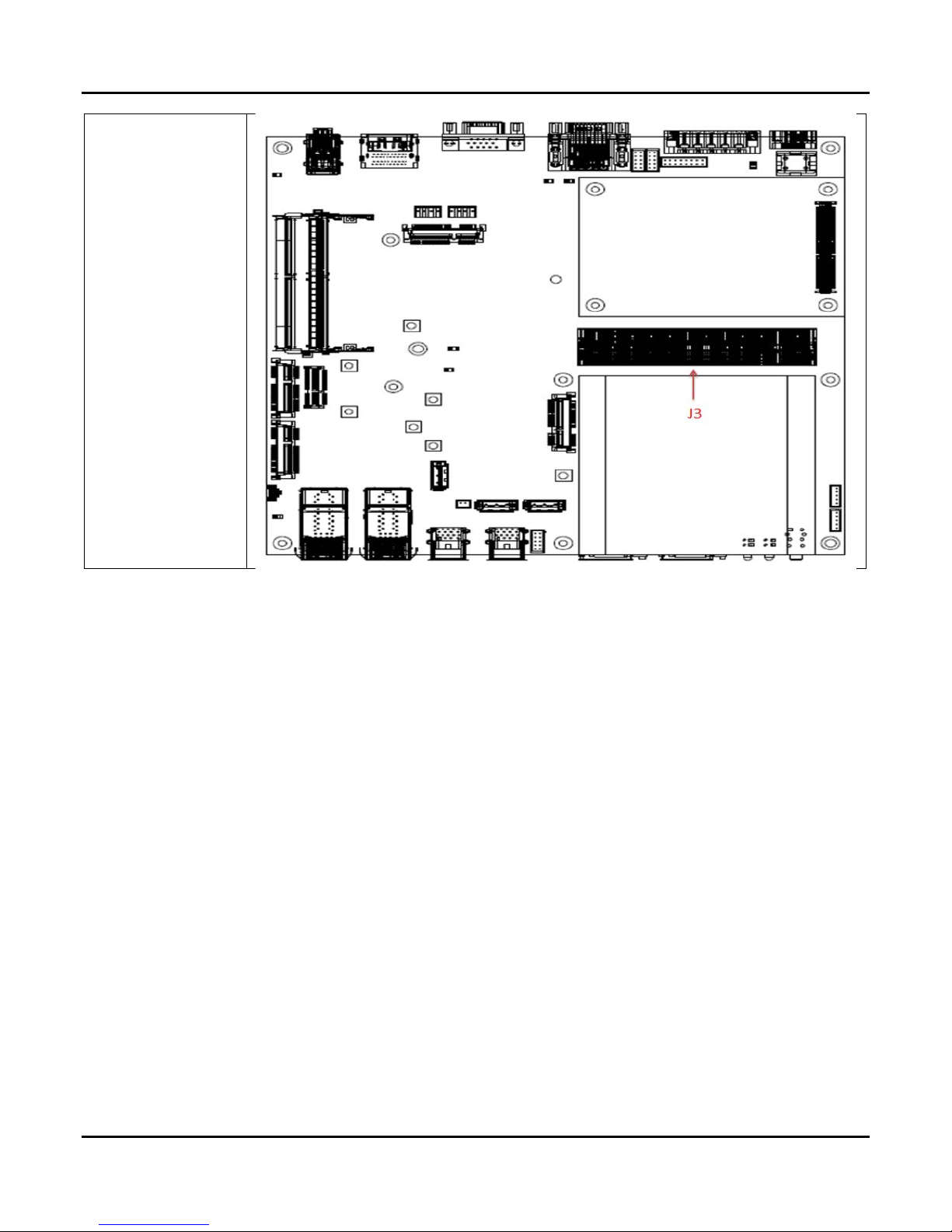

J3
Connector pin definition
Pin
Signal
Pin
Signal
A1
PSE_GND
B1
PSE_56V
A2
PSE_GND
B2
PSE_56V
A3
PSE_GND
B3
PSE_56V
A4
PSE_OUT7
B4
PSE_OUT5
A5
PSE_OUT8
B5
PSE_OUT6
A6
PSE_AGND
B6
PSE_AGND
A7
NC
B7
NC
A8
3.3VSB
B8
12VDC
A9
3.3VSB
B9
12VDC
A10
3.3VSB
B10
5VDC
A11
3.3VSB
B11
5VDC
A12
3.3VDC
B12
3.3VDC
A13
3.3VDC
B13
3.3VDC
A14
RESET#
B14
GND
A15
PCIE_WAKE#
B15
PEG_CLK_P
A16
GND
B16
PEG_CLK_N
A17
PEG_RX0_P
B17
GND
A18
PEG_RX0_N
B18
GND
A19
GND
B19
PEG_TX0_P
A20
GND
B20
PEG_TX0_N
A21
PEG_RX1_P
B21
GND
A22
PEG_RX1_N
B22
GND
A23
GND
B23
PEG_TX1_P
A24
GND
B24
PEG_TX1_N
A25
PEG_RX2_P
B25
GND
A26
PEG_RX2_N
B26
HND
A27
GND
B27
PEG_TX2_P
A28
GND
B28
PEG_TX2_N
A29
PEG_RX3_P
B29
GND
A30
PEG_RX3_N
B30
GND
A31
GND
B31
PEG_TX3_P
A32
GND
B32
PEG_TX3_N
A33
PEG_RX4_P
B33
GND
A34
PEG_RX4_N
B34
GND
A35
GND
B35
PEG_TX4_P
A36
GND
B36
PEG_TX4_N
A37
PEG_RX5_P
B37
GND
A38
PEG_RX5_N
B38
GND
A39
GND
B39
PEG_TX5_P
A40
GND
B40
PEG_TX5_N
A41
PEG_RX6_P
B41
GND
A42
PEG_RX6_N
B42
GND
O5DT) C97<)'\49-7;]/*)!/.<)J^QL )
2.0 Internal Connector Specification
User’s Manual Page 2-22
Page 38
A43
GND
B43
PEG_TX6_P
A44
GND
B44
PEG_TX6_N
A45
PEG_RX7_P
B45
GND
A46
PEG_RX7_N
B46
GND
A47
GND
B47
PEG_TX7_P
A48
PCIE_TX3_P
B48
PEG_TX7_N
A49
PCIE_TX3_N
B49
GND
A50
GND
B50
PCIECLK1_P
A51
PCIE_RX3_P
B51
PCIECLK1_N
A52
PCIR_RX3_N
B52
GND
A53
GND
B53
PCIE_TX1_P
A54
PCIE_TX4_P
B54
PCIE_TX1_N
A55
PCIE_TX4_N
B55
GND
A56
GND
B56
PCIE_RX1_P
A57
PCIE_RX4_P
B57
PCIE_RX1_N
A58
PCIE_RX4_N
B58
GND
A59
GND
B59
PCIE_TX2_P
A60
USB2_DN1
B60
PCIE_TX2_N
A61
USB2_DP1
B61
GND
A62
USB2_DN2
B62
PCIE_RX2_P
A63
USB2_DP2
B63
PCIE_RX2_N
A64
USB2_DN3
B64
GND
A65
USB2_DP3
B65
SATA1_RXP
A66
USB3_TXN1
B66
SATA1_RXN
A67
USB3_TXP1
B67
GND
A68
USB3_RXN1
B68
SATA1_TXP
A69
USB3_RXP1
B69
SATA1_TXN
A70
GND
B70
GND
A71
GPIO1
B71
USB3_TXN1
A72
GPIO2
B72
USB3_TXP1
A73
GPIO3
B73
USB3_RXN1
A74
GPIO4
B74
USB3_RXP1
A75
GPIO5
B75
GND
A76
GPIO6
B76
LPC_AD3
A77
GPIO7
B77
LPC_AD2
A78
GPIO8
B78
LPC_AD1
A79
SMB_CLK1
B79
LPC_AD0
A80
SMB_SDA1
B80
LPC_CLK
A81
SMB_CLK2
B81
LPC_FRAME#
A82
SMB_SDA2
B82
LPC_SERIRQ
2.0 Internal Connector Specification
User’s Manual Page 2-23
Page 39
Connector map
2.0 Internal Connector Specification
User’s Manual Page 2-24
Page 40
3.0 External Connector Specification
Q5I)
'F$'%#@B)2&##'2$&%)
!M'2"C"2@$"&#)
User’s Manual
Page 41

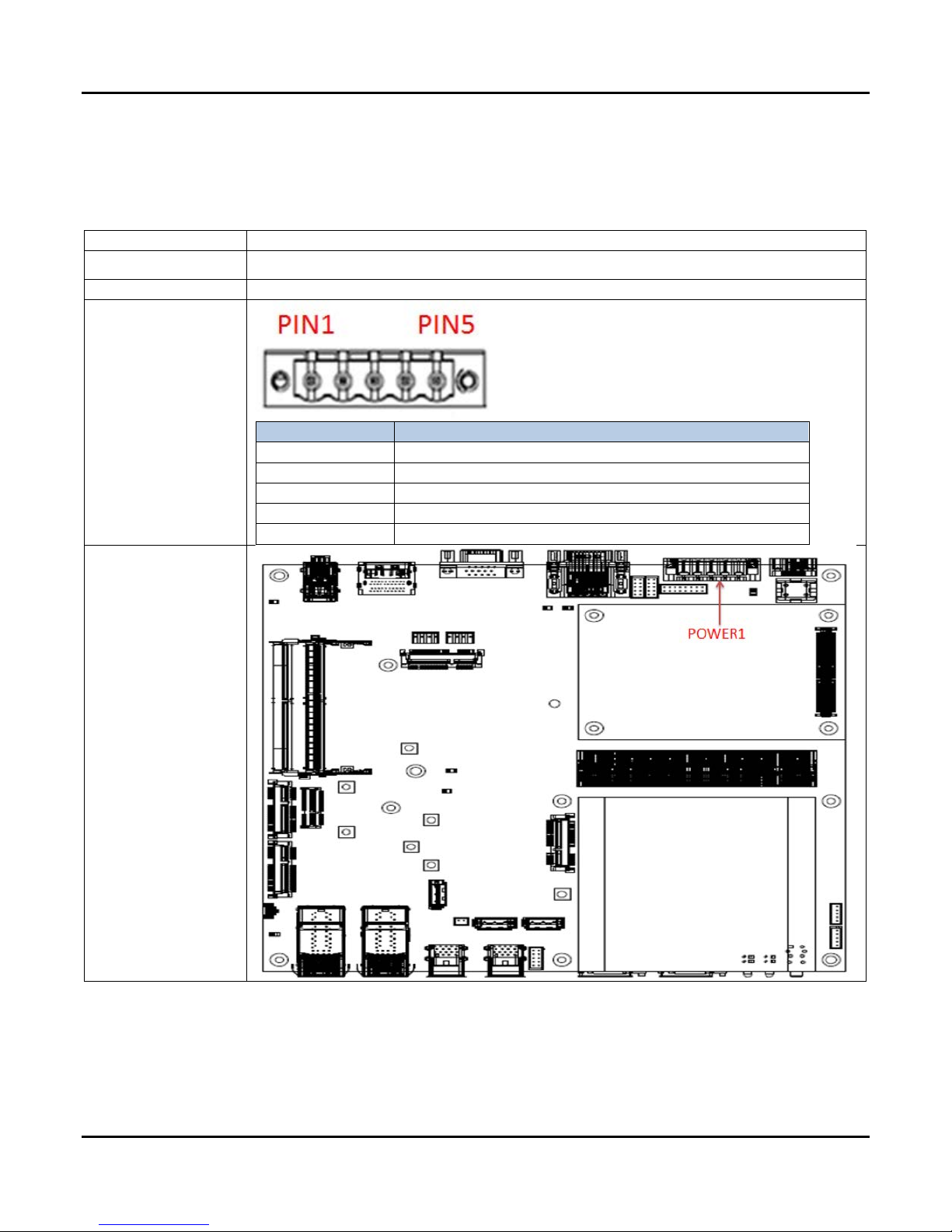

Connector size
1 X 5 = 5 Pin
Connector type
Terminal block 5PIN pitch :5.08mm
Connector location
POWER1
Connector pin definition
Pin
Signal
1
GND
2
GND
3
VIN (9VDC~36VDC)
VIN (9VDC~36VDC)
IGNITION
Connector map
Q5I 'F$'%#@B)2&##'2$&%)!M'2"C"2@$"&#)
Q5D) M.N*3)"-4:<)2.--*+< .3)JM&U'%DL)
3.0 External Connector Specification
User’s Manual Page 3-1
Page 42
Connector size
1 X 2 = 2 Pin
Connector type
Terminal block 2PIN pitch :3.5mm
Connector location

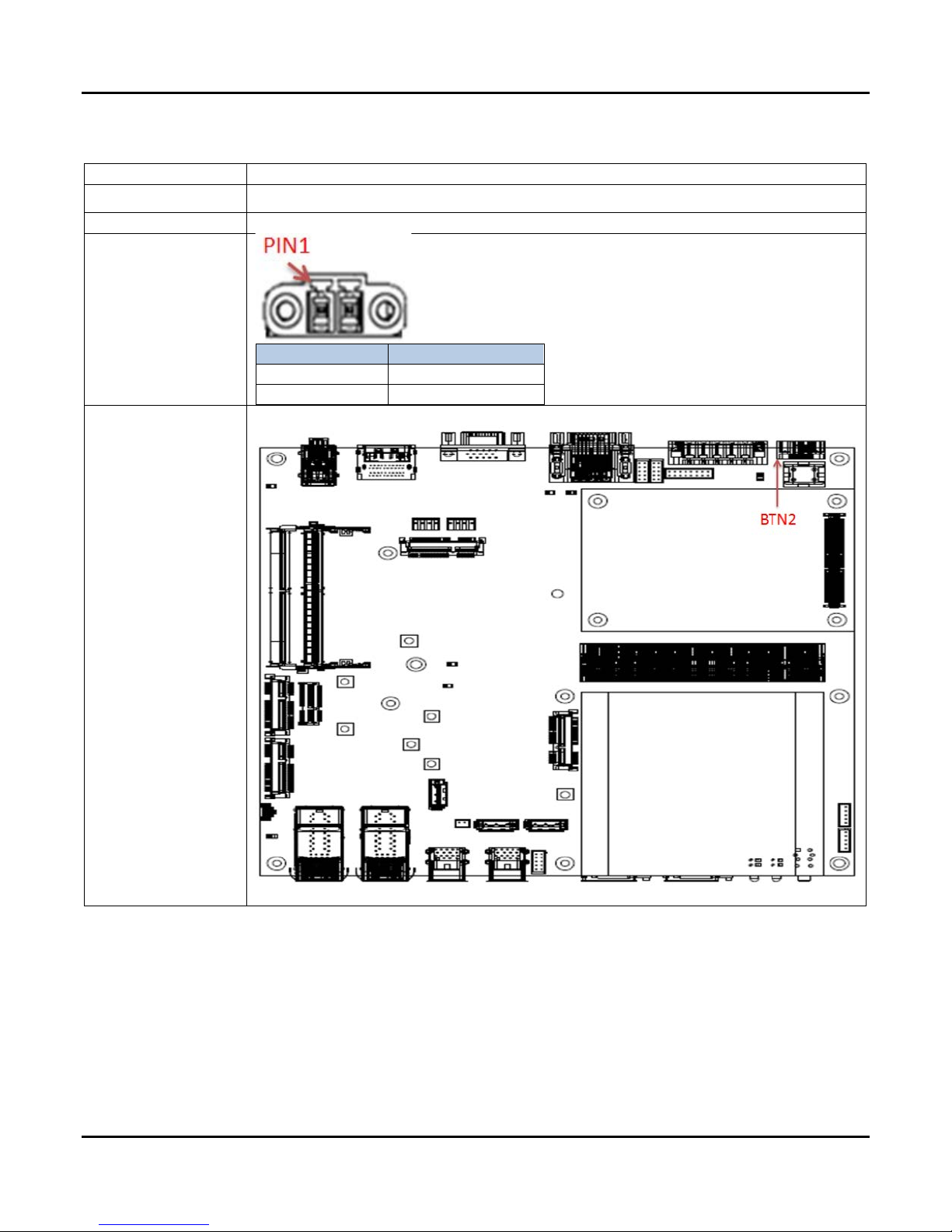

BTN2
Connector pin definition
Pin
Signal
1
PWRBTN#
2
GND
Connector map
Q5O) %*>.<*)A:<<.-)2.--*+<.3)JA$#OL)
3.0 External Connector Specification
User’s Manual Page 3-2
Page 43
Connector size
15 Pin
Connector type
D-SUB 15Pin
Connector location

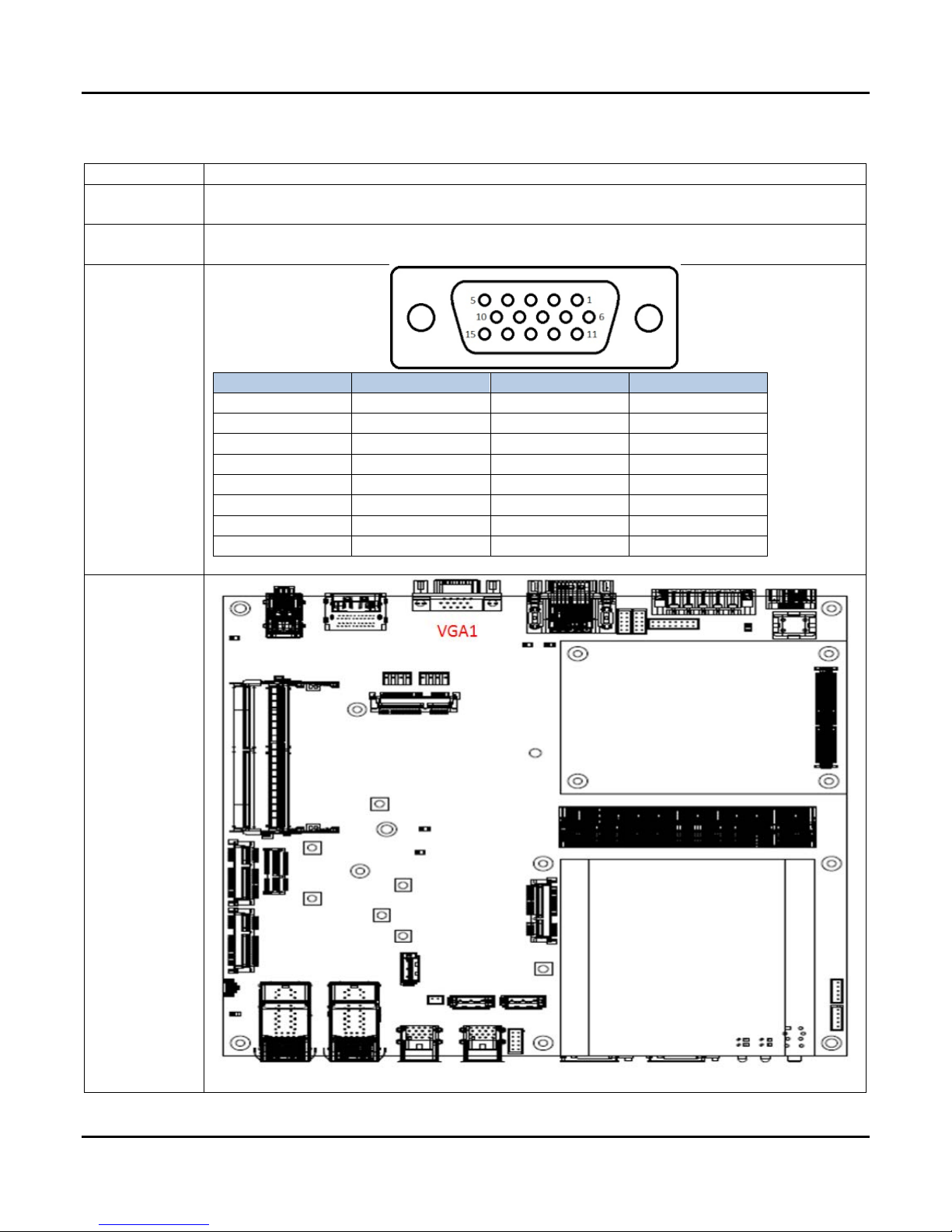

VGA1
DB15 pin definition
Pin
Signal
Pin
Signal
1
RED
9
+5V
2
GREEN
10
GND
3
BLUE
11
Reserved
4
Reserved
12
SDA
5
GND
13
HSYNC
6
GND
14
VSYNC
7
GND
15
SCL
8
GND
Connector map
Q5Q) _`@)2.--*+<.3)J_`@DL)
3.0 External Connector Specification
User’s Manual Page 3-3
Page 44
Connector size
20 Pin
Connector type

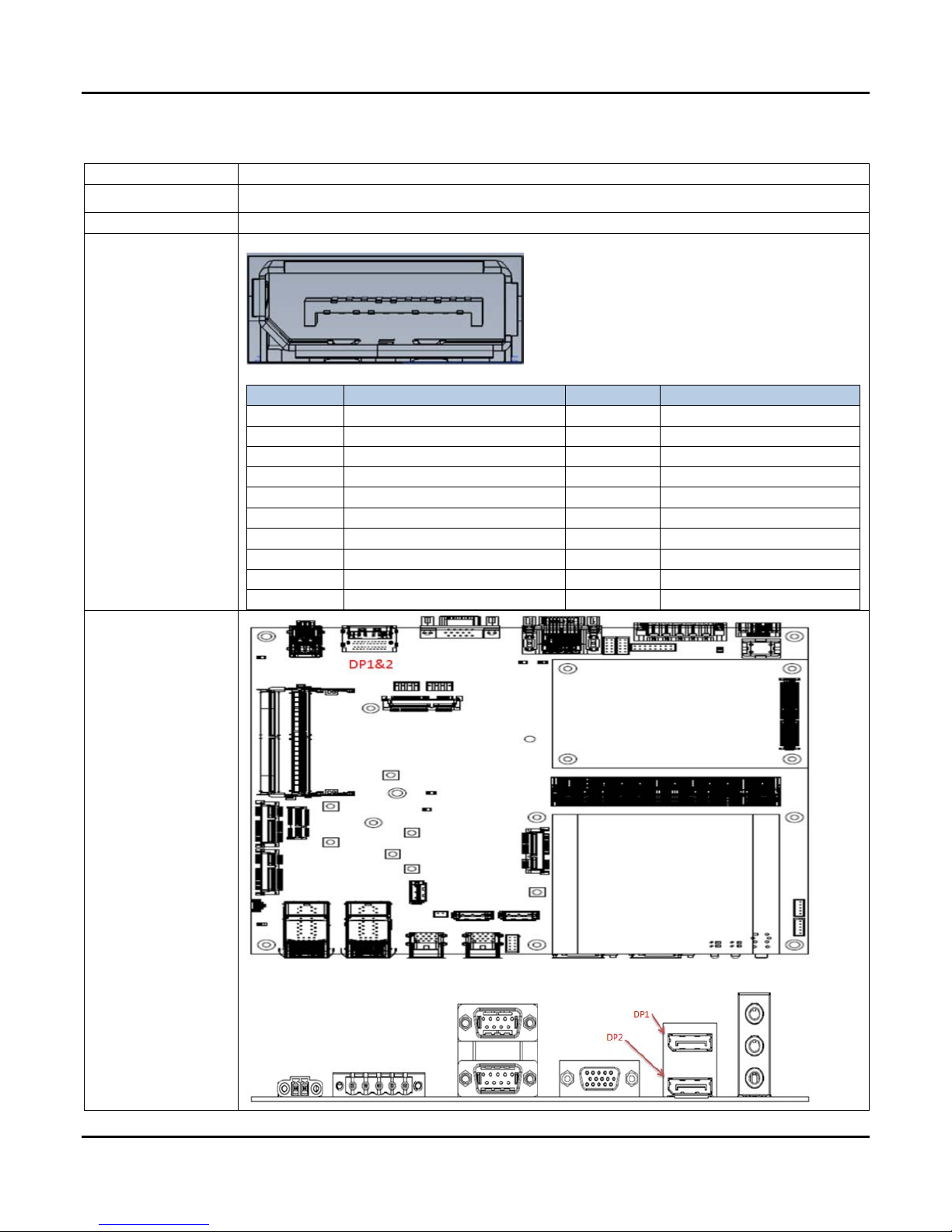

Display port
Connector location
DP1 & 2
Connector pin definition
Pin
Signal
Pin
Signal
1
DP_LANE_0P
2
GND
3
DP_LANE_0N
4
DP_LANE_1P
5
GND
6
DP_LANE_1N
7
DP_LANE_2P
8
GND
9
DP_LANE_2N
10
DP_LANE_3P
11
GND
12
DP_LANE_3N
13
DP_AUX_SEL
14
GND
15
DP_AUXP_P/CRTCLK
16
GND
17
DP_AUXN_N/CRTDATA
18
DP_HPD
19
GND
20
DP_VCC3
Connector map
Q5R) =;74/91)M.3<)2.--*+<.3)J=MDWOL)
3.0 External Connector Specification
User’s Manual Page 3-4
Page 45
Connector size
1 X 3
Connector type
HAD Jack
Connector location

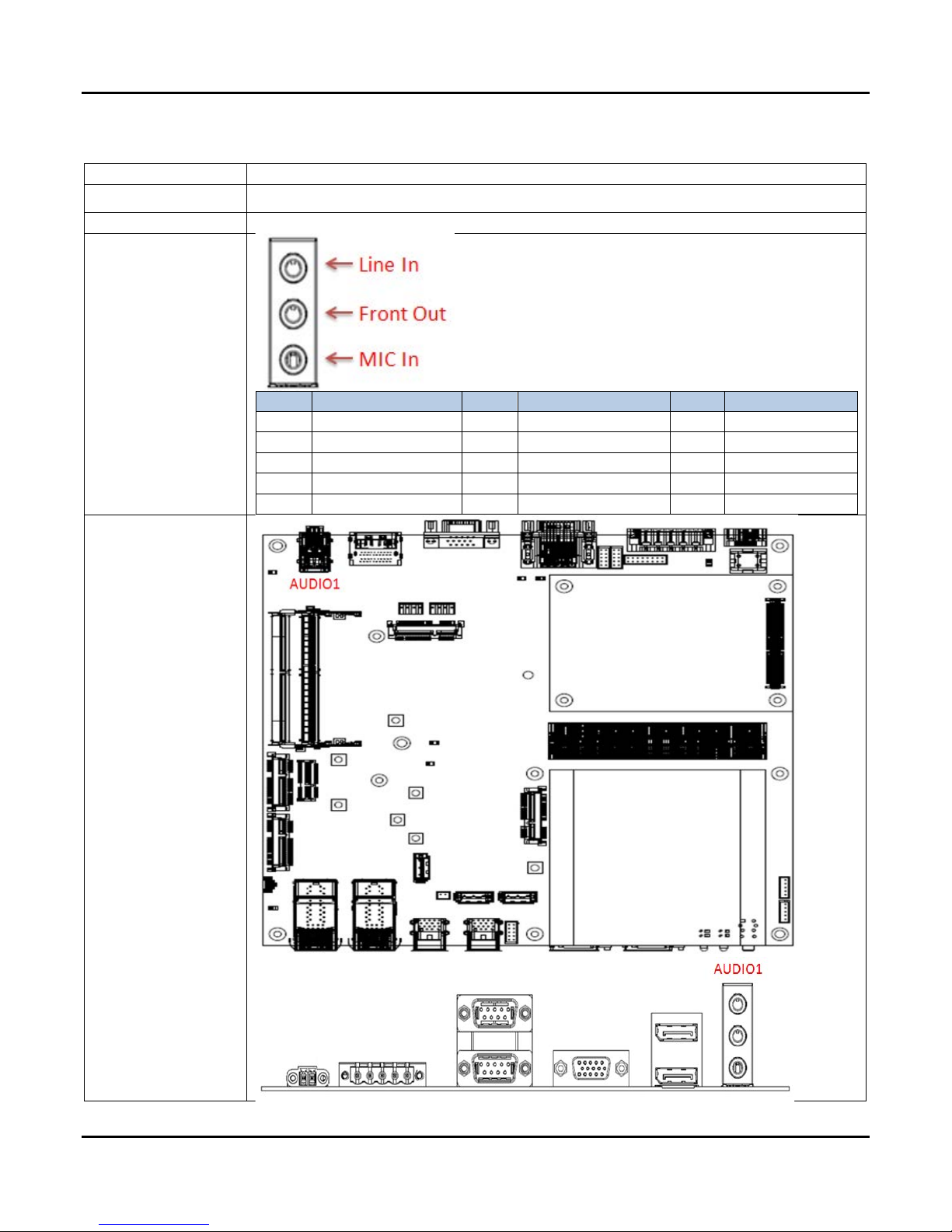

AUDIO1
Connector pin definition
Pin
Signal
Pin
Pin
Signal
1
CASE_GND
2
MIC_In_R
22
32
LINE_In_R
3
MIC-JD
23
33
LINE_JD
4
AUD_GND
24
34
AUD_GND
5
MIC_In_L
25
35
LINE_In_L
Connector map
Q5H) @6="&)2.--*+<.3)J@6="&DL)
3.0 External Connector Specification
User’s Manual Page 3-5
Page 46
Connector size
18 Pin
Connector type
USB3.0 Type A
Connector location

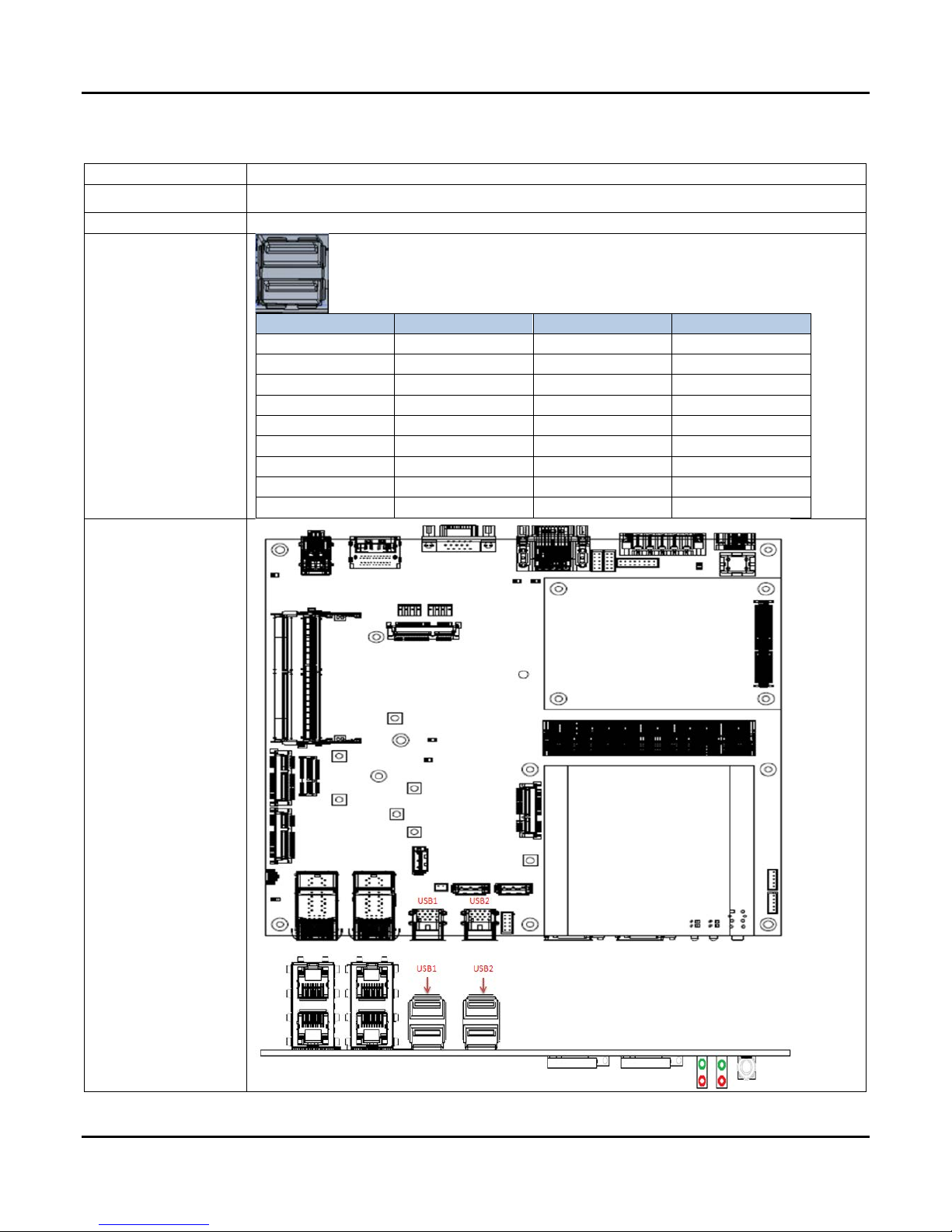

USB1 & 2
Connector pin definition
Pin
Signal
Pin
Signal
1
5VSB
10
5VSB
2
USB1_N
11
USB2_N
3
USB1_P
12
USB2_P
4
GND
13
GND
5
SSRX1-
14
SSRX2-
6
SSRX1+
15
SSRX2+
7
GND
16
GND
8
SSTX1-
17
SSTX2-
9
SSTX1+
18
SSTX2+
Connector map
Q5T) 6!A)Q5I)2.--*+<.3)J6!ADWOL)
3.0 External Connector Specification
User’s Manual Page 3-6
Page 47
Connector size
32 Pin
Connector type

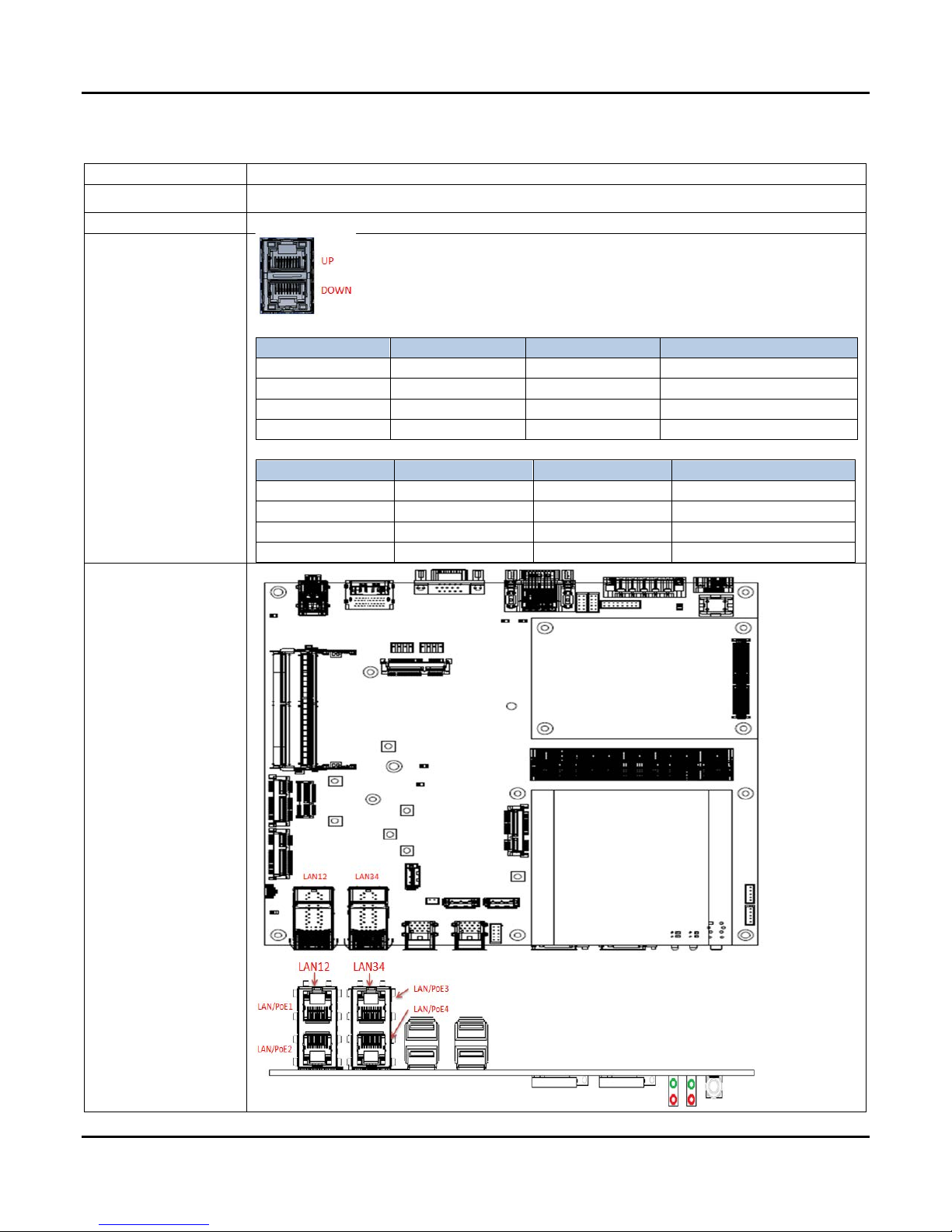

Dual Port RJ45+LED With PoE
Connector location
LAN12 & LAN34
Connector pin definition
UP
Pin
Signal
Pin
Signal
1
MDI0P
2
MDI0N
3
MDI1P
4
MDI2P
5
MDI2N
6
MDI1N
7
MDI3P
8
MDI3N
DOWN
Pin
Signal
Pin
Signal
1
MDI0P
2
MDI0N
3
MDI1P
4
MDI2P
5
MDI2N
6
MDI1N
7
MDI3P
8
MDI3N
Connector map
Q5V) B@#)2.--*+<.3)JB@#DOWB@#QRL)
3.0 External Connector Specification
User’s Manual Page 3-7
Page 48
6 Pin

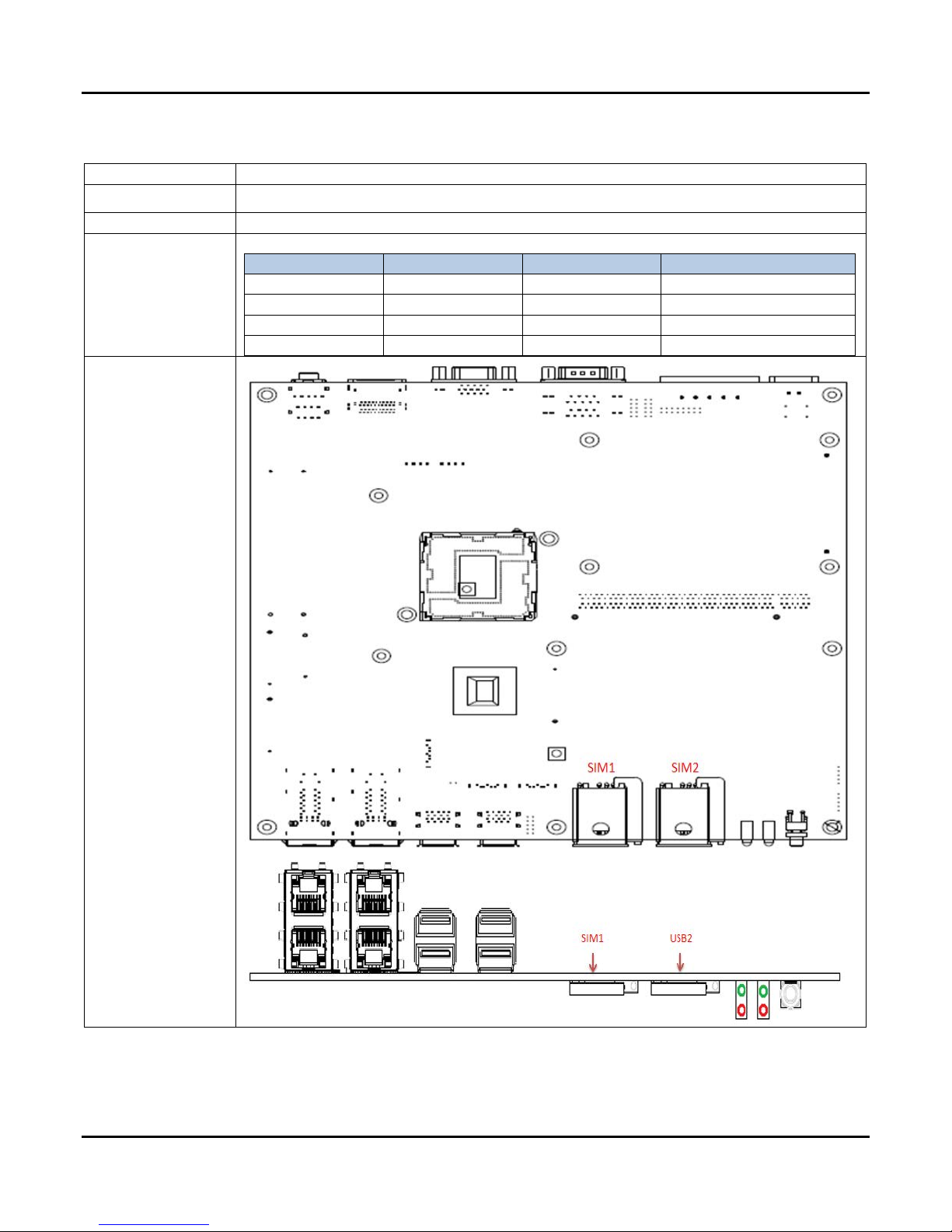

SIM Crad 6 Pin
SIM1 & SIM2
Pin
Signal
Pin
Signal
C1
UIM_POWER
C5
GND
C2
UOM_RST
C6
NC
C3
UIM_CLK
C7
UIM_DAT
SW1
GND
SW2
GND
Q5X) !"8)2@%=)2.--*+<.3)J!"8DW!"8OL)
3.0 External Connector Specification
User’s Manual Page 3-8
Page 49
Connector size
4 Pin
Connector type
Dual LED 46 Pin
Connector location
LED1
Connector pin definition
Pin
Signal
Pin
Signal

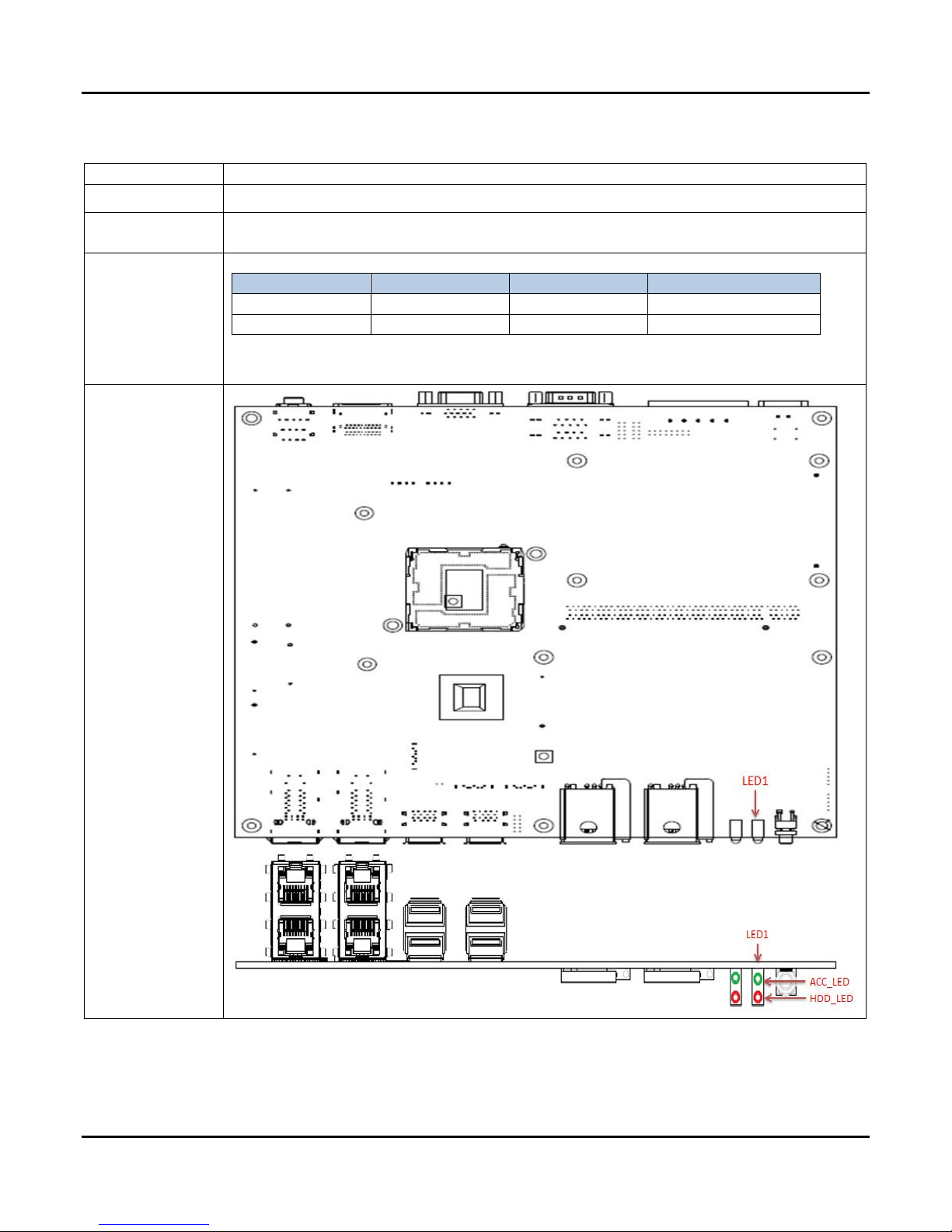

A1
+5VSB
A2
+5VDC
C1
ACC_LEDN
C2
HDD_LEDN
Connector map
Q5Y) B'=)M&%$)2.--*+<.3)JB'=DL)
3.0 External Connector Specification
User’s Manual Page 3-9
Page 50
4 Pin
Dual LED 46 Pin

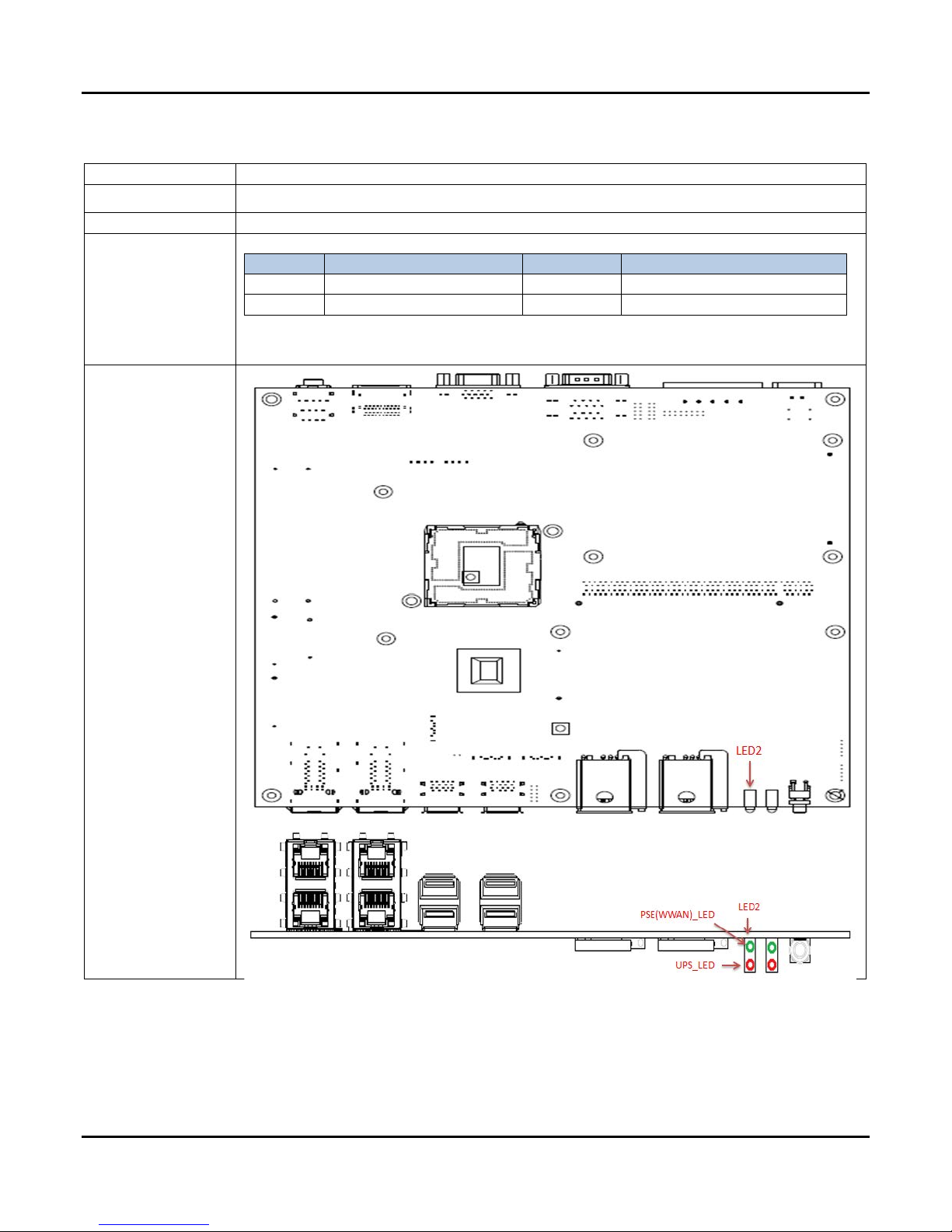

LED2
Pin
Signal
Pin
Signal
A1
+5VSB
A2
+5VDC
C1
PSE(WWAN)_LEDN
C2
UPS_LEDN
Q5DI) B'=)M&%$)2.--*+<.3)JB'=OL)
3.0 External Connector Specification
User’s Manual Page 3-10
Page 51
4.0 System Installation
R5I)
![!$'8)"#!$@BB@$"&#)
User’s Manual
Page 52
R5I ![!$'8)"#!$@BB@$"&#)
R5D) !17<*>)"-<3.E:+<;.-)
4.0 System Installation
User’s Manual Page 4-1
Page 53
4.0 System Installation
R5O) &4*-;-0)2,977;7)

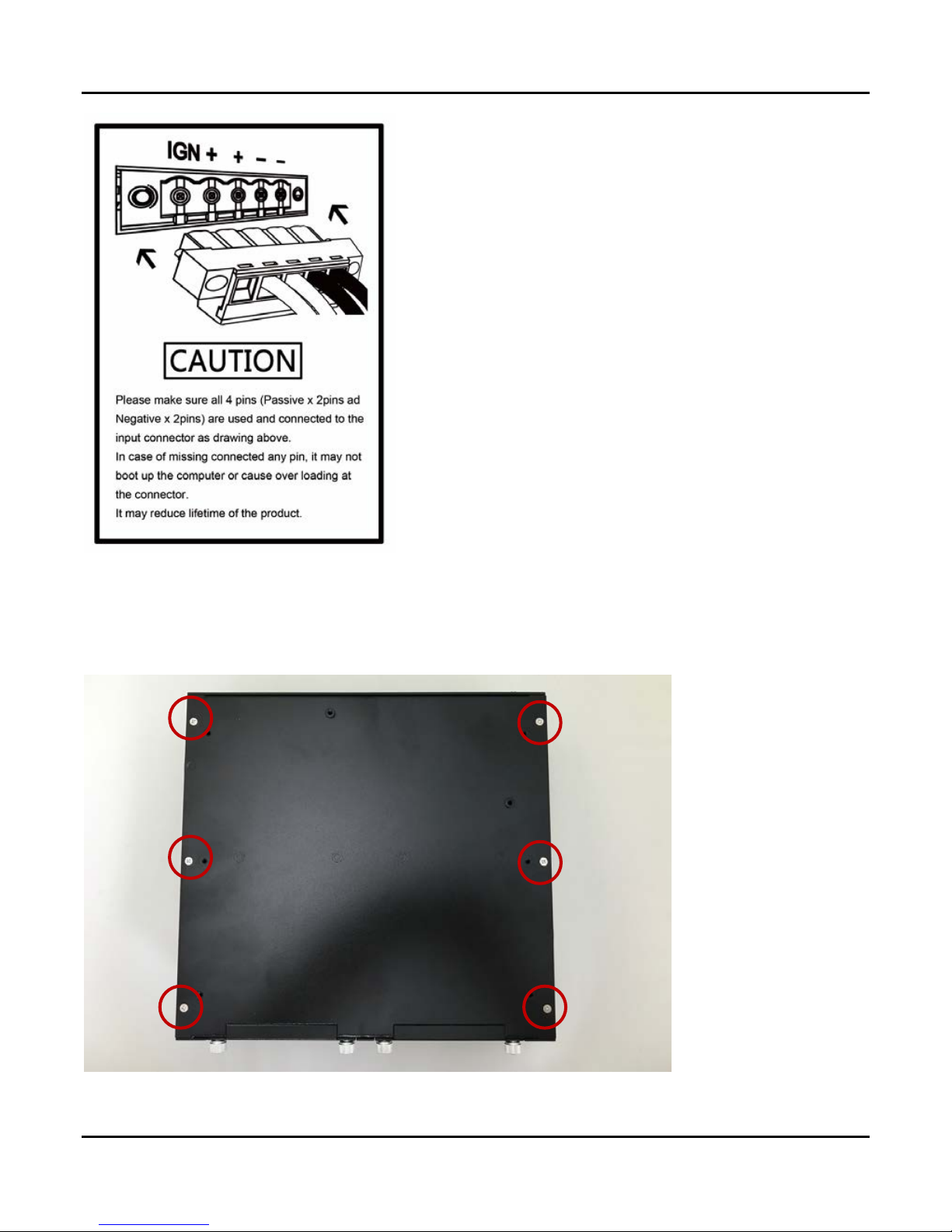

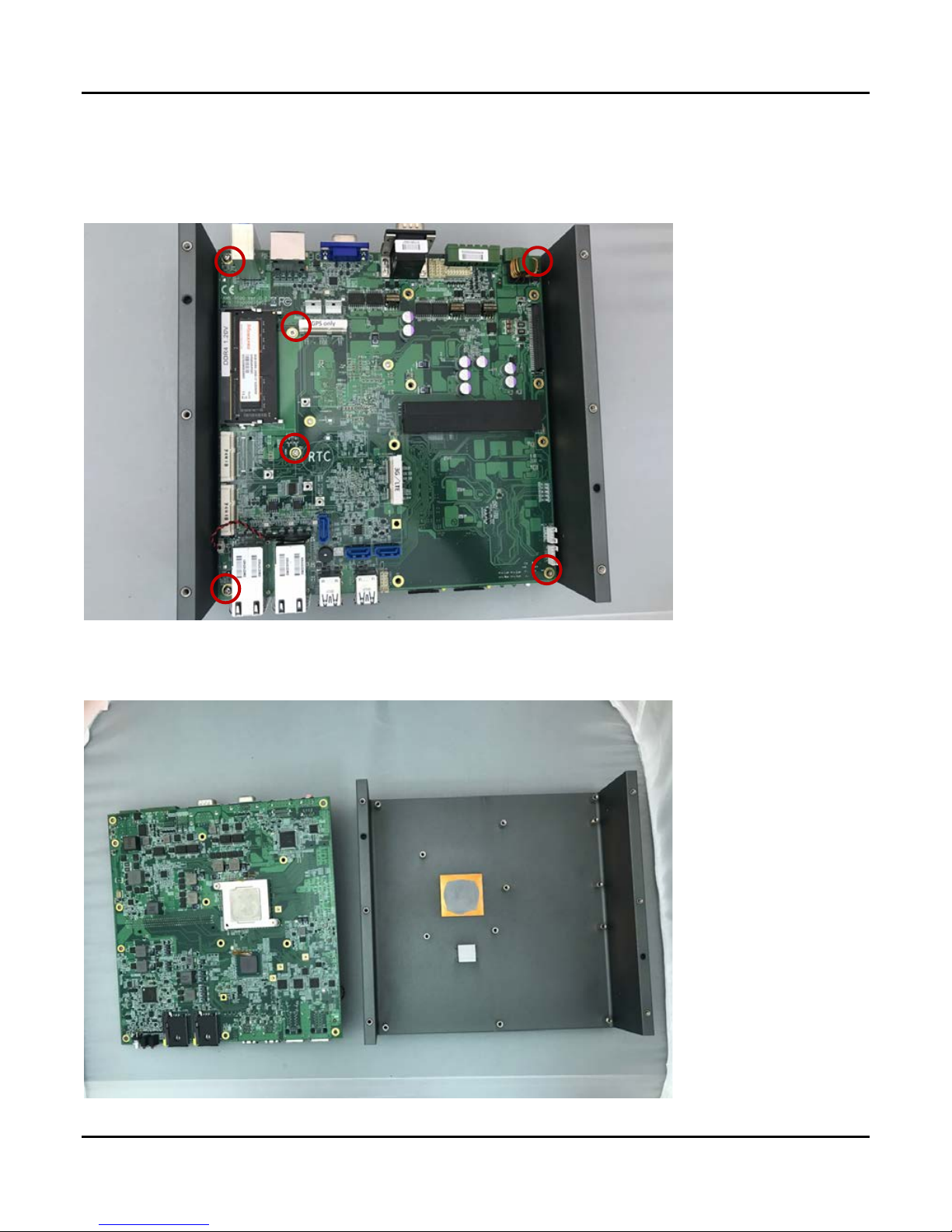

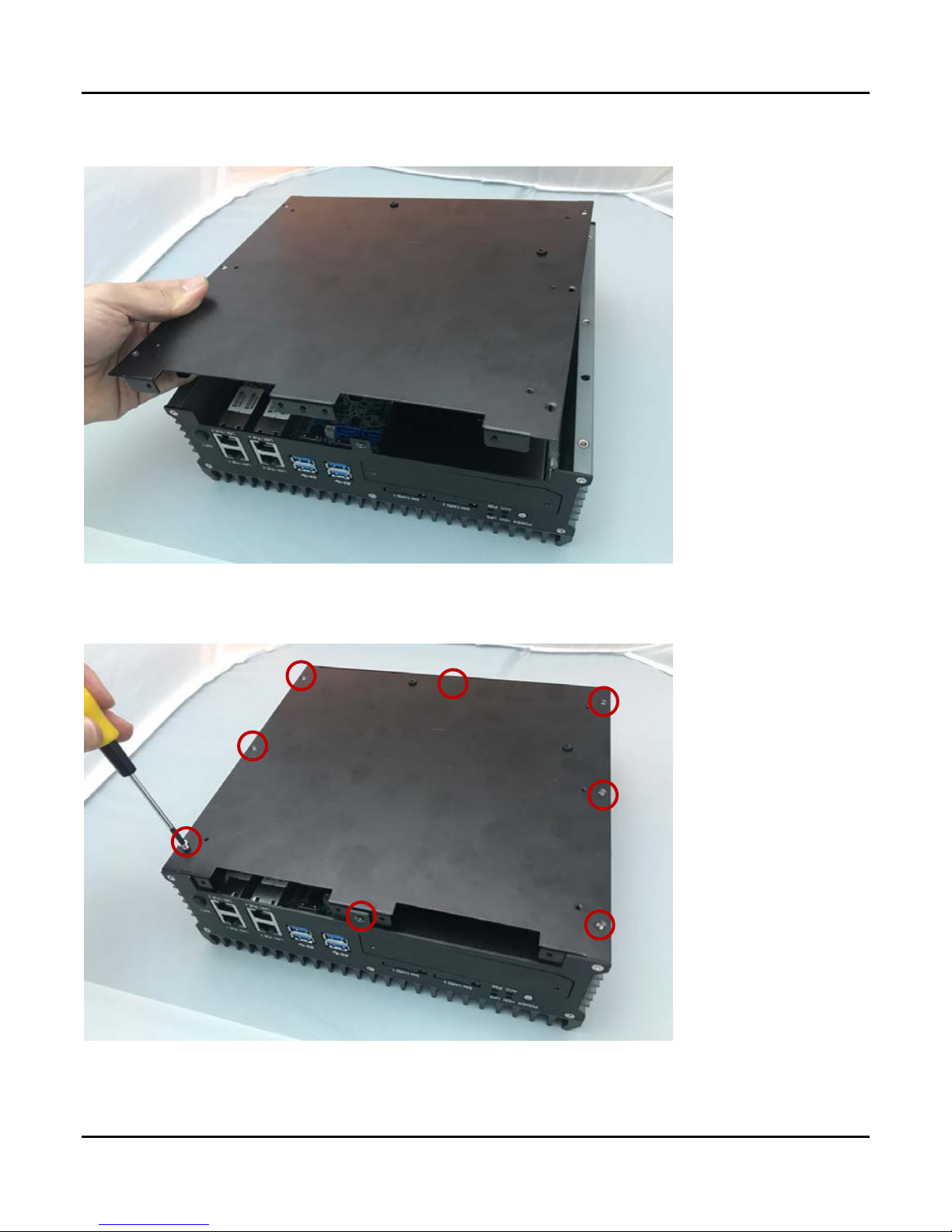

Step1. Unscrew the six screws of the Back Cover as shown in the picture.
User’s Manual Page 4-2
Page 54
4.0 System Installation

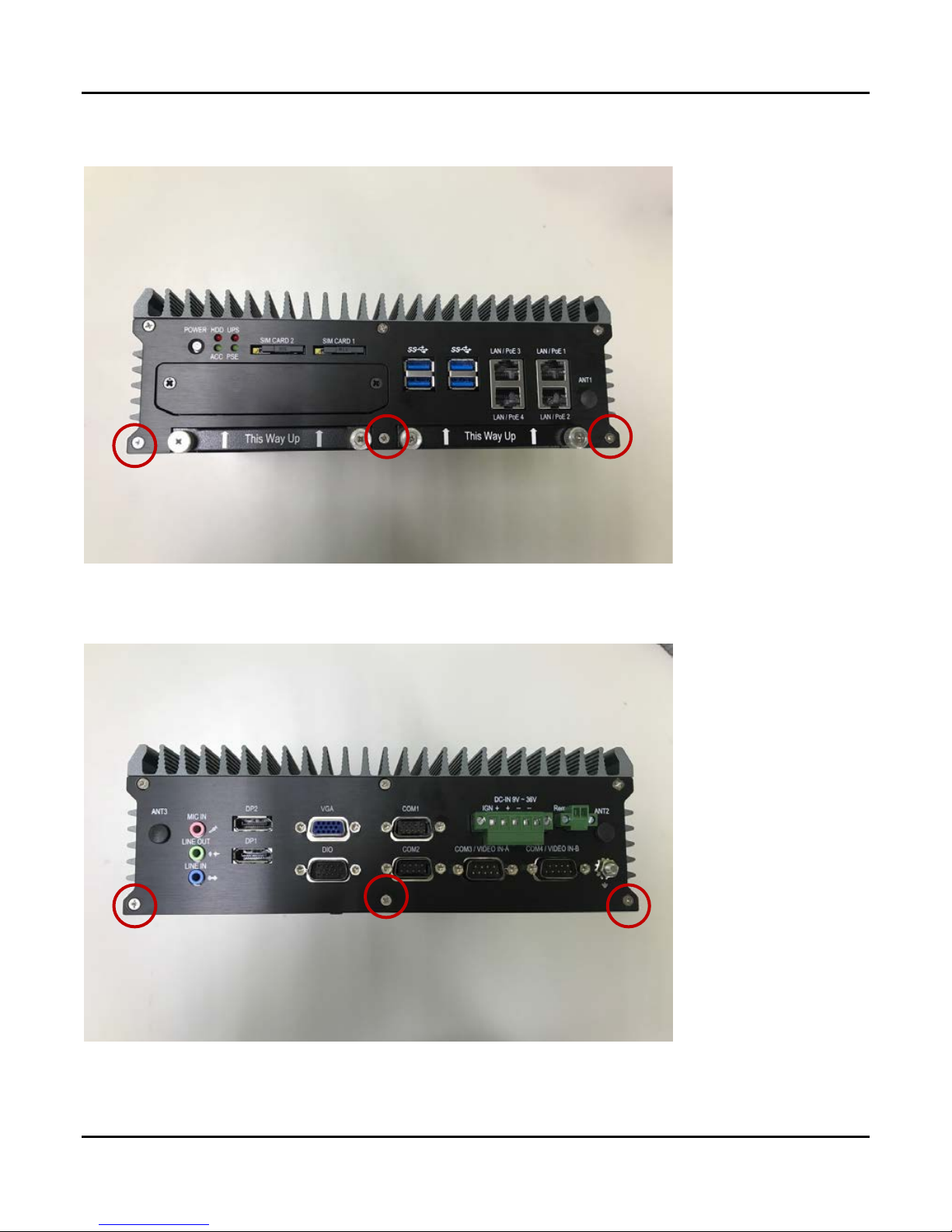

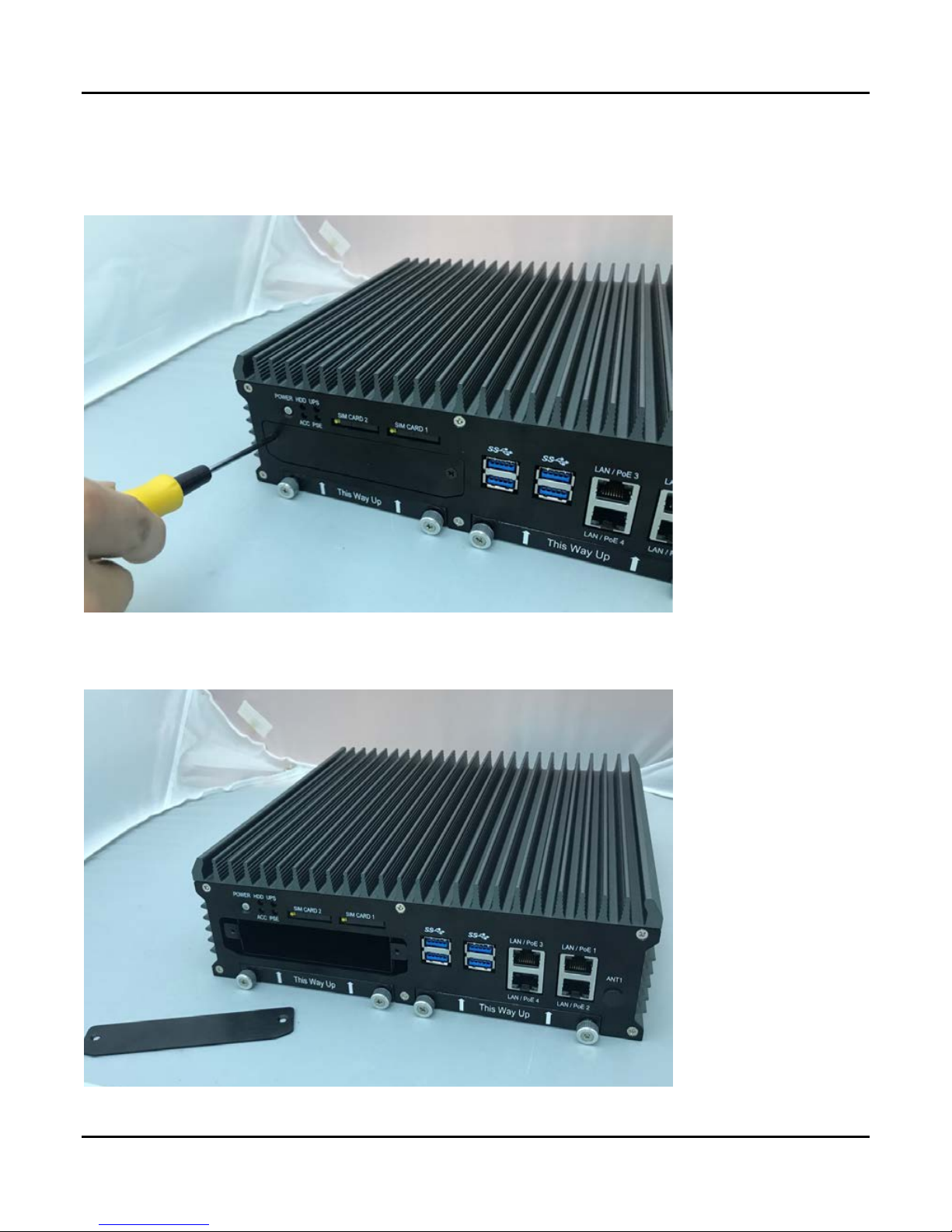

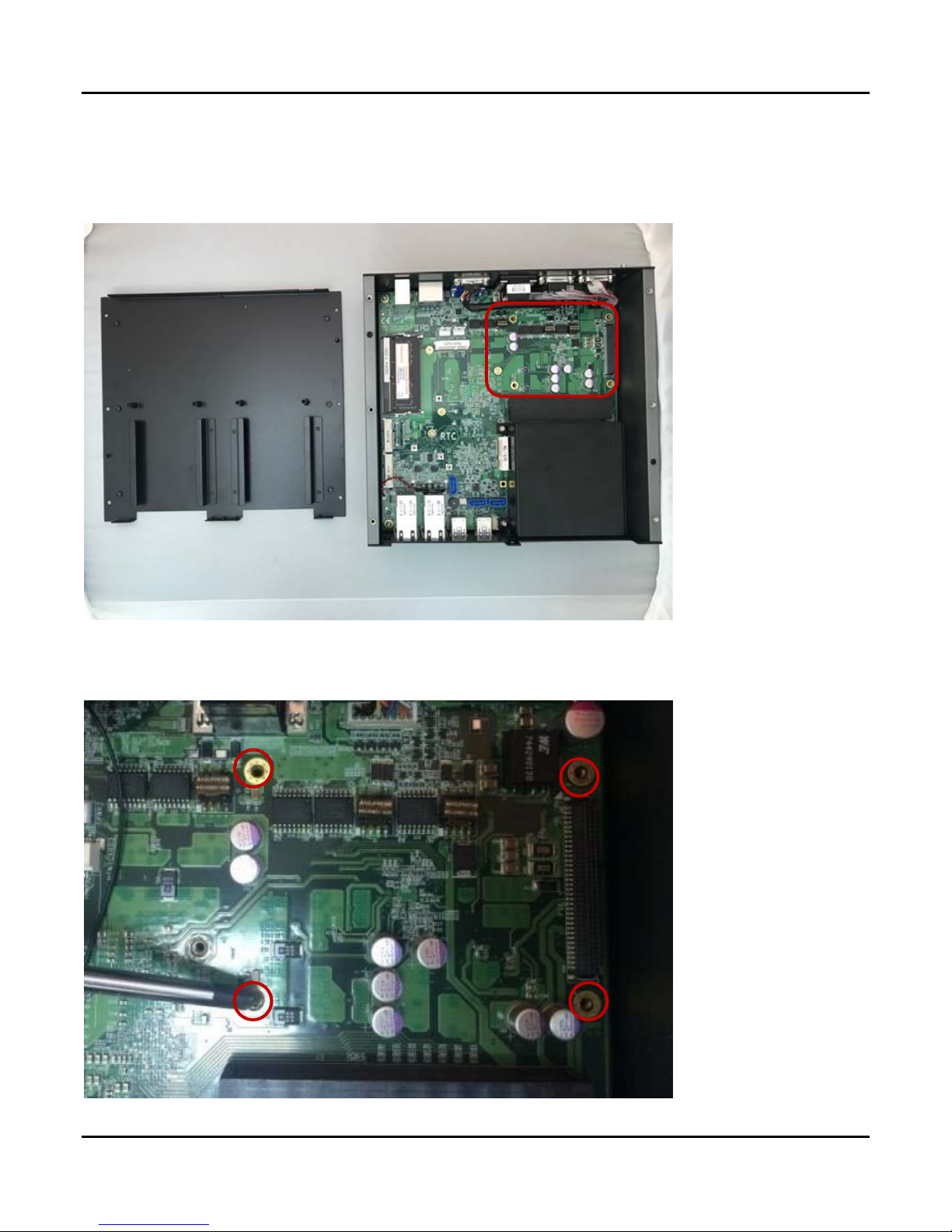

Step2. Unscrew the three screws of the Front Panel as shown in the picture.
Step3. Unscrew the three screws of the Rear Panel as shown in the picture.
User’s Manual Page 4-3
Page 55

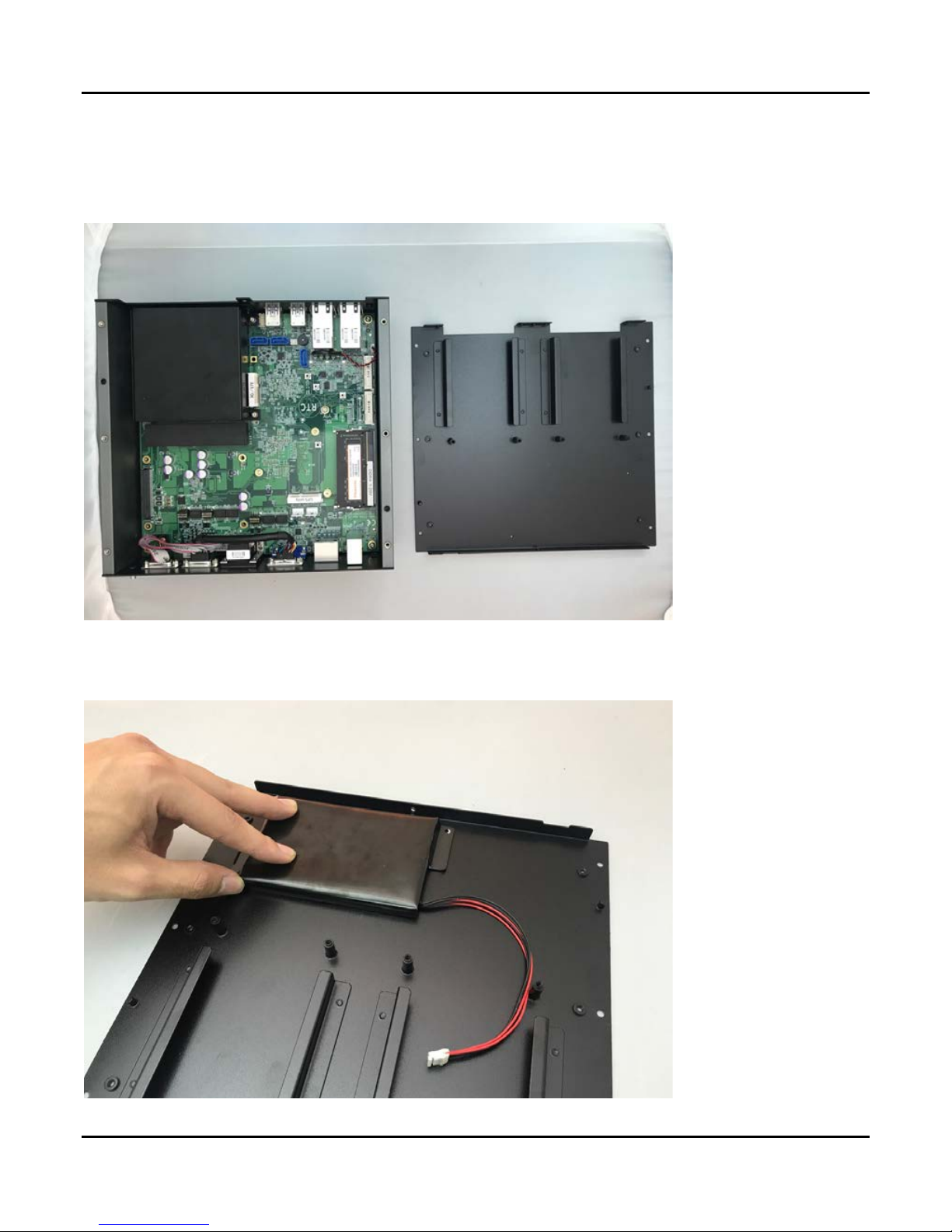

Step4. Open Bottom Cover as shown in the picture.
4.0 System Installation
R5Q) "-7<9//;-0)8*>.31)

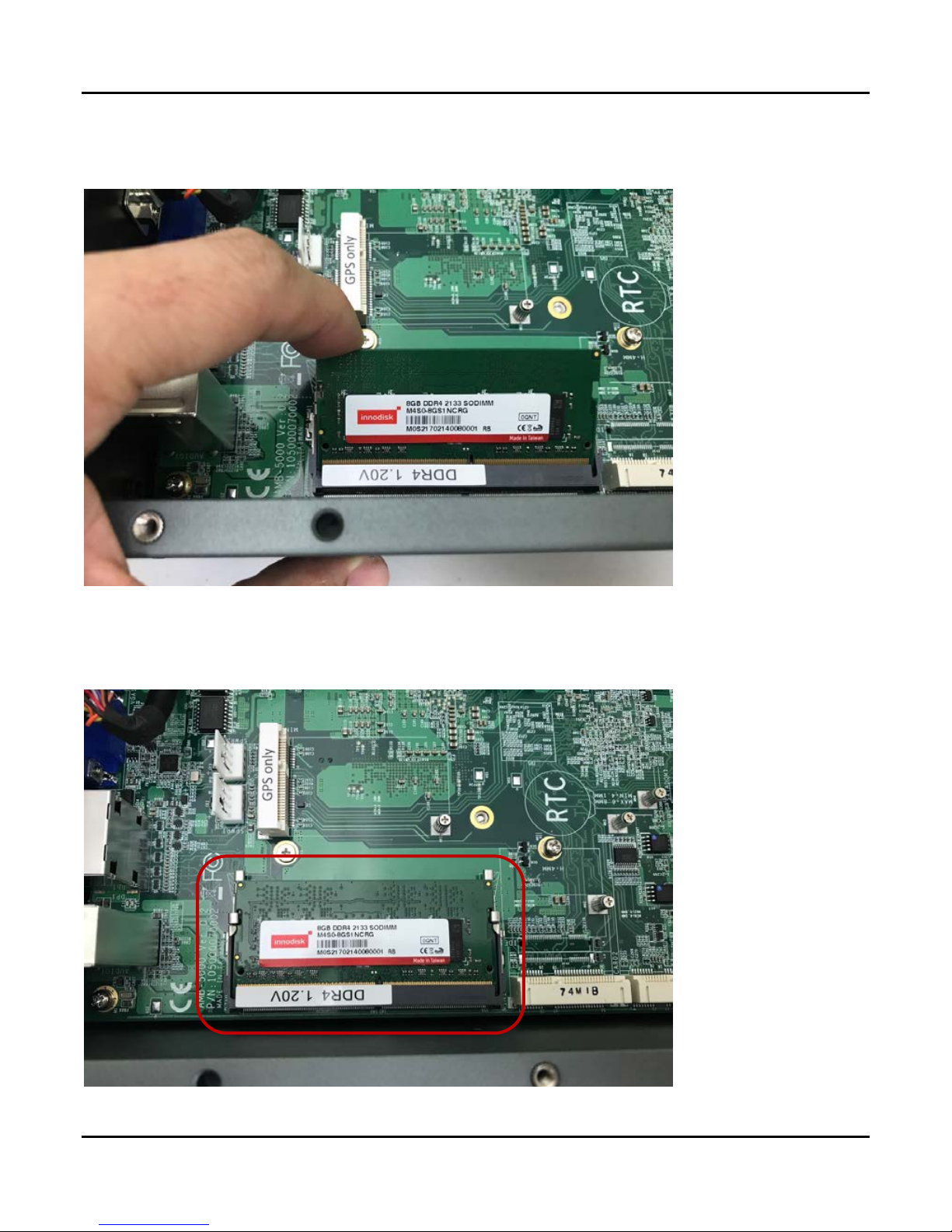

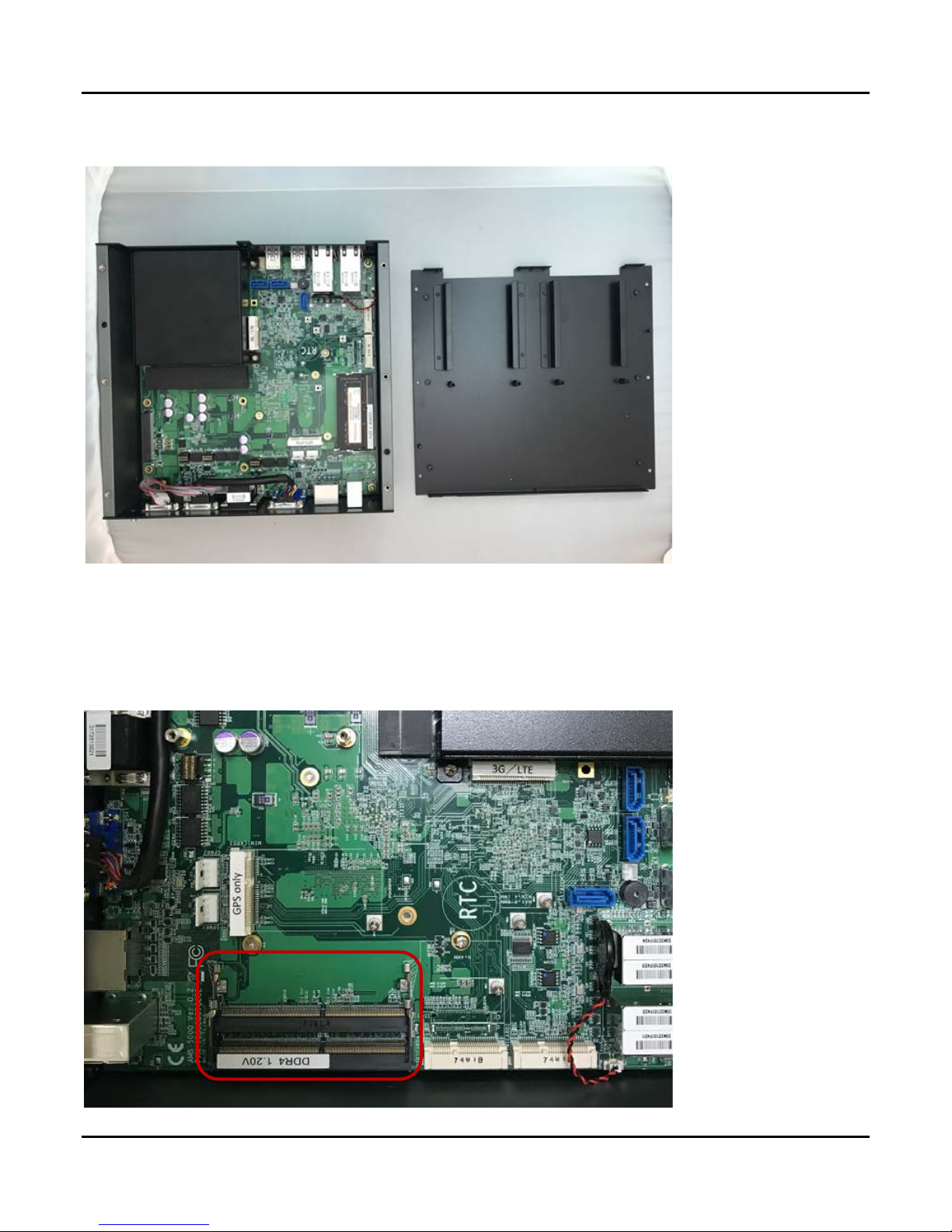

Step1. Put Memory on this place as shown in the picture.
User’s Manual Page 4-4
Page 56
4.0 System Installation
Step2. Hold the Memory with its notch aligned with the Memory socket of the board and insert it at a 30-degree angle into the socket as shown in the picture.
Step3. Press down on the Memory so that the tabs of the socket lock on both sides of the module as shown in the picture.
User’s Manual Page 4-5
Page 57
4.0 System Installation

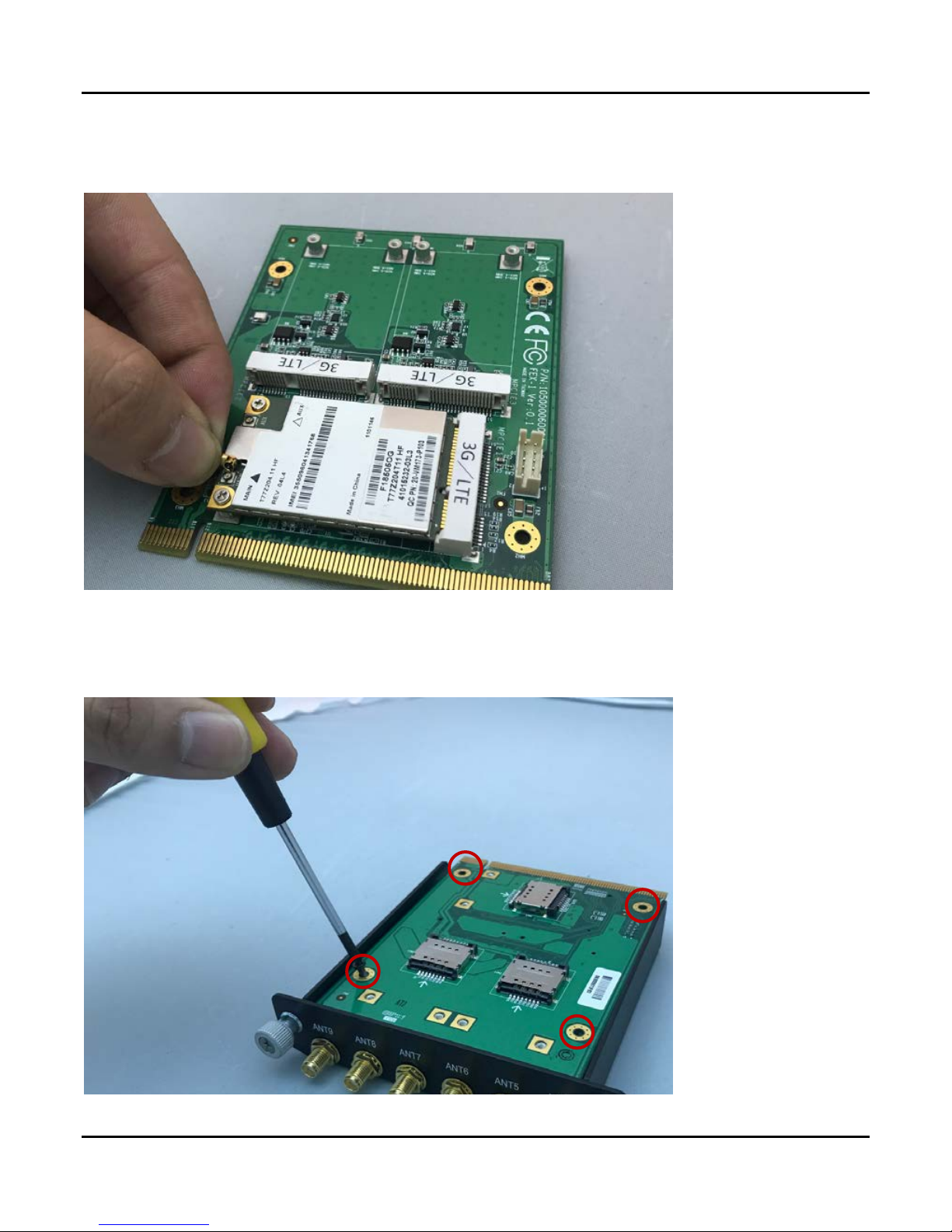

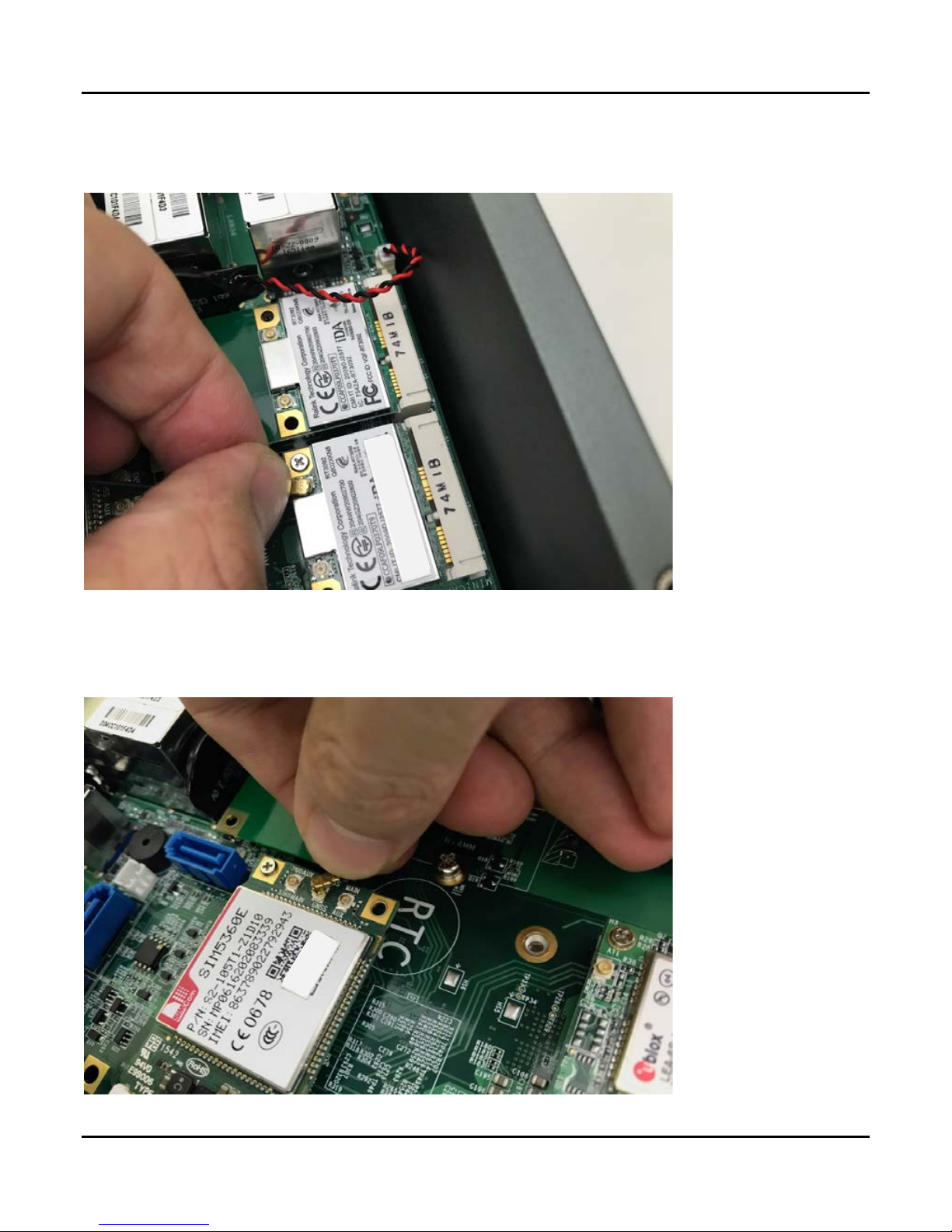

R5R) "-7<9//;-0)8"#")M2"*)'\49-7;.-)293E)JM2"*)DK)Q`PB$'L)

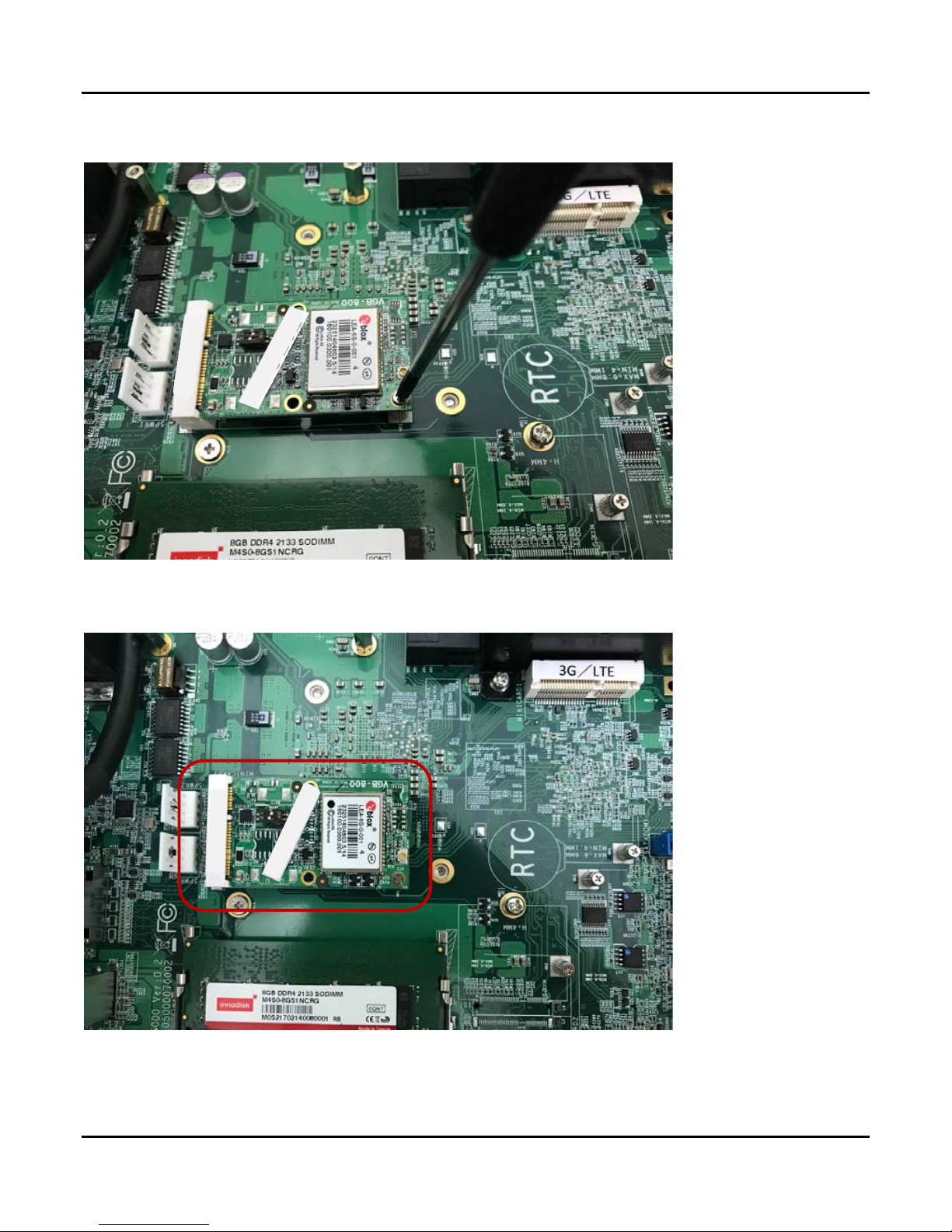

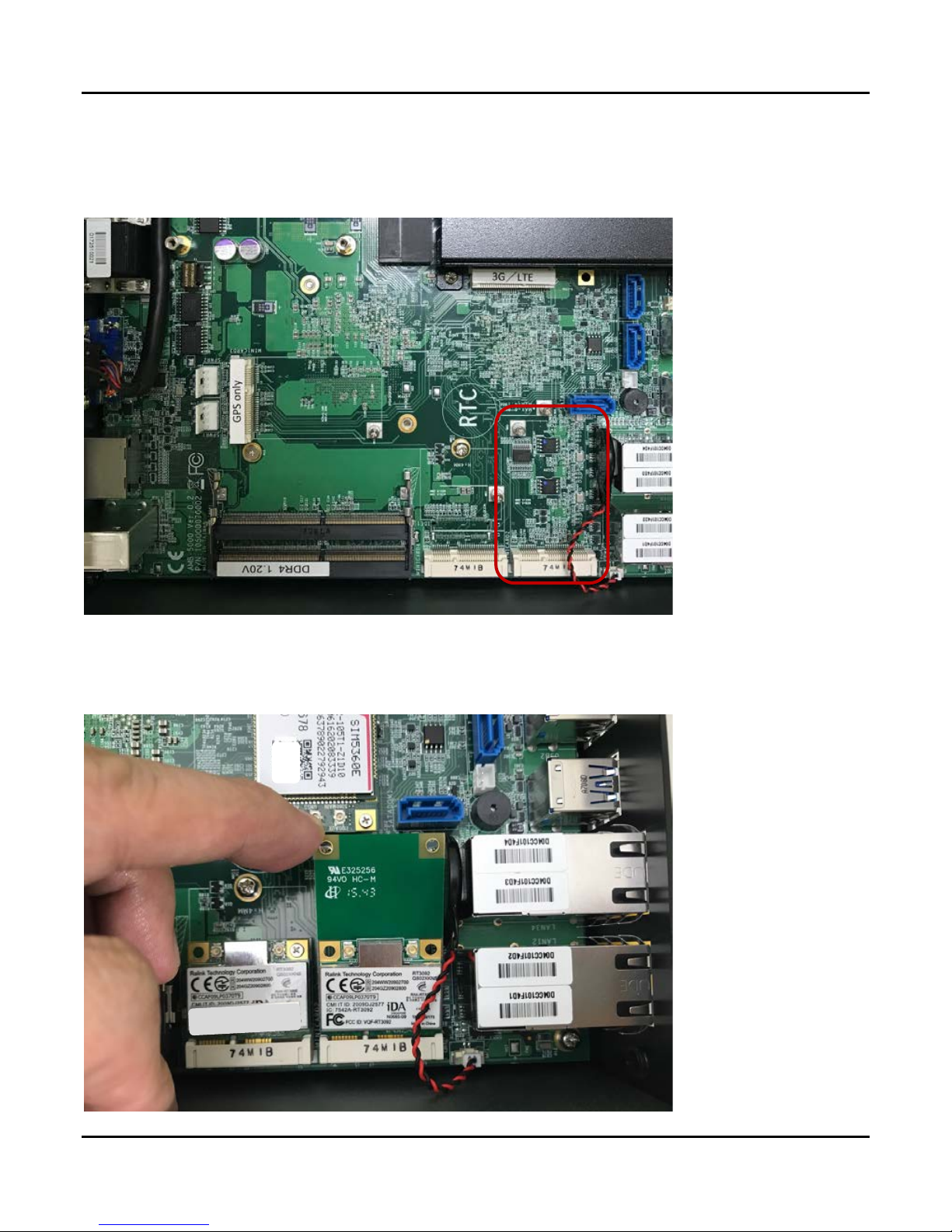

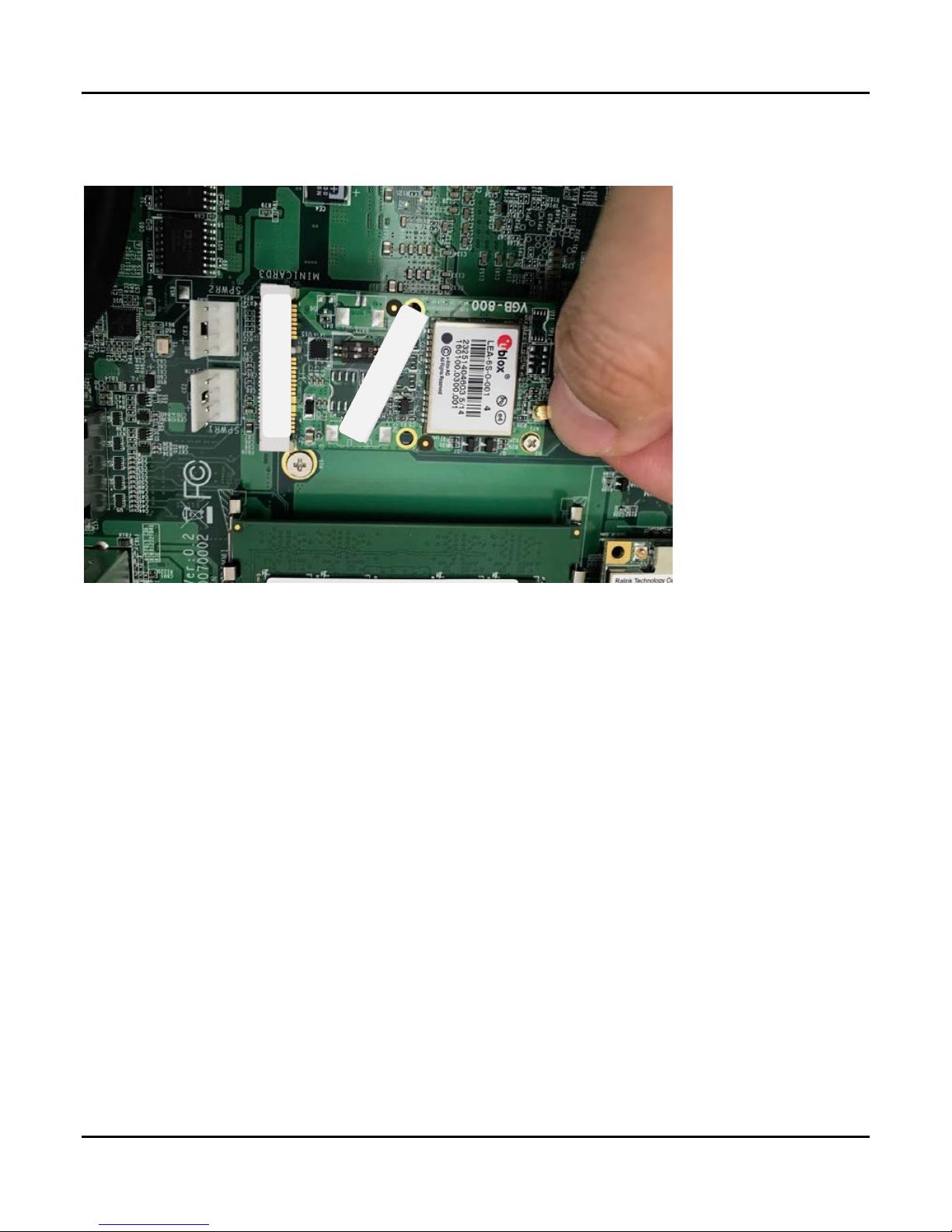

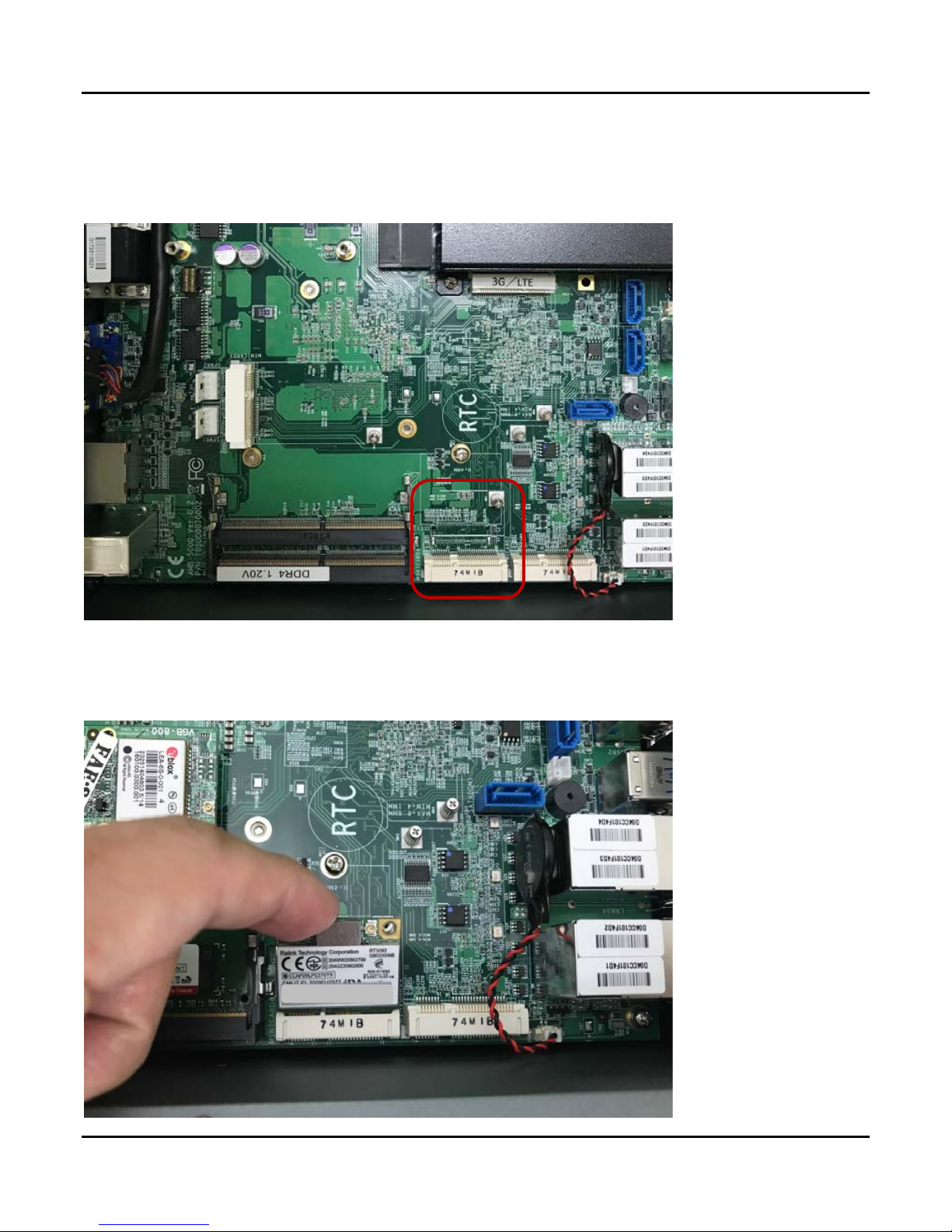

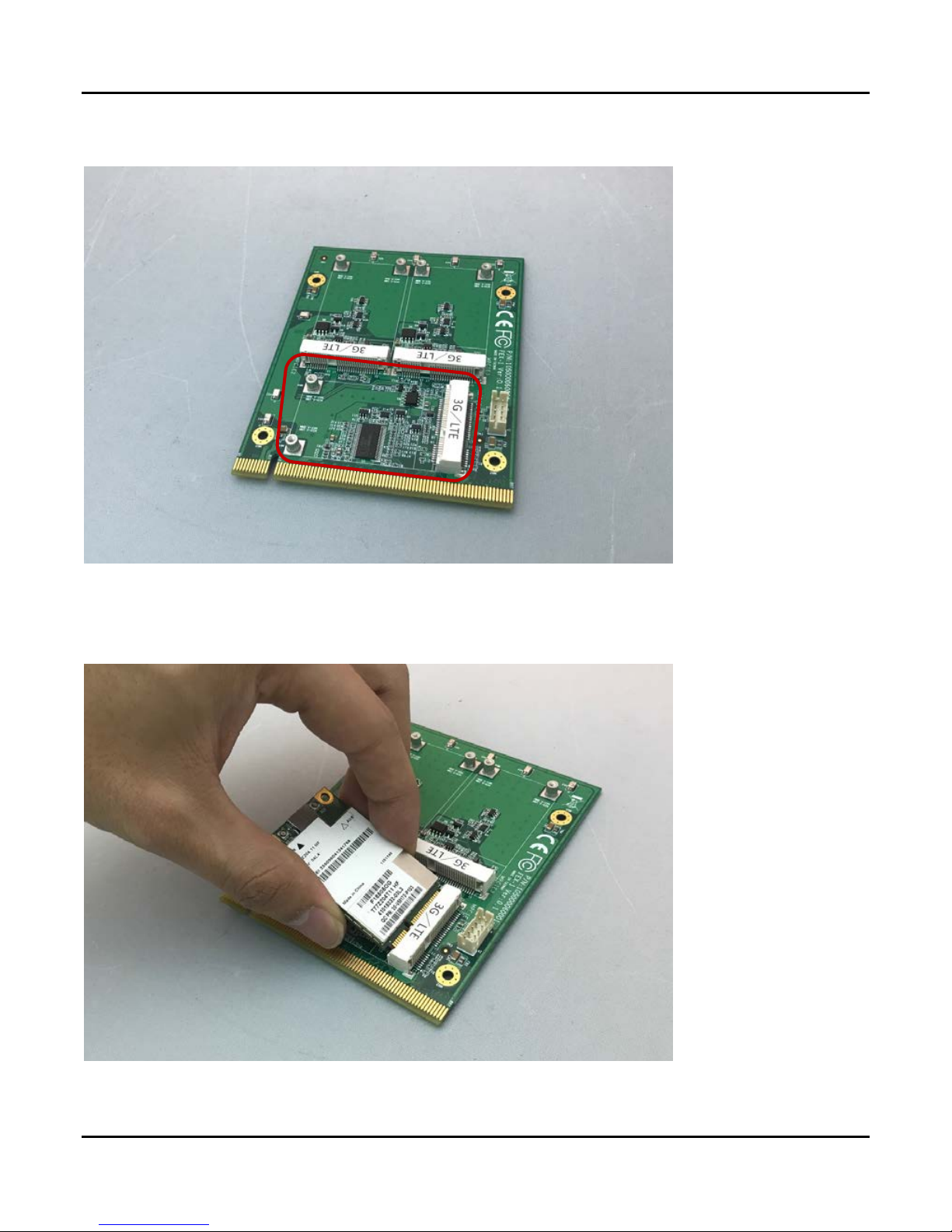

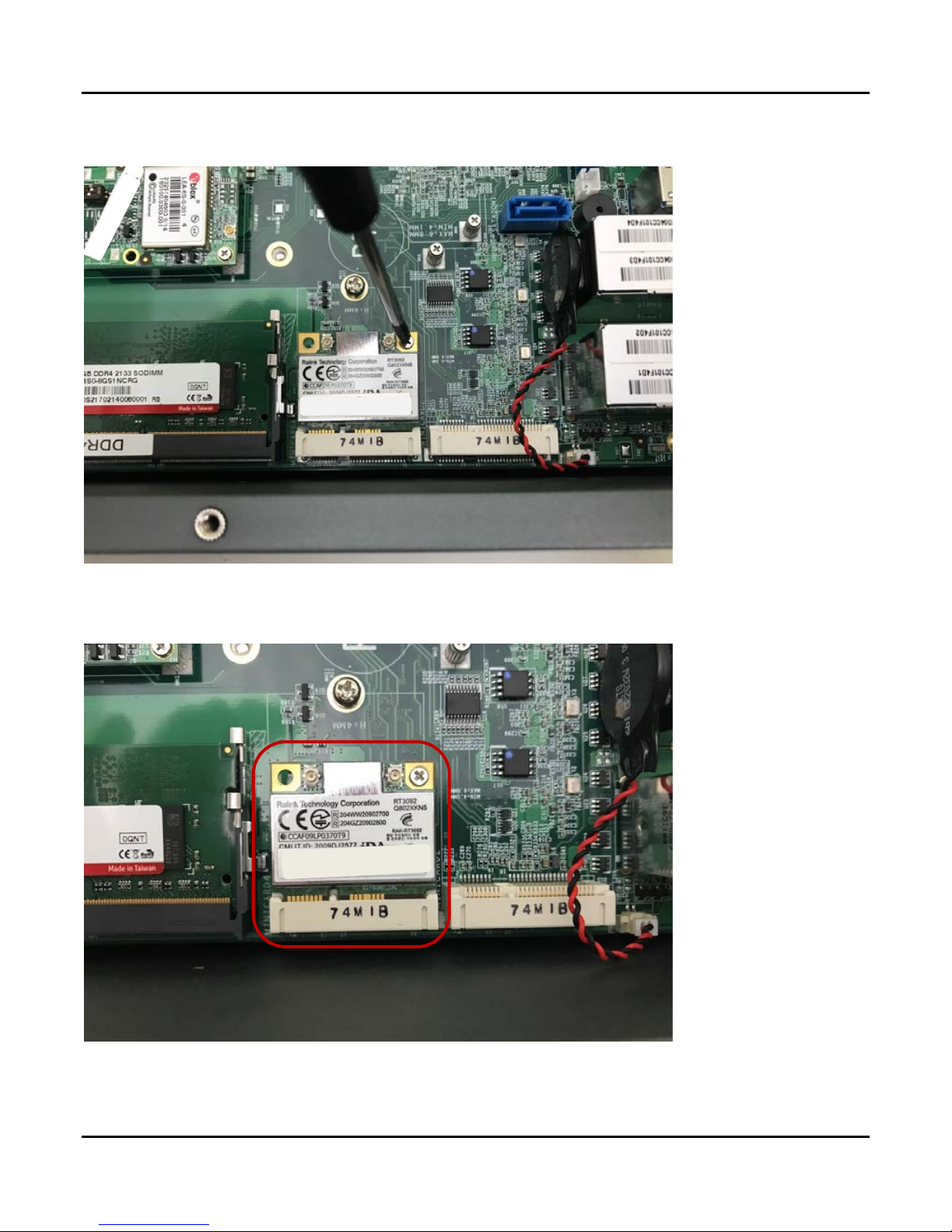

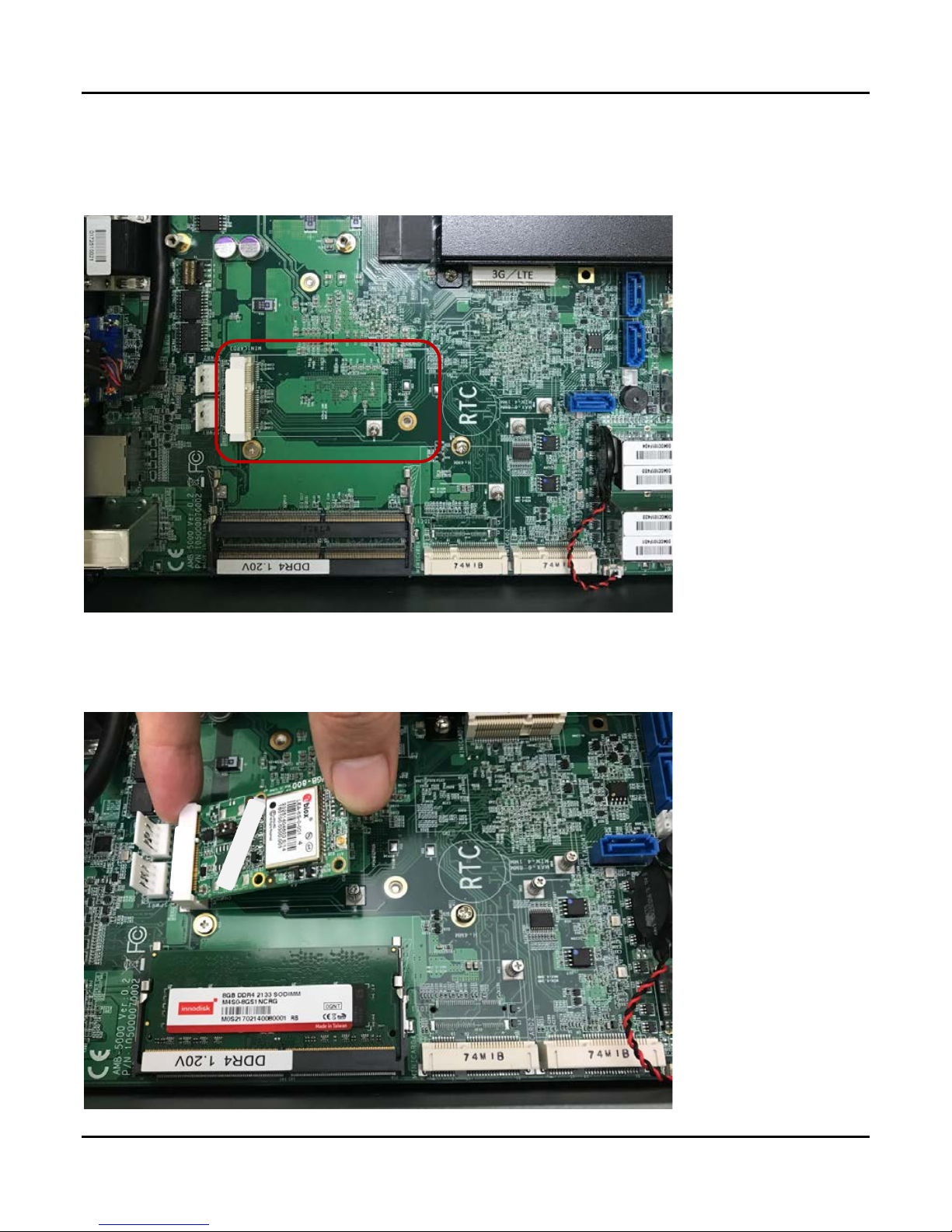

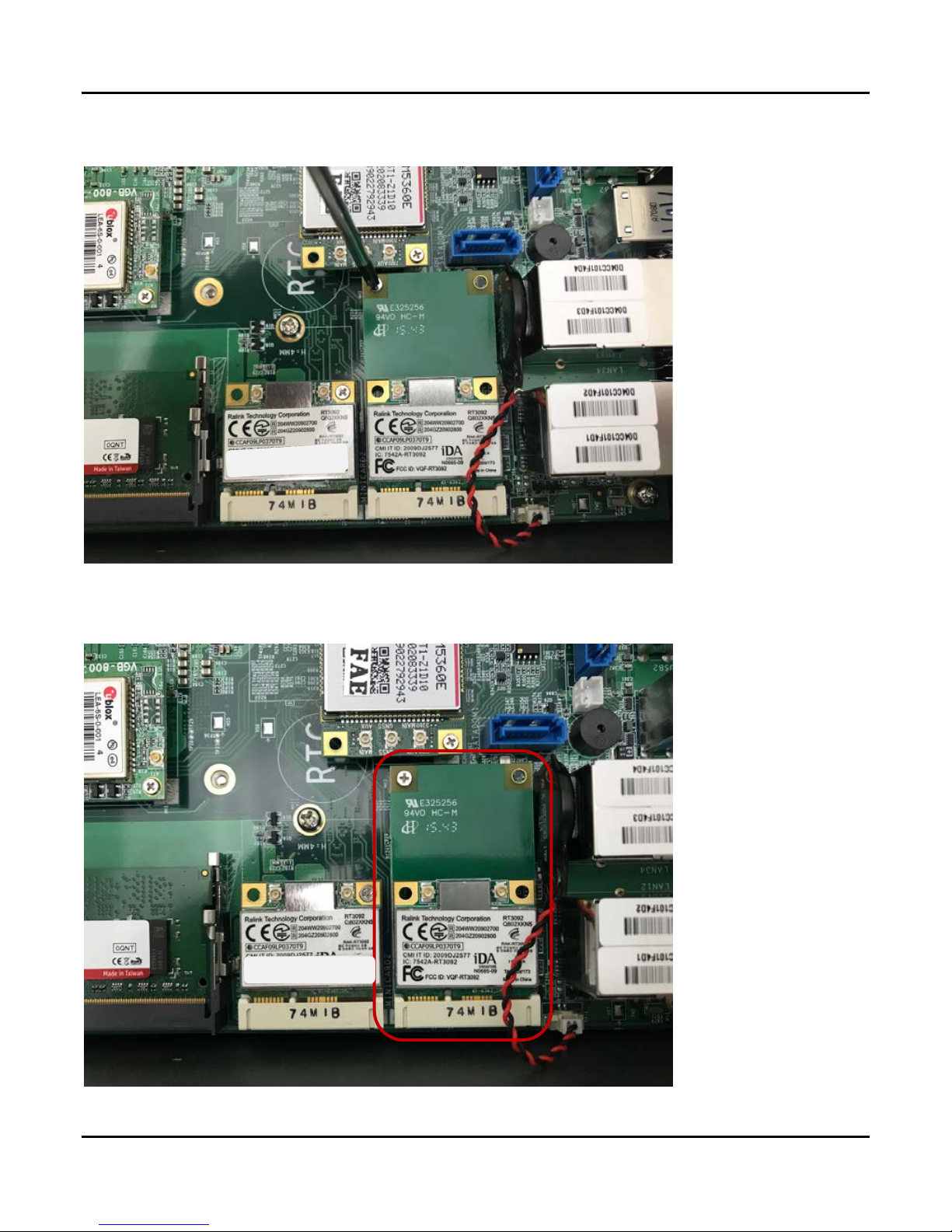

Step 1. Put MINI PCIe Expansion Card on this place as shown in the picture.
Step 2. Hold the Module with its notch aligned with the socket of the
board and insert it at a 30 degree angle into the socket as shown in the picture.
User’s Manual Page 4-6
Page 58

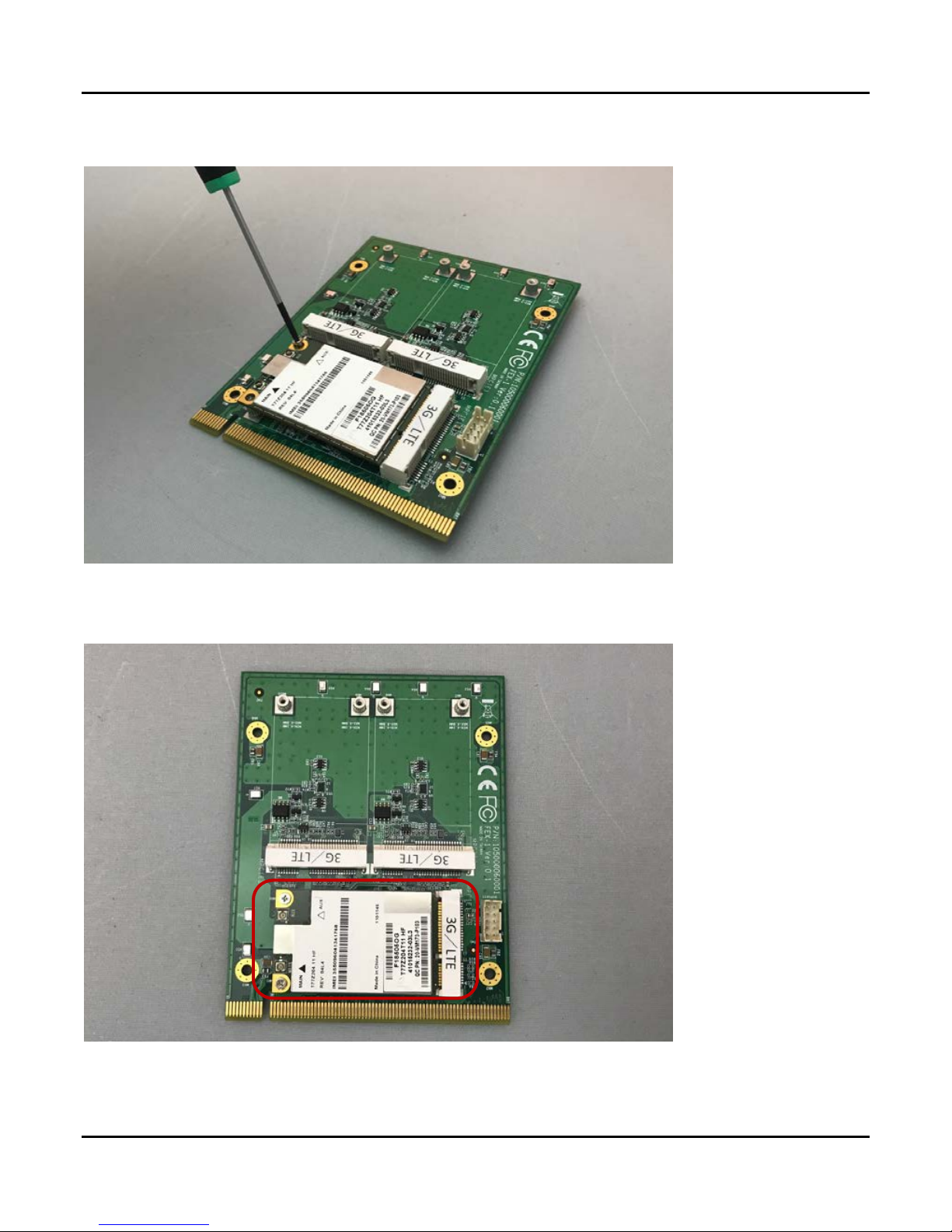

Step 3. Screw one screw to the holder as shown in the picture.
4.0 System Installation
Step 4. Done as shown in the picture.
User’s Manual Page 4-7
Page 59
4.0 System Installation
R5H) "-7<9//;-0)8"#")M2"*)'\49-7;.-)293E)JM2"*)OL)

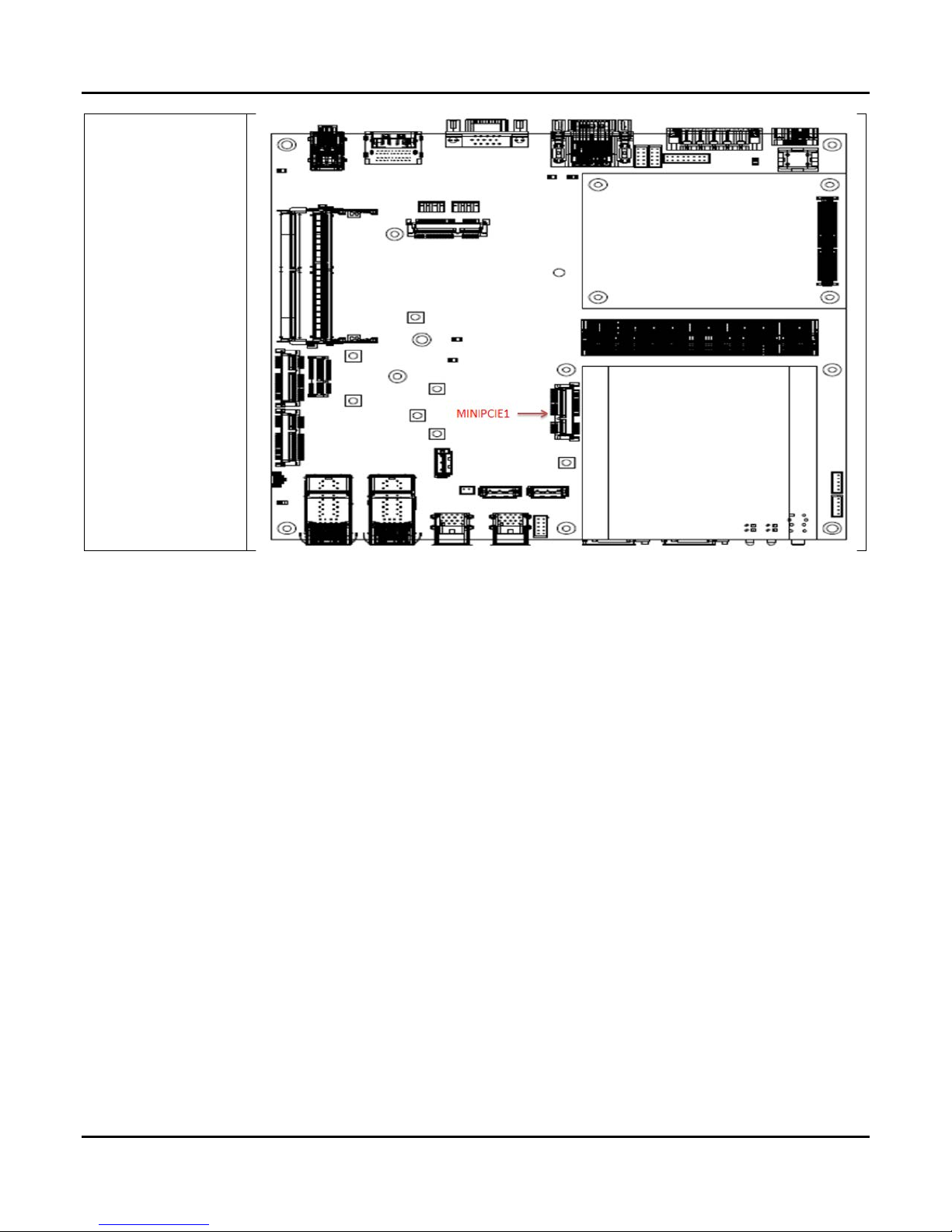

Step 1. Put MINI PCIe Expansion Card on this place as shown in the picture.
Step 2. Hold the Module with its notch aligned with the socket of the board and insert it
at a 30 degree angle into the socket as shown in the picture.
User’s Manual Page 4-8
Page 60
Step 3. Screw one screw to the holder as shown in the picture.
4.0 System Installation
Step 4. Done as shown in the picture.
User’s Manual Page 4-9
Page 61
4.0 System Installation
R5T) "-7<9//;-0)8"#")M2"*)'\4 9-7;.-)293E)JM2"*)QL)
Step 1. Put MINI PCIe Expansion Card on this place as shown in the picture.
Step 2. Hold the Module with its notch aligned with the socket of the board and insert it
at a 30 degree angle into the socket as shown in the picture.
User’s Manual Page 4-10
Page 62
Step 3. Screw one screw to the holder as shown in the picture.
4.0 System Installation
Step 4. Done as shown in the picture.
User’s Manual Page 4-11
Page 63
4.0 System Installation
R5V) "-7<9//;-0)8"#")M2"*)'\49-7;.-)293E)JM2"*)RL)
Step 1. Put MINI PCIe Expansion Card on this place as shown in the picture.
Step 2. Hold the Module with its notch aligned with the socket of the board and insert it
at a 30 degree angle into the socket as shown in the picture.
User’s Manual Page 4-12
Page 64
Step 3. Screw one screw to the holder as shown in the picture.
4.0 System Installation
Step 4. Done as shown in the picture.
User’s Manual Page 4-13
Page 65
4.0 System Installation
R5X) "-7<9//;-0)"-<*3-9/)@-<*--9)29]/*)

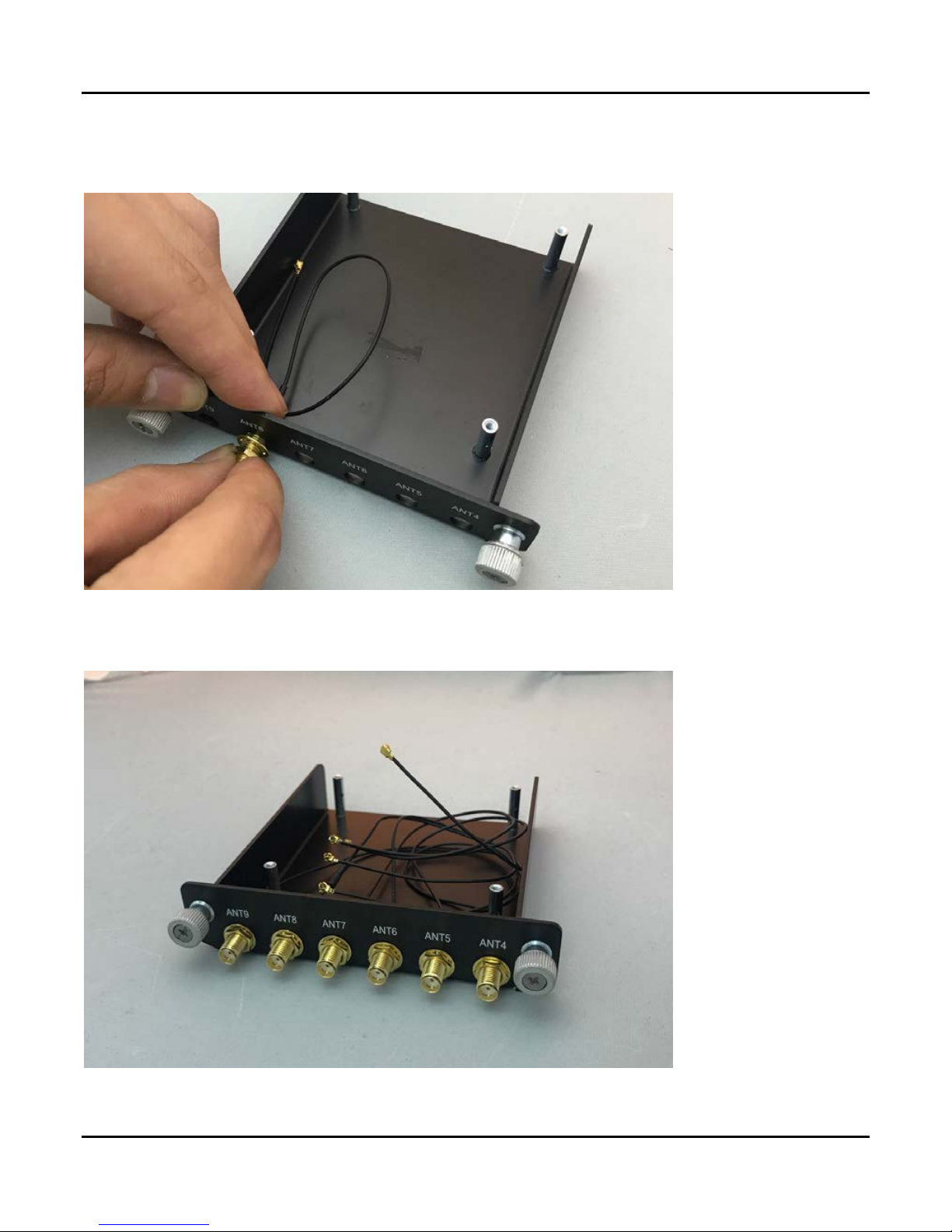

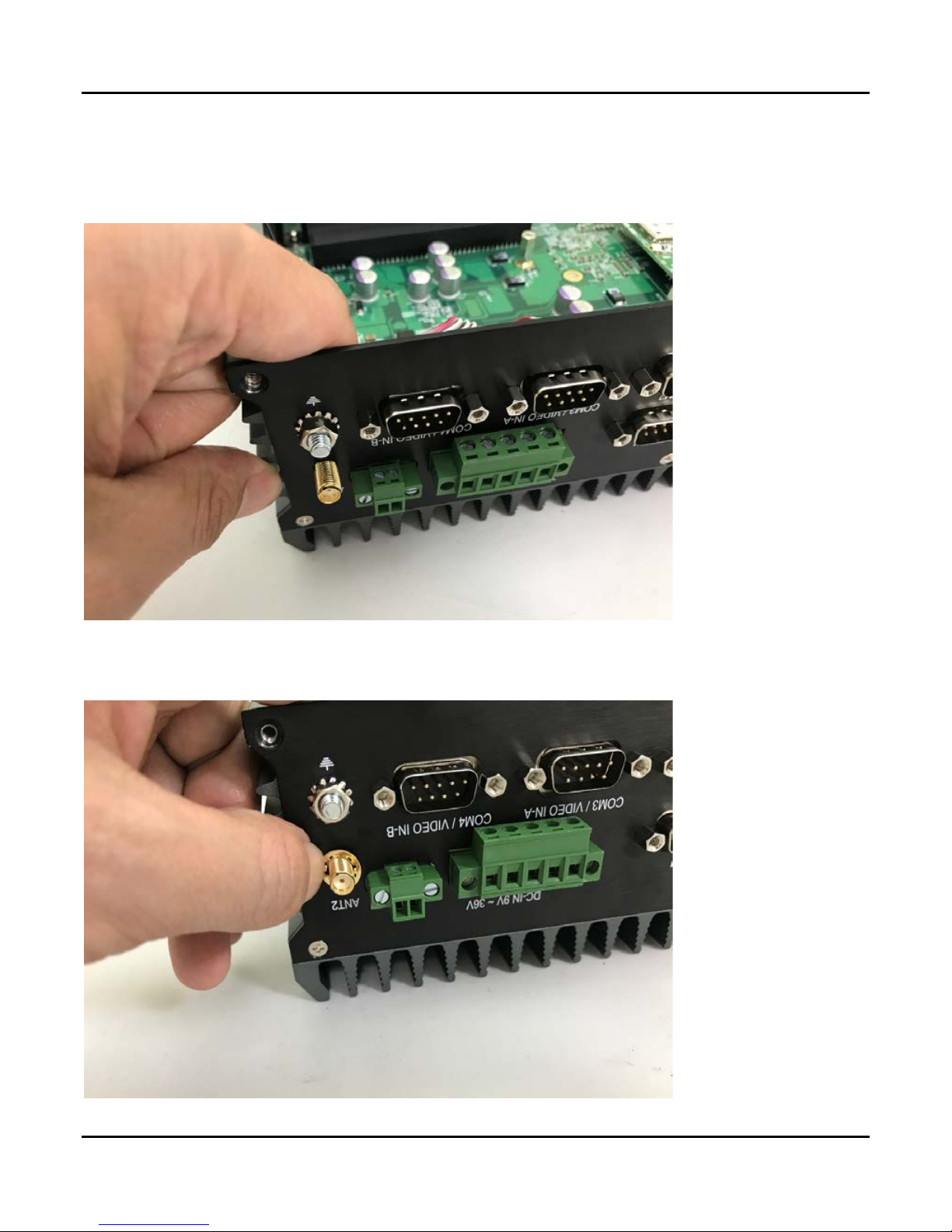

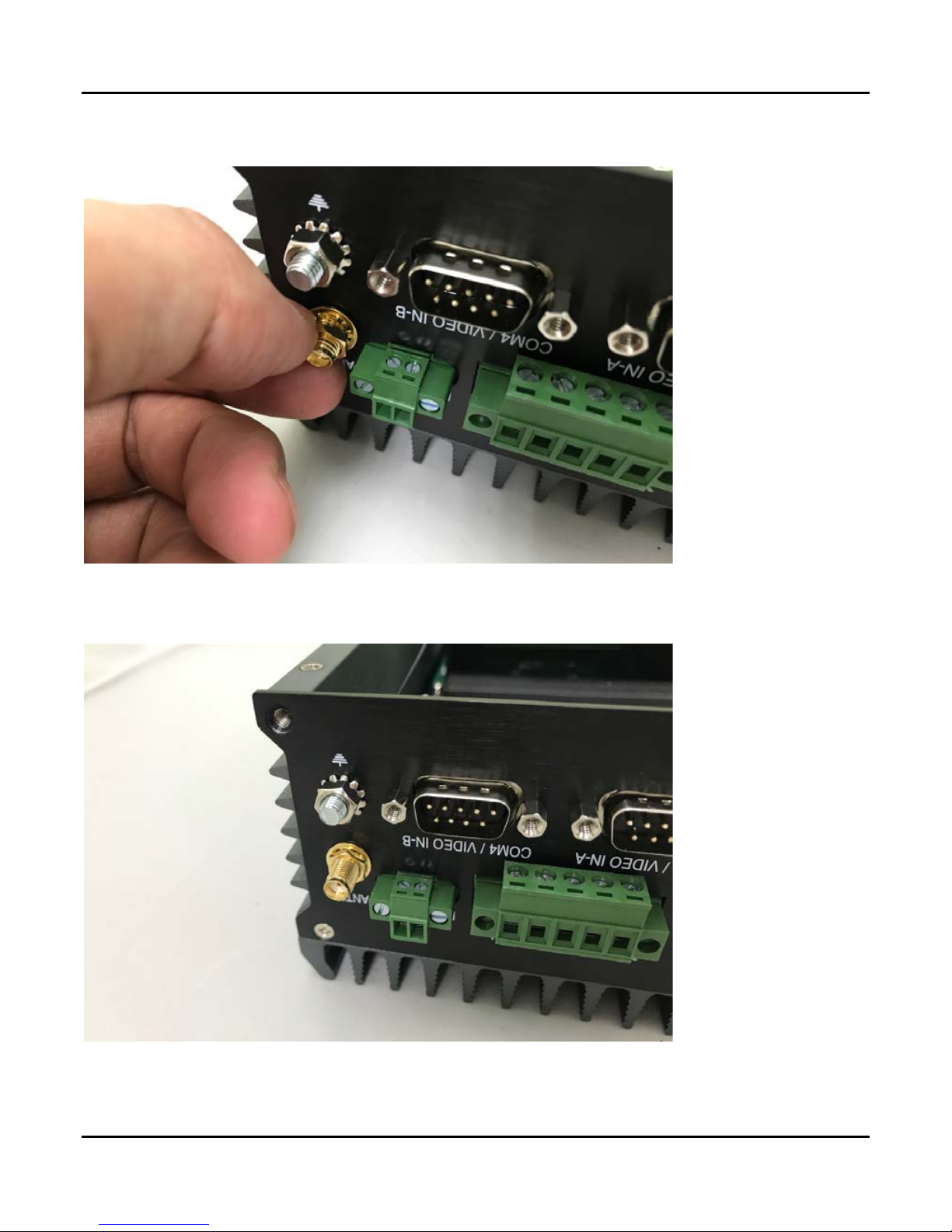

Step 1. Take the SMA Connector and Plug into IO Panel as shown in the picture.
Step 2. Put the Washer into the SMA Connector as shown in the picture.
User’s Manual Page 4-14
Page 66
4.0 System Installation
Step 3. Put the Oring to SMA Connector and tighten as shown in the picture.
Step 4. Done as shown in the picture.
User’s Manual Page 4-15
Page 67
4.0 System Installation
Step 5. Take the Ipex Connector and press on the wifi module asshown in the picture.(Wifi)

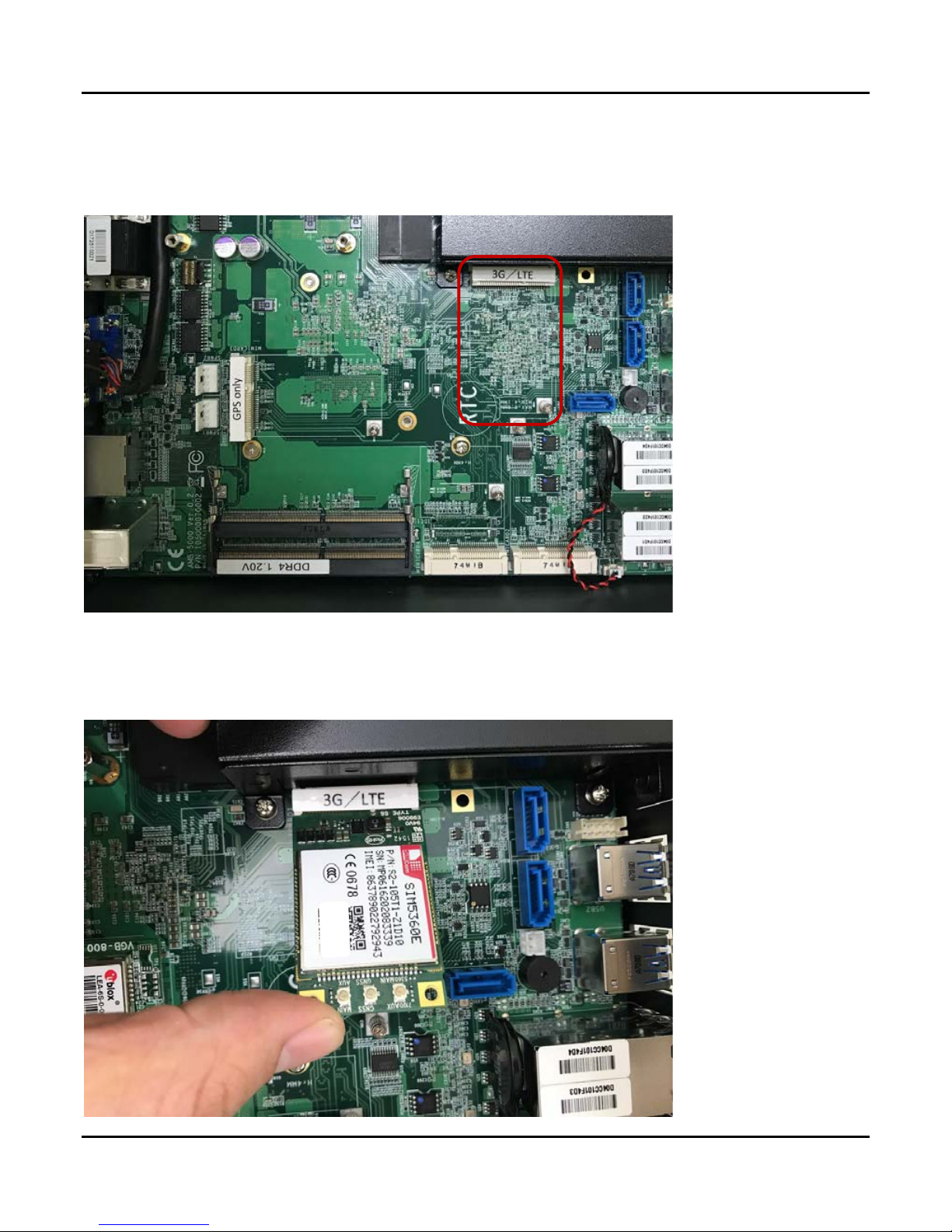

Step 6. Take the Ipex Connector and press on the 3G module as shown in the picture. (3G/LTE)
User’s Manual Page 4-16
Page 68
4.0 System Installation
Step 7. Take the Ipex Connector and press on the GPS module as shown in the picture. (GPS, only support passive Antenna)
User’s Manual Page 4-17
Page 69
R5Y) "-7<9//;-0)!"8)293E)

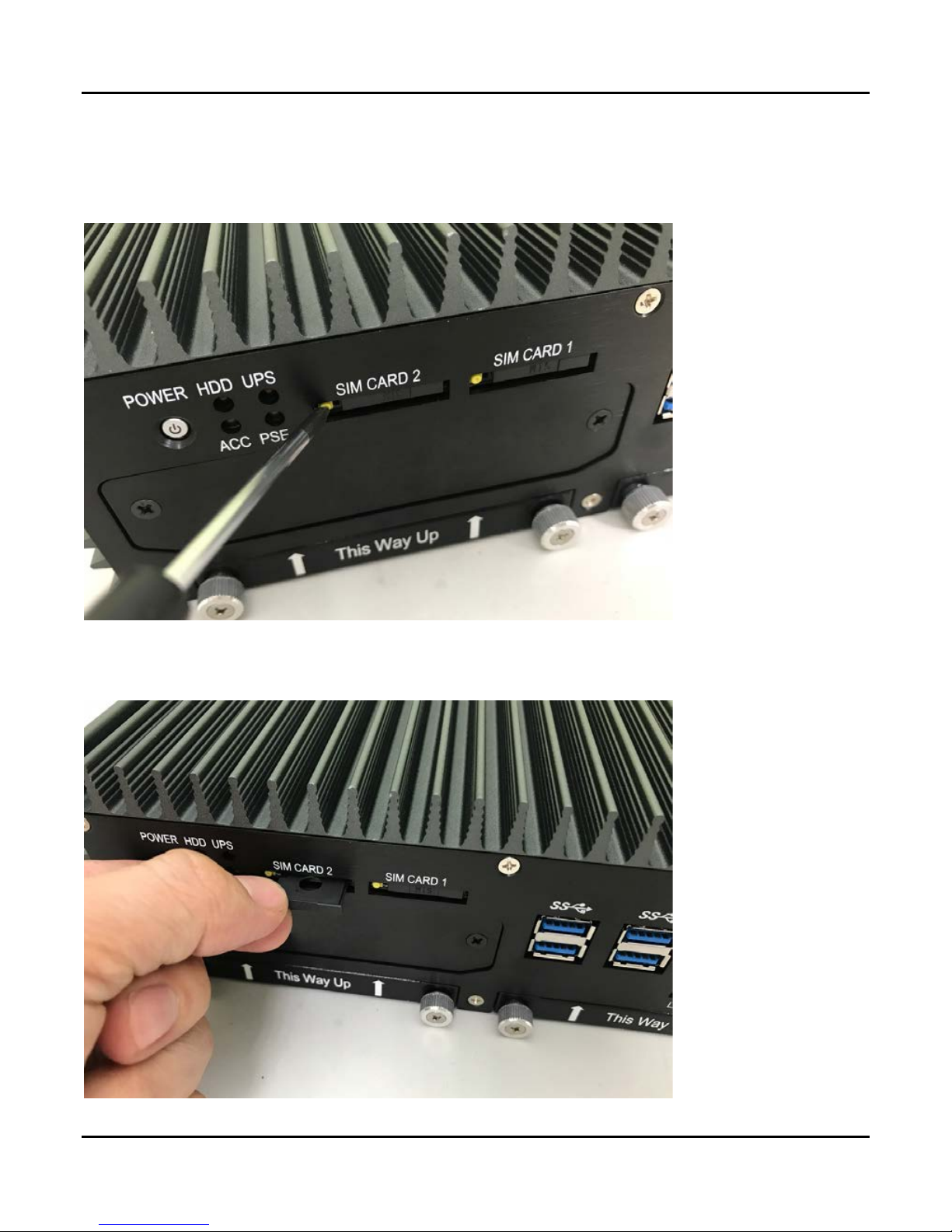

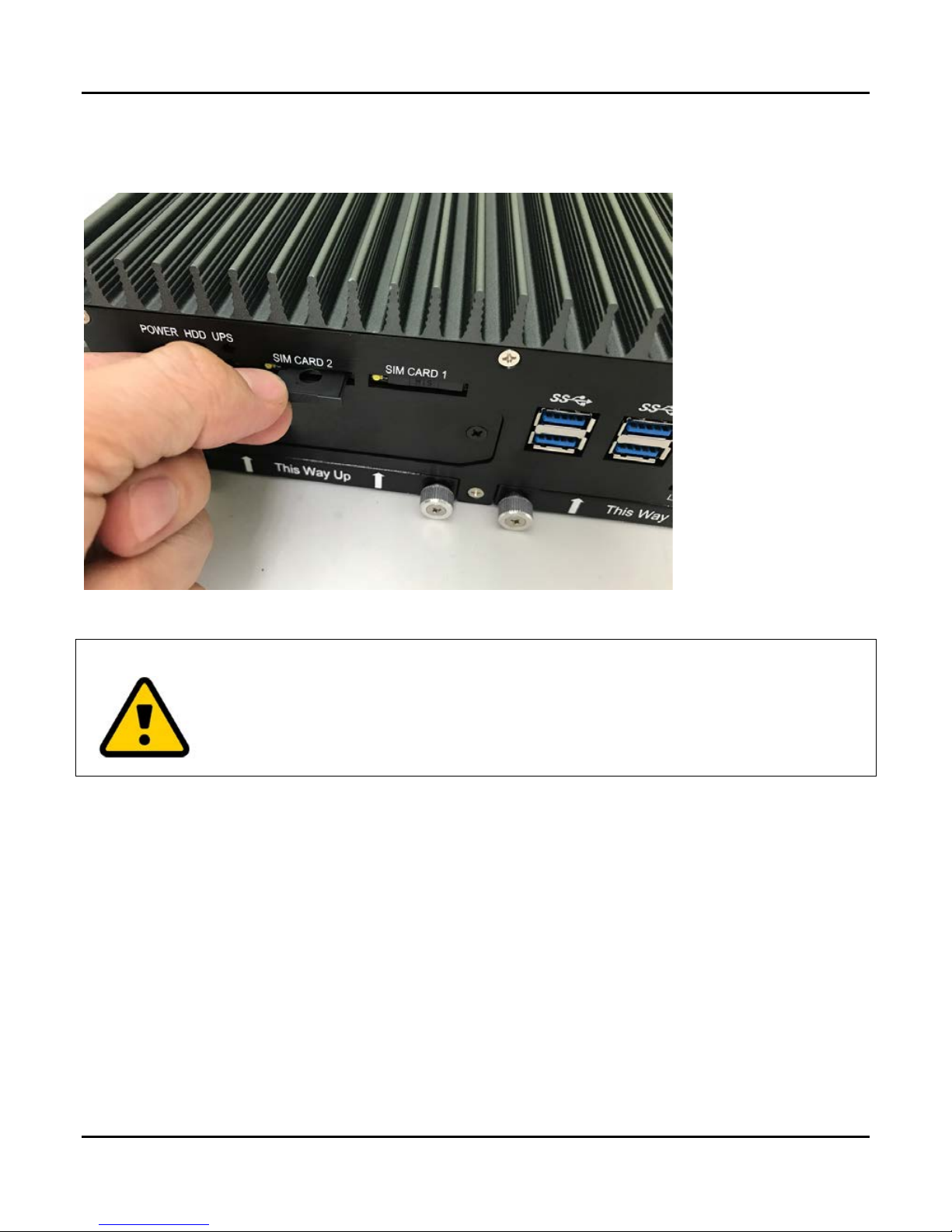

Step 1. Use thin stick to push the button as shown in the picture.
4.0 System Installation
Step 2. Take the holder away from front panel as shown in the picture.
User’s Manual Page 4-18
Page 70
4.0 System Installation
Step 3. Put your SIM Card into the holder and take the SIM card holder and Insert it into the socket as shown in the picture.
Attention:
When insert a SIM card to the SIM card holder, please remove the main
power at input to avoid undetectable SIM card.
User’s Manual Page 4-19
Page 71
R5DI) "-7<9//;-0)C'!GRB)8.E:/*)
Step 1. Unscrew two screws of the FES panel as shown in the picture.
4.0 System Installation
Step 2. Take off the FES panel as shown in the picture.
User’s Manual Page 4-20
Page 72
4.0 System Installation

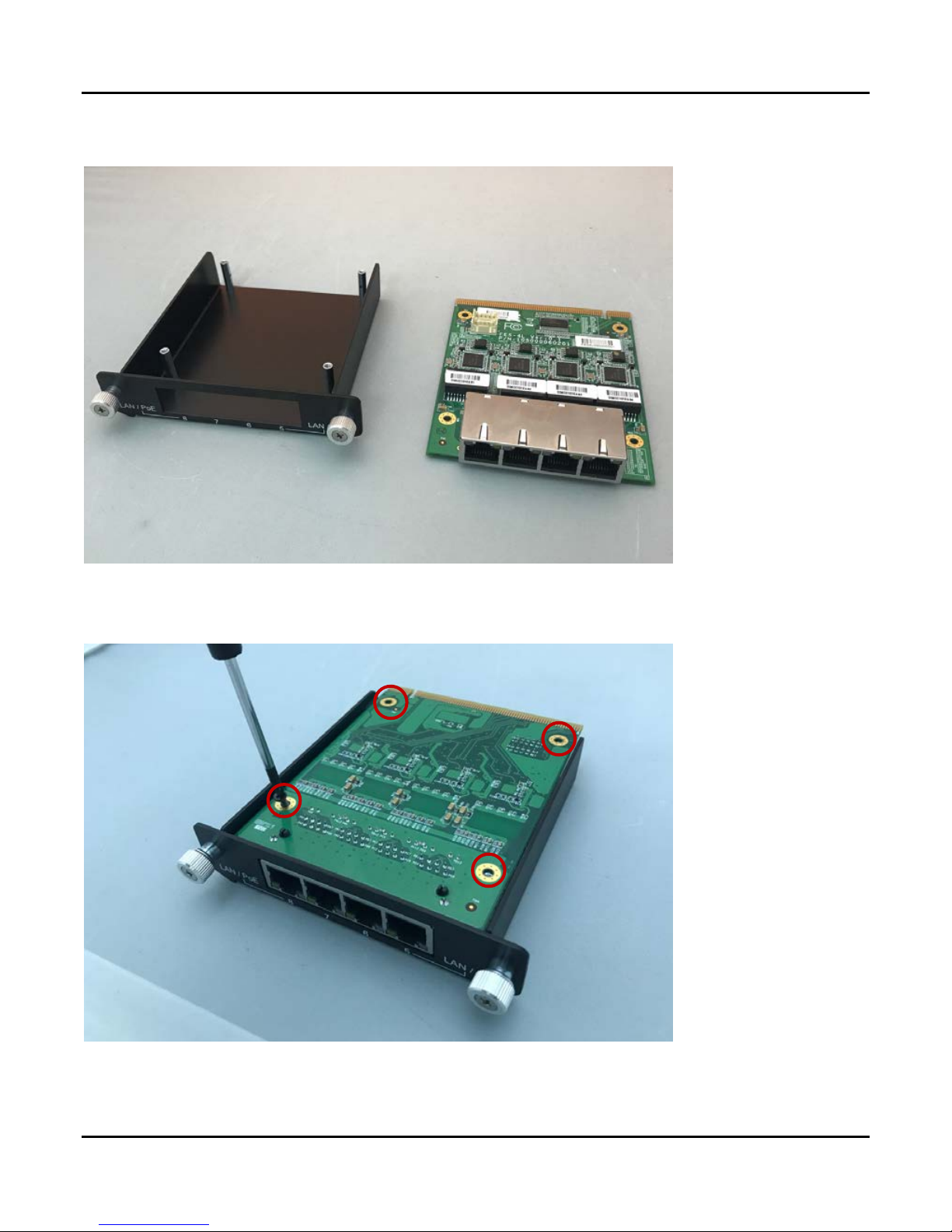

Step 3. Turn back the lan card and put it on the FES Holder as shown in the picture.
Step 4. Screw four screws as shown in the picture.
User’s Manual Page 4-21
Page 73

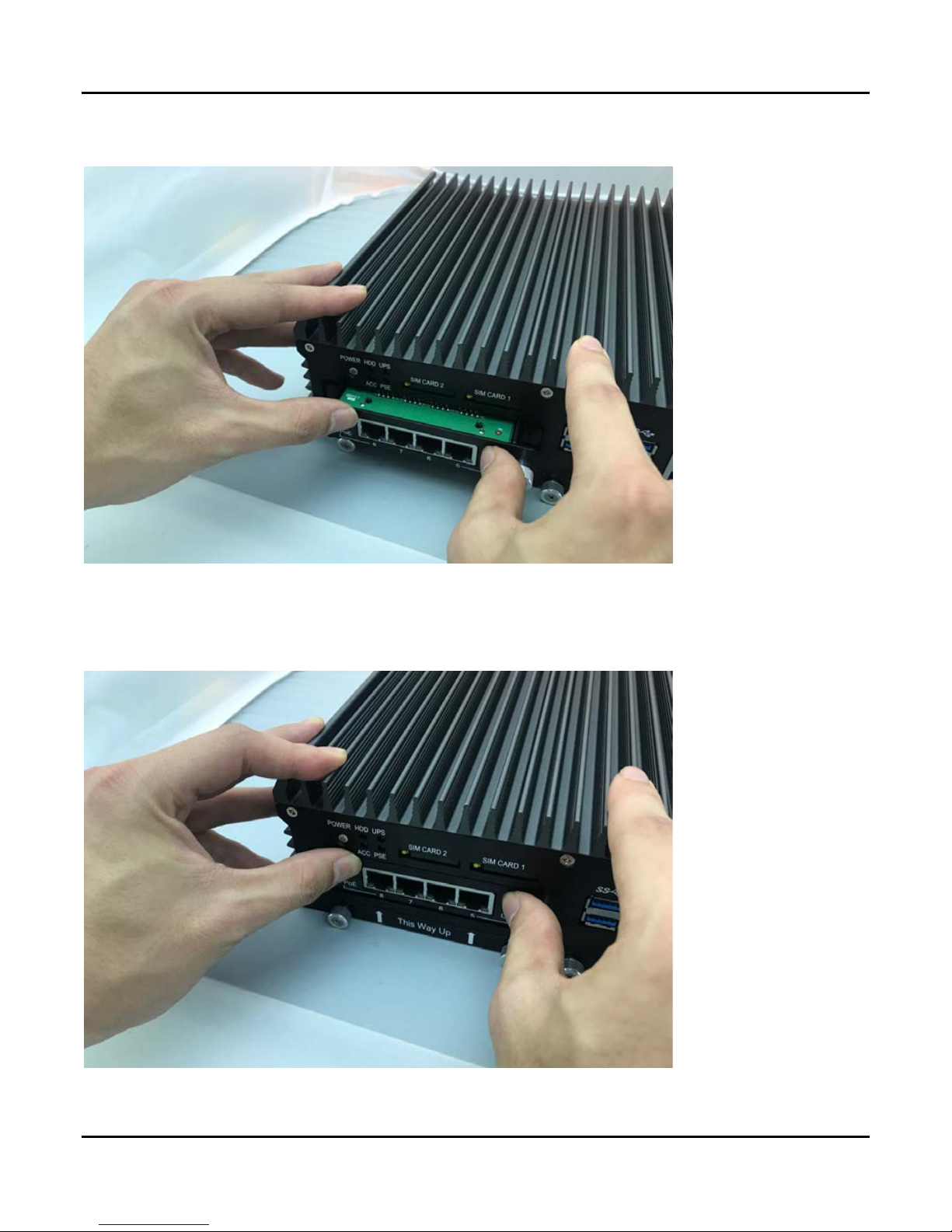

Step 5. Push the FES Holder into the socket as shown in the picture.
4.0 System Installation
Step 6. Fully insert the FES Holder into the socket until a “click” is heard as shown in the picture.
User’s Manual Page 4-22
Page 74

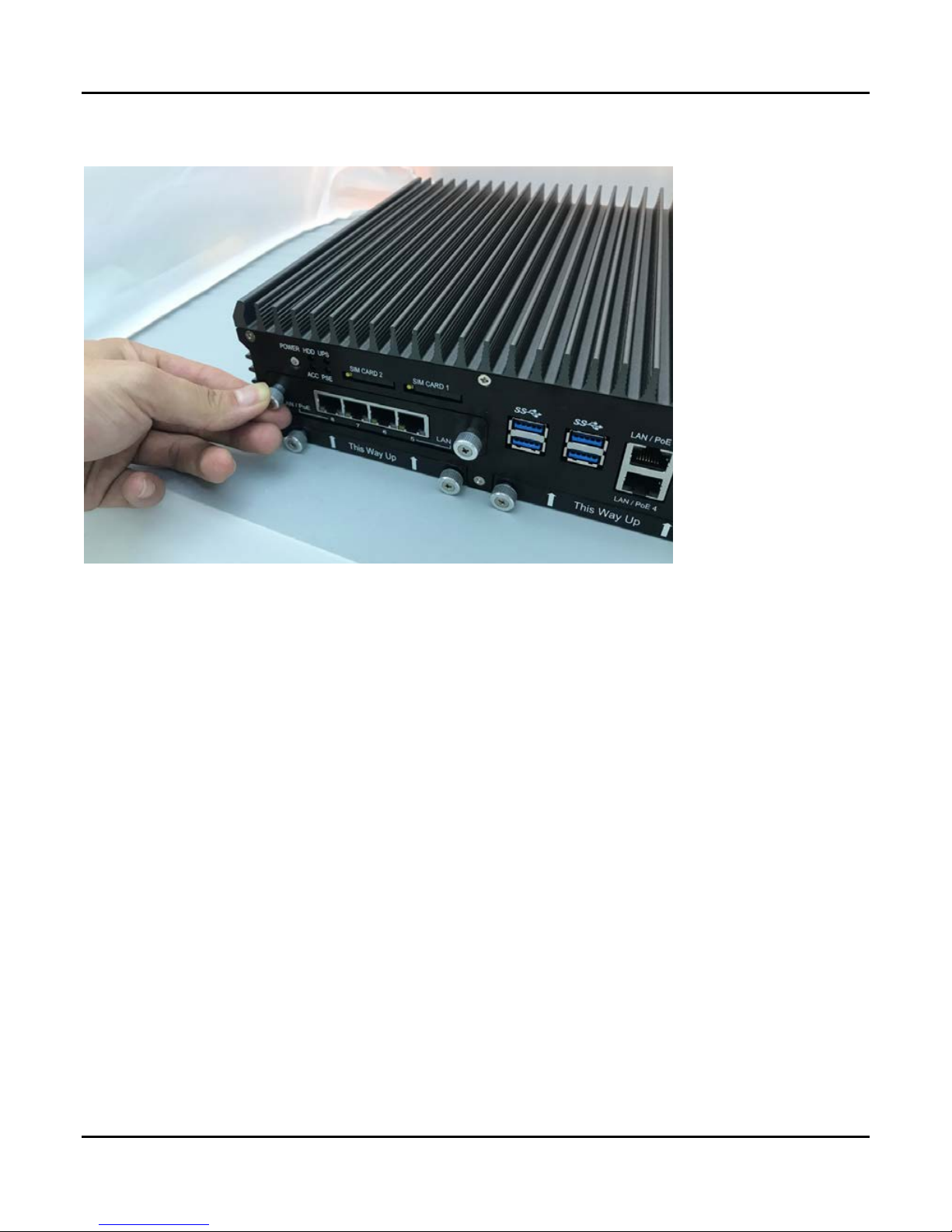

Step 7. Tighten to Storage Bracket screws as shown in the picture.
4.0 System Installation
User’s Manual Page 4-23
Page 75
4.0 System Installation
R5DD) "-7<9//;-0)C'!GD)8.E:/*)

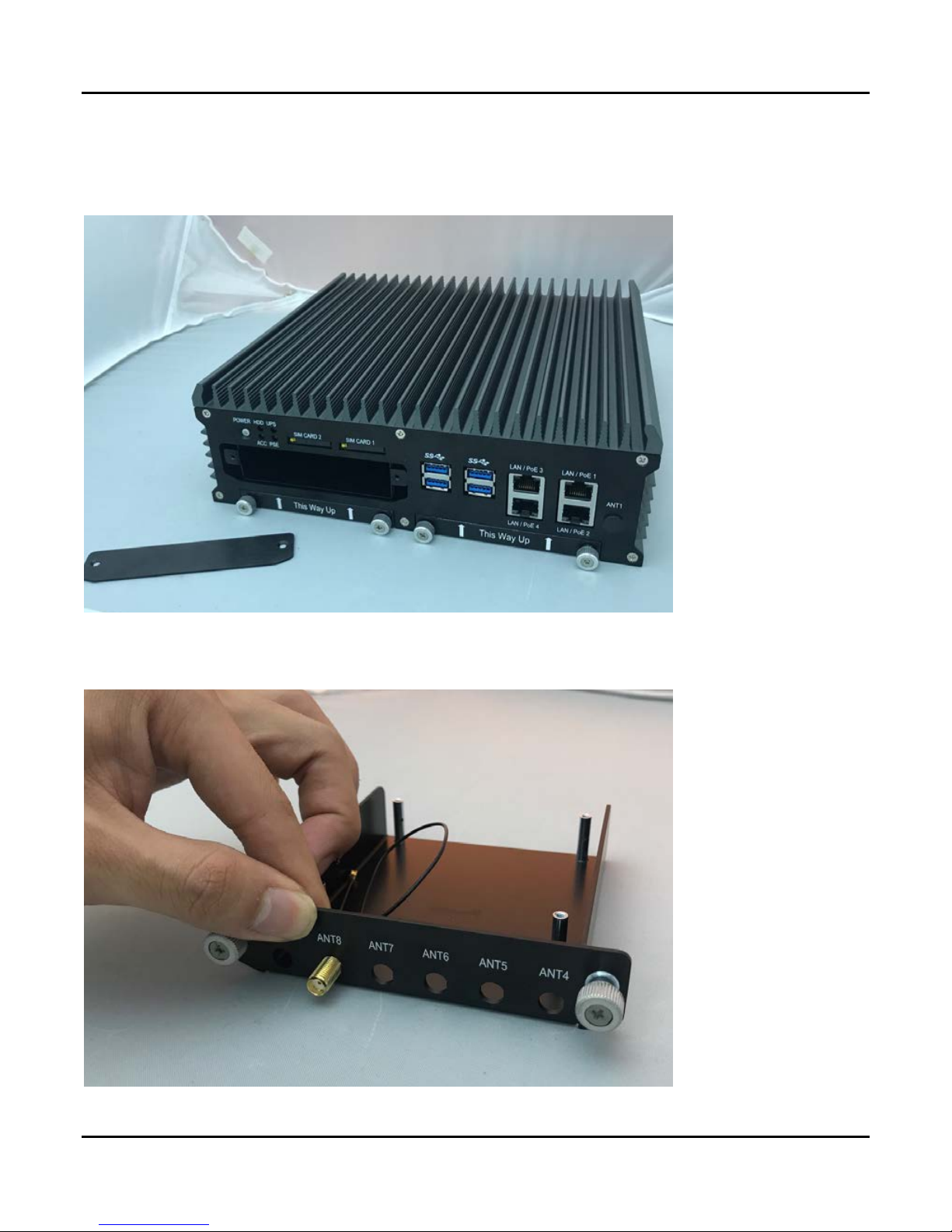

Step 1. Unscrew two screws and take off the FES panel as shown in the picture.
Step 2. Take the SMA Connector and Plug into antenna holder as shown in the picture.
User’s Manual Page 4-24
Page 76
4.0 System Installation
Step 3. Put the Washer and the Oring into the SMA Connector and tighten as shown in the picture.
Step 4. Repeat Step. 4-5 as shown in the picture.
User’s Manual Page 4-25
Page 77
4.0 System Installation
Step 5. Put MINI PCIe Expansion Card on this place as shown in the picture.
Step 6. Hold the Module with its notch aligned with the socket of the board and insert it
at a 30 degree angle into the socket as shown in the picture.
User’s Manual Page 4-26
Page 78
Step 7. Screw two screws as shown in the picture.
4.0 System Installation
Step 8. Done as shown in the picture.
User’s Manual Page 4-27
Page 79
4.0 System Installation
Step 9. Take the Ipex Connector and press on the 3G module as shown in the picture. (3G/LTE)
Step 10. Turn back the FES card, put it on the FES Holder and screw four screws as shown in the picture.
User’s Manual Page 4-28
Page 80

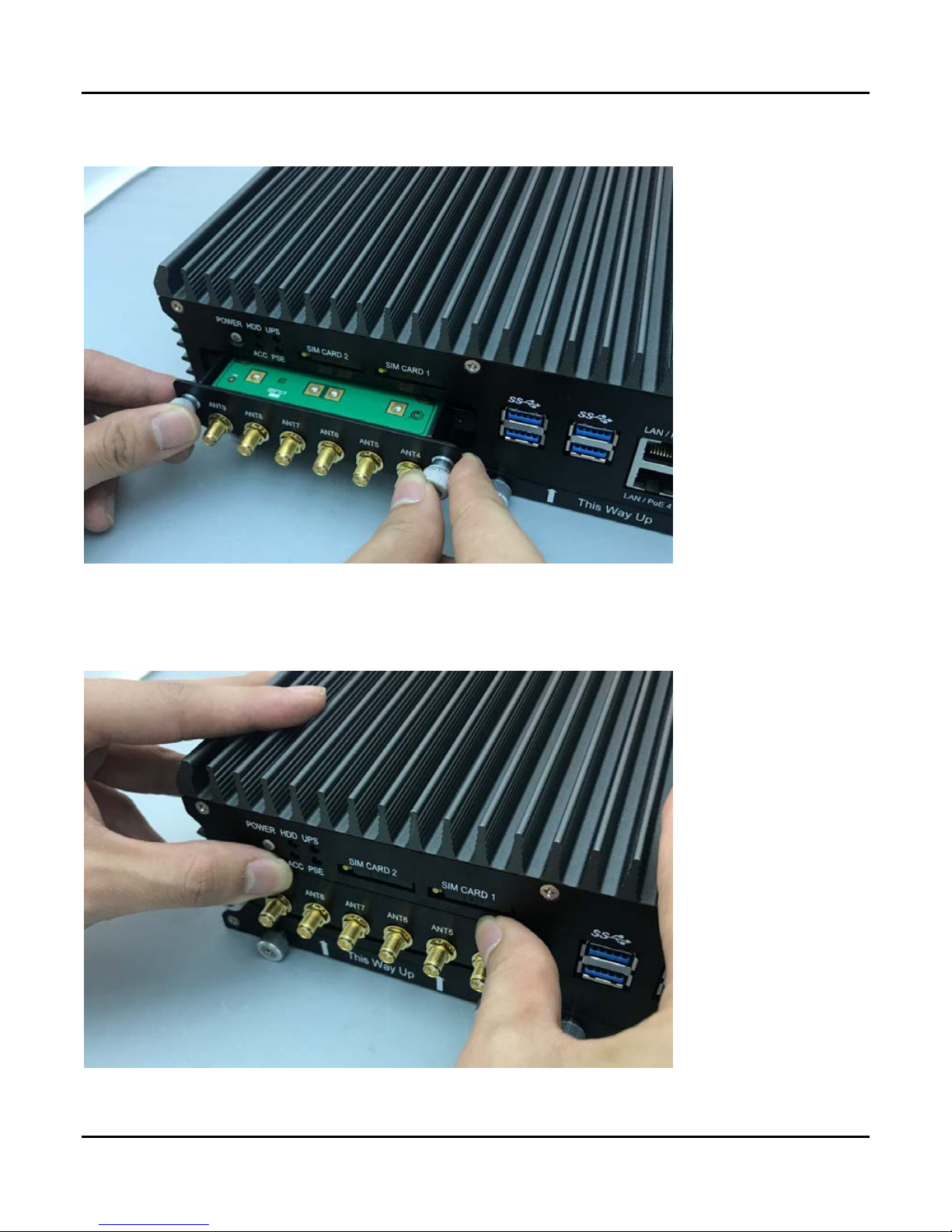

Step 11. Push the FES tray into the socket as shown in the picture.
4.0 System Installation
Step 12. Fully insert the FES tray into the socket until a “click” is heard as shown in the picture.
User’s Manual Page 4-29
Page 81

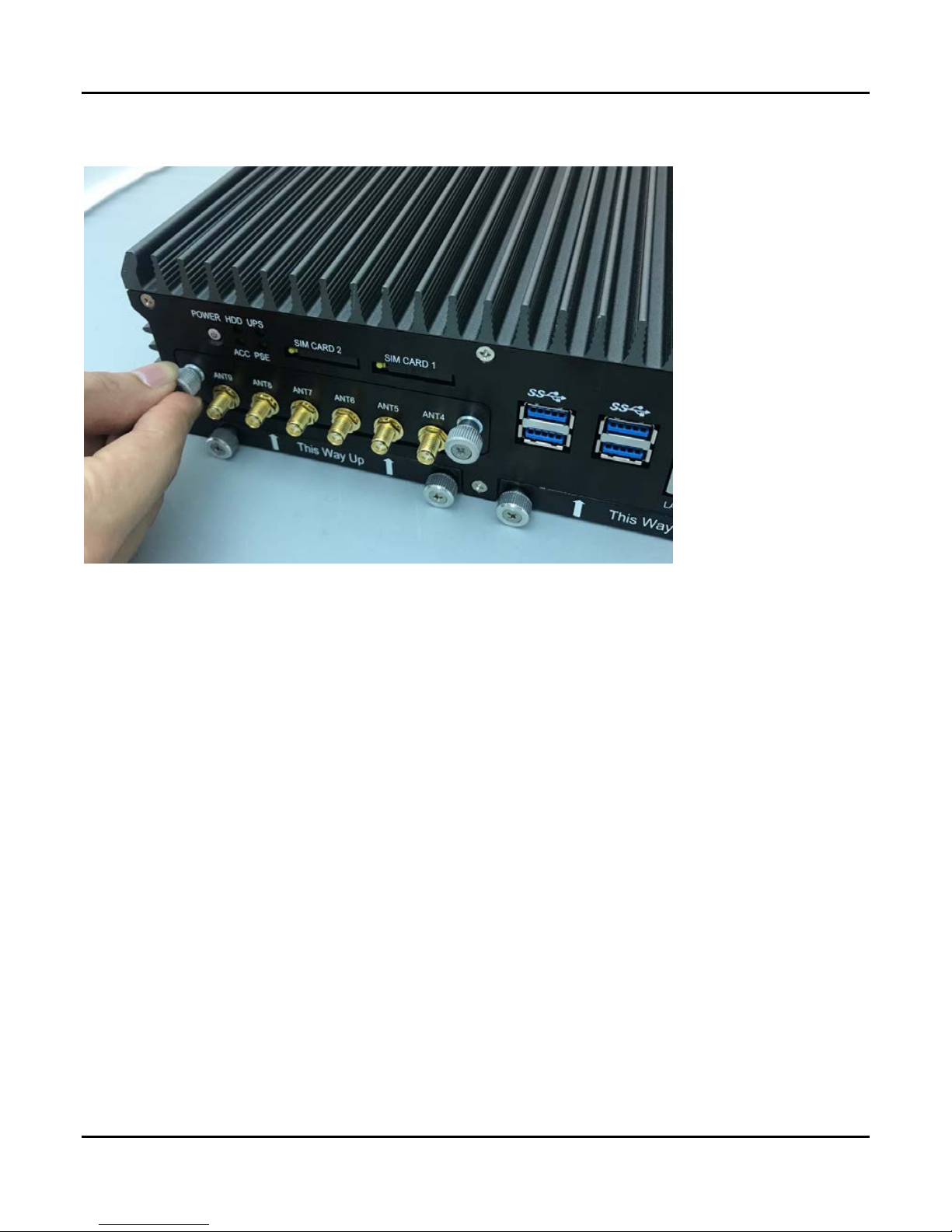

Step 13. Tighten to Storage Bracket screws as shown in the picture.
4.0 System Installation
User’s Manual Page 4-30
Page 82
R5DO) "-7<9//;-0)A9<<*31)8.E:/ *)
Step 1. Open Chassis (See Chapter 4.2)
4.0 System Installation
Step 2. Put the battery on the back cover
User’s Manual Page 4-31
Page 83

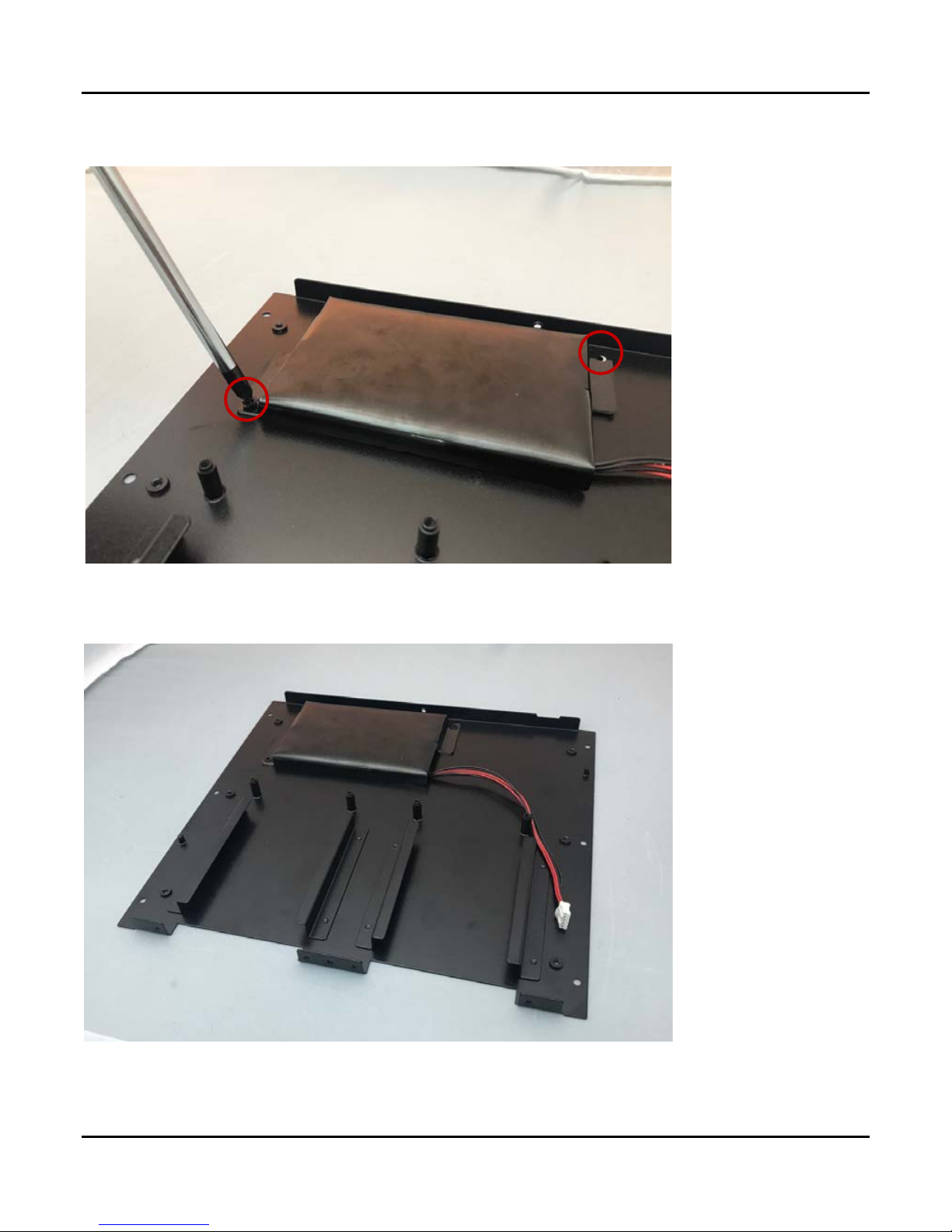

Step 3. Screw two screws as shown in the picture.
4.0 System Installation
Step 4. Done as shown in the picture.
User’s Manual Page 4-32
Page 84

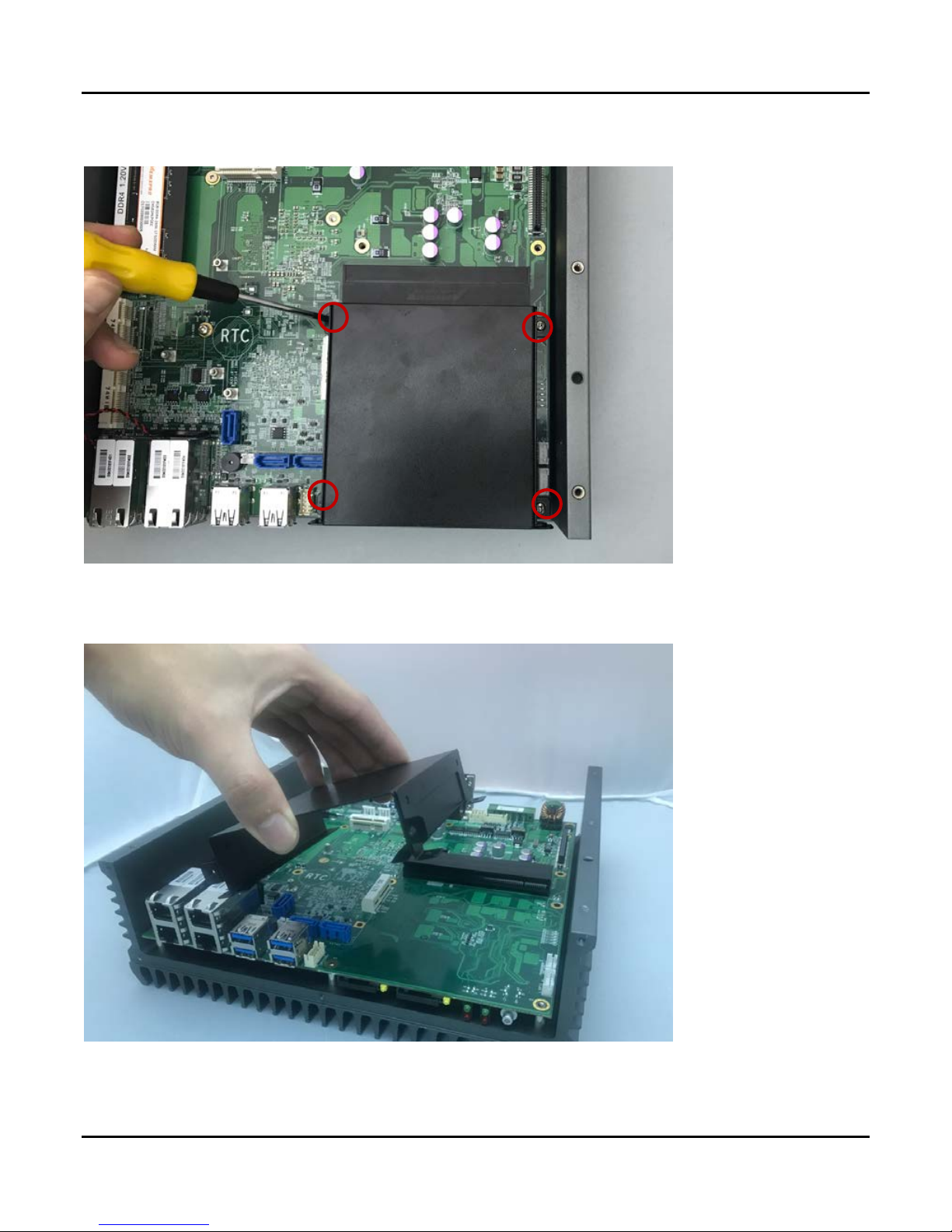

Step 5. Unscrew four screws from FES cover as shown in the picture.
4.0 System Installation
Step 6. Open the FES cover from motherboards as shown in the picture.
User’s Manual Page 4-33
Page 85

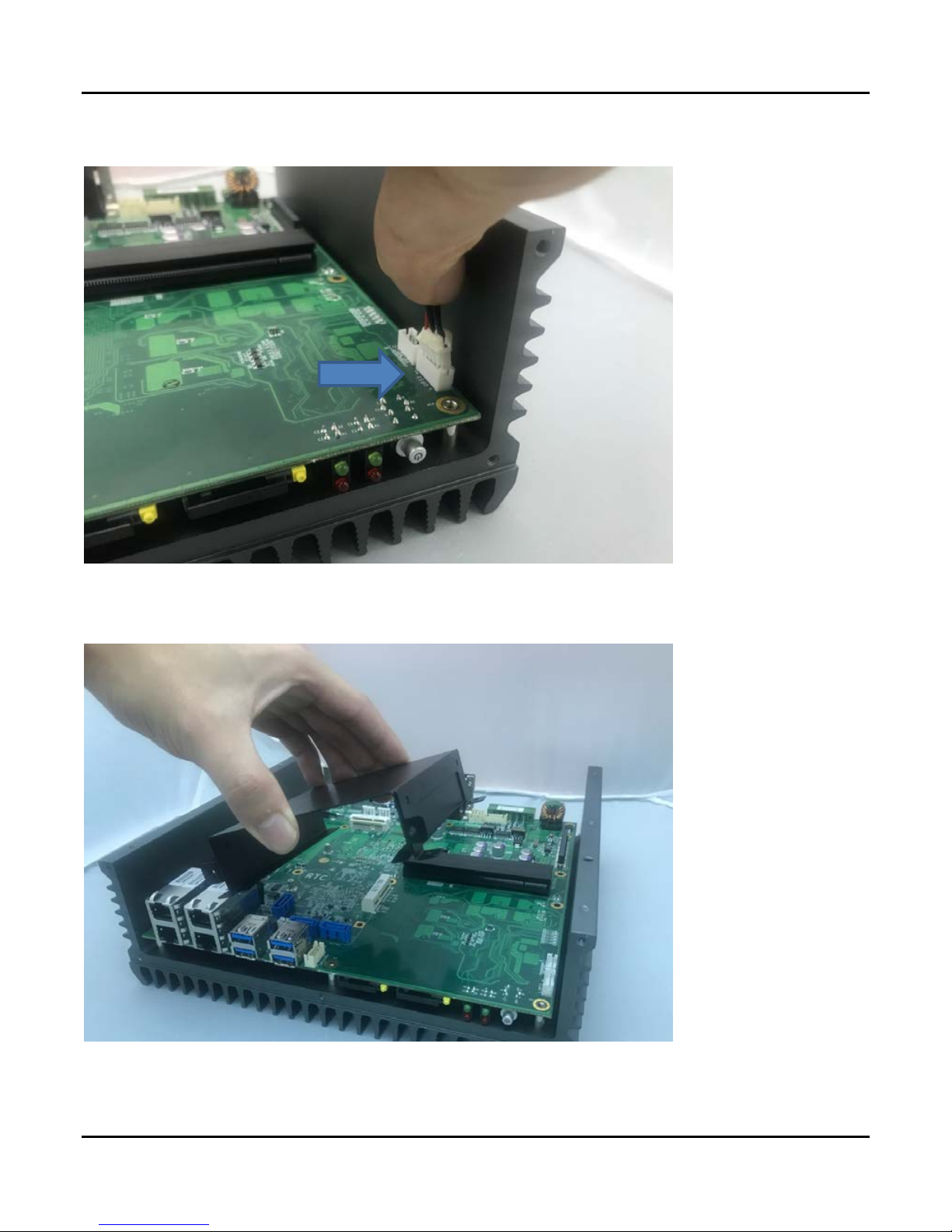

Step 7. Connect the battery with motherboard on UPS location
4.0 System Installation
Step 8. Put the FES cover back and screw six screws.
User’s Manual Page 4-34
Page 86
Step 9. Put the bottom cover on the chassis.
4.0 System Installation
Step 10. Screw eight screws as shown in the picture.
User’s Manual Page 4-35
Page 87
R5DQ) "-7<9//;-0)M&')8.E:/*)
Step 1. Open Chassis (See Chapter 4.2)
4.0 System Installation
Step 2. Unscrew the four screws of the motherboard as shown in the picture
User’s Manual Page 4-36
Page 88
4.0 System Installation

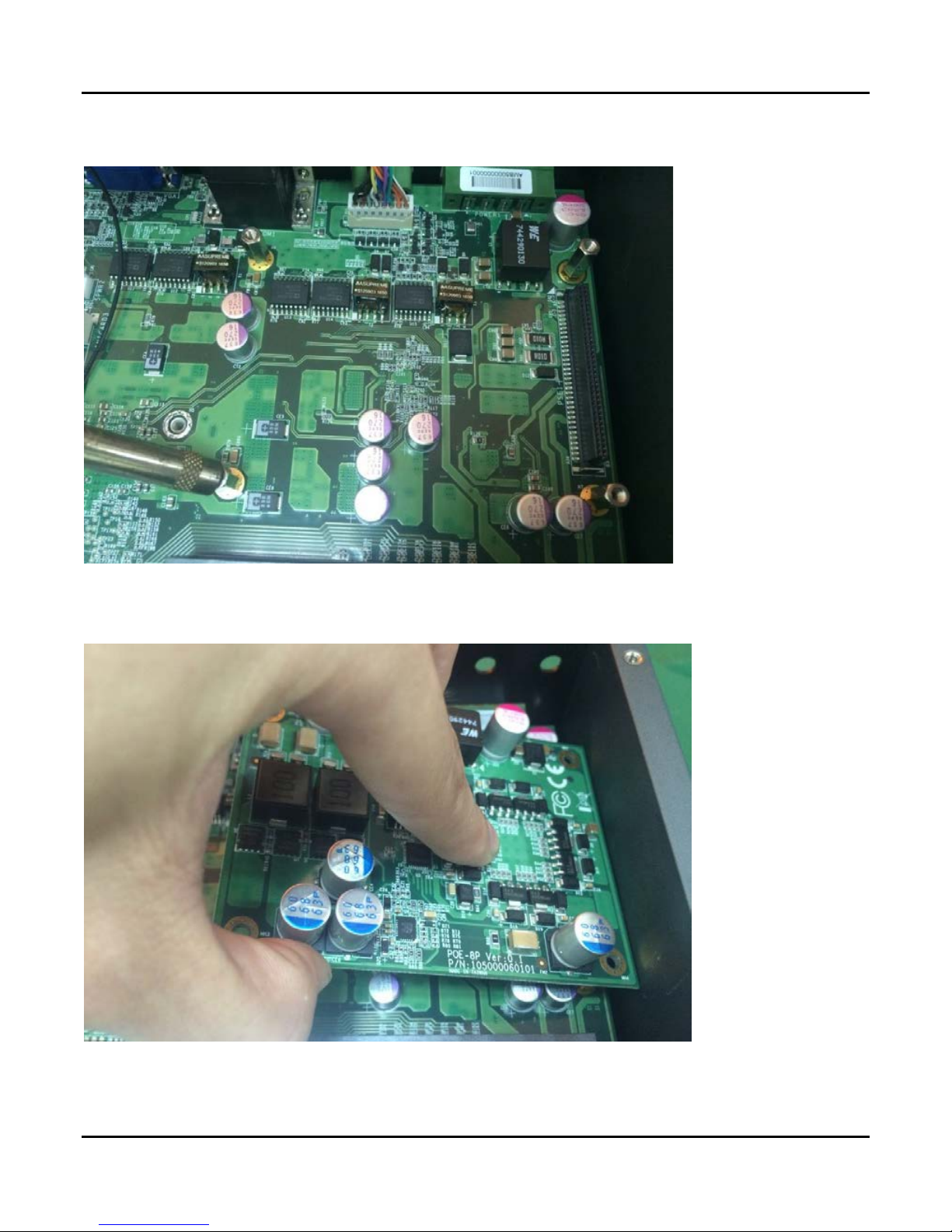

Step 3. Screw the four hex standoff of the motherboard as shown in the picture
Step 4. Put the POE-8P module on the motherboard as shown in the picture
User’s Manual Page 4-37
Page 89

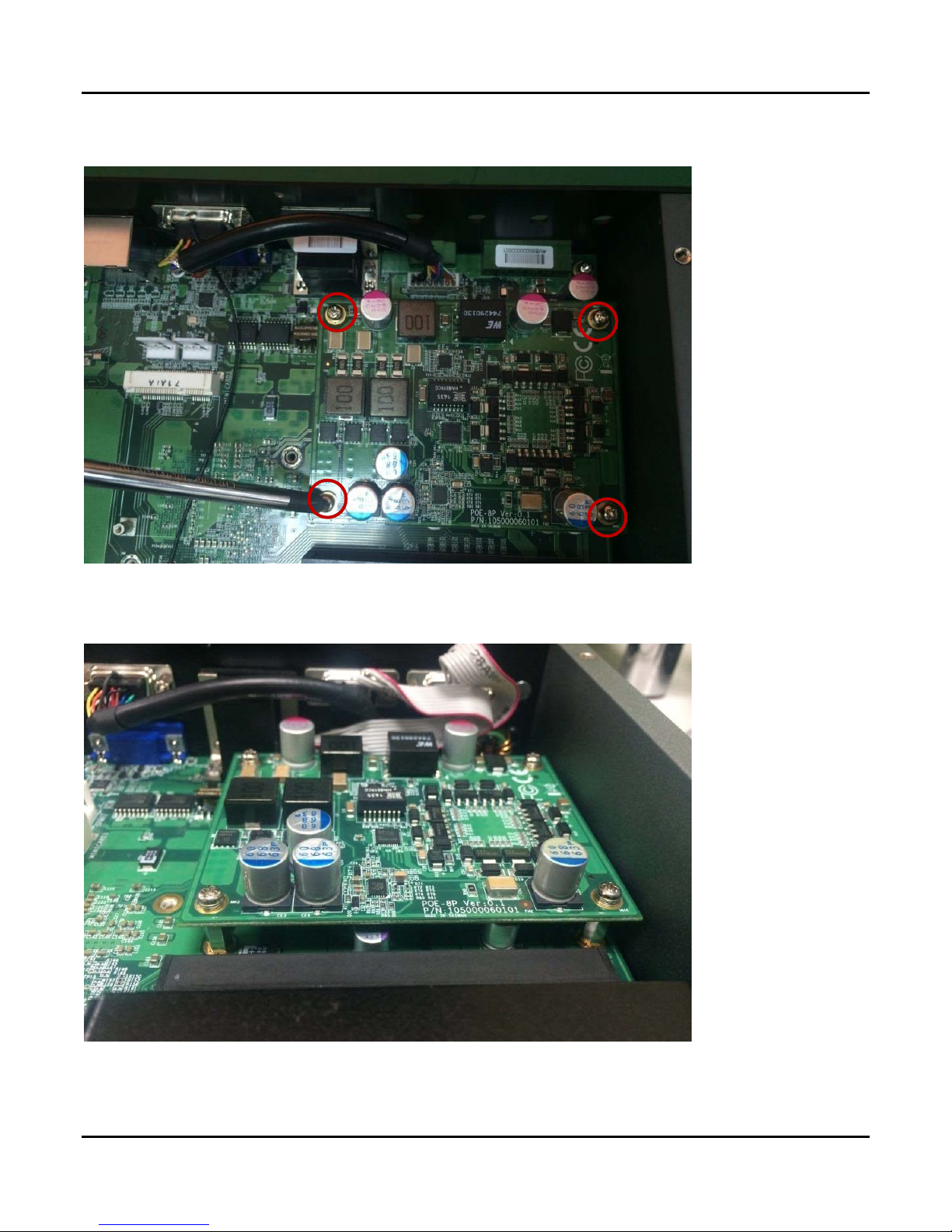

Step 5. Screw the four screws as shown in the picture
4.0 System Installation
Step 5. Done as shown in the picture
User’s Manual Page 4-38
Page 90
4.0 System Installation
R5DR) "-7<9//;-0)2M6)8.E:/*)

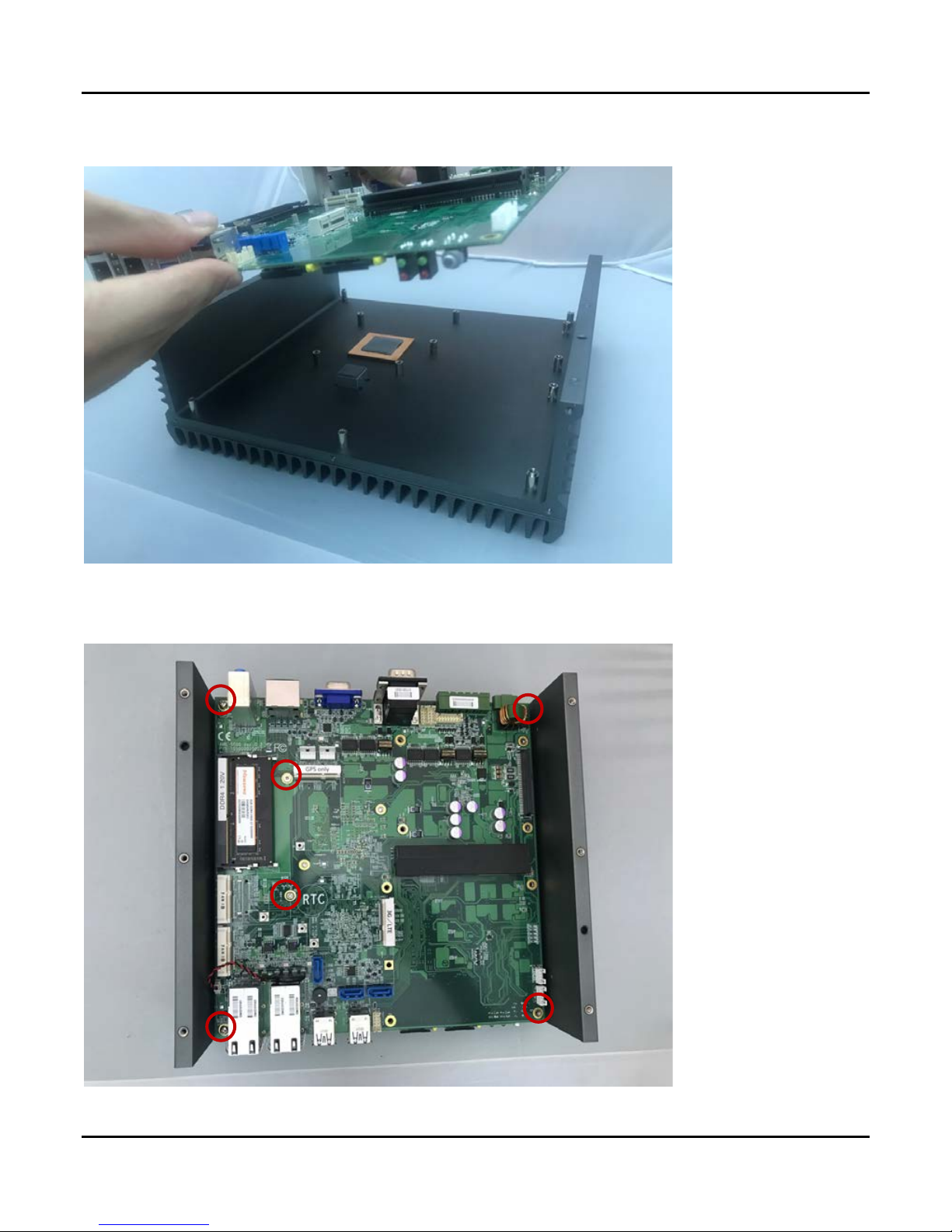

Step 1. Unscrew the six screws of the motherboard as shown in the picture.
Step 2. Take off the motherboard from top cover as shown in the picture.
User’s Manual Page 4-39
Page 91
4.0 System Installation

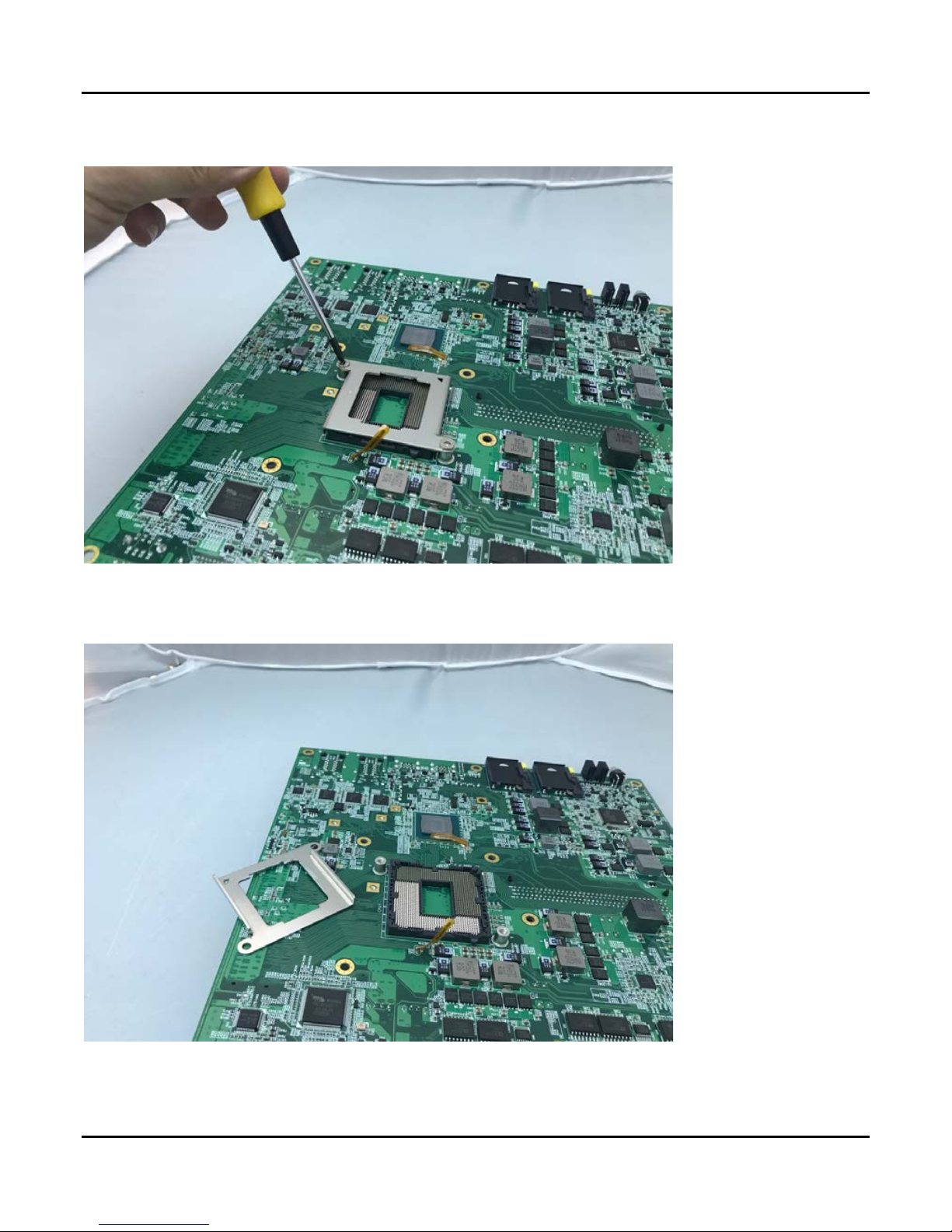

Step 3. Unscrew the two screws of the CPU bracket as shown in the picture.
Step 4. Take off the bracket as shown in the picture.
User’s Manual Page 4-40
Page 92

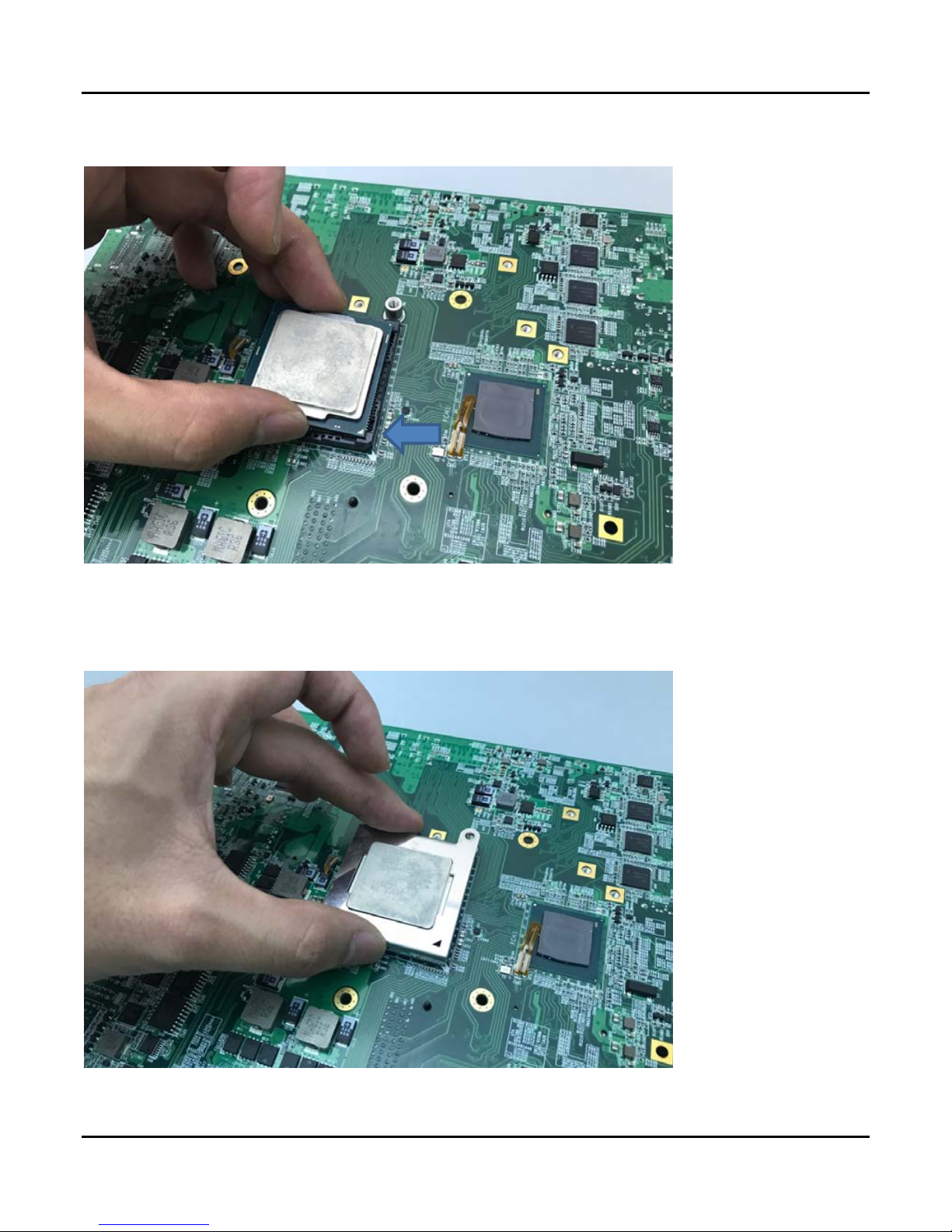

Step 5. Put the CPU into the socket as shown in the picture.
4.0 System Installation
Step 6. Take the CPU bracket and put it back on the motherboard as shown in the picture.
User’s Manual Page 4-41
Page 93
4.0 System Installation

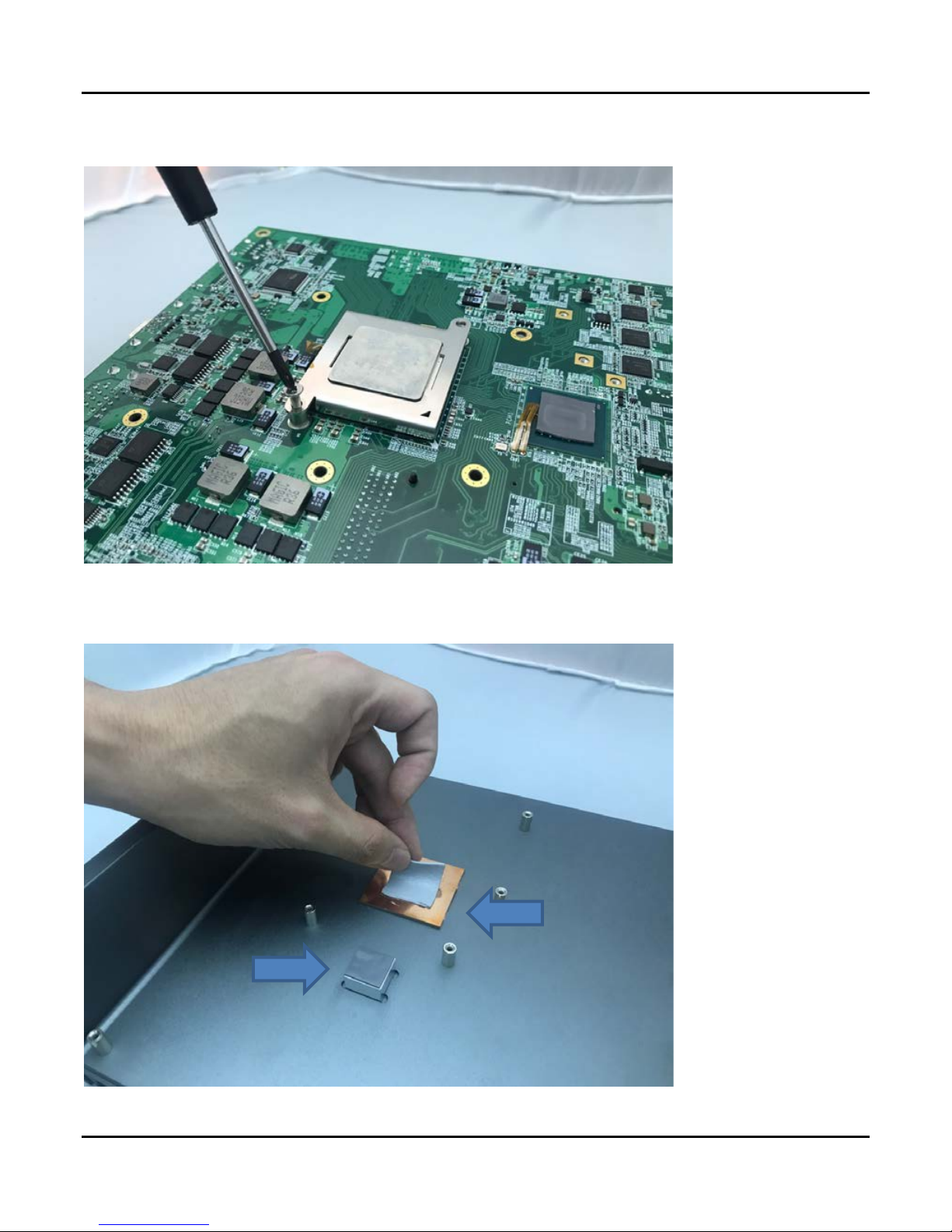

Step 7. Screw the two screws of the CPU bracket as shown in the picture.
Step 8. Tap the two thermal pads on the top cover as shown in the picture.
User’s Manual Page 4-42
Page 94
Step 9. Put the motherboard back as shown in the picture.
4.0 System Installation
Step 10. Screw the six screws as shown in the picture.
User’s Manual Page 4-43
Page 95
5.0 System Resource
H5I)
![!$'8)%'!&6%2')
User’s Manual
Page 96
12V or 24V Power Input
Check IGN
IGN on (High)
System Turn on
5.0 System Resource
H5I ![!$'8)%'!&6% 2')
H5D) "0-;<;.-)M.N*3)89-90*>*-<)a:;+b)`:;E*)
Startup/shutdown conditions from the IGNITION signal:
n IGNITION startup signal must be valid during 3 sec. (anti noise protection).
n IGNITION shutdown – IGNITION signal must be inactive during 3 Sec, then PIC
controller initiate Power Button signal (OS must be set to shutdown from the
Power Button). It generate Main Button shutdown event and then goes to
complete power off.
Typically the system can start only from IGNITION signal, because startup PIC controller is disconnected from the power source.
The system can be switched off from:
n Power IGNITION OFF signal.
n ACPI OS shutdown
n Power Button – generate ACPI event (OS dependent).
Status
more than 3sec

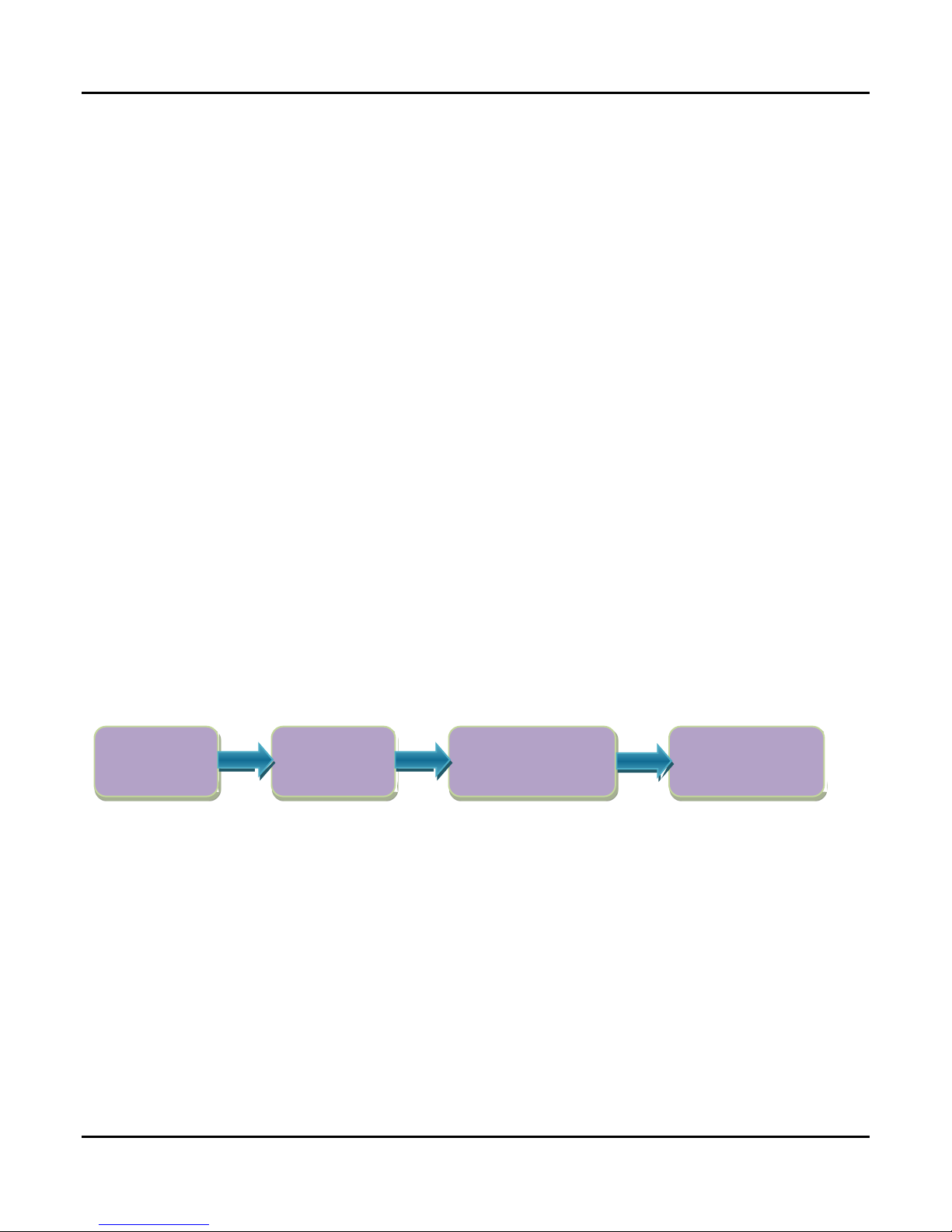

Power Ignition Startup Procedure
User’s Manual Page 5-1
Page 97
Check Delay Time
IGN off (Low)
Check IGN
3 sec later System Power off
Shutdown from OS
Delay Time Off OS Shutdown System
Delay Time On
Status
5.0 System Resource
Delay 3 Sec
On / off
& IGN off
0-99 Minutes Setting by Software
Power Ignition Shutdown Procedure
Power Management
l Power-off delay time is selectable by Software to disable and enable in 0-99
minutes
l Ignition On/Off status detectable by SW
l If the ignition is off and the system is still on after 3 Sec, ABOX-5000 will shut down
automatically.
l If the ignition is turned on again and the power-off delay is in progress, ABOX-5000
will cancel the delay function and will continue to operate normally.
l If the ignition is turned on again and the power-off delay ended, ABOX-5000 will
shut down completely will power-on again automatically.
User’s Manual Page 5-2
Page 98
DO4
DO3
DO2
DO1
DI4
DI3
DI2
DI1
Bit
Name
R/W
Default
Description
7
GPIO57_OE
R/W
0
0 : GPIO57 is input 1 : GPIO57 is output
6
GPIO56_OE
R/W
0
0 : GPIO56 is input 1 : GPIO56 is output
5
GPIO55_OE
R/W
0
0 : GPIO55 is input 1 : GPIO55 is output
4
GPIO54_OE
R/W
0
0 : GPIO54 is input 1 : GPIO54 is output
3
GPIO53_OE
R/W
0
0 : GPIO53 is input 1 : GPIO53 is output
2
GPIO52_OE
R/W
0
0 : GPIO52 is input 1 : GPIO52 is output
1
GPIO51_OE
R/W
0
0 : GPIO51 is input 1 : GPIO51 is output
0
GPIO50_OE
R/W
0
0 : GPIO50 is input 1 : GPIO50 is output
0 = DI is low *
1 = DI is high
0 = DO is low
1 = DO is high *
5.0 System Resource
H5O) `M"&)W)=*/91)$;>*)!*<<;-0)
H5O5D) `M"&)9-E)"0-;<;.-)2.-<3./)%*0;7<*3)
The General Purpose I/O is an interface available on some devices. These can read digital signals from other parts of a circuit, or output to control other devices. At GPIO control register, the GPI is use to receive data, the GPO is set data to send. I/O port: 0xA35 (base address) for Control Register (Read 0xA2h / Write 0xA1h) 0xA36 (base address) for Control Data Value
Debug Command Line
- O A35 A1
- O A36 0F // Set Bit 4-7 to Low
7 6 5 4 3 2 1 0
GPIO5 Output Enable Register – Index A0h
User’s Manual Page 5-3
Page 99
Bit
Name
R/W
Default
Description
7
GPIO57_DATA
R/W
1
GPIO57 output data in output mode.
6
GPIO56_DATA
R/W
1
GPIO56 output data in output mode.
5
GPIO55_DATA
R/W
1
GPIO55 output data in output mode.
4
GPIO54_DATA
R/W
1
GPIO54 output data in output mode.
3
GPIO53_DATA
R/W
1
GPIO53 output data in output mode.
2
GPIO52_DATA
R/W
1
GPIO52 output data in output mode.
1
GPIO51_DATA
R/W
1
GPIO51 output data in output mode.
0
GPIO50_DATA
R/W
1
GPIO50 output data in output mode.
Bit
Name
R/W
Default
Description
7
GPIO57_ST
R 1 GPIO57 pin status.
6
GPIO56_ST
R 1 GPIO56 pin status.
5
GPIO55_ST
R 1 GPIO55 pin status.
4
GPIO54_ST
R 1 GPIO54 pin status.
3
GPIO53_ST
R 1 GPIO53 pin status.
2
GPIO52_ST
R 1 GPIO52 pin status.
1
GPIO51_ST
R 1 GPIO51 pin status.
0
GPIO50_ST
R 1 GPIO50 pin status.
GPIO5 Output Data Register – Index A1h
GPIO5 Pin Status Register – Index A2h
5.0 System Resource
User’s Manual Page 5-4
Page 100
Bit
Name
R/W
Default
Description
7
GPIO57_DRV_ENST
R/W
0
GPIO57 Drive Enable 0 : GPIO57 is open drain. 1 : GPIO57 is push pull.
6
GPIO56_DRV_ENST
R/W
0
GPIO57 Drive Enable 0 : GPIO56 is open drain. 1 : GPIO56 is push pull.
5
GPIO55_DRV_ENST
R/W
0
GPIO57 Drive Enable 0 : GPIO55 is open drain. 1 : GPIO55 is push pull.
4
GPIO54_DRV_ENST
R/W
0
GPIO57 Drive Enable 0 : GPIO54 is open drain. 1 : GPIO54 is push pull.
3
GPIO53_DRV_ENST
R/W
0
GPIO57 Drive Enable 0 : GPIO53 is open drain. 1 : GPIO53 is push pull.
2
GPIO52_DRV_ENST
R/W
0
GPIO57 Drive Enable 0 : GPIO52 is open drain. 1 : GPIO52 is push pull.
1
GPIO51_DRV_ENST
R/W
0
GPIO57 Drive Enable 0 : GPIO51 is open drain. 1 : GPIO51 is push pull.
0
GPIO50_DRV_ENST
R/W
0
GPIO57 Drive Enable 0 : GPIO50 is open drain. 1 : GPIO50 is push pull.
X X X
X
Ignition
Status
X
X
X
0 = Ignition off 1 = Ignition on
GPIO5 Drive Enable Register – Index A3h
5.0 System Resource
I/O port: I/O port: 0xA35 (base address) for Control Register (Read 0xF2h bit 3) 0xA36 (base address) for Control Data Value
7 6 5 4 3 2 1 0
Debug Command Line
- O A35 F2
- I A36 // Check Bit 3 Status
User’s Manual Page 5-5
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
