Sintrol Network Router User Manual

Page 1

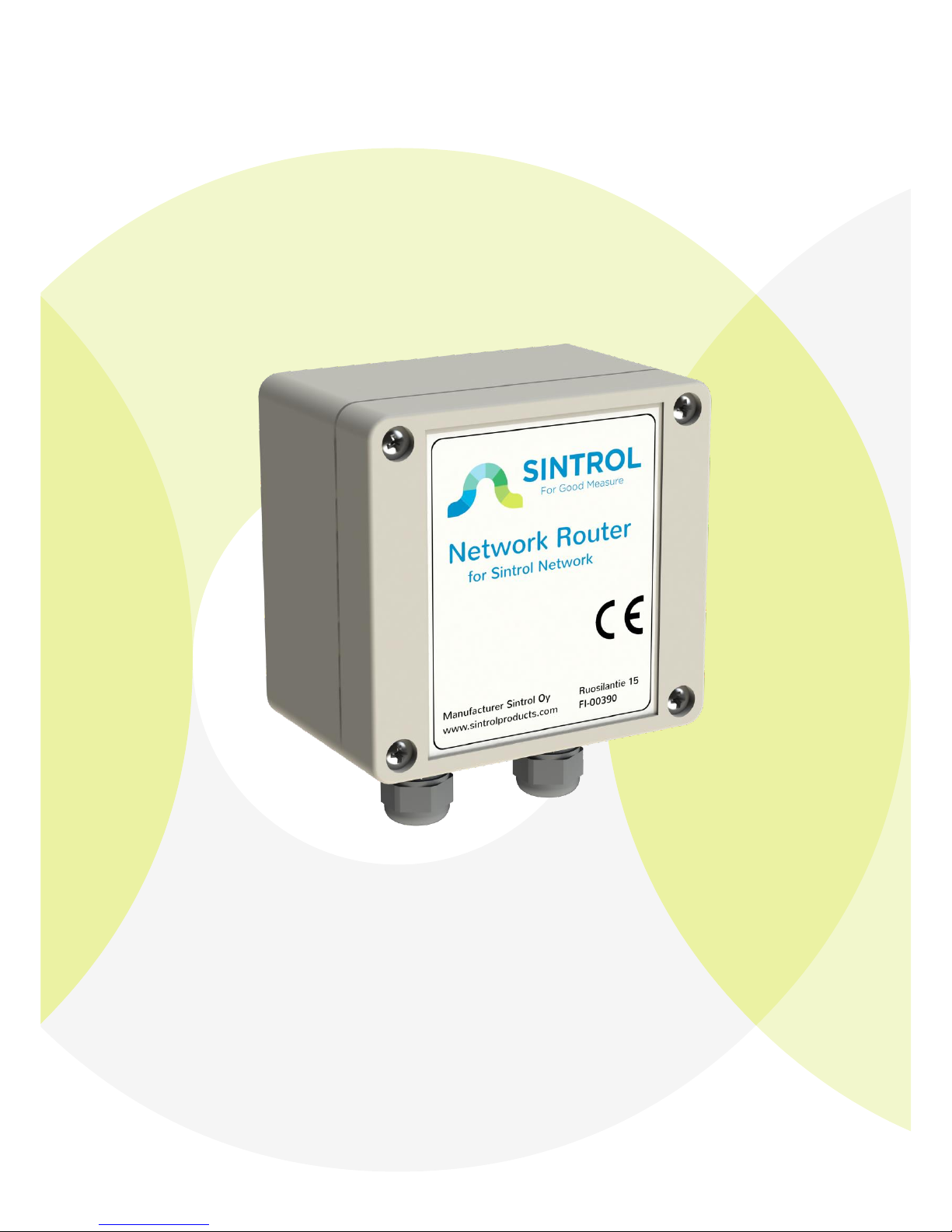

Sintrol Network Router
Manual
Version 1.0.0
Page 2
Table of Contents
1 INTRODUCTION ......................................................................................... 3
1.1 Product overview ........................................................................................... 3
2 INSTALLATION ........................................................................................... 4
2.1 Selecting the installation location .................................................................. 4
3 WIRING ..................................................................................................... 6
4 DIMENSIONS ............................................................................................. 8
5 OPERATION ............................................................................................... 9
5.1 PARAMETERS ................................................................................................. 9
5.2 PROPERTIES .................................................................................................. 10
RS485 ...................................................................................................... 10
USB ......................................................................................................... 10
Security key ............................................................................................ 10
Lock password ........................................................................................ 10
Device password .................................................................................... 10
5.3 NETWORK ..................................................................................................... 12
Create the network ................................................................................ 12
Manually routing the devices ................................................................. 12
6 MAINTENANCE ......................................................................................... 13
7 TROUBLESHOOTING .................................................................................. 13
7.1 No USB-connection to PC ............................................................................. 13
7.2 No response over RS485 .............................................................................. 13
Page 3
1 INTRODUCTION
This manual describes how to install and use SINTROL’s Network Router product. Sintrol shall not be liable for any loss or damage whatsoever arising from use of any information or details therein, or omission or error in this manual, or any misuse of the product.
The instrument can be accessed by utilizing the free DustTool software to manage the basic settings of the product.
Commercial software product DustLog provides comprehensive control and diagnostics tools over the product and over the whole Sintrol network.
Features of the Network Router are for example:
Gather data from Sintrol Network seamlessly, utilizing RS485 connections
between products.
Visualize the Sintrol network topology and unit locations. Provide tools to:
o Automatically form the network o Manually modify the network o Get real time diagnostics
Manage and parameterize all products within the Sintrol Network
The DustTool software can be downloaded free of charge from Sintrol web-site http://www.sintrolproducts.com
1.1 Product overview
The Network Router Dust monitor is a microprocessor-based unit, equipped with USB and RS485 connections.
The device is designed to manage all Sintrol products connected to Sintrol Network. The Network Router has been specifically designed for easy installation and reliable operation.
Page 4
2 INSTALLATION
2.1 Selecting the installation location
Although the device is IP65 classified and can handle industrial conditions, avoiding unnecessary environmental stress is encouraged.
If possible, during the installation ensure that:
1. Temperature conditions are mild and temperature variation is not extreme.
2. Unit is not installed into direct sun light
3. No large amplitude vibration exists
4. The unit is not directly exposed to any kind of piling particles, especially
conductive.
5. The unit is not directly exposed to soil dust, dirt, snow or rain.
Enclosure supports optional mounting feet installation, to enable easy wall installations.
Page 5
Figure 1 Installation with optional mounting feet.
Page 6
3 WIRING
To connect the device, open the enclosure. Any unnecessary exposure of the connectors to moisture or dirt needs to be avoided.
NC = Not connected.

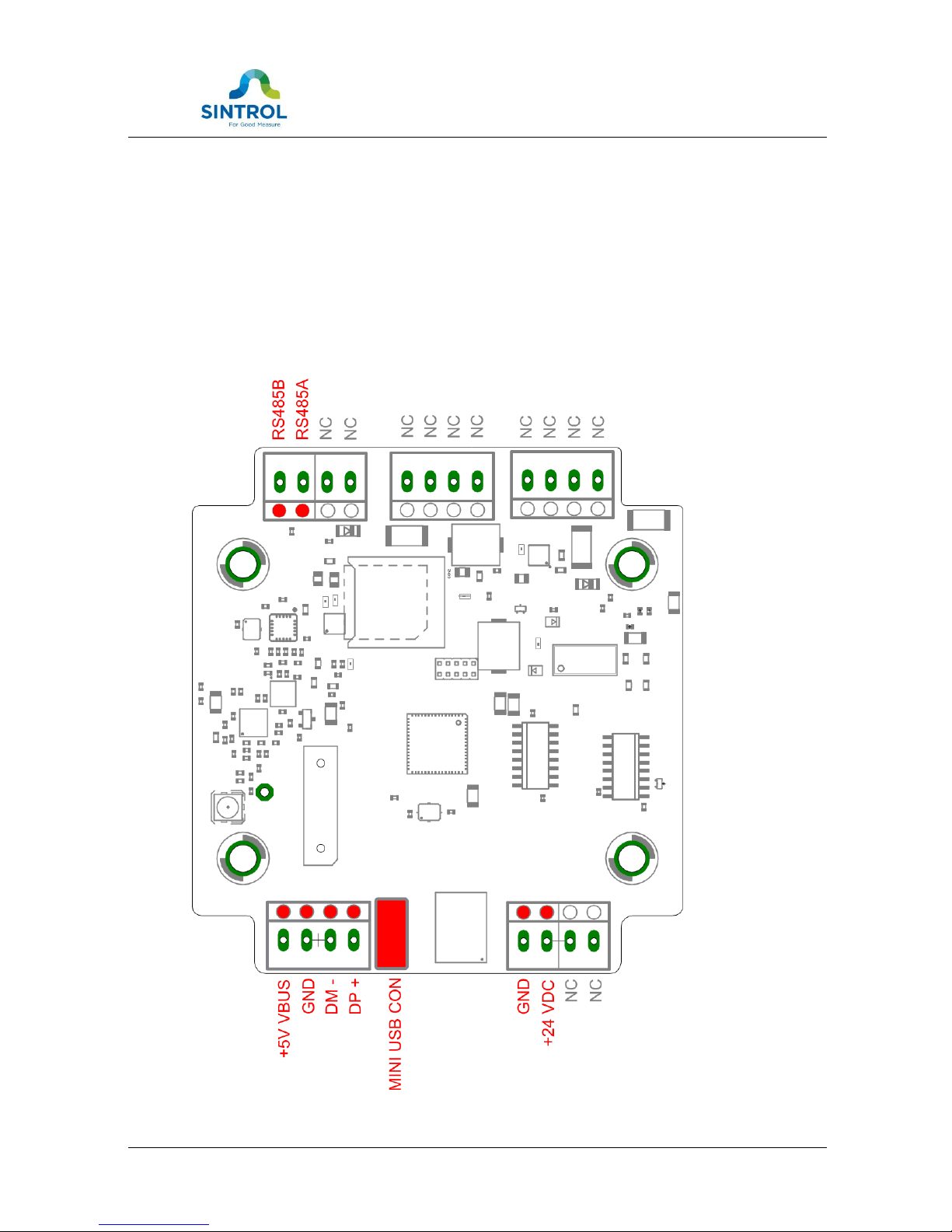

Table 1 Wiring and signals
Page 7
TECHNICAL SPECIFICATION
Product name
Network Router
Protection Category
IP65
Power Supply
12 - 24 VDC
Power Consumption
Under 3W, depending on usage
Wiring
Two DIN PG11 glands for cables
Connectors
1. USB wires connector with 45° angle: a. solid from 0.2 to 1.5 mm
2
b. stranded from 0.2 to 1.0 mm
2
2. Low voltage connector with 45° angle: a. solid from 0.2 to 1.5 mm
2
b. stranded from 0.2 to 1.0 mm
2
3. mini USB connector inside the box
Communication Interfaces
Serial communication: RS-485 USB
Communication Protocol
Proprietary Sintrol Network protocol
Materials and Weight
Enclosure
Plastic ABS
Weight
180 g
Table 2 Technical specification
Page 8
4 DIMENSIONS

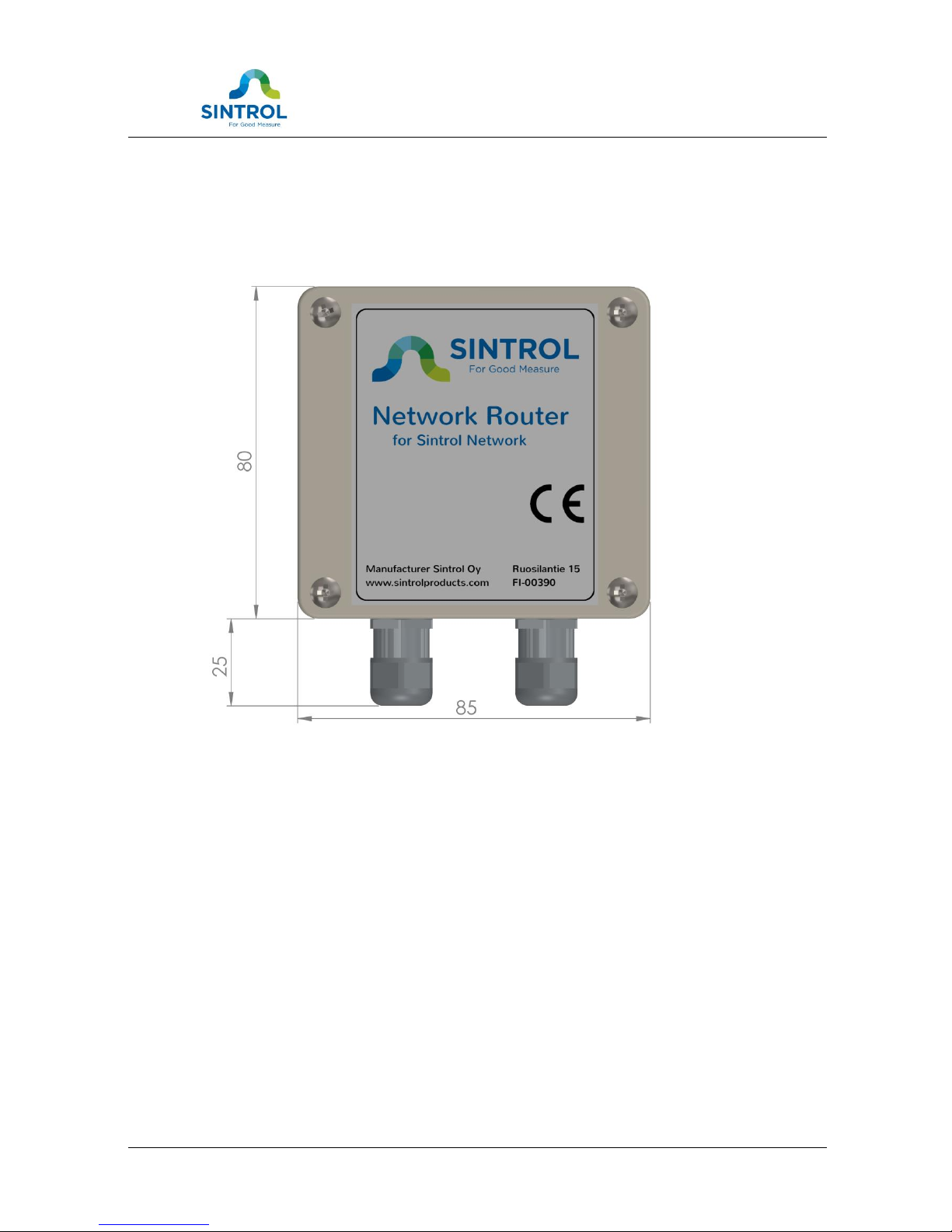

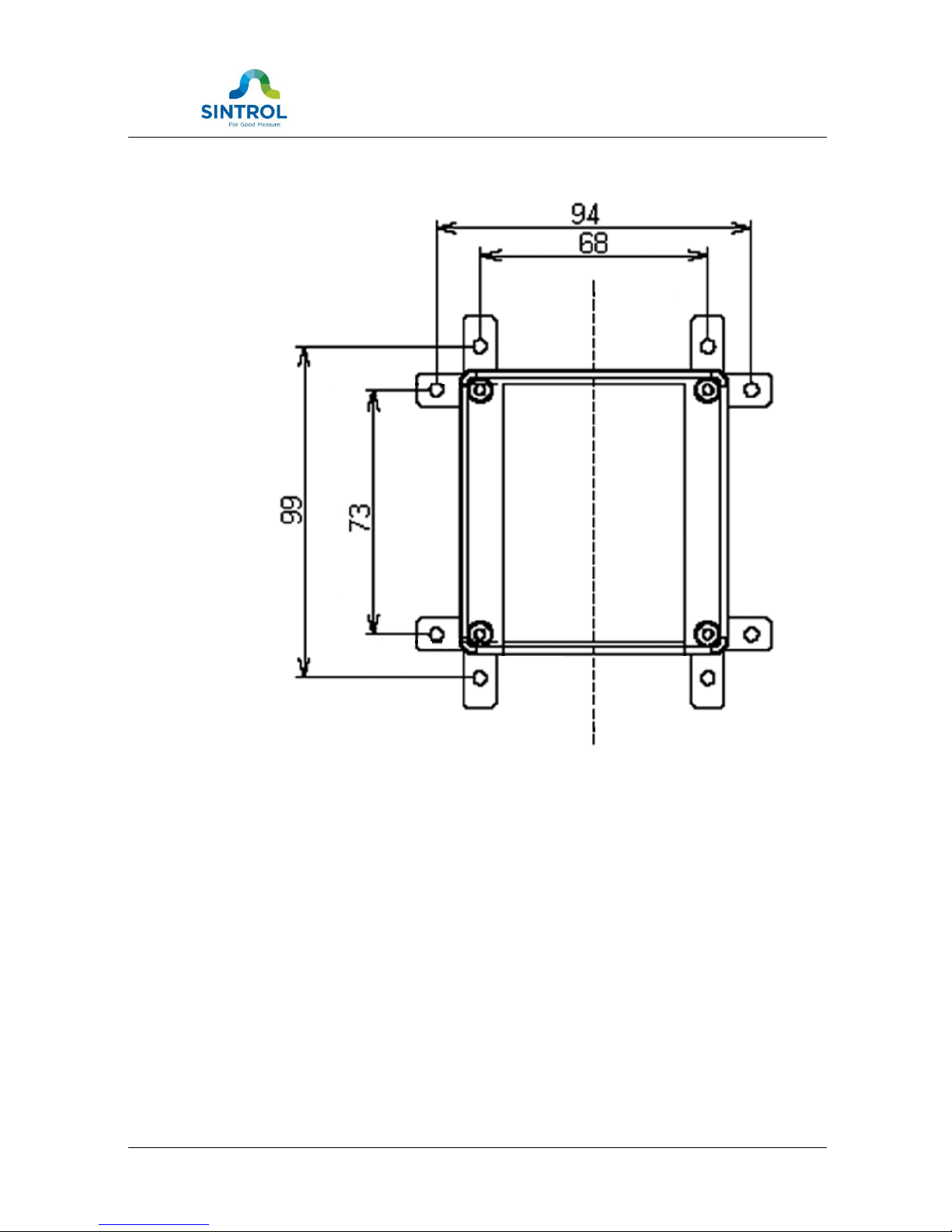

Figure 2 Structure and dimensions
Page 9
5 OPERATION
The Network Router creates and maintains the connections between Sintrol Products and Sintrol’s PC software, thus the main operation of the Network Router is mostly transparent.
Device itself has but a few configuration related controls of its own. All the controls are managed by the dedicated Sintrol PC-softwares: DustTool and/or DustLog.
5.1 PARAMETERS
On the parameters tab the router name can be changed in order to easier identify the unit.
Device also measures the power source it is connected to and shows the measured input voltage for diagnostic reasons. If no input voltage can be detected, the device is not fully working.

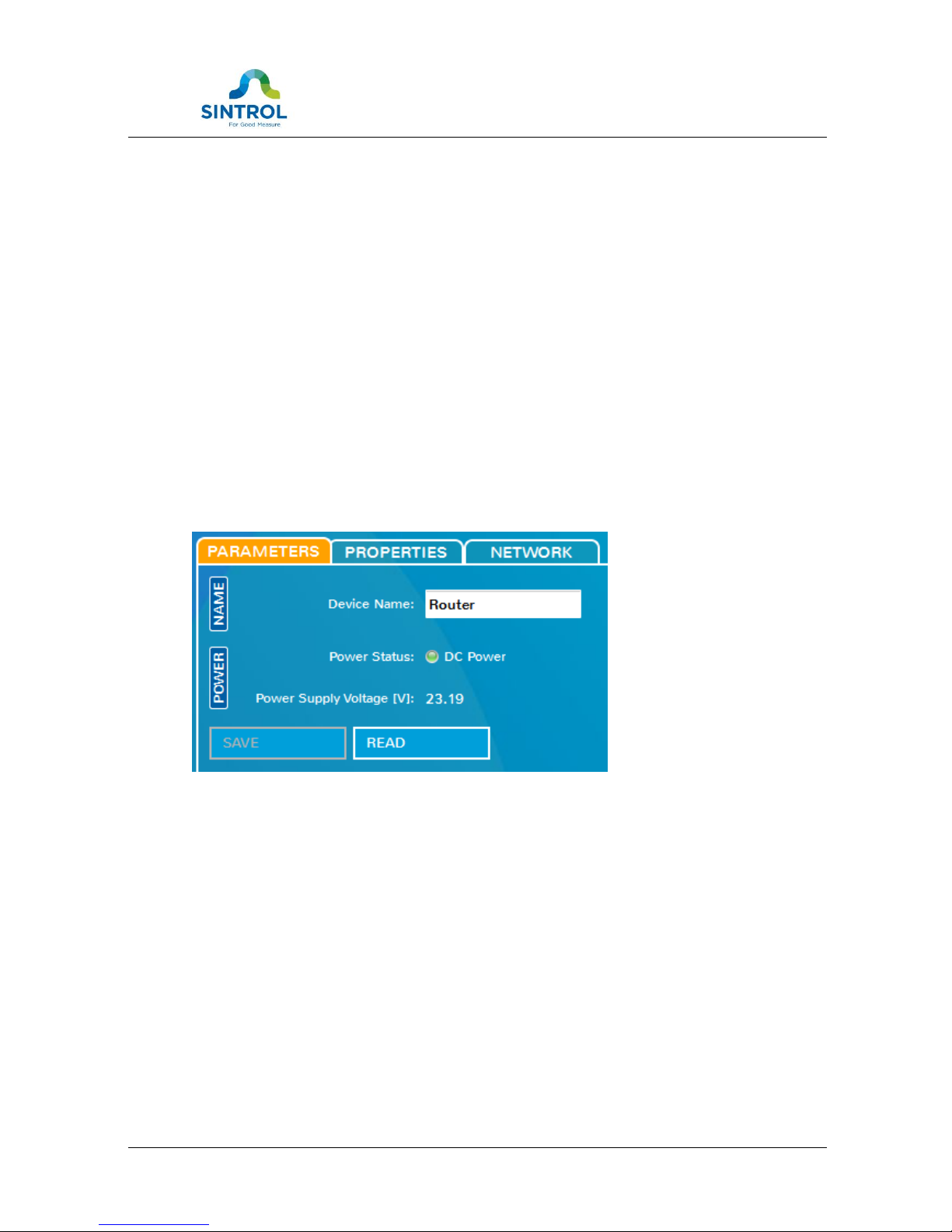

Figure 3 Parameters tab
Page 10
5.2 PROPERTIES
Network Router controls the network communication of the RS485. On the properties tab it is possible to set different behaviors for the unit, which will affect the whole communications network.
NOTE: Changing default setting on the properties tab may result in communication malfunctions or even losing the control over the Network Router.
RS485
When device is operating as a router, the RS485 role must always be set to Sintrol Network as a network master. Integration the unit with MODBUS-protocol is beyond this document.
USB
When device is operating as a wireless router, the USB must always be enabled and set to Sintrol Network. Setting protocol to ‘text protocol’ will disconnect the device from PC-software and should only be used by trained service personnel.
Security key
For the whole network, an optional security key can be assigned. This key will close the network so, that no new devices can be added into the network without this key.
Lock password
Lock password will lock all the parameters of this unit. In order to change any parameters after locking the device, it needs to be unlocked with the correct password. Do not lose the password!
Device password
This is the unique factory password of the device that can be used to open in-built device specific debug and maintenance features of the device.
This feature can be used ONLY by approved Sintrol Service personnel.
Page 11

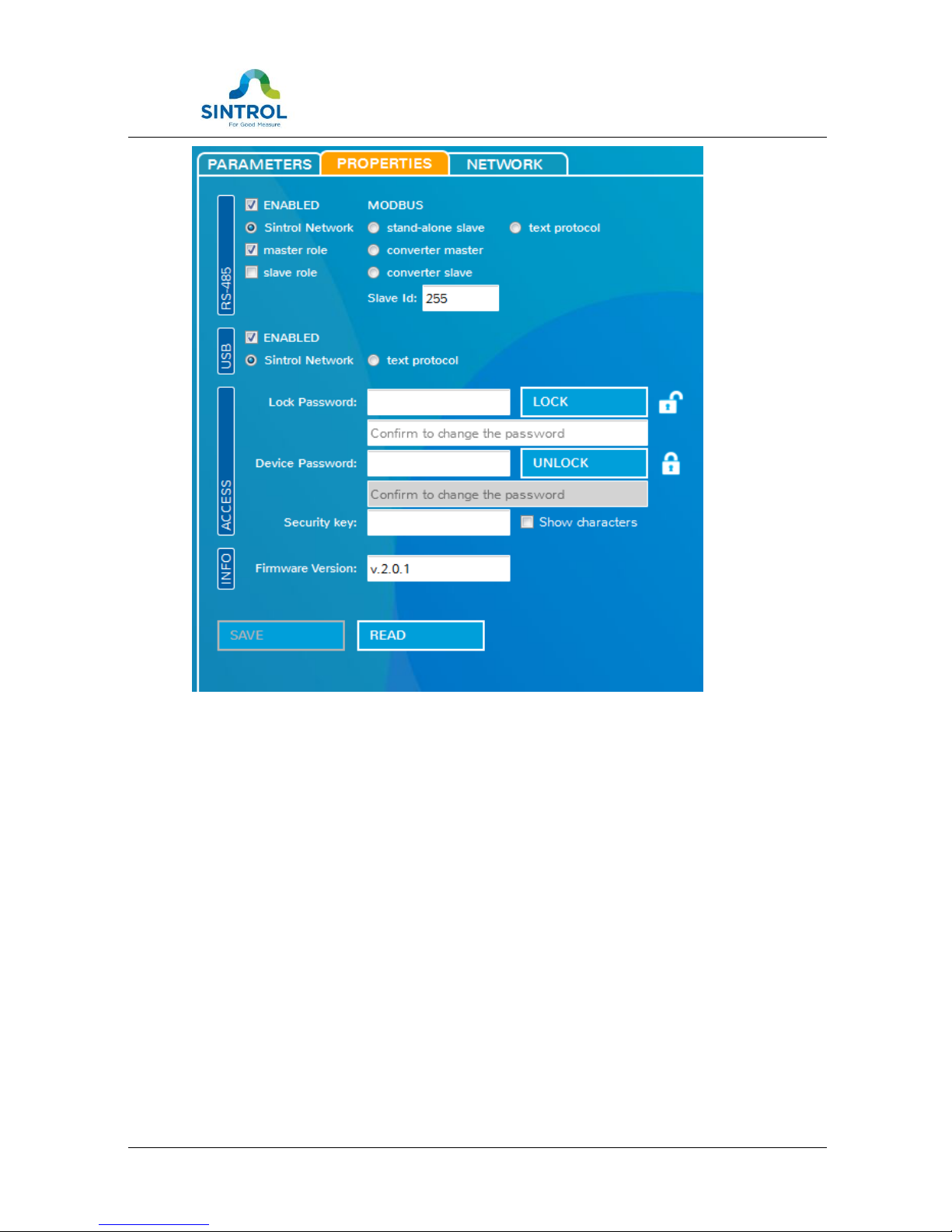

Figure 4 Properties tab
Page 12
5.3 NETWORK
On the network tab one can manage the current Sintrol Network routing and topology. The graphical presentation of connections shows links within the Sintrol Network: Solid lines between units present the RS485­wires.
Modifications on the network are done via menu that appears by right-clicking the desired node/unit.
Create the network
By right-clicking the Network Router itself a control menu appears. From the menu it is possible to scan the network, in order to add new devices. Sintrol devices that are not a part of any network, will appear and join the new network automatically.
Before manual re-routing of devices within the network, action must be enabled first by command ‘Enable Manual Re-routing’ from the router’s menu.

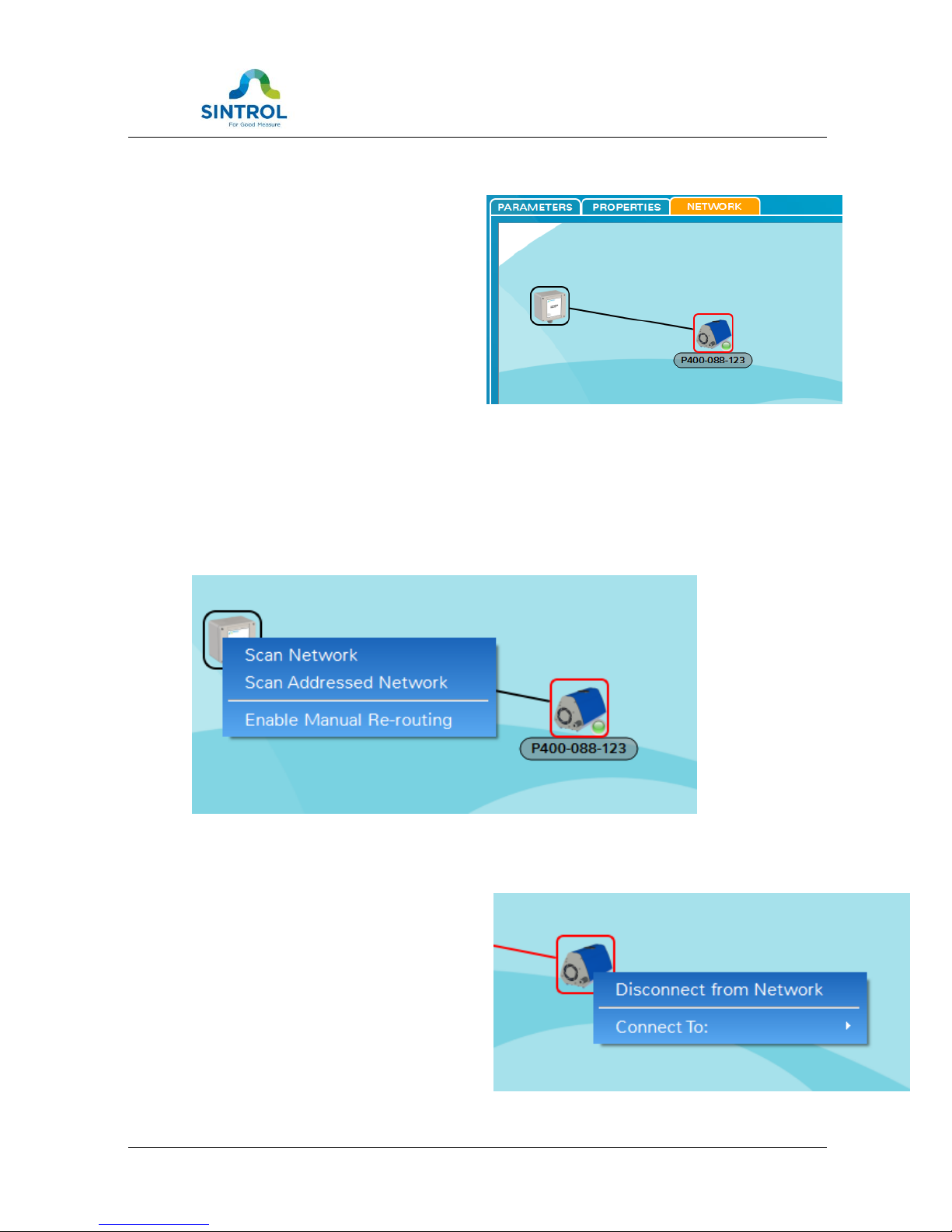

Figure 5 Router menu
Manually routing the devices
To get started with re-routing the devices, first one must right-click the Network Router and enable Manual routing for the network.
When the manual routing is enabled, the devices in the network can be right­clicked and via the menu:
1. Disconnected from the network.
Page 13
The device will disappear from this network and stay ready to join other networks.
2. Moved around the network by reconnecting them into another node
(device) within the network.
Every Sintrol network device can be selected as a link.
6 MAINTENANCE
After automatic setup, the Network Router needs very little or no maintenance.
However, keeping the product’s surface clean of dust or any other substance, is
recommended.
7 TROUBLESHOOTING
7.1 No USB-connection to PC
Check that the device is powered up. Check that Sintrol DustLog software has been installed correctly.
o Ensure that USB-drivers have been installed correctly and the
operating system recognizes the device correctly.
7.2 No response over RS485
Is the end device powered up and is the polarity of the RS-485 wires correct? Is the RS-485 bus terminated according the standard/specification? Is there any other communication or master units on the RS-485 currently
present?
Is the network device powered up and working correctly? Is the network device already part of another network? If so, establish the
connection via USB and detach the network device from the old network according to the instructions on the manual for the specific device.
Page 14
NOTES
Page 15
