Page 1
ML115VS-45-1B
CLINTON SERVICE GUIDE

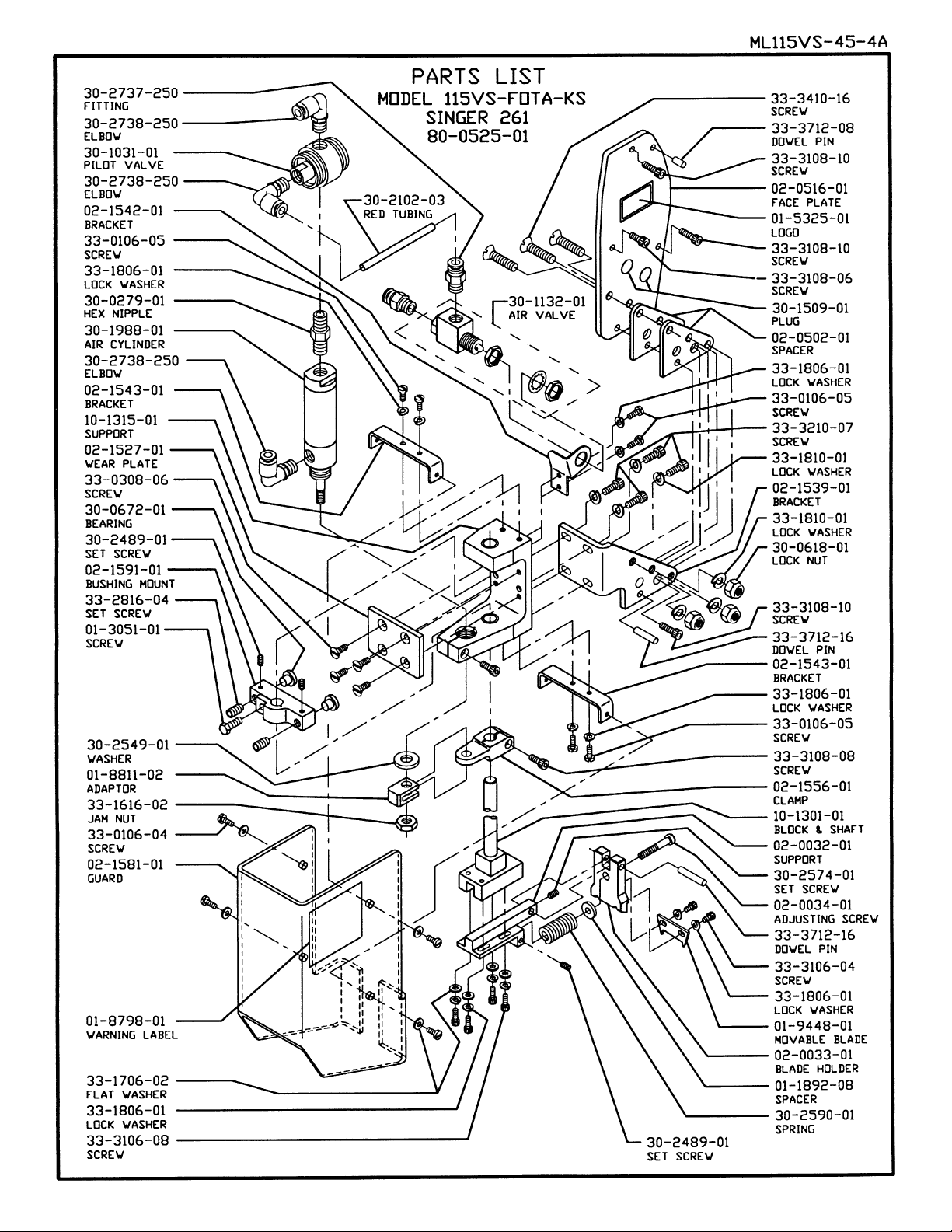

MODEL 115VS-FOTA-KS
FOR
SINGER 261
CUTTER ASSEMBLY
33-3108-10
SCREW
"A"
33-3712-08
DOWEL PIN
02-0516-01
FACE PLATE
"A"
33-3108-06
SCREW
33-3108-10
SCREW
33-3712-16
DOWEL PIN
NOTES:
1. REMOVE EXISTING FACE PLATE
AND RETAP (4) HOLES WITH
DRILL NO.29 (30-2130-29) AND
TAP 8-32 (30-1266-01)
SUPPLIED.
2. MOUNT VERTICAL SHEAR
CUTTER WITH (3) SCREWS
33-3108-10 & (1) 33-3108-06.
3. USING HOLES MARKED "A" AS
A GUIDE, DRILL (2) HOLES 3/16"
DIAMETER BY 3/16" DEEP. 3/16"
DRILL (30-2376-12) SUPPLIED.
4. INSERT DOWEL PINS (1)
33-3712-08 UPPER SIDE, AND
(1) 33-3712-16 LOWER SIDE.
Page 2
INSTALLATION & ADJUSTMENTS INSTRUCTIONS
ML115VS-45-2A
MOVABLE BLADE
NOTES:
1. ASSEMBLE MOVABLE BLADE
01-9448-01 WITH SCREWS
(2) 33-3106-04 AND LOCK
WASHERS (2) 33-1806-01.
2. DO NOT TIGHTEN MOVABLE
BLADE SCREWS AT THIS
TIME.
REFER TO ALIGNMENT
ADJUSTMENT.
33-3106-04
SCREW
33-1806-01
LOCK WASHER
01-9448-01
MOVABLE BLADE
STATIONARY BLADE
33-3108-04
SCREW
33-1808-01
LOCK WASHER
01-9447-01
STATIONARY BLADE
02-0501-01
GUARD
NOTE:
ASSEMBLE STATIONARY
BLADE AS SHOWN.
02-0504-01
BLADE SUPPORT
33-0308-04
SCREW
02-0511-01
MOUNTING PLATE
33-1808-01
LOCK WASHER
33-3108-10
SCREW
RADIAL
33-3108-08
SCREW
01-3051-01
SCREW
33-3106-08
ADJUSTING SCREWS
NOTES:
1. LOOSEN SCREW 01-3051-01
AND 33-3108-08 AND ROTATE
ASSEMBLY FOR PROPER
ENGAGEMENT.
2. LOOSEN SCREWS 33-3106-08
AND ADJUST MOVABLE BLADE
AGAINST STATIONARY BLADE
AND LOCK IN PLACE.
ALIGNMENT
30-2489-01
SET SCREW
CHECK ALIGNMENT
BETWEEN BLADES
AND ADJUST FOR
1/32" OVERLAP
NOTE:
LOOSEN SET SCREW 30-2489-01
AND ADJUST SCREW 02-0034-01
COUNTER-CLOCKWISE FOR
MORE CUTTING EDGE
ENGAGEMENT.
02-0034-01
ADJUSTING
SCREW
33-3106-04
SCREW
Page 3

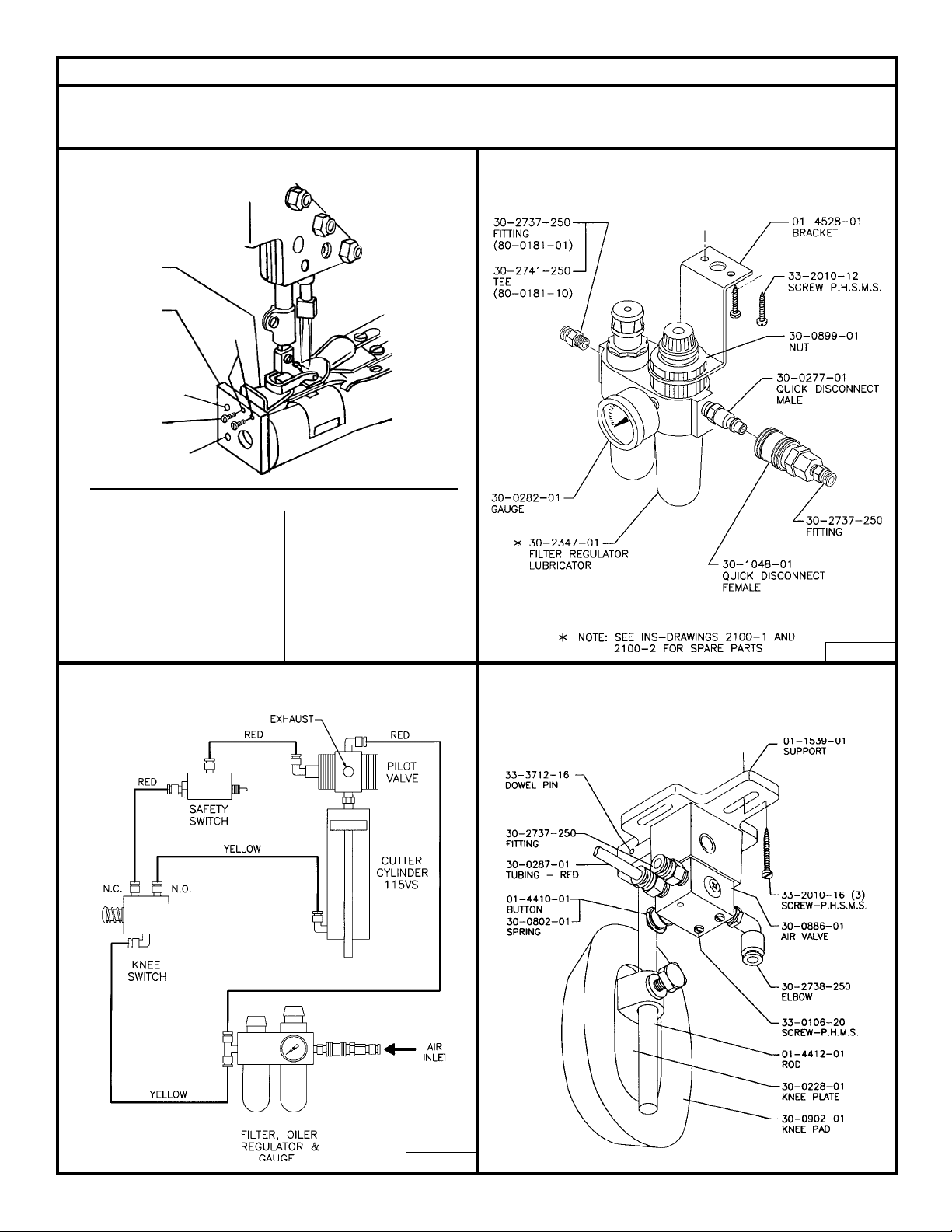

DRILLING & INSTALLATION INSTRUCTIONS
ML115VS-45-3A
WARNING!!
DRILL JIG
02-0632-01
PRESSER FOOT
EXTENSION
01-8919-01
DRILL JIG
30-2130-29
DRILL NO. 29
30-1266-01
8-32 TAP
30-1213-01
SCREW
NOTES:
1. FASTEN DRILL JIG 01-8919-01
TO MACHINE USING SCREWS
30-1213-01 SUPPLIED AT
POINTS MARKED "B".
2. USING DRILL NO. 29, DRILL THE
CASTING AT POINTS MARKED "C"
REMOVE THE DRILL JIG, AND
TAP HOLES AT POINTS MARKED
"C" USING THE 8-32 TAP
SUPPLIED.
TO PREVENT SERIOUS INJURY, DISCONNECT AIR
SUPPLY BEFORE MAKING ANY ADJUSTMENTS.
FILTER, OILER, REGULATOR & GAUGE ASSEMÂBLY
80-0181-01
80-0181-10
INS-570-3D
AIR CIRCUIT DIAGRAM
4 WAY AIR VALVE, KNEE OPERATED
80-0185-01
ML115VS-9E
INS-619-1A
