Specifications and Main Features
- Model: Singer 1030 and 1036E
- Classification: Electric-powered sewing device
- Power Supply: 120V (Only for USA and Canada)
- Weight: Not applicable
- Colors: Not listed
- Parts:
- Kuchin vagne g- 158
- Kuchin oboen briiarye g- 281
- Head end cap g- 211
- Tension module g- 142

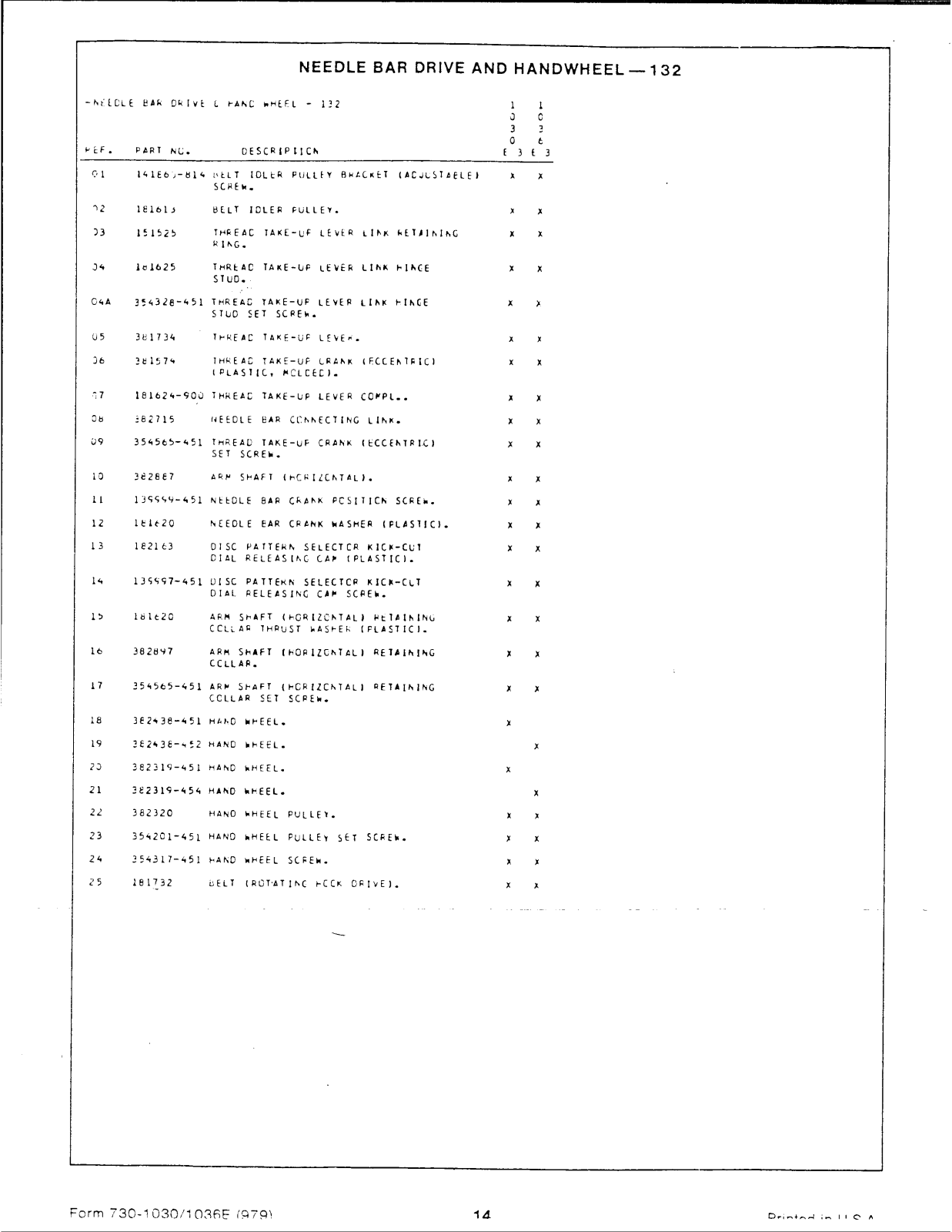

- Needle bar drive and handwheel g- 132

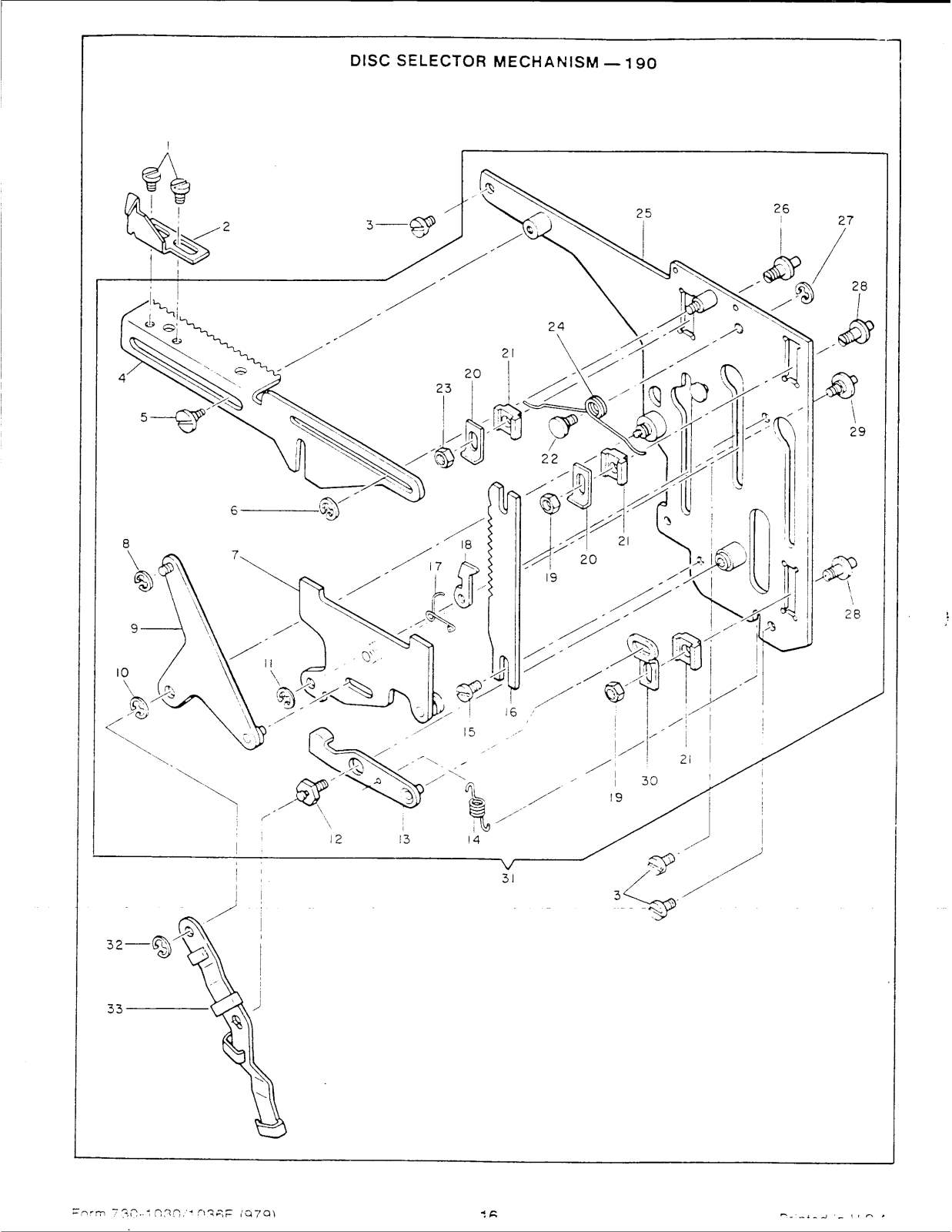

- Disc selector mechanism g- 190
- Disc stack and followers g- 102
- Bite mechanism feed control g- 111

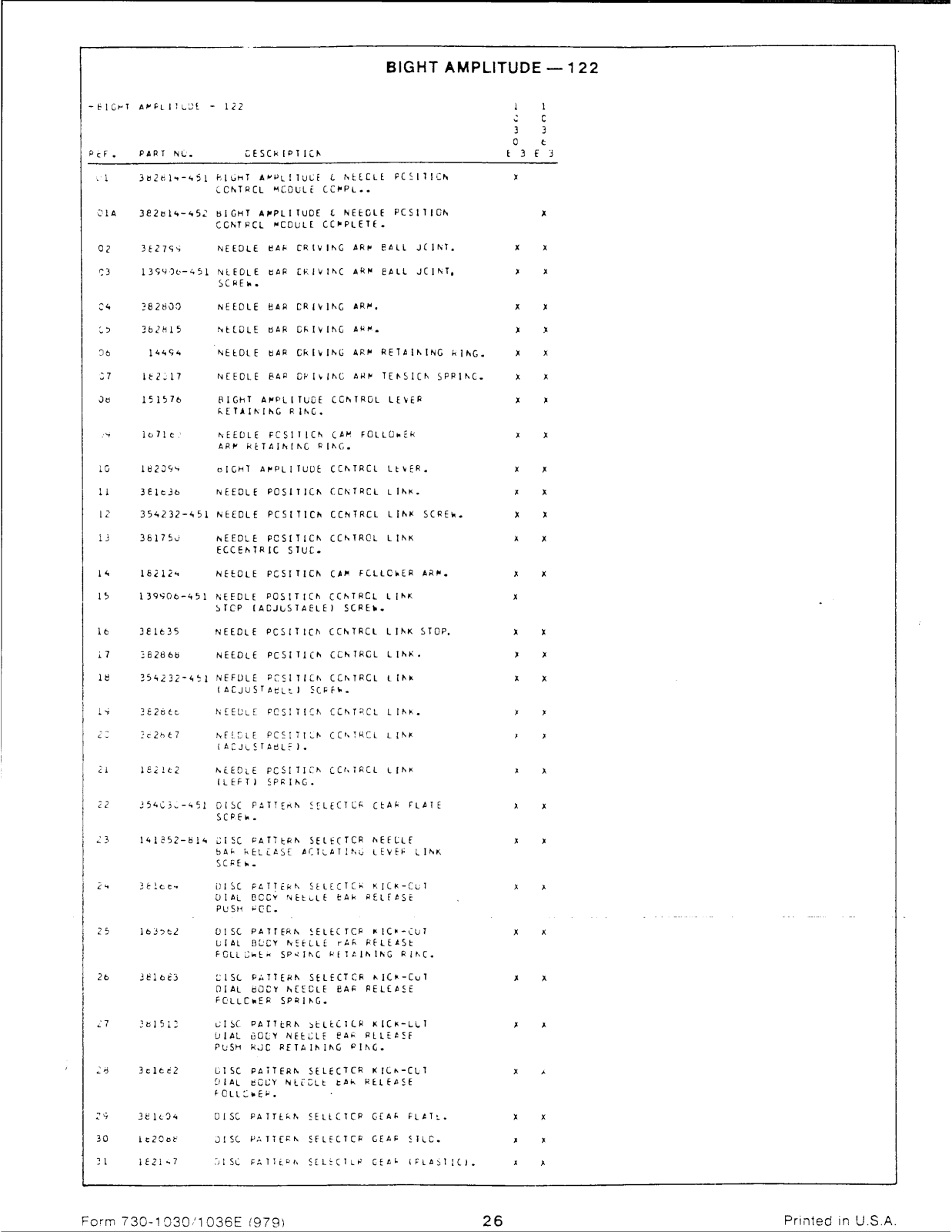

- Bight amplitude g- 122
- Rotating hook area g- 010
- Rotating hook drive and feed drive mechanism g- 030
- Alpha feed: 00M
- Electric Equipment: include lamp, motor, and switch components
Frequently Asked Questions
- What sewing machine model numbers are available?
- The available model numbers consist of SINGER branded products such as model number 1030 and SINGER branded model 1036E.
- In what voltage rating can Streamline operate?
- Streamline Sewing Machines model operates smoothly at a voltage rating of 120V.
- Is there a specific attachment set for this model?
- Yes, it comes with Attachment Set - 158.
- How to describe the different machine parts inclusive in the design?
- It contains handwheels, covers, a head end, a tension module, a needle bar drive, a disc selector mechanism, a disc stack and followers, a feed control mechanism, and control to adjust bight amplitude.
- Where can one locate the integrations to parts that are compatible with the machinery?
- There are part numbers provided within the manual which explicitly highlight the locations whereas it is also applicable to order components.
