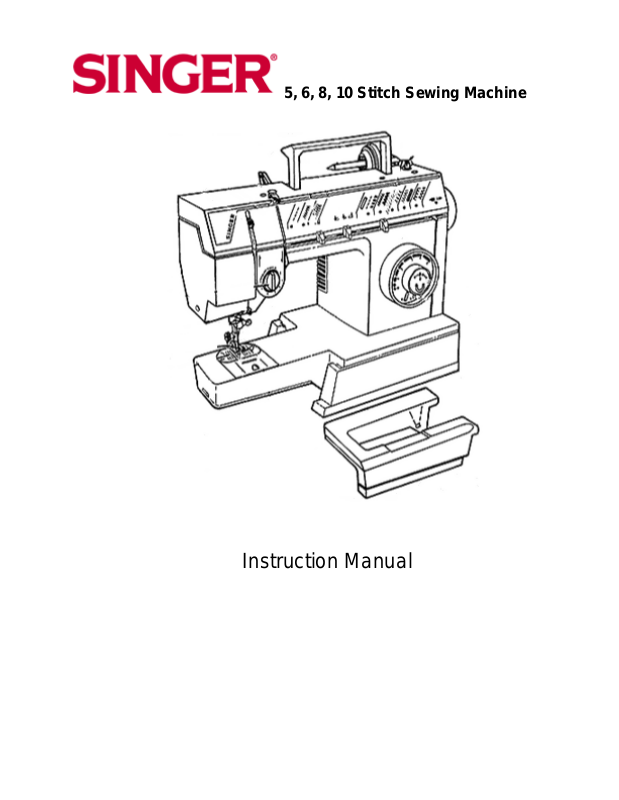

Singer 10 User Manual

5, 6, 8, 10 Stitch Sewing Machine

Instruction Manual

5, 6, 8, 10 Stitch Sewing Machine

Table of Contents

1. Getting To Know Your Machine

Principal Parts Accessories

Important Safety Instructions

2. Getting Ready To Sew

Operating the Machine Choosing and Changing Needles Changing Presser Feet Changing the Needle Plate Attaching the Feed Cover Removing and Replacing the Extension Table Fabric Thread and Needle Table Winding a Bobbin Inserting a Bobbin Threading the Machine

Raising the Bobbin Thread

3. Straight Stitching

Stitch Width Selector Needle Position Selector Stitch Length Selector Reverse Stitch Button Adjusting Thread Tension Sewing a Seam Starting a seam Darning Quilting

Inserting a Zipper

4. Zig-Zag Stitching

Stitch Pattern Selector Needle Position Selector Stitch Width Selector Adjusting Stitch Length

Needle Thread Tension

Zig-Zag Zag Stitch Blindstitch Ladder Seams Multi Stitch Zig-Zag

"M" Stitch

5. Four Step Buttonhole

6. Free-Arm Sewing

7. Twin Needle Sewing

8. Caring For Your Machine

Removing and Replacing the Bobbin Case Changing the Light Bulb Cleaning the Machine Lubricating the Machine

Additional Accessories Attaching a Button Performance Checklist

Congratulations

5, 6, 8, 10 Stitch Sewing Machine

As the owner of a new Singer sewing machine, you are about to begin an exciting adventure in creativity. From the moment you first use your machine, you will know you are sewing on one of the easiest to use sewing machines ever made.

In addition to the many familiar SINGER exclusives, like a removable extension table and a horizontal spool pin, this machine offers you these features:

* Zig-zag stitching for buttonholes, mending and decorative stitches.

* Flexi stitch patterns for sewing knitted and other stretch fabrics. (only for machines with 6, 8 and 10 stitches)

* Built-in 4-step buttonholer that takes the difficulty out of making a buttonhole. (only for machines with 5, 6, 8 and 10 stitches)

* Blindsitching for invisible hems. (only for machines with 5, 6, 8 and 10 stitches)

* Easy to find "Letter-Coded" Accessories. * Drop in front bobbin for easy, quick bobbin

replacement.

* Simple stitch length dial and push button reverse stitching.

* Snap on presser feet that are quickly removed and easily replaced.

* One-way needle insertion that makes it impossible to insert the needle incorrectly.

May we recommend that, before you start to use your sewing machine, you discover the many advantages and the ease of operation by going through this instruction book, step by step, seated at your machine.

To ensure that you are always provided with the most modern sewing capabilities, the manufacturer reserves the right to change the appearance, design or accessories of this sewing machine when considered necessary.

*A Trademark of The Singer Company

5, 6, 8, 10 Stitch Sewing Machine

Dear Customer, We recommend that for future reference you record the

Serial Number of your Sewing Machine in the space provided.

Refer to illustration at right for location of Serial Number on your machine.

Serial No. Serial No.

For European Territories:

This Singer Sewing Machine was tested according to European norms and meets the requirements regarding electrical safety radio, interference and electromagnetic immunity.

The conformity is documented with the

mark.

5, 6, 8, 10 Stitch Sewing Machine

1 Getting to know your machine

Principal parts

1. Hand wheel

2. Bobbin winder

3. Pattern selector lever (only for machines with 5, 6, 8 and 10 stitches)

4. Horizontal spool pin and holder

5. Needle position selector

6. Stitch width lever

7. Snap-in thread guide

8. Bobbin winder tension disc

9. Thread guide

10. Take up lever

11. Face plate

12. Needle thread tension dial

13. Thread guides

14. Snap on presser foot

15. Feed system

16. Needle plate

17. One-way needle clamp

18. Removable extension table

19. Stitch length dial/ four-step buttonhole (only for machines with 5, 6, 8 and 10 stitches)

20. Push button reverse

21. Stitch balance control (only for machines with 6, 8 and 10 stitches)

22. Presser foot lifter

23. Thread cutter

24. Slide plate

25. Foot control

26. Electrical lead

27. Machine plug

28. Power and light switch

29. Bobbin winding indent

5, 6, 8, 10 Stitch Sewing Machine

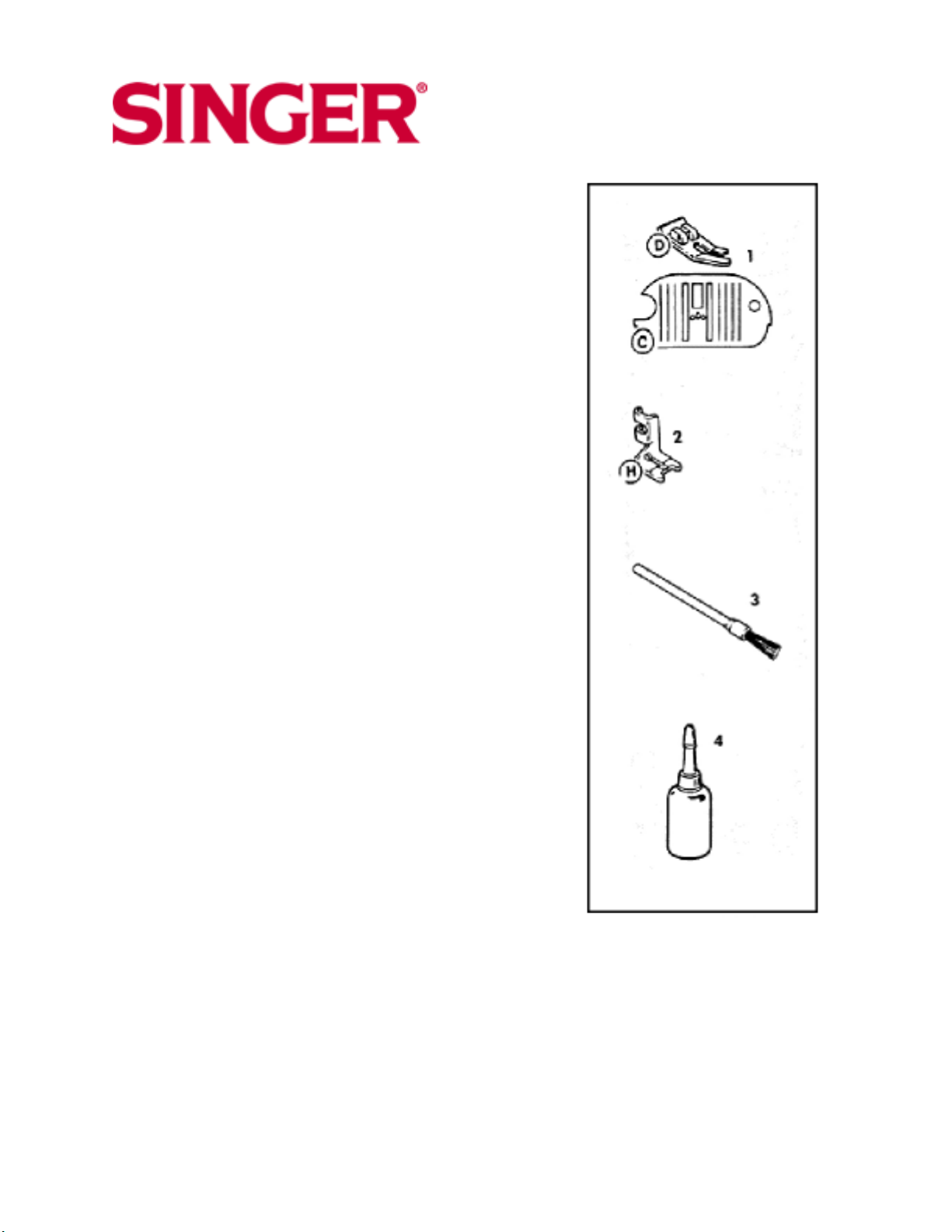

Accessories

The following accessories furnished with your sewing machine are designed to simplify your sewing projects

and increase the versatility of your machine.

The letter in a circle adjacent to the illustrated part is reproduced on the part itself to help you select the

correct attachment for the type of work you are doing.

1. Special purpose presser foot (J) is used for decorative and zig-zag sewing. (only for machines

with 5, 6, 8 and 10 stitches)

2. General purpose needle plate (A) and presser foot (B) are on your machine when delivered. Use

together for alternating between straight and zig-zag stitching.

3. Buttonhole presser foot (L) is used with the General Purpose Needle Plate to make four-step buttonholes. (only for machines with 5, 6, 8 and 10

stitches)

4. Zipper foot (E) is used for inserting zippers and stitching corded seams. (only for machines with 5, 6, 8

and 10 stitches)

5. Friction free spool holder is used to hold various size spools and allows thread to unwind smoothly.

The spool does not turn.

6. Small thread spool holder (Q) for use with small diameter spools of thread.

7. Needlepack includes an assortment for sewing various types of fabrics.

5, 6, 8, 10 Stitch Sewing Machines

Accessories Continued...

8. Feed cover (F) is used to prevent the feed from

moving the fabric when darning or free motion embroidery.

9. Transparent bobbins for easy viewing of thread supply

10. Blindstitch hem presser foot is used to position the hem for blindstitch hemming. (only for machines

with 5, 6, 8 and 10 stitches)

11. Twin needle and spool pin are used to stitch two parallel rows of decorative stitching simultaneously. When using twin-needle for decorative stitching, set stitch width lever to zig-zag mid range. (Optional for

some markets).

12. Felt for twin needle spool pin. (Optional for some markets).

Optional accessories are available for your machine from your local Singer retailer.

5, 6, 8, 10 Stitch Sewing Machine

IMPORTANT SAFETY INSTRUCTIONS

When using this machine, basic safety precautions should always be followed including the following:

Read all instructions before using this machine. DANGER - To reduce the risk of electric shock:

* The machine should never be left unattended when plugged in. Always unplug the machine from the electric outlet immediately after using and before

cleaning.

* Always unplug before re-lamping. Replace bulb with the same type rated 15 watts. Be sure to replace the face plate which covers the light bulb before operating

the machine.

WARNING - To reduce the risk of burns, fire, electric shock or injury to persons:

* Be sure that the electrical voltage of the socket outlet (wall receptacle) is the same as the rated

voltage of the motor.

* Use this machine only for its intended use as described in this Operator's Guide. Use only attachments recommended by the manufacturer as

contained in the Operator's Guide.

* To disconnect, turn all controls to the off ( "0" )position, then remove plug from outlet.

* Disconnect the power-line plug from the socket outlet or switch the machine off when making any adjustments in the needle area, such as threading needle, changing needle, changing throat plate or

changing presser foot, etc.

* Always unplug the machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in the

Operator's Guide.

* Do not attempt to adjust the motor belt. Contact your nearest Service Center should any adjustment be

required.

* Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

* Handle the foot controller with care and avoid dropping it on the floor. Be sure not to place anything

on top of it.

* Always use the proper throat plate. The wrong plate can cause the needle to break.

* Do not use bent needles.

* When sewing, keep fingers away from all moving parts. Special care is required around the sewing

machine needle.

* Do not pull or push fabric while stitching. It may deflect the needle causing it to break.

* Before removing the bobbin case, remove plug from the socket outlet.

* For double insulated machines, when servicing use only identical replacement parts.

* Never operate the machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damage, or dropped into the water. Return the machine to the nearest authorized dealer or Service Center for examination, repair, electrical, or

mechanical adjustment.

5, 6, 8, 10 Stitch Sewing Machines

IMPORTANT SAFETY INSTRUCTIONS

continued...

* Never operate the machine with any air openings blocked. Keep ventilation openings of the machine and foot controller free from the accumulation of lint,

dust, and loose cloth. * Never drop or insert any object into any opening. * Do not use outdoors.

* Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

* Do not allow to be used as a toy. Close attention is necessary when the machine is used by or near

children.

SAVE THESE INSTRUCTIONS

Servicing should be performed by an authorized service representative.

This product is intended for household use.

5, 6, 8, 10 Stitch Sewing Machine

2 Getting ready to sew

Operating the machine

Connecting the machine

Push plug (1) into the receptacle (2) at the right end of the machine. Then connect plug (3) to your socket

outlet.

For North America

This appliance has a polarized (one blade wider than the other). To reduce the risk of electric shock, this plug is intended to m in a polarized outlet only one

way.

If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not modify the plug in

any way.

Running the machine

To turn on machine and sewing light, press upper portion "I" of power switch (4). To turn off machine and

light, press lower portion "0" of power switch.

To run the machine and control speed press the foot control (5) with your foot. The harder you press, the faster the machine will sew. To stop machine, remove

foot from control.

Note: Do not operate machine without fabric under the presser foot as this may damage the feed and the

presser foot.

Choosing and changing needles

Important: For best results from your sewing machine, use only SINGER * needles. Check the needle package, and the Fabric, Thread and Needle Table on

page 16 for the correct needle and fabric combination. * Raise needle to its highest position.

* Loosen needle clamp screw and remove needle.

* With flat side of needle to the back, insert new needle up into clamp as far as it will go.

* Tighten needle clamp screw securely.

5, 6, 8, 10 Stitch Sewing Machine

Changing snap-on presser feet (B), (D), (J), (L)

Your machine comes with the General Purpose Presser Foot (B) already attached. You can easily change to any one of the other presser feet which snap onto a common shank by following the directions

below.

* Raise needle to its highest position by turning hand wheel toward you.

* Raise presser foot using presser foot lifter at back of machine.

* Push toe of presser foot (1) up, until it snaps off the shank (2).

* Remove foot from machine. * Place new foot under center of shank.

* Lower presser foot lifter, fitting shank over presser foot pin (3).

* Don't turn screw. Instead, push presser foot screw (4) down, firmly until foot snaps into place.

Changing screw-on presser feet (H)

Some special presser feet with built-in shanks can be purchased at your SINGER dealer and can be

replaced as follows: * Raise needle and presser foot.

* Loosen presser hot screw (1) and remove presser foot with shank (2), guiding it toward you and to the

right.

* To replace presser foot with shank, hook shank around the presser bar and tighten presser foot screw

with the use of a coin.

5, 6, 8, 10 Stitch Sewing Machine

Changing the needle plate (A), (C)

Your machine comes with the General Purpose Needle Plate (A) attached. The Straight Stitch Needle Plate (C) may be purchased at your sewing center

and can be attached as follows: * Raise needle and presser foot.

* Open slide plate. * Lift up needle plate from right corner and slide out from under foot. * To replace needle plate, slide it under pin (1) and push it firmly to the left

* Press down until it snaps into place.

Attaching the feed cover (F)

The feed cover is used to keep the feed from moving the fabric when attaching a button, darning or sewing free-motion embroidery. To attach it, follow the

directions below: * Raise needle and presser foot.

* Open slide plate. * Slide feed cover on top of needle plate, pressing tabs (1) and (2) into holes.

* Close slide plate. * To remove, open slide plate and lift front edge of cover; pull it away.

Removing the extension table

Free arm sewing makes it easier to sew hard-to-reach areas.

To change machine for free arm sewing, lift right edge (1) of extension table, slide it to the left and off the

machine.

To replace the extension table, slide it to the right keeping it even with the free arm, until the tabs on the

right lock into place.

5, 6, 8, 10 Stitch Sewing Machine

Fabric, thread and needle table

The needle and thread you choose will depend upon the fabric being sewn.

The table below is a practical guide to needle and thread selection.

Always refer to it before beginning a sewing project. Be sure to use the same size and type of thread in both needle and bobbin.

The fabrics can be of any fiber cotton, linen, silk. wool,

synthetic, rayon, blends. they are listed as examples of weight.

Fabrics Thread Type Size

Cotton-wrapped

Light-

Weight

Medium-

Weight

Medium-

Heavy

Knits

Batiste Chiffon Crepe

Corduroy Flannel Gabardine Gingham Linen Muslin Wool Crepe

Bonded Wovens Canvas Coating Denim Duck Sailcloth

Bonded Knits Double Knit Jersey Tricot

Polyester 100% Polyester *Mercerized Size 50 Nylon

Cotton-wrapped Polyester 100% Polyester *Mercerized Size 50 Nylon

Cotton-wrapped Polyester 100% Polyester *Mercerized Size 40 *"Heavy Duty"

Cotton-wrapped Polyester Polyester Nylon

NEEDLES

2020 11/80

2020 14/90

2020

Ball-Point 2045

Size 11/80, 14/100, 16/110

16/100

18/110

*Not recommended on stretch fabrics

5, 6, 8, 10 Stitch Sewing Machines

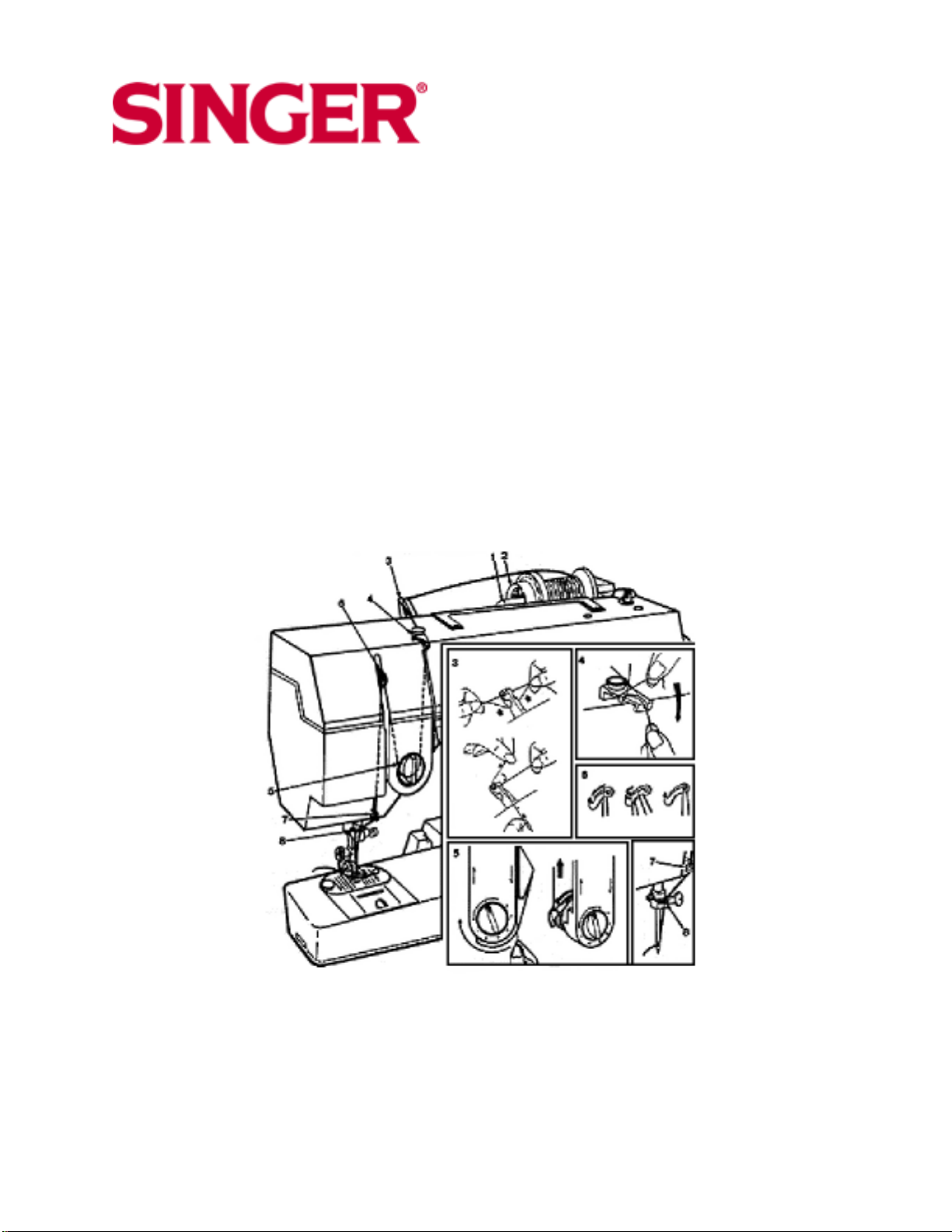

Winding a bobbin

Winding a bobbin is quick and easy when you follow the directions below. Always wind the bobbin before

threading the machine and needle.

* Push in indent (1) on hand wheel disc. This will stop the needle from moving.

* Place spool of thread on spool pin.

* Slide spool cap (2) firmly over rim of spool to prevent thread tangling.

* Lead thread from spool and snap into thread guide post (3).

* Wind thread clockwise around front of bobbin winder tension disc (4).

* Pass thread end, from inside, through small hole in rim of bobbin.

* Place bobbin on spindle and push it to the right

* Holding thread end, step on speed controller to run machine until desired amount of thread is wound.

(Winding stops automatically once bobbin is full.)

* Cut thread; push bobbin to the left and remove it from spindle.

* Trim thread end from top of bobbin.

* Return hand wheel disc to sewing position by pressing on side opposite indent.

5, 6, 8, 10 Stitch Sewing Machines

Inserting a bobbin

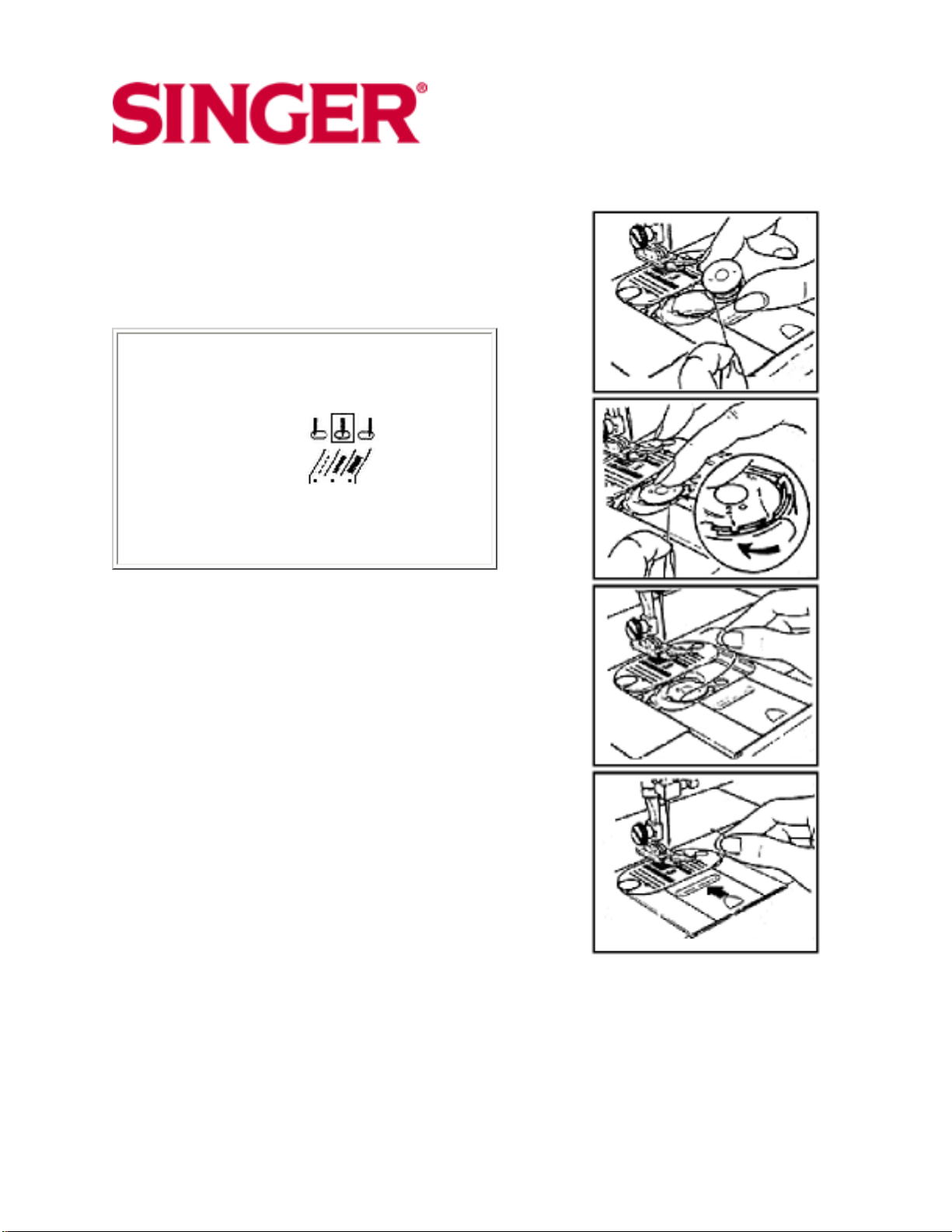

To insert a bobbin, follow the instructions below: * Raise presser foot

* Turn hand wheel toward you until needle is in its highest position.

* Open slide plate and remove empty bobbin.

1. Pull 4" (10cm) of thread from replacement bobbin and insert bobbin into case, as shown.

2. Holding bobbin in place, guide thread into notch (1) and then down the slot to the left and guide around

into notch (2).

3. Draw several inches of thread diagonally across the bobbin toward the back of the machine.

4. While holding thread on outside, close the slide plate, allowing thread to extend through the slot

between the slide plate and needle plate. * Follow directions for "Raising Bobbin Thread"

+ 32 hidden pages
