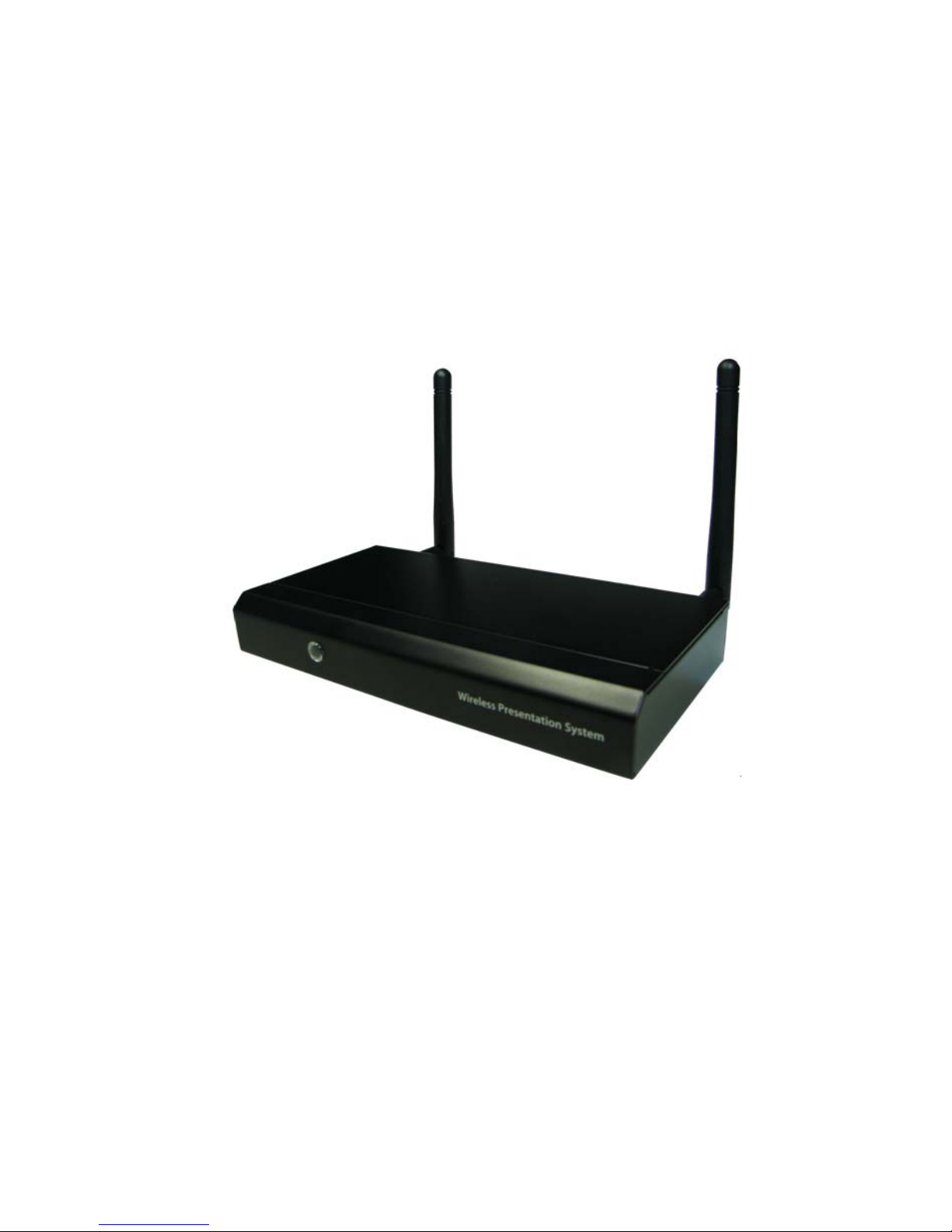

1. Overview

VPS is a must-have device for your meeting room! It turns your existing
"wired" projector into a "high-end wireless" projector. With the revolutionary
Plug-and-Show wireless projection features, VPS makes every of your
presentation and meeting efficient and successful.

 High Performance Wireless Projection & Audio Projection

With the revolutionary high performance wireless projection with audio, you
can easily share the multimedia on the big monitor with friends without cable
hassle.

 Plug & Show

With the accompanied Plug & Show USB Token, wireless presentation becomes
easy! Just link your PC/Laptop to VPS (through WLAN or Ethernet), plug the
token into a USB port, and in seconds, your screen will be wireless projected to
the connected projector!

 4-to-1 Split Screen Projection

With this 4-to-1 split screen feature, up to four PC screens can be projected to
one projector in the same time. Thus you can easily do side-by-side
comparison from four PC / PDAs to increase meeting productivity!

 Smartphone wireless projection

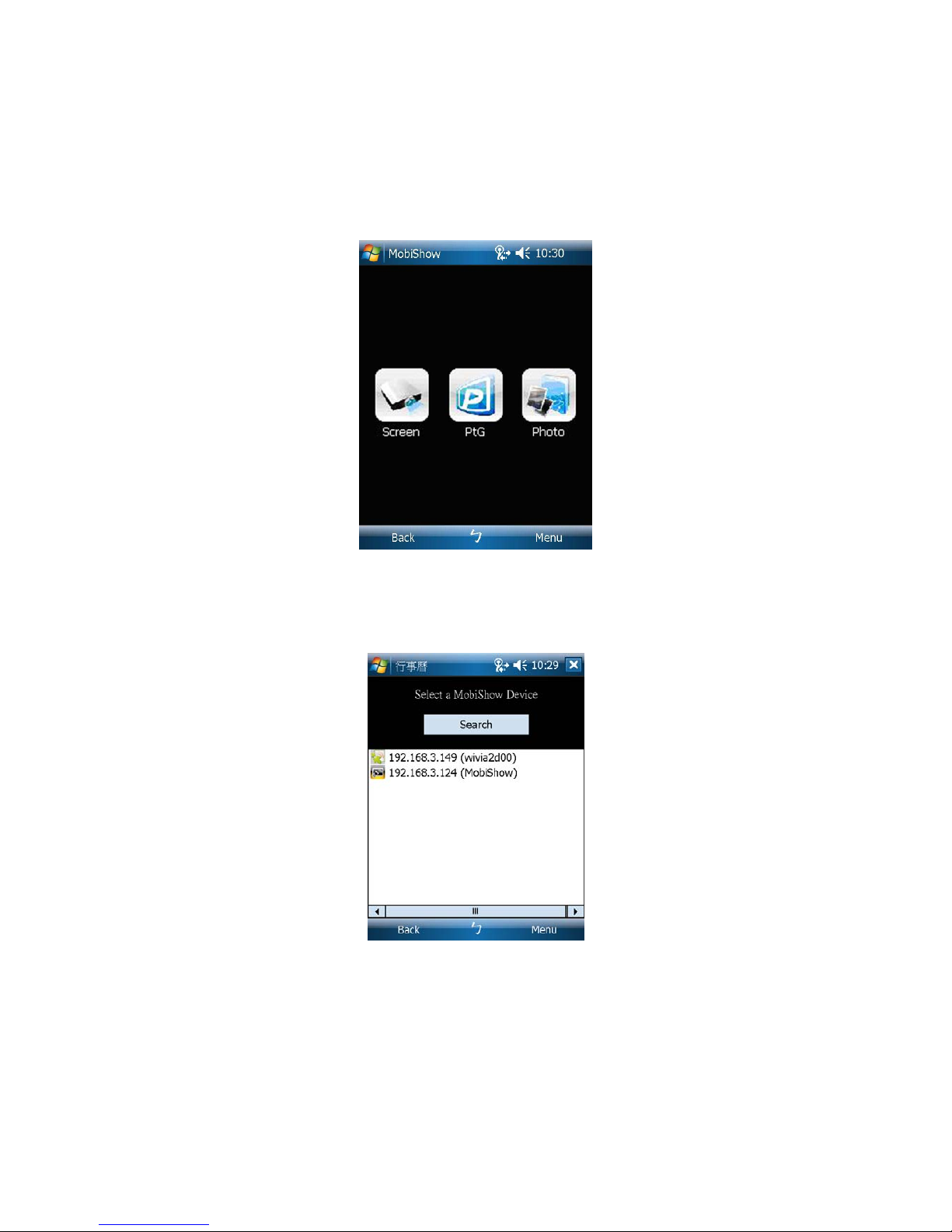

VPS supports MobiShow function for windows mobile 5/6 system. By launching
MobiShow utility, MobiShow brings your mobile screen to big screen and which
can play photos and PtG files stored in your mobile phone for presentation.

 SNMP Manager

By enabling SNMP (Simple Network Management Protocol Version 2c) Manager,
you can manage devices for each or batch. No need to login device’s Web page
each by each for changing device settings anymore.

5

 Change Standby Screen

You can use the application “Screen Image Background Maker” to change the
Splash Screen. Design the image with message you would like to present,
upload it through web control page, and you could have customized starting
page.

 AP Client Mode

You can enable the AP-Client Mode function to let VPS join the existing Access
Point through Wi-Fi. This feature provides the flexibility of wireless network
deployment in enterprise environment.

6

¾ Features

■ Support Windows Win7, Vista, XP, and Mobile 5/6

■ Plug and Show! No installation required … just plug in the accompanied

token to a USB port, and hassle free presentation can be started in
seconds.

■ 4-to-1 split screen projection! Turn one projector into four, increase
meeting productivity right away.

■ Smartphone wireless projection! PC-less stylish presentation becomes
possible!

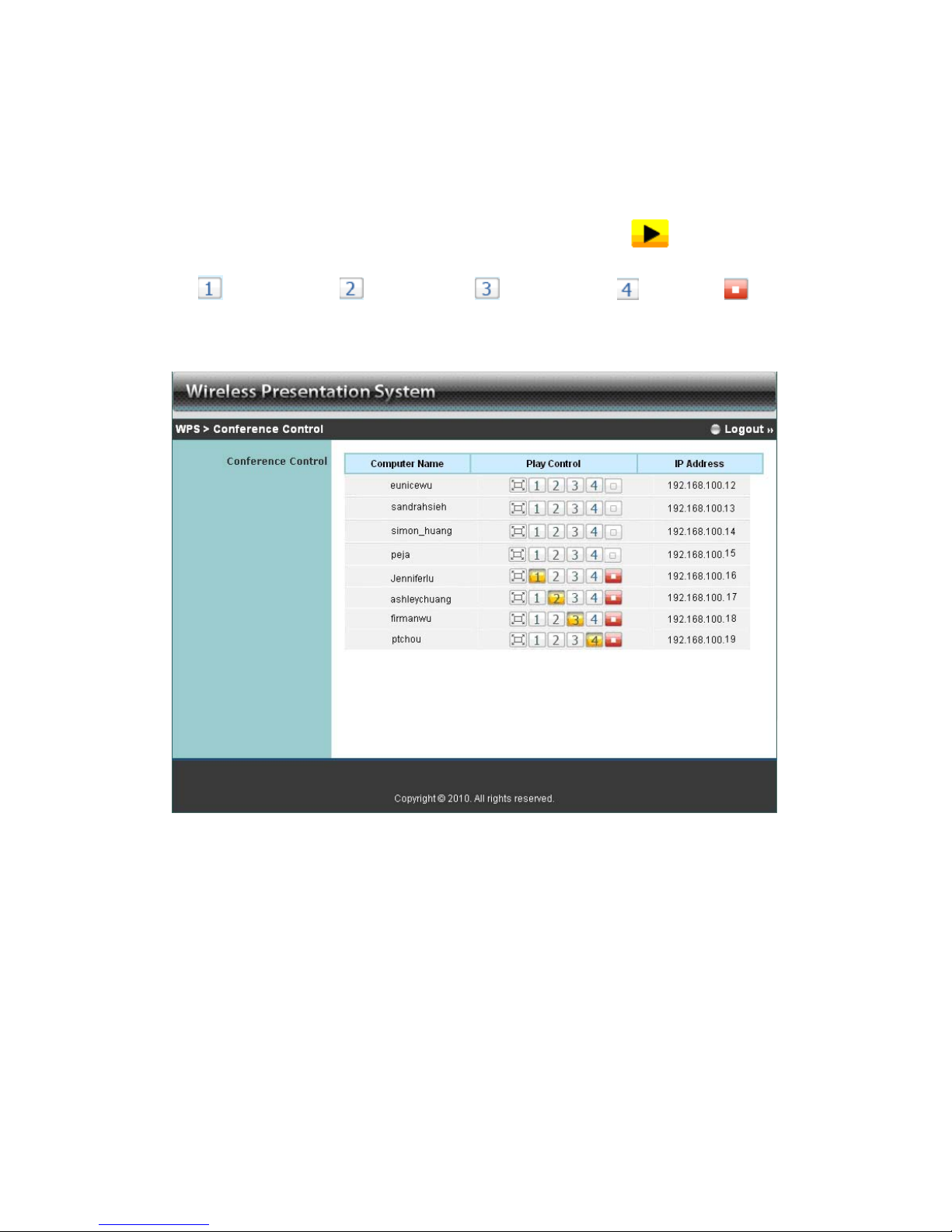

■ Conference control! Allows moderators to streamline grand meetings.

■ Provide session security login, wireless WEP/WPA key and Gatekeeper

function to protect presentation contents and keep good security to
office networks.

■ Support High Performance screen projection with audio.

■ Changeable Splash Screen image!

■ SNMP Manager! To manage the devices easily

■ AP-Client Mode! Deploy wireless network in enterprise environment

easily

2. Quick Start

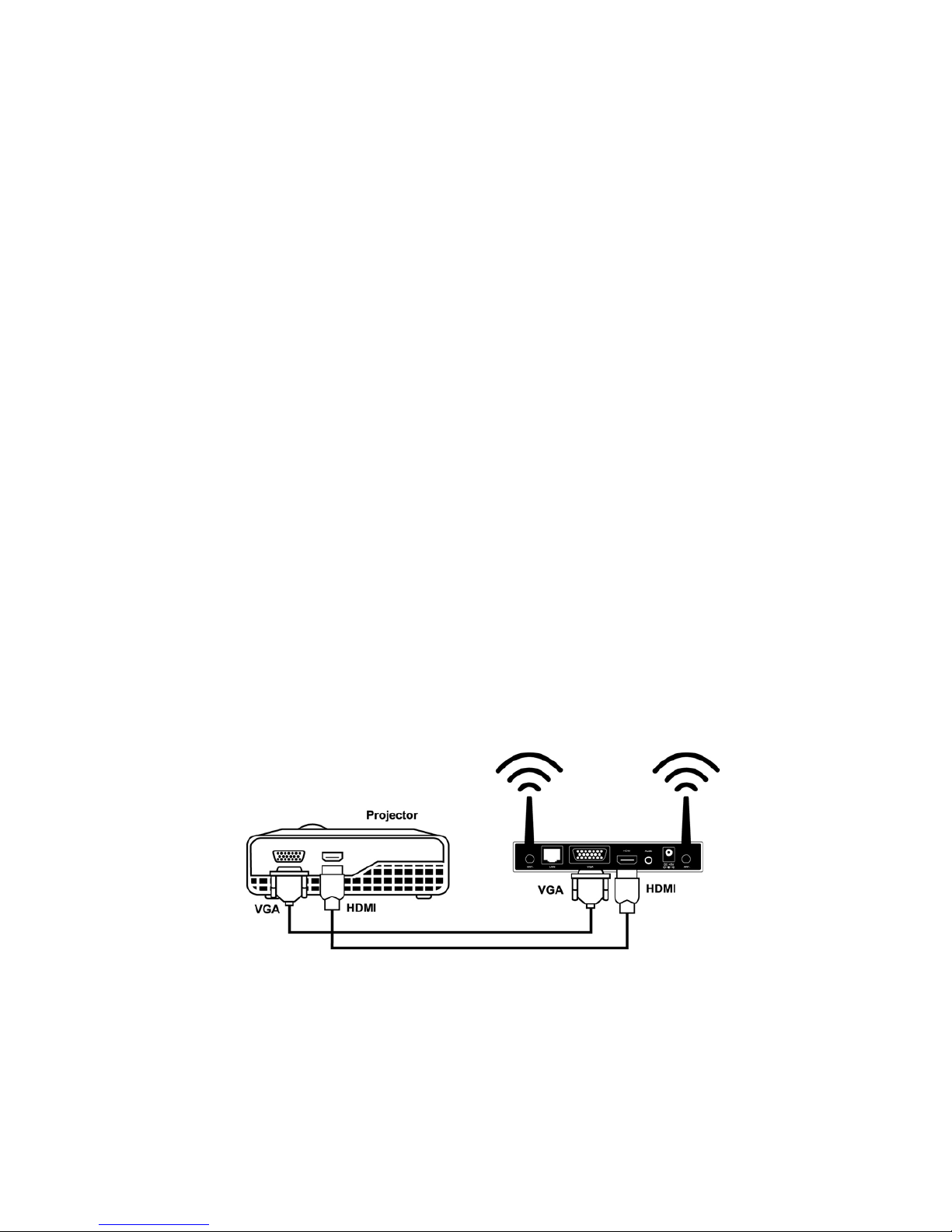

1) Connect projector VGA/HDMI cable to VPS unit VGA/HDMI connector and
turn on projector power.

2) Turn on VPS unit.

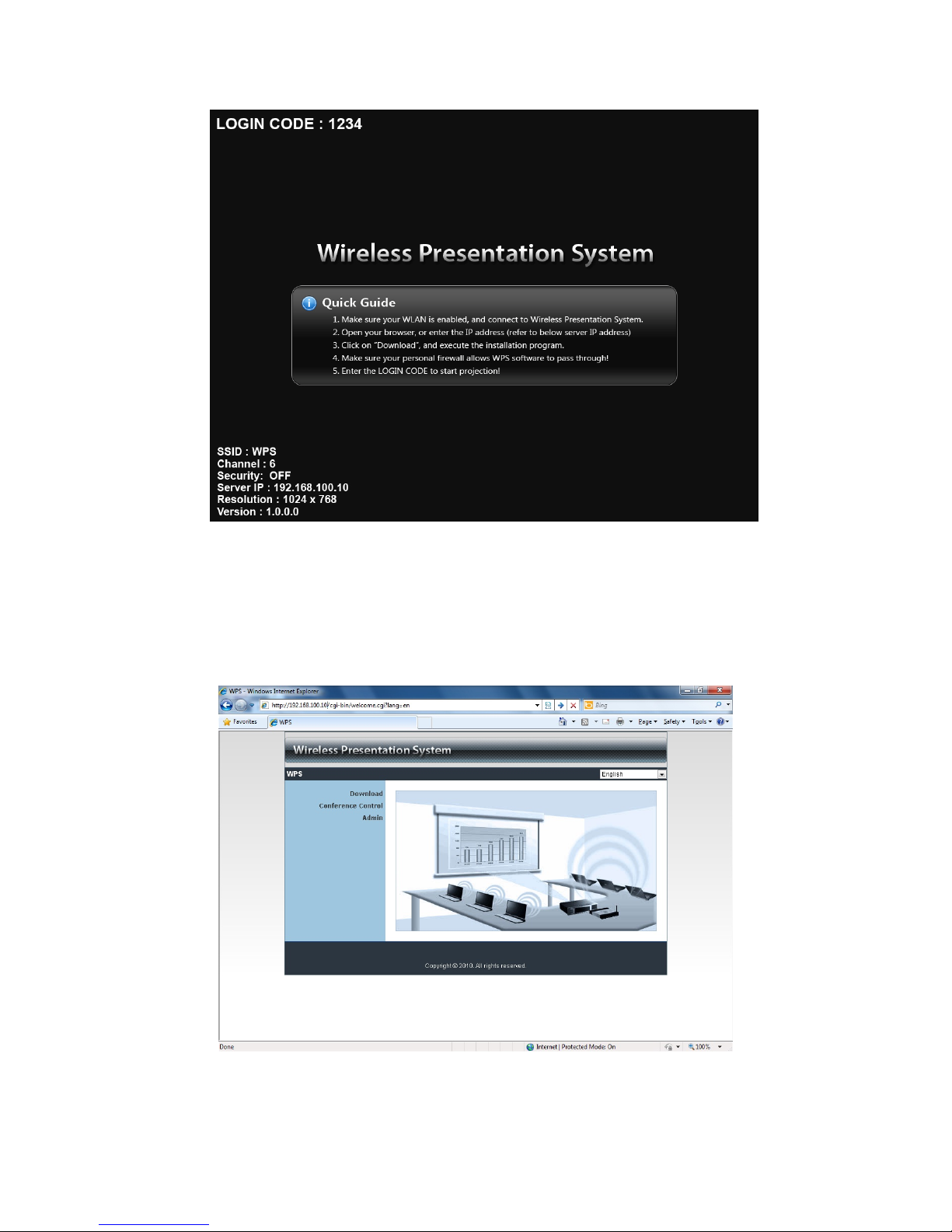

♦ When Projector shows the default menu on the screen as below, it

indicates the VPS unit is ready now.

7

3) Make sure your PC WLAN is enabled already, and connect your PC with VPS
unit.

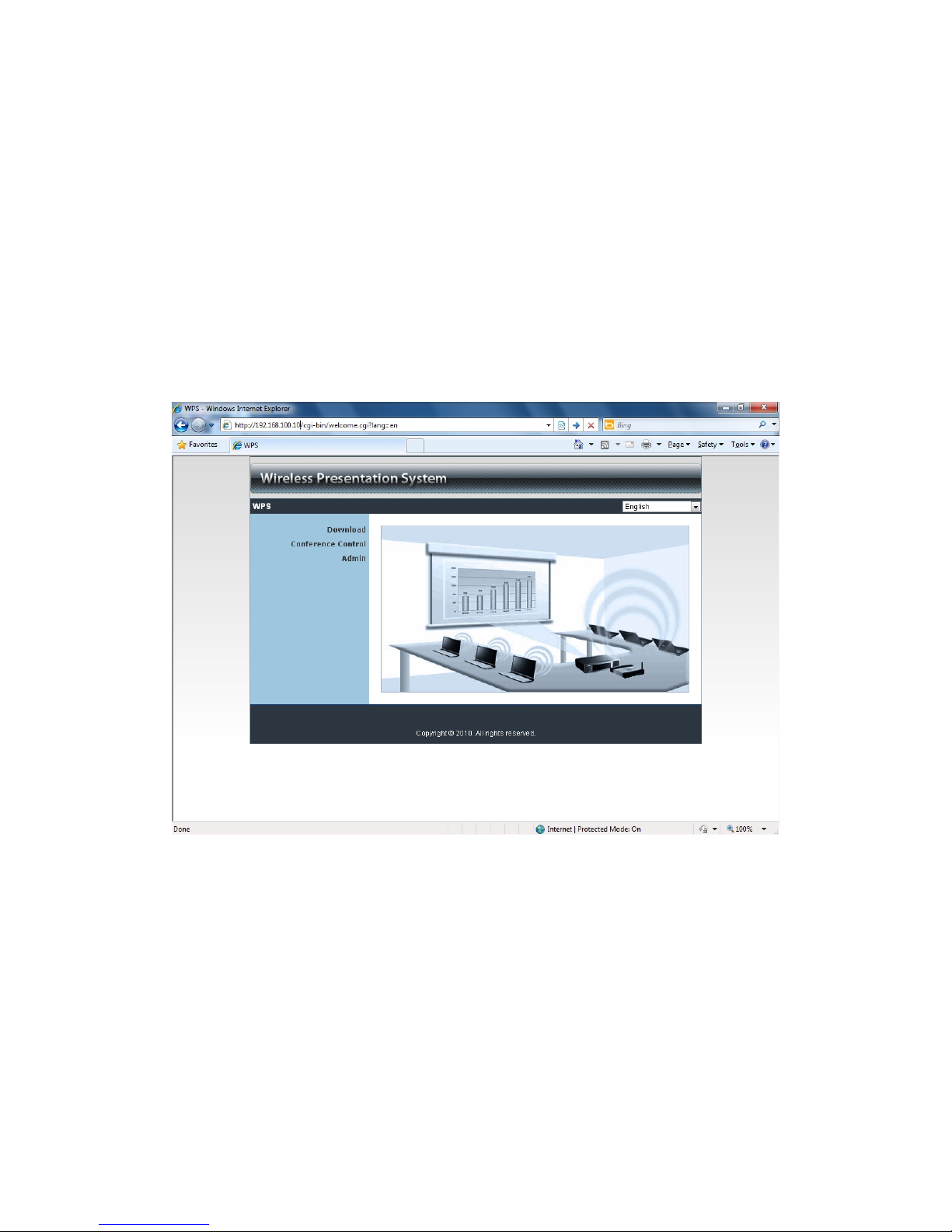

4) Open your browser and enter the IP address to access the VPS web home
page.

♦ The default IP address of VPS is 192.168.100.10 or refers to the IP

address shown on the left corner of projector screen.

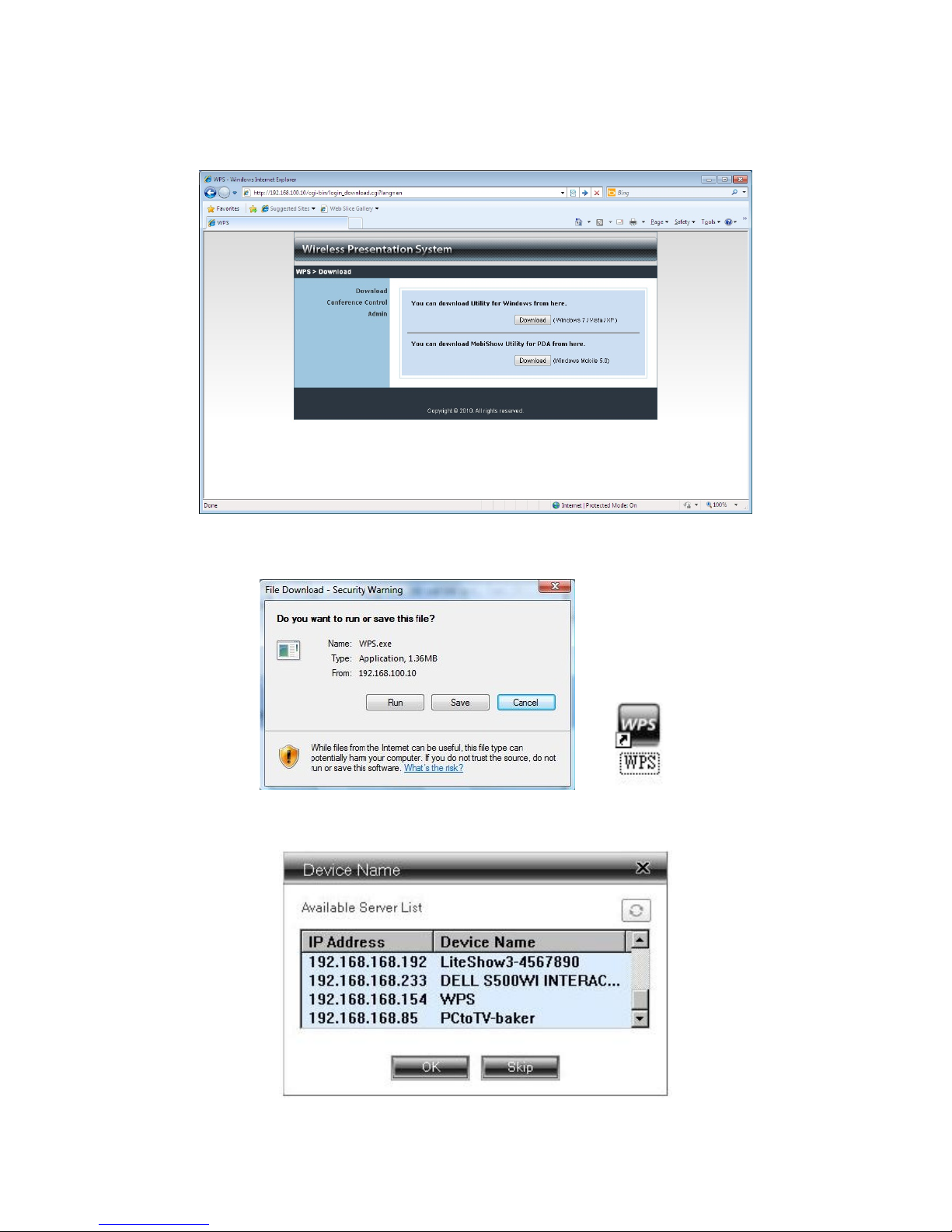

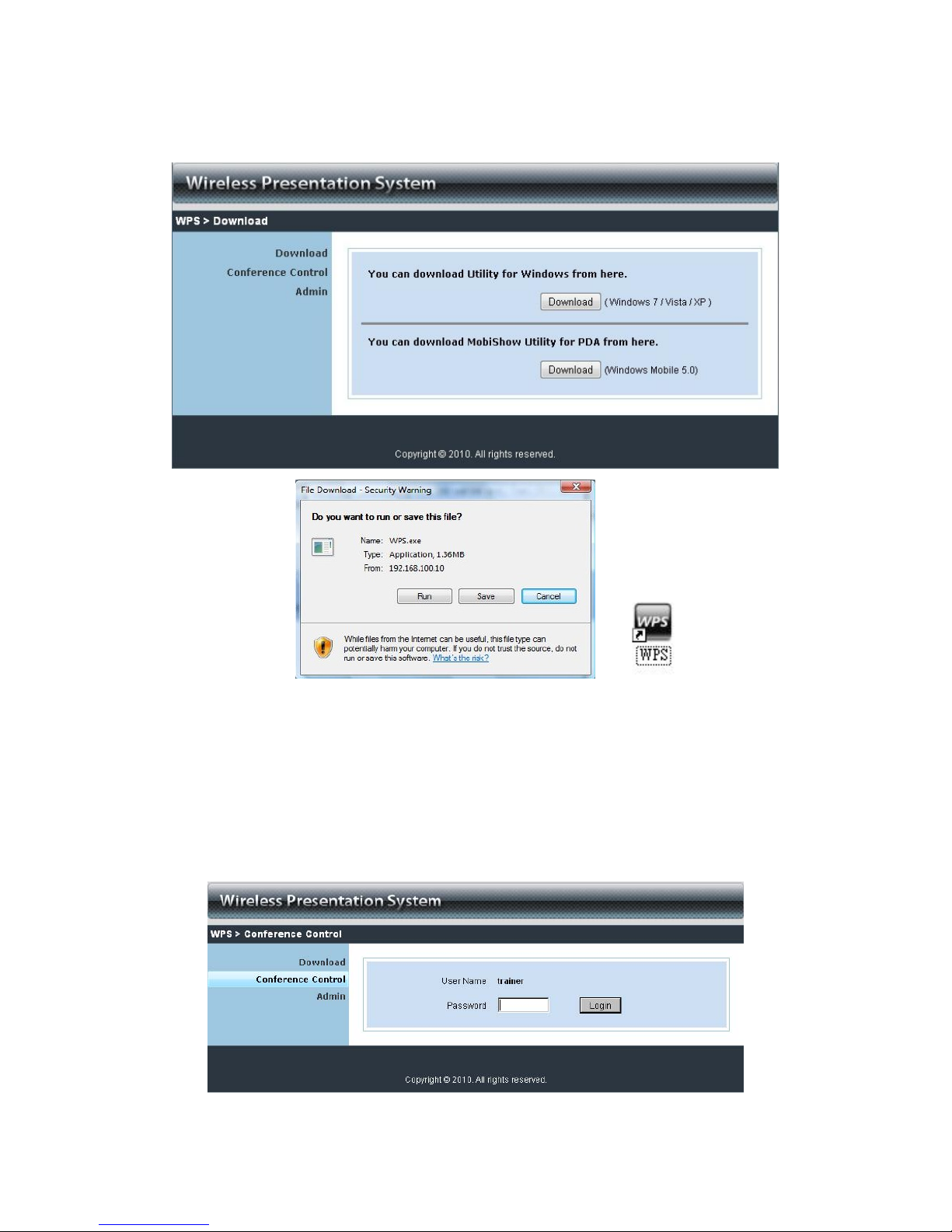

5) Download the client software. Please select the” Win7 / Windows Vista /
XP ” or ”Windows Mobile 5/6” and execute the installation program.

8

After installing the program, you will see the VPS shortcut on the PC
screen.

6) Make sure your personal firewall allows VPS software to pass through.

7) Select device that your want to projection

9

8) Enter the LOGIN CODE and You can see the login code on the projector
screen

9) Click the “Play” button to start projection!

10

3. Windows Client Utility

3.1 Starting Program

After you download VPS Windows program via web page successfully, then
follow below steps to start.

1) Click VPS icon to execute the program.

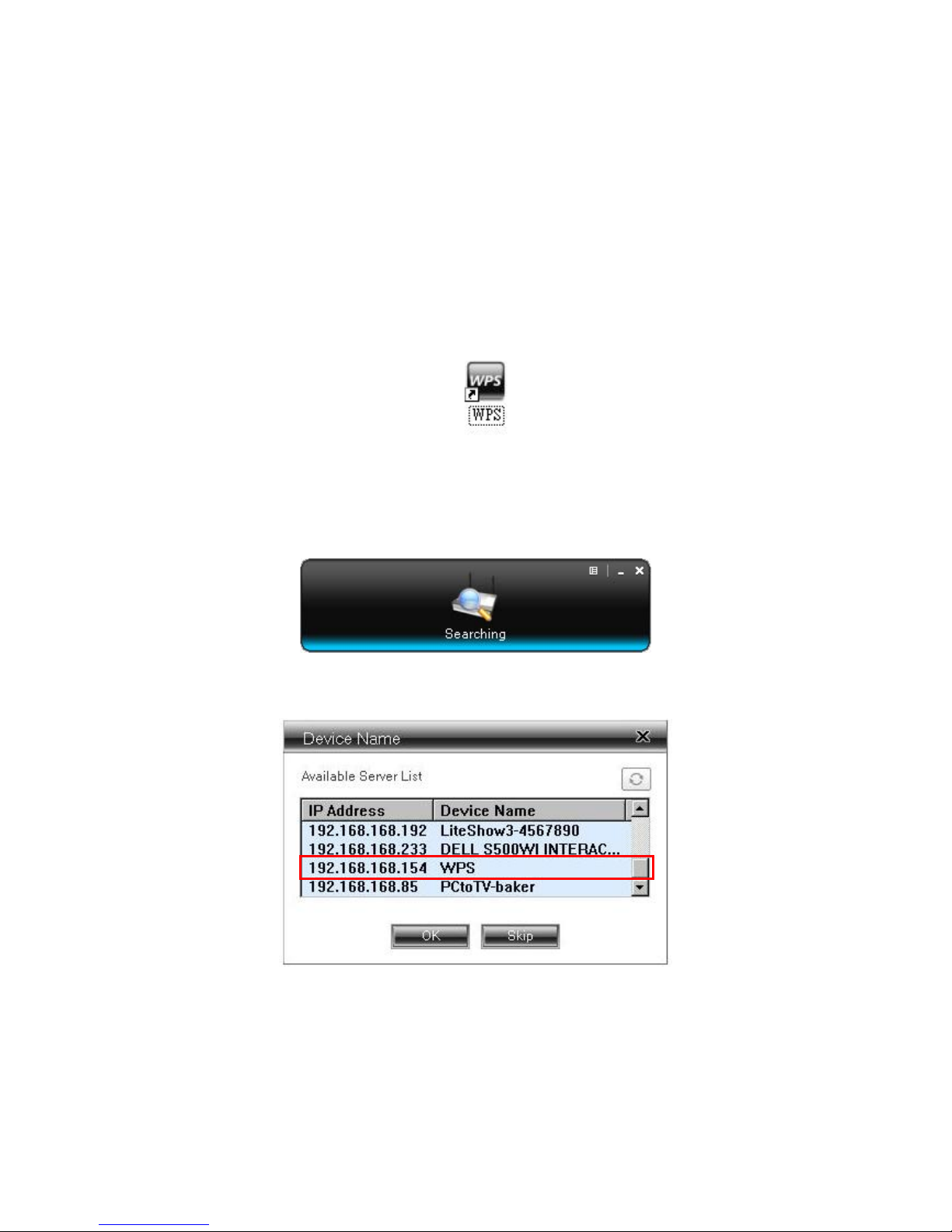

2) Program start to search for VPS unit automatically,

3) If VPS unit founded then “Login Code” dialog box will be pop up on the PC
screen.

z Searching for VPS unit

z VPS unit is founded and enter login code to start.

11

3.2 Login

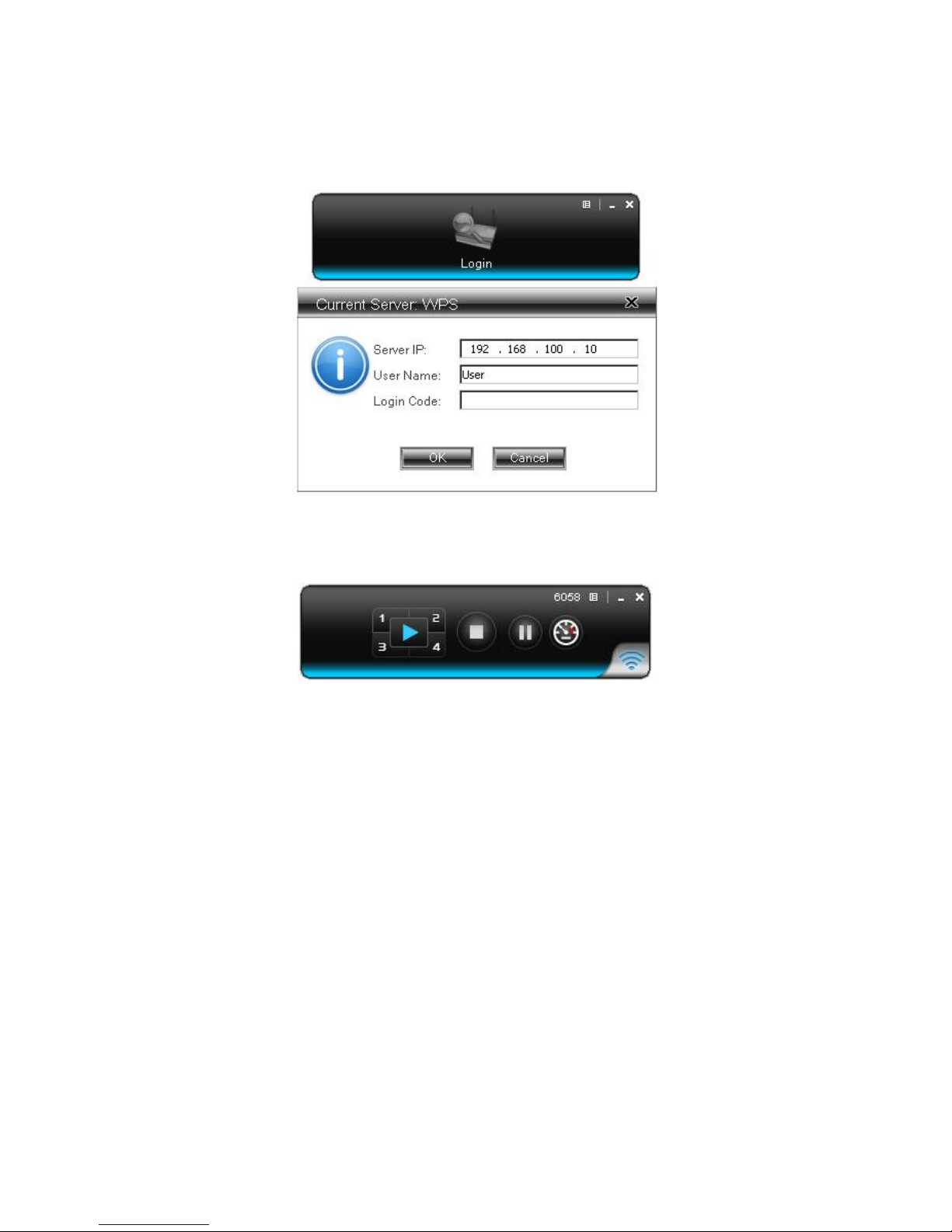

1) After “Login Code” dialog box shown, enter login code to start presentation.

2) You can see the login code shown on the projector screen.

3.3 Main User Interface

3.4 Screen Projection

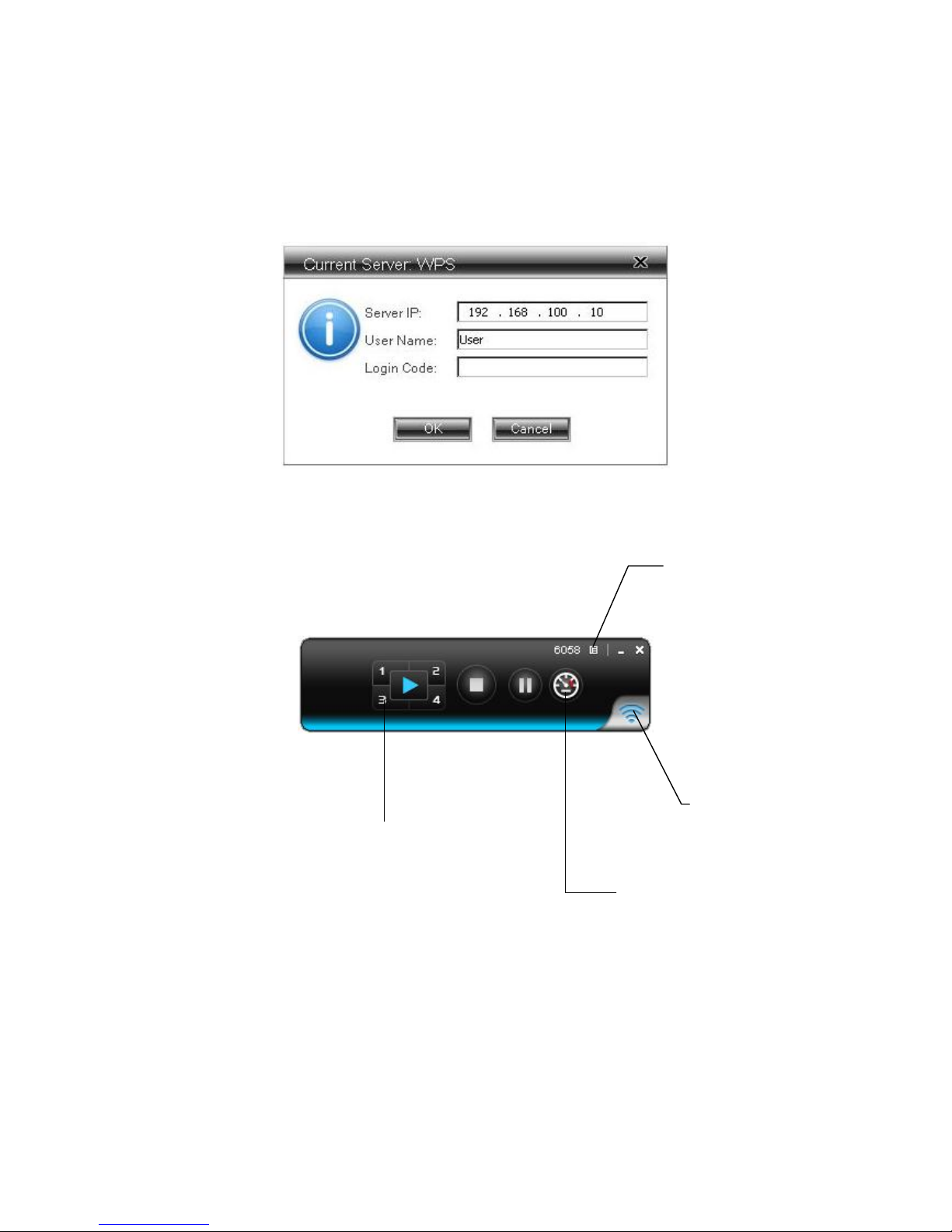

Click the “Play” button for full or split screen, you can project the main screen
on to the display immediately, click the “Pause” button, you can freeze you
projection screen, click the “Stop” button to stop projecting your screen, by

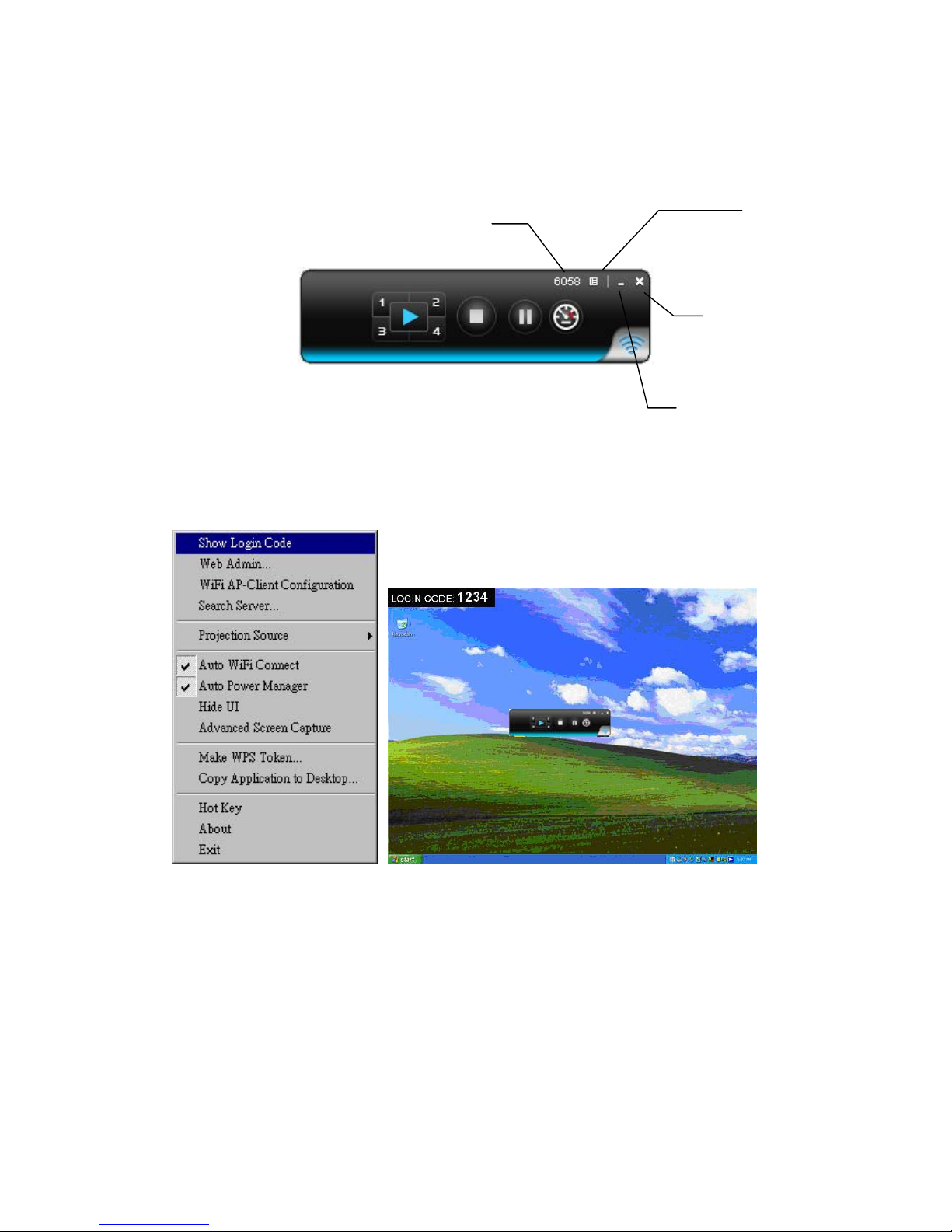

Control Area for Screen Projection Feature

Menu Area

Status Indicator

Speedy mode

12

clicking speedy mode button, the projection will enter speedy mode for faster
projection.
*. 4-1 function will be disabled in speedy mode.
*. To enable audio projection, you have to install provided audio driver first.

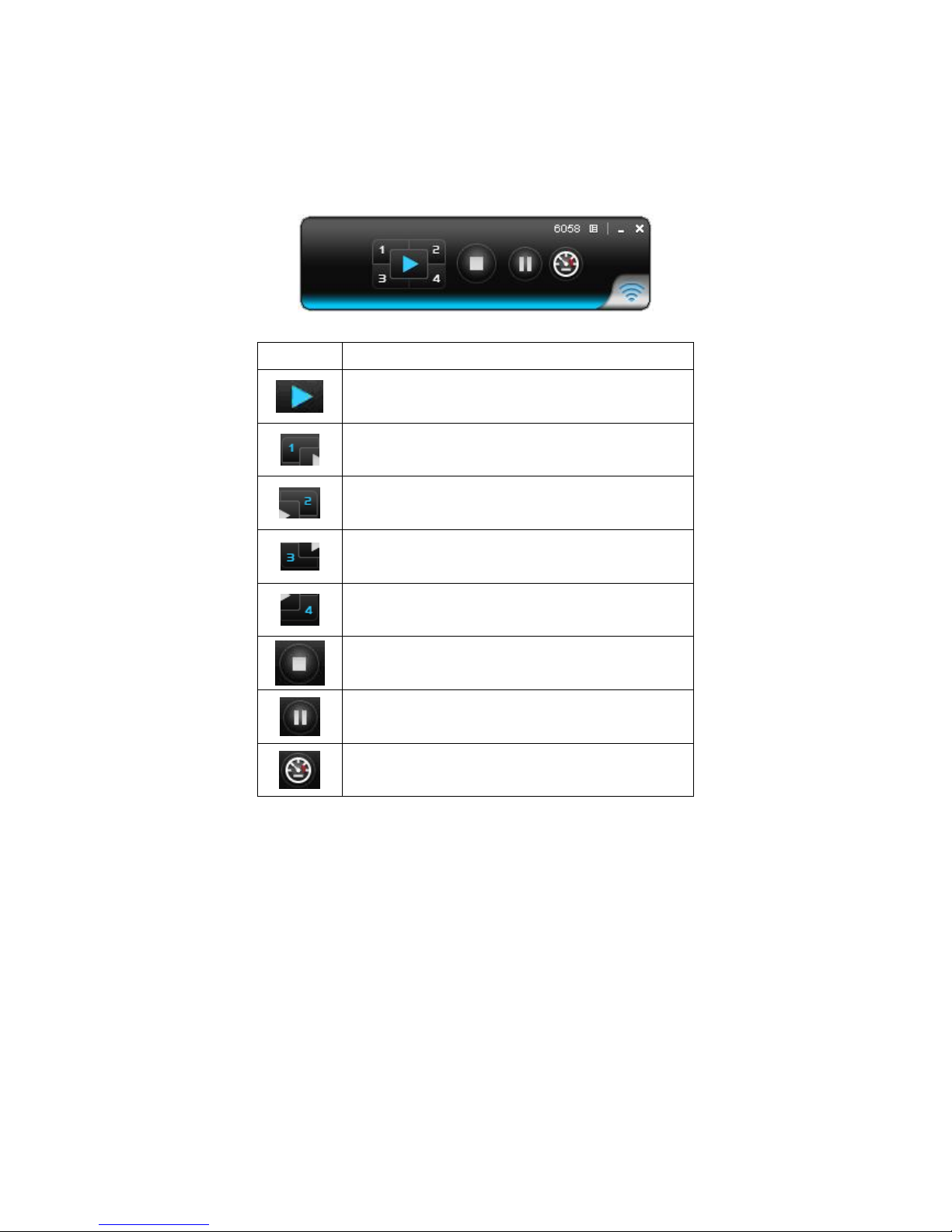

Button Description

Full Screen projection

Project to Split #1

Project to Split #2

Project to Split #3

Project to Split #4

Stop projecting

Pause projecting

Change to Speedy mode

3.5 Audio Projection

Before starting the Audio Projection, please install the “VAC.exe” (Virtual Audio
Control) on your computer. Please find the software in USB Token and you can
hear the audio from device when projecting.

13

3.6 Menu Description

3.6.1 Show Login Code

Click “Show Login Code”, it will display the login code on the right-upper of
desktop and close it automatically after 10 seconds. You can also click on the
area to close this window manually.

Login Code

Minimize

Exit

Menu

14

3.6.2 Open Admin Web Page

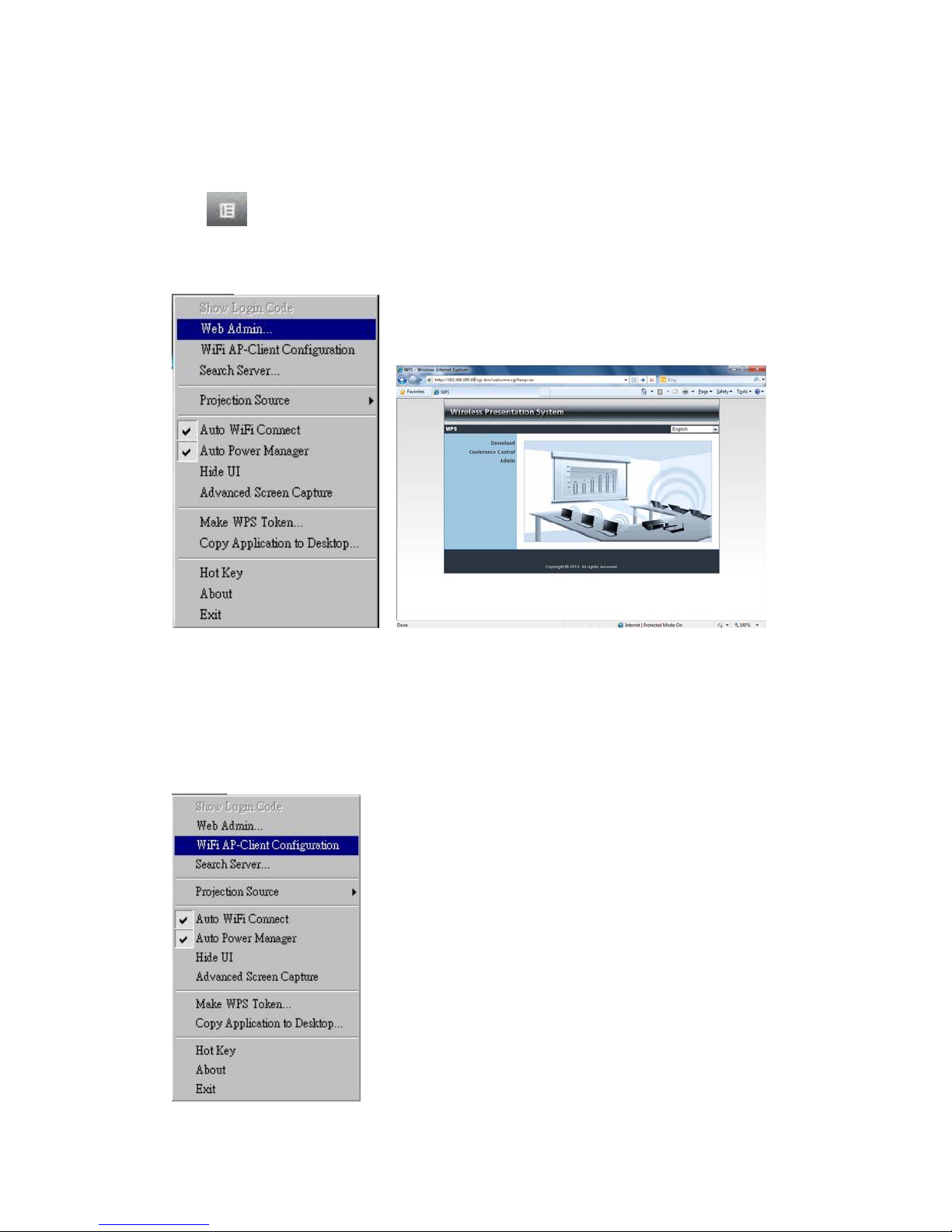

Click to open function menu and select “Web Admin” management web

page. The web page detailed functions will be described on next chapter.

3.6.3 WiFi AP-Client Configuration

Click “WiFi AP-Client Configuration” to set AP client mode to join others
Access Point via wireless, besides, the others user client also can login VPS
for presentation and join to others Access Point network,

15

3.6.4 Searching Server

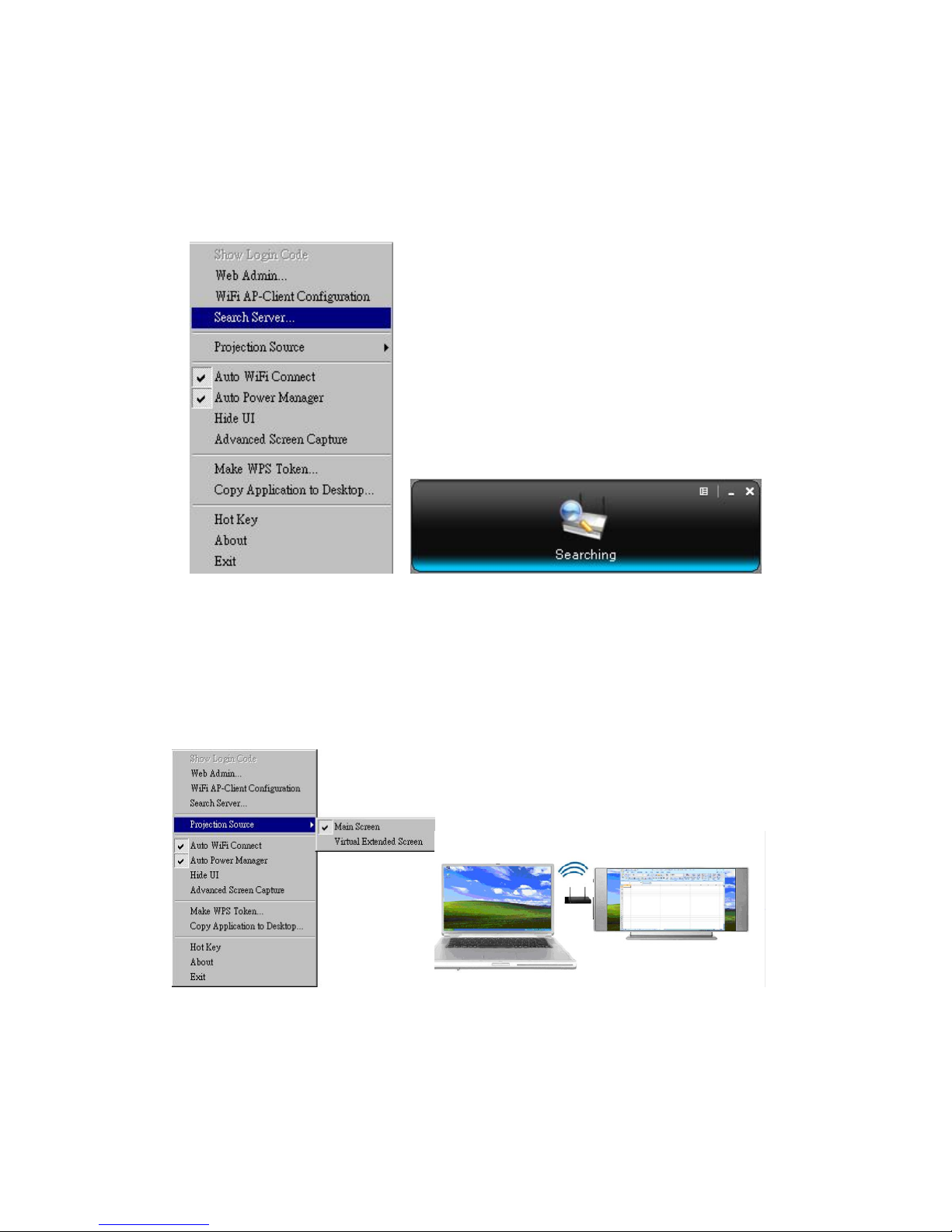

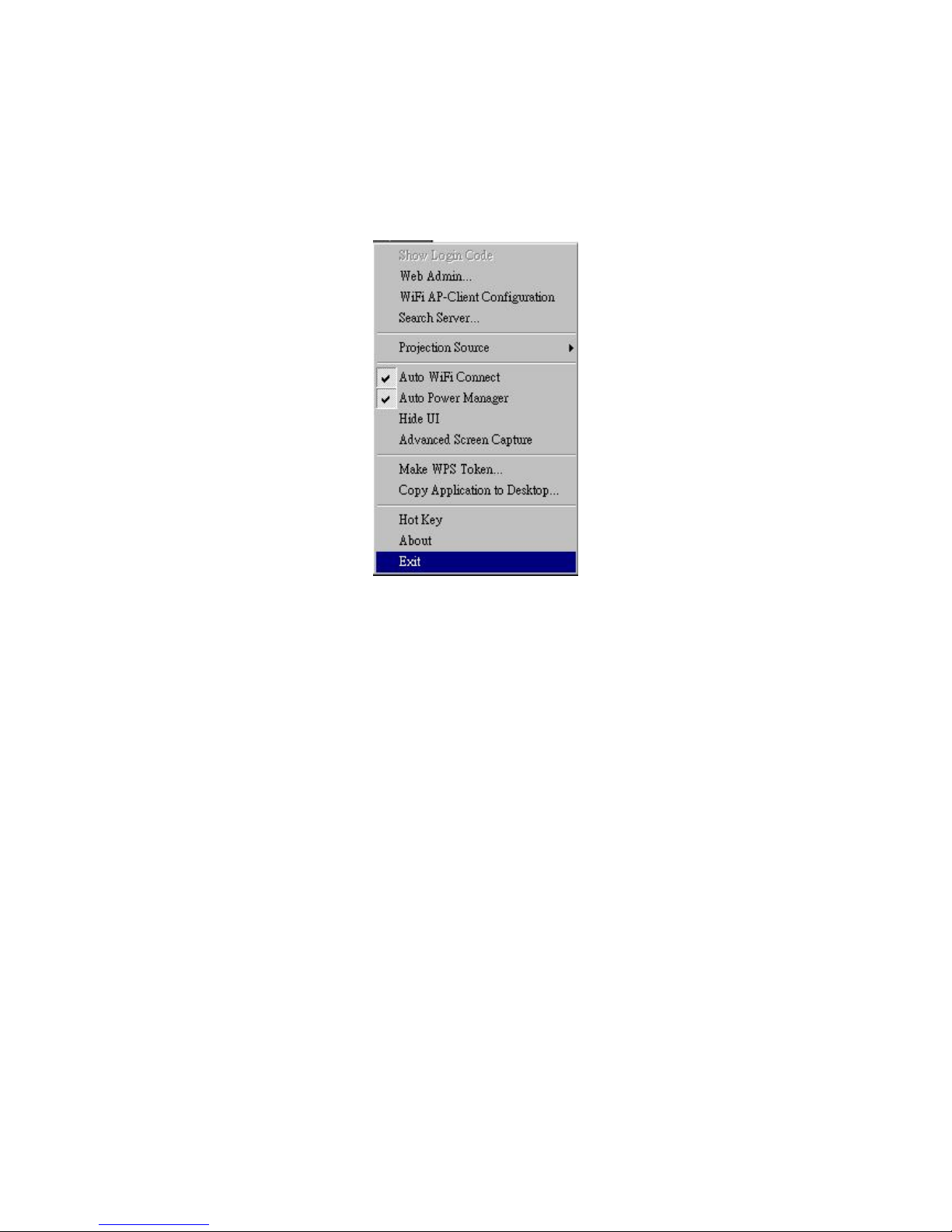

Click “Search Server” to re-search the VPS again.

3.6.5 Projection Source

Click the “Projection Source”, you can select to project the main screen of
desktop or the virtual extended screen.

P.S: Virtual Extended Screen option

You need to install “VDD.exe” driver first which is stored in the USB token.

16

3.6.6 Auto WiFi Connect

Click “Auto WiFi Connect” to enable the auto WiFi discovery and connection
function for quick wireless set up.

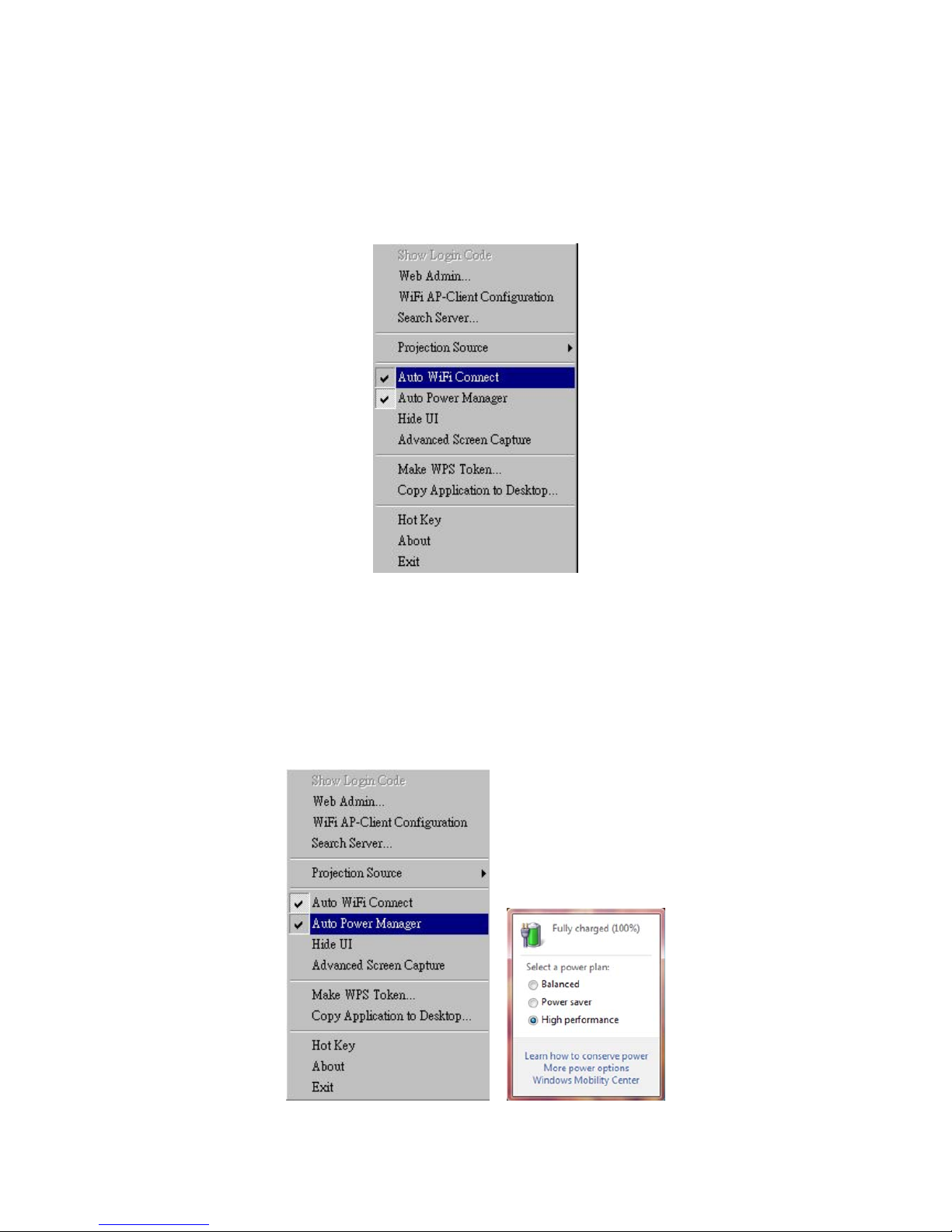

3.6.7 Auto Power Manager

To make the highest projection performance, application will turn the PC’s
windows power scheme from current settings to “highest performance”,
however, you can click the “Auto Power Manage” to enable or disable this
function and restore you power scheme immediately.

17

3.6.8 Hide UI

Click the “Hide UI”, you can choose to hide or display the application control
panel from projection screen.

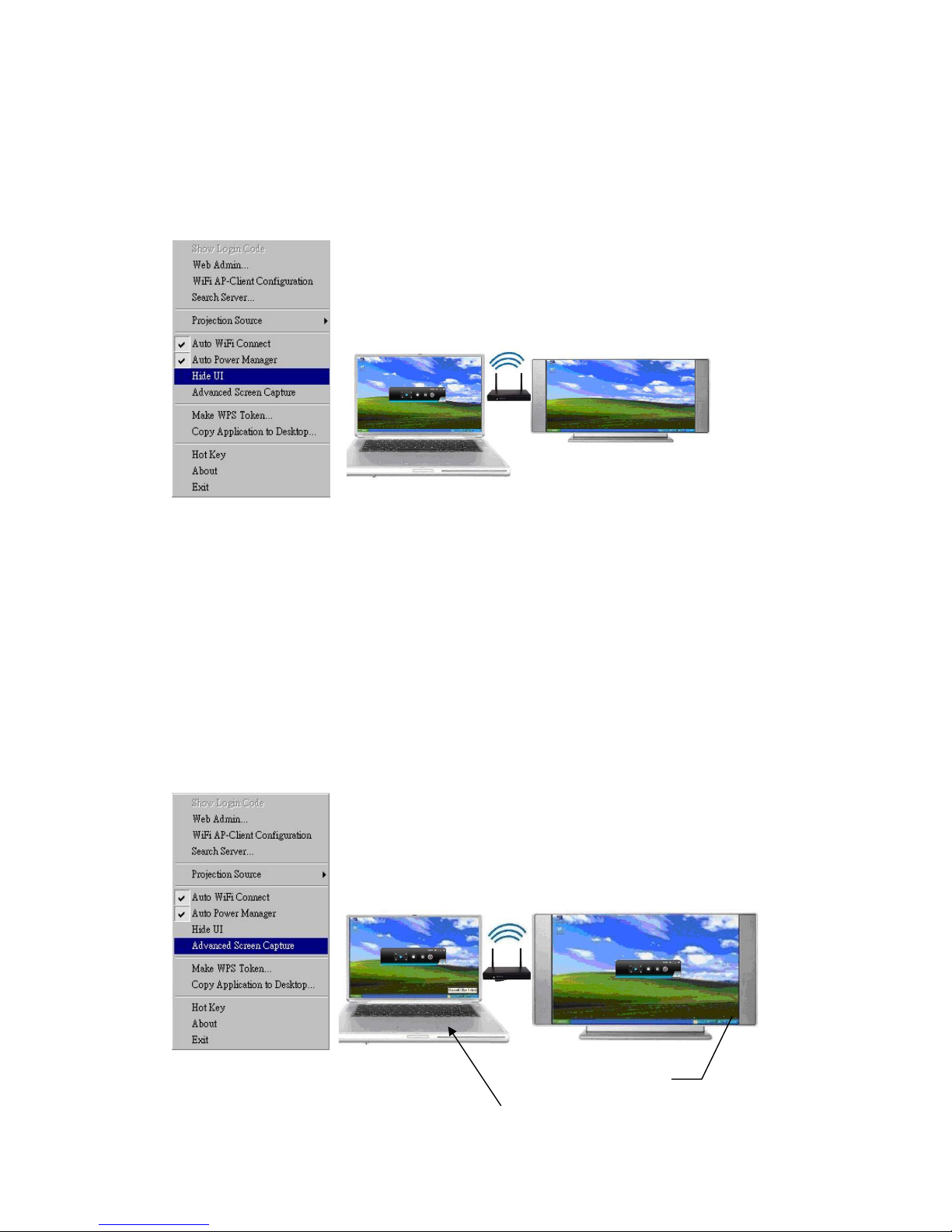

3.6.9 Advanced Screen Capture

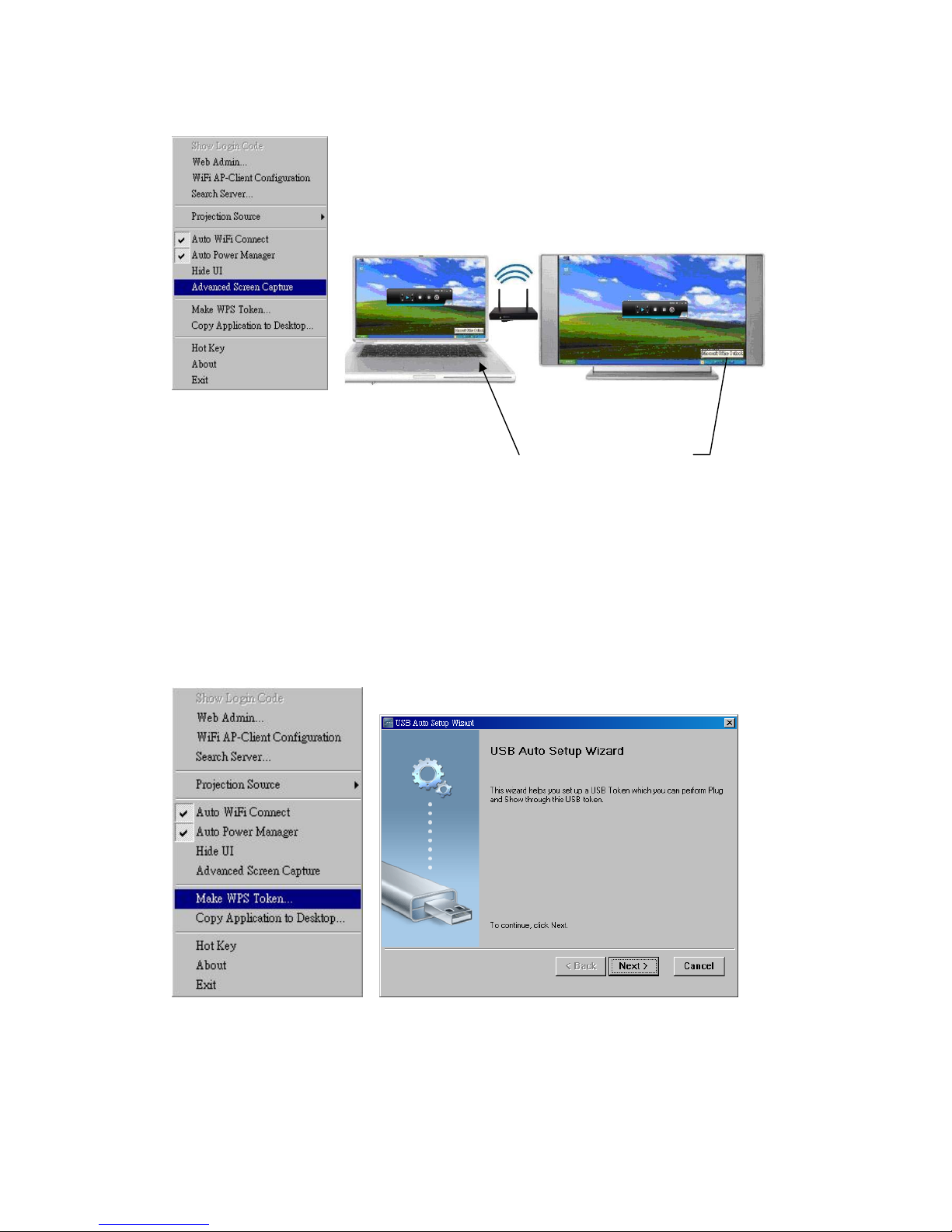

Click the “Advanced Screen Capture”, you will be able to see tip windows and
other layered windows (include the main UI) on the connected display.
However, the mouse cursor may blink from time to time when you are
projecting your PC screen!

z Disable “Advanced Screen Capture”.

Tip windows is not

shown in projector

18

z Enable “Advanced Screen Capture”.

3.6.10 Make VPS Token

Click “Make VPS Token” to make a USB VPS Token, you can insert a USB thumb
drive and follows the wizard to make the Token.

Tip windows is shown

in projector

19

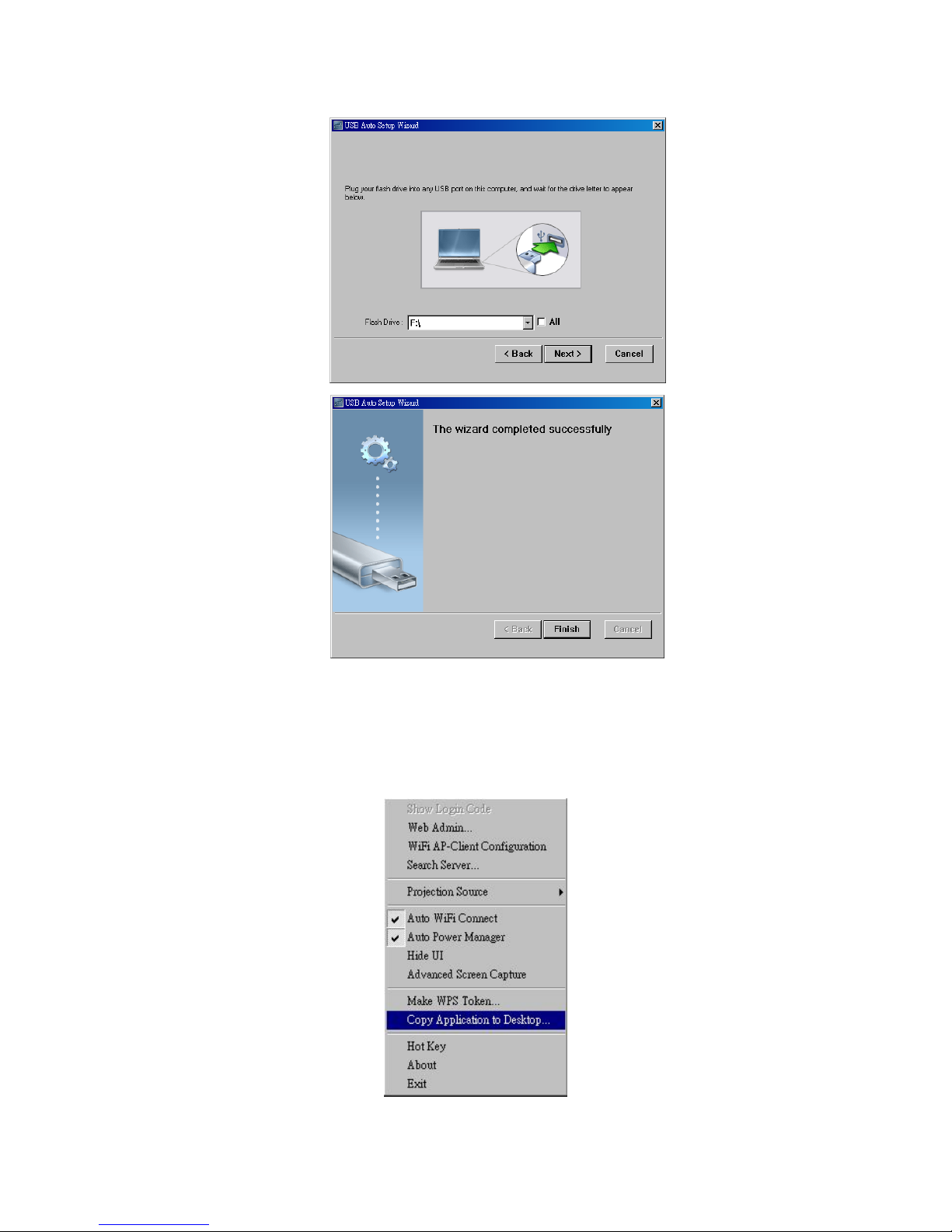

3.6.11 Copy Application to desktop

Click the “Copy Application to desktop”, it will copy the application to your
desktop immediately even you don’t have the system privilege

20

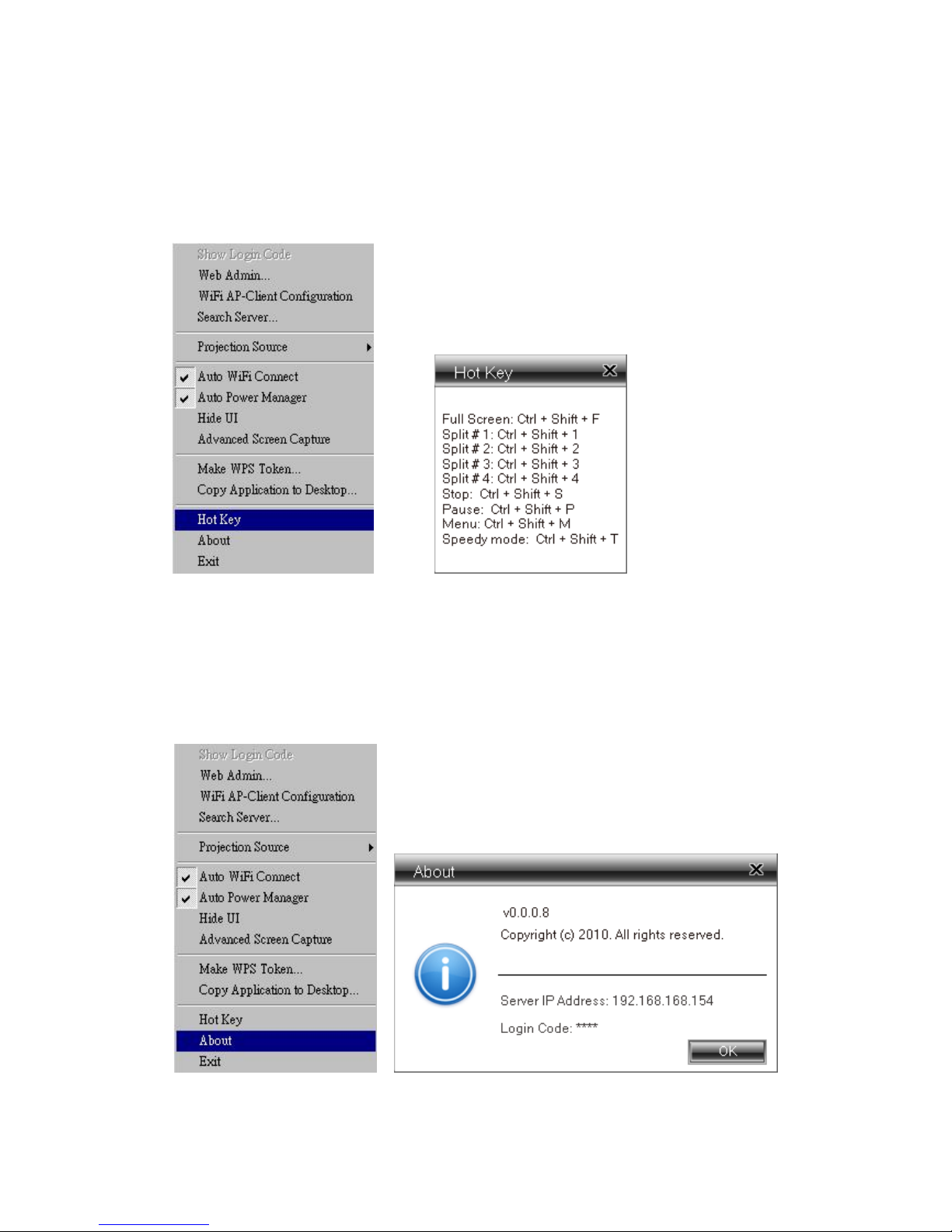

3.6.12 Hot Key

Click “Hot Key” to show Hot Key guide. You can use hot key to control the
projection by keyboard.

3.6.13 About

Click “About” to show system information. It includes product model name,
Client version, IP address and other information.

21

3.6.14 Exit

Click “Exit” to exit this application. It will stop current playing status and close
the application immediate.

22

4. Windows Mobile Utility

4.1 Download from VPS unit

1) Turn on WiFi on your phone.

2) Connect your phone to MobiShow wireless network. The SSID is displayed
on screen

3) Open the browser on your phone and enter the IP address of the MobiShow
box.

♦ The default IP address is 192.168.100.10.
♦ Or, refer to the IP address which shown on the projector screen.

4) Click the “Download” link to download the software installer (in CAB format)
to your phone.

5) Open Explorer on your phone and find the CAB file.

6) Double click on the CAB file to start installation.

7) Follow on-screen instructions to finish installation.

4.2 Using MobiShow with a Smartphone

1) Open “Programs” on your phone and find “MobiShow” application.

2) Select “MobiShow” icon to launch the client software.

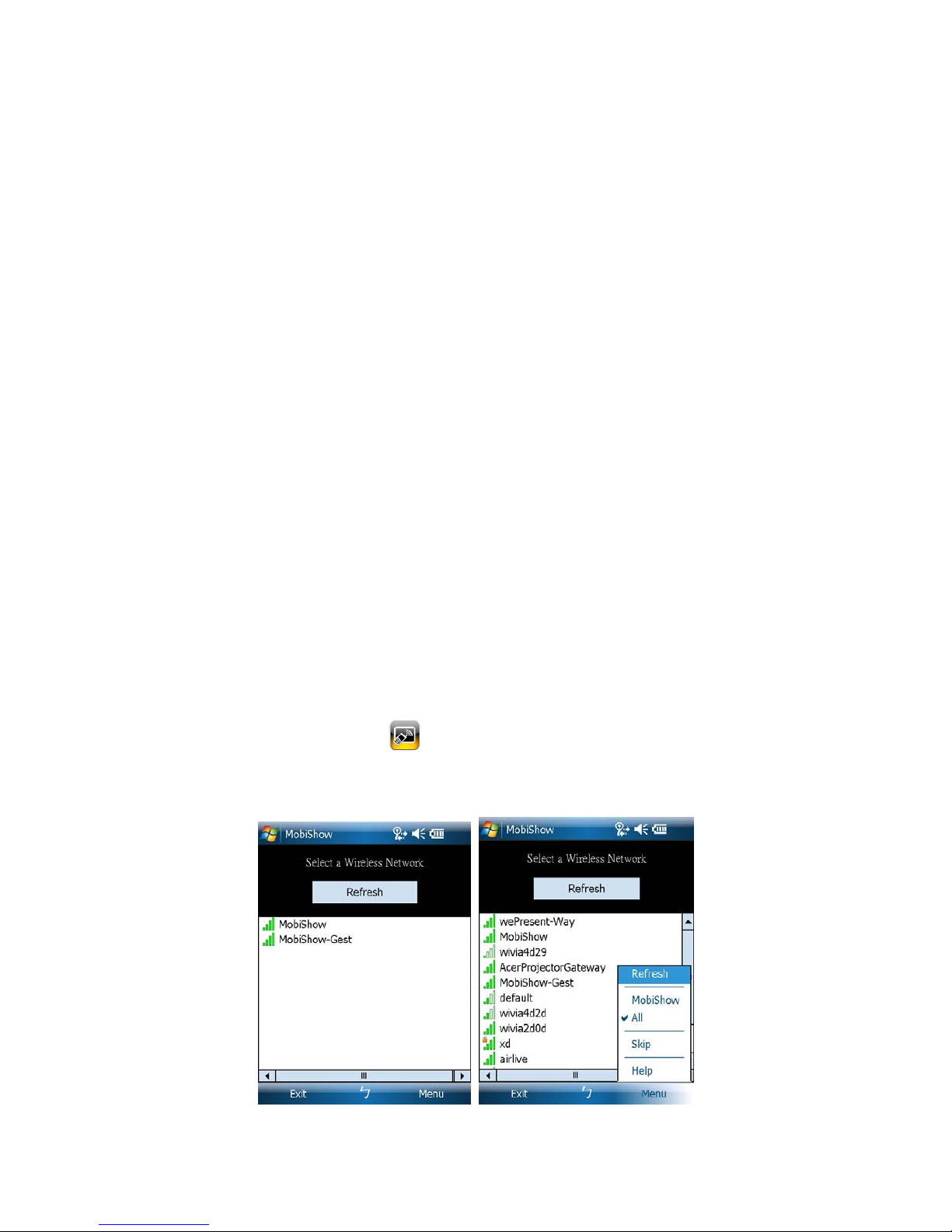

3) MobiShow will turn on Wi-Fi on your phone and list available access points
for you to choose.

23

4) Select a MobiShow wireless network (SSID with prefix MobiShow) to
connect to.

5) MobiShow client will connect to that access point and search for MobiShow
devices automatically. When a MobiShow device is found, it will
automatically login and the following main menu is shown on your phone.

z If more than one MobiShow devices are found, the following list will be

displayed for you to select the one to use.

1) Select which feature to use. To project the screen of your phone, click on
the “Screen” icon. To do a PC-less presentation with Presentation-to-Go
(PtG), select the “PtG” icon.

24

z Screen Projection:

MobiShow will project anything displayed on your screen. You may launch
another application (such PowerPoint Viewer) or open any file (such as
Word document or JPG image) and it will be projected to the projector.
Note: Do not exit MobiShow application while opening other application to
keep screen projected.

Click the “Stop” icon to stop projection.

Click the “Pause” icon to pause projection. Click “Pause” again to resume
projection.

Click the “Zoom” icon to zoom the projected screen to extend the longest
side of your screen to fill the screen.

Click the “Play” icon to start projection again if it is stopped.

Click the “OK” button or “Back” to return to main menu.

z Wireless PtG:
When you select PtG function, MobiShow client will automatically open
Explorer for you to select a PtG file. Select the file to open for your
presentation. When the file is open, the PtG slides will be projected, and the

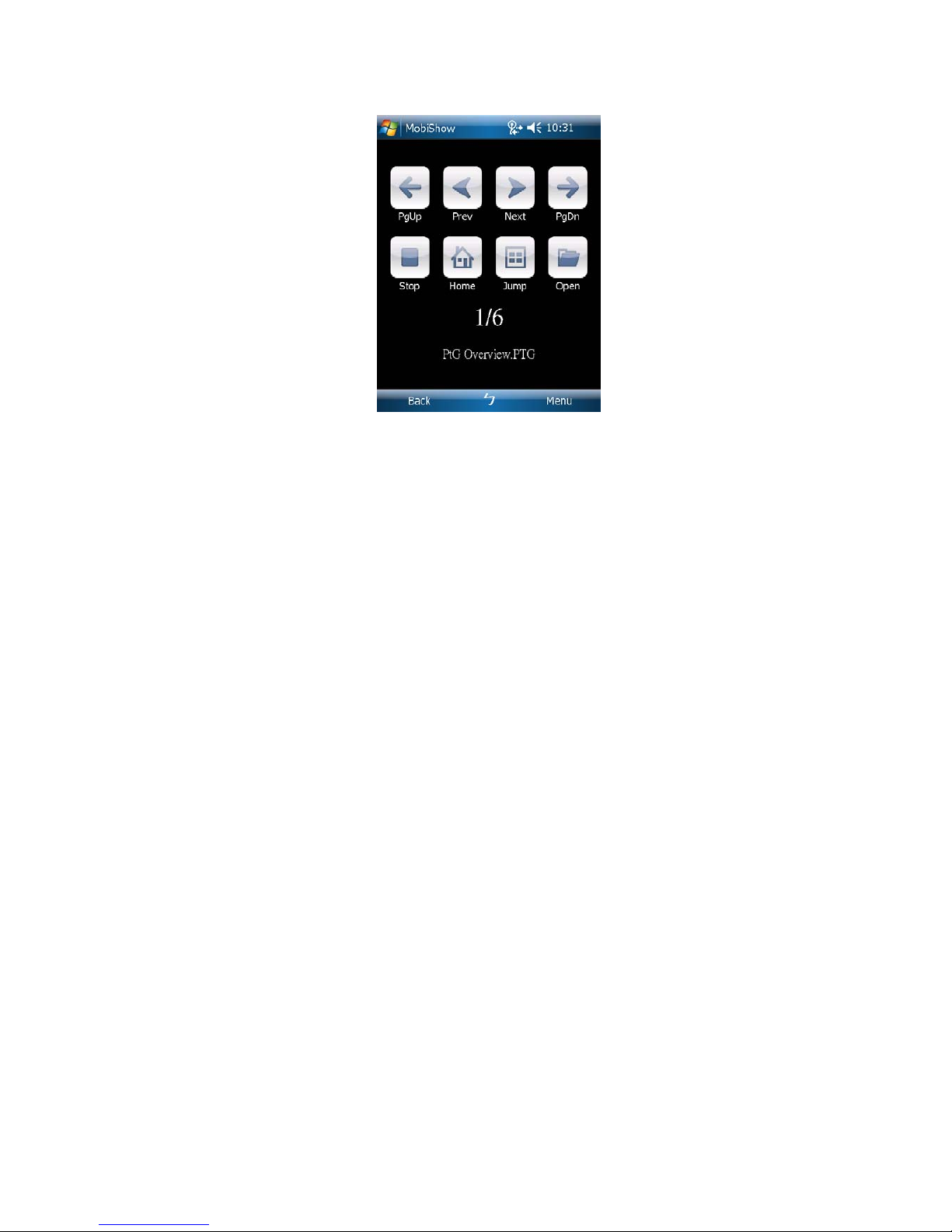

following screen is displayed on your phone for you to control your PtG
presentation.

25

Click “Prev” or “Next” to go to the previous or next item in the slide.

Click “PgUp” or “PgDn” to go to previous or next slide.

Click “Stop” to stop projecting the file. The icon will become “Play” if the file
is not played. Click “Play” again to play the file if it is stopped.

Click “Home” to go to the first slide.

Click “Jump” and MobiShow client will show every slide on the phone. You
can select any page to go to.

Click “Open” to select another PtG file.

Note:

You need to use “PtG converter.exe” to convert Powerpoint become PtG file first. You can

find out “PtG converter.exe” in the USB Token

26

z Photo Slideshow:

You can use MobiShow to project photos stored on your phone to big screen.
The photos will be prepared for playback on big screens rather than for the
tiny screens of your phone.
To open a single photo, select one photo and click the OK button. The photo
will be displayed on the display connected to MobiShow device.

Click “Prev” or “Next” to go to the previous or next photo in the same folder.

Click “Play” to start photo slideshow with photos in the same folder. The
button will be changed to “Pause” during slideshow. Click “Pause” to stop
slideshow.

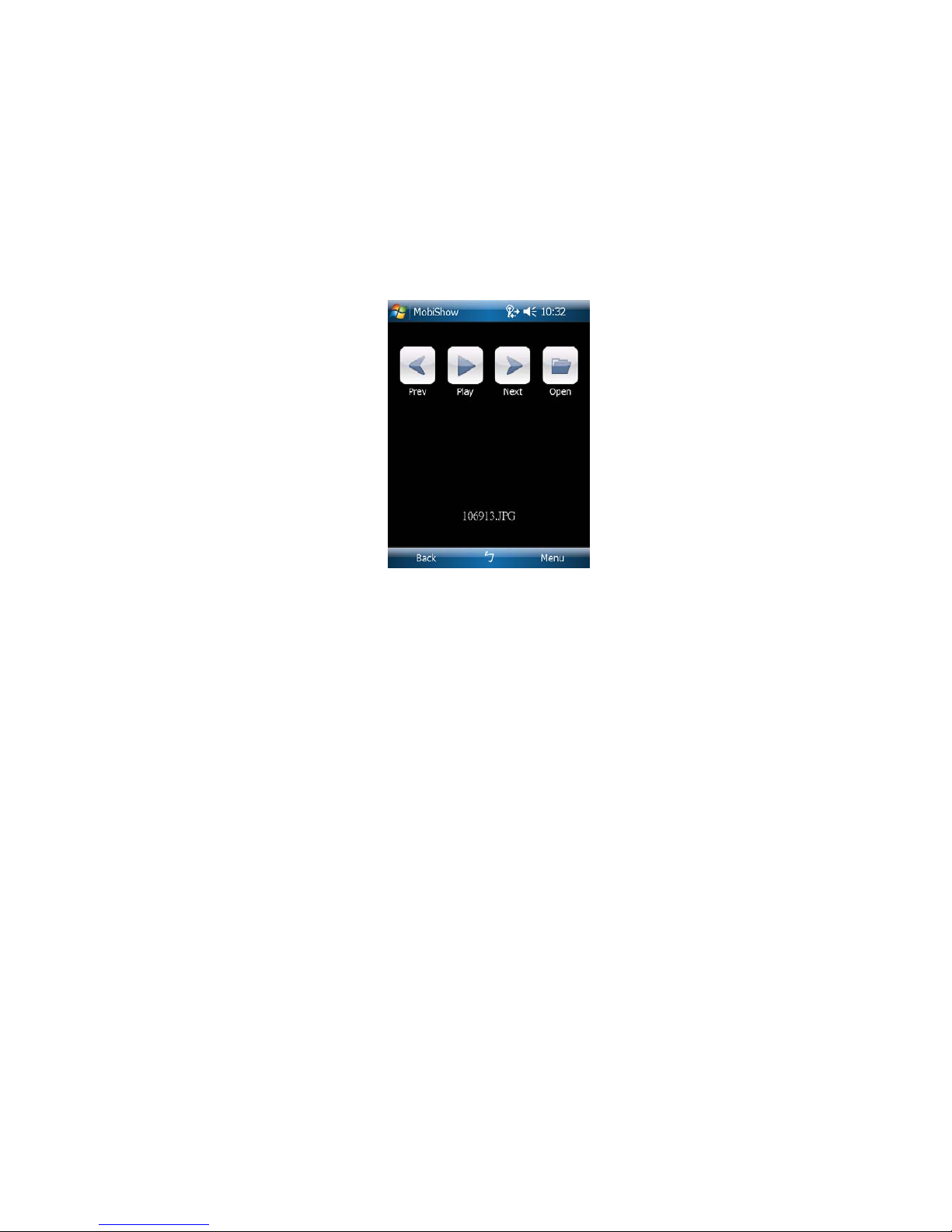

When the file is open, the media will be projected, and the following screen
is displayed on the phone for you to control your media playback.

27

5. Web Management

5.1 Home Page

1. Make sure your PC connect to VPS unit successfully.

2. Open your browser, it will enter VPS home page automatically.

3. If not, enter your IP address on the browser, you can see the IP on the

projector screen.

4. The default IP is 192.168.100.10

5.2 Download Software

1. Select “Download software” function.

2. Please select the “Win 7 / Windows Vista / XP ” or “Windows Mobile 5/6” or
“Mac Utility” and execute the installation program.

3. Follow Installation Wizard instructions to proceed till the installation process
complete.

4. If pop up “Windows Security Alert” because Windows firewall block this
program. You just press “Unblock” button to continue installation.

28

5. Once installation complete, a utility shortcut come out on the screen.

5.3 Conference Control

1) This function allows you to host a meeting smoothly without projector cable
swapping and each participant can show their presentation easily.

2) Select “Conference Control” function.

3) Enter password, the default value is “trainer”, and then press [Login].

29

4) After login, you can see a User List on the screen which indicates all of users
connected to VPS unit.

5) There are three columns, “Computer Name”, “ Play Control” and “IP
Address”.

6) Play Control，There are six buttons, including Play(Full) , Play Split #1

, Play Split #2 ,Play Split #3 , Play Split #4 and Stop .

7) User List

30

5.4 Login Web Admin

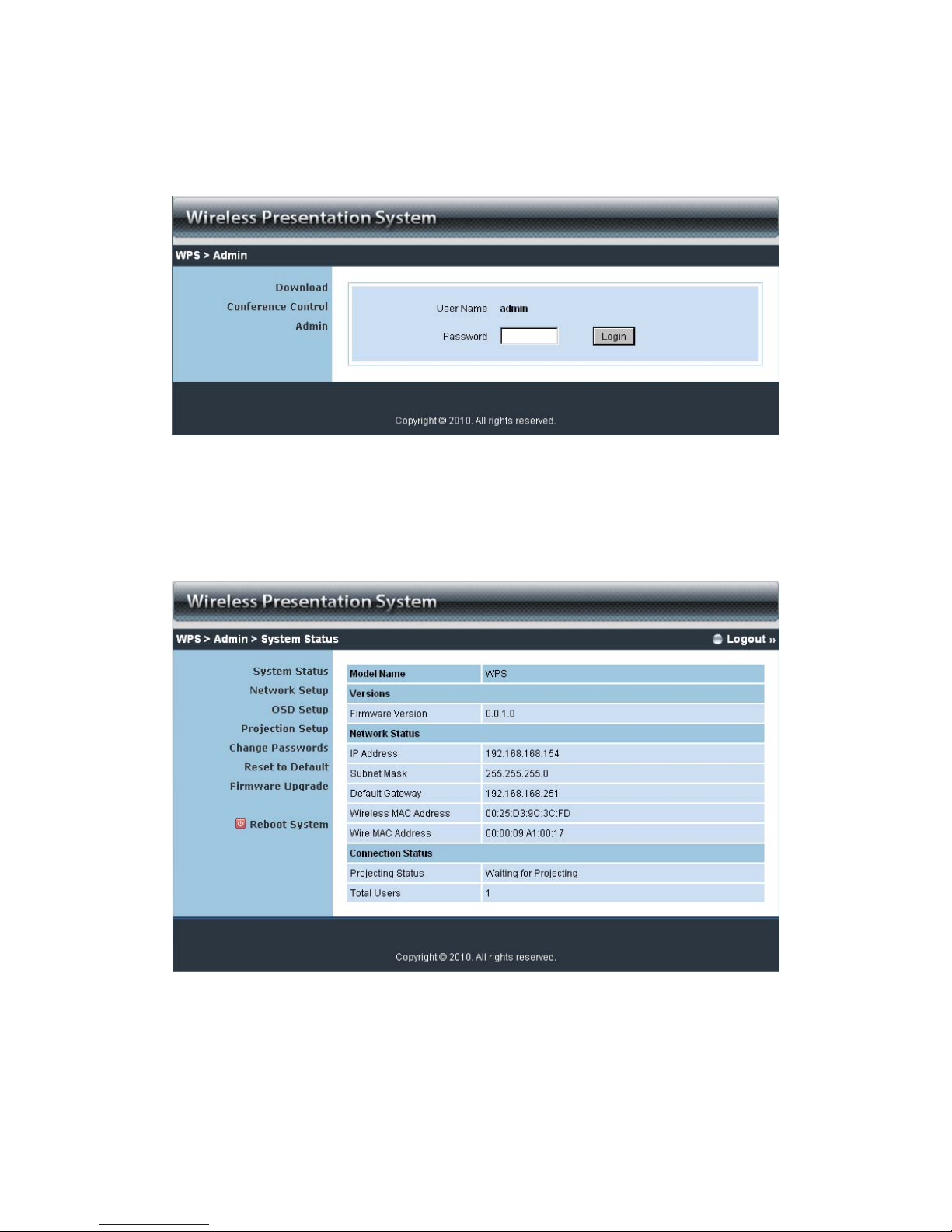

1. Click [Admin] and then enter password to login web page.

2. The password default value is “admin”.

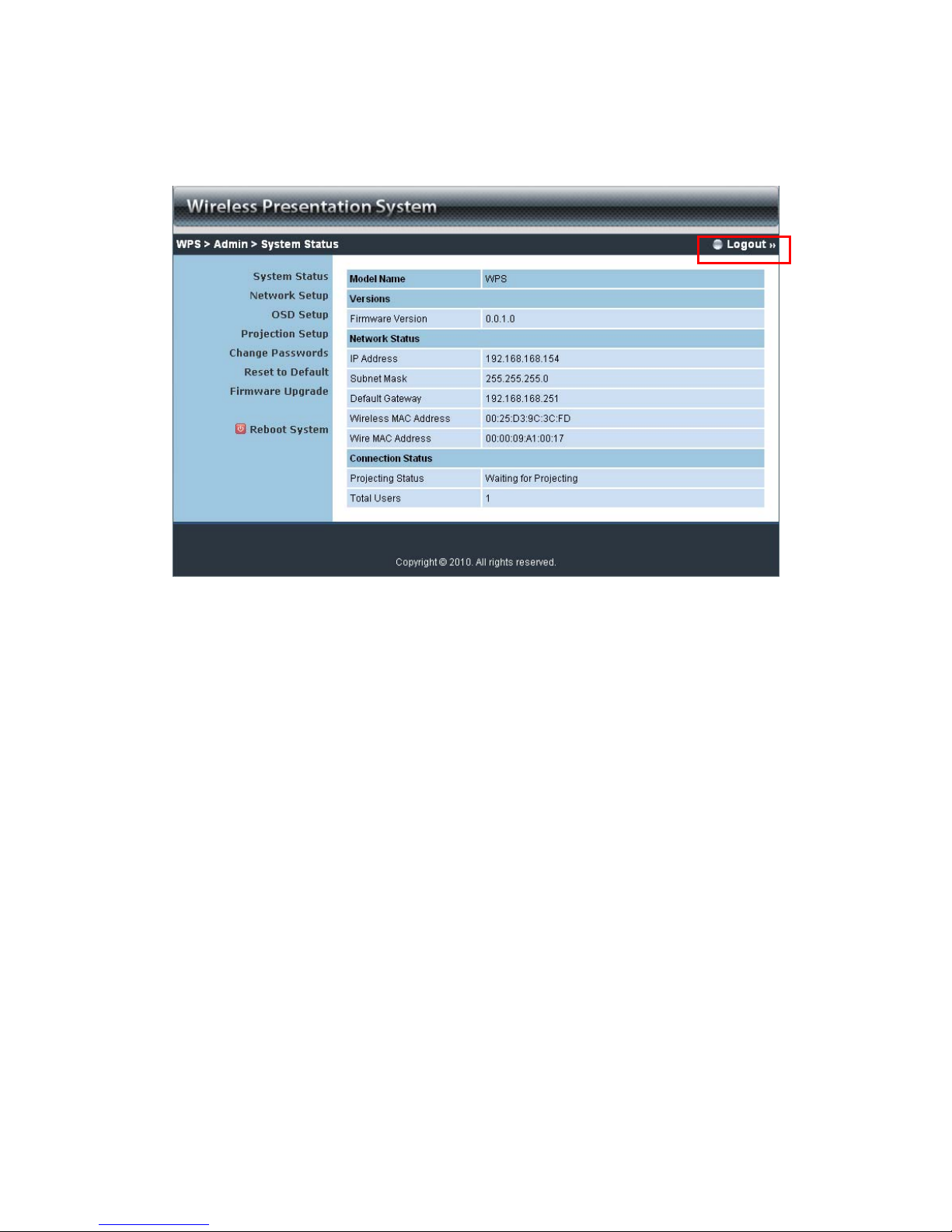

5.4.1 System Status

Click [System Status], shows current system status.
Model Name: Product model name
Versions:

1. Firmware version no.: Product firmware version number.

Network Status:

31

1. IP address：IP address of VPS device.

2. Subnet Mask：subnet mask

3. Default Gateway：default gateway

4. Wireless MAC address：wireless MAC address

5. Wire MAC address：wire MAC address

Connection Status:

1. Projecting status: which is “Waiting for projecting” or “Projecting”

2. Total Users: It shows how many users login into VPS unit.

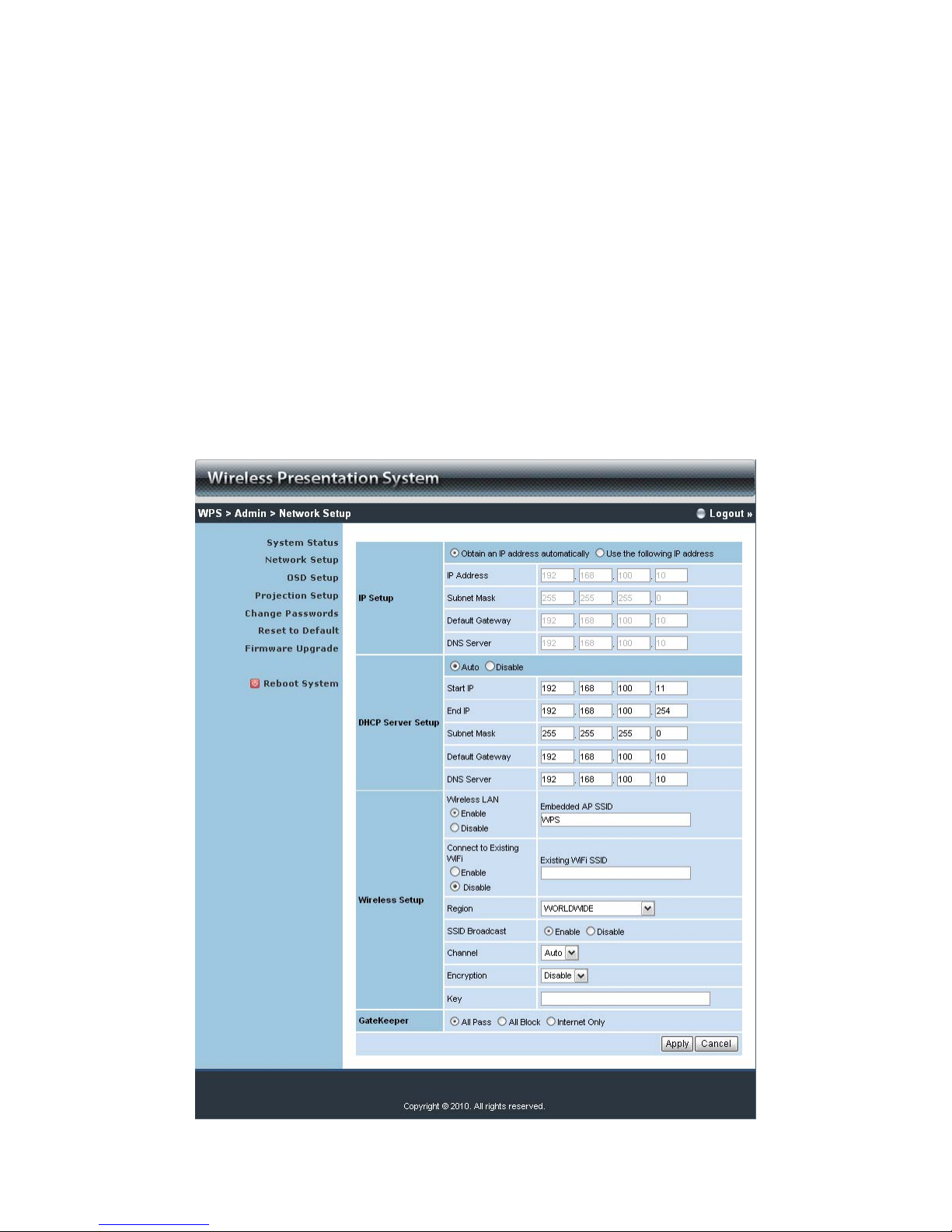

5.4.2 Network Setup

There are many kinds of operating configurations as below.

32

< Auto-Configuration Network Setup>

The default setting of the VPS unit is DHCP client. When the VPS unit is connected

to a LAN that already has a DHCP server present, the VPS unit takes an IP address

assigned to it by the server. When the VPS unit is connected to a LAN that does not

have a DHCP server, the VPS unit becomes the DHCP server in the network.

< IP Setup>

♦ You can select “obtain IP address automatically” or “Use the following IP

address”

♦ IP Address: The default value is 192.168.100.10.
♦ Subnet Mask: The default value is 255.255.255.0
♦ Default Gateway: The default value is 192.168.100.10
♦ DNS Server: The default value is 192.168.100.10

<DHCP Server Setup>

♦ You can select “auto(Enable/Disable DHCP Server” or “Disable”)

♦ Start IP: The start IP address of DHCP Server.
♦ End IP: The end IP address of DHCP Server
♦ Subnet Mask: The default value is 255.255.255.0
♦ Default Gateway: The default value is 192.168.100.10
♦ DNS Server: The default value is 192.168.100.10

< Wireless Setup>

♦ Wireless LAN: The default value is “Enable”.

Embedded AP SSID:SSID string ,max. Length is 32 bytes.

♦ Connect to Existing AP: This is “AP client” mode feature. By this

feature you can join others Access Point via wireless.
First, enter the existing AP’s SSID and require security key in “Existing
AP SSID” and “Key”, then reboot your system. After these steps, VPS
will connect to this AP by wireless automatically.
Note: The default value of AP client mode is “ Disable”, and LAN
function will be disabled during AP client mode.

♦ Region: default value is “Worldwide”.
♦ SSID Broadcast: The default value is “Enable”
♦ Channel: to set fixed channel or Auto. The “Auto” means after power

on

VPS, it will scan all of wireless channel and select clear one channel

automatically.

♦ Encryption: you can select “Disable” or one of WEP/WPA/WPA2 64bit

or 128bit in ASCII or HEX string.

♦ Key: If Encryption is enabled, you have to set key value according to

the encryption mode you selected.

33

< Gatekeeper>

Gatekeeper is designed for ensuring the enterprise network security within

VPS unit

♦ All Block can block Guest Users(through wireless) to access all office

network(LAN),

♦ All Allow can pass Guest Users(through wireless) to access all office

network

♦ Internet Only can block Guest Users (through wireless) from office

network (LAN) but still reserve internet connection capability.

<Apply >: press button to select this mode.
<Cancel>: press button to abort action.
<Back>: Back to Operating mode main menu.

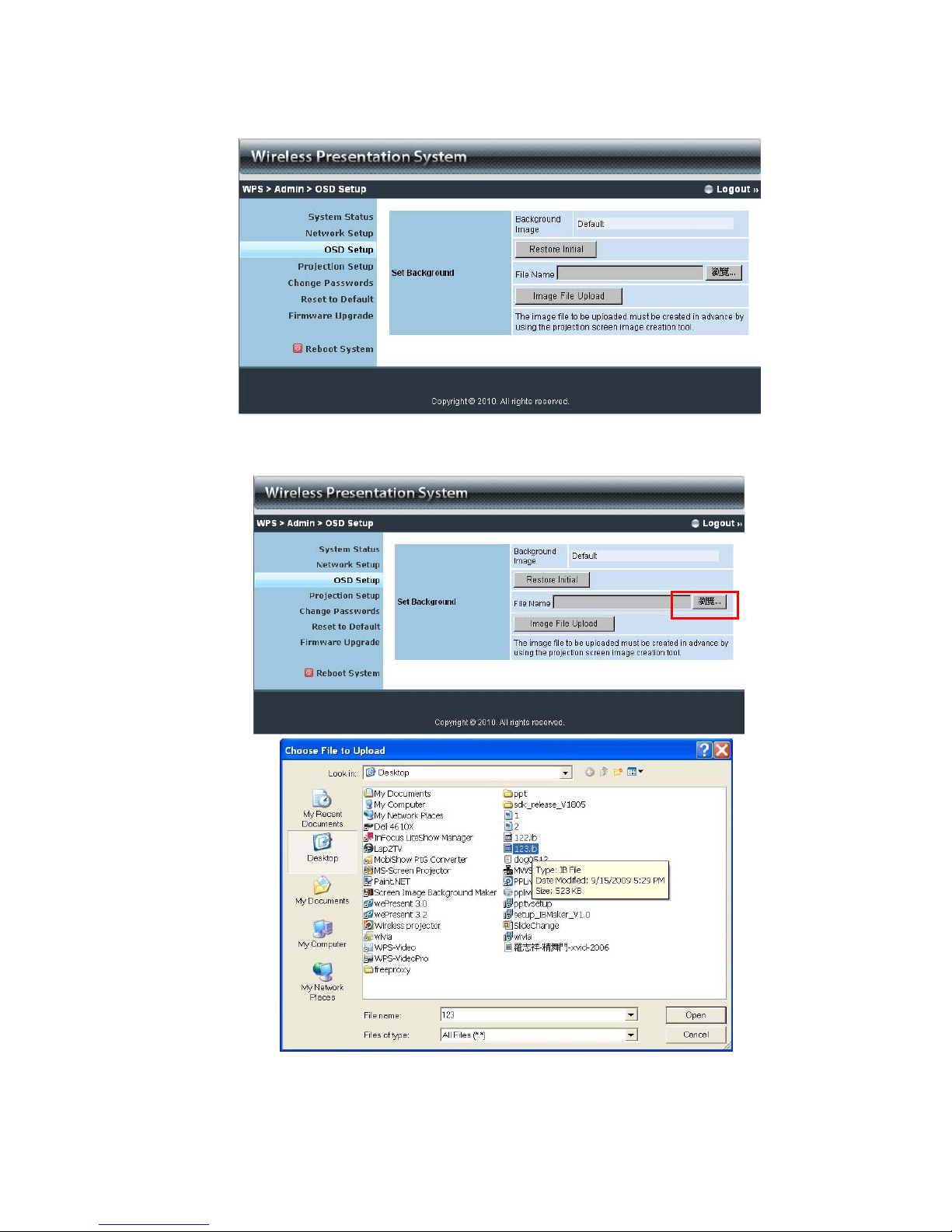

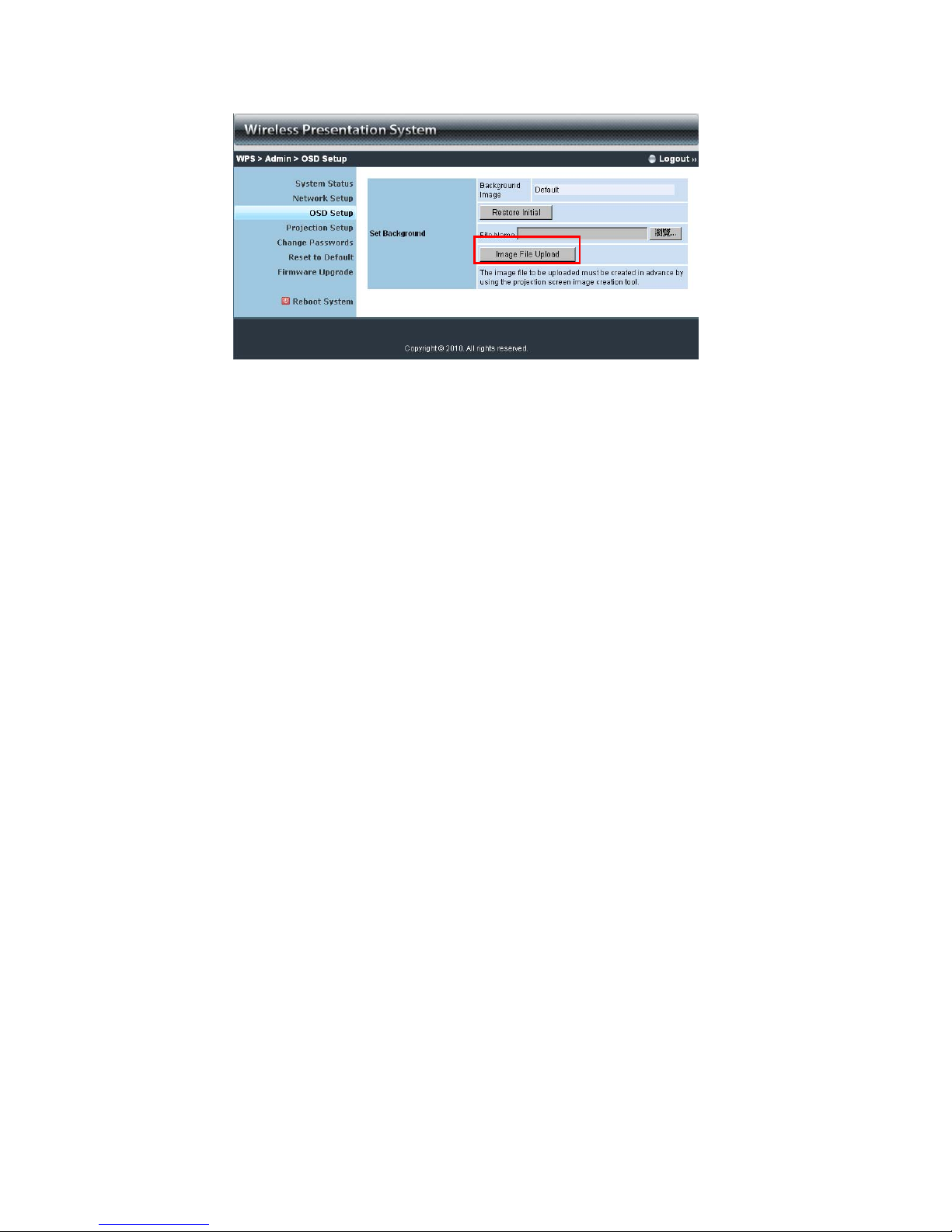

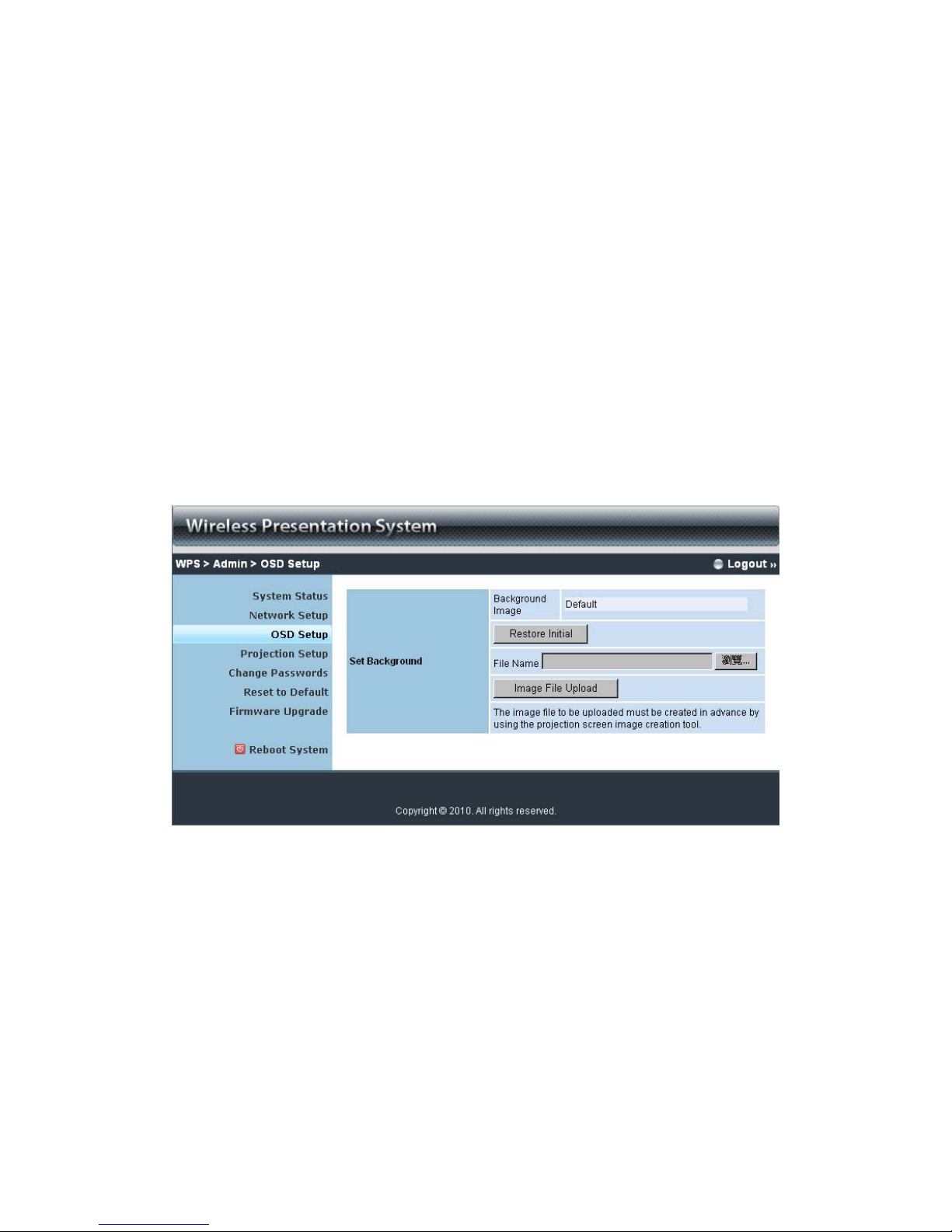

5.4.3 OSD Setup

Click [OSD Setup] button, to change OSD standby image.

♦ <Restore Initial>: Restore to default OSD standby image.

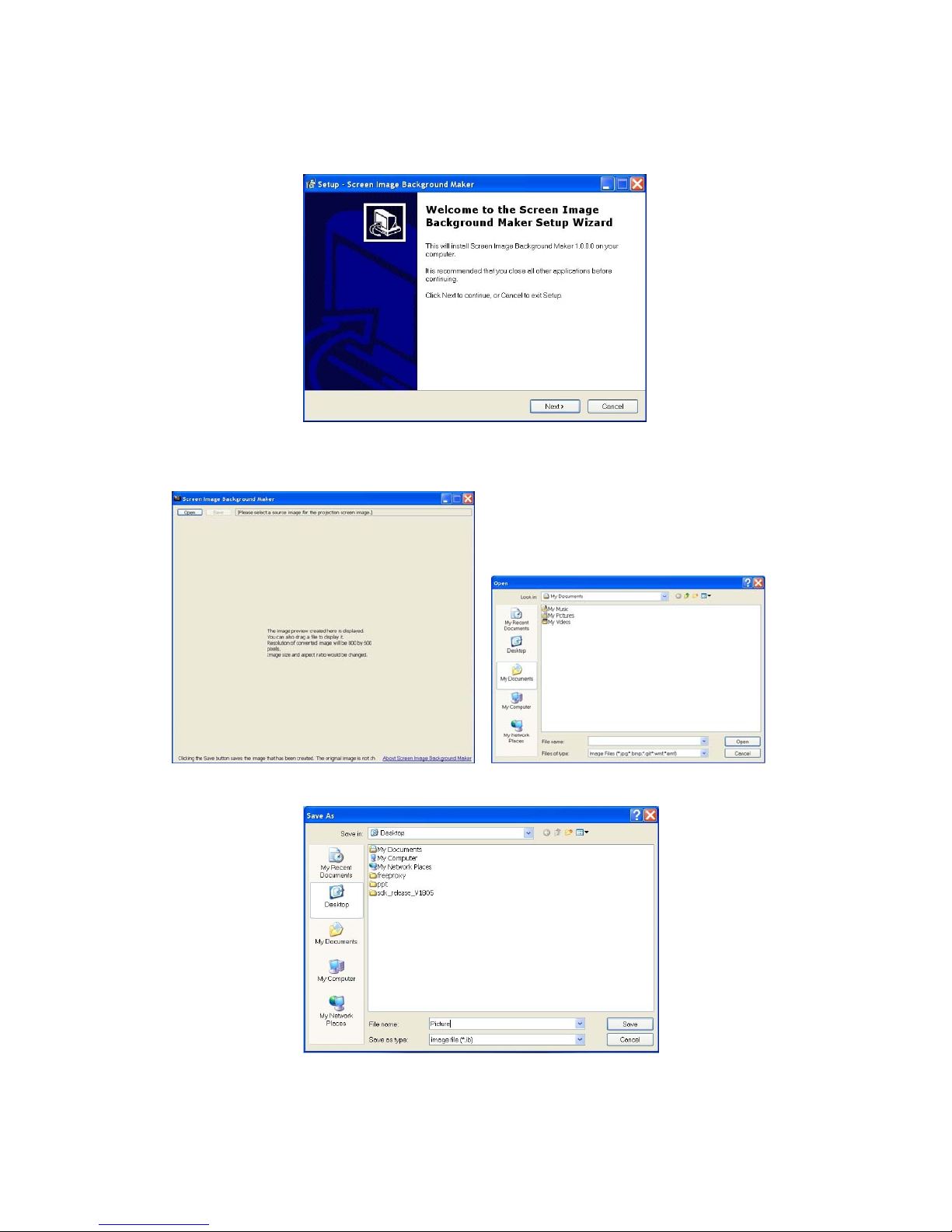

♦ <Image File Upload>: Upload the customized OSD standby

image. (You need to convert the image to system defined format
using provided IB Maker utility which is stored in the USB token.)

34

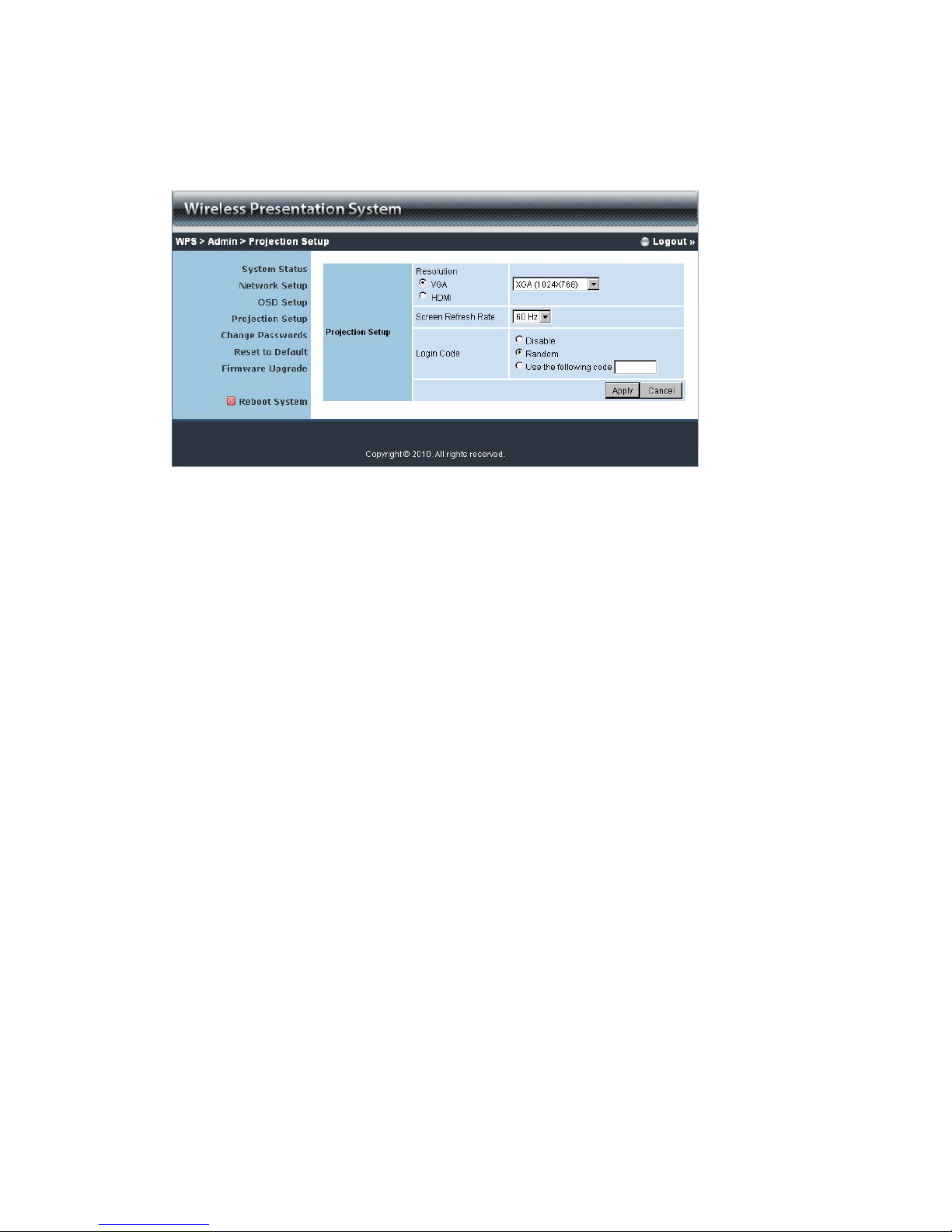

5.4.4 Projection Setup

Click [Projection Setup] button

♦ <Resolution>:

VGA: XGA(1024*768), WXGA(1280x800) ,WXGA (1280*768) and
SVGA(800*600). The default value is XGA.
HDMI: 720p(1280*720)

♦ <Screen Refresh Rate>: This is VGA output refresh rate, provides

60 Hz and 75Hz to suit for different kinds of projectors.

♦ <Login Code>: You can select “Disable”, “Random”, or “Use the

following code” to set a specified 4-characters Number.

♦ <Apply>：Confirmation and Save modifications

♦ <Cancel>: Cancel all the modifications

35

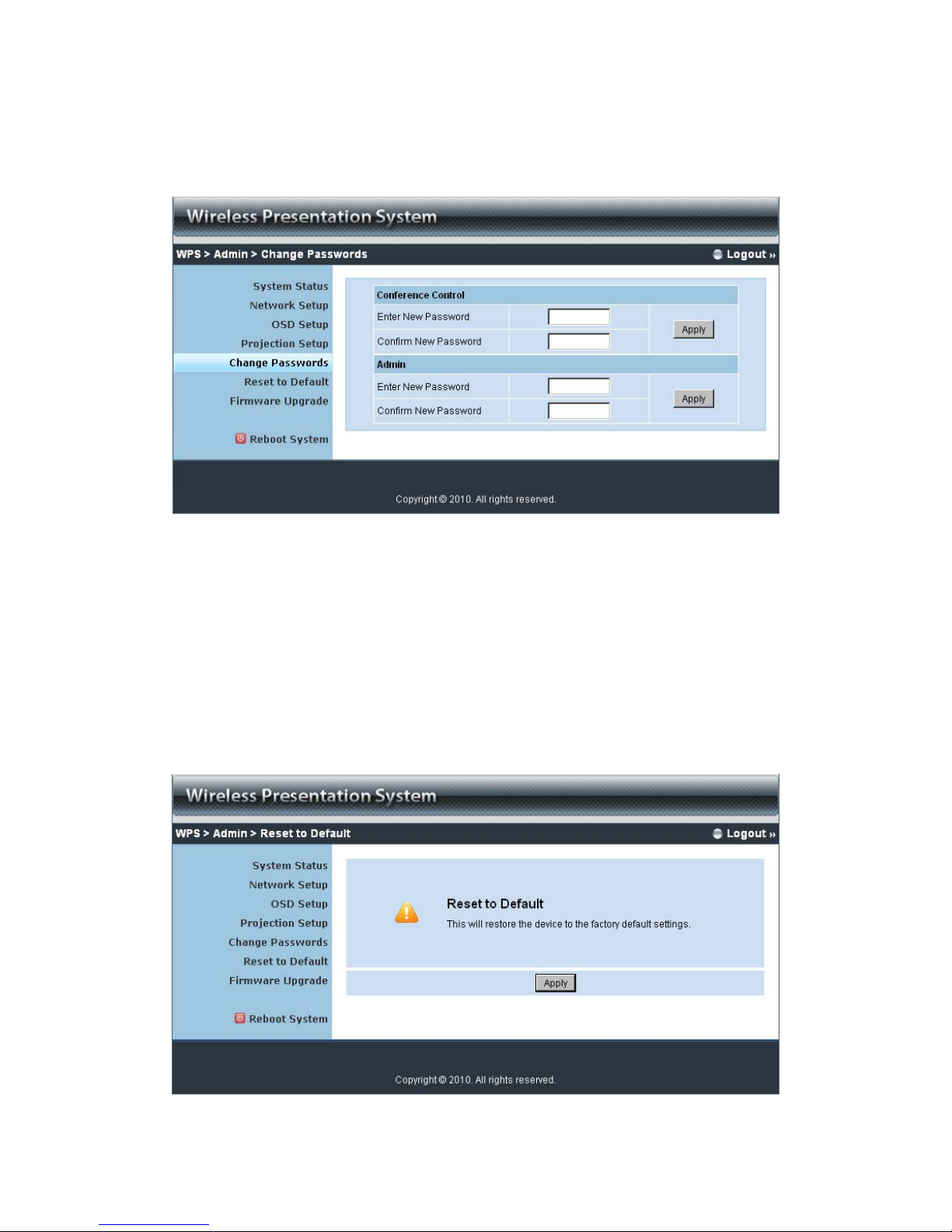

5.4.5 Change Passwords

Click [Change Password] button, to change password value.
The length of password is up to 8 characters.

♦ <Enter New Password>: enter new password you want to change

for each category.

♦ <Confirm New Password>: double confirm new password.
♦ <Apply>: Confirmation and Save modifications.

5.4.6 Reset to Default

36

Click [Reset to Default] button to restore factory default settings.
<Apply>: Confirmation and action.

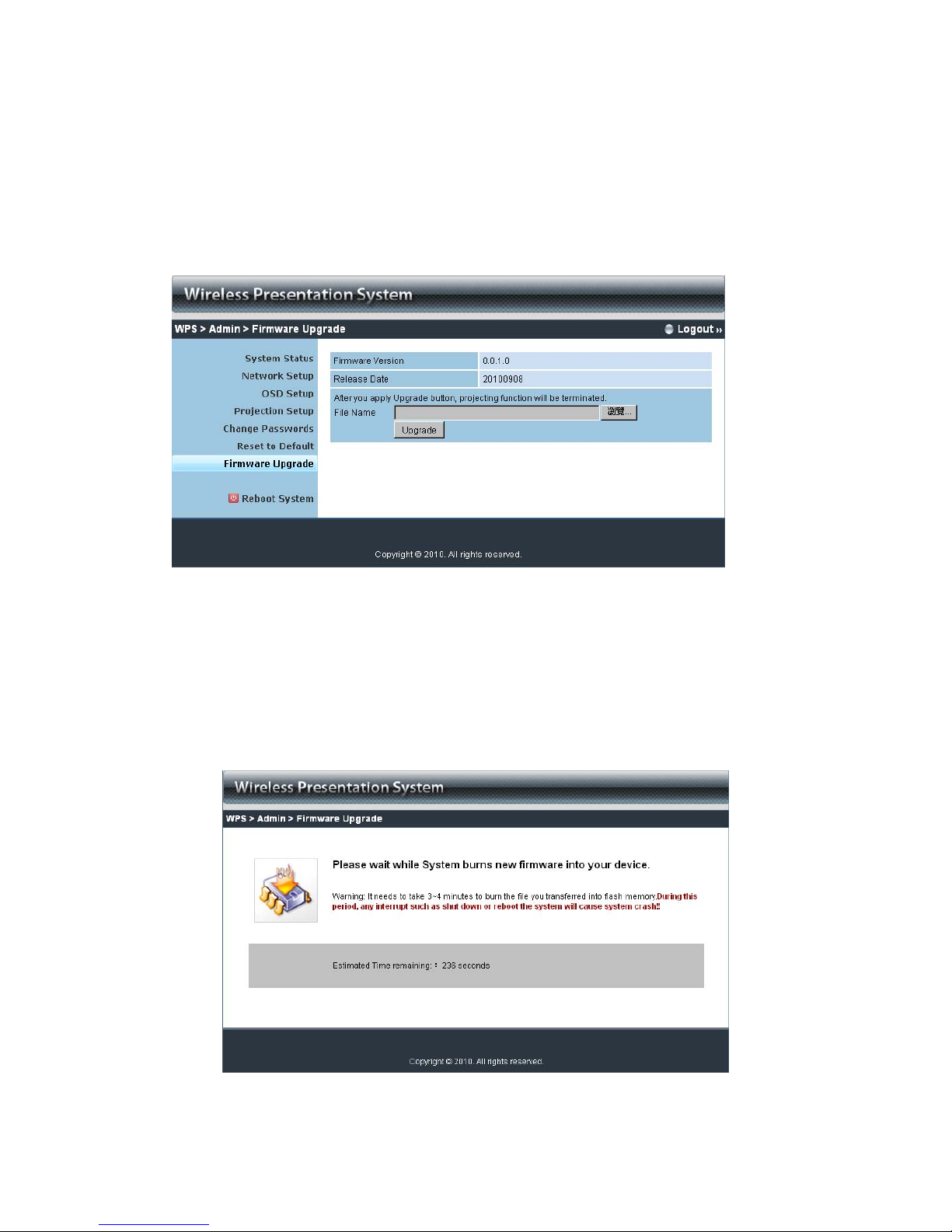

5.4.7 Firmware Upgrade

Click [Firmware Upgrade] button to upgrade firmware.

1. Firstly, you have to get latest firmware image file from your vendor.

2. Click <Browse> to specify file name you want to upgrade.

3. Click <Upgrade> to start.

4. A warning message shown and count down counter on the screen.

5. After a few minutes, a complete message shown on the screen.

6. Restart VPS unit to take effect.

37

Warning: Don’t power off VPS while firmware upgrade in progress,

otherwise will cause your Box doesn’t work and have to return device to your
vendor for fixing.

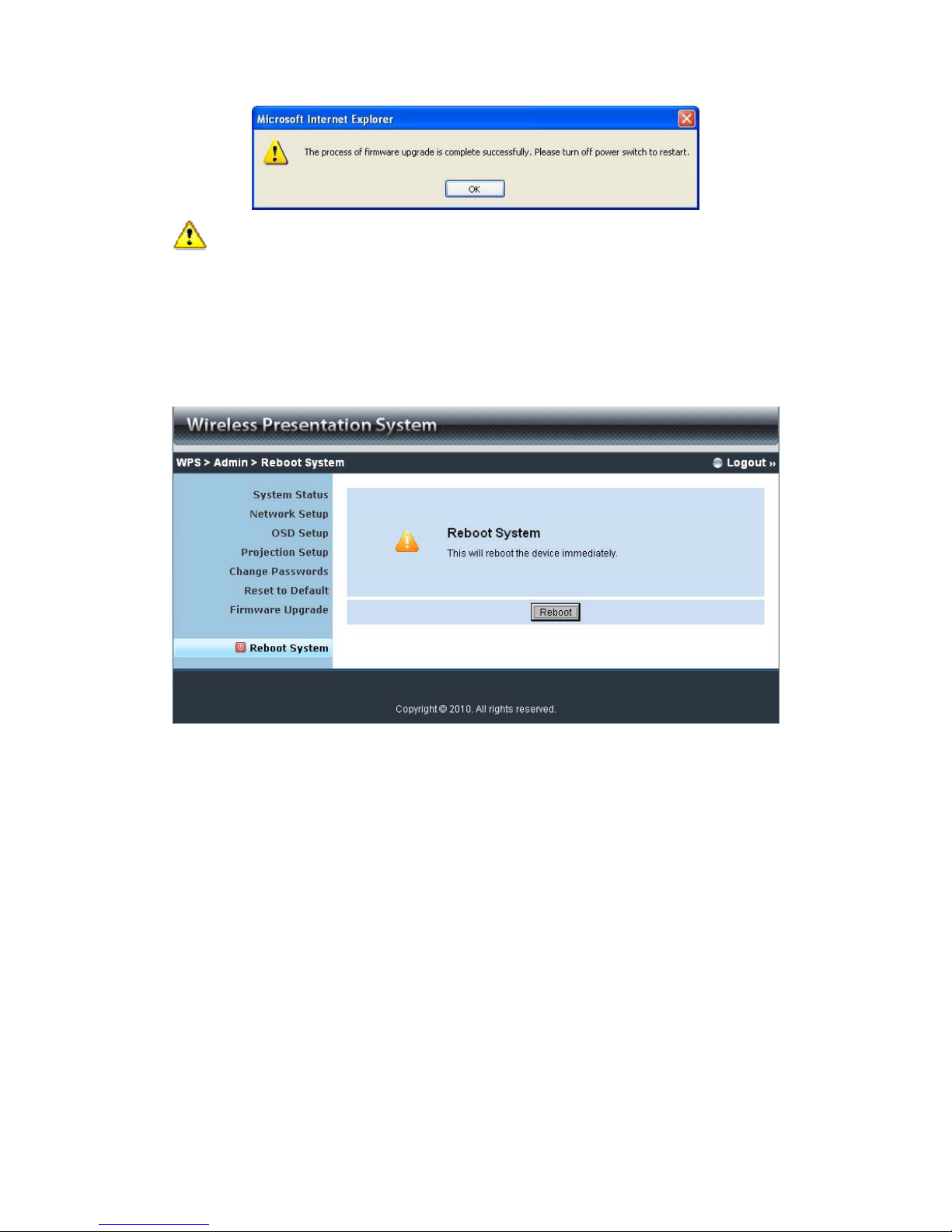

5.4.8 Reboot System

Click [Reboot System] button, to restart system

♦ <Reboot>: reboot system automatically.

38

5.4.9 Logout

39

6. Appendix

Screen Image Background Maker

Quick Installation Guide

Version: 1.00

40

1) Run the “Screen Image Background Maker” and follows the wizard to
convert the image file.

2) Press “Open” to select a file to convert this image for background use.

3) Press “Saver” to save this file.(*.ib)

41

4) Please connect to VPS webpage, and then connect to OSD setup page.

5) Press “Browser” to choose the *.ib file.

6) Press “image file upload” to upload your background image.
Then it will show the message as below.

42

Note: You may find “Screen Image Background Maker” in the USB Token.

43

PtG Converter

Quick Installation Guide

Version: 1.00

44

Using PtG Converter

Open “MobiShow PtG Converter” in “MobiShow\MobiShow PtG
Converter” folder from “Programs” in the Start menu. The following control

panel is displayed on your Desktop when it is launched.

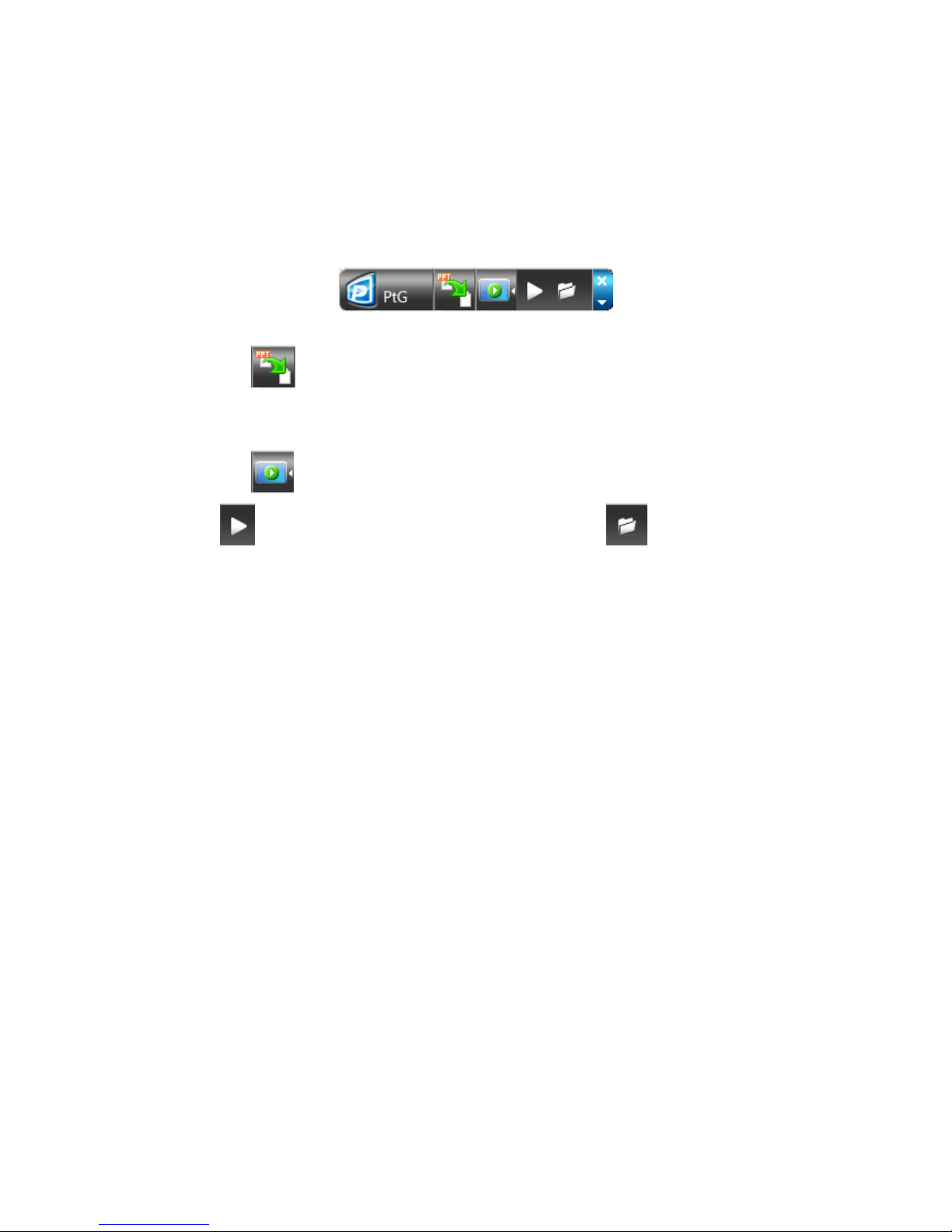

Click the “

Convert” button to select a PowerPoint PPT file and start

conversion. PtG Converter will open the PowerPoint file and convert it to PtG
format. You can see the conversion process on your Desktop.

Click the “ Preview” button to expand or collapse the preview pane.

Click “ Play” to playback selected PtG file, or click “ Open” to select

a PtG file.
