SINBON Electronics SG70 User Manual

SINBON Electronics Co., Ltd.

Reviewed by

Prepared by

Bruce Lin

Asuka Wu

Happy Chen

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiw an
Tel: [phone] Fax: [phone]
www.sinbon.com

SG-70 Solar Gateway
User's Quick Start Guide

Version: 1.0
Date: Feb/08/2018

DMIS RD Department

 User’s Guide  Data Sheet  Operation Manual

Approved by

This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.

1

SINBON Electronics Co., Ltd.

Title

SG-70 Solar User's Quick Start Guide

Subtitle

User’s Start Guide

Doc No.

M-170061

Revision Notes

Date

Status / Comments

1.0

Feb/08/2018

Preliminary release

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiw an
Tel: [phone] Fax: [phone]
www.sinbon.com

We reserve all rights in this document and in the information contained ther e in. Re produc ti on, us e or disc losure to
third parties without express authority is strictly forbidden.

This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.

2

SINBON Electronics Co., Ltd.

Contents

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiw an
Tel: [phone] Fax: [phone]
www.sinbon.com

1. Introduction………………………………………………………………….………4

2. Package contents………………………………………….……………………….4

3. Hardw are overview………………………………………………………………...4

4. Solar Gateway installation………………………………………………………..5

5. The Solar gateway basic local network configurati on……………………..15

6. LED Status descriptions…………………………………………………………17

7. Reset to the factory default setup instruction……………………………….17

8. Troubleshooting……………………………………………………………...…...18

9. Product specifications…………………………………………………………...18

10. Label…………………………………………………………………………..........19

11. Dimension………………………………………………………………………….19

12. Safety Notices…………………………………………………….……………….20

13. FCC Statement…………………………………………………………………….20

This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.

3

SINBON Electronics Co., Ltd.

1. Introduction.

This Quick Start Guide is designed to guide, you through the installation and setup of this
product.

2. Package contents.

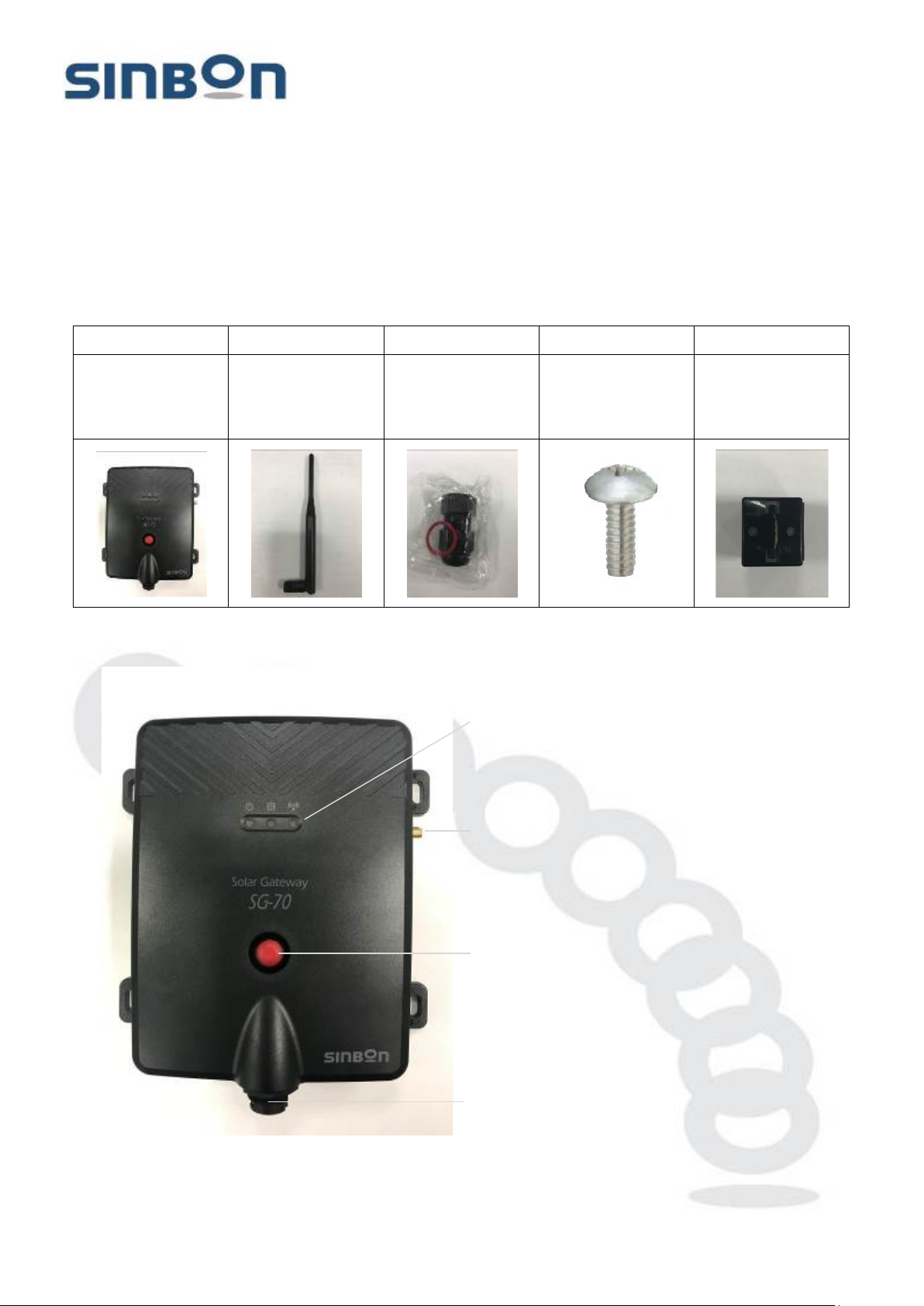

1 2 3 4 5

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiw an
Tel: [phone] Fax: [phone]
www.sinbon.com

SG-70 Solar

Gateway

1pcs

5 dBi Dipole

Antenna

1pcs

3. Hardware overview.

Waterproof

connector

1set

M4-0.7-12 Brss

screw

4pcs

Clamp core for

Ethernet cable

1pcs

This document contains confidential and proprietary information, all information are reserved by SINBON Electronics Co., LTD.

4

SINBON Electronics Co., Ltd.

The LED is

steady red light.

end database system,

The LED is steady blue light.

device, The LED is steady blue light.

Antenna.

Reset button

This button is resets the Solar Gateway back to factory defaults.

to PC or NB can set-up DHCP.

Status LEDs

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiw an
Tel: [phone] Fax: [phone]
www.sinbon.com

Power

Database activity

Wireless activity

Antenna connector

Ethernet port

When the device is connected to a power source.

When the device has data transmit to far-

When the device wireless interface is link to the solar sensor

Install the 2.4GHz Antenna, in the package contents item2 5dBi

This Ethernet port is connect to the "POE "p or t at t h e POE adapter,
the POE "LAN" port connector to your network router or connector

4. Solar Gatew ay installation.

Installation Checklist

 SG-70 Solar gateway: 1 pcs (In the Solar gateway package).
 POE adapter : 1 pcs (without attach, the device need to check installation status).
 Antenna: 1 pcs (In the Solar gateway package).
 Clamp core: 1 pcs (In the Solar gateway package).
 Waterproof connector kit s: 1 pcs( I n the Sol ar g ateway package).
 LAN cable: 2 pcs, The one for LAN port an d other s for WAN port used (without attach, the

cable length, according to the real environment decision).

 M4-0.7x12 screw: 4 pcs(In the Solar gateway package).

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

5

SINBON Electronics Co., Ltd.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

4.1 Indoor installation.

WARING: This device is not for outdoor application. Please the installation conditions mus t h ave at
indoors or inside the outdoor control box!
WARING: Service should be provided only by a qualified service technician!

The LAN port used Ethernet cable assembly with waterproof connector; the kits have 4 parts.

*Please do not discard the waterproof washer! It will be used later!

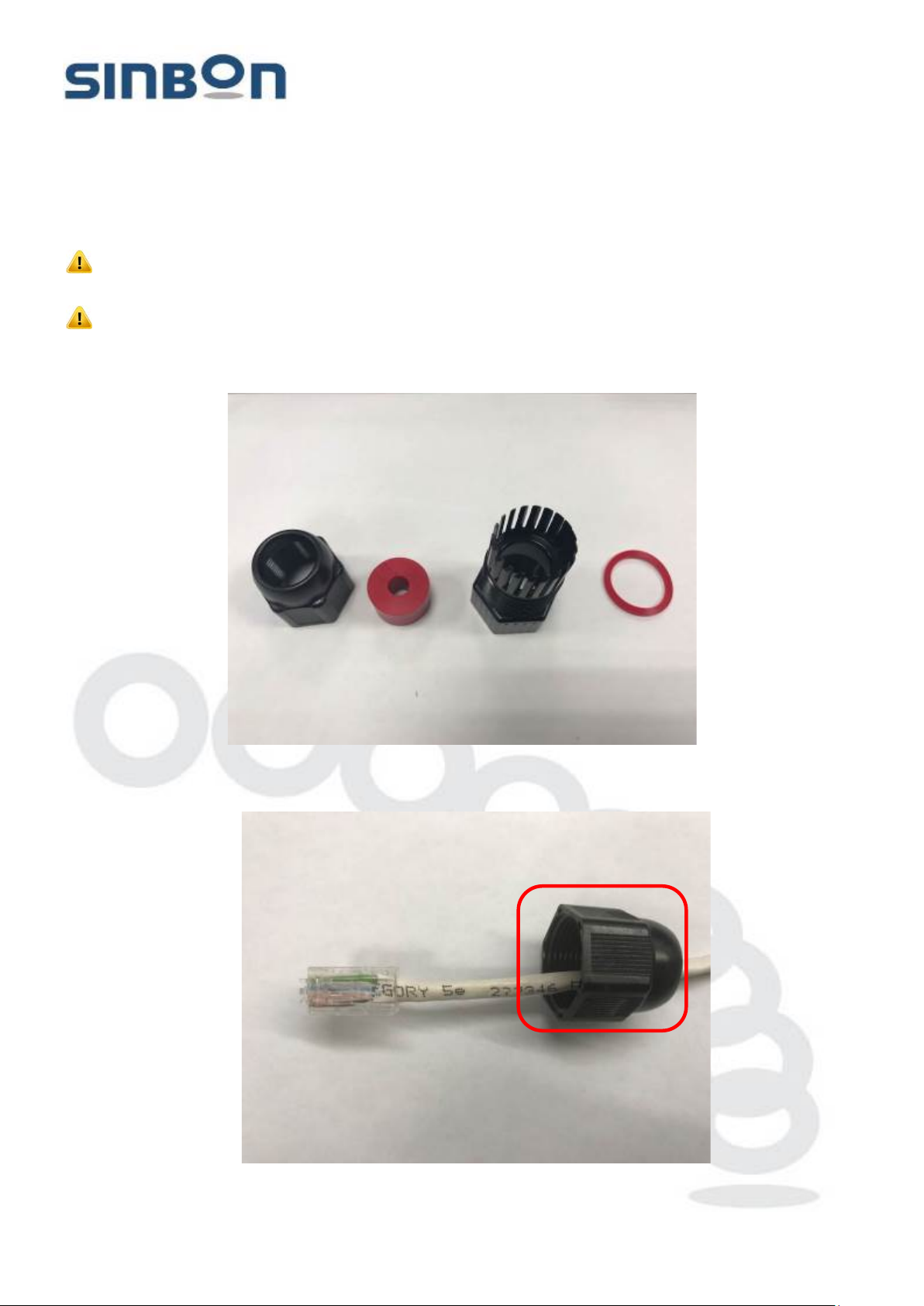

(Step1). The LAN cable through the part 1.

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

6

SINBON Electronics Co., Ltd.

(Step2). The LAN cable through the part 2.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

(Step3). The LAN cable through the part 2.

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

7

SINBON Electronics Co., Ltd.

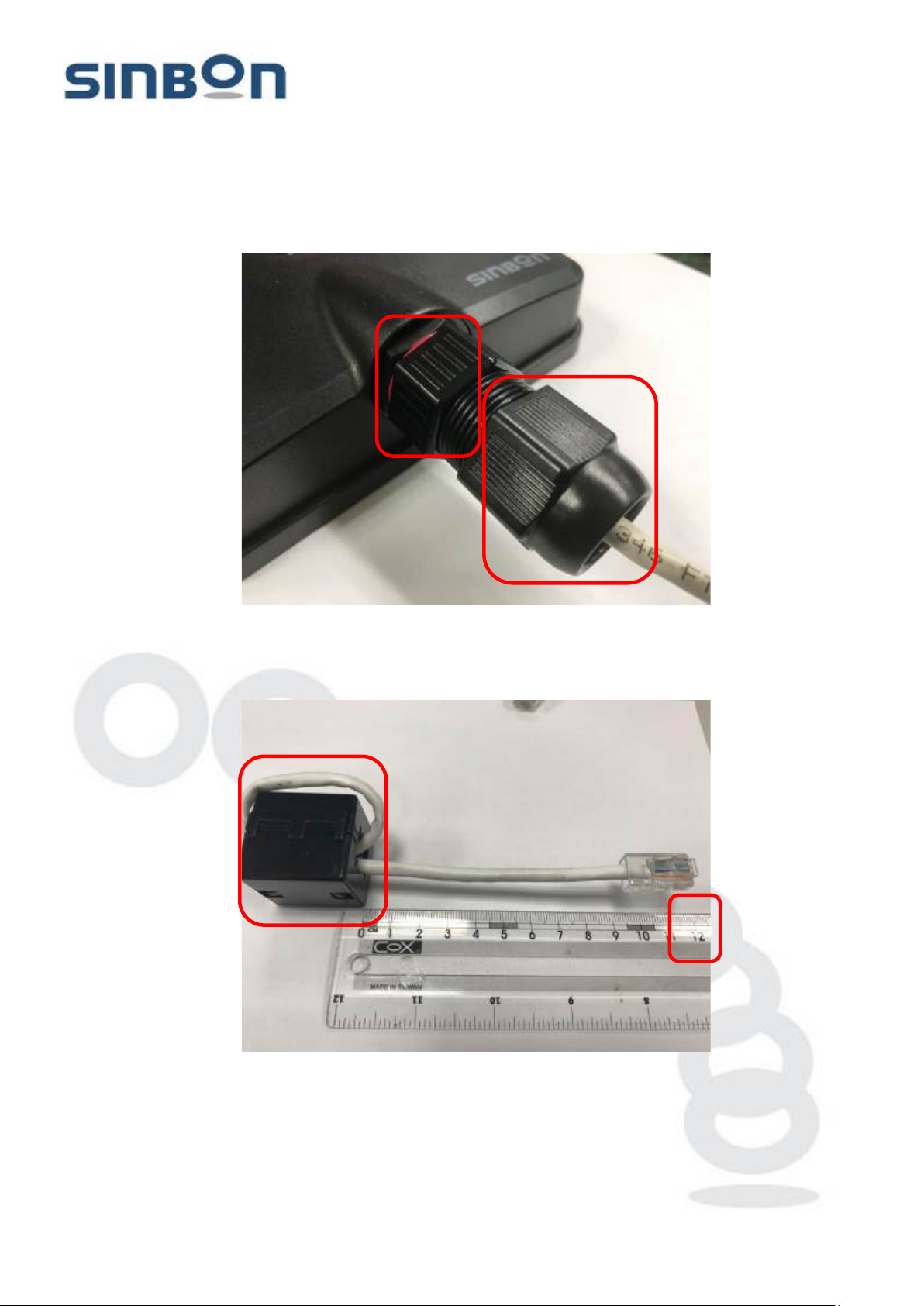

(Step4). The L part 3 through the part 2.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

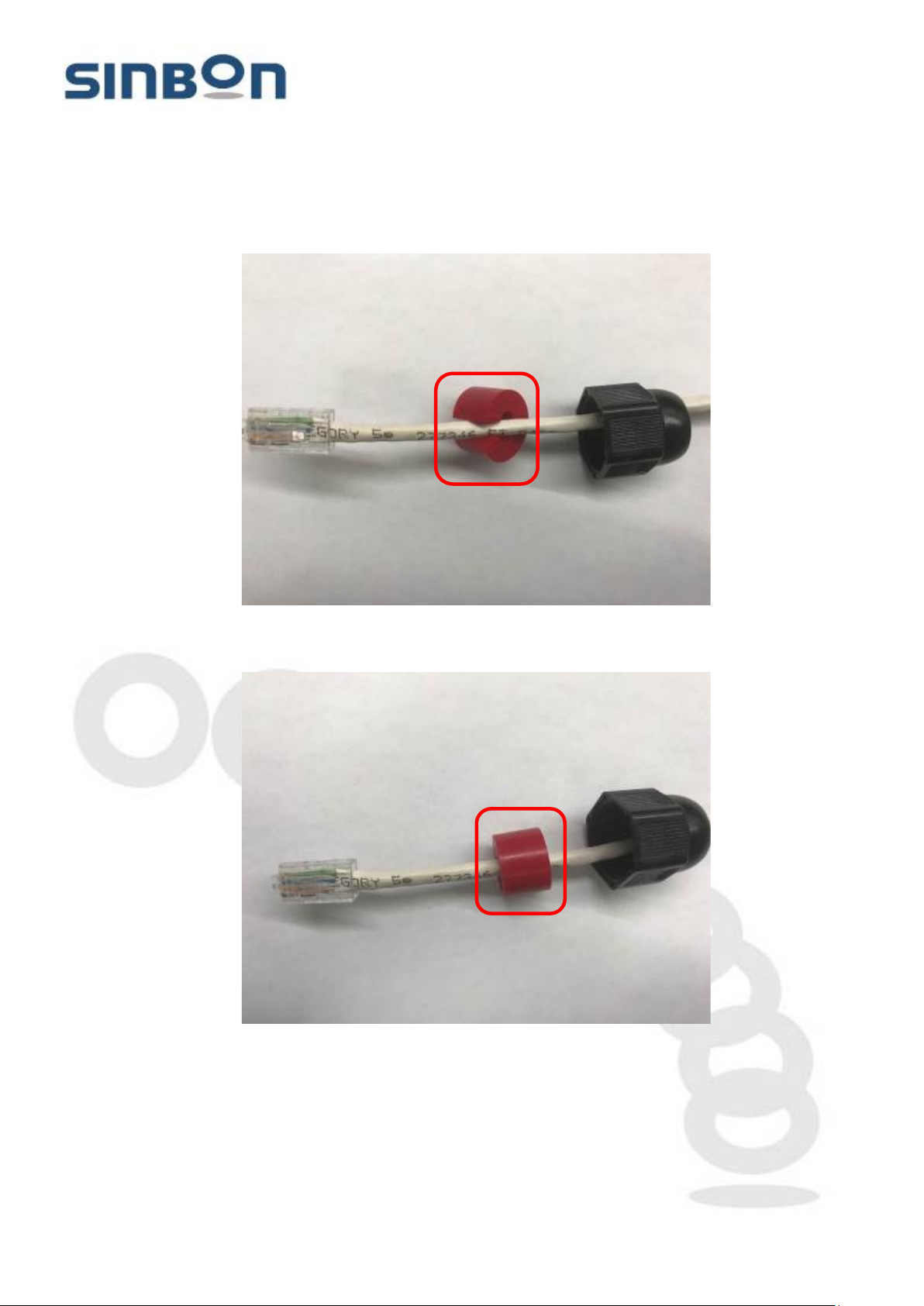

(Step5). The part 1 Spin pre-installation and lock into the part 3, assembly complete.

*Please don’t lock it

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

8

SINBON Electronics Co., Ltd.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

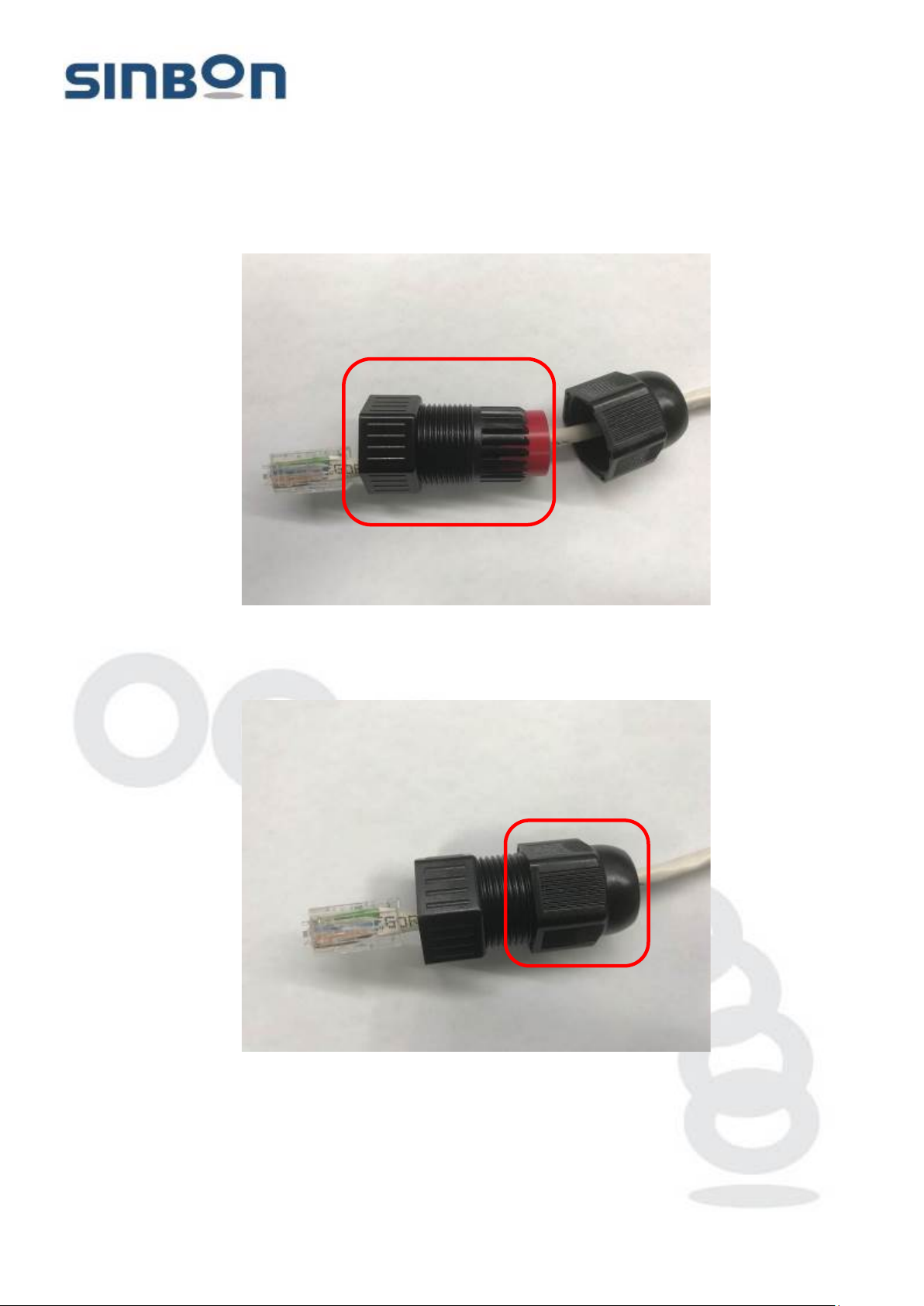

(Step6). The waterproof connector kits part 4 waterpr oo f was her, set on the Ethernet port at the
Solar gateway.

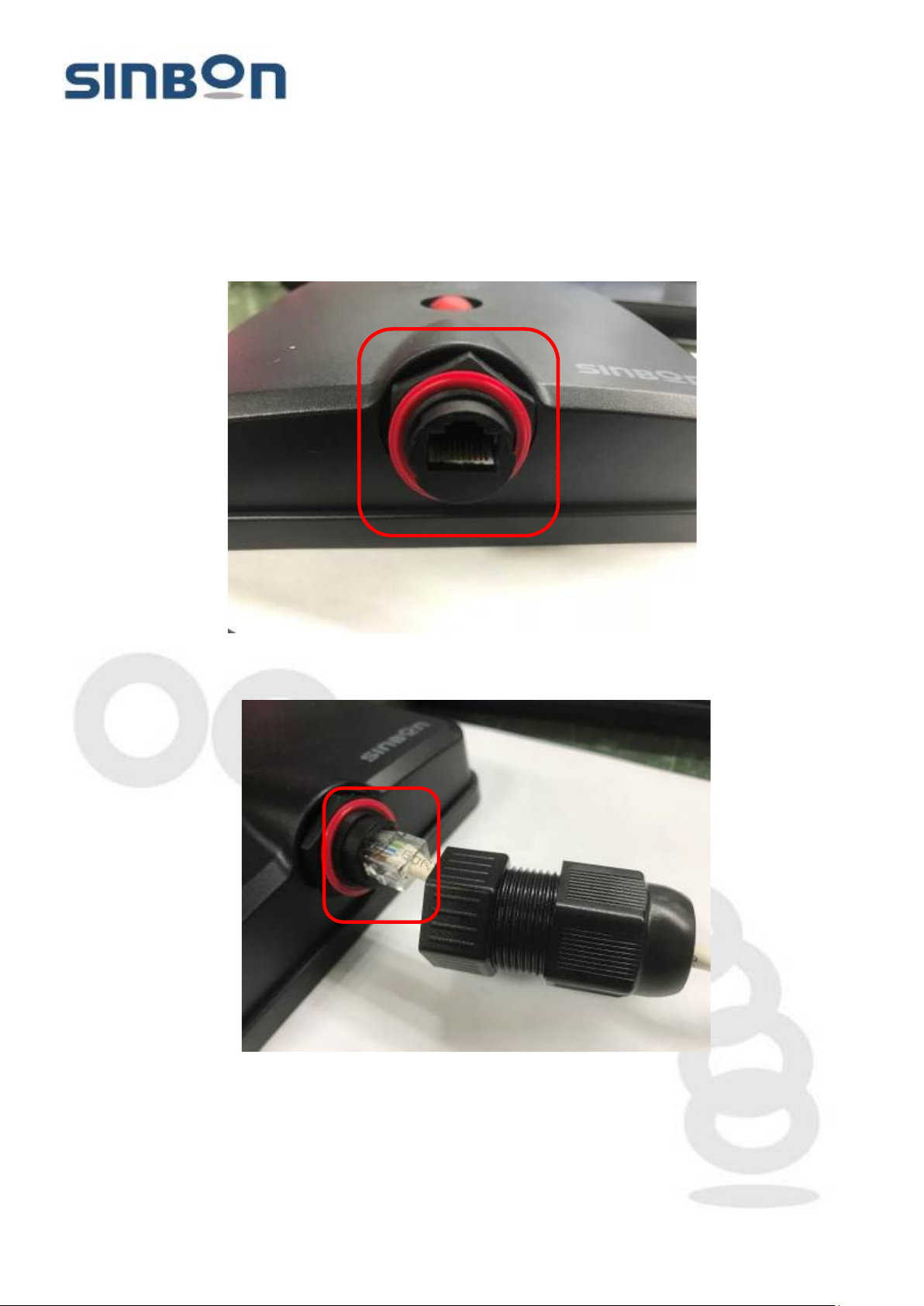

(Step7). Connect the Ethernet cable to the Ethernet port at the Solar gateway.

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

9

SINBON Electronics Co., Ltd.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

(Step8). First lock the waterproo f connector part 3 until to locked, then until locked the part1.

(Step9). The Second LAN cable for WA N port used, after the RJ45 c onnect or front end 12cm , the
Ethernet cable around 1 circle on the clamp core.

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

10

SINBON Electronics Co., Ltd.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

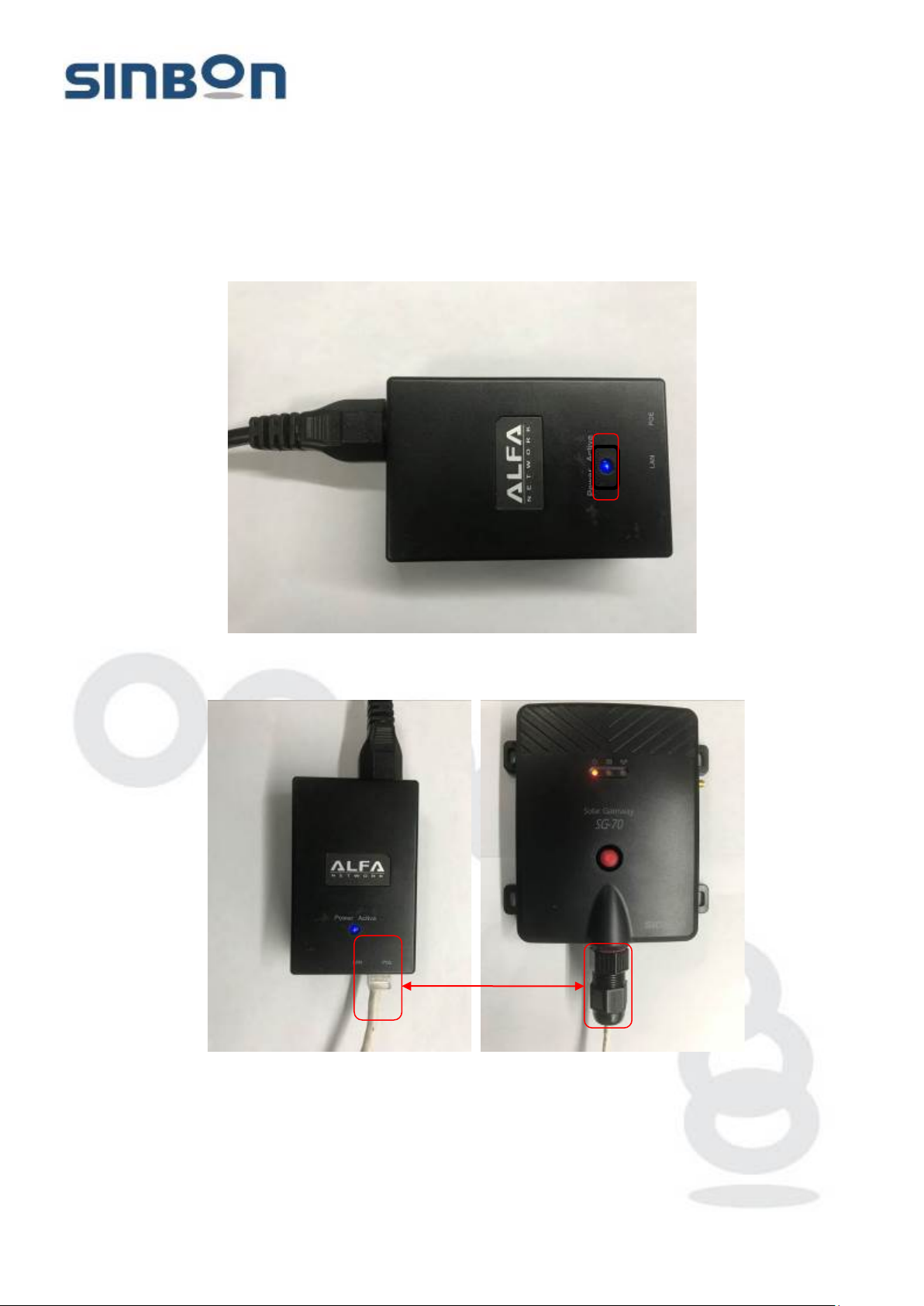

(Step10). Connect the PO E Adapter power cord to AC power 100 ~ 240V, 50 ~ 60Hz, after
connecting the blue light LED is fixed light.

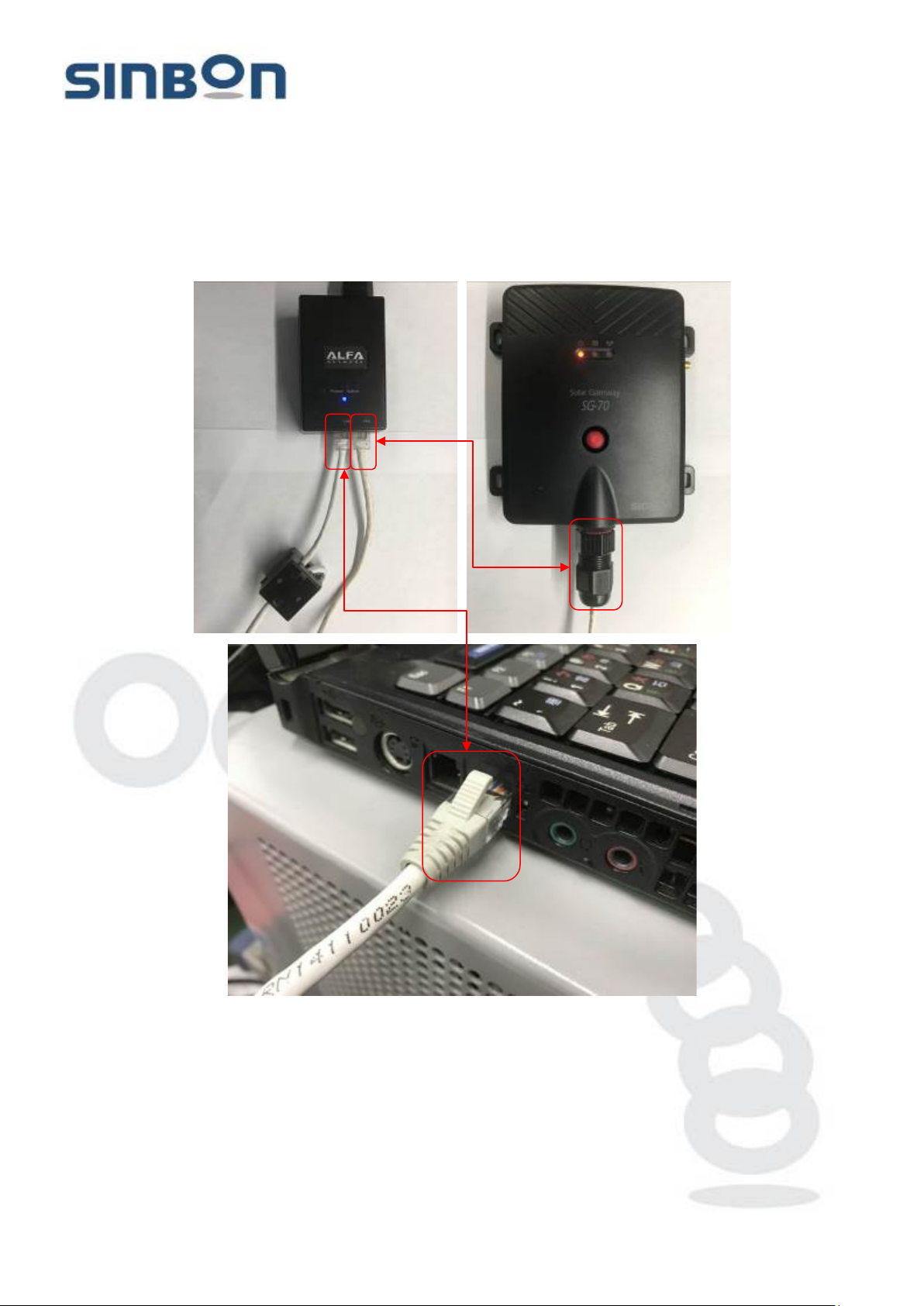

(Step11). The LAN ports Ethernet cable is connect with the “POE port” at the POE adapter.

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

11

SINBON Electronics Co., Ltd.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

(Step12). The WAN port Ethernet cable is connect with the “LAN port” at the POE adapter and
others side connect to the PC or NB.

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

12

SINBON Electronics Co., Ltd.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

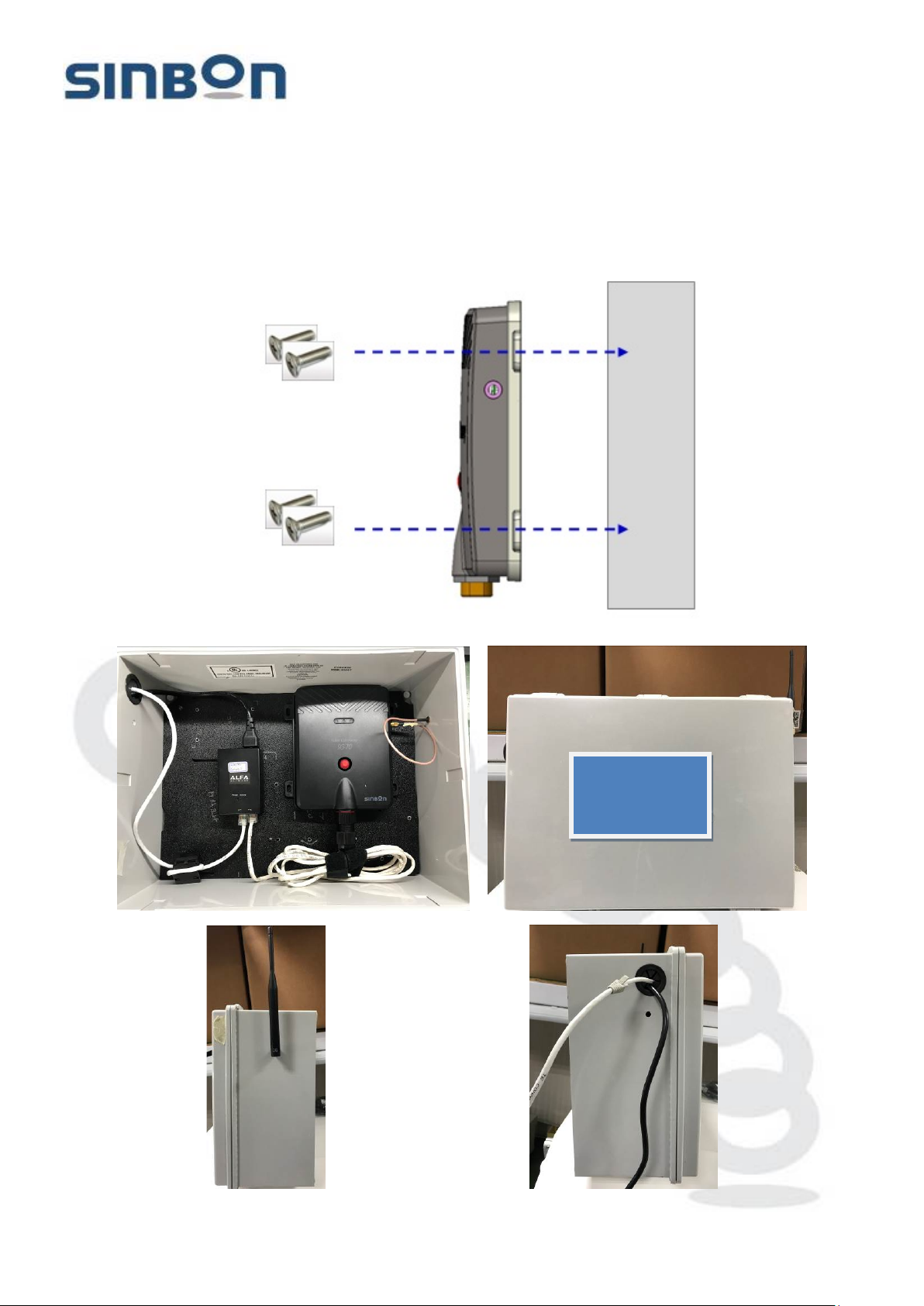

(Step13). Use screws locked the Solar gateway on the wall. (Pure wall hanging type & box
hanging type).

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

13

SINBON Electronics Co., Ltd.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

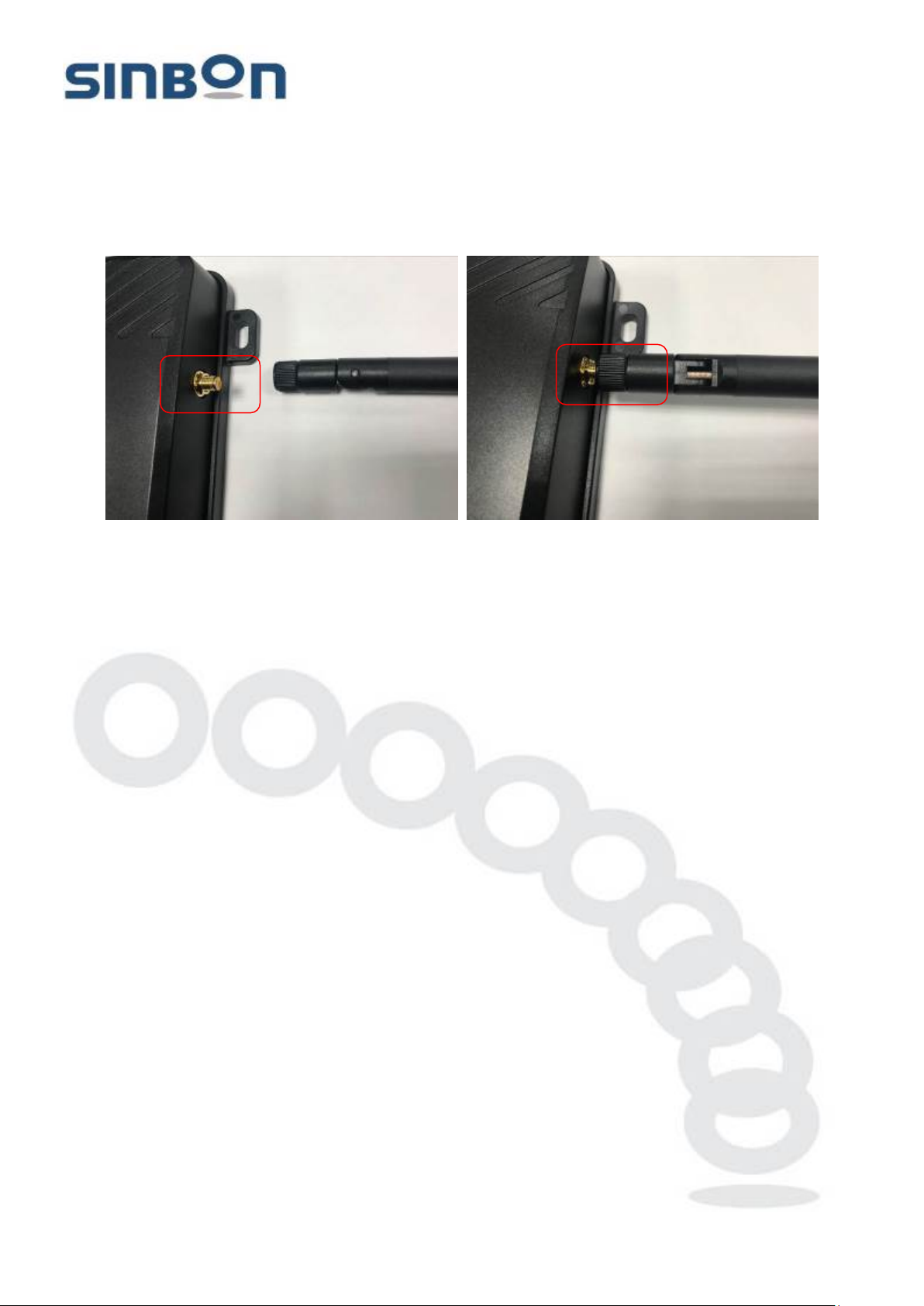

(Step14). Install the antenna on the Solar gateway antenna connector.

(Stpe15).Final checks the Solar gateway installation.

 Antenna, confirm the locked.
 Waterproof connector, confirm the locked.
 POE adapter 2 LAN cable, confirm the connected.
 POE adapter power cord, confirm the connected.
 Solar gateway power LED is light.

*Database activity and Wireless activity LEDS, after complete all system setting, will be function, in the
stage no light is right!

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

14

SINBON Electronics Co., Ltd.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

5. The Solar gatew ay basic loca l ne twork configuration.

WARING: Service should be provided only by a qualified service technician!

5.1 Fixed IP address mode set-up steps.

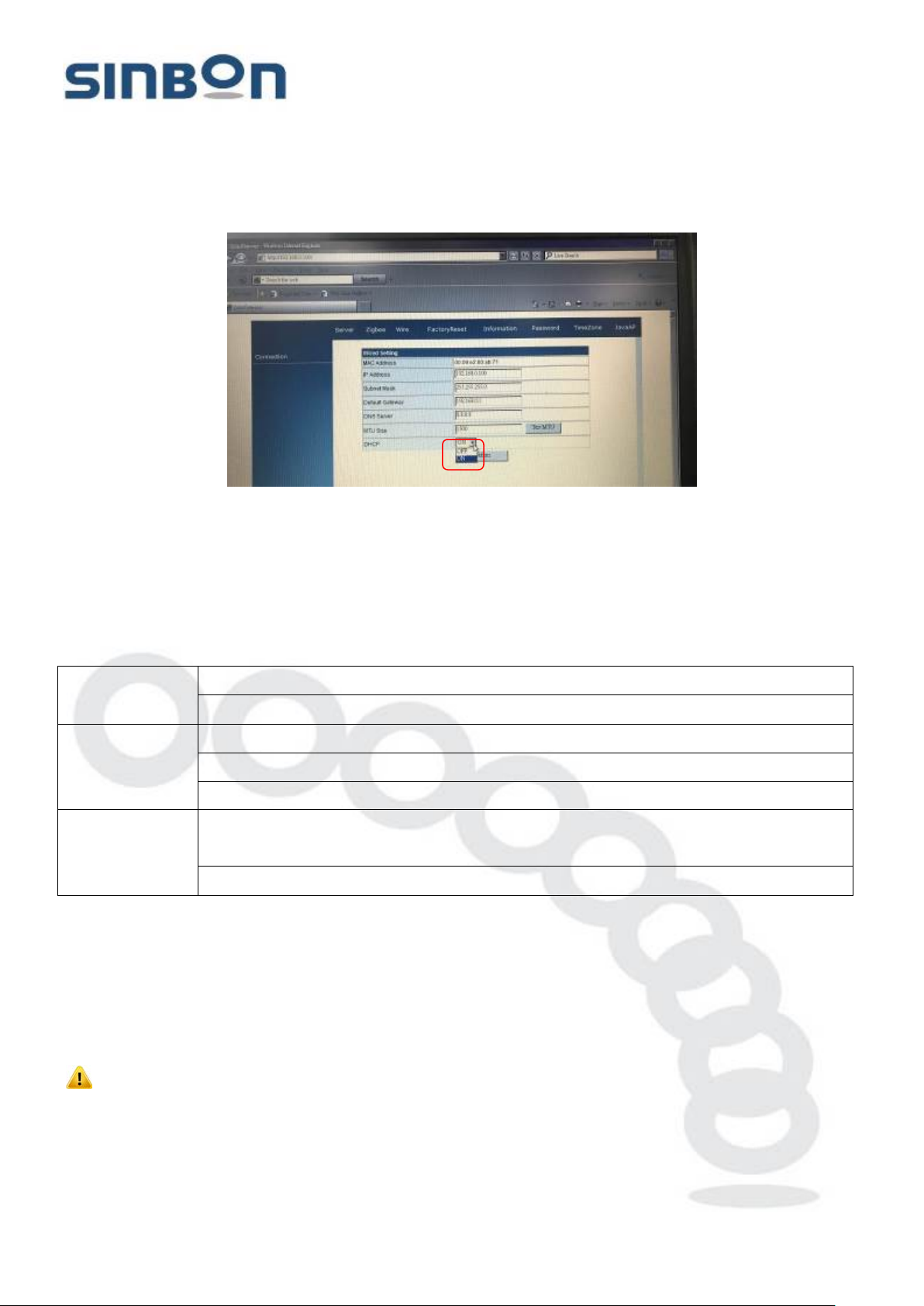

(Step1). Change the Router local network TCP/IP address, please enter to the same area as
Gateway.
E.g: IP address: 192. 1 68.0 . 1

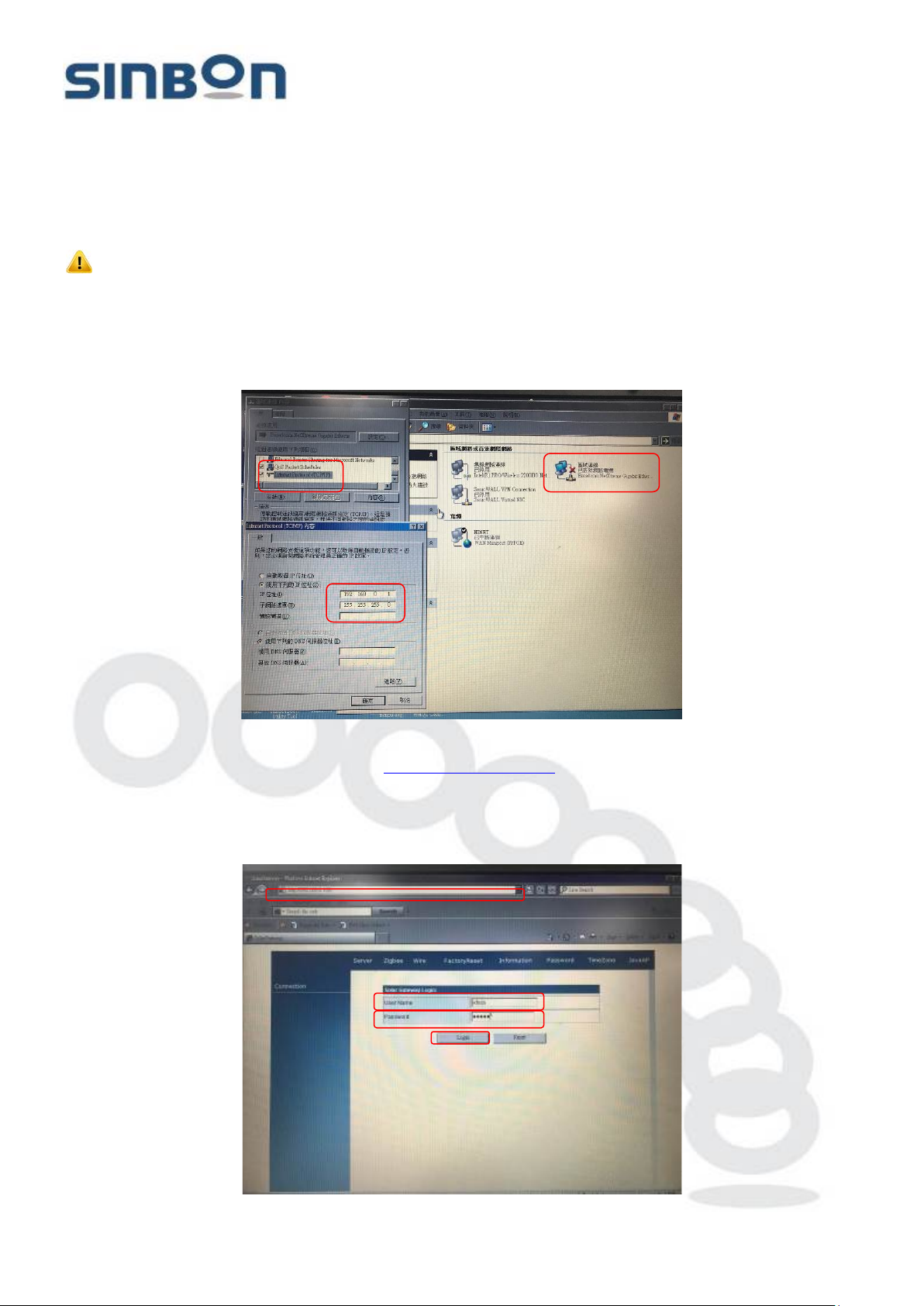

(Step2) Open browser, key in the URL http://192.168.0.100/ after complete press enter.
 In the login page, enter the following information, complete press Lo g i n

User Name: admin
Password: admin

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

15

SINBON Electronics Co., Ltd.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

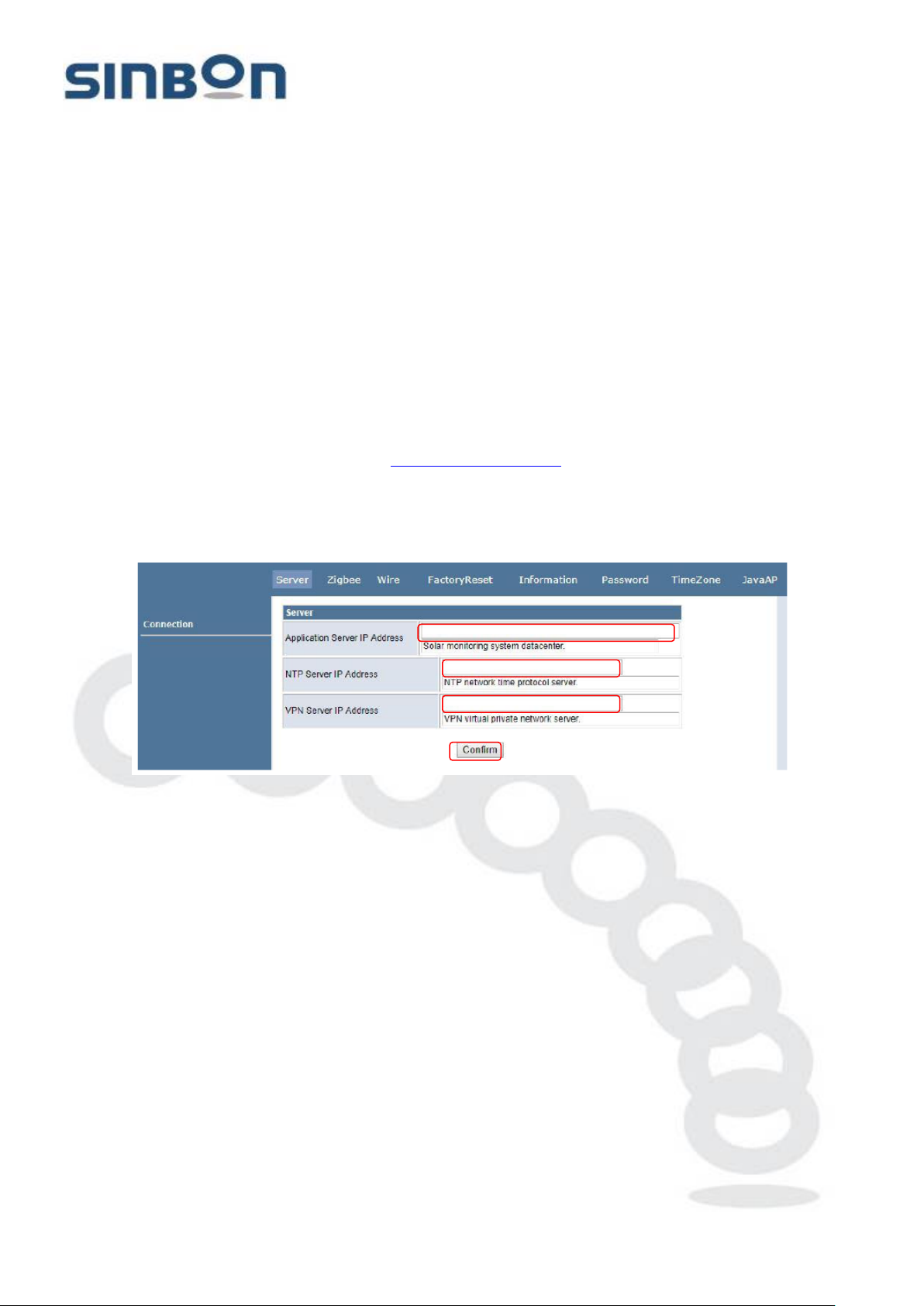

(Step3). In the server page to setup, enter the Application Server IP Address & NTP Server IP
Address finish and Enter Confirm.
 Application Server IP Address: Enter the URL for the Solar database.

E.g:solarmsm.sinbon.com/(ProjectName)

 NTP Server IP Address: Enter a URL that can compare to time .

E.g:pool.ntp.org
 VPN Server IP Address: Enter the URL for the VPN(option)
Confirm: finish to setup, enter confirm.

 Automatically link to the new URL: http://192.168.0.100/.
 In the login page, enter the following information, complete pres s Login

User Name: admin

Password: admin

(Step4). In the wire page, the local networks default setting as follows. Change DHCP setup to
ON, finish enter the Confirm

 IP Address：192.168.0.100
 Subnet Mask：255.250.250.0
 Default Gateway ：192.168.0.1
 DHCP : ON

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

16

SINBON Electronics Co., Ltd.

Fixed off: Input power have problem need to check.

Fixed off: The device no connect with database.

database.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

(Step5). After the completion of the configuration can be in the router rights administrator page,
find assigned to the Gateway IP address, then if change the setting the Gateway information,
need to use the IP address.

6. LED Status descriptions.

Power LED

Status LED

Wireless LED

Fixed light: Input power is success.

Fixed light: T he device transmits data to database is completed.

Light blinks: The device data is transmitting to database.
Fixed light: T he device is connect with sensor and transmits data to far-end

Fixed off: No connect with sensor or no data transmits to far-end datab ase.

7. Reset to the factory default setup instruction.

(Step1). At the system turn on mode, press and hold the SG-70 the reset butto n.
(Step2). After the Power LED is flash 3 time an d w aiti ng 10 sec on ds t he sy stem w il l be r est a rt the
system completed.

*The function only at system turn on used!

WARING: Service should be provided only by a qualified service technician!

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

17

SINBON Electronics Co., Ltd.

Check the Ethernet cable.

8. Troubleshooting

Power LED off Check the POE adapter power.

Check the Gateway and Solar sensor devic e sett ing.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

Status LED off

Open the browser, and check the Gateway network setting.

Check the Gateway and Solar sensor device setting.

Wireless LED off

Open the Router a dministrator pag e, and che ck the Gateway
status.

9. Product specifications .

SG-70 Solar gateway specifications
Dimensions L x W x H : 185 x 167 x 45 mm, without cable and antenna length
Weight 0.373 kg
Processor NXP i.MX6 Solo 1GHz
Memory DDR3L 1GB
Storage NAND Flash 8GB
Ethernet 100Mbps RJ45 Ethernet port
Wireless IEEE802.15.4
LEDs 3 LEDS: Power, Database connectivity & Wireless connectivity
Button Reset button
Max power 6W(Max)
Power supply AC 100~240V/50~60Hz

Temperature

Humidity 0 % to 95% non-condensing
Ingress Protection Rating IP65
Certifications FCC only

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

Operating : -20ºC to 65ºC
Storage: -30ºC to 70ºC

18

SINBON Electronics Co., Ltd.

A9310451-001(SG-7

0) Label location_201

A9310451-001(SG-7

0) Reg label_2017120

10. Label

Item Description

Label location

1.

Certification label

2.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

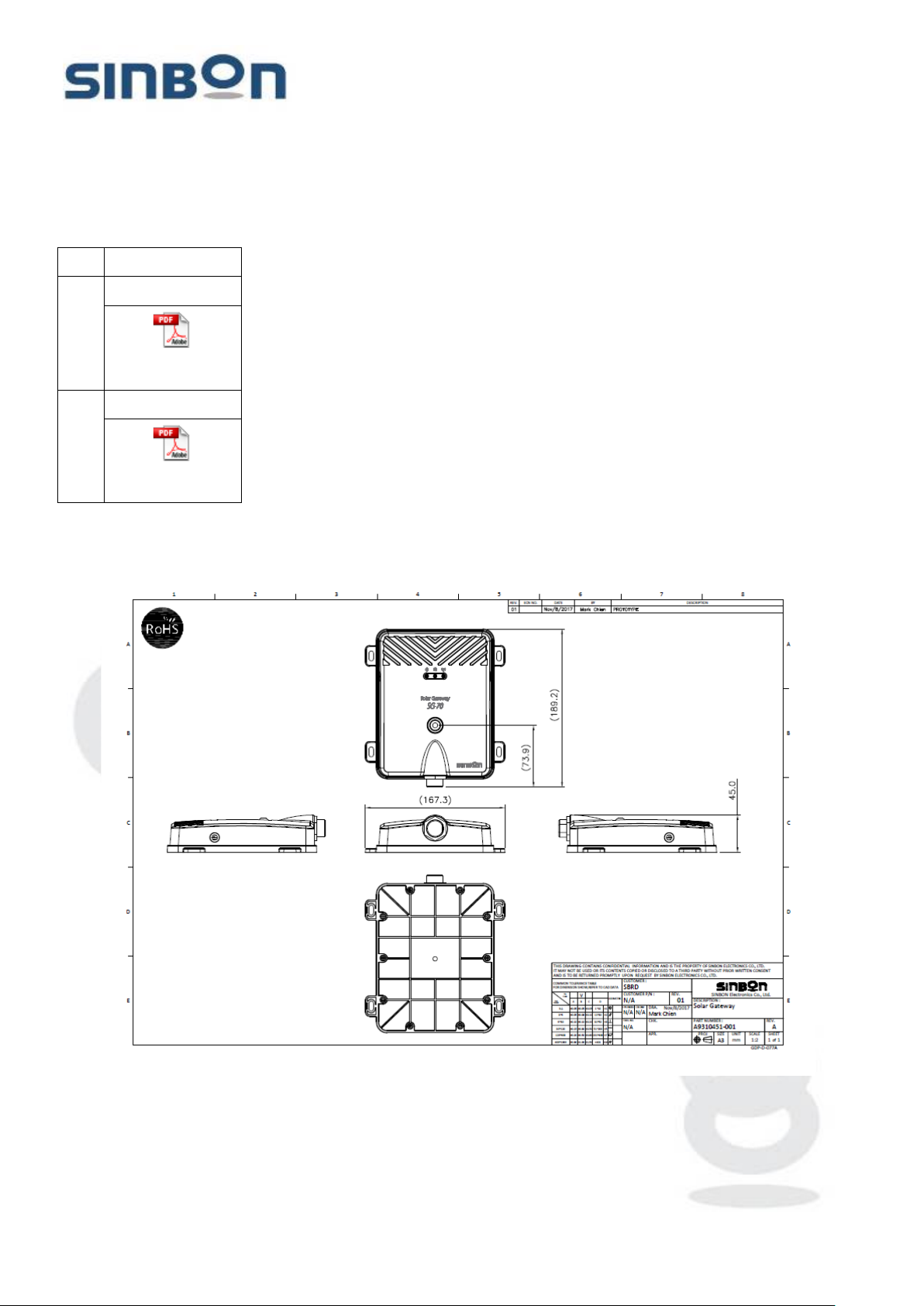

11. Dimension

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

`

19

SINBON Electronics Co., Ltd.

and repair service should be provided only by a qualified service

he installation conditions must

Compliance is required with respect to voltage, frequency, and current requirements

indicated on the manufacturer’s label. Connection to a different power source than those specified

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

12. Safety Notices.

(1). Follow these instructions.
(2). Heed all warning.

WARING: The installation
technician!
WARING: The device is not direct for outdoor application. Please t
have at indoors or inside the outdoor control box!
WARNING: Avoid using this product during an electrical storm. There may be a remote risk of
electric shock from lightning!
WARING:

may result in improper operation, damage to the equipment or pose a fire hazard if the limitations
are not followed!

13. FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter
must be installed to provide a separation distance of at least 20 cm from all persons.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

20

SINBON Electronics Co., Ltd.

authority to operate the equipment.

4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-Chih, T aipei Hsien 221, Taiwan
Tel: [phone] Fax: [phone]
www.sinbon.com

This document contains confidential and proprietary information, all information are reserved by SINBON Electroni cs Co., LTD.

21
