USER MANUAL
Before use, please read the operating instructions
carefully to correctly operate the Sinarback and fully
benefit from all the possibilities and advantages. The
manual can be downloaded from our website:
www.sinar.swiss → Support → Download
→ Brochures and Manuals

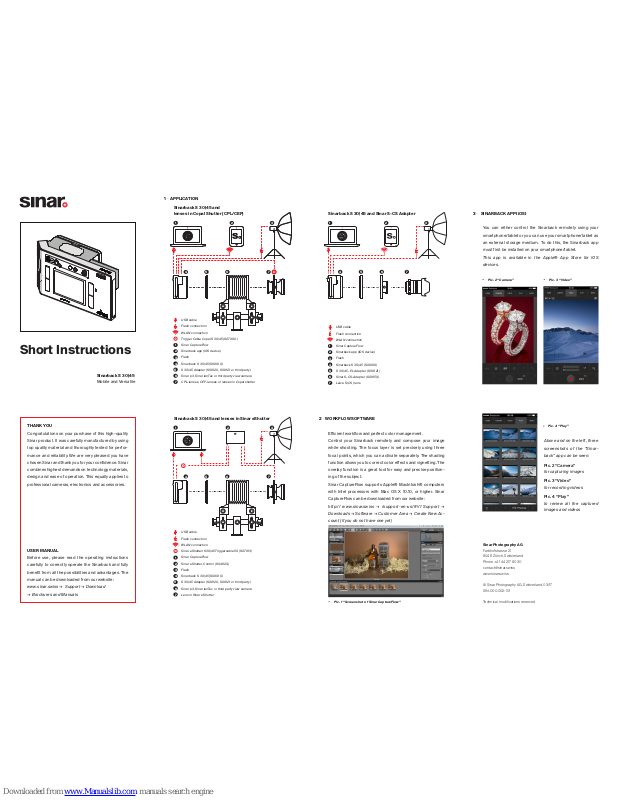

Short Instructions
Sinarback S 30|45
Mobile and Versatile
THANK YOU
Congratulations on your purchase of this high-quality
Sinar product. It was carefully manufactured by using
top quality material and thoroughly tested for perfor-
mance and reliability. We are very pleased you have
chosen Sinar and thank you for your confidence. Sinar
combines highest demands on technology, materials,
design and ease of operation. This equally applies to
professional cameras, electronics and accessories.
Sinarback S 30|45 and Sinar S-CS Adapter
Sinarback S 30|45 and lenses in Sinar eShutter
Sinarback S 30|45 and
lenses in Copal Shutter (CPL/CEF)
APPLICATION
e
WORKFLOW SOFTWARE
Efficient workflow and perfect color management.
Control your Sinarback remotely and compose your image
while shooting. The focus layer is set precisely using three
focal points, which you can activate separately. The shading
function allows you to correct color effects and vignetting. The
overlay function is a great tool for easy and precise position-
ing of the subject.
Sinar CaptureFlow supports Apple® MacIntosh® computers
with Intel processors with Mac OS X 10.10, or higher. Sinar
CaptureFlow can be downloaded from our website:
http:// www.sinar.swiss → /support-en-us/#!/1 Support →
Downloads → Software → Customer Area → Create New Ac-
count (if you do not have one yet)
– Sinar CaptureFlow
– Sinarback app (IOS device)
– Flash
– Sinarback S 30|45 (S09010)
– S 30|45 Adapter (S09120, S09121 or third party)
– Sinar p3, Sinar lanTec or third party view camera
– CPL-lenses, CEF-lenses or lenses in Copal shutter
– Sinar CaptureFlow
– Sinar eShutter Control (S04620)
– Flash
– Sinarback S 30|45 (S09010)
– S 30|45 Adapter (S09120, S09121 or third party)
– Sinar p3, Sinar lanTec or third party view camera
– Lens in Sinar eShutter
– Sinar CaptureFlow
– Sinarback app (IOS device)
– Flash
– Sinarback S 30|45 (S09010)
– S 30|45 -EL Adapter (S09121)
– Sinar S-CS-Adapter (S09150)
– Leica S (CS) lens
– USB cable
– Flash connection
– WLAN connection
– Sinar eShutter/S30|45 Triggercable 50 (S07013)
— Pic. 1 “Screenshot of Sinar CaptureFlow”
SINARBACK APP iOS
You can either control the Sinarback remotely using your
smartphone/tablet or you can use your smartphone/tablet as
an external storage medium. To do this, the Sinarback app
must first be installed on your smartphone/tablet.
This app is available in the Apple® App Store for iOS
devices.
Pic. 4 “Play”
Pic. 2 “Camera” Pic. 3 “Video”
– USB cable
– Flash connection
– WLAN connection
– Trigger Cable Copal S 30|45 (S07080)
– USB cable
– Flash connection
– WLAN connection
Sinar Photography AG
Farbhofstrasse 21
8048 Zürich, Switzerland
Phone +41 44 217 8030
contact@sinar.swiss
www.sinar.swiss
© Sinar Photography AG, Switzerland, 03/17
SIN-000.002-101
Technical modifications reserved
Above and on the left, three
screenshots of the “Sinar-
back” app can be seen:
Pic. 2 “Camera”
for capturing images
Pic. 3 “Video”
for recording videos
Pic. 4 “Play”
to review all the captured
images and videos
LEGAL INFORMATION
DISPOSAL OF ELECTRICAL AND ELEC-
TRONIC EQUIPMENT
(Applies within the EU, and for other Euro-
pean countries with segregated waste col-
lection systems.)
This device contains electrical and/or electronic compo-
nents and should therefore not be disposed of in general
household waste. Instead it should be disposed of at a
recycling collection point provided by the local author-
ity. This costs you nothing. If the device itself contains
S 30|45
Tested to Comply With FCC Standards
FOR HOME OR OFFICE USE
Please ensure that you strictly observe copyright laws. The re-
cording and publication of pre-recorded media such as tapes,
CDs, or other published or broadcast material may contravene
copyright laws. This also applies to all the software supplied.
The SD, HDMI, CF and USB logos are trademarks of the re-
spective owners. Other names, company and product names
referred to in these instructions are trademarks or registered
trademarks of the relevant companies.
The CE identification of our products documents compliance
with the fundamental requirements of the respective valid EU
directives.
DECLARATION OF CONFORMITY DOC
Hereby, “Sinar Photography AG” declares that this product is
in compliance with the essential requirements and other rele-
vant provisions of Directive 1999/5/EC.
In case of further questions, please contact:
Sinar Photography AG, Farbhofstrasse 21, 8048 Zurich,
Switzerland
This product is intended for general consumer. (Category 3)
This product is on purpose to connect to access point of
2.4 GHz WLAN.
In the menu of the Sinarback S 30|45, under Camera Infor-
mation, you will find the specific approvals for this Sinarback
under the point Regulatory Information.
replaceable (rechargeable) batteries, these must be re-
moved first and, if necessary, also be disposed of in line
with the relevant regulations. Further information on this
issue is available from your local administration, your lo-
cal waste collection company, or in the store where you
purchased this device.
FOR USA ONLY:
FCC Note:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential instal-
lation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
FCC Caution:
To assure continued compliance, follow the attached installa-
tion instructions and use only shielded interface cables with
ferrite core when connecting to computer or peripheral de-
vices. Any changes or modifications not expressly approved
by the party responsible for compliance could void the user’s
authority to operate this equipment.
Declaration of Conformity
Trade Name: Sinarback S 30|45
Model No.: S 30|45
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
CONTAINS FCC ID: AJSS
This transmitter must not be co-located or operat-
ed in conjunction with any other antenna or trans-
mitter. This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled envi-
ronment and meets the FCC radio frequency (RF)
Exposure Guidelines.
This equipment is tested for specific absorption
ratio (SAR) and complies with FCC/IC radiation ex-
posure limits set forth for an uncontrolled environ-
ment. This device complies with FCC/IC SAR limit
of 1.6 W/kg.
For body worn operation, this equipment has been
tested and meets the FCC/IC RF exposure guide-
lines when used with the Leica Camera AG acces-
sories supplied or designated for this product that
have no metallic component in the assembly. Use
of other accessories may not ensure compliance
with FCC/IC RF exposure guidelines.
WARNING MESSAGES
Modern electronic components react sensitive-
ly to electrostatic discharge. As you can easily
pick up charges of tens of thousands of volts by
walking on synthetic carpets, for example, a dis-
charge can occur when you touch your Sinarback
S 30|45, particularly if it is lying on a conductive
surface. If only the housing is touched, this dis-
charge is harmless to the electronics. Howev-
er, despite built-in safety circuits, outer contacts
such as those in the bottom of the Sinarback
S 30|45, for safety reasons, should not be touched
at all, if possible.
For any cleaning of the contacts, please do not use
an optical microfiber cloth (synthetic); use a cotton
or linen cloth instead! Before touching the contacts,
make sure you discharge any electrostatic charge
by deliberately touching a heating or water pipe
(conductive, earthed material). To avoid soiling and
oxidization of the contacts, store your Sinarback
S 30|45 in a dry place with the contacts covered.
Use only the recommended accessories to pre-
vent faults, short circuits or electric shock. Do not
attempt to remove parts of the Sinarback S 30|45
(covers); qualified repairs can be carried out only at
authorized service centers.
CAUTION:
Only the battery type specified and described in
the user manual of the Sinarback S 30|45, or bat-
tery types specified and described by Sinar Pho-
tography AG, may be used in this digital back.
These batteries may only be used in the units for
which they are designed and may only be charged
exactly as described in the user manual of the
Sinarback S 30|45.
FIRST AID:
• If any battery fluid comes into contact with the
eyes, there is a risk of blinding! Rinse the eyes
immediately with clear water. Do not rub the
eyes!
• Obtain medical assistance immediately.
• If any leaked fluid gets onto the skin or clothing,
there is a risk of injury. Wash the areas con-
cerned with clear water. Obtain medical assis-
tance.
