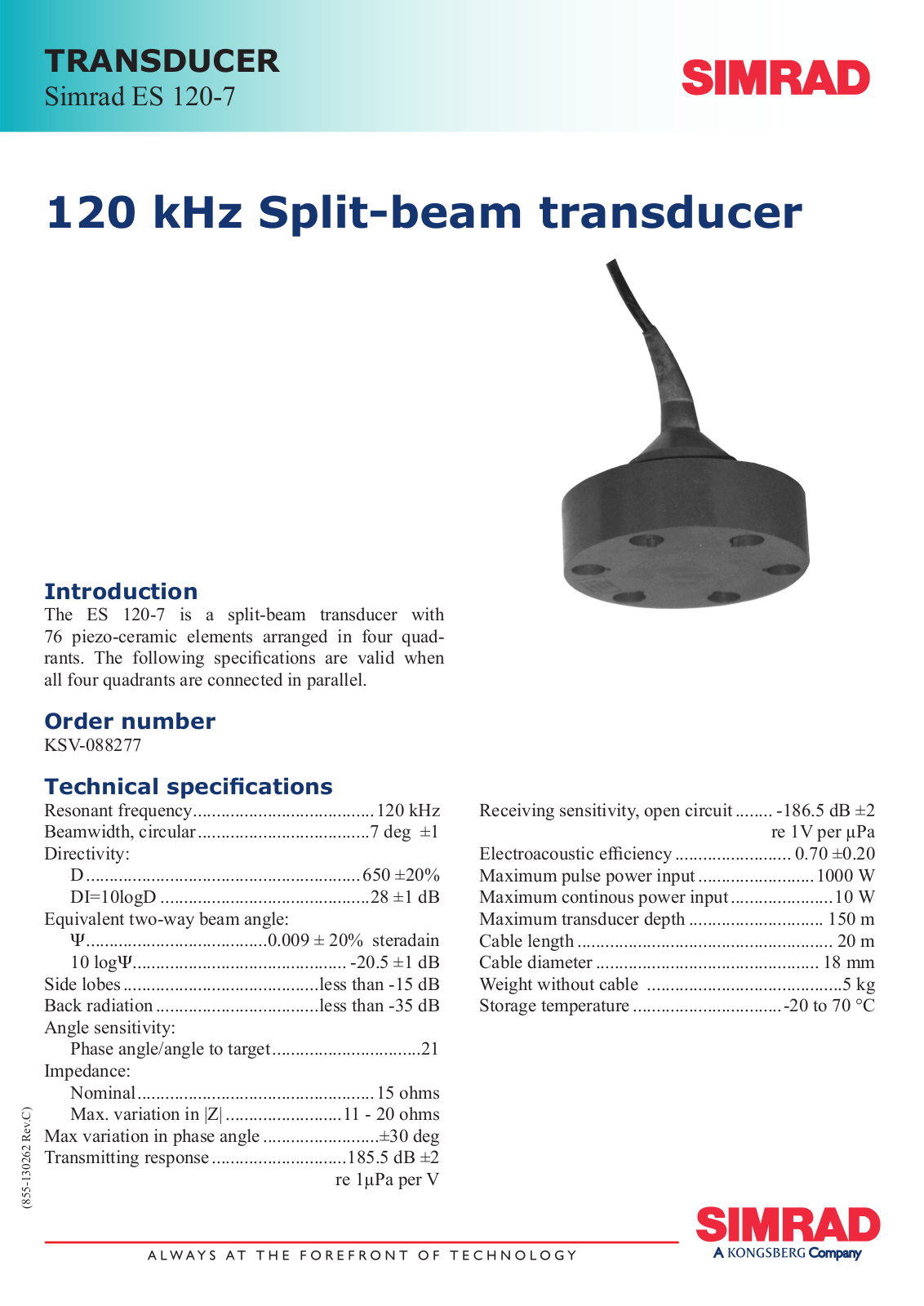

Simrad ES120-7 DATASHEET

TRANSDUCER

Simrad ES 120-7

120 kHz Split-beam transducer

Introduction

The ES 120-7 is a split-beam transducer with
76 piezo-ceramic elements arranged in four quad­rants. The following specications are valid when
all four quadrants are connected in parallel.

Order number

KSV-088277

Technical specications

Resonant frequency....................................... 120 kHz

Beamwidth, circular.....................................7 deg ±1

Directivity:

D........................................................... 650 ±20%

DI=10logD .............................................28 ±1 dB

Equivalent two-way beam angle:

Ψ.......................................0.009 ± 20% steradain

10 logΨ.............................................. -20.5 ±1 dB

Side lobes..........................................less than -15 dB

Back radiation ...................................less than -35 dB

Angle sensitivity:

Phase angle/angle to target................................21

Impedance:

Nominal ...................................................15 ohms

Max. variation in |Z| .........................11 - 20 ohms

Max variation in phase angle .........................±30 deg

Transmitting response.............................185.5 dB ±2

re 1µPa per V

(855-130262 Rev.C)

Receiving sensitivity, open circuit ........ -186.5 dB ±2

re 1V per µPa

Electroacoustic efciency ......................... 0.70 ±0.20

Maximum pulse power input ......................... 1000 W

Maximum continous power input ......................10 W

Maximum transducer depth ............................. 150 m

Cable length ....................................................... 20 m

Cable diameter ................................................ 18 mm

Weight without cable ..........................................5 kg

Storage temperature ................................ -20 to 70 °C

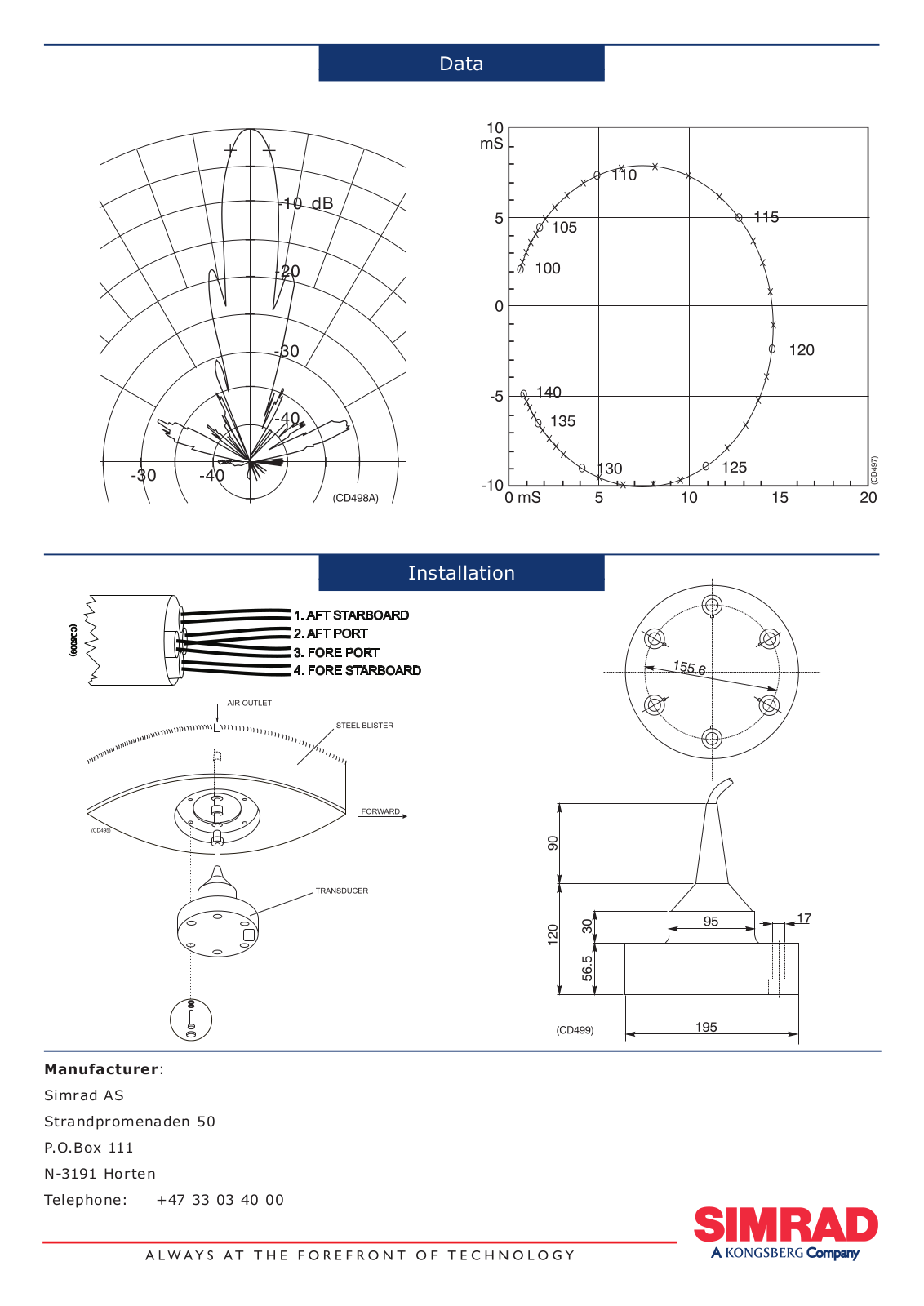

Data

Installation

Manu fac t urer:

Simr ad AS

Strandpr omenade n 50

P.O.Box 111

N-3191 Hor ten

Telep hone: [phone]
