Simrad CS66 Installation Manuals

SIMRAD CS66 4-ch

Chart System

20221867F sw.2.1 English

INSTALLATION MANUAL

Simrad CS66 4-channels Chart system

Document revisions

Rev Date Written by Checked by Approved by

A

110504

B

210405

C

301105

D

060106

E

070906

F

191107

Document history

Rev.

A First issue

B New back-up and restore procedure

C New software release (1.3.xx.) with minor changes in System

Configuration dialog. Cabling diagram updated.

D CD ROM replaced with DVD in MC50 computer, new backup

recovery procedure.

E New software release (2.1.xx.) implementing the IMO S-52

requirements (C-MAP SDK 3.6). Minor changes to MMI.

F New speaker, affecting illustrations, cable length and dim.

drawing

ii 20221867 / F

INSTALLATION MANUAL

Content

1 INTRODUCTION ................................................................1

1.1 General............................................................................. 1

1.2 Unpacking and handling ......................................................1

1.3 System components............................................................2

2 INSTALLATION..................................................................3

2.1 Location of the units ...........................................................3

2.2 Mechanical installation ........................................................3

MC50 Computer ............................................................3

FB200 MC24 Filterbox (24V systems only) ........................4

Speaker .......................................................................4

Keyboard and TrackMan® wheel ......................................4

COP20 Operator panel (Option) .......................................5

COP10 Remote Operator panel (Option) ...........................5

Monitor........................................................................ 5

2.3 Grounding the units ............................................................6

2.4 Power connection ...............................................................6

115/230V AC ................................................................6

24V DC ........................................................................ 7

2.5 Cable connections............................................................... 8

Cable layout ................................................................. 8

Connecting external equipment ..................................... 10

Connecting optional operator panels .............................. 11

3 SYSTEM CONFIGURATION ...............................................13

3.1 The System configuration dialog ......................................... 13

3.2 Input configuration ........................................................... 14

Adding new device ...................................................... 15

Advanced input settings ............................................... 17

Modifying an input device ............................................. 17

Deleting an input device............................................... 18

Monitoring a serial line ................................................. 18

3.3 Output configuration ......................................................... 19

3.4 Checksum ....................................................................... 20

3.5 Auxiliary settings.............................................................. 21

3.6 Miscellaneous settings....................................................... 22

20221867 / F iii

Simrad CS66 4-channels Chart system

3.7 Ship settings.................................................................... 24

4 BACKUP AND RESTORE PROCEDURES .............................25

4.1 General........................................................................... 25

4.2 Making a back-up ............................................................. 25

4.3 Restoring the software ...................................................... 26

4.4 Re-installing/updating the CS software ................................ 27

5 TECHNICAL SPECIFICATIONS .........................................29

5.1 Cabling ........................................................................... 29

5.2 MC50 computer unit.......................................................... 30

5.3 Cherry keyboard............................................................... 30

5.4 Speaker .......................................................................... 31

5.5 FB200 Filterbox (only for 24V DC systems) .......................... 31

COP20 Operator panel (Option) ................................................... 32

5.6 COP10 Remote Operator panel (Option)............................... 32

5.7 IP protection.................................................................... 33

6 DRAWINGS .....................................................................35

6.1 MC50 Marine Computer ..................................................... 36

Front view.................................................................. 36

Side view ................................................................... 37

Bottom view ............................................................... 38

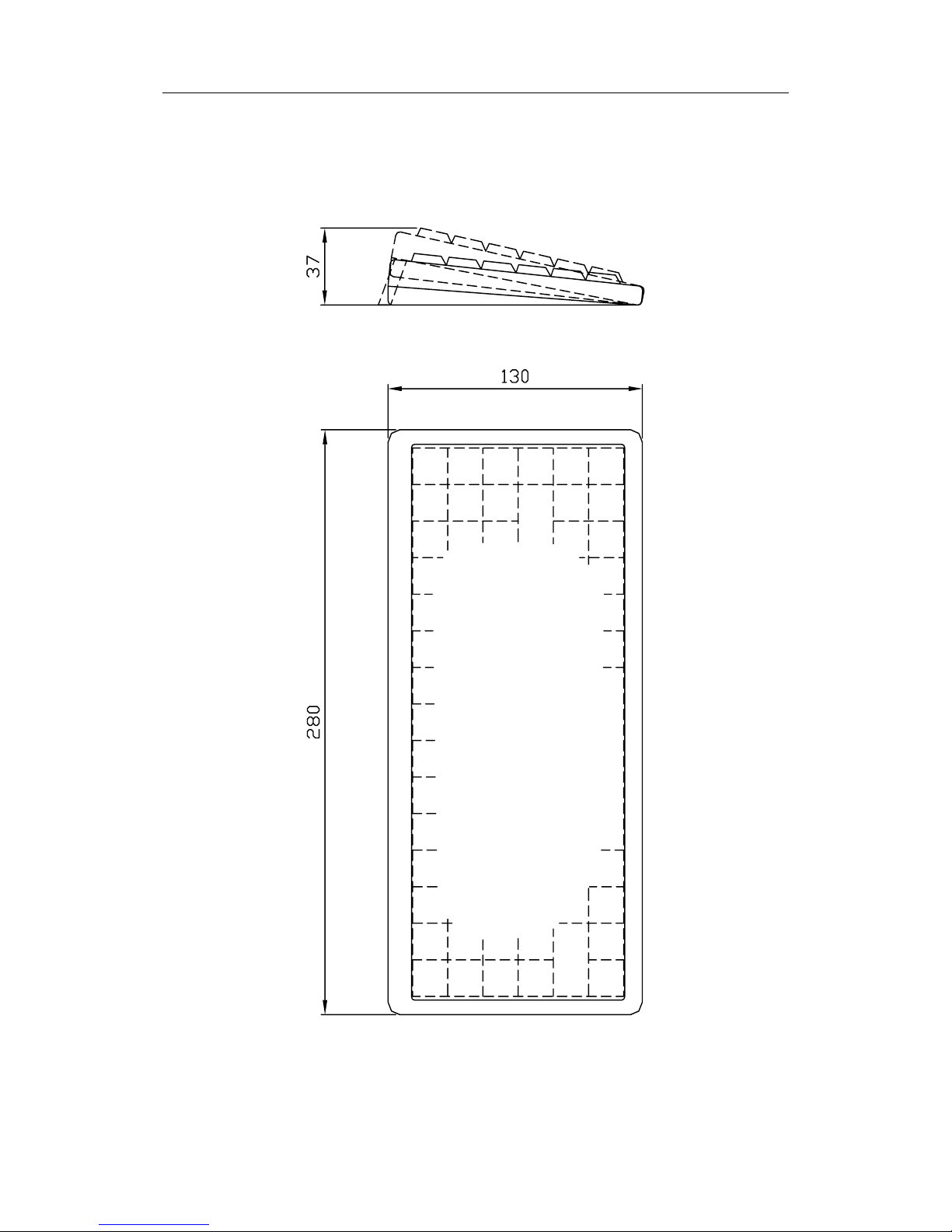

6.2 Cherry keyboard............................................................... 39

6.3 Mounting bracket for speaker ............................................. 40

6.4 FB200 Filter box (Option) .................................................. 41

6.5 COP10 (Option)................................................................ 42

6.6 COP20 (OPTION) .............................................................. 43

6.7 Cabling diagram ............................................................... 44

6.8 COP10, Panel cut-out ........................................................ 45

6.9 COP20, Panel cut-out ........................................................ 47

iv 20221867 / F

INTRODUCTION

20221867 / F 1

1 INTRODUCTION

1.1 General

This manual provides detailed information required to
successfully install and configure the CS66 system.

The manual must be used in conjunction with the instructions
and drawings designed for the specific vessel, and should
remain with the vessel on completion of the installation to serve
as an additional reference during maintenance of the system.

1.2 Unpacking and handling

Care should be taken when unpacking and handling the
equipment. A visual inspection should be made to see that the
equipment has not been damaged during shipment and that all
components and parts are present.

Simrad CS66 4-channels Chart system

1.3 System components

A standard CS66 system includes the following units:

- MC50 Marine computer

- FB200 MC24 Filterbox (for 24V systems only)

- Cherry keyboard

- Logitech TrackMan® wheel

- Splitter cable for TrackMan wheel and keyboard

- Speaker

- Color monitor (may be supplied by others)

The basic system may be expanded with a COP20 Operator
panel, a COP10 remote operator panel, and with a printer.

2 20221867 / F

INSTALLATION

20221867 / F 3

Note!

2 INSTALLATION

2.1 Location of the units

The units included in the CS66 system should be mounted with
special regard to the units’ environmental protection,
temperature range and cable length.

The CS66 units are designed to operate within the temperature
range of 0°C to +55°C. However, it is recommended that
adequate ventilation/air-conditioning is provided in order to
keep the ambient operating temperature at +20°C.

It is also recommended that the area around the units is kept
relatively free from dust and build-up static electricity.

2.2 Mechanical installation

Installing devices are not included with the units.

MC50 Computer

The MC50 has to be mounted horizontally, and should not be
installed close to heavy transformers or similar.

Other equipment should not be stored upon the MC50 unit.

For 24V systems, the unit should be mounted as close as
possible to the FB200 Filter box as the cable length between
FB200 and MC50 is limited to 0.8 m.

The mounting location should allow access to the power button,
the CD/DVD and the floppy drive. It is also necessary to have
working area when replacing the air inlet fans’ dust filter.

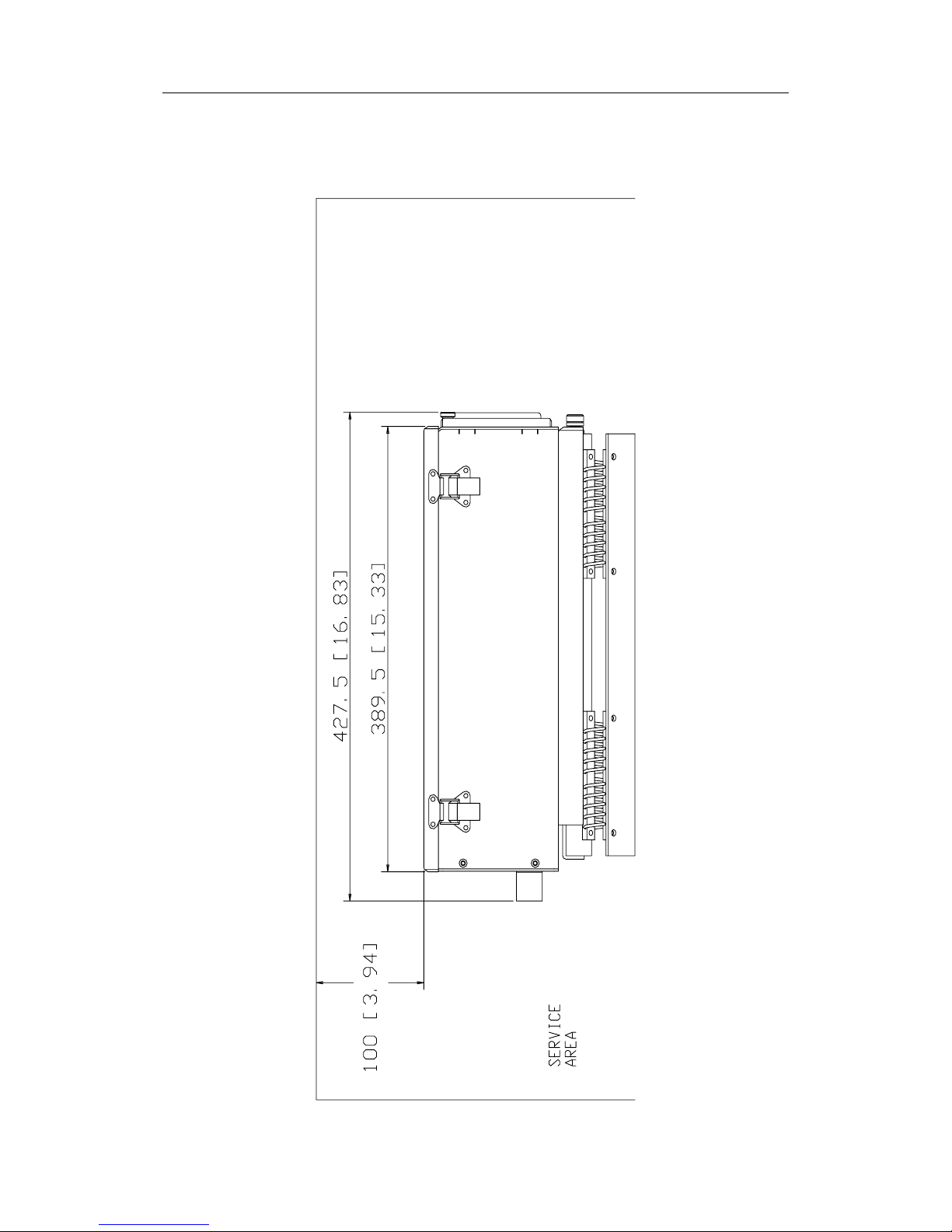

Refer dimensional drawing showing recommended working
area, page 36 onwards.

Simrad CS66 4-channels Chart system

Use the following procedure when mounting the unit:

1 Loosen the 2 screws on the front of

the unit, slide the computer cabinet
1-2 cm aside, and lift the cabinet
upwards to release it from the
mounting plate

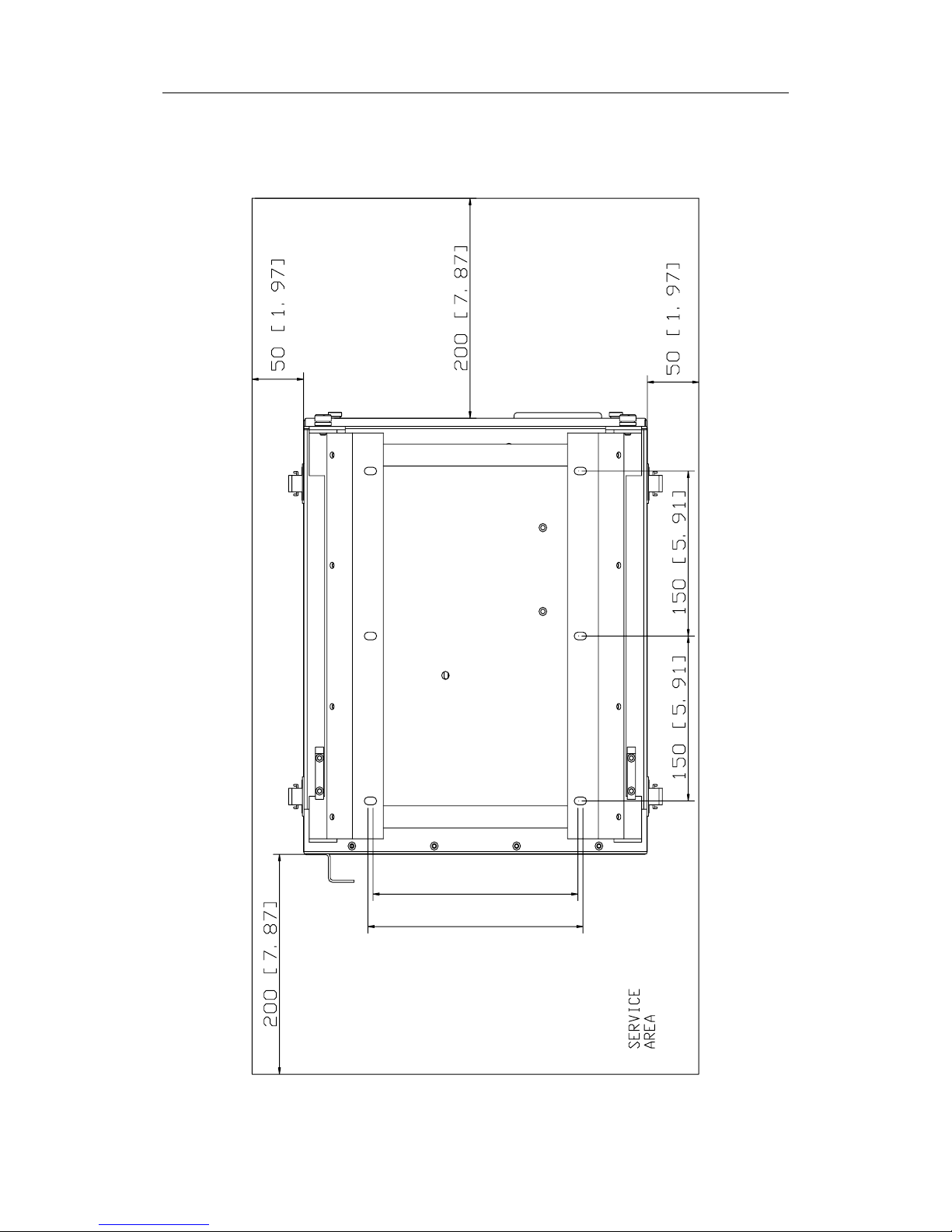

2 Prepare 8 holes in the deck where

the mounting plate is to be located.
Refer dimensional drawing, page

38.

3 Secure the mounting plate to the

deck with 8 bolts.

4 Reinstall the computer cabinet to

the mounting plate.

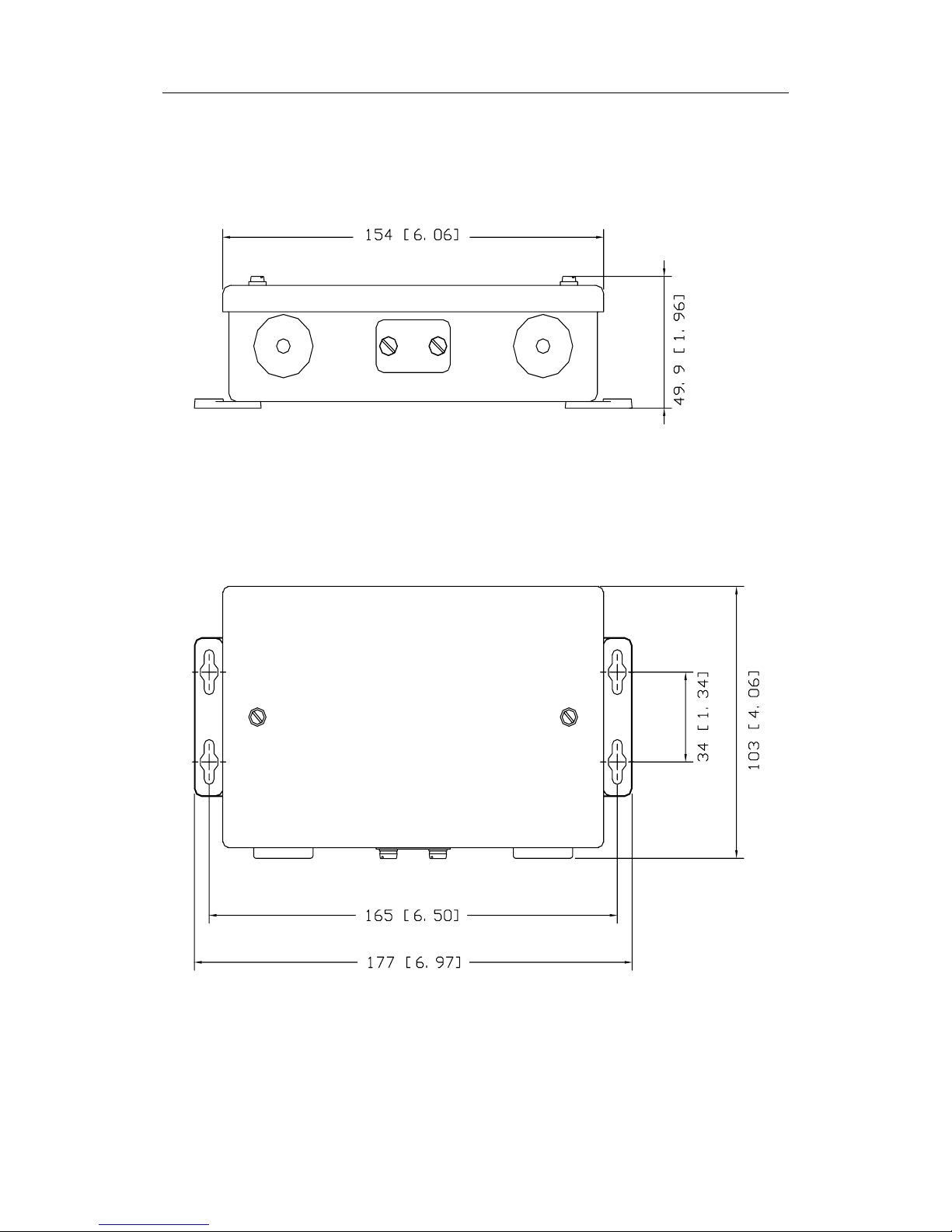

FB200 MC24 Filterbox (24V systems only)

The FB200 filter box has to be mounted as close as possible to
the MC50, as the cable length between FB200 and MC50 is
limited to 0.8 m.

The FB200 is preferred to be mounted vertically, and should not
be installed close to heavy transformers or similar.

FB200 is secured to the bulkhead with four screws. Refer
dimensional drawing on page 41.

Speaker

The speaker is supplied with a mounting bracket. Use 2 screws
to secure the speaker to the panel.

Refer dimensional drawing, page 40.

Keyboard and TrackMan® wheel

No installation devices are included for these units.

4 20221867 / F

INSTALLATION

COP20 Operator panel (Option)

COP20 should be located where it is most convenient for the
user, with special regard to the user’s need for easy operation.
Refer standard and optional cable length for cables between
operating panels and MC50 unit, page 29.

It is recommended that adequate ventilation/air-conditioning is
provided in order to keep the ambient operating temperature at
+20°C.

Use the following procedure when installing the COP20:

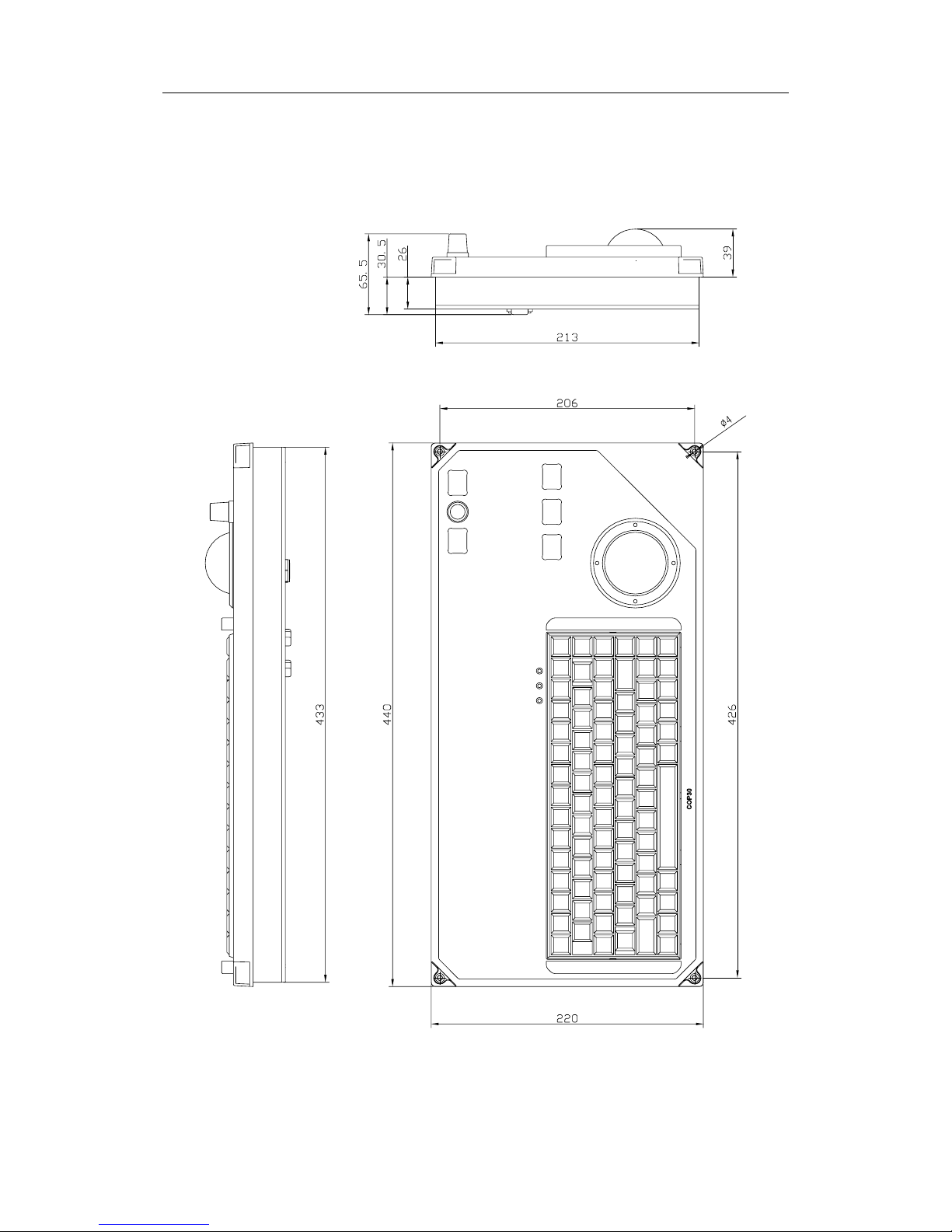

1 Cut a hole where COP20 is to be fitted. Refer

dimensional drawing on page 43, and the cut-out
template on page 47.

2 Lift the four removable corners from the panel.

3 Locate COP20 in the hole, and secure the unit to

the panel with four 4mm screws.

4 Reposition the removable corners on the panel.

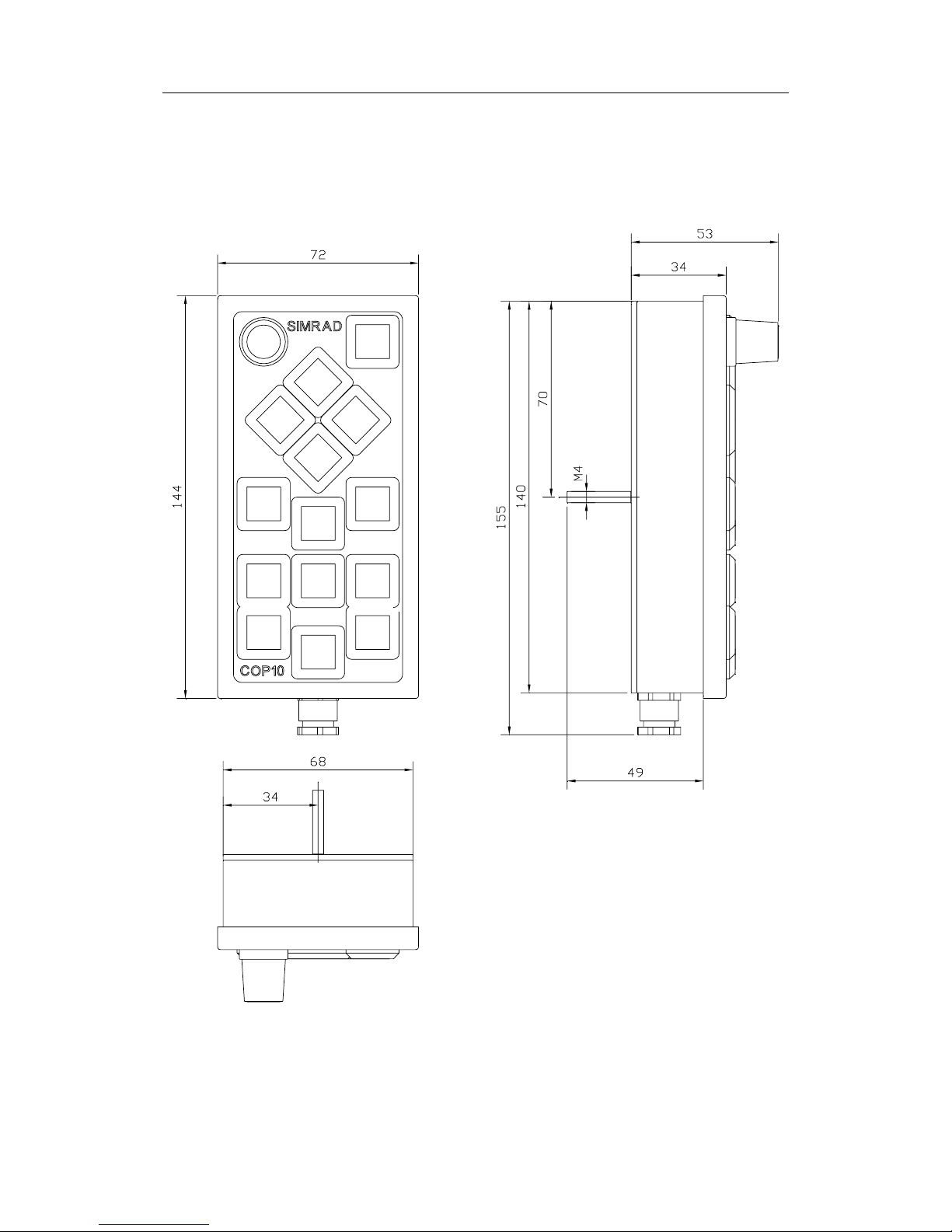

COP10 Remote Operator panel (Option)

COP10 is designed to be mounted in the helmsman chair’s
armrest.

1 Cut the necessary holes in the armrest where COP10 is to

be fitted. Refer COP10 dimensional drawing on page 42,
and the cut-out template on page 45.

2 Secure the unit to the panel with the nut as shown on the

figure.

Monitor

Refer to separate documentation delivered with the monitor for
installation procedures.

20221867 / F 5

Simrad CS66 4-channels Chart system

2.3 Grounding the units

MC50 and FB200 should have a proper ground connection from
the units’ ground terminal. The wires should be as short as
possible and have a cross section of at least 16mm2 (gauge).

2.4 Power connection

MC50 has a power switch located on the front panel.

If the mounting location for the unit complicates access to this
switch, an external power switch should be used. This power
switch should be connected to TB1 as shown on page 9.

115/230V AC

To avoid that vibration should cause the plug to loose
connection, the fixing bracket should be used to secure the
power cable.

Loosen the bracket, and connect the power cable to the
115/230V connector on the MC50 back panel. The unit has auto
select function, and no manual switch has to be set for selecting
115 or 230V.

Secure the cable by fastening the fixing bracket again.

The system is delivered with standard European power
connector. If other power connector is to be used, replace the
European power connector with the selected connector on the
original power cable.

Note!

6 20221867 / F

INSTALLATION

24V DC

If the CS66 system is to be supplied with 24V DC, the power
should be connected via the FB200 Filter box.

Do not connect 24V without using this filter box. Doing so may
course electromagnetic interference!

1 Remove the cover on the FB200, and connect the cable

from 24V DC supply according to the labelling on the
terminals as shown on the figure below.

This cable is not supplied with the equipment! It should have a
cross section of at least 2.5mm

2

(gauge).

Note!

GND +

-

FROM

24V DC SUPPLY

TO

MC50 24V DC

POWER-IN

TERMINALS

2 Connect the cable from FB200 to the 24V DC power-in

jack on the MC50.

3 Secure the cable to the fixing bracket to avoid that

vibration should cause the plug to loose connection.

20221867 / F 7

Simrad CS66 4-channels Chart system

2.5 Cable connections

Refer to CS66 Cabling diagram, page 44.

Cable layout

The figure below shows the MC50 connector layout.

J1

COM3

COM4

PS2 port. Used for TrackMan Wheel and keyboard (connected
via splitter cable). Refer symbols on cable plug for correct
connection.

Firewire.

USB.

Ethernet.

The ethernet cable should be removed when not in use. If the
cable is connected, this may slow down the computer capacity.

Line out for Speaker.

Monitor.

J2

COM3 and COM4. NMEA channels used for connecting
external equipment.

8 20221867 / F

INSTALLATION

J3, J4

Not used.

COM 1, COM 2

NMEA channels used for connecting external equipment.

USB 2

USB.

TB 1

1

2

Pre-heat.

3

4

External ON/OFF switch.

5

6

Display illumination for the COP20 (OPTION).

Parallel

Printer port.

Power

24V DC or 115/230V AC power input.

20221867 / F 9

Simrad CS66 4-channels Chart system

Connecting external equipment

Four optical isolated NMEA converters are included in the CS66
system. These must be used for connecting external equipment
to COM1 – COM4 on the MC50.

Connect the 9-pins plug to the selected communication port on
MC50, and connect the cable to external equipment according to
the manufacturer’s specification and according to the table
below.

SIGNAL NAME COLOR

RX + Yellow

RX - Red

TX + Green

TX - Blue

COM 1-4

GND Braided screen

Caution The supplied NMEA converters include active components

inside the connector house. No external equipment must be
connected to the system without using these cables. The cables
can only be replaced with cables ordered from Simrad!

10 20221867 / F

INSTALLATION

Connecting optional operator panels

If a COP20 is to replace the Cherry keyboard and the TrackMan
Wheel, the keyboard and mouse cable on COP20 are connected
to the computer’s PS2 port.

COP20s signal cable is connected to TB1 in MC50 as shown in
the Cabling diagram, page 44.

If an optional COP10 is to be used in the chart system, this unit
is connected between the keyboard (or the keyboard plug on
COP20/30) and the splitter cable as shown on the figure below.

COP10

(OPTION)

(OPTION)

COP20

MC50

+12V

ON -

GND

6

5

4

TB1

ON +

3

2

1

PS2

PART OF

NOT USED

EXTERNAL

ON/OFF SWITCH

(4)

(6)

(5)

(3)

GREY

YELLOW

GREEN

BROWN

WHITE

PINK

Standard cable lengths for COP20 and COP10 are shown on
page 29.

20221867 / F 11

Simrad CS66 4-channels Chart system

THIS PAGE INTENTIONALLY

LEFT BLANK

12 20221867 / F

SYSTEM CONFIGURATION

3 SYSTEM CONFIGURATION

3.1 The System configuration dialog

All configuration of the CS system is done from the System
Configuration dialog. This dialog is the entrance to all settings

that have to be done when configuring the system.

Note The following pages list the settings as they appear in the

dialogs. All these settings have to be performed before the CS
system is ready for operation.

To avoid unintended alteration of system parameters, the
System Configuration dialog is password protected.

Use the following procedure to open the System Configuration
dialog:

Press the Setup menu, followed by the System Configuration

command.

−A dialog will request a password before it is possible to
enter the system configuration.

Type “1234” in the Password field, and confirm the entry with

the OK button.

−The Input tab in the System Configuration dialog will
now be displayed.

20221867 / F 13

Simrad CS66 4-channels Chart system

Note Data entered in the System Configuration dialog are not taken

into account until it is confirmed by clicking the OK or APPLY
buttons:

•OK: changes are applied, and the dialog box is removed from
the display

•APPLY: changes are applied, and the dialog box remains
displayed.

The different tabs in the System Configuration dialog are
described in the following pages.

Ref page:

Inputs:

Used to configure external devices. 15

Outputs:

Used for configuring the output format. 19

Checksum:

Used for checksum test for received data. 20

Aux settings:

Used for different hardware and software settings. 21

Misc:

Used for different operator parameters. 22

Ship:

Used for defining the ship size. 24

3.2 Input configuration

The Inputs tab in the System Configuration dialog is used for
configuring the input format for each interfacing serial channel.
The tab is also used to delete or edit an already defined input.

All defined input devices are listed alphabetically in the Input
tab. If no input device is configured, the dialog will be empty.

14 20221867 / E

SYSTEM CONFIGURATION

Adding new device

New devices are configured by pressing the New button when
the Inputs tab in the System Configuration dialog is active.

The Input Config dialog is displayed.

Note Which data that is available in the Input Config dialog depends

on which device type that is selected.

The Input Config dialog has the following fields:

Device Name

Name for the input device. The device name is limited to 8 characters.

The entered name will be displayed in the different user menus and
will also be used in an alarm text.

Input Source

Com. port used for the device.

Device Type

Drop down field with available device types.

Data Format

Baud Rate

NMEA format and Baud Rate for the device. Available alternatives are
dependant on selected device type.

NMEA Header

NMEA header for the device. This header must be specified if multiple
talkers with identical telegram type (e.g. GLL) are connected.

Listen for

Selectable sentences for the device. Available sentences may be
displayed by pressing the Monitor Serial line button. Refer page 18.

The following sentences is preferred for GPS: GGA, VTG, ZDA and
DTM

Time Out in Seconds

Time-out limit for the data.

If the data stops and is not received within

the specified time-out limit, an alarm will be activated.

Note If data-transmitting rate is low, e.g. ARPA or some echo

sounders, a short time-out may block the data.

20221867 / F 15

Simrad CS66 4-channels Chart system

Navigator Datum

Valid flag

Specification for differential GPS. Must be entered if Navigator or
AIS is selected as device type.

Antenna position

offset from ref. point

Values for antenna offset for Navigator and AIS devices.

All sensors refer to the vessel’s reference point. This point is
defined in Ship settings, page 24. If no reference is defined, the
vessel’s center of gravity will be used as reference point.

If the antennas are mounted out of the reference point, the offset
x and y values for the antenna position must be entered into the
system to give the correct ship position.

If two equal navigators (GPS) with antennas are installed as
indicated on the figure below, and if correct antenna offset is
entered, there should be no position difference between them.
The ship will obtain the same position in the chart even if the
sensors are exchanged.

The position for a GPS is the position of the antenna. The
position is given as an x and y offset relative to the vessel
center, with positive value forward and to starboard.

x

y

0,0

ANTENNA POSITION (-X, -Y)

ANTENNA POSITION (+X, +Y)

16 20221867 / E

SYSTEM CONFIGURATION

Advanced input settings

By pressing the Advanced button when the Inputs tab in the
System Configuration dialog is active, the Advanced Input
Settings dialog is displayed.

This dialog is used for advanced settings for ARPA, log, gyro,
position reference sentences and Ethernet connection.

All tabs in this dialog have text specifying the different data
fields as shown in the “arp” tab shown below.

Modifying an input device

A device can be modified by pressing the Edit button, or by
double-clicking the specific device in the Inputs tab in the
System Configuration dialog. The Input Config dialog will be
displayed, and parameters modified as described on page 15
onwards.

20221867 / F 17

Simrad CS66 4-channels Chart system

Deleting an input device

A defined input device is deleted by activating the device in the
Inputs tab, and then pressing the Delete button.

To avoid unintended removal of a device, the selection has to be
confirmed by pressing the OK button.

Monitoring a serial line

The Monitor Serial Line button in the Input tab in the System
Configuration dialog makes it possible to monitor each serial

line individually.

18 20221867 / E

SYSTEM CONFIGURATION

The buttons in the dialog are used as follows:

Close:

Closes the dialog and returns the display to the Inputs tab in the
System Configuration dialog.

Freeze:

Stops the text from scrolling.

Clear:

Clears the text field in the dialog.

Hex/ASCII:

Toggles the log data between hexadecimal and ASCII characters.

Log Activate:

Saves the monitored log data to a file.

A new dialog for selecting file name and location will be displayed.

When logging is activated, the button will change to Log

Deactivate. Pressing this button will stop logging data to file.

Select font:

Used for changing font for the text.

3.3 Output configuration

Serial output format are configured from the Outputs tab in the
System Configuration dialog.

The following fields are available:

Output line

Drop down field for selecting serial output line to be specified.

Minimum baudrate

Value increasing as output messages are selected. Note that this value
not should exceed the value set for the input baudrate on the same
com. line.

Clear

Clear all selected output message sentences.

Output messages

Available sentences for the output device. The output is NMEA0183
Standard sentences, and at least one of these sentences must be
enabled.

20221867 / F 19

Simrad CS66 4-channels Chart system

3.4 Checksum

NMEA data sent to the CS system may contain a checksum.
When the CS system receives data with checksum included, it
will automatically calculate the checksum and compare this sum
with the checksum transmitted by the device.

When the calculated and the received checksum not are
identical, the settings in the Checksum tab in the System
Configuration dialog will decide whether the CS system will
use or reject these data.

Each serial line has its own checksum configuration. The
following selections are available:

Disregard all checksums

No checksum will be calculated on the received data. The
only check will be whether the data is valid and within
logical limits.

Allow non checksum messages

Checksum will be used if available, but also data without
checksum will be used.

Allow only checksum messages

Only data with checksum will be used.

This is standard setting, and is recommended to be used.

Max Sequential Checksum Errors

Number of sequential checksum errors detected before a
checksum alarm will be given.

20 20221867 / E

SYSTEM CONFIGURATION

3.5 Auxiliary settings

Screen decimals

Number of decimals displayed for the position reference in
the Position Window. In the example below, 4 decimals
are selected.

NMEA decimals

Number of decimals used in the data output sentences.

Stepper Gyro

Not used.

Voice Alarm

Toggles voice alarm function ON/OFF.

Start Route Replication

Enables route replication between ECDIS and Backup
machine in PLECDIS configurations. Routes created on
one system will then automatically be copied to the other
system.

Note! Should only be started on the system used to create
routes. This will normally be the backup system.

20221867 / F 21

Simrad CS66 4-channels Chart system

3.6 Miscellaneous settings

Time Zone

Time zone according to UTC. The system will read the UTC
time from the GPS and update it to local time.

Screen size

Used for setting correct diagonal screen size. When pressing
the Start RULER button, a new dialog for entering screen
size is opened.

Press the

Measure the Screen button to open a new

dialog used for measuring a selected area directly on the
monitor.

Measure width and height of the white area and enter the
values in inches of mm.

22 20221867 / E

SYSTEM CONFIGURATION

Caution The Screen size MUST be set correctly to display the correct

chart scale and to place targets correctly in the chart. If the
screen size is wrong AIS target in the outer end of the screen
area will be positioned incorrectly. After Screen size has been
adjusted the chart system must be restarted to synchronize the
screen settings.

Alarm test

By pressing this button, the built in alarm system will issue an
alarm for 5 seconds.

Backup User Data

Used for saving a backup file including all system settings.

Clear all registry settings

Cleans all registry settings when the system is shut down. This
will force the system to use default values for all system
variables.

Caution This action will remove all configured devices.

Display units

Units of measurement for speed, depth, temperature and
distance.

20221867 / F 23

Simrad CS66 4-channels Chart system

3.7 Ship settings

Ship name

Type of ship

Type of cargo/operation

MMSI

IMO

Call Signal

Parameters used when transmitting AIS information.
These fields should be entered correctly to ensure that
correct information will be used in the AIS system.

Measurements

Parameters used by the CS system to draw a ship symbol
in true size. Used when the actual ship is larges that the
minimum ship symbol.

Note that the reference offset points are calculated from
the vessel’s center point.

Turn Radius

Used as default value when a route is created.

Crab Factor

Used for autopilot turn start calibration.

Wheel over time

Response time (in seconds) from a rudder command is
given until the vessel starts turning. This parameter is
dependant on vessel characteristics, and it could be
necessary to change the value when the vessel is heavily
loaded.

Max Speed

Used as max value for speed entries.

24 20221867 / E

BACK-UP AND RESTORE PROCEDURES

4 BACKUP AND RESTORE PROCEDURES

4.1 General

When the CS system is delivered from Simrad, the software for
both operating system and chart system are pre-installed from
factory.

WARNING! No additional software should be installed on

the MC50 computer. Doing so may cause
malfunction on the CS system!

When the CS system is installed and configured, it is strongly
recommended to make a back-up of the complete installation. A
complete backup will include the operating system as well as all
setting made during the software configuration procedure.

If a restore of the system should be necessary and no backup is
available, the CS software will have to be re-installed from a CD
ordered from Simrad. Refer page 27 onwards. The software
configuration procedure will then have to be repeated.

4.2 Making a back-up

Use the following procedure for making a backup of the
software installed on the computer:

1 Insert the CD labelled MC50 BOOT in the CD/DVD

drive.

2 Shut-down and restart the computer.

−The system will now boot on the CD, and the following

main menu will be displayed:

3 Replace the boot CD with a blank CD/DVD.

20221867 / F 25

Simrad CS66 4-channels Chart system

4 Press 1, 3 or 5 to start the selected backup procedure. A

running progress bar indicates that the back-up procedure
is running.

5 Follow the instructions on the display, and eventually

insert a new CD/DVD if required.

6 Press any key to return to the main menu when the backup

is completed.

7 Remove the CD/DVD and restart the computer.

8 Label the CDs/DVDs and make sure that they are kept in a

safe location.

4.3 Restoring the software

When backup CDs/DVDs have been created as described in
page 25, the software may be restored by using the following
procedure:

1 Insert the CD labelled MC50 BOOT CD in the CD/DVD

drive.

2 Shut-down and restart the computer.

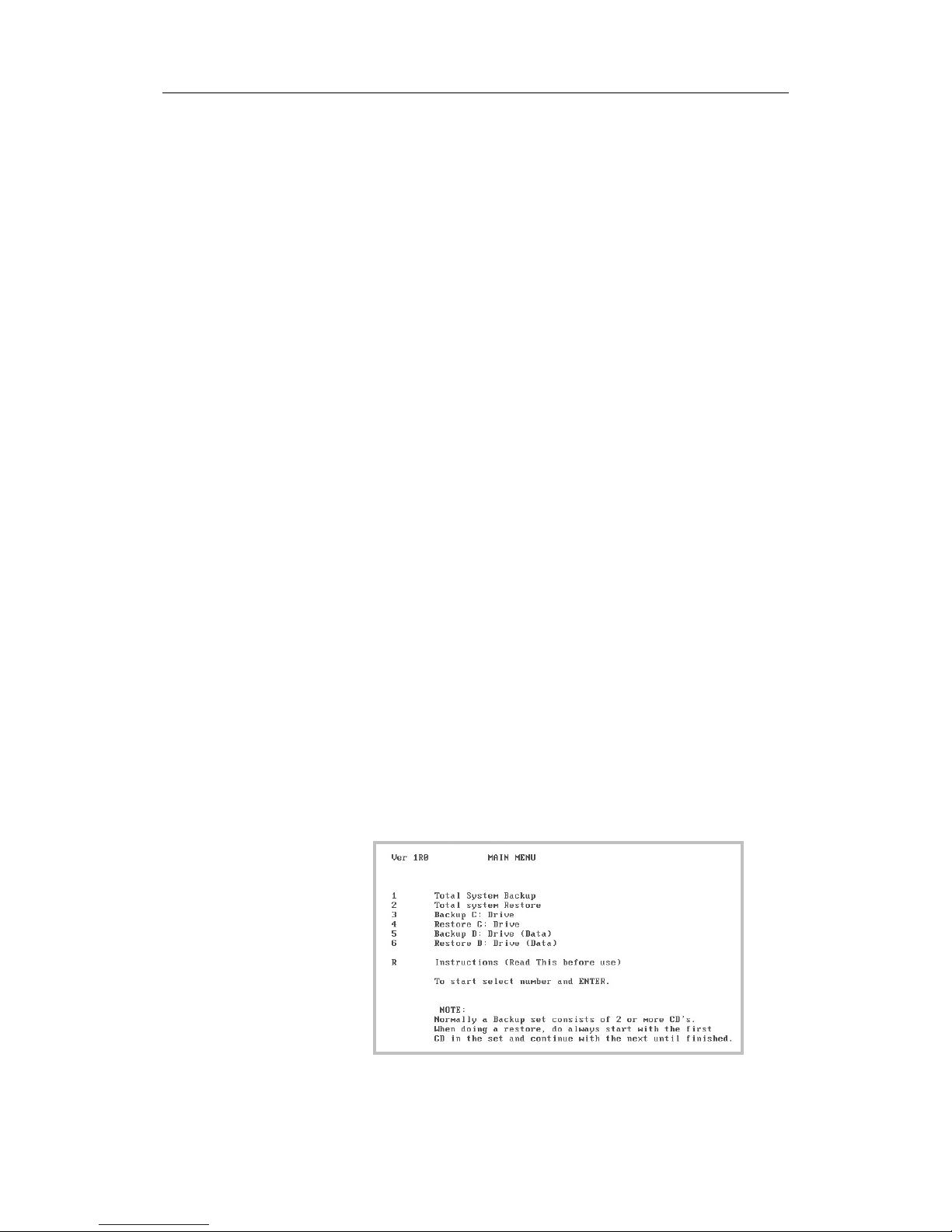

−The system will now boot on the CD, and the following

main menu will be displayed:

3 Replace the boot CD with the backup CD/DVD containing

the software.

26 20221867 / F

BACK-UP AND RESTORE PROCEDURES

4 Press 2, 4 or 6 to start the selected restore procedure. A

running progress bar indicates that the procedure is
running.

5 Follow the instructions on the display, and eventually

insert a new CD/DVD if required.

6 Press any key to return to the main menu when the restore

is completed.

7 Remove the CD/DVD and restart the computer.

4.4 Re-installing/updating the CS software

Note A re-installation of the CS software should only be necessary

when no back-up CDs are created as described in Making a
back-up, page 25.

1 Insert the CD labelled CHART SYSTEM or the CD

containing software update in the CD/DVD drive. The
installation of the CS system will now be automatically
started.

This CHART SYSTEM CD is not included in the delivery and
has to be ordered separately (part no. 26055384)!

Note!

2 Follow the instructions on the screen.

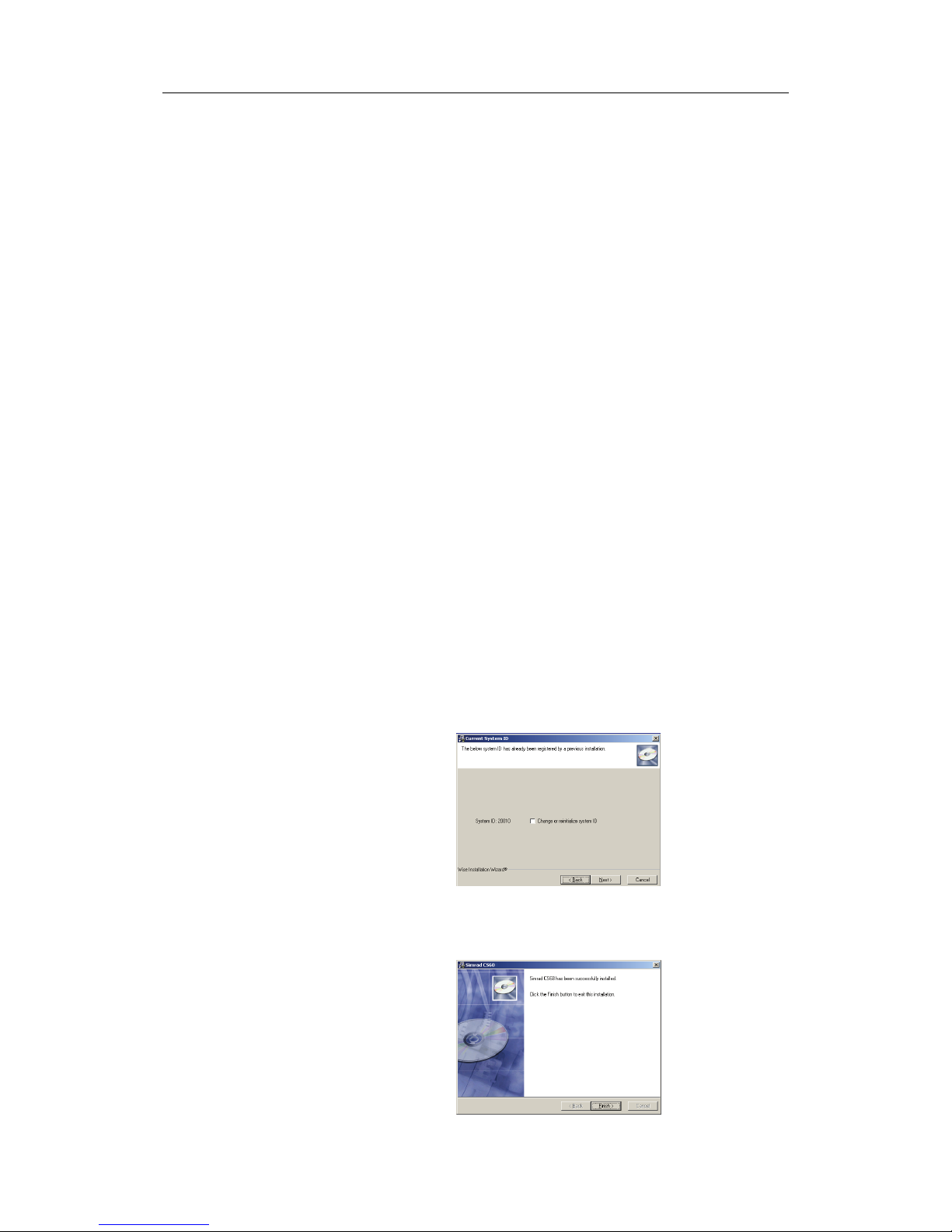

Caution If the CS software is installed on a computer that already has

the chart system installed, the dialog box shown below will be
displayed. Select the Next button to avoid loosing previous
license information!

−The installation is completed when the following dialog is

displayed:

20221867 / F 27

Simrad CS66 4-channels Chart system

3 Press the Finish button, and restart the computer. The

operating system will now be started, automatically
followed by the CS chart system.

4 Configure the software as described in SYSTEM

CONFIGURATION, page 13 onwards.

28 20221867 / F

TECHNICAL SPECIFICATIONS

5 TECHNICAL SPECIFICATIONS

5.1 Cabling

Cable length for standard and optional units in the CS66 4­channels system is shown on the figure below.

7

6

1

2

5

3

4

8

9

10

11

12

CABLE NO. CABLE LENGTH DESCRIPTION

1 2 m Power cable (115/230V AC)

2 0.8 m

Part of FB200 (Option)

NOTE:

Only used for 24V systems

3 1.6 m Part of Cherry keyboard

4 1.8 m Part of Logitech TrackMan wheel

5 0.2 Splitter cable

6 -

Supplied with monitor
(2m if the monitor is supplied by Simrad

7 1.8 m Supplied with speaker

8 - Ordered from printer supplier

9 5.0 m (System)

10 1.5 m (Keyboard)

11 1.7 m (Mouse)

Part of COP20/COP30

12 5 m Part of COP10

20221867 / F 29

Simrad CS66 4-channels Chart system

5.2 MC50 computer unit

Height: ..................................196 mm

Width: ................................... 363 mm

Depth: ...................................428 mm

Net weight............................. 9,5 Kg

Color: ....................................Black

Environmental Protection: ....IP21

Temperature range:

Operating:....................0 to +55 °C (+32 to +131 °F)

Storage:........................ –15 to +85 °C (+5 to +185 °F)

Dimensional drawing:........... page 36 onwards.

5.3 Cherry keyboard

Height: ..................................130 mm

Width: ................................... 280 mm

Depth: ...................................37 mm

Net weight............................. 0.5 Kg

Color: ....................................Black

Temperature range:

Operating:....................0 to +55°C (+32 to +131°F)

Storage:........................ –15 to +85°C (+5 to +185°F)

Dimensional drawing:........... page 39

30 20221867 / F

TECHNICAL SPECIFICATIONS

5.4 Speaker

Height: .........................................155 mm (incl. bracket)

Width: .......................................... 135 mm (incl. bracket)

Depth: ..........................................83 mm

Color: ........................................... Black/Aluminum

Effect (PMPO):............................ 80 watt max

Frequency range: ......................... 20Hz – 80 kHz

Environmental Protection: ...........IP21

Dimensional drawing (bracket): .. page 40

5.5 FB200 Filterbox (only for 24V DC systems)

Height: ..................................50 mm

Width: ................................... 177 mm

Depth: ...................................103 mm

Net weight:............................ 0,5 Kg

Power: ...................................24V DC

Power consumption ..............140W

Color: ....................................Light brown

Environmental Protection: ....IP31

Temperature range:

Operating:....................0 to +55 °C (+32 to +131 °F)

Storage:........................ –15 to +85 °C (+5 to +185 °F)

Dimensional drawing:........... page 41.

20221867 / F 31

Simrad CS66 4-channels Chart system

COP20 Operator panel (Option)

Height: ............................................................................. 220 mm

Width: .............................................................................. 440 mm

Depth: .................................................... 135 mm incl. cable bend

Net weight...........................................................................3.8 Kg

Color: ................................................................................... Black

Illumination: ................................................................ Adjustable

Environmental Protection: .....................................................IP56

Temperature range:

Operating: ........................... 0 to +55 °C (+32 to +131 °F)

Storage: .............................–15 to +70 °C (+5 to +158 °F)

Dimensional drawing:....................................................... page 43

5.6 COP10 Remote Operator panel (Option)

Height: ............................................................................. 144 mm

Width: ................................................................................ 72 mm

Depth: ................................................76 mm incl. securing screw

Net weight.........................................................................0.65 Kg

Color: ................................................................................... Black

Enclosure material: ...................................................... Aluminum

Mounting: ..............................................................Panel mounted

Environmental Protection: .....................................................IP32

Temperature range:

Operation: .......................... 0 to +55 °C (+32 to +131 °F)

Storage: .............................–15 to +70 °C (+5 to +158 °F)

Dimensional drawing:....................................................... page 42

32 20221867 / F

TECHNICAL SPECIFICATIONS

5.7 IP protection

Each part of a Simrad CS66 system has got a two digits IP
protection code.

The IP rating is a method to classify the degree of protection
against solid objects, water ingress and impact afforded by
electrical equipment and enclosures. The system is recognized in
most European countries and USA and is set out in a number of
British and European standards.

The first code number describes the protection against solid
objects, and the second number describes the protection against
liquids.

FIRST NUMBER

Protection against solid objects

SECOND NUMBER

Protection against liquids

IP TESTS IP TESTS

0 No protection 0 No protection

1 Protection against solid objects up to 50

mm, e.g. accidental touch by hands.

1 Protected against vertically falling

drops of water (e.g. condensation).

2 Protection against solid objects up to 12

mm, e.g. fingers.

2 Protected against direct sprays of

water up to 15° from the vertical.

3 Protection against solid objects over 2.5

mm (tools + wires)

3 Protected against sprays to 60° from

the vertical.

4 Protection against solid objects over 1

mm (tools + wires + small wires)

4 Protected against water sprayed from

any direction - limited ingress
permitted.

5 Protection against dust - limited ingress

(no harmful deposit)

5 Protected against low pressure jets of

water from all directions - limited
ingress permitted.

6 Totally protected against dust 6 Protected against strong jets of water,

e.g. for use on shipdecks - limited
ingress permitted.

7 Protected against the effects of

immersion between 15 cm and 1 m.

8 Protected against long periods of

immersion under pressure.

20221867 / F 33

Simrad CS66 4-channels Chart system

THIS PAGE INTENTIONALLY

LEFT BLANK

34 20221867 / F

DRAWINGS

6 DRAWINGS

Parts of the following drawings are enclosed:

Name Drw.no Rev.

MC50 Dimensional drawing (3 pages)

- Front view page 36

- Side view page 37

- Bottom view page 38

D3-605555 A

Cherry keyboard, Dimensional drawing N4-081309 -

Mounting bracket for speaker, Dimensional drawing D3-605554 A

FB200, Dimensional drawing D3-604913 A

COP10 (OPTION). Dimensional drawing N3-605303 A

COP20 (OPTION). Dimensional drawing N1-605304 A

COP10, Panel cut-out N3-605303 A

COP20/30, Panel cut-out N1-605304 A

CS66 4-channels Chart system, Cabling diagram N3-605556 B

The original signed drawings are recorded at Simrad Egersund. Note!

20221867 / F 35

Simrad CS66 4-channels Chart system

6.1 MC50 Marine Computer

Front view

36 20221867 / F

DRAWINGS

Side view

20221867 / F 37

Simrad CS66 4-channels Chart system

Bottom view

38 20221867 / F

DRAWINGS

6.2 Cherry keyboard

20221867 / F 39

Simrad CS66 4-channels Chart system

6.3 Mounting bracket for speaker

125mm [49.2"]

Ø4

135mm [53.1"]

Appr. 83mm (32.7")

40 20221867 / F

DRAWINGS

6.4 FB200 Filter box (Option)

20221867 / F 41

Simrad CS66 4-channels Chart system

6.5 COP10 (Option)

42 20221867 / F

DRAWINGS

6.6 COP20 (OPTION)

20221867 / F 43

Simrad CS66 4-channels Chart system

6.7 Cabling diagram

RX+

RX-

TX+

TX-

Yellow

Red

Green

Blue

GND

Screen

RX+

Yellow

Green

Screen

GND

RX-

TX+

TX-

Blue

Red

RX+

Yellow

Green

Screen

GND

RX-

TX+

TX-

Blue

Red

RX+

Yellow

Green

Screen

GND

RX-

TX+

TX-

Blue

Red

COM1

COM2

COM3

COM4

J2

PS2

USB2

PARALLEL

TB1

12345

6

PRE-HEAT, 24V DC

EXTERNAL

FIREWIRE

ETHERNET

USB1

AUDIO OUT

MONITOR

GND

+

-

GND

+

-

FROM 24V DC SUPPLY

+

-

GND

POWER INPUT

110/

230V AC

24V DC

FROM 115/230V AC SUPPLY

MC50 MARINE COMPUTER

FB200 FILTERBOX

J1

(FOR 24V DC SYSTEMS ONLY)

ON/OFF SWITCH

FOR

CONNECTION

TO EXTERNAL

EQUIPMENT

COP10

(OPTION)

5 m

1.5 m

SPEAKER

MONITOR

1.7 m

COP20

(OPTION)

1.8 m

1.6 m

MOUSE

KEYBOARD

GREEN

(6)

GREY

YELLOW

PINK

(4)

(5)

(3)

BROWN

WHITE

5 m

GND

+12V

ON -

ON +

NOT USED

44 20221867 / F

DRAWINGS

6.8 COP10, Panel cut-out

70mm

142mm

20221867 / F 45

Simrad CS66 4-channels Chart system

46 20221867 / F

DRAWINGS

6.9 COP20, Panel cut-out

435mm

215mm

20221867 / F 47
