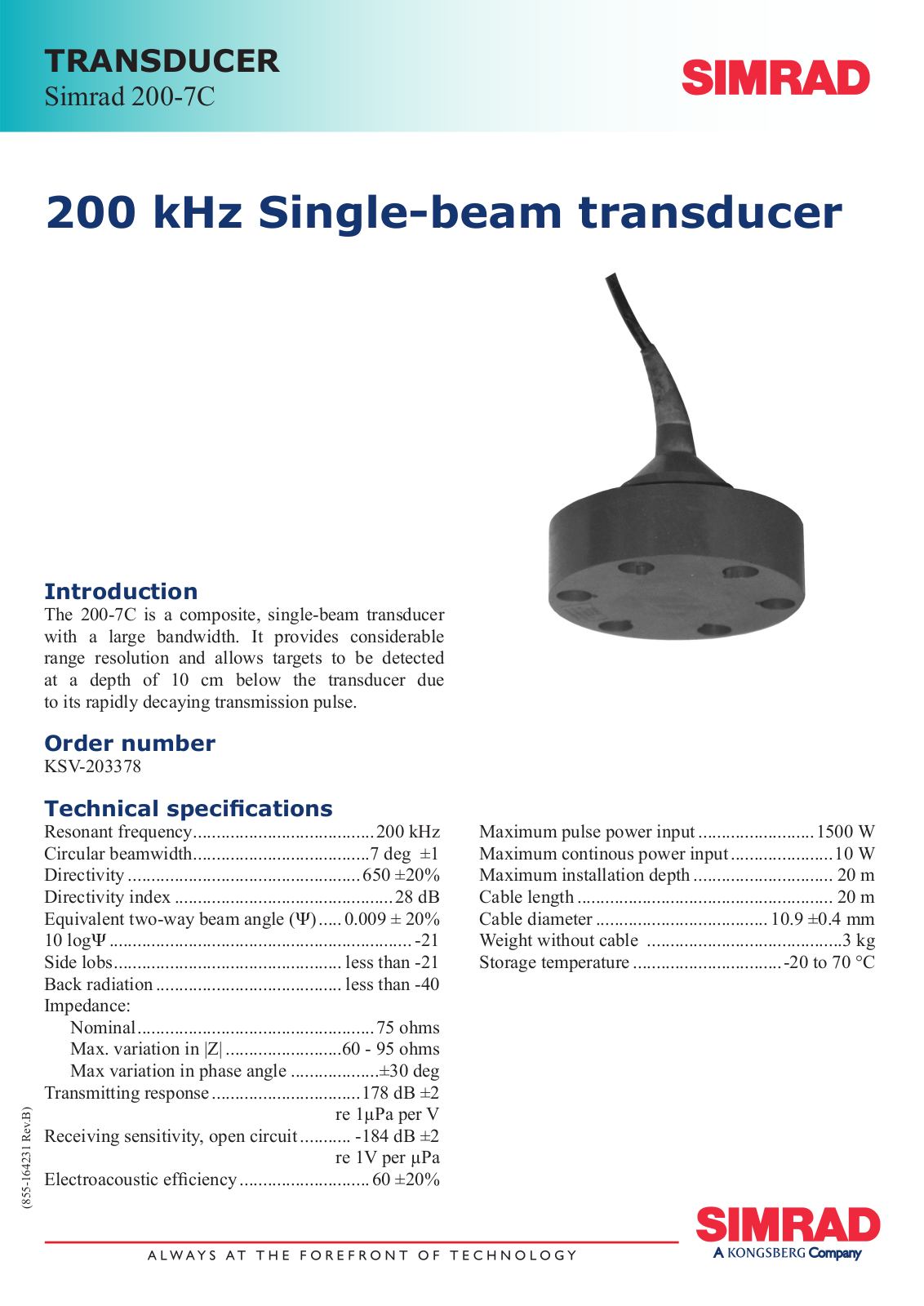

Simrad 200-7C DATASHEET

TRANSDUCER

Simrad 200-7C

200 kHz Single-beam transducer

Introduction

The 200-7C is a composite, single-beam transducer with a large bandwidth. It provides considerable range resolution and allows targets to be detected at a depth of 10 cm below the transducer due to its rapidly decaying transmission pulse.

Order number

KSV-203378

Technical specications

Resonant frequency....................................... 200 kHz

Circular beamwidth......................................7 deg ±1

Directivity .................................................. 650 ±20%

Directivity index ...............................................28 dB

Equivalent two-way beam angle (Ψ) .....0.009 ± 20%

10 logΨ ................................................................. -21

Side lobs................................................. less than -21

Back radiation ........................................ less than -40

Impedance:

Nominal...................................................75 ohms

Max. variation in |Z| .........................60 - 95 ohms

Max variation in phase angle ...................±30 deg

Transmitting response................................178 dB ±2

re 1µPa per V

Receiving sensitivity, open circuit ........... -184 dB ±2

re 1V per µPa

Electroacoustic efciency ............................ 60 ±20%

(855-164231 Rev.B)

Maximum pulse power input .........................1500 W

Maximum continous power input ...................... 10 W

Maximum installation depth .............................. 20 m

Cable length ....................................................... 20 m

Cable diameter ..................................... 10.9 ±0.4 mm

Weight without cable ..........................................3 kg

Storage temperature ................................-20 to 70 °C

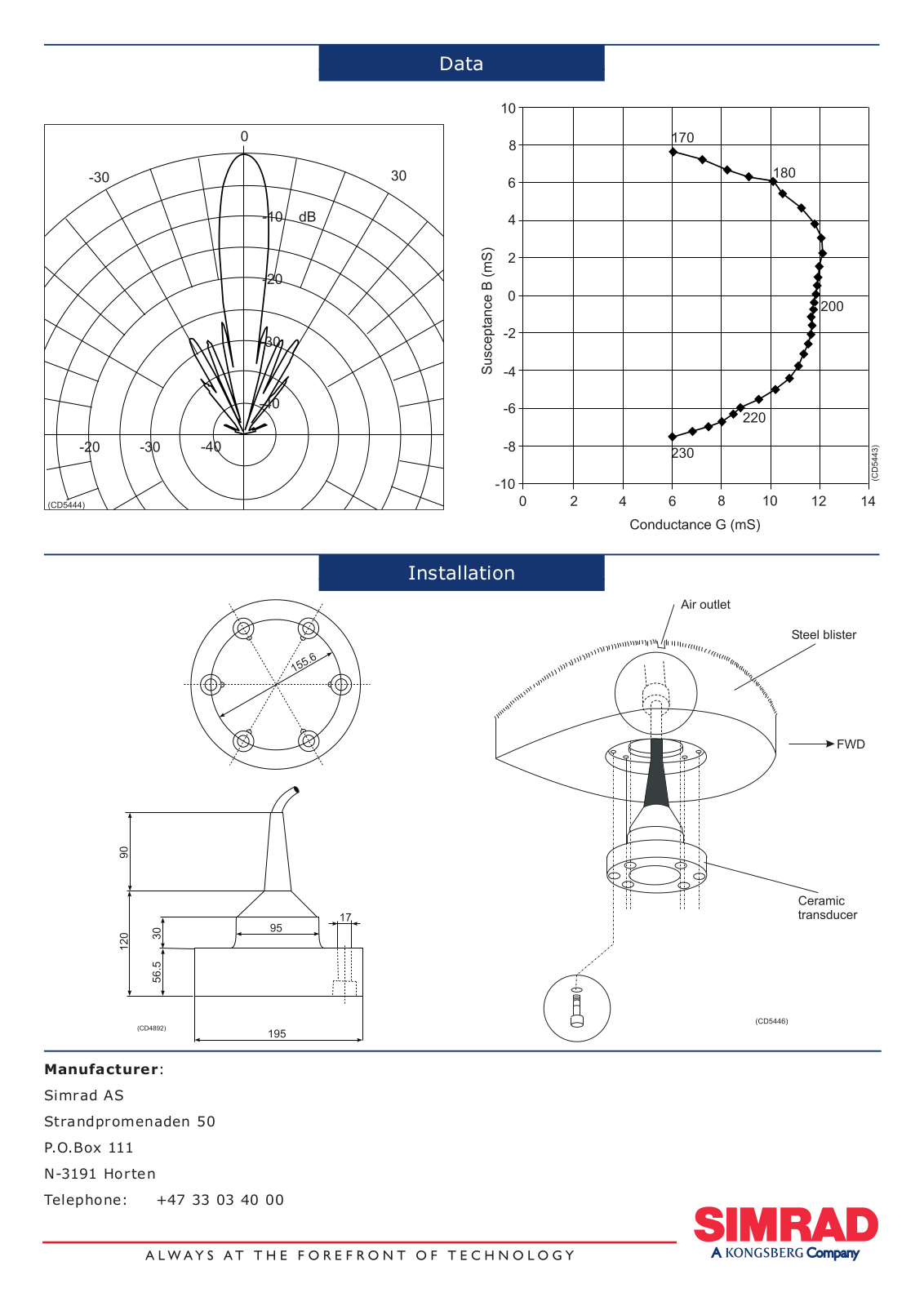

Data

Installation

Manufacturer:

Simra d AS

Strandpromenaden 50

P.O.Box 111

N-3191 Horten

Teleph one: +47 33 03 40 00
