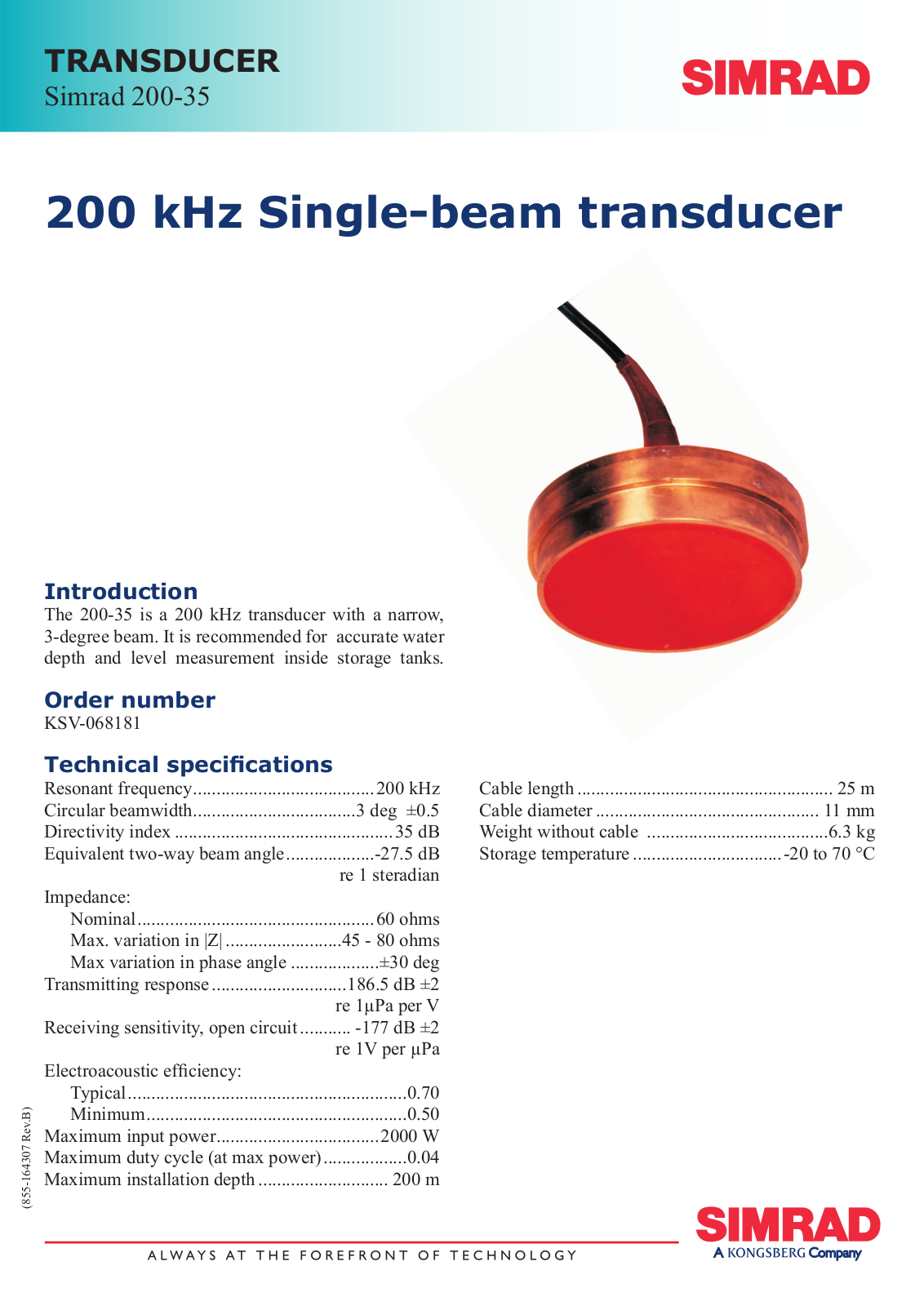

Simrad 200-35 DATASHEET

TRANSDUCER

Simrad 200-35

200 kHz Single-beam transducer

Introduction

The 200-35 is a 200 kHz transducer with a narrow,
3-degree beam. It is recommended for accurate water
depth and level measurement inside storage tanks.

Order number

KSV-068181

Technical specications

Resonant frequency....................................... 200 kHz

Circular beamwidth...................................3 deg ±0.5

Directivity index ...............................................35 dB

Equivalent two-way beam angle...................-27.5 dB

re 1 steradian
Impedance:

Nominal ...................................................60 ohms

Max. variation in |Z| .........................45 - 80 ohms

Max variation in phase angle ...................±30 deg

Transmitting response.............................186.5 dB ±2

re 1µPa per V

Receiving sensitivity, open circuit ........... -177 dB ±2

re 1V per µPa
Electroacoustic efciency:

Typical............................................................0.70

Minimum ........................................................0.50

Maximum input power...................................2000 W

Maximum duty cycle (at max power)..................0.04

Maximum installation depth ............................ 200 m

(855-164307 Rev.B)

Cable length ....................................................... 25 m

Cable diameter ................................................ 11 mm

Weight without cable .......................................6.3 kg

Storage temperature ................................ -20 to 70 °C

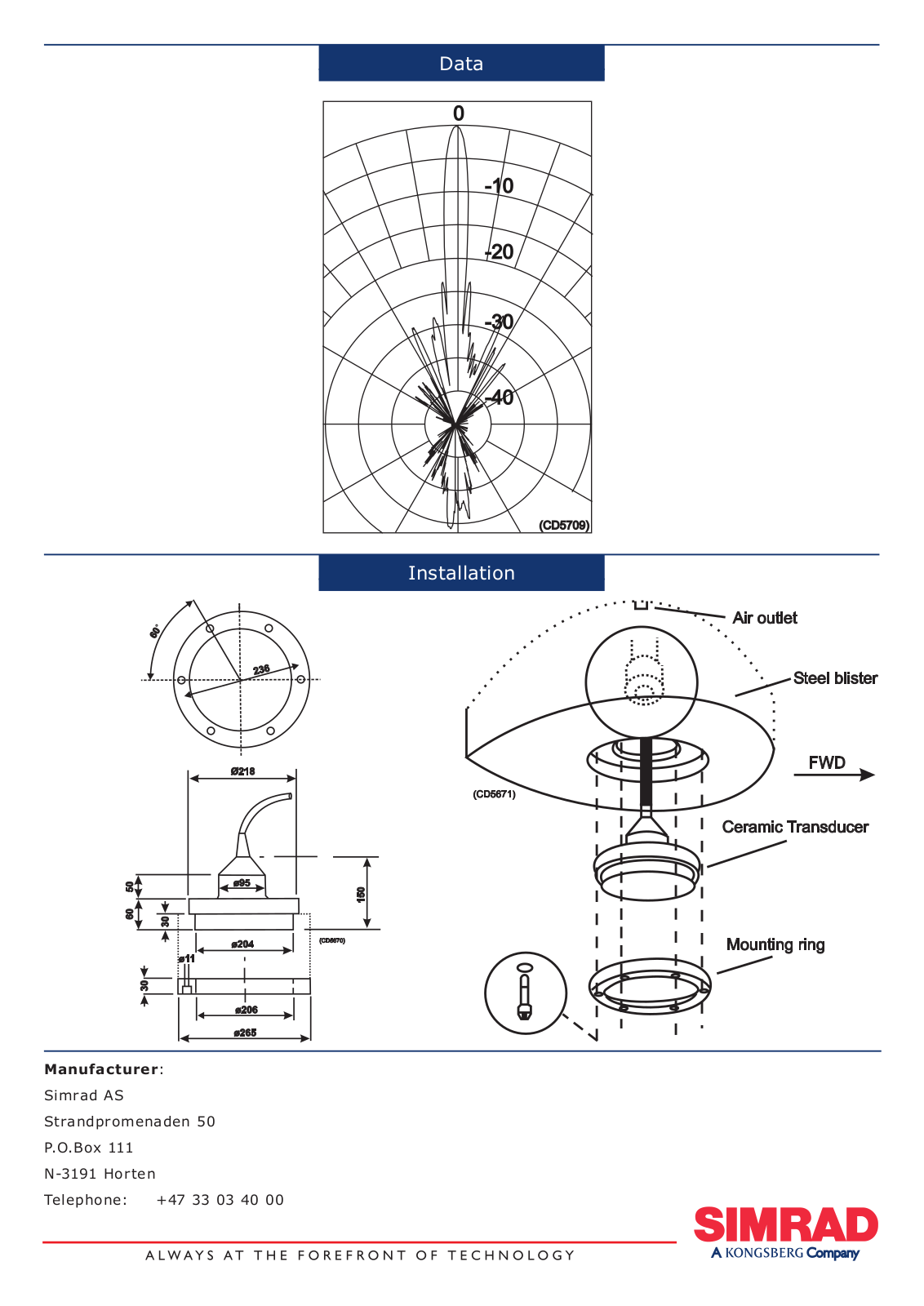

Data

Installation

Manufacturer:

Simrad AS

Strandpromenade n 50

P.O.Box 111

N-3191 H orten

Telephone: [phone]
