Simpson SWT1012A User Manual

SWT1012A
...................................................... .................................................
TOP-LOAD WASHING MACHINE USER MANUAL
Congratulations
Congratulations on the purchase of your new washing machine. We trust you will be delighted with it. Please read this instruction book carefully. It will give you the information you need to Care for and Use your washing machine
Other documents you should read supplied with your new machine include:
Installation Instructions which must be followed to ensure the machine works properly and to avoid an unnecessary service call.
Quick Start Guide. To help you get on your way quickly and without fuss.
Contact the Customer Care Centre if you need advice. You will find contact numbers on the back page.
For Service and warranty information see page 20.
Conditions of Use
This appliance is intended to be used in household and similar applications such as:
- Farm Houses,
- By clients in serviced apartments, holiday apartments and other residential type environments.
It must not be used for purposes other than those for which it was designed.
Contents
SWT1012A Control Panel
Important Safety Instructions
Environment Concerns
Knowing Your Washing Machine
Washing Instructions
Operating Your Washing Machine
Your Program Guides
Using Your Washing Machine
Features of Your Washing Machine
Caring for Your Washing Machine
Helpful Hints in Dealing with Washing Problems
A Guide to Stain Removal
Troubleshooting
Warranty
Simpson Conditions of Use / Contentsi
ii
1
2
2
3
4
7
8
9
12
13
15
17
18
20
CONTROL PANEL
1 4 5 63 3 8
272
1 Program Selector
Selects the wash program see page 7.
2 Option Select Buttons
Selects the wash Temperature or Spin Speed or Soak Time or Rinse Type see page 9 - 10.
3 Modify Option Buttons
This button is using for modify an option that you choose.
4 Reduce Time Button
Selects the reduce washing time see page 10.
ON - OFF Switch
5 Save Favourite Button
Selects the save favourite program see page 10.
6 Delay - End Button
Selects the delay start program see page 11.
7 Digital Display
8 Start/Hold To Pause
Starts the wash program see page 11.
The On/Off switch is located at the back of the control panel on the LH side above the rating plate.
iiSimpson Control panel
Please read the user manual carefully and store in a handy place for later reference. Pass the user manual on to possible new owners of the washing machine. The symbols you will see in this booklet have these meanings:
Warning
Children should be supervised to ensure that they do not play with the appliance.
If this appliance is supplied from an extension cord or portable electrical outlet device, the extension cord or portable electrical outlet device shall be positioned so that it is not subject to splashing or entry of moisture.
If the electrical cord of this appliance is damaged, it must be replaced by the Manufacturer, Authorised Service Agent or similarly qualified persons in order to avoid a hazard.
This symbol indicates information concerning your personal safety
Caution
This symbol indicates information on how to avoid damaging the washing machine
Tips and information
This symbol indicates tips and information about use of the washing machine
Environmental Tip
This symbol indicates tips and information about economical and ecological use of the washing machine
Meanings of symbols used in this manual are shown below:
This symbol indicates never to do this
This symbol indicates always do this
Warning
It is important to use your washing machine safely. Check these safety points before using your washing machine.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or instruction on the use of the appliance by a person responsible for their safety.
Mains Pressure Water
Warning
If you have mains pressure hot water service and it has not been used for two or three weeks:
Before using the washing machine it is recommended that a hot water tap close to the washing machine be turned on and the water allowed to flow for a couple of minutes. This will allow any gas pressure that has built up over the period of non-use to be discharged.
For further details, please refer to your hot water service installation instruction and owners guide.
Information on Disposal for Users
Environmental Tip
Most of the packing materials are recycleable. Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers.
If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.
When discarding this product, remove the lid and dispose of it separately from the washer to avoid the risk of a child being locked inside the machine.
Simpson Important Safety Instructions1
ENVIRONMENT CONCERNS
HIGH EFFICIENCY WASH TECHNOLOGY
Packaging Materials
Environmental Tip
The materials marked with the symbol are recyclable.
>PE< = polyethylene, >PS< = polystyrene >PP< = polypropylene
This means that they can be recycled by disposing of them properly in appropriate collection containers.
Old Machine
Use authorised disposal sites for your old appliance. Help to keep your country tidy!
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Ecological Hints
To save water, energy and to help protect the environment, we recommend that you follow these tips:
Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the environment is protected too!).
The machine works more economically if it is fully loaded.
With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature.
Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed.
The detergent should be dosed according to detergent manufacturer instructions.
Ultra Wash System
This product features the new Ultra Wash System that uses less amount of water, thus more energy efficient, during the washing process. It achieves this with just the right amount of water needed, and by moving and rolling the laundry for an optimum wash result.
The water spraying effect helps to dissolve the detergent faster and it provides an additional gentle wash action, for a thorough wash.
water spraying
pump on
drain hose
Eco Rinsing
Eco rinse is the preferred rinsing option. It is done by spraying water on the clothes, spinning the water out and repeating this sequence six more times. Deep rinse is available but the clothes are fully submerged in rinse water before draining and final spin. Eco and deep are both effective at removing detergent. In this washer Eco rinse saves 60% of the deep rinse water used in a traditional top load agitator machine.
2Simpson Environment Concerns
Caution
You must use a low sudsing detergent in this new technology washer - for example, Cold Power for Front Loaders and High Efficiency
Top Loaders or detergents labelled “Matic”.
How Does Eco Rinse Work ?
We recommend to use Eco rinse to maximise water savings. Deep rinse is available for the times it is needed, but deep rinse uses much more water than Eco rinse.
When Eco rinse is used, rinse water is sprayed into the washbowl in pulses. After each pulse the washbowl will spin to remove detergent laden water from the clothes.
The machine will go through a series of maximum four pulse spray and short spin cycles in this manner, depending on program selection, followed by a final long spin that removes the water from the clothes to complete the full wash program.
BEFORE you do your first wash, we suggest you read the instructions on page 5 for adding detergent, fabric softener or bleach.
Detergent Recommendation
The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used.
Water hardness is classified in so-called “degrees” of hardness.
Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority.
Follow the product manufacturers’ instructions on quantities to use.
Use less detergent if:
you are washing a small load, the laundry is lightly soiled, large amounts of foam form during washing
Spin up Spin down Final long spin
Pulse spray of rinse water
For deep rinse, water enter the machine to fill up to the working level for the wash water level you can not select. The washer agitates and finally empties the rinse water through the drain hose.
Auto water level sensing
This product has auto load sensing feature to select optimum amout of water to suit the cloth load which might seem lower than conventional machine. This is normal condition.
Simpson
Water Saving Technology / Knowing Your Washing Machine3
Lid Lock Feature
Lid lock is a safety feature in your washing machine to ensure the lid is not opened during a stage in the wash program when it would be hazardous for you to do so. The lid will be locked when your washing machine is spinning, shown by the padlock symbol displayed on the screen. Do not try to force
open the lid when it is locked.
You will be able to open the lid easily when the padlock symbol on the screen disappears.
Out of Balance Interruption
The washing machine can stop during rinse and spin stages of a wash because of an out of balance condition.
To let you know an out of balance interruption has happened, the display will show “ ” in the digital display.
If an out of balance occurs, the machine may stop spinning and then start spinning again to try and overcome the out of balance before alerting you with “beeping”.
Out of balance is caused by an uneven distribution of clothes in the washbowl.
To rectify the out of balance condition, open the lid and redistribute the clothes evenly in the washbowl.
You will have to wait for the lid to unlock before opening the lid. The lid is unlocked when the padlock symbol in the screen disappears.
Closing the lid will start the machine and continue the wash program.
If you have frequent out of balance interruptions, it may be due to your washing machine not standing firm and level on the floor.
This can be corrected by adjusting the washing machine legs as described in the Installation instructions supplied with your machine.
Button Response and Lights
Always touch the buttons gently. Watch the lights on the control panel to see the effect of touching a button, and listen for “BEEPS”.
When you touch a button you will get a short “BEEP” to acknowledge the entry. If the option is not available at the time, a long “ERROR BEEP” will be heard, the message “ ” is displayedfor about 2 seconds
NOTE: All functions of the washing machine will stop when the lid is opened.
ERR
Lid Soft Landing Feature
To close the lid from fully opened position, close the lid as usual. The lid will slowly close down on its own.
Caution
The lid soft landing feature will only work from fully opened position. It will not work if the lid is opened less than 80 degrees and closed. To avoid injury, do not put your hands under the lid in case the lid will close rapidly.
These Washing Instructions are of a general nature and you should get good wash results by following them.
However, due to the variables of fabric types, soil levels, detergent types and available program settings you may find some combinations of these which do not always result in the perfect wash.
If for example you see residuals of detergent or soils on some items, please read the section Residues on washed items paragraph.
Over time you will learn what is the best set-up of programs, detergent and load sorting for different load types and soils.
Sort Your Washing into Separate Wash Loads
Each load of washing should contain clothing which needs the same washing conditions. For example, you should not wash delicate clothes with very dirty work clothes.
Some fabrics are lint collectors and can pick up lint, dirt and colour from other fabrics, which are lint producers. Some examples are listed below.
Lint Collectors Lint Producers
Corduroy Towels Synthetics Nappies Permanent press fabrics Chenille / Candlewick
Make sure that you wash lint collectors separately from lint producers.
Check Your Clothes to Avoid Damage
Empty all pockets. Close all hooks and zippers to avoid snagging clothes. Wash bras, pantyhose and other delicates in a mesh laundry bag which you can purchase from your supermarket.
Pre-Treatment Sprays and Stain Removers
IMPORTANT: Pre-treatment sprays and stain
removers can damage plastic components on your washing machine. If you use pre-treatment sprays or stain removers, apply them to the clothing well away from your washing machine.
4Simpson Washing Insructions
Load the Washing Machine
When loading the clothes into your washing machine, there are three things to remember:
Clothes must be loaded evenly in the wash
1.
bowl. For best results load small items first, followed by large items.
2.
The washing machine must not be overloaded. Clothes must be able to move during wash.
The load should contain only three or four large
3.
items, for example sheets. The rest of the load should be small items. A mixed load of large and small items will wash cleaner than a load of all large items.
Detergent and Fabric Softener Use
Don’t use the wrong type of detergent. You must use a low sudsing detergent designed for front load washing machines or high efficiency top loaders, such as Cold Power for Front Loaders and High Efficiency Top Loaders or detergents labelled ‘Matic’.
Don’t use soap-based products in your washing machine.
Don’t use too much detergent. This can result in excessive suds that can cause low spin speeds, poor rinsing and overloading the motor during spin stages of the wash program.
Don’t use too little detergent because you will get a poor wash. If you think you need more, increase dosages by only small amounts to avoid excessive suds.
Add the Detergent
When using the washing machine for the first time, check that the dispenser is set for the type of detergent you will use. To do this, proceed as follows:
Pull the dispenser drawer forward until it
1. stops.
Lift the front of the drawer up and forward to
2. remove it from the runners.
Check the position of the flap at the rear of
3. the detergent compartment in the dispenser drawer. (Factory setting is flap up for powder.)
clip flap up for powder
Clip the flap down if you intend to use liquid
4. detergent.
clip flap down for liquid
Refit the dispenser back into its runners.
5.
Remember: If you change the type of detergent you use, the position of the flap will need changing. See above.
You are now ready to add detergent.
6. Measure the amount required and pour it into the detergent compartment of the dispenser drawer.
Caution
Do not spill fabric softener on the clothes as it may stain them.
5 Simpson Washing Insructions
add detergent



When using liquid detergent, some may leak out of the dispenser into the wash load earlier than expected through small openings in the back of the dispenser. The openings are to help flushing out of detergent.
If you want to use fabric softener, see “Add
7. fabric softener”.
Close the drawer by pushing it backwards into
8. the top panel of the washing machine when you have finished adding detergent.
Add Fabric Softener
Before adding softener to the dispenser, make sure the siphon cap is pushed firmly down onto the spigot in the drawer. The softener will not siphon out if the cap is incorrectly fitted, is missing or blocked with residue. You are now ready to add fabric softener.
Measure the correct amount as recommended on the softener package into a cup and then pour it into the softener compartment of the dispenser drawer.
Caution
Do not overfill the fabric softener dispenser.
Overfilling and then siphoning out too early can cause softener and detergent to mix resulting in staining problems. The softener dispenser holds 90ml when filled up to the MAX marker. Any level lower than MAX will function correctly.
siphon cap pushed down
add fabric



Caution
Only use the detergent compartment for detergent and the fabric softener compartment for fabric softener.
softener
MAX - Do not fill above this height
siphon cap
Adding Bleach
add bleach
Bleaching of clothes can help to remove stains, heavy soiling and to kill bacteria.
Oxygen Type
This is generally a powder type bleach. Mix the required quantity with water and pour down the bleach hole in the top panel during the fill when there is some water in the washbowl. Refer to the instructions on the bleach container.
Chlorine Type
This type of bleach should not be mixed with detergent. Mix the bleach with water as per the instructions on the container. Touch the program ICON buttons to a wash program position and touch the Start/Hold To Pause ( ) button to commence water fill.
Pour the bleach solution down the bleach hole in the top panel during fill when there is some water in the washbowl. Allow the machine to agitate for a few minutes, then let it stand for the required time by touching the Start/Hold To Pause ( ) button. Touch the program icon (Drain + Spin) button and touch the Start/Hold To Pause ( ) button to empty the washbowl.
You can now wash the clothes load using detergent and your selected wash program.
NOTE:
-
Bleach should not be used on silk, wool, rayon or drip dry clothes.
-
Do not mix different types of bleaches.
Simpson Washing Insructions 6
OPERATING YOUR WASHING MACHINE
Starting Your Washing Machine
1.
Turn on the taps and turn power on at the power point.
2.
Press On-Off switch button to switch ON the machine.
Close the lid.
3.
If the settings shown on the control panel are what you want to use and the Program SELECTOR is set to the correct wash program for your clothes load, touch the Start/Hold To Pause ( ) button to start your wash. To select a different program or change other settings, read the following instructions
Choose the Wash Program
touch the icon to choose the wash progam you want. The relevant light will light up.
You can select a new program position at any time. If you do move the Program ICON after you have
started a wash program, the effect will be different depending on the status of the machine at the time, as follows:
When the machine is running, selecting the
1. program ICON to a new position, machine will show “ ” on the display with three short
ERR
beeps to indicate the button is disabled.
If you pause the machine, selecting the program
2. ICON to a new position will result in the machine resetting to the start of the new program.
The table “YOUR PROGRAM GUIDES” shown on page 8 will help you in selecting the right program.
Once you select a wash program, the program selected will stay at that position for the whole of the wash.
7 Simpson Operating Your Washing Machine
YOUR PROGRAM GUIDES
Icon
Regular ***
Cold Wash
Fast Wash
Favourite
Delicates
Heavy Duty *
Colours
Woollens Deep
Hand Wash
Bedding
Rinse + Spin
Drain + Spin
For normally soiled cotton load at rated load capacity.
For mixed fabrics.
For a very small load of mixed fabrics.
For lingerie, lace, trimmed and embroidered items.
For a heavily soiled cotton wash load. For an average load of coloured fabrics. DO NOT
include whites or any other items you want to keep true to their colour.
For woollen fabrics labelled 'Machine Washable'.
For articles of clothing whose label indicates that they must be hand-washed .
For bedding fabrics labelled “Machine Washable”.
For items that you want to rinse and spin eg clothes items you have hand washed in a wash tub.
For very wet clothes to remove the water.
Select this program
Wash Water
Temp.
Warm
Warm
Warm
Warm
Spin Speed (rpm)
Default Max.
850
850
850
Cold
--
Cold
Cold
Cold
Hot
Cold
- -
850
850
850
-
- -
700
700
850
850
850
850
600
600
700
700
850
850
850
-
850
850
Soak
Times
-
-
-
-
-
-
-
15 min.
-
-
-
Eco
Deep
Deep
Deep
Deep
Deep
Deep
Deep
Deep
* “Heavy Duty” has a built-in Soak period of 6 minutes
** “Deep” uses more water than Eco to rinse clothes.
*** “Regular Wash, Warm Temp, No Soak, Eco Rinse” is recommended for a full load (maximum mass of dry cloth is 10 kg) of normally soiled cottons.
NOTES:
When you choose the WOOLLENS and BEDDING program, the DEEP RINSE option is automatically selected for you. You will not be able to select and use Eco Rinse with these two programs.
When you select the DRAIN + SPIN program, there be a delay of approximately 5 minutes before the washing machine starts to spin. This delay is a DRAIN and pump out period to ensure the bowl is empty of water, which is necessary before spin commences. During this time the drain pump will cycle ‘ON’ and ‘OFF’ to allow water to move from the washbowl to the outer bowl. Even though you may have only put wet clothes into an empty bowl, the delay before spin will still occur to be safe and to protect your washing machine.
-
Program Times
Fill 15% Wash 42%
9 mins 25 mins 9.5 mins 15.5 mins
Drain & pre rinse spin 16%
The times above show what these percentages would represent for a program lasting approximately an hour.
Eco rinse & final
spin 27%
1 2 3 4 5
6 + final spin
The time taken for a wash program to finish changes with different program settings, and program times may be longer if the water pressure in your home is low.
Simpson
Your Program Guides 8
USING YOUR WASHING MACHINE

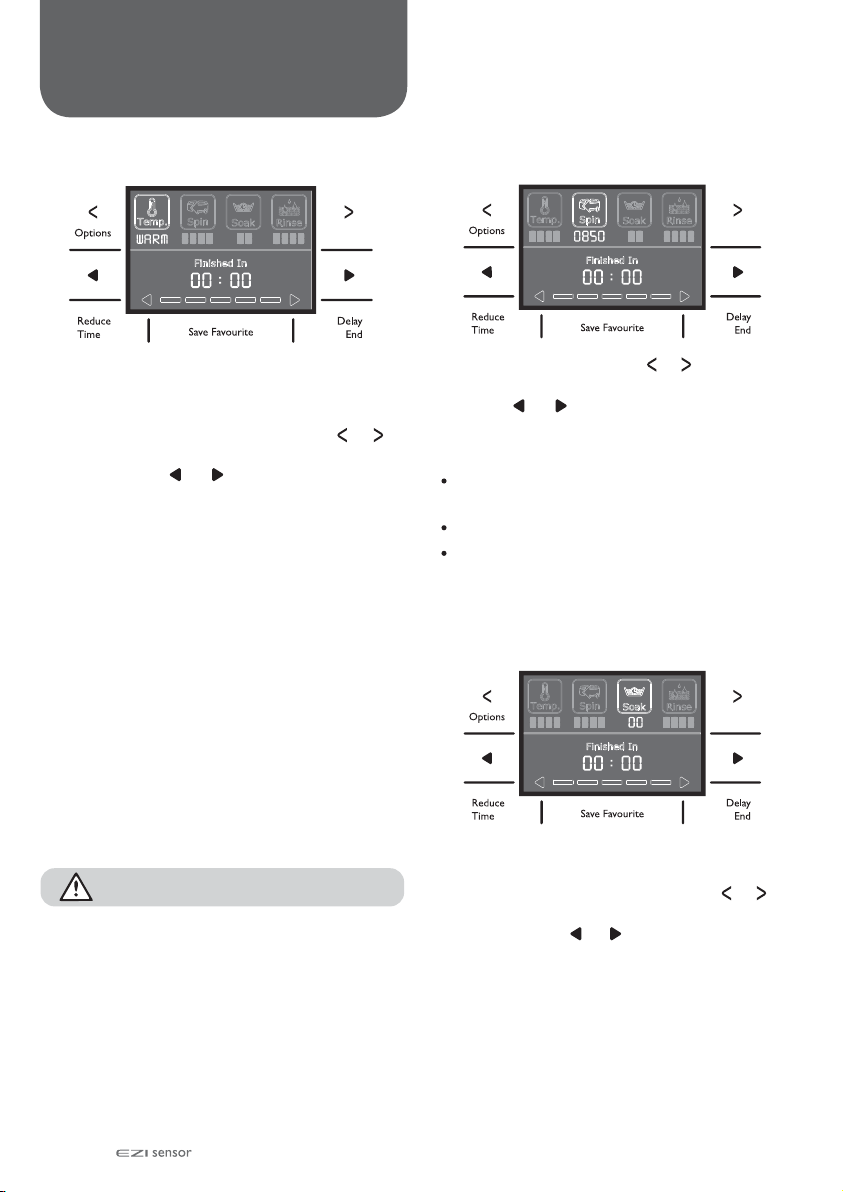

Choosing the Wash Water Temp. Select the Spin Speed
For each wash program your washing machine automatically selects a suitable fill water temperature.
If you want to use a different wash water temperature, touch the Options button ( , ) to select the Temp. icon, then touch the Modify Option buttons ( , ) to select the WATER TEMPERATURE that you want to use for your laundry.
The temperature of warm water will depend on the temperature and pressure of your hot and cold water supplies. The recommended temperature for warm is 35°C. Adjust the taps as necessary. If you have selected the Woollens program, you will not be able to select a Hot wash water temperature.
All rinse water temperatures are cold except for the woollens program.
NOTE: If you have a cold water connection only and the hot inlet valve is capped off, you must select Cold washes only. (Refer Installation instructions). Otherwise the machine will sense the unavailability of hot water for Hot and Warm washes and shut down.
Caution
Components in the washing machine are designed to be used with water no hotter than 70°C. If your water supply is too hot, you should have a temperature limiting valve fitted by a qualified plumber.
Touch the Options button ( , ) to select the Spin icon, then touch the Modify Option buttons ( , ) to select the spin speed that you want to use for your laundry.
Maximum speeds are:
Regular, Cold Wash, Fast Wash, Heavy Duty, Colours and Bedding : 850 rpm;
Hand Wash, Delicates : 700 rpm; Woollens : 600 rpm.
Select the Soak Time Option
This option allows you to soak heavily soiled clothes at the beginning of the wash.
To do this, touch the Options button ( , ) to select the Soak icon, then touch the Modify Option buttons ( , ) to select the soak time.
The lid must be closed to allow Soak functions to operate, including the Heavy Duty wash program 6 mins soak. The machine will agitate for short periods. At other times, the clothes are soaking and the machine will be doing nothing.
Simpson
Using Your Washing Machine9
Select the Rinse Option
To do this, touch the Options button ( , ) to select the Rinse icon, then touch the Modify Option buttons ( , ) to select the rinse type. This Option allows you to change the rinse type.
For most washes the machine automatically selects Eco Rinse for you.
There are four rinses to choose from… Fast rinse, Eco rinse, Deep rinse and Extra rinse.
Extra rinse
The machine fills twice, giving you two deep rinses.
Deep rinse
The machine fills once, giving you one deep rinse.
Eco rinse
Eco rinse is a spray rinse giving you maximum water saving.
Fast rinse
Fast rinse uses less time than Eco rinse by performing only 3 Eco sprays.
Tips and information
We strongly recommend you use Eco rinse for your washes whenever you can. There is considerable saving of water when Eco is used instead of Deep to rinse clothes.
You cannot select Eco rinse with the Wool wash program.
Eco rinse is not designed to be used with fabric softener. Select Deep rinse if you are going to use fabric softener. Deep rinse ensures the fabric softener is correctly dispensed and thoroughly removed from your clothes during rinsing.
If your cold water supply pressure is low, Eco rinse might not be fully effective in rinsing suds from your clothes. If this is the case then use Deep rinse. Note that you can save this option under your Favourite button if you wish.
Reduce Time Option
This option allows you to reduce washing time.
By touching Reduce Time button, then touch the modify option buttons to decrease or to back to default agitation time.
Save Favourite
To recall the Favourite wash program, touch once and release the Favourite button.
In the screen, you will get acknowledgement the Favourite program is loaded.
You can recall a Favourite wash program ONLY when the washing machine is:
in the program selection mode or running in a Delay Start stage of a wash program.
Otherwise touching Favourite will have no effect.
The first time you touch Favourite button, a factory-set favourite wash program will load for you. If you want to use the Favourite program shown in the display screens and not make any changes, touch Start/Hold To Pause ( ) to begin your wash.
To re-program Favourite with your own selections and save them, proceed as follows:
Put machine in pause mode. Touch the Favourite button to enter
re-programming mode. Confirmmation of entering the re-programming mode shows in the screen.
Make desired selections on all other buttons.
To EXIT re-programming mode and NOT save changes, touch Start/Hold To Pause ( ) button.
To save new program, touch Favourite once.
Simpson
Using Your Washing Machine 10
Delay End Option
Before you start the program, this option
makes it possible to define the end of the washing program by 2, 4, 6 or 8 hours.
By touching Delay End button, then touch the modify option buttons ( , ) to choose the end time as your wish.
This option must be selected after choosing the wash program, and before touching the “Start/Hold To Pause” button.
If after having set the Delay-End option (and Touched “Start/Hold To Pause” button) you wish the cancel or modify it, follow the below steps:
1.
set the washing machine to PAUSE by press
and hold the “Start/Hold To Pause”
button for minimum 1.2 seconds
2.
Touch the Delay-End option, changing the status of delay times.
Touch the “Start/Hold To Pause” to start the
3. program.
Start/Hold To Pause Button
The Start/Hold To Pause button is used to start, stop or continue the wash program.
If you have started your wash and you wish to stop it for some reason, press the Start/Hold To Pause button and hold it for minimum 1.2 seconds to enter pause mode.
If you touch Start/Hold To Pause during a spin stage and you want to open the lid, you must wait until the lid is unlocked when the padlock symbol “ ” on the screen will disappear.
Enabling/Disabling End-of-Wash Beeping Mode
This mode permits you to either enable or disable the beeping (3 beeps every 4 minutes) at the end of the wash. As an example, you might wish to disable this beeping when you start a wash when going to bed, so that when the wash finished approximately 1 hour later, it will not disturb you through the night.
NOTE: All error beeping is not disabled by this feature, such as a critical fault, or lid open during fill/agitate/spin, or out of balance during spinning.
Simpson Using Your Washing Machine11
To change the “beeping” selection:
1.
When the washing machine in STAND-BY­MODE or PAUSE MODE, press and hold “Start/Hold To Pause” button for about 3 seconds to enter Enabling/Disabling End-Of­Wash Beeping mode.
The digital display will show “ ” when the end of wash beeping is enabled (this is the default factory setting).
The digital display will show “ ” when the end of wash beeping is disabled.
Press the “Modify Option ( , )” button to
2.
change the selection, then press the Start/Hold To Pause button to store the new selection.
NOTE: If you do not press a button within 5 seconds the washing machine will return to the previous setting. To reprogram, simply repeat the above process.
Lid Locked ( )
The padlock symbol is displayed on the screen to advise you when the lid of the washing machine is locked in the closed position. The lid will be automatically locked when the washbowl is spinning during a wash program. To fill and agitate the lid must be closed, but will not be automatically locked.
If the lid is open and the machine is waiting for it to be closed for the wash program to continue, you will see in the digital display accompanied by ‘beeping’.
Should you need to access the washbowl during spin, set the washing machine to PAUSE by press and hold the “Start/Hold To Pause” button for 1.2 seconds. You will have to wait a short time for the bowl to stop spinning before the lid unlocks and the padlock symbol “ ” on the screen disappear.
If then you open and close the lid, and the machine is still in a spin stage of the wash program, the lid will lock and the machine will continue to complete the spin stage.
Caution
DO NOT insert anything into the lid lock slot in the top panel of the washing machine.
DO NOT interfere with the lid lock mechanism to try and disable it or otherwise change the way it works.
DO NOT try to force open the lid when it is locked.
FEATURES OF YOUR WASHING MACHINE
Additional features on your washing machine are described in this section.
Digital Display
The digital display will show the time in minutes (or hours and minutes) to complete the wash program.
NOTE: This time does not include the time that the washing machine will take to fill with water because of the different water pressures in homes.
What your washing machine
is doing
Display will show ‘ ’ and you get 4 fast 'beeps' every 1 minute.
Display will show ‘ ’ and you get 4 fast 'beeps' every 1 minute.
Time remaining is shown then ‘ ’
Display will show ‘ ’ and you get 4 slow 'beeps' every 4 minutes.
Other codes and you get 4 fast 'beeps' every 1 minute.
E1 7
LD
SP
Rinse Options
Slecting the “Rinse” ICON, then touch the Modify Option buttons ( , ) allows you to change the rinse type. For most washes the machine automatically selects “Eco Rinse” for you.
There are four rinses to choose from… Fast rinse, Eco rinse, Deep rinse and Extra rinse.
Extra
Extra rinse uses maximum water rinsing, with full water rinsing but executes “Deep rinse” stage twice.
Deep rinse uses much more water, with full
Deep
water as wash water level selected.
Eco
Eco rinse is a spray rinse giving you maximum water saving.
Fast
Fast rinse uses water less than Eco rinse approx. 20%. Suitable for 5 - 6 shirts .
Information and Guidance Feature
The washing machine will give you information by displaying codes in the Digital Display and use ‘beeping’ function (See table below).
What this is telling you
and what to do to continue
Indicates the machine has gone out of balance during spin. Open lid, redistribute load and close lid.
Lid is in the open position. Close the lid.
The machine is in pause mode. Touch Start/Hold To Pause ( ) to continue.
The wash program has finished. Start a new wash or switch off your machine.
The machine is informing you of a fault with the washing machine which you need to address.
Refer to pages 18 & 19 for further information, and what you should do before calling for service.
Eco Rinse and Fast Rinse cannot be selected with Woollens and Bedding program.
We strongly recommend you use Eco rinse for your washes whenever you can. There is considerable saving of water when Eco is used instead of Deep or Extra to rinse clothes.
Eco rinse is not designed to be used with fabric softener. Select Deep or Extra rinse if you are going to use fabric softener. Deep rinse ensures the fabric softener is correctly dispensed and thoroughly removed from your clothes during rinsing.
12Simpson Features of Your Washing Machine
CARING FOR YOUR WASHING MACHINE
Your washing machine will give you long and trouble-free service, if you follow the instructions in this section. These instructions show you how to care for your washing machine.
What to do after you have finished your washing
1.
Press On-Off switch to switch off the machine.
2.
Switch off the electricity at the power point.
3.
Turn off the water taps. This will extend the life of the inlet hoses.
4.
Leave lid open for a while. This allows time for moisture inside the washing machine to evaporate and for any odours to disperse.
How to Clean the Lint Filter
The lint filter needs to be cleaned regulary, preferably after each wash. Inspect the lint filter after each wash to see if there is any lint collected. To do this proceed as follows:
1.
Remove the lint filter out from its housing.
Housing
4.
Reassemble the filter to the housing.
Cleaning the Dispenser
The dispenser needs to be cleaned regularly, preferably after each wash. Inspect the dispenser after each wash to see if there is any residue of detergent.
To do this proceed as follows:
Pull the dispenser drawer forward until it stops.
Lift the front of the drawer up and forward to remove it from the runners.
Clean the dispenser drawer with hot water and a brush, eg. an old toothbrush.
Dry the drawer.
Before replacing the dispenser back in its recess, clean the inside of the drawer with an old toothbrush.
Filter
2.
Open the lint filter.
3.
Clean the filter under the water tap with an old toothbrush.
Simpson Caring for Your Washing Machine 13
Put the dispenser back into its runners and close the drawer.
Cleaning Your Washing Machine
To clean the inside and outside of your washing machine you should:
1.
Wipe the surface with a mild dishwashing detergent and warm water.
2.
Wipe dry with a soft cloth.
IMPORTANT: Never use solvents, aerosol cleaners, spray pack cleaners, glass cleaners, metal polishes, caustic materials, scourers or general household cleaners on or near the top panel and lid, control panel or other parts of your washing machine.
Cleaning Stains In the Washbowl
Stains in the wash bowl can be caused by:
metal objects such as bobby pins, dressmaking pins and nails
salt
body oils and grease from very dirty or sweaty clothes being deposited around the top of the washbowl
excessive foam during wash if incorrect or too much detergent is used
IMPORTANT: Check all pockets before loading clothes into your washing machine.
Don’t leave wet clothing (especially swimwear) in the bowl for too long before you wash it.
How To Clean the Stainless Steel Wash Bowl
Wipe with a cleaning product which is marked suitable for stainless steel.
Oily deposits can be removed by wiping surfaces with a mild dishwashing detergent and warm water.
IMPORTANT: Never use bleach cleaners or steel wool to clean the stainless steel washbowl.
Avoiding Build Up of Undissolved Detergents
If you only wash with cold water, undissolved detergent and body oils will build up in the washing machine. This build-up can cause spotting on your clothes.
To avoid this build-up:
do not use too much fabric softener with cold water
select a hot water wash at least once a month always dissolve the detergent in one litre of
warm water.
14Simpson Caring for Your Washing Machine
HELPFUL HINTS IN DEALING WITH WASHING PROBLEMS
Residues on Washed Items
Some detergents have ingredients which do not fully dissolve and as a consequence, may leave white residue or particles evident on the surface of darker clothes in the finished wash load. Similarly some soils may not dissolve fully, resulting in residue evident on lighter coloured clothes.
If you are experiencing residue on some clothes, the following tips will help:
Check that you are using frontload type detergent to minimise over-sudsing. You may find different brands of detergent give better results. Liquid detergent may be better than powder in your situation.
Pre-mix the detergent thoroughly in warm or hot water to improve the dissolving.
Reduce detergent dosage to between a 1/2 and 2/3 of the manufacturer’s standard recommendation to avoid over concentration (the lower water usage requires lower detergent usage.)
Some residue maybe re-deposited lint, so be careful not to have lint-producing items in a load which has darker clothes.
Select deep rinse and not eco rinse to help flush more particles away.
Reduce the clothes load size per wash to give more freedom for the clothes to move around in the wash bowl.
Use another program as below, which has been designed to minimise residual particles (they are in order of increasing benefit and will help you choose the best program for your wash load.)
– The Colours Program
– The Heavy Duty Program
Stained Clothes - Hints for Removing Stains
The guide to stain removal on page 17 may assist you in stain removal.
Treat all stains as soon as possible. The longer you leave a stain the harder it will be to remove. Try soakers and stain removers first.
If you use pre-treatment sprays or stain removers, apply them to the clothes items in a well ventilated area away from your washing machine.
Avoid the use of hot water on stains as hot water will set stains.
Use light strokes and don’t rub the stain remover into the fabric.
If you use a chlorine bleach, follow the instructions on the bottle and dilute it before putting it on clothing.
Test coloured fabrics on an inside seam for colour fastness before using any stain removers or bleaches.
Test synthetic fabric on an inside seam before using any chemicals or bleaches.
NOTE: Chemicals referred to for stain removal are available from your local supermarket, hardware store or the chemist.
Warning
Pre-treatment sprays and stain removers can damage plastic components on your washing machine.
Caution
Do no use dry cleaning fluids or solvents near your washing machine. These fluids will damage your washing machine and may cause an explosion.
Simpson Helpful Hints in Dealing with Washing Problems15
Yellowing or Greying Clothes
Problem Possible causes What to do
ONLY use low sudsing, front load
1. washer detergent in this machine, such as Cold Power for Front Loaders and High Efficiency Top Loaders or detergent labelled “Matic”.
Re-sort load, then re-wash using
2. program selections suitable for the fabric using hot or warm water.
If the water is very dirty or very sudsy,
3. repeat 2 above reducing the amount of detergent you use.
Greyness
Incorrect wash times and using insufficient detergent which can cause redepositing of detergent on clothes.
Using incorrect type or too much detergent can cause poor rinsing and poor spin performance.
Mixing whites with very dirty clothes, eg work clothes.
Using soap flakes instead of laundry detergent.
Yellowing
A build-up of oils in clothes that come into close contact with the skin, eg underwear, T-shirts.
Ageing of clothes. Iron deposits in the wash water.
Use of chlorine bleaches on fabrics with resin finishes.
Incorrect drying.
Incorrect water temperatures ie. too hot or too cold.
Re-sort load, then re-wash using wash
1. program selections suitable for the fabric using hot or warm water.
If the water is very dirty or very sudsy,
2. repeat 1 above reducing the amount of detergent you use.
NOTE: Synthetics which have been washed in very hot water will not respond to any treatment.
16Simpson Helpful Hints in Dealing with Washing Problems
Ball point pen ink Same as for whites - use oxygen type bleach.
Beetroot Rinse as soon as possible under cold water.
Same as for whites - use oxygen type bleach.
Cover area with meat tenderiser (msg). Apply warm water to make a paste. Wait 15-20 minutes. Sponge with cool water or with diluted bleach.
Rinse in cold water. If stain remains, sprinkle with meat tenderiser (msg). Let stand for 15-20 minutes. If stain still remains, then sponge with diluted bleach. Wash using hot water.
Candle wax Scrape off excess, place stain between clean white blotter or
Chewing gum Rub with ice to harden. Scrape off excess with blunt knife.
Chocolate Soak in warm water with pre-soak product, and wash in
Coffee/tea
wine
Correcting fluid Scrape off as much as possible.
Cosmetics Sponge with prewash stain remover, liquid detergent or rub
Curries Soak/rinse in lukewarm water until a majority of the colour is
green vegetables
cream milk
Iodine Wash using hot water. Wash using warm water.
Iron rust .nus ni ecalp dna eciuj nomel ylppA.nus ni ecalp dna dica cilaxo ylppA
Lipstick Rub with lard and wash using hot water.
several layers of facial tissue. Sponge with dry cleaning fluid. If spot remains, bleach.
Sponge with dry cleaning fluid.
lukewarm water. Use dr y cleaning fluid (white spirits) to remove any grease spots.
Rinse or soak in cold water. Work detergent into stain. Thoroughly rinse and dry. If a stain remains, sponge with dr y cleaning fluid. If stain remains, bleach.
Pour boiling water through stain.
Rub clean with paint thinner or white spirits.
with soap. If greasy stain persists, soak in enzyme product then wash.
removed. Sponge with solvent to break down any remaining fats and oils then wash.
Sponge with dry cleaning fluid (white spirits). Same as for whites.
Sponge with warm water and wash.
Sponge with methylated spirit. Wash using warm water.
Rinse or soak in cold water then wash. If ice cream contains fruit or chocolate treat as such.
Same as for whites but select water temperature suitable to fabric - use oxygen type bleach.
Same as for whites but select water temperature suitable to fabric - use oxygen type bleach.
Same as for whites - use oxygen type bleach.
Same as for whites.
Soak in warm water with pre-soak or detergent solution. Treat any remaining stain with oxygen bleach.
Same as for whites - use oxygen type bleach.
Soak or rinse in cold water or sponge with warm water and detergent. Use oxygen type bleach.
Same as for whites.
Same as for whites.
Same as for whites. Check for colour fastness before applying solvent.
Pour boiling water through stain.
Same as for whites. Check colourfastness before applying methylated spirit. For acetate, sponge with dry cleaning fluid.
Same as for whites.
Rub with lard and wash using warm water.
Mildew Wash using hot water. Moisten with lemon juice and let dry in
Mustard .hcaelb negyxo esu dna retaw mraw gnisu hsaW.hcaelb dna retaw toh gnisu hsaW
Scorch
Tomato sauce Soak in cool water for 10 minutes. Rub in liquid detergent then
sun. If stain persists, bleach. Old stains are hard to remove.
remove dye.
Scrape off fresh paint. Soften dry paint with lard or oil, then sponge with turpentine (turps).
if necessary.
wash. If stain persists, try dr y cleaning fluid or bleach.
Simpson A Guide to Stain Removal17
Same as for whites but select water temperature to suit fabric.
Sponge with dry cleaning fluid.
Same as for whites.
Same as for whites.
Usually a permanent stain.
Same as for whites - use oxygen type bleach.
Do not call for service until you have checked the points listed below. If you call for service and there is nothing wrong with your washing machine, you will have to pay for the service call. You will have to pay even when your washing machine is under warranty. Before you call for service, check the points in the table below.
Problem
Machine not working.
Machine has washed load but will not spin.
Water in washbowl.
Will not fill with water.
Water flowing into washbowl indefinitely.
Machine goes out of balance or vibrates
excessively when spinning.
Water on floor.
Clothes still dirty after wash program.
Scraping noise on spin.
Humming, clicking and other noises.
Detergent residue.
Bad smell or mold on clothes.
Display Code
LD
E20
EF0
Possible Causes
Power not switched on. No electricity supply through the power point.
Machine not switched on. Water taps not turned on.
Out of balance switch off.
Lid not fully closed. Out of balance.
Lid not fully closed. Drain hose blocked.
Too much suds causing motor temperature overload.
Water taps not turned on. Inlet hoses blocked.
Drain hose too low.
Machine not level.
Levelling feet not adjusted.
Clothes not evenly distributed.
Loose inlet hose connections.
Loose drain hose connections. Check connections at rear of machine.
Condensation from hot water.
Not enough or no detergent.
Too many clothes in load.
Incorrect wash program or temperature selected.
Bra wire or other thin items caught between inner and outer washbowls.
Bowl rotation at start of wash. Brake activation when stopping
after spin.
Overloaded laundry. Cold water temperature less
than 20°C. Detergent overdosage.
Lint filter not cleaned.
What to do
Switch on power point.
Check power point with another appliance.
Press POWER switch on. Turn on taps.
Open lid, redistribute load and close lid.
Close lid. Open lid, redistribute load, close lid.
Close lid. Check drain hose for blockage. Wait a short while, the wash will continue. In future, reduce detergent dose or use
low sudsing (front load) detergent.
Turn taps on. Clean tap filters/washers. Raise drain hose or fit a syphon break.
Refer to installation instructions for correct positioning of hose.
Make the machine level
Adjust feet to touch the floor
Redistribute clothes evenly. Check connections at taps and
rear of machine.
Check detergent use and rewash clothes.
Remove some clothes and rewash.
Reselect program or temperature and rewash.
If the item is visible, remove it with pliers. Use a wash bag in future.
Normal noise
Normal noise
Put appropriate load in washer.
Correct supply water temperature.
Check detergent use and rewash clothes.
Clean lint filter.
18Simpson Troubleshooting
Other Diagnostic Help and A Guide for When You Should Call for Service
If you are having a problem with your washing machine, make sure you have followed ALL of the instructions on this page and the previous page before calling for service.
Description
Not filling with water
Flood
Draining problem
Loss of water, while washing
Water level problem
Motor fault
Lid lock fault
Display Code
E30
E20
E30
E50
E40
Customer action (Summary)
Make sure both wall taps are on and hose filters are not blocked. Raise drain hose if water is flowing out of drain hose. Touch “Start/Hold To Pause” to re-start wash.
If problem remains, call Service.
If the water is pouring onto the floor, turn OFF both wall taps. Wait a few minutes to see if the fault is corrected.
If not, call Service.
Wait a few minutes to see if the fault is corrected. If not, set the washing machine to PAUSE by press and hold the “Start/Hold To Pause” button for 1.2 seconds then check the drain hose for blockage. Touch “Start/Hold To Pause” to continue the wash.
If problem remains, call Service.
If water level in wash bowl is low and water is flooding the floor, touch the PROGRAM SELECTOR to Drain & Spin ( ) symbol, then touch “Start/Hold To Pause” button.
Should this make things worse, press the POWER switch off and call Service.
Otherwise, touch “Start/Hold To Pause” to continue the wash.
Wait, this fault may clear itself. If not, touch the PROGRAM SELECTOR to Drain & Spin ( ) symbol, then touch “Start/Hold To Pause” button to drain the wash bowl.
If this problem is repeated, call Service.
Wait, this fault may clear itself. If not, touch the PROGRAM SELECTOR to Drain & Spin ( ) symbol, then touch “Start/Hold To Pause” button to drain the wash bowl.
You may have to touch “Start/Hold To Pause” to commence draining.
If this problem is repeated, call Service.
Lid cannot lock (on drain and spin process) or unlock (after finished wash).
You may have to set the washing machine to PAUSE by press and hold the “Start/Hold To Pause” button for 1.2 seconds then press the lid for awhile and touch “Start/Hold To Pause” to start the machine again.
If problem remains, call Service.
Simpson Troubleshooting19
20
www.simpson.com.au
G0005361-003-119730219-082015
Loading...
