1 Product Description

1.1 General Description

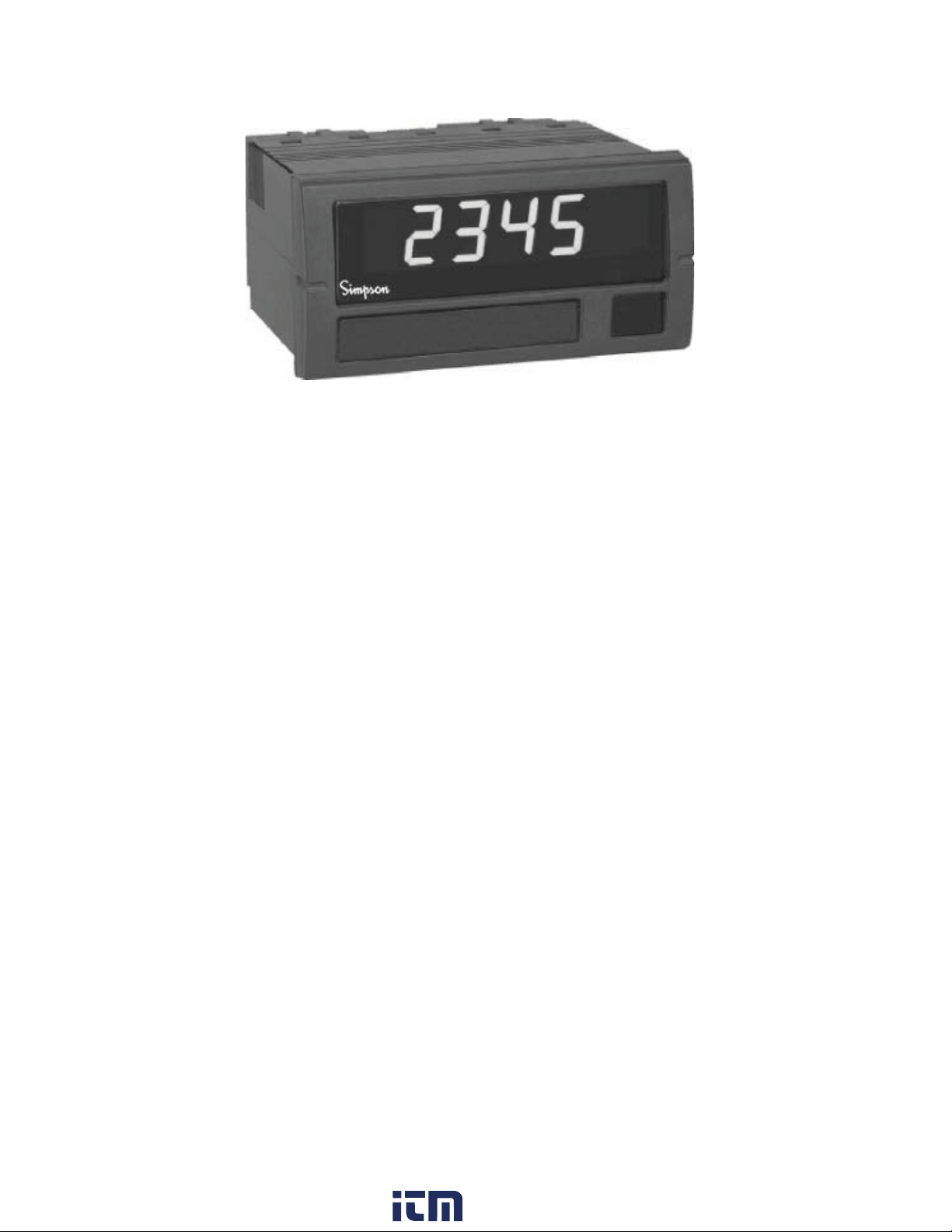

The S664 frequency counter fits a 1/8 DIN standard cutout and is perfect for
tight spaces, extending only 3.24” (82mm) behind the panel.

The unit is UL listed. The unit is for indoor use at altitudes up to 2000m, tem­peratures between 0° and 40°C, and installation category III, pollution degree 2.

The counter is powered from 120 or 240 VAC.

One of four frequency ranges may be selected to measure from 1Hz to 35KHz.

The counter accepts pulses from different types of sensors, including Quadra­ture, CMOS or TTL circuits and PNP or NPN devices.

An optional 12 VDC (100mA) excitation output module can provide power for
external sensors.

3

www. .com

[e-mail]1.800.561.8187

1.2 Part Number Identification

The following matrix indicates the configuration of your S664 counter.

Basic Unit

S664

Power Supply

120 VAC
240 VAC

1
2

Input

Standard

Quadrature

1
2

1.3 Option Module Summary

Input Exitation Power

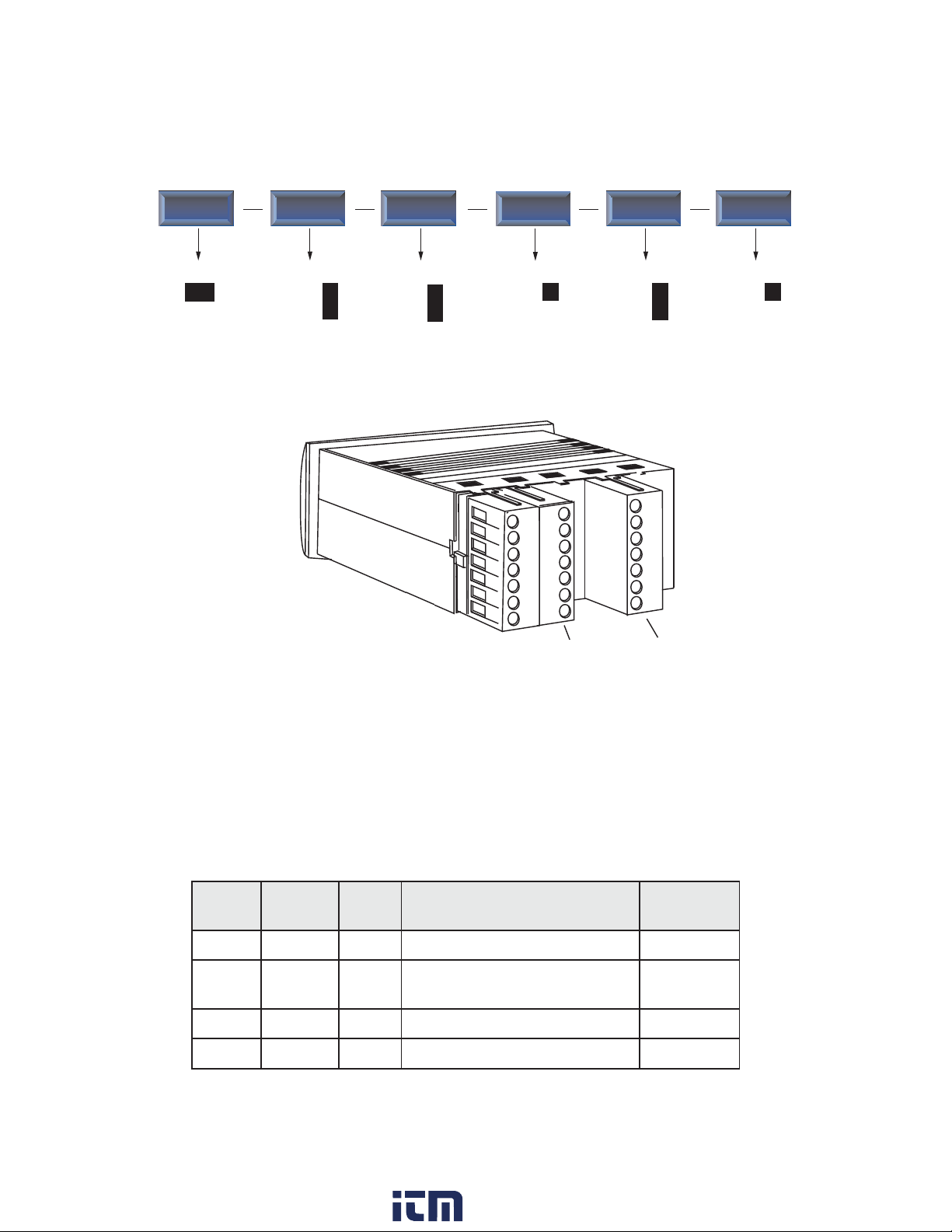

Figure 1. Option Module Slots (Rear View)

Output

0

None

1

2

Excitation

None
12VDC

0
1

4

Supply

Other

None

0

The S664 is a modular product that uses field configuring slide-in modules. The
modules slide easily into the rear of the counter.

Figure 1 displays the functional assignments for each module position. Table 1
describes available option modules for the S664.

eludoM

tols

1tupnIeludoMtupnIdradnatS

1tupnI

2.moC/txE46054eludoMnoitaticxECDV21

4rewoPeludoMrewoPCAV022/021

epyT N/P noitpircseD noitceSeeS

tupnIlasrevinU/erutardauQ

eludoM

4.2

5.2

6.2

3.2

Table 1. Option Module Summary

4

www. .com

[e-mail]1.800.561.8187

2 Hardware Setup

2.1 Panel Installation

The S664 1/8 DIN counter requires a standard 1/8 DIN panel cutout of 1.77”
(45mm) high by 3.62” (92mm) wide. To install the counter into a panel cutout,
remove the clips from the side of the counter. Slide the counter through your
panel cutout, then slide the mounting clips back on. Press evenly to ensure a
proper fit.

3.62"

92mm

3.24"

82mm

1.8"

45mm

1.74"

44mm

2.04"

51.8mm

.52"

13.2 mm

3.93"

99.8 mm

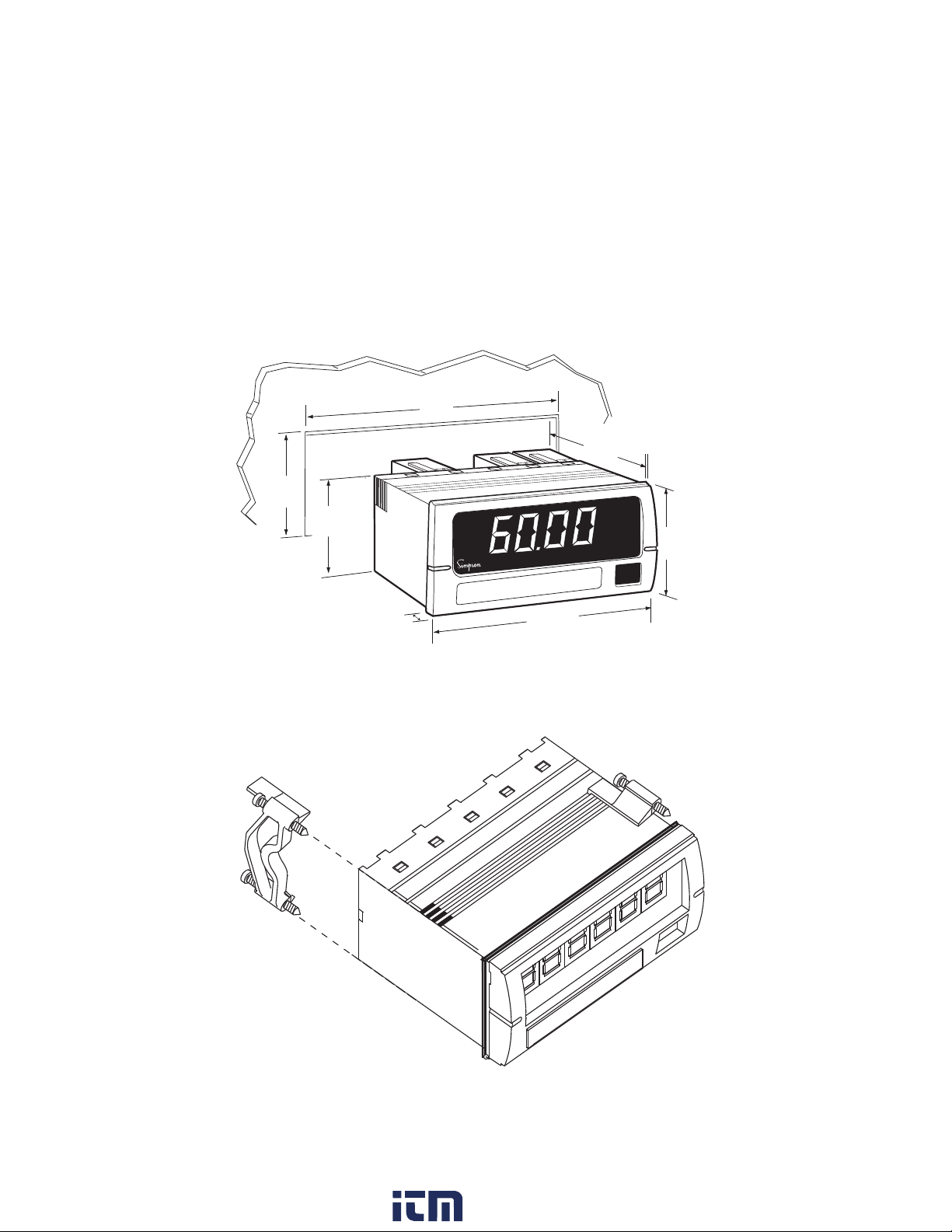

Figure 2. Counter and Panel Cut-Out Dimensions

Figure 3. Panel Mounting Clips

5

www. .com

[e-mail]1.800.561.8187

2.2 Removing / Installing Option Modules

Shut power off before removing or installing any option modules

Couper le courant avant de retirer ou d’installer des modules optionnels

1. Remove module from case by inserting a screwdriver into tab slot opening at top of input
module. Apply pressure to release module from case. Repeat procedure for tab located on
underside of module and then slide module away from the case.

2. Refer to appropriate sections to congure switches or jumpers for proper operation.

Table 1 can be used to identify modules and their associated detail paragraph.

3. Install module by carefully aligning module edges with slots in case and pressing forward
until tabs (on top and bottom) engage.

6

www. .com

[e-mail]1.800.561.8187

2.3 120/240 VAC Power Module

7

Remove power before wiring option modules.

Coupez l’alimentation avant de raccorder les modules optionnels.

The AC power module allows the S664 to be
operated from standard 50/60 Hz line power.

The power module will be congured as 120
VAC or 240 VAC per markings on the back
panel. Ensure the input rating of the supply
matches your line voltage. The power supply
module has provisions for a hard-wire Range
Select. This control can be a switch, relay
contact or solid state device. Actuation is
immediate upon an active Low for at least

2.5ms to this terminal. The reset circuit is

independent of the power circuit.

Denotes modules position 4 at rear
of counter

~

~

VAC

VAC

RESET

COMMON

POWER

Power Supply 120 VAC or 240 VAC
power connection

Remote Reset
Active low 0.2V performs primary
reset

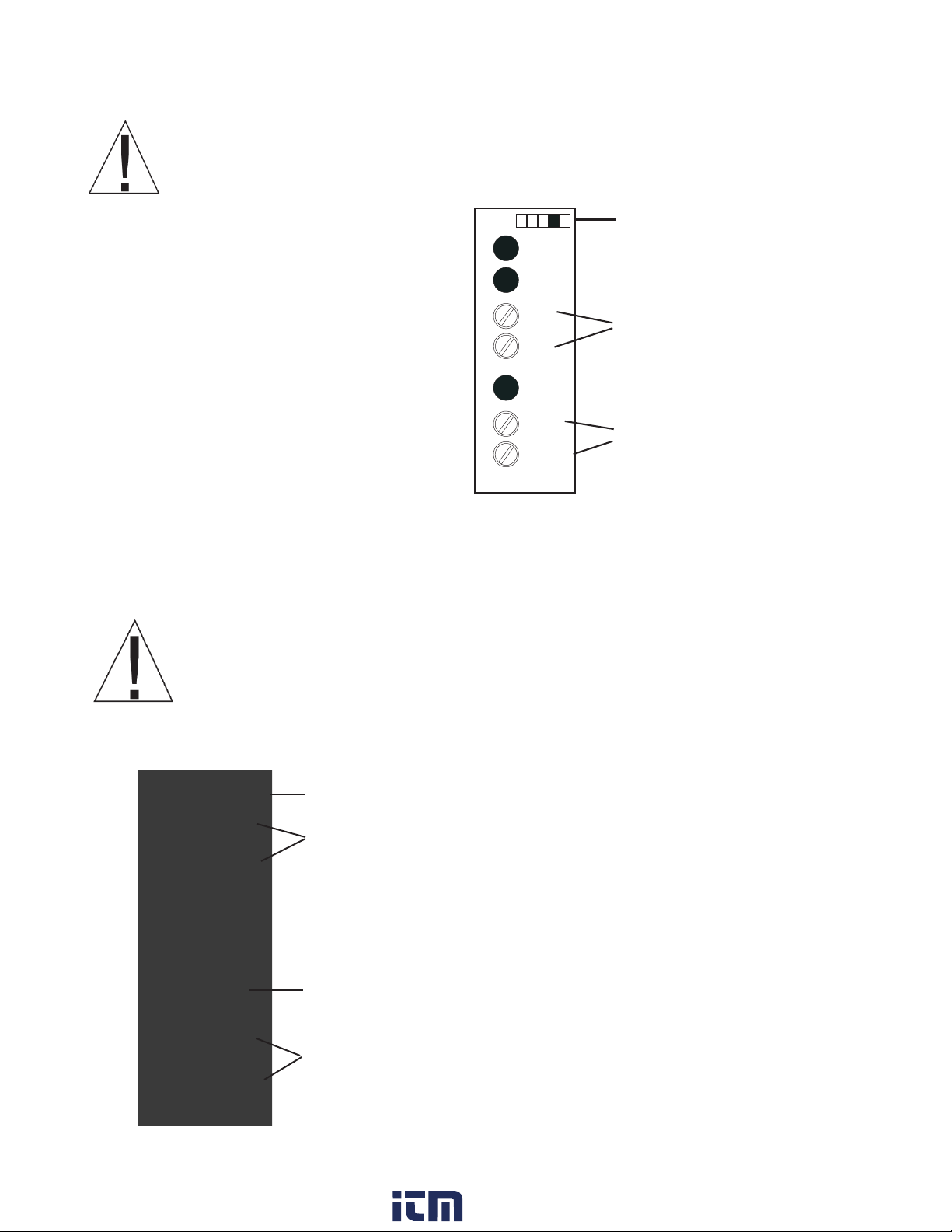

Figure 5. AC Power Module

NOTE: A fusible link is not provided on this module.
A ½ Amp Time Delay fuse, Bussman MDL ½, or similar is required.

Never connect AC mains (hot or neutral) to the Reset or Common terminals!

Ne jamais brancher sur secteur (chaudes ou neutres) pour la réinitialisation
ou terminaux communs!

2.4 Standard Input Module

Denotes module position 1 at rear of counter

A INPUT

COMMON

USER
INPUT

Primary Input
Connect the input signal to A INPUT and COMMON

Program Step
Used only in special programming mode

B INPUT

COMMON

IINPUT

Secondary Input
Direction Control or count pulse input

Figure 6. Standard Input Module

www. .com

[e-mail]1.800.561.8187

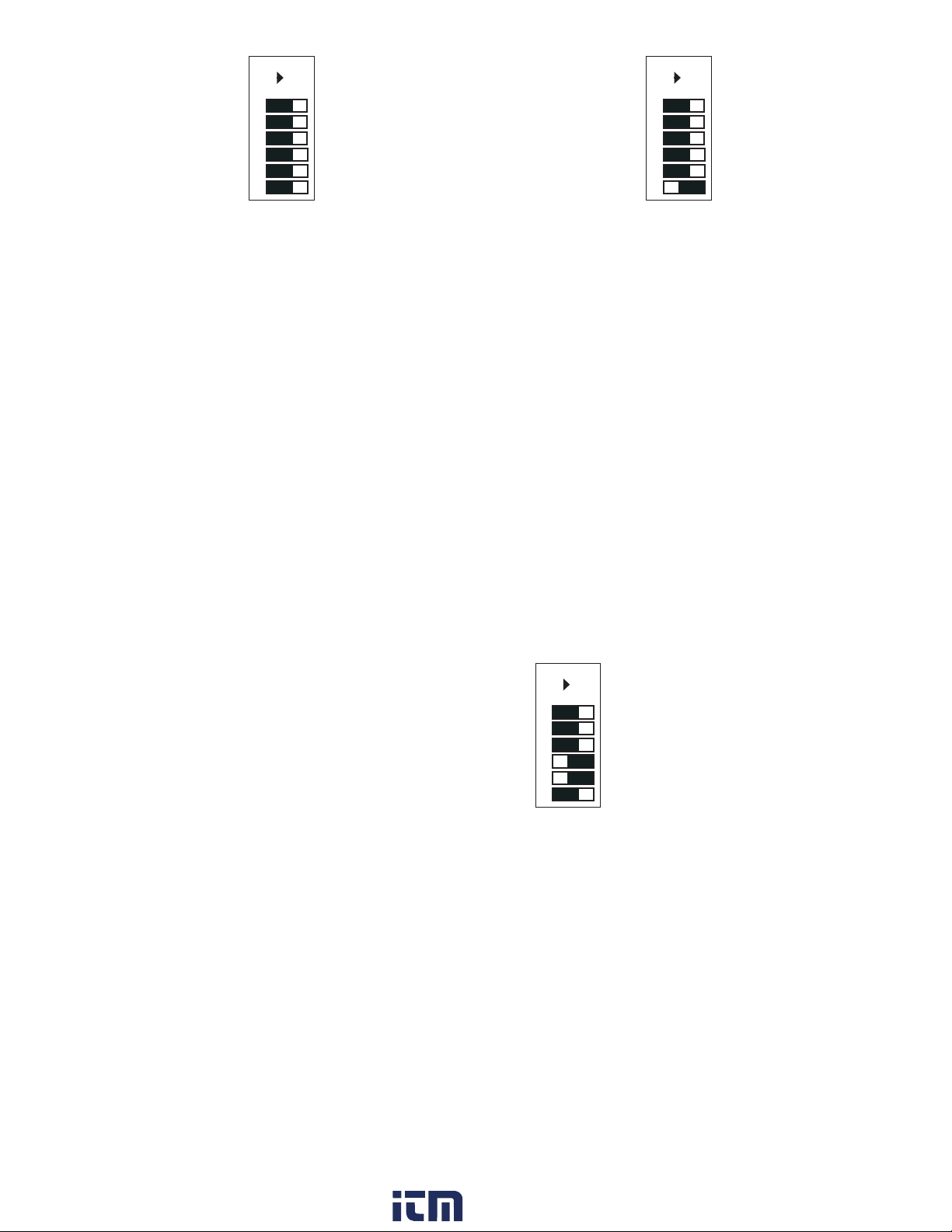

Figure 7. Standard Input Module Default Settings

DIP switch SW1, gure 7, is used to set up the counter to conform to the electrical characteristics
of the sensor or signal being detected. Switch positions 1-3 congure channel B, while switches
4-6 congure channel A. These switches select bias (threshold voltages), low pass lter (enable/
disable) and sensor type (Sink or Source). Refer to the documentation that accompanied the
sensor for related information. The sensor can most likely be matched to one of the typical
switch settings shown in gure 8 and gure 8a.

Note: The input boards are designed so that selecting sourcing or sinking is based on the
type of sensor that is being used. If a PNP (sinking) sensor is being used, set the input
board for sinking also (switches 3 and 6 = OFF).

If channel B is not used, default settings for switch positions 1 through 3 should be selected.
Default settings are provided in Table 2.

The Input module also provides for a User input signal. On the S664, this input serves as a
secondary channel (Rate) hard-wired reset. This may be used, for example, to reset latched
alarm outputs that have been assigned to rate.

8

www. .com

[e-mail]1.800.561.8187

The S664 can accept inputs from many different sensors. The A and B chan­nels may be configured independently as shown in Table 2. Figures 8 and 8a
have examples of some typical sensors and the wiring connections that would be
used.

Table 2. Standard Input Module DIP Switch Settings

* = Factory Default setting
1 B Channel Bias: OFF = Hi* VLT = 5.0 V VUT = 7.0V (+/- 10%)
ON = Low VLT = 1.6 V VUT = 3.6V (+/- 10%)

2 B Channel Frequency: OFF = Hi* (low pass filter disabled)
ON = Lo (low pass filter enabled)

3 B Channel Sensor: OFF = Sinking* (internal pull-up enabled)
ON = Source (internal pull-down enabled)

4 A Channel Bias: OFF = Hi VLT = 5.0 V VUT = 7.0V (+/- 10%)
ON = Low* VLT = 1.6 V VUT = 3.6V (+/-10%)

5 A Channel Frequency: OFF = Hi* (low pass filter disabled)
ON = Lo (low pass filter enabled)

6 A Channel Sensor Type: OFF = Sinking* (internal pull-up enabled)
ON = Source (internal pull-down enabled)

9

www. .com

[e-mail]1.800.561.8187

ON

ON

HIGH BIAS

HIGH FREQUENCY

SINKING

1

2

3

4

5

6

NPN SENSOR

LOW BIAS
LOW FREQUENCY
SOURCING

HIGH BIAS

HIGH FREQUENCY

SINKING

PNP SENSOR

1

2

3

4

5

6

LOW BIAS
LOW FREQUENCY
SOURCING

Figure 8. Sensor Connection Examples

HIGH FREQUENCY

Figure 8a. Sensor Input Example

HIGH BIAS

SINKING

ON

1

2

3

4

5

6

LOW BIAS
LOW FREQUENCY
SOURCING

2.5 Quadrature Input Module

The Quadrature / Universal Input Module has two operational modes: Quadrature mode and
Standard mode. Quadrature mode is selected by positioning JP1 and JP2 on pins 1 and 2.
Standard mode is selected by placing JP1 and JP2 on pins 2 and 3 (see Figure 10 for details).

10

www. .com

[e-mail]1.800.561.8187

The Quadrature mode supports a wide range of encoders including the Simpson SE series.

While in Standard mode, this module works similarly to the Standard Input module, with the
added capability to selectively invert the A, B, and User input signals.

NOTE: If B channel is not going to be used, use the default switch settings
for SW1 positions 1 through 3.

Default settings are provided in Table 3. In both modes, the state of the User input signal can

be selected as active high or active low. DIP switch SW1 congures the counter to match the
specications of the accompanying sensor. When shipped from the factory, the counter is set

for X1 quadrature, as shown in Figure 10 and Table 3:

Denotes module position 1 at rear of counter

A INPUT

COMMON

Figure 9.
Quadrature / Universal Input Module

Primary Input or Quadrature A

IINPUT

B Bias Off = Hi On = Lo

B Freq Off = Hi On = Lo

B Off = Sink On = Source

A Bias Off = Hi On = Lo

1

456

3

2

SW1

Dip Switch:

Shown in

Quadrature Mode

(Factory Default)

USER
INPUT

B INPUT

COMMON

A Freq Off = Hi On = Lo

A Off = Sink On = Source

B Edge Off = On =

A Edge Off = On =

9810

7

Program Step Used only in special program mode

Secondary Input or Quadrature B

User pol Off = On =

Quadr Off = X4 On = X1

Dip Switch

Legend

= ON

= OFF

Figure 10. Quadrature Input Module Default Settings

11

www. .com

[e-mail]1.800.561.8187

Table 3. Quadrature Module DIP Switch and Jumper Settings

12

JP1/2: Count Mode Selector
Jumpered 1-2 = Quadrature mode
Jumpered 2-3 = Standard counter mode
SW1: 10 Position DIP Switch
* = Factory Default setting

1 B Channel Bias: OFF = Hi* VLT = 5.0V VUT = 7.0V (+/- 10%)
ON = Low VLT = 1.6V VUT = 3.6V (+/- 10%)

2 B Channel Frequency: OFF = Hi* (low pass lter disabled)
ON = Low (low pass lter enabled)

3 B Channel Sensor: OFF = Sinking* (internal pull-up enabled)
ON = Source (internal pull-down enabled)

4 A Channel Bias: OFF = Hi* VLT = 5.0 V VUT = 7.0V (+/- 10%)
ON = Low VLT = 1.6 V VUT = 3.6V (+/- 10%)

5 A Channel Frequency: OFF = Hi* (low pass lter disabled)
ON = Lo (low pass lter enabled)

6 A Channel Sensor Type: OFF = Sinking* (internal pull-up enabled)
ON = Source (internal pull-down enabled)

7 B Channel Count Edge: OFF = Rising (standard count mode only)
ON = Falling*

8 A Channel Count Edge: OFF = Rising (standard count mode only)
ON = Falling*

9 User Input Polarity: OFF = High/open circuit = Inhibit Count
ON* = Low/closed circuit = Inhibit Count

10 Quadrature Mode: OFF = X4 (quadrature mode only)
ON =X1*

www. .com

[e-mail]1.800.561.8187

Figure 2.6 Excitation Module

13

Figure 11. Wiring Encoder w/Excitaion Supply

12 VDC Excitation Module

The Excitation Module can supply 12 VDC at up to 100 mA for external sensors or encoders.
This excitation is isolated from the counter internal logic supply.

When using sensors or encod ers that do not have a signal return or imply a signal return that
is in common with the supply voltage, a common attachment that ties the excitation supply to
the logic input common may be required.

Examples of this appear in gures 8, 8a, 11 and 12.

Figure 12. Wiring Encoder with External Supply

www. .com

[e-mail]1.800.561.8187

Denotes module
position 2 at rear of
counter

ISO+12V

ISOCOM

EXCITATION

+

__

---

_

12 VDC, 100 mA max

Figure 13. Excitation Module

3 Display & Rear Panel Controls

3.1 Display

Numeric & Message Display

Units Window

Figure 14. Display Layout

• 6-digit 0.56” high red LED display.

• Units Window for supplied label or legend.

• Upon power up, the S664 will identify its model and version.

14

www. .com

[e-mail]1.800.561.8187

3.2 Display Error Messages

Display Description

9999 or

-999

(Flashing)

E3

(Outputs

deactivate, count

stops)

Display Over Range: The displayed count is too
large for the counter to display. Since the internal
count buffer is much larger than the display, the
counter will maintain accurate frequency well
beyond the display value.

Watchdog Fault: The counter did not experience
an orderly power-down. This can happen by
exceeding the maximum allowable count speed for
a sustained period of time.

Action

Required

Reset

Counter

Reset

Counter

3.3 Rate (Frequency) Scaling and Display

The S664 can measure frequencies ranging from 1.00 Hz to 35 KHz. The fre­quency scale is selected according to Table 4. The frequency range is selected
by using a wire or switch across the RESET and COMMON terminals on the
rear of the counter. The range prompt (scl 1) will toggle each time the contact is
made.

Range

scl1

scl2

scl3

scl4

Typica l
Update

Period

1.0 sec 3.0 sec 1.00 Hz 99.99 Hz

1.0 sec 2.0 sec 1.6 Hz 999.9 Hz

0.5 sec 1.0 sec 4 Hz 9999 Hz

0.5 sec 1.0 sec 0.01 KHz 35.00 KHz

Max

Update

Period

Min.

Input

Frequency

Max.

Input

Frequency

Comments / Typical Application

1/100 Hz resolution / measure

signals less than 100 Hz.

1/10 Hz resolution / measure

signals less that 1 KHz

1 Hz resolution / measure signals

less than 10 KHz

0.01 KHz resolution / measure
signals in KHz

Table 4. Frequency Scale Selection

Frequency can also be displayed as a signed entity and will be negative accord­ing to the direction control. (See section 3.4.)

15

www. .com

[e-mail]1.800.561.8187

3.4 A/B Channel Inputs

The A channel input is a pulse source. This signal must be limited to under 35
KHz. This corresponds to a minimum pulse width of 28.57 microseconds. The
signal does not need an even duty cycle (On vs. Off time) as long as a minimum

(high or low) of 1 microsecond is maintained (See figure 15).

Tp (Minimum)

1 us

1 us

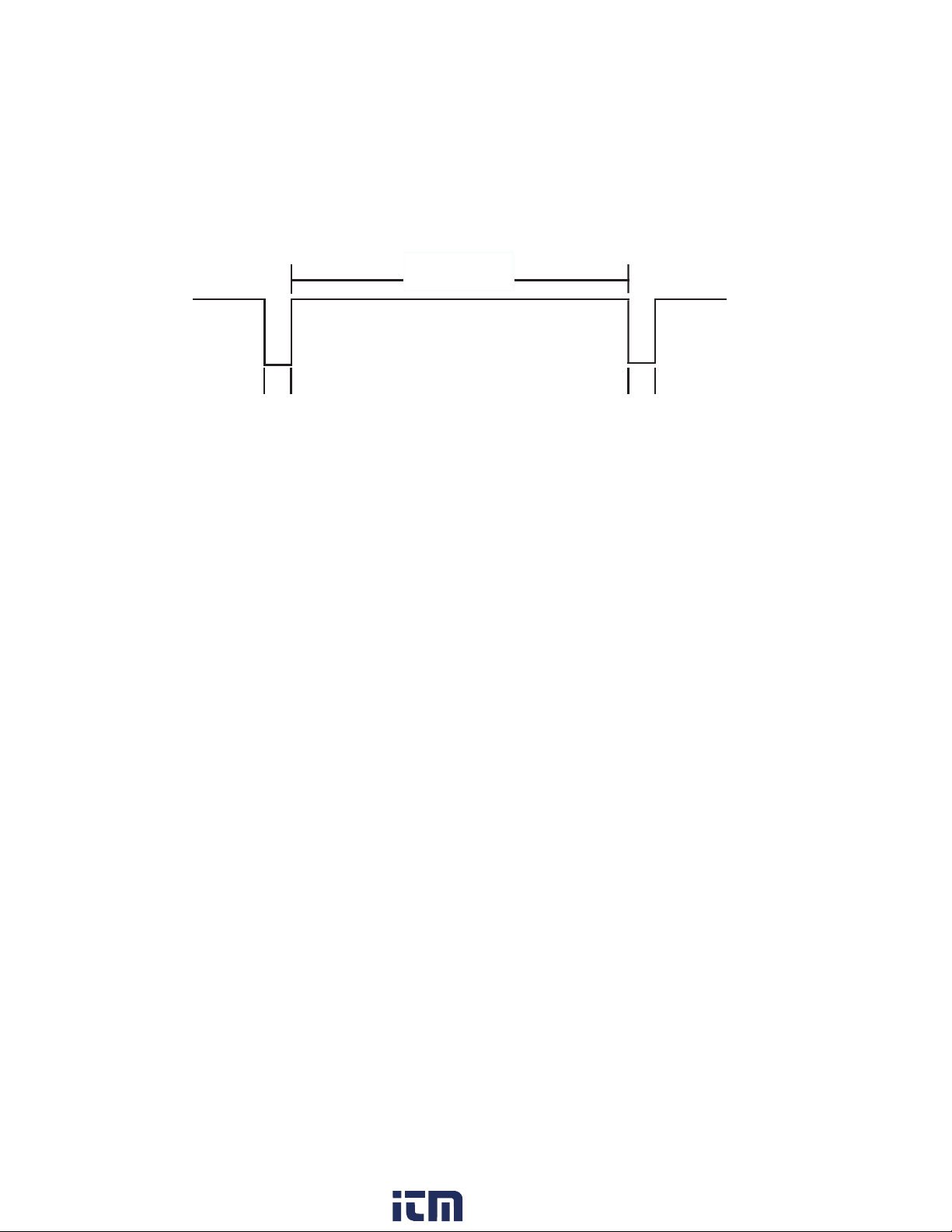

Figure 15. Input Pulse Definition

The B Channel acts as a direction control. If the B input is in the active state,
frequency will be displayed as a negative number. When using the quadrature
input card (in quadrature mode), A and B encoder signals are translated to Pulse
and Direction signals internally.

16

www. .com

[e-mail]1.800.561.8187

Appendix A: Technical Specifications

A.1 Functional Specifications

Frequency modes

Frequency Inputs

Miscellaneous inputs

Maximum count rate

Min pulse width

Frequency range
(internal)

Frequency accuracy
(instantaneous)

Frequency vs

temperature

Frequency vs time
(aging)

Display Digits

Display Decimal Point

Scale 1 1.00 to 99.99 Hz 1 update / sec

Scale 2 2.0 to 999.99 Hz 1 update / sec

Scale 3 4 to 9999 Hz 2 updates / sec

Scale 4 0.01 to 35.00 KHz 2 updates / sec

Channel A and Channel B

Reset (Scale Select) and B (Direction Control)

35 KHz (Standard and Quadrature X1 modes)

8.75 KHz (Quadrature X4 mode)

2 uS (Standard mode)

-2,147,483,648 Hz to +2,147,483,648

> ± 0.001% of reading

+ 0.0001% of reading per °C

± 0.001% of reading per year

4-digit, 7-segment with leading zero blanking

Position according to selected scale

Display LEDs

Display Range

A.2 Electrical, Environmental and Mechanical

Red 0.56" (14.2mm), high efficiency

- 999 to + 9999
(Independent of decimal position)

Specifications

Power Requirements

Power Consumption

Reset Input Signal

Storage Temperature

Operating Temperature

Relative Humidity

Bezel

Panel Cutout

AC Supply: 120 or 240 VAC, ±10%

3VA

Active Low: 0.2 VDC = active

-10 to 60°C

0 to 40°C

0 to 80% for temperatures less than 32°C,
decreasing linearly to 50% at 40°C. (Non­condensing)

3.93" x 2.04" x 0.52" (99.8 x 51.8 x 13.3mm)

3.62" x 1.77" (92 x 45 mm) 1/8 DIN

Case Depth

Weight

3.24" (82mm)

9.0 oz. (255.1 g)

17

www. .com

[e-mail]1.800.561.8187

Standard input module

Input Channels

Count edge

Input Sources

Input Impedance

A & B channels

User Channel

Low pass filter

Max voltage

A, B and User

High to low transition (A and B channels)

Switch contact, CMOS or TTL logics, PNP or NPN
devices

Sinking: 10K, 5% Res. Pull-up to (9.0 - 16 VDC) ±10%
Sourcing: 5.1K, 5% Res. Pull-down to common

Low Bias mode:VLT = 1.6V ±10% VUT = 3.6V ±10%
High Bias mode:VLT = 5.0V ±10% VUT = 7.0V ±10%

VLT = 0.2V (min) VUT = 3.0V (max)

Frequency < 200Hz (0 to 10V input square wave at
50% duty cycle)

A, B and User channels 30VDC maximum sustained

Quadrature / Universal input module

tupnI

slennahC

tupnI

noisrevnI

Input Thresholds

resUdnaB,A

lennahcBdnaA.elbatcelesytiraloptupniresU

.ylnoedomdradnatsnievitcelesytiralop

noitarepO

sedom

tupnI

secruoS

tupnI

ecnadepmI

B&A

slennahc

resU

lennahC

ssapwoL

retlif

egatlovxaM

Isolated 12V Excitation Module

tuptuOnoitatixE

noitalosInoitatixE

4XerutardauQdna1XerutardauQ,dradnatS

NPNroPNP,scigolLTTroSOMC,tcatnochctiwS

sredocne)dedne-elgnis(erutardauqsecived

%01±)CDV61-0.9(otpu-lluP.seR%5,K01:gnikniS

nommocotnwod-lluP.seR%5,K1.5:gnicruoS

sdlohserhTtupnI

%01±V6.3=TUV%01±V6.1=TLV:edomsaiBwoL

%01±V0.7=TUV%01±V0.5=TLV:edomsaiBhgiH

)xam(V51.3=TUV)nim(V9.0=TLV

taevawerauqstupniV01ot0(zH002<ycneuqerF

)elcycytud%05

deniatsusmumixamCDV03slennahcresUdnaB,A

%5±CDV21taAm001

V0051

18

www. .com

[e-mail]1.800.561.8187
