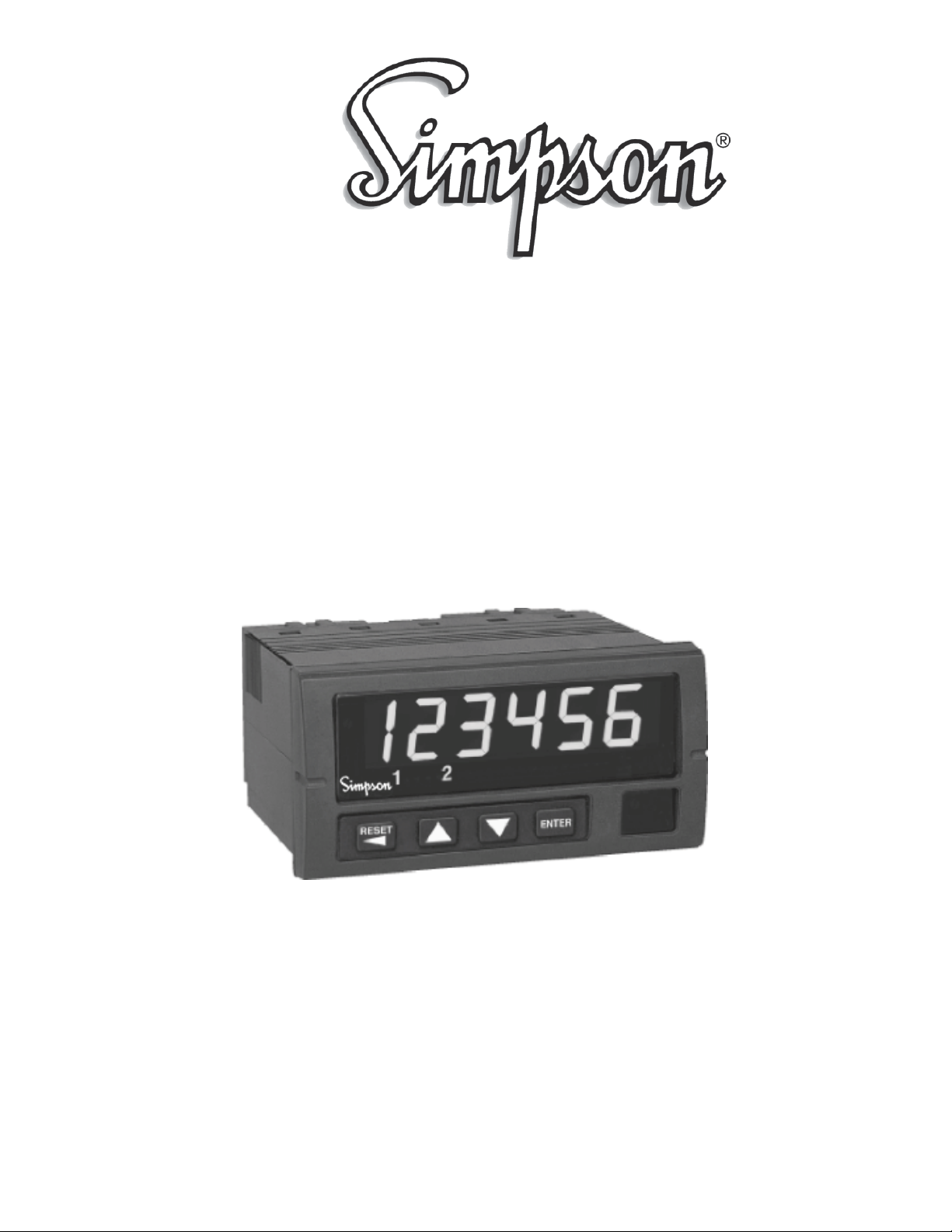

Digital Preset / Totalizer Counter & Rate Meter

Operation Manual

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 2

About this Manual

To the best of our knowledge and at the time written, the information contained in this document is technically correct and the procedures accurate and adequate to operate this

instrument in compliance with its original advertised specications.

Notes and Safety Information

This Instruction Manual contains warning headings that alert the user to check for hazardous

conditions. These appear throughout this manual where applicable, and are dened below.

To ensure the safety of operating performance of this instrument, these instructions must be adhered to.

Warning, refer to accompanying documents.

Attention, consulter les documents d’accompagnement.

Caution, risk of electric shock.

Attention, risque de choc électrique.

Warranty and Returns

SIMPSON ELECTRIC COMPANY warrants each instrument and other articles manufactured by it to be free from defects in material and workmanship under normal use and service, its obligation under this warranty being limited to making good at its factory or other article of equipment which shall within one (1) year after delivery of such instrument or other article of equipment to the original purchaser be returned intact to it, or to one of its authorized service centers, with transportation charges prepaid, and which its examination shall disclose to its satisfaction to have been thus defective; this warranty being expressly in lieu of all other warranties expressed or implied and of all other obligations or liabilities on its part, and SIMPSON ELECTRIC COMPANY neither assumes nor authorizes any other persons to assume for it any other liability in connection with the sales of its products.

This warranty shall not apply to any instrument or other article of equipment which shall have been repaired or altered outside the SIMPSON ELECTRIC COMPANY factory or authorized service centers, nor which has been subject to misuse, negligence or accident, incorrect wiring by others, or installation or use not in accord with instructions furnished by the manufacturer.

Under the normal eld usage there is no need to remove the front bezel of this product. The front bezel of this product should only be removed by a qualied technician.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 3

Contents

1 Product Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1.1 General Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1.2 Part Number Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.3 Option Module Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 Hardware Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2.1 Panel Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.2 Removing / Installing Option Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.3 120/240 VAC Power Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.4 Standard Input Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.5 Quadrature Input Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

2.6 Excitation Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.7 Single and Dual Relay Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3 Display & Keypad Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.1 Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

3.2 Display Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

3.3 What the Keys Do in Display Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.4 What the Keys Do in the Programming Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.5 Special Start-Up Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

4 Programming Operations and Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

4.1 Password and Security Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.2 A/B Channel Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

4.3 Scaling and Decimal Point Position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.4 Rate (Frequency) Scaling and Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.5 Output Control Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

4.6 Set Point Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.7 Auto Reset Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

4.8 Miscellaneous Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Appendix A: Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

A.1 Functional Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

A.2 Electrical, Environmental and Mechanical Specifications. . . . . . . . . . . . . . . . . . . . . 29

Appendix B: Programming Quick Reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 4

1 Product Description

1.1 General Description

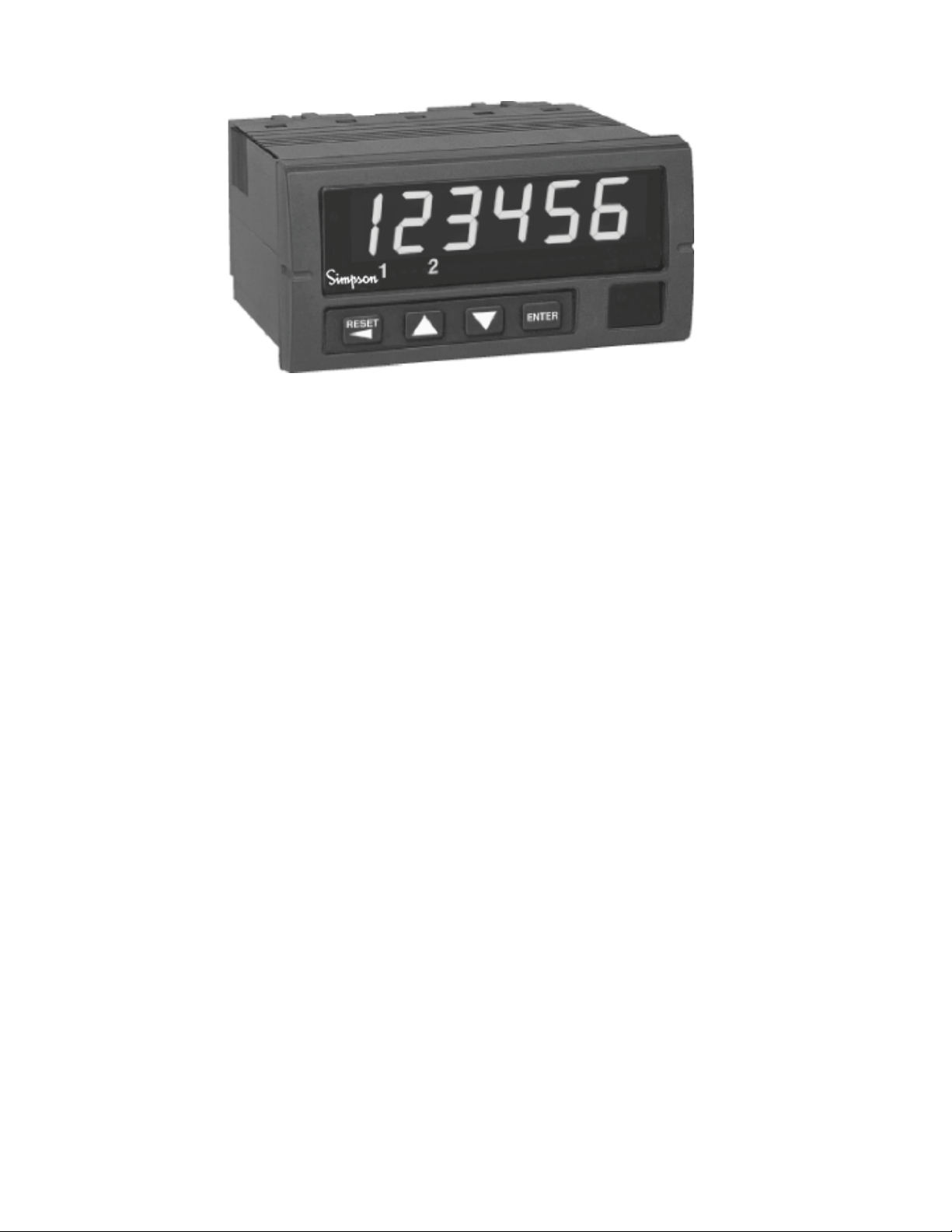

The S663 preset counter and rate meter fits a 1/8 DIN standard cutout and is perfect for tight spaces, extending only 3.24” (82mm) behind the panel. The unit is UL listed. The unit is for indoor use at altitudes up to 2000m, temperatures between 0° and 40°C, and installation category III, pollution degree 2.

The counter is powered from 120 or 240 VAC. The nonvolatile EEPROM retains all programming and count information when power is removed or interrupted.

Display scaling, preset values and all menu functions are easily programmed from the front panel, following easy-to-use word prompts. Front Panel Reset Disable and Password Lockout Protection features guard against unauthorized or accidental changes.

The counter accepts count rates up to 20 KHz and pulses from different types of sensors, including Quadrature, CMOS or TTL circuits and PNP or NPN devices.

The optional, field-replaceable, single/dual relay module enhances the counter from a passive display device to an integral control element for your application. Outputs may be controlled by count or rate values with independent reset operation. The counter has latching, boundary or timed (0.01 to 599.99 seconds) alarm output modes.

An optional 12 VDC (100mA) excitation output module can provide power for external sensors.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 5

1.2 Part Number Identification

The following matrix indicates the configuration of your S663 counter.

Basic Unit

S663

Power Supply

120 VAC 240 VAC

1 2

1.3 Option Module Summary

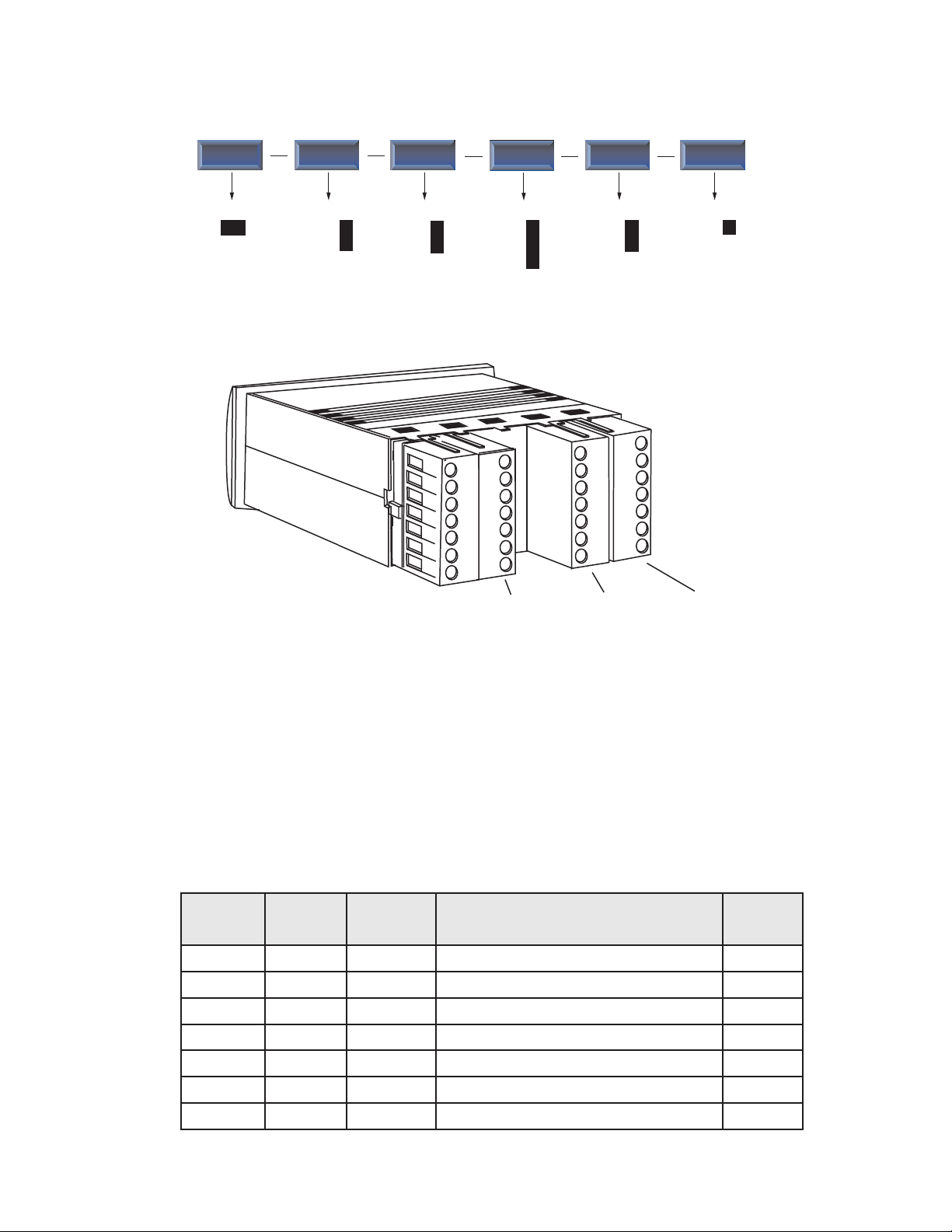

Figure 1. Option Module Slots (Rear View)

Input

Standard

Quadrature

Input Excitation Power

Output

None

One relay

Two Relays

0 1 2

Excitation

None 12VDC

Supply

Other

0 1

None

Output

The S663 is a modular product which uses field configuring slide-in modules. The modules slide easily into the rear of the counter. Figure 1 displays the functional assignments for each module position.

Table 1 describes available option modules for the S663.

Table 1. Option Module Summary

Module

See

Type P/N Description

Slot

Section 1 Input Standard Input Module 2.4 1 Input Quadrature Input Module 2.5 2 Ext. 45064 12 VDC Excitation Module 2.6 4 Power 120 VAC Power Module 2.3 4 Power 240 VAC Power Module 2.3 5 Output 45062 Dual Relay Module 2.7 5 Output 45063 Single Relay Module 2.7

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 6

2 Hardware Setup

2.1 Panel Installation

The S663 1/8 DIN counter requires a standard 1/8 DIN panel cutout of 1.77” (45mm) high by

3.62” (92mm) wide. To install the counter into a panel cutout, remove the clips from the side of the counter. Slide the counter through your panel cutout, then slide the mounting clips back on. Press evenly to ensure a proper fit.

3.62"

92mm

3.24"

82mm

1.77"

45mm

1.74"

44mm

2.04"

51.8mm

ENTER

3.93"

.52"

13.2 mm

RESET

99.8 mm

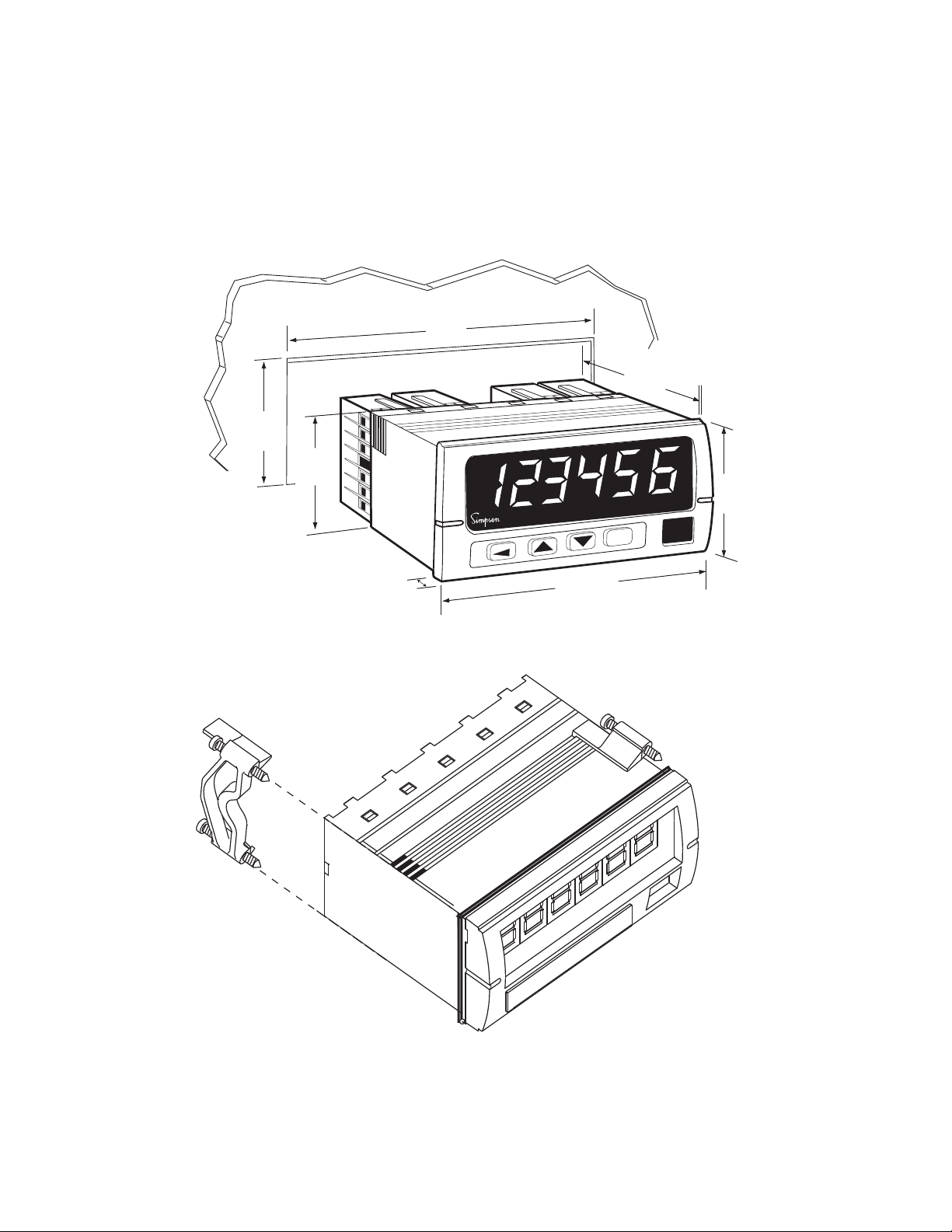

Figure 2. Counter and Panel Cut-Out Dimensions

Figure 3. Panel Mounting Clips

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 7

2.2 Removing / Installing Option Modules

Shut power off before removing or installing any option modules

Couper le courant avant de retirer ou d’installer des modules optionnels

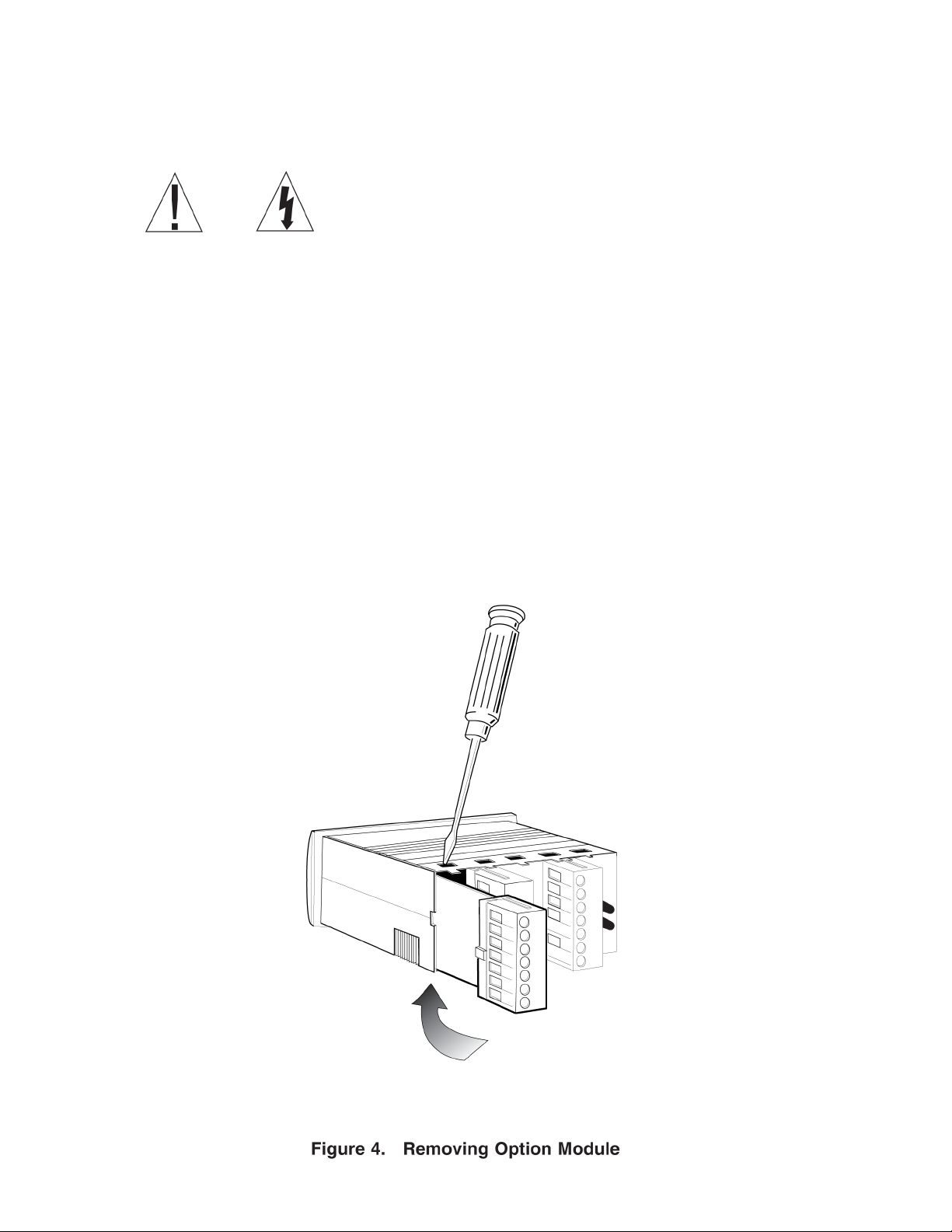

1. Remove module from case by inserting a screwdriver into tab slot opening at top of input module. Apply pressure to release module from case. Repeat procedure for tab located on underside of module and then slide module away from the case.

2. Refer to appropriate sections to congure switches or jumpers for proper operation.

Table 1 can be used to identify modules and their associated detail paragraph.

3. Install module by carefully aligning module edges with slots in case and pressing forward until tabs (on top and bottom) engage.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 8

2.3 120/240 VAC Power Module

Remove power before wiring option modules.

Coupez l’alimentation avant de raccorder les modules optionnels.

The AC power module allows the S663 to be operated from standard 50/60 Hz line power.

The power module will be congured as 120 VAC or 240 VAC per markings on the back panel. Ensure the input rating of the supply matches your line voltage. The power supply module has provisions for a hard-wire Count

VAC

Reset. This control can be a switch, relay contact or solid state device. Actuation is immediate upon an active Low for at least

2.5ms to this terminal. The reset circuit is

independent of the power circuit.

RESET

COMMON

POWER

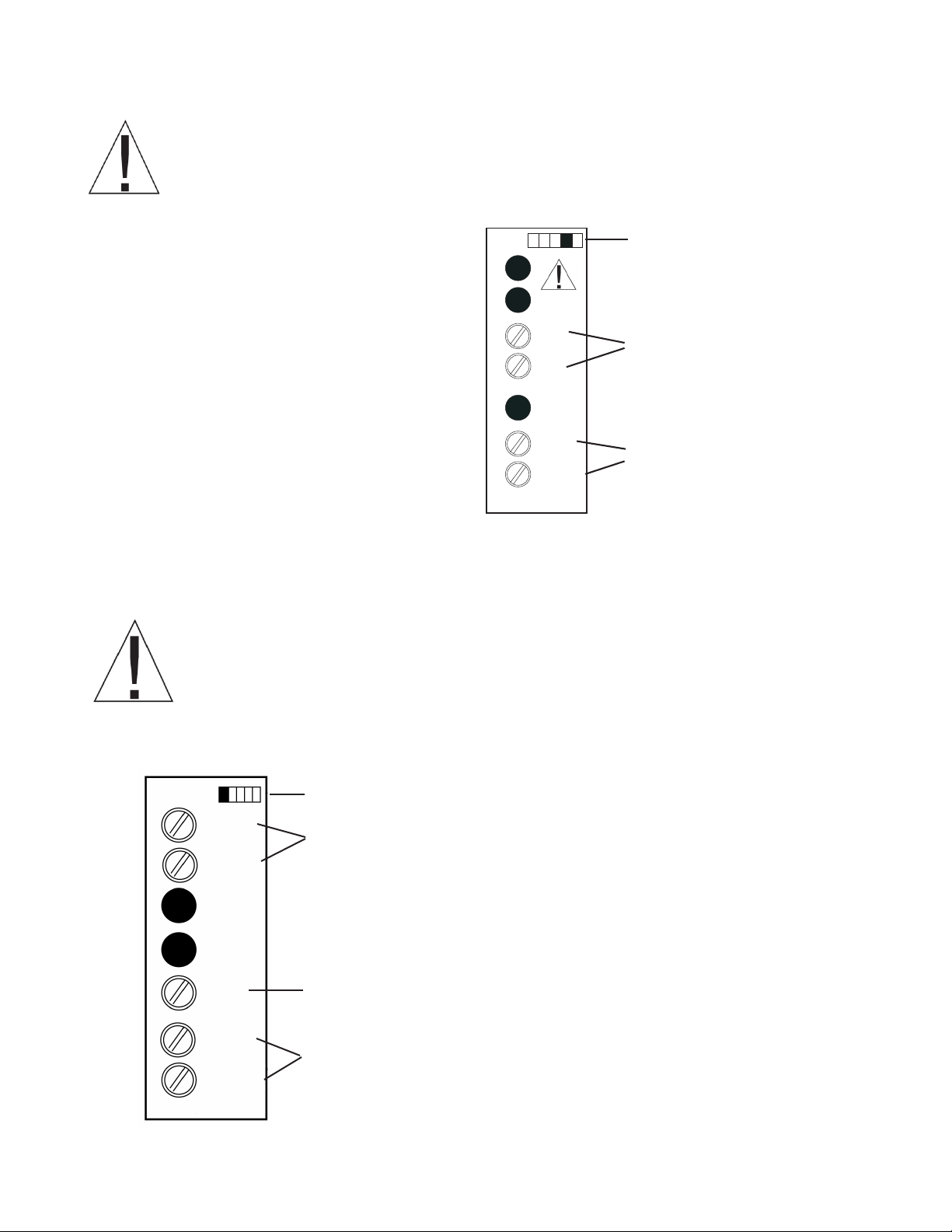

Figure 5. AC Power Module

NOTE: A fusible link is not provided on this module. A ½ Amp Time Delay fuse, Bussman MDL ½, or similar is required.

Never connect AC mains (hot or neutral) to the Reset or Common terminals!

Ne jamais brancher sur secteur (chaudes ou neutres) pour la réinitialisation ou terminaux communs!

Denotes modules position 4 at rear of counter

Power Supply 120 VAC or 240 VAC power connection

Remote Reset Active low 0.2V performs primary reset

2.4 Standard Input Module

Denotes module position 1 at rear of counter

A INPUT

COMMON

USER INPUT

B INPUT

COMMON

IINPUT

Primary Input Connect the input signal to A INPUT and COMMON

Rate Reset Active low resets rate alarms

Secondary Input Direction Control or count pulse input

Figure 6. Standard Input Module

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 9

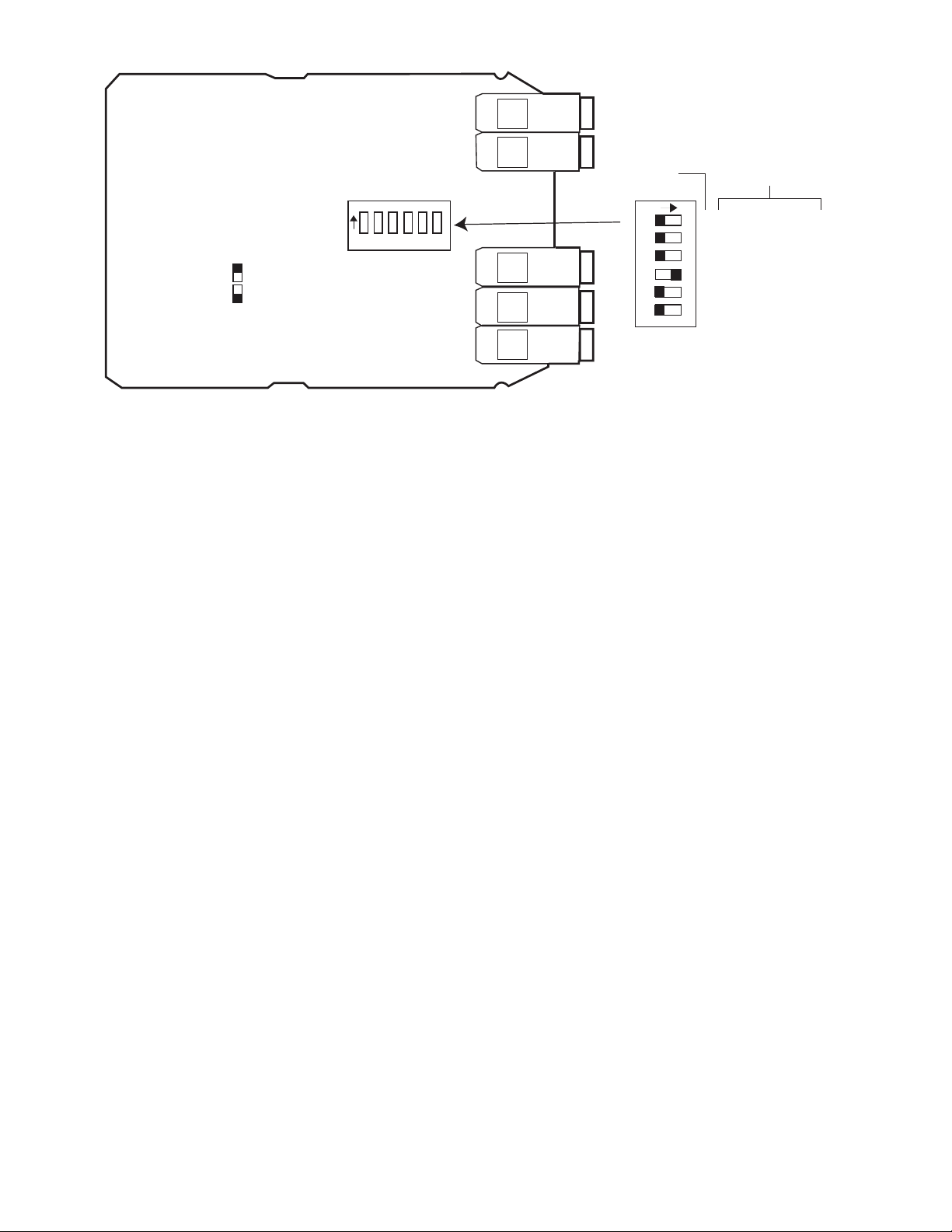

DIP Switch (Shown for TTL Factory Settings)

FUNCTION

B Bias Off=Hi On=Lo B Freq Off=Hi On=Lo B Off= Sink On= Source A Bias Off=Hi On=Lo A Freq Off=Hi On=Lo A Off= Sink On= Source

Dipswitch Legend

CHANNEL

1 2 3 4 5 6

= ON

= OFF

Note: Refer to specifications for DIP switch function electrical characteristics

Figure 7. Standard Input Module Default Settings

DIP switch SW1, figure 7, is used to set up the counter to conform to the electrical characteristics of the sensor or signal being detected. Switch positions 1-3 configure channel B, while switches 4-6 configure channel A. These switches select bias (threshold voltages), low pass filter (enable/disable) and sensor type (Sink or Source).

Refer to the documentation that accompanied the sensor for related information. The sensor can most likely be matched to one of the typical switch settings shown in figure 8 and figure 8a.

Note: The input boards are designed so that selecting sourcing or sinking is based on the type of sensor that is being used. If a PNP (sinking) sensor is being used, set the input board for sinking also (switches 3 and 6 = OFF).

If channel B is not used, default settings for switch positions 1 through 3 should be selected. Default settings are provided in Table 2.

The Input module also provides for a User input signal. On the S663, this input serves as a count enable/disable control. Connecting User to Common will disable counting.

The S663 can accept inputs from many different sensors. The A and B channels may be configured independently as shown in Table 2. Figures 8 and 8a have examples of some typical sensors and the wiring connections that would be used.

Table 2. Standard Input Module DIP Switch Settings

* = Factory Default setting

1 B Channel Bias: OFF = Hi* VLT = 5.0 V VUT = 7.0V (+/- 10%) ON = Low VLT = 1.6 V VUT = 3.6V (+/- 10%)

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 10

2 B Channel Frequency: OFF = Hi* (low pass filter disabled) ON = Lo (low pass filter enabled)

3 B Channel Sensor: OFF = Sinking* (internal pull-up enabled) ON = Source (internal pull-down enabled)

4 A Channel Bias: OFF = Hi VLT = 5.0 V VUT = 7.0V (+/- 10%) ON = Low* VLT = 1.6 V VUT = 3.6V (+/- 10%)

5 A Channel Frequency: OFF = Hi* (low pass filter disabled) ON = Lo (low pass filter enabled)

6 A Channel Sensor Type: OFF = Sinking* (internal pull-up enabled) ON = Source (internal pull-down enabled)

HIGH FREQUENCY

HIGH BIAS

SINKING

OUTPUT

COMMON

1 2 3 4 5 6

LOW BIAS LOW FREQUENCY SOURCING

A INPUT

COMMON

USER INPUT

B INPUT

ISO+12V

ISOCOM

COMMON

INPUT

EXCITATION

NPN SENSOR

HIGH BIAS

---

HIGH FREQUENCY

SINKING

1 2 3 4 5 6

LOW BIAS LOW FREQUENCY SOURCING

A INPUT

COMMON

USER INPUT

B INPUT

ISO+12V

ISOCOM

COMMON

INPUT

EXCITATION

PNP SENSOR

---

1 2 3 4 5 6

HIGH FREQUENCY

HIGH BIAS

SINKING

DRY CONTACT

LOW BIAS LOW FREQUENCY SOURCING

A INPUT

COMMON

USER INPUT

B INPUT

COMMON

INPUT

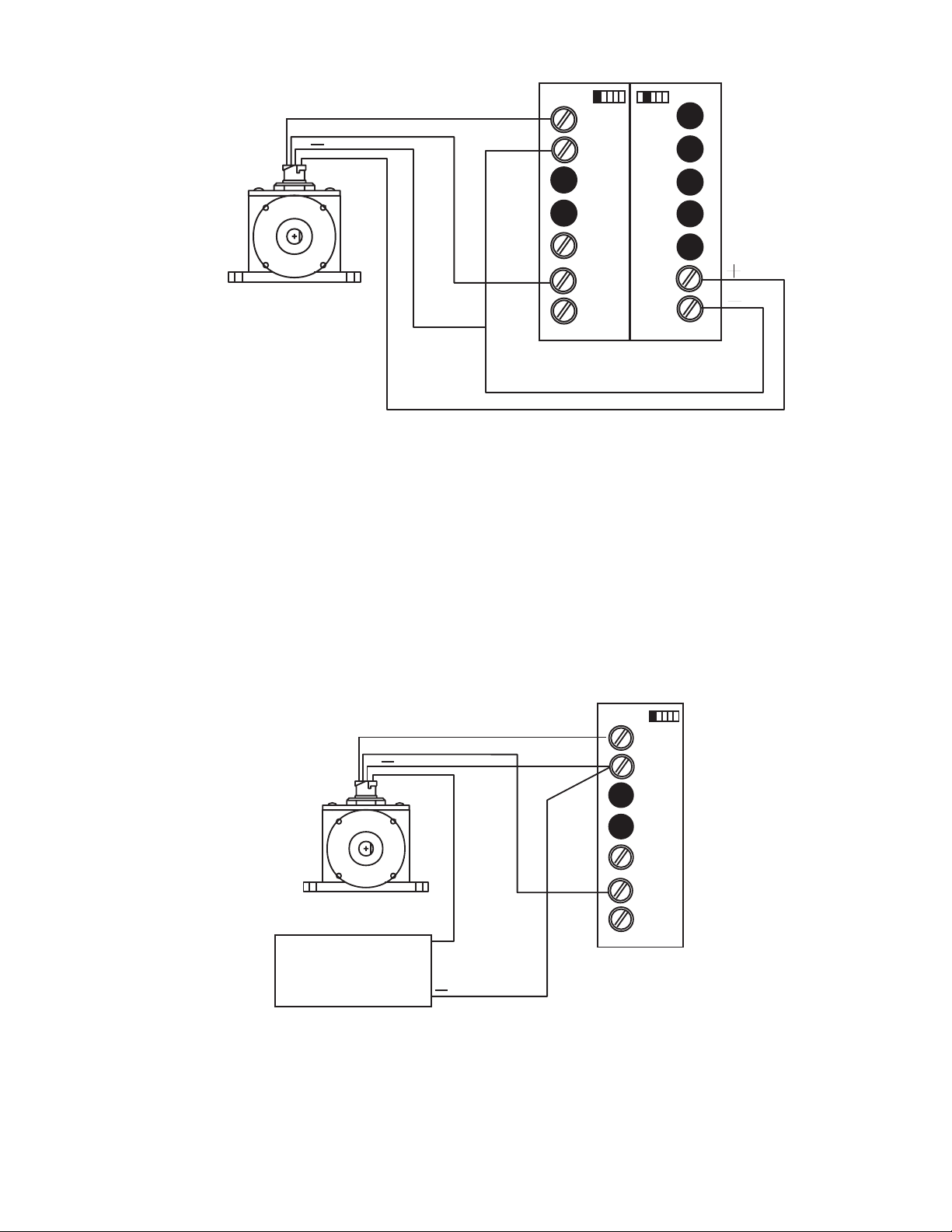

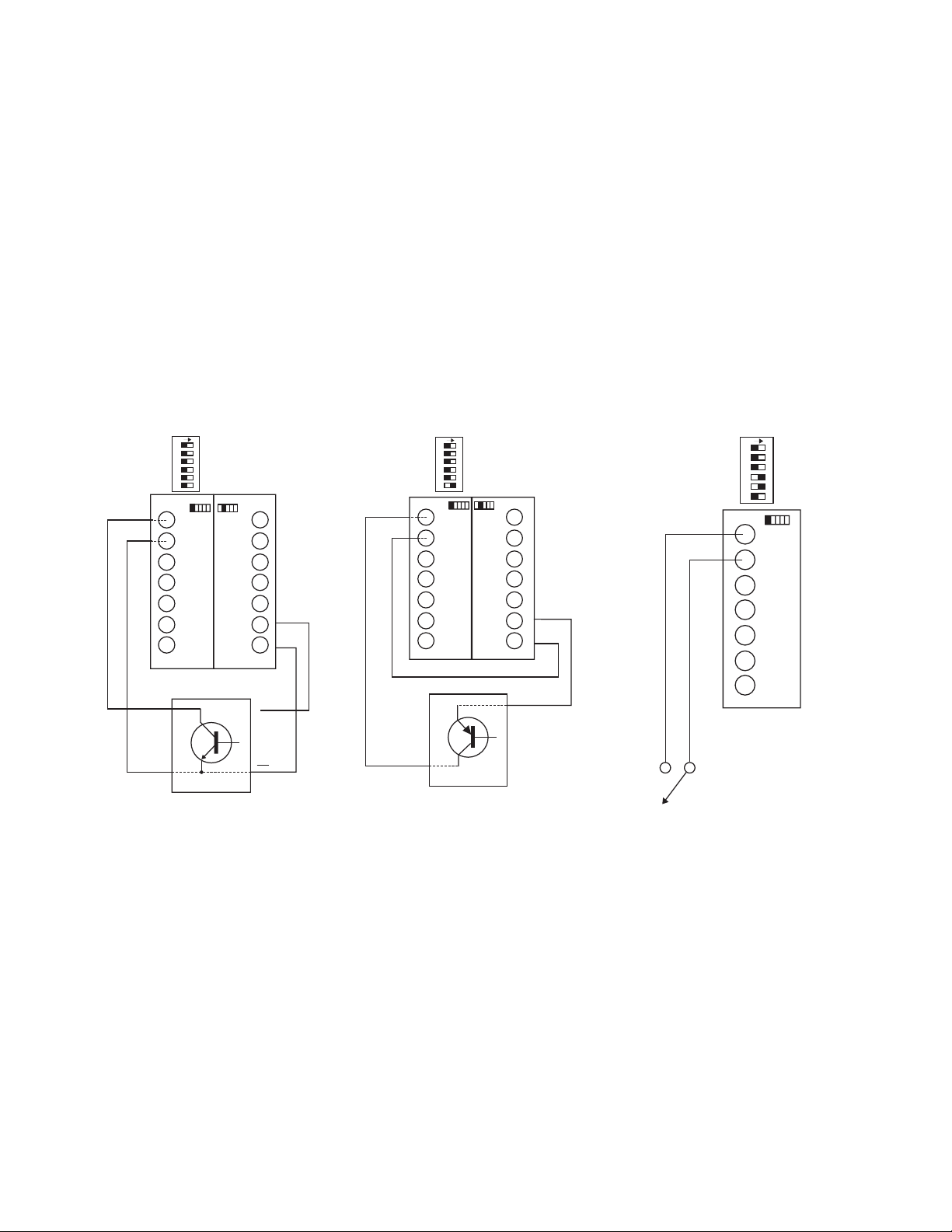

Figure 8. Sensor Connection Examples Figure 8a. Sensor Input example

2.5 Quadrature Input Module

The Quadrature / Universal Input Module has two operational modes: Quadrature mode and Standard mode. Quadrature Mode is selected by positioning JP1 and JP2 on pins 1 and 2. Standard Mode is selected by placing JP1 and JP2 on pins 2 and 3 (see Figure 10 for details). The Quadrature mode supports a wide range of encoders including the Simpson SE series.

While in Standard Mode, this module works similarly to the Standard Input module, with the added capability to selectively invert A, B, and User input signals.

The Input module also provides for a User input signal. On the S663, this input serves as a Rate hard-wire reset. This may be used, for example, to reset a latched output configured as an over speed alarm.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 11

NOTE: If B channel is not going to be used, use the default switch settings for SW1 positions 1 through 3. Default settings are provided in Table 3.

In both modes, the state of the User input signal can be selected as active high or active

low. DIP switch SW1 congures the counter to match the specications of the accompanying sensor. When shipped from the factory, the counter is set for X1 quadrature, as shown in

Figure 10 and Table 3:

Denotes module position 1 at rear of counter

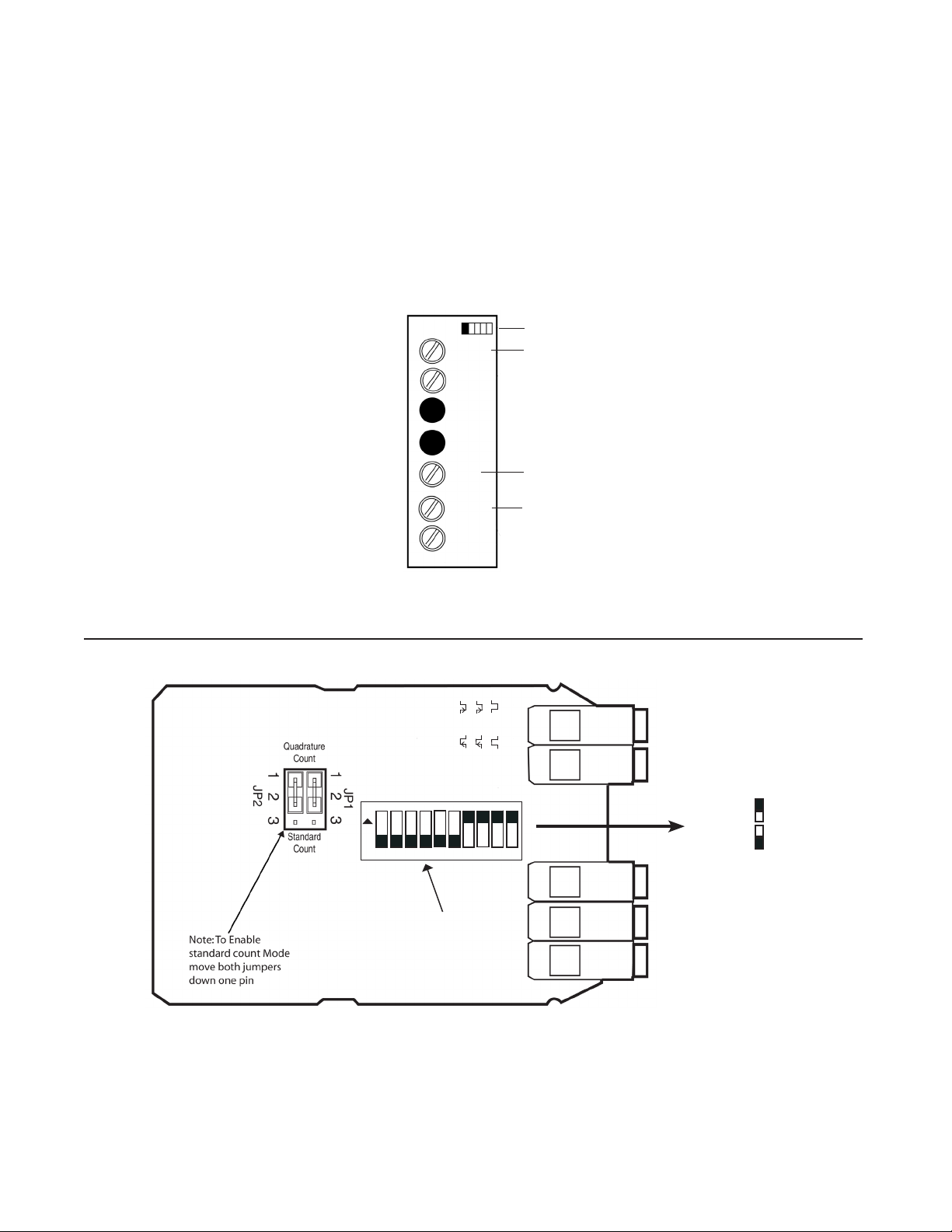

Figure 9. Quadrature / Universal Input Module

A INPUT

COMMON

Primary Input or Quadrature A

B Bias Off = Hi On = Lo

B Freq Off = Hi On = Lo

B Off = Sink On = Source

A Bias Off = Hi On = Lo

456

SW1

Dip Switch:

Shown in

Quadrature Mode

(Factory Default)

USER INPUT

B INPUT

COMMON

IINPUT

A Freq Off = Hi On = Lo

A Off = Sink On = Source

B Edge Off = On =

A Edge Off = On =

Rate Reset Active low Resets rate alarms

Secondary Input or Quadrature B

User pol Off = On =

Quadr Off = X4 On = X1

9810

Dip Switch

Legend

= ON

= OFF

Figure 10. Quadrature Input Module Default Settings

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 12

Table 3. Quadrature Module DIP Switch and Jumper Settings

JP1/2: Count Mode Selector Jumpered 1-2 = Quadrature mode Jumpered 2-3 = Standard counter mode SW1: 10 Position DIP Switch *= Factory Default setting

1 B Channel Bias: OFF = Hi* VLT = 5.0V VUT = 7.0V (+/- 10%) ON = Low VLT = 1.6V VUT = 3.6V (+/- 10%)

2 B Channel Frequency: OFF = Hi* (low pass filter disabled) ON = Low (low pass filter enabled)

3 B Channel Sensor: OFF = Sinking* (internal pull-up enabled) ON = Source (internal pull-down enabled)

4 A Channel Bias: OFF = Hi* VLT = 5.0 V VUT = 7.0V (+/- 10%) ON = Low VLT = 1.6 V VUT = 3.6V (+/- 10%)

5 A Channel Frequency: OFF = Hi* (low pass filter disabled) ON = Lo (low pass filter enabled)

6 A Channel Sensor Type: OFF = Sinking* (internal pull-up enabled) ON = Source (internal pull-down enabled)

7 B Channel Count Edge: OFF = Rising (standard count mode only) ON = Falling*

8 A Channel Count Edge: OFF = Rising (standard count mode only) ON = Falling*

9 User Input Polarity: OFF = High/open circuit = Inhibit Count ON* = Low/closed circuit = Inhibit Count

10 Quadrature Mode: OFF = X4 (quadrature mode only) ON = X1*

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 13

2.6 Excitation Module

QUADRATURE ENCODER

PHASE A-WHITE

PHASE B-GREEN

COMMON (BLACK)

POSITIVE-RED

A INPUT

COMMON

USER INPUT

B INPUT

COMMON

INPUT

QUADRATURE INPUT CARD

ISO+12V

ISOCOM

EXCITATION

CARD

---

Figure 11. Wiring Encoder w/ Excitation Supply

12 VDC Excitation Module

The Excitation Module can supply 12 VDC at up to 100 mA for external sensors or encoders. This excitation is isolated from the counter internal logic supply. When using sensors or encoders that do not have a signal return or imply a signal return that is in common with the supply voltage, a common attachment that ties the excitation supply to the logic input common may be required. Examples of this appear in figures 8, 8a, 11 and 12.

DENOTES MODULE POSTION 1 AT REAR OF COUNTER

CHANNEL A-WHITE

CHANNEL B-GREEN

MODEL S.E. QUADRATURE ENCODER

EXTERNAL POWER SUPPLY

POSITIVE (RED)

COMMON (BLACK)

Figure 12. Wiring Encoder with External Supply

A INPUT

COMMON

USER INPUT

B INPUT

COMMON

INPUT

QUADRATURE INPUT CARD

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 14

Denotes module position 2 at rear of counter

ISO+12V

ISOCOM

EXCITATION

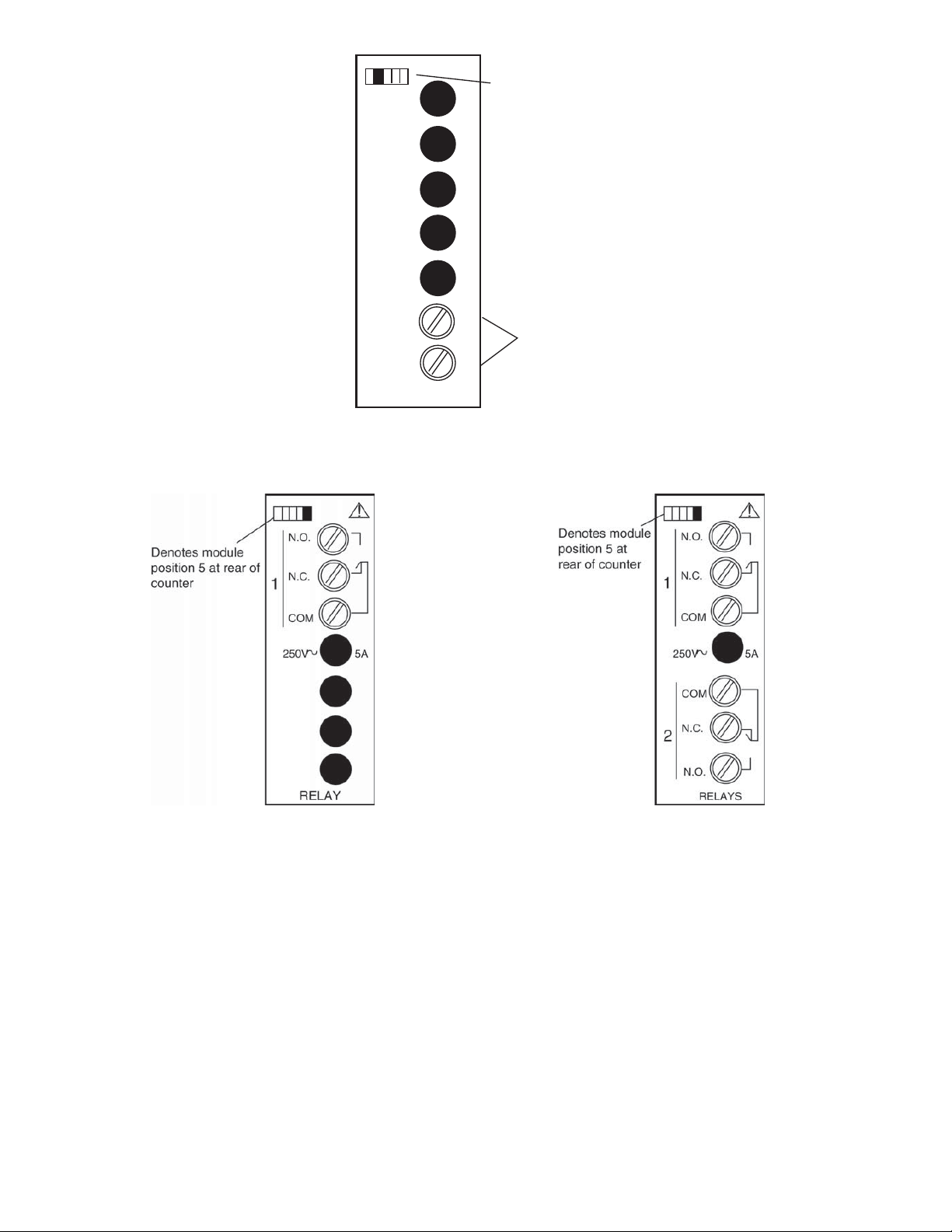

Figure 13. Excitation Module

2.7 Single and Dual Relay Modules

---

12 VDC, 100 mA max

Figure 14. Single Relay Figure 15. Dual Relay

The Single and Dual Relay modules can activate circuit loads of up to 5 amps at 250 VAC. A Form C configuration allows use of normally-open (NO) and normally-closed (NC) circuit action. Only the output 1 channel is implemented in the single relay module.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 15

3 Display & Keypad Controls

3.1 Display

Output Status

Indicators

4 Button Keypad

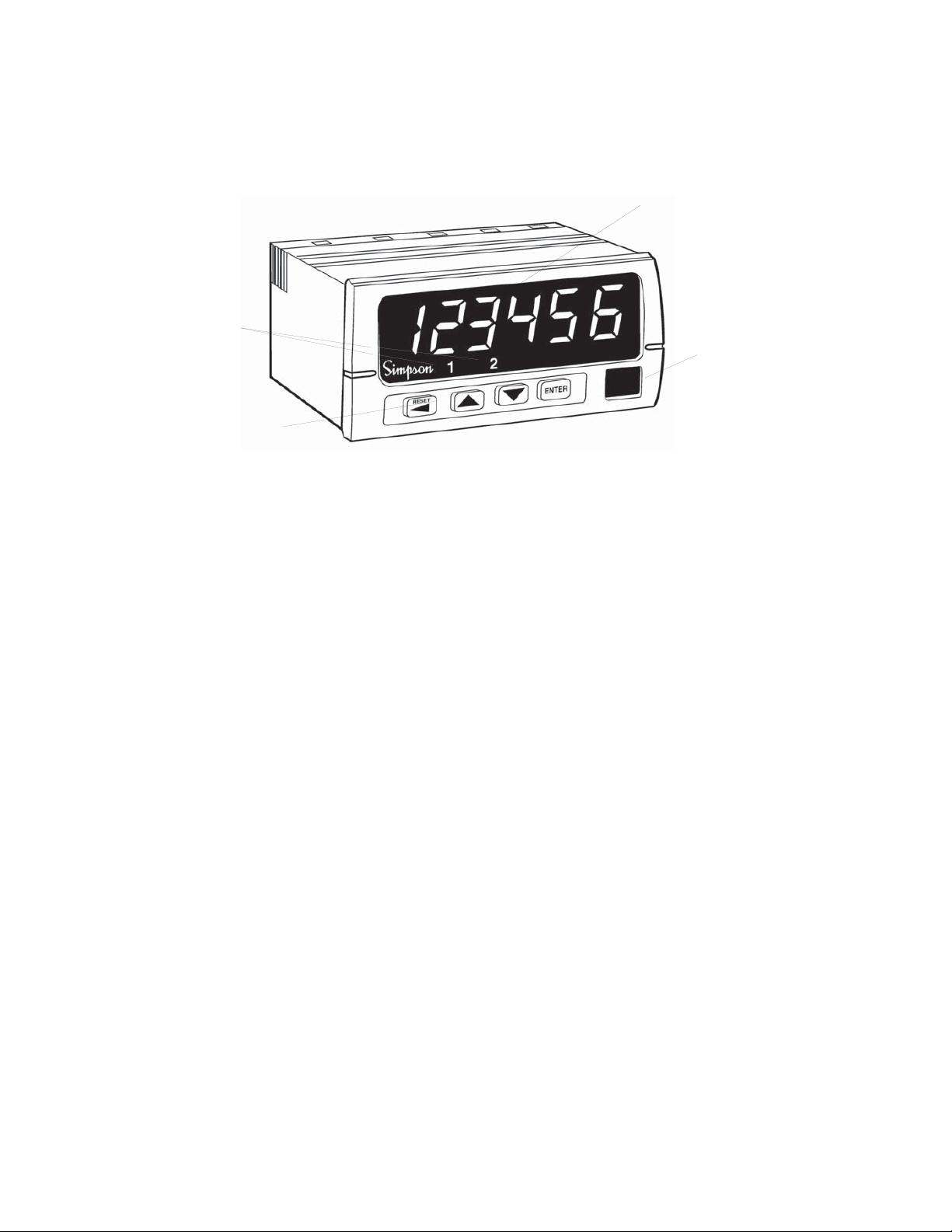

Figure 16. Display and Keypad Layout

Numeric & Message Display

Units Window

• 6-digit 0.56” high red LED display.

• 2 Output Status Indicators; “1” and “2.”

• Units Window for supplied label or legend.

• 4-button keypad with tactile response.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 16

3.2 Display Error Messages

Table 4. Display Error Messages

Display Description Action Required

PAdErr

The Keypad is disabled or a key is stuck in the ON position

Cycle power to the

counter, if the error

remains, return

counter to factory for

repair.

999999 or

-99999

(Flashing)

(Outputs

deactivate, count

stops)

(Outputs

deactivate, count

stops)

(Outputs

deactivate, count

stops)

The displayed count is too large for the counter to display. Since the internal count

buffer is much larger than the display, the

counter will maintain accurate count and control well beyond the display value.

Raw Count Overflow: The number of count pulses has exceeded the counter’s maximum internal value (2,147,483,648 or

-2,147,483,648)

Math Overflow: A large scale factor in

combination with large raw count has exceeded the counter's maximum internal value (+2,147,483,648 or -2,147,483,648)

Watchdog Fault: The counter did not experience an orderly power-down. This can

happen by exceeding the maximum

allowable count speed for a sustained period of time.

3.3 What the Keys Do in Display Mode

Reset Counter

Key Keypad behavior

ENTER

Resets count to rStPoS (Reset Position). This action may be disabled (see section 4.7).

Allows quick access to all the set points and

S or T

rStPoS (Reset Position). This feature can be disabled by using a password (see section 4.1).

Hold and

ENTER

Access the Programming Menu.

Press S

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 17

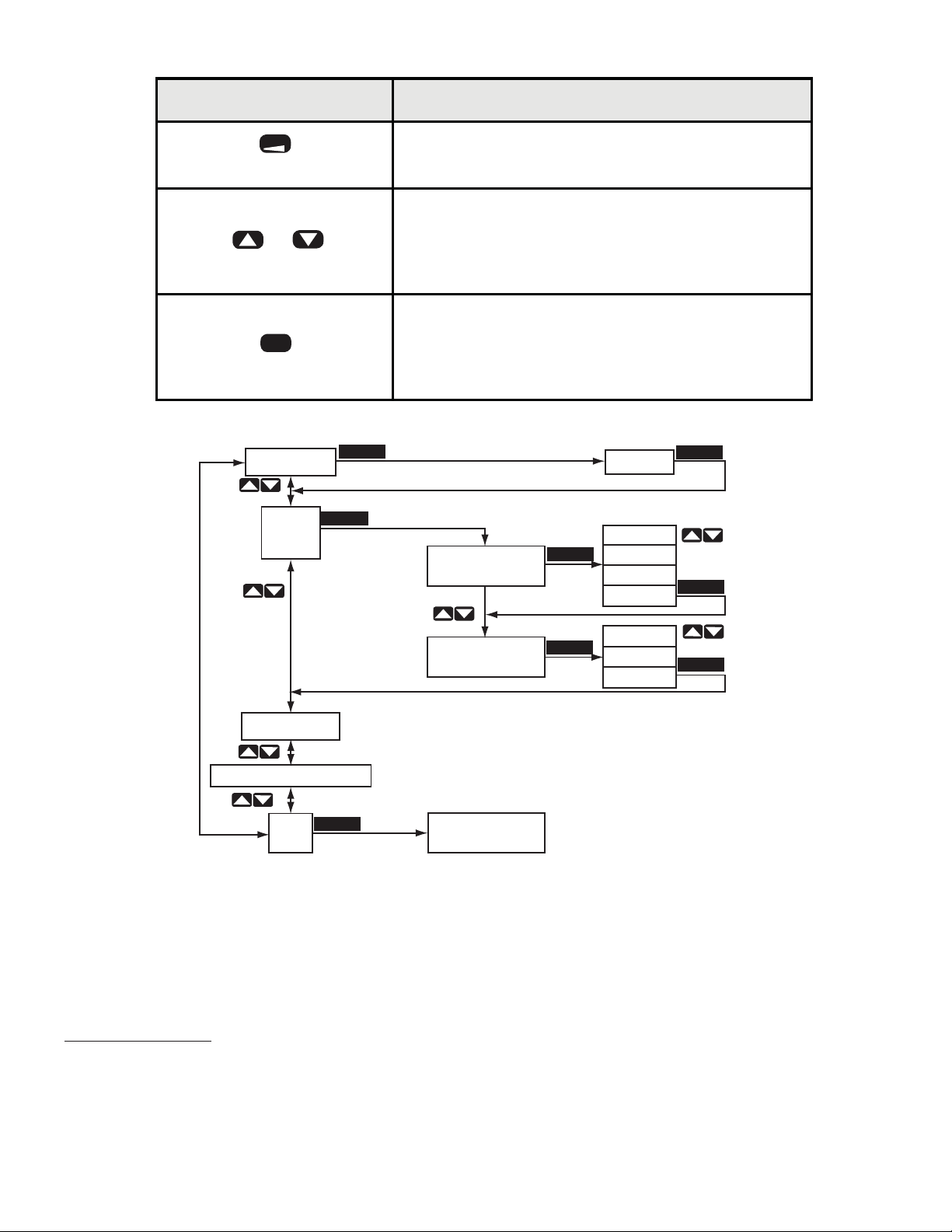

3.4 What the Keys Do in the Programming Mode

Key

RESET

Press and hold for four seconds to exit the

Keypad behavior

programming mode.

The up and down keys navigate through the

S orT

available menu functions. The menu ‘wraps around’ when the bottom or top of the menu is reached.

1) Enter the current menu or parameter to

ENTER

view/edit.

2) Write the change to the counter memory and

move to the next function.

Setup Menu Function Menu Option Menu

CHPASS 000

INPUT SETUP

ENTER

A CHAN UP

ENTER

000

down quad

rquad

ENTER

dir

down

ENTER

COUNT SETUP

other setup menus

ENTER

END

B CHAN DOWN

Return to

Display Mode

ENTER

Figure 17. Programming Menu Structure

In the Programming Mode, the S663 will return to Display Mode automatically if a key is not pressed within 120 seconds (2 minutes). The menu is comprised of three levels: Setup Menu, Function Menu and Option Menu. Figure 17 illustrates the three levels of the menu system.

Password Entry Entry (Pass) and changing of the password (Chpass) are similar to editing a

numerical parameter. See Numerical Value below. If the password has been set to a value other than “000,” entry of the proper password is required to access the remainder of the menu.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 18

Setup Menu At the first level of the menu, the arrow keys navigate up or down through the

available Menu Selections.

Function Menu The second level of the menu contains the functions or software parameters

that need to be configured for the counter to operate properly.

Option Menu Contains either Choice Lists or Numerical Values for configuring the func-

tions of the counter

Choice List A choice list allows selection from a fixed number of options. A Choice List

is found in the Options section of the menu. The list is made up of the available options for the function that is being edited. Example: Menu is Input Setup Menu, the Function is A Channel, the Choice List is up, down, quad, and rquad. (See Table 6)

Key Keypad behavior

The up and down keys scroll through the

ST

available choices in the Choice list.

ENTER

Saves the current choice as new parameter setting and steps to next parameter or category.

Numerical Value A numerical entry allows the changing of set point values, scale values, etc.

Key Keypad behavior

RESET

S or T

ENTER

Selects the next digit to the left of the current flashing digit for editing.

The up and down keys increment or decrement the flashing digit. Some parameters support negative numbers. In these cases, the most significant digit can be made negative by incrementing it between "9" and "0."

Saves the values as the new setting for the function in memory and advances to the next function of the menu automatically.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 19

3.5 Special Start-Up Modes

There are two start-up modes for the S663 counter. The default start-up mode will be used every time the counter is powered up by the user. There is one alternate start up mode that will allow the operator to return the counter software functions to factory default settings.

The alternate start-up modes can only be accessed by pressing and holding certain keys during the power up sequence.

• Press and hold both keys on the face of the counter

• Apply power while holding keys

Key Keypad behavior

Returns parameters to factory defaults. Resets

ENTER

and

RESET

password to 000, and all user scaling, operation modes and set points to factory defaults. Display will show freset.

4 Programming Operations and Parameters

This section details the initial programming options of the S663, presuming all defaults are in place.

If you are already familiar with the S663 programming, see Appendix B for the Programming Quick Reference Guide.

To enter the Programming Mode, hold and press .

ENTER

To return to the Display Mode, press and hold for four seconds when counter is not in an option menu.

4.1 Password and Security Controls

The security feature helps prevent accidental changes to counter settings.

The password value determines the counter’s security level, as shown in Table 5. If you have forgotten the password, see section 3.5; Special Start-Up Modes.

1) After entering the Programming Mode, the first field is Password. a) If no password has been assigned, the counter will flash between chpass, for

“Change Password” and the default value, 000.

b) To change the password, press when the display shows 000. Use the arrow

keys to change the flashing digit to the desired number.

c) Press to advance to the next digit. Press to accept the password to counter

RESET

memory and press it again to advance to the next parameter, Input Setup.

ENTER

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 20

Table 5. Password Values

Password Value Level of Security

No Security - Default setting

000

001 - 099

100 - 999

Allows full access to the Programming Menu and

Quick Access to set points is enabled.

Fully secure

The Programming Menu is secured by password

and Quick Access to set points is disabled.

Quick Access Only

Programming Menu is secured by password,

Quick Access to set points via up and down keys

enabled.

2) If a password is already in the counter, the display will flash between pass, for “Enter Password,” and the default value, 000. a) When the display shows 000, press . Use the arrow keys to change the flashing

digit to the desired number. Press to advance to the next digit.

b) Press to enter the password as shown. If an incorrect password is entered, ac-

ENTER

RESET

cess denied will flash on the display. Press an arrow key to return to the pass display.

c) After entering the correct password, the counter will return to chpass. Press to

change password, or press the key to continue to the Input Setup menu category.

ENTER

4.2 A/B Channel Options (Input Setup)

The next category in the Programming Mode is the “Input Setup.” Here you can adjust the A and B channels to the appropriate count modes.

The A channel input may be selected as an Up, Down, Quadrature or Reverse Quadrature* input. As an Up channel, pulses applied to the A input are added to the display. In Down mode, subtraction occurs. Note that when using Quadrature inputs, appropriate hardware (jumper) settings may be needed.

* The Reverse Quadrature input allows the user to reverse the count direction of the encoder in software instead of having to rewire/remount the encoder.

Table 6. Channel A Selection

A CHAN Direction B CHAN

UP Up User defined

DOWN Down User defined

QUAD Up Not Available

R QUAD Down Not Available

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 21

1) To set the A Channel value:

a) When the display flashes input setup, press . The display will change to a chan. b) Press again to proceed to the choice list. Scroll through up, down, quad, and r quad

ENTER

using the arrow keys.

c) When the selection is complete, press to accept the selection to counter memory and

ENTER

proceed to the next parameter, Chan B Mode.

The B channel may be set as Up, Down or Direction. In the direction mode, the B channel is no longer a count source, but controls the count direction of the A channel input. This state control works as an ‘exclusive-or’ with the channel A direction. Thus, if B input is in the ‘Down’ state and A channel is set to Down, pulses at the A input will increment count.

Table 7. Count Behavior with B Channel Set as Direction Control

A Channel Setting State at B Input Resulting Count

UP UP UP

UP DOWN DOWN

DOWN UP DOWN

DOWN DOWN UP

When A channel has been set to either Quadrature or Reverse Quadrature settings, the B channel internally behaves as a direction control.

2) To set the B channel: a) In the Input Setup area, after entering the A Chan value, the display will flash be-

tween b chan and the counter’s default (dir). b) When the display shows dir, press . c) Use the arrow keys to change the value, then press to accept the selection and

ENTER

proceed to the next menu category, Count Setup.

NOTE: The B channel will not show in the menu when Quadrature or Reverse Quadrature has been selected for the A Channel input.

4.3 Scaling and Decimal Point Position (Count Setup)

Prescale

The S663 counter allows for prescaling of display values. Prescaling allows the counter to display a more accurate number than its 6-digit capacity might otherwise allow.

Generally speaking, the smaller the scale value, the more accurate the count will be. The S663 has four prescale values, 1.0 (default), 0.1, 0.01, and 0.001.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 22

An example of this application is as follows: A 600 pulse-per-revolution encoder is used to measure cable before it is cut to the proper length. There is a wheel (one foot in circumference) attached to the encoder, in direct contact with the cable. The user wants to see the counter display feet to 1/100’ accuracy (to two decimal points).

With the default prescale of 1.0, one rotation of the wheel would be displayed on the counter as 00.0016’. However, by using a prescale of 0.01, the resolution has been multiplied by 100, allowing the counter to display 0.16667, increasing the accuracy of the counter and allowing more accurate cutting.

1) To access the prescale parameters, enter the Programming Mode, and press until the count setup menu category is reached.

2) Press to continue to the Parameter Name prescl. The display will flash between prescl and the default value of 1.0. When the display shows 1.0, press .

3) Use the arrow keys to scroll through the choices. Press when correct prescale is se-

ENTER

lected to accept the value and proceed to the next parameter, Count Scale.

User-defined Scale

The S663 also allows for a user-defined scaling multiplier.

1) To access the user-defined scaling parameter, enter the Programming Mode, and press quntil the count setup menu category is reached. Press .

ENTER

2) Pressqto continue to the Parameter Name scale. The display will flash between cscale and the default value of 01.0000. When the display shows 01.0000, press .

3) Use the arrow keys to enter the correct value of the flashing digit. Use the key to advance to the next digit. Press when the correct scale is selected to accept value and

ENTER

RESET

proceed to the next parameter, Count DP.

To calculate the scaling parameter, use the following scale formula:

Display = Multiplier (Pulse x Prescale x Scale x Decimal Point)

If the scale value isn’t known, use the following formula:

DISPLAY X Dp

SCALE =

MULT. (PULSE X PRESCALE)

For the example we used, the scale value is:

1.00

SCALE =

= 0.1667

1 (600) X 0.01

Decimal Point Position

1) To set the Decimal Point position, enter the Programming Mode, and press until the count setup menu is reached.

2) Press and then to continue to the Parameter Name dp. The display will flash between dp and the default 000000. When the display shows 000000, press .

3) Use the arrow keys to scroll through the choices. Press when the correct decimal

ENTER

place is selected to accept value and proceed to the next menu category, Rate Mode setup.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 23

4.4 Rate (Frequency) Scaling and Display (Rate Setup)

One of four rate modes may be selected to best accommodate input frequencies ranging from

0.00278 Hz to 30 kHz. Select the rate mode according to Table 8.

Table 8. Rate Mode Selection

Range

(implied scale)

Typical Update

Period

Min. Input

Frequency

Max. Input

Frequency

Comments / Typical Application

mSec

(Hz ÷ 1000)

Sec

(Hz x 1)

Min

(Hz x 60)

(Hz x 3600)

1.0 sec 1 Hz 30 KHz

0.5 sec 2 Hz 30 KHz

3 sec

90 sec

Counts/Min

Counts/Hr

1.2M

Counts/Min

3.0M

Counts/Hr

1/1000 Hz resolution / High precision

measurement of power line frequency

1 Hz resolution / Typical Setting for most

applications

Use when measuring ‘units per Minute'

Measures ‘units per Hour'. Also for very

low frequencies.

Rate can also be displayed as a signed entity and will be negative according to the direction state (see section 4.3). When B channel is configured for up or down count input, the rate is the sum of the frequencies at A and B with the polarity of rate determined by the A channel up/ down mode.

Rate Mode

1) To set the rate mode, enter the Programming Mode and press until the rate setup menu category is reached.

2) Press to continue to the parameter name rmmode. The display will flash between rmmode and the default setting sec. When the display shows sec, press .

3) Use the arrow keys to scroll through choices (mm sec, sec, mmin, hr). Press when

ENTER

correct mode is selected to accept mode and proceed to next parameter, Rate Scale.

Rate Scale

1) At scale, the display will flash between rscale and the default 01.0000, when the display shows 01.0000, press .

2) Use the arrow keys to select the correct value for the flashing digit, press to advance

ENTER

RESET

to the next digit.

3) When the correct value is displayed, press to accept and proceed to next parameter,

ENTER

Rate DP.

Rate Decimal Point Position

1) To set the Decimal Point position, enter the Programming Mode, and press until the rate setup menu is reached.

2) Press to continue to the Parameter Name rat dp. The display will flash between rat dp and the default 000000. When the display shows 000000, press .

3) Use the arrow keys to scroll through the choices. Press when the correct decimal

ENTER

RESET

place is selected to accept value and proceed to the next parameter name, Rate Offset.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 24

Rate Offset

1) To set the Rate Offset, enter the Programming Mode, and press until the rate setup menu is reached.

2) Press to continue to the Parameter Name offset. The display will flash between offset

3) Use the arrow keys to select the correct value for the flashing digit, press to advance

ENTER

and the default 000000. When the display shows 000000, press .

ENTER

RESET

to the next digit.

3) When the correct value is displayed, press to accept and proceed to next menu catego-

ENTER

ry, Output 1 Mode.

See examples for Rate Mode, Rate Scale, Rate Decimal Point Position and Rate Offset on the following pages:

Table 9. Rate Scale

noitpircseD eulaV eulaValumroF

dnocesrepsesluP

tupnitanees

zH/ces1x=2edoM

deretne-resU

reilpitluM

deretne-resU

eulavevitidda

noitisoPlamiceD

00001

ces

005.

00.001

00.0000

ycneuqerFtupnI

edoM

elacS

tesffO

The input frequency can be linearly scaled using the Scaling Multiplier, Offset and Decimal Point. The rate channel has an offset value as well. To illustrate, the following example will be used:

1) Multiply Input Frequency by implied Mode multiplier

10000 x 1= 10000

2) Multiply by user-specified Scale:

3) Discard all digits to right of decimal place:

(If number is larger than six digits, it will not fit in the display) 5000

4) Apply the user-specified DP location:

50.00

5) Add user-specified Offset location:

250.00 - 100.00 = 150.00

(That is what will be seen of the display)

The following notation may be used to describe this behavior:

Display = INT [Fint x Scale] DP + Offset

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 25

4.5 Output Control Modes (Output Setup)

The S663 supports 2 independent output channels with four modes of operation: disabled, timed, latched and boundary.

Output Type Description

Disabled Output

Timed Output

Latch Output

The output channel is inactive.

The timed mode activates an output when a set point or ‘trigger’ condition is reached. Once active, the output is held until a specified delay period. The delay

may be between 0.01 and 599.99 seconds.

The output will activate when the specified value is encountered (SP1 for output 1, SP3 for output 2). If a timing period is in progress, a new trigger does not occur. This is referred to as a non-retriggereable timer. A RESET will cancel the timed output.

The latch mode activates an output when a ‘trigger’ or set point is reached.

The output will activate when the value is encountered (SP1 for output 1, SP3 for output 2). Once activated, the output is held and can be deactivated only when the specified Latched Until condition is met. The Latched Until conditions can be seen in Table 8.

The Boundary mode differs from the other output types in that it allows the counter to have an output activate/deactivate automatically within a specified

Boundary Output

range.

Boundary mode activates an output when the count is between the specified low and high set points (SP1/SP2 for output 1, SP3/SP4 for output 2.)

Table 10 . Latch Until

Latch Until Description

Reset

SP#

RstPos

A front panel or external reset event is required to deactivate the output.

Output deactivated when set point is encountered.

Output deactivated when reset position is encountered.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 26

NOTE: The outputs for this counter activate regardless of count direction in all count modes.

1) To set the Output Control modes, enter the Programming Mode, and press until the oput 1 setup menu category is reached.

2) Press to continue to the Parameter Name mmode1. The display will flash between

3) Use the arrow keys to select the correct mode. Press when the correct mode is se-

ENTER

mmode1 and the default value of latch. When the display shows latch, press .

ENTER

lected to accept value, and to the next parameter, Output 1 Bindings. Other choices may appear, depending on which Output 1 Mode is selected. See Appendix B for which options correspond to which parameters.

4) Press until oput 2 setup is displayed, to make similar selections for Output 2 Mode.

ENTER

5) When all selections are entered and accepted into counter memory, counter will proceed to next menu category, Set Point Setup.

4.6 Set Point Parameters (Set Point Setup)

The S663 has four set point parameters and a special value referred to as Reset Position.

The Reset Position can be referred to as Count Reset Value.

SP1 and SP2 are used only with Output 1, and SP3 and SP4 are used only with Output 2.

The SP1 and SP3 parameters are used as Latched or Timed “trigger” values. When a Boundary Output is selected, SP1 and SP3 become the low boundary value.

The SP2 and SP4 parameters are used as high boundary value or ‘turn-off’ values when used with other alarm types (i.e. latched until SP4).

The values for all set points are -99999 to 999999. The decimal point will appear according to the current decimal point setting.

Set Point Parameters

1) To set the Set Point parameters, enter the Programming Mode, and press until the setpnt setup menu category is reached.

2) Press to continue to the Parameter Name sp 1. The display will flash between sp 1

3) Use the arrow keys to enter the correct value of the flashing digit. Use the key to

ENTER

and the default value of 000010. When the display shows 000010, press .

advance to the next digit. Press when the correct set point is selected to accept value

ENTER

RESET

and proceed to the next parameter, SP 2.

4) Repeat these steps for SP 2, SP 3, and SP 4. The counter will proceed to the next menu category, Reset Setup.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 27

Reset Position

1) To access the Reset Position parameter, enter the Programming Mode, and press until the setpnt setup menu category is reached.

2) Press to continue to the Parameter Name rstpos. The display will flash between rstpos and the default value of 000000. When the display shows 000000, press .

3) Use the arrow keys to enter the correct value of the flashing digit. Use the key to advance to the next digit. Press when the correct position is selected to accept value and

ENTER

RESET

ENTER

proceed to the next menu category, Reset Setup.

4.7 Auto Reset Operations (Reset Setup)

The S663 has the capability to perform a Count Reset event based upon various conditions. When Auto Reset occurs, the outputs will return to the deactivated status and the displayed count will return to the value stored in the Reset Position (Rstpos) function. This feature is used in cut-to-length or other applications where an automatic repetitive cycle is established.

There are seven options for the Auto Reset Mode: Disabled, at one of four set points, or after an output times out.

Mode Description

diSAbL

At SP#

AFtoP1

AFtoP2

Only a front panel or external reset event will reset count.

When the selected set point is encountered, reset event occurs.

Auto Reset occurs after Output 1 times-out (Output 1 must be in timed mode).

Auto Reset occurs after Output 2 times-out (Output 2 must be in timed mode).

1) To access the Auto Reset Mode, enter the Programming Mode, and press until the reset setup menu category is reached.

2) Press to continue to the Parameter Name areset. The display will flash between areset

3) Use the arrow keys to scroll through the available options. Press when the correct

ENTER

and the default value of disabl. When the display shows disabl, press .

ENTER

mode is selected to accept mode and proceed to the next parameter name, Reset Button.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 28

4.8 Miscellaneous Controls

rStbtn

(Reset Button)

The Reset Button Inhibit feature disables the front panel reset button . This can be used to prevent accidental resets, especially useful when using the counter as a sequencer. The external (rear panel) hardware reset input is not affected by this setting.

PonrSt

(Power ON RESET)

When the Power ON RESET is set to YES, the counter will always use the Reset Position value as its initial display/count. With this setting, when an unexpected power loss occurs, the existing count will be lost.

When this function is set to NO, the existing count will be retained after a power loss.

1) To access the Miscellaneous Controls, enter the Programming Mode, and press until the reset setup menu category is reached.

2) Press to continue to the Parameter Name rstbtn. The display will flash between rstbtn and the default value of enable. When the display shows enable, press .

3) Use the arrow keys to select either Enable or Disable. Press when the correct mode

ENTER

is selected to accept selection and proceed to the next parameter name, Power On Reset.

4) The display will flash between Ponrst and the default no. When the display shows no, press .

5) Use the arrow keys to select either no or yes. Press when the correct mode is selected.

6) The display will now show end. If you are finished programming the S663, press . If

ENTER

not, use the arrow keys to back up to the necessary parameter.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 29

Appendix A: Technical Specifications A.1 Functional Specifications

Count modes supported

Batch modes

supported

Count Inputs

Miscellaneous inputs

Count range (internal)

Maximum count rate

Min pulse width

Display Digits

Count/Direction, Add-Add, Add-Subtract, Subtract-Subtract, Quadrature and Reverse Quadrature, Rate, and Batch

Dual mode: Primary and Secondary counts share common input, but with independent scaling and resets. Batch mode: Secondarey Count incremented when Primarey Count Auto Reset occurs.

2: Channel A (Primary) and Channel B (Secondary / Dir control)

2: Reset (Count Reset) and User (Count Inhibit).

-2,147,483,648 to +2,147,483,648

20 Khz (Standard and Quadrature X1 modes) 5 Khz (Quadrature X4 mode)

5 uS (Standard mode)

6-digit, 7-segment with leading zero blanking

Display Decimal Point

Display LEDs

Display Range

Output channels

Output modes

Delay times

Output Response time

Multi-tasking

Operation

User-programmable

Red 0.56" (14.2mm), high efficiency

- 99,999 to + 999,999 (Independent of decimal position)

2, with front panel indicator for each

Disabled, Timed, Latching, and Boundary

0.01 to 599.99 sec -2.5 ms/+15ms

Latched and timed modes: < 5ms Boundary mode: < 15 ms Batch: <15 ms

Count and output control maintained while in programming mode.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 30

A.2 Electrical, Environmental and Mechanical Specifications

Power Requirements

Power Consumption

Reset Input Signal

Storage

Temperature

Operating

Temperature

Relative Humidity

Bezel

Panel Cutout

AC Supply: 120 or 240 VAC, ±10%

3VA

Active Low: 0.2 VDC = active

-10 to 60°C

0 to 40°C

0 to 80% for temperatures less than 32°C, decreasing linearly to 50% at 40°C. (Noncondensing)

3.93" x 2.04" x 0.52" (99.8 x 51.8 x 13.3mm)

3.62" x 1.77" (92 x 45 mm) 1/8 DIN

Case Depth

Weight

3.24" (82mm)

9.0 oz. (255.1g)

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 31

Standard input module

Input Channels

Count edge

Input Sources

Input Impedance

A & B channels

User Channel

Low pass filter

Max voltage

A, B and User

High to low transition (A and B channels)

Switch contact, CMOS or TTL logics, PNP or NPN devices

Sinking: 10K, 5% Res. Pull-up to (9.0 - 16 VDC) ±10% Sourcing: 5.1K, 5% Res. Pull-down to common

Input Thresholds

Low Bias mode:VLT = 1.6V ±10% VUT = 3.6V ±10% High Bias mode:VLT = 5.0V ±10% VUT = 7.0V ±10%

VLT = 0.2V (min) VUT = 3.0V (max)

Frequency < 200Hz (0 to 10V input square wave at 50% duty cycle)

A, B and User channels 30VDC maximum sustained

Quadrature input module

Input Channels

Input Inversion

Operation

modes

Input Sources

Input Impedance

A & B channels

User Channel

A, B and User

User-selectable input polarity. A and B channel polarity selective in standard mode only.

Standard, Quadrature X1 and Quadrature X4

Switch contact, CMOS or TTL logics, PNP or NPN devices quadrature (single-ended) encoders

Sinking: 10K, 5% Res. Pull-up to (9.0 - 16 VDC) ±10% Sourcing: 5.1K, 5% Res. Pull-down to common

Input Thresholds

Low Bias mode:VLT = 1.6V ±10%VUT = 3.6V ±10% High Bias mode:VLT = 5.0V ±10% VUT = 7.0V ±10%

VLT = 0.9V (min) VUT = 3.15V (max)

Low pass filter

Max voltage

Frequency < 200Hz (0 to 10V input square wave at 50% duty cycle)

A, B and User channels 30VDC maximum sustained

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 32

Single / Dual Relay Modules

Contact Rating

Mechanical Life

5 Amps 250 VAC

1,000,000 cycles

Isolated 12V Excitation Module

Exitation Output

Exitation Isolation

100 mA at 12 VDC ±5%

1500 V

Appendix B: Programming Quick Reference

If you are unfamiliar with navigating menus in the S663, see section 3. Each parameter is listed in the order of appearance in the menu system. Refer to the paragraph indicated in the Tech Note column for technical details on a particular parameter.

Tip: Photocopy these pages to mark settings on.

Category

Parameter

Name

PASS 000

ACCESS<—

CHPASS 000*

Choices /

Format

—>dEniEd

Description Tech

Password Entry and

Verification

Password Fail

Appears if incorrect password entered

Password Change

Appears if correct password entered

000 = Password protection disabled 001-099 = Secures all parameters 100-999 = Enable SPs/ResPos access in display mode

Note

4.1

* = factory default settings

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 33

Category

Parameter

Name

Choices /

Format

Description

Tech

Note

inPut SEtuP

Count SEtuP

A CHAn uP*

dow n quAd r quAd

b CHAn dir*

uP dow n

PrESCL 1.0*

0.1

0.01

0.001

CSCALE 01.0000*

Chan A Mode

Select count mode of A channel.

Chan B Mode

Select count mode for B channel. Note: If A channel set to Quad or Rquad, this item is not accessible.

Pre-scale

Set pre-scaling multiplier.

Scale

Set Display Value 1 scaling multiplier.

Values: -9.9999 to

99.9999.

4.2

4.3

Category

rAtE SEtuP

Parameter

Name

Cnt dP 000000*

rM m odE m M SEC

rSCALE 01.0000*

Choices /

Format

000000.

00000.0

0000.00

000.000

00.0000

0.00000

SEC* Min Hr

Description Tech

Count DP

Display Value 1 (Count) Decimal Point location.

Affects appearance of RstPos and Set Point parameters.

Rate Mode

Display Value 2 (Rate) mode. Defines the prescaling and sampling interval for frequency computation.

Rate Scale

Set Display Value 2 (Rate) scaling multiplier.

Values: -9.9999 to

99.9999

Note

4.3

4.4

* = factory default settings

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 34

Category

Parameter

Name

Choices /

Format

Description Tech

Note

oPut 1 SEtuP

rAt dP 000000*

000000.

00000.0

0000.00

000.000

00.0000

0.00000

oFFSEt 000000*

M m odE1 diSAbl

tiMmEd LAtCH* bound

Rate DP

Display Value 2 (Rate) Decimal Point location.

Affects appearance of Rate Offsets and any associated Set Point parameters.

Rate Offset

Set Display Value 2 (Rate) scaling offset.

Values: -99999 to

999999. A decimal point

will appear according to user-programmed Rate

DP position.

Output 1 Mode Set the

mode of operation for Output 1. Can be disabled, timed, latched or boundary mode.

4.4

4.5

* = factory default settings

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 35

Category

Parameter

Name

Choices /

Format

Description Tech

Note

SrC 1 Count*

rAtE

tiMmEd<— LAtCHEd<— SP1=Lo <—

dELAY1 010.00*

—>At SP1 —>AtSp1* —>SP2=Hi

Output 1 Source

Select which Display Value to be used for output 1 comparisons / matchpoints. See also

SP1 and SP2.

Output 1 Bindings

Reminder message indicates which and how

the set points are used

for comparison. Which message is displayed is determined by the Output 1 Mode selected.

Delay 1

Output 1 delay time.

Appears only if Output 1 mode set to timed.

4.5

* = factory default settings

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 36

Category

Parameter

Name

Choices /

Format

Description Tech

Note

oPut 2 SEtuP

untiL 1 rESEt*

SP1 SP2 SP3 SP4 rStPoS

m M odE2 diSAbL

tiMmEd LAtCH* bound

SrC 2 Count*

rAtE

Until 1

Output 1 latched until

parameter. Appears only

if M m odE1 = LAtCH and

SrC1 = Count.

Output 2 Mode

Set the mode of operation for Output 2.

Can be disabled, timed, latched or boundary mode.

Output 2 Source

Select which Display

Value to be used for

output 2 comparisons/ matchpoint. See also

SP3 and SP4.

4.5

* = factory default settings

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 37

Category

Parameter

Name

Choices /

Format

Description Tech

Note

tiMmEd <— LAtCHEd<— SP3=Lo <—

dELAY2 010.00*

untiL2 rESEt *

—>At SP3 —>AtSP3* —>SP4=Hi

SP1 SP2 SP3 SP4 rStPoS

Output 2 Bindings

Reminder message indicates which and how

the set points are used for comparison. Which

message is displayed is

determined by the

Output 2 mode

selected.

Delay 2

Output 2 delay time.

Appears only if Output 2 mode set to timed.

Until 2

Output 2 latched until parameter. Appears only

if MMode2 = latch and

SRC2 = Count.

4.5

* = factory default settings

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 38

Category

Parameter

Name

Choices /

Format

Description Tech

Note

SEtPnt SEtuP

SP1 000010*

SP2 000020*

SP3 000030*

SP1

Set point #1 Low.

Values: -99999 to

999999. Decimal point will appear according to the current Output 1

Source setting.

SP2

Set point #1 High.

Values: -99999 to

999999. Decimal point will appear according to the current Output 1

Source setting.

SP3

Set point #2 Low.

Values: -99999 to

999999. Decimal point will appear according to the current Output 2

Source setting.

4.6

* = factory default settings

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 39

Category

Parameter

Name

Choices /

Format

Description Tech

Note

Category

SP4 000040*

rStPos 000000*

Parameter

Name

Choices /

Format

SP4

Set point #2 High.

Values: -99999 to

999999. Decimal point will appear according to the current Output 2

Source setting.

Reset Position

Count value is set to this when an Auto or Manual

Reset event occurs.

Values: -99999 to

999999. Decimal point will appear according to the user-programmed

Count DP position

Description Tech

4.6

Note

rESEt SEtuP

End

ArESEt diSAbL*

At SP1 At SP2 At SP3 At SP4 AFtoP1 AFtoP2

rStbtn enable*

diSAbL

PonrSt no*

YES

Auto Reset Mode

Selects when an auto reset function is to occur. Disabled at a set point or

after output times out.

See also the RSTPOS parameter in the Setpnt Setup category

Reset Button

Enable or disable front panel reset button.

Power On Reset Select

whether count reset event will occur at power-up.

Exit Programming Menu

4.7

4.8

* = factory default settings

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com
