Simpson 45S558E Instruction Booklet

Front Load Washer

Instruction

Booklet

45S558E

147122510

2

Contents

Operating sequence 12-13
Washing programmes 14-15
International wash code symbols 16

Maintenance 17

After each wash 17
Maintenance wash 17
Door seal 17
Cabinet 17
Detergent dispenser drawer 17
Drain pump 18
Water inlet filter 18
Emergency emptying out 19
The dangers of freezing 19

Trouble-Shooting Guide 20-21

Electrolux Warranty 22

Warnings 3

Disposal 4

Tips for environmental protection 4

Technical specifications 4

Installation 5

Unpacking 5
Positioning 5
Water inlet 5
Water drainage 6
Electrical connection 6

Your new washing machine 7

Detergent dispenser drawer 7

Use 8

Control panel 8
Controls 8-9
Washing hints 10

Sorting the laundry 10
Temperatures 10
Before loading the laundry 10
Maximum loads 10
Laundry weights 10
Removing stains 10
Detergents and additives 11

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly
important for your safety or correct functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the

environment: we use environmentally

friendly paper.

132990430.qxd 01/04/2004 13:28 Pagina 2

132990430.qxd 01/04/2004 13:28 Pagina 3

Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated
below. We recommend that you keep this instruction manual for future reference and pass it on to any future
owners.

Warnings

The following warnings are provided in the interests of overall safety. You must read them carefully before
installing or using the appliance.

Installation

 When unpacking the appliance, check that it is not

damaged. If in doubt, do not use it and contact the
Service Centre.

 All internal packing must be removed before using

the appliance. Serious damage may be caused to
the machine or adjacent furniture if the protective
transit devices are not removed or are not
completely removed. Refer to the relevant
paragraph in the instruction book.

 Any electrical work required to install this appliance

must be carried out by a qualified electrician.

 Any plumbing work required to install this

appliance must be carried out by a qualified
plumber.

 After having installed the machine, check that it is

not standing on its electrical supply cable.

 Ensure air can circulate freely between the

bottom of the appliance and the floor

 The appliance incorporates backflow protection

complying with AS/NZS 3500.1.2.
No further backflow protection is required for
connection to the water supply.

Use

 Place small items such as socks, belts, etc. in a

cloth bag or pillowcase to prevent them getting
trapped between the drum and the tub.

 Use only the recommended quantities of fabric

softener. An excessive amount could damage the
laundry.

 Leave the porthole door slightly ajar when the

appliance is not in use. This preserves the door
seal and prevents the formation of musty smells.

 Always check that water has emptied out before

opening the door. If not, drain the water following
the instructions in the instruction book.

 Always unplug the appliance and turn the water

tap off after use.

General safety

 Repairs to the machine must be carried out only by

qualified personnel. Repairs carried out by
inexperienced persons could cause serious
danger. Contact your local Service Centre.

 Never pull the power supply cable to remove the

plug from the socket; always take hold of the plug
itself.

 During high temperature wash programmes the

door glass may get hot. Do not touch it!

 This appliance is designed for domestic use. It

must not be used for purposes other than those for
which it was designed.

 Only wash fabrics which are designed to be

machine washed. Follow the instructions on each
garment label.

 Do not overload the appliance. Follow the

instructions in the instruction book.

 Make sure that all pockets are empty. Objects such

as coins, safety pins, pins and screws can cause
extensive damage.

 Do not machine wash garments saturated with

petroleum, methylated spirits, trichlorethylene, etc.
If such fluids have been used to remove stains
prior to washing, wait until they have completely
evaporated from the fabric before placing
garments in the appliance.

Child safety

 This washing machine is not intended for use by

young children or infirm persons without
supervision.

 Young children should be supervised to ensure

that they do not play with the appliance.

 The packaging components (e.g. plastic film,

polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of childrens reach.

 Keep all detergents in a safe place out of childrens

reach.

 When the appliance is to be scrapped, cut off the

electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.

3

Technical specifications

4

Disposal

Tips for environmental protection

Packaging materials

The materials marked with the symbol are
recyclable.

>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene

This means that they can be recycled by disposing of
them properly in appropriate collection containers.

Machine

Use authorised disposal sites for your old appliance.
Help to keep your country tidy!

To save water, energy and to help protect the
environment, we recommend that you follow these
tips:

• Normally soiled laundry may be washed without
prewashing or stain in order to save detergent,
water and time (the environment is protected too!).

• The machine works more economically if it is fully
loaded.

• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.

• Measure out detergent according to the water
hardness, the degree of soiling and the quantity of
laundry being washed.

DIMENSIONS Height 85 cm

Width 60 cm
Depth 63 cm

MAXIMUM LOAD Cotton 5.5.kg

Synthetics 2.5 kg
Delicates 2.5 kg
Woollens and handwash 1.0.kg

MAX. SPIN SPEED

POWER SUPPLY VOLTAGE 220-240 V
FREQUENCY 50 Hz
TOTAL POWER ABSORBED 2200 W
MINIMUM FUSE PROTECTION 10 A

WATER PRESSURE Minimum 050 kPa

Maximum 800 kPa

• Make sure that children or pets do not climb into
the drum. To avoid this the machine incorporates a
special feature. To activate this device, rotate the
button (without pressing it) inside the door
clockwise until the groove is horizontal. If
necessary use a coin.

To disable this device and restore the possibility of
closing the door, rotate the button anti-clockwise until
the groove is vertical.

132990430.qxd 01/04/2004 13:28 Pagina 4

800 rpm

132990430.qxd 01/04/2004 13:28 Pagina 5

Installation

Unpacking

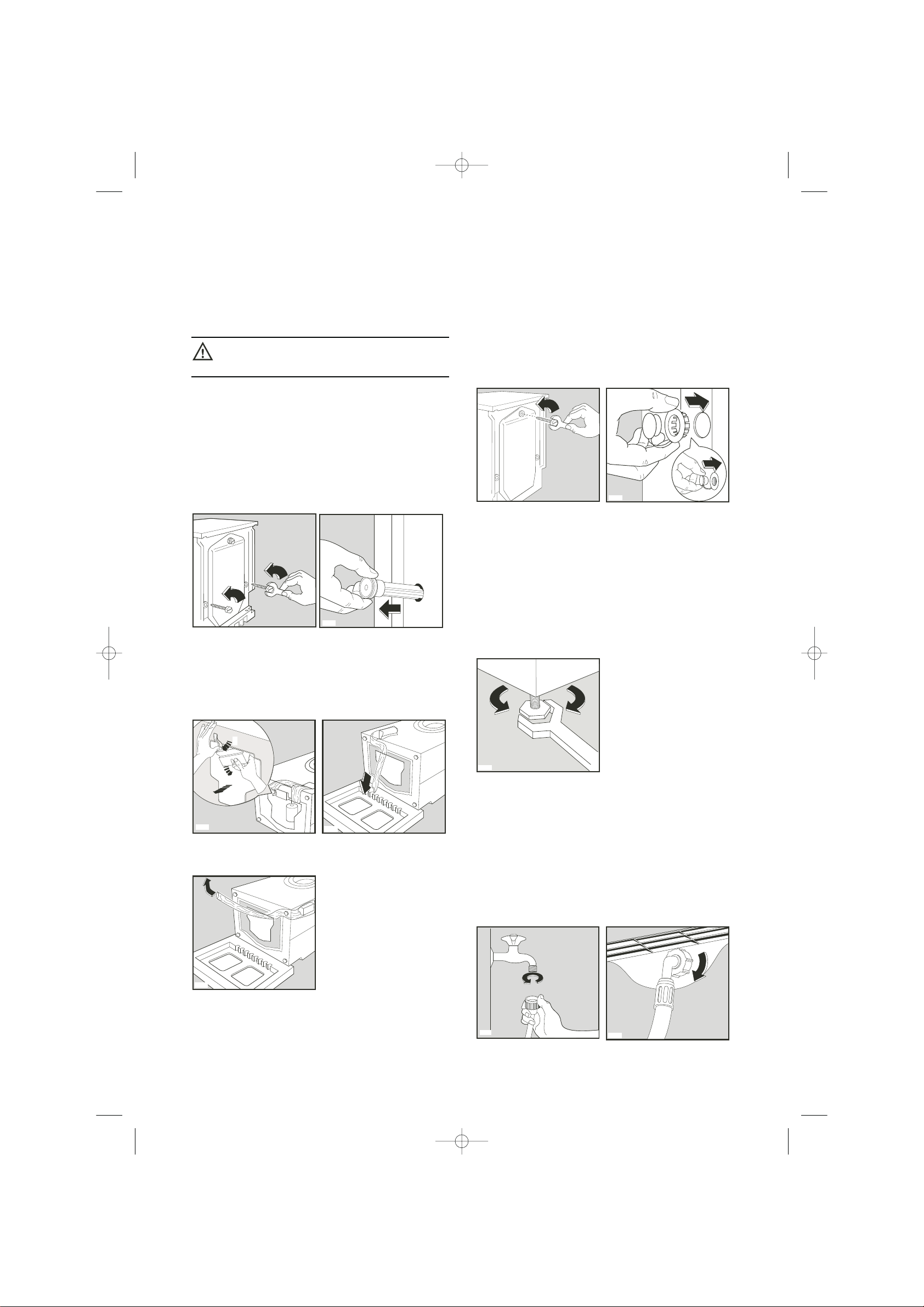

All transit bolts and packing must be removed
before using the appliance.

You are advised to keep all transit devices so that
they can be refitted if the machine ever has to be
transported again.

1. Using a spanner, unscrew and remove the two
rear bottom screws. Slide out the two plastic pins.
Lay the machine on its back, taking care not to
squash the hoses. This can be avoided by
placing one of the corner packing pieces between
the machine and the floor.

2. Remove the polystyrene block(s) from the bottom
of the machine and release the two plastic bags.

3. Very carefully slide out the left polythene bag,
removing it towards the right and then
downwards.

5. Set the machine upright and remove the
remaining rear screw. Slide out the relevant pin.

6. Plug all the holes with the plugs which you will
find in the envelope containing the instruction
manual.

Positioning

Install the machine on a flat hard floor.
Make sure that air circulation around the machine is
not impeded by carpets, rugs etc. Check that the
machine does not touch the wall or cupboard units.
Carefully level by screwing the adjustable feet in or
out. Never place cardboard, wood or similar
materials under the machine to compensate for any
unevenness in the floor.







4. Very carefully slide out the right polythene bag,
removing it towards the left and then upwards.

Water inlet

Connect the water inlet hose to a tap with 3/4 BSP
thread.
Use the hose supplied with the washing machine.
DO NOT USE OLD HOSES.
The other end of the inlet hose which connects to the
machine can be turned in any direction. Simply
loosen the fitting, rotate the hose and retighten the
fitting, making sure there are no water leaks.

5

6

The inlet hose must not be lengthened. If it is too
short and you do not wish to move the tap, you will
have to purchase a new, longer hose specially
designed for this type of use.

Important!

Before connecting up the machine to new pipework
or to pipework that has not been used for some time,
run off a reasonable amount of water to flush out any
debris that may have been collected in the pipes.

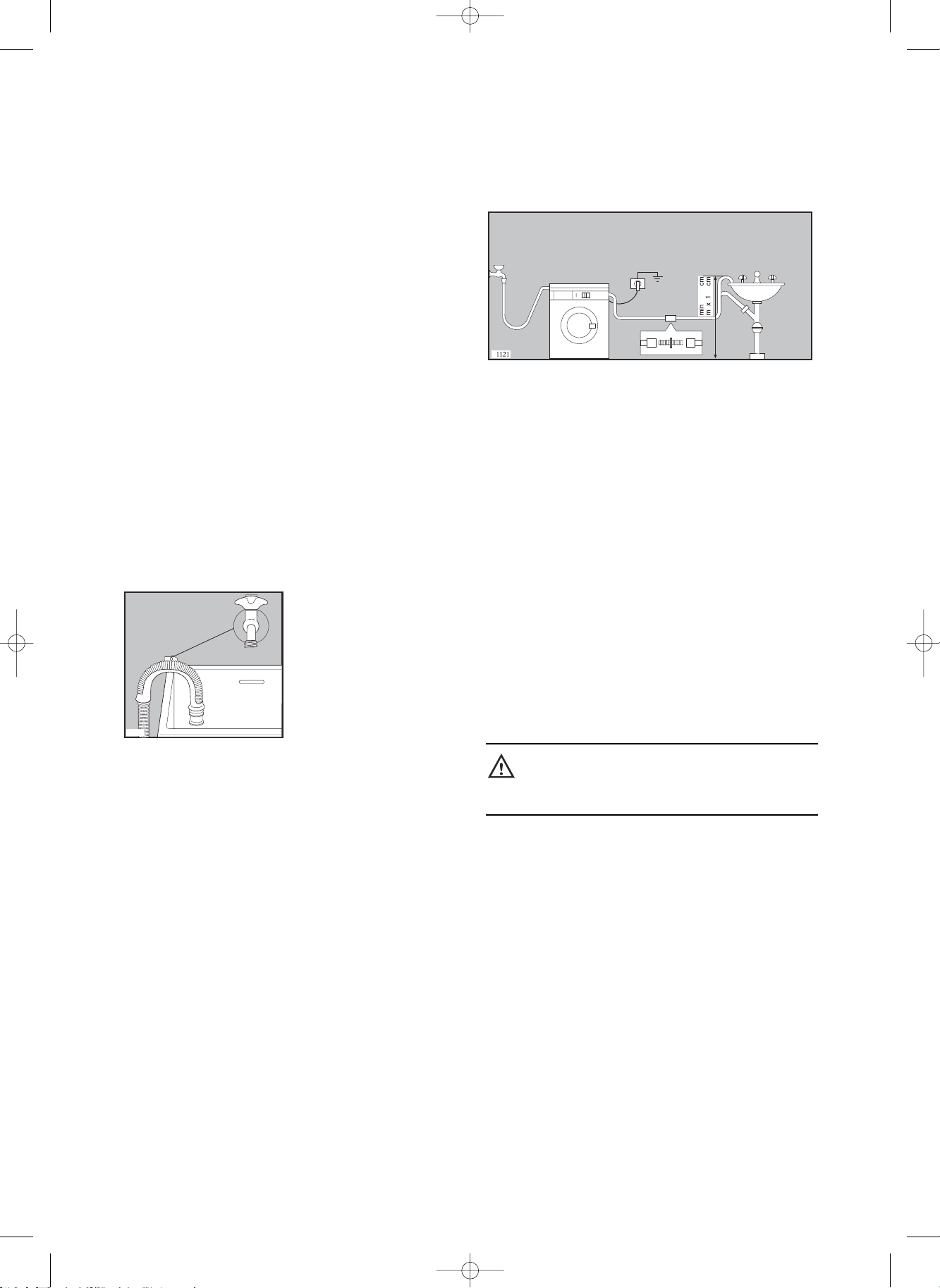

Water drainage

The end of the drain hose can be positioned in four
ways:

Hooked over the edge of a sink using the plastic
hose guide supplied with the machine. In this

case, make sure the end cannot come unhooked
when the machine is emptying.
This could be done by tying it to the tap with a piece
of string or attaching it to the wall.

In a sink drain pipe branch. This branch must be
above the tap so that the bend is at least 60 cm
above the ground.

Directly into a drain pipe at a height of not less
than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain pipe
must be larger than the outside diameter of the drain
hose.

Floor drain: the washing machine should be
installed where a floor drain or hole is located
(depending on plumbing regulations). A floor drain is
required to drain away water which may overflow
from the washing machine due to a hose leak or
malfunction.

The drain hose must not be kinked.

The drain hose may be extended to a maximum of 4
metres. An additional drain hose and joining piece
is available from your local Service Centre.

For correct functioning of the machine the drain
hose must remain hooked on the proper support
piece situated on the top part of the back side of
the appliance.

Electrical connection

Plug the washing machine into a properly earthed 3
pin power point.

DO NOT USE AN EXTENSION CORD.
CAUTION !

If the appliance is supplied from a cord extension
set or an electrical portable outlet device, the
cord extension set or electrical portable outlet
device must be positioned so that it is not
subject to splashing or ingress of moisture.

The manufacturer declines any responsibility
for damage or injury through failure to comply
with the above safety precaution.

IMPORTANT!
If the electrical cord of this appliance is

damaged, it must be replaced by the
Manufacturer, Authorised Service Agent or
similarly qualified person in order to avoid a
hazard.

132990430.qxd 01/04/2004 13:28 Pagina 6

7

Your new washing machine

This new washing machine meets all modern needs for effective treatment of laundry with low water, energy
and detergent consumption.

•The programme selector dial combines the function of programme and temperature selection, making it
easier to set the programme.

•The programme progress display shows the spin speed selected and the washing phase which is running.

•The special wool programme with its new delicate wash system treats your woollens with extreme care.

•The balance control device ensures the machine is stable during the spin.

•The ECO valve allows total use of detergent and reduces water consumption so saving energy.

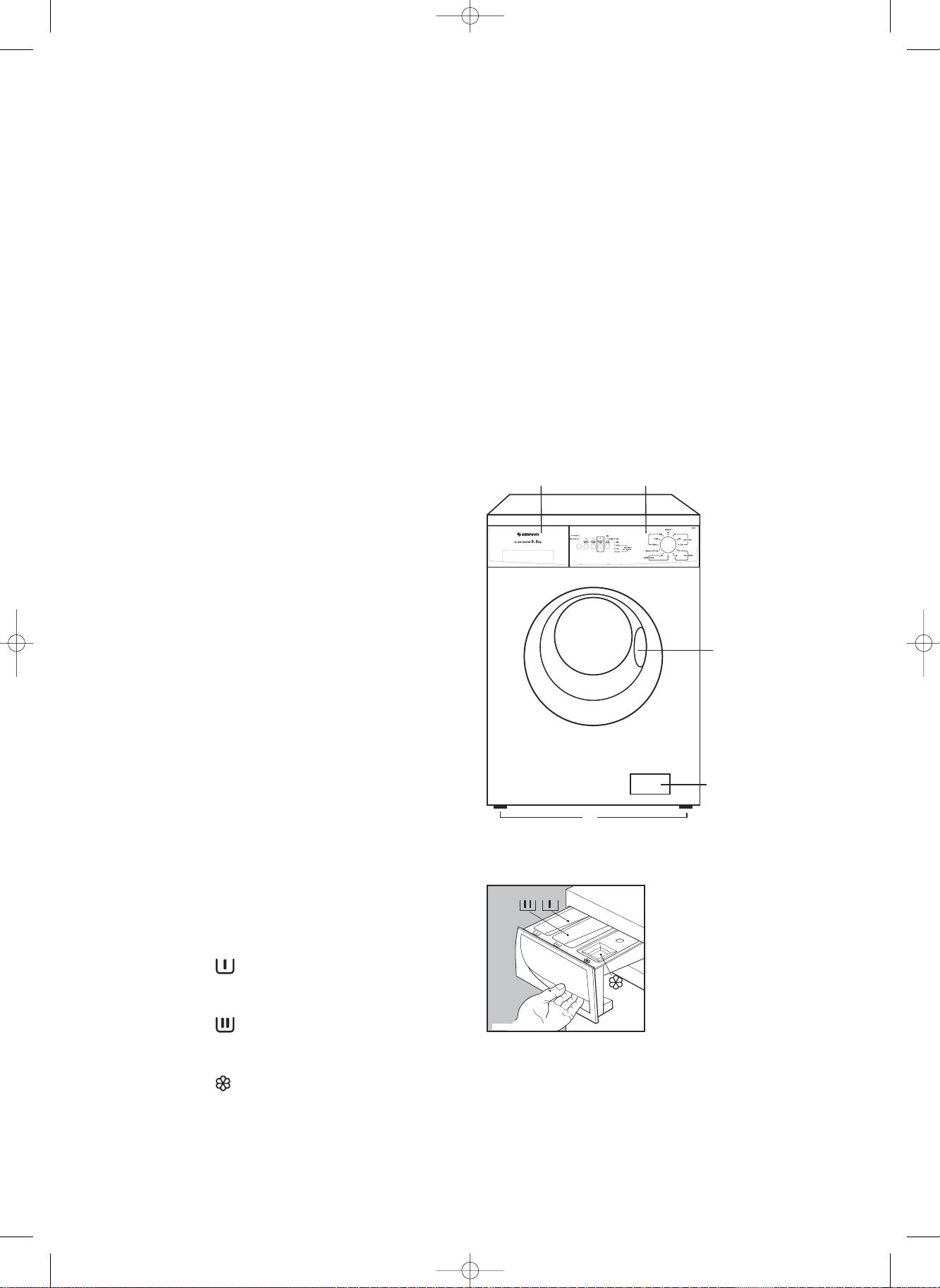

Detergent dispenser drawer

The detergent dispenser is divided into three
compartments (fig.). The table of Washing
Programmes shows which compartment to use.

Compartment : this compartment is only used for
washing powder when a programme has Prewash or
Stain.

Compartment : this compartment is used for

washing powder on all

programmes.
Compartment : this compartment is used for

fabric conditioner and starching agent.
Always add laundry detergents before switching the

machine on and keep the dispenser clean and dry,
so that the detergent can be efficiently dispensed
from the unit.

1 Detergent dispenser drawer
2 Control panel
3 Door opening handle
4 Drain pump
5 Adjustable feet

132990430.qxd 01/04/2004 13:28 Pagina 7

1 2

3

4

5

8

Use

1

1 Detergent dispenser drawer

Programme Option buttons

Depending on the programme, different functions
can be combined. These must be selected after

choosing the desired programme and before
depressing the START/PAUSE button.

When these buttons are pressed, the corresponding
pilot lights come on. When they are pressed again,
the pilot lights go out.
If an incorrect option is selected, the pilot lights flash
for about 2 seconds.

2 “Prewash / Rinse Hold” button

Select Prewash option if you wish your laundry to
be prewashed before the main wash (not
available for wool and hand wash). The relevant
light illuminates.
The prewash ends with a short spin in programmes
for cotton and synthetic fabrics, whereas in the
programme for delicate fabrics the water is only
drained.

When selecting Rinse Hold option, the water of
the last rinse is not emptied out, to prevent the
fabrics from creasing. The relevant light illuminates
and will stay on during washing.
At the end of the programme the pilot light “End”
illuminates, the Rinse Hold and “Door” lights will
remain lit. To drain water, proceed as follows:

turn the programme selector dial to position “O”
to switch the machine off;

select programme (drain) or (short
spin);

press Start/Pause button.

The light “Function” comes on during the drain or
the spin programme. At the end of the programme
the “End” light illuminates again and the “Door”
light goes out.

3 “Quick Wash” button

This button allows you to select the Quick Wash
function, for laundry that is only slightly soiled (not

for wool, hand wash and economy programme
60E).

The washing time will be reduced according to the
type of fabric and the selected temperature.
Max. load for cotton 3 kg.

4 “Extra Rinse” button

An extra rinse option is available for customers who
may have sensitve skin types.

5 “Start /Pause” button

After having selected the programme and the
required options press this button to start the
machine. The corresponding pilot light stops flashing
and remains lit.
To interrupt a programme which is running, depress
the Start/Pause button: the corresponding pilot light
starts to flash.
To restart the programme from the point at which it was
interrupted, press the Start/Pause button again.

132990430.qxd 01/04/2004 13:28 Pagina 8

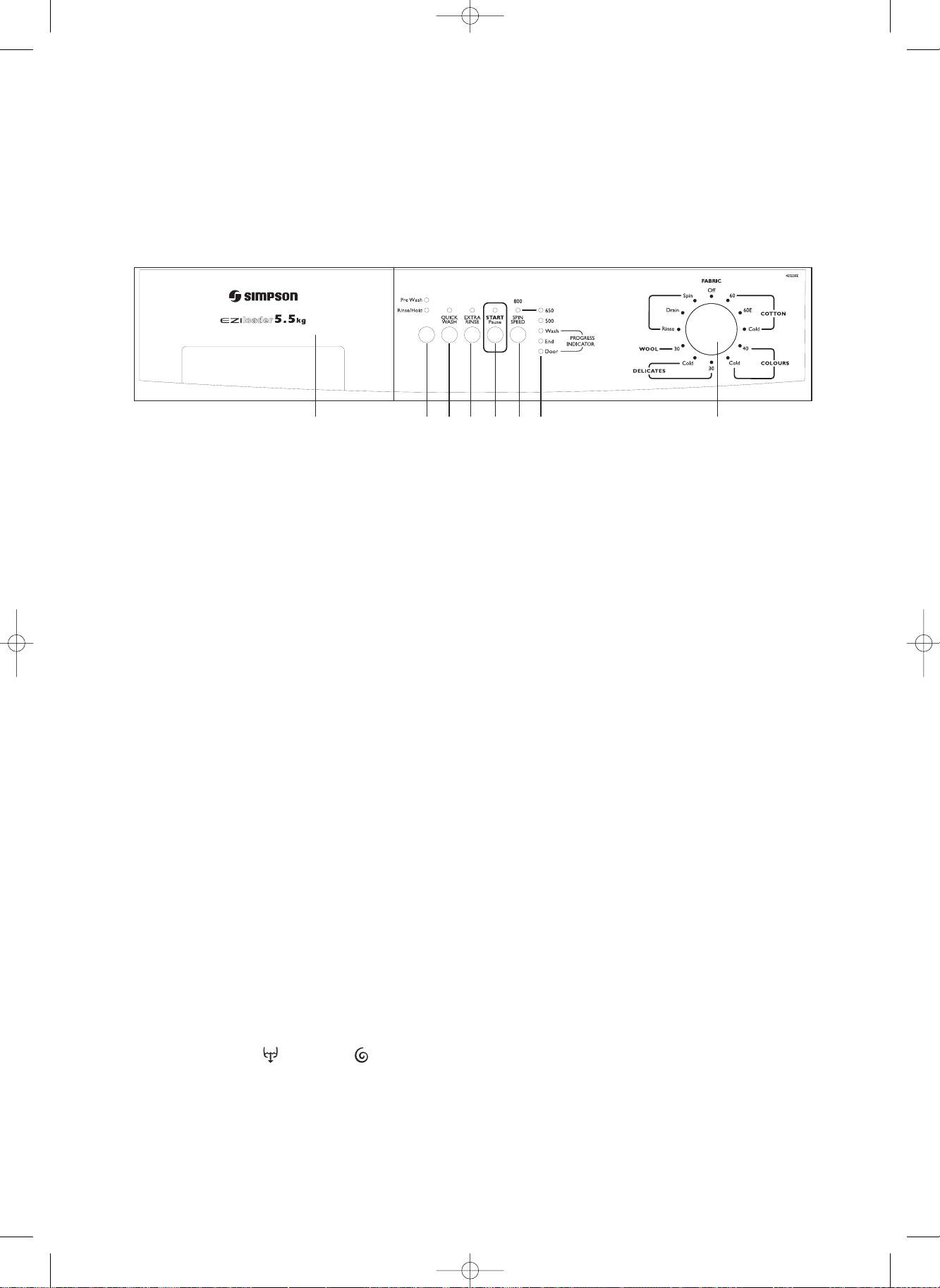

Control Panel

2 3 4 5 6 7 8

9

6 “Spin reduction” button

By depressing this button you can reduce the max.
spin speed proposed by the machine. The relevant
light illuminates.

The maximum speeds are:

for cotton, synthetics, hand wash and wool:800 r.p.m.

for delicate fabrics: 500 r.p.m.

7 Programme display

When you select the programme, the light
corresponding to the maximum spin speed provided
or the various phases making up the programme
comes on. At the same time the light of the

Start/Pause button starts blinking.
Spin speed lights: are on during the washing

programme and remain alight at the end of the cycle.

Function: when this light comes on this means that
the machine is performing the washing programme.

End: when the programme has finished, the “End”
pilot light comes on. If the Rinse Hold option has
been selected, the “End” and the “Door” pilot lights
remain lit.
The “End” light flashes in the event of operating

problems :

4 flashes: door open
2 flashes: problem with water draining
1 flash: problem with water supply

For more information see paragraph “Trouble­shooting guide”.

Door: the “Door” pilot light indicates if the door can
be opened:

- light on: the door cannot be opened

- light off: the door can be opened

It stays on during the whole programme indicating
that the door is locked.
When the light goes out, the door can be opened
(see page 13)

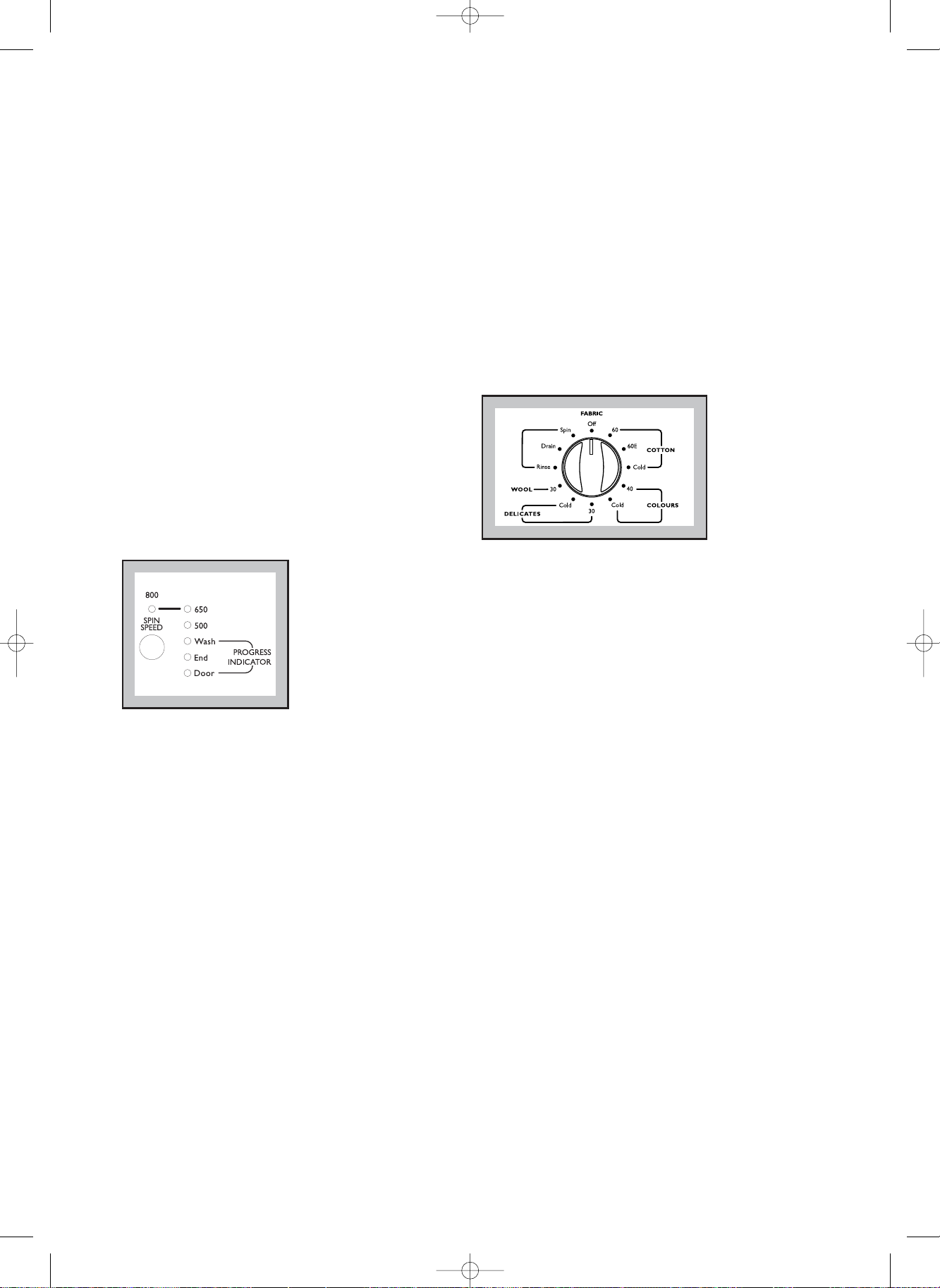

8 Programme selector dial

The selector is divided into 5 sections:

• Cotton

• Colours

• Wool

• Special programmes
O Reset programme/OFF

The selector dial can be turned either clockwise or
anticlockwise.

Position 60E corresponds to the ENERGY SAVING
programme.

At the end of the programme the selector dial
must be turned to position “O” to switch the
machine off.

Attention!

If during a washing programme the selector dial is
turned to another programme, the pilot lights of the
programme progress display start to flash. The
machine will not perform the new selected
programme.

132990430.qxd 01/04/2004 13:28 Pagina 9

• Delicate

132990430.qxd 01/04/2004 13:28 Pagina 10

Washing hints

Sorting the laundry

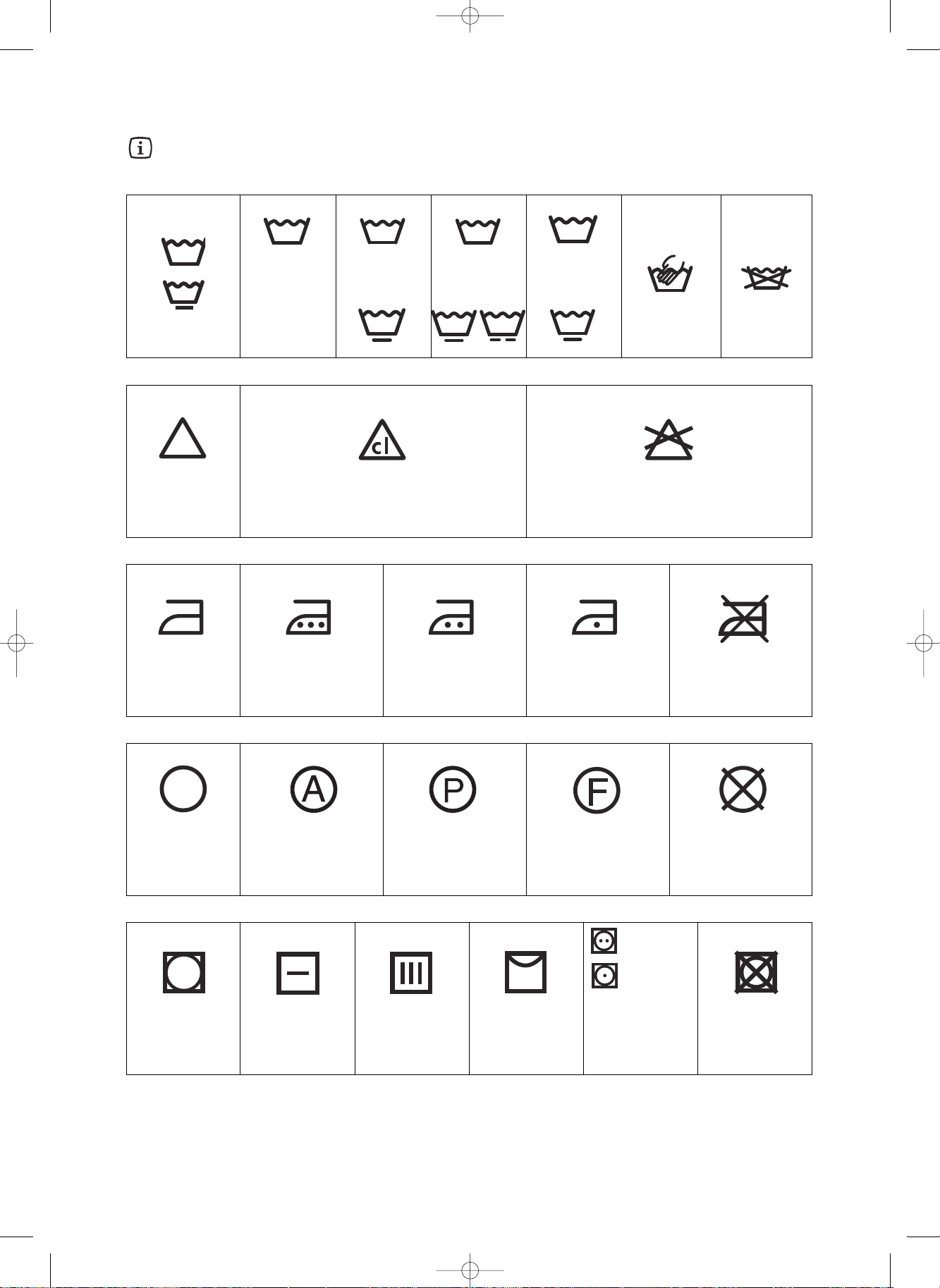

Follow the wash code symbols on each garment
label and the manufacturers washing instructions.
Sort the laundry as follows:
whites, colours, synthetics, delicates, woollens.

Temperatures

60°

(

Cold) for delicate items (e.g. net curtains),

30°-40° mixed laundry including synthetic fibres

Before loading the laundry

Never wash white and coloured clothing together.
New coloured items may run in the first wash; they
should therefore be washed separately the first time.

Make sure that no metal objects are left in the
laundry (e.g. hair clips, safety pins, pins).

Button up pillowcases, close zip fasteners, hooks
and poppers. Tie any belts or long tapes.

Remove persistent stains before washing. Rub
particularly soiled areas with a special detergent or
detergent paste.

Treat curtains with special care. Remove hooks or tie
them up in a bag or net.

recommended for intensive wash of
colour fast garments

(e.g. shirts, night dresses, pyjamas....) in

linen, cotton or synthetic fibres and for
lightly soiled white cotton (e.g.
underwear).

and woollens.
The wool wash cycle of this machine has
been approved by Woolmark for the
washing of machine washable Woolmark
products provided that the garments are
washed according to the instructions on
the garment label and those issued by
the manufacturer of this washing
machine. Licence No. M9604.

Maximum loads

Recommended loads are indicated in the
programme charts.

General rules:

Cotton, linen: drum full but not too tightly packed;

Synthetics: drum no more than half full;

Delicate fabrics and woollens: drum no more than

one third full.

Washing a maximum load makes the most efficient
use of water and energy.

For heavily soiled laundry, reduce the load size.

Laundry weights

The following weights are indicative:

bathrobe 1200 g

napkin 100 g

quilt cover 700 g

sheet 500 g

pillow case 200 g

tablecloth 250 g

towelling towel 200 g

tea cloth 100 g

night dress 200 g

ladies briefs 100 g

mans work shirt 600 g

mans shirt 200 g

mans pyjamas 500 g

blouse 100 g

mens underpants 100 g

Removing stains

Stubborn stains may not be removed by just water
and detergent. It is therefore advisable to treat them
prior to washing.

Blood: treat fresh stains with cold water. For dried
stains, soak overnight in water with a special
detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and dab the
stain; treat several times.

Dried grease stains: moisten with turpentine, lay
the garment on a soft surface and dab the stain with
the fingertips and a cotton cloth.

10

132990430.qxd 01/04/2004 13:28 Pagina 11

Rust: oxalic acid dissolved in hot water or a rust
removing product used cold. Be careful with rust
stains which are not recent since the cellulose
structure will already have been damaged and the
fabric tends to hole.

Mould stains: treat with bleach, rinse well (whites
and fast coloureds only).

Grass: soap lightly and treat with bleach (whites and
colour fast coloured clothing only).

Ball point pen and glue: moisten with acetone (*),
lay the garment on a soft cloth and dab the stain.

Lipstick: moisten with acetone as above, then treat
stains with methylated spirits. Remove any residual
marks from white fabrics with bleach.

Red wine: soak in water and detergent, rinse and
treat with acetic or citric acid, then rinse. Treat any
residual marks with bleach.

Ink: depending on the type of ink, moisten the fabric
first with acetone (*), then with acetic acid; treat any
residual marks on white fabrics with bleach and then
rinse thoroughly.

Tar stains: first treat with stain remover, methylated
spirits or benzine, then rub with detergent paste.

Do not machine wash garments saturated with
petroleum, methylated spirits, trichlorethylene,
etc. If such fluids have been used to remove
stains prior to washing, wait until they have
completely evaporated from the fabric before
placing garments in the appliance

(*) do not use acetone on artificial silk.

Detergents and additives

Good washing results also depend on the choice of
detergent and ensure correct quantities are used to
avoid waste and protect the environment. Although
biodegradable, detergents contain substances
which, in large quantities, can upset the delicate
balance of nature.

The choice of detergent will depend on the type of
fabric (delicates, woollens, cottons, etc.), the colour
fastness, washing temperature and degree of soiling.
Only frontload washer detergent should be used in
this appliance:
 powder detergents for all types of fabric,
 powder detergents for delicate fabrics (60°C max)
and woollens,
 liquid detergents, preferably for low temperature
wash programmes (60°C max) for all types of
fabric, or special for woollens only.
The detergent and any additives must be placed in
the appropriate compartments of the dispenser
drawer before starting the wash programme.

If using compact (concentrate) detergents, a
programme without prewash must be selected.

If a dosage ball/device is supplied with your
concentrate detergent, measure the detergent into
the device/ball which should then be placed on top of
the laundry and at the back of the machine drum.

Any fabric softener or starching additives must be
poured into the compartment marked before
starting the wash programme.

Follow the product manufacturers recommendations
on quantities to use and do not exceed the «MAX»

mark in the detergent dispenser drawer.

Quantity of detergent to be used

The quantity of detergent will depend on the load
size, degree of soiling and hardness of the water
used.

Water hardness is classified in so-called degrees of
hardness. Information on hardness of the water in
your area can be obtained from the relevant water
supply company.

Follow the product manufacturers instructions on
quantities to use.

Not enough washing powder causes:

 the washload to turn grey,

 greasy clothes.

Too much washing powder causes:

 sudsing,

 reduced agitation and washing effect,

 inadequate rinsing,

Use less detergent if:

 you are washing a small load,

 the laundry is lightly soiled,

 large amounts of foam form during washing.

11

12

Operating sequence

Before the first wash we recommend that you pour 2
litres of water into the main wash compartment
of the detergent drawer in order to activate the
ECO valve. Then run a cotton cycle at 60°C, with the
machine empty, in order to remove any
manufacturing residue from the drum and tub.
Pour half a measure of detergent into the main wash
compartment and start up the machine.

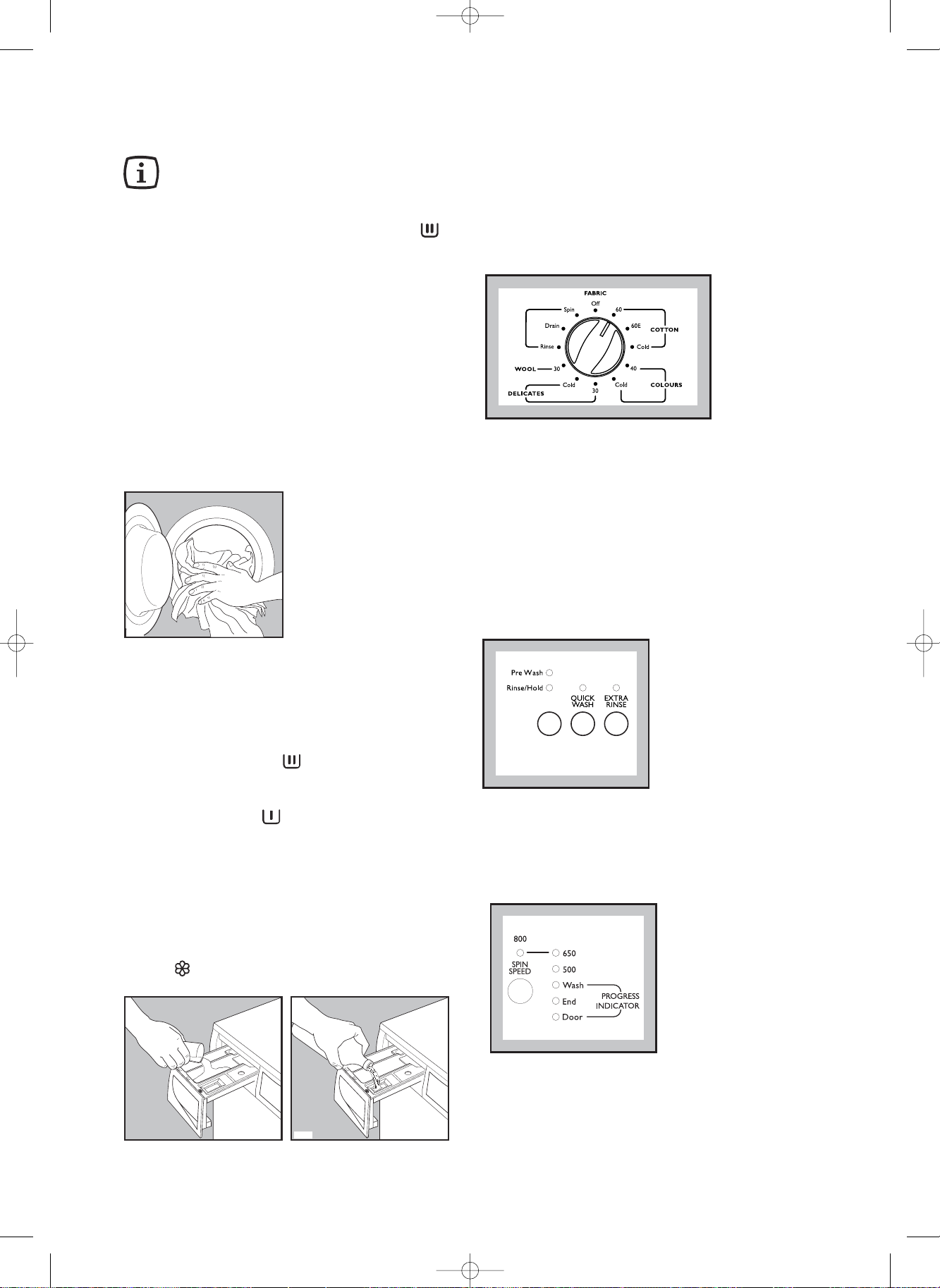

1. Place the laundry in the drum

Open the door.
Place the laundry in the drum, one item at a time,

shaking them out as much as possible.
Close the door.

2. Measure out the detergent

Pull out the dispenser drawer until it stops. Measure
out the amount of detergent recommended by the
manufacturer in a graduated cup and pour it into the
main wash compartment .

If you wish to carry out a programme with prewash or
a stain phase, pour detergent into the appropriate
compartment marked .

Please do not use liquid detergent with this
appliance except if placed in the dosage
ball/device & at the back of the machine drum.

3. Measure out the additive

If required, pour fabric softener into the compartment
marked , without exceeding the «MAX» mark.

4. Select the desired programme

Turn the programme selector dial to the desired
position.

The light corresponding to the max spin speed for
the selected programme illuminates and the light of
the Start/Pause button starts to flash.

5. Select the required option(s)

The light corresponding to the depressed button
illuminates.

When selecting the Rinse Hold option the water of
the last rinse is not emptied out, to prevent the
fabrics from creasing.

6.Select Spin Speed

Press the Spin Reduction button repeatedly to
reduce the spin speed.
The relevant light illuminates.

132990430.qxd 02/04/2004 16:29 Pagina 12

132990430.qxd 01/04/2004 13:28 Pagina 13

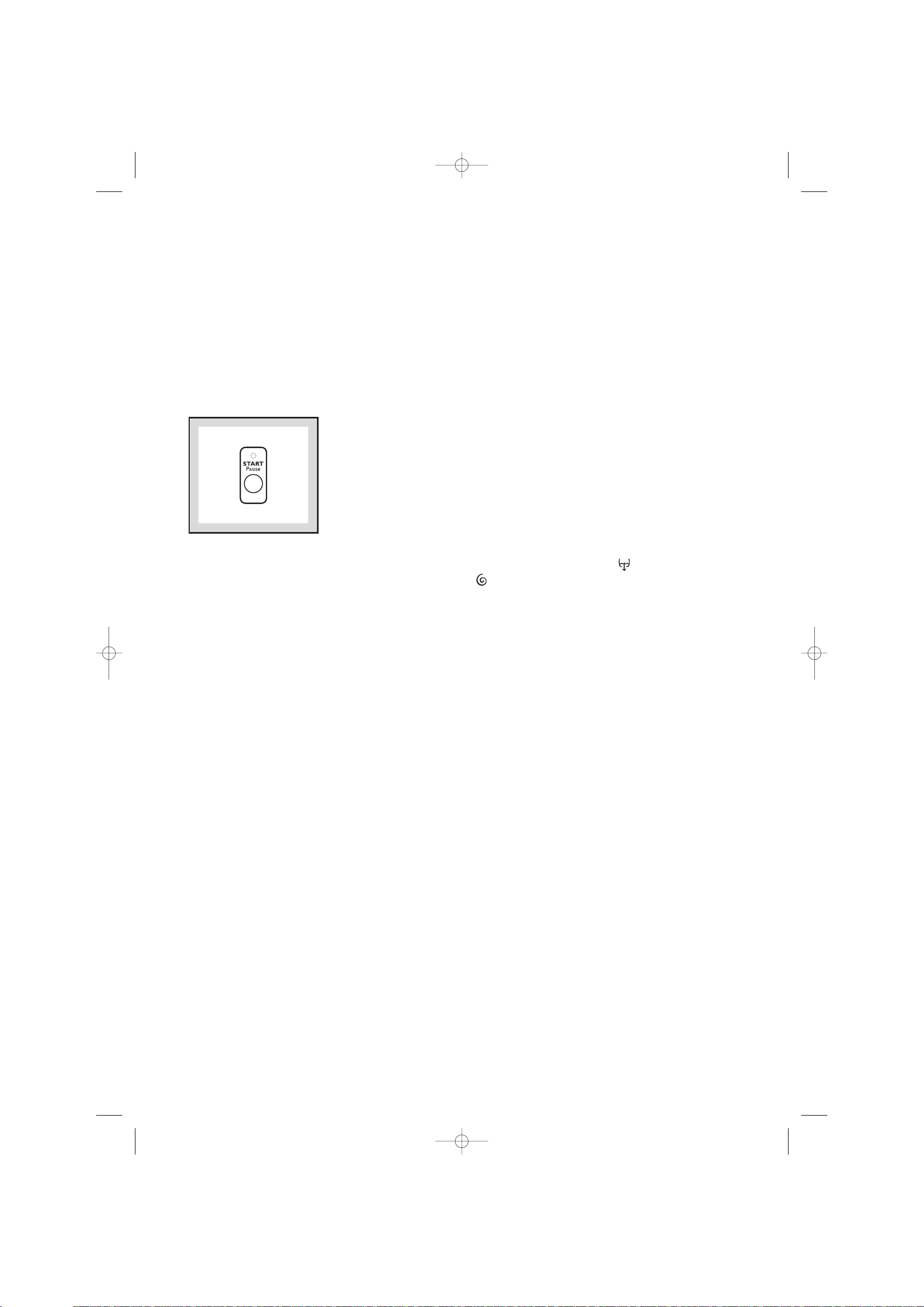

7. Start the programme

To start the selected programme, press the
Start/Pause button; the corresponding light stops
flashing.
The Functionand Door lights illuminate.
The machine starts operating.

8. Altering a programme

You can alter the programme before it starts.
When the programme has started, you can only
reset it by turning the programme selector dial to Off
and then you can select the new programme.
The washing water remains in the tub.
Start the new programme by depressing the

Start/Pause button.

9. Interrupting a programme

Press the Start/Pause button to interrupt a
programme which is running, the corresponding light
starts to flash. press the button again to restart the
programme.

10. Cancelling a programme

Turn the selector dial to Off to cancel a programme
which is running. Now you can select a new
programme.

If you cannot open the door but you need to open it
you have to switch the machine off by turning the
programme selector dial to Off. After about 3
minutes the door can be opened (pay attention to
the water level and temperature!).
Select the programme again and depress

Start/Pause to restart it.

12. At the end of the programme

The machine stops automatically, the End pilot
light illuminates and the light of the Start/Pause
button goes out.

If the Rinse Hold option has been selected, the
End and Door phase lights are on to indicate that
the water must be emptied out before opening the
door.
To do this first turn the programme selector dial toOff
and then to drain programme or spin programme

. The spin programme is
performed at the maximum speed. In order to avoid
any creasing or damage in synthetic, delicate, hand
wash and wool items, the spin speed must be
reduced by means of the relevant button.

The door can only be opened after the Door light
has gone out.
Release of the lock is also indicated by the coming
on of the End light.

At the end of the programme turn the programme
selector dial to Off  to switch the machine off.
Remove the laundry from the drum and carefully
check that the drum is empty.
If you do not intend to carry out another wash, close
the water tap. Leave the door open to prevent the
formation of mildew and unpleasant smells.

11. Opening the door after the
programme has started

First set the machine to PAUSE by pressing the
Start/Pause button.

The door can be opened when the Door light has
gone out.
If the Door light does not go out and the door
does not open, this means that the water
temperature is above 55°C, that the water level is
above the bottom edge of the door or that the drum
is turning.

13

132990430.qxd 01/04/2004 13:28 Pagina 14

Washing Programmes

Type of laundry

and degree of soil

WHITE COTTONS

Sheets, household linen, towels,
tablecloths

WHITE COTTONS ECONOMY

Mixed load of normally soiled
cottons.

COTTON COLD

Non-fast coloured items,
for example shirts, blouses,
underwear.

COLOURS
Mixed, Shirts, blouses,easy to iron

Programme/
temperature

60

COTTON

60E

COTTON

COLD

40°

Description

Wash at 60°C
3 rinses
Long spin

Wash at60E
3 rinses
Long spin

Cold

3 rinses
Long spin

Wash at40°C
3 rinses
Short spin

Possible

options

PREWASH
RINSE HOLD
QUICK WASH
STAIN
SPIN

REDUCTION

PREWASH
RINSE HOLD
STAIN
SPIN

REDUCTION

PREWASH
RINSE HOLD
QUICK WASH
STAIN
SPIN

REDUCTION

PREWASH
RINSE HOLD
QUICK WASH
STAIN
SPIN

REDUCTION

Dispenser-

washing

agents

*

*

*

*

COLOURS COLD

Shirts, blouses, underwear, mixed
fabrics

DELICATES

Acrylic, viscose, polyester items,
curtains

DELICATES COLD

Acrylic, viscose, polyester items,
curtains

WOOL

Specially tested programme for
wool garments bearing the
Pure new wool, non-shrink, machine

COLD

30°

COLD

30°

Cold

3 rinses
Short spin

30

Wash at

°C
3 rinses
Short spin

Cold
3 rinses
Short spin

Wash at30°C

3 rinses
Short spin

PREWASH
RINSE HOLD
QUICK WASH
SPIN

REDUCTION

PREWASH
RINSE HOLD
QUICK WASH
SPIN

PREWASH
RINSE HOLD
QUICK WASH
SPIN

RINSE HOLD
SPIN

REDUCTION

*

*

*

washable label.

* With PREWASH or EXTRA RINSE option

Economy programme (60E)

For slightly soiled cottons you can use the relevant Economy programme: you will obtain good washing results
while saving energy.
NOTE: Energy and water rating label reference program (to AS/NZS2040:2005 and AS/NZS 6400:2005)
is cotton 60E program.

14

15

Washing Programmes

Special programmes

Programme

selector dial

position

Rinses

Programme

Programme description

Additional functions

For rinsing hand washed
items

3 rinses with liquid additive,
if required short spin at max.
speed

Drain

For emptying out the water of
the last rinse of programmes
with RINSE HOLD option

Separate spin for all fabrics

Water draining

Short spin at max. speed

Spin

SPIN REDUCTION

For cancelling the
programme which is running
or to switch the machine off

O

Reset/Off

RINSE HOLD
SPIN REDUCTION

132990430.qxd 01/04/2004 13:28 Pagina 15

16

International wash code symbols

These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

Energetic wash

95 60 40

30

Max. wash

temperature

95°C

Delicate wash

Bleaching Bleach in cold water Do not bleach

Ironing Hot iron

max 200°C

Max. wash

temperature

60°C

60

Max. wash

temperature

40°C

40 40

Warm iron

max 150°C

Max. wash

temperature

30°C

Hand wash Do not

30

Lukewarm iron

max 110°C

wash

at all

Do not iron

Dry cleaning Dry cleaning

in all solvents

Drying Flat On the line On clothes

Dry cleaning in

perchlorethylene,

petrol, pure alcohol,

R 111 & R 113

hanger

Dry cleaning

in petrol,

pure alcohol

and R 113

high
temperature

low
temperature

Tumble dry

Do not

dry clean

Do not

tumble dry

17

Maintenance

Before any maintenance or cleaning is carried
out you must DISCONNECT the appliance
from the electricity supply.

After each wash

Leave the door open for a while. This helps to
prevent mould and stagnant smells forming inside
the appliance. Keeping the door open after a wash
will also help to preserve the door seal.

Maintenance Wash

With the use of low temperature washes it is possible
to get a build up of residues inside the drum.
We recommend that a maintenance wash be
performed on a regular basis.

To run a maintenance wash:

The drum should be empty of laundry.
Select the hottest cotton wash programme.
Use a normal measure of detergent, must be a

powder.

Door seal

Check from time to time the door seal and eliminate
eventual possible objects that could be trapped in
the fold.

Cabinet

Clean the outside of the machine with warm water
and a detergent used to handwash dishes. Rinse
with clean water and dry with a soft cloth.

Important: do not use methylated spirits, solvents or
similar products to clean the bodywork.

Detergent dispenser drawer

After a while, detergents and fabric softeners leave
deposits in the drawer. Inspect the drawer regularly.

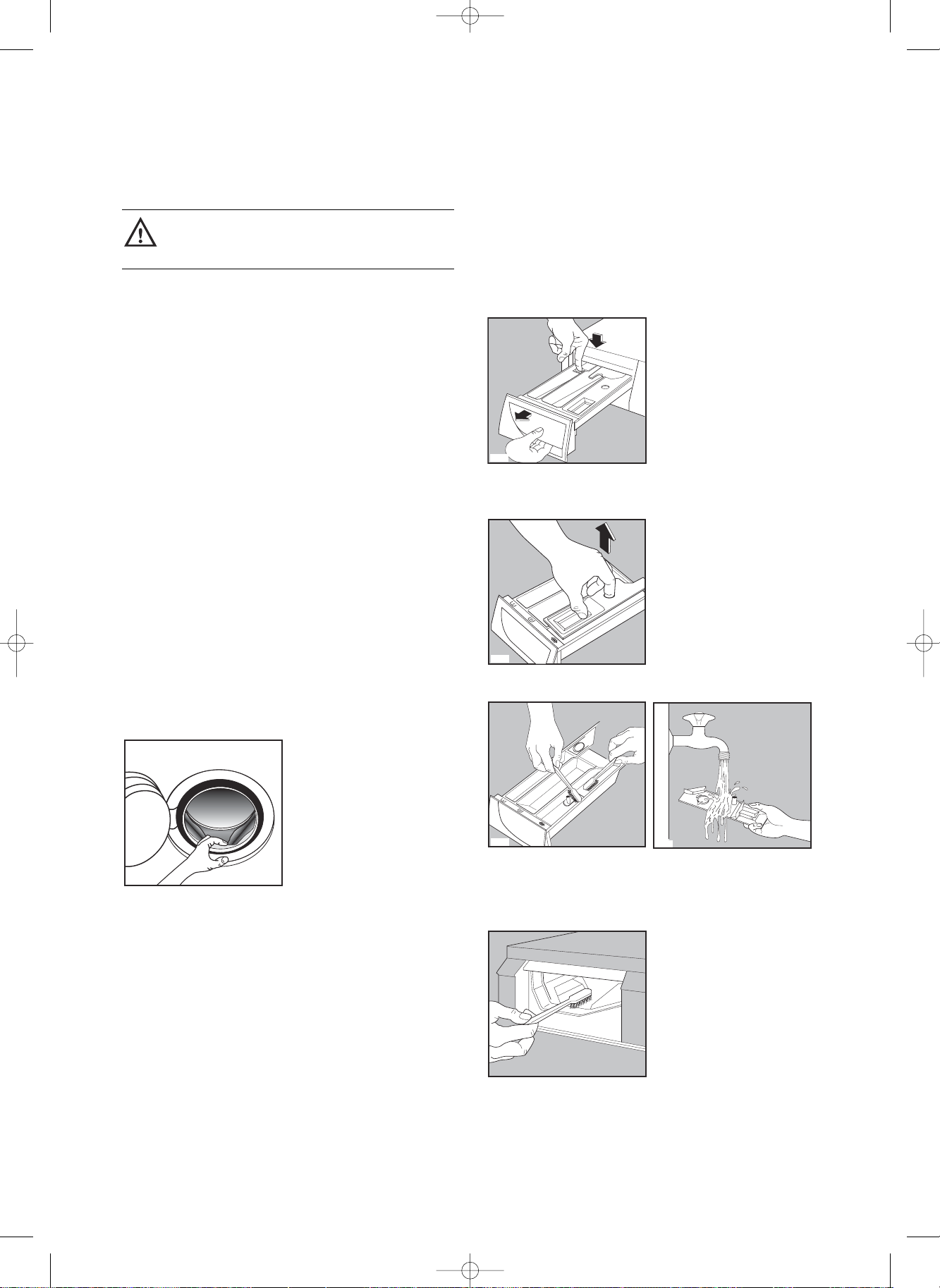

To remove the drawer from the machine, press the
button in the rear left-hand corner.

To facilitate cleaning, the top part of the additive
compartment can be removed.

Clean the drawer by rinsing it under a running tap.

Detergent can also accumulate inside the drawer
recess: clean it with an old toothbrush. Refit the
drawer after cleaning.

132990430.qxd 01/04/2004 13:28 Pagina 17

18

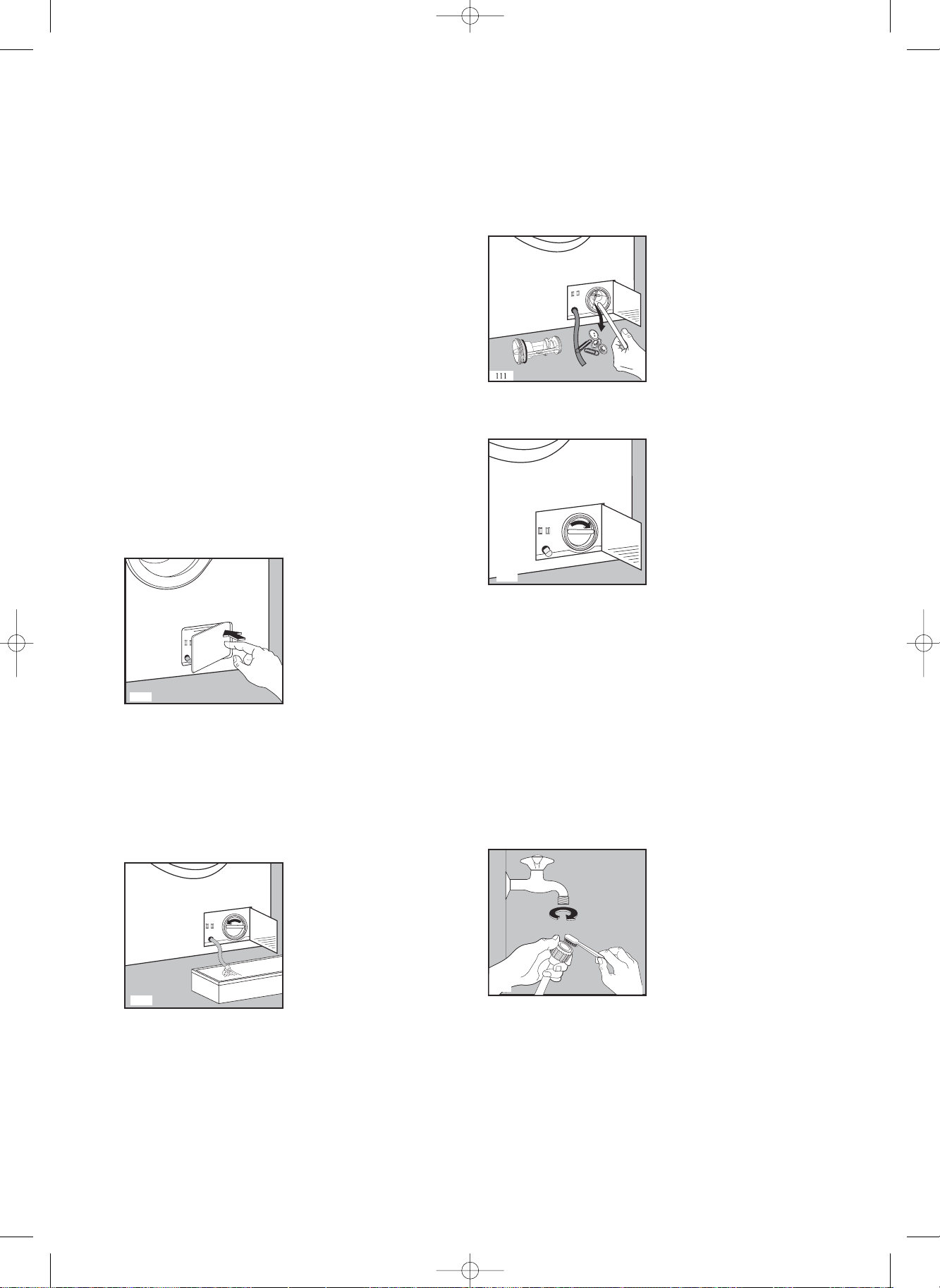

Drain pump

Important!

Every time you drain the water through the
emergency emptying hose you must pour 2 litres of
water into the main wash compartment of the
detergent drawer and then run the drain programme.
This will activate the ECO valve avoiding that part of
the detergent remains unused with your next
washing.

The pump should be inspected if

• the machine does not empty and/or spin

• the machine makes an unusual noise during
draining due to objects such as safety pins, coins
etc. blocking the pump.

Proceed as follows:

• Disconnect the appliance.

• If necessary wait until the water has cooled down.

• Open the pump door.

• Place a container close to the pump to collect any
spillage.

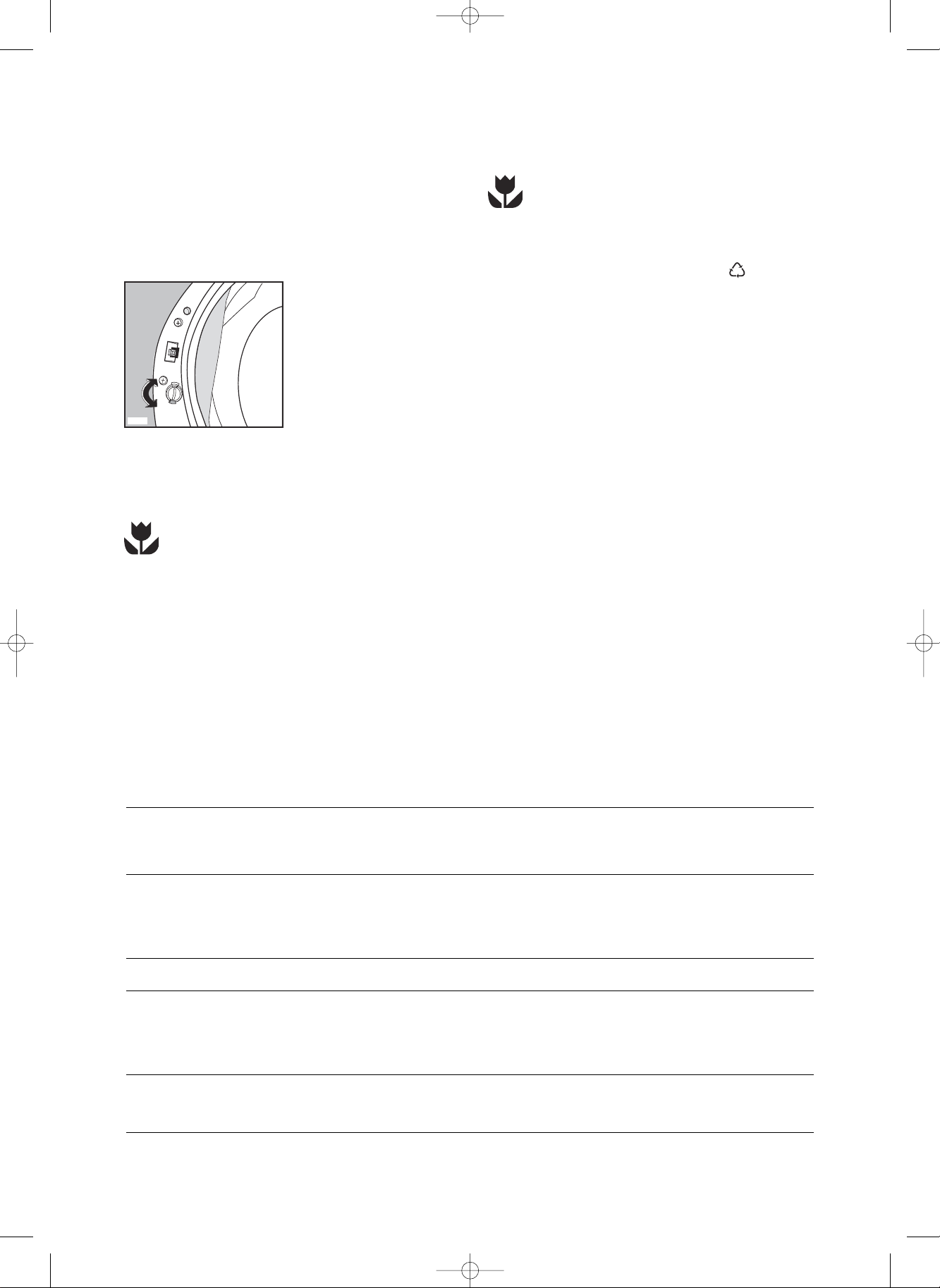

• Release the emergency emptying hose, place it in
the container and remove its cap.

• When no more water comes out, unscrew the
pump guard and remove it. Always keep a rag
nearby to dry up spillage of water when removing
the pump guard.

• Remove any objects from the pump impeller by
rotating it.

• Put the cap back on the emergency emptying hose
and place the latter back in its seat.

• Screw the pump guard fully in.

• Close the pump door.

Water inlet filter

If you notice that the machine is taking longer to fill,
check that the filter in the water inlet hose is not
blocked.

Turn off the water tap.
Unscrew the hose from the tap.
Clean the filter with a stiff brush.
Screw the hose back onto the tap.

132990430.qxd 01/04/2004 13:28 Pagina 18

132990430.qxd 01/04/2004 13:29 Pagina 19

Emergency emptying out

If the water is not discharged, proceed as follows to
empty out the machine:

 pull out the plug from the power socket;

 close the water tap;

 if necessary, wait until the water has cooled down;

 open the pump door;

 place a bowl on the floor and place the end of the

emergency emptying hose into the bowl. Remove
its cap. The water should drain by gravity into the
bowl. When the bowl is full, put the cap back on
the hose. Empty the bowl. Repeat the procedure
until water stops flowing out;

 clean the pump guard if necessary as previously

described;

 replace the emergency emptying hose in its seat

after having plugged it;

 screw the drain filter fully in and close the door.

The dangers of freezing

If the machine is installed in a place where the
temperature could drop below 0°C, proceed as
follows:

 Remove the plug from the socket.

 Close the water tap and unscrew the water inlet

hose from the tap.

 Place the end of the emergency emptying hose

and that of the inlet hose in a bowl placed on the
floor and let water drain out.

 Screw the water inlet hose back on and reposition

the emergency emptying hose after having put the
cap on again.

By doing this, any water remaining in the machine is
removed, avoiding the formation of ice and,
consequently, breakage of the affected parts.

When you use the machine again, make sure that
the ambient temperature is above 0°C.

Important!

Every time you drain the water through the
emergency emptying hose you must pour 2 litres of
water into the main wash compartment of the
detergent drawer and then run the drain programme.
This will activate the ECO valve, avoiding old
detergent contaminating the next wash load.

19

20

Trouble-Shooting Guide

Problem Possible cause

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily
without calling out a service technician. Before contacting your local Service Centre, please carry out
the checks listed below.

During machine’s operation it is possible that the “End” light flashes:

• 1 flash = there is no water filling

• 2 flashes = the water is not drained

• 4 flashes = door open

Once the problem has been eliminated, press the START PAUSE button to restart the programme. If after
all checks, the problem persists, contact your local Service Centre.

• The machine does not start up:

• The door is not firmly closed.

• The machine is not plugged in or there is no power
at the socket.

• The main fuse has blown.

• The START PAUSE button has not been
depressed.

• The machine does not fill:

• The water tap is closed.

• The inlet hose is squashed or kinked.

• The filter in the inlet hose is blocked.

• The door is not properly closed.

• The machine fills then empties

immediately:

• The end of the drain hose is too low. Refer to
relevant paragraph in “water drainage” section.

• The machine does not empty and/or

does not spin:

• The drain hose is squashed or kinked.

• The RINSE HOLD option has been selected.

• The drain pump is clogged.

• There is water on the floor:

• Too much detergent or unsuitable detergent
(creates too much foam) has been used.

• Check whether there are any leaks from one of the
inlet hose fittings. It is not always easy to see this
as the water runs down the hose; check to see if it
is damp.

• The drain hose is damaged.

• The pump guard has not been fully screwed in.

• The cap on the emergency emptying hose has not
been replaced after cleaning the pump.

• Unsatisfactory washing results:

• Too little detergent or unsuitable detergent has
been used.

• Stubborn stains have not been treated prior to
washing.

• The correct programme / temperature was not
selected.

• Excessive laundry load.

• The machine vibrates or is noisy:

• The transit bolts and packing have not been
removed.

• The support feet have not been adjusted.

• The laundry is not evenly distributed in the drum.

• Maybe there is very little laundry in the drum.

132990430.qxd 01/04/2004 13:29 Pagina 20

21

If you are unable to identify or solve the problem,
contact your nearest service centre. Before
telephoning, make a note of the model, serial
number and purchase date of your machine: the
Service Centre will require this information.

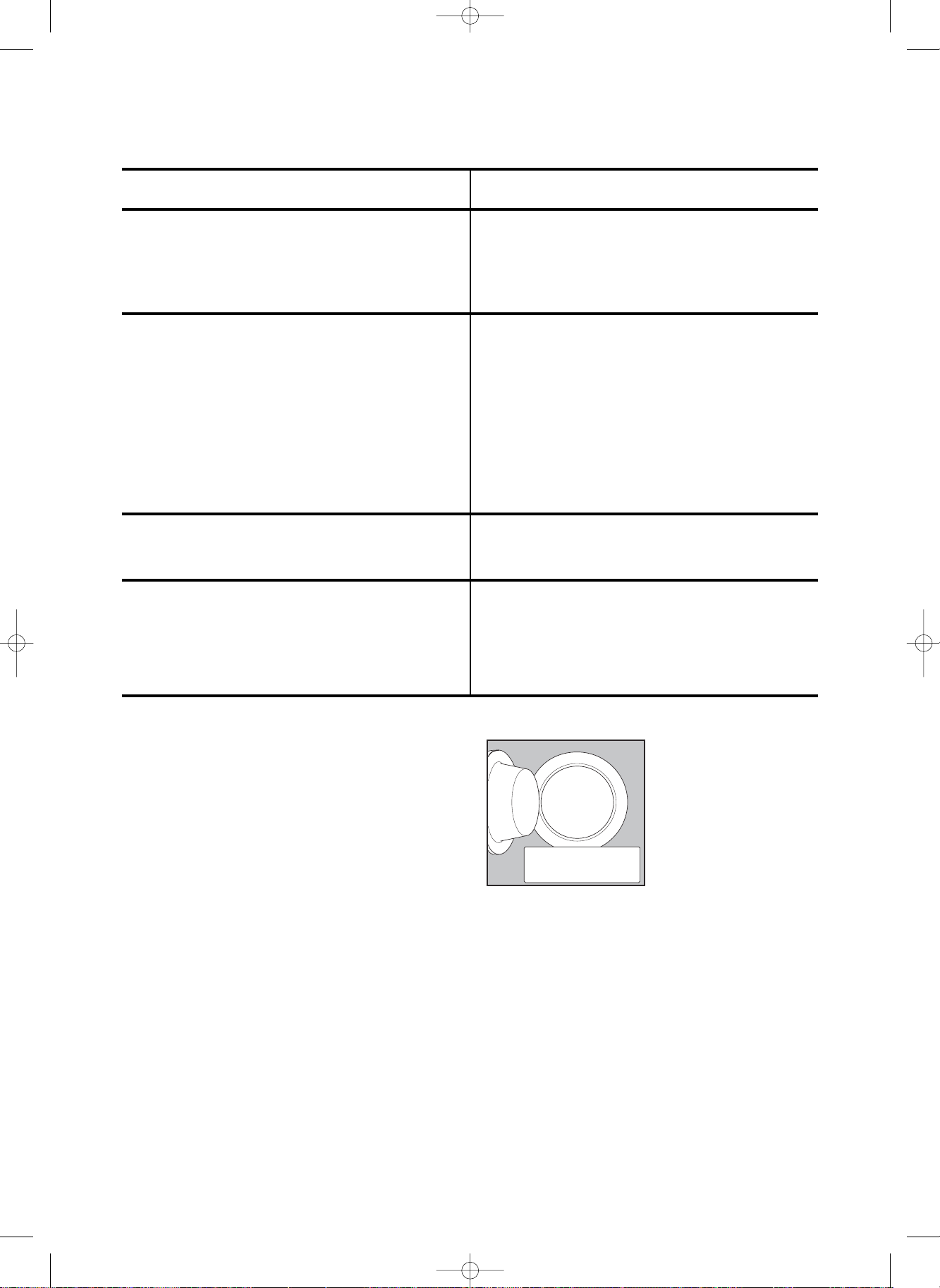

Problem Possible cause

• Spinning starts late or the laundry is
not spun enough:

• The electronic unbalance detection device has cut
in because the laundry is not evenly distributed in
the drum. The laundry is redistributed by reverse
rotation of the drum. This may happen several
times before the unbalance disappears and normal
spinning can resume. If, after few minutes, the
laundry is still not evenly distributed in the drum,
the machine will spin at a lower speed or will not
spin. If at the end of the programme the laundry is
not spun enough, redistribute the load manually
and select the spin programme.

• No water is visible in the drum

• Machines based on modern technology operate
very economically using very little water without
affecting performance.

• The machine makes an unusual noise

• The machine is fitted with a type of motor which
makes an unusual noise compared with other
traditional motors. This new motor ensures a softer
start and more even distribution of the laundry in
the drum when spinning, as well as increased
stability of the machine.

• The door will not open:

• The programme is still running, the drum is turning.

• The door lock has not yet released. (DOOR pilot
light is on)

• The water level is above the bottom edge of the door.

• The machine is heating the water.

132990430.qxd 01/04/2004 13:29 Pagina 21

Model No:................

Product No: ........................

Serial No: ........................

Warranty

22

FOR SALES IN AUSTRALIA AND NEW ZEALAND

APPLIANCE: [FRONT LOAD WASHER]

This document sets out the terms and conditions of product
warranties for Electrolux branded appliances. It is an
important document. Please keep it with your proof of
purchase documents in a safe place for future reference
should you require service for your Electrolux appliance.
General Terms and Conditions

1. In this warranty
(a) 'Electrolux' means Electrolux Home Products Pty Ltd

ABN 51 004 762 341 in respect of Appliances purchased
in Australia and Electrolux (NZ) Limited in respect of
Appliances purchased in New Zealand;

(b) 'Appliance' means any Electrolux product purchased by

you accompanied by this document;

(c) 'Warranty Period' means

(i) where you use the Appliance for personal, domestic

or household purposes in Australia the period of 24
months and in New Zealand the period of 24 months;

(ii) where you use the Appliance for commercial

purposes, in Australia the period of

3 months and in

New Zealand the period of 3 months, (if the period
stated is 0 months you are not covered by this
product warranty)

following the date of original purchase of the Appliance;

(d) 'you' means the purchaser of the Appliance not having

purchased the appliance for re-sale, and 'your' has a
corresponding meaning.

2. This warranty only applies to Appliances purchased and used
in Australia or New Zealand and is in addition to (and does
not exclude, restrict, or modify in any way) any non­excludable statutory warranties in Australia or New Zealand.

3. Electrolux warrants that, when dispatched from an Electrolux
warehouse, the Appliance is free from defects in materials
and workmanship for the Warranty Period.

4. During the Warranty Period Electrolux or its Authorised
Service Centre will, at no extra charge if your appliance is
readily accessible without special equipment, and subject to
these terms and conditions, repair or replace any parts which
it considers to be defective. You agree that any replaced
Appliances or parts become the property of Electrolux. This
warranty does not apply to light globes, batteries, filters or
similar perishable parts.

5. Parts and Appliances not supplied by Electrolux are not
covered by this warranty.

6. Where you are within an Electrolux service area, this
warranty covers the cost of transport of the Appliance to and
from Authorised Service Centres of Electrolux and travelling
costs for representatives of the Authorised Service Centre to
and from your home or business. If you are outside an
Electrolux service area, you will bear these costs. For
information about whether you are within an Electrolux
service area, please phone 13 13 49 in Australia, or 0800 10
66 10 in New Zealand.

7. Proof of purchase is required before you can make a claim
under this warranty.

8. You may not make a claim under this warranty unless the defect
claimed is due to faulty or defective parts or workmanship.
Electrolux is not liable in the following situations (which are not
exhaustive):
(a) The Appliance is damaged by:

(i) accident
(ii) misuse or abuse, including failure to properly maintain or

service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect power

supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation.

(b) The Appliance is modified without authority from Electrolux in

writing.

(c) The Appliance's serial number or warranty seal has been

removed or defaced.

(d) The Appliance was serviced or repaired by anyone other than

Electrolux or its Authorised Service Centres.

9. This warranty, the contract to which it relates and the relationship
between you and Electrolux are governed by the law applicable in
the Australian State where the Appliance was purchased or the law
applicable in New Zealand if the Appliance was purchased in New
Zealand. Where the Appliance was purchased in New Zealand for
business purposes the Consumer Guarantee Act does not apply.

Limitation of Liability

10. To the extent permitted by law:
(a) Electrolux excludes all warranties other than as contained in

this document;

(b) Electrolux shall not be liable for any loss or damage whether

direct or indirect or consequential arising from your purchase,
use or non-use of the Appliance.

11. Provisions of the Trade Practices Act and State consumer
legislation in Australia, and the Consumer Guarantees Act, the
Sale of Goods Act and the Fair Trading Act in New Zealand, imply
warranties or conditions, or impose obligations, upon Electrolux
which cannot be excluded, restricted or modified. To the extent
permitted by law, the liability of Electrolux (if any) arising out of or
in relation to the Appliance or any services supplied by Electrolux
shall be limited (where it is fair and reasonable to do so),:
(a) in the case of Appliances, at its option, to the replacement or

repair of the Appliances or the supply of equivalent products or
the payment of the cost of replacing the Appliances or having
the Appliances repaired or of acquiring equivalent Appliances.
Upon being replaced, parts and Appliances become the
property of Electrolux; or

(b) in the case of services, at its option, to the supply of the

services again or the payment of the cost of having the

services re-supplied;
and in the case of Appliances or services supplied in New Zealand,
loss or damage whether direct or indirect or consequential that is
reasonably foreseeable.

Privacy

You acknowledge that in the event that you make a warranty claim it
will be necessary for Electrolux and its Authorised Service Centres to
exchange information in relation to you to enable Electrolux to meet its
obligations under this warranty.

Important Notice

Before Calling a Service Technician please check carefully the operating instructions, service booklet and the warranty terms and conditions.

FOR SERVICE

OR TO FIND THE ADDRESS OF

YOUR NEAREST STATE SERVICE

CENTRE IN AUSTRALIA

Please call 13 13 49

For the cost of a local call (Australia only)

FOR SERVICE

OR TO FIND THE ADDRESS OF
YOUR NEAREST AUTHORISED

SERVICE CENTRE IN

NEW ZEALAND

Free call 0800 10 66 10

(New Zealand only)

SERVICE AUSTRALIA

ELECTROLUX HOME PRODUCTS

NEW ZEALAND SPARE PARTS CENTRES

AUCKLAND Prime Distributors Ltd. 8 Highbrook Drive, East Tamaki…………….……[phone]
WELLINGTON Prime Distributors Ltd. 68 Victoria Street, Petone……………………..[phone]
CHRISTCHURCH Prime Distributors Ltd. Unit 1, 127 Montreal Street………………..[phone]

R. Redpath Ltd. 55 Ferry Road……………………………….………[phone]

DUNEDIN South City Champion, 590 Hillside Road……………………………...……….[phone]

FOR SPARE PARTS

OR TO FIND THE ADDRESS OF

YOUR NEAREST STATE SPARE

PARTS CENTRE IN AUSTRALIA

Please call 13 13 50

For the cost of a local call (Australia only)

ELECTROLUX HOME PRODUCTS

132990430.qxd 01/04/2004 13:29 Pagina 24

The Electrolux Group. The world’s No. 1 Choice

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in
more than 150 countries around the world.

.
