Parts Manual

Series Transaxle Drive Walk-Behind Mower

15HP Product

. No. Description

1694895 Pacer, 15HP B&S Walk-Behind 2690447 Pacer, 15HP B&S w/34" Deck

17HP Product

Mfg. No. Description

5900630 Pacer, 17HP B&S w/34" Deck

Mower Decks

Mfg. No. Description

1694287 34" Mower Deck

Pacer

Rev.

5100117

6/2008

Part No.:

TP 400-7226-E-PA-S

Table Of Content

PRODUCT COMPONENTS PAGES

Engine Frame & Handle Bars Group ...................................................................................................................

Engine & PTO Group ...........................................................................................................................................

Transaxle - SERVICE PARTS .............................................................................................................................

Transaxle, Mount & Drive Idler Group .................................................................................................................

Motion Control, Parking Brake & Operator Presence Group ...............................................................................

Fuel Supply Hose & Tank Replacement Parts Group .........................................................................................

Fuel Tank & Mount Group (S/N: 2012825357 & Below) ......................................................................................

Fuel Tank & Mount Group (S/N: 2012825358 & Above) .....................................................................................

Electrical Group ....................................................................................................................................................

Wheel & Tire Group ..............................................................................................................................................

Decal Group .........................................................................................................................................................

34" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................

34" Mower Deck - Frame, Caster & Shield ..........................................................................................................

34" Mower Deck - Grass Mulcher ........................................................................................................................

34" Mower Deck - Height Adjustment & Roller Bar .............................................................................................

34" Mower Deck - Housing, Arbors & Blades ......................................................................................................

10 12 14 16 18 20 22 24 26 28 30 32 36

Torque Specification Chart ..................................................................... Inside Back Cover

4 6 8

Engine Frame & Handle Bars Group (226hbre0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226hbre0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Engine Frame & Handle Bars Group (226hbre0)

PART NO. DESCRIPTIONREF NO. QTY.

SWITCH, PTO 1 1722887SM 1 SWITCH RETAINER RING 2 5022222SM 1 NUT, 3/8-24 Hex 3 5025035SM 1 CABLE, Choke Control, 47" 4 5046501SM 1 BOLT, 1/4-20 x 3/4 5 5025010X6SM 2 SWITCH, Ignition, Complete 6 1686734SM 1 KEY, Ignition, Molded Set 7 1717163SM 1 COVER 8 1704346SM 1 PLASTIC NUT 9 5022791SM 1 CABLE, Throttle Control, 46" 10 5047629SM 1 GRIP, Foam 11 5021841SM 2 NUT, 1/4-20 Hex Nylon Lock 12 5025095SM 2 HANDLE BAR ASSEMBLY 13 5061279CSM 1 NUT, #10-24 Hex Nylon Lock 14 5025271SM 2 RUBBER STRAP 15 5021670SM 1 SCREW, #10-24 x 1 16 5025270SM 2 BATTERY BOX 17 5046188SM 1 BATTERY, Lawn & Garden, 12V (BCIU1, 340 CCA) 18 - 1 BODY CLIP, 5/16-18 19 5022308SM 4 REAR SHIELD 20 5047735CSM 1 BOLT, 5/16-18 x 3/4 21 5025011X6SM 4 WASHER, 5/16" SAE 22 5025155SM 4 ENGINE DECK ASSEMBLY 23 5049229C 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Engine & PTO Group (226eng0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226eng0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Engine & PTO Group (226eng0)

PART NO. DESCRIPTIONREF NO. QTY.

ENGINE, 15HP Briggs & Stratton, Model 28 (15HP Model Only) 1* 1 FUEL FILTER 2 5021178X3SM 1 OIL FILTER (492932) 2* 1 FOAM PRE-CLEANER (697015) 2* 1 AIR FILTER (697634) 2* 1 SPARK PLUG (691043) 2* 1 MUFFLER (697349) 2* 1 EXHAUST MANIFOLD (496750) 2* 1 EXHAUST DEFLECTOR (396903) 2* 1 EXHAUST MANIFOLD GASKET (692236) 2* 2 GROMMET 3 5021379SM 1 CRANKSHAFT BOLT, 7/16 x 2-3/4 4 5047632SM 1 CLUTCH RETAINER 5 5042132SM 1 ELECTRIC CLUTCH 6 1686880SM 1 KEY, 1/4 Sq. x 2 7 5050407X3SM 1 CAPSCREW, Hex Head, 5/16-18 x 2-1/2 8 5025011X20SM 1 WASHER, 5/16 9 5025155SM 5 OIL DRAIN HOSE 10 5048681SM 1 NUT, Hex Nylon Lock, 5/16-18 11 5025057SM 4 WASHER, 5/16" Internal Tooth Lock 12 5025188SM 2 ENGINE, 17HP Briggs & Stratton (17HP Model Only) 13 * 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Transaxle - SERVICE PARTS (226tsp0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226TSP0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Transaxle - SERVICE PARTS (226tsp0)

PART NO. DESCRIPTIONREF NO. QTY.

SEALANT 6 5022905X1SM 10.5 SHAFT, INPUT 9 5022905X2SM 1 RING - RETAINING 10 5022905X3SM 1 SPACER 11 5022905X4SM 1 RING - RETAINING 12 5022905X5SM 3 SEAL, Lip, .67 x 1.58 x .276 13 5022905X16SM 1 BALL BEARING 14 5022905X6SM 1 OUTBOARD SLEEVE BEARING 32 5022905X7SM 2 LIP SEAL, Axle Seal 34 5022905X17SM 2 AXLE SHAFT - RH 35 5022905X8SM 1 AXLE SHAFT - LH 36 5022905X9SM 1 SPRING - HELICAL COMPRESSION 55 5022905X10SSM 1 WASHER 56 5022905X11SM 1 20W-50 OIL 57 5022905X12 78.8 HYDRO RETURN SPRING 101 5022967SM 1 FAN, 6", 10 BLADE 119 5022905X13SM 1 EXPANSION TANK KIT 128 5022905X14SM 1 FAN/PULLEY KIT 130 5022905X15SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Transaxle, Mount & Drive Idler Group (226trn0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226trn0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Transaxle, Mount & Drive Idler Group (226trn0)

PART NO. DESCRIPTIONREF NO. QTY.

NUT, Hex Nylon Lock, 3/8-16 1 5025096SM 1 NUT, Hex Nylon Lock, 5/16-18 2 5025057SM 9 WASHER, 5/16 3 5025155SM 15 TRANSAXLE BRACE 4 5047582CSM 1 CAPSCREW, Hex Head, Self-Tapping, 5/16-18 x 3/4 5 5025059X6SM 2 CAPSCREW, Hex Head, 5/16-18 x 3/4 6 5025011X6SM 5 RUBBER FLAP 7 5047736SM 1 SKID PLATE 8 5048312CSM 1 HYDRO RETURN SPRING 9 5022967SM 1 CAPSCREW, Hex Head, 5/16-18 x 3 10 5025011X24SM 4 HYDROSTATIC TRANSAXLE 11 5022905SM 1 BELT 12 5022968SM 1 SPRING, Extension 13 5020807SM 1 NUT, Hex, Side Lock, 3/8-16 14 5025100SM 2 CAPSCREW, Hex Head, 3/8-16 x 3 15 5025013X24SM 1 WASHER, Fender, 3/8 16 5025165SM 2 SPACER 17 5047716SM 1 BUSHING, Brass 18 5020876BSM 2 TRANSAXLE IDLER ARM 19 5047717CSM 1 IDLER PULLEY ASSEMBLY 20 5043627SM 1 WASHER, 3/8 21 5025156SM 1 CAPSCREW, Hex Head, 3/8-16 x 2 22 5025013X16SM 1 TRANSAXLE DRIVE PULLEY 23 5047626SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Motion Control, Parking Brake & Operator Presence Group (226mcge0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226mcge0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Motion Control, Parking Brake & Operator Presence Group (226mcge0)

PART NO. DESCRIPTIONREF NO. QTY.

FOAM GRIP 1 5025510SM 1 BRAKE HANDLE SHAFT ASSEMBLY 2 5061278CSM 1 SWITCH, Plunger, NO/NO 3 5022438SM 1 NUT, #10-24 Hex 4 5025029SM 8 SWITCH, Plunger, NC 5 5021769SM 1 SCREW, #10-24 x 1/2 6 5025179X4SM 8 BEARING, Flange 7 5021098SM 4 BRAKE ROD (S/N: 2012825357 & Below) 8 5061495SM 1 COLLAR, 5/16" Set 9 5020047SM 3 NUT, 5/16-18 Hex Nylon Lock 10 5025057SM 8 WASHER, 5/16" SAE 11 5025155SM 8 BOLT, 5/16-18 x 3/4 12 5025011X6SM 8 NUT, 3/8-16 Hex Side Lock 13 5025100SM 2 BOLT, 1/4-20 x 1 14 5025010X8SM 6 SLIDE SPACER 15 5061693SM 4 CONTROL HANDLE, LH 16 5061691SM 1 CONTROL HANDLE, RH 16 5061702SM 1 SWITCH ACTUATOR 17 5061713CSM 2 NUT, 1/4-20 Hex Serrated Flange 18 5025126SM 10 BOLT, 1/4-20 x 3/4 19 5025010X6SM 4 HANDLE MOUNT, LH 20 5061689SM 1 HANDLE MOUNT, RH 20 5061692SM 1 SWITCH, Plunger, NC 21 5021769SM 2 SHOULDER BOLT, 1/2 x 1 22 5025223SM 2 PIVOT CONTROL, LH 23 5061683CSM 1 PIVOT CONTROL, RH 23 5061685CSM 1 CLEVIS PIN, 5/16 x 1 24 5025213X8SM 7 COTTER PIN, 3/32" x 3/4" 25 5025201X6SM 8 CLEVIS, 5/16-24, Plastic 26 5020979SM 8 NUT, 5/16-24 Hex 27 5025033SM 8 THUMB CONTROL ROD 28 5047642SM 2 NUT, 3/8-16 Hex Serrated Flange 29 5025128SM 2 NUT, 5/16-18 Hex Small Serrated Fl ange 30 1931277SM 2 BOLT, 5/16-18 x 1-3/4 TFL 31 5025055X14SM 1 CONTROL SHAFT ASSEMBLY 32 5047697CSM 1 LINK STUD 33 5047740SM 1 BOLT, 3/8-16 x 4 34 5025013X32SM 1 SPRING, Extension 35 5049352SM 1 BRAKE LINKAGE ROD 36 5048328SM 1 COLLAR, Set, 1/4" 37 5022481SM 2 DUMP VALVE ROD 38 5047732SM 1 ROD, PARKING BRAKE LINKAGE (S/N: 2012825358 & Above) 39 5101513CSM 1 WASHER, 1/4 SAE 40 5025154SM 1 NUT, 3/8-16 HEX NYLOCK FLANGE 41 5025394SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

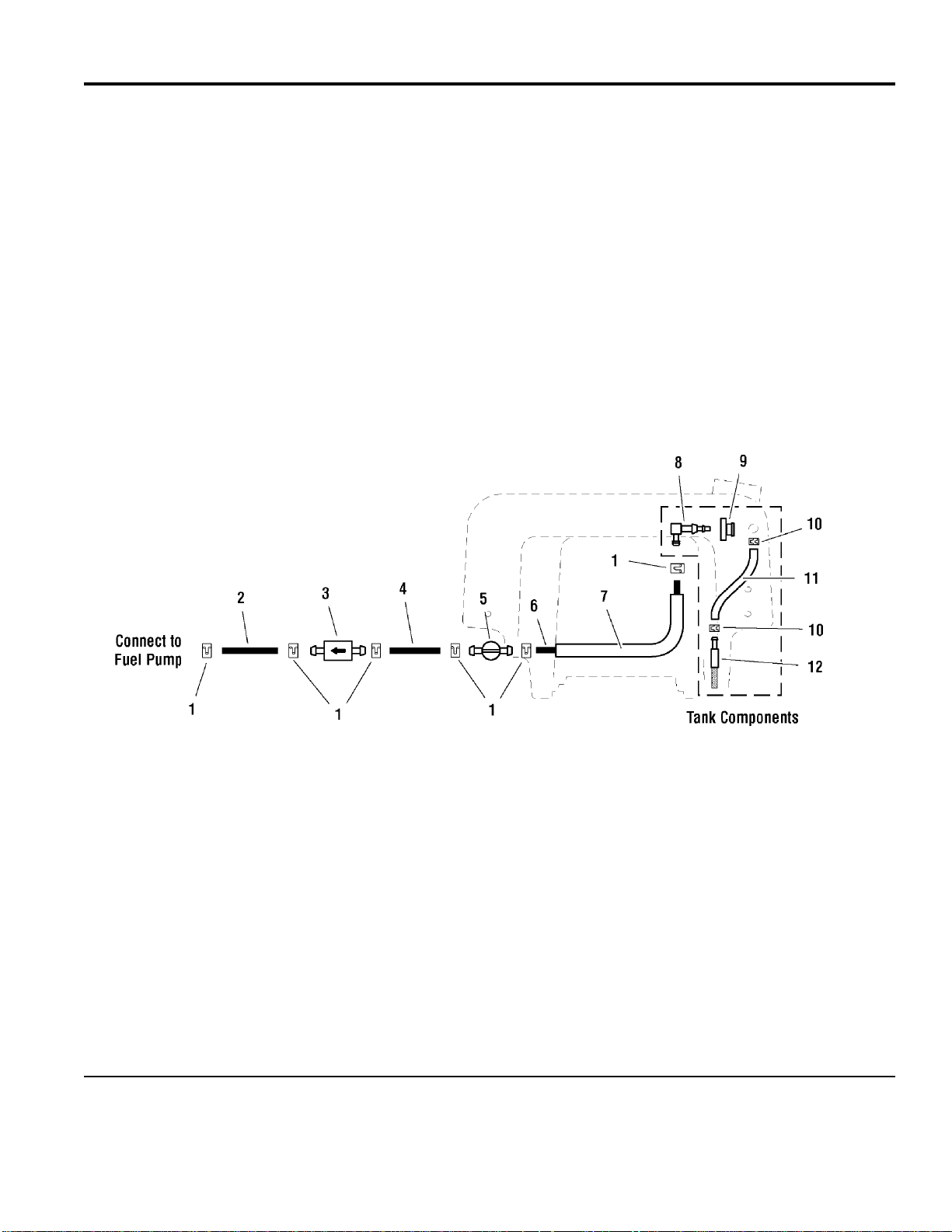

Fuel Supply Hose & Tank Replacement Parts Group (226fsh0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226fsh0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Fuel Supply Hose & Tank Replacement Parts Group (226fsh0)

PART NO. DESCRIPTIONREF NO. QTY.

CLAMP, Hose 1 5020835SM 6 HOSE, 5” (supplied with engine) 2 5050831X5SM 1 FUEL FILTER 3 5021178X3SM 1 HOSE, 3” 4 5050831X3SM 1 VALVE, Fuel Shut-Off 5 5021235SM 1 HOSE, 15” 6 5050831X15SM 1 WIRE LOOM, 13” 7 5050833X13 1 ELBOW FITTING 8 5023061SM 1 GROMMET 9 1654930SM 1 HOSE CLAMP 10 5020835SM 2 HOSE, 20” 11 5050925X20SM 1 SCREEN FITTING 12 5023067SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Fuel Tank & Mount Group (S/N: 2012825357 & Below) (226tnk0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226tnk0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Fuel Tank & Mount Group (S/N: 2012825357 & Below) (226tnk0)

PART NO. DESCRIPTIONREF NO. QTY.

FUEL TANK CAP 1 5022158SM 1 FUEL TANK 2 5048149SM 1 CAPSCREW, Hex Head, 3/8-16 x 3/4 3 5025013X6SM 4 WASHER, 3/8 4 5025156SM 8 CAPSCREW, Hex Head, 3/8-16 x 1-1/4 5 5025013X10SM 4 FUEL TANK MOUNT - LH 6 5048342CSM 1 NUT, Hex Serrated Flange, 3/8-16 7 5025128SM 4 FUEL TANK MOUNT - RH 8 5048343CSM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Fuel Tank & Mount Group (S/N: 2012825358 & Above) (226tnk1)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226tnk1

The above parts group applies to the following Mfg. Nos.:

5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Fuel Tank & Mount Group (S/N: 2012825358 & Above) (226tnk1)

PART NO. DESCRIPTIONREF NO. QTY.

FUEL TANK CAP 1 5022158SM 1 FUEL TANK 2 5048149SM 1 BOLT, 3/8-16 X 3/4", ALLEN BUTTON 3 5025075X6SM 4 WASHER, 3/8 4 5025156SM 8 CAPSCREW, Hex Head, 3/8-16 x 1-1/4 5 5025013X10SM 4 FUEL TANK MOUNT - LH 6 5404028CSM 1 NUT, 3/8-16 HEX NYLOCK FLANGE 7 5025394SM 4 FUEL TANK MOUNT - RH 8 5404027CSM 1 WASHER, 5/16 LOCK YZ 9 5025170SM 4

Footnotes

The above parts group applies to the following Mfg. Nos.:

5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

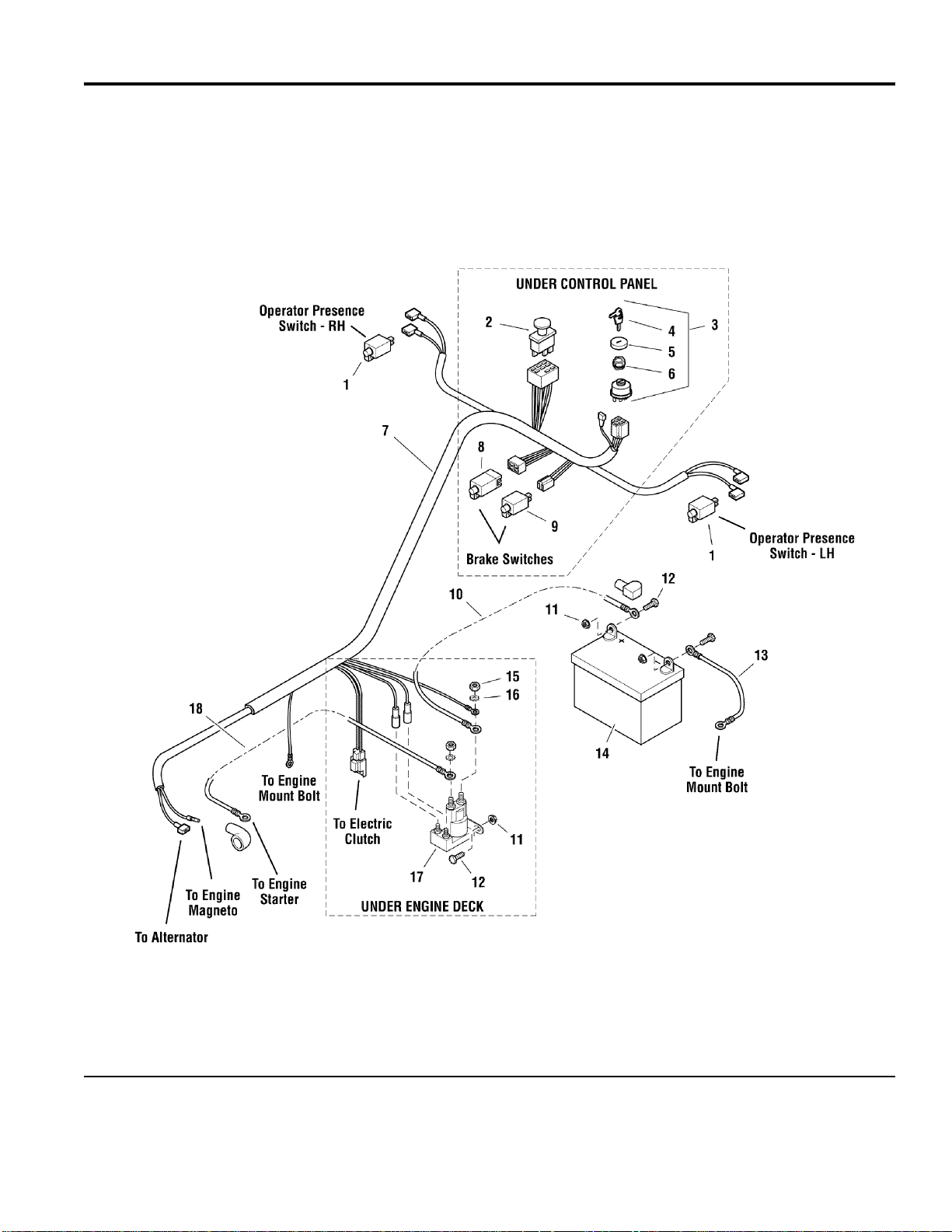

Electrical Group (226egwe0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226egwe0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Electrical Group (226egwe0)

PART NO. DESCRIPTIONREF NO. QTY.

SWITCH, NC 1 5021769SM 2 SWITCH, PTO 2 1722887SM 1 SWITCH, Ignition, Complete 3 1686734SM 1 KEY, Ignition, Molded Set 4 1717163SM 1 COVER 5 1704346SM 1 PLASTIC NUT 6 5022791SM 1 WIRE HARNESS 7 5401037SM 1 SWITCH, Plunger, NO/NO 8 5022438SM 1 SWITCH, Plunger, NC 9 5021769SM 1 POSITIVE (+) BATTERY CABLE, 22" 10 5021405SM 1 NUT, 1/4-20 Hex Serrated Flange 11 5025126SM 4 BOLT, 1/4-20 x 3/4 12 5025010X6SM 4 NEGATIVE (-) BATTERY CABLE, 22" 13 5021406SM 1 BATTERY, Lawn & Garden, 12V (BCIU1, 340 CCA) 14 - 1 NUT, Hex Jam, 5/16-24 15 2820438SM 2 WASHER, Light Lock, 5/16 16 5023217SM 2 SOLENOID 17 1686981SM 1 POSITIVE (+) BATTERY CABLE, 30" 18 5021542SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Wheel & Tire Group (226whl0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226whl0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Wheel & Tire Group (226whl0)

PART NO. DESCRIPTIONREF NO. QTY.

KEY, 3/16 1 5048409SM 2 WHEEL & TIRE ASSEMBLY, 16 x 6.5 x 8, Complete (Includes Ref. No. 3 & 4) 2 5022913SM 2 TIRE, 16. x 6.5 x 8 3 5022913X2SM 2 WHEEL ASSEMBLY, 8 x 5.38 4 5022913X1SM 2 SHIM 5 5025520X3SM 8 C-CLIP 6 5020863SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Decal Group (226dcl0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

226dcl0

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Decal Group (226dcl0)

PART NO. DESCRIPTIONREF NO. QTY.

DECAL, Control Panel 1 5100066SM 1 DECAL, Danger 2 5049658SM 1 DECAL, Danger, Mower Discharge 3 5100137SM 1 DECAL, Danger, Mower 4 5100136SM 1 DECAL, Hot 5 1704473SM 1 DECAL, Simplicity, Silver & Blue, W/Icon 6 1722551SM 2 DECAL, Pacer 1534 (15HP Models Only) 7 5061480SM 1 DECAL, Stripe, Blue & Silver 8 5048482SM 1 DECAL, Free Floating 9 1722771SM 1 DECAL, 34" 10 1722786SM 1 DECAL, HYDRO RELEASE 11 5049320SM 1 DECAL, PACER 1734 (17HP Models Only) 12 5100693SM 1 MODEL/SERIAL TAG 13 * 1 DECAL, OPEI 14 * 1

Footnotes

Note* Not a serviceable part.

The above parts group applies to the following Mfg. Nos.:

1694895 - Pacer 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

34" Mower Deck - Belt, Idler Arm & Hitch (2264pb0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2264pb0

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

34" Mower Deck - Belt, Idler Arm & Hitch (2264pb0)

PART NO. DESCRIPTIONREF NO. QTY.

BELT 1 1723391SM 1 CAPSCREW, Hex Head, 3/8-16 x 2-3/4 2 5025013X22SM 2 WASHER, 3/8 3 1924940SM 2 SPACER 4 1667811SM 2 PULLEY, Idler 5 1704926SM 1 SPACER 6 1667812SM 1 SPRING, Extension 7 2164213SM 1 LOCKWASHER, 3/8 8 5025171SM 1 NUT, Hex, 3/8-16 9 1916950SM 1 BUSHING 10 1663114SM 2 FITTING, Lube 11 2812808SM 1 LEVER & ARM ASSEMBLY, Complete (Includes Ref. No. 10 & 11) 12 1724535SM 1 GRIP 13 1665835 1 SPACER 14 1657242SM 1 WASHER, 3/8 15 1924356SM 2 NUT, Hex Serrated Flange, 3/8-16 16 5025128SM 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/2 17 5025013X12SM 2 SPACER 18 1667811SM 2 HITCH 19 1724357ASM 1 SPACER 20 2157081SM 2 NUT, Hex Lock, Aluminum Insert, 3/8-16 21 2860681SM 2 PIN 22 1724430SM 1 PIN, Cotter 23 1918452SM 2 WASHER, 1/2 24 5025158SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

34" Mower Deck - Frame, Caster & Shield (2264fr0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2264fr0

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

34" Mower Deck - Frame, Caster & Shield (2264fr0)

PART NO. DESCRIPTIONREF NO. QTY.

SHIELD INSERT 1 5048181CSM 1 SCREW, Allen Head, 1/4-20 x 1/2 2 5025299X4SM 4 GUARD, Mower Deck 3 5048150SM 1 SHIELD MOUNT BRACKET 4 5048353CSM 2 BODY CLIP, 5/16-18 5 5022308SM 4 LOCKWASHER, 1/4 6 5025169SM 4 CAPSCREW, Hex Head, 1/4-20 x 3/4 7 5025010X6SM 4 CAPSCREW, Hex Head, 3/8-16 x 1 8 5025013X8SM 8 COLLAR, Double Split, 1 9 5048549SM 4 SHAFT 10 5047678CSM 1 NUT, Hex Serrated Flange, 3/8-16 11 5025128SM 8 CAPSCREW, Hex Head, 3/8-16 x 2-1/2 12 5025013X20SM 4 WASHER, 3/8 13 5025156SM 4 HITCH TUBE 14 5048196CSM 1 CAPSCREW, Hex Head, 5/16-18 x 1 15 5025010X8SM 4 WASHER, 5/16 16 5025155SM 4 FRAME RAIL - LH 17 5047648CSM 1 CASTER MOUNT FRAME 18 5047825CSM 1 GREASE FITTING, 1/4-28 19 5020095SM 2 NUT, Hex Nylon Lock, 3/8-16 20 5025096SM 4 CAPSCREW, Hex Head, 1/2-13 x 5-1/2 21 5025017X44SM 2 CASTER TIRE 22 1722951SM 2 SPACER 23 5041657SM 2 NUT, Hex Nylon Lock, 1/2-13 24 5025056SM 2 CASTER YOKE 25 5047929CSM 2 BUSHING, Flange 26 5020823SM 4 COLLAR, Split, 3/4 27 5010114SM 2 FRAME RAIL - RH 28 5047649CSM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

34" Mower Deck - Grass Mulcher (2264mlc0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2264mlc0

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

34" Mower Deck - Grass Mulcher (2264mlc0)

PART NO. DESCRIPTIONREF NO. QTY.

NUT, Hex Lock, 5/16-18 1 7091575SM 1 WING NUT 2 1679163SM 1 MULCH PLATE 3 1724832ASM 1 J-BOLT 4 1724475SM 1 NUT, Hex Serrated Flange, 5/16-18 5 5025127SM 5 CARRIAGE BOLT, 5/16-18 x 3/4 6 5025145X6SM 5 34” BAFFLE ASSEMBLY 7 1724457ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

34" Mower Deck - Height Adjustment & Roller Bar (2264ha0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2264ha0

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

34" Mower Deck - Height Adjustment & Roller Bar (2264ha0)

PART NO. DESCRIPTIONREF NO. QTY.

NUT, Push, 3/8, Black 1 1960093SM 1 KNOB, Spinner 2 1714084SM 1 CRANK, Height Adjustment, Black 3 1719901SM 1 PIN, Spring 4 2816001SM 1 FITTING, Lube 5 1704314SM 1 TRUNNION 6 1715892SM 1 SPACER 7 1679166SM 1 ARM, Height Adjust 8 1722978ASM 1 LOCKWASHER, 1/2 9 5025331SM 1 NUT, Hex, 1/2-13 10 5025038SM 1 NUT, Hex, 5/8-18 11 5025040SM 2 WASHER, 5/8 12 5025281SM 7 TRUNNION 13 1706645ASM 1 CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4, Black 14 1664847SM 4 STRAP 15 1665374SM 1 PIN, Cotter 16 1918452SM 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 17 1931352SM 2 PIN, Clevis 18 2118053SM 1 SHAFT ASSEMBLY 19 1724362ASM 1 CAPSCREW, Hex Head, 5/16-18 x 1 20 5025011X8SM 4 NUT, Hex Serrated Flange, 5/16-18 21 5025127SM 8 BRACKET, Rear Roller 22 1724619ASM 2 EYEBOLT 23 2107121SM 2 CHAIN, 3 Links 24 1707514ASM 2 SPACER 25 1719868SM 1 WASHER, 3/8 26 5025156SM 8 CAPSCREW, Hex Head, 3/8-16 x 3-3/4, Black 27 1960653SM 1 ROLLER 28 1668513SM 5 NUT, Hex Serrated Flange, 3/8-16 29 5025128SM 4 BAR, Roller 30 1724394ASM 1 CAM, Eccentric 31 1704082SM 2 NUT, Hex Lock, Aluminum Insert, 3/8-16 32 2860681SM 5 WASHER, 1/2 33 1924361SM 2 SHOULDER BOLT 34 2172622SM 2 NUT, Push, 5/8, Black 35 1960520SM 2 ROLLER, End 36 1722036SM 2 SPACER 37 1602946SM 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/4 38 5025013X14SM 1 ROD, Pitch 39 1724425SM 1 SPACER 40 1706644SM 1 SHAFT & BAR ASSEMBLY 41 1724396ASM 1 TRUNNION 42 1724009SM 1 WASHER, Detent, Black 43 1704097SM 1 PLATE 44 1704080ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

34" Mower Deck - Height Adjustment & Roller Bar (2264ha0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2264ha0

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

34" Mower Deck - Height Adjustment & Roller Bar (2264ha0)

PART NO. DESCRIPTIONREF NO. QTY.

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4, Black 45 1931202SM 2 WASHER, 5/16, Black 46 1919381SM 1 ROD, Height of Cut 47 1704114SM 1 WASHER, 1/2, Black 48 5025158SM 1 CAPSCREW, Hex Head, 3/8-16 x 2 49 5025013X16SM 1 SPACER 50 1667811SM 1 CARRIAGE BOLT, 1/2-13 x 2-1/2, Black 51 1960489SM 1 BRACKET, Height of Cut 52 1724512ASM 1 CLAMP 53 5023173SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

34" Mower Deck - Housing, Arbors & Blades (2264hc0)

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2264hc0

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

34" Mower Deck - Housing, Arbors & Blades (2264hc0)

PART NO. DESCRIPTIONREF NO. QTY.

NUT, Hex Flange, 9/16-18 1 1714419SM 2 WASHER, Belleville 2 1713675SM 4 PULLEY 3 1713091SM 1 HUB 4 1713616SM 1 PULLEY 5 1713090SM 1 HUB 6 1713614SM 1 COVER, Arbor Housing 7 1713199ASM 2 BEARING 8 1705897SM 4 SPACER 9 1732543SM 2 GASKET, Foam 10 1707335SM 2 HOUSING, Arbor, Bottom (Includes Ref. No. 12) 11 1713338ASM 2 FITTING, Lube 12 1704314SM 2 MOWER HOUSING, 34” 13 1724359ASM 1 CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4, Black 14 1664847SM 10 WASHER 15 1713619SM 2 SHAFT, Arbor 16 1713610SM 1 SHIELD, Grass 17 1713196SM 2 BLADE, Mower, 14.42 18 1706737ASM 1 WASHER, Hex, Special 19 1713089SM 2 WASHER, Spring 20 1656916SM 2 CAPSCREW, Hex Head, 7/16-14 x 1-1/4, Black 21 2823471SM 2 BLADE, Mower, 19.90 22 1706738ASM 1 SHAFT, Arbor 23 1713612SM 1 CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2, Black 24 1930600SM 2 CARRIAGE BOLT, 1/4-20 x 7/8, Black 25 1931318SM 2 NUT, Push, 1/4, Black 26 1960518SM 2 WASHER, 1/4, Black 27 1960353SM 2 CLAMP 28 1704873SM 1 WASHER, 5/16, Black 29 1919326SM 1 LOCKWASHER, 1/4, Black 30 5025169SM 2 NUT, Hex, 1/4-20, Black 31 5025287SM 2 DEFLECTOR, Plastic 32 1705449SM 1 SPRING, Torsion 33 7101082SM 1 CAP, Spring End 34 1723323SM 1 ROD, Deflector, Front 35 5049245SM 1 WASHER, 5/16, Black 36 5025305SM 2 BELT GUIDE 37 1704099SM 1 WASHER, 5/16, Black 38 1919381SM 2 NUT, Hex Flange, 5/16-18 39 5025139SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694287 - 34" Mower 2690447 - Pacer 5900630 - Pacer

Briggs and Stratton Yard Power Products Group

TP 400-7226-E-PA-S

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

Hardware Identification & Torque Specifications

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside Diameter

Nut, 1/2”

Marks

3/8” Bolt or Nut

Wrench—9/16”

3/8

5/16” Bolt or Nut

Wrench—1/2”

5/16

1/4” Bolt or Nut

Wrench—7/16”

1/4

1/2” Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16 DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2

Common Hardware Types

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware Grade

Size Of

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

second number is present it represent the When bolt or capscrew is identified as 1/2 - 16 x 2”, this

means the second number represents the example, and the final number is the bolt or screw (in this example 2 inches long).

, meaning the

Nominal size

inside diameter

, or

body diameter

threads per inch

is 1/2 inch; if a

threads per inch

is 1/2 inch; the

body length

(16 in this

of the

The guides and ruler furnished below are designed to help you select the appropriate hardware and tools.

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32 8-36 10-24 10-32 1/4-20 1/4-28 5/16-18 11 15.0 17 23.1 25 34.0 5/16-24 12 16.3 19 25.8 27 34.0 3/8-16 20 27.2 30 40.8 45 61.2 3/8-24 23 31.3 35 47.6 50 68.0 7/16-14 30 40.8 50 68.0 70 95.2 7/16-20 35 47.6 55 74.8 80 108.8 1/2-13 50 68.0 75 102.0 110 149.6 1/2-20 55 74.8 90 122.4 120 163.2 9/16-12 65 88.4 110 149.6 150 204.0 9/16-18 75 102.0 120 163.2 170 231.2 5/8-11 90 122.4 150 204.0 220 299.2 5/8-18 100 136 180 244.8 240 326.4 3/4-10 160 217.6 260 353.6 386 525.0 3/4-16 180 244.8 300 408.0 420 571.2 7/8-9 140 190.4 400 544.0 600 816.0 7/8-14 155 210.8 440 598.4 660 897.6 1-8 220 299.2 580 788.8 900 1,244.0 1-12 240 326.4 640 870.4 1,000 1,360.0

1. These torque values are to be used for all hardware excluding: locknuts, self-tapping screws, thread forming screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5 b. for flange whizlock nuts and screws - use 135% of

3. Unless otherwise noted on assembly drawings, all torque values must meet this specification.

SAE Grade 2 SAE Grade 5 SAE Grade 8

in/lbs in/lbs

2.1

2.3

3.1

3.5

7.6 8 10.9 12 16.3

8.6 10 13.6 14 19.0

torques. grade 5 torques.

30 31 43 49

NOTES

in/lbs

3.4

3.5

4.9

5.5

41 43 60 68

4.6

4.9

6.8

7.7

MANUFACTURING, INC.

500 N. Spring Street / PO Box 997 Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

Briggs and Stratton Yard Power Products Group

Simplicity Pacer User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
