Parts Manual
Conquest
Series Garden Tractor & Mower Deck
23HP Product
. No. Description
Mf
1695208 Conquest, 23HP B&S Hydro w/4wd
2690638 Conquest, 23HP B&S Hydro w/4wd and 50" Mower Deck
Mower Decks
Mfg. No. Description
1695213 50" Mower Deck
Rev.
1734978
04/2007
Part No.:
TP 400-4598-00-CQ-S
Table Of Content
PRODUCT COMPONENTS PAGES
Frame & Front Axle Group - 4WD .......................................................................................................................
Power Steering & Hydraulic Lift Group ................................................................................................................
Steering Group - Power Steering .........................................................................................................................
Engine Group - 22HP & 23HP Briggs & Stratton, Vanguard Twin ......................................................................
Transmission Group .............................................................................................................................................
Controls Group .....................................................................................................................................................
Cruise Control Group ...........................................................................................................................................
Electrical Group ....................................................................................................................................................
Hood, Grille & Dash Group ..................................................................................................................................
Seat & Seat Deck Group ......................................................................................................................................
Lift Group - Manual Lift ........................................................................................................................................
Wheels & Tires Group ..........................................................................................................................................
Decals Group .......................................................................................................................................................
44" & 50" Mower Deck - Clutch & Support Group ...............................................................................................
50" Mower Deck - Height Adjustment & Roller Bar .............................................................................................

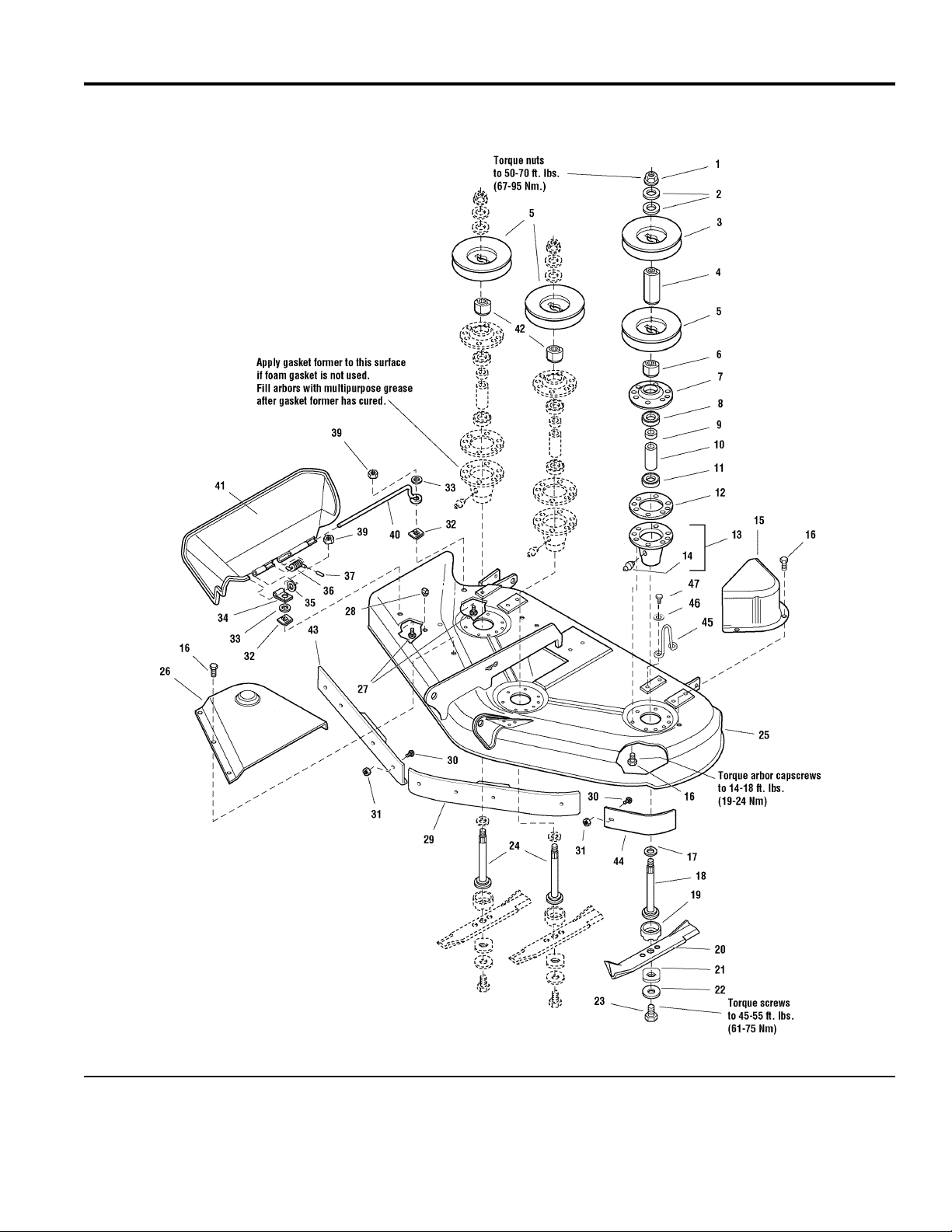

50" Mower Deck - Housing, Arbors & Blades ......................................................................................................
10
12
14
18
20
22
26
28
30
32
34
36
38
42
Torque Specification Chart ..................................................................... Inside Back Cover
4
8
Frame & Front Axle Group - 4WD
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987590
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
4
TP 400-4598-00-CQ-S
Frame & Front Axle Group - 4WD
PART NO. DESCRIPTION REF NO QTY.
FRAME ASSEMBLY, Front & Rear 4WD 1 1734731ASM 1
TOWER & SUPPORT ASSEMBLY 2 1733139ASM 1
SUPPORT, Seat Deck 3 1723528ASM 1
BACKPLATE, Hitch 4 1722602ASM 1
BRACKET ASSEMBLY, Steering 4WD 5 1733918ASM 1
BUMPER, 4GA 6 1721805ASM 1
AXLE ASSEMBLY, Front 7 1733480SM 1
PIVOT ASSEMBLY, Axle w/Bushings 8 1734241ASM 1
CAPSCREW, Hex Head, 5/8-11 x 2-1/2 G5 9 1960755SM 1
CARRIAGE BOLT, 3/9-16 x 3/4 G5 12 1931348SM 2
JOINT, Ball 1/2-20 13 1702779SM 1
SPACER 14 1708236SM 1
NUT, Hex Jam, 1/2-20 15 1919262SM 1
NUT, Hex Flange, 3/8-16 Two-Way Lock 16 1930645SM 1
BRACKET, Cylinder Mounting 18 1733166ASM 1
SPACER 20 2172914SM 1
CYLINDER, Hydraulic Steering 21 1733759SM 1
CAPSCREW, Hex Head, M12-1-3/4 x 35 22 197487SM 3
SHAFT & BRACKET ASSEMBLY, Axle Pivot 23 1733863SM 1
WASHER, 5/8 24 1960035SM 2
STOP, "L" Steering 25 1734511ASM 1
SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 26 1664847SM 4
NUT, Hex Flange 5/8-11 Two-Way Lock 27 2860646SM 2
SCREW, Hex Washer head, Taptite, 3/8-16 x 3/4 28 1923683SM 4
NUT, Hex Flange 1/2-13 Whiz Lock 29 2860668SM 2
NUT, Hex Flange 3/8-16 Whiz Lock 30 1928352SM 4
CAPSCREW, Hex Head 1/2-13 x 1 G5 31 1923114SM 2
CAPSCREW, Hex Head 3/8-16 x 1 G5 32 1921210SM 2
SCREW, Truss Head Torx Drive 5/16-18 x 7/8 33 1960086SM 4
PIN, Dowel 34 1733581SM 2
WASHER, 1/2 35 1960170SM 3
LOCKWASHER, Spring 36 1916966SM 3
PIN, Cotter 37 1923360SM 1
LOCKWASHER, Spring 38 1960754SM 6
CAPSCREW, Hex Head 39 1950036SM 6
SPACER, Powdered Metal 40 1667812SM 1
FITTING, Hose Elbow, 45 Degrees, 13/16-16 x 3/4-16 41 1733403SM 2
HOSE ASSEMBLY, Hydraulic 42 1733400SM 1
HOSE ASSEMBLY, Hydraulic 43 1733891SM 1
BRACKET, Hose Mounting 10GA 44 1733501ASM 1
FITTING, Bulkhead Union 13/16-16 45 1733402SM 2
CARRIAGE BOLT, 5/16-18 x 3/4 G5 46 1931333SM 2
NUT, Hex KEPS, 5/16-18 47 1960636SM 2
NUT, Jam 13/16-16 48 1733947SM 2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
5
TP 400-4598-00-CQ-S
Frame & Front Axle Group - 4WD
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987590
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
6
TP 400-4598-00-CQ-S
Frame & Front Axle Group - 4WD
PART NO. DESCRIPTION REF NO QTY.
WASHER, 3/8 49 1960103SM 1
CARRIAGE BOLT, 3/8-16 x 2-1/4 G5 50 1931355SM 1
SUPPORT, Steering Unit 7GA 51 1733044ASM 1
SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 52 1924856SM 4
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
7
TP 400-4598-00-CQ-S
Power Steering & Hydraulic Lift Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987528
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
8
TP 400-4598-00-CQ-S
Power Steering & Hydraulic Lift Group
PART NO. DESCRIPTION REF NO QTY.
POWER STEERING ASSEMBLY 1 1733582SM 1
POWER STEERING ASSEMBLY (Used only on 4WD models) 1 1733894SM 1
LOCKWASHER, Spring 2 1916964SM 4
CAPSCREW, Hex Head 3 2860444SM 4
TUBE, Hydraulic 4 1722138SM 1
TIE, Self Locking 5 2825094SM 2
TUBE, Hydraulic 6 1733727SM 1
SCREW, Hex Whiz Lock Flange 1/4-20 x 1/2 7 1931646SM 2
FITTING, Straight 8 1722123SM 4
FILTER, Oil 9 1719168SM 1
BASE, Oil Filter 10 1719169SM 1
TUBE, Hydraulic 11 1722297SM 1
TUBE, Hydraulic (Used only on 4WD models) 11 1733427SM 1
FITTING, Hose Elbow Perma Push 9/16-18 12 1733230SM 2
SCREW, Round Head Plastite (Used only on 4WD models) 13 1722607SM 1
COVER, Lift (Used only on 4WD models) 14 1722285SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
9
TP 400-4598-00-CQ-S
Steering Group - Power Steering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987424
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
10
TP 400-4598-00-CQ-S
Steering Group - Power Steering
PART NO. DESCRIPTION REF NO QTY.
STEERING WHEEL 1 1733363SM 1
PLATE, Steering Mounting 4 1724685ASM 1
CARRIAGE BOLT, 5/16-18 x 1-1/4 G5 5 1960655SM 2
ADAPTER, Tilt 6 1725294SM 1
SPACER 7 1723898SM 2
NUT, Push Pal 8 1933988SM 2
NUT, Hex Keps 5/16-18 9 1960636SM 2
STEERING UNIT, Tilt 10 1733790SM 1
BELLOWS, Tilt Steering Unit w/Slot 11 1686970SM 1
CAP, Steering Wheel 12 1725024SM 1
DECAL, Power Steering (Not Shown) 13 1716518SM 2
WASHER, 5/8 14 1924366SM 1
NUT, Hex Lock ESNA Light 5/8-18 15 1960576SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
11
TP 400-4598-00-CQ-S
Engine Group - 22HP & 23HP Briggs & Stratton, Vanguard Twin
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986651
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
12
TP 400-4598-00-CQ-S
Engine Group - 22HP & 23HP Briggs & Stratton, Vanguard Twin
PART NO. DESCRIPTION REF NO QTY.
MUFFLER 1 1726920SM 1
GASKET 2* 2
LOCKWASHER, 5/16 3 1917356SM 4
CAPSCREW, Socket Head, 5/16-18 x 7/8, G8 4 2860660SM 4
HOSE, Oil Drain 5 1723165SM 1
ENGINE, 22HP Briggs & Stratton VANGUARD Twin, Model 386777, Type 0111E1 6* 1
ENGINE, 23HP Briggs & Stratton VANGUARD Twin, Model 386777, Type 0111E1 6* 1
ENGINE, 21HP Briggs & Stratton VANGUARD Twin, Model 385777, Type 0119-E1 6* 1
SEAL, Circle 7 1722949SM 1
BULKHEAD 8 1722388ASM 1
CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2 9 1925003SM 2
CONTROL, Throttle Double 39" Long w/Knobs 10 1727223SM 1
TIE 11 1701011SM 1
CLAMP, Hose Type E 12 2860112SM 2
HOSE, 59" Long 13 1718678SM 1
CLIP, Wire 14 2834683SM 2
SHIELD 15 1722392ASM 2
SCREW, Hex Head Taptite, 1/4-20 x 3/8 16 1929000SM 8
KEY 17 1720463SM 1
PULLEY & HUB ASSEMBLY, 4-1/2 OD 18 1722288SM 1
WASHER, Hex 19 1708264SM 1
LOCKWASHER, 7/16 20 1918199SM 1
CAPSCREW, Hex Head, 7/16-20 x 2-3/4 21 1960648SM 1
CLUTCH, Electric, OGURA 22 1686883SM 1
CLUTCH, Electric, Big Brake OGURA 22 1720532SM 1
TIE 23 2832747SM 1
CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/2 24 2830598SM 4
LOCKWASHER, External Tooth, 3/8 25 2820427SM 1
SHIELD, Muffler Bottom 26 1722414ASM 1
CAPSCREW, Hex Head Flange Lock, 1/4-20 x 5/8 27 1960295SM 8
CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2 28 1924856SM 2
NUT, Speed, 1/4-20 29 1960368SM 8
NUT, Speed, 5/16-18 30 1935255SM 2
DUCT, Muffler Top 31 1722389ASM 1
DUCT, Muffler Extension 32 1722390ASM 1
Footnotes
Note* See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
13
TP 400-4598-00-CQ-S
Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987547
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
14
TP 400-4598-00-CQ-S
Transmission Group
PART NO. DESCRIPTION REF NO QTY.
TRANSMISSION ASSEMBLY, K664 1 1733478SM 1
PULLEY & HUB ASSEMBLY 2 1722194SM 1
FAN 3 1719233SM 1
SCREW, Hex Washer Head, Taptite, 1/4-20 x 1-1/4 4 1933958SM 3
BELT, 94.05 5 1721392SM 1
STRAP, 4-1/4 Long 6 1721593ASM 1
ARM, Control 7GA 7 1733318ASM 1
ROD, 17-27/64 Long 8 1721424SM 1
SPRING, Compression 9 1722684SM 1
SPRING, Compression 10 1729277SM 1
CAP, Expansion 11 1722711SM 1
SCREW, Pan Head Torx, 1/4-20 x 1-1/4 Taptite 12 1960676SM 2
FASTENER, Panel 13 1704351SM 15
PAD, Footrest L.H. 14 1722174SM 1
PAD, Footrest R.H. 15 1722173SM 1
ROD, Free Wheel 16 1721622SM 1
KNOB, Interior Thread 17 1723126SM 1
SUPPORT, Transmission 18 1721728ASM 2
HOSE, Hydraulic 19 1733531SM 1
BOLT, Shoulder, 3/8-16 21 1732129SM 3
CLIP, Hair Pin 22 1960074SM 1
SPACER 23 1734337SM 1
CLAMP, Hose Worm 24 2860266SM 1
WASHER, 1/2 25 1960027SM 3
WASHER, 3/8 26 1924940SM 1
PIN, Quick 27 1722460SM 1
TANK, Oil Natural 28 1732989SM 1
CLAMP, Hose Worm 29 1723214SM 2
NUT, Hex Flange 5/16-18 ESNA 30 1960686SM 6
COTTER PIN 31 1918447SM 1
CAPSCREW, Hex Head 5/16-18 x 2-1/2 G5 32 1921719SM 1
WASHER, 5/16 33 1960141SM 1
CARRIAGE BOLT, 5/16-18 x 1 G5 34 1931335SM 1
NUT, Hex KEPS 5/16-18 35 1960636SM 2
NUT, Hex Flange 36 1719968SM 1
NUT, Hex Flange 3/8-16 ESNA 42 1960687SM 4
WASHER, 7/16 43 1918267SM 1
CARRIAGE BOLT, 3/8-16 x 1 G5 44 1931350SM 6
CAPSCREW, Hex Head 5/16-18 x 3 G5 45 1960590SM 4
WASHER, 5/16 46 1919326SM 3
NUT, Hex Keps 3/8-16 47 1960637SM 6
ACTUATOR, Switch 48 1727215ASM 1
POP RIVET 49 1960241SM 2
PIN, Clevis 50 1724107SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
15
TP 400-4598-00-CQ-S
Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987547
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
16
TP 400-4598-00-CQ-S
Transmission Group
PART NO. DESCRIPTION REF NO QTY.
BEARING 51 1722648SM 1
HOSE, Hydraulic 52 1722468SM 1
CAPSCREW, Hex Head, 5/16-18 x 2-1/4 G5 53 1921160SM 1
SPACER 54 1713588SM 1
PIVOT ASSEMBLY, Control 55 1733320ASM 1
ARM, Control 56 1733525ASM 1
TUBE, Hydraulic 4WD 57 1733483SM 1
TUBE, Hydraulic Rear 58 1733484SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
17
TP 400-4598-00-CQ-S
Controls Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986599
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
18
TP 400-4598-00-CQ-S
Controls Group
PART NO. DESCRIPTION REF NO QTY.
ROD, Brake Lock 1 1721353SM 1
KNOB, Push On, Red Plastic "P" 2 1721891SM 1
CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4 3 1930591SM 1
WASHER, 5/16, Black 4 1919326SM 2
ROD, Brake 5 1721476SM 1
CARRIAGE BOLT, 3/8-16 x 1 3/4 6 1931353SM 2
BUSHING, 5/8 x 3/4 x 3/4, Nylon 7 1663114SM 2
FITTING, Lube, 1/4 8 2821133SM 1
SPRING, Extension 9 1725250SM 1
PIN, Quick 10 1722460SM 3
ARM & HUB ASSEMBLY, Idler 11 1724917SM 1
WASHER, 5/8 12 1960020SM 1
RING, Clipring Extension 13 1704420SM 1
PULLEY, w/Bearing 14 1721134SM 1
WASHER, 3/8 15 1924940SM 1
NUT, Hex Flange ESNA, 3/8-16 16 1960687SM 2
PULLEY, Idler 17 1721133SM 1
BUSHING, 1 x 1-1/8 x 5/8, Nylon 18 1723237SM 2
ARM, Brake 19 1722513SM 1
PEDAL ASSEMBLY, Foot 20 1726763SM 1
CARRIAGE BOLT, 1/4-20 x 1-1/4 21 1931320SM 1
PIN, Cotter, Black 22 1918447SM 1
LATCH, Brake 23 1721354ASM 1
CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 24 1664847SM 3
NUT, Hex Lock ESNA Light, 5/16-18 25 1919438SM 1
WASHER, 5/16, Black 26 1919381SM 1
NUT, Hex Flange Whiz Lock Large, 5/16-18 27 1927557SM 2
PEDAL, Brake 28 1722535ASM 1
PAD, Brake Pedal 29 1721577SM 1
CARRIAGE BOLT, 5/16-18 x 7/8 30 1931334SM 4
CAPSCREW, 5/16-18 x 1 31 1921333SM 2
ACTUATOR, Switch 2.53" Long 32 1722083ASM 1
CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/4 33 1923683SM 1
PEDAL, Forward 34 1722070ASM 1
NUT, Hex KEPS, 5/16-18 35 1960636SM 4
PAD, Foot Pedal Forward 36 1721675SM 1
PEDAL, Reverse 37 1722071ASM 1
PAD, Foot Pedal Reverse 38 1721674SM 1
NUT, Hex Lock ESNA Light, 1/4-20 39 1920397SM 1
CAM, Roller 40 1686612SM 1
SPRING, Extension 41 1721995SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
19
TP 400-4598-00-CQ-S
Cruise Control Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985883
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
20
TP 400-4598-00-CQ-S
Cruise Control Group
PART NO. DESCRIPTION REF NO QTY.
COVER, w/Cruise Icon 1 1722314SM 1
SCREW, Torque Head Plus Socket Head, 1/4-20 x 7/8 2 1960666SM 1
KNOB, Cruise 3 1722303SM 1
NUT, Hex Lock ESNA Light, 1/4-20 4 1920397SM 1
LEVER & BRACKET ASSEMBLY, Cruise 5 1722003SM 1
WASHER, 3/8, Black 6 1960103SM 2
CARRIAGE BOLT, 5/16-18 x 3/4 7 1931333SM 1
WASHER, 1/2 8 1924361SM 2
SPACER, w/Flange, 11/32 x 15/32 x 3/4 9 1709043SM 1
CARRIAGE BOLT, 5/16-18 x 2-3/4 10 1931342SM 1
CARRIAGE BOLT, 5/16-18 x 2-1/4 11 1960273SM 1
PIN, Quick 12 1722460SM 2
ROD, Cruise 13 1722117SM 1
ROD, Return 14 1733719SM 1
SPRING, Cruise Return to Frame 15 2159106SM 1
NUT, Hex KEPS, 5/16-18 16 1960636SM 2
CAPSCREW, Hex Washer Head Plastite, 10-14 x 5/8 17 1960001SM 2
SWITCH, Push, Neutral Start, Gray 18 1717050SM 1
SPACER, 11/32 x 5/8 x 1-13/32 19 1722080SM 1
WASHER, 5/16, Black 20 1919326SM 1
WASHER, 5/16, Black 21 1919381SM 1
NUT, Hex Lock ESNA Light, 5/16-18 22 1919438SM 1
SPRING, Compression 23 1677746SM 1
PIN, Cotter 24 1918447SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
21
TP 400-4598-00-CQ-S
Electrical Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986605
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
22
TP 400-4598-00-CQ-S
Electrical Group
PART NO. DESCRIPTION REF NO QTY.
HEADLIGHT ASSEMBLY, 4 Bulb, (Includes Ref. Nos. 2 & 3) 1 1721810SM 1
BULB, Headlight, 12.8V 2 1677371SM 4
SOCKET ASSEMBLY, Headlight, Sealed 3 1723451SM 4
HARNESS, Headlight 4 1722669SM 1
SWITCH, PTO Push/Pull Symbols 5 1722887SM 1
MODULE, RMO (Includes Ref. No. 7) 6 1726556SM 1
KEY, RMO Module Plastic 7 1726557SM 1
CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2, Black 8 1925003SM 2
BREAKER, Circuit, 12 Volt 20 Amps 9 1665238SM 1
WIRE, 12GA 5-15/16 Long, Red 10 1665237SM 1
PLUG, Hole, Square 11 1722611SM 1
PANEL, Instrument w/ Fuel Gage & Hour Meter (Includes Ref. No. 13) 12 1725074SM 1
COVER, Instrument Panel 13 1724865SM 1
NUT, Hex, 5/16-24 14 2820263SM 2
NUT, KEPS Lock 5/16-24 (CE/Export) 14 2860750SM 2
LOCKWASHER, External Tooth, 5/16 15 2820426SM 3
SOLENOID 16 1722739SM 1
SOLENOID (CE/Export) 16 1728963SM 1
SWITCH ASSEMBLY, Ignition, 6 Pin INDAK, (Includes Ref. Nos. 18, 19, 20, 21 & 22) 17 1686734SM 1
KEYS, Set of 2 18 1717163SM 1
COVER, For Ignition Switch, Plastic 19 1717550SM 1
NUT, Hex Flange, 5/8-32, Ignition Switch 20 1717549SM 1
LOCKWASHER, Internal Tooth, 5/8, Thin 21 1960547SM 1
WASHER, Shim 22 2101025SM 1
TIE, Strap, 7-5/16 Long 23 1701011SM 3
TIE, Strap, 7-5/16 Long (CE/Export) 23 2825094SM 4
SWITCH, Headlights , 2 Terminal 24 1716951SM 1
BOOT, Insulator Cable Terminal, 1-15/16 Long, Red 25 1713535SM 1
CABLE, #6 x 25" Long, Ring Terminals 26 1721830SM 1
CABLE, #6 x 8" Long, Ring Terminals 27 1603618SM 1
BOOT, Insulator Battery Terminal 28 1677296SM 1
NUT, Hex, 1/4-20 29 2816622SM 3
LOCKWASHER, 1/4 30 2816964SM 2
WASHER, 1/4 31 2821319SM 2
CAPSCREW, Hex Head, 1/4-20 x 3/4 32 2823341SM 2
CABLE, #6 x 26 Long, Ring Terminal 33 1713163SM 1
BATTERY, 12 Volt 34 1685215SM 1
STRAP, Battery, 14 Long, Rubber 35 1722009SM 1
CAPSCREW, Hex Head Taptite, 1/4-20 x 3/8 36 1929000SM 2
BRACKET, Switch Mount 37 1726810ASM 1
SWITCH, Reverse Pedal 38 1732004SM 1
SWITCH, Reverse Pedal (CE/Export) 38 1704379SM 1
SWITCH, Push Button, Foot Pedal 39 1732006SM 1
SWITCH, Cruise Control, Grey, NO (Used on all models except CE/Export) 40 1717050SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
23
TP 400-4598-00-CQ-S
Electrical Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986605
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
24
TP 400-4598-00-CQ-S
Electrical Group
PART NO. DESCRIPTION REF NO QTY.
SCREW, Pan Head Torx, #10-32 x 1/2 41 2860665SM 5
LOCKWASHER, 3/16 #10 42 1917365SM 5
PLUG, Hole 3", Round 43 1722309SM 1
SENDER, Fuel Tank (Includes Ref. 45) 44 1686921SM 1
GASKET 45 1685303SM 1
CAPSCREW, Hex Washer Head Plastite, 1/4 x 1/2 46 1960536SM 2
SWITCH, Seat, Grey, NC 47 1716368SM 1
SWITCH, Seat, Grey, NC (CE/Export) 47 1718981SM 1
HARNESS, Wiring 48 1730192SM 1
HARNESS, Wiring (CE/Export) 48 1733220SM 1
WIRING ASSEMBLY, All Conditions Shutdown (CE/Export) 49 1734025SM 1
12-VOLT OUTLET (CE/Export) 50 1725302SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
25
TP 400-4598-00-CQ-S
Hood, Grille & Dash Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986608
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
26
TP 400-4598-00-CQ-S
Hood, Grille & Dash Group
PART NO. DESCRIPTION REF NO QTY.
PANEL, RH Side 1 1721804CSM 1
PANEL, RH Side, Red 1 1721804DSM 1
HOOD, with Scoop, Red 2 1728031DSM 1
HOOD, with Louvers 3 1722110CSM 1
CAPSCREW, Hex Head Flange Lock,1/4-20 x 5/8 4 1960295SM 12
SCREW, Phillips Head, #10-24 x 1/2 5 1960392SM 1
DASHBOARD, RMO, Black 6 1687054SM 1
DASHBOARD, RMO with Hydra Lift Slot, Black 6 1687055SM 1
NUT, Hex Nylock,#10-24 7 1933896SM 1
ROD, Dash Support 8 1723123SM 1
NUT, Hex Flange Lock, 1/4-20 9 1930641SM 12
PANEL, LH Side 10 1721803CSM 1
PANEL, LH Side, Red 10 1721803DSM 1
HINGE, LH 11 1721808ASM 1
DUCT, Air Inlet 12 1733457ASM 1
GRILLE 13 1721802CSM 1
GRILLE, Red 13 1721802DSM 1
HEADLIGHT ASSEMBLY, (Includes Ref. Nos. 15 & 16) 14 1721810SM 1
BULB, Headligh 15 1677371SM 4
SOCKET, Headlight 16 1723451SM 4
HINGE, RH 17 1721809ASM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
27
TP 400-4598-00-CQ-S
Seat & Seat Deck Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985909
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
28
TP 400-4598-00-CQ-S
Seat & Seat Deck Group
PART NO. DESCRIPTION REF NO QTY.
BRACKET, 1-5/8 x 1-3/4 1 1722129ASM 1
SEAT, 18" Back 2 1687199SM 1
SUPPORT, Seat 3 1722128ASM 1
CLIP, Wire 4 2172434SM 1
WASHER, Spring, 5/16 x 1-1/4 5 1709256SM 2
SPRING, Compression 6 1714263SM 2
NUT, Hex Lock, ESNA Light, 5/16-18 7 1919438SM 10
SPRING, Compression 8 1717051SM 2
CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4 9 1930591SM 8
CARRIAGE BOLT, 5/16-18 x 2 10 1931339SM 2
CARRIAGE BOLT, 3/8-16 x 1 11 1931350SM 2
SLIDE, Seat 12 1722356SM 1
NUT, Speed, 5/16-18, Lug Type 13 1935255SM 4
CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 5/8 14 1930601SM 4
PLUG, Plastic 15 1722309SM 2
POD, with Cup Holder, LH 16 1729711SM 1
CAPSCREW, Hex Washer Head, 1/4-20 x 5/8 17 2860664SM 8
NUT, Hex Flange Whiz Lock, 5/16-18 18 1931277SM 4
CAP, Gas 19 1715917SM 1
TUBE & ELBOW ASSEMBLY 20 1722340SM 1
BUSHING, 3/8 x 9/16 x 5/8, Rubber 21 1654930SM 1
TANK, Fuel 22 1722432SM 1
NUT, Hex KEPS, 5/16-18 23 1960636SM 8
DECK, Seat, Orange 24 1722106CSM 1
DECK, Seat, Red 24 1722106DSM 1
POD, RH with 2 Slots 25 1722108SM 1
TUNNEL, Orange 26 1722105CSM 1
TUNNEL, Red 26 1722105DSM 1
SCREW, Hex Flange Whiz Lock, 5/16-18 x 1 27 1960667SM 4
SPACER, 25/64 x 5/8 x 3/16, Hardened 28 1663752SM 2
NUT, Hex Flange Two-Way Lock, 3/8-16 29 1930645SM 2
WASHER, 3/8 30 1924940SM 2
CAPSCREW, Hex Flange Whiz Lock Dog Point, 5/16-18 x 1 31 1960667SM 4
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
29
TP 400-4598-00-CQ-S
Lift Group - Manual Lift
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985894
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
30
TP 400-4598-00-CQ-S
Lift Group - Manual Lift
PART NO. DESCRIPTION REF NO QTY.
NUT, Hex Whiz Lock Flange, 5/16-18, Large, Black 1 1927557SM 2
CARRIAGE BOLT, 5/16-18 x 3/4 2 1931333SM 4
GRIP, Lift Lever 3 1722291SM 1
BUTTON, Red Nylon, for 1/4 Rod 4 1723124SM 1
NUT, Push 5 1960674SM 1
SPRING, Compression, Lift Lever 6 1723321SM 1
QUADRANT, Lift, Powdered Metal 7 1721581SM 1
CAPSCREW, Hex Head, 5/16-18 x 1, G8, Black 8 1926149SM 2
LEVER ASSEMBLY, Lift 9 1721712ASM 1
NUT, Hex KEPS, 5/16-18 10 1960636SM 5
ROD, Latch 11 1722482SM 1
LOCK, Lift, Powdered Metal 12 1722112SM 1
SPRING, Extension 13 2156302 1
SPACER, 1/2 x 3/4 x 23/32 14 1723163SM 1
BAR, Lift, 9-7/8 Long 15 1723795ASM 1
WASHER, 5/16, Black 16 1919381SM 1
CAPSCREW, Hex Head, 5/16-18 x 2-1/4 17 1921160SM 1
PIN, Flat Head Drilled, 1/2 x 2-1/8 Long 18 1722819SM 1
CLIP, Hair Pin, 2-9/16 Long 19 1960033SM 1
SHAFT ASSEMBLY, Lift 20 1727436 1
NUT, Speed, 5/16-18, Lug 21 1935255SM 1
SPRING, Compression 22 1675232SM 1
RETAINER, Spring Flat 23 1723499SM 1
CAPSCREW, Hex Washer Head, 5/16-18 x 4-1/2 24 1722357SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
31
TP 400-4598-00-CQ-S
Wheels & Tires Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
W987598
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
32
TP 400-4598-00-CQ-S
Wheels & Tires Group
PART NO. DESCRIPTION REF NO QTY.
WHEEL & TIRE ASSEMBLY 1 1733236SM 2
TIRE, 16 x 6-1/2 2 1733485SM 2
TUBE, Tire 3 2153038SM 2
WHEEL ASSEMBLY 4 1733237SM 2
VALVE STEM & CAP 5 2172353SM 4
WASHER, Flat 3/4 x 1-5/8 x 1/8 6 2860202SM 2
WASHER, Flat 7 1722717ASM 2
WASHER, 3/4 8 1960114SM 2
RING 9 2827794SM 2
CAP, Hub 10 1722676SM 4
WASHER, 1 x 2-1/4 x 1/8 11 1960701SM 4
SPACER 12 1726089SM 2
PLATE & HUB WELDMENT 13 1721400SM 2
WHEEL & TIRE ASSEMBLY 14 1733486SM 2
TIRE 15 1733487SM 2
TUBE, Tire 16 2157638SM 2
WHEEL 17 1722831SM 2
NUT, Hex 7/16-20 For Wheel Bolt 18 2177725SM 10
KEY, Hi-Pro 1/4 x 2 19 2105337SM 2
WASHER, Flat 20 1722726ASM 2
WASHER, Flat 21 1919394SM 2
RING 22 2834712SM 2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
33
TP 400-4598-00-CQ-S
Decals Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
D987598
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
34
TP 400-4598-00-CQ-S
Decals Group
PART NO. DESCRIPTION REF NO QTY.
DECAL, Simplicity Silver & Blue w/Icon 1 1722551SM 3
DECAL, Conquest, Silver & Blue 2 1722820SM 1
DECAL, 23HP Silver on Clear 3 1722781SM 1
DECAL, Hood Stripe R.H. SMI Blue & Silver 4 1722773SM 1
DECAL, Hood Stripe L.H. SMI Blue & Silver 4 1722774SM 1
DECAL, 4x4 5 1726373SM 2
DECAL, Tunnel Cover Danger Slopes, Blades 6 1734026SM 1
DECAL, Touch Up Paint 7 1734142SM 1
STICKER, Protection 8 1723296SM 2
DECAL, I.D. Plate 9* 1
DECAL, Patent 10 * 1
DECAL, Transmission Release Valve 11 1723160SM 1
DECAL, I.D. Plate 12 * 1
DECAL, Danger Do Not Operate w/o Deflector 13 1704277SM 1
DECAL, OPEI Certified 15 1726789SM 1
DECAL, 50" Silver on Black w/Stripe 16 1706640SM 1
DECAL, Danger Do Not Put Hand/Feet In Mower 17 1704276SM 1
DECAL, 1 2 3 4 5 6, Height of Cut White/Black 18 1721197SM 1
DECAL, Ignition Switch Symbols 19 1722806SM 1
Footnotes
NOTE * Not a serviceable part.
The above parts group applies to the following Mfg. Nos.:
1695208 - Conquest
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
35
TP 400-4598-00-CQ-S
44" & 50" Mower Deck - Clutch & Support Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987599
The above parts group applies to the following Mfg. Nos.:
1695213 - 50" Mower
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
36
TP 400-4598-00-CQ-S
44" & 50" Mower Deck - Clutch & Support Group
PART NO. DESCRIPTION REF NO QTY.
HITCH & RODS ASSEMBLY, 4WD 1 1732977ASM 1
ROD 2 1715759SM 1
SPRING, Extension 3 2156302SM 1
PIN, Clevis 4 1733830SM 2
WASHER, 3/4 5 2860202SM 2
CLIP, Hair Pin 6 1960033SM 2
WASHER, 3/8 7 1924356SM 2
CAPSCREW, Hex Head 3/8-15 x 3-1/2 G5 8 1923938SM 1
V-BELT, Arbor Drive (Used only on 50" Mower) 9 1703836SM 1
V_BELT, Arbor Drive (Used only on 44" Mower) 9 1721532SM 1
V-BELT, Mower Drive 70.1 (Used only on 50" Mower) 10 1734114SM 1
V-BELT, Mower Drive 62.1 (Used only on 44" Mower) 10 1734115SM 1
PULLEY, Idler 11 1724387SM 2
WASHER, 3/8 12 1924940SM 12
LOCKWASHER, Spring 3/8 13 1916965SM 2
NUT, Hex 3/8-16 14 1916950SM 2
SPRING, Extension 15 1656936SM 1
LEVER ASSEMBLY, Idler w/Bushing & Fitting 16 1718561SM 1
CARRIAGE BOLT, 3/8-16 x 1-1/2 G5 17 1931352SM 1
SPACER 18 1674669SM 2
LEVER ASSEMBLY, Idler w/Bushings & Fitting 19 1704658SM 1
NUT, Hex Flange 3/8-16 Machine Lock 20 1960339SM 1
GUARD, Belt 21 1677135ASM 1
CARRIAGE BOLT, 3/8-16 x 2 G5 22 1960315SM 1
SPRING, Extension 23 1715435SM 1
NUT, Push Pal 3/8 Diameter Stud Capped 24 1960093SM 2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695213 - 50" Mower
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
37
TP 400-4598-00-CQ-S
50" Mower Deck - Height Adjustment & Roller Bar
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987642
The above parts group applies to the following Mfg. Nos.:
1695213 - 50" Mower
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
38
TP 400-4598-00-CQ-S
50" Mower Deck - Height Adjustment & Roller Bar
PART NO. DESCRIPTION REF NO QTY.
NUT, Hex Toplock Spiralock Flange 3/8-16 1 2860681SM 2
WASHER, 3/8 3 1924940SM 2
ROD, Adjusting 5 1722995SM 1
SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4 6 1931202SM 2
WASHER, 5/16 7 1919381SM 1
INDICATOR, Cutting Height 8 1704114SM 1
PLATE, Mower Support 9 1704080ASM 1
PIN, Spring 10 2816001SM 1
WASHER, Detent 11 1704097SM 1
TRUNNION, 1-1/4 12 1704086SM 1
WASHER, 1/2 13 1960170SM 1
TRUNNION, 1-1/4 14 1704087SM 1
CRANK, Height Adjusting 15 1719901SM 1
KNOB, Spinner 16 1714084SM 1
NUT, Push Pal 3/8 Diameter Stud Capped 17 1960093SM 1
SCREW, Hex Washer Head Taptite 5/16-18 x 3/4 18 1664847SM 6
STRAP 19 1665374SM 3
NUT, Hex 5/8-11 20 1915726SM 2
WASHER, 5/8 21 1924366SM 2
TRUNNION 22 1706645ASM 1
PIN, Round Head Drilled 3/8 x 2 23 2118053SM 1
CLIP, Hair Pin 24 1960074SM 3
CAPSCREW, Hex Head 5/16-18 x 1-1/4 G5 25 1921977SM 2
BRACKET, Height of Cut 16GA 26 1704116ASM 1
NUT, Hex Flange 5/16-18, Whiz Lock Small 28 1931277SM 2
ARM, Rear R.H. 29 1704083ASM 1
SHAFT ASSEMBLY, Rocker 50" 30 1733522ASM 1
CARRIAGE BOLT, 3/8-16 x 1-1/2 G5 31 1931352SM 1
SHAFT & BAR ASSEMBLY, Roller 50" 32 1716155ASM 1
BAR, Roller 33 1704074ASM 1
NUT, Hex Flange 1/2-13 Two-Way Lock 34 1930644SM 2
NUT, Hex Adjusting 35 1704082SM 1
SLIDE 36 1677507SM 1
WASHER, 1/2 37 1924361SM 2
BOLT, Shoulder, 3/8-16 G5 38 2172622SM 1
NUT, Push for 5/8 Diameter Stud Capped 39 1960520SM 2
ROLLER, Rounded 40 1722036SM 2
SPACER 41 1709195SM 3
WASHER, 5/8 42 1924366SM 6
ROLLER 43 1668513SM 8
CHAIN, Link 46 1731383ASM 2
ROD, Height Adjusting 51 1731384SM 2
NUT, Hex Jam 5/16-18 52 1920161SM 2
TRUNNION 53 1731382SM 2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695213 - 50" Mower
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
39
TP 400-4598-00-CQ-S
50" Mower Deck - Height Adjustment & Roller Bar
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987642
The above parts group applies to the following Mfg. Nos.:
1695213 - 50" Mower
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
40
TP 400-4598-00-CQ-S
50" Mower Deck - Height Adjustment & Roller Bar
PART NO. DESCRIPTION REF NO QTY.
PIN, Yoke 54 1960116SM 1
PIN, Cotter Locking 55 1722320SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695213 - 50" Mower
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
41
TP 400-4598-00-CQ-S
50" Mower Deck - Housing, Arbors & Blades
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985972
The above parts group applies to the following Mfg. Nos.:
1695213 - 50" Mower
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
42
TP 400-4598-00-CQ-S
50" Mower Deck - Housing, Arbors & Blades
PART NO. DESCRIPTION REF NO QTY.
NUT, Hex Flange, 9/16-18 1 1714419SM 3
WASHER, Bellevilled, 9/16 2 1713675SM 6
PULLEY 3 1713161SM 1
HUB, Double Pulley 4 1713158SM 1
PULLEY 5 1713098SM 3
HUB, Double Pulley 6 1713533SM 1
COVER, Arbor Housing 7 1655729ASM 3
BEARING, Ball, 3/4 x 1-3/4 x 5/8 8 2108202SM 3
SPACER, 21/32 x 3/4 x 5/8 9 1715724SM 3
SPACER, 11/16 x 5/32 x 2-11/16 10 1732544SM 3
BEARING, Ball, 11/16 x 1-9/16 x 15/32 11 1705897SM 3
GASKET, Foam 12 1707335SM 3
HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting (Includes Ref. No. 14) 13 1713338ASM 3
FITTING, Grease 14 1704314SM 3
COVER, Arbor 15 1720560ASM 1
CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4 16 1664847SM 26
WASHER, Bellevilled, 9/16, Black 17 1713619SM 3
SHAFT, Arbor (LH) 18 1713612SM 1
SHIELD, Grass, Lower 19 1713196SM 3
BLADE, Mower, 18-1/8 20 1708229ASM 3
WASHER, Hex, 11/16 x 2 21 1713089SM 3
WASHER, Spring 15/32, Black 22 1656916SM 3
CAPSCREW, Hex Head, 7/16-14 x 1 23 2823471SM 3
SHAFT, Arbor (Center & RH) 24 1713195SM 2
MOWER HOUSING ASSEMBLY, 50" Mower (Orange) 25 1722746CSM 1
COVER, Arbor 26 1715673SM 1
CARRIAGE BOLT, 1/4-20 x 7/8 27 1931318SM 2
PLUG, Hole 28 1705115SM 1
BAFFLE, Anti-Blowout, LH (CE/Export) 29 1716870ASM 1
CARRIAGE BOLT, 5/16-18 x 3/4 30 1931333SM 2/11
NUT, Hex, Whizlock, 5/16-18 31 1927557SM 2/11
NUT, Push 32 1960518SM 2
WASHER, 1/4, Black 33 1960353SM 2
CLAMP 34 1704873SM 1
WASHER, 5/16, Black 35 1919326SM 1
SPRING 36 7101082SM 1
CAP, Spring End 37 1723323SM 1
NUT, Hex, 1/4-20 ESNA 39 1920397SM 2
ROD, Deflector, Front 40 1706709SM 1
DEFLECTOR, Plastic 41 1705449SM 1
HUB, Pulley, Center & RH 42 1713197SM 2
BAFFLE, Anti-Blowout, RH (CE/Export) 43 1716869ASM 1
BAFFLE, Anit-Blowout 44 1724538ASM 1
UPSTOP 45 1719929SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695213 - 50" Mower
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
43
TP 400-4598-00-CQ-S
50" Mower Deck - Housing, Arbors & Blades
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985972
The above parts group applies to the following Mfg. Nos.:
1695213 - 50" Mower
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
44
TP 400-4598-00-CQ-S
50" Mower Deck - Housing, Arbors & Blades
PART NO. DESCRIPTION REF NO QTY.
WASHER 46 1924940SM 2
CAPSCREW, Taptite 5/16-18 x 3/4 47 1960541SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695213 - 50" Mower
2690638 - Conquest
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
45
TP 400-4598-00-CQ-S
Hardware Identification & Torque Specifications
Common Hardware Types
Hex Head Capscrew
Carriage Bolt
Standard Hardware Sizing
When a washer or nut is identified as 1/2” , this is the
Nominal size
second number is present it represent the
When bolt or capscrew is identified as 1/2 - 16 x 2” , this
means the
second number represents the
example, and the final number is the
bolt or screw (in this example 2 inches long).
, meaning the
Nominal size
inside diameter
, or
body diameter
threads per inch
body length
Washer
Lockwasher
Hex Nut
is 1/2 inch; if a
threads per inch
is 1/2 inch; the
(16 in this
of the
The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.
0
1/4 3/4
1/2
Nut, 1/2”
Inside
Diameter
1
1/4 3/4
1/2
Screw, 1/2 x 2
2
1/4 3/4
1/2
3
1/4 3/4
1/2
4
Body
Diameter
Body
Length
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
Size Of
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32
8-36
10-24
10-32
1/4-20
1/4-28
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
No
Marks
SAE Grade 2 SAE Grade 5 SAE Grade 8
in/lbs in/lbs
19
2.1
20
2.3
27
3.1
31
3.5
66
7.6 8 10.9 12 16.3
76
8.6 10 13.6 14 19.0
30
31
43
49
NOTES
3.4
3.5
4.9
5.5
in/lbs
41
43
60
68
420 571.2
4.6
4.9
6.8
7.7
Wrench & Fastener Size Guide
1/4
1/4” Bolt or Nut
Wrench—7/16”
5/16
5/16” Bolt or Nut
Wrench—1/2”
3/8
3/8” Bolt or Nut
Wrench—9/16”
7/16
DIA.
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
1/2
DIA.
1/2” Bolt or Nut
Wrench—3/4”
MANUFACTURING, INC.
500 N. Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA
www.simplicitymfg.com
Briggs and Stratton Yard Power Products Group
2007 Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
