Parts Manual
Intermediate
Walk-Behind Snowthrowers
7.5HP Snowthrowers
Mfg. No. Description
1694836 7555M, 7.5HP Snowthrower (MS)
1694837 7555EX, 7.5HP Snowthrower (MS) (CE)
8.5HP Snowthrowers
Mfg. No. Description
1694845 8560El, 8.5HP OHV Snowthrower (ES)
1694846 8560EX, 8.5HP OHV Snowthrower (MS) (CE)
Rev.
1732357
11/2005
Part No.:
TP 400-4248-00-IW-S
Table Of Content
s
PRODUCT COMPONENTS PAGES
Handles & Controls Group ...................................................................................................................................
Engine, Pulleys, & Frame Group - 7-1/2 & 8-1/2 HP Briggs ...............................................................................
Auger & Impeller Group .......................................................................................................................................
Auger Housing Group ..........................................................................................................................................
Traction Drive Group ............................................................................................................................................
Wheels & Tires Group ..........................................................................................................................................
Decals Group .......................................................................................................................................................
Chute Crank Control Group .................................................................................................................................
12
14
16
20
22
24
Torque Specification Chart ..................................................................... Inside Back Cover
4
8
Handles & Controls Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4248uhdc
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
4
TP 400-4248-00-IW-S
Handles & Controls Group
PART NO. DESCRIPTIONREF NO QTY.
1 7091298 2 NUT, 5/16-18 Hex Nyloc
2 1726727 1 BRACKET, Snow Stick- Lower
3 1921332 4 SCREW, 5/16-18 x 3/4" Hex Head Cap
4 7027426 1 CLUTCH CABLE, Auger Drive- RH
5 1726574 1 HANDLE, Upper, Right Hand
6 1722638 1 GRIP, Clutch, RH
7 1726317 2 GRIP, Foam, Black
8 1722460 3 HAIR PIN
9 1666255 1 ROD, Shift, Lower
10 1916622 2 NUT, 1/4-20 2B Hex
11 1916964 3 LOCKWASHER, 1/4" Spring
12 1931317 2 BOLT, 1/4-20 x 2" Short Square Neck Carriage, GR 5
13 1720238 1 ROD, Upper, Shift
14 1668524 2 BLOCK, Pivot
15 1720240 1 WELDMENT, Shift Rod Pivot
16 1715123 1 SPRING, Compression
17 1918452 1 COTTER PIN, .125 x 1.00
18 1668185 2 BUSHING, .500 ID x .750 OD x .25
19 1924361 1 WASHER, 1/2" Flat (.531 ID x 1.250 OD x .08 Thick)
20 1668523 1 WELDMENT, Shift Rod
21 1960705 1 SCREW, 1/4-20 x 2-1/4" Hex Flange Lock
22 1921319 2 WASHER, .250 (.27 ID x .62 OD)
23 1726734 1 KNOB, Tapered - 3/8-16 Internal Thread- Red
24 1726983 1 WELDMENT, Dash
25 1726572 1 HANDLE, Lower
26 7035744 2 WING KNOB, 5/16-18
27 7090391 2 WASHER, 5/16" Internal Tooth Lock
28 1960686 4 NUT, 5/16-18 Hex Flange Nyloc
29 1919326 2 WASHER, .312 (.34 ID x .75 OD)
30 1722633 1 ASSEMBLY, Rod w/Pin (Includes Ref. Nos. 31, 47, 54, 55 & 56)
31 1722690 1 SPRING, Compression
32 1960519 1 PUSH NUT
33 1722630 1 ROD, Hold Down
34 1960662 1 SCREW, 1/4-20 x 2" Hex Head Cap, GR 5
35 1722667 1 GRIP, Clutch, LH
36 1923358 2 NUT, 1/4-20 Hex Centerlock
37 1715655 2 SPACER, Handle
38 1726573 1 HANDLE, Upper, Left Hand
39 1922837 2 SCREW, 1/4-20 x 1-1/2" Hex Head Cap
40 1715654 2 SPACER, .268 ID x .394 x .165
41 1960671 2 SCREW, 1/4-20 x 3/4" Pan Head Torx Self-Tap
42 1921221 5 SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5
43 1722631 1 LEVER, Pivot
44 1920397 2 NUT, 1/4-20 Hex Nyloc
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
5
TP 400-4248-00-IW-S
Handles & Controls Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4248uhdc
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
6
TP 400-4248-00-IW-S
Handles & Controls Group
PART NO. DESCRIPTIONREF NO QTY.
45 7075909 1 SNOW STICK
46 7091267 1 NUT, #10-24 Hex Center Lock
47 1722632 1 ROD, Hand Control (Not shown; Part of Ref> No. 30)
48 7071895 1 HOLDER, Snostik- Upper
49 7027425 1 CLUTCH CABLE, Ground Drive- LH
50 7091189 4 BOLT, 5/16-18 x 2" Curved Head Square Neck GR 2
51 7090011 1 WASHER, #10 Internal Tooth Lock
52 7091266 1 SCREW, #10-24 x 2" Hex Washer Head Machine, GR 5
53 1917356 4 LOCKWASHER, Spring .312
54 1722635 1 BUSHING, .250 ID x .375 OD x .750 (Not shown; Part of Ref> No. 30)
55 1722634 1 PIN, Clevis (Not shown; Part of Ref> No. 30)
56 1722613 1 SPRING, Compression (Not shown; Part of Ref> No. 30)
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
7
TP 400-4248-00-IW-S
Engine, Pulleys, & Frame Group - 7-1/2 & 8-1/2 HP Briggs
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4248epib
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
8
TP 400-4248-00-IW-S
Engine, Pulleys, & Frame Group - 7-1/2 & 8-1/2 HP Briggs
PART NO. DESCRIPTIONREF NO QTY.
1 7090188 8 WASHER, 5/16" Flat
2 7012114 1 BUSHING, Differential Link
3 7100117 1 BELT GUIDE, LH, Traction Drive Belt
4 7100118 1 BELT GUIDE, RH, Traction Drive Belt
5 * 1 ENGINE, 7-1/2HP Briggs OHV (Model: 12D196, Type: 0110-E1)
5 * 1 ENGINE, 7-1/2HP Briggs OHV Euro (Model: 12D296, Type: 0113-E1)
5 * 1 ENGINE, 8-1/2HP Briggs Intek Mod 15 ES (Model: 15B194, Type: 0110-E1)
5 * 1 ENGINE, 8-1/2HP Briggs Intek Mod 15 Manual (Model: 15B196, Type: 0111-E1)
6 1726942 1 HOSE, Oil Drain
7 7090187 5 WASHER, 5/16" Split Lock
8 7090196 4 NUT, 5/16-18 Hex, GR 5 or B
9 1715092 1 ROD, Idler
10 2816169 2 ROLL PIN, 3/16 x 3/4"
11 7072566 1 WELDMENT, Intermediate Frame- Orange
12 1926018 6 SPEED NUT, 1/4-20 U-Type
13 1666001 2 BUSHING, 1.00 long
14 1715559 1 SUPPORT, Tie Bar
15 1929477 2 SCREW, #10-24 x 1/2" Hex Washer Self-Tap
16 1960251 4 JAM NUT, 3/8-16 Hex Center Lock
17 1924940 4 WASHER, 3/8" SAE Flat
18 1674315 2 ROD, Belt Guide
19 1960687 4 NUT, 3/8-16 Hex Nyloc
20 1715756 1 SUPPORT, Frame
21 1924856 4 SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
22 1715111 1 SUPPORT, Pivot
23 1919381 2 WASHER, 5/16" Flat
24 1922127 3 CAPSCREW, 5/16-18 x 1-3/4 Hex Head, G5
25 7027174 2 SCREW, 5/16-18 x 2" Hex Head Cap, GR 5
26 7072555 1 COVER, Bottom- Orange
27 7090362 9 SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
28 1925125 1 WASHER, 7/16" Flat
29 7091598 1 COTTER PIN, 1/8 x 3/4"
30 1725369 1 WELDMENT, Idler Arm
31 1960268 1 BOLT, 3/8-16 x 1-1/4" Short Square Neck Carriage, GR 5
32 2174870 1 SPACER, .377 ID x .75 OD x .312 Long
33 2118414 1 PULLEY, Idler
34 1717393 1 V-BELT, Auger Drive
35 1725371 1 V-BELT, Traction Drive
36 1715118 1 SPRING, Extension
37 1669313 1 PAD, Brake
38 2825160 2 RIVET, Blind
39 1717320 1 ASSEMBLY, Idler Arm w/Brake Pad (Includes Ref. Nos. 37 & 38)
40 7091158 1 BOLT, 3/8-16 x 1-3/4" Short Square Neck Carriage, GR 5
Footnotes
Note* See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
9
TP 400-4248-00-IW-S
Engine, Pulleys, & Frame Group - 7-1/2 & 8-1/2 HP Briggs
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4248epib
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
10
TP 400-4248-00-IW-S
Engine, Pulleys, & Frame Group - 7-1/2 & 8-1/2 HP Briggs
PART NO. DESCRIPTIONREF NO QTY.
41 1922755 1 WASHER, 3/8" Flat (.41 ID x 1.00 OD x .13 Thick)
42 1668477 1 PULLEY, Idler
43 1725379 1 COVER, Belt
44 2159106 1 SPRING, Extension, .562 O.D. x 4.250 Long
45 7090391 2 WASHER, 5/16" Internal Tooth Lock
46 2824819 1 KEY - Hi Pro .125 x .625 HP 504 SAE1035
47 1674325 1 PULLEY, V Groove
48 1960619 2 SET SCREW, 5/16-18 x 5/16" Hex Recess, Cup Point
49 1720313 1 PULLEY, 2.75 OD
50 7010061 1 KEY, 3/16 Square x 1"
51 7015861 1 HARNESS CLIP
52 1724064 1 CORD, Electric Start
53 1725665 1 GUARD, Muffler
54 1727032 1 MUFFLER, Deflector- B&S
55 1727033 1 HEX SCREW, Thread Rolling M4 x 0.7
56 1930645 1 NUT, 3/8-16 Hex Flange Lock Two Way
57 7300133 1 HEAT SHIELD, 7.5HP B&S Powerbuilt Muffler (Used on 7.5HP Models)
58 7090238 1 SCREW, 5/16-24 x 1" Hex Head Cap, GR 5
59 7091609 1 SCREW, 5/16-24 x 1-1/2" Hex Head Cap, GR 5
60 1920427 3 LOCKWASHER, 5/16" Exterior Tooth
61 7063366 1 KIT, Electric Start, 230 volt
Footnotes
Note* See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
11
TP 400-4248-00-IW-S
Auger & Impeller Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4248aigc
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
12
TP 400-4248-00-IW-S
Auger & Impeller Group
PART NO. DESCRIPTIONREF NO QTY.
1 1715091 1 PULLEY, Auger Input
2 1928721 2 SET SCREW, 5/16-18 x 1/2" Square Head Cup Point
3 7012699 2 KEY, 3/16 x 3/4" Woodruff
4 1960474 1 SET SCREW, 3/8-16 x 1/2" Square Head
5 1715120 1 WELDMENT, Impeller
6 1612093 1 OIL SEAL
7 1666425 1 BUSHING
8 2836098 1 PIN, Drive-Loc, 3/16 x 1-1/2"
9 1721680 1 COLLAR, Thrust
10 1715580 1 SHAFT, Rolled Worm
11 1670971 1 WASHER, Thrust (.562 ID x 1.000 OD x .030/.032 Thick)
12 1666424 1 FLANGE, Bushing
13 1676027 2 OIL SEAL
14 7091576 6 NUT 1/4-20 Hex
15 1726732 1 GEAR CASE, LH- Intermediate
16 1721676 1 GASKET, Gear Case
17 1676026 2 BUSHING
18 1726538 1 SHAFT, Auger, 22"/24"
19 1676024 1 GEAR, Worm
20 1726733 1 GEAR CASE, RH- Intermediate
21 7092128 1 PIPE PLUG, 1/8-27 NPTF 3/4 Taper x .31 Long Hex Drive
22 7092125 6 SCREW, 1/4-20 x 7/8" Hex Head Cap, GR 5
23 2821133 1 FITTING, Grease
24 1726536 1 WELDMENT, 22" Auger, RH
25 1726535 1 WELDMENT, 22" Auger, LH
26 7023590 2 COTTER PIN, 1/4" Self Locking
27 1668344 2 SHEAR PIN, .248 ID x 1-3/4" Long
28 1960114 4 WASHER
29 2827794 2 RING, External Retaining (for .75 dia. Shaft)
30 7015894 1 KEY, #605 Woodruff
31 1612112 1 TUBE, Low Density Polyethylene Extruded
32 7092127 12 FLAT WASHER, .268 ID x .591 OD x .063 Thick
33 7090052 6 WASHER, 1/4" Split Lock
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
13
TP 400-4248-00-IW-S
Auger Housing Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4248ch3p
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
14
TP 400-4248-00-IW-S
Auger Housing Group
PART NO. DESCRIPTIONREF NO QTY.
1 7072543 1 END PLATE, RH- Auger Housing- Orange
2 7072548 1 WELDMENT, Auger Housing - 22" - Orange
2 7072568 1 WELDMENT, Auger Housing - 24" - Orange
3 1930659 3 RETAINER NUT, 5/16-18
4 7072546 1 END PLATE, LH- Auger Housing- Orange
5 1675080 1 BLADE, Scraper- 22"
5 1725352 1 BLADE, Scraper- 24"
6 1726457 2 BEARING, Auger
7 1665982 1 RETAINER, Bearing
8 2108202 1 BALL BEARING
9 7072553 2 SKID SHOE, Reversible- Orange
10 1916965 4 WASHER, 3/8" Split Lock
11 1931315 12 BOLT, 1/4-20 x 1/2" Short Square Neck Carriage, GR 5
12 1925205 3 SCREW, 5/16-18 x 5/8" Hex Head Cap, GR 5
13 1930641 12 NUT, 1/4-20 Hex Flange Lock Large
14 1960711 4 BOLT, 3/8-16 x 3/4" Square Neck Carriage
15 1924940 4 WASHER, 3/8" Flat
16 1960687 4 NUT, 3/8-16 Hex Nyloc
17 7091742 6 SCREW, 5/16-18 x 1" Hex Washer Self-Tap
18 7072551 2 CAP, Bearing, Orange
19 1917356 3 WASHER, 5/16" Split Lock
20 7091208 5 BOLT, 1/4-20 x 7/16" Short Square Neck Carriage, GR 5
21 7091065 5 NUT, 1/4-20 Hex Flange Lock
22 7011938 3 RETAINER, Spout
23 7091075 6 SCREW, #10-24 x 5/8" Hex Washer Self-Tap
24 7035744 1 WING KNOB, 5/16-18
25 7091076 2 WASHER, .34 x .69 x .08 Flat
26 2860210 1 WASHER, 3/8" Flat (Nylon)
27 7073599 1 ASSY, Decal/Steel Discharge Chute (Includes 7071880 Decal)
27 7074744 1 ASSY, Decal/Steel Discharge Chute (CE) (Includes 1727207 Decal)
28 7073192 1 WELDMENT, Steel Chute
29 1931333 1 BOLT, 5/16-18 x 3/4" Square Neck Carriage, GR 5
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
15
TP 400-4248-00-IW-S

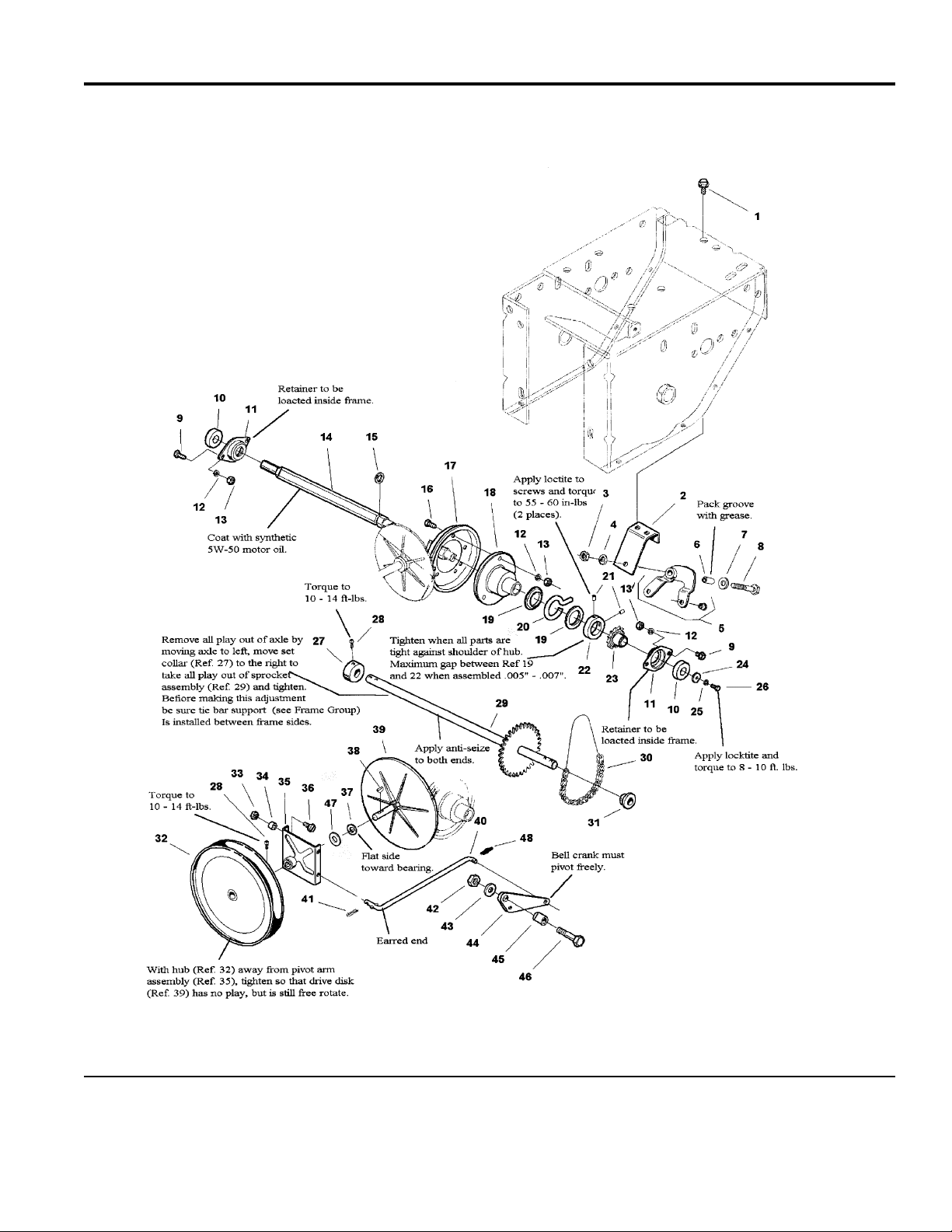

Traction Drive Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4248tdg
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
16
TP 400-4248-00-IW-S
Traction Drive Group
PART NO. DESCRIPTIONREF NO QTY.
1 1930601 3 SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
2 1673994 1 BRACKET, Bushing
3 7091302 1 NUT, 3/8-16 Hex, GR 5 or B
4 1916965 1 WASHER, 3/8" Split Lock
5 1669256 1 ASSEMBLY, Shift Arm w/Bushing (Includes Ref. No. 51)
6 1666114 1 BUSHING, Spacer, .380 ID x .750 OD x 1.030 Long
7 1924940 1 WASHER, 3/8" SAE Flat
8 1923701 1 SCREW, 3/8-16 x 2" Hex Head Cap, GR 5
9 7091138 4 SCREW, 5/16-18 x 5/8" Hex Head Cap, GR 5
10 1722703 2 BALL BEARING, .669 ID x .574 OD
11 1667341 2 RETAINER, Bearing
12 1917356 4 LOCKWASHER, 5/16" Spring
13 1917372 7 NUT, 5/16-18 Hex, GR B or 5
14 7072432 1 HEX SHAFT
15 2827794 1 RING, External Retaining (for 3/4 Dia Shaft)
16 1921332 3 SCREW, 5/16-18 x 3/4" Hex Head Cap
17 1725428 1 DRIVEN DISC
18 1665995 1 HUB, Friction Disc
19 1678956 2 COLLAR, Thrust
20 1666207 1 PIN, Slide
21 1724333 2 SET SCREW, 1/4-20 x 1/2 w/Patch Lock
22 1667335 1 COLLAR, Set, 1.251 ID x 2.00 OD x .50 Long
23 7072459 1 SPROCKET #35, 12 Tooth
24 1960353 1 WASHER, 1/4 ID x 5/8 OD x .134/.109 Flat
25 1916964 1 LOCKWASHER, 1/4" Spring
26 1923341 1 SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5
27 1729254 1 COLLAR, Set, .756 ID x 1.249 OD x .50
28 1928721 2 SET SCREW, 5/16-18 x 1/2" Square Head Cup Point
29 7072474 1 WELDMENT, Axle & Sprocket
30 7072491 1 CHAIN, Roller, #35, 25.5" Long
31 1715101 1 BUSHING
32 1715253 1 PULLEY, Traction
33 1935048 2 NUT, 5/16-18 Large Head Center Lock
34 1665844 2 SPACER, .328 ID x .562 OD x .144/.149 Thick
35 1726778 1 ASSEMBLY, Pivot Plate/Hub w/Bearing (Includes Ref. Nos. 49 & 50)
36 1925205 2 SCREW, 5/16-18 x 5/8 Hex Head Cap, GR 5
37 1666379 1 WASHER
38 7091214 1 KEY, Hi-Pro, #HP-506
39 1719879 1 DRIVE DISC, w/ Spindle
40 1715131 1 ROD, Pivot
41 7091598 1 COTTER PIN, 1/8 x 3/4"
42 1919438 1 NUT, 5/16-18 Hex Nyloc Light
43 1919326 2 WASHER, .312 (.34 ID x .75 OD)
44 1700473 1 BELLCRANK
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
17
TP 400-4248-00-IW-S
Traction Drive Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4248tdg
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
18
TP 400-4248-00-IW-S
Traction Drive Group
PART NO. DESCRIPTIONREF NO QTY.
45 1666106 1 BUSHING
46 1922127 1 SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5
47 1924366 1 WASHER, Plain, .75 ID x 1.31.OD x .10
48 7091593 1 COTTER PIN, 3/8" Self Lock
49 1666855 1 BUSHING (Not Shown)
50 1665521 1 BEARING (Not Shown)
51 1669255 1 BUSHING (Not Shown)
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
19
TP 400-4248-00-IW-S
Wheels & Tires Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4248whee
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
20
TP 400-4248-00-IW-S
Wheels & Tires Group
PART NO. DESCRIPTIONREF NO QTY.
1 1666969 2 KLIK- PIN, .310 ID x 1-3/4" Long
2 0172353 1 VALVE STEM AND CAP per tire assembly
3 1664090 1 TUBE, Tire per tire assembly (Optional)
4 1723286 1 RIM, 6 x 3.25 (Weldment) per tire assembly
5 7026169 1 TIRE, 15 x 5.00-6, 2 Ply, Carlisle X-Trac per tire assembly
6 1726747 1 ASSY, Tire and Wheel, 15 x 5.00-6 Carlisle X-Trac, RH (Includes Ref. Nos. 2, 4 & 5)
7 1726746 1 ASSY, Tire and Wheel, 15 x 5.00-6 Carlisle X-Trac, LH (Includes Ref. Nos. 2, 4 & 5)
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
21
TP 400-4248-00-IW-S
Decals Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4248dcl
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
22
TP 400-4248-00-IW-S
Decals Group
PART NO. DESCRIPTIONREF NO QTY.
1 1726946 1 DECAL, Dashboard- RH (Used on Domestic Models)
1 1727023 1 DECAL, Dashboard- RH- Euro
2 1715557 1 DECAL, Shift Pattern
3 1727020 1 DECAL, Dashboard- LH (Used on Domestic Models)
3 1727021 1 DECAL, Dashboard- LH- Euro
4 1715558 1 DECAL, Dash Front - Simplicity
5 * 1 DECAL, OPEI (Not Serviced)
6 1716532 1 DECAL - Danger, Auger (Used on Domestic Models)
6 1727208 1 DECAL, CE- Auger Warning (Used on CE Models)
7 7100115 1 DECAL, Stripe- Simplicity (7.5hp, 22")
7 7100120 1 DECAL, Stripe- Simplicity (8.5hp, 24") (Not Shown)
8 7071880 1 DECAL, Danger, Chute/Deflector (Used on Domestic Models
8 1727207 1 DECAL, Chute Warning (Used on CE Models)
9 * 1 I.D. Tag (Not Serviced)
10 1722867 1 DECAL, Lube- Controls
11 7074136 1 DECAL, Sound 105
12 7029776 1 DECAL, Euro Community (CE)
13 7011279 1 DECAL, 2005 Year of Manufacture
14 1706085 2 DECAL- Hinge (Orange)
Footnotes
Note* Not a serviceable part.
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
23
TP 400-4248-00-IW-S
Chute Crank Control Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4248ccc
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
24
TP 400-4248-00-IW-S
Chute Crank Control Group
PART NO. DESCRIPTIONREF NO QTY.
1 1960093 1 PUSH NUT, Pal. .375 Dia. Stud Cap
2 1714084 1 KNOB, Spinner
3 1667588 3 BUSHING, .376 x .437 x .20
4 7028152 1 ROD, Chute, Upper
5 1960074 1 CLIP, .093 Dia. Hair Pin
6 1720577 1 SPLICE, Chute Handle
7 1926228 1 SPRING PIN, .156 x 1.000
8 1726939 1 ROD, Chute Lower
9 1918452 1 COTTER PIN, .125 x 1.00
10 1718793 1 BRACKET, Universal Gear
11 1921319 3 WASHER, .250 (.27 ID x .62 OD)
12 1960518 2 RETAINER, 1/4" Bolt
13 1960252 2 BOLT, 1/4-20 x 5/8" Short Square Neck Carriage, GR 5
14 1718593 2 GEAR, Universal
15 1960103 1 WASHER, 3/8" Flat- Black
16 1916168 1 SPRING PIN, .125 x .750
17 7028159 1 WORM SHAFT
18 1960294 2 NUT, 1/4-20 Hex Flange Lock
19 7014001 1 ROLL PIN, 1/8 x 3/4"
20 7021828 1 WORM
21 7011724 1 WASHER, .44 x .78 x .025 Curved
22 7028162 1 BRACKET, Worm
23 7091070 1 NUT, 5/16-18 Hex Flange Lock
24 7091138 1 SCREW, 5/16-18 x 5/8" Hex Head Cap, GR 5
25 7090539 1 SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694836 - 7555M
1694837 - 7555EX
1694845 - 8560El
1694846 - 8560EX
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
25
TP 400-4248-00-IW-S
Hardware Identification & Torque Specifications
Common Hardware Types
Hex Head Capscrew
Carriage Bolt
Standard Hardware Sizing
When a washer or nut is identified as 1/2”, this is the
Nominal size
second number is present it represent the
When bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the
second number represents the
example, and the final number is the
bolt or screw (in this example 2 inches long).
, meaning the
Nominal size
inside diameter
, or
body diameter
threads per inch
body length
Washer
Lockwasher
Hex Nut
is 1/2 inch; if a
threads per inch
is 1/2 inch; the
(16 in this
of the
The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.
0
1/4 3/4
1/2
Nut, 1/2”
Inside
Diameter
1
1/4 3/4
1/2
Screw, 1/2 x 2
2
1/4 3/4
1/2
3
1/4 3/4
1/2
4
Body
Diameter
Body
Length
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
Size Of
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32
8-36
10-24
10-32
1/4-20
1/4-28
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
No
Marks
SAE Grade 2 SAE Grade 5 SAE Grade 8
in/lbs in/lbs
19
2.1
20
2.3
27
3.1
31
3.5
66
7.6 8 10.9 12 16.3
76
8.6 10 13.6 14 19.0
30
31
43
49
NOTES
3.4
3.5
4.9
5.5
in/lbs
41
43
60
68
420 571.2
4.6
4.9
6.8
7.7
Wrench & Fastener Size Guide
1/4
1/4” Bolt or Nut
Wrench—7/16”
5/16
5/16” Bolt or Nut
Wrench—1/2”
3/8
3/8” Bolt or Nut
Wrench—9/16”
7/16
DIA.
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
1/2
DIA.
1/2” Bolt or Nut
Wrench—3/4”
MANUFACTURING, INC.
500 N. Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA
www.simplicitymfg.com
© Copyright Simplicity Manufacturing, Inc.
All Rights Reserved. Printed In USA.
2005
Loading...
