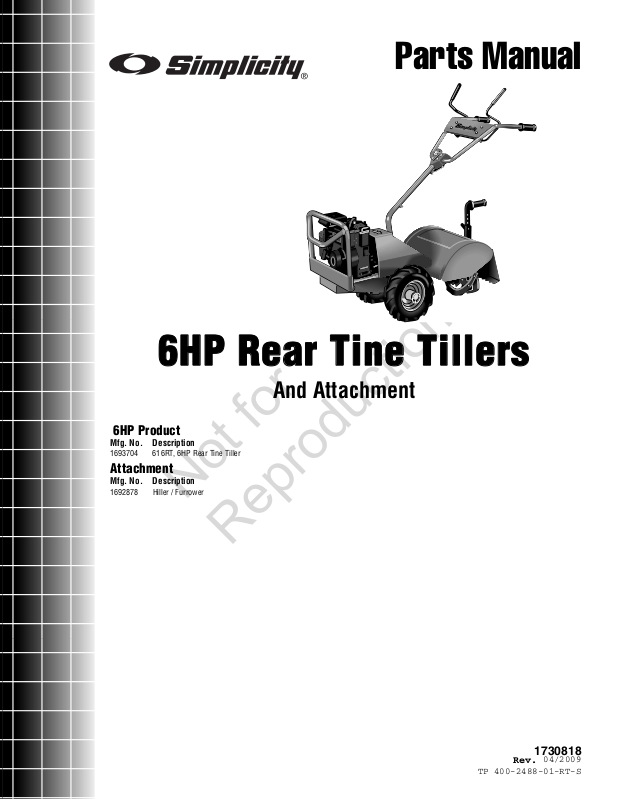

Parts Manual
6HP Rear Tine Tillers
6HP Product
Mf
. No. Description
1693704 616RT, 6HP Rear Tine Tiller
Attachment
Mfg. No. Description
1692878 Hiller / Furrower
And Attachment
1730818
04/2009
Rev.
TP 400-2488-01-RT-S
Page 2
Page 3
Table Of Content
PRODUCT COMPONENTS PAGES
Handle Bar Group ................................................................................................................................................
Hood, Drag Stake & Tine Group ..........................................................................................................................
Engine Mount, Belts & Wheels Group .................................................................................................................
Transmission Group .............................................................................................................................................
Wheel & Tiller Shaft Group ..................................................................................................................................
Decal Group .........................................................................................................................................................
Hiller/Furrower Attachment ..................................................................................................................................
Hiller/Furrower Attachment ..................................................................................................................................

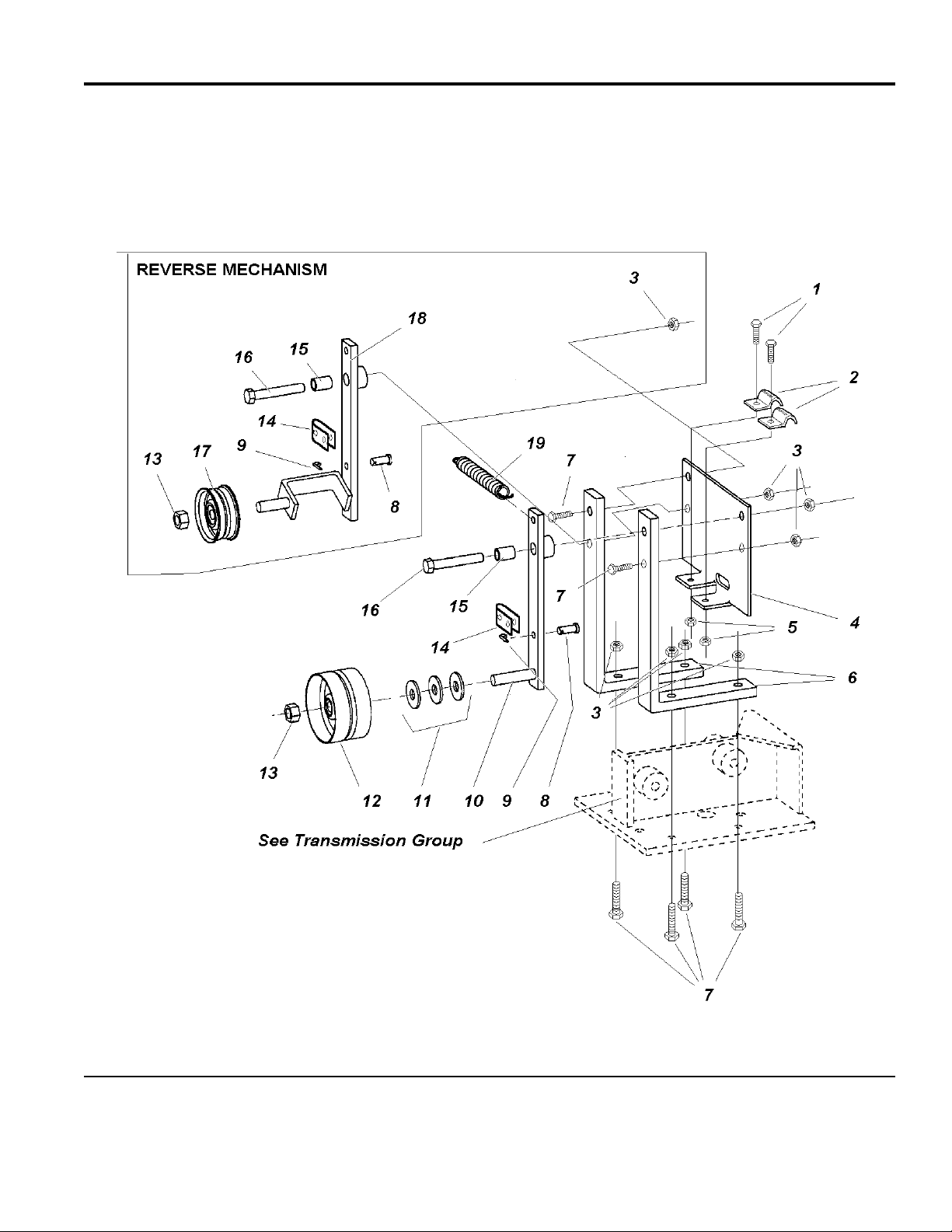

Shifting Mechanism Group ...................................................................................................................................

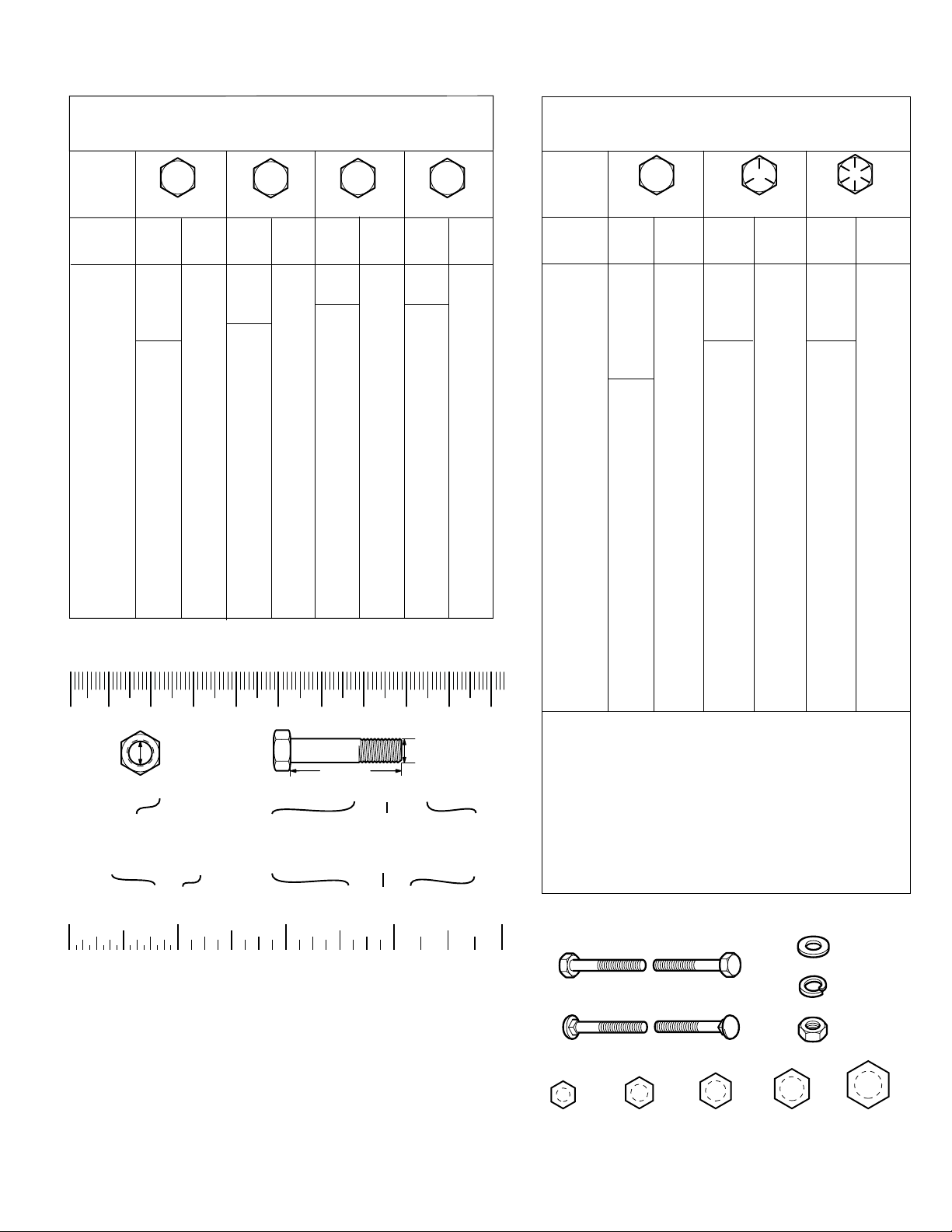

Torque Specification Chart ..................................................................... Inside Back Cover
10
12
14
16
18
20
4
6
8
Page 4
Handle Bar Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985769
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
4
TP 400-2488-01-RT-S
Page 5
Handle Bar Group
PART NO. DESCRIPTION REF NO QTY.
HANDLE GRIP, Drive Control Lever 1 1716699SM 2
LEVER, Drive Control Walk-Behind Tiller 2 1716721SM 1
GRIP, Handle Black 3 1721516SM 2
HANDLE BAR ASSEMBLY 4 1716718SM 1
BRACKET, Drive Control Lever, RH 5 1716722SM 1
NUT, Hex Nylock 6 1716732SM 4
BRACKET, Drive Control Lever, LH 7 1716723SM 1
NUT, Hex Nylock 8 1933896SM 2
SPRING, Froward Cable Adjustment 9 1716720SM 1
CLAMP, Handle Bar Tilt 10 1716709SM 2
NUT, Hex Flange 5/16"- 18 11 1935048SM 7
NUT, Hex Jam 5/16" 12 2820438SM 4
CABLE ASSEMBLY 13 1719037SM 2
KNOB, Handle Bar Tilt Lever 14 1716708SM 1
LEVER, Handle Bar Tilt 15 1716707SM 1
STOP, Handle Bar Tilt Lever 16 1716714SM 1
CAPSCREW, Hex Head, 8MM x16MM 17 1716715SM 1
FITTING, Lube 18 1716855SM 1
CAPSCREW, Hex Head, 10MM x 30MM 19 1716716SM 2
CAPSCREW, 5/16"- 18 x 2-3/4" G5 20 1923141SM 2
SPRING, Handle Bar Swivel 21 1716710SM 1
MOUNT, Handle Bar Stem, LH 22 1716719SM 1
MOUNT, Handle Bar Stem, RH 23 1716706SM 1
NUT, Hex Nylok 10MM 24 1716717SM 2
LEVER, Handle Bar Swivel Walk-Behind Tiller 25 1716712SM 1
KNOB, Handle Bar Swivel Lever 26 1716711SM 1
STEM, Handle Bar 27 1716713SM 1
FRICTION PAD, Tilt 28 1716705SM 2
CARRIAGE BOLT, 5/16"- 18 x 2" G5 29 1931339SM 4
CAPSCREW, Hex Head, 5MM X .8MM X 10MM 30 1716731SM 4
CAPSCREW, Hex Head 5/16-18 x 2 G5 31 1921978SM 1
BUSHING, Pivot 5/16" 32 1716704SM 1
PIN, Cotter 33 1716703SM 1
HANDLE, Reverse 34 1716725SM 1
LINK, Reverse 35 1716729SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
5
TP 400-2488-01-RT-S
Page 6
Hood, Drag Stake & Tine Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985768
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
6
TP 400-2488-01-RT-S
Page 7
Hood, Drag Stake & Tine Group
PART NO. DESCRIPTION REF NO QTY.
GRIP, Handle, Black 1 1719038SM 1
LEVER, Drag Stake, Walk-Behind Tiller 2 1716745SM 1
KNOB, T Handle, Drag Stake 3 1716743SM 1
PIN, DETENT, 5/16"- 18 x 1" 4 1716742SM 1
CAPSCREW, 1/4"- 20 x 1/2" G5 5 1921958SM 2
HOOD 6 1721515SM 1
NUT, Hex Flange 5/16"- 18 Two, Way Lock 7 1935048SM 2
CAPSCREW, 3/8"- 16 x 1" G5 8 1921210SM 16
TINE BLADE, Left Side 9 1716739SM 8
HOLDER, Tine Blade LH+RH 10 1716741SM 2
NUT, Hex 3/8"- 16NC 11 1916950SM 18
CAPSCREW, 3/8"- 16 x 1-3/4" G5 12 1921971SM 2
LOCKWASHER, Spring 3/8" 13 1916965SM 16
CAPSCREW, 5/16"- 18 x 1" G5 14 1921333SM 2
TINE BLADE, Right Side 15 1716737SM 8
CAPSCREW, Hex Flange Head, 5/16"- 18 x 1/2" 16 1716701SM 2
BRACKET, Depth Regulator RT 17 1721511SM 1
REPLACEMENT KIT, Tine Blade Holder 18 1716749SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
7
TP 400-2488-01-RT-S
Page 8
Engine Mount, Belts & Wheels Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985767
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
8
TP 400-2488-01-RT-S
Page 9
Engine Mount, Belts & Wheels Group
PART NO. DESCRIPTION REF NO QTY.
NUT, Hex 5/16" - 18 1 1917372SM 2
LOCKWASHER, Spring 5/16" 2 1917356SM 10
WASHER, 5/16" 3 1960044SM 2
COVER, Belt 4 1716784SM 1
CAPSCREW, Hex Head 5/16-18 x 2 G5 5 1921978SM 2
WASHER, 5/8" 6 2860164SM 1
CAPSCREW, Hex Flange Head, 5/16"- 18 x 3/4" 7 1921332SM 2
NUT, Hex Flange 5/16"- 18 Two, Way Lock 8 1935048SM 10
WHEEL & TIRE ASSEMBLY, Tiller LH 9 1716773SM 1
WHEEL & TIRE ASSEMBLY, Tiller RH 9 1716775SM 1
CAPSCREW, Hex Socket Head, 1/4"- 20 x 2-5/32" 10 1716782SM 2
SPRING 11 1716781SM 2
WASHER, 1/4" 12 1960151SM 2
RING, Snap 13 1716779SM 2
KNOB, Wheel Lock Out 14 1716777SM 2
NUT, Hex Keps 1/4" - 20 15 2828372SM 2
KNOB, Lock Out Set of Two 16 1716778SM 1
KEY, Parrallel 17 2805850SM 2
PULLEY, Transmission 18 1716769SM 1
WASHER 19 1716770SM 2
CAPSCREW, 5/16"- 24 x 3/4" G5 20 1921515SM 2
CAPSCREW, Hex Socket Head, 5/16"- 18 x 11/4" G8 21 1960470SM 4
BRACKET, Engine Mount LH 22 1716753SM 1
BUMPER, Guard 23 1721528SM 1
CAPSCREW, 5/16"- 18 x 1 3/4" G5 24 1922127SM 8
BRACKET, Engine Mount RH 25 1716752SM 1
CAPSCREW, 5/16"- 24 x 1/2" 26 1716756SM 1
GUIDE, Belt Forward 27 1721527SM 1
ENGINE, 6HP Briggs & Stratton - Engine Model 120492, Engine Type 0119-E1 28 * 1
SCREW, Set 1/4"- 20 x 1/4" 29 1716758SM 1
KEY, Woodruff 30 2805121SM 1
PULLEY, Engine, Reverse 31 1716757SM 1
PULLEY 32 1716761SM 1
CAPSCREW, Hex Head, 5/16"- 24 x 1-1/2" 33 1716760SM 1
V-BELT, Reverse 34 1721523SM 1
V-BELT, Forward 35 1716766SM 1
SPACER, Engine Pulley 36 1716762SM 1
PULLEY, Engine, Forward 37 1716764SM 1
Footnotes
Note* See your local Briggs & Stratton distributor for Parts & Service.
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
9
TP 400-2488-01-RT-S
Page 10
Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985159
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
10
TP 400-2488-01-RT-S
Page 11

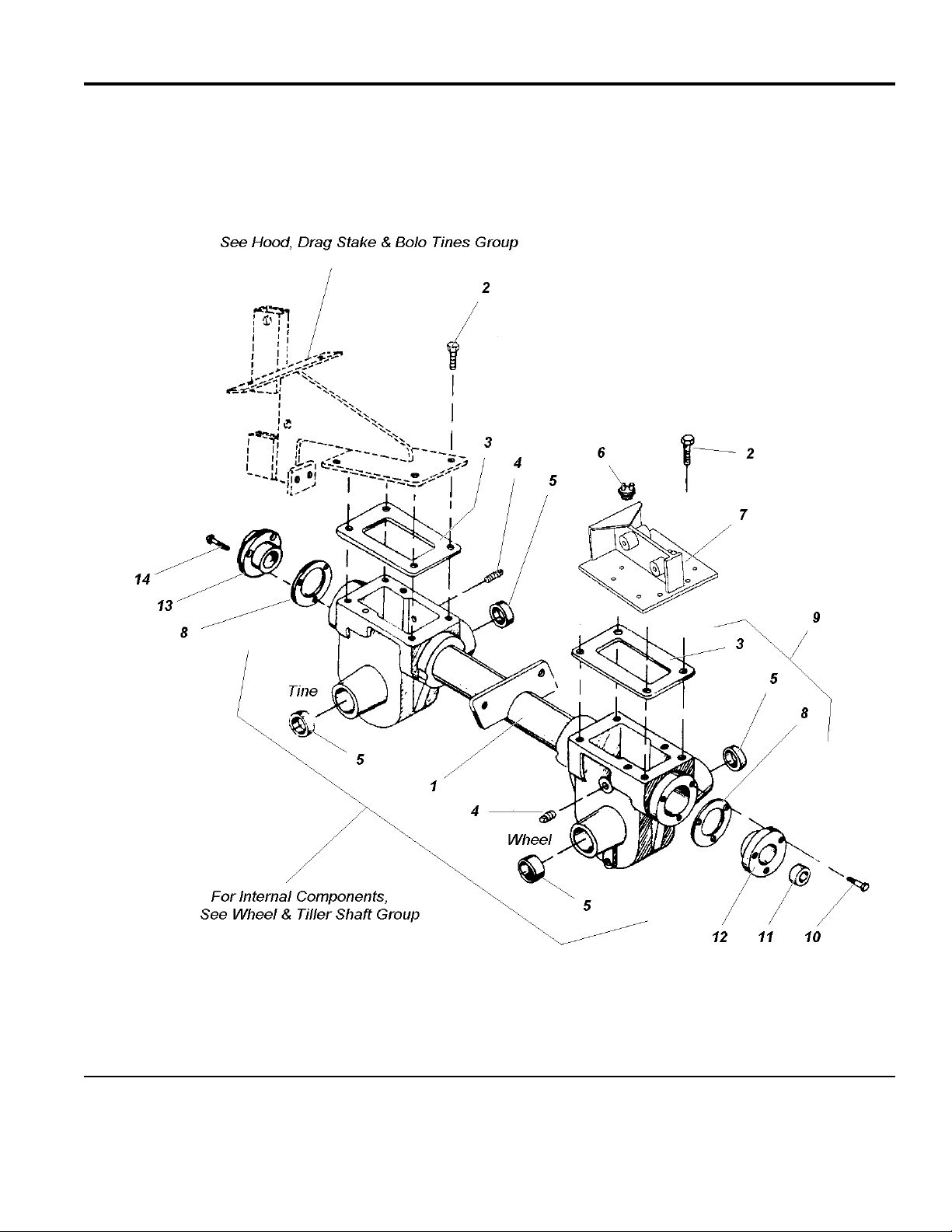

Transmission Group
PART NO. DESCRIPTION REF NO QTY.
TRANSMISSION ASSEMBLY 1 1716788SM 1
CAPSCREW, Hex Flagne Head, 5/16"- 18 x 3/4" 2 1921332SM 8
PLUG, Pipe Socket Head 1/4"- 18, Oil Check 4 1716790SM 2
PLUG, Oil Fill 6 1716794SM 1
COVER, Transmission Wheel Housing 7 1716724SM 1
GASKET KIT, Oil Seal (Includes Ref. Nos. 3, 5, and 8) 9 1716799SM 1
GASKET, Housing & Transmission Cover 3 1716789SM 2
SEAL, Housing 1506 5 1716791SM 4
GASKET, Bearing Cap Front, Rear 8 1716792SM 2
CAPSCREW, Hex Flange Head, 1/4"- 20 x 3/4" 10 1716798SM 3
SEAL, Oil Drive Shaft 11 1716797SM 1
CAP, Front Bearing 12 1716796SM 1
CAP, Rear Bearing 13 1716793SM 1
CAPSCREW, Hex Flange Head, 1/4"- 20 x 7/8" 14 1716795SM 3
Footnotes
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
11
TP 400-2488-01-RT-S
Page 12

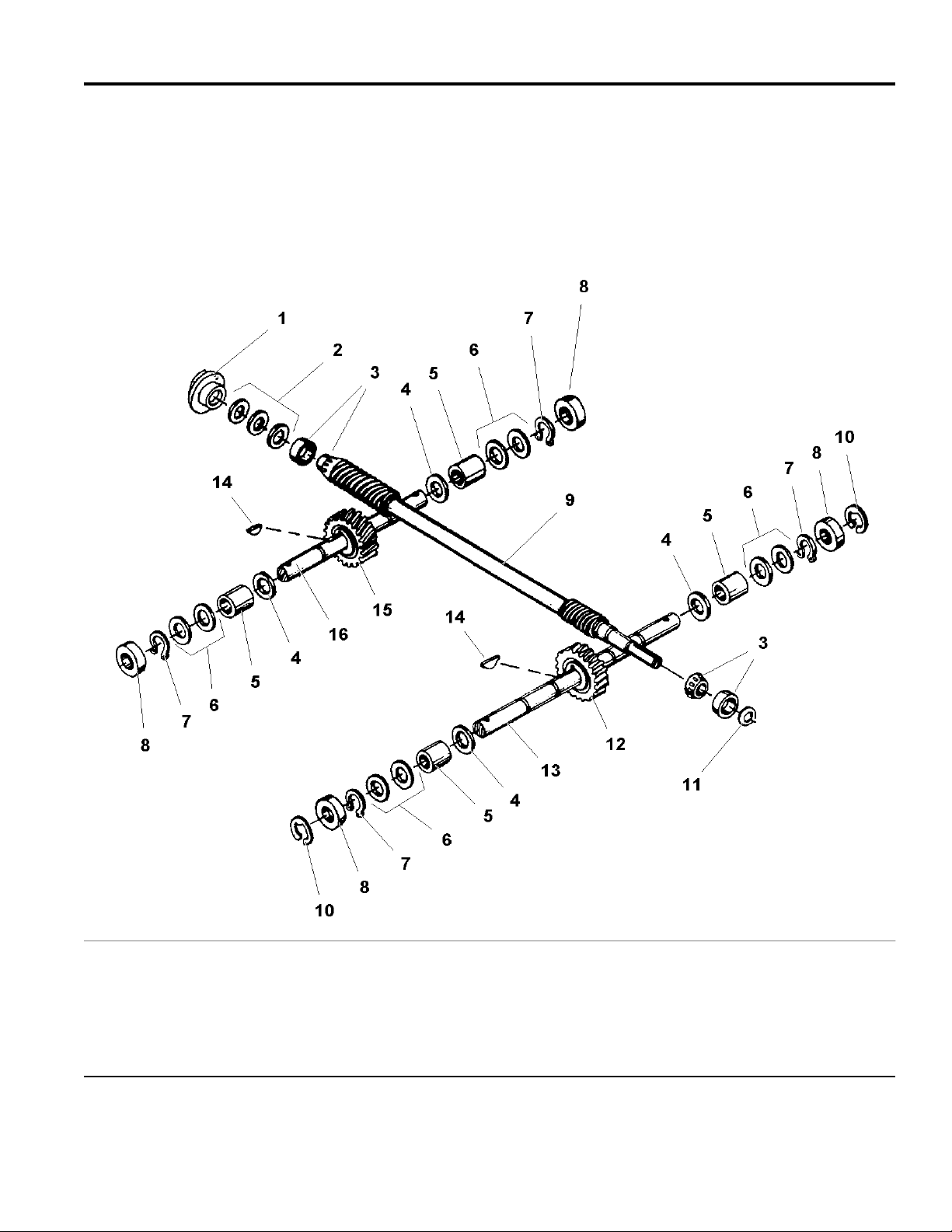

Wheel & Tiller Shaft Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985155
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
12
TP 400-2488-01-RT-S
Page 13
Wheel & Tiller Shaft Group
PART NO. DESCRIPTION REF NO QTY.
CAP, Rear Bearing 1 1716793SM 1
SHIM SET, Rear Bearing Cap 2 1716825SM 1
SHIM, 0.062 Thickness x 1 3/4" (As Required) 2 1716826SM 1
SHIM, 0.030 Thickness x 1 3/4" (As Required) 2 1716827SM 1
SHIM, 0.015 Thickness x 1 3/4" (As Required) 2 1716828SM 1
SHIM, 0.010 Thickness x 1 3/4" (As Required) 2 1716829SM 1
BEARING, Tappered ( Cone & Race ) 3 1716810SM 2
SPACER, 1" x 1 1/4" x 0.062 Thickness 4 1716824SM 4
BUSHING 5 1716816SM 4
SHIM SET, Axle Spacer 6 1716815SM 4
SHIM, 0.062 Thickness x 1 3/8" 6 1716817SM 1
SHIM, 0.030 Thickness x 1 3/8" 6 1716818SM 1
SHIM, 0.015 Thickness x 1 3/8" 6 1716819SM 1
SHIM, 0.010 Thickness x 1 3/8" 6 1716820SM 1
RING, Snap Internal Retainer 7 1716830SM 4
SEAL, Housing 8 1716791SM 4
SHAFT, Main Drive 9 1716809SM 1
RING, Snap External Retainer 10 1716821SM 2
SEAL, Oil Drive Shaft 11 1716797SM 1
GEAR, Worm Wheel Shaft 12 1716814SM 1
SHAFT ASSEMBLY, Wheel w/Lock Pin 5HP 13 1716812SM 1
KEY, Parrallel Pin 14 1716813SM 2
GEAR, Worm Shaft 15 1716823SM 1
SHAFT ASSEMBLY 16 1716822SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
13
TP 400-2488-01-RT-S
Page 14
Decal Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985765
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
14
TP 400-2488-01-RT-S
Page 15

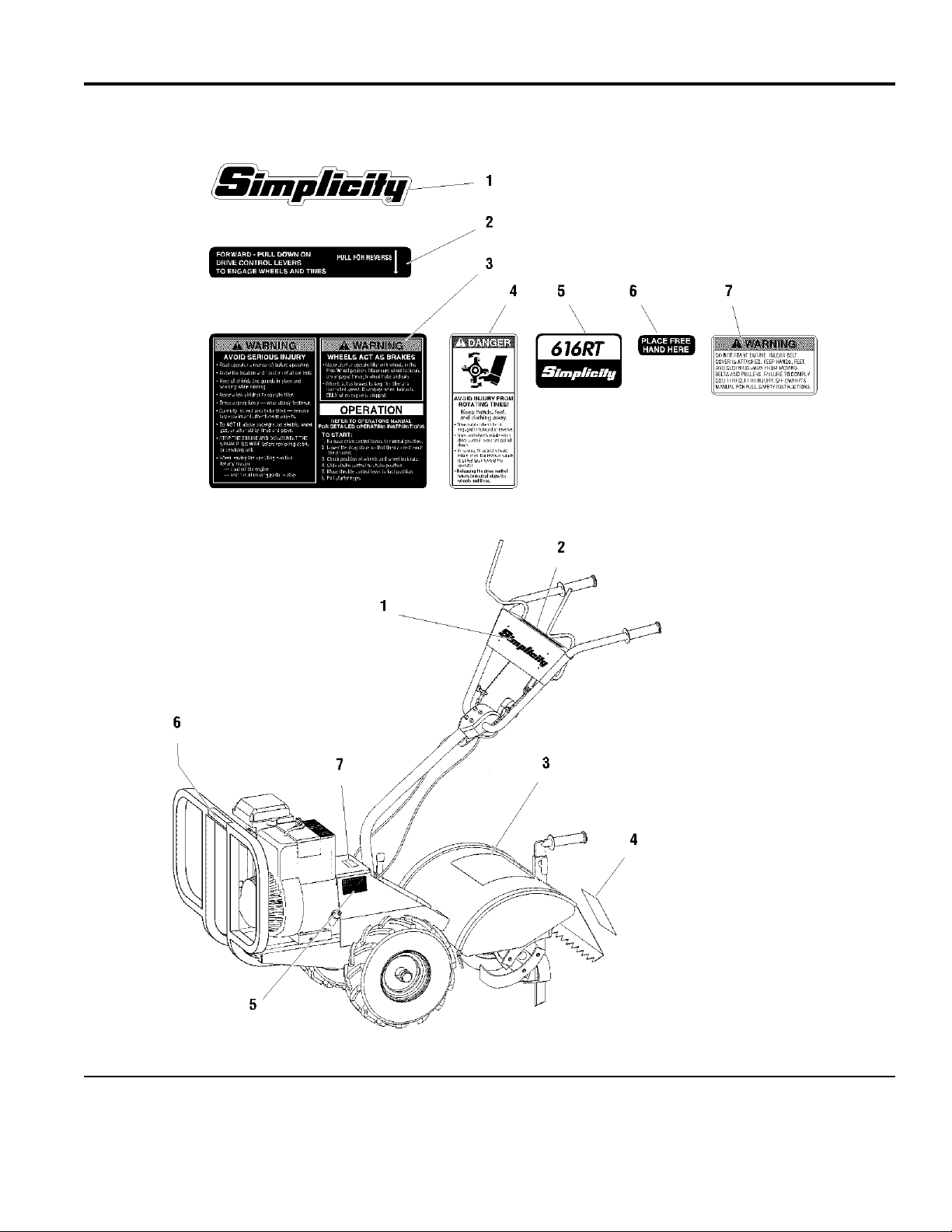

Decal Group
PART NO. DESCRIPTION REF NO QTY.
DECAL, Simplicity 1 1722551SM 1
DECAL, Console Forward/Reverse Instructions 2 1716734SM 1
DECAL, Hood, Operator Instructions 3 1716747SM 1
DECAL, Tine Hood 4 1716840SM 1
DECAL, Belt Cover 5 1721504SM 2
DECAL, Brush Bar 6 1716839SM 1
DECAL, Warning, Blet Cover 7 1716800SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
15
TP 400-2488-01-RT-S
Page 16
Hiller/Furrower Attachment
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1692878
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
16
TP 400-2488-01-RT-S
Page 17

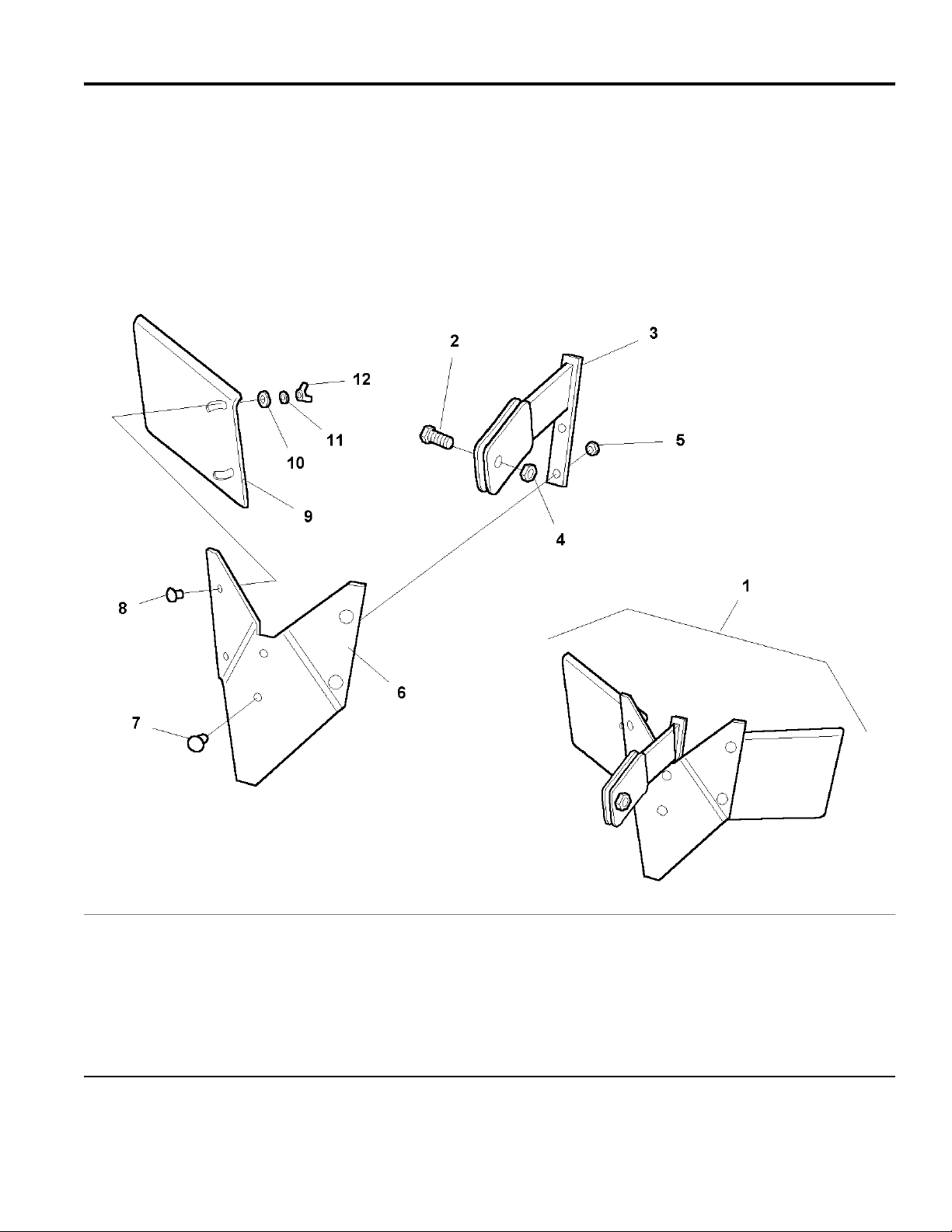

Hiller/Furrower Attachment
PART NO. DESCRIPTION REF NO QTY.
HILLER/FURROWER, Complete (Order as Wholegood) 1 1686802SM 1
BOLT, Socket Head, 3/8"-16 x 1-1/4" 2* 1
BRACKET 3* 1
NUT, Hex, 3/8" - 16 4* 1
NUT, Nyloc, 3/8" - 16 5* 2
BLADE, Furrower 6* 1
CARRIAGE BOLT, 3/8 - 16 x 1-1/2" 7* 2
CARRIAGE BOLT, 5/16" - 18 x 3/4" 8* 4
HILLER WING, Left 9* 1
HILLER WING, Right (Not Shown) 9* 1
WASHER, Flat, 5/16" 10 * 4
LOCKWASHER, External Tooth, 5/16" 11 * 4
WING NUT, 5/16"- 18 12 * 4
Footnotes
Note* No servicable parts - components shown for ref. only.
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
17
TP 400-2488-01-RT-S
Page 18
Hiller/Furrower Attachment
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986035
The above parts group applies to the following Mfg. Nos.:
1692878 - Hiller / Furrower
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
18
TP 400-2488-01-RT-S
Page 19
Hiller/Furrower Attachment
PART NO. DESCRIPTION REF NO QTY.
BOLT, Carriage, 3/8-16 x 1-1/2 1 1931352SM 2
BOLT, Carriage, 5/16-18 x 3/4 2 1931333SM 4
HILLER WING, Left 3 1723726SM 1
HILLER WING, Right (Not Shown) 3 1723727SM 1
WASHER, Flat, 5/16 4 1960044SM 4
LOCKWASHER, External Tooth, 5/16 5 2820426SM 4
WING NUT, 5/16-18 6 1933126SM 4
BOLT, Socket Head, 3/8-16 x 1-1/4 7 1960268SM 1
BRACKET 8 1723725SM 1
NUT, Nylock, 3/8-16 9 1919439SM 2
NUT, Hex, 3/8-16 10 1916950SM 1
BLADE, Furrower 11 1723724SM 1
HILLER / FURROWER ATTACHMENT, Complete 12 1686802SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1692878 - Hiller / Furrower
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
19
TP 400-2488-01-RT-S
Page 20
Shifting Mechanism Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985766
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
20
TP 400-2488-01-RT-S
Page 21
Shifting Mechanism Group
PART NO. DESCRIPTION REF NO QTY.
CAPSCREW, 5MM x .8 x 16MM RT 1 1722326SM 2
C-CLAMP 2 1719063SM 2
NUT, Hex Flagne 5/16"- 18 Two, Way Lock 3 1935048SM 9
BRACKET, Cable Mount 4 1721509SM 1
NUT, Hex Nylok 5 1716732SM 2
BAR, Shift Mounting 6 1716801SM 2
CAPSCREW, 5/16"- 18 x 1-1/4" G5 7 1921977SM 6
PIN, Link Forward/Reverse 8 1716702SM 2
PIN, Cotter 9 1716703SM 1
ARM, Forward Idler 10 1716804SM 1
WASHER, 3/8" 11 1924940SM 3
PULLEY, Forward Idler 12 1716803SM 1
NUT, HEX 3/8"- 16 13 1916950SM 2
YOKE, Cable 14 1716728SM 2
BUSHING, Pivot, 5/16" 15 1716704SM 2
CAPSCREW, Hex Head 5/16-18 x 2 G5 16 1921978SM 2
PULLEY, Reverse 17 1716803SM 1
ARM, Idler Reverse 18 1721508SM 1
SPRING, Idler Arm 19 1716802SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1693704 - 616RT
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
21
TP 400-2488-01-RT-S
Page 22
Page 23
Hardware Identification & Torque Specifications
0
1/4 3/4
1/2
2 1
1/4 3/4
1/2
1/4 3/4
1/2
1/4 3/4
1/2
4
Torque Specification Chart
FOR STANDARD METRIC MACHINE HARDWARE (Tolerance ± 20%)
Property
Class
Size Of
Hardware
M3
M4
M5
M6 7.3 10.3 12.1
M7 12.1 16.9 19.9
M8 17.7
M10 35 50
M12 61 86.2 103 140
M14
M16 147 210 250 340
M18 202 287 346 470
M20 290 405 486 660
M22 390 559 656 890
M24 497
M27 733 1032 1239 1680
M30 995 1401 1681 2280
M33
M36 1740 2441
M39 2249 3163
The guides and ruler furnished below are designed to
help you select the appropriate hardware.
01 0
Nut, M8
Thread
Diameter (mm)
Inside
Diameter (in)
Nut, 1/2-16
Class 5.6
in/lbs
ft/lbs
5.88
13.44
26.4
44.64
5.2
7.7
15
26
42
64
89
126
169
217
320
435
590
759
988
20
5.6
Nm. Nm. Nm.
.56
1.28
2.50
4.3
7.1
10.5
21
36
58
88
121
171
230
295
435
590
800
1030
1340
30
8.8
Class 8.8
in/lbs
ft/lbs
13.44 1.80
30.72 43.44 52.56
60.96
Class 10.9
in/lbs
ft/lbs
19.2 22.92
1.28
2.90
5.97 7.15
5.75
9.9
16.5
24
48
83
101
136 162 220
132
200
275
390
530
708
375
995
1350
1349
1902 2278 3090
1830
2360
3050
50
60
Body Length
40
Screw, M8- 1.25 x 25
Thread
Diameter (mm)
Threads
per inch
Body
Diameter
Screw, 1/2- 16 x 2
10.9
4.10
8.10
14
23
25
34
67
117
185
285
390
550
745
960
1400
1900
2580
3310
4290
80
Diameter
Distance between
threads (mm)
Threads
per inch
3
12.9
Class 12.9
in/lbs
ft/lbs
29
59
840 1140
2935 3980
3798
Body
Nm.
2.15
4.95
9.7
16.5
27
40
81
5150
90 100 70
Body
Length (mm)
Body
Length (in)
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
Size Of
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32
8-36
10-24
10-32
1/4-20
1/4-28
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 29 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
b. for flange whizlock nuts and screws - use 135% of
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
Common Hardware Types
Hex Head Capscrew
SAE Grade 2 SAE Grade 5 SAE Grade 8
in/lbs in/lbs
19
20
27
31
66
76
2.1
2.3
3.1
3.5
30
31
43
49
7.6 8 10.9 12 16.3
8.6 10 13.6 14 19.0
in/lbs
3.4
3.5
4.9
5.5
NOTES
torques.
grade 5 torques.
41
43
60
68
Washer
4.6
4.9
6.8
7.7
Standard Hardware Sizing
When a washer or nut is identified as 1/2” (M8), this is
Nominal size
the
(8mm metric thread diameter); if a second number is present
it represents the
When bolt or capscrew is identified as 1/2 - 16 x 2” (M8 - 1.25 x 50 ),
this means the
metric thread diameter), the second number,16, represents the
threads per inch, (1.25 thread diameter).
body length of the bolt or screw, 2 inches (50mm).
, meaning the
threads per inch
Nominal size
inside diameter
is 1/2 inch
(distance between threads).
, or body diameter is 1/2 inch (8mm
The final number is the
Lockwasher
Carriage Bolt
Hex Nut
Wrench & Fastener Size Guide
1/4” Bolt or Nut
Wrench—7/16”
M6 Bolt or Nut
Wrench—10mm
5/16” Bolt or Nut
Wrench—1/2”
M8 Bolt or Nut
Wrench—13mm
3/8” Bolt or Nut
Wrench—9/16”
M10 Bolt or Nut
Wrench—17mm
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
M12 Bolt or Nut
Wrench—19mm
1/2” Bolt or Nut
Wrench—3/4”
M14 Bolt or Nut
Wrench—22 mm
Page 24
IT IS THE POLICY OF BRIGGS & STRATTON CORP. TO IMPROVE ITS PRODUCTS
WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO
MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY
OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS.
Briggs & Stratton Yard Power Products Group
3515 N. 124 Street / PO Box 702
Wauwatosa, WI 53222 USA
www.simplicitymfg.com
© Copyright by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2009
