Simplicity 5C User Manual
Specifications and Main Features
- Model: 5 euro
- Manufacturer: Red Cycler
- Engine: Engine five point zero hp briggs stratton
- Dimensions: Not provided
- Weight: Not provided
- Chipping Capacity: Limbs and branches that are not more than two and a half inches in diameter
- Shredding Capacity: Such organic materials can also include leaves, plants, flowers, fruits and vegetables dry, moist or even wet.
- Vacuum Capacity: Lightweight turnings and loose dry waste including leaves and grass cuttings.
- Assembly Time: Roughly 10 minutes
- Tools Required for Assembly: 1/2 wrench, 7/16 wrench and a #2 Phillips head screwdriver.
- Rotational Speed: 3600 RPM
- Hammers: The patented swinging triangular and J-hammers feature a total of six leading edges.
- Safety Features: Rotor guards, emergency stop requirements, and safety goggles
- Operating Tips: Waste is collected manually, safe working practices, as well as maintenance and servicing recommendations are provided.
- Warranty: Two years of personal use, one year for commercial use, and 90 days for repair parts.
- Optional Accessories: Vacuum kit, leaf tray, nozzle and handle.
Frequently Asked Questions
Q: What type of waste can I process with this device?
A: Including Organic Waste materials like dried, moist, or wet leaves, plants, flowers, fruits, and vegetables. Besides this you can also chip limbs and branches with up 2 and half inches diameter.
Q: Is it permissible to use the device inside a building?
A: No, it is only permissible to activate the engine outside in an area that is adequately ventilated.
Q: Are there any protective devices that I am supposed to put on when operating the chipper/shredder?
A: One is advised to put on a hardhat at all times, muffs or earplugs for hearing protection and fitted leather working gloves.
Q: The machine does not seem to start. What do you expect to be the issue?
A: It could be that there is no fuel, that the wires for the spark plugs might be dislodged or that the controls have been shifted to unsuitable locations.

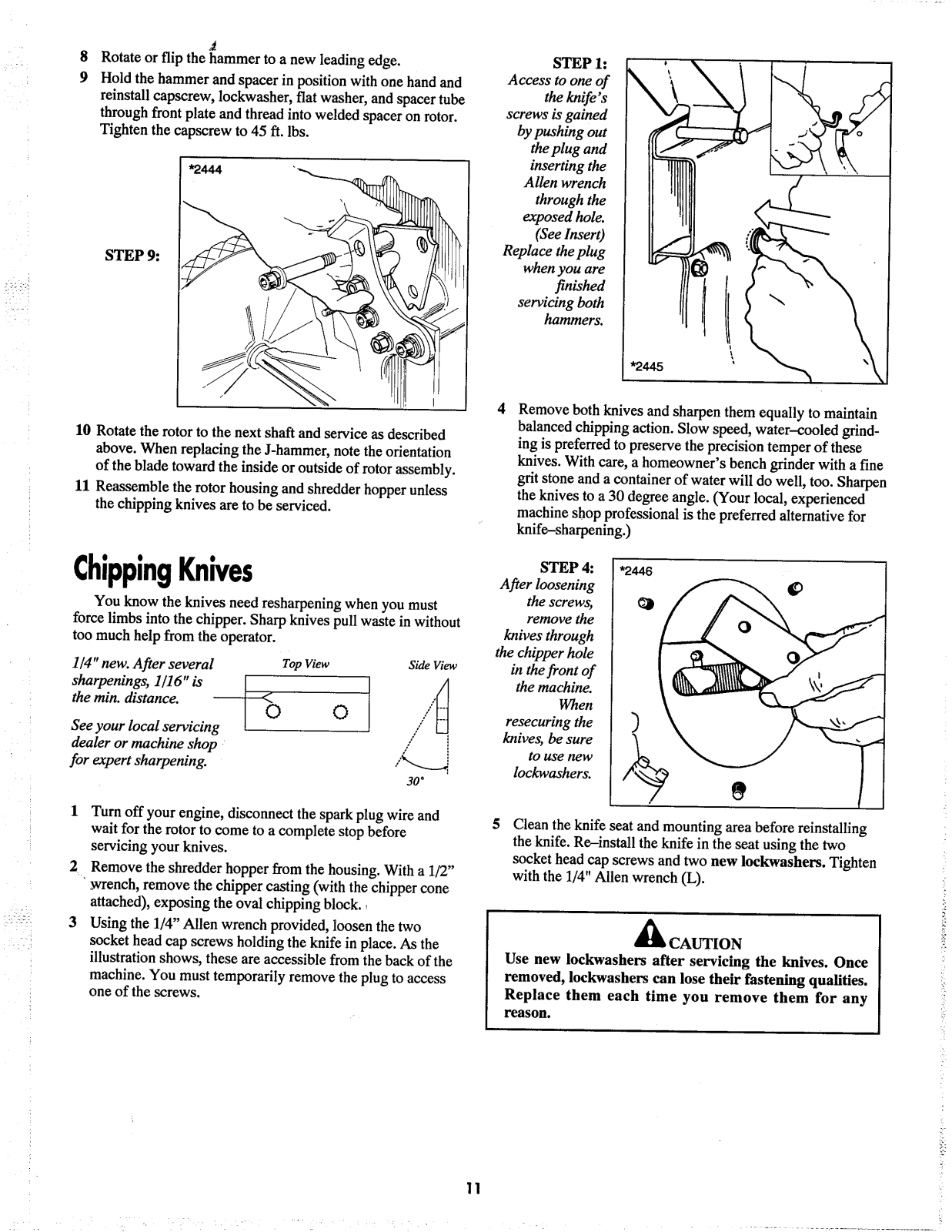

Q: In what ways are chipping knives and hammers serviced?
A: The knives have to be sharpened evenly to facilitate equal chipping actions while both the triangular and the J hammers can be rotated or turned up to introduce a new leading edge for use.
Q: With the vacuum kit, are we able to suck in wet leaves?
A: Vacuuming very wet leaves with the machine is not advised as they are likely to block it.
Q: What are the steps that help safeguard me while I prepare to alter attachments or conduct maintenance?
A: Before changing attachments or doing maintenance, first, switch off the engine, wait until the rotor comes to a standstill and pull out the spark plug wire.
