LOW PROFILE TRAILER FRAME & COVER MFG. NO. 532
HIGH CAPACITY TRAILER FRAME & COVER MFG. NO. 531
ATTACHMENTS

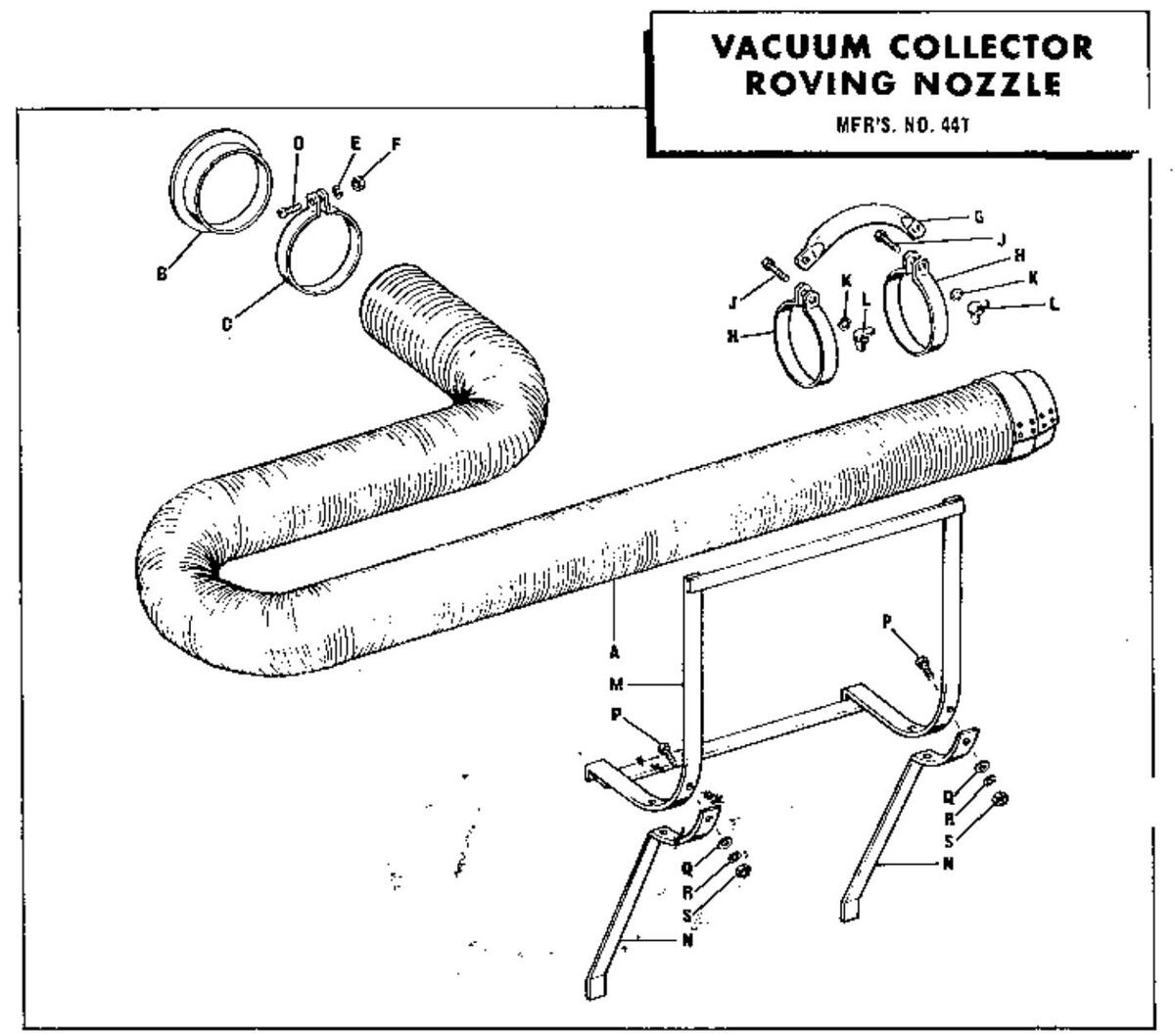

ROVING NOZZLE MEG. NO. 447 VACUUM COLLECTOR ADAPTER MEG. NO. 453 ACUUM COLLECTOR ADAPTER MFG, NO. 537 VACUUM COLLECTOR ADAPTER MFG, NO. 547
COLLECTOR
LITHO IN U.S. A
COMPANY, INC. SIMPLICITY MANUFACTURING
The Vacuum Collector is delivered complete in two cartons. The long carton contains:
2 - Hoses
The short carton contains:
Should any shortages of the above items occur, advise by stating the packers number listed on the green packing slip, part number and description of items missing.
1. The blower unit comes fully assembled. Attach the blower unit to the tractor rear hitch by means of the pins and clips provided.

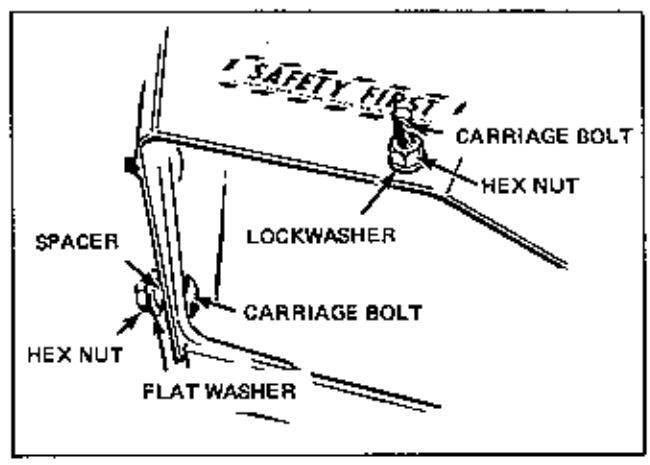

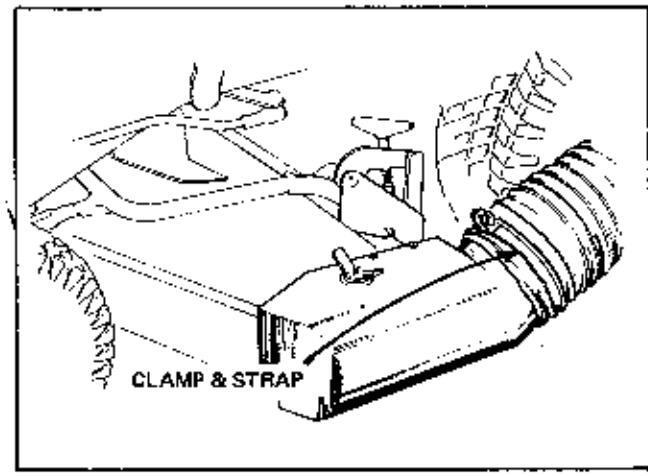

2. Prepare the rotary mower attachment for use with the vacuum collector by attaching the correct adapter kit. Example: See Figures 2 and 3. Note the bolt nearest the exhaust opening has a spacer and flat washer under the attaching nut (Figure 2). Attach the carriage bolt for the exhaust cover (Figure 2) and secure the cover in position by means of the large wing nut assembly provided in adapter kit (Figure 3).

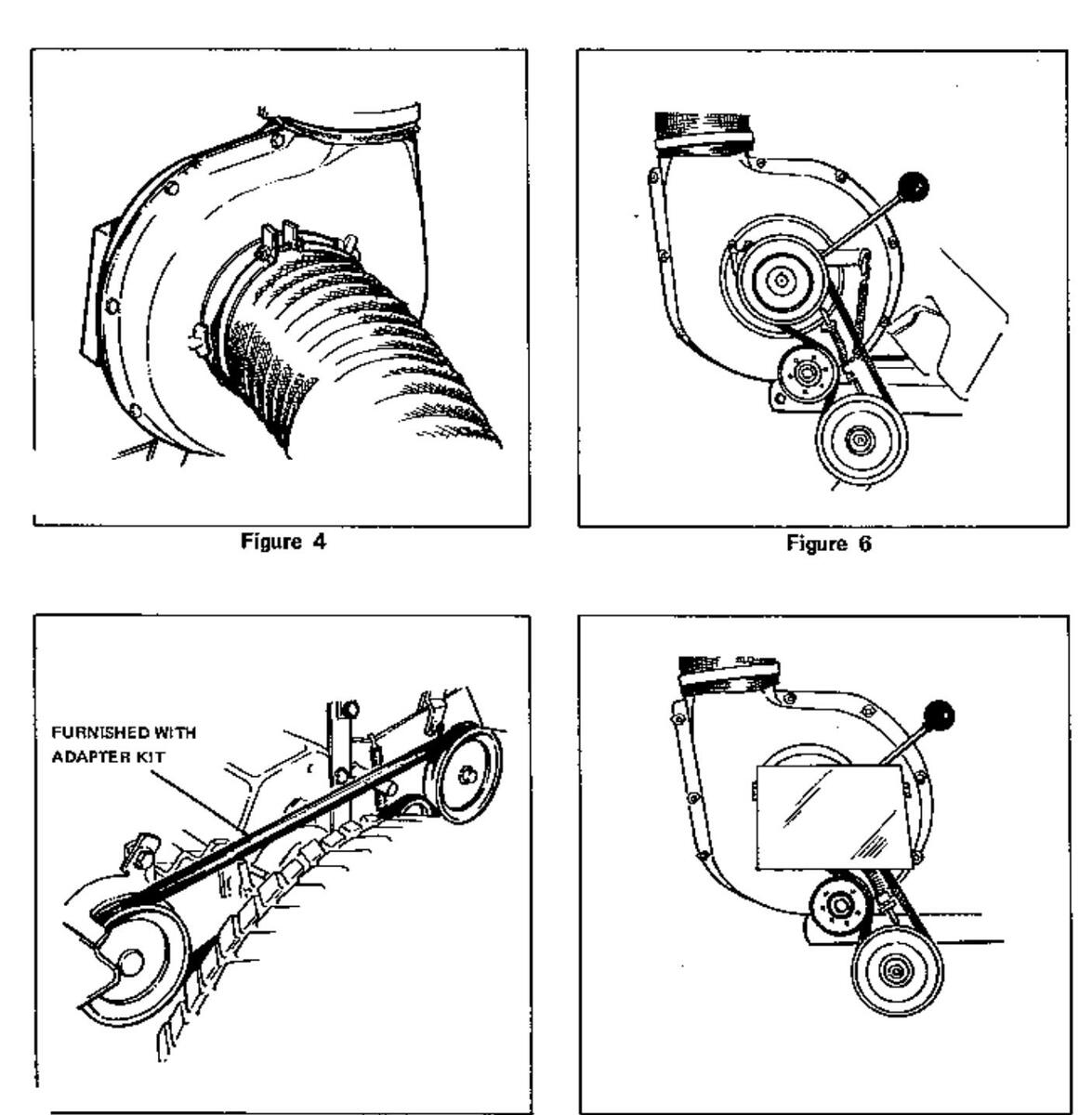

3. Secure the large hose to the left side of the blower with the clamp, flange and hardware provided (Figure 4) and then place the other end at the large hose securely over the spout extension on the exhaust cover (Figure 3) of the adapter kit.

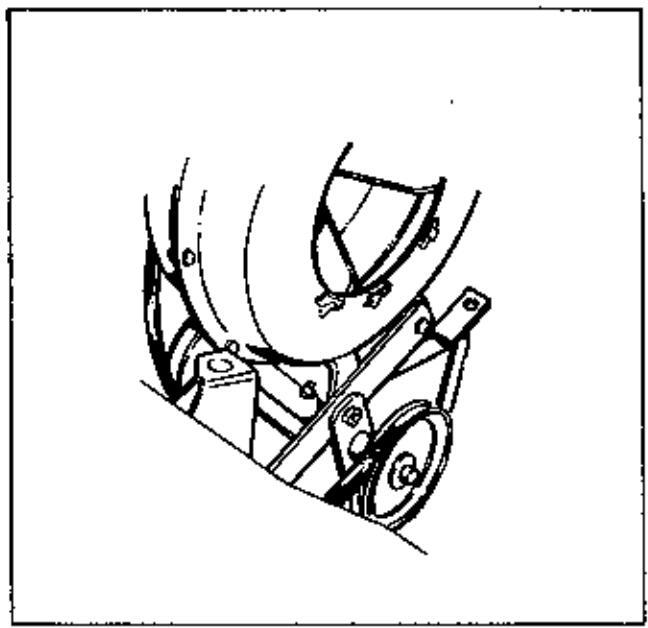

4. Install deflector No. 123107 in the exhaust hole at the top of the blower housing with self-tapping screws.
5. Place the pulley on the shaft of the bevel gear housing. The new pulley will be secured outboard of the P.T.O. pulley with the key and setscrew provided. (Figure 5).
Figure 3
2
6. Place "V" belt (furnished with adapter kits) around the previously installed pulley. Run other end around the rive pulley and idler pulley which are mounted on the frame at blower. The spring on the idler pulley will automatically adjust belt tension. (Figure 5).
7. Remove the pulley guard on the upper right side of the blower assembly and position the blower drive belt over the pulleys as shown (Figure 6). Adjust the belt tension as required. A space of approximately 3/4" should be between the set collar and guide bracket when engaged (Figure 6). Replace the pulley guard (Figure 7).
Figure 5
3
The High Capacity Trailer Frame & Cover Assembly is delivered complete in one carton. The carton contains:
Should any shortages of the above items occur, advise by stating the packers number listed on the green packing slip, part number and description of items missing.
The cart enclosure for the vacuum collector consists of a metal framework and a canvas cover, all of which fits on the dump cart body.
1. The canvas cover is completely assembled to the metal framework with the acception of the upper hange. brackets and the front catch.

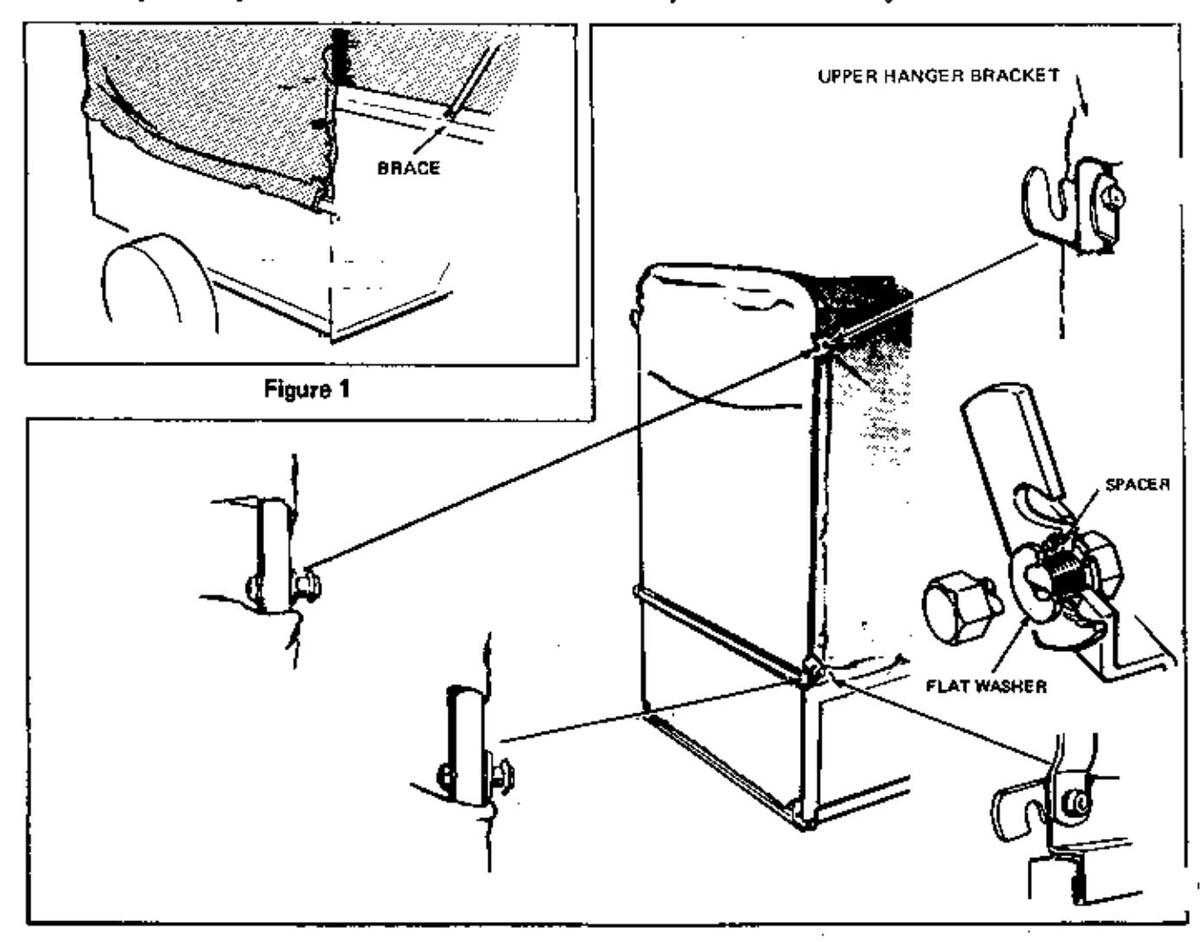

2. Unfold the canvas cover assembly and secure the four corner braces with the hardware provided. See Figure 1.
3. Remove the upper hanger brackets from the hardware pack and assemble as shown in Figure 2.

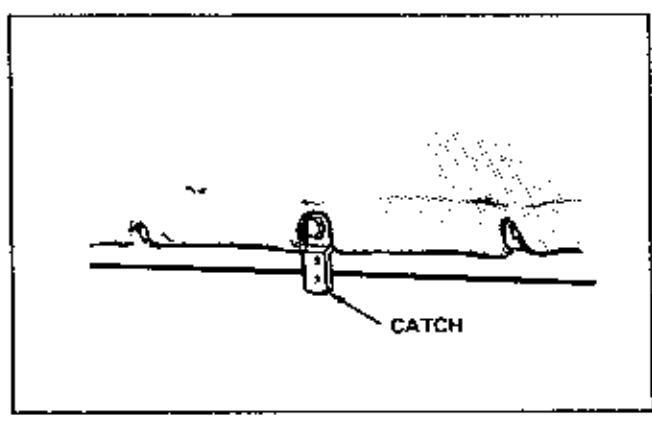

4. Remove the catch assembly from the hardware pack and assemble as shown in Figure 3. The catch is secured with a locknut which should be tightened just enough to hold securely but still allow pivoting.

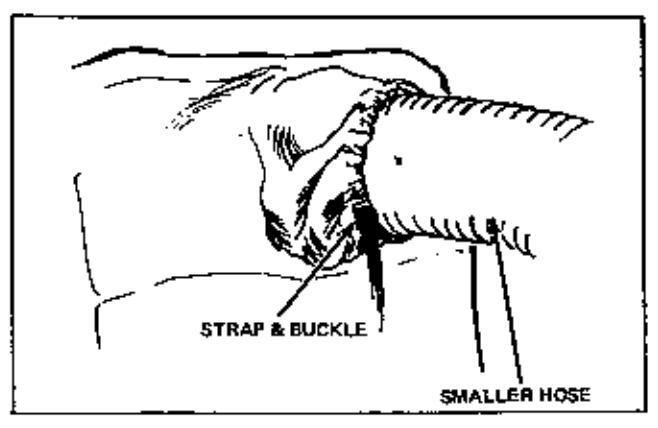

5. Secure the smaller sized hose to the outlet opening on top of the blower housing. The other end of the hose is positioned through the canvas sleeve at the upper front of the cart enclosure and secured in place by means of the strap and bucket. See Figure 4.
Figure 2
Figure 3
Figure 4
1. To obtain maximum efficiency from the vacuum collector, it is recommended that all assembly instructions be closely followed when mounting the vacuum collector to the tractor. A check should be made to insure the belts are in the correct location and have the proper tension. Too much tension on a belt will cause premature failure of the belt. Not enough tension will cause the belt to slip and impair the operation of the vacuum collector.
1. Be sure unit is properly adjusted and attached to tractor.
2. Inspect hoses, housing and fan assembly and remove grass clippings and material from vacuum collector after use. Be sure the fan is tight on the bag shaft assembly.
3. In some operations it may be advisable to use a ground speed reduction kit on the tractor. Slowing the ground speed and maintaining the fan speed will produce increased vacuum.
4. Insure mower is engaged and operate the tractor at 3/4 to full throttle. In extreme conditions it may be desirable to operate the tractor in first or second gear rather than in third gear.
5. In wet or extremely high grass, it may be necessary to pick up only half the mower width rather than the full width, to prevent the hoses from becoming clogged with grass.
6. When picking up leaves or tall grass, raise the mower to the highest cutting position. A second pass can then be made with the mower at a low setting to complete the job.
7. Unzip the zipper on the canvas cover during normal operation to provide an air release in the cart enclosure. During some operations it may be desirable to have the zipper in the half closed or fully closed position.
5
The Low Profile Trailer Frame & Cover is delivered complete in one carton. The carton contains:
1 - Canvas Cover Assembly
Should any shortages of the above items occur, advise by stating the packers number listed on the green packing slip, part number and description of items missing.
1. The canvas cover is completely assembled to the metal framework. However, all hardware is loose to prevent damage during shipment.

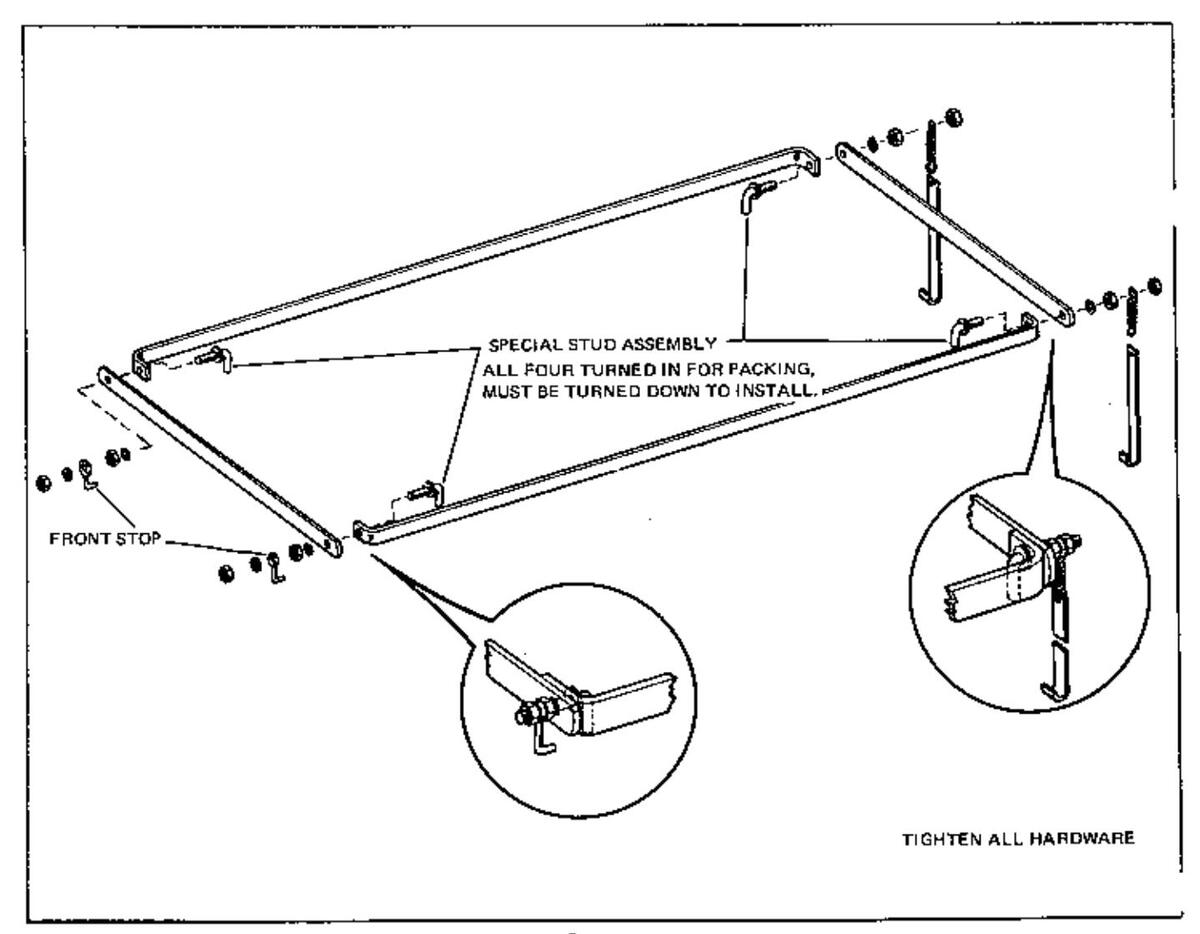

2. Position the four special stud assemblies and two front stops as shown in Figure 1 and tighten hardware securely.
3. Tilt the cover and frame assembly forward and hook stops over front lip of dump cart. Tip cover and frame assembly back and secure with hooks under rear edge of cart. Insure that the side flaps on the cover are positioned inside the dump cart.
4. Place 6" diameter hose in cover sleeve and secure by tightening strap in sleeve.
Figure 1

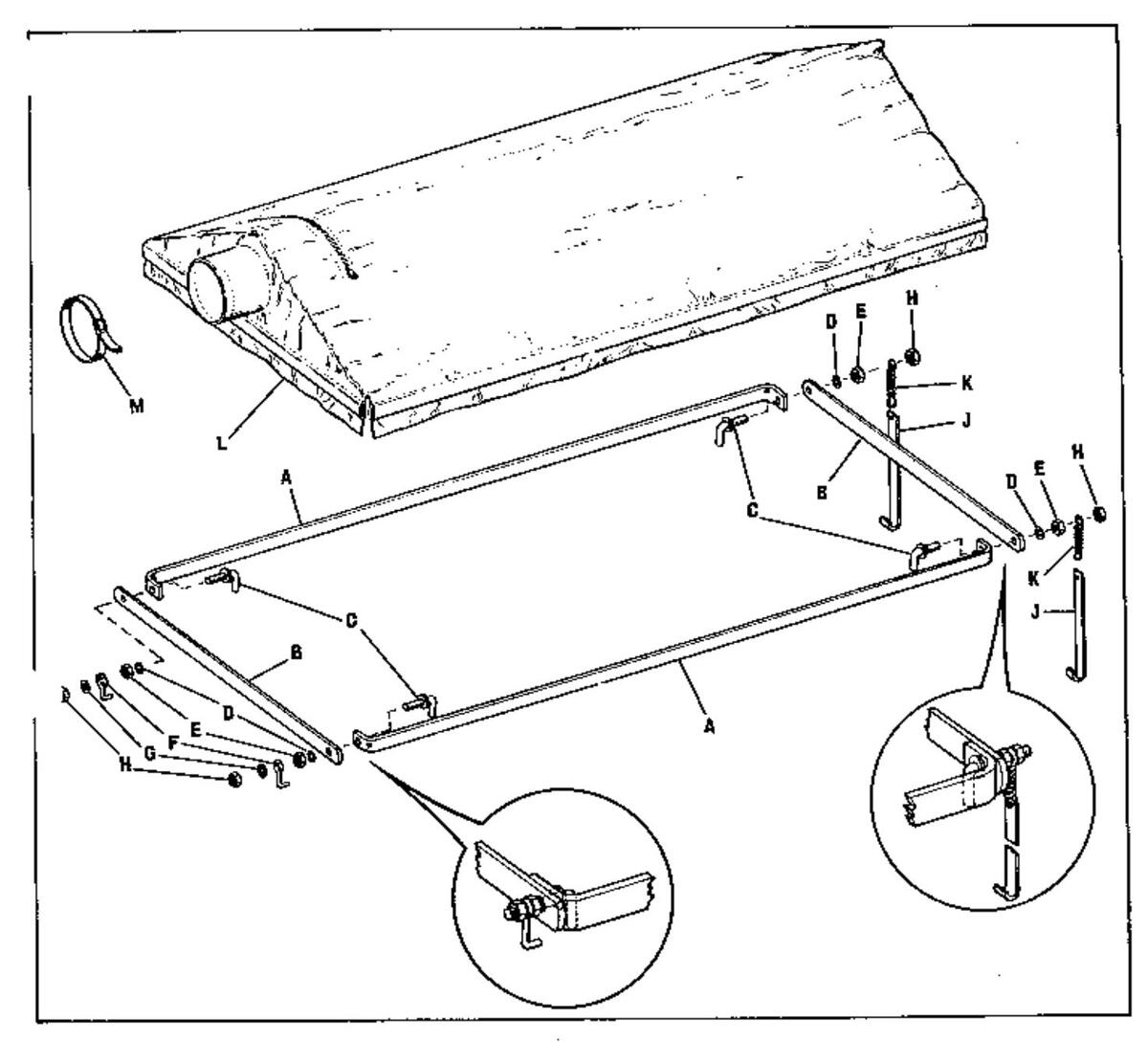

Mfrs. NO. 532 LOW PROFILE TRAILER FRAME & COVER
|
Ref.
Let. |
Part
No. |
Description |
|---|---|---|
| ABCDEFGH |
123130
123131 123132 720001 717001 123134 719002 717511 |
Side Member-Frame
End Bracket-Frame Stud Ass'y-Special Washer-Lock-5/16'' Nut-Hex-Full 5/16''–18NC Stop Washer-Plain 5/16'' Nut-Hex-Full-Lock 5/16''–18NC |
|
J
K L M |
123135
8111047 123136 123049 |
Hook-Frame-Rear
Spring-Rear Cover W/Hose Strap Hose Strap (Service Only) |
Mfrs. NO. 531 HIGH CAPACITY TRAILER FRAME & COVER
|
Ref.
No- |
Part
No- |
Description |
|---|---|---|
| A | 123036 | "Z" Bar, Side |
| в | 123037 | Front Bar |
| С | 123038 | Front and Rear Upright |
| D | 705007 | Hex Capscrew, 5/16"-18 x 1" lg. |
| E | 719002 | Plain Washer, 5/16" |
| F | 720001 | Lock Washer, 5/16" |
| G | 717001 | Hex Nut, Full, 5/16 19 -18 |
| H | 112060 | Bracket |
| J | 705005 | Hex Capserew, 3/8"-16 x 1" lg. |
| κ | 719001 | Plain Washer, 3/8" |
| L, | 717510 | Hex Lock Nut, Full, 3/8"-16 |
| м | 123039 | Hose Support |
| К | 702009 | Rex Capscrew, 1/4"-20 x 1-1/4 lg. |
| P | 720003 | Lock Washer, 1/4" |
| Q | 717005 | flex Nut, Full, 1/4"+20 |
| н | 123038 | Front and Rear Upright |
| S | 123040 | Rear Door Latch |
| Т | 156150 | Spacer |
| 10 | 703001 | Hex Capscrew, 5/16"-18 x 7/8" lg. |
| V | 719002 | Plain Washer, 5/16" |
| W | 720001 | Lock Washer, 5/16" |
| х | 717001 | Hex Nut, Full, 5/16 1 -18 |
| Y | 123052 | Hold Down Strip, Side |
| Z | 123053 | Hold Down Strip, Front |
| AA | 123041 | Cross Brace Tube |
| AB | 705008 | Hex Capscrew, 1/4"-20x1-1/4" lg. |
|
ы.
о. |
Part
No. |
Description |
|---|---|---|
| сі | 705030 | Hex Canserow 1/4"-20 x 3/4" In |
| ρİ | 719006 | Plain Washer 1/4" |
| ΕÌ | 720003 | Lock Washer, 1/4" |
| F | 717005 | Hex Nut, Full, 1/4"-20 |
| G | 123042 | Tube, Rear Door |
| н | 123043 | Rod, Rear Door |
| J | 720004 | Lock Washer, 1/2" |
| К | 717006 | Hex Nut, Full, 1/2"-13 |
| L | 123014 | Bar, Rear Door |
| м | 123045 | Spacer |
| Ν | 705025 | Hex Capscrew, 1/4"-20 x 1-3/4" lg |
| Р | 71900G | Plain Washer, 1/4" |
| Q | 720003 | Lock Washer, 1/4" |
| ĸ | 717005 | Hex Nut, Full, 1/41-20 |
| S | | 123046 | Top Rear Door |
| Т | 123047 | Catch, Door, R. H |
| υ | 123048 | Catch, Door, L. H. |
| V | | 123045 | Spacer |
| W | 705053 | Hex Capscrew, 1/4"+20 x 1+3/4" Ig |
| х | 719006 | Plain Washer, 1/4" |
| Y | 705008 | Hex Capserew, 1/41-20×1+1/411g. |
| Z. | | 720003 | Lock Washer, 1/4" |
| A | | 717003 | Hex Nut, Full, 174 ++ -20 |
| в | 123049 | Cart Hood |
| С | 123050 | Hose Strap |
| D | 123051 | Door Cover |
Downloaded from www.Manualslib.com manuals search engine
|
Ref.
Let. |
Part
No. |
Description |
Ref.
Let. |
Part
No. |
Description | |
|---|---|---|---|---|---|---|

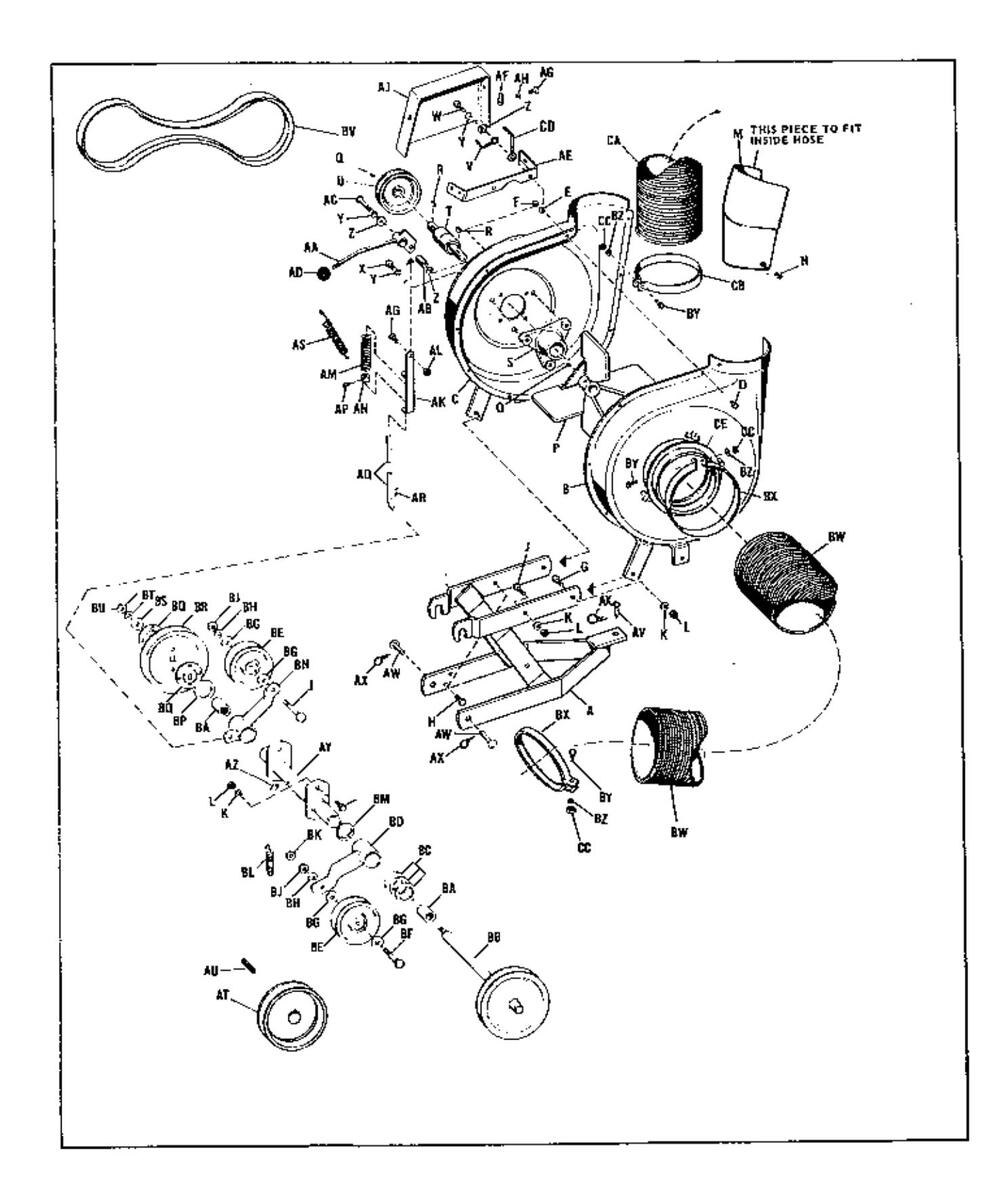

| A | 123001 | Blower Housing Support Assembly | AR : | 722001 | Cotter Pin 3/32 x 3/4" lg. | |
| в | 123126 | Housing Assembly Inict Hall | AS | 121037 | spring | |
| С | 123012 | Housing Assembly R. H. Hall | AT | 164202 | Pulley | |
| D | 705002 | Hex Capserew 1/4-20 x 1/2" fg. | AU | 8061081 | Key | |
| Е | 720003 | Lockwasher 1/4" | AV | 118053 | Pin | |
| F | 717005 | Hex Nut Full 1/4-20 | AW | 155037 | Pin | |
| G | 705005 | Hex Cap Screw 3/8 - 16 x 1" lg. | AX | 8161045 | Spring Chp | |
| н | 705016 | Hex Cap Screw 3/8 - 16 x 1-1/4" Ig. | AY | 164192 | Bearing Housing Assemuly | |
| J | 705009 | Hex Cap Screw 3/8 - 16 x 1-1/2" Ig. | AZ | 727002 | Grease Fuling | |
| к | 720002 | Lockwasher 3/8" | BA ' | 154258 | Needle Bearing | |
| L | 717003 | Hex Nut Full 3/8 - 16 | вн | 164200 | Traverse Shaft Assembly | |
| м | 123107 | Deflector | BC | 8141003 | Washer | |
| И | 714014 | Screw Self-Tapping #10 x 3/8" lg. | BD | 164199 . | Tension Arm Assembly | |
| P | 123015 | Fan Assembly | BF. | 108386 | Idler Pulley | |
| Q | 713006 | Set Screw Sq. 111, 5/16-18 x 1/2" lg. | BF | 705006 | llex Capscrew 3/8 - 16 x 2 lg. | |
| R | 725504 | Key Hi-Pro | BG | 719001 | Plain Washer 3/8" | |
| S | 123087 | Flonge, Shaft and Bearing Assembly | ВН | 720002 | Lockwasher 3/8" | |
| Т | 123019 | Shaft and Bearing | BJ | 717003 | Ilex Nut Full 3/8 - 16 | |
| ប | 106663 | Pulley | BK | 717510 | ttex Nut Full Look 3/8 - 16 | |
| V | 106346 | Belt Stop | BL | 159159 | Spring, Tension | |
| W | 705009 | Hex Capscrew 3/8 - 16 x 1-1/2" lg. | BM | 164204 | Retaining Ring | |
| х | 705004 | Hex Capscrew 3/8 - 16 x 3/4" lg. | BN | 164195 | Idier Arm Assembly | |
| Y | 720002 | Lockwasher 3/8" | Bb | $141003 | Washer . | |
| z | 719002 | Washer Plain | BQ | 158196 | Special Washer | |
| ΛA | 123082 | Clutch Lever Assembly | BR | 158195 | Pulley | |
| AB | 123027 | Spacer, Clutch Lever | HS | 719003 | Washer Plain | |
| AC | 705006 | flex Capserew 3/8 – 16 x 2 n lg. | 1 | BT | 720006 | Lockwasher |
| AD | 106567 | Клов | BU | 717022 | Hex Nut Full 7/16 - 14 | |
| AE | 164205 | Bracket, Belt Guard | BV | 161098 | "V" Belt-P. T. O. | |
| ' AF | 718030 | Nut, Retainer | BW | 123142 | Hose Intake (7" Dia.) | |
| AG | 705012 | Hex Capacrew 5/16-18 x 5/8" lg. | BX | 123065 | Hose Clamp | |
| AH [ | 720001 | Lockwasher 5/16 | BY | 715069 | Machine Screw Rd. Hd. 1/4-20x 3 lg. | |
| AJ | 164206 | Belt Guard | BZ | 720003 | Lockwasher 1/4 | |
| AK | 123076 | Rod Guide Assembly | CA | 123143 | Hose Exhaust (6" Dia.) | |
| AL | 717511 | Hex Kut Full 5/16 - 18 | 1 | CB | 123067 | Hose Clamp |
| AM | 8191045 | Spring | CC | 717005 | Bes Nut Full 1/4-20 | |
| AN | 8191022 | Set Collar | CD | 163065 | Belt Stop | |
| ΛP | 713001 | Set Screw Sq. 11d. 1/4-20 x 3/8" lg. | 1 | CE | 123111 | Flange |
| AQ | 164203 | Clutch Rod-Blower | Į | |||
| | * | ŀ | i | ||||
| 1 | i . | L |

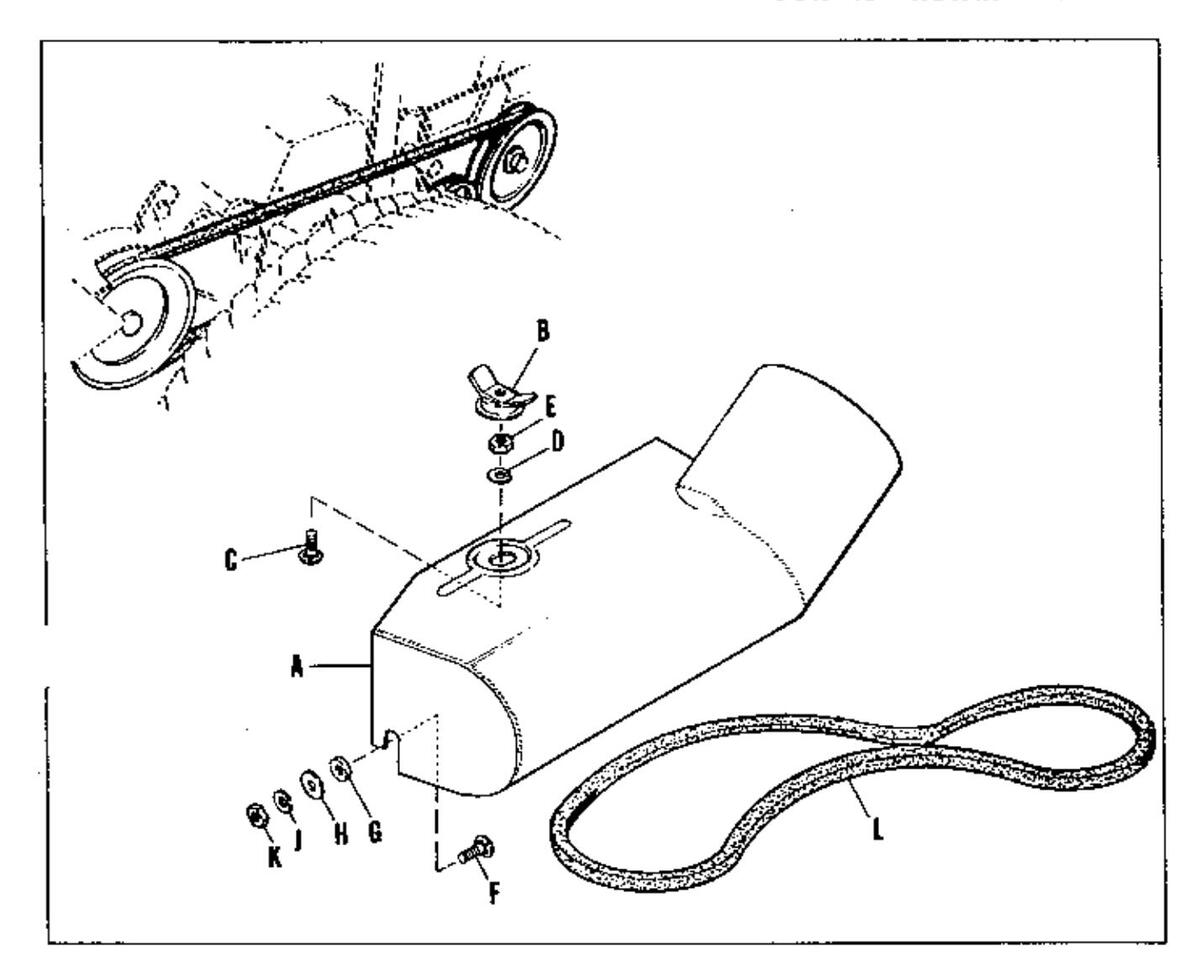

FOR 42" ROTARY MOWER
Mfr's. No.537 Mfr's. No.547
| Ref. Let. | Part No. | Description |
|---|---|---|
| А | 123137 | Collector Side Housing Assembly |
| в | 123059 | Front Baffle |
| с | 703003 | Carriage Bolt, 3/8" - 16 x 1" lg. |
| D | 703002 | Carriage Bolt, 3/8" - 16 x 1-1/4" lg. |
| E | 153081 | Spacer |
| F | 157169 | Washer |
| G | 720002 | Lock Washer, 3/8" |
| н | 717003 | Nut, Hex, Fuli, 3/8" - 16 |
| J | 123060 | Nut Assembly |
| к | 703003 | Carriage Bolt, 3/8" - 16 x 1" lg. |
| L | 720002 | Lock Washer, 3/8" |
| м | 717003 | Nut, Hex, Full, 3/8" - 16 |
| N | 123062 | Baffle |
| Р | 714005 | Screw, Self Tapping, No, 10-24 x 1/2" ig. |
| a | 105115 | "V" Belt for No. 537 |
| я | 108505 | "V" Belt for No. 547 |

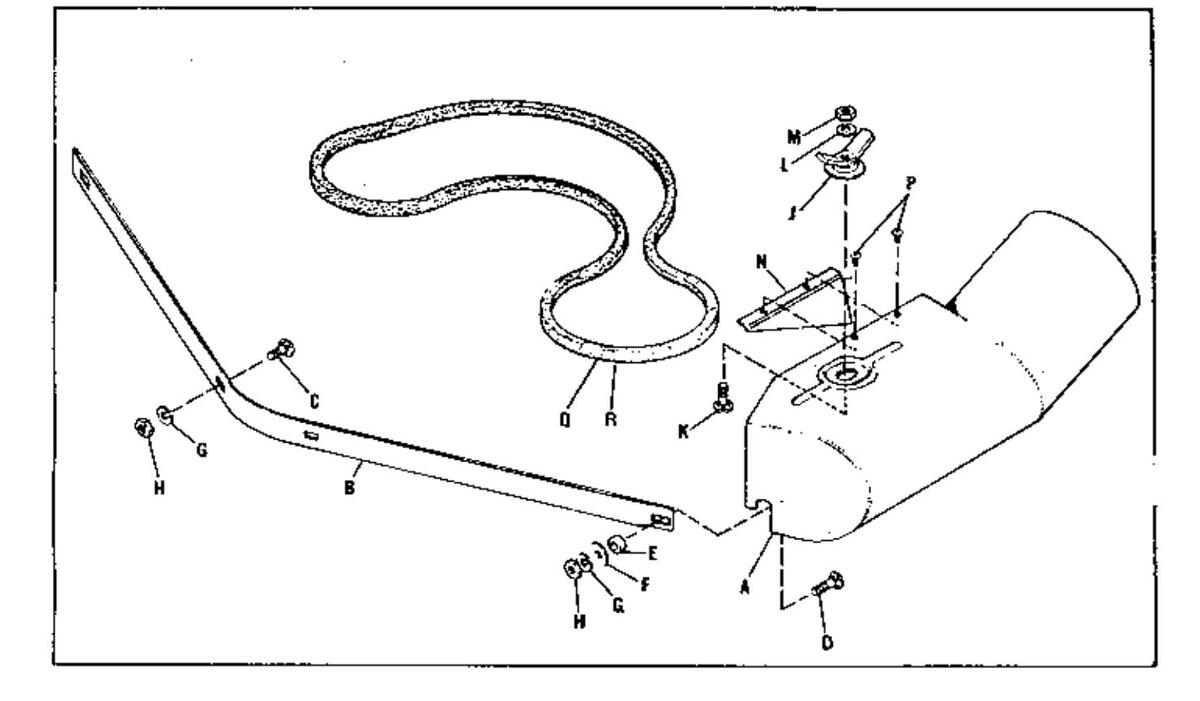

FOR 48" ROTARY MOWER
|
Ref.
No. |
Part
No. |
Description |
|---|---|---|
| A | 123112 | Adaptor Assembly |
| B | 123060 | Nut Assembly |
| C | 703003 | Carriage Bolt, 3/8"-16 x 1" lg. |
| D | 720002 | Lock Washer, 3/8" |
| E | 717003 | Nut, Hex, Full, 3/8"-16 |
| F | 703002 | Carriage Bolt, 3/8"-16 x 1-1/4" ig. |
| G | 153081 | Spacer |
| H | 157169 | Washer |
| J | 720002 | Lock Washer, 3/8" |
| K | 717003 | Nut, Hex, Full, 3/8"-16 |
| L | 108505 | "V" Belt |
|
Ref.
Let |
Part
No. |
Description |
|---|---|---|
|
A
B |
123127
123111 |
Hose Assembly
Hose Flange |
|
C
D |
123065
715069 |
Hose Clamp
Rud. Slot. Hd. Machine Screw, 1/4"-20 x 3" |
|
E
F |
720003 |
Lock Washer, 1/4"
Full Hex. Nut, 1/4"-20 |
|
H
T |
123129
123128 705017 |
Hose Handle
Hose Clamp Handle Hoy. Can Sorew, 5/162-18 x 3/42 |
| K | 720001 |
Lock Washer, 5/16"
Wing Nut, 5/16"-18 |
| M |
123122
123125 |
Hose Carrier Assembly
Carrier Support |
|
P
Q |
705001
719002 |
Hex. Cap Screw, 5/16''-18 x 7/8''
Plain Washer, 5/16'' |
|
R
S |
720001
717001 |
Lock Washer, 5/16"
Full Hex. Nut, 5/16"-18 |
The company warrants Simplicity Products to be free from defects in material and workmanship except the company makes no warranty express or implied with respect to tires, engines and engine accessorias which generally are warranted by their respective manufacturers. Any part covered by this warranty which is proven defective within one year, under normal use. Irom date of purchase, will be replaced free of charge, f.o.b. Port Washington, Wisconsin, provided such part is returned to factory transportation charges prepaid and is found to be defective upon examination at the factory. The company is not obligated under this warranty to bear cost of labor or delivery charges in replacement of defective parts. This warranty does not apply to any Simplicity Products altered outside of Simplicity's factory. Such replacement of defective parts shall be the exclusive remedy and in no event shall Simplicity be lighte for consequential damages, EXCEPT AS SPECIFICALLY PROVIDED HEREIN, THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON ANY SIMPLICITY PRODUCT,
. The information holow should be presented to the author-
| ized SiMPLICITY Dealer. | ecessary, menator nation below | should be presented to t | ne admor - |
|---|---|---|---|
| Customer's Name | |||
| Address | |||
| Mig. No | SerialNo | L | |
| Date Purchased | |||
| Purchased From | |||
| Address | |||
| Engine Model No. | Serial No | Type No. |
To obtain replacement parts from dealer, advise quantity, part number and description.
