Thank you for purchasing this quality-built Simplicity product. We’re pleased
that you’ve placed your confidence in the Simplicity brand. When operated and
maintained according to the instructions in this manual, your Simplicity product
will provide many years of dependable service.
This manual contains safety information to make you aware of the
hazards and risks associated with this machine and how to avoid them. This
machine is designed and intended to be used and maintained according to the
manual for finish cutting of established lawns and is not intended for any other
purpose. It is important that you read and understand these instructions
thoroughly before attempting to start or operate this equipment.
Copyright © 2009 Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved.
The Simplicity logo is a trademark of Briggs & Stratton
Corporation Milwaukee, WI, USA.
Contact Information:
Simplicity Manufacturing, Inc.
P.O. Box 997
500 N. Spring St.
Port Washington, WI 53074-0997
www.simplicitymfg.com
ENGINE REFERENCE DATA
Unit Model Number
PRODUCT REFERENCE DATA
Unit SERIAL Number
Dealer Name
Date Purchased
Engine Make
Engine Model
Mower Deck Model Number
Mower Deck SERIAL Number
Engine Type/Spec.
Engine Code/Serial Number
See Page 9 for the location of Identification Numbers
WARNING
Engine exhaust from this product contains
chemicals known, in certain quantities, to
cause cancer, birth defects, or other
reproductive harm.
Not for
Reproduction
Table of Contents
Safety Rules & Information ................................2
Identification Numbers .....................................11
Safety Decals .....................................................12
Safety Icons & Interlock System......................13
Features & Controls..........................................14
Control Functions..................................................14
Operation ...........................................................16
General Operating Safety .....................................16
Checks Before Starting.........................................16
Starting the Engine ...............................................17
Stopping the Rider ................................................17
Pushing the Rider by Hand...................................17
Zero Turn Driving Practice ....................................18
Raise & Lower the Roll Bar ..................................20
Storage..................................................................20
Mowing..................................................................21
Mowing Recommendations...................................21
Mowing Methods...................................................22
Attaching a Trailer .................................................23
Regular Maintenance ........................................24
Maintenance Schedule .........................................24
Checking Tire Pressures.......................................25
Checking/Adding Fuel...........................................25
Fuel Filter ..............................................................25
Oil & Filter Change ...............................................25
Lubrication ............................................................26
Check Hydraulic Oil Level .....................................27
Hydraulic Oil Filter Change...................................27
Battery Maintenance .............................................27
Cleaning the Battery and Cables.......................27
Servicing the Mower Blades .................................28
Troubleshooting, Adjustments & Service.......29
Troubleshooting the Rider .....................................29
Troubleshooting the Mower...................................30
Troubleshooting Common Cutting Problems ........30
Seat Adjustment....................................................32
Ground Speed Control Lever Adjustment.............32
Speed Balancing Adjustment................................32
Parking Brake Adjustment ....................................33
Battery Charging ...................................................33
Rear Suspension Adjustment ...............................34
PTO Clutch Adjustment ........................................35
Blade Brake Check............................................35
Return to Neutral Adjustment ...............................36
Neutral Adjustment ...............................................36
Mowing Height Adjustment ...................................37
Foot Pedal Adjustment..........................................37
Deck Leveling Adjustment.....................................38
Hydraulic Pump Drive Belt Replacement..............39
Mower Belt Replacement......................................40
Specifications ....................................................41
Technical Manuals.............................................41
NOTE: In this manual, “left” and “right” are referred to as
seen from the operating position.
1
Safety
Controls
Operation Maintenance Troubleshooting Specifications
Not for
Reproduction
2
www.simplicitymfg.com
Safety
Operating Safety
Congratulations on purchasing a superior-quality piece of lawn
and garden equipment. Our products are designed and
manufactured to meet or exceed all industry standards for safety.
Do not operate this machine unless you have been trained.
Reading and understanding this operator’s manual is a way to
train yourself.
Power equipment is only as safe as the operator. If it is misused,
or not properly maintained, it can be dangerous! Remember, you
are responsible for your safety and that of those around you.
Use common sense, and think through what you are doing. If
you are not sure that the task you are about to perform can be
safely done with the equipment you have chosen, ask a
professional: contact your local authorized dealer.
Read the Manual
The operator’s manual contains important safety
information you need to be aware of BEFORE you
operate your unit as well as DURING operation.
Safe operating techniques, an explanation of the
product’s features and controls, and maintenance
information is included to help you get the most out of
your equipment investment.
Be sure to completely read the Safety Rules and
Information found on the following pages. Also
completely read the Operation section.
Children
Tragic accidents can occur with children. Do
not allow them anywhere near the area of
operation. Children are often attracted to the
unit and mowing activity. Never assume that
children will remain where you last saw them.
If there is a risk that children may enter the
area where you are mowing, have another
responsible adult watch them.
Safety Rules and Information
Not for
Reproduction
3
Safety

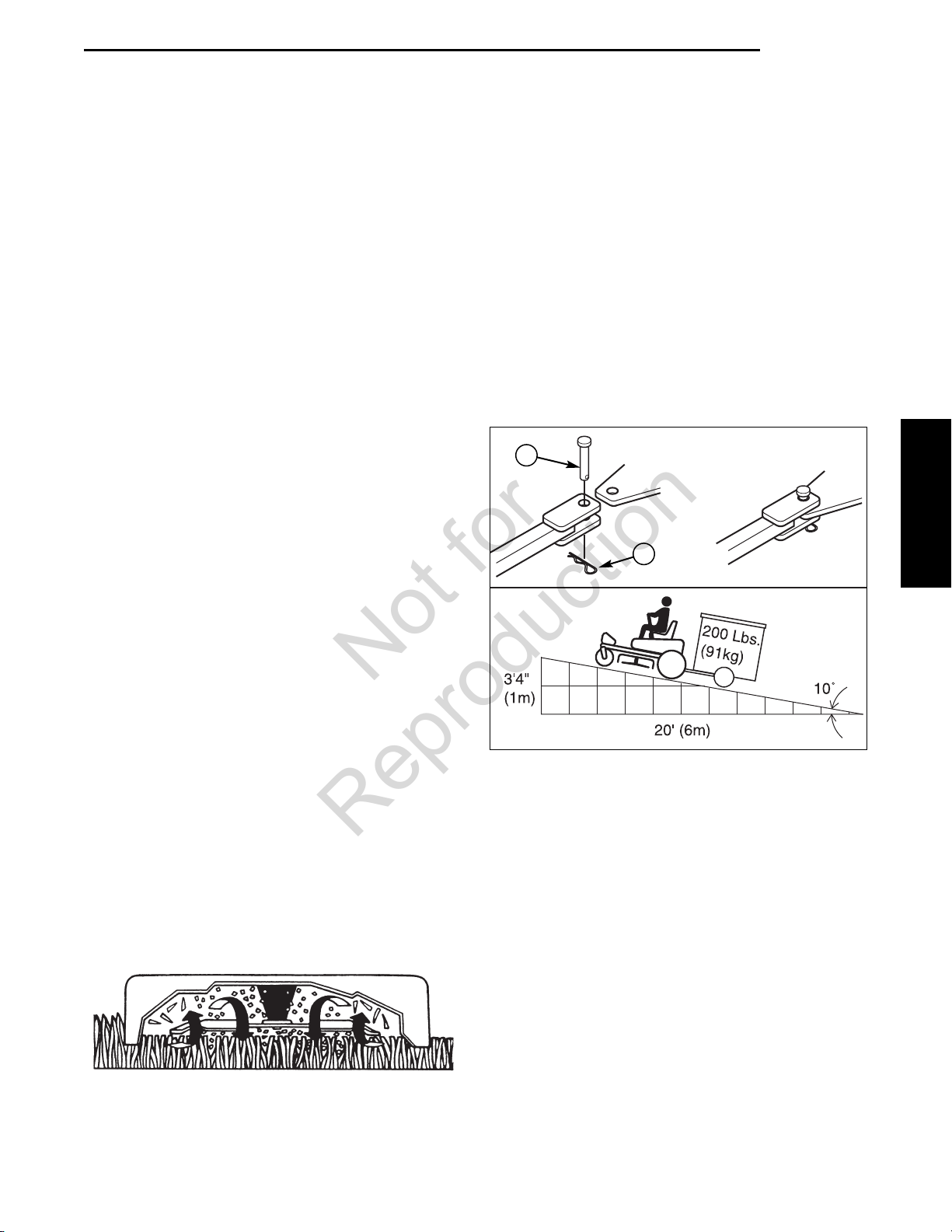

Slope Operation
Operation on slopes can be dangerous. Using the unit on a slope
that is too steep where you do not have adequate wheel traction
(and control) can cause sliding, loss of steering, control, and
possible rollover. You should not operate on a slope greater than a
5.4 foot rise over a 20 foot length (15 degrees).
Always mow across slopes, not up and down (to maintain traction
on the wheels) and avoid sudden turns or rapid speed changes.
Reduce speed and use extreme caution on ALL slopes.
Also, note that the surface condition you are on can greatly impact
your ability to safely operate this machine. Operating on wet or
slippery slopes can cause sliding and loss of steering and control.
Do not operate on slopes that are slippery, wet, or have soft soil
conditions.
If you feel unsure about operating the unit on a slope, don’t do it.
It’s not worth the risk.
Thrown Objects
This unit has spinning mower blades. These blades can pick up and
throw debris that could seriously injure a bystander. Be sure to clean
up the area to be mowed and remove objects that could be thrown by
the blade BEFORE you start mowing.
Do not operate this unit without the entire grass catcher or discharge
guard (deflector) in place.
Also, do not allow anyone in the area while the unit is running! If
someone does enter the area, shut the unit off immediately until they
leave.
Moving Parts
This equipment has many moving parts that can injure
you or someone else. However, if you stay in the operator
zone (stay seated in the seat), and follow the safety rules
in this operator’s manual, the unit is safe to operate.
The mower deck has spinning mower blades that can
amputate hands and feet. Do not allow anyone near the
unit while it is running! Keep safety devices (guards,
shields, and switches) in place and working.
To help you, the operator, use this equipment safely, it is
equipped with an operator-present safety system. Do NOT
attempt to alter or bypass the system. See your dealer
immediately if the system does not pass all the safety
interlock system tests found in this manual.
Safety Rules and Information
Not for
Reproduction
4
www.simplicitymfg.com
Safety

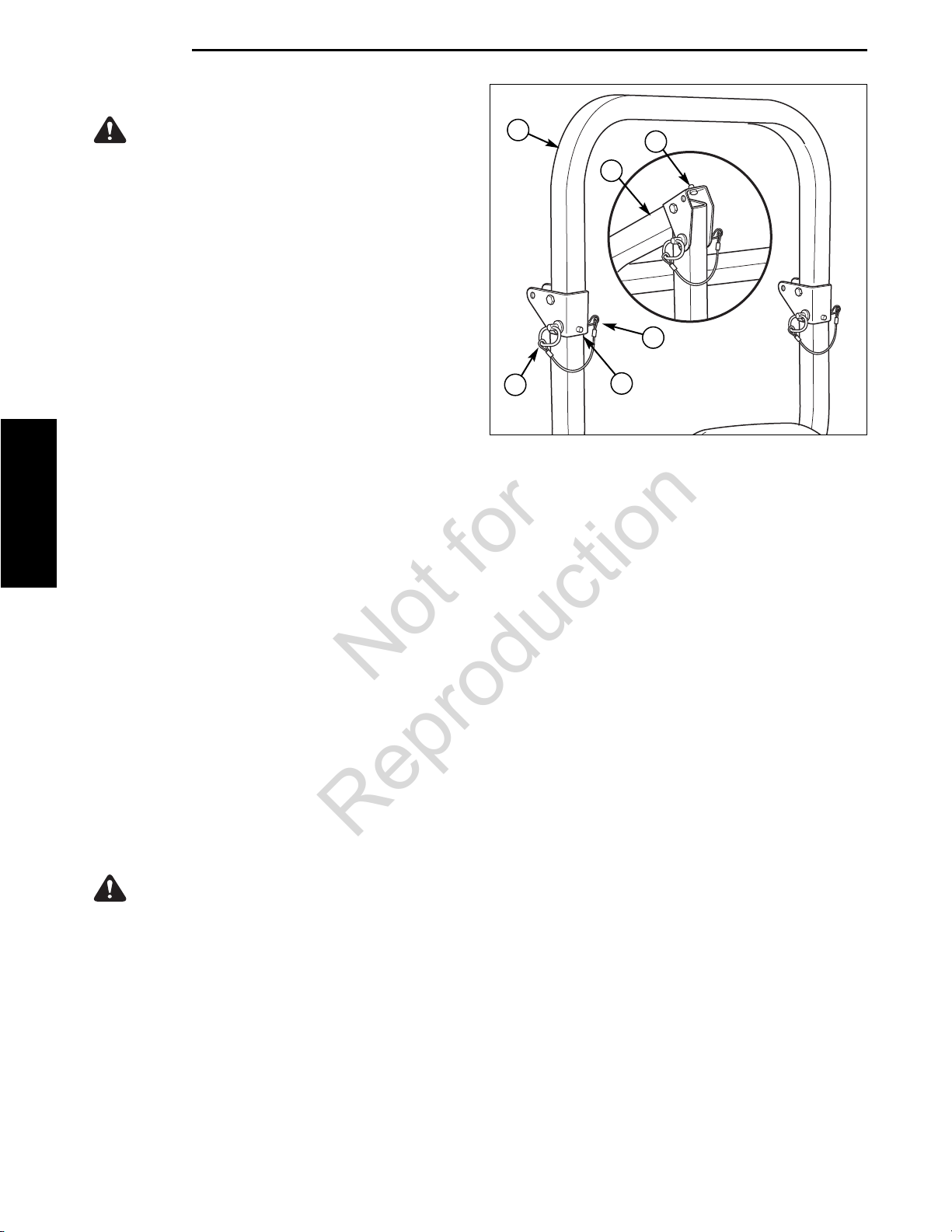

Roll Bar Use
Keep the roll bar in the raised position and fasten the
seat belt. There is no roll over protection when the
roll bar is down! Do not jump off if the mower tips (it is
safer to be secured by the seat belt with the roll bar
raised.)
Lower the roll bar only when necessary (such as to
temporarily clear a low overhanging obstacle) and
NEVER remove it. Do NOT use the seat belt when
the roll bar is down. Raise the roll bar as soon as
clearance permits.
Retaining Walls, Drop-
offs, and Water
Retaining walls and drop-offs around steps and
water are a common hazard. Give yourself a
minimum of two mower widths of clearance
around these hazards and hand-trim with a walk
behind mower or string trimmer. Wheels
dropping over retaining walls, edges, ditches,
embankments, or into water can cause rollovers,
which may result in serious injury, death, or
drowning.
Overhead Obstacles
Check for overhead clearances before driving
under any objects. Do not allow the roll bar to
contact low overhanging obstacles such as tree
branches and guide wires.
Safety Rules and Information
Not for
Reproduction
5
Safety
Enclosed Areas
Only operate this unit outdoors and
away from unventilated areas such as
inside garages or enclosed trailers. The
engine emits poisonous carbon
monoxide gas and prolonged exposure
in an enclosed area can result in
serious injury or death.
Fuel and Maintenance
Always disengage all drives, shutoff the engine, and
remove the key before doing any cleaning, refueling, or
servicing.
Gasoline and its vapors are extremely flammable. Do not
smoke while operating or refueling. Do not add fuel while
engine is hot or running. Allow engine to cool for at least
3 minutes prior to adding fuel.
Do not add fuel indoors, in an enclosed trailer, garage, or
any other enclosed area that is not well ventilated.
Gasoline spills should be cleaned up promptly and before
operation begins.
Gasoline should be stored only in sealed containers
approved for fuel.
Proper maintenance is critical to the safety and
performance of your unit. Keep the unit free of grass,
leaves, and excess oil. Be sure to perform the
maintenance procedures listed in this manual, especially
periodically testing the safety system.
Safety Rules and Information
Not for
Reproduction
6
www.simplicitymfg.com
Safety
Read these safety rules and follow them closely. Failure to obey these rules could result in loss of
control of unit, severe personal injury or death to you, or bystanders, or damage to property or
equipment. This mowing deck is capable of amputating hands and feet and throwing objects.
The triangle in text signifies important cautions or warnings which must be followed.
TRANSPORTING AND STORAGE
1. When transporting the unit on an open trailer,
make sure it is facing forward, in the direction of
travel. If the unit is facing backwards, wind lift
could damage the unit.
2. Always observe safe refueling and fuel handling
practices when refueling the unit after
transportation or storage.
3. Never store the unit (with fuel) in an enclosed
poorly ventilated structure. Fuel vapors can travel
to an ignition source (such as a furnace, water
heater, etc.) and cause an explosion. Fuel vapor
is also toxic to humans and animals.
4. Always follow the engine manual instructions for
storage preparations before storing the unit for
both short and long term periods.
5. Always follow the engine manual instructions for
proper start-up procedures when returning the unit
to service.
6. Never store the unit or fuel container inside where
there is an open flame or pilot light, such as in a
water heater. Allow unit to cool before storing.
CAUTION
This machine produces sound levels
in excess of 85 dBA at the operator’s
ear and can cause hearing loss
through extended periods of
exposure.
Wear hearing protection when operating this
machine.
Safety Rules and Information
GENERAL OPERATION
1. Read, understand, and follow all instructions in the
manual and on the unit before starting.
2. Do not put hands or feet near rotating parts or
under the machine. Keep clear of the discharge
opening at all times.
3. Only allow responsible adults, who are familiar
with the instructions, to operate the unit (local
regulations can restrict operator age).
4. Clear the area of objects such as rocks, toys, wire,
etc., which could be picked up and thrown by the
blade(s).
5. Be sure the area is clear of other people before
mowing. Stop the unit if anyone enters the area.
6. Never carry passengers.
7. Do not mow in reverse unless absolutely
necessary. Always look down and behind before
and while travelling in reverse.
8. Never direct discharge material toward anyone.
Avoid discharging material against a wall or
obstruction. Material may ricochet back toward
the operator. Stop the blade(s) when crossing
gravel surfaces.
9. Do not operate the machine without the entire
grass catcher, discharge guard (deflector), or
other safety devices in place and operational.
10. Slow down before turning.
11. Never leave a running unit unattended. Always
disengage the blades (PTO), set parking brake,
stop engine, and remove keys before dismounting.
12. Disengage blades (PTO) when not mowing. Shut
off engine and wait for all parts to come to a
complete stop before cleaning the machine,
removing the grass catcher, or unclogging the
discharge guard.
13. Operate the machine only in daylight or good
artificial light.
14. Do not operate the unit while under the influence
of alcohol or drugs.
15 Watch for traffic when operating near or crossing
roadways.
16. Use extra care when loading or unloading the unit
into a trailer or truck.
17. Always wear eye protection when operating this
unit.
18. Data indicates that operators, age 60 years and
above, are involved in a large percentage of power
equipment-related injuries. These operators
should evaluate their ability to operate the
equipment safely enough to protect themselves
and others from injury.
19. Follow the manufacturer’s recommendations for
wheel weights or counterweights.
20. Keep in mind the operator is responsible for
accidents occurring to other people or property.
21. All drivers should seek and obtain professional
and practical instruction.
22. Always wear substantial footwear and trousers.
Never operate when barefoot or wearing sandals.
23. Before using, always visually check that the
blades and blade hardware are present, intact,
and secure. Replace worn or damaged parts.
24. Disengage attachments before: refueling,
removing an attachment, making adjustments
(unless the adjustment can be made from the
operator’s position).
25. When the machine is parked, stored, or left
unattended, lower the cutting means unless a
positive mechanical lock is used.
26. Before leaving the operator’s position for any
reason, engage the parking brake (if equipped),
disengage the blades (PTO), stop the engine, and
remove the key.
27. To reduce fire hazard, keep the unit free of grass,
leaves, & excess oil. Do not stop or park over dry
leaves, grass, or combustible materials.
28. It is a violation of California Public Resource Code
Section 4442 to use or operate the engine on or
near any forest-covered, brush-covered, or grasscovered land unless the exhaust system is
equipped with a spark arrester meeting any
applicable local or state laws. Other states or
federal areas may have similar laws.
29. OSHA regulations may require the use of hearing
protection when exposed to sound levels greater
than 85 dBA for an 8 hour time period.
Not for
Reproduction
7
Safety
TOWED EQUIPMENT (RIDE-ON UNITS)
1. Tow only with a machine that has a hitch designed
for towing. Do not attach towed equipment except
at the hitch point.
2. Follow the manufacturer’s recommendations for
weight limit for towed equipment and towing on
slopes. See attaching a trailer under OPERATION.
3. Never allow children or others in or on towed
equipment.
4. On slopes, the weight of the towed equipment
may cause loss of traction and loss of control.
5. Travel slowly and allow extra distance to stop.
6. Do not shift to neutral and coast down hill.
CHILDREN
Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the unit and the mowing activity. Never assume that
children will remain where you last saw them.
1. Keep children out of the mowing area and under
the watchful care of another responsible adult.
2. Be alert and turn unit off if children enter the area.
3. Before and during reverse operation, look behind
and down for small children.
4. Never carry children, even with the blade(s) off.
They may fall off and be seriously injured or
interfere with safe unit operation. Children who
have been given rides in the past may suddenly
appear in the mowing area for another ride and be
run over or backed over by the machine.
5. Never allow children to operate the unit.
6. Use extra care when approaching blind corners,
shrubs, trees, or other objects that may obscure
vision.
EMISSIONS
1. Engine exhaust from this product contains
chemicals known, in certain quantities, to cause
cancer, birth defects, or other reproductive harm.
2. Look for the relevant Emissions Durability Period
and Air Index information on the engine emissions
label.
IGNITION SYSTEM
1. This spark ignition system complies with Canadian
ICES-002.
SLOPE OPERATION
Slopes are a major factor related to loss-of-control and
tip-over accidents, which can result in severe injury or
death. Operation on all slopes requires extra caution. If
you cannot back up the slope or if you feel uneasy on it,
do not operate on it.
Control of a walk-behind or ride-on machine sliding on a
slope will not be regained by the application of the
brake. The main reasons for loss of control are:
insufficient tire grip on the ground, speed too fast,
inadequate braking, the type of machine is unsuitable
for its task, lack of awareness of the ground conditions,
incorrect hitching and load distribution.
1. Mow across slopes, not up and down.
2. Watch for holes, ruts, or bumps. Uneven terrain
could overturn the unit. Tall grass can hide
obstacles.
3. Choose a slow speed so that you will not have to
stop or change speeds while on the slope.
4. Do not mow on wet grass. Tires may loose
traction.
5. Avoid starting, stopping, or turning on a slope. If
tires lose traction (i.e. machine stops forward
motion on a slope), disengage the blade(s) (PTO)
and drive slow off the slope.
6. Keep all movement on slopes slow and gradual.
Do not make sudden changes in speed or
direction, which could cause the machine to
rollover.
7. Use extra care while operating machines with
grass catchers or other attachments; they can
affect the stability of the unit. Do not use on
steeps slopes.
8. Do not try to stabilize the machine by putting your
foot on the ground (ride-on units).
9. Do not mow near drop-offs, ditches, or
embankments. The mower could suddenly turn
over if a wheel is over the edge of a cliff or ditch,
or if an edge caves in.
10. Do not use grass catchers on steep slopes.
11. Do not mow slopes if you cannot back up them.
12. See your authorized dealer/retailer for
recommendations of wheel weights or
counterweights to improve stability.
13. Remove obstacles such as rocks, tree limbs, etc.
14. Use slow speed. Tires may lose traction on slopes
even though the brakes are functioning properly.
15. Do not turn on slopes unless necessary, and then,
turn slowly and gradually uphill, if possible. Never
mow down slopes.
WARNING
Never operate on slopes greater than 15°
Select slow ground speed before driving onto
slope. Use extra caution when operating on
slopes with rear-mounted grass catchers.
Mow across the face of slopes, not up and
down,use caution when changing directions
and DO NOT START OR STOP ON SLOPE.
Safety Rules and Information
Not for
Reproduction
8
www.simplicitymfg.com
Safety
Safety Rules and Information
SERVICE AND MAINTENANCE
Safe Handling of Gasoline
1. Extinguish all cigarettes, cigars, pipes, and other
sources of ignition.
2. Use only approved gasoline containers.
3. Never remove the gas cap or add fuel with the
engine running. Allow the engine to cool before
refueling.
4. Never fuel the machine indoors.
5. Never store the machine or fuel container where
there is an open flame, spark, or pilot light such
as near a water heater or other appliance.
6. Never fill containers inside a vehicle or on a truck
bed with a plastic bed liner. Always place
containers on the ground away from your vehicle
before filling.
7. Remove gas-powered equipment from the truck or
trailer and refuel it on the ground. If this is not
possible, then refuel such equipment on a trailer
with a portable container, rather than from a
gasoline dispenser nozzle.
8. Keep nozzle in contact with the rim of the fuel tank
or container opening at all times until fueling is
complete. Do not use a nozzle lock-open device.
9. If fuel is spilled on clothing, change clothing
immediately.
10. Never over-fill the fuel tank. Replace gas cap and
tighten securely.
11. Use extra care in handling gasoline and other
fuels. They are flammable and vapors are
explosive.
12. If fuel is spilled, do not attempt to start the engine
but move the machine away from the area of
spillage and avoid creating any source of ignition
until fuel vapors have dissipated.
13. Replace all fuel tank caps and fuel container caps
securely.
Service & Maintenance
1. Never run the unit in an enclosed area where
carbon monoxide fumes may collect.
2. Keep nuts and bolts, especially blade attachment
bolts, tight and keep equipment in good condition.
3. Never tamper with safety devices. Check their
proper operation regularly and make necessary
repairs if they are not functioning properly.
4. Keep unit free of grass, leaves, or other debris
build-up. Clean up oil or fuel spillage. and remove
any fuel-soaked debris. Allow machine to cool
before storage.
5. If you strike an object, stop and inspect the
machine. Repair, if necessary, before restarting.
6. Never make adjustments or repairs with the
engine running.
7. Check grass catcher components and the
discharge guard frequently and replace with
manufacturer’s recommended parts, when
necessary.
8. Mower blades are sharp. Wrap the blade or wear
gloves, and use extra caution when servicing
them.
9. Check brake operation frequently. Adjust and
service as required.
10. Maintain or replace safety and instructions labels,
as necessary.
11. Do not remove the fuel filter when the engine is
hot as spilled gasoline may ignite. Do not spread
fuel line clamps further than necessary. Ensure
clamps grip hoses firmly over the filter after
installation.
12. Do not use gasoline containing METHANOL,
gasohol containing more than 10% ETHANOL,
gasoline additives, or white gas because
engine/fuel system damage could result.
13. If the fuel tank must be drained, it should be
drained outdoors.
14. Replace faulty silencers/mufflers.
15. Maintain or replace safety and instruction labels
as necessary.
16. Use only factory authorized replacement parts
when making repairs.
17. Always comply with factory specifications on all
settings and adjustments.
18. Only authorized service locations should be
utilized for major service and repair requirements.
19. Never attempt to make major repairs on this unit
unless you have been properly trained. Improper
service procedures can result in hazardous
operation, equipment damage and voiding of
manufacturer’s warranty.
20. On multiple blade mowers, take care as rotating
one blade can cause other blades to rotate.
21. Do not change engine governor settings or overspeed the engine. Operating the engine at
excessive speed can increase the hazard of
personal injury.
22. Disengage drive attachments, stop the engine,
remove the key, and disconnect the spark plug
wire(s) before: clearing attachment blockages and
chutes, performing service work, striking an
object, or if the unit vibrates abnormally. After
striking an object, inspect the machine for damage
and make repairs before restarting and operating
the equipment.
23. Never place hands near the moving parts, such as
a hydro pump cooling fan, when the tractor is
running. (Hydro pump cooling fans are typically
located on top of the transaxle).
24. Units with hydraulic pumps, hoses, or motors:
WARNING: Hydraulic fluid escaping under
pressure may have sufficient force to penetrate
skin and cause serious injury. If foreign fluid is
injected into the skin it must be surgically removed
within a few hours by a doctor familiar with this
form of injury or gangrene may result. Keep body
and hands away from pin holes or nozzles that
eject hydraulic fluid under high pressure. Use
paper or cardboard, and not hands, to search for
leaks. Make sure all hydraulic fluid connections
are tight and all hydraulic hoses and lines are in
good condition before applying pressure to the
system. If leaks occur, have the unit serviced
immediately by your authorized dealer.
25. WARNING: Stored energy device. Improper
release of springs can result in serious personal
injury. Springs should be removed by an
authorized technician.
26. Models equipped with an engine radiator:
WARNING: Stored energy device. To prevent
serious bodily injury from hot coolant or steam
blow-out, never attempt to remove the radiator cap
while the engine is running. Stop the engine and
wait until it is cool. Even then, use extreme care
when removing the cap
Not for
Reproduction
9
Safety
Safety Rules & Information
ROLL BAR INSTRUCTIONS
For models equipped with factory-installed Roll Over
Protection System (ROPS).
OPERATIONAL WARNINGS
• Always use the seat belt when the roll bar is in the
raised position.
• Never use the seat belt when the roll bar is in the
down position.
• Remember there is no roll over protection when
the roll bar is in the down position so it is very
important to always keep the roll bar in the raised
position whenever possible.
• Lower the roll bar to the down position only when
it is absolutely necessary.
• Check for overhead clearances before driving
under any objects. Do not allow roll bar to contact
low overhanging obstacles such as tree branches
and guide wires.
• Never remove the roll bar from the vehicle.
• Do not exceed the machine weight rating of the
roll bar.
• Read and follow all of the instructions shown
below regarding the inspection and maintenance
of the roll bar structure and the seat belt.
INSPECTION OF THE ROLL BAR PROTECTIVE
STRUCTURE
A ROLL BAR, like any other safety device, needs to be
periodically inspected to verify that the integrity of the
device has not been compromised through normal
machine use, misuse, age degradation, modifications,
or a roll over.
To maintain operator roll over protection and roll bar
effectiveness:
• If a ROLL BAR becomes damaged for any reason,
such as a collision, roll over or impact, the ROLL
BAR must be replaced. Small undetectable
cracks can reduce the effectiveness of the ROLL
BAR. Never weld, straighten, or repair the ROLL
BAR.
• Never alter the ROLL BAR by welding anything to
it or by drilling additional holes.
WARNING
In order to avoid serious injury or death from
roll over, it is important to follow the warnings
listed below.
WARNING
Failure to properly inspect and maintain the
ROLL BAR protective structure can cause
serious injury or death.
• BEFORE FIRST TIME USE - Inspect the ROLL
BAR structure and mounting hardware for:
1) Check to make sure the machine GVW (Gross
Vehicle Weight), including attachments,
restrained payload, fuel and operator, is not in
excess of the maximum weight specified on
the ROLL BAR label.
2) Make sure there isn’t any missing, damaged,
or loose mounting hardware.
3) Make sure the ROLL BAR has been correctly
and completely installed.
• EVERY 100 HOURS - Inspect the ROLL BAR
structure and mounting hardware for:
1) Any cracks in the structure (structural
members and/or welds).
2) Significant corrosion on any part of the ROLL
BAR structure or hardware.
3) Missing, damaged, or loose mounting
hardware.
4) Mounting hardware that is of a grade lesser
than specified.
5) Machine GVW (Gross Vehicle Weight),
including attachments, restrained payload, fuel
and operator, in excess of the maximum weight
specified on the ROLL BAR label.
6) Any modifications that have been made, such
as unauthorized welds and holes.
7) Any permanent deformation or twisting of the
ROLL BAR structure.
8) That the ROLL BAR label is still in place and is
readable.
9) That the ROLL BAR on-product warning labels
are still on the ROLL BAR and are readable.
• If there is any doubt as to the condition of the
ROLL BAR, remove the machine from service and
contact your dealer for assistance.
Not for
Reproduction
10
www.simplicitymfg.com
Safety
INSPECT BUCKLE
& LATCH
INSPECT WEBBING
Safety Rules & Information
WARNING
Failure to properly inspect and maintain the
seat belt can cause serious injury or death.
INSPECTION AND MAINTENANCE OF
THE ROLL BAR SEAT BELT
• The seat belt like the ROLL BAR, needs to be
periodically inspected to verify that the integrity
has not been compromised through normal
machine use, misuse, age degradation,
modifications, or a roll over. If the seat belt does
not pass all of the following tests, it should be
replaced.
• BEFORE EACH USE – Conduct the following
inspections/maintenance of the seat belt and
retraction mechanism:
1) Check for dirt or debris in the retraction
mechanism. If dirt or debris is found, it should
be removed.
2) Check to make sure the retraction mechanism
retracts easily and completely.
3) Check for damage to any part of the seat belt
such as nicks, cuts, loose stitching, or fraying.
4) Check that the buckle and latch operate
properly and that the latch plate is not
excessively worn, deformed, or the buckle is
damaged or cracked. The seat belt should
latch and release easily.
Not for
Reproduction
Safety
Identification Numbers
Identification Numbers
SSAAMMPPLLEE
When contacting your authorized dealer for
replacement parts, service, or information you
MUST have these numbers.
Record your part number, serial number and engine
serial numbers in the space provided for easy access.
These numbers can be found in the locations shown.
NOTE: For location of engine identification numbers,
refer to the engine owner’s manual.
11
Identification
Tag
SSAAMMPPLLEE
North American /
CE Models
CE Models
(Only)
CE Identification Tag Markings
A. Manufacturer’s Identification Number
B. Manufacturer’s Serial Number
C. Power Rating in Kilowatts
D. Maximum Engine Speed in Rotations per Minute
E. Manufacturer’s Address
F. Year of Manufacture
G. CE Compliance Logo
H. Mass of Unit in Kilograms
I. Sound Power in Decibels ***
J. Sound Pressure at Operator’s Position in Decibels
**
K. Vibration at the Steering Wheel *
L. Vibration at the Seat *
This unit complies with European Harmonized Lawn Mower
Standard EN 836, European Machinery Directive 98/37/EC,
and European EMC Directive 89/336/EC
* Tested according to EN 836:1997/A2:2001, EN 1032:
1996, EN 1033:1995
** Tested according to EN836:1997/A2:2001
*** Tested according to 2000/14/EC
CE Models:
Place copy of
Identification Tag here.
A
B
C
D
J
K
L
E
F
G
H
I
Not for
Reproduction
Mfg. No.: 269XXXX
kW: XXX
Engine RPM XXXX
LpA: XXX dB(A)
Vibration @ Wheel: XXX m/s²
Vibration @ Seat: XXX m/s²
Simplicity Mfg. Inc.
Port Washington, WI USA 53074-0997
2005
dB(A)
12
www.simplicitymfg.com
Safety
SAFETY DECALS
This unit has been designed and manufactured to
provide you with the safety and reliability you would
expect from an industry leader in outdoor power
equipment manufacturing.
Although reading this manual and the safety
instructions it contains will provide you with the
necessary basic knowledge to operate this equipment
safely and effectively, we have placed several safety
labels on the unit to remind you of this important
information while you are operating your unit.
All DANGER, WARNING, CAUTION and
instructional messages on your rider and mower
should be carefully read and obeyed. Personal bodily
injury can result when these instructions are not
followed. The information is for your safety and it is
important! The safety decals below are on your rider
and mower.
If any of these decals are lost or damaged, replace
them at once. See your local dealer for replacements.
These labels are easily applied and will act as a
constant visual reminder to you, and others who may
use the equipment, to follow the safety instructions
necessary for safe, effective operation.
Safety Decals
Not for
Reproduction
1
2
3
AMPUTATION AND THROWN
To avoid injury from rotating blades,
stay clear of deck edge and keep others
away. Do not mow without discharge
chute or entire grass catcher in place.
OBJECTS HAZARD
5100137 A
5
8
6
2
4
7
4
1
5
6
7
3
8
Loading...
