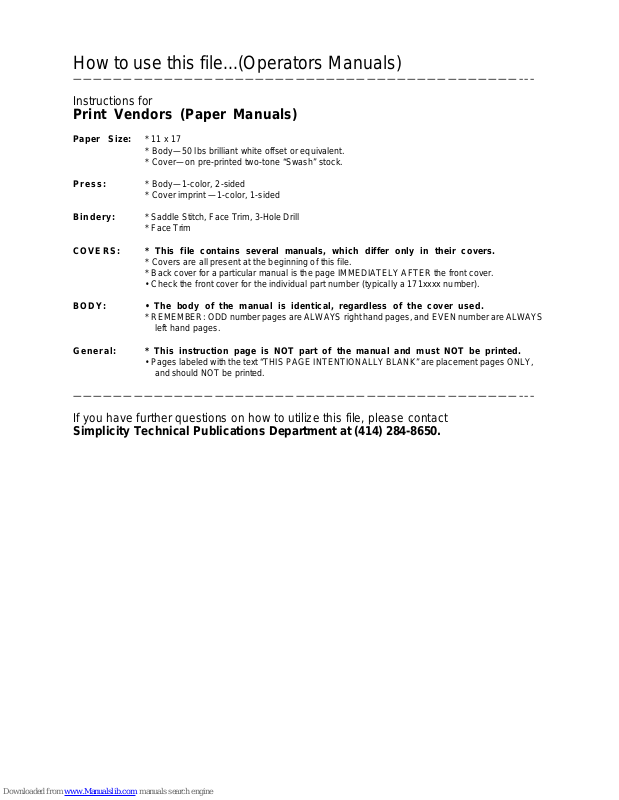

How to use this file...(Operators Manuals)
————————————————————————————————————————————–––
Instructions for
Print Vendors (Paper Manuals)
Paper Size: * 11 x 17
* Body—50 lbs brilliant white offset or equivalent.
* Cover—on pre-printed two-tone “Swash” stock.
Press: * Body—1-color, 2-sided
* Cover imprint —1-color, 1-sided
Bindery: * Saddle Stitch, Face Trim, 3-Hole Drill
* Face Trim
COVERS: * This file contains several manuals, which differ only in their covers.
* Covers are all present at the beginning of this file.
* Back cover for a particular manual is the page IMMEDIATELY AFTER the front cover.
• Check the front cover for the individual part number (typically a 171xxxx number).
BODY: • The body of the manual is identical, regardless of the cover used.
* REMEMBER: ODD number pages are ALWAYS right hand pages, and EVEN number are ALWAYS
left hand pages.
General: * This instruction page is NOT part of the manual and must NOT be printed.
• Pages labeled with the text “THIS PAGE INTENTIONALLY BLANK” are placement pages ONLY,
and should NOT be printed.
————————————————————————————————————————————–––
If you have further questions on how to utilize this file, please contact
Simplicity Technical Publications Department at (414) 284-8650.
THIS PAGE INTENTIONALLY BLANK
Replacement
OPERATOR’S
MANUAL
Regent / 500 / 2500 Series &
Sport Series “Team Tractors”
14HP Gear Tractors
Mfg. No. Description
1692593 Regent, 14HP Gear
1692595 514G, 14HP Gear
1692597 2514G, 14HP Gear
1692599 Regent, 14HP Gear (Export)
14HP Hydro Tractors
Mfg. No. Description
1692354 Regent, 14HP Hydro
1692601 Regent, 14HP Hydro (Export)
1692588 514H, 14HP Hydro
1692591 2514H, 14HP Hydro
16HP Gear Tractors
Mfg. No. Description
1692760 Regent, 16HP Gear
1692768 Regent, 16HP Gear (Export)
1692829 516G, 16HP Gear
16HP Hydro Tractors
Mfg. No. Description
1692762 Regent, 16HP Hydro
1692770 Regent, 16HP Hydro (Export)
1692831 516H, 16HP Hydro
1692835 2516H, 16HP Hydro
Team Tractors
Mfg. No. Description
1692957 Vikings Regent Tractor
1692959 Steelers Regent Tractor
1692961 Panthers Regent Tractor
1692963 Chiefs Regent Tractor
1692965 Colts Regent Tractor
1692967 Badgers Regent Tractor
1692969 Hawkeyes Regent Tractor
1692971 Wolverines Regent Tractor
1692973 Spartans Regent Tractor
1692975 Nittany Lions Regent Tractor
1692874 Packers Regent Tractor
Mower Decks
Mfg. No. Description
1692358 38” Mower Deck
1692589 38” Mower Deck
1692744 44” Mower Deck
1692851 44” Mower Deck
1692875 38" Mower Deck (Packers)
1713464-04
Superceedes 1714904,
1714905, 1716576, & 1717288
Rev 1/2003
TP 100-2013-04-RG-SMA
Note: This Replacement Operator’s Manual is a combination of several manuals no longer in production, but contains the same information as the Operator’s Manual furnished with the original tractor.
MANUFACTURING, INC.
500 N Spring Street / PO Box 997
Port Washington, WI 53074-0997
www.simplicitymfg.com
© Copyright 1996, Simplicity Manufacturing, Inc.
All Rights Reserved. Printed in USA.
TRACTOR & MOWER IDENTIFICATION.....................2
SAFETY RULES............................................................3
DECALS.........................................................................5
FEATURES & CONTROLS...........................................6
Controls - Hydro Models.......................................................6
Controls - Gear Models.........................................................6
OPERATION..................................................................7
General.................................................................................
7
Safety Interlock System........................................................7
Mower Installation & Removal.............................................
8
Adjusting Mower Height .......................................................
8
Checks Before Starting ........................................................
9
Clutch/Brake Pedal - Gear Models.......................................9
Parking Brake.......................................................................9
Starting The Engine..............................................................9
Driving The Tractor...............................................................9
Stopping the Tractor...........................................................10
Pushing the Tractor by Hand .............................................10

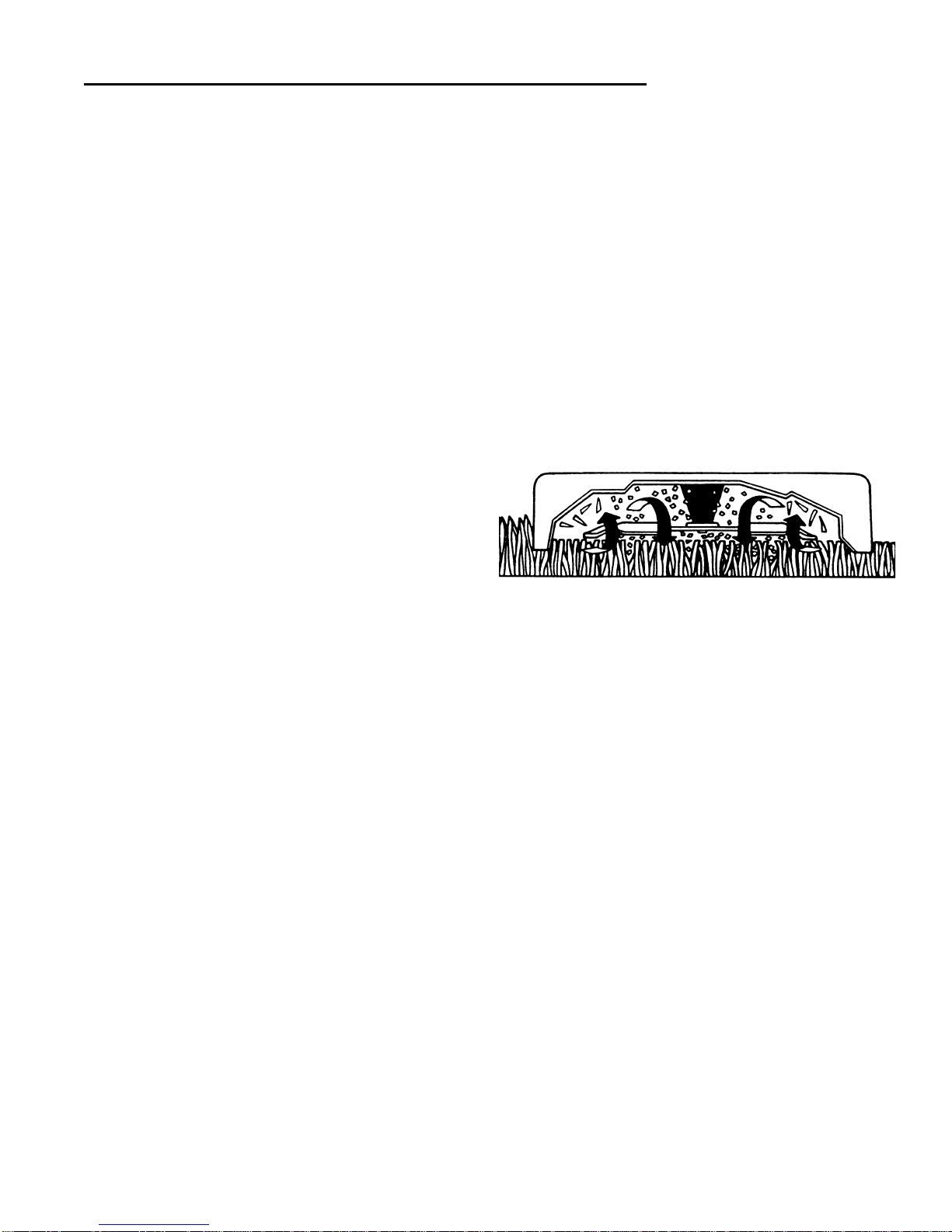

MOWING TIPS.............................................................11
NORMAL CARE ..........................................................13

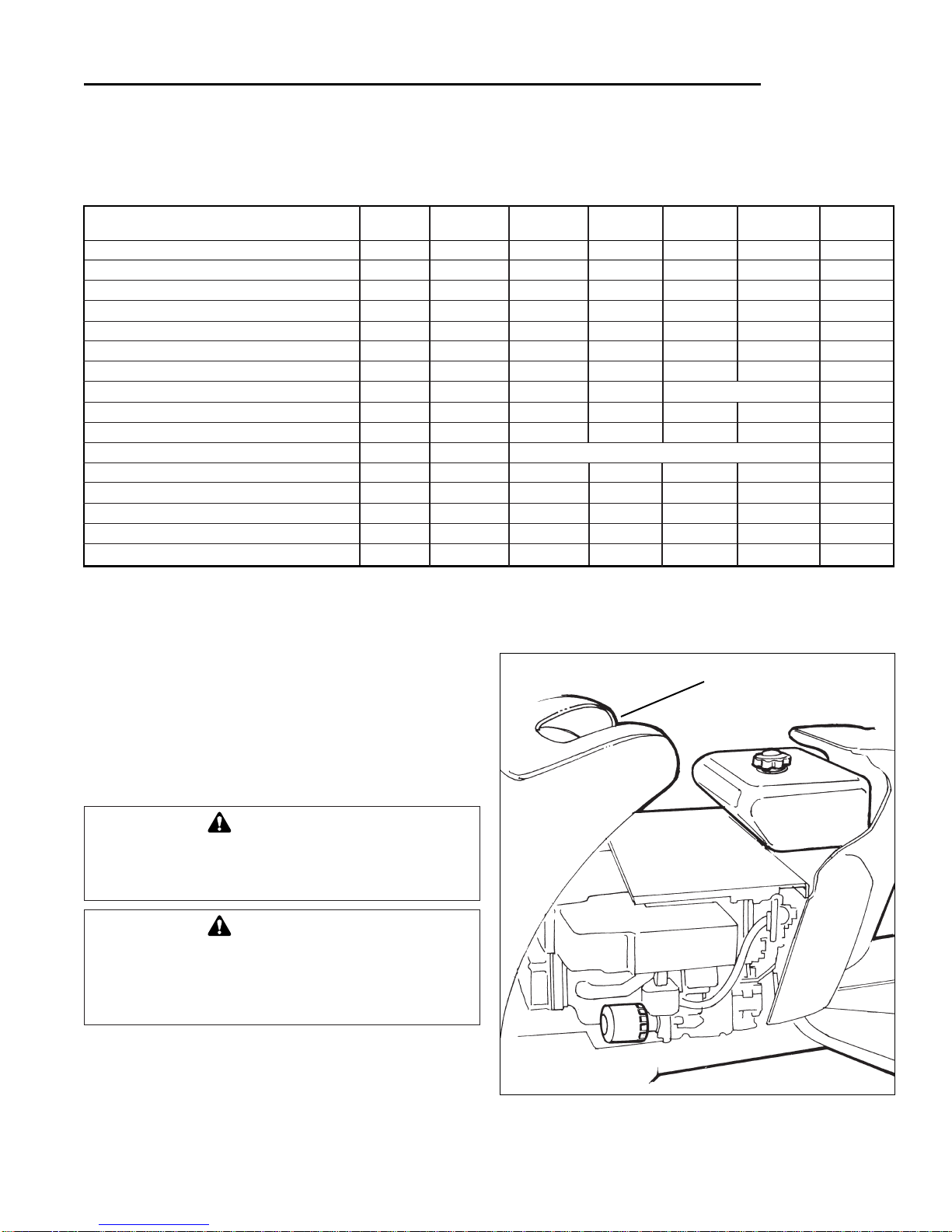

Schedule.............................................................................13
Raising the Hood & Seat ...................................................13
Checking/Adding Gasoline .................................................13
Checking Tire Pressure......................................................14
Checking the Fuel Filter......................................................14
Lubrication..........................................................................14
Transaxle - Hydro Models...................................................15
Battery Maintenance...........................................................15
Checking Battery Fluid.....................................................15
Cleaning the Battery and Cables.....................................15
Servicing the Mower Blades...............................................16
STORAGE ...................................................................17
Temporary Storage.............................................................17
Long Term Storage.............................................................17
Starting After Storage.........................................................17
TROUBLESHOOTING & REPAIR...............................18
General...............................................................................18
Troubleshooting The Tractor ..............................................18
Troubleshooting The Mower...............................................19
Checking the Battery ..........................................................20
Charging A Completely
Discharged Battery..........................................................20

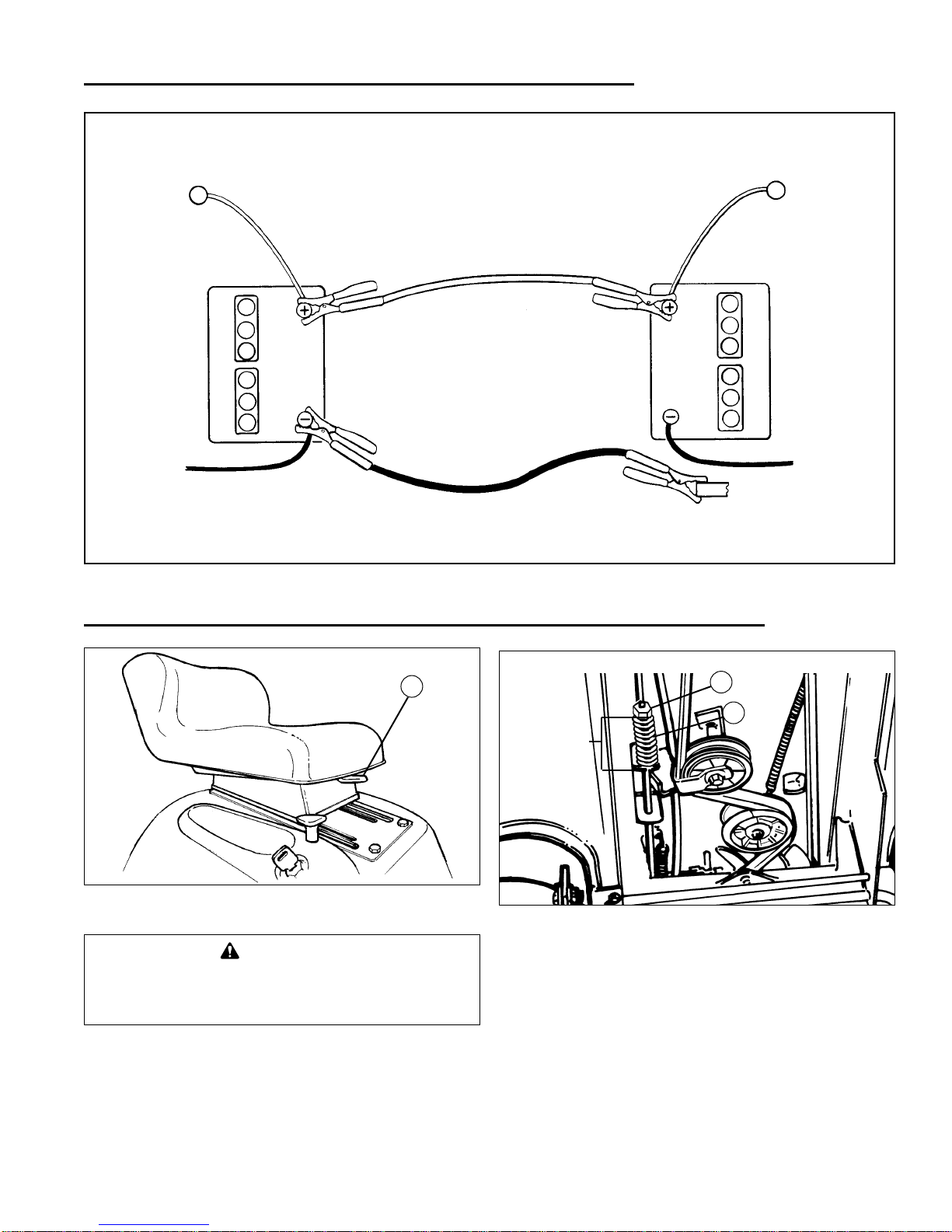

Jump Starting with
Auxiliary (Booster) Battery...............................................20
ADJUSTMENTS...........................................................
22
Seat Adjustment .................................................................22
Steering Gear Adjustment ..................................................22
Brake Spring Adjustment ...................................................22
Brake Adjustment - Hydro...................................................23
Brakel Adjustment - Gear ...................................................23
Mower Adjustments............................................................24
Leveling The Mower .........................................................24
Blade Brake Check...........................................................25
BELT REPLACEMENT................................................
25

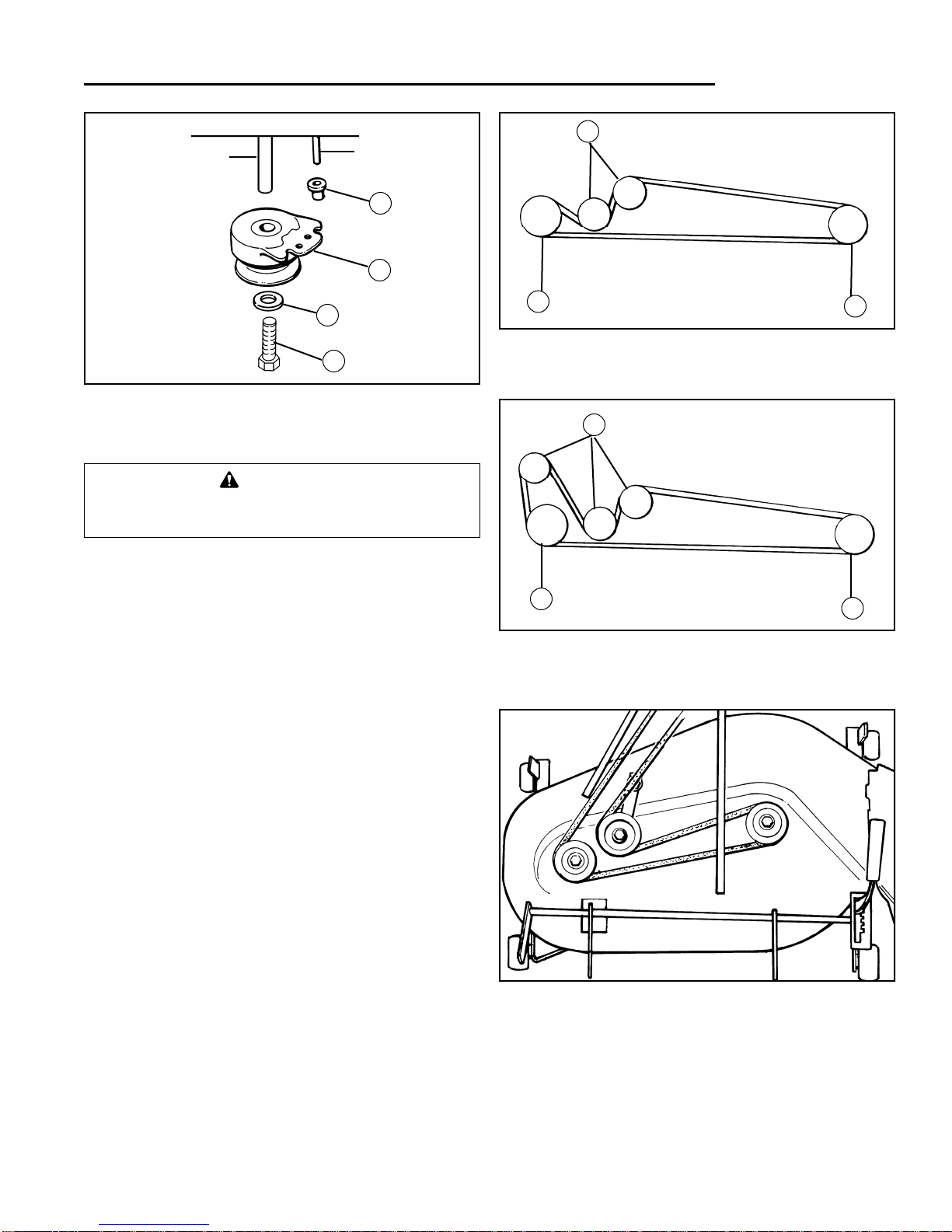

Mower Belt Replacement.......................................
25
Tractor Drive Belt Replacement.............................
26
SPECIFICATIONS........................................................
27
PARTS & ACCESSORIES...........................................
28
Replacement Parts.............................................................28
Maintenance Items .............................................................28
Optional Accessories..........................................................28
Technical Literature............................................................28
INTERNATIONAL SYMBOLS......................................
29
NOTE: In this manual, “left” and “right” are referred to as
seen from the operating position.
1
Table Of Contents
WARNING
Engine exhaust from this product contains chemicals know, in certain quantities, to cause cancer,
birth defects, or other reproductive harm.
Printed in USA.
2
Tractor & Mower Identification
IDENTIFICATION NUMBERS
Record your model name/number, tractor and mower
deck manufacturer numbers and engine serial number in
the space provided for easy reference.
• The Tractor I.D. tag is located on the left-side, of the
frame, as shown below.
• The Mower Deck I.D. tag is also on the left side, on
top of the mower deck.
• For location of Engine Serial Number, refer to the
Engine Owner’s Manual.
Be sure to fill out and return the Warranty Registration
Card supplied with your tractor.
Mower Deck
Identification Tag
Tractor
Identification Tag
Figure 1. Identification Tags Location
ENGINE REFERENCE DATA
Model Description Name/Number
Tractor M/N
(Manufacturer’s Number)
PRODUCT REFERENCE DATA
S/N (Serial Number)
Dealer Name
Date Purchased
Engine Make/Model
Engine ID/Serial Number
Mower Deck M/N (Manufacturer’s Number)
S/N (Serial Number)
03
GENERAL OPERATION
• Read, understand, and follow all instructions in the
manual and on the unit before starting.
• Only allow responsible adults, who are familiar with
the instructions, to operate the unit.
• Clear the area of objects such as rocks, toys, wire,
etc., which could be picked up and thrown by the
blade(s).
• Be sure the area is clear of other people before mowing. Stop unit if anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while travelling in reverse.
• Be aware of the mower discharge direction and do
not point it at anyone. Do not operate the mower
without either the entire grass catcher or the deflector
in place.
• Slow down before turning.
• Never leave a running unit unattended. Always
disengage the PTO, set parking brake, stop engine,
and remove keys before dismounting.
• Turn off the PTO switch to disengage the blades
when not mowing.
• Stop engine before removing grass catcher or
unclogging chute.
• Mow only in daylight or good artificial light.
• Do not operate the unit while under the influence of
alcohol or drugs.
• Watch for traffic when operating near or crossing
roadways.
• Use extra care when loading or unloading the unit
into a trailer or truck.
SLOPE OPERATION
Slopes are a major factor related to loss-of-control and
tip-over accidents, which can result in severe injury or
death. All slopes require extra caution. If you cannot
back up the slope or if you feel uneasy on it, do not mow it.
Do
• See your authorized dealer for recommendations of
wheel weights or counterweights to improve stability.
• Mow up and down slopes, not across.
• Remove obstacles such as rocks, tree limbs, etc.
• Watch for holes, ruts, or bumps. Uneven terrain could
overturn the unit. Tall grass can hide obstacles.
• Use slow speed. Choose a low gear so that you will
not have to stop or shift while on the slope.
• Use extra care with grass catchers or other attachments. These can change the stability of the unit.
• Keep all movement on the slopes slow and gradual.
Do not make sudden changes in speed or direction.
Do Not
•
Do not
start or stop on a slope. If tires lose traction,
disengage the blade(s) and proceed slowly straight
down the slope.
•
Do not
turn on slopes unless necessary, and then,
turn slowly and gradually downhill, if possible.
•
Do not
mow near drop-offs, ditches, or embankments. The mower could suddenly turn over if a
wheel is over the edge of a cliff or ditch, or if an edge
caves in.
•
Do not
mow on wet grass. Reduced traction could
cause sliding.
•
Do not
try to stabilize the unit by putting your foot on
the ground.
•
Do not
use grass catcher on steep slopes.
3
Safety Rules
Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of
unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. This mow-
ing deck is capable of amputating hands and feet and throwing objects. The triangle in text signi-
fies important cautions or warnings which must be followed.
WARNING - SLOPE OPERATION
Never operate on slopes greater than 30 percent
(16.7°) which is a rise of three feet vertically in 10 feet
horizontally. When operating on slopes that are
greater than 15 percent (8.5°) but less than 30 percent
use front counterweights and rear wheel weights (see
your dealer). Select slow ground speed before driving
onto slope. In addition to front and rear weights, use
extra caution when operating on slopes with rearmounted grass catcher. Mow UP and DOWN the slope,
never across the face, use caution when changing
directions and DO NOT START OR STOP ON SLOPE.
4
CHILDREN
Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the unit and the mowing activity. Never assume that children will remain where you last saw them.
• Keep children out of the mowing area and under the
watchful care of another responsible adult.
• Be alert and turn unit off if children enter the area.
• Before and during reverse operation, look behind and
down for small children.
• Never carry children. They may fall off and be seriously injured or interfere with safe unit operation.
• Never allow children to operate the unit.
•
Use extra care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.
TRANSPORTING AND STORAGE
• Always observe safe refueling and fuel handling practices when refueling the tractor after transportation or
storage.
• Always follow the engine manual instructions for
storage preparations before storing the tractor for
both short and long term periods.
• Always follow the engine manual instructions for
proper start-up procedures when returning the unit to
service.
• Never store the unit or fuel container inside where
there is an open flame or pilot light, such as in a
water heater. Allow unit to cool before storing.
SERVICE AND MAINTENANCE
• Use extra care in handling gasoline and other fuels.
They are flammable and vapors are explosive.
a) Use only an approved container.
Safety Rules
b) Never remove gas cap or add fuel with the engine
running. Allow engine to cool before refueling. Do
not smoke.
c) Never refuel the unit indoors.
• Never run a unit in an enclosed area.
• Keep nuts and bolts, especially blade attachment
bolts, tight and keep equipment in good condition.
• Never tamper with safety devices. Check their proper
operation regularly.
• Keep unit free of grass, leaves, or other debris buildup. Clean up oil or fuel spillage.
• Stop and inspect the equipment if you strike an
object. Repair, if necessary, before restarting.
• Never make adjustments or repairs with the engine
running unless specified otherwise in the engine
manufacturer’s manual.
• Grass catcher components are subject to wear, damage, and deterioration, which could expose moving
parts or allow objects to be thrown. Frequently check
components and replace with manufacturer’s recommended parts, when necessary.

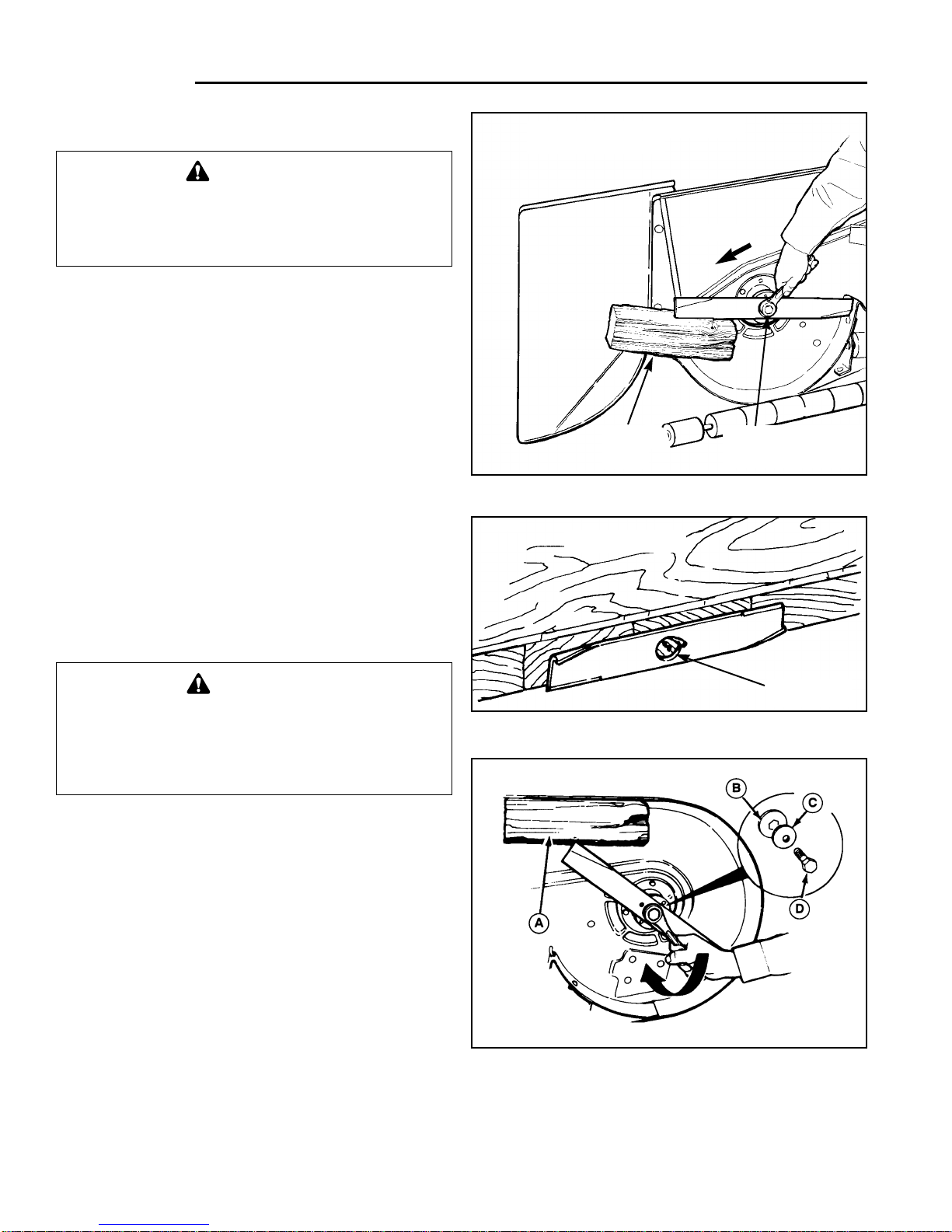

• Mower blades are sharp and can cut. Wrap the
blade(s) or wear gloves, and use extra caution when
servicing them.
• Check brake operation frequently. Adjust and service
as required.
• Use only factory authorized replacement parts when
making repairs.
• Always comply with factory specifications on all
settings and adjustments.
• Only authorized service locations should be utilized
for major service and repair requirements.
• Never attempt to make major repairs on this unit
unless you have been properly trained. Improper service procedures can result in hazardous operation,
equipment damage and voiding of manufacturer’s
warranty.
WARNING
Never place hands near the hydro pump cooling
fan when the tractor is running. Cooling fan is
located on top of transaxle on hydro models.
WARNING
When transporting this tractor on an open trailer,
make sure unit is facing forward, toward the
direction of travel. If tractor is facing backward,
wind lift could cause damage to the hood.
THROTTLE
Choke
Fast
Slow
To Start Engine
When Operator Leaves Seat
Traction Control
To Operate PTO Clutch
• Seat must be occupied, ground speed control pedal in neutral,
PTO switch must be off, and clutch/brake pedal depressed.
• Put ground speed control pedal in neutral,
turn PTO switch off, and set parking brake.
• To stop tractor motion, fully depress clutch/brake pedal.
• On hydrostatic drive tractors, movement of traction pedal
from neutral, in either direction, increases ground speed.
• The operator must be in seat.
• To engage PTO, pull PTO switch up.
• To disengage PTO, push PTO switch down.
To Set Parking Brake
• Pull knob UP while clutch/brake pedal is depressed.
• Release clutch/brake pedal while holding knob.
To Release Parking Brake
• Depress clutch/brake pedal.
• Push knob DOWN while clutch/brake pedal is depressed.
Mower DOWN
Mower UP
Clutch/Brake
Pedal
PTO Switch Ignition Switch
Mower
Height
Adjust
OPERATION
DO NOT TOW TRACTOR!
Damage may result to transmission
ROTATING BLADES CUT
OFF ARMS AND LEGS
STOP MOWER WHEN
CHILDREN ARE NEAR.
NO RIDERS — THEY FALL OFF.
DANGER DANGER
OPERATING ON SLOPES
CAN BE DANGEROUS
SEE OPERATOR'S MANUAL.
IF YOU CANNOT BACK-UP
A HILL —DO NOT DRIVE ON IT.
AVOID SERIOUS INJURY OR DEATH
• Read operator's manual(s).
• Know location and function of all controls.
• Keep safety devices (guards, shields, and switches)
in place and working.
• Remove objects that could be thrown by the blade.
• Do not mow when children or others are around.
• Never carry children.
• Look down and behind before and while backing.
• Avoid sudden turns.
WARNING
• If you cannot back up a hill, do not operate on it.
• Go up and down slopes, not across.
• If machine stops going uphill, stop blade and
back down slowly.
• Be sure blade(s) and engine are stopped before
placing hands or feet near blade(s).
• When leaving machine, shut off engine, remove
key, and set parking brake.
OFF
RUN
START
Parking Brake
1716530
5
Safety Decals
GENERAL
This unit has been designed and manufactured to provide you with the safety and reliability you would expect
from an industry leader in outdoor power equipment
manufacturing.
Although reading this manual and the safety instructions
it contains will provide you with the necessary basic
knowledge to operate this equipment safely and effectively, we have placed several safety labels on the unit to
remind you of this important information while you are
operating your tractor.
All WARNING, CAUTION and instructional messages on
your tractor and mower should be carefully read and
obeyed. Personal bodily injury can result when these
instructions are not followed. The information is for your
safety and it is important! The safety decals below are on
your tractor and mower.
If any of these decals are lost or damaged, replace them
at once. See your local dealer for replacements.
These labels are easily applied and will act as a constant
visual reminder to you, and others who may use the
equipment, to follow the safety instructions necessary for
safe, effective operation.
Decal - Operating Instructions
Part No. 1716530
Decal - Hydro Release Valve
Part No. 1708918
Decal - Danger
Part No. 1704276 (top decal)
Part No. 1704277 (bottom decal)
DANGER
ROTATING CUTTING BLADE
DO NOT OPERATE MOWER
WITHOUT DEFLECTOR
OR ENTIRE GRASS
CATCHER IN PLACE
DANGER
ROTATING CUTTING BLADE
DO NOT OPERATE MOWER
WITHOUT DEFLECTOR
OR ENTIRE GRASS
CATCHER IN PLACE
03
6
CONTROLS - HYDRO MODEL
CONTROLS - GEAR MODEL
Features & Controls
Figure 2. Tractor & Mower Controls - Hydro Model
Figure 3. Tractor & Mower Controls - Gear Model
A. Steering Wheel
B. Engine Throttle Control
C. Parking Brake Knob
D. Ignition Key/Switch
E. Headlight Switch
F. PTO (Electric Clutch) Switch
G. Mower Height Adjustment Lever
H. Brake Pedal
I. Forward Direction Pedal
J. Rear Direction Pedal
A. Steering Wheel
B. Engine Throttle Control
C. Parking Brake Knob
D. Ignition Key/Switch
E. Headlight Switch
F. PTO (Electric Clutch) Switch
G. Mower Height Adjustment Lever
H. Clutch/Brake Pedal
I. Gear Selector
A
H
I
G
F
E
D
A
H
G
E
I
F
C
B
D
C
J
B
Loading...
